Department Confidential Drawing
number P1

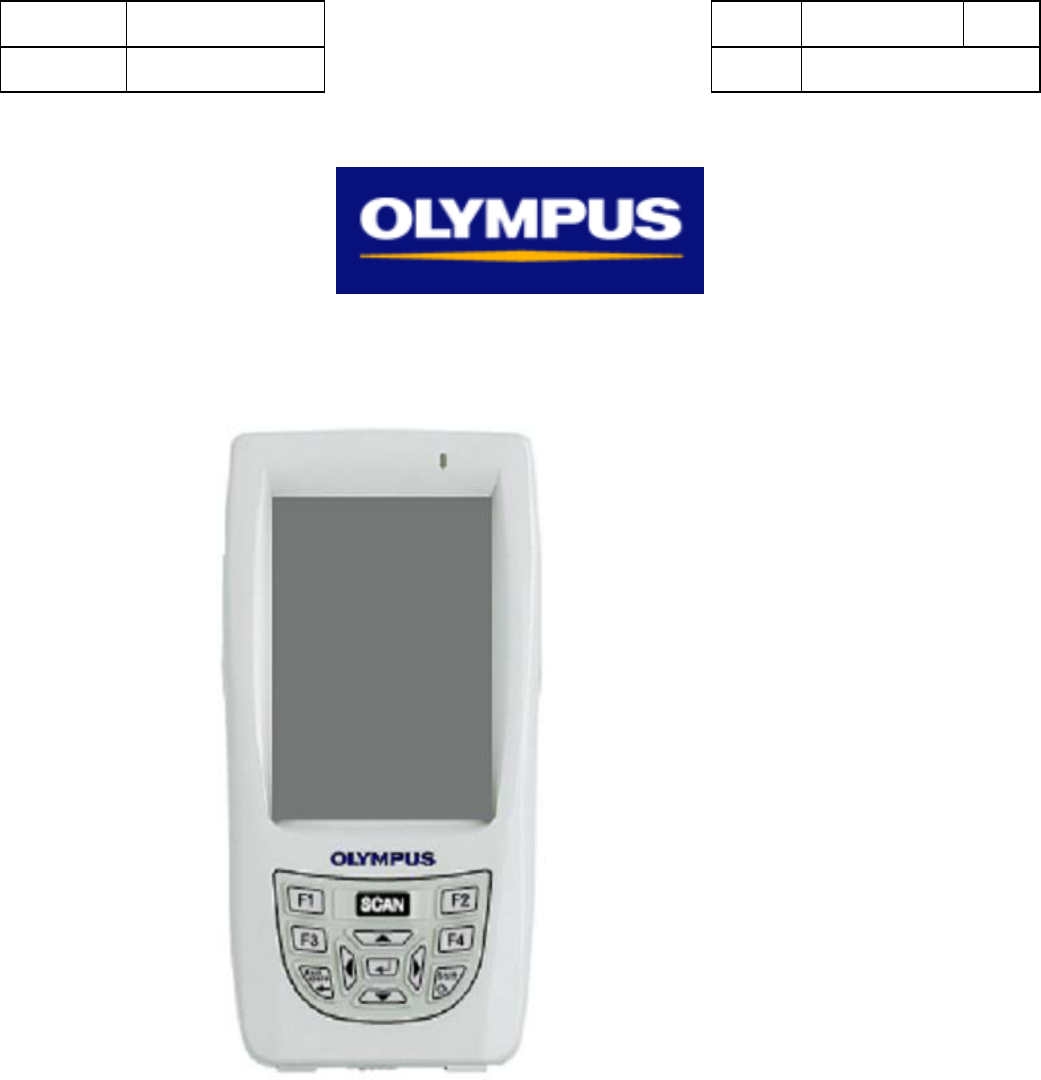

Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Instruction Manual
MAJ-1901
Quick Start Guide
Department Confidential Drawing
number P2
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Copyright 2010 Olympus Technologies Singapore Pte Ltd. All rights reserved.
Olympus and Olympus logo are trademarks of Olympus Technologies Singapore Pte Ltd. Other product and brand names may be trademarks or registered
trademarks of their respective owners.
Olympus Technologies Singapore Pte Ltd assumes no responsibility for any damage or loss resulting from the use of this guide. Olympus Technologies
Singapore Pte Ltd assumes no responsibility for any loss or claims by third parties which may arise through the use of this product. Olympus Technologies
Singapore Pte Ltd assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery or repairs. To protect
against data loss, be sure to make backup copies (on other media) of all important data.
Important: Please read the End User License Agreement for this product before using the device or accompanying software program(s). Using the device
or any part of the software indicates that you accept the terms of the End User License Agreement.
Department Confidential Drawing
number P3
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Content and Additional Resources
To help you get started with your MAJ-1901 PDA, this guide features:
- Hardware Overview
- Getting Started
- Regulatory Information
For additional product details, visit www.olympus.com.sg
For software updates and information, visit www.microsoft.com.
Department Confidential Drawing
number P4
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Hardware Overview

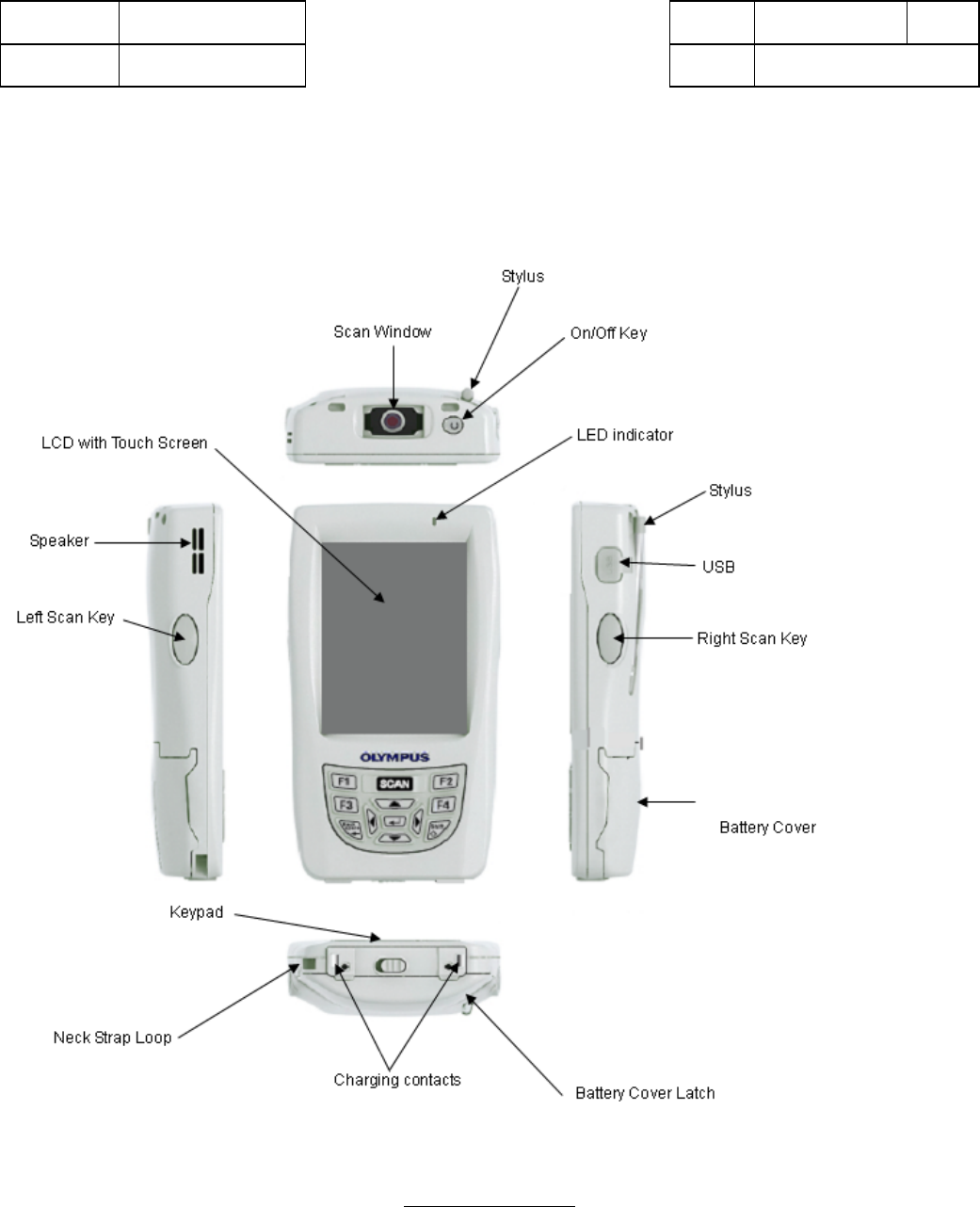

Figure 1: PDA Layout
Department Confidential Drawing
number P5
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual

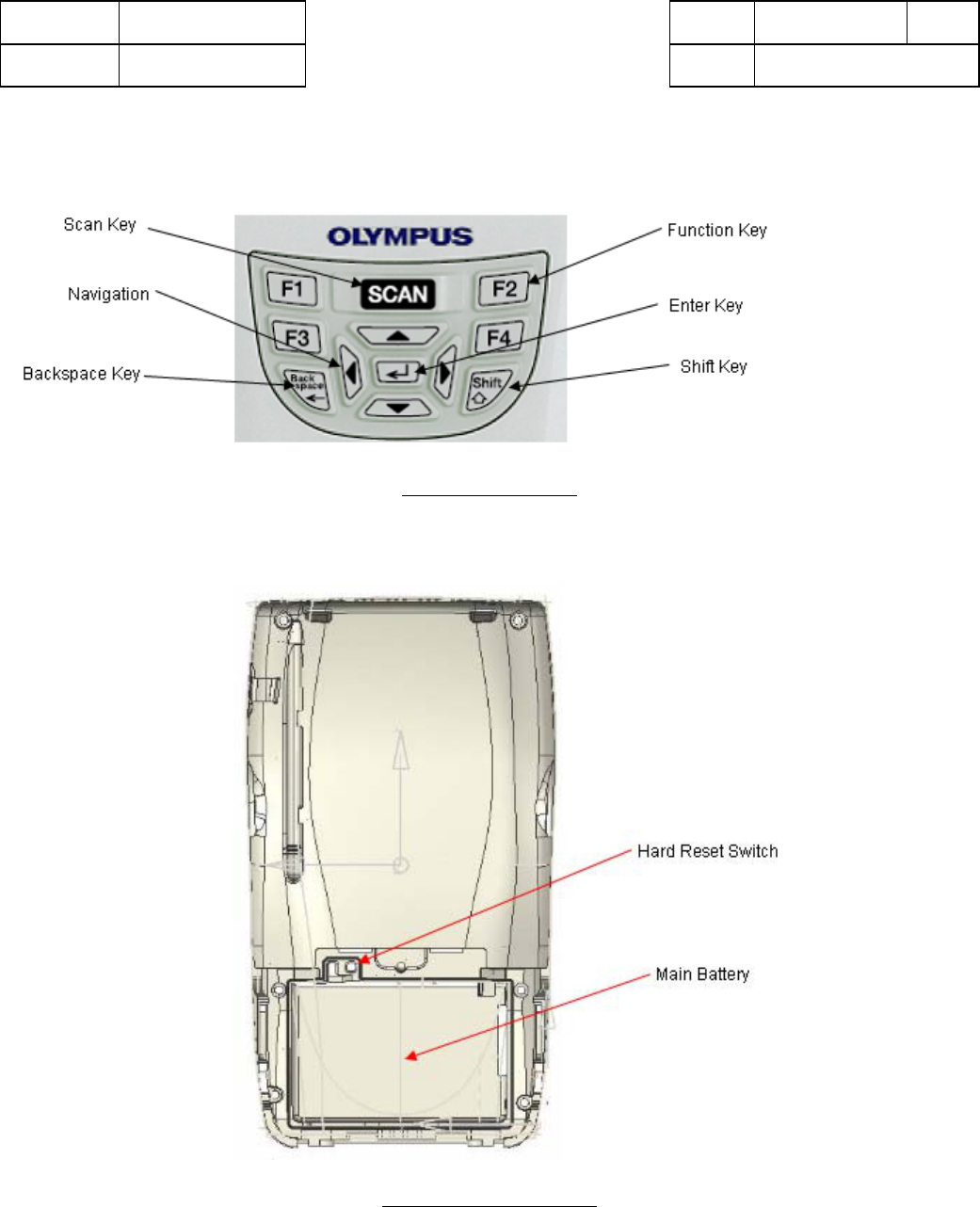

Figure 2: Keys Layout
Figure 3: PDA Back Layout
Department Confidential Drawing
number P6
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Getting Started

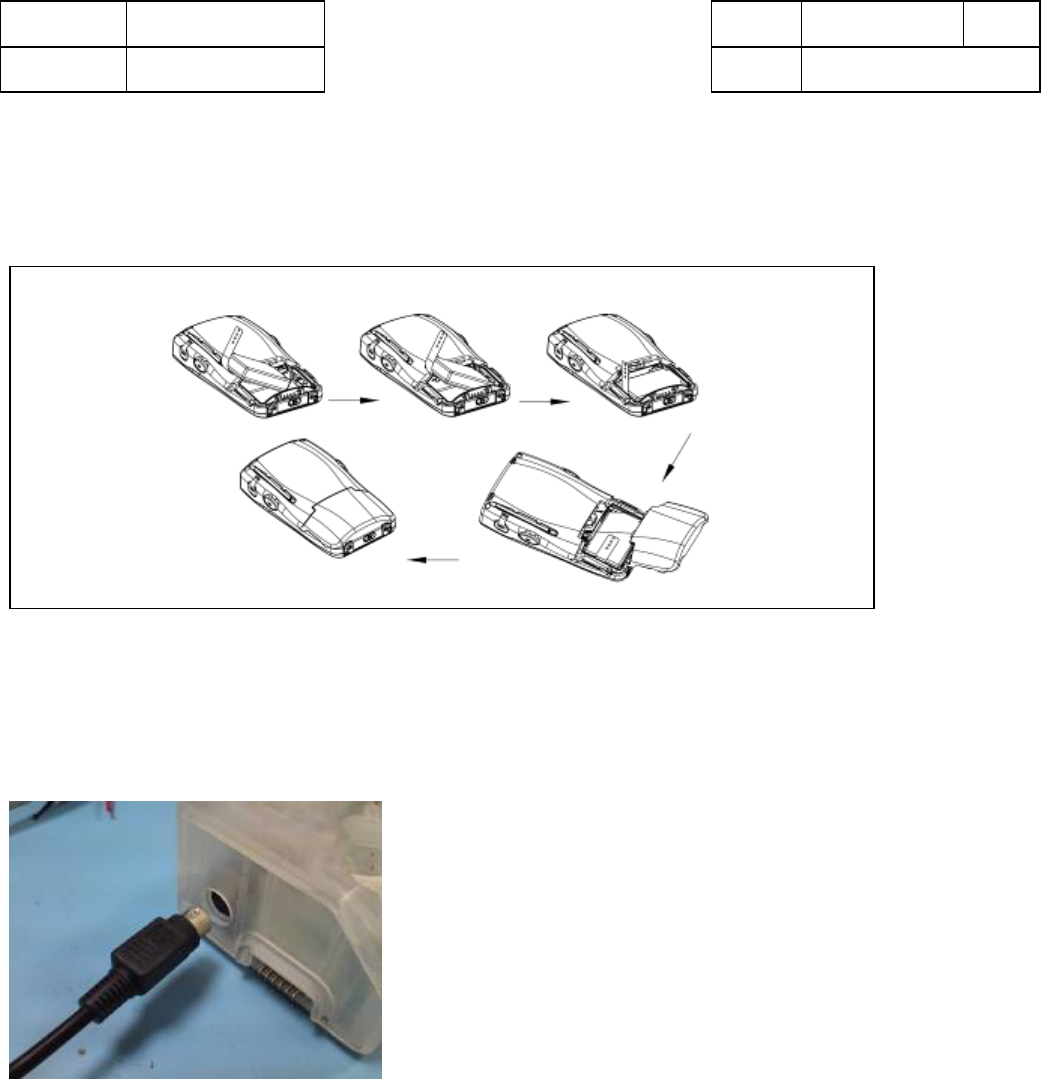

Installing/Replacing the Main Battery
The main battery is replaceable after removing the battery cover located at the back of the PDA.

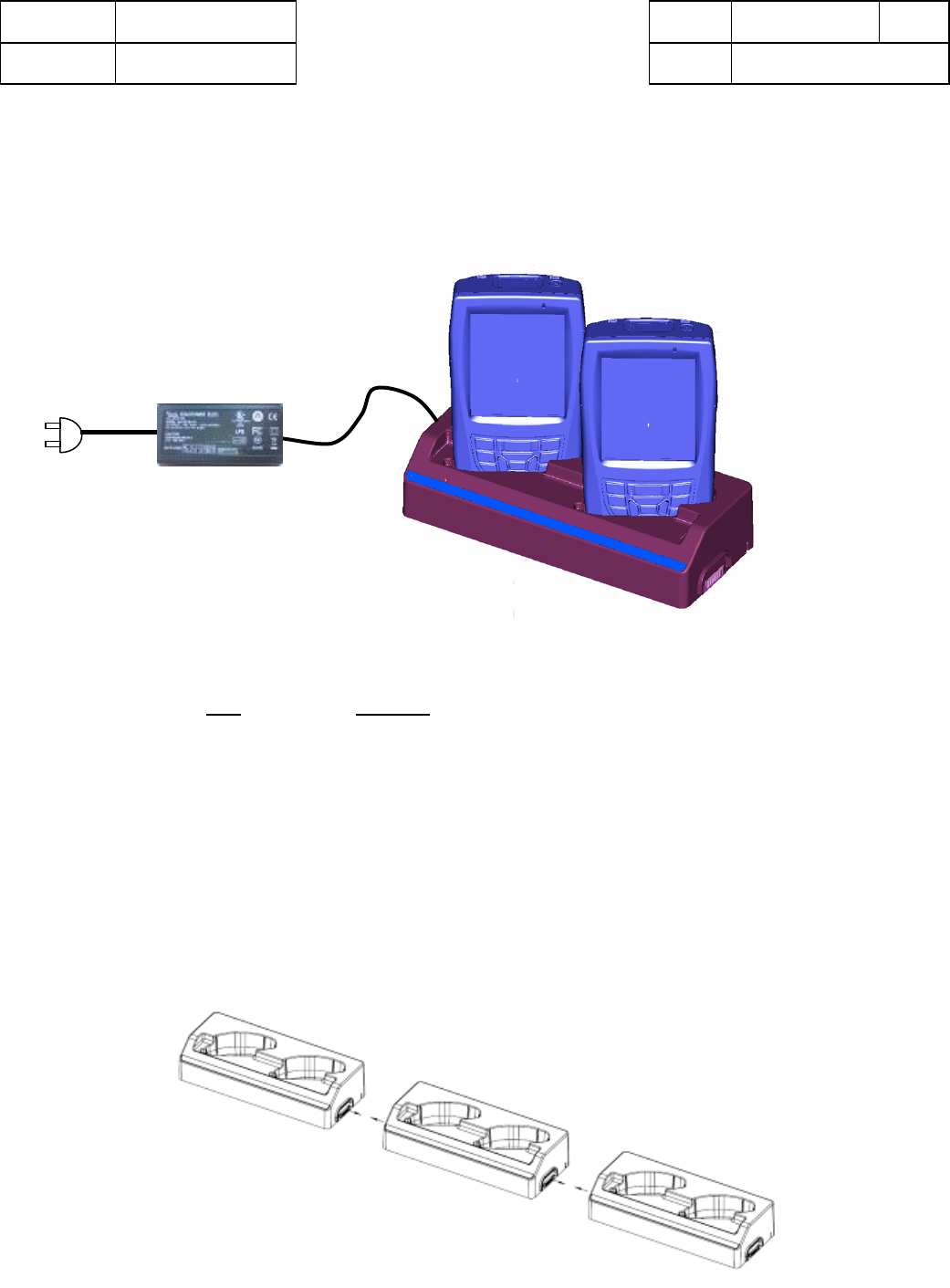

Charging the PDA (Main Battery)
1) Plug the power jack into cradle connector in the direction as shown.
Department Confidential Drawing
number P7
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
2) Switch on the power and ensure the Green LED on power adapter light up. Place the PDA in the cradle as shown, observes the amber LED at
the top right corner of PDA:
The LED charging indicator is shown below:
Mode Amber LED
Charging Solid ON
Charge Full OFF
Charging Fault Blinking

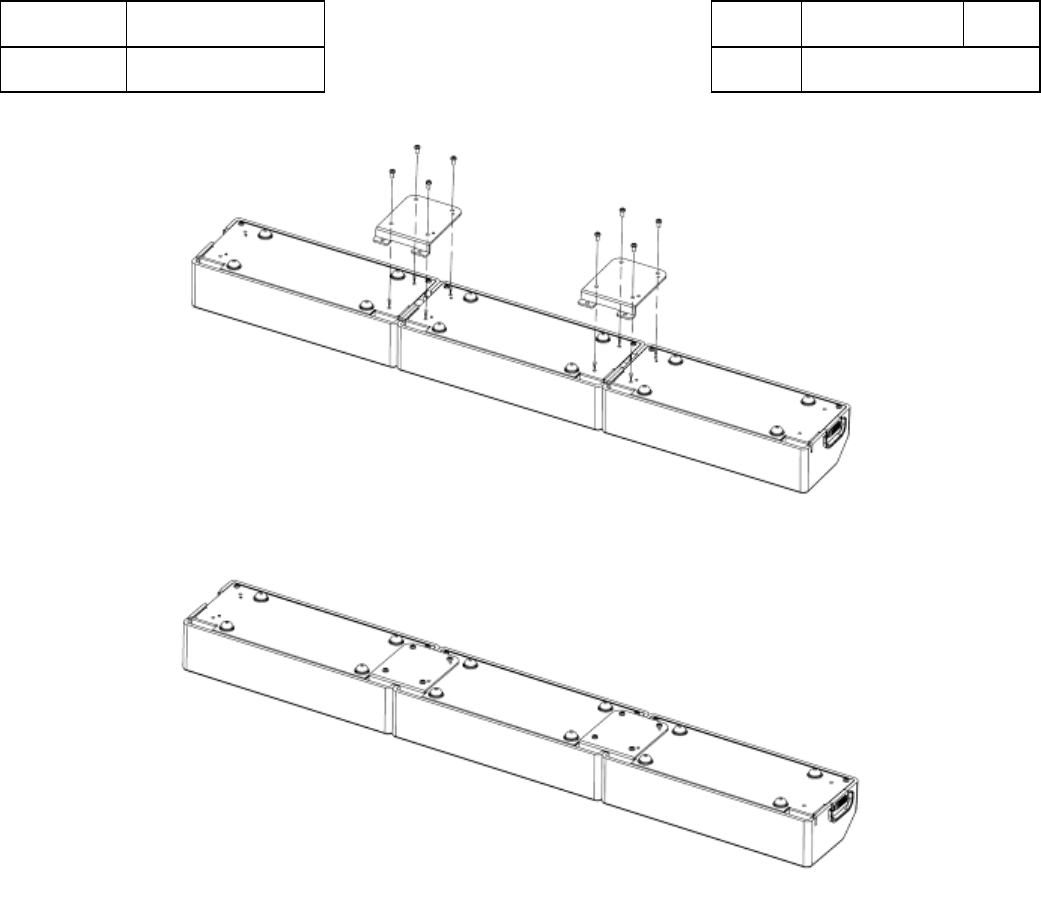

3) Up to 3 cradles can be cascaded using the L-Bracket and screws provided to form a single gang cradle (refer to diagram below), and it is able to
charge up to 6 PDA simultaneously. Note: If a fourth cradle is cascaded, the fourth cradle will not work at all.
Department Confidential Drawing
number P8
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Department Confidential Drawing
number P9
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Resetting the PDA
Reset Type Steps Definition
Soft reset
(Warm Boot)
1. Press Left Scan and F3 keys
simultaneously.
OS and application software will
be reset.
Hard reset
(Cold Boot)
1. Remove battery compartment cover.
2. Press Reset switch (in battery
compartment) using a stylus
3. Attach battery compartment cover.
4. Press Power On button.
Hardware will be reset.
Master reset
(Clean Boot)
1. Remove battery compartment cover.
2. Press Reset switch (in battery
compartment) using a stylus.
3. Attach battery compartment cover.
4. Press and hold the SCAN button.
5. Press Power On button.
System settings are restored to
factory default.
Keys & Switches
Refer to Figure 1.
Power
Button
Power
button
Press this key once to power on the device, to resume
the device from suspend mode, or to place the
terminal into suspend mode.
Keypad Refer to Figure 2
Department Confidential Drawing
number P10
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Application
buttons
Equipped with 4 function keys F1, F2, F3, F4. The
keys are user configurable via software application to
launch particular applications.
Enter
button
Execute a selected application.
Up button Move a cursor upwards
Down
button
Move a cursor downwards
Left button Move cursor to the left
Right
button
Move cursor to the right
Back button Return to the previous level
Shift button Change the function keys to different set of function
keys
Scan Key Trigger either the barcode scanner or RFID reader by
application.
Refer to Figure 1
Side Button
Scan
Buttons
Pressing any of these keys will trigger either the
barcode scanner or RFID reader (controlled by
software application).
Reset Switch Refer to Figure 3
Department Confidential Drawing
number P11
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Reset
Switch
Reset switch is located inside the battery
compartment.
LED Colors
Color Definition
Amber Indicate barcode scanning or RFID tag reading is in progress when in
operation. Battery charging in progress when docked in cradle.
Green Indicate barcode decoding and RFID reading successfully completed.
Amber Blinking Indicate charging fault (when docked in cradle).
Department Confidential Drawing
number P12
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Regulatory Information
Model no MAJ-1901 shall be considered as regulatory reference number.
All devices are designed to comply with local rules and regulations to the countries they are shipped. Any changes
or modification without Olympus approval could void the user authority to operate the equipment. Only use
Olympus-approved or recommended accessories. Use of alternative accessories will invalidate approval given to the device
and may be dangerous.
Laser explanatory label
Power Supply
Use only Olympus-approved power supply model no EA10632B.
RF exposure guidelines
Department Confidential Drawing
number P13
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
This device was tested for typical body-worn operations with the terminal held on the hand. To maintain
compliance with FCC RF exposure compliance requirements, use only hand during operation.
To comply with FCC RF exposure compliance requirements, the following antenna installation and device configurations
must be satisfied:
1) Users are not permitted to make changes or modify the system anyway, and
2) Connecting external antenna to the card is prohibited. This device and antenna must not be co-located or
operated with any other antenna or transmitter.
FCC SAR limit is 1.6W/kg. SAR test was conducted at FCC accredited laboratory. The highest SAR level measured for this
product is 0.00952W/kg@1g (Body). A distance of 1.5cm is kept when measuring body SAR.
Department Confidential Drawing
number P14
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Radio frequency interference requirements
United States
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
For further information, contact:
Olympus Technologies Singapore Pte Ltd.
N0 41 #04-17/18 The Gemini Science Park Road
Singapore 117610
Any changes or modifications made to this device that are not expressly approved by Olympus may void the user's
Department Confidential Drawing
number P15
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.

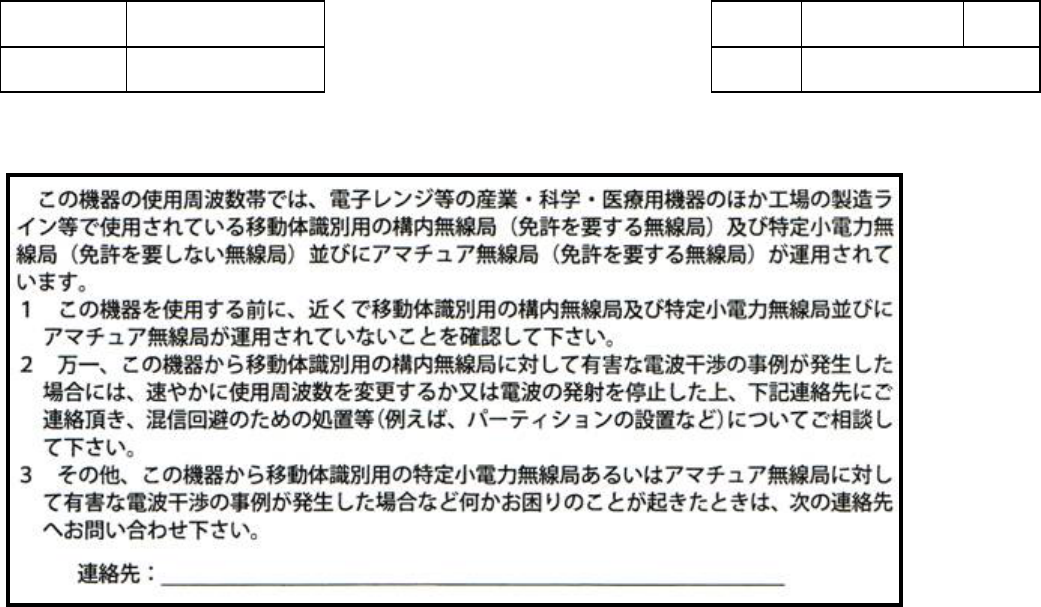

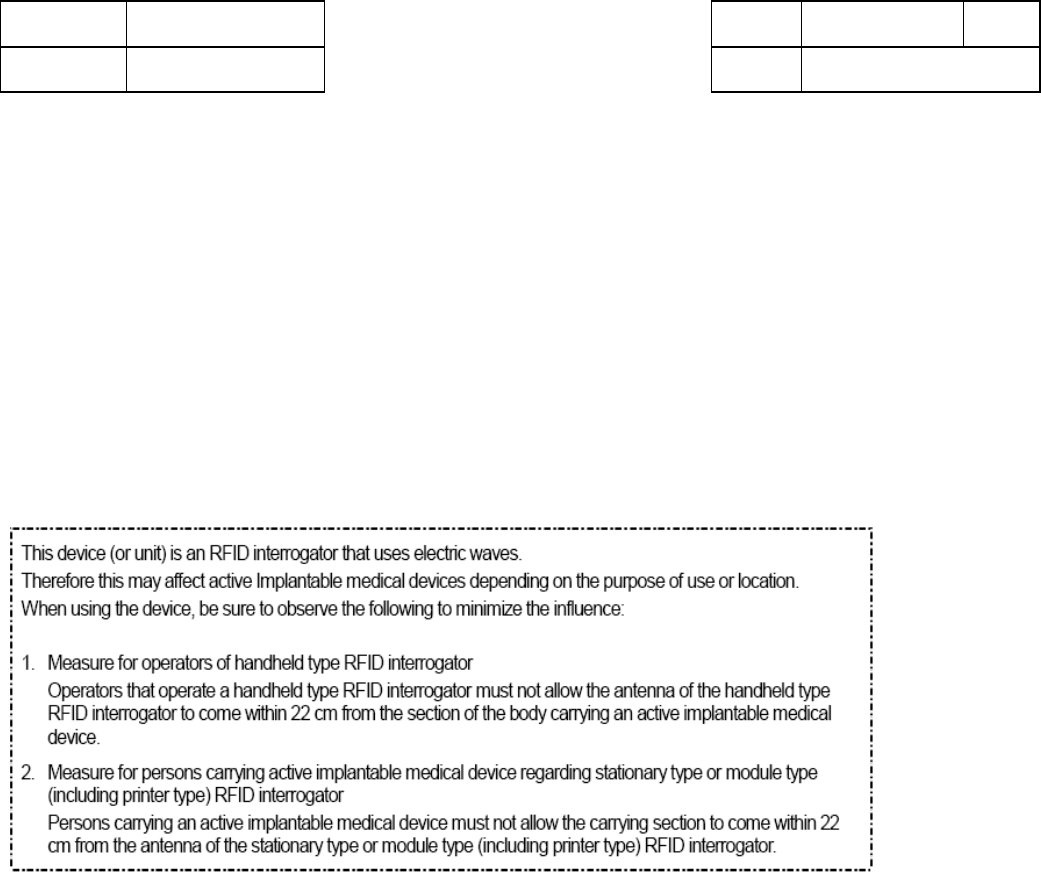

RFID statement for Japan
Department Confidential Drawing
number P16
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Declaration of Conformity
DECLARATION OF CONFORMITY
according to ISO/IEC 17050-1 and EN 17050-1
Manufacturer's Name: Olympus Technologies Singapore Pte Ltd.
Manufacturer's Address: 41 Science Park Road, #04-17 The Gemini Singapore 117610
declares, that the product
Product Model Number : MAJ-1901
Product Description : Personal Digital Assistant
conforms to the following Product Specifications:
Safety: IEC 60950-1:2005 2nd Edition / EN 60950-1:2006 /UL 60950-1 2nd Edition
EMC: ETSI EN 301 489-1 v1.8.1:2008
ETSI EN 301 489-17 v1.3.2:2002
ETSI EN 301 489-3 v1.4.1:2002
EN 61000-3-2:2006
EN 61000-3-3:1995+A1:2001+A2:2005
FCC Title 47CFR Part 15 Class B
Telecom: EN 300 328 v1.7.1:2006
EN 302 291-2 v1.1.1:2005
SAR: draft EN 62209-2:2007
FCC OET 65
Supplementary Information:
1) The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, EMC
Directive 2004/108/EC and and R&TTE Directive 1999/5/EC and carries the CE marking accordingly.
2) The Product was tested in a typical configuration.
3) This device complies with Part 15 of FCC rule. Operation is subject to the following two conditions:
a) this device may not cause harmful interference and
b) this device must accept any interference received, including interference that may cause undesired
operation.
Persuant to Part 15.21 of FCC rules, any changes or modifications to this equipment not expressly
approved by Olympus Company may cause harmful interference and void your authority to operate
Equipment.
April xx , 2010
European regulatory notice
This is a Class B product. In a domestic environment this product may cause radio interference in which case the user
Authorized signature
Department Confidential Drawing
number P17
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
may be required to take adequate measure.
Products bearing the CE marking comply with the following EU Directives:
■ Low Voltage Directive 2006/95/EC
■ EMC Directive 2004/108/EC
CE compliance of this product is valid only if powered with the correct CE-marked AC adapter.
If this product has telecommunications functionality, it also complies with the essential requirements of the following EU
Directive:
■ R&TTE Directive 1999/5/EC
Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU
Declaration of Conformity for this product or product family. This compliance is indicated by the following conformity marking placed on
the product.
The wireless telecommunications functionality of this product may be used in the following EU and EFTA countries:
Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovak Republic, Slovenia, Spain,
Sweden, and United Kingdom.
Department Confidential Drawing
number P18
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual

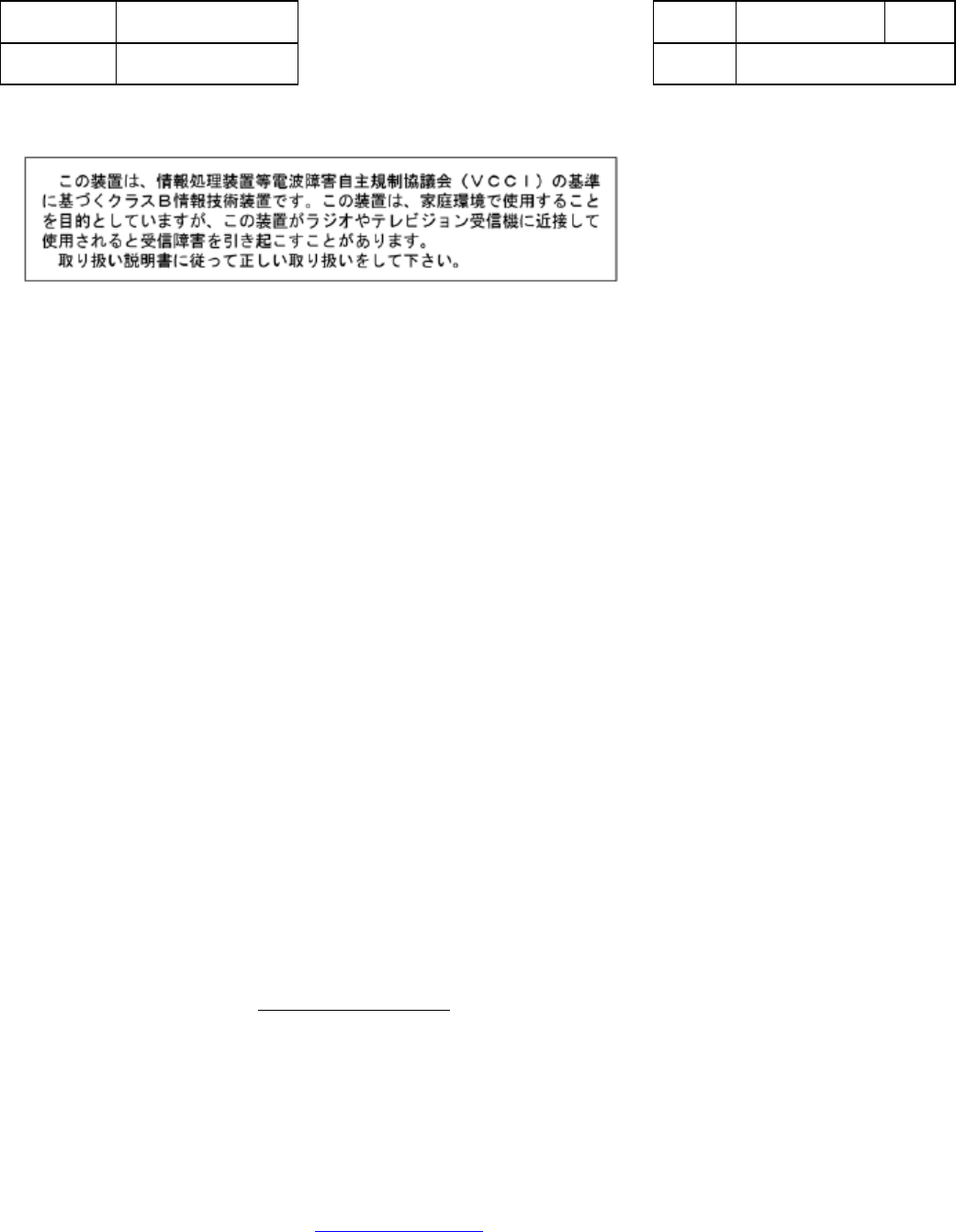

VCCI compliance statement
Notice for Italy for use of 2.4 GHz wireless communication
License required for use. Verify with your dealer or directly with the General Direction for Frequency Planning and
Management (Direzione Generale Pianificazione e Gestione Frequenze).
E’necessaria una concessione ministeriale anche per l’uso del prodotto. Verifici per favore con il proprio distributore o
direttamente presso la Direzione Generale Pianificazione e Gestione Frequenze.
Notice for France for use of 2.4 GHz wireless communication
For 2.4 GHz Wireless LAN operation of this product certain restrictions apply. This product may be used indoor for the
entire 2400-2483.5 MHz frequency band (channels 1-13). For outdoor use, only 2400-2454 MHz frequency band (channels
1-9) may be used up to 100mW and from 2454 to 2483.5 MHz band (channels 10-14), power is allowed up to 10mW only.
For the latest requirements, see http://www.art-telecom.fr.
Pour 2.4 GHz l'opération de réseau local sans fil de ce produit certaines restrictions s'appliquent. Ce produit pourrait être utilisé intérieur pour
la bande de fréquence de MHz de 2400-2483.5 entier (dirige 1-13). Pour l'usage extérieur, seulement 2400-2454 bande de fréquence de MHz
(dirige 1-9) pourrait être épuisé à 100mW et de 2454 à 2483,5 bande de MHz (dirige 10-14), le pouvoir est permis en haut à 10mW
seulement. Pour les dernières conditions, voir http://www.art-telecom.fr.
Department Confidential Drawing
number P19
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Japanese wireless statement
OlympusTechnolo g iesSingaporePteLtd,
41ScienceParkRoad#04‐17,Singapore117610
Department Confidential Drawing
number P20
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Battery Safety Information
It is important to use batteries carefully. Use only Olympus-approved battery MAJ-1903 and recharge battery
using only MAJ-1902 charging cradle. Observe the following guidelines for safe use of Li-on batteries.
1) Do not expose the battery to excessive heat or cold. Do not short-circuit. It may explode.
2) To avoid risk of fire, burn or damage to your battery, do not allow a metal object to touch battery contacts.
3) Do not disassemble the battery. There is no user serviceable part inside.
4) If electrolyte leakage is observed, avoid any contact with affected area and properly dispose the battery.
5) If you come in contact with electrolyte, rinse exposed area with soap and water. If it contacts the eye, flush the
eye with water for 15 minutes and seek medical attention.
6) When discarding a battery, contact your local waste disposal provider to understand local restrictions on disposal
or recycling of batteries.
Department Confidential Drawing
number P21
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
Waste Electrical and Electronic Equipment information
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural
resources, we encourage you to use the appropriate take-back system for product disposal. Those systems will reuse or
recycle most of the materials of the product you are disposing in a sound way.
This crossed-out wheel bin symbol informs you that the product should not be disposed of along with
municipal waste and invites you to use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse and recycling systems, please contact your local waste administrator.
You may also contact your supplier for more information on the environmental performance of this product.
Department Confidential Drawing
number P22
Model No. MAJ-1901 Product Specification Section 15. Instruction Manual
www.olympus.com
