education | health care | gaming | airports | museums | prisons | banking | retail | laboratory | lockers
November 2016
PC-1611
The cabinet lock innovators.
www.olympus-lock.com
206-362-3290 | 800-525-0954
See our line of
ANSI/BHMA A156.11
Grade 1 products
PRODUCT CATALOG
Institutional Grade Cabinet Locks
US26D / 626
Satin Chrome Plated
US4 / 606
Satin Brass
US3 / 605
Polished Brass
US10B / 613
Oil Rubbed Bronze
US26 / 625
Polished Chrome
US CODE BHMA DESCRIPTION
US26 ..............625 ..........Bright chrome
US26D ............626 ..........Dull chrome
US3 ................605 ..........Bright brass
US4 ................606 ..........Satin brass
US32D ............630 ..........Satin stainless steel
US10B ............ 613 ..........Oil rubbed bronze
US19 ..............622 ..........Flat black coated
INNOVATION
We hold numerous U.S. and Canadian patents proving our commitment
to provide innovative solutions for your cabinet lock needs. It has
always been the intent of Olympus to provide cabinet locks that are
easy to install, use and service. Each product is carefully designed,
engineered and manufactured to exacting standards. We offer a wide
range of accessories to make the installation, use, and service of our
products as easy as possible.
SERVICE
Our delivery is the fastest in the industry. We have an extensive
inventory of off-the-shelf masterkeyed locks and can ship most custom
keyed orders within 1-5 business days.
ELECTRONIC KEY RECORDS
We manage and save all our custom keying records for future reference.
Need to add locks to an existing job? No problem. We've got all the
records at our fingertips making it easy for you to order locks for
various job phases. We manage the records so you don't have to.
SPECIFICATIONS
Olympus is an AIA certified education provider. We provide
comprehensive pre-written architectural specifications for each of our
locks. Specifications can be downloaded directly from our web site at
www.olympus-lock.com or refer to pages 72 through 74 of this catalog.
CONTACT
Visit our website at olympus-lock.com or call us toll-free at 800-525-
0954 for more information. Subscribe online to our eNews list and
receive new product announcements, technical bulletins.
2206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
ARCHITECTURAL FINISH CHART
Olympus Lock offers locks in the most popular architectural finishes. Not all finishes are available on
all products. See catalog page for standard finishes available on a specific item. Other finishes may
be available through our custom plating service. Call Olympus for pricing and availability.
EXPERIENCE
Olympus Lock has over 30 years of experience designing and
manufacturing easily rekeyable pin tumbler, interchangeable core and
engineered cabinet lock bodies for third party cylinders. We offer a
wide selection of keyways and cabinet lock solutions for commercial
and institutional facilities. Our design philosophy is to create locks that
provide long-term benefits to the facility through increased efficiency
and easy maintenance.
APPLICATIONS
Olympus cabinet locks are used in a variety of cabinet and casework
applications including: K-12 public schools, colleges and universities,
correctional facilities, medical offices, hospitals, casinos, retail cash
drawers, lockers, kiosks, retail showcases, airline ticket counters,
museums, hotels and motels, amusement parks, theaters, restaurants,
country clubs, libraries, airports, police stations, fire stations and
churches.
PIN TUMBLER SOLUTIONS
Olympus Lock specializes in pin-tumbler cabinet locks for the
institutional and retail marketplace. When large numbers of locks
will be installed within a facility, pin tumbler locks are preferred
because they are more secure and allow the complex master keying
and sub-master keying required in larger
institutional settings such as schools, banks
and hospitals. We provide a wide range of
cabinet lock options for the cost conscious,
yet security minded user. Beyond that, we
can supply cabinet locks keyed to match
your door hardware allowing for "one-key"
simplification.
Olympus Lock, Inc.
The cabinet lock innovators.
New training
videos now available
on our website!
Pfizer Pharmaceuticals
Cleveland Clinic
Cedars-Sinai Medical Center
Memorial Sloan-Kettering
Cancer Center
University of Michigan C.S.
Mott Children's Hospital &
Von Voigtlander Women's
Hospital
Children's Hospital-Los Angeles
Boston Medical Center
Stanford University Medical
Center
Kaiser Permanente
Los Angeles Unified School
District
Los Angeles County-
USC Medical Center
Los Angeles-UCLA Medical
Center
University of Texas-
Southwestern Medical Center
University of Hawaii
New York City Schools
Palm Beach County Schools
San Diego Unified School
District
Seattle Public Schools
Chase Bank
Navy Federal Credit Union
Wells Fargo
Fox Lake Correctional
Avenal State Prison
San Quentin State Prison
American Eagle Outfitters
Costco
Game Stop
Regal Entertainment Group
Verizon Wireless
Target
Kohls
Apple Computer
CVS Pharmacy
CUSTOMERS AND PROJECTS
STANDARD FUNCTION
Key removable in the locked or unlocked position.
Locks ship with standard function unless key
retaining is specified at time of order.
KEY RETAINING
The key cannot be removed from the lock while in
the "unlocked" position. Key-retaining function
is generally used in instances where cabinets or
drawers should not be left unlocked.
Seaworld (San Diego)
Time Warner
Ulta Cosmetics
Art Institute of Chicago
The Smithsonian
Candlestick Park
Safeco Field
Nascar
Staples Center
Disneyland, Disneyworld,
Disney Imagineering
Universal Studios (Hollywood)
Paramount Pictures
Warner Brothers Studios
Miami International Airport
Indianapolis International
Airport
United Airlines
Virgin America Airlines
Las Vegas Casinos
Luxor
Bally's
MGM Grand
Paris
New York, New York
Caesar's Palace
Treasure Island
Mirage
Bellagio
Mandalay Bay
City Center
Wynn & Wynn Encore
Venetian
Las Vegas Hotel
Plus many more
International Projects
Atlantis Hotel & Casino
(Bahamas)
Cleveland Clinic (Abu Dhabi)
Hong Kong Disneyland Resort
Shanghai Disneyland Resort
Suvarnabhumi Airport (Bangkok,
Thailand)
Princess Nora Bint Abdul
Rahman University (Riyadh,
Saudi Arabia)
US Embassy (Belize)
The Venetian (Macau)
Wynn (Macau)
Galaxy (Macau)
City of Dreams - Macau
City of Dreams - Manila
3
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

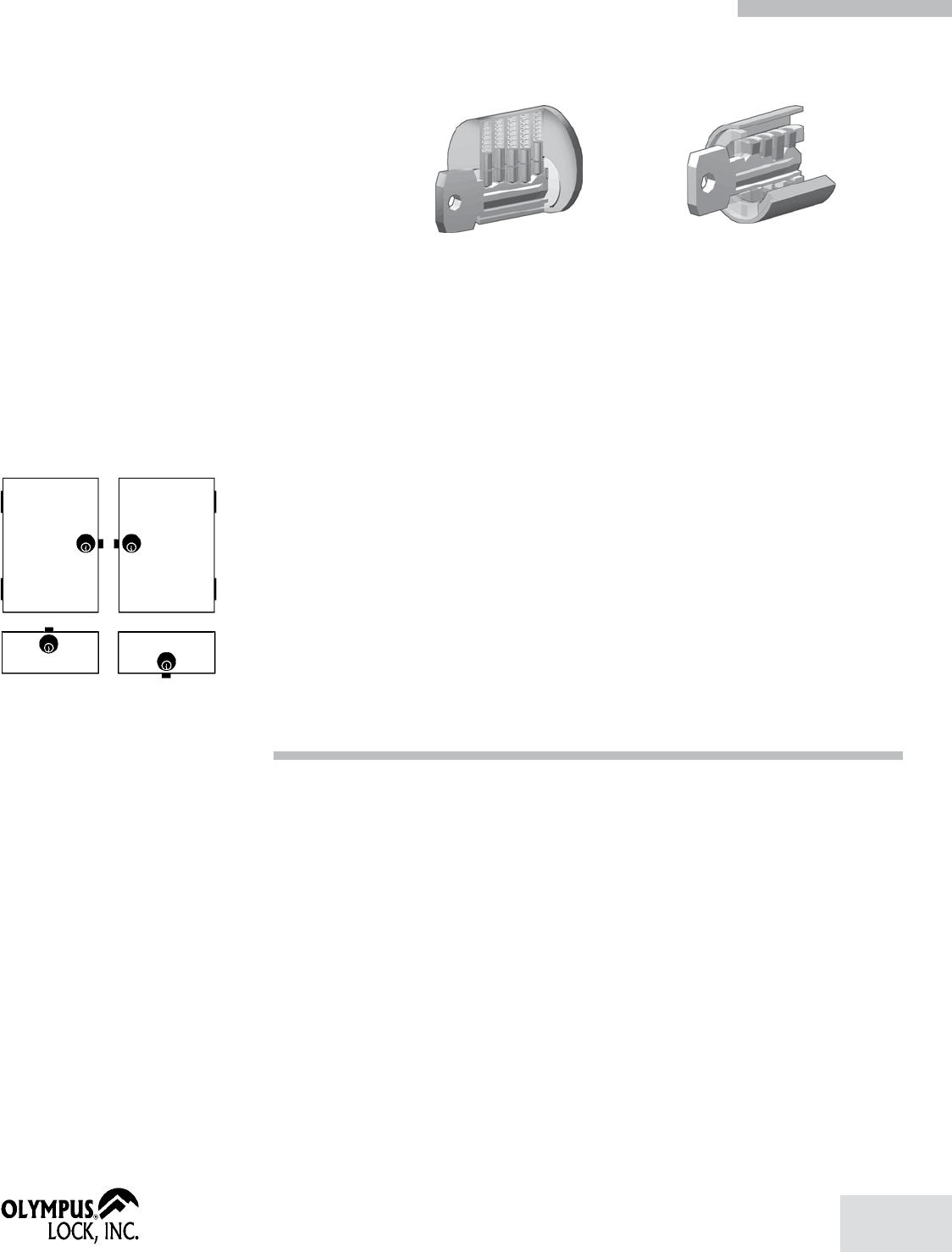

IH
LH
VH
RH
Inverted-hand (IH)
Bolt locks down
Left-hand (LH)
Hinged on left
Right-hand (RH)
Hinged on right
Vertical-hand (VH)
Bolt locks up
CABINET DOORS
DRAWERS
HANDING
Handed locks must be ordered either LH, RH, VH or
IH (see figure at left).
Non-handed locks can be ordered as either door
or drawer. Door locks will work in both LH or RH
applications and drawer locks will work for both
vertical or inverted function.
BENEFITS OF PIN TUMBLER
Pin tumbler key systems provide significantly more key
changes than disc tumbler systems. See the chart below
for the typical number of allowable key changes under a
single master key:
Wafer/disc ..............80 key changes
4 pin tumbler ..........650 key changes
5 pin tumbler ..........2,000 key changes
6 pin tumbler ..........4,000 key changes
7 pin tumbler ..........16,000 key changes
ANSI/BHMA STANDARDS
We offer a selection of cabinet locks that have passed
ANSI/BHMA Grade 1 or Grade 2 testing requirements
and are compatible for use when ANSI/BHMA locks are
specified.
DISC TUMBLER
• 5 or 6 chambers disc #s 0-2
(3 total steps per chamber)
• 80 keyed different and master
keyed total key changes
• Cannot be grand master keyed
• Less secure keyway
• Typical usage is in furniture
PIN TUMBLER
• 5 or 6 chambers, pin #s 0-9
(10 total steps per chamber)
• 2000+ keyed different and
master keyed total key changes
• Can be grand master keyed
• More secure keyway
• For high-use commercial
applications
Institutional grade cabinet locks
Heavy duty locks for high use applications
4206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

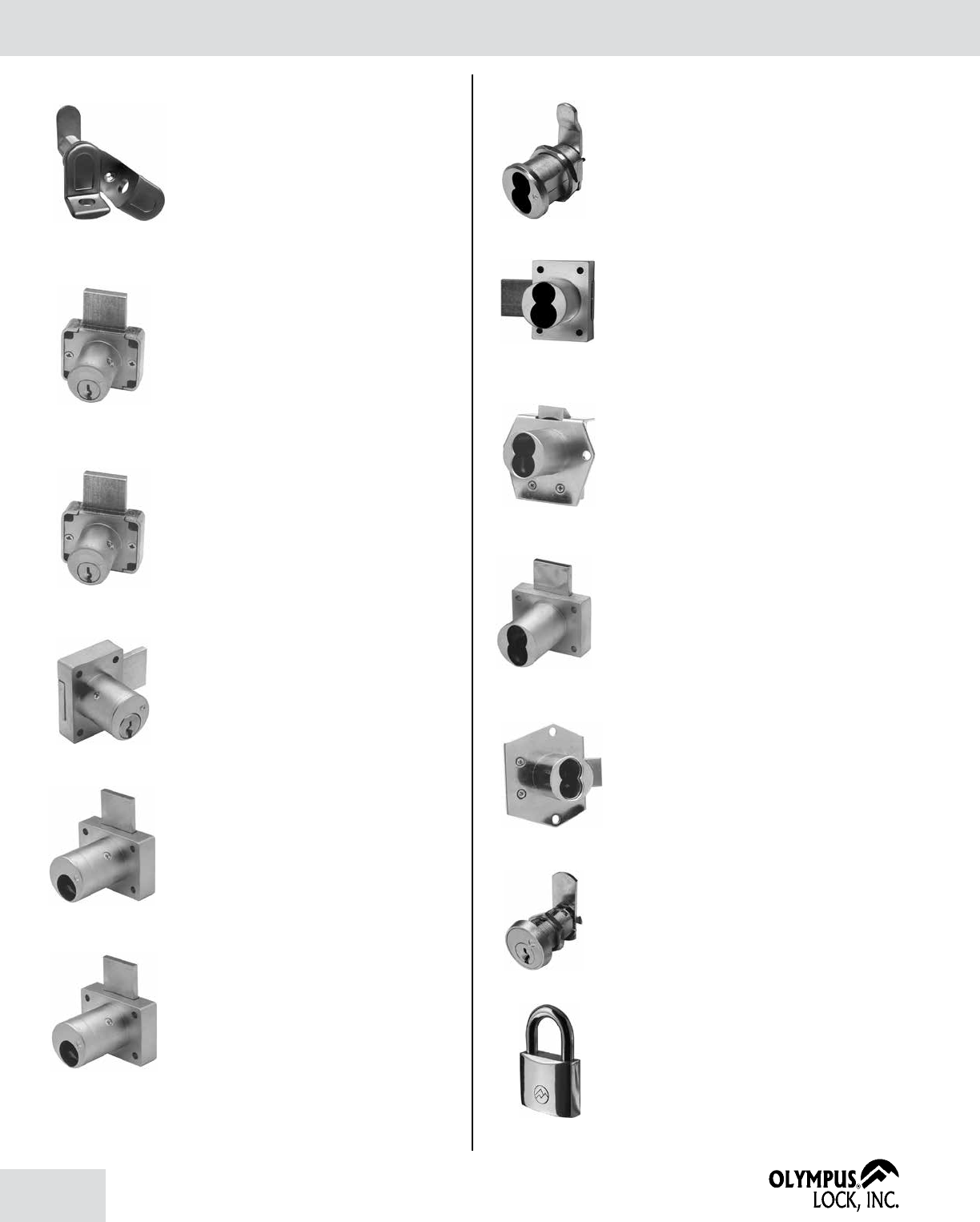

Product Groups
N SERIES
A value-priced alternative to commercial keyway
or interchangeable core locks, N Series locks
use the National D4291 (4 pin) or D4292 (5 pin)
key system. A variety of lock types are available
including door and drawer deadbolt and latch

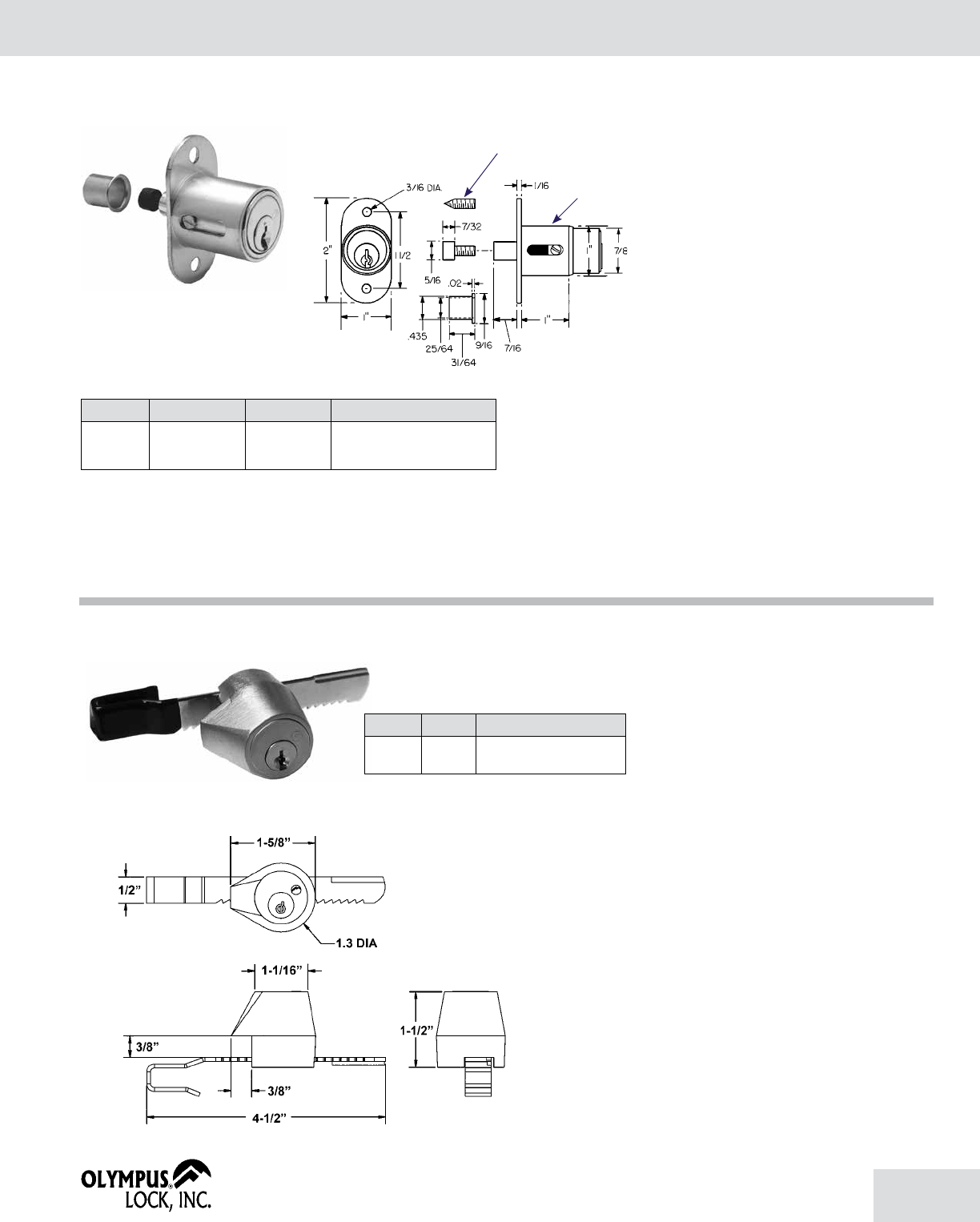

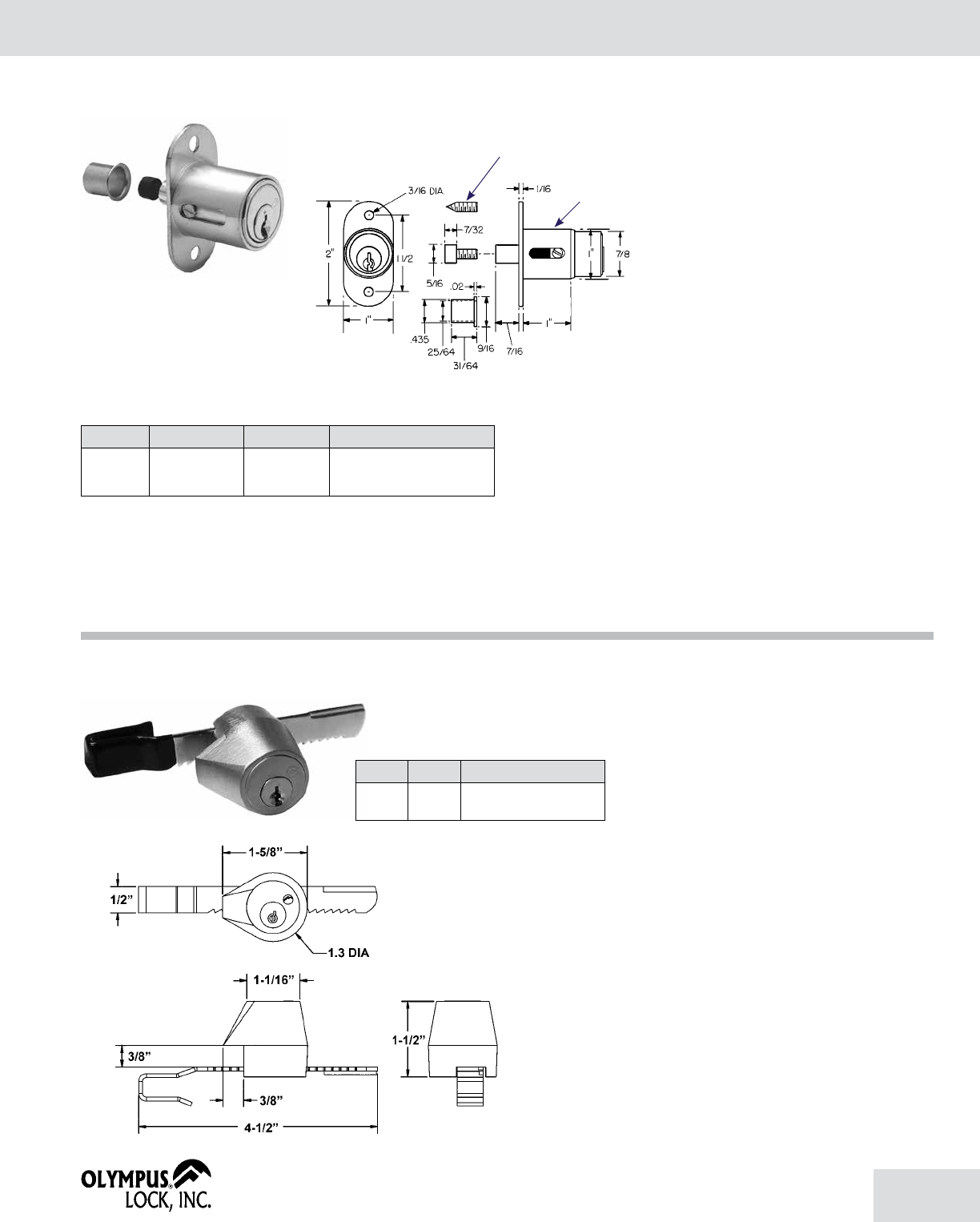

locks, cam locks, sliding door plunger locks, ratchet
locks and file cabinet locks. (Pages 11-18)
R SERIES
A value-priced alternative to commercial keyway
or interchangeable core locks, these locks use the
CCL R1 (5 pin) key system. A variety of lock types
are available including door and drawer deadbolt
and latch locks, cam locks, sliding door plunger
locks and ratchet locks. (Pages 19-23)

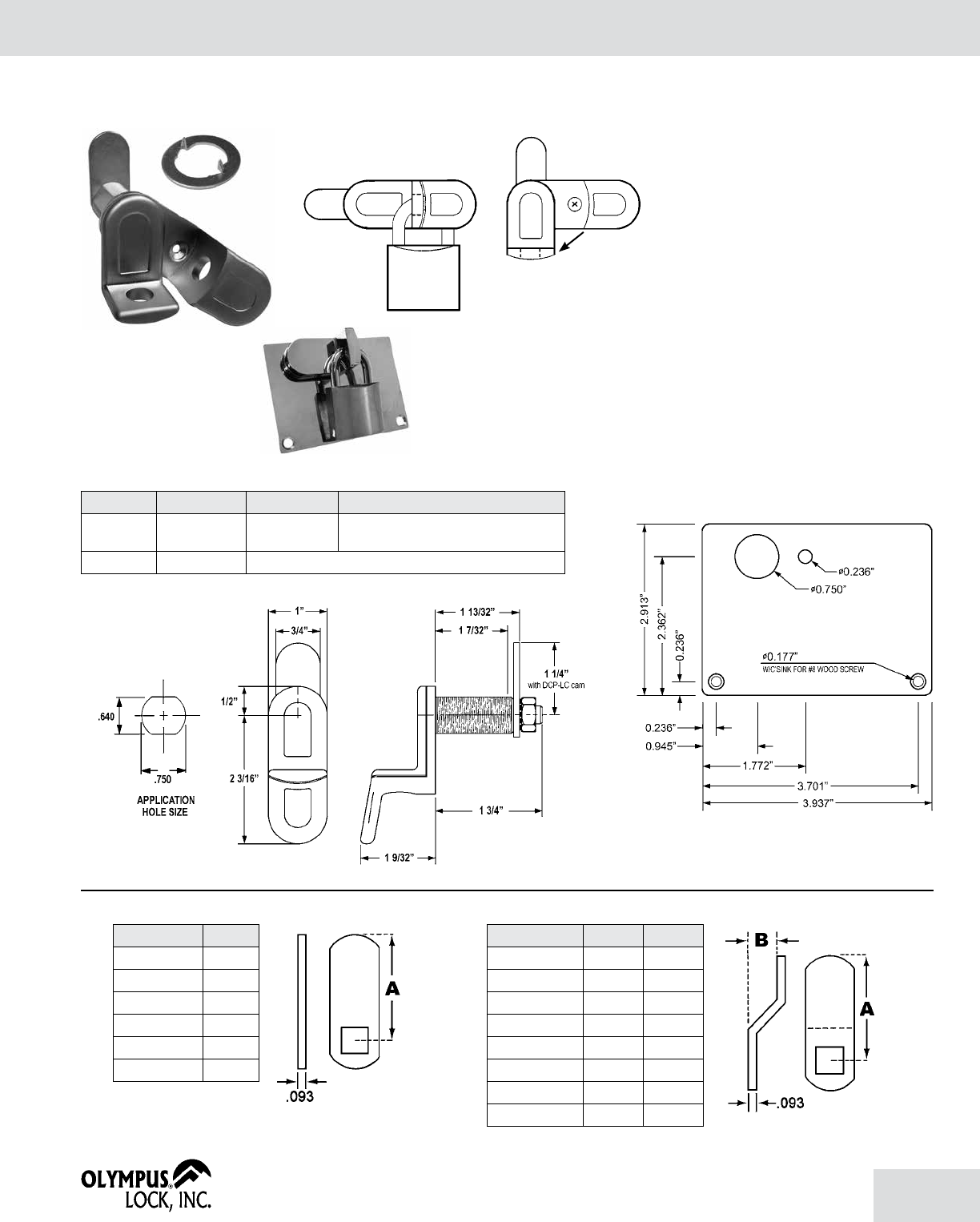

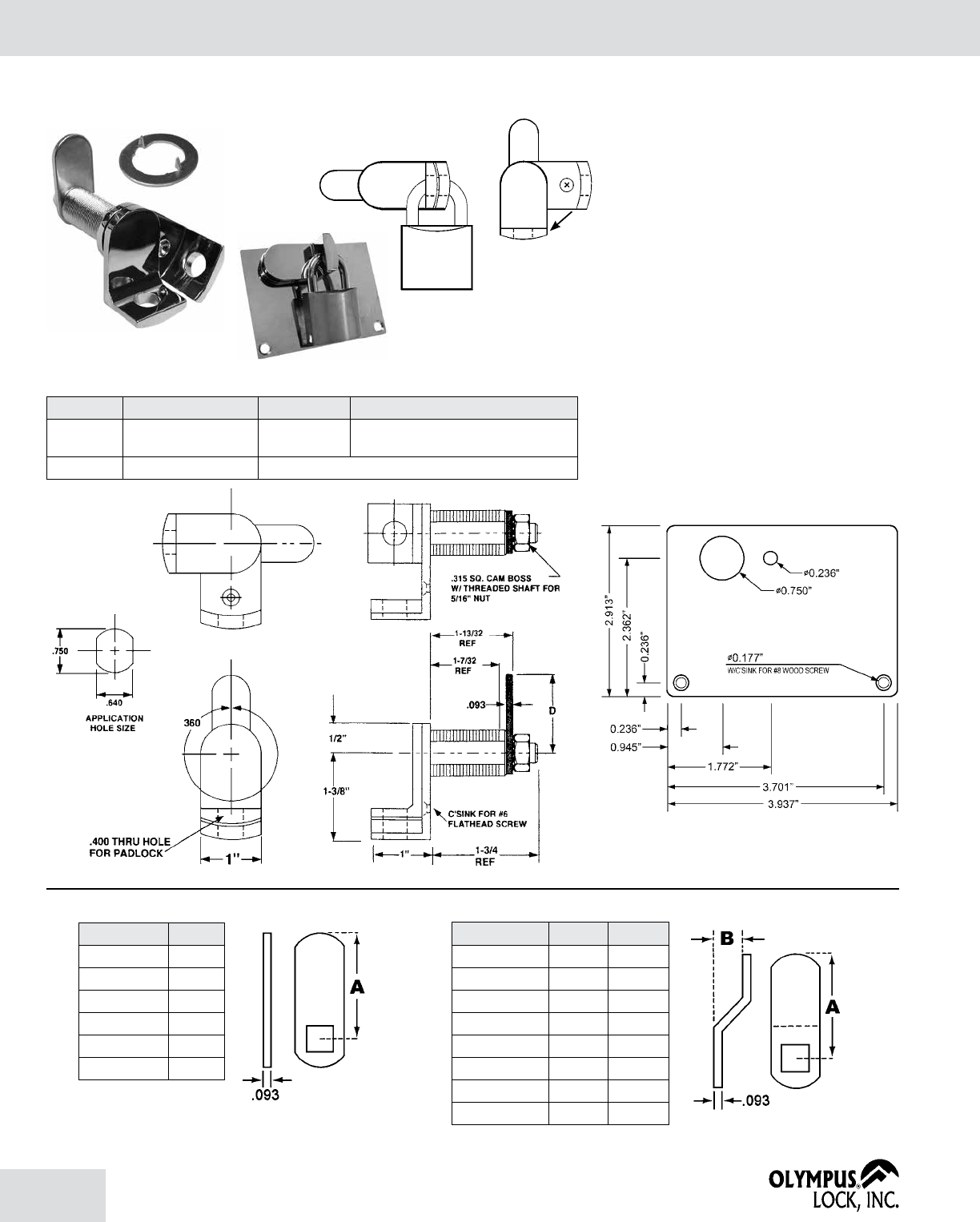

PADLOCKABLE CAM LOCK
This unique cam lock is typically used in locker
applications where the end-user will supply the
padlock. We offer a variety of cam styles and
lengths allowing this item to be adapted to a
wide range of manufacturing styles. Our DCP500
includes an integrated cabinet pull.
(Pages 8-9)
SCHLAGE C KEYWAY
This product family offers locks utilizing the
Schlage C keyway—one of Schlage's most popular
keyways. Choose from door and drawer deadbolt
and latch locks, cam lock or ratchet lock. All locks
are easily rekeyable. (Pages 24-29)
LESS CYLINDER (Schlage Compatible)
This product family includes the same locks as our
Schlage C keyway but without cylinders. You can
install a variety of popular third-party (Schlage
compatible or Medeco) cylinders so your cabinet
locks can match the same key system as the rest of
the facility. (Pages 24-29)
LESS CYLINDER (Sargent Original)
We offer door and drawer deadbolt lock bodies
made specifically to chamber Sargent original
cylinders. Key your cabinet locks into your existing
Sargent system with ease. (Page 30)
SCHLAGE FULL-SIZE IC CORE
Olympus offers a range of cabinet lock options
that will accept Schlage full-size (or compatible)
interchangeable cores. Locks include door and
drawer deadbolt locks, cam lock, latch lock and
ratchet lock. (Pages 32-35)
SARGENT IC CORE
Olympus is the only company that manufactures
cabinet locks for Sargent interchangeable core.
Add one-key convenience to your existing Sargent
interchangeable core system by having your
cabinets keyed to match your existing Sargent IC
system. (Page 31)
CORBIN/RUSSWIN IC CORE
Olympus is the only company that manufactures
cabinet locks for Corbin/Russwin interchangeable
core. Add one-key convenience to your existing
Corbin/Russwin system by having your cabinets
keyed into your Corbin/Russwin key system. Locks
are available door and drawer deadbolt, drawer
latch and cam lock. (Pages 36-37)
MEDECO/YALE IC CORE
Looking for a cabinet lock to accept a Medeco
or Yale large format interchangeable core? We
have them. Locks are available door and drawer
deadbolt and cam lock. (Pages 38-39)
SMALL FORMAT IC CORE
(Best Compatible) Olympus offers a wide selection
of small format (BEST style) interchangeable core
locks including direct retrofits for Best original
cabinet locks. Available styles include door and
drawer deadbolt and latch locks, cam locks, sliding
door plunger locks, through-glass locks, ratchet
locks and mailbox locks. (Pages 41-52)

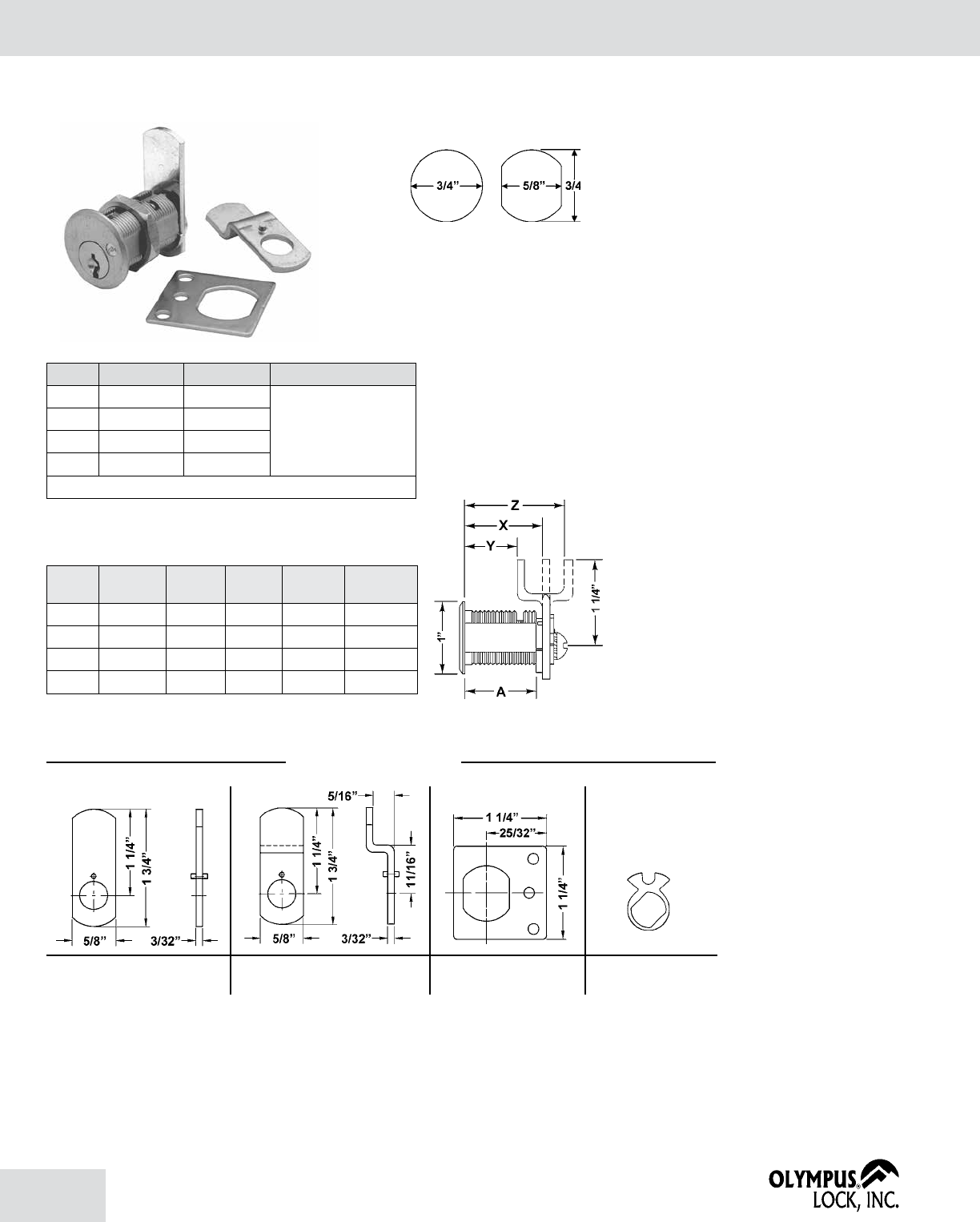

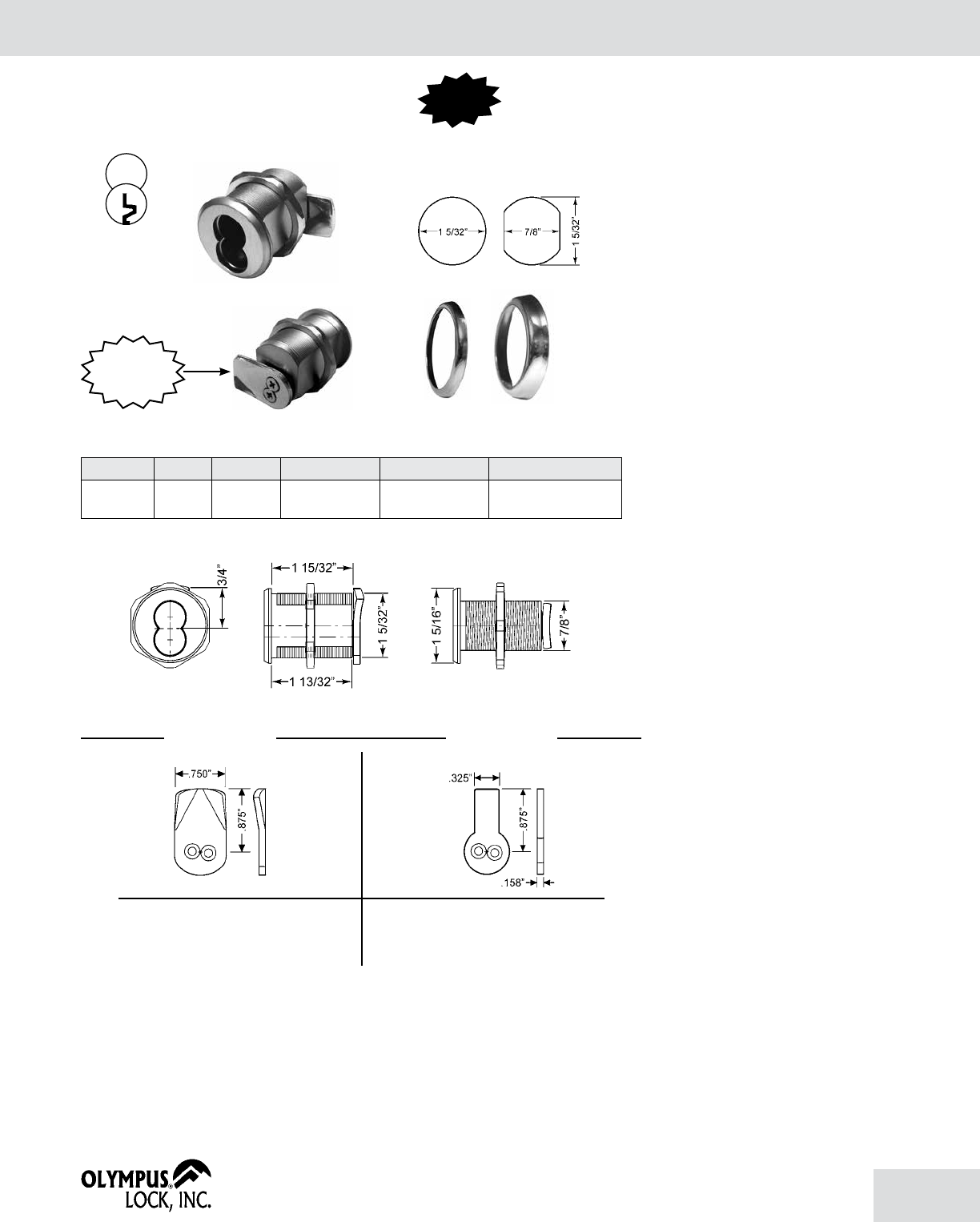

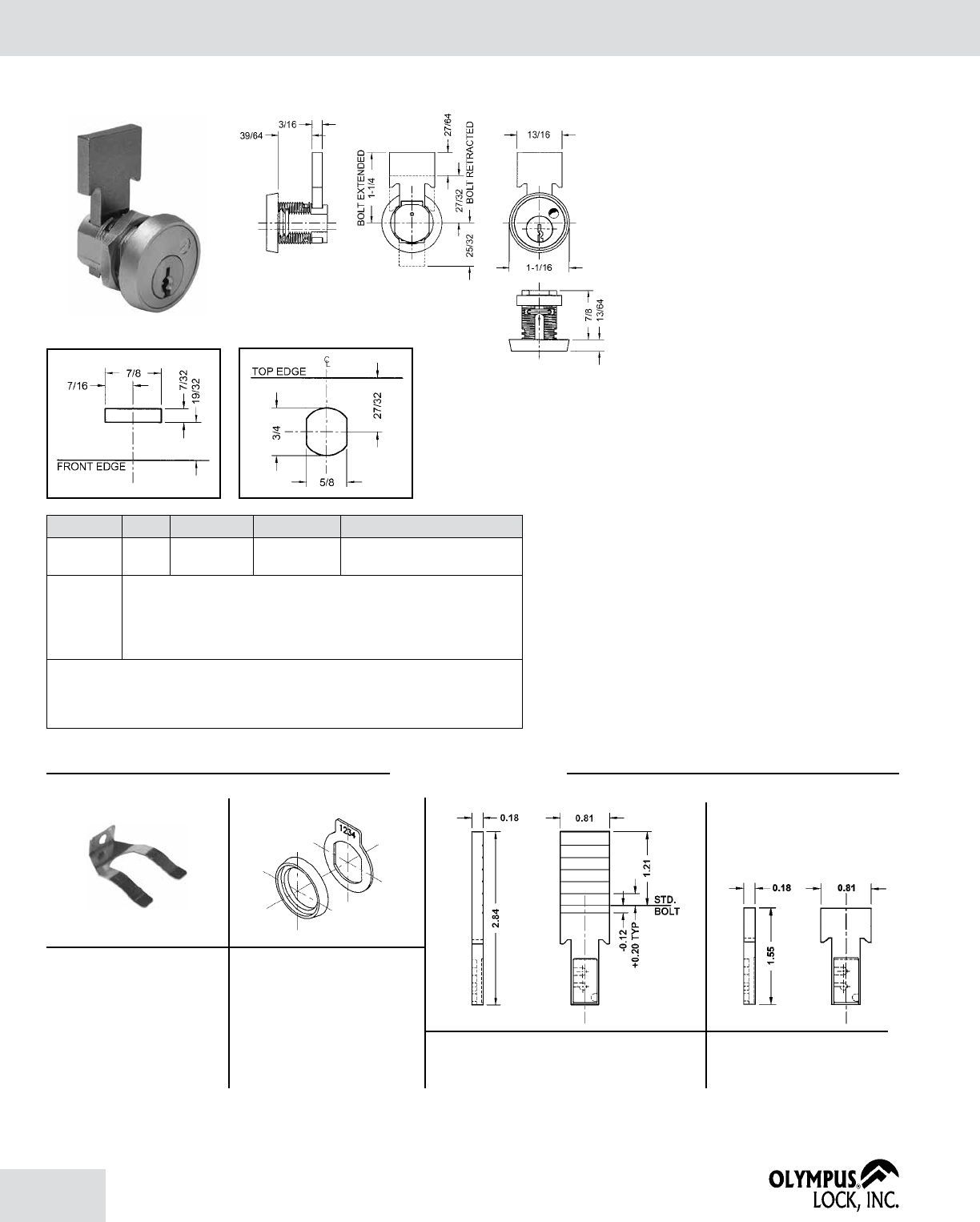

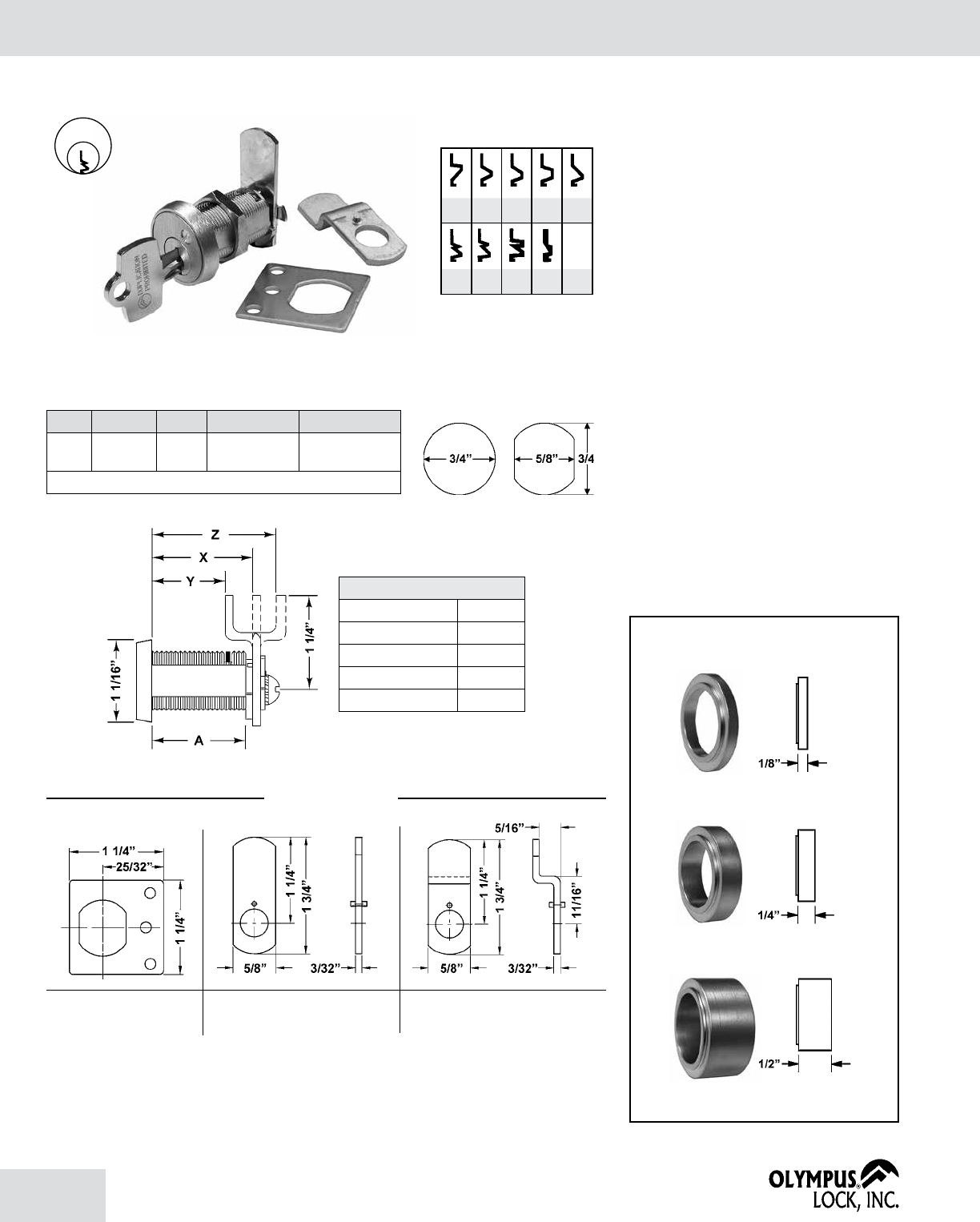

BEST KEYWAY 3/4" CAM LOCK
This is a non-IC core cam lock available with a Best
A, B, E, F, G, J, K, L or R keyway. It fits in a standard
3/4" hole and includes our patented cam shifting
mechanism for maximum flexibility. (Page 40)

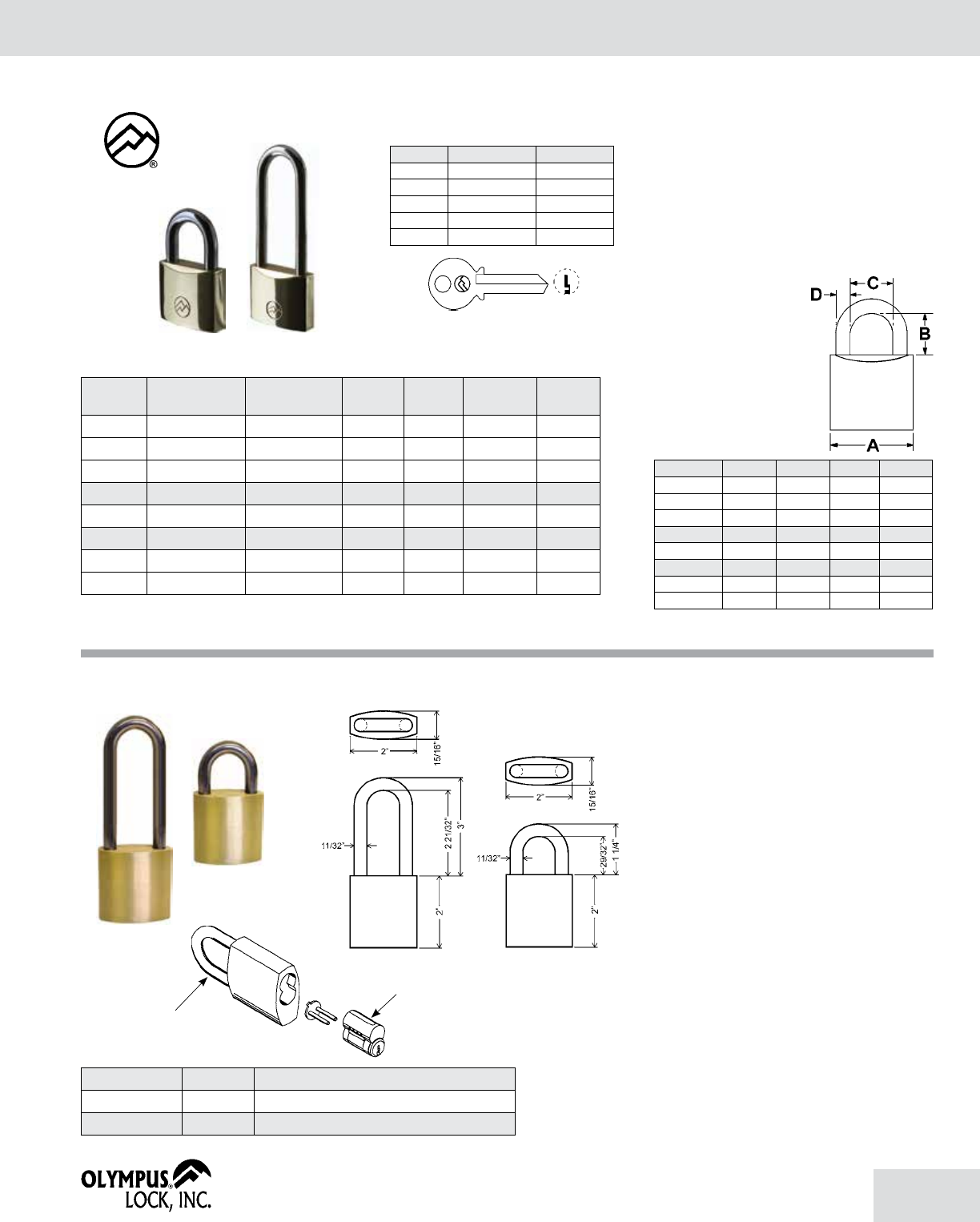

BRASS PADLOCKS
BP Series all weather indoor/outdoor brass
padlocks are available either keyed alike or keyed
different in a variety of sizes and shackle lengths.
The CRB Series padlocks accept a Corbin/Russwin
interchangeable core cylinder. (Page 75)
5
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Table of Contents
INTERCHANGEABLE CORE
SARGENT
SA54 .................................................. 31
SCHLAGE FULL-SIZE
777 / 888 ...........................(Grade 1) 32
920......................................(Grade 1) 33
929R ...................................(Grade 1) 34
L92V ................................................... 35
CORBIN/RUSSWIN
CR1125RD .......................................... 36
CR1125RL .......................................... 36
CR25 .................................................. 37
MEDECO/YALE
931DR ................................................ 38
931DW ............................................... 38
ME93 (Medeco) ................................. 39
YA93 (Yale)......................................... 39

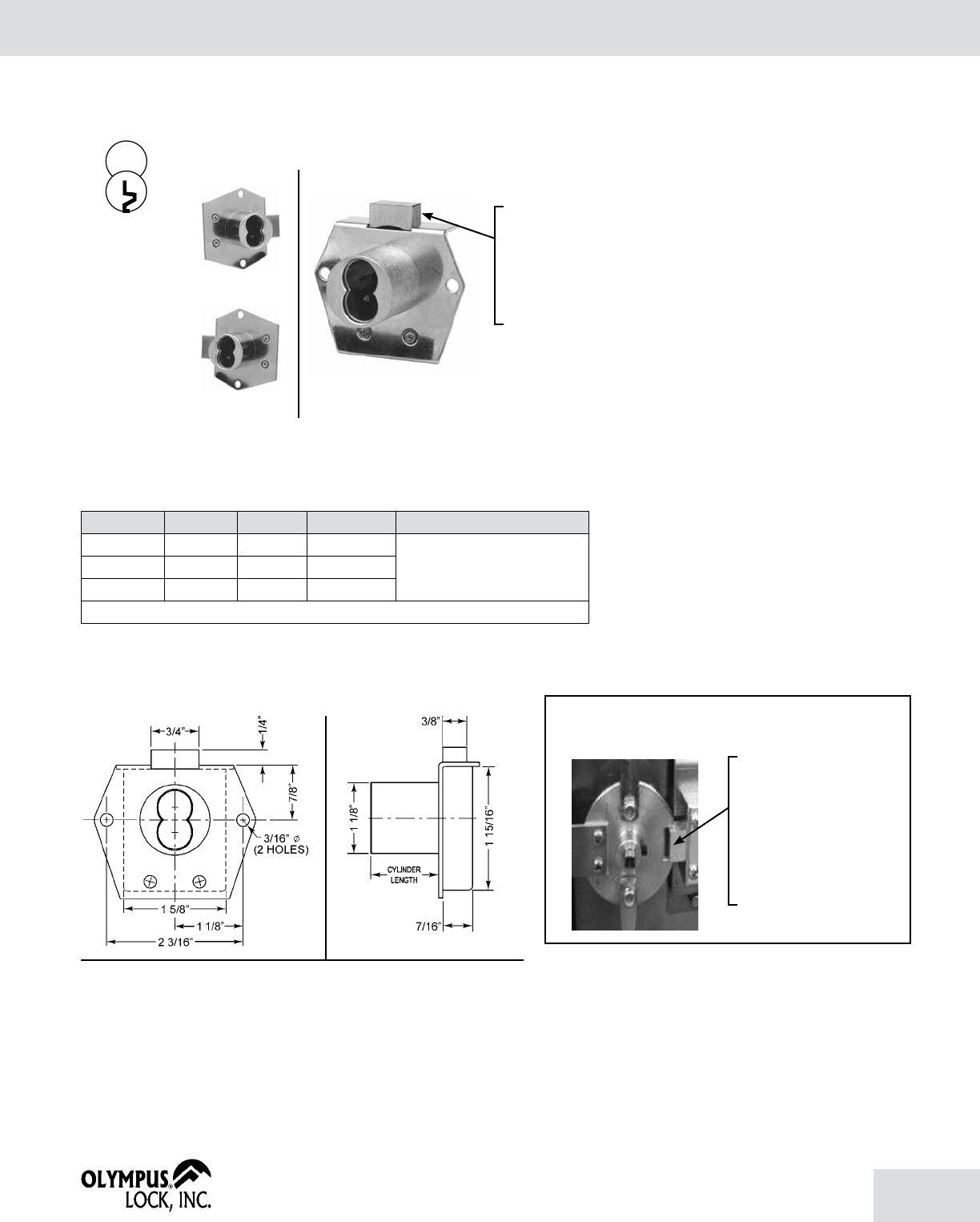

SMALL FORMAT (Best Compatible)
L72V ................................................... 41
720 / 720B ..........................(Grade 1) 42
720B-DM............................................ 43
721......................................(Grade 1) 44
722..................................................... 45
723..................................................... 45
724VR ................................................ 46
725RD ................................. (Grade 1) 48
725RL ..................................(Grade 1) 47
725RSL ............................................... 51
725MD ................................ (Grade 1) 49
725ML .................................(Grade 1) 50
728MBL ............................................. 46
729R ...................................(Grade 1) 52
950..................................................... 41
BEST KEYWAY
UTILITY CAM LOCK
B7 ....................................................... 40
PADLOCKS
BRASS / IC CORE
BP (Mountain) Series ......................... 75
CRB200 (Corbin/Russwin IC Core) ...... 75
PADLOCKABLE CAM LOCK

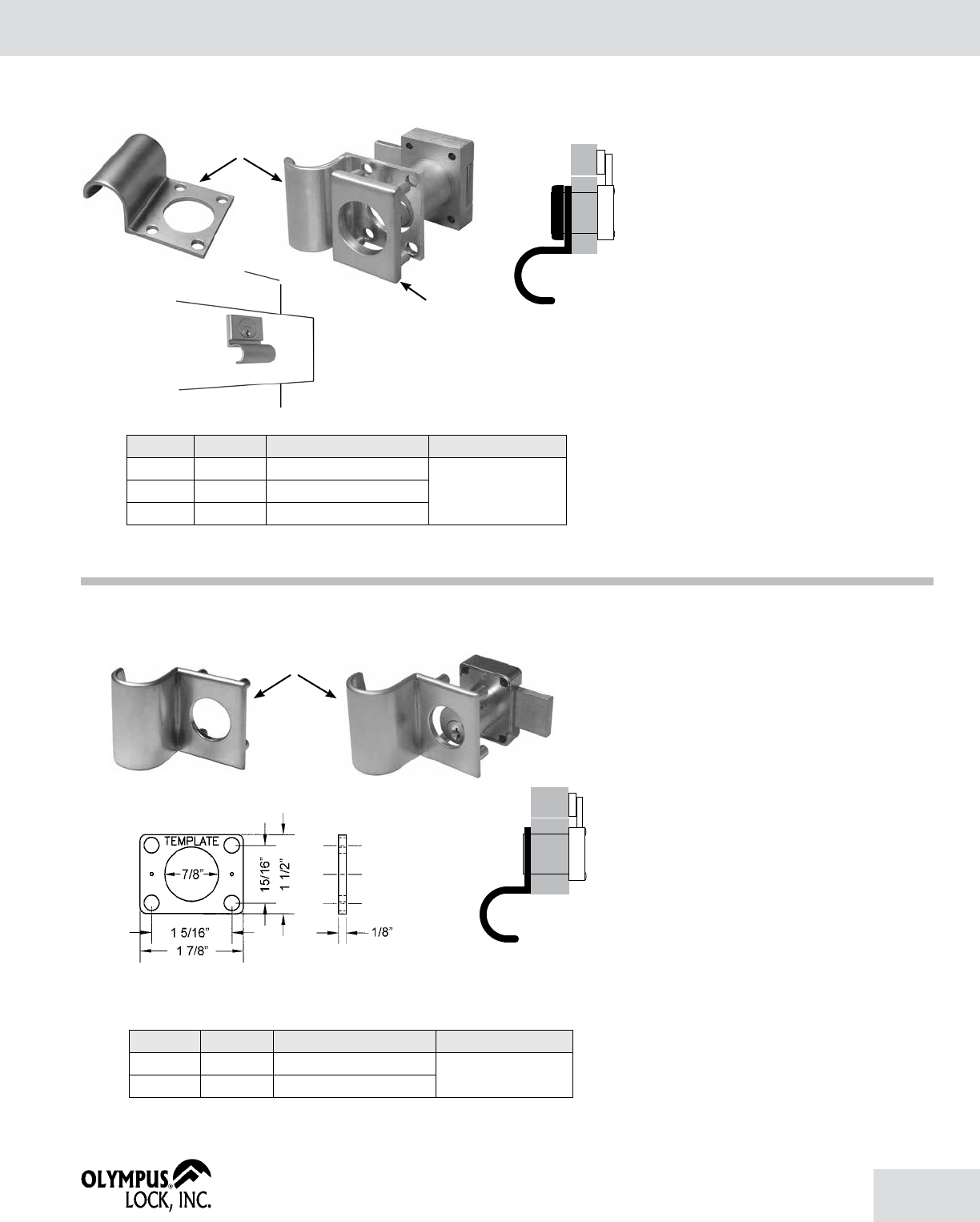

CAM LOCK HASP
DCP .................................................... 8
DCP500 .............................................. 9
KEYS / KEYING / PIN KITS
N & R SERIES, SCHLAGE, SFIC
Keying Information............................. 10

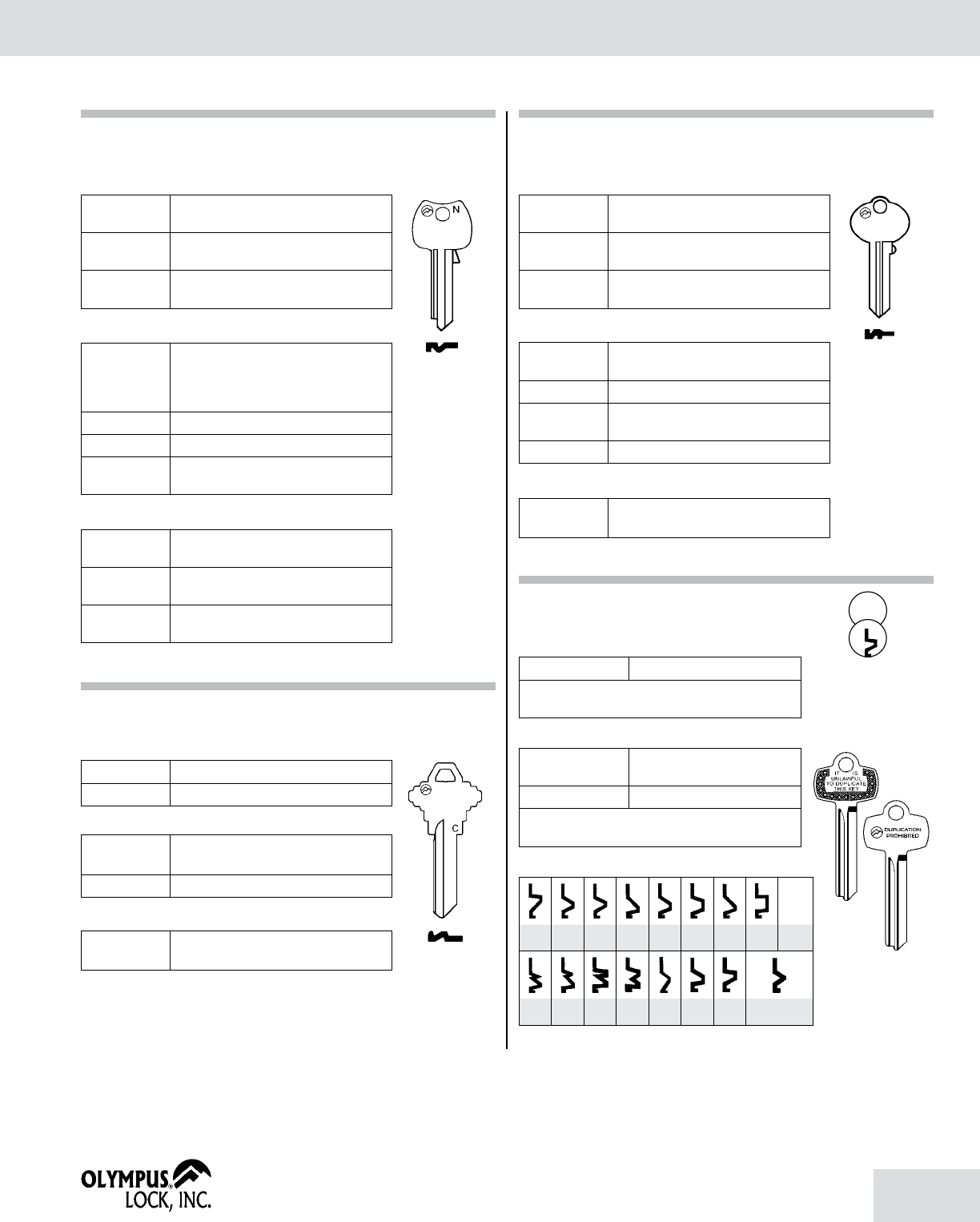

Keys ................................................... 55
Pins & Pin Kits .................................... 56
SMALL PIN LOCKS
N SERIES
100DR / 200DW ..................(Grade 1) 11
100M / 200M ...................... (Grade 1) 11
300SD ................................................ 13
329R .................................................. 13
L20V ................................................... 14
998 / 999 ........................................... 15
DCN1,2,3,4 .........................(Grade 1) 12
FC10 / FC26-AR .................................. 17
N078 .................................................. 18
T37 ..................................................... 16
T54C .................................................. 17
R SERIES
500DR / 600DW ..................(Grade 1) 19
500M / 600M ...................... (Grade 1) 19
400SD ................................................ 21
429R .................................................. 21
996 / 997 ........................................... 22
DCR1,2,3,4 ..........................(Grade 1) 20
R078 .................................................. 23
CYLINDERS
SFIC / SCHLAGE C
206 / 207 SFIC (Best Compatible) ...... 53
Plastic Thumbturns ............................. 54
Schlage C Keyway .............................. 54
STANDARD CYLINDER LOCKS
SCHLAGE C KEYWAY
700S / 800S ........................(Grade 1) 24
820S ................................................... 26
829R ...................................(Grade 1) 27
850S ................................................... 29
L78 ..................................................... 28
SCHLAGE STYLE (Less Cylinder)
700LC / 800LC .....................(Grade 1) 25
820LC ................................................. 26
829R-LC ..............................(Grade 1) 27
850LC ................................................. 29
L78 ..................................................... 28
KABA Conversion Kit .......................... 25
SARGENT STYLE (Less Cylinder)
754LC ................................................. 30
854LC ................................................. 30
OTHER ITEMS
PARTS & ACCESSORIES
CL-HIT-25 Drill Guide ......................... 57
CL-MP-118 Double-D Punch .............. 57
DCN/DCR/B7 Accessories ................... 60-61

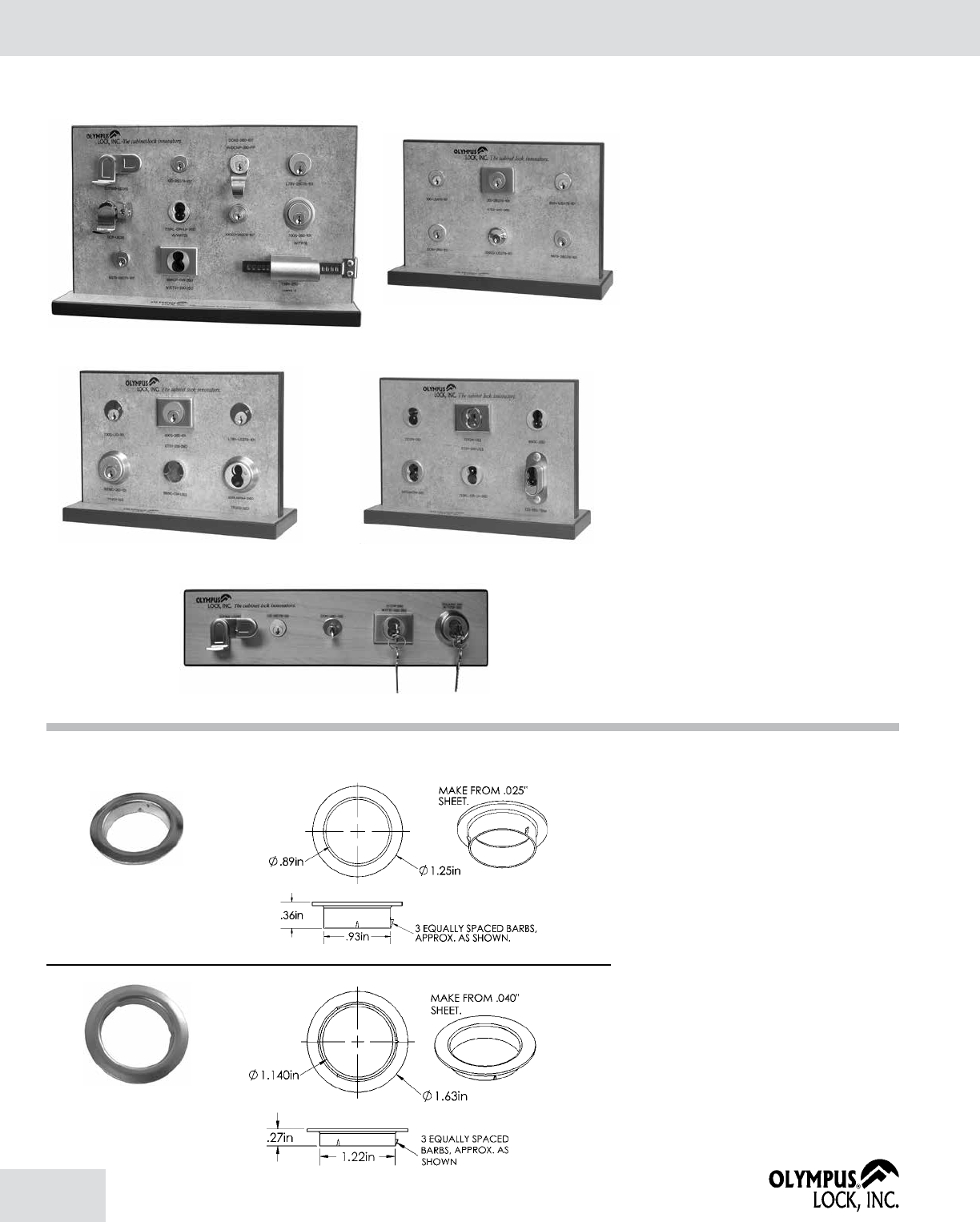

Display Boards ................................... 58
ETS Series ........................................... 63-65

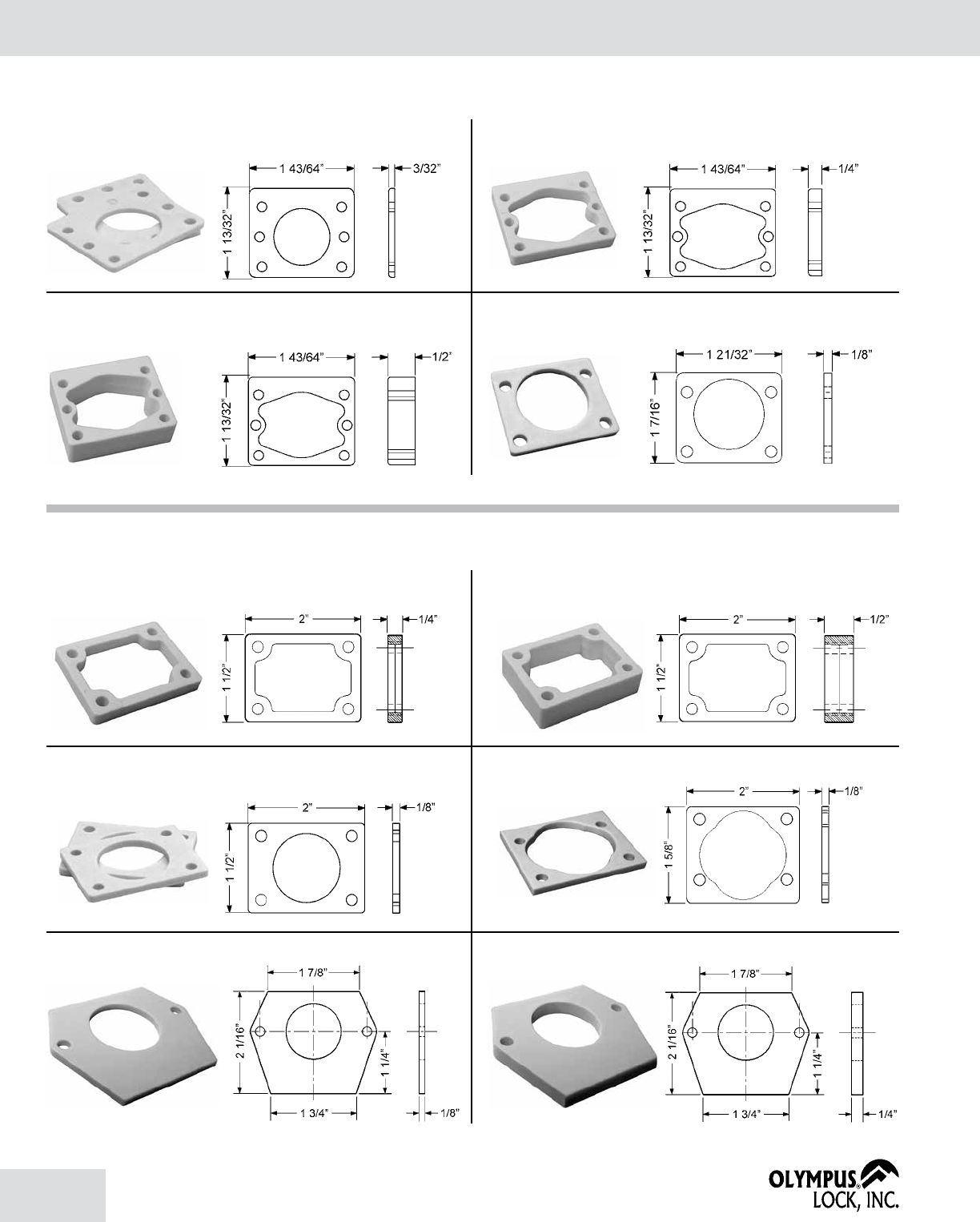

Internal Spacers ................................. 62
2000 Series Handles ........................... 59
SK Series Kits ..................................... 57

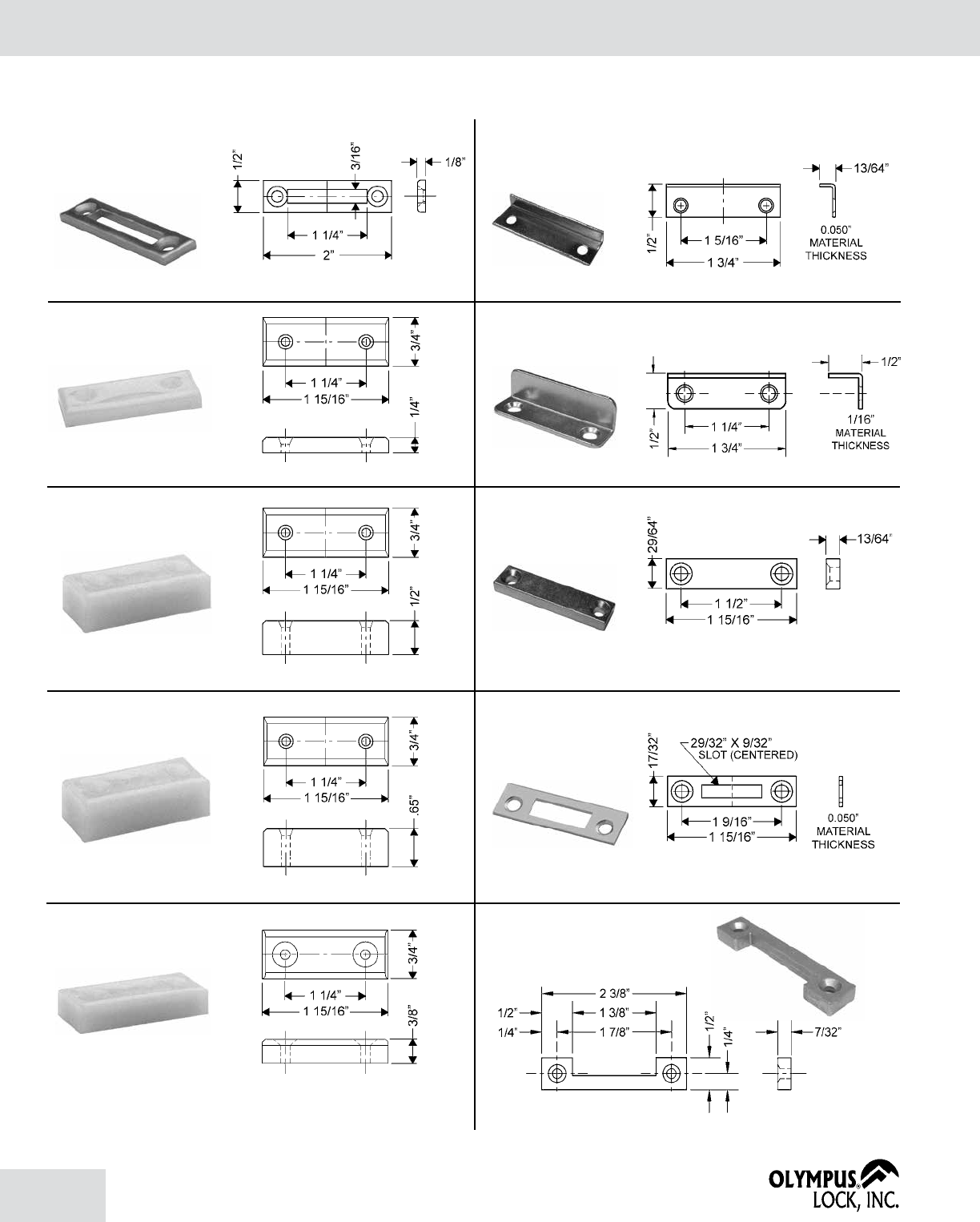

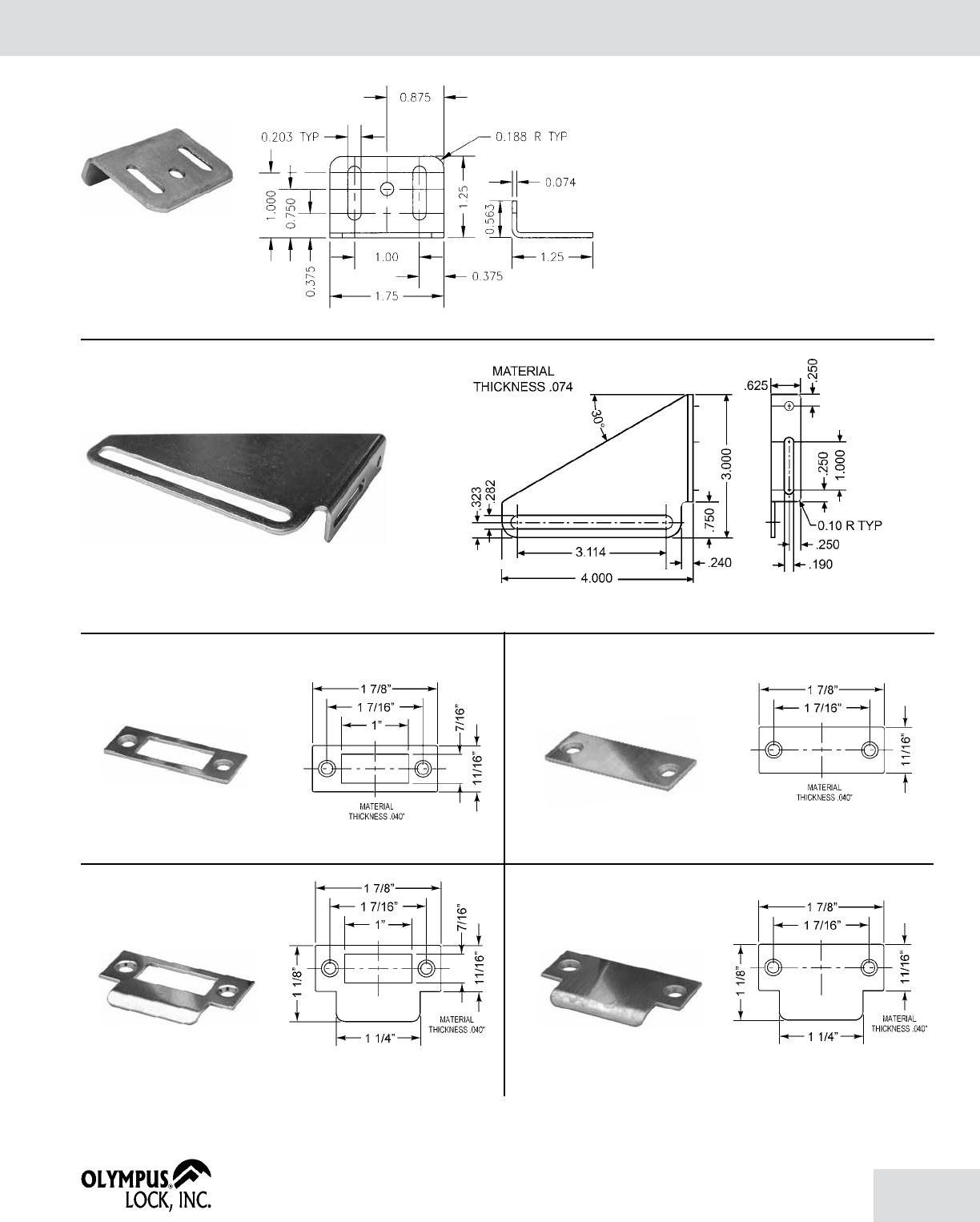

Strikes ................................................ 66-68

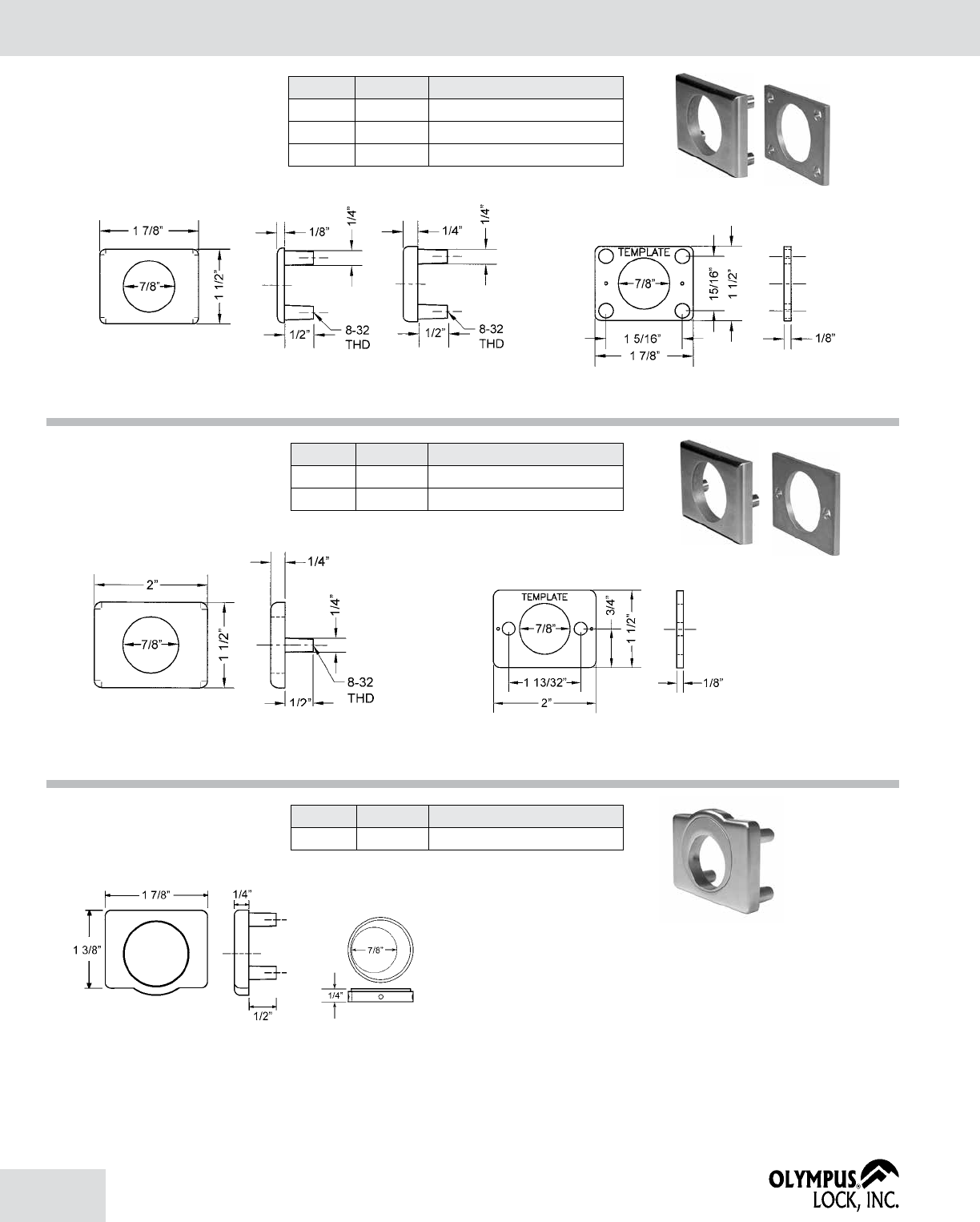

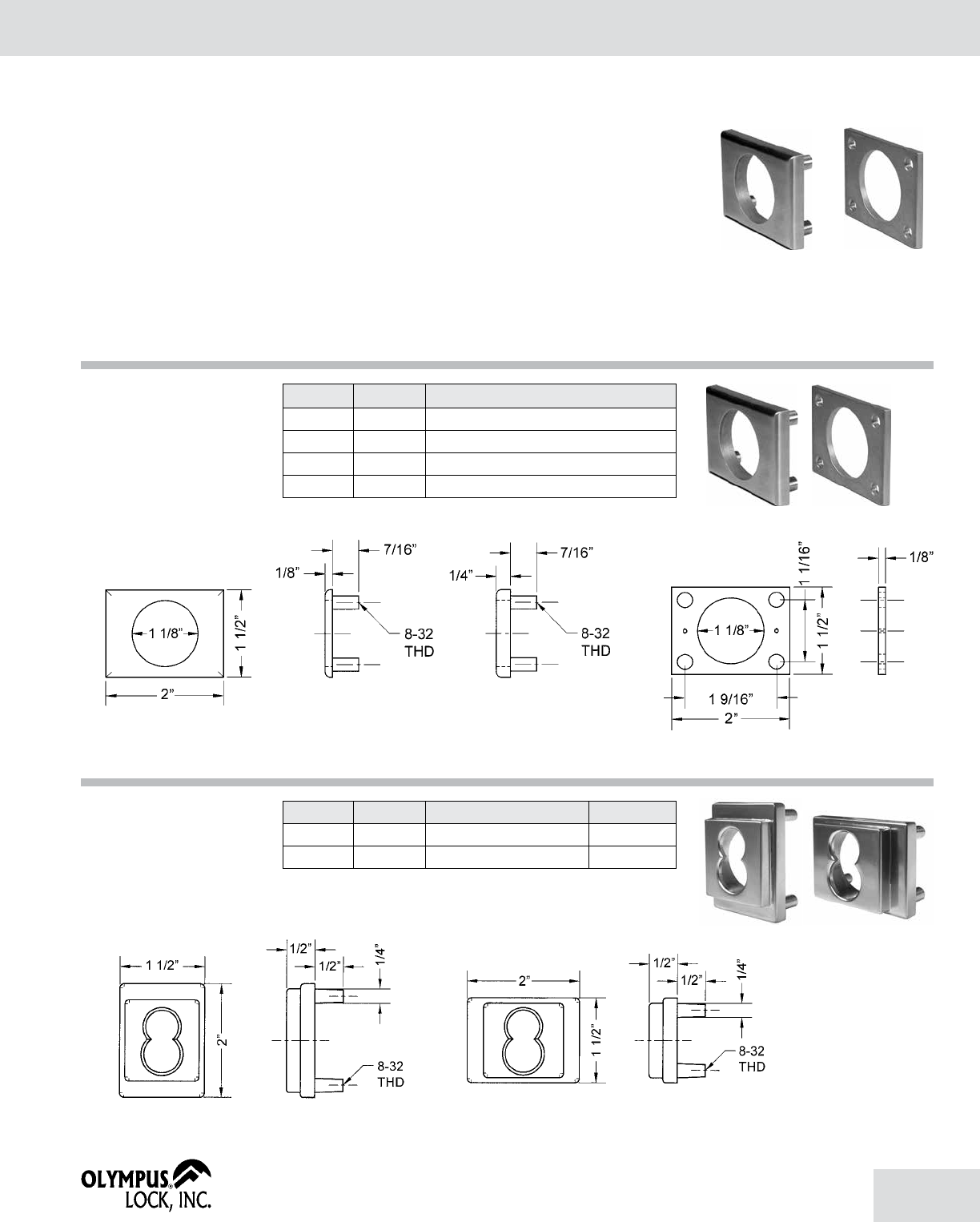

Trim Rings TR1256/TR78 .................... 58

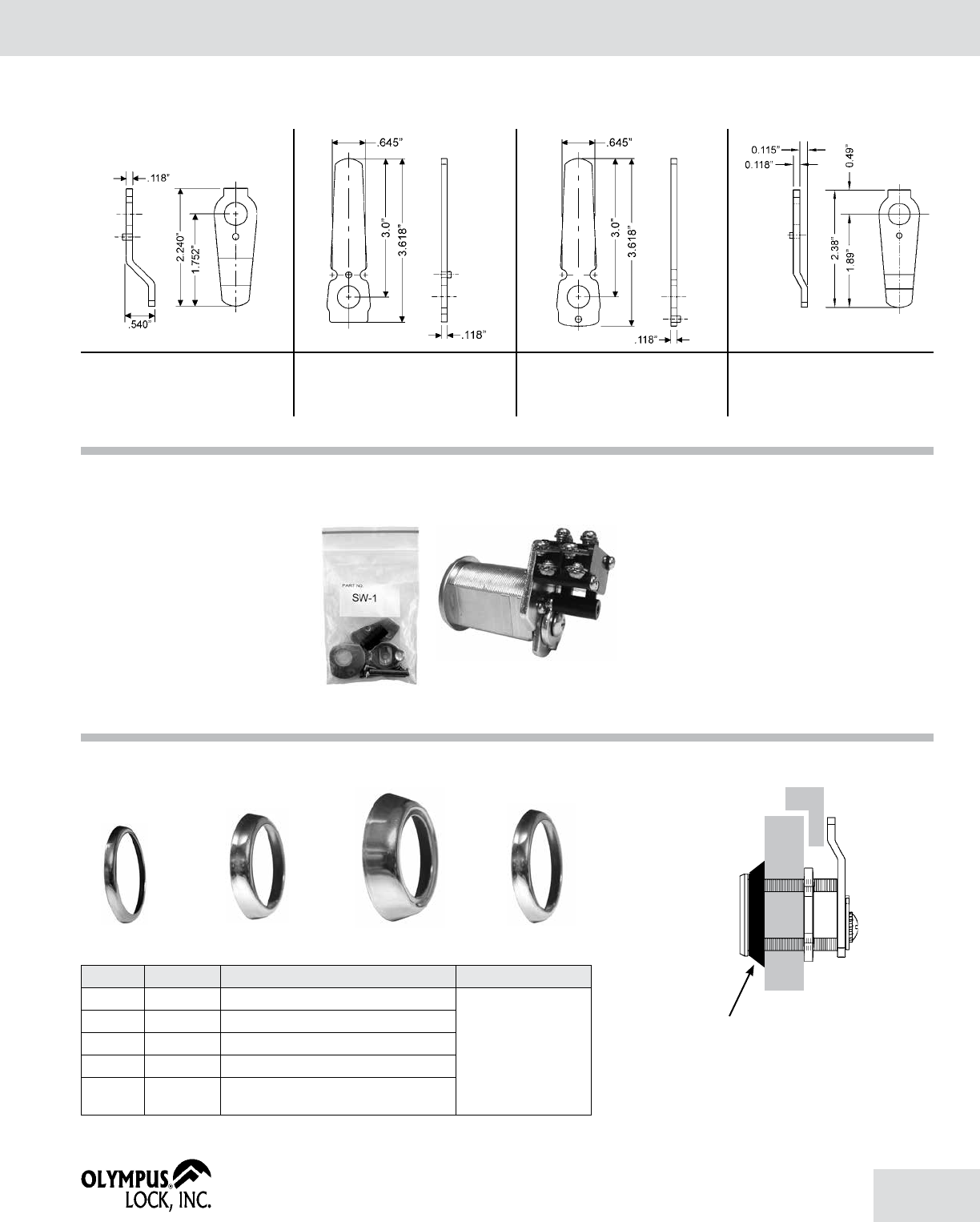

FOR 1-1/8" DIAMETER CAM LOCKS

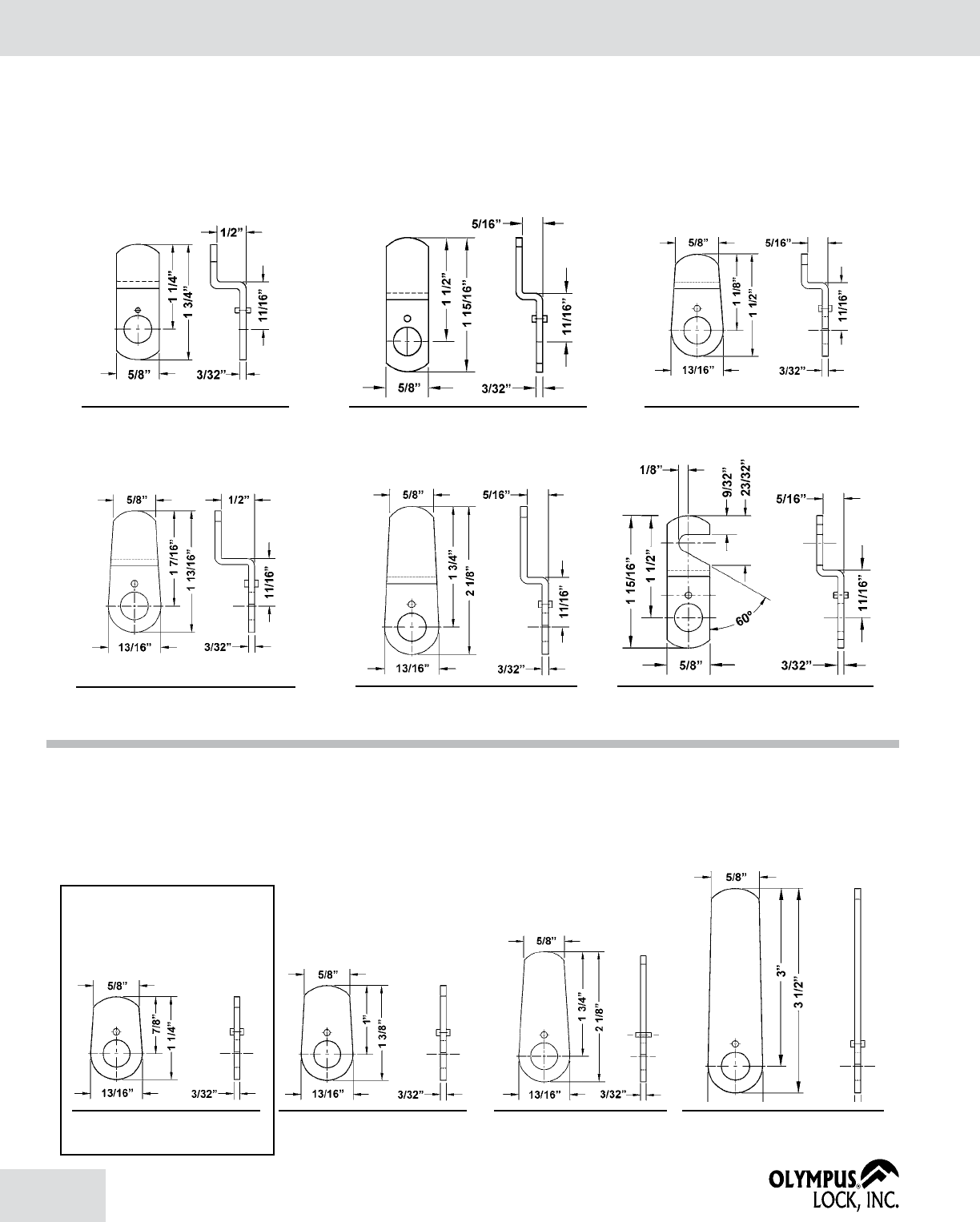

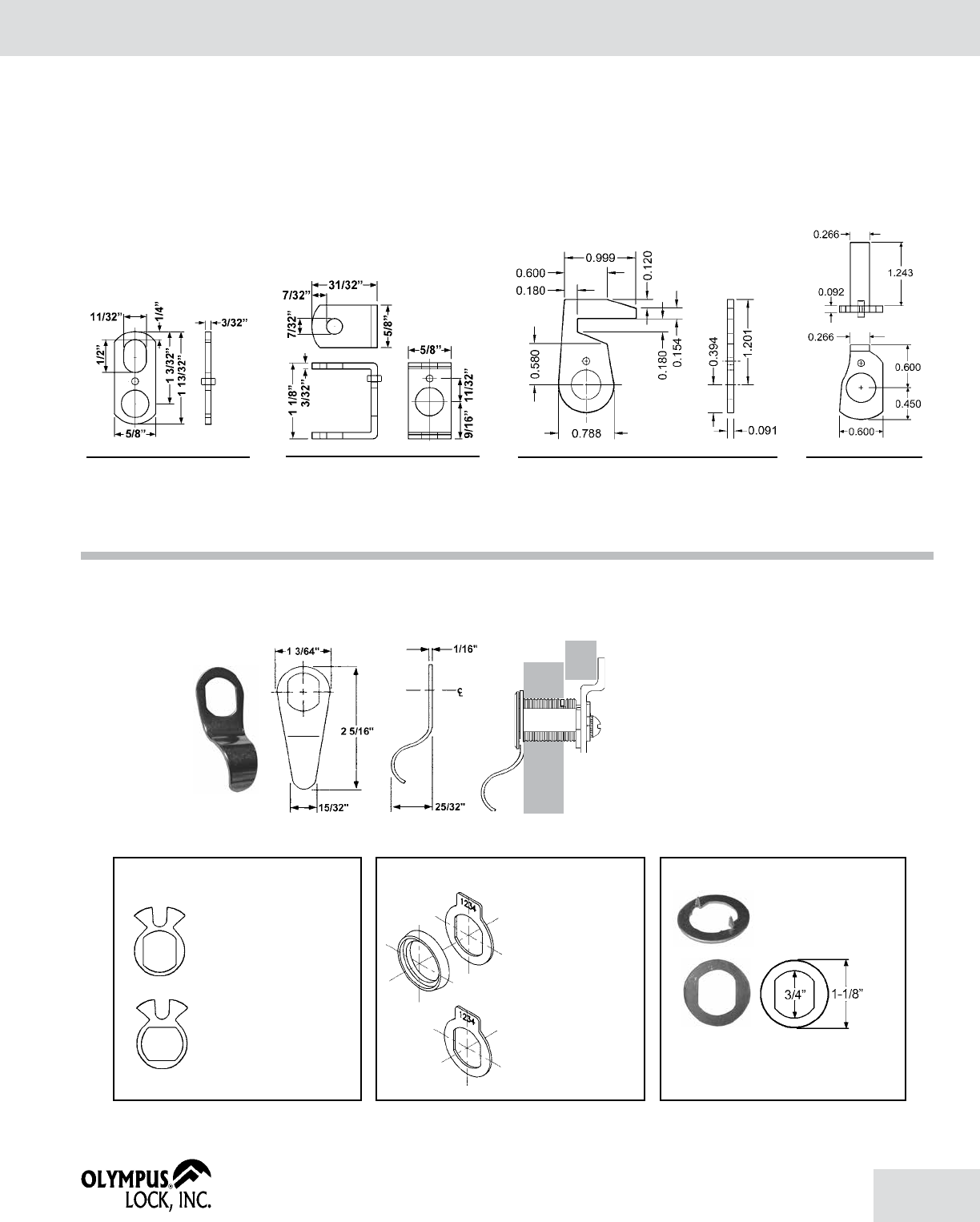

Optional Cams ................................... 69

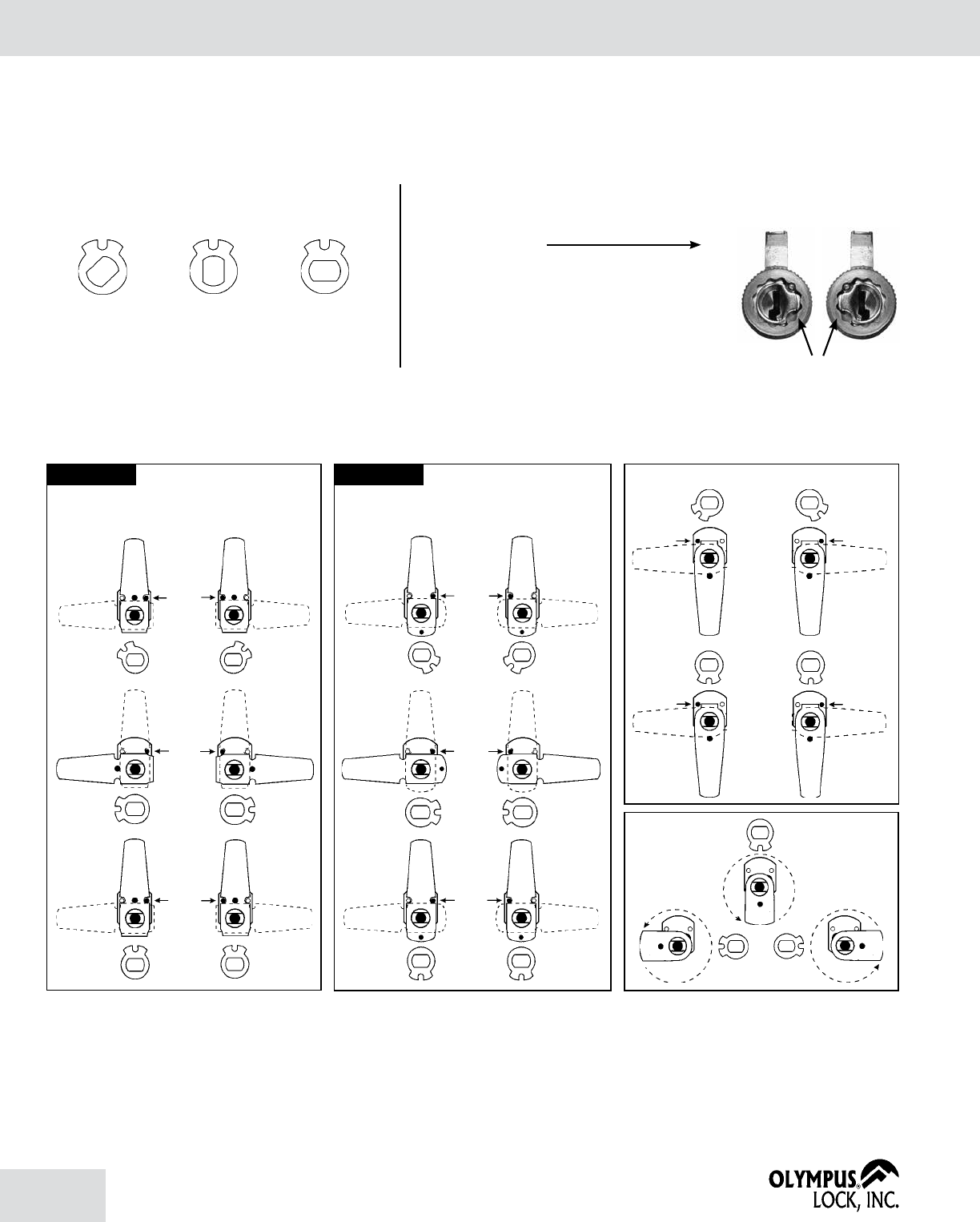

Cam Assembly Instructions ................ 70
SW-1 Switch Kit ................................. 69
TR200 Spacer Collars ......................... 69
TERMS & CONDITIONS
Cancellation Policy ............................. 6
Freight Policy ...................................... 6
Minimum Orders ................................ 6
Returned Goods ................................. 6
General Terms & Conditions ............... 6
Warranty ............................................ 6
REFERENCE
Architectural Specifications ................ 72-74
Finish Chart ........................................ 2
Handing / Key-Retaining Chart ........... 3
Product Groups .................................. 4
Rekeying Instructions ......................... 71
Replacement Guide ............................ 7
6206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
CONDITIONS OF SALE
Payment Terms: 2% 10 days, net 30 days. All payment terms are
subject to credit approval.
Remittance Address: All payments should be sent by mail to: Olympus
Lock, Inc., PO Box 1277, Lynnwood, WA 98046
Minimum Order: $25.00 net excluding freight.
Minimum Annual Purchases: $10,000.00 net excluding freight for
open account status.
Prices: Olympus Lock, Inc. reserves the right to change pricing at any
time and without prior notice.
Conditions: All specifications are subject to withdrawal or change at
any time and without prior notice. Olympus Lock reserves the right
to refuse orders which may be submitted. All prices F.O.B. Lynnwood,
Washington, US Funds.
OFFICE HOURS & CONTACT INFORMATION
Office Hours: 7:00 AM to 4:00 PM Pacific Standard Time
Phone: 206-362-3290, Toll-Free: 800-525-0954,
Fax: 206-362-3569
Street Address: 18424 Highway 99, Lynnwood, WA 98037
Website: www.olympus-lock.com
Company email: info@olympus-lock.com
U.S. SHIPMENTS
All merchandise is shipped F.O.B. from our Lynnwood, Washington
warehouse and becomes the property of the customer when accepted
by the carrier. Olympus Lock will pay freight charges on orders of
$1,000.00 net or more to a single destination within the continental
U.S.A. (excluding Alaska) via the carrier of our choice. For Hawaii and
Alaska Customers: Olympus will pay freight on shipments of $1,000.00
net or more to closest U.S. West Coast port.
CANADIAN SHIPMENTS
All merchandise is shipped F.O.B. our Lynnwood, Washington warehouse
and becomes the property of the customer when accepted by the carrier.
Olympus Lock will pay freight charges on Canadian orders of $1,000.00
net or more to closest U.S.A. border crossing via the carrier of our choice
provided this information is clearly specified at time of order. Olympus
Lock will pay freight charges on Canadian orders of $2,000.00 net or
more to a single Canadian destination via the carrier of our choice. All
duty and/or customs charges are the sole responsibility of the customer.
DELIVERY
Claims resulting from loss, shortages or damage-in-transit must be
reported to Olympus Lock within 15 days of delivery.
Any claims resulting from shortages, overages, or the shipment of
incorrect products by Olympus Lock must be reported to Olympus Lock
within 15 days of delivery.
Olympus Lock does not assume responsibility for any damages resulting
from any delays in delivery.
CANCELLATIONS
Cancellations or alterations to orders will be accepted only when the
cancellation or alteration can be made without loss to Olympus Lock.
Orders for non-stock and/or custom items may not be cancelled after
work has begun.
RETURNED GOODS POLICY
No material is to be returned without our verbal or written permission
in advance. All returned goods require a Returned Goods Authorization
(RGA) number to be obtained from Olympus Lock prior to returning
the goods. Only products purchased within the last 12 months may
be returned. Any products purchased more than 12 months prior are
ineligible for return. Whether goods may be returned will be at the
sole discretion of Olympus Lock, Inc. Merchandise returned must be
identified as to original purchase order number, date of purchase, and
shipper's name and address.
A 25% restocking fee will apply to all returned goods which are found
not to be the responsibility of Olympus Lock.
All goods must be shipped freight prepaid and received at our
warehouse within 30 days of receiving an RGA number. Goods not
received within 30 days of RGA issuance or for which an RGA number
was not issued will not be returned and no credit will be issued.
Returned goods must be received in first-class resalable condition and
in original factory packaging. The determination of "first-class resalable
condition" will be at the sole discretion of Olympus Lock. Goods that
are returned and determined by Olympus Lock not to be in first-class
resalable condition will not be returned, will be scrapped at the factory,
and no credit will be issued.
The following are non-returnable:
1. Custom keyed, non-stock items
2. Goods that have been installed
3. Goods that required custom stamping
4. Goods with custom, special order finishes
5. Products or parts that have been modified
6. Obsolete or discontinued items
LIMITED WARRANTY
Olympus Lock warrants that its products are free from defects in
workmanship and materials under normal installation, use and service.
This warranty does not cover defects or damages arising from improper
installation, improper maintenance, ordinary wear and tear, misuse or
abuse.
The only liability of the company in tort or in contract, whether under
this warranty or otherwise shall be limited to repair or replacement of
products which are returned prepaid to us within one year of the date of
original purchase.
This is a limited warranty and is in lieu of all other representations and
expressed or implied warranties. Under no circumstances shall Olympus
Lock be made liable for any incidental or consequential damages or
losses.
Conditions of Sale
7
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Information given is for dimensional and keyway replacement only. Olympus Lock cabinet locks differ from other manufacturer's locks
because they are easily rekeyable in five minutes or less with readily available tools.
Corbin/CCL Security Products Olympus Lock R Series
15748
15749
15750
15783
Cam Lock
5/8"
13/16"
1"
1"
DCR1 Cam Lock 1-1/16"
15890 Cam Lock 1-5/16" DCR3 Cam Lock 1-7/16"
0666 1/2 Drawer Latch 7/8" 996 Drawer Latch 7/8"
0666 1/2 Drawer Latch 1-1/8" 996 Drawer Latch 1-3/8"
Not Available 997 Door Latch 7/8"
Not Available 997 Door Latch 1-3/8"
0737 Door Lock 3/4"
7/8" 500DR Door Lock 7/8"
0737 Door Lock 1-1/8"
1-3/8" 500DR Door Lock 1-3/8"
0738 Drawer Lock 3/4"
7/8" 600DW Drawer Lock 7/8"
0738 Drawer Lock 1-1/8"
1-3/8" 600DW Drawer Lock 1-3/8"
02063 Drawer Lock 7/8" R078 Drawer Lock 1-1/8"
02291 Sliding Door 7/8" 400SD Sliding Door 1"
Not Available 429R Ratchet Lock 1/4"
Best Access Olympus Lock
3L 721 Series Door/Drawer Lock Deadbolt
5E B7 Series Non-IC cam lock Cam Lock
5L7RD 725RD Series Door/Drawer Lock Deadbolt
5L7RL 725RL Series Door/Drawer Lock Spring Latch
5L7MD 725MD Series Door/Drawer Lock Deadbolt
5L7ML 725ML Series Door/Drawer Lock Spring Latch
8L 728MBL Mailbox Lock Spring Latch
1E7E4 720 / 720B Door/Drawer Cam Lock
1E7D4 720B-DM Direct Drive Cam Lock
2P73 724VR File Cabinet Lock Round Bolt
2S
2S-TBM
722S
722S-TBM Plunger Lock Sliding Door
3S 729R Ratchet Lock Sliding Door
4S 723S Through-glass Sliding Door
Not Available L72V Drawer Lock Spring Latch
Not Available 950IC Drawer Lock Deadlatch
CompX/National Cabinet Lock Olympus Lock N Series
C8102 Cam Lock 1-1/16" DCN1 Cam Lock 1-1/16"
C8103 Cam Lock 1-3/16" DCN2 Cam Lock 1-3/16"
C8106 Cam Lock 1-7/16" DCN3 Cam Lock 1-7/16"
C8108
C8109 Cam Lock 1-3/4" DCN4 Cam Lock 1-3/4"
C8173 Door Lock 7/8" 100DR Door Lock 7/8"
C8174
C8175 Door Lock 1-1/8"
1-3/8" 100DR Door Lock 1-3/8"
C8178 Drawer Lock 7/8" 200DW Drawer Lock 7/8"
C8177
C8179 Drawer Lock 1-1/8"
1-3/8" 200DW Drawer Lock 1-3/8"
Not Available 200DW Drawer Lock 1-5/8"
C8142 Sliding Door 1-1/8" 300SD Sliding Door 1-1/8"
C8163 Drawer Lock 7/8" N078 Drawer 1-1/8"
Not Available N078 Drawer 1-3/8"
Not Available N078L/R Door 1-1/8"
Not Available N078L/R Door 1-3/8"
C8131 Drawer Latch 7/8" 998/L20V Drawer Latch 7/8"
Not Available 998/L20V Drawer Latch 1-3/8"
C8139 Door Latch 3/4" 999 Door Latch 7/8"
Not Available 999 Door Latch 1-3/8"
Not Available FC10 File Cabinet n/a
C8137 T-Bolt Drawer 1/4" T37 T-Bolt Drawer 1/4"
C8140 Ratchet Lock 1/4" 329R Rachet Lock 1/4"
IR / Schlage Lock Olympus Lock* 700/800 Series
CL1000LBC Door Lock 1-1/8" 700SC Door Lock 1-1/8"
CL1000LBD Door Lock 1-3/8" 700SC Door Lock 1-3/8"
CL2000LBC Drawer Lock 1-1/8" 800SC Drawer Lock 1-1/8"
CL2000LBD Drawer Lock 1-3/8" 800SC Drawer Lock 1-3/8"
*Olympus Lock offers Schlage C keyway only or less cylinder.

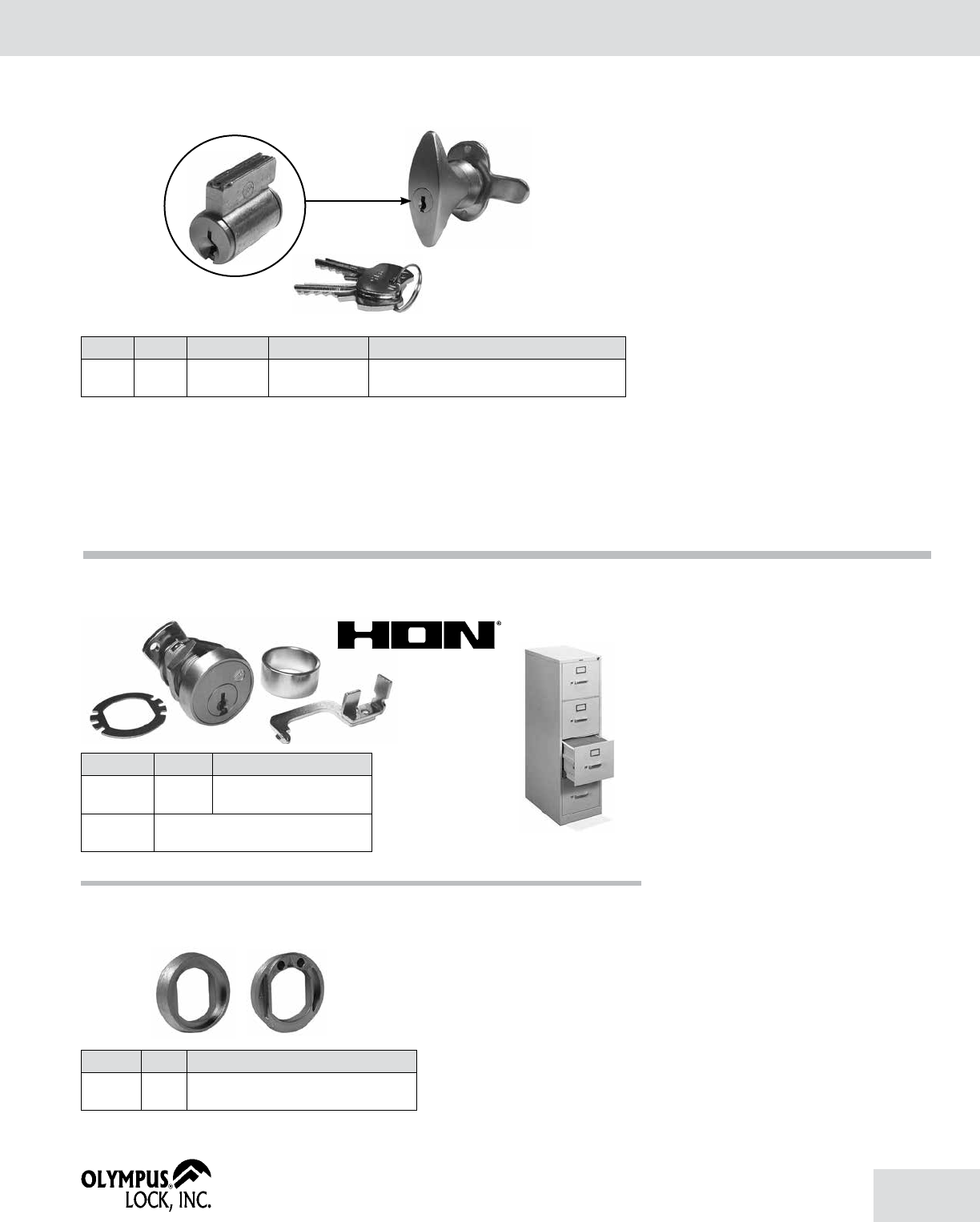

File Cabinet Locks Olympus Lock* FC10 Series
HON F24/
F28
HON Original
(disc tumbler) FC10 File Cabinet Lock
SRS2185 SRS Replacement Lock
(disc tumbler) FC10 File Cabinet Lock
HON F26 Hon Original
(disc tumbler)
FC10 +
FC26-AR
File Cabinet Lock +
Adapter Ring
SRS2190 SRS Replacement Lock
(disc tumbler)
FC10 +
FC26-AR
File Cabinet Lock +
Adapter Ring
*Olympus equivalent locks are on National D4291/D4292 pin tumbler keyway.
Replacement Guide
Sargent Olympus Lock* 754/854 Series
1654 Door Lock 754LC Door Lock - less cylinder
1655 Door Lock 754LC Door Lock - less cylinder
Not Available 854LC Drawer Lock - less cylinder
*Locks are less cylinder for use with Sargent original cylinders.
8206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

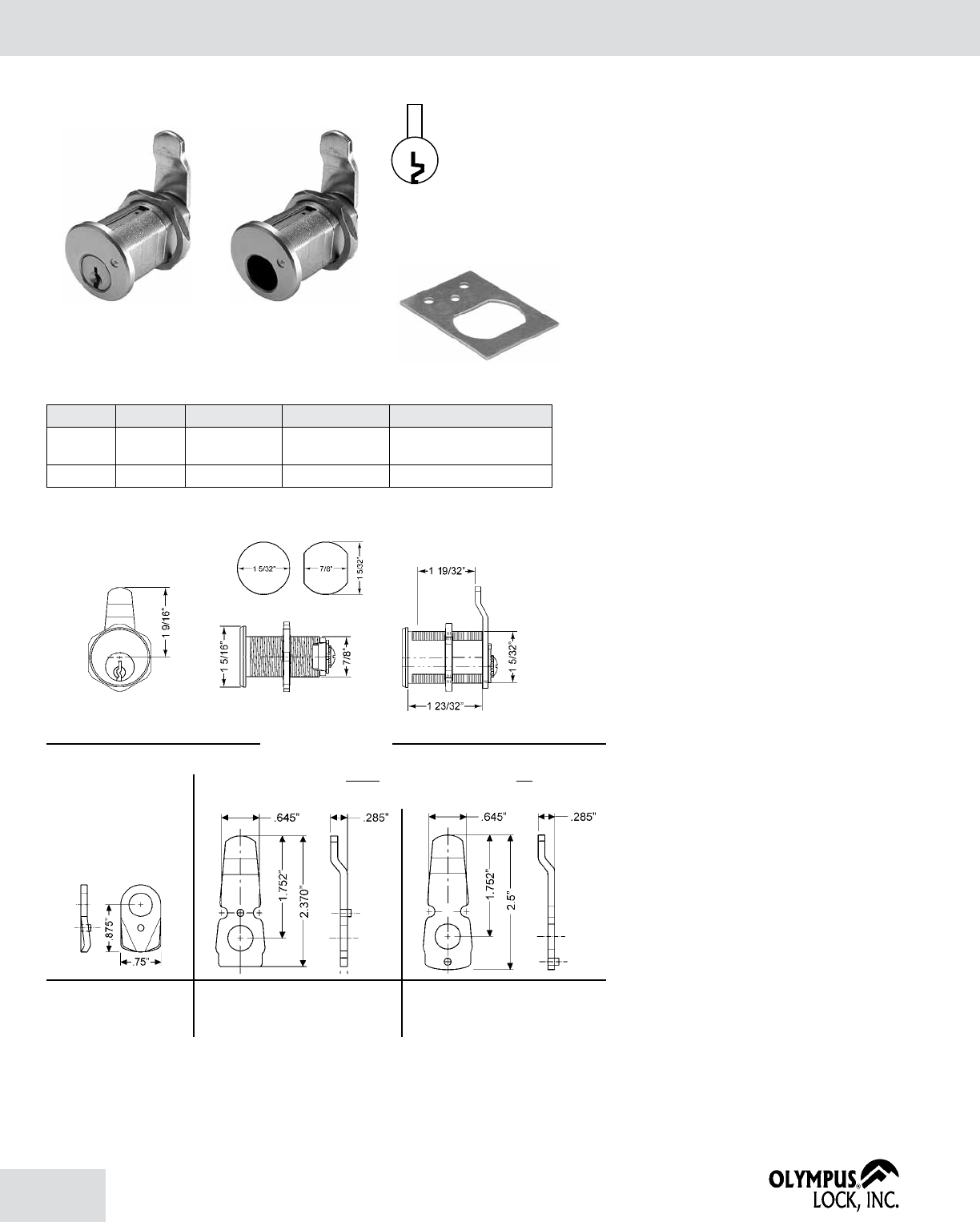

SPECIFICATIONS
Function: Cam lock for use with padlock as locking
device. Functions on doors or drawers. Ideal for
locker applications.
Through-hole: 0.4"
Padlocks: Not included
Max. material thickness: 1-1/8"
Barrel diameter: 3/4"
Finish: 26D, US26, US3, US19
Packaged: Packed 15 per box
INCLUDED ACCESSORIES
DCP-LC straight 1-1/4" cam
DCNP-SPW pronged wood washer
OPTIONAL ACCESSORIES
Anti-rotation plate: DCNP-500-ARP
Padlock bumper plate: DCP-SP1. Available in
US32 polished stainless steel or US26D brushed
chrome plated.
Optional cams: See chart below
PADLOCKS
DCP works with most other manufacturer's
padlocks with shackle diameter of 3/8" (10 mm) or
less. See Olympus Lock's brass padlocks (page 75).
Item Finish Cyl. Length Description
DCP 26D, US26, US3, US19 1-7/32" Accepts most standard padlocks with a
shackle diameter of 3/8" (10 mm) or less
DCP-SP1 26D, US32 Padlock bumper plate (protects face of cabinet from padlock)
Part No. Dim. A
DCP-SC 7/8"
DCP-LC (std)* 1-1/4"
DCP-LC-112 1-1/2"
DCP-LC-134 1-3/4"
DCP-LC-225 2-1/4"
DCP-LC-250 2-1/2"
STRAIGHT CAMS
DCP Padlockable Cam Lock
Part No. Dim. A Dim. B
DCP-1-14 1" 1/4"
DCP-LBC 1-1/4" 1/4"
DCP-114-18 1-1/4" 1/8"
DCP-118-18 1-1/8" 1/8"
DCP-114-38 1-1/4" 3/8"
DCP-LBC-138 1-3/8" 3/8"
DCP-LBC-178 1-7/8" 1/2"
DCP-112-14 1-1/2" 1/4"
OFFSET CAMS
Remove
padlock to
open hasp
Front arm of hasp
will swing down
lifting cam
LOCKED
POSITION
UNLOCKED
POSITION
DCP Series
Padlockable Cam Lock
DCP-LC (std) is included in standard package. All other
cams are available separately.
DCP-SP1 - Padlock bumper plate
DCP-SP1
Padlock bumper plate
9
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

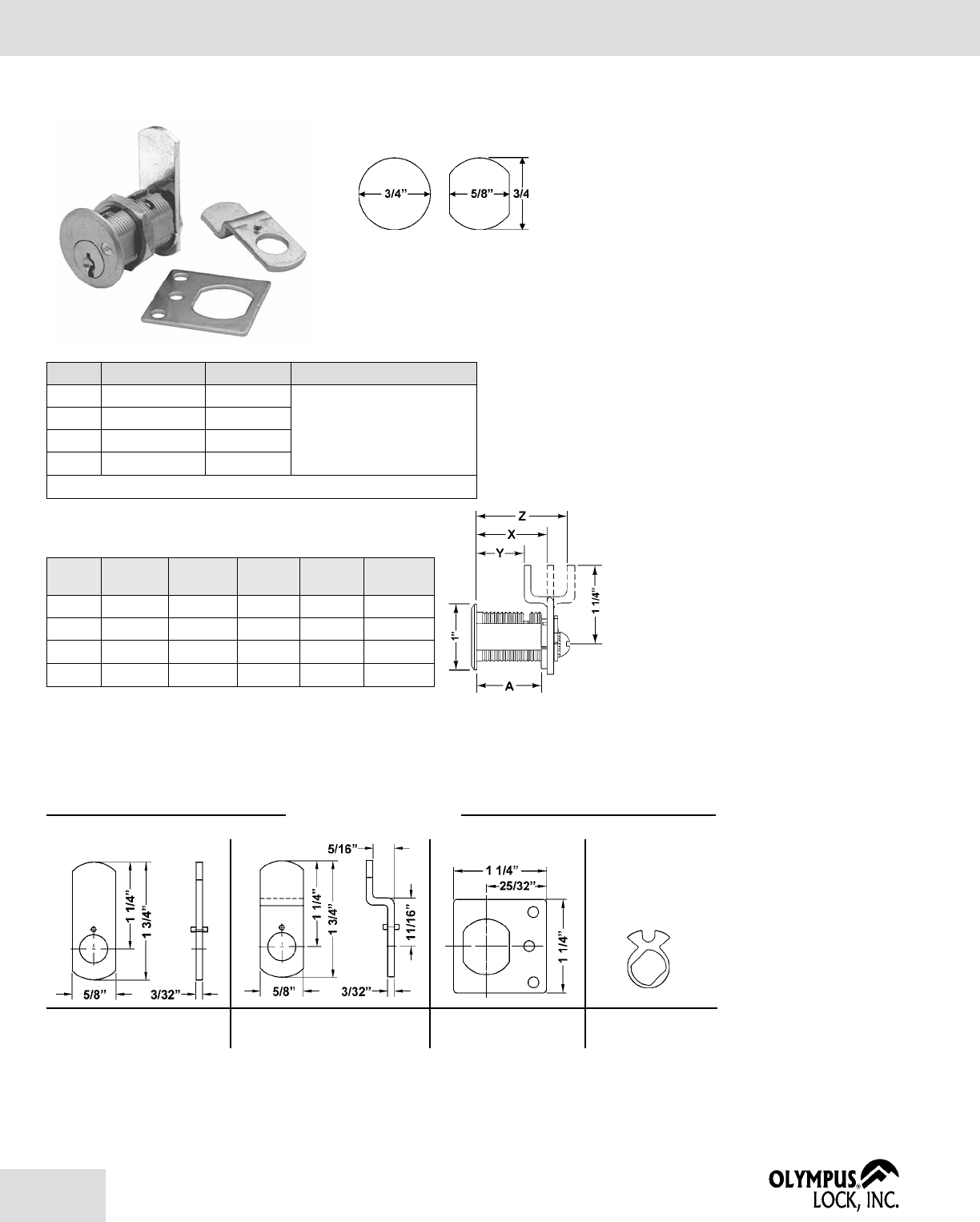

DCP500 Padlockable Cam Lock SPECIFICATIONS
Function: Cam lock for use with padlock as locking
device. Functions on doors or drawers. Ideal for
locker applications.
Through-hole: 0.4"
Padlocks: Not included
Max. material thickness: 1-1/8"
Barrel diameter: 3/4"
Finish: US26, US26D
Packaged: Packed 10 per box
INCLUDED ACCESSORIES
DCP-LC straight 1-1/4" cam
DCNP-SPW pronged wood washer
OPTIONAL ACCESSORIES
Anti-rotation plate: DCNP-500-ARP
Padlock bumper plate: DCP-SP1. Available in
US32 polished stainless steel or US26D brushed
chrome plated.
Optional cams: See chart below
PADLOCKS
DCP500 works with most other manufacturer's
padlocks with shackle diameter of 3/8" (10 mm) or
less. See Olympus Lock's brass padlocks (page 75).
Item Finish Cyl. Length Description
DCP500 26D, US26 1-7/32" Accepts most standard padlocks with a
shackle diameter of 3/8" (10 mm) or less
DCP-SP1 26D, US32 Padlock bumper plate (protects face of cabinet from padlock)
Remove
padlock to
open hasp
Front arm of hasp
will swing down
lifting cam
LOCKED
POSITION
UNLOCKED
POSITION
DCP Series
Padlockable Cam Lock
DCP-SP1
Padlock bumper plate
DCP-SP1 - Padlock bumper plate
Part No. Dim. A
DCP-SC 7/8"
DCP-LC (std)* 1-1/4"
DCP-LC-112 1-1/2"
DCP-LC-134 1-3/4"
DCP-LC-225 2-1/4"
DCP-LC-250 2-1/2"
STRAIGHT CAMS
Part No. Dim. A Dim. B
DCP-1-14 1" 1/4"
DCP-LBC 1-1/4" 1/4"
DCP-114-18 1-1/4" 1/8"
DCP-118-18 1-1/8" 1/8"
DCP-114-38 1-1/4" 3/8"
DCP-LBC-138 1-3/8" 3/8"
DCP-LBC-178 1-7/8" 1/2"
DCP-112-14 1-1/2" 1/4"
OFFSET CAMS
DCP-LC (std) is included in standard package. All other
cams are available separately.
10 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
N Series Keying
STOCK KEYING
4-pin standard: KD and KA# 101, 103, 107, 915
- 100/200/DCN: Additional (4-pin) KA# 51001, 51002, 51003, 51004
- T37: Additional (4-pin) KA# 51001 through 51011 and 001 through 030
STOCK MASTER KEYING
5-pin standard: Orders ship with 2 master keys per project and 2 change
keys per lock. Includes 4-digit numeric key code stamped on the
change keys and face of lock. Provide key schedule at time of order.
NON-STOCK MASTER KEYING
4-pin: Orders ship standard with 2 master keys per project and 2 change
keys per lock. Includes 3-digit numeric key code stamped on the
change keys and face of lock. Provide key schedule at time of order.
5-pin: Orders ship standard with 2 master keys per project and 2 change
keys per lock. Includes 4-digit numeric key code stamped on the change
keys and face of lock. Provide key schedule at time of order.
GRAND MASTER KEYING
5-pin: Orders ship standard with 2 grand master keys per project and 2
change keys per lock. Includes 4-digit numeric key code stamped on
the change keys and face of lock. Provide key schedule and full scope of
project at time of order and indicate required number of sub master keys for
each group. Sub master keys are charged separately.
R Series Keying
STOCK KEYING
5-pin standard: KD and KA# 4T2, 4T3
STOCK MASTER KEYING
5-pin standard: Orders ship standard with 2 master keys per project and
2 change keys per lock. Includes 3-digit numeric key code stamped on
the change keys and face of lock. Provide key schedule at time of order.
NON-STOCK MASTER KEYING
5-pin: Orders ship standard with 2 master keys per project and 2 change
keys per lock. Includes 3-digit numeric key code stamped on the change
keys and face of lock. Provide key schedule at time of order.
*6-pin: Orders ship standard with 2 master keys per project and 2 change
keys per lock. Includes numeric key code stamped on the change keys and
face of lock. Provide key schedule at time of order.
GRAND MASTER KEYING
5-pin: Orders ship standard with 2 grand master keys per project and 2
change keys per lock. Includes numeric key code stamped on the change keys
and face of lock. Provide key schedule and full scope of project at time of
order and indicate required number of sub master keys for each group. Sub
master keys are charged separately.
*6-pin: Orders ship standard with 2 grand master keys per project and 2
change keys per lock. Includes numeric key code stamped on the change keys
and face of lock. Provide key schedule and full scope of project at time of
order and indicate required number of sub master keys for each group. Sub
master keys are charged separately.
*
6-pin keying note: Available on 500, 600, 996, and 997 series locks only.
Keying Information
N Series, R Series, Schlage C and SFIC
GRAND MASTER KEYING
Before we can create a grand master key system, we need to have a realistic idea of the complete number of masters, sub masters and key codes that the system
will require and whether there will be future expansion. Without this information at the beginning of the process, the options for future expansion may be limited.
SPECIAL STAMPING
Custom (non-stock) lock face and key stamping and/or engraving is available for an additional charge. See price list for details and pricing.
Schlage C Keying
STOCK KEYING
5-pin standard: KD and KA# 101, 102
STOCK MASTER KEYING
5-pin standard: Orders ship standard with 2 master keys per project and
2 change keys per lock. Includes numeric key code stamped on the change
keys. Lock face stamping available separately. Provide key schedule at time of
order.
NON-STOCK MASTER KEYING
5-pin: Locks ship standard with 2 master keys per project and 2 change keys
per lock. Includes numeric key code stamped on the change keys. Lock face
stamping available separately. Provide key schedule at time of order.
6-pin: Locks ship standard with 2 master keys per project and 2 change keys
per lock. Includes numeric key code stamped on the change keys. Lock face
stamping available separately. Provide key schedule at time of order.
GRAND MASTER KEYING
5-pin: Orders ship standard with 2 grand master keys per project and 2
change keys per lock. Includes numeric key code stamped on the change
keys. Lock face stamping available separately. Provide key schedule and full
scope of project at time of order and indicate required number of sub master
keys for each group. Sub master keys are charged separately.
6-pin: Orders ship standard with 2 grand master keys per project and 2
change keys per lock. Includes numeric key code stamped on the change
keys. Lock face stamping available separately. Provide key schedule and full
scope of project at time of order and indicate required number of sub master
keys for each group. Sub master keys are charged separately.

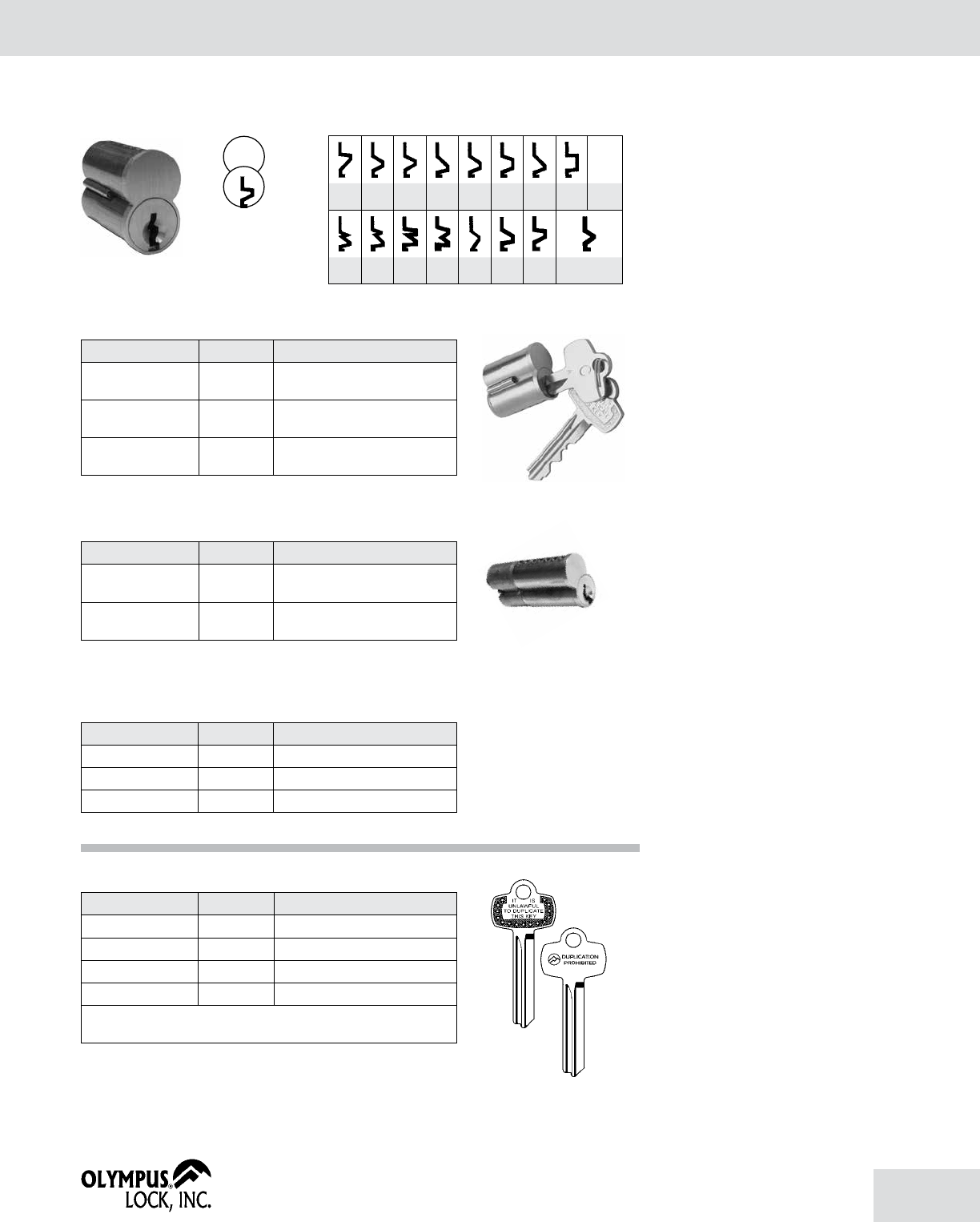

SFIC Keying
STOCK KEYING
N/A: All cores are custom keyed. Specify keyway and type of keying at time
of order.
CUSTOM / MASTER KEYING
6-pin or 7-pin: Orders ship standard with 2 change keys per core. Includes
numeric key code stamped on the change keys. 2 additional cut keys (master
keys and/or control keys—specify at time of order) are included with each
project. Provide key schedule at time of order. Additional keys may be
purchased separately.
GRAND MASTER KEYING
6-pin or 7-pin: Orders ship standard with 2 change keys per core. Includes
numeric key code stamped on the change keys. 2 additional cut keys (master
keys and/or control keys—specify at time of order) are included with each
project. Provide key schedule and full scope of project at time of order and
indicate required number of sub master keys for each group. Sub master keys
are charged separately.
11
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
ANSI/BHMA: Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(100DR) / E07041(200DW).
100M/200M: M Series (MRI) locks are made of
all non-magnetic materials and components
specifically for use in MRI medical applications.
Standard function: Key removable in locked or
unlocked position. Standard function locks are
non-handed.
Key-retaining: Key removable in locked position
only. Specify handing (KL/KR for doors or KI/KV
for drawers) when ordering.
US Patent Nos: 4,899,563; 4,920,774
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16", 1-3/8" or 1-5/8"
Barrel diameter: 7/8"
Finish: 26D, US4 or 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915, 51001, 51002,
51003, 51004*note
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
Keyblank 5-pin copper plated: KBN-5B
(use with 100M/200M MRI locks)
INCLUDED ACCESSORIES
100DR: 2 keys, 56-1 bar strike, and lock mounting
screws
100M: 2 keys, 56-1 bar strike, and lock mounting
screws (keys, components and materials are non-
ferrous/non-magnetic)
200DW: 2 keys, 12-3 angle strike, and lock
mounting screws
200M: 2 keys, 56-1 bar strike, and lock mounting
screws (keys, components and materials are non-
ferrous/non-magnetic)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP21 (3/32" thick), WP22 (1/4" thick),
WP23 (1/2" thick)

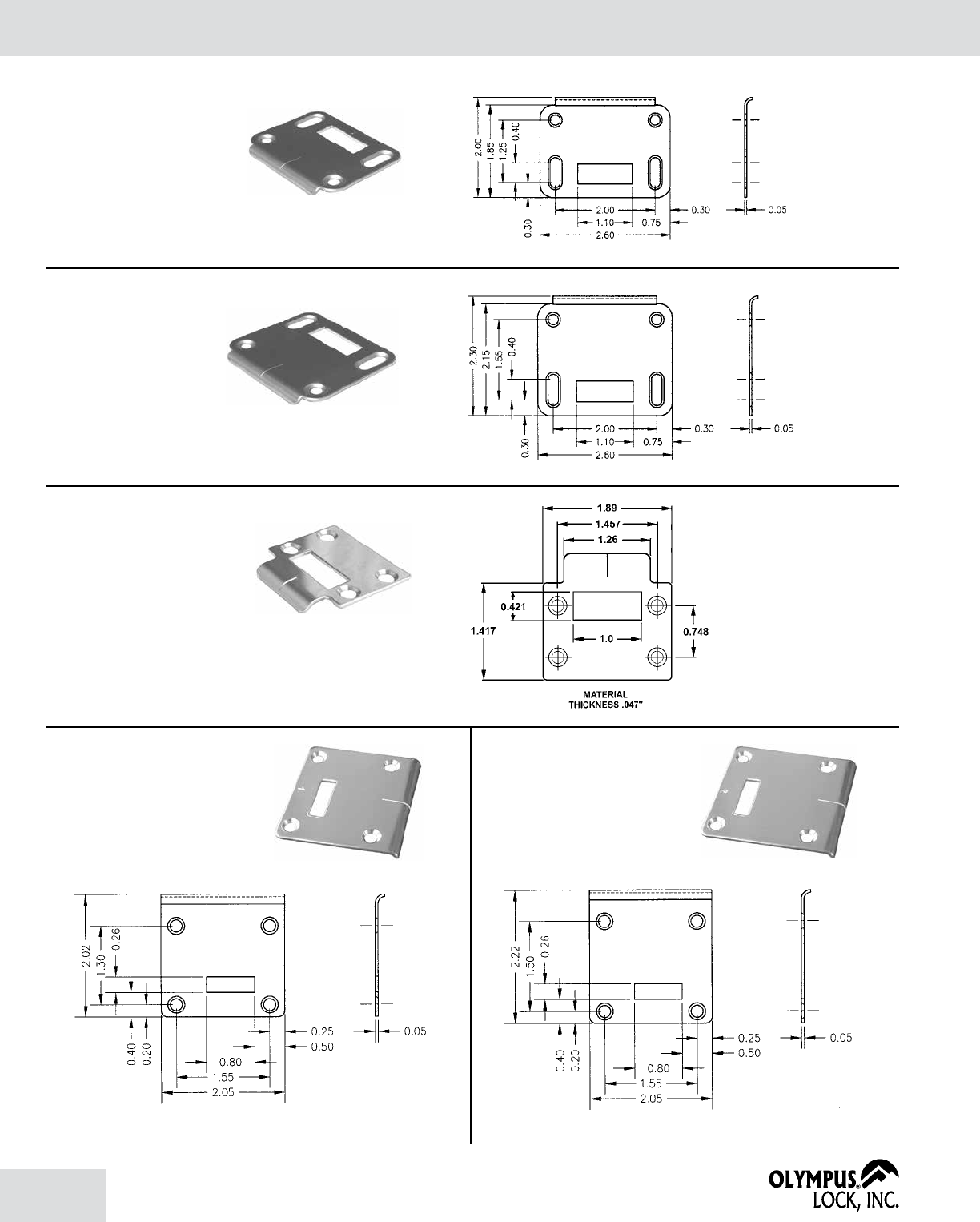

Strikes: 07S, 12-1, 12-2, 12-3, 12-4, 56-1
Trim collars: TR1256
Through-bolt hardware: ETS2 trim plate, ETS2-PL
trim pull and ETST2 template
Long bolt (bolt only): 15-1-35 for use with
100DR/100M or 200DW/200M locks
Item Function Finish Cyl. Length Keying
100DR Door 26D, US4, 10B 15/16" KD, KA 101,103,107,915
KA 51001,51002,51003,51004*note
Custom keyed
100DR Door 26D, US4, 10B 1-3/8"
100M Door (MRI) 26D 15/16" or 1-3/8"
Key-retaining: Specify item 100KL for left-hand doors and 100KR for right-hand doors.
(KL and KR designation are
only required for key retaining locks
).
Key-retaining (MRI): Specify item 100MKL for left-hand doors and 100MKR for right-hand doors.
(MKL and MKR designation are
only required for key retaining MRI locks
).
Long bolt: Specify LB for long bolt installed in lock.
Item Function Finish Cyl. Length Keying
200DW Drawer 26D, US4, 10B 15/16" or 1-3/8" KD, KA 101,103,107,915
KA 51001,51002,51003,51004*note
Custom keyed
200DW Drawer 26D, 10B 1-5/8"
200M Drawer (MRI) 26D 15/16", 1-3/8" or 1-5/8"
Key-retaining: Specify item 200KI for inverted drawers and 200KV for vertical drawers.
(KI and KV designations are
only required for key retaining locks
).
Key-retaining (MRI): Specify item 200MKI for inverted drawers and 200MKV for vertical drawers.
(MKI and MKV designations are
only required for key retaining MRI locks
).
Long bolt: Specify LB for long bolt installed in lock.

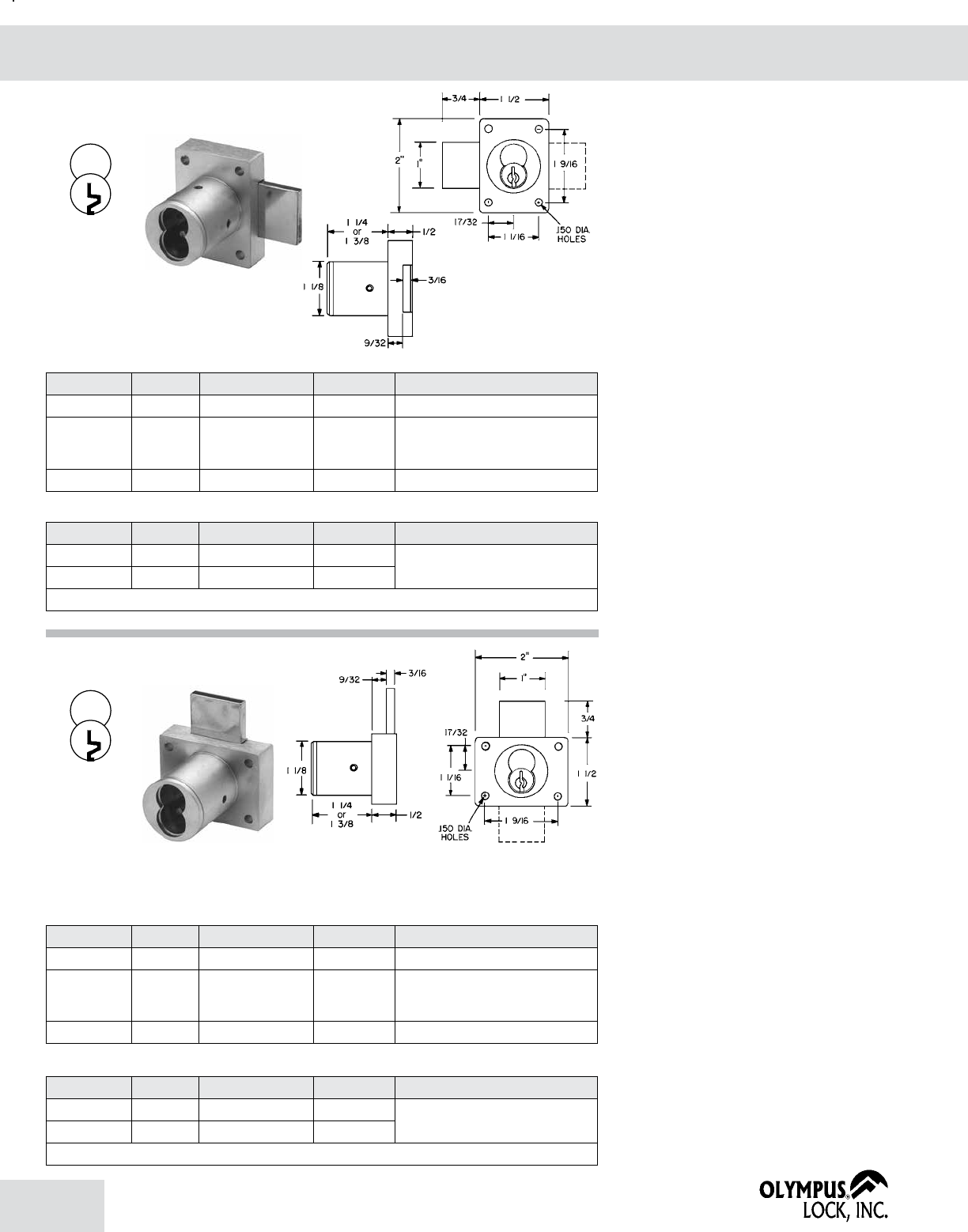

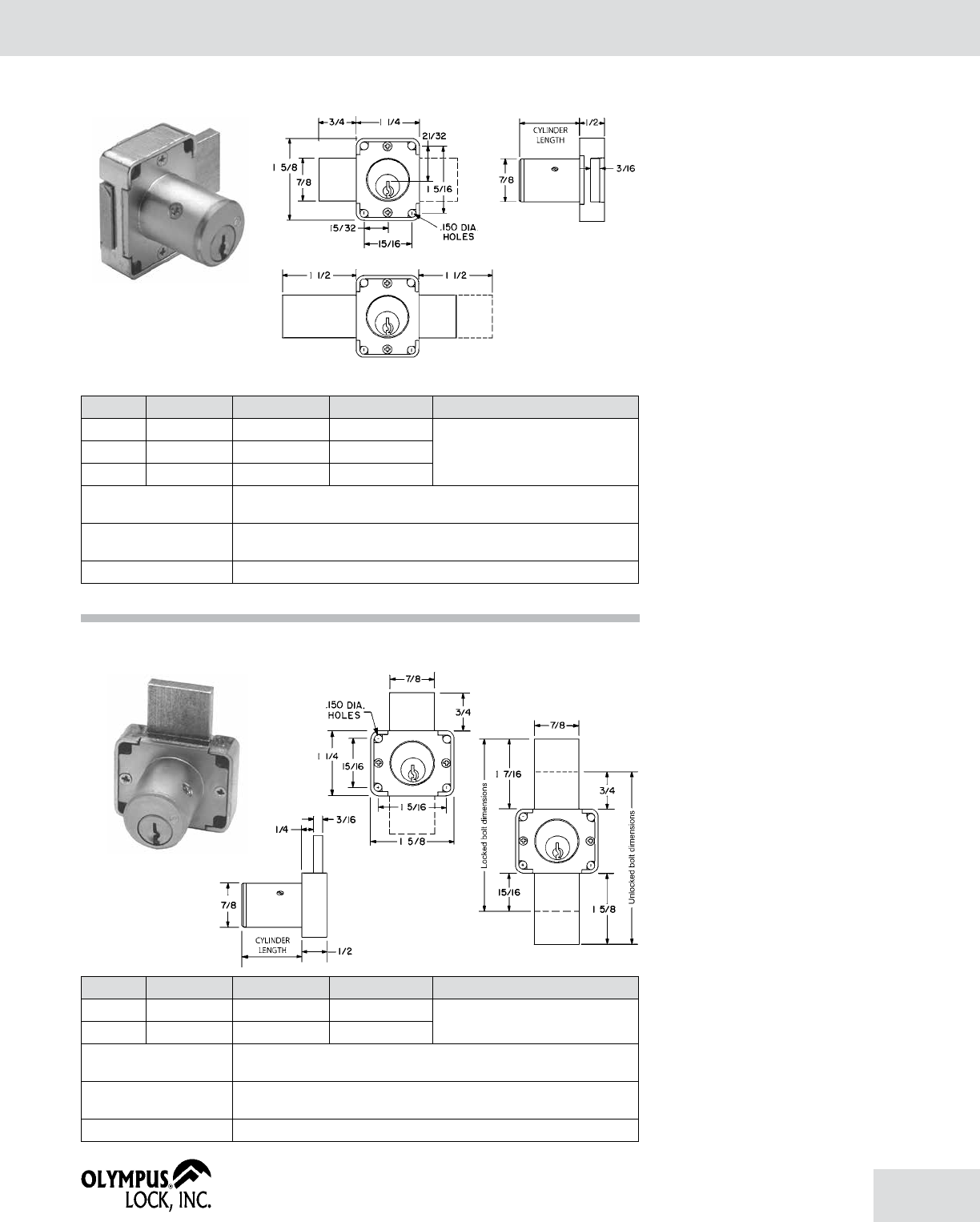

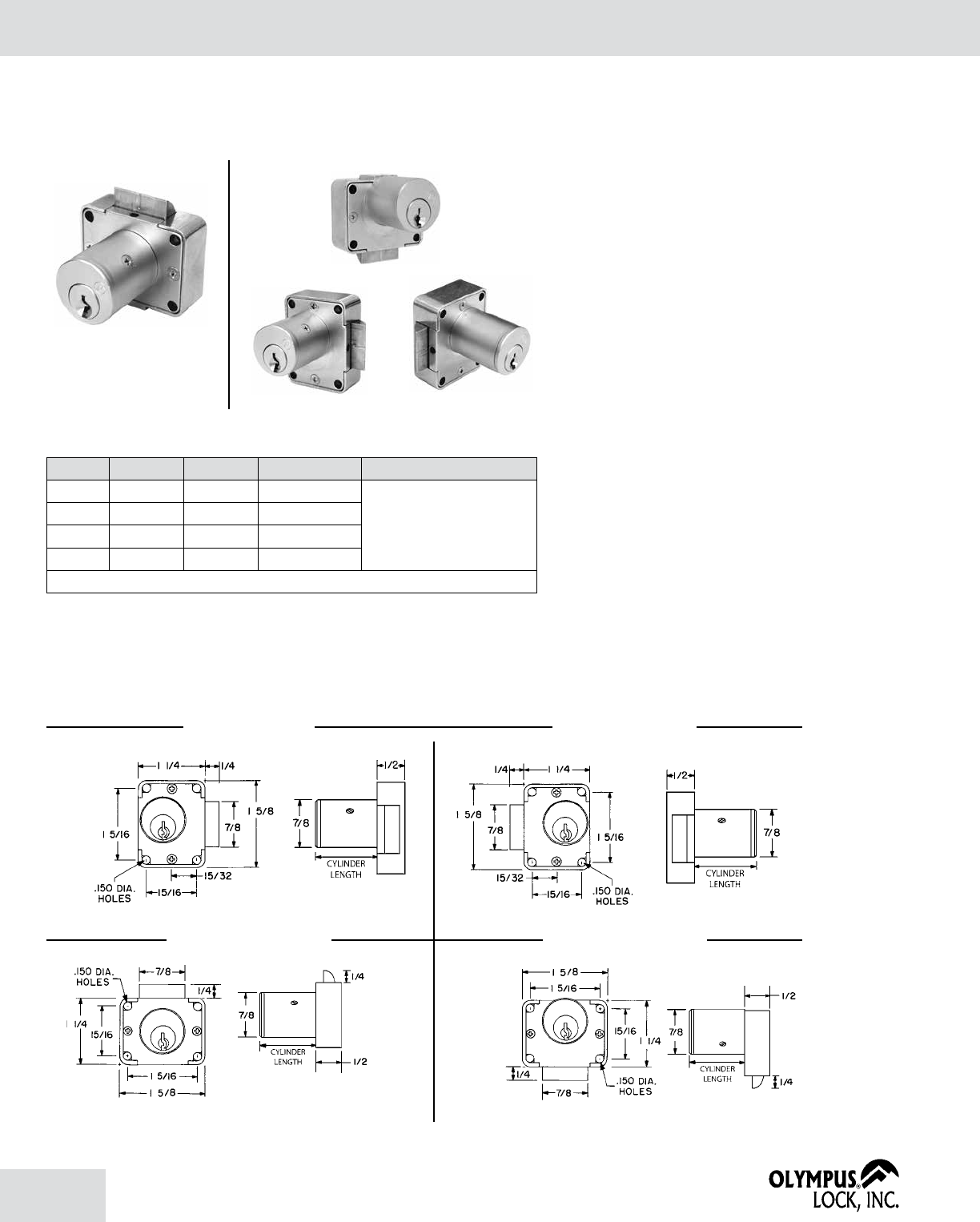

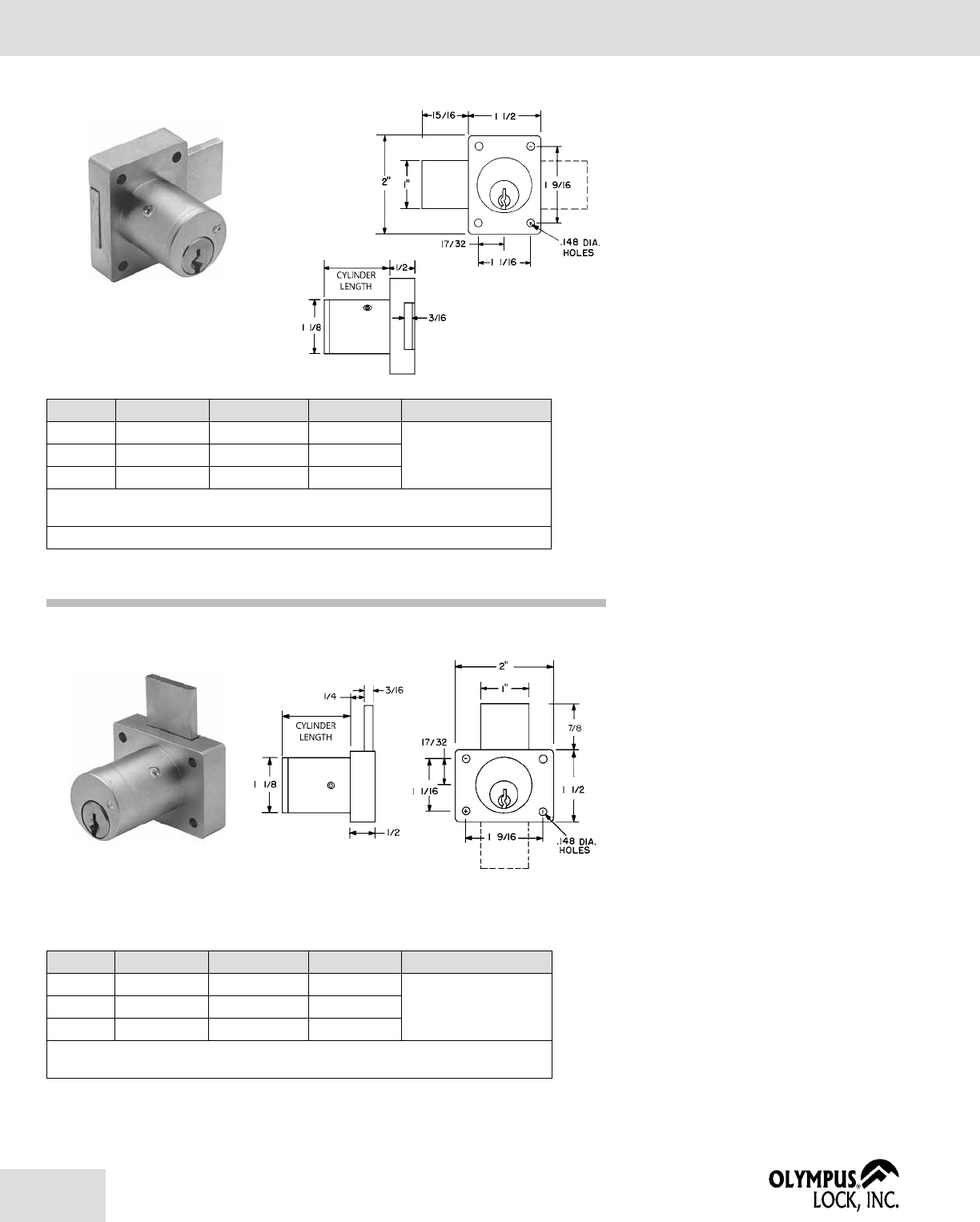

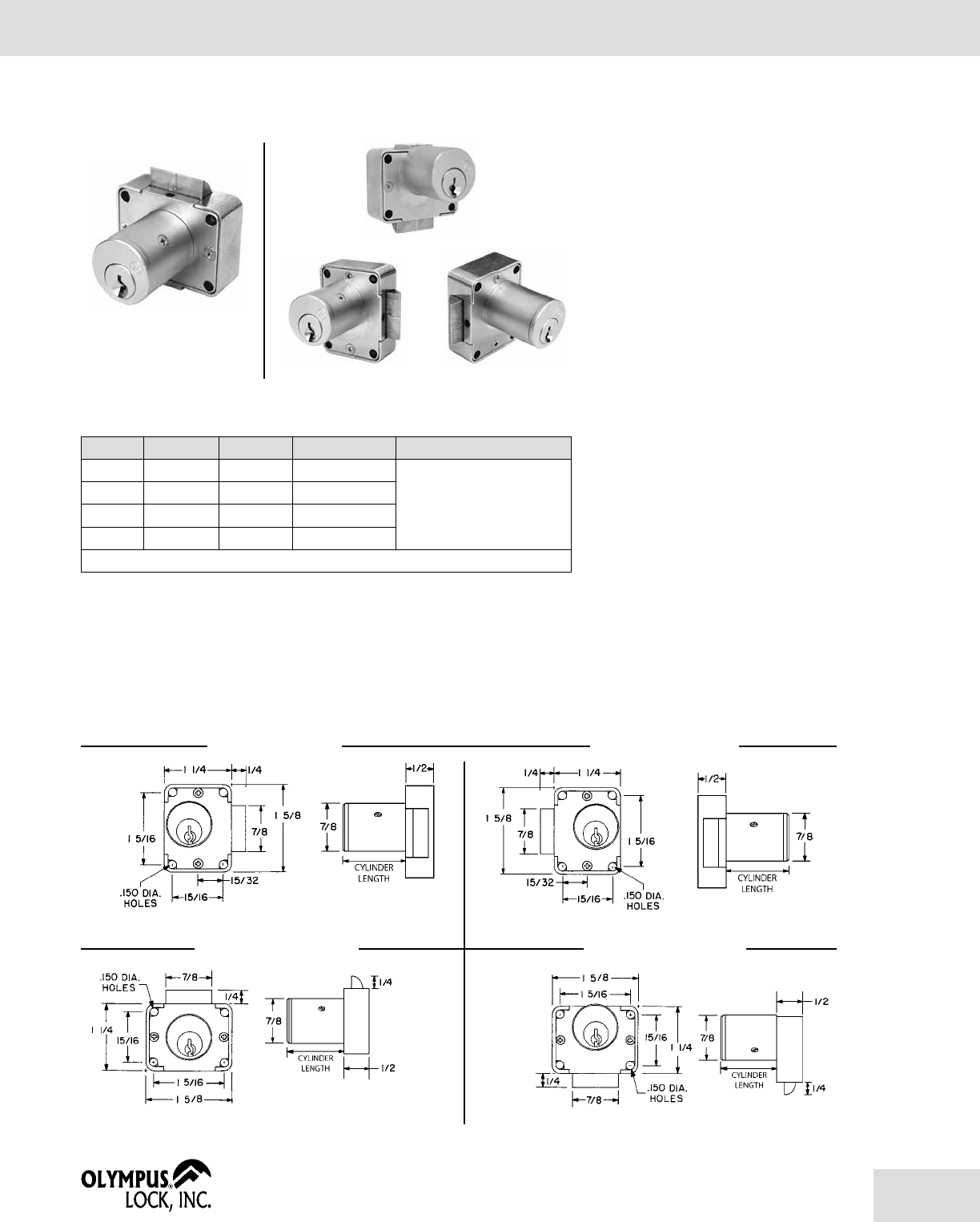

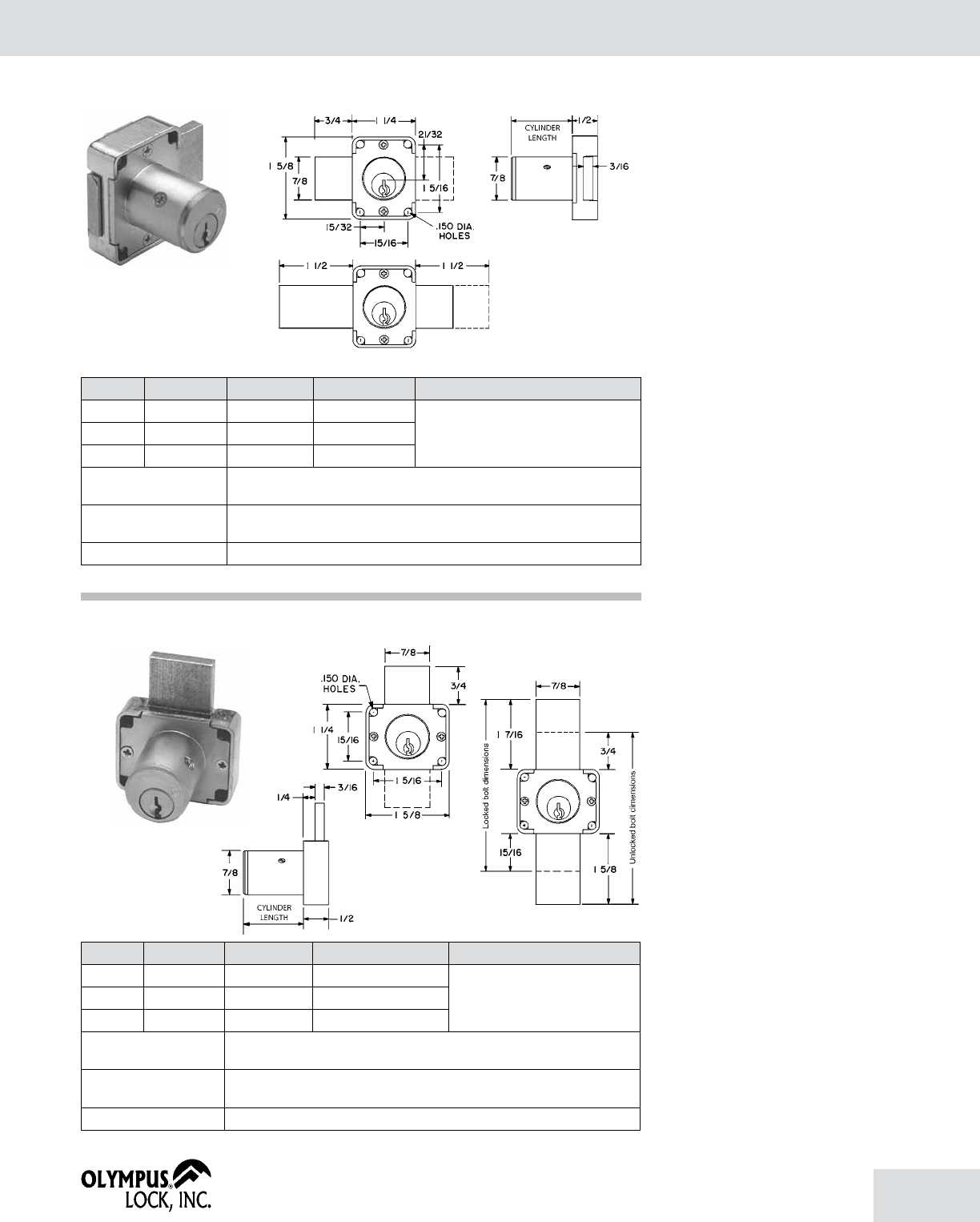

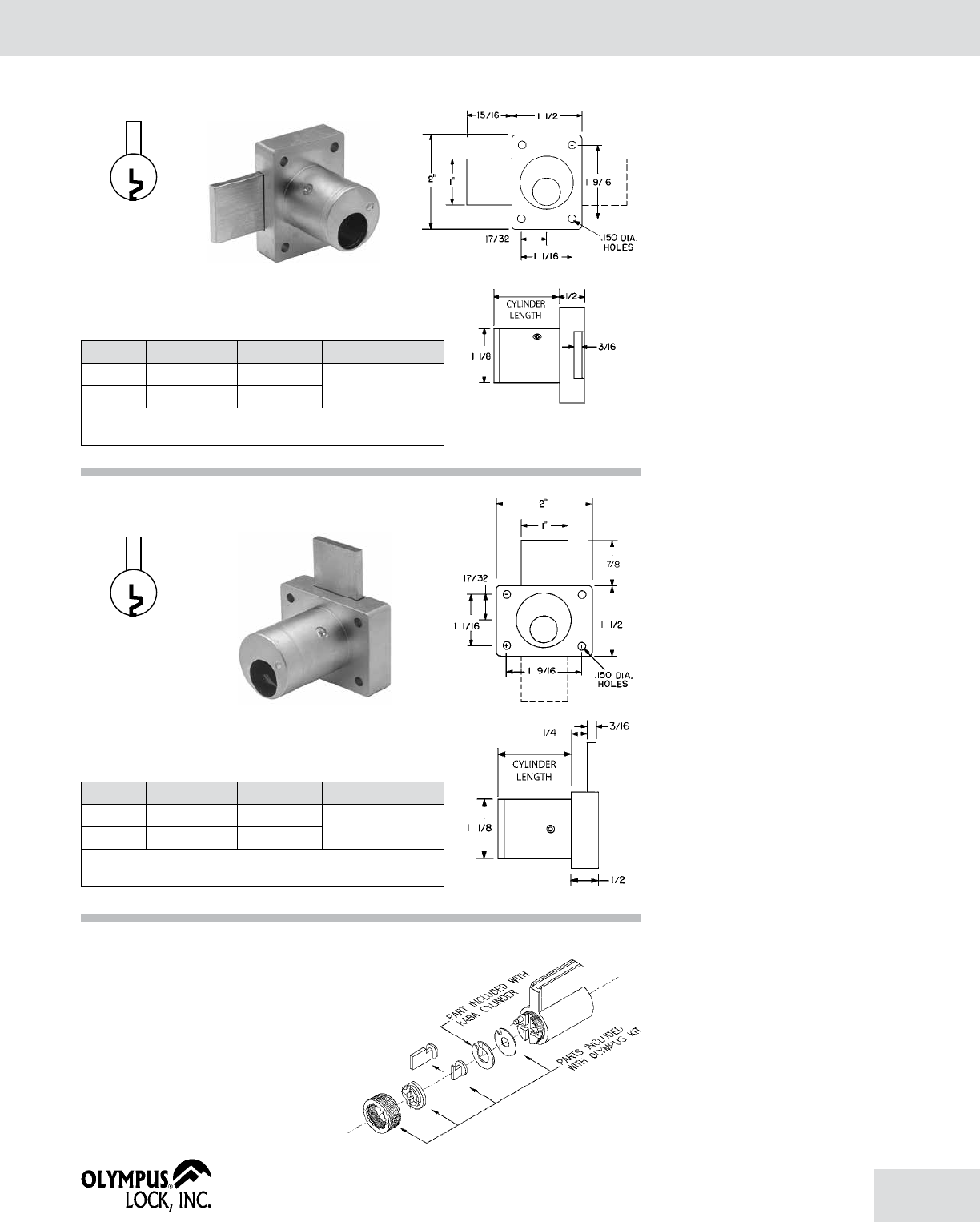

100DR | 100M Deadbolt Lock
200DW | 200M Drawer Lock
LB: Long bolt option
N Series
Key together with other N Series locks
ANSI/BHMA
A156.11 Grade 1
E07121
Woodwork Institute
(WI) acknowledged
product
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product LB: Long bolt option
*note
KA# 51001, 51002, 51003 and 51004 available in US26D finish only
*note
KA# 51001, 51002, 51003 and 51004 available in US26D finish only
12 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Easily rekeyable via cylinder retainer
clip
ANSI/BHMA: Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07261 / E07271.
US Patent Nos: 5,038,589; 5,737,950
Body: Zinc die cast
Cylinder: Zinc die cast, pin tumbler
Standard function: Key removable in locked or
unlocked position.
Key retaining function: Alternate key-retaining
shifters (page 61) are available separately for key
removable in locked position only.
Cams: 2 reversible cams work in all positions
Face: 1" face covers splintering, no additional trim
ring required
Finish: 26D, US3 or 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915, 51001, 51002,
51003, 51004*note
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
INCLUDED ACCESSORIES
See below.
OPTIONAL ACCESSORIES
See pages 60-61 for a complete list of optional cam
sizes and other accessories for use with DCN cam
locks.
DCNP-200-KR: Key retaining drawer cam shifter
DCNP-200-KDR: Key retaining door cam shifter
MOUNTING CUTOUT
Item Finish Cyl. Length Keying
DCN1 26D, US3, 10B 1-1/16"
KD, KA 101,103,107,915
KA 51001,51002,51003,51004*note
Custom keyed
DCN2 26D, US3, 10B 1-3/16"
DCN3 26D, US3, 10B 1-7/16"
DCN4 26D, US3, 10B 1-3/4"
Cylinder length: As measured with straight cam.
DCN Cam Lock
Locks in all eight positions
with 2 reversible cams
DIMENSIONS
For Mat.
Thickness
Straight
Cam (X)
Inbent
Cam (Y)
Outbent
Cam (Z)
Cylinder
Length (A)
DCN1 3/4" 1-1/16" 3/4" 1-3/8" 1"
DCN2 7/8" 1-3/16" 7/8" 1-1/2" 1-1/8"
DCN3 1-1/8" 1-7/16" 1-1/8" 1-3/4" 1-3/8"
DCN4 1-1/2" 1-13/16" 1-1/2" 2-1/8" 1-3/4"
N Series
Key together with other N Series locks
ANSI/BHMA
A156.11 Grade 1
E07261 / E07271
Woodwork Institute
(WI) acknowledged
product
DCNP-500-ARP
anti-rotation plate
DCNP-100-SC
straight cam
DCNP-100-BC
offset reversible cam
DCNP-200-OCD
lost-motion cam shifter
INCLUDED ACCESSORIES
*note
KA# 51001, 51002, 51003 and 51004 available in US26D finish only
13
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Easily rekeyable via speed-release
cylinder release mechanism
US Patent Nos: 4,920,774; 5,121,619
Standard function: Key removable in locked or
unlocked position.
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 1"
Barrel diameter: 1"
Finish: 26D, US3 or 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
INCLUDED ACCESSORIES
34-9 matching thimble strike
10-24 machine thread bolt extender for varying
gaps between bypassing doors
10-24 machine thread strike locator
Item Finish Cyl. Length Keying
300SD 26D, US3, 10B 1" KD, KA 101,103,107,915
Custom Keyed
300SD Plunger Lock

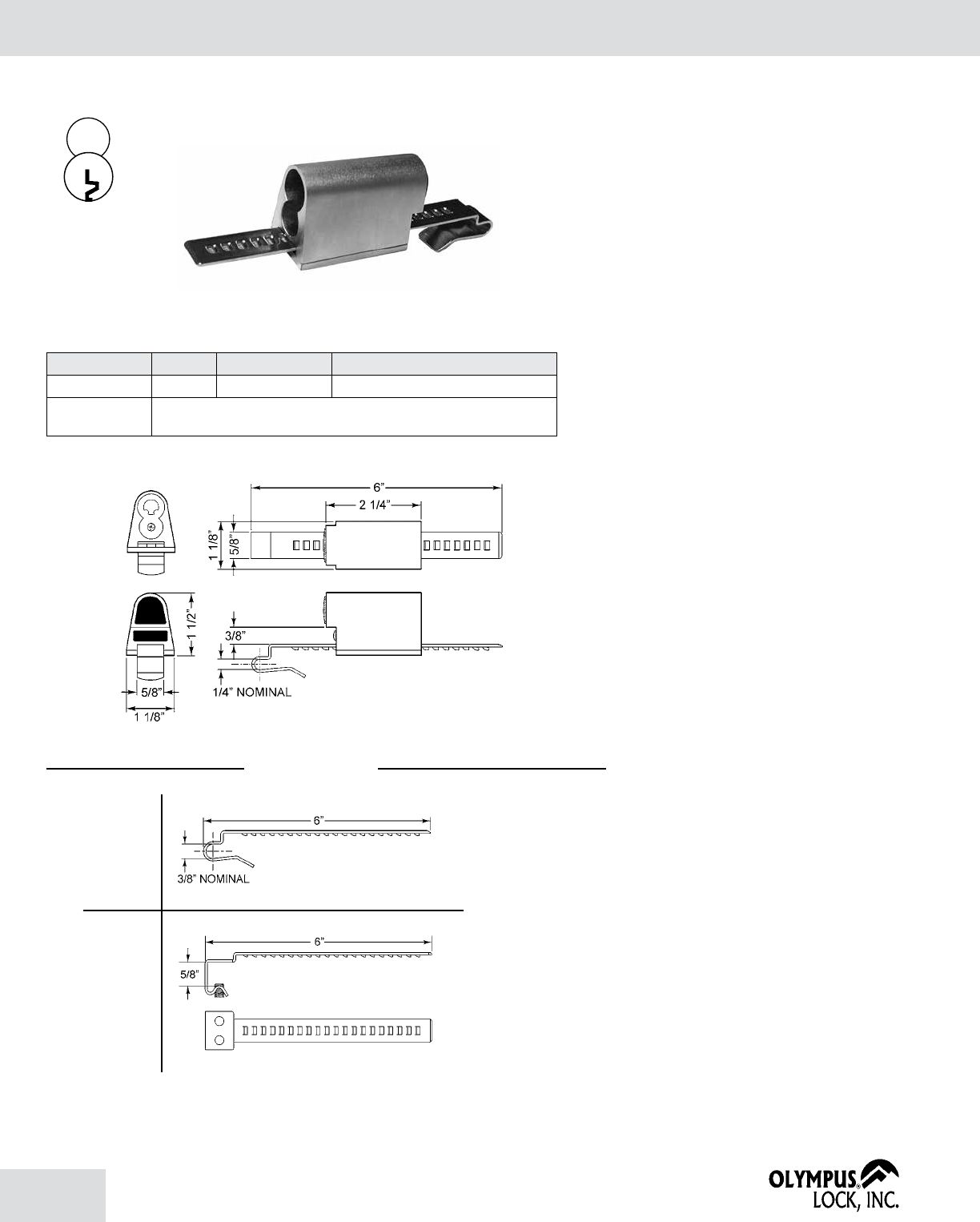

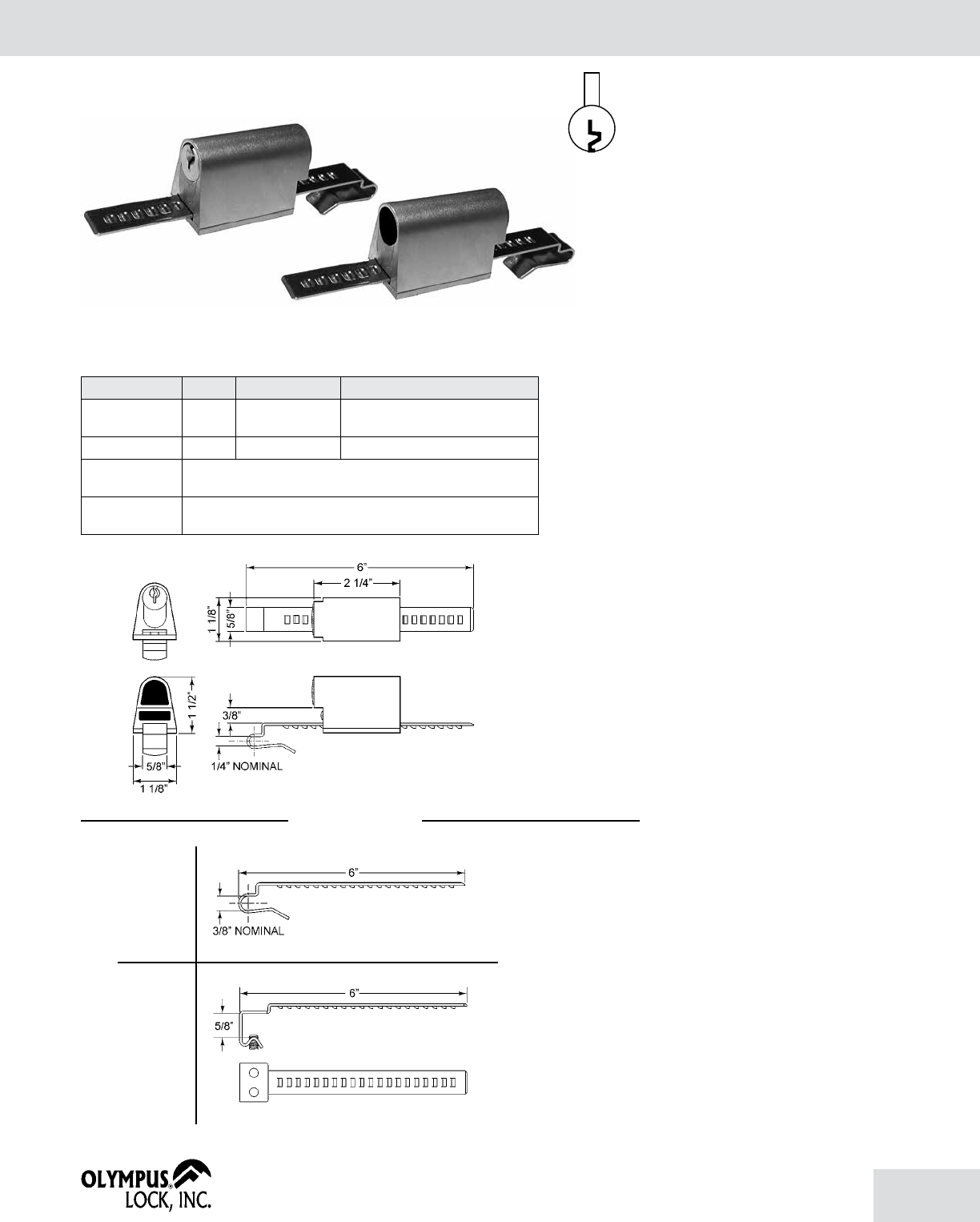

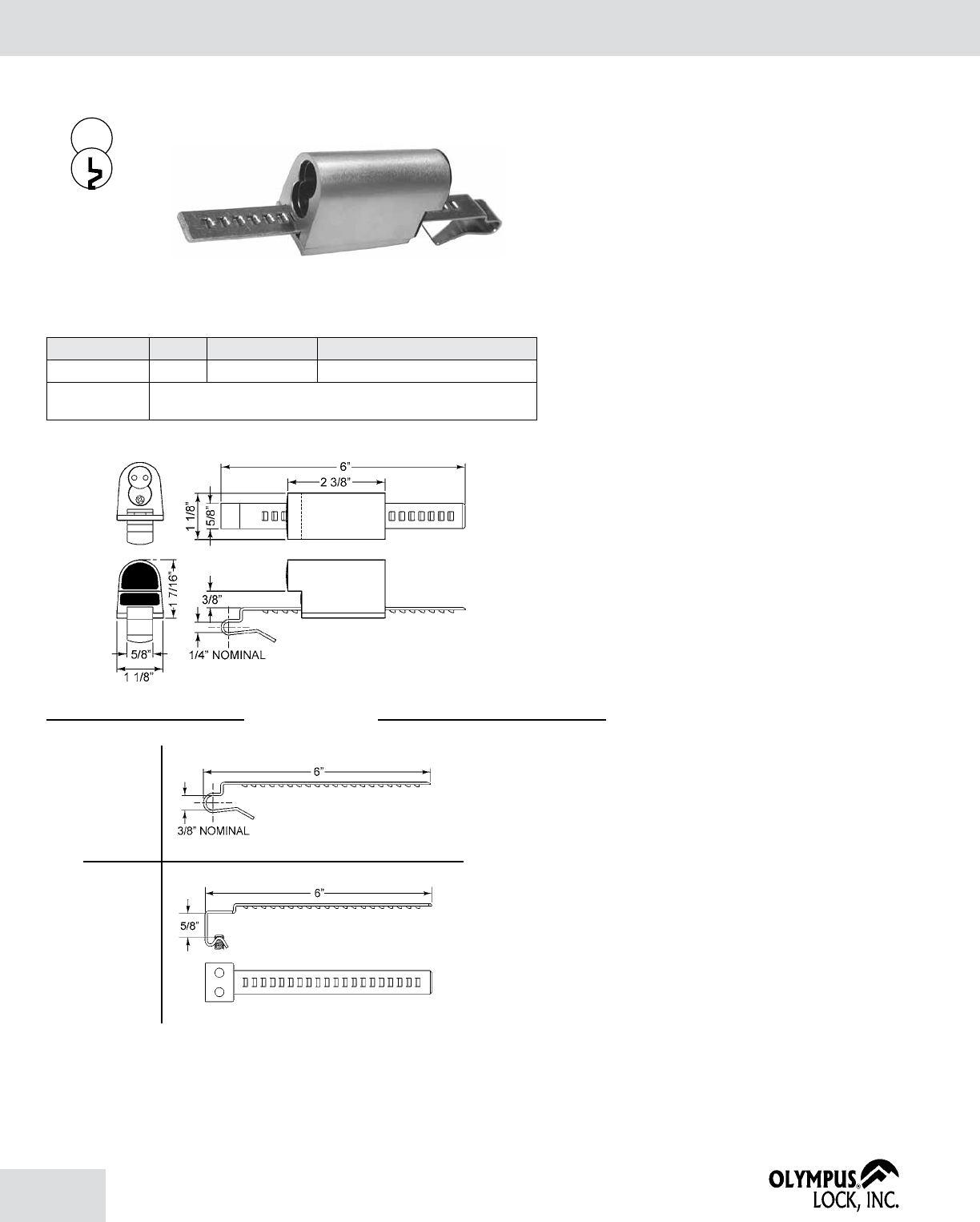

329R Showcase/Ratchet Lock SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Easily rekeyable via speed-release
cylinder release mechanism
US Patent No: 5,121,619
Standard function: Key removable in locked or
unlocked position.
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Strap: Nylon coated strap fits 1/4" material
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
INCLUDED ACCESSORIES
Strap for 1/4" material thickness
Includes strike locator
for easy installation
1" barrel
diameter
Item Finish Keying
329R 26D KD, KA 101,103,107,915
Custom Keyed
N Series
Key together with other N Series locks
14 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
N Series
Key together with other N Series locks

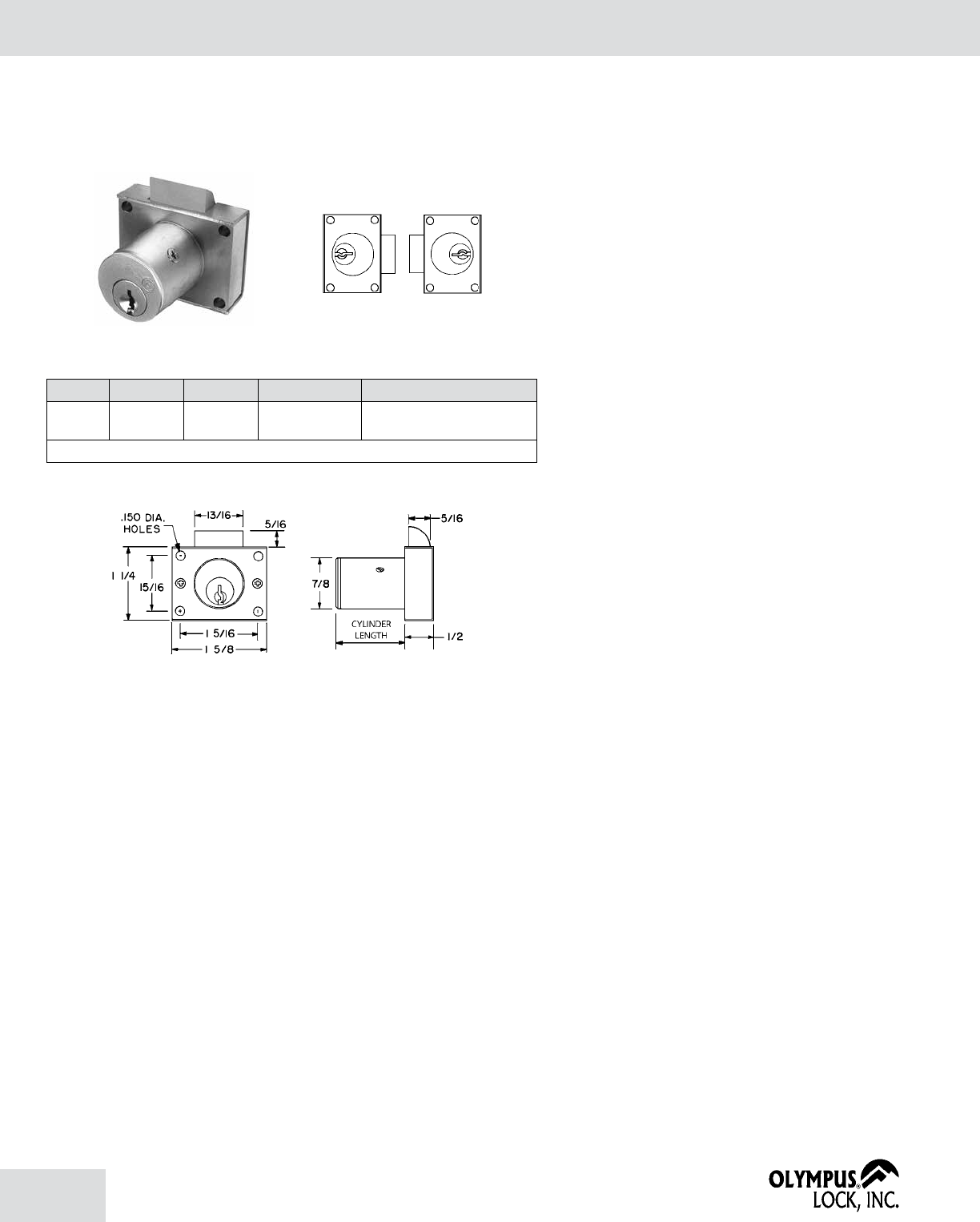

L20V Heavy Duty Latch Lock SPECIFICATIONS
Function: Heavy duty spring latch
Keying: Can be keyed together with other
N Series locks
Function: Heavy duty spring latch for high-use
applications
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16" or 1-3/8"
Barrel diameter: 7/8"
Latch projection: 5/16"
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
INCLUDED ACCESSORIES
Strike: 999-STRIKE (slotted lip strike)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP21 spacer (3/32" thick), WP22 spacer
(1/4" thick), WP23 spacer (1/2" thick)
Strikes: 07S, 12-1, 12-2, 12-3, 12-4, 56-1
Trim collars: TR1256
Through-bolt hardware: ETS2 trim plate, ETS2-PL
trim pull and ETST2 template
Item Function Finish Cyl. Length Keying
L20V VH Drawer 26D 15/16" or 1-3/8" KD, KA 101, 103, 107, 915
Custom Keyed
For door function, turn lock 90 degrees.
RH DOOR
LH DOOR
15
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Function: Spring latch
Keying: Can be keyed together with other
N Series locks
Reversible: Easily reversible between door and
drawer function
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
US Patent Nos: 4,899,563; 7,874,189 B2
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16" or 1-3/8"
Barrel diameter: 7/8"
Latch projection: 1/4"
Finish: 26D or US4
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
INCLUDED ACCESSORIES
Strike: 999-STRIKE (slotted lip strike)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacer: WP24 (1/8" thick)
Trim ring: TR1256
Through-bolt hardware: ETS6 trim plate
Item Function Finish Cyl. Length Keying
999R RH Door 26D, US4 15/16" or 1-3/8"
KD, KA 101, 103, 107, 915
Custom Keyed
999L LH Door 26D, US4 15/16" or 1-3/8"
998V VH Drawer 26D, US4 15/16" or 1-3/8"
998I IH Drawer 26D, US4 15/16" or 1-3/8"
Field reversible: Locks are easily reconfigured in the field into any of the four handings.
998 | 999 Latch Lock
998V
998I
999L 999R
999L LEFT HAND 999R RIGHT HAND
998V VERTICAL HAND 998I INVERTED HAND
FIELD REVERSIBLE INTO ALL FOUR HANDINGS
N Series
Key together with other N Series locks
16 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
T37 T-Bolt Drawer Lock SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Working top-slide, cylinder retainer
staple and removable bezel ring make rekeying
fast and easy. No more need to pry off faceplates
and pin retainer clips.
US Patent No: 5,038,589
Standard function: Key removable in locked or
unlocked position.
Retrofits: National C8137
Body: Zinc die cast
Cylinder: Zinc die cast, pin tumbler
Bolt: Stainless steel
Includes: Brass mounting nut. Spring mounting clip
T37-RC is available separately.
Barrel diameter: 3/4"
Across flats: 5/8"
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National D4291
4-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
51001 through 51011
001 through 030
Masterkeyed: 4 pin standard
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
SPECIAL NOTE ON BOLTS ONLY
The T37-1 (regular bolt) , T37-2 (long bolt) and
T37-3 (short bolt) will not work in the National
C8137 lock. However, the C8137 bolts will work in
the T37 lock.
OPTIONAL ACCESSORIES
See below.
Item Finish Cyl. Length For Material Keying
T37 26D 19/32” 1/4” KA* or KD (4-pin)
Custom, master keyed (4-pin)
T37-2
T37-3
T37-RC
T37-NKIT
T37DC-NP
Long bolt
Short bolt (Chicago-style) for 25/32" backset
Spring mounting clip
Number plate kit
Replacement number plate only
*KA Nos: 101,103,107,915
51001 through 51011
001 through 030
Other non-stock codes available through custom keying.
DRAWER DETAIL
N Series
Key together with other N Series locks
MOUNTING HOLE DETAIL
T37-RC
Spring mounting clip
The lock comes standard with
clip mounting locations up to
11/64” material thicknesses.
Number
plate
Face ring
T37-NKIT
Number plate kit elminates need
to stamp face of lock
Replacement number plates also
available separately (Use part no.
T37DC-NP). T37-2
Long bolt can be cut to length
required by application
T37-3
Short bolt for 25/32" backset
OPTIONAL ACCESSORIES
17
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Working top-slide, cylinder retainer
staple and removable bezel ring make rekeying
fast and easy
Retrofit: Replacement for HON F24/F28 style
vertical file cabinet locks
U.S. Patent Nos: 5,038,589; 5,737,950
Standard function: Key removable in locked or
unlocked position.
Body: Zinc die cast
Cylinder: Zinc die cast, pin tumbler
Includes: Brass mounting nut
Barrel diameter: 3/4"
Across flats: 5/8"
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
OPTIONAL ACCESSORIES
T37-NKIT: Number plate kit, eliminates need to
stamp face of lock (page 61)
T37DC-NP: Replacement number ring plates
available (page 61)
Item Finish Keying
FC10 26D KD, KA 101,103,107,915
Custom, master keyed
T37-NKIT
T37DC-NP
Number plate kit
Replacement number plate only
FC26-AR Adapter Ring
Item Finish Description
FC26-AR 26D Adapter ring converts FC10 to work
as a replacement for HON F26 style lock.
SPECIFICATIONS
Retrofit: Converts the Olympus
FC10 file cabinet lock so it
can be used as a replacement
for a HON F26 style vertical
file cabinet lock.
Usage: Use the FC26-AR
adapter ring in place of
the bezel ring that comes
standard with the FC10.
Installation: Install trim collar
with arrow on back facing
top of cabinet.
T54C T-Knob Cylinder Replacement Kit SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Includes working top-slide for easy
rekeying
Replaces: CompX/National original cylinder for
C8154 or C8155 pin tumbler t-knob locks for
metal cabinet doors.
Cylinder: Drilled for 5 pins. Can be keyed to match
existing 4-pin or 5-pin systems.
Material: Solid brass
Finish: 26D
Packaged: Packed 25 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keying: Can be keyed to match National 4 or 5 pin
key systems
Includes: Plug and housing, no pins or springs and
2 ringed KBN-4-NP (4-pin) keyblanks
Custom keying: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
Usage: T54C T-Knob Cylinder Replacement Kit replaces original CompX/National T-knob pin tumbler
cylinders. No need to replace the entire t-knob lock, just replace the non-functioning cylinder. Cylinder is all
brass construction for increased durability. This 5-pin cylinder can be keyed to match existing 4-pin or 5-pin
systems. T54C replacement cylinder works with all CompX/National pin-tumbler t-knob locks regardless
of handing or key operation (key removable in locked or unlocked position) or latch configuration.
Can be
keyed to match our T37 Series locks (see opposite page) or any of our N Series products.
T54C
Item Finish Type Use with Keying
T54C 26D Replacement
cylinder
CompX/National
C8154 or C8155
Ships standard with empty chambers and 2 ringed
4-pin keyblanks. KD, KA or MK available.
N Series
Key together with other N Series locks
FC10 File Cabinet Lock Kit
Front Back
Replacement
cylinder
18 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

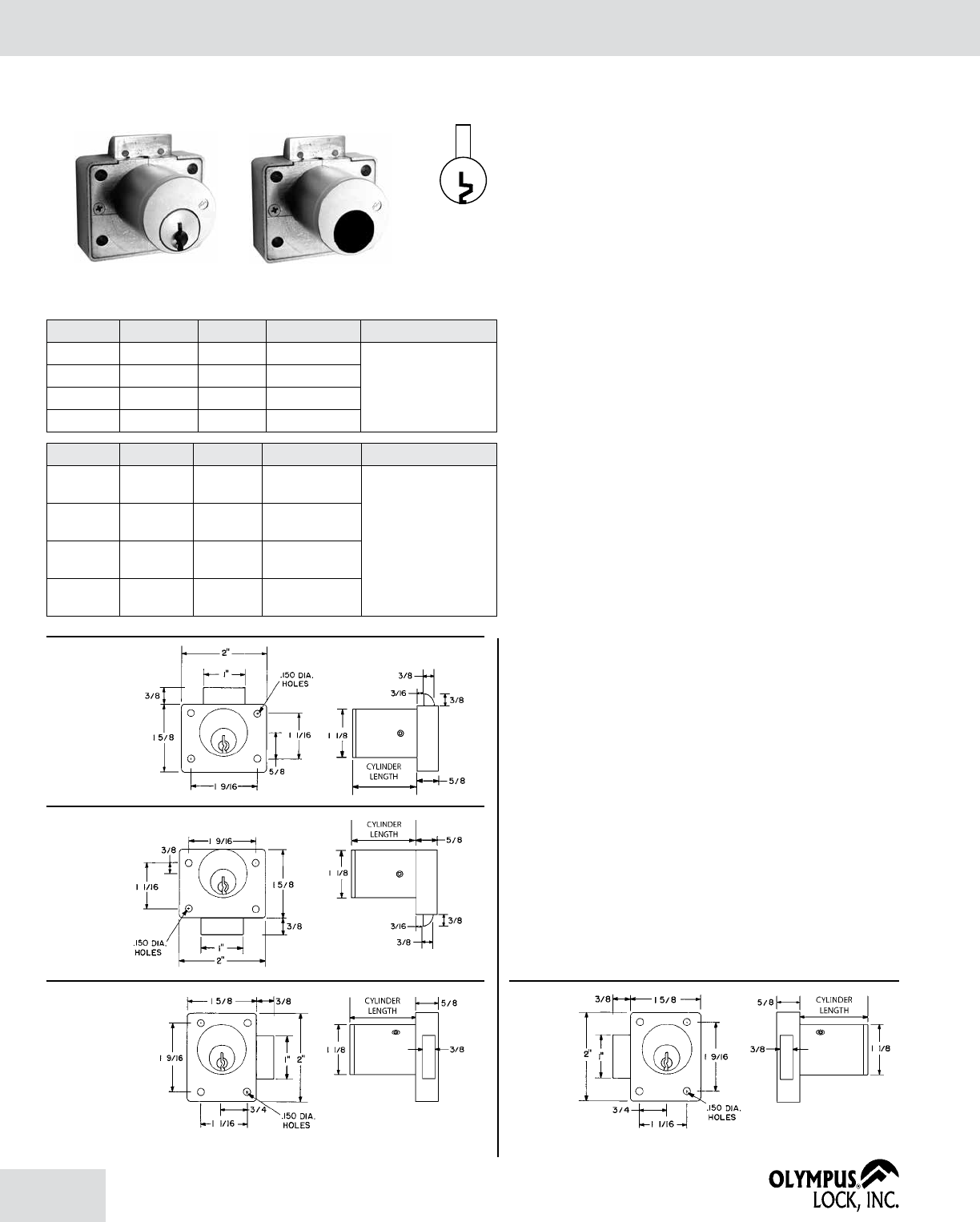

SPECIFICATIONS
Keying: Can be keyed together with other
N Series locks
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
US Patent Nos: 4,899,563; 4,920,774
Standard function: Key removable in locked or
unlocked position.
Door locks: Can be reversed between left and
right hand.
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 7/8"
Finish: 26D or US4
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: N Series (equivalent to National
D4291 4-pin or D4292 5-pin system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 4 pin standard
Stock KA#: 101, 103, 107, 915
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 4-pin: KBN-4-NP
(equivalent to NA14, 1069L)
Keyblank 5-pin: KBN-5-NP
(equivalent to NA12, 1069LA)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP21 (3/32" thick), WP22 (1/4" thick),
WP23 (1/2" thick)
Strikes: 07S, 56-1, 12-1, 12-2, 12-3, 12-4 strikes
Trim collar: TR1256
Optional drawer bolt: 078-LB1-DW long bolt with
1/2" offset (drawer only)
Optional door bolt: 078-LB-DR 1/4" straight long
bolt (door only)
Through-bolt hardware: ETS3 trim plate and
ETST3 template
N078
DRAWER
N078L
LH DOOR
N078R
RH DOOR
Item Function Finish Cyl. Length Keying
N078 VH Drawer 26D, US4 1-1/8" or 1-3/8" KD, KA 101,103,107,915
Custom Keyed
Outbent bolt installed: Specify LB1 for 1/2" offset outbent drawer bolt installed in lock.
Outbent bolt only: Order part number 078-LB1-DW for outbent drawer bolt only.
1-1/8" or 1-3/8"
OPTIONAL
OFFSET BOLT
Item Function Finish Cyl. Length Keying
N078R RH Door 26D, US4 1-1/8" or 1-3/8" KD, KA 101,103,107,915
Custom Keyed
N078L LH Door 26D, US4 1-1/8" or 1-3/8"
Long bolt installed: Specify LB for extended door bolt installed in lock.
Long bolt only: Order part number 078-LB-DR for extended door for bolt only.
NOTE: N078R / N078L are reversible between left and right handings.

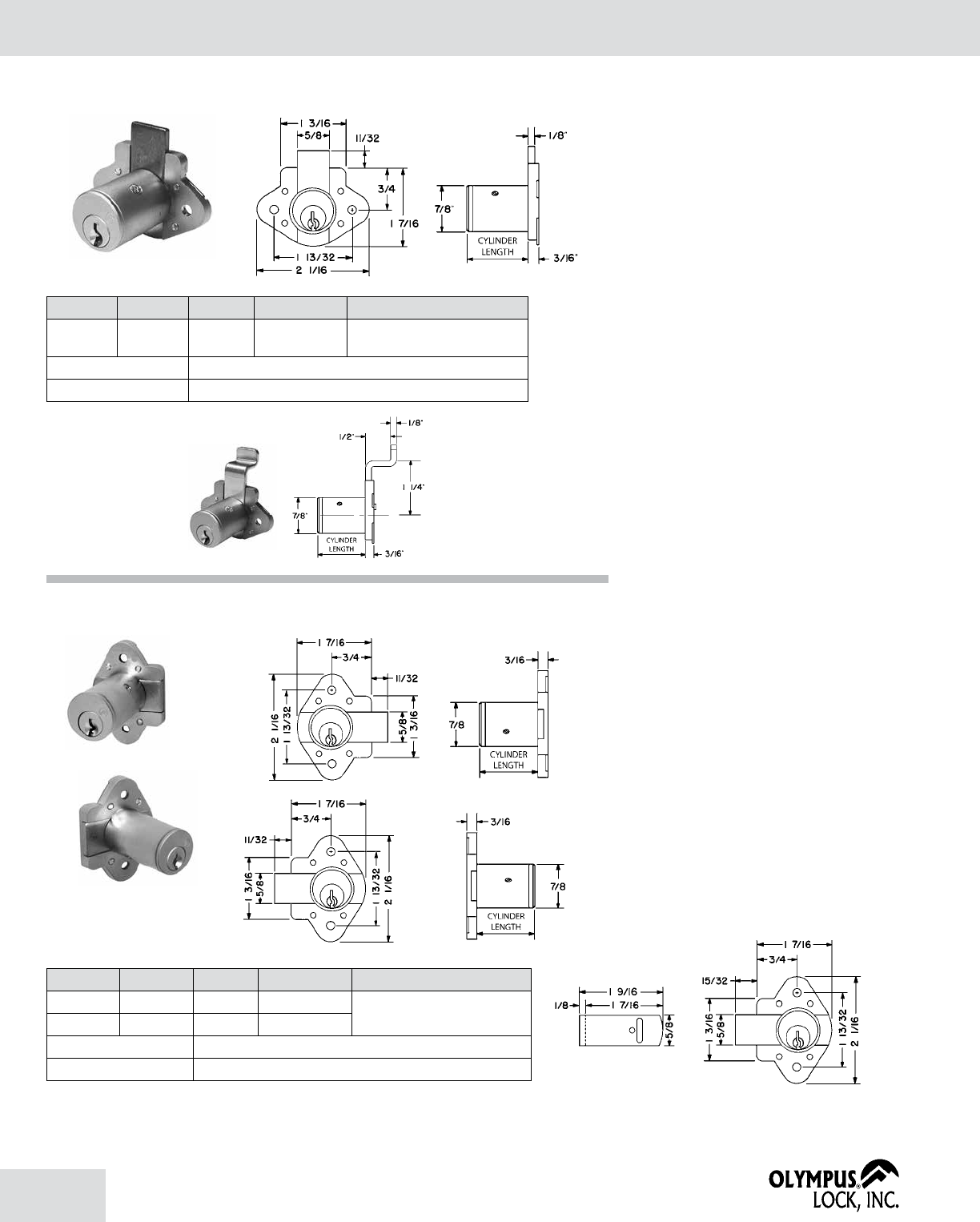

N078 Drawer Lock
N078L | N078R Door Lock
N Series
Key together with other N Series locks
OPTIONAL LONG BOLT
Extends overall bolt length by an additional 1/8".
Reversible for use with LH or RH locks.
19
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
R Series locks
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
ANSI/BHMA: Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07121(500DR) / E07041(600DW).
500M/600M: M series (MRI) locks are made of
all non-magnetic materials and components
specifically for use in MRI medical applications.
Standard function: Key removable in locked or
unlocked position. Standard function locks are
non-handed.
Key-retaining: Key removable in locked position
only. Specify handing (KL/KR for doors or KI/KV
for drawers) when ordering.
US Patent Nos: 4,899,563; 4,920,774
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16" or 1-3/8"
Barrel diameter: 7/8"
Finish: 26D, US4 or 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard, 6 pin available
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
Keyblank 5-pin copper plated: KBR-5B
(use with M Series MRI locks)
Keyblank 6-pin: KBR-6-NP
(equivalent to L1003A)
INCLUDED ACCESSORIES
500DR: 2 keys, 56-1 bar strike, and lock mounting
screws.
500M: 2 keys, 56-1 bar strike, and lock mounting
screws (keys, components and materials are non-
ferrous/non-magnetic).
600DW: 2 keys, 12-3 angle strike, and lock
mounting screws.
600M: 2 keys, 56-1 bar strike, and lock mounting
screws (keys, components and materials are non-
ferrous/non-magnetic).
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP21 (3/32" thick), WP22 (1/4" thick),
WP23 (1/2" thickness)
Strikes: 07S, 12-1, 12-2, 12-3, 12-4, 56-1 strikes
Trip collar: TR1256
Through-bolt hardware: ETS2 trim plate, ETS2-PL
trim pull and ETST2 template
Long bolt (bolt only): 15-1-35 for use with
500DR/500M or 600DW/600M locks
LB: Long bolt option
500DR | 500M Door Lock
600DW | 600M Drawer Lock
Item Function Finish Cyl. Length Keying
500DR Door 26D, US4, 10B 15/16"
KD, KA 4T21579, 4T37526
Custom Keyed
500DR Door 26D, US4 1-3/8"
500M Door (MRI) 26D 15/16" or 1-3/8"
Key-retaining: Specify item 500KL for left-hand doors and 500KR for right-hand doors.
(KL and KR designation are
only required for key retaining locks
).
Key-retaining (MRI): Specify item 500MKL for left-hand doors and 500MKR for right-hand doors.
(MKL and MKR designation are
only required for key retaining MRI locks
).
Long bolt: Specify LB for long bolt installed in lock.
Item Function Finish Cyl. Length Keying
600DW Drawer 26D, US4, 10B 15/16" or 1-3/8" KD, KA 4T21579, 4T37526
Custom Keyed
600M Drawer (MRI) 26D 15/16" or 1-3/8"
Key-retaining: Specify item 600KI for inverted drawers and 600KV for vertical drawers.
(KI and KV designation are
only required for key retaining locks
).
Key-retaining (MRI): Specify item 600MKI for inverted drawers and 600MKV for vertical drawers.
(MKI and MKV designations are
only required for key retaining MRI locks
).
Long bolt: Specify LB for long bolt installed in lock.
LB: Long bolt option
R Series
Key together with other R Series locks
ANSI/BHMA
A156.11 Grade 1
E07121
Woodwork Institute
(WI) acknowledged
product
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product
20 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Locks in all eight positions
with 2 reversible cams
SPECIFICATIONS
Keying: Can be keyed together with other
R Series locks
Rekeyable: Easily rekeyable via cylinder retainer
clip
ANSI/BHMA: Passed ANSI/BHMA A156.11
Grade 1 performance requirements. Equivalent to
E07261 / E07271.
US Patent Nos: 5,038,589; 5,737,950
Body: Zinc die cast
Cylinder: Zinc die cast, pin tumbler
Standard function: Key removable in locked or
unlocked position.
Key retaining function: Alternate key-retaining
shifters (page 61) are available separately for key
removable in locked position only.
Cams: 2 reversible cams work in all positions
Face: 1" face covers splintering, no additional trim
ring required
Finish: 26D or US3
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
INCLUDED ACCESSORIES
See below.
OPTIONAL ACCESSORIES
See pages 60-61 for a complete list of optional cam
sizes and other accessories for use with DCN cam
locks.
DCNP-200-KR: Key retaining drawer cam shifter
DCNP-200-KDR: Key retaining door cam shifter
Mounting Cutout
Item Finish Cyl. Length Keying
DCR1 26D, US3 1-1/16"
KD, KA 4T21579, 4T37526
Custom Keyed
DCR2 26D, US3 1-3/16"
DCR3 26D, US3 1-7/16"
DCR4 26D, US3 1-3/4"
Cylinder length: As measured with straight cam.
DCR Cam Lock
DIMENSIONS
For Mat.
Thickness
Straight
Cam (X)
Inbent
Cam (Y)
Outbent
Cam (Z)
Cylinder
Length (A)
DCR1 3/4" 1-1/16" 3/4" 1-3/8" 1"
DCR2 7/8" 1-3/16" 7/8" 1-1/2" 1-1/8"
DCR3 1-1/8" 1-7/16" 1-1/8" 1-3/4" 1-3/8"
DCR4 1-1/2" 1-13/16" 1-1/2" 2-1/8" 1-3/4"
R Series
Key together with other R Series locks
DCNP-500-ARP
anti-rotation plate
DCNP-100-SC
straight cam
DCNP-100-BC
offset reversible cam
DCNP-200-OCD
lost-motion cam shifter
INCLUDED ACCESSORIES
ANSI/BHMA
A156.11 Grade 1
E07261 / E07271
Woodwork Institute
(WI) acknowledged
product
21
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other
R Series locks
Rekeyable: Easily rekeyable via speed-release
cylinder release mechanism
US Patent Nos: 4,920,774; 5,121,619
Standard function: Key removable in locked or
unlocked position.
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 1"
Barrel diameter: 1"
Finish: 26D, US3 or 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
INCLUDED ACCESSORIES
34-9 matching thimble strike
10-24 machine thread bolt extender for varying
gaps between bypassing doors
10-24 machine thread strike locator
Item Finish Cyl. Length Keying
400SD 26D, US3, 10B 1" KD, KA 4T21579, 4T37526
Custom Keyed
400SD Plunger Lock
429R Showcase/Ratchet Lock SPECIFICATIONS
Keying: Can be keyed together with other
R Series locks
Rekeyable: Easily rekeyable via speed-release
cylinder release mechanism
US Patent No: 5,121,619
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Strap: Nylon coated strap fits 1/4" material
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
INCLUDED ACCESSORIES
Strap for 1/4" material thickness
Includes strike locator
for easy installation
1" barrel
diameter
Item Finish Keying
429R 26D KD, KA 4T21579, 4T37526
Custom Keyed
R Series
Key together with other R Series locks
22 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Function: Spring latch
Keying: Can be keyed together with other
R Series locks
Reversible: Easily reversible between door and
drawer function
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
US Patent Nos: 4,899,563; 7,874,189 B2
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 15/16" or 1-3/8"
Barrel diameter: 7/8"
Latch projection: 1/4"
Finish: 26D or US4
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard, 6 pin available
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
Keyblank 6-pin: KBR-6-NP
(equivalent to L1003A)
INCLUDED ACCESSORIES
Strike: 999-STRIKE (slotted lip strike)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacer: WP24 (1/8" thick)
Trim ring: TR1256
Through-bolt hardware: ETS6 trim plate
Item Function Finish Cyl. Length Keying
997R RH Door 26D, US4 15/16" or 1-3/8"
KD, KA 4T21579, 4T37526
Custom Keyed
997L LH Door 26D, US4 15/16" or 1-3/8"
996V VH Drawer 26D, US4 15/16" or 1-3/8"
996I IH Drawer 26D, US4 15/16" or 1-3/8"
Field reversible: Locks are easily reconfigured in the field into any of the four handings.
996 | 997 Latch Lock
996V
996I
997L 997R
997L LEFT HAND 997R RIGHT HAND
996V VERTICAL HAND 996I INVERTED HAND
Field reversible into all four handings!
R Series
Key together with other R Series locks
FIELD REVERSIBLE INTO ALL FOUR HANDINGS
23
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

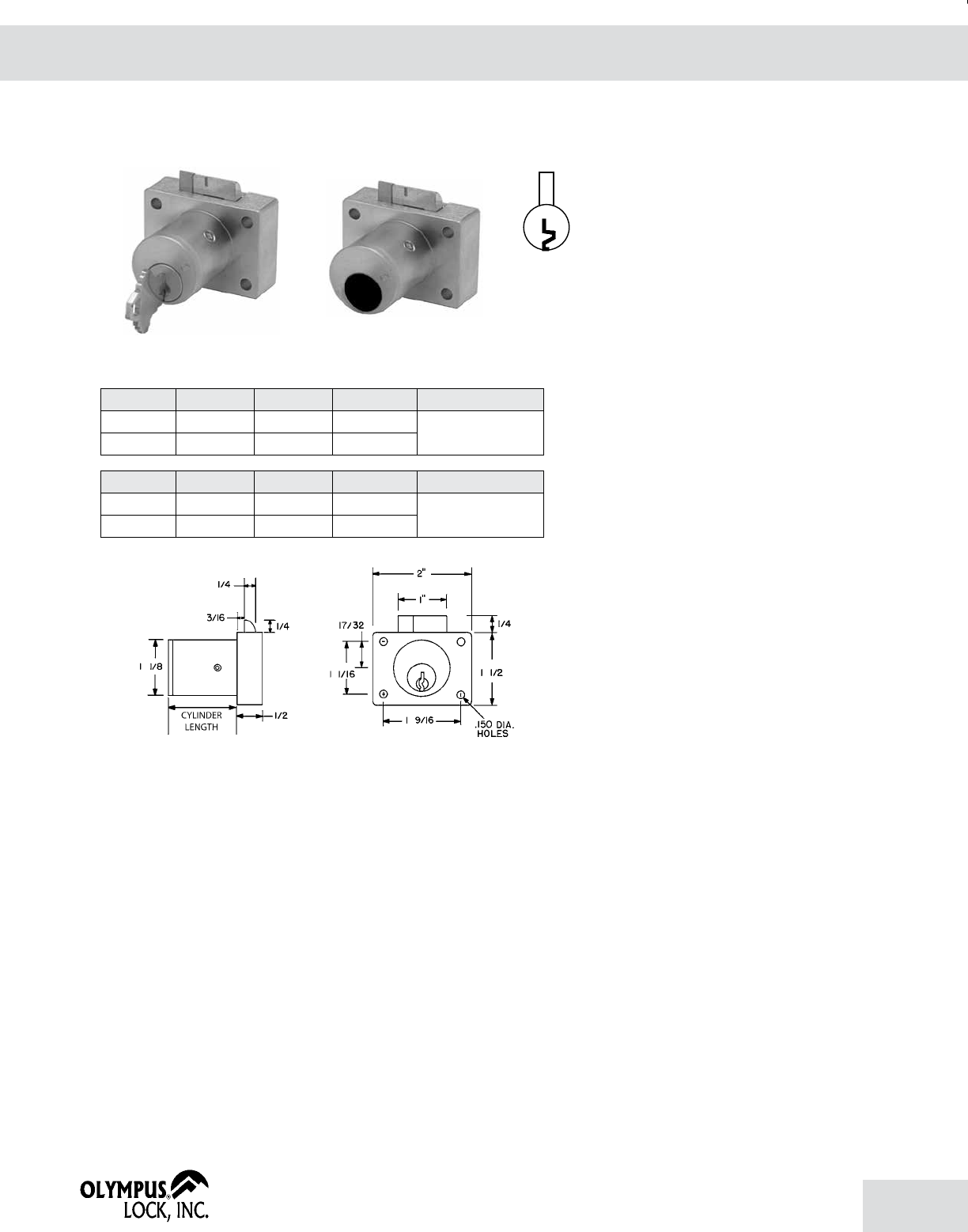

SPECIFICATIONS
Keying: Can be keyed together with other
R Series locks
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
US Patent Nos: 4,899,563; 4,920,774
Body: Zinc die cast
Cylinder: Solid brass, pin tumbler
Cylinder length: 1-1/8"
Barrel diameter: 7/8"
Finish: 26D or US4
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: R Series (equivalent to CCL R1 system)
Keys: Includes 2 keys per lock
Stock keying: KD/KA - 5 pin standard
Stock KA#: 4T21579, 4T37526
Masterkeyed: 5 pin standard
Grand masterkeyed: Available
Keyblank 5-pin: KBR-5-NP
(equivalent to CO106, 1003A)
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP21 (3/32" thick), WP22 (1/4" thick),
WP23 (1/2" thick)
Strikes: 07S, 56-1, 12-1, 12-2, 12-3, 12-4 strikes
Trim collar: TR1256
Optional bolt: 078-LB1-DW optional 1/2" outbent
drawer bolt
Through-bolt hardware: ETS3 trim plate and
ETST3 template
Item Function Finish Cyl. Length Keying
R078 VH Drawer 26D, US4 1-1/8" or 1-3/8" KD, KA 4T21579, 4T37526
Custom Keyed
Outbent bolt installed: Specify LB1 for 1/2" offset outbent drawer bolt installed in lock.
Outbent bolt only: Order part number 078-LB1-DW for outbent drawer bolt only.
R078 Deadbolt Lock
R Series
Key together with other R Series locks
OPTIONAL
OFFSET BOLT
24 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Keying: Can be keyed together with other Schlage
C Keyway locks
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to
E07121 (700S) / E07041 (800S).
US Patent Nos: 4,899,563; 4,920,774
Standard function: Key removable in locked or
unlocked position. Standard function locks are
non-handed.
Key-retaining: Key removable in locked position
only. Specify handing (KL/KR for doors or KI/KV
for drawers) when ordering.
Body: Zinc die cast
Cylinder: Will accept other manufacturer's Schlage
compatible key-in-knob cylinders
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D, US3, 10B
Packaged: Packed 10 per box
KEYING INFORMATION
Keyway: Schlage C keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass, pin tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102, O-Bit
Masterkeying: 5 pin standard, 6-pin available
Grand masterkeying: Available
Keyblank 5-pin: KBSC-5
Keyblank 6-pin: KBSC-6
INCLUDED ACCESSORIES
For 1-1/8"barrel length locks:
10-350 plastic spacers (qty 2)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike
For 1-3/8"barrel length locks:
10-054 1/4" plastic bar strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick),
10-350 (1/8" thick)
Strikes: 10-052, 10-056, 10-057, 10-058, 12-2,
12-3, 12-4
Trim collar: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
Item Function Finish Cyl. Length Keying
800S Drawer 26D, US3, 10B 1-1/8" or 1-3/8"
KD, KA 101,102 O-Bit
Custom Keyed
800KI IH Drawer-KR 26D, US3, 10B 1-1/8" or 1-3/8"
800KV VH Drawer-KR 26D, US3, 10B 1-1/8" or 1-3/8"
Key-retaining (KR): Specify item 800KI for inverted drawers and 800KV for vertical drawers.
(KI and KV designation are
only required for key retaining locks
).
Item Function Finish Cyl. Length Keying
700S Door 26D, US3, 10B 1-1/8" or 1-3/8"
KD, KA 101,102, O-Bit
Custom Keyed
700KL LH Door-KR 26D, US3, 10B 1-1/8" or 1-3/8"
700KR RH Door-KR 26D, US3, 10B 1-1/8" or 1-3/8"
Key-retaining (KR): Specify item 700KL for left-hand doors and 700KR for right-hand doors.
(KL and KR designation are
only required for key retaining locks
).
10B finish: Not available on 700S 1-3/8", 700KL 1-3/8" or 700KR 1-3/8"
700S Door Lock
800S Drawer Lock
Standard Cylinder
Schlage C Keyway or Less Cylinder
ANSI/BHMA
A156.11 Grade 1
E07121
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
25
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
USE WITH THE FOLLOWING CYLINDERS:
KABA-Peaks universal cylinder
#3400-XX-1099 (where "XX" denotes finish)
Mul-T-Lock cylinders
Item Finish Cyl. Length Keying
700LCA 26D, US3, 10B 1-1/8" Less Cylinder
700LCM 26D, US3, 10B 1-3/8"
Note: 700LCM 1-3/8" barrel length locks are required for use with
Medeco or Assa cylinders.
SPECIFICATIONS
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to
E07121 (700LC) / E07041 (800LC).
US Patent Nos: 4,899,563; 4,920,774
Body: Zinc die cast
Cylinder: Will accept other manufacturer's Schlage
compatible key-in-knob cylinders
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D, US3, 10B
Packaged: Packed 10 per box
INCLUDED ACCESSORIES
For 1-1/8"barrel length locks:
10-350 plastic spacers (qty 2)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike
10-360 universal driver, and 1 tailpiece for use
with Schlage compatible cylinders
For 1-3/8"barrel length locks:
10-054 1/4" plastic bar strike
10-360 universal driver, and 3 tailpieces for
use with Schlage compatible, Medeco or Assa
cylinders
CYLINDER INFORMATION
Cylinder: Not included
Includes: All parts necessary to work with other
manufacturers cylinders
ILCO cylinder: #1599 (various keyways available)
Assa cylinder: Requires LCM (1-3/8") locks
Assa p/n: #65611
Medeco cylinders: Requires LCM (1-3/8") locks
Original: 6 pin #20-009S4
5 pin #20-008S4
Biaxial: 6 pin #20W009S4
5 pin #20W008S4
Keymark: 6 pin #20K009S4
Key retaining cylinder: #20W200S1
Compatible electronic cylinders: Medeco LOGIC,
ASSA CLIQ or VIDEX CyberLock key-in-knob
cylinders
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick),
10-350 (1/8" thick)
Strikes: 10-052, 10-056, 10-057, 10-058, 12-2,
12-3, 12-4
Trim collar: TR78 trim ring
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
Cylinder: 78-201 Series (page 54)
Other: 78-KABA-CONV conversion kit for KABA-
Peaks or Mul-T-Lock cylinders
For use with Olympus 700LC and 800LC (less cylinder) cabinet locks.
The conversion kit requires the use of the C-form flat washer supplied
with the KABA-Peaks cylinder. The washer is needed to keep the
Olympus tailpiece on center while operating the lock.
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
Item Finish Cyl. Length Keying
800LCA 26D, US3, 10B 1-1/8" Less Cylinder
800LCM 26D, US3, 10B 1-3/8"
Note: 800LCM 1-3/8" barrel length locks are required for use with
Medeco or Assa cylinders.
700LC Door Lock
800LC Drawer Lock
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
78-KABA-CONV Kaba Conversion Kit
Standard Cylinder
Schlage C Keyway or Less Cylinder
ANSI/BHMA
A156.11 Grade 1
E07121
Woodwork Institute
(WI) acknowledged
product
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product
26 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
720-PL3
anti-rotation plate
SPECIFICATIONS
Rekeyable: Easily rekeyable via set screw on back
of lock body
U.S. Patent No: 7,716,958 B2
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-3/8"
Min. material thickness: 0.08"
Body: Zinc die cast
Functions: Includes parts for key-retaining or non-
key-retaining
Finish: 26D or US3
Packaged: Packed 10 per box
820S KEYING INFORMATION
Keying: Can be keyed together with other Schlage
C Keyway locks
Keyway: Schlage "C" Keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass, pin tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102, O-Bit
Masterkeying: 5 pin standard, 6-pin available
Grand masterkeying: Available
Keyblank 5-pin: KBSC-5
Keyblank 6-pin: KBSC-6
820LC CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage compatible key-in-knob cylinders
including ILCO cylinder #1599. This lock does not
accept Medeco cylinders.
Includes: All parts necessary to work with other
manufacturers' Schlage compatible cylinders.
Compatible electronic cylinders: ASSA CLIQ or
VIDEX CyberLock key-in-knob cylinders.
INCLUDED ACCESSORIES
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Cylinder: 78-201 Series (page 54)
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
820 Cam Lock
MOUNTING CUTOUT
Item Finish Cyl. Diameter Mat. Thickness Keying
820S 26D, US3 1-1/8" Up to 1-3/8" KD, KA 101, 102, 0-Bit
Custom Keyed
820LC 26D, US3 1-1/8" Up to 1-3/8" Less Cylinder
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(mid-pin style)
720-3-2
inbent cam for vertical function
(bottom-pin style)
May include either 720-3-2 (mid-pin style) OR
720-3-2 (bottom-pin style)
Standard Cylinder
Schlage C Keyway or Less Cylinder
INCLUDED CAMS
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
820S 820LC
Note: This lock
does not accept
Medeco cylinders.
Woodwork Institute
(WI) acknowledged
product
27
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

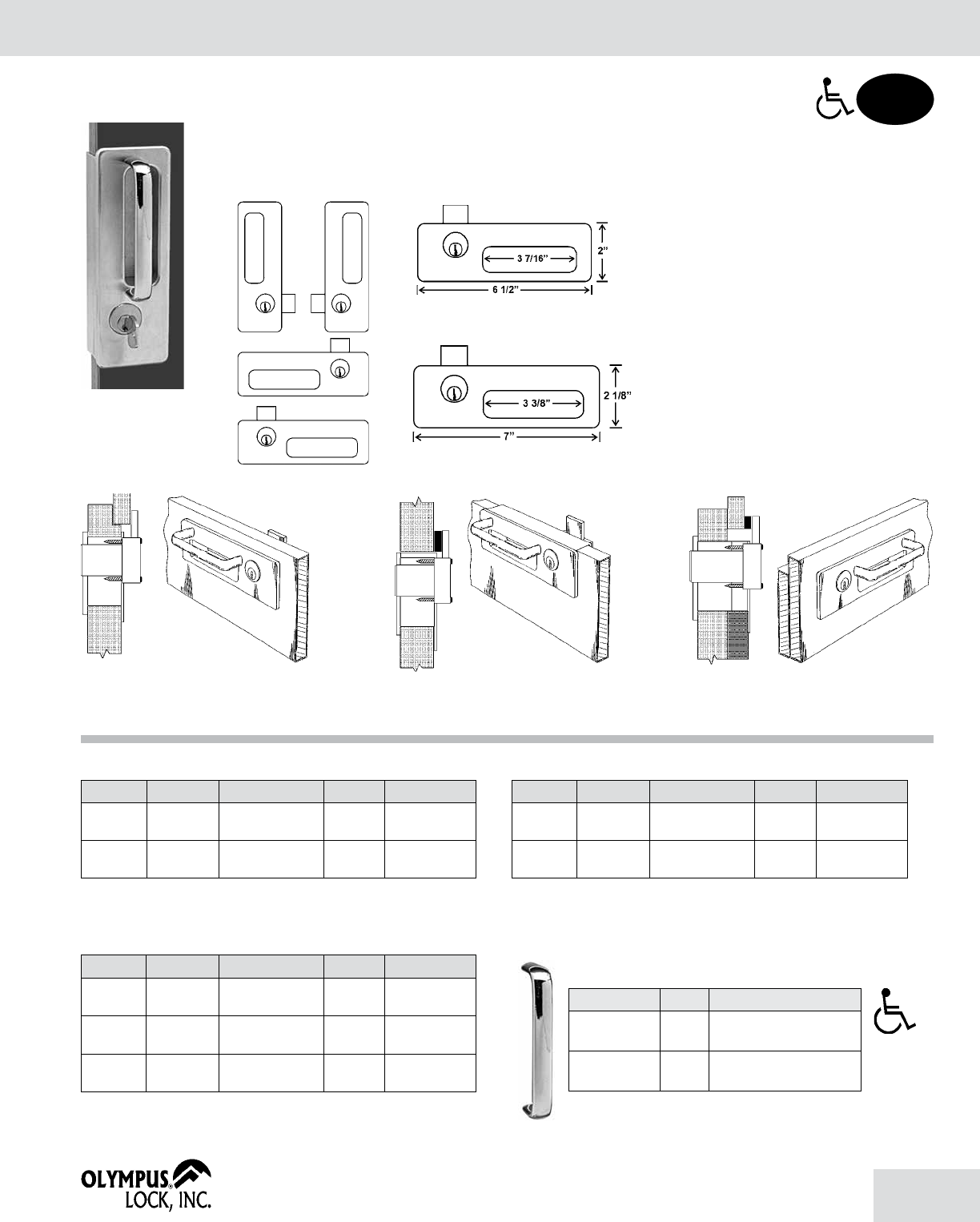

829R Showcase/Ratchet Lock SPECIFICATIONS
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of
ANSI/BHMA A156.11 ANSI standards
Use: Sliding glass or wood doors
Body: Zinc die cast
Strap: Steel
Finish: 26D
Packaged: Packed 10 per box
829R KEYING INFORMATION
Keying: Can be keyed together with other Schlage
C Keyway locks
Keyway: Schlage C keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass pin, tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102, O-Bit
Masterkeying: 5 pin standard, 6-pin available
Grand masterkeying: Available
Keyblank 5-pin: KBSC-5
Keyblank 6-pin: KBSC-6
829R-LC CYLINDER INFORMATION
Cylinder: Not included
Includes: All parts necessary to work with other
manufacturers' cylinders
Accepts: Schlage compatible key-in-knob cylinders
including ILCO cylinder #1599 and Medeco
cylinders
Medeco cylinders: Requires optional 829-MD
Medeco Driver Pack (available separately.) Will
accept the following Medeco cylinders:
Original: 6 pin #20-009S4
5 pin #20-008S4
Biaxial: 6 pin #20W009S4
5 pin #20W008S4
Keymark: 6 pin #20K009S4
Key retaining cylinder: #20W200S1
Compatible electronic cylinders: Medeco LOGIC,
ASSA CLIQ or VIDEX CyberLock key-in-knob
cylinders
INCLUDES
729RS-1 strap for 3/16" to 1/4" material thickness
OPTIONAL ACCESSORIES
Alternate straps: 729RS-2 strap for 3/8" material
thickness, or 729RS-3 strap for up to 5/8"
material thickness
Medeco driver pack: 829-MD (required if using
Medeco cylinders)
Cylinder: 78-201 Series (page 54)
Item Finish Mat. Thickness Keying
829R 26D Up to 1/4" KD, KA 101, 102, O-Bit
Custom Keyed
829R-LC 26D Up to 1/4" Less Cylinder
829-MD Medeco Driver Pack (required if installing Medeco cylinders in LC (less
cylinder product). Sold separately.
Optional straps: 729RS-2 fits up to 3/8" material thickness
729RS-3 fits up to 5/8" material thickness (adjustable)
FOR BYPASSING SLIDING DOORS
729RS-2
729RS-3
Adjustable for varying material
thickness up to 5/8"
OPTIONAL STRAPS
Standard Cylinder
Schlage C Keyway or Less Cylinder
829R
829R-LC
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
Woodwork Institute
(WI) acknowledged
product
28 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
Item Function Finish Cyl. Length Keying
L78R-LCA
L78R-LCM
RH Door
RH Door
26D, US3
26D, US3
1-1/8"
1-3/8"
Less Cylinder
L78L-LCA
L78L-LCM
LH Door
LH Door
26D, US3
26D, US3
1-1/8"
1-3/8"
L78V-LCA
L78V-LCM
VH Drawer
VH Drawer
26D, US3
26D, US3
1-1/8"
1-3/8"
L78I-LCA
L78I-LCM
IH Drawer
IH Drawer
26D, US3
26D, US3
1-1/8"
1-3/8"
SPECIFICATIONS
Reversible: Easily field reversible between door
and drawer functions
Rekeyable: Easily rekeyable via set screw cylinder
release mechanism
US Patent Nos: 4,899,563; 7,874,189 B2
Body: Zinc die cast
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D or US3
Packaged: Packed 10 per box
INCLUDED ACCESSORIES
For 1-1/8"barrel length locks:
10-351 plastic spacers (qty 2)
L78ST-1 lipped strike
For 1-3/8"barrel length locks:
L78ST-2 lipped strike
L78 KEYING INFORMATION
Keying: Can be keyed together with other Schlage
C Keyway locks
Keyway: Schlage C keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass, pin tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102
Masterkeying: 5 pin standard, 6-pin available
Grand masterkeying: Available
Keyblank 5-pin: KBSC-5
Keyblank 6-pin: KBSC-6
L78-LC CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage compatible key-in-knob cylinders
including ILCO cylinder #1599
Includes: All parts necessary to work with other
manufacturers' cylinders
Compatible electronic cylinders: Medeco LOGIC,
ASSA CLIQ or VIDEX CyberLock key-in-knob
cylinders
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Trim collar: TR78 trim ring
Spacer: 10-351 spacer (1/8" thick)
Cylinder: 78-201 Series (page 54)

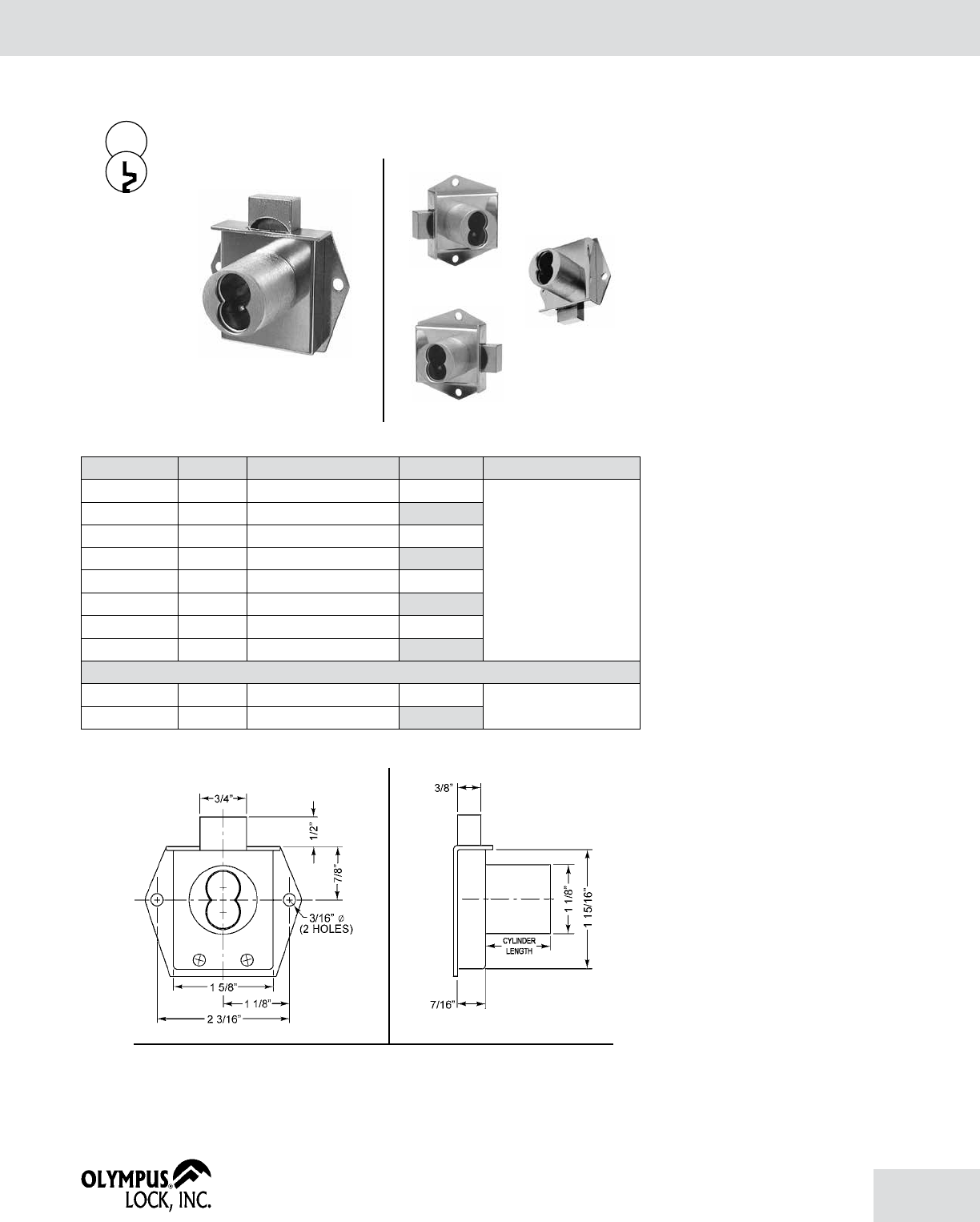

L78 Latch Lock
Item Function Finish Cyl. Length Keying
L78R RH Door 26D, US3 1-1/8" or 1-3/8"
KD, KA 101, 102
Custom Keyed
L78L LH Door 26D, US3 1-1/8" or 1-3/8"
L78V VH Drawer 26D, US3 1-1/8" or 1-3/8"
L78I IH Drawer 26D, US3 1-1/8" or 1-3/8"
L78V
L78I
Inverted
Hand (IH)
L78L
Left Hand
(LH)
L78R
Right Hand
(RH)
L78V
Vertical
Hand (VH)
FIELD REVERSIBLE INTO ALL FOUR HANDINGS!
Standard Cylinder
Schlage C Keyway or Less Cylinder
L78V-LC
29
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Rekeyable: Easily rekeyable via set-screw cylinder
removal mechanism
U.S. Patent Nos: 4,899,563; 4,920,774; 5,657,652
Body: Zinc die cast
Cylinder length: 1-1/8" or 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D or US3
Packaged: Packed 10 per box
INCLUDED ACCESSORIES
For 1-1/8"barrel length locks:
10-350 plastic spacers (qty 2)
850-210 matching strike
For 1-3/8"barrel length locks:
850-211 matching strike
850S KEYING INFORMATION
Keying: Can be keyed together with other Schlage
C Keyway locks
Keyway: Schlage C keyway
Keys: Includes 2 keys per lock
Cylinder: Solid brass, pin tumbler
Stock keying: KD/KA - 5 pin standard
Stock KA#: 101, 102
Masterkeying: 5 pin standard, 6-pin available
Grand masterkeying: Available
Keyblank 5-pin: KBSC-5
Keyblank 6-pin: KBSC-6
850LC CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage compatible key-in-knob cylinders
including ILCO cylinder #1599
Includes: All parts necessary to work with other
manufacturers' cylinders
Compatible electronic cylinders: Medeco LOGIC,
ASSA CLIQ or VIDEX CyberLock key-in-knob
cylinders
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 spacer (1/8" thick), 10-348 spacer
(1/4" thick), 10-349 spacer (1/2" thick)
Trim ring: TR78 trim ring
Cylinder: 78-201 Series (page 54)
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
Item Function Finish Cyl. Length Keying
850S VH Drawer 26D, US3 1-1/8" KD, KA 101, 102
Custom Keyed
850S VH Drawer 26D, US3 1-3/8"
850S Deadlatching Drawer Lock
Less
cylinder
locks
For SCHLAGE
style original
or replacement
cylinders
Item Function Finish Cyl. Length Keying
850LCA VH Drawer 26D, US3 1-1/8" Less Cylinder
850LCM VH Drawer 26D, US3 1-3/8"
Standard Cylinder
Schlage C Keyway or Less Cylinder
850S 850LC
30 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Rekeyable: Easily rekeyable via set-screw cylinder
removal mechanism
US Patent Nos: 4,899,563; 4,920,774
Standard function: Key removable in locked or
unlocked position. Standard function locks are
non-handed.
Body: Zinc die cast
Cylinder length: 1-3/8"
Barrel diameter: 1-1/8"
Finish: 26D or US3
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Sargent C480-2 (13-3457) 6-pin deadbolt
cylinder
INCLUDED ACCESSORIES
All parts to work with Sargent original cylinders
10-056 notched strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick),
10-350 (1/2" thick)
Strikes: 10-052, 10-054, 10-055, 10-057, 10-058,
12-2, 12-3, 12-4
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
Item Finish Cyl. Length Description
754LC 26D, US3 1-3/8" Less Cylinder - For use with Sargent
C480-2 (13-3457) deadbolt cylinder
For SARGENT C480-2 (13-3457) deadbolt cylinder
For SARGENT
original
deadbolt-style
cylinders
Less
cylinder
locks
754LC Door Lock
854LC Drawer Lock
Item Finish Cyl. Length Description
854LC 26D, US3 1-3/8" Less Cylinder - For use with Sargent
C480-2 (13-3457) deadbolt cylinder
For SARGENT
original
deadbolt-style
cylinders
Less
cylinder
locks
Standard Cylinder
Less Cylinder for Sargent C480-2 (13-3457)
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
For SARGENT C480-2 (13-3457) deadbolt cylinder
31
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
720-PL3
anti-rotation plate
SPECIFICATIONS
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or non-
key-retaining function
Body: Zinc die cast
Finish: 26D
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Sargent 6300 Series interchangeable core
cylinders
Note: Use of Sargent "Degree" interchangeable
cores requires purchase of alternate SA54-PD-DG
prong driver.
INCLUDED ACCESSORIES
Plastic actuator to operate lock without core
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
Prong driver for Sargent 6300 series
interchangeable cores
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
Prong Driver: SA54-PD-DG for use with Sargent
"Degree" interchangeable cores
Item Finish Cyl. Diameter Mat. Thickness Description
SA54LM/DM 26D 1-1/8" Up to 1-1/8" Lock body - For use with
Sargent IC
SA54-PD-DG Prong driver for Sargent "Degree" interchangeable cores (available separately)
SA54 Cam Lock
For SARGENT
interchangeable
core cylinders
SARGENT
MOUNTING CUTOUT
Interchangeable Core
Sargent
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(bottom-pin style)
INCLUDED CAMS
32 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

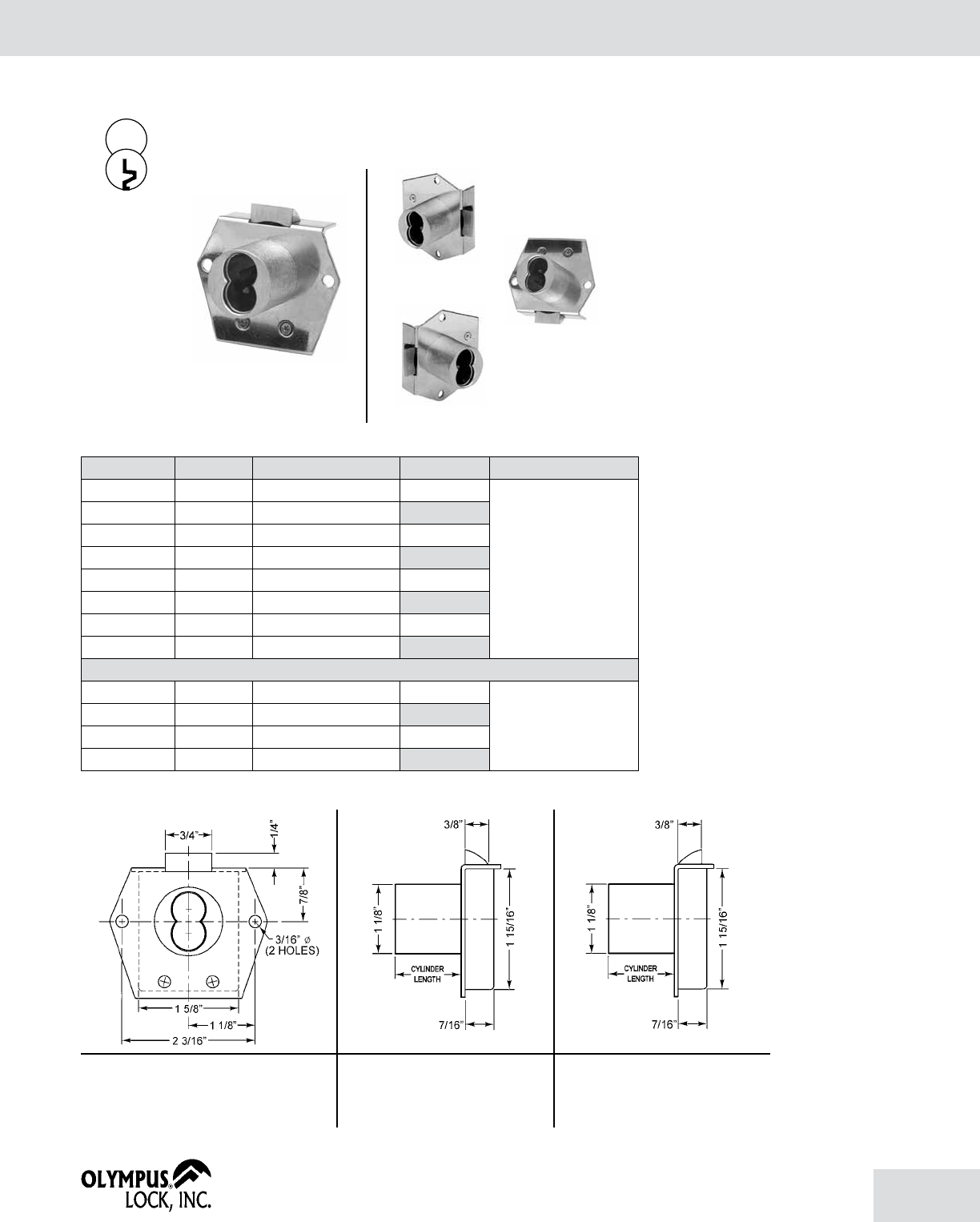

SPECIFICATIONS
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to
E07121 (777ICP) / E07041 (888ICP)
Standard function: Key removable in locked and
unlocked position.
Key-retaining function: Specify core type
(Standard/Classic or Primus/Everest) when
ordering
Body: Zinc die cast
Cylinder length: 1-7/16"
Barrel diameter: 1-1/8"
Finish: 26D, US3 or 10B
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage
Classic IC cores
- Schlage Primus® and Everest large format IC
cores
- Mul-T-Lock large format IC cores
Compatible electronic cylinders: VIDEX
CyberLock LFIC cylinders
INCLUDED ACCESSORIES
7788-PA-D actuator to operate lock without core
10-350 plastic spacers (qty 3)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Strikes: 10-052, 10-056, 10-057, 10-058, 12-2,
12-3, 12-4
Trim ring: TR78
Through-bolt hardware: ETS1/ETS4/ETS5 trim
plate, ETS1-PL trim pull and ETST1 template
Item Function Finish Core Description
777ICP-DR Door 26D, US3, 10B Standard/Classic or
Primus/Everest
Lock body - For Schlage
full-size IC
Item Function Finish Core Description
777IC-DRK Door-KR 26D, US3, 10B Standard/Classic Lock body - For Schlage
full-size IC
777P-DRK Door-KR 26D, US3, 10B Primus/Everest
Key-retaining (KR): Cycle to "locked" position before inserting core.
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)

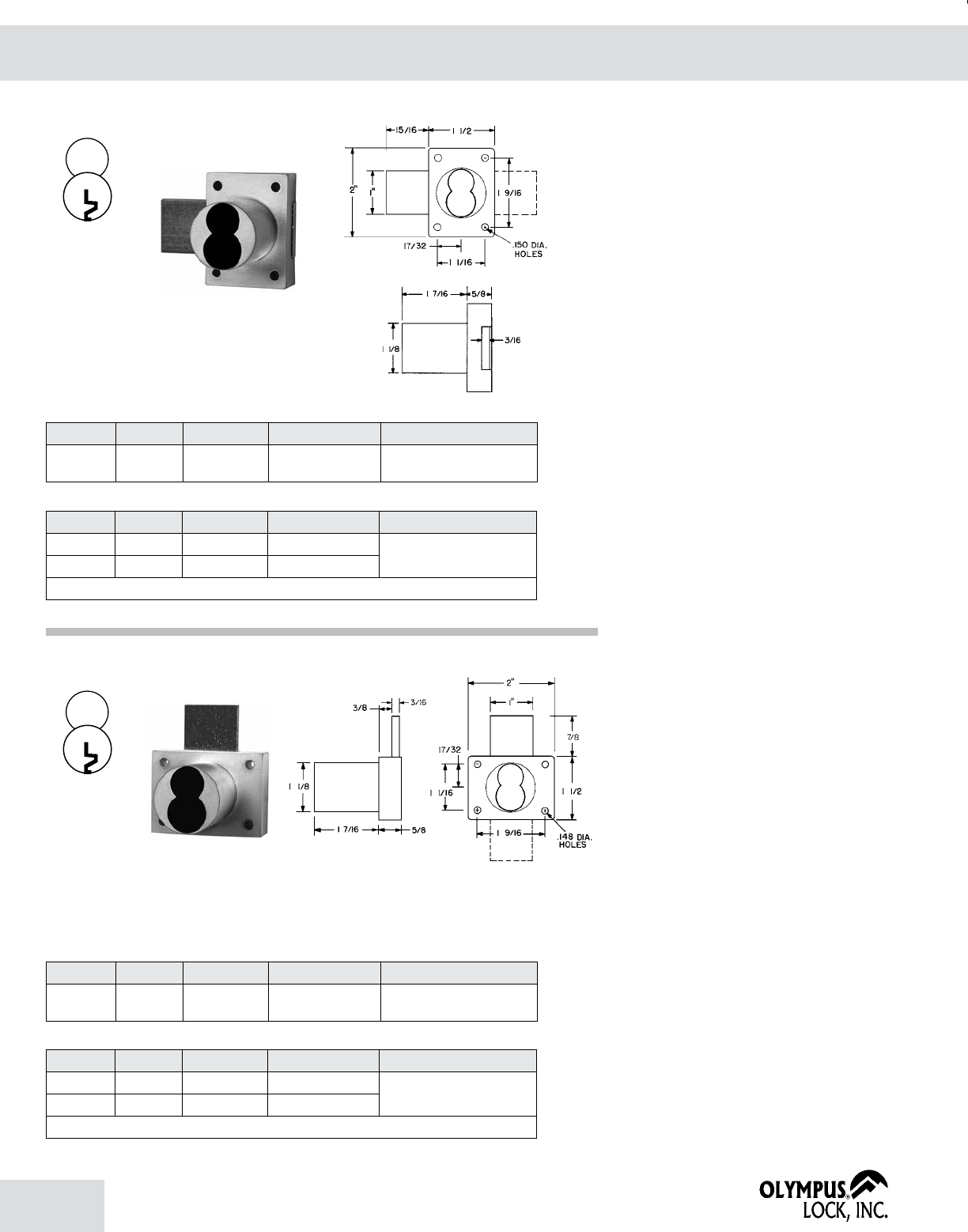

777 Door Lock
888 Drawer Lock
Item Function Finish Core Description
888ICP-DW Drawer 26D, US3, 10B Standard/Classic or
Primus/Everest
Lock body - For Schlage
full-size IC
Item Function Finish Core Description
888IC-DWK Drawer-KR 26D, US3, 10B Standard/Classic Lock body - For Schlage
full-size IC
888P-DWK Drawer-KR 26D, US3, 10B Primus/Everest
Key-retaining (KR): Cycle to "locked" position before inserting core.
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)
Interchangeable Core
Schlage Full-Size
For SCHLAGE
full-size
interchangeable
core cylinders
SCHLAGE
For SCHLAGE
full-size
interchangeable
core cylinders
SCHLAGE
ANSI/BHMA
A156.11 Grade 1
E07121
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
33
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

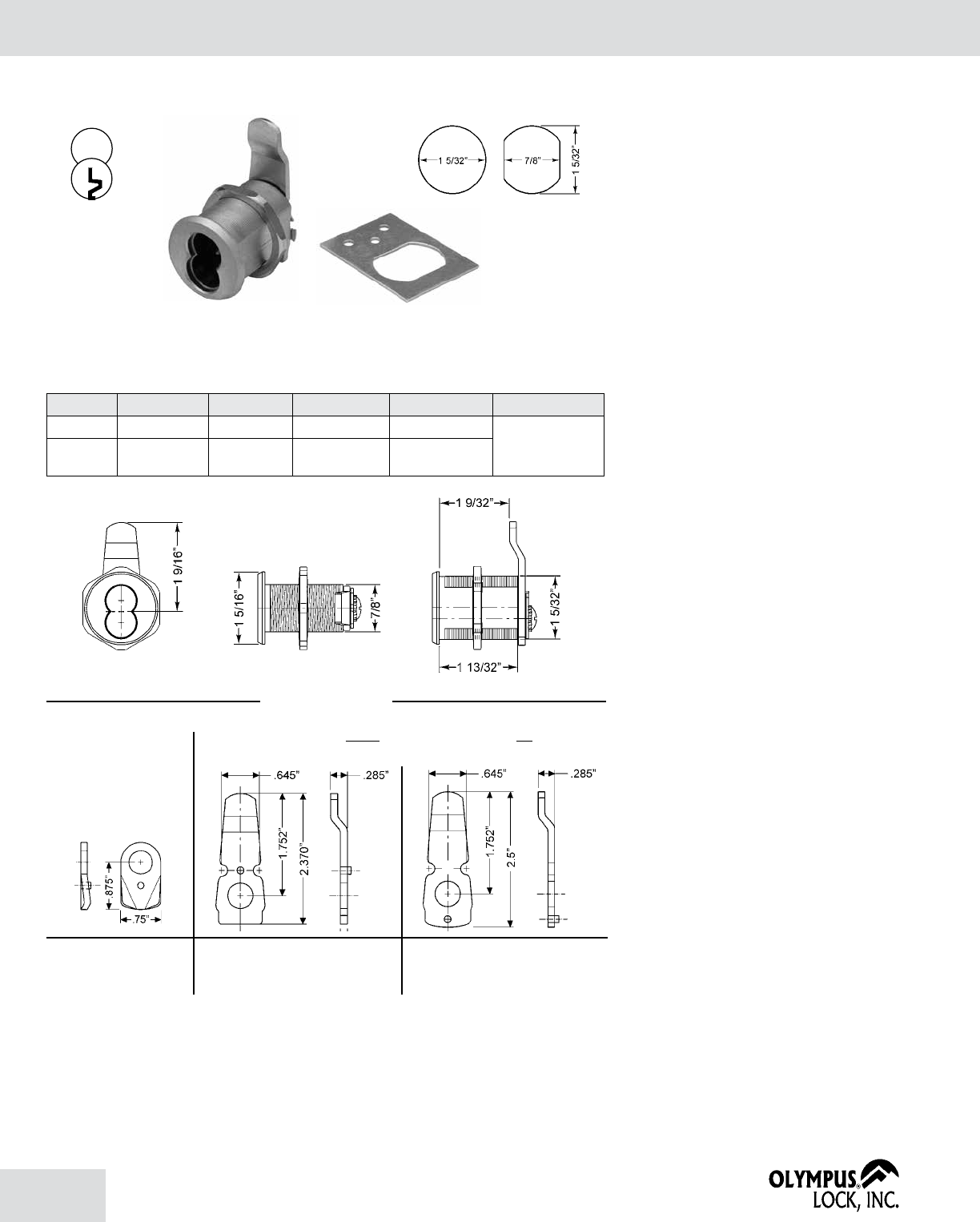

720-PL3
anti-rotation plate
SPECIFICATIONS
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to E07261/
E07271.
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-3/16"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or non-
key-retaining function
Body: Zinc die cast
Finish: 26D or US3
Packaged: 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage
Classic IC cores
- Schlage Primus® and Everest large format IC
cores
- Mul-T-Lock large format IC cores
Compatible electronic cylinders: VIDEX
CyberLock LFIC cylinders
INCLUDED ACCESSORIES
7788-PA-D actuator to operate lock without core
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
Item Finish Cyl. Diameter Mat. Thickness Description
920LM/DM 26D, US3 1-1/8" Up to 1-1/8" Lock body - For Schlage
full-size IC

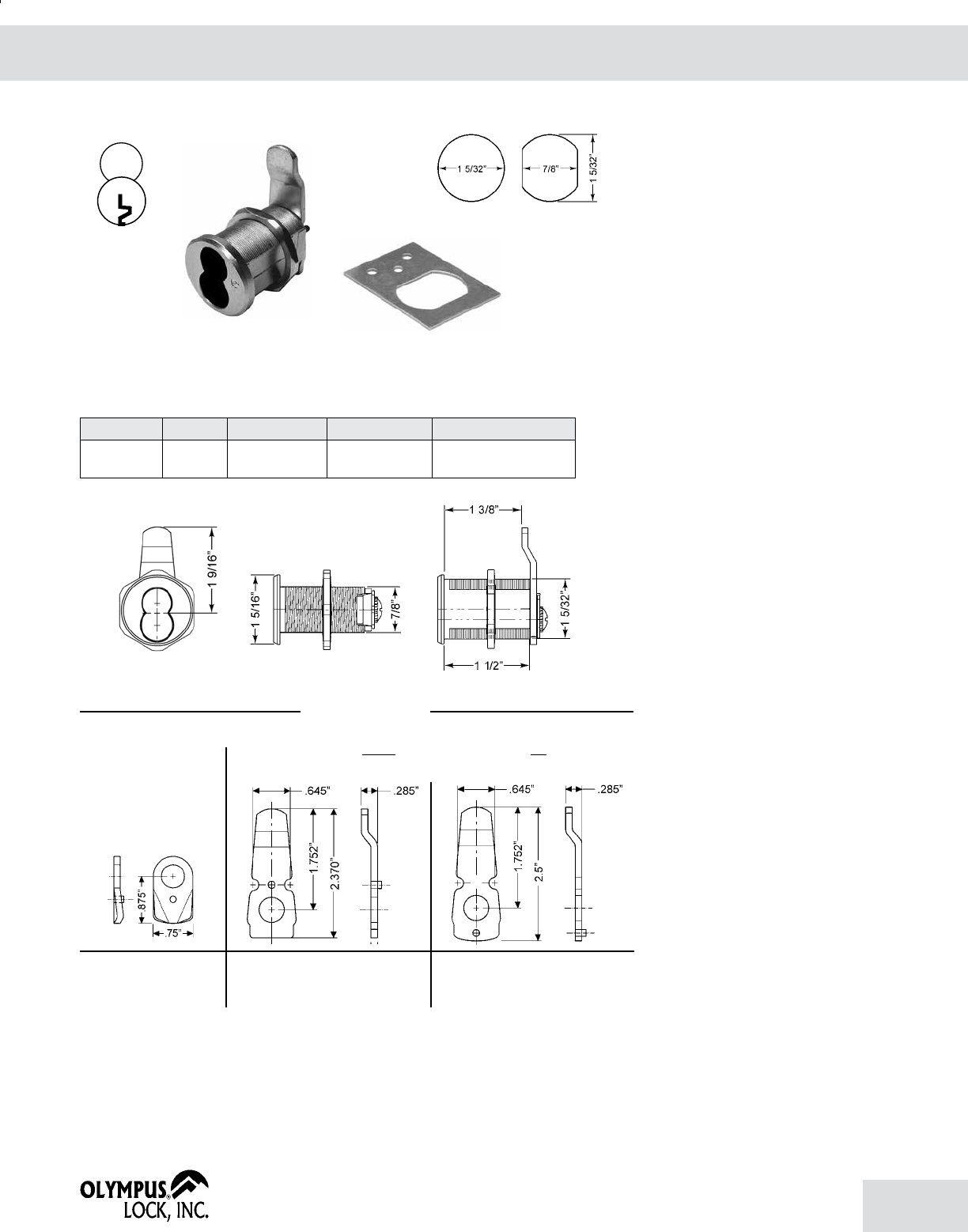

920 Cam Lock MOUNTING CUTOUT
Interchangeable Core
Schlage Full-Size
For SCHLAGE
full-size
interchangeable
core cylinders
SCHLAGE
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(mid-pin style)
720-3-2
inbent cam for vertical function
(bottom-pin style)
May include either 720-3-2 (mid-pin style) OR
720-3-2 (bottom-pin style)
INCLUDED CAMS
ANSI/BHMA
A156.11 Grade 1
E07261/E07271
Woodwork Institute
(WI) acknowledged
product
34 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
929R Showcase/Ratchet Lock SPECIFICATIONS
ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of
ANSI/BHMA A156.11 1999 ANSI standards
Use: Sliding glass or wood doors
Body: Zinc die cast
Strap: Steel
Finish: 26D
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage
Classic IC cores
- Schlage Primus® and Everest large format IC
cores
- Mul-T-Lock large format IC cores
Compatible electronic cylinders: VIDEX
CyberLock LFIC cylinders
INCLUDED ACCESSORIES
7788-PA-D plastic thumbturn
729RS-1 strap for 3/16" to 1/4" material thicknesse
OPTIONAL STRAPS
Alternate straps: 729RS-2 strap for 3/8" material
thickness, or 729RS-3 strap for up to 5/8"
material thickness
Item Finish Mat. Thickness Description
929R 26D Up to 1/4" Lock body - For Schlage full-size IC
Optional straps: 729RS-2 fits up to 3/8" material thickness
729RS-3 fits up to 5/8" material thickness (adjustable)
FOR BYPASSING SLIDING DOORS
Interchangeable Core
Schlage Full-Size
For SCHLAGE
full-size
interchangeable
core cylinders
SCHLAGE
Woodwork Institute
(WI) acknowledged
product
729RS-2
729RS-3
Adjustable for varying material
thickness up to 5/8"
OPTIONAL STRAPS
35
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Function: Spring latch
Body: Zinc die cast
Barrel diameter: 1-1/8"
Cylinder length: 1-7/16"
Latch projection: 3/8"
Handing: Drawer Vertical
Finish: 26D or US3
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Schlage large format/full-size IC cylinders
- Schlage Quad, Numbered Section, and Schlage
Classic IC cores
- Schlage Primus® and Everest large format IC
cores
- Mul-T-Lock large format IC cores
Compatible electronic cylinders: VIDEX
CyberLock LFIC cylinders
INCLUDED ACCESSORIES
10-350 spacers (qty 3)
L78ST-1-SS matching lip strike
7788-PA-D plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template

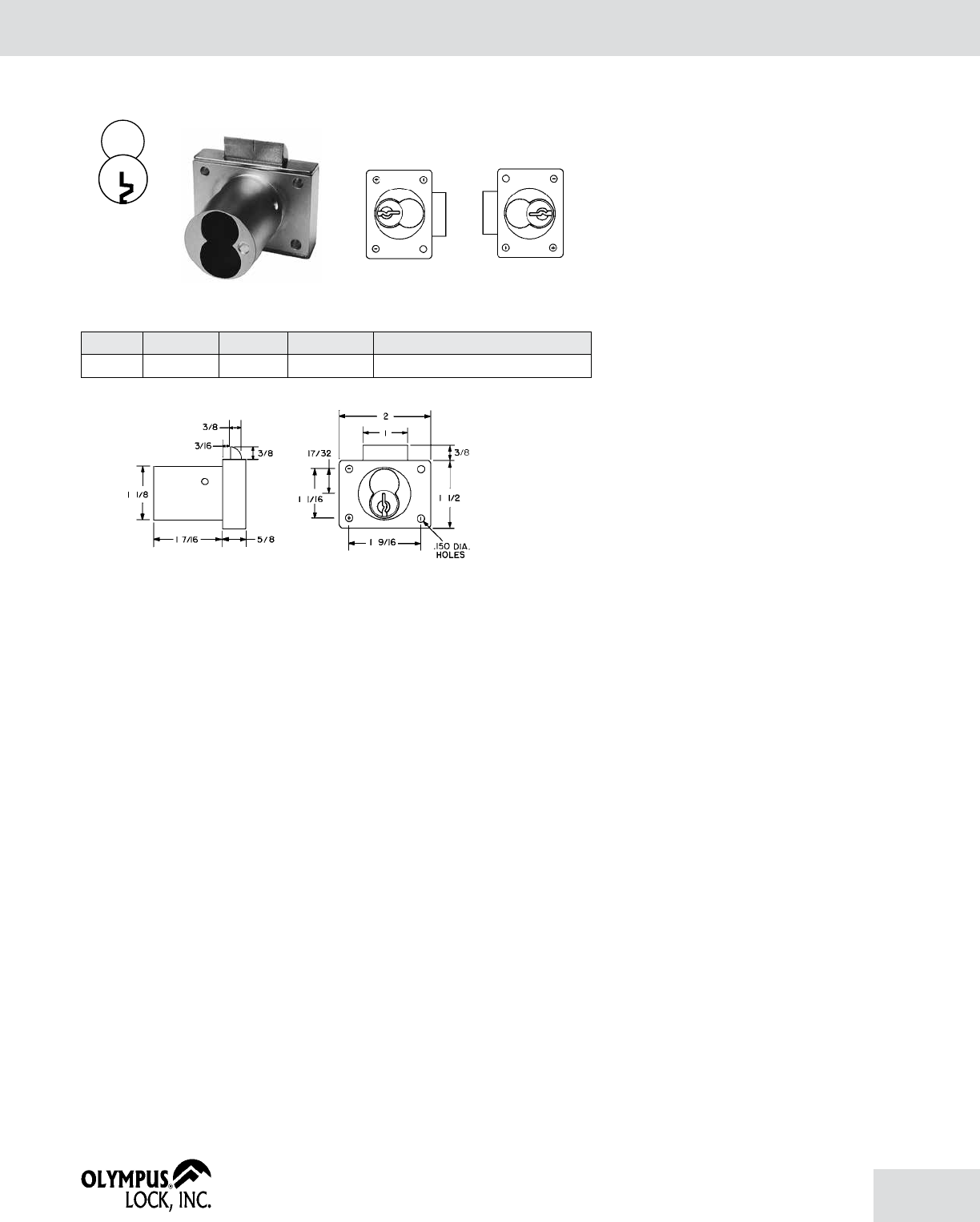

L92V Latch Lock
Item Handing Finish Cyl. Length Keying
L92V VH Drawer 26D, US3 1-7/16" Lock body - For Schlage full-size IC
For SCHLAGE
full-size
interchangeable
core cylinders
SCHLAGE
For door applications,
place lock on side.
Left-Hand Door Right-Hand Door
Interchangeable Core
Schlage Full-Size
36 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

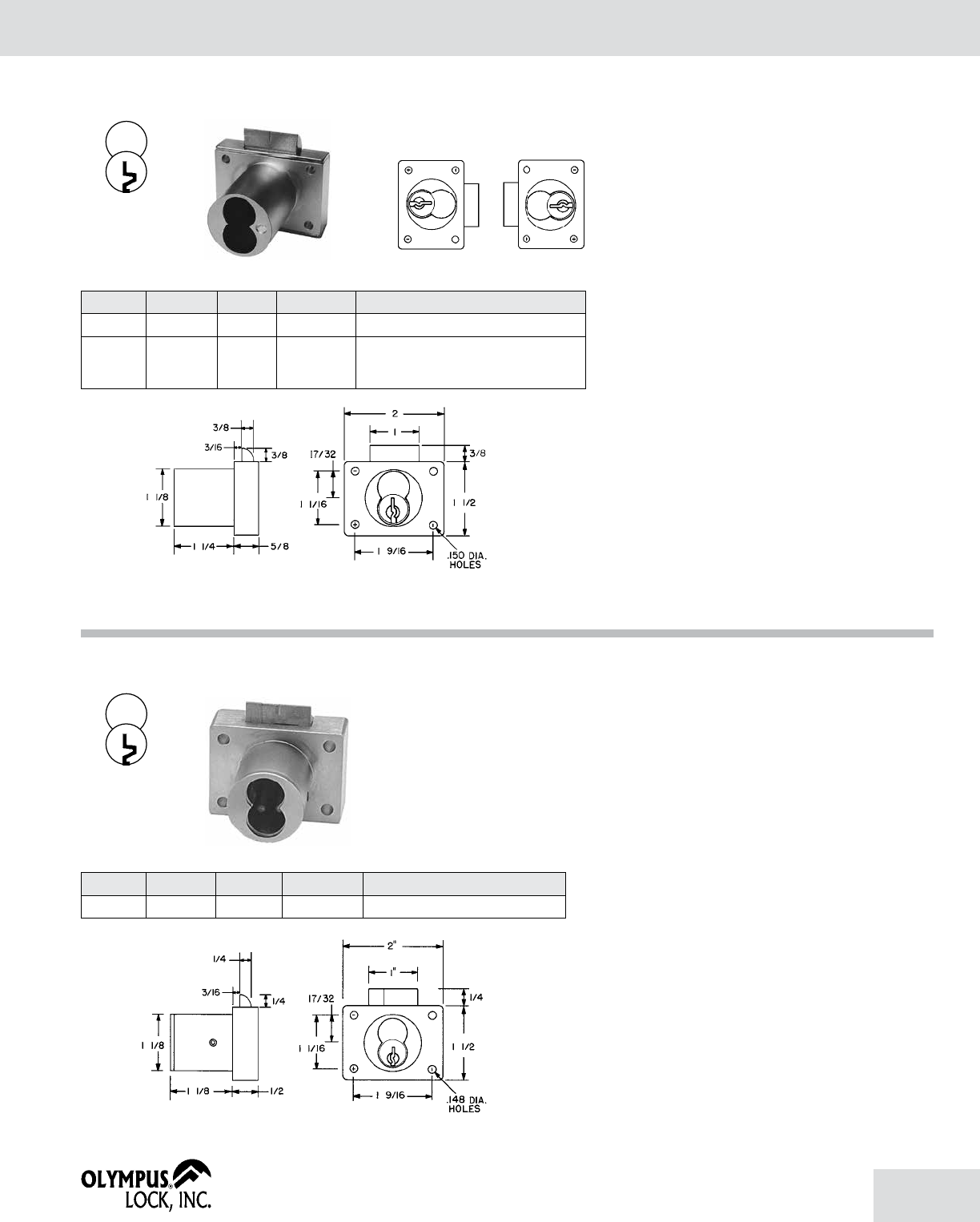

SPECIFICATIONS
Mounting: Rim (surface)
Function: Key removable in locked and unlocked
position
Barrel diameter: 1-5/32"
Cylinder length: 1-1/8"
Body: Zinc die cast cylinder housing, steel back
plate and steel case
Finish: 26D
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Corbin/Russwin interchangeable core
cylinders
INCLUDED ACCESSORIES
725-PA plastic thumbturn
1125-1 spacer to fit 6 or 7 pin cores
725-SP-RD solid rectangular strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
Part No. Function Finish Cyl. Length Description
CR1125RDRH RH Door 26D 1-1/8"
Lock body - For Corbin/Russwin ICCR1125RDLH LH Door 26D 1-1/8"
CR1125RDVH VH Drawer 26D 1-1/8"
SPECIFICATIONS
Mounting: Rim (surface)
Barrel diameter: 1-5/32"
Cylinder length: 1-1/8"
Latch projection: 1/4"
Body: Zinc die cast cylinder housing, steel back
plate and steel case
Finish: 26D
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cores: Less cylinder
Accepts: Corbin/Russwin interchangeable core
cylinders
INCLUDED ACCESSORIES
725-PA actuator to operate lock without core
1125-1 spacer to fit 6 or 7 pin cores
725-SP-RL solid lipped strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
Part No. Function Finish Cyl. Length Description
CR1125RLVH VH Drawer 26D 1-1/8" Lock body - For Corbin/Russwin IC
CR1125RD
CR1125RDVH
CR1125RDLH CR1125RDRH
CR1125RL
CR1125RLVH
Dimensions are
the same for all
handings
CR1125RD Rim Deadbolt
CR1125RL Rim Latch
For CORBIN
RUSSWIN
interchangeable
core cylinders
CORBIN
RUSSWIN
Interchangeable Core
Corbin/Russwin
For CORBIN
RUSSWIN
interchangeable
core cylinders
CORBIN
RUSSWIN
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
37
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or non-
key-retaining function
Body: Zinc die cast
Finish: 26D
Packaged: 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Accepts: Corbin/Russwin interchangeable core
cylinders
INCLUDED ACCESSORIES
725-PA plastic thumbturn
1125-1 spacer to fit 6 or 7 pin cores
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
Item Finish Cyl. Diameter Mat. Thickness Description
CR25LM/DM 26D 1-1/8" Up to 1-1/8" Lock body - For
Corbin/Russwin IC
CR25 Cam Lock
720-PL3
anti-rotation plate
MOUNTING CUTOUT
Interchangeable Core
Corbin/Russwin
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(bottom-pin style)
INCLUDED CAMS
For CORBIN
RUSSWIN
interchangeable
core cylinders
CORBIN
RUSSWIN
38 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Standard function: Key removable in locked and
unlocked position.
Key-retaining function: Key removable in locked
position only. Specify
-KR
for key retaining.
Cylinder length: 1-3/8"
Barrel diameter: 1-1/8"
Body: Zinc die cast
Finish: 26D or US3
Packaged: Packed 10 per box
CYLINDER INFORMATION
Cylinder: Not included
Medeco cylinder: Accepts Medeco #32-0201
(6-pin) IC cylinder and Medeco #31-0100 (6-pin)
Yale IC compatible cylinder.
Yale cylinder: Accepts Yale 1210 Series (6-pin) IC
core cylinder
ASSA cylinder: Accepts ASSA's 6-pin, Yale-
compatible large format IC cylinder.
Special note: Medeco "Keymark" cylinders require
Best compatible (small format) cabinet lock
bodies.
INCLUDED ACCESSORIES
931-PA plastic thumbturn
931-1 spacer for 6-pin Medeco cores
10-350 plastic spacers (qty 3)
10-054 1/4" plastic bar strike
10-055 1/2" plastic bar strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Strikes: 10-052, 10-056, 10-057, 10-058, 12-2,
12-3, 12-4
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template

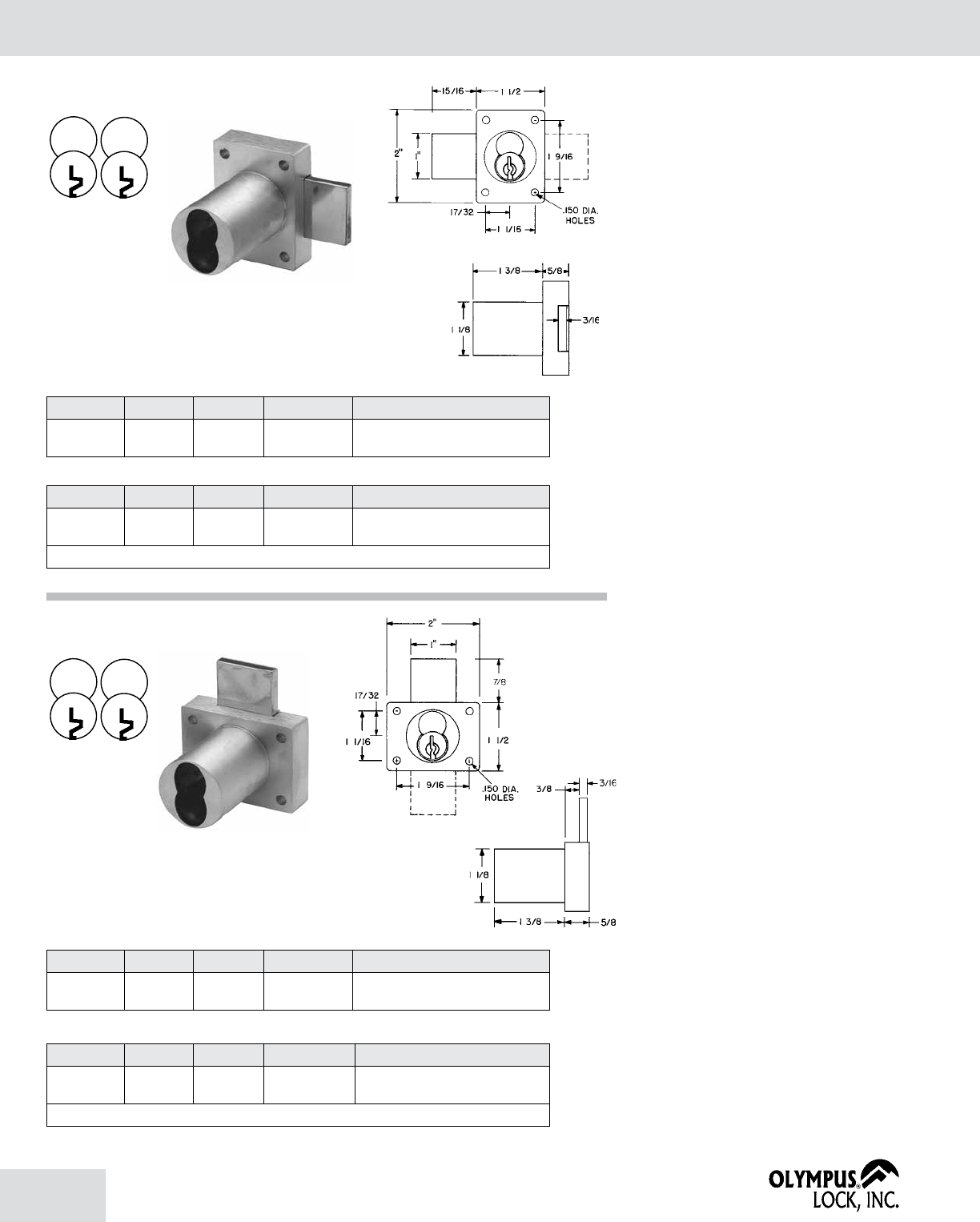

931DR Door Lock
Item Function Finish Cyl. Length Description
931DW Drawer 26D, US3 1-3/8" Lock body - For Medeco/Yale large
format IC
For MEDECO/YALE
style large format
interchangeable core
cylinders
MEDECO YALE
Item Function Finish Cyl. Length Description
931DW-KR Drawer-KR 26D, US3 1-3/8" Lock body - For Medeco/Yale large
format IC
Key-Retaining (KR): Cycle to "locked" position before inserting core.
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)
Item Function Finish Cyl. Length Description
931DR Door 26D, US3 1-3/8" Lock body - For Medeco/Yale large
format IC
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
Item Function Finish Cyl. Length Description
931DR-KR Door-KR 26D, US3 1-3/8" Lock body - For Medeco/Yale large
format IC
Key-Retaining (KR): Cycle to "locked" position before inserting core.
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)
931DW Drawer Lock
Interchangeable Core
Medeco or Yale Large-Format
IMPORTANT: Medeco "Keymark" cylinders
require Best compatible (small format) cabinet
lock bodies (See 721DR/DW).
IMPORTANT: Medeco "Keymark" cylinders
require Best compatible (small format) cabinet
lock bodies (See 721DR/DW).
For MEDECO/YALE
style large format
interchangeable core
cylinders
MEDECO YALE
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
39
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
ME93 Cam Lock
MOUNTING CUTOUT
Item Finish Cyl. Diameter Mat. Thickness Description
ME93LM/DM 26D 1-1/8" Up to 1-1/8" Lock body - For

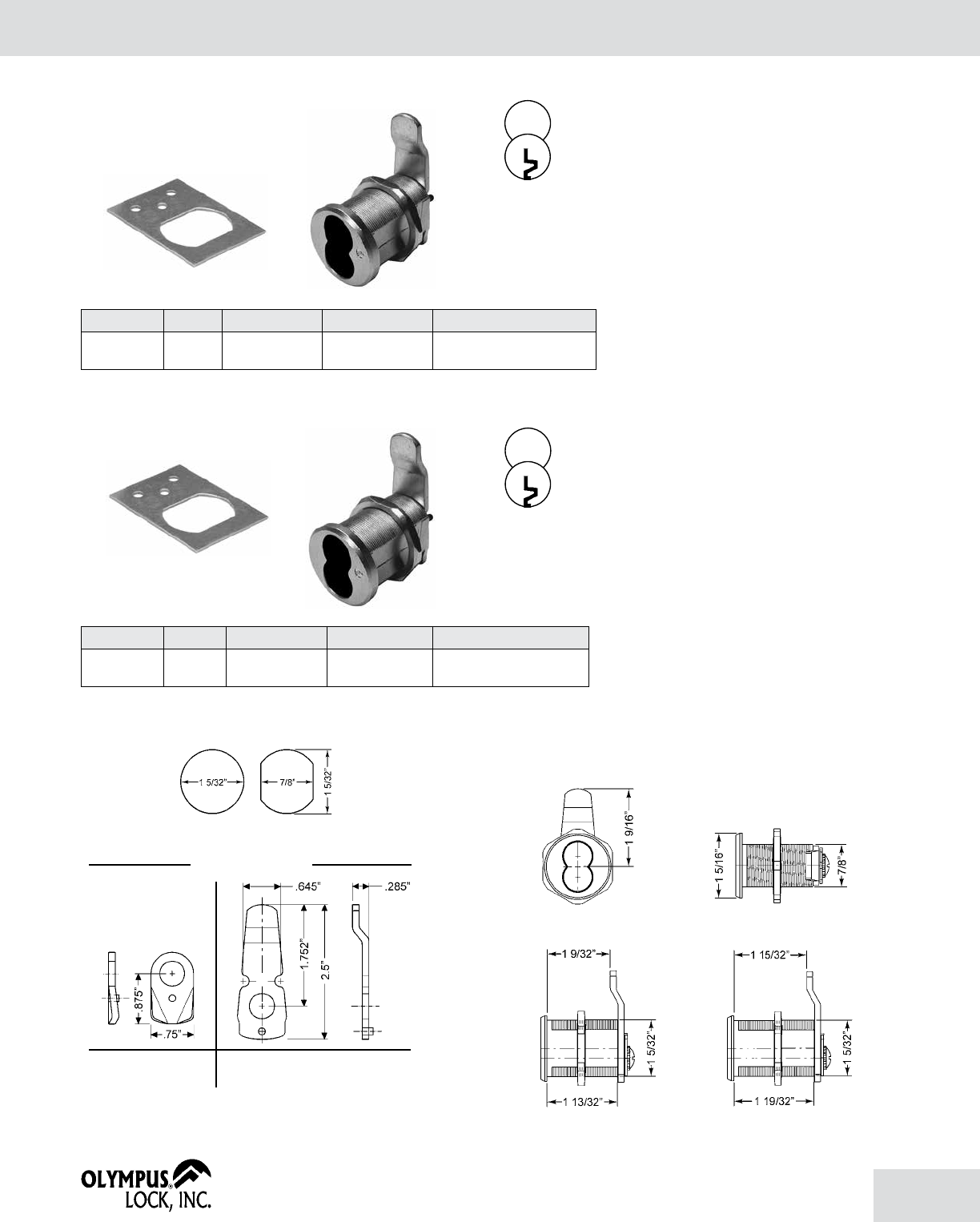

Medeco Large Format IC
SPECIFICATIONS
Cylinder diameter: 1-1/8"
Across flats: 7/8"
ME93 Max. material thickness: 1-1/4"
YA93 Max. material thickness: 1-5/16"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or non-
key-retaining function
Body: Zinc die cast
Finish: 26D
Packaged: 10 per box
ME93 CYLINDER INFORMATION
Cores: Not included.
Medeco cylinder: Accepts Medeco #32-0201
(6-pin) IC cylinder.
Special note: Medeco "Keymark" cylinders require
Best compatible (small format) cabinet lock
bodies.
YA93 CYLINDER INFORMATION
Cores: Not included.
Yale cylinder: Accepts Yale 1210 Series (6-pin) IC
cylinder.
Assa cylinder: Accepts ASSA's 6-pin, Yale-
compatible large format IC cylinder.
INCLUDED ACCESSORIES
931-PA plastic thumbturn
720-PL3 anti-rotation plate
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
For MEDECO
style large format
interchangeable
core cylinders
MEDECO
Interchangeable Core
Medeco or Yale Large Format
720-PL3
Anti-rotation plate
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(bottom-pin style)
INCLUDED CAMS
IMPORTANT: Medeco "Keymark" cylinders
require Best compatible (small format) cabinet
lock bodies (See 720LM/DM or 721DR/DW).
YA93 Cam Lock
For YALE style
6-pin large format
interchangeable
core cylinders
YALE
Item Finish Cyl. Diameter Mat. Thickness Description
YA93LM/DM 26D 1-1/8" Up to 1-1/8" Lock body - For
Yale Large Format IC
ME93 YA93
720-PL3
Anti-rotation plate
40 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Rekeyable: Patented cylinder retainer clip
US Patent Nos: 5,038,589; 5,737,950
Retrofits: Best 5E
Usage: Commonly used as locking device on
medical carts (see also our 724VR medical cart/
file cabinet lock for use on medical carts)
Body: Zinc die cast
Cylinder: Zinc die cast pin tumbler, drilled for 7 pins
Standard function: Key removable in locked or
unlocked position.
Key retaining function: Alternate key-retaining
shifters (page 61) are available separately for key
removable in locked position only.
Cams: 2 reversible cams work in all positions
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Keyways: A,B,E,F,G,J,K,L,R
Keys: Includes 2 keys per lock
Stock keying: O-Bit
Keying: Custom and/or masterkeying available.
Specify at time of order.
Rekeying: Use special pin spring p/n S-SPRING.
INCLUDED ACCESSORIES
Trim collar and parts in chart below.
OPTIONAL ACCESSORIES
See pages 60-61 for a complete list of optional cam
sizes and other accessories for use with B7 Series
cam locks.
Item Keyway Finish Cyl. Length* Keying
B7 See chart 26D 1-3/16" O-Bit or
Custom Keyed
*Cyl. Length: As measured with straight cam.
B7 Cam Lock
With Trim Collar
For Mat. Thickness 7/8"
Straight Cam (X) 1-3/16"
Inbent Cam (Y) 7/8"
Outbent Cam (Z) 1-1/2"
Cylinder Length (A) 1-1/8"
With
Trim Collar
Locks in all eight positions
with 2 reversible cams.
BEST Keyway
(non-SFIC)
BEST
MOUNTING CUTOUT
TRB7 SPACER COLLARS AVAILABLE
SEPARATELY
AVAILABLE KEYWAYS
A B E F G
J K L R
DCNP-100-SC
straight cam
DCNP-100-BC
offset reversible cam
DCNP-500-ARP
anti-rotation plate
TRB7-18-26D
Spacer collar, 1/8"
TRB7-14-26D
Spacer collar, 1/4"
TRB7-12-26D
Spacer collar, 1/2"
Utility Cam Lock
Best Keyway
INCLUDED PARTS
Woodwork Institute
(WI) acknowledged
product
41
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
L72V Latch Lock SPECIFICATIONS
Function: Spring latch
Body: Zinc die cast
Barrel diameter: 1-1/8"
Cylinder length: 1-1/4"
Latch projection: 3/8"
Finish: 26D or US3
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
10-350 spacers (qty 3)
L78ST-1-SS matching lip strike
725-1 spacer to fit 6 or 7 pin cores
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Prong drivers: Shortened prong driver for use with
Sargent XC or Marks high security cores with side
pins. Specify L72V-PD-SP1 (for prong driver only).
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
SFIC cores: 206/207 Series (page 53)
Item Handing Finish Cyl. length Keying
L72V VH Drawer 26D, US3 1-1/4" Lock body - For small format IC
L72V-SP1 VH Drawer 26D, US3 1-1/4" Lock body - For Sargent XC or Marks high
security cores with side pins. Includes short
pin prong driver no. L72V-PD-SP1.
For door applications, place lock
on side.
Left-Hand Door Right-Hand Door
For BEST style
interchangeable
core cylinders
BEST
Interchangeable Core
Best Compatible (Small Format)
SPECIFICATIONS
Function: Deadlocking latch
U.S. Patent No: 4,899,563; 4,922,774; 5,657,652
Body: Zinc die cast
Cylinder length: 1-1/8"
Barrel diameter: 1-1/8"
Latch projection: 1/4"
Finish: 26D or US3
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
10-350 spacers (qty 2)
725-1 spacer to fit 6 or 7 pin cores
850-210 matching strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
SFIC cores: 206/207 Series (page 53)
Item Handing Finish Cyl. length Description
950IC VH Drawer 26D, US3 1-1/8" Lock body - For small format IC
950 Deadlatching Lock
For BEST style
interchangeable
core cylinders
BEST
42 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 1E7E4
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to E07261/
E07271.
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
Functions: Includes parts for key-retaining or
non-key-retaining function
Body: Zinc die cast or machined solid brass
Finish: 26D, US26 or US3
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDES
725-PA plastic thumbturn
720-PL3 stabilizer plate
725-1 spacer to fit 6 or 7 pin cores
720-3-1 short inverted cam
720-3-2 long vertical cam
720-CDLM lost motion cam shifter
720-CDDM key retaining door cam shifter
720-KR key retaining drawer cam shifter
OPTIONAL ACCESSORIES
See accessories on page 69. See page 70 for cam
assembly instructions.
Optional cams: 7-3-2, 7-3-3, 7-3-4, 7-3-5
Trim collars: TR200 Series
Switch accessory pack: SW-1
CL-MP-118: Double-D metal punch (page 57)
SFIC cores: 206/207 Series (page 53)
Item Finish Body Cyl. Diameter Mat. Thickness Description
720LM/DM 26D, US26, US3 Zinc die cast 1-1/8" Up to 1-1/8" Lock body - For
small format IC
720B 26D Machined
solid brass
1-1/8" Up to 1-1/8"

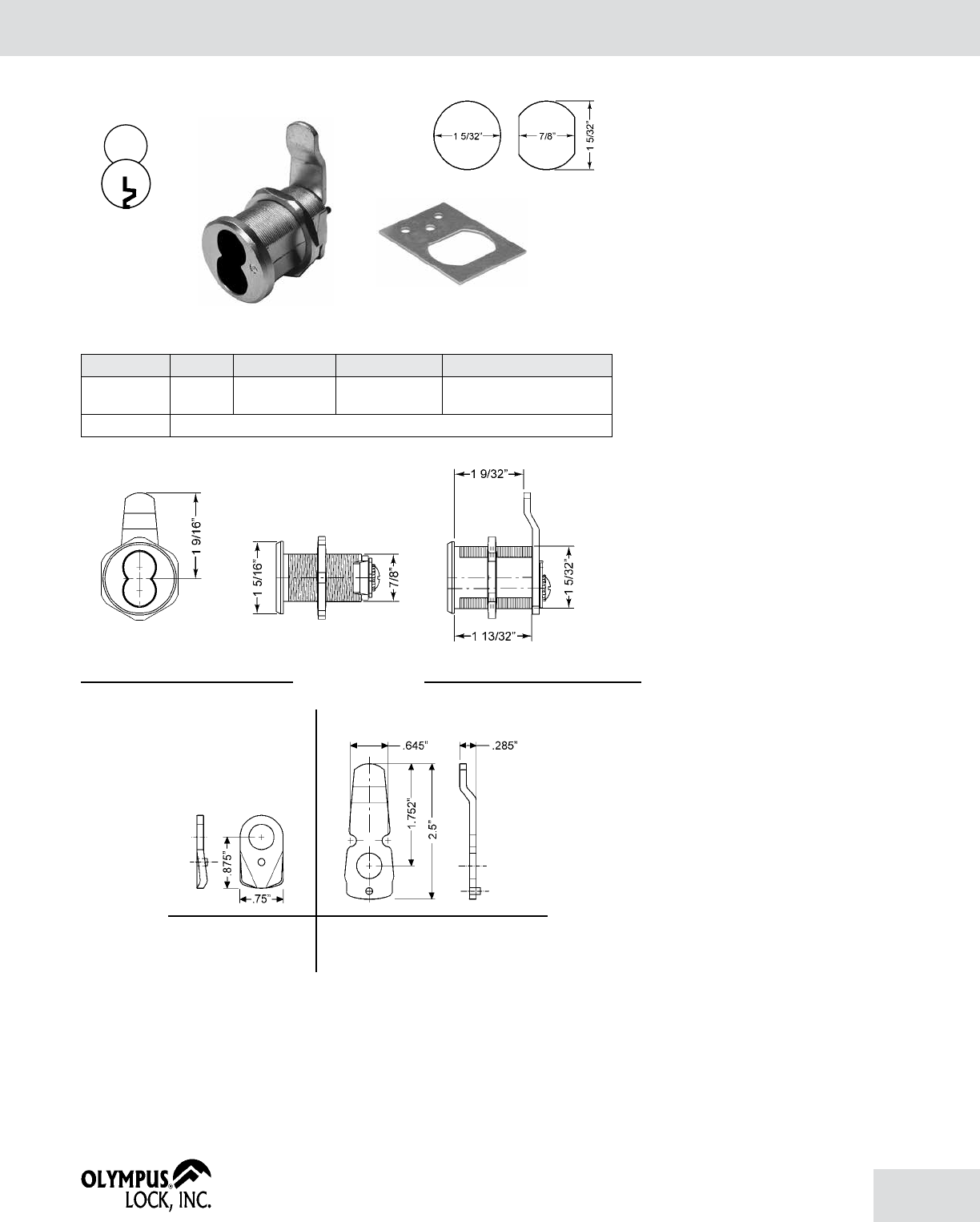

720 Cam Lock
For BEST style
interchangeable
core cylinders
BEST
720-PL3
Anti-rotation plate
MOUNTING CUTOUT
Interchangeable Core
Best Compatible (Small Format)
720-3-1
for inverted function
720-3-2
inbent cam for vertical function
(mid-pin style)
720-3-2
inbent cam for vertical function
(bottom-pin style)
May include either 720-3-2 (mid-pin style) OR
720-3-2 (bottom-pin style)
INCLUDED CAMS
ANSI/BHMA
A156.11 Grade 1
E07261/E07271
Woodwork Institute
(WI) acknowledged
product
43
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Interchangeable Core
Best Compatible (Small Format)
720B-DM Medical Cart
Direct Drive Cam Lock
For BEST style
interchangeable
core cylinders
BEST MOUNTING CUTOUT
SPECIFICATIONS
Retrofits: Best 1E7D4
Cams: Will work with Best original cams
Cylinder diameter: 1-1/8"
Across flats: 7/8"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
Functions: Direct drive screw on cam mechanism
Body: Solid machined brass
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-PA plastic thumbturn
720-3-D1 short direct drive cam
TR201 spacer collar, 1/8"
TR202 spacer collar, 1/4"
725-1 spacer for 6 pin cores
OPTIONAL ACCESSORIES
Cam: 720-3-SC1
Trim collars: TR200 Series (page 69)
CL-MP-118: Double-D metal punch (page 57)
SFIC cores: 206/207 Series (page 53)
TR201
1/8"
TR202
1/4"
720-3-D1
short cam
INCLUDED CAM OPTIONAL CAM
720-3-SC1
switch cam
Item Finish Body Cyl. Diameter Mat. Thickness Description
720B-DM 26D Machined
solid brass
1-1/8" Up to 1-1/8" Lock body - For small
format IC
NEW
See also page 46:
724VR Medical Cart/
File Cabinet lock
Works with
Best original
cams.
44 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 3L
Reversible: Field reversible between door and
drawer functions
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements. Equivalent to E07121
(721DR) / E07041 (721DW)
Standard function: Key removable in locked and
unlocked position.
Key-retaining function: Key removable in locked
position only. Specify
-KR
for key-retaining.
US Patent Nos: 4,899,563; 4,920,774
Barrel diameter: 1-1/8"
Cylinder length: 1-1/4" or 1-3/8"
Body: Zinc die cast
Finish: US26, 26D, US3 or US10B
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
For 1-1/4"barrel length locks:
725-1 spacer to fit 6 or 7 pin cores
725-PA plastic thumbturn
10-350 (qty 3) plastic spacers
10-054 1/4" plastic bar strike
10-057 .65" plastic bar strike
For 1-3/8"barrel length locks:
725-1 spacer to fit 6 or 7 pin cores
725-PA plastic thumbturn
10-054 1/4" plastic bar strike
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: 10-350 (1/8" thick), 10-348 (1/4" thick),
10-349 (1/2" thick)
Strikes: 10-052, 10-055, 10-056, 10-058, 12-2, 12-4
Trim ring: TR78
Through-bolt hardware: ETS1 trim plate, ETS1-PL
trim pull and ETST1 template
SFIC cores: 206/207 Series (page 53)
721DR Deadbolt Lock
Item Function Finish Cyl. Length Description
721DR Door 26D, US26, US3, 10B 1-1/4" Lock body - For small format IC
721DR-SP1 Door 26D, US26, US3, 10B 1-1/4" Lock body - For Sargent XC or Marks
high security cores. Includes short pin
prong driver 721DR-11-SP1
721DR-138 Door 26D 1-3/8" Lock body - For small format IC
Item Function Finish Cyl. Length Description
721DR-KR Door-KR 26D, US26, US3, 10B 1-1/4" Lock body - For small format IC
721DR-KR138 Door-KR 26D 1-3/8"
Key-retaining: Cycle to "locked" position before inserting core.
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)
Item Function Finish Cyl. Length Description
721DW Drawer 26D, US26, US3, 10B 1-1/4" Lock body - For small format IC
721DW-SP1 Drawer 26D, US26, US3, 10B 1-1/4" Lock body - For Sargent XC or Marks
high security cores. Includes short pin
prong driver 721DW-11-SP1
721DW-138 Drawer 26D 1-3/8" Lock body - For small format IC
Item Function Finish Cyl. Length Description
721DW-KR Drawer-KR 26D, US26, US3, 10B 1-1/4" Lock body - For small format IC
721DW-KR138 Drawer-KR 26D 1-3/8"
Key-retaining: Cycle to "locked" position before inserting core.
KEY REMOVABLE LOCKED OR UNLOCKED POSITION
KEY RETAINING (KEY REMOVABLE LOCKED POSITION ONLY)

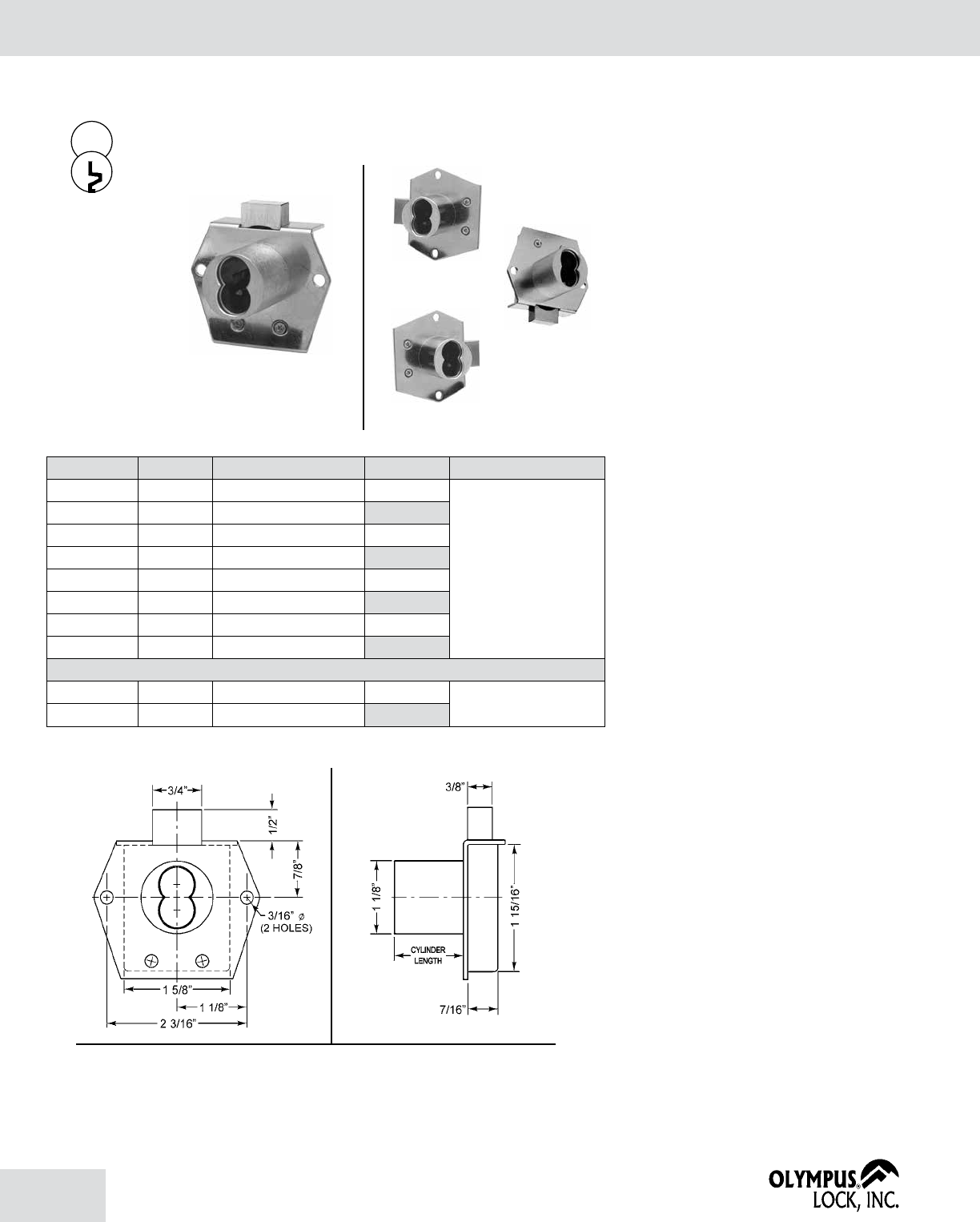

721DW Drawer Lock
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
For BEST style
interchangeable
core cylinders
BEST
ANSI/BHMA
A156.11 Grade 1
E07121
ANSI/BHMA
A156.11 Grade 1
E07041
Woodwork Institute
(WI) acknowledged
product
Woodwork Institute
(WI) acknowledged
product
45
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 4S
Function: For use on bypassing sliding doors. Core
acts as stop for interior sliding door.
Material: Zinc die cast
Finish: 26D or US26
INCLUDED ACCESSORIES
Screws: Includes 3 sizes of screws (7/16", 3/4"
and 1") to adapt lock for use on varying material
thicknesses
KEYING INFORMATION
Core: Not included, requires special core
Accepts: Best (6C or 6CP), Arrow, Falcon, KSP,
Schlage SFIC or equivalent small format
interchangeable cores
OPTIONAL ACCESSORIES
SFIC cores: 207S Series (page 53)
Item Finish Size Type Description
723S 26D, US26 Adjustable Sliding door cylinder
housing
Lock body - For small
format IC
Note: Requires use of 207S series SFIC core (page 53)
FOR BYPASSING SLIDING GLASS DOORS

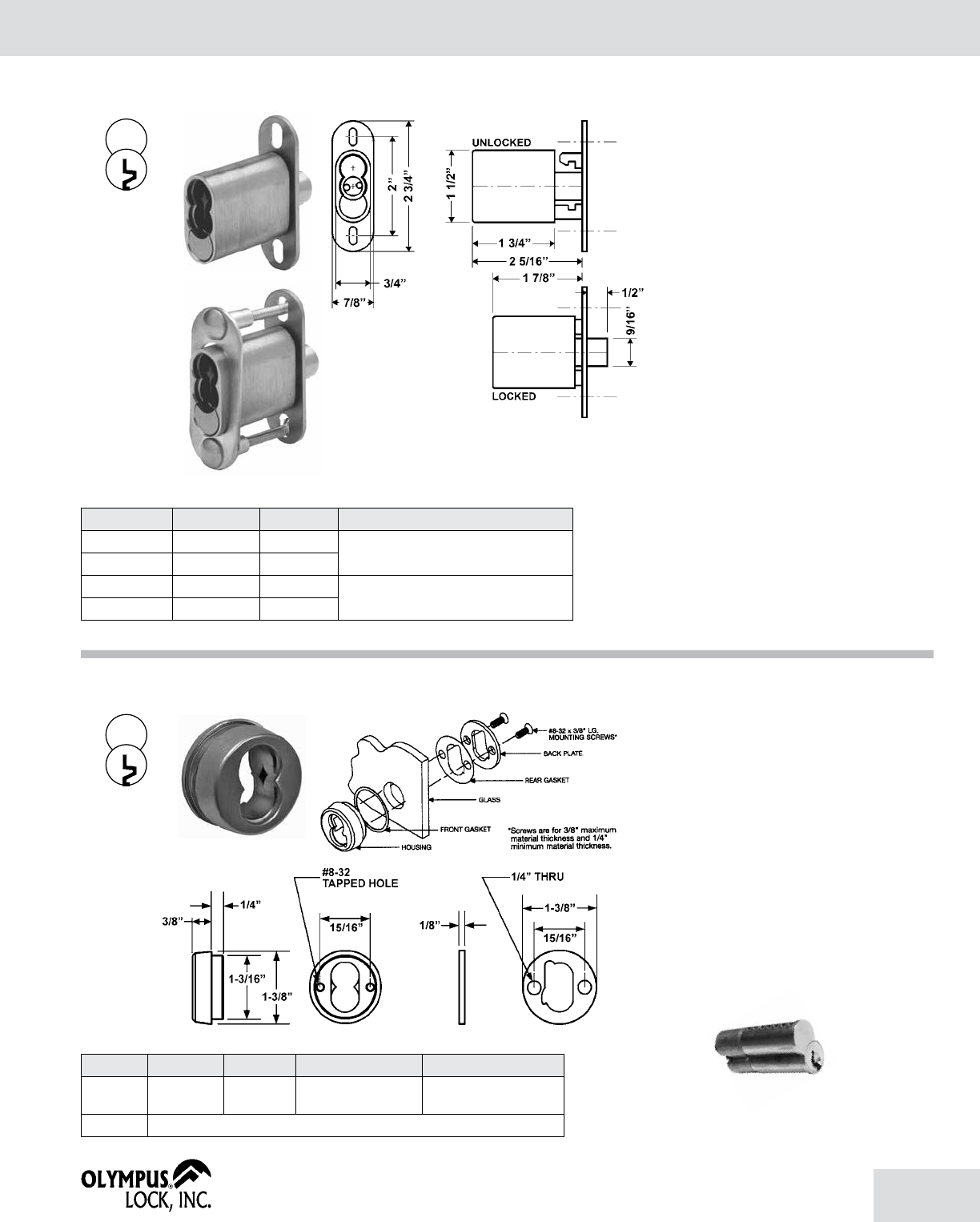

723S Sliding Door Cylinder Housing
SPECIFICATIONS
Retrofits: Best 2S, 2S-TBM
Standard function: Key removable in locked and
unlocked position.
Key-retaining function: Key removable in locked
position only. Specify
-KR
for key-retaining.
TBM function: Specify TBM for "through-bolt
mounting"
Body: Solid brass
Barrel length: 1-3/4"
Bolt throw: 1/2"
Max. door thickness: 1-7/8"
Min. door thickness (TBM): 5/8"
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
Matching strike
725-PA plastic thumbturn
TBM locks include through-bolt plates and screws
OPTIONAL ACCESSORIES
SFIC cores: 206/207 Series (page 53)
Item Function Finish Description
722S Standard 26D Lock body - For small format IC
722S-KR Key-retaining 26D
722S-TBM Standard 26D Lock body - For small format IC
(includes through-bolt mounting hardware)
722S-TBM-KR Key-retaining 26D
722S Plunger Lock
722S
722S-TBM
Through-bolt mount
Interchangeable Core
Best Compatible (Small Format)
The Olympus 723S requires
use of 207S series SFIC cores
(page 53)
207S Series SFIC cores
For BEST style
interchangeable
core cylinders
BEST
For BEST style
interchangeable
core cylinders
BEST
46 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 2P73
Use: Commonly used as locking device on medical
carts (see also our B7 cam lock which is also
commonly used on medical carts)
Open indicator: Includes red "caution" flag when
unlocked.
Mounting slot: Vertical
Bolt type: Round spring bolt
Material: Zinc die cast
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
SFIC cores: 206/207 Series (page 53)
Item Finish Description
724VR 26D Lock body - For small format IC
Vertical slot / round bolt
Note: Includes red "caution" flag when unlocked.
Interchangeable Core
Best Compatible (Small Format)
SPECIFICATIONS
Retrofits: Best 8L
Handing: RH standard
Installation: Fits most common metal mail box
door designs
Material: Zinc die cast cylinder housing, steel body
Size: Adjustable
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
OPTIONAL ACCESSORIES
SFIC cores: 206/207 Series (page 53)
Item Finish Size Description
728MBL 26D Adjustable Lock body - For small
format IC
728MBL Mail Box Lock
For BEST style
interchangeable
core cylinders
BEST
For BEST style
interchangeable
core cylinders
BEST Includes red "caution"
flag when unlocked.
See also page 43:
720B-DM Medical Cart/
Direct Drive Cam Lock
724VR Medical Cart
File Cabinet Lock
47
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 5L7RL
Mounting: Rim (surface)
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements
Material: Zinc die cast cylinder housing, steel back
plate and steel case
Cylinder length: 1-1/16" or 1-3/8"
Barrel diameter: 1-1/8"
Latch projection: 1/4"
Reverse latch: Available for DW-VH or DW-IH
functions - use reverse latch for in-swinging door
applications.
Finish: US26, 26D, US3, US4 or 10B (1-3/8" barrel
length locks available in 26D finish only)
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-SP-RL solid lipped strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
SFIC cores: 206/207 Series (page 53)
Item Function Finish Cyl. Length Description
725RL-DR-RH RH Door 26D, US26, US3, US4, 10B 1-1/16"
Lock body - For small
format IC
725RL3DR-RH RH Door 26D 1-3/8"
725RL-DR-LH LH Door 26D, US26, US3, US4, 10B 1-1/16"
725RL3DR-LH LH Door 26D 1-3/8"
725RL-DW-VH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725RL3DWVH VH Drawer 26D 1-3/8"
725RL-DW-IH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725RL3DW-IH IH Drawer 26D 1-3/8"
Below locks are with Reverse Latch for "in-swinging" doors
725RL-DWRVH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
Lock body - For small
format IC
725RL3DWRVH VH Drawer 26D 1-3/8"
725RL-DWRIH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725RL3DWRIH IH Drawer 26D 1-3/8"
725RL
Dimensions are the same
for all handings.
725RL-DR-RH
725RL-DR-LH
725RL-DW-IH
725RL Rim Latch
725RL
725RL-DW-VH
Surface Mounted
725RL
(Rim Latch)
Standard configuration
725RL-DWR
(Rim Latch with Reverse Latch Option)
For "in-swinging" doors
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
48 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 5L7RD
Mounting: Rim (surface)
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements
Material: Zinc die cast cylinder housing, steel back
plate and steel case
Cylinder length: 1-1/16" or 1-3/8"
Barrel diameter: 1-1/8"
Key-retaining: Available for DW-VH applications
Finish: US26, 26D, US3, US4 or 10B (1-3/8" barrel
length locks available in 26D finish only)
Packaged: Packed 10 per box
KEYING INFORMATION:
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-SP-RD solid rectangular strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
SFIC cores: 206/207 Series (page 53)
Item Function Finish Cyl. Length Description
725RD-DR-RH RH Door 26D, US26, US3, US4, 10B 1-1/16"
Lock body -
For small format IC
725RD3DR-RH RH Door 26D 1-3/8"
725RD-DR-LH LH Door 26D, US26, US3, US4, 10B 1-1/16"
725RD3DR-LH LH Door 26D 1-3/8"
725RD-DW-VH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725RD3DWVH VH Drawer 26D 1-3/8"
725RD-DW-IH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725RD3DW-IH IH Drawer 26D 1-3/8"
Below locks are with "key-retaining" function (key removable in locked position only)
725RD-DWKVH VH Drawer 26D, US26, US3, US4, 10B 1-1/16" Lock body -
For small format IC
725RD3DWKVH VH Drawer 26D 1-3/8"
Surface Mounted
725RD-DR-RH
725RD-DW-IH
725RD
725RD-DW-VH
725RD Rim Deadbolt
725RD-DR-LH
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
725RD
(Rim Deadbolt) Standard configuration.
Dimensions are the same for all handings.
49
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 5L7MD
Mounting: Mortise
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements
Material: Zinc die cast cylinder housing, steel back
plate and steel case
Cylinder length: 1-1/16" or 1-3/8"
Barrel diameter: 1-1/8"
Key-retaining: Available for DW-VH applications
Finish: US26, 26D, US3, US4 or 10B (1-3/8" barrel
length locks available in 26D finish only)
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-SP-MD slotted rectangular strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
SFIC cores: 206/207 Series (page 53)
Item Function Finish Cyl. Length Description
725MD-DR-RH RH Door 26D, US26, US3, US4, 10B 1-1/16"
Lock body -
For small format IC
725MD3DR-RH RH Door 26D 1-3/8"
725MD-DR-LH LH Door 26D, US26, US3, US4, 10B 1-1/16"
725MD3DR-LH LH Door 26D 1-3/8"
725MD-DW-VH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725MD3DW-VH VH Drawer 26D 1-3/8"
725MD-DW-IH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725MD3DW-IH IH Drawer 26D 1-3/8"
Below locks are "key-retaining" (key removable in locked position only)
725MD-DWKVH VH Drawer 26D, US26, US3, US4, 10B 1-1/16" Lock body -
For small format IC
725MD3DWKVH VH Drawer 26D 1-3/8"
725MD-DR-RH
725MD-DW-IH
725MD-DR-LH
725MD Mortise Deadbolt
725MD
725MD-DW-VH
Mortise Mounted
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
725MD
(Mortise Deadbolt) Standard configuration.
Dimensions are the same for all handings.
50 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Item Function Finish Cyl. Length Description
725ML-DR-RH RH Door 26D, US26, US3, US4, 10B 1-1/16"
Lock body -
For small format IC
725ML3DR-RH RH Door 26D 1-3/8"
725ML-DR-LH LH Door 26D, US26, US3, US4, 10B 1-1/16"
725ML3DR-LH LH Door 26D 1-3/8"
725ML-DW-VH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725ML3DW-VH VH Drawer 26D 1-3/8"
725ML-DW-IH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725ML3DW-IH IH Drawer 26D 1-3/8"
Below locks are with Reverse Latch for "in-swinging" doors
725ML-DWRVH VH Drawer 26D, US26, US3, US4, 10B 1-1/16"
Lock body -
For small format IC
725M3DWRVH VH Drawer 26D 1-3/8"
725ML-DWRIH IH Drawer 26D, US26, US3, US4, 10B 1-1/16"
725ML3DWRIH IH Drawer 26D 1-3/8"
SPECIFICATIONS
Retrofits: Best 5L7ML
Mounting: Mortise
ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1
performance requirements
Material: Zinc die cast cylinder housing, steel back
plate and steel case
Cylinder length: 1-1/16" or 1-3/8"
Barrel diameter: 1-1/8"
Reverse latch: Available for DW-VH
or DW-IH functions (use reverse latch for in-
swinging door applications)
Finish: US26, 26D, US3, US4 or 10B (1-3/8" barrel
length locks available in 26D finish only)
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-SP-ML slotted lipped strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
SFIC cores: 206/207 Series (page 53)
725ML-DR-LH
725ML-DR-RH
725ML-DW-IH
725ML Mortise Latch
725ML
725ML-DW-VH
Mortise Mounted
725ML
Dimensions are the same for
all handings.
725ML
Mortise Latch
Standard configuration
725ML-DWR
Mortise Latch with "Reverse Latch"
option for "in-swinging" doors
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
51
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
725RSL Enclosure Lock
For NEMA Metal Traffic Control Boxes
SPECIFICATIONS
Retrofits: Best 5L7RD (with option code "SL"
square latch, spring loaded)
Mounting: Rim (surface)
Square latch (725RSL): Available for VH, RH or LH
functions
Material: Solid brass cylinder housing, steel back
plate and steel case
Cylinder length: 1-1/16"
Barrel diameter: 1-1/8"
Finish: 26D or US4
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included. We can match painted BEST
cores (blue, red, green, white or orange).
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
725-1 spacer to fit 6 or 7 pin cores
725-SP-RL solid lipped strike
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
See the accessories section of this catalog for a
complete list.
Spacers: WP725 (1/8" thick), WP726 (1/4" thick)
Strikes: 725-SP Series
SFIC cores: 206/207 Series (page 53)
725RSL-VH
SQUARE SPRING LATCH
Item Function Finish Cyl. Length Description
725RSL-RH RH Door 26D, US4 1-1/16" Lock body - For small format IC
Specialized spring bolt function for
metal cabinet enclosures.
725RSL-LH LH Door 26D, US4 1-1/16"
725RSL-VH VH Drawer 26D, US4 1-1/16"
Note: Solid brass cylinder housing available in 26D and US4 finishes only.
ENCLOSURE LOCK (SQUARE-STYLE, SPRING BOLT)
SPECIAL NOTE: This is a
spring loaded square latch
for metal enclosures only.
For standard deadbolt
function (used in wood
casework), see 725RD or
725MD series locks.
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
Locking mechanism
(inside of cabinet)
FOR METAL CABINETS/ENCLOSURES
To open cabinet, bolt retracts
allowing handle on outside to
rotate disk, disengaging top
and bottom latching mecha-
nisms. When handle and disk
are moved back into the closed
position, bolt springs back into
slot in disk and the cabinet is
locked.
IMPORTANT NOTE
For standard deadbolt function see 725RD or 725MD
For standard spring latch function see 725RL or 725ML
725RSL-RH
725RSL-LH
725RSL
(Square Latch) Standard configuration.
Dimensions are the same for all handings.
52 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Retrofits: Best 3S
ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of
ANSI/BHMA A156.11 ANSI standards
Use: Sliding glass or wood doors
Body: Zinc die cast
Strap: Steel
Finish: 26D
Packaged: Packed 10 per box
KEYING INFORMATION
Cores: Not included.
Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or
equivalent small format interchangeable cores
Compatible electronic cylinders: Medeco Nexgen
XT or VIDEX CyberLock SFIC cylinders
INCLUDED ACCESSORIES
729RS-1 strap for 3/16" to 1/4" material thickness
725-1 spacer to fit 6 or 7 pin cores
725-PA plastic thumbturn
OPTIONAL ACCESSORIES
Alternate straps: 729RS-2 strap for 3/8" material
thickness, or 729RS-3 strap for up to 5/8"
material thickness
SFIC cores: 206/207 Series (Page 53)
729R Showcase/Ratchet Lock
Item Finish Mat. Thickness Description
729R 26D Up to 1/4" Lock body - For small format IC
Optional straps: 729RS-2 fits up to 3/8" material thickness
729RS-3 fits up to 5/8" material thickness (adjustable)
FOR BYPASSING SLIDING DOORS
Interchangeable Core
Best Compatible (Small Format)
For BEST style
interchangeable
core cylinders
BEST
Woodwork Institute
(WI) acknowledged
product
729RS-2
729RS-3
Adjustable for varying material
thickness up to 5/8"
OPTIONAL STRAPS
53
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
206 Series: 6 pin core
207 Series: 7 pin core
207S Series: 7 pin core for 723S
Cores: Equivalent to Best, Arrow, Falcon or similar
small format interchangeable cores
Standard finish: 26D or US4
Painted cores: 207 (7 pin only) available in
blue (BL), green (GR) or red (RD)
KEYING INFORMATION
Uncombinated: Core only (does not include pins,
springs or keys)
Keyed cores: Specify KA, KD or MK.
Keyed cores include 2 change keys per core. 2
additional cut keys (master keys and/or control
keys) are shipped with each order. Additional keys
are available separately.
Stamping/Engraving: Custom stamping or
engraving for cores and keys is available for an
additional charge. See price list for details.
OTHER ACCESSORIES
Keys: For additional keys see bottom of this page or
key information on page 55.
FOR USE WITH
L72, 720, 721, 722, 723, 724, 725, 728, 729 and 950
SFIC cabinet locks
206 | 207 SFIC Cylinders
Item No. Finish Description
206-(x*)-(y*)
206-(x*)-(y*)-CUST
26D, US4 6 pin core, uncombinated
6 pin core, KA, KD or MK
207-(x*)-(y*)
207-(x*)-(y*)-CUST
26D, US4 7 pin core, uncombinated
7 pin core, KA, KD or MK
KB-400K(x*)
KB-400K(x*)-CUST
Keyblank for 6 or 7 SFIC pin core
Cut key for 6 or 7 SFIC pin core
(x*) = Keyway letter, (y*) = Finish
207 (BL/GR/RD) Painted Cores
We can match your blue, green or red painted Best cores.
Item No. Color Description
207-A-BL BLUE 7 pin, keyed "Blue" (A keyway)
207-A-GR GREEN 7 pin, keyed "Green" (A keyway)
207-A-RD RED 7 pin, keyed "Red" (A keyway)
BEST compatible
interchangeable
core cylinders
BEST
206/207 6 or 7 pin SFIC cores
Item No. Finish Description
207S-(x*)-(y*)
207S-(x*)-(y*)-CUST
26D, US4 7 pin glass core, uncombinated
7 pin glass core, KA, KD or MK
KB-400K(x*)
KB-400K(x*)-CUST
Keyblank for 6 or 7 SFIC pin core
Cut key for 6 or 7 SFIC pin core
(x*) = Keyway letter, (y*) = Finish
207S 7 Pin Cores (for use with 723S)
For use with
Olympus 723S
Cylinders
Small Format Interchangeable Core
AVAILABLE KEYWAYS
A B C D E F G H
J K L M Q 1C 1D KMT300
SFIC CONSTRUCTION CORES
SFIC locks ship standard with 725-PA plastic
actuator (except 728MBL and 723S). Brass keyed
construction cores are available for an additional
charge and may be returned for credit at a later
date.
Construction cores receive one change key per 10
cores and one control key per 20 cores. Additional
keys may be purchased at the standard price.
For more information call our customer service
department at 800-525-0954.
Item No. Type Description
KB-400K(x*) Blank Keyblank for 6 or 7 pin core
KB-400K(x*)-CUST Cut key Cut key for 6 or 7 pin core
KB-400K(x*)-CK Cut key Cut control key for 6 or 7 pin core
KB-400K(x*)-MK Cut key Cut master key for 6 or 7 pin core
x* = Specify keyway (see below)
A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300
KEY BLANKS & CUT KEYS
207S
54 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

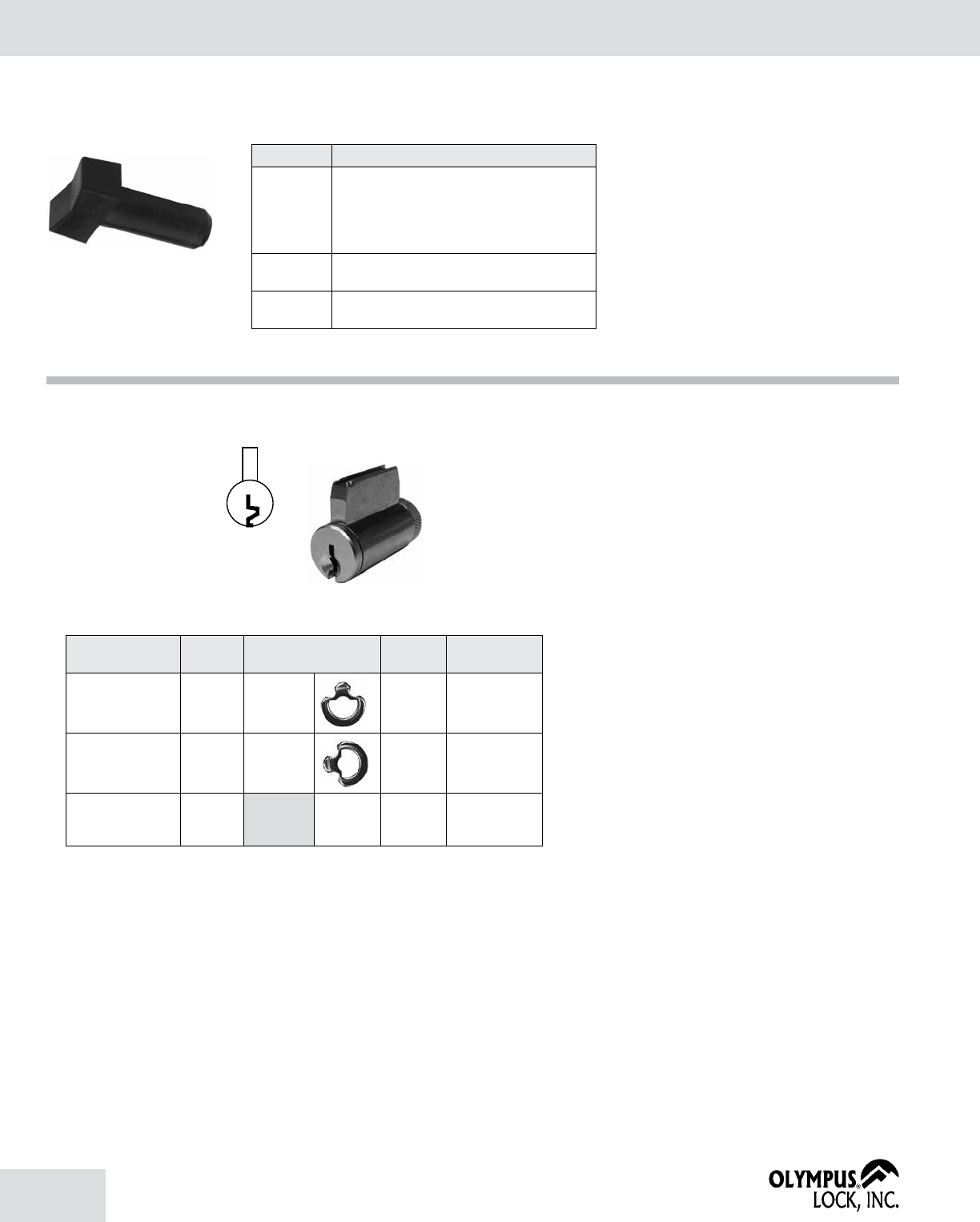

78-201 Schlage C Keyway Cylinders SPECIFICATIONS
Cylinder: Solid brass, drilled for 6 pins
Finish: US26D or US4 finish
Keyway: Schlage C
Keying: Specify keying at time of order
Use: Works with Olympus less cylinder (for Schlage
standard cylinder) cabinet locks
Universal driver: Position of the 10-360 universal
driver in the back of the cylinder is dependent
on the specific lock the cylinder will be used in.
Please see ordering information below.
Cylinder includes: 2 operating keys and 10-360
universal driver, and 1 each 10-361 (1-1/8 ) and
10-362 (1-3/8) tailpiece/driver bar.
ORDERING INFORMATION
Orientation of universal driver (p/n 10-360) in
back of cylinder is based on the Olympus item
the cylinder will be used with. See the For use
with section of the chart opposite for ordering
information and cylinder part-numbers.
OTHER ACCESSORIES
Keys: For additional keys see page 55
SCHLAGE
style C keyway
replacement
cylinder
Item No. Finish
Universal Driver
10-360 Position
For use
with Keying
78-201H26D-CUST
78-201HUS4-CUST
26D
US4 Horizontal
700LC
829R-LC
850S
KA, KD or MK
78-201V26D-CUST
78-201VUS4-CUST
26D
US4 Vertical 800LC
820LC KA, KD or MK
78-201-26D-CUST
78-201-US4-CUST
26D
US4 N/A
10-360
driver not
required
L78 KA, KD or MK
Cylinders
Schlage C Keyway
Item Description
725-PA
Ships standard with small format IC locks:
L72V,720,721,722,724,725,
728,729,950 locks
Ships standard with Corbin/Russwin IC locks:
CR1125,CR25
7788-PA-D Ships standard with Schlage FSIC locks:
L92V,777,888,920,929
931-PA Ships standard with Medeco/Yale IC locks:
931,ME93,YA93
SPECIFICATIONS
Description: Black or gray plastic thumbturn
Purpose: Operate lock without core
Material: Plastic
PA Series Plastic Thumbturns
FOR INTERCHANGEABLE CORE LOCKS
CYLINDER ORDERING GUIDELINES
55
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
N Series Keys
Keys
Keyblanks and cut keys
R Series Keys
Schlage C Keys
SFIC/B7 Keys
For BEST
compatible
interchangeable
core cylinders
BEST
KB-R1MK-NP Cut master key for R1 (5-pin) master key
system
KBN-4-NP National D4291 keyway - 4 pin blank
Equivalent to NA14, 1069L
KBN-5-NP National D4292 keyway - 5 pin blank
Equivalent to NA12, 1069LA
KBN-5B National D4291 keyway - 5 pin blank (cop-
per plated for 100M/200M MRI locks)
KB-700-101
KB-700-102
Cut key for KA#101
Cut key for KA#102
KB-700-CUST Custom cut key for Schlage C keyway
KB-400K(x*)-CK Cut control key for 6 or 7 pin
core
KB-400K(x*)-CUST Cut key for 6 or 7 pin core
x* = Specify keyway (see below)
A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300
KEY BLANKS
KB-GM1MK-NP Cut master key for GM1 (4-pin) master
key system
KB-GM2MK-NP Cut master key for GM2 (5-pin) master
key system
KB-GM3MK-NP Cut master key for GM300 (5-pin) master
key system
CUT KEYS
KB-101-NP
KB-103-NP
KB-107-NP
KB-915-NP
Cut key for KA #101
Cut key for KA #103
Cut key for KA #107
Cut key for KA #915
KBN-4-CUST Custom cut 4-pin key
KBN-5-CUST Custom cut 5-pin key
KBN-5B-CUST Custom cut 5-pin key (copper plated for
100M/200M Series MRI locks)
MASTER KEYS
KEY BLANKS
CUT KEYS
MASTER KEYS
KB-4T2-NP
KB-4T3-NP
Cut key for KA #4T21579
Cut key for KA #4T37526
KBR-5-CUST Custom cut 5-pin key
KBR-5B-CUST Custom cut 5-pin key (copper plated for
500M/600M MRI locks)
KBR-6-CUST Custom cut 6-pin key
KBR-5-NP CCL R1 keyway - 5 pin blank
Equivalent to CO106, 1003A
KBR-5B CCL R1 keyway - 5 pin blank (copper
plated for 500M/600M MRI locks)
KBR-6-NP CCL R1 keyway - 6 pin blank
Equivalent to L1003A
KEY BLANKS
CUT KEYS
MASTER KEYS
KBSC-5-NP Schlage C keyway - 5 pin blank
KBSC-6-NP Schlage C keyway - 6 pin blank
KB-700MK Cut master key for Schlage C (6-pin)
master key system
KEY BLANKS
CUT KEYS
KB-400K(x*) Keyblank for 6 or 7 pin core
x* = Specify keyway (see below)
A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300
Custom stamping and/or engraving available. See price list for details.
AVAILABLE KEYWAYS
A B C D E F G H
J K L M Q 1C 1D KMT300
56 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
N1 Kit For N Series Locks SPECIFICATIONS
Keyway: N Series (National D4291/D4292 Keyway)
Pins: Color coded, .101 diameter brass pins
USE WITH
100, 200, 300, 329, 998, 999, FC10, L20V, N078,
T37, T54C, DCN1,2,3,4
EACH KIT INCLUDES
100 each: Drivers 1 through 4
100 each: Master drivers 2 through 9
100 each: Tumblers 0 through 9
100 each: Tumbler springs
10 each: Set screws
1 each: Plug follower
Item Description Qty/pkg.
OC3730
OC3731
OC3732
OC3733
Driver #1
Driver #2
Driver #3
Driver #4
100
100
100
100
OC3740
OC3741
OC3742
OC3743
OC3744
OC3745
OC3746
OC3747
Master driver #2
Master driver #3
Master driver #4
Master driver #5
Master driver #6
Master driver #7
Master driver #8
Master driver #9
100
100
100
100
100
100
100
100
Made in USA
SPECIFICATIONS
Keyway: R Series (CCL R1 Keyway)
Pins: Color coded, .095 diameter brass pins,
Olympus B4R ball end bottom pins, type B4R &
4R master pins
USE WITH
500, 600, 400, 429, 996, 997, R078, DCR1,2,3,4
EACH KIT INCLUDES
100 each: Master pins 2 through 9
100 each: Bottom pins 0 through 9
100 each: Drivers 0 and 5
100 each: Tumbler springs
10 each: Set screws
1 each: Plug follower
Item Description Qty/pkg.
X025
X038
X050
X063
X075
X088
X100
X113
Master pin #2
Master pin #3
Master pin #4
Master pin #5
Master pin #6
Master pin #7
Master pin #8
Master pin #9
100
100
100
100
100
100
100
100
W111
W123
W136
W148
W161
W173
W186
W198
W210
W223
Bottom pin #0
Bottom pin #1
Bottom pin #2
Bottom pin #3
Bottom pin #4
Bottom pin #5
Bottom pin #6
Bottom pin #7
Bottom pin #8
Bottom pin #9
100
100
100
100
100
100
100
100
100
100
Additional pins available (100 pcs. per pkg.)
Specify item number above when ordering
replacement pins.
Additional pins available (100 pcs. per pkg.)
Specify item number above when ordering
replacement pins.
R1 Kit For R Series Locks
Item Description Qty/pkg.
OC3750
OC3751
OC3752
OC3753
OC3754
OC3755
OC3756
OC3757
OC3758
OC3759
Tumbler #0
Tumbler #1
Tumbler #2
Tumbler #3
Tumbler #4
Tumbler #5
Tumbler #6
Tumbler #7
Tumbler #8
Tumbler #9
100
100
100
100
100
100
100
100
100
100
OC3737 Tumbler springs 100
S100 Set screws 10
FL1 Plug follower 1 ea.
Item Description Qty/pkg.
X155
X088
Driver #0
Driver #5
100
100
OC3737 Tumbler springs 100
S100 Set screws 10
FL1 Plug follower 1 ea.
Pin Kits
For N & R Series small pin locks
57
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com

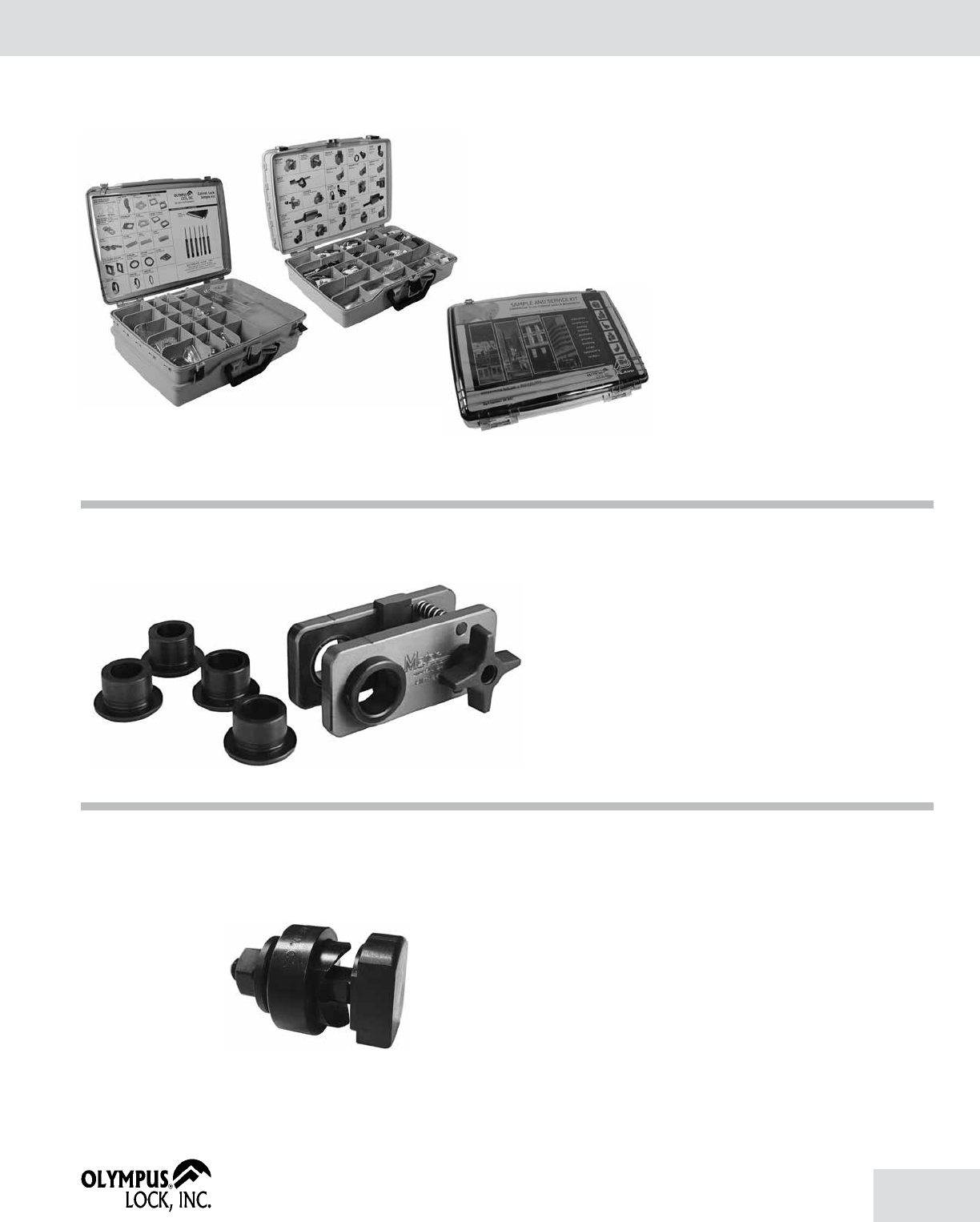

SK Series Sample,Service & Parts Kits
BOTTOM LAYER
Cabinet lock products
TOP LAYER
Parts and accessories
Accessories
Sample kits, drill guide, metal punch
SPECIFICATIONS
Rubber lined jaws: Protect cabinet doors and give
greater holding power.
Adjustable stop: For repeat installations on the
same cabinet door.
Maximum thickness: Works on doors up to 1-1/2”
thick.
Hole location: Locate the cylinder hole up to
2-5/8” from the edge of the door.
Five sizes of drill bushings for versatility:
3/4”, 7/8”, 1", 1-1/8” and 1-1/4”.
These bushings are designed to be used with
clean cutting Forstner type drill bits and are not
compatible with hole saws, paddle, or spade-type
bits.
CL-HIT-25 Cabinet Lock Drill Guide
SPECIFICATIONS
Hole type: Punches a DOUBLE "D" hole in sheet
metal cabinet drawers and doors.
Metal type: Use on metal cabinets or any type of
sheet metal door made with 18 gauge (.048) or
lighter steel.
To use: Drill a 3/4" hole centered where the cam
lock is to be installed, slide the punch through
the hole and tighten down the hex nut with a
11/16" wrench or socket set.
Hole size: Punches a DOUBLE "D" hole size ap-
proximately 7/8" wide by 1-1/8" high.
For use with: 1-1/8" diameter Olympus cabinet
locks 720, 820, 920, CR25 ME93, SA54 and YA93.
CL-MP-118 Double D Metal Punch
For 1-1/8" diameter cam locks
SPECIFICATIONS
Kits contains a sampling of our best selling Olympus
cabinet locks and accessories.
SK-002
General Product Line Kit: This kit contains our
best selling Olympus cabinet locks and acces-
sories. The kit comes with its own plastic, 2 level
case with each product carefully marked and
separated by dividers.
SK-003
SFIC Product Line Kit: This kit contains a sampling
of our small format interchangeable core cabinet
locks and accessories. The kit comes with its own
plastic, 2 level case with each product carefully
marked and separated by dividers.
SK-004
Parts & Accessories Kit: Contains a sampling of
our most popular parts and accessories. The kit
comes in its own plastic, 2 level case with parts
marked and separated by dividers. Provides
additional room for extra locks and accessories.
58 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
This valuable resource demonstrates the variety
of pin-tumbler cabinet locks available from
Olympus Lock. Each lock is mounted so it can be
functionally tested. Boards are made of particle
board with plastic laminate and are free-standing
for countertop display (except FDB-005). Specific
finishes or locks may be requested at time of
order.
FDB-001
PRODUCT LINE OVERVIEW
Includes a sampling of each product family:
Large pin, small pin, interchangeable core,
padlockable cam locks.
FDB-002
SMALL PIN LOCKS
Includes a sampling of our small pin N Series or
R Series locks.
FDB-003
SCHLAGE FULL-SIZE IC +
LARGE PIN LOCKS
Includes a sampling of our large pin and/or
Schlage full-size interchangeable core locks.
FDB-004
SMALL FORMAT IC LOCKS
Includes a sampling of our small format
interchangeable core locks.
FDB-005
SAMPLE STICK
This small board is easy to carry and includes our
best selling items.
FDB Series Display Boards
TR1256 | TR78 Trim Rings
FDB-001
FDB-002
FDB-004
FDB-003
SPECIFICATIONS
Trim rings cover chips or gouges in the laminate
or wood hole that can be seen from the outside
of the cabinet. They and are used primarily to
enhance the appearance of the overall lock
installation.
TR1256
Fits: 7/8" diameter cabinet locks
Material: Brass
Finish: 26D, US4 or 10B
Use with: 100, 200, N078, 999, 998, 500, 600,
R078, 997, 996, L20V
TR78
Fits: 1-1/8" diameter cabinet locks
Material: Brass
Finish: 26D, US3 or 10B
Use with: 700, 800, 850, 950, 721, 725, 754,
854, 777, 888, 931, L72, L78, L92
TR78
Fits 1-1/8" diameter
cabinet locks
TR1256
Fits 7/8" diameter
cabinet locks
7/8"
hole dia.
1-1/8"
hole dia.
Accessories
Display boards, trim rings
FDB-005
59
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
2001 SERIES Overlay Construction 2002 SERIES Flush Construction
2003/2004 SERIES Drawer Liner Construction
Item Handing* Type Finish Fits Material
2001SP
2001SPD RH or LH Small Pin Locking
Small Pin Dummy 26D 3/4" to 1"
2001LP
2001LPD RH or LH Large Pin Locking
Large Pin Dummy 26D 3/4" to 1"
Item Handing* Type Finish Fits Material
2002SP
2002SPD RH or LH Small Pin Locking
Small Pin Dummy 26D 3/4" to 7/8"
2002LP
2002LPD RH or LH Large Pin Locking
Large Pin Dummy 26D 3/4" to 7/8"
Item Handing* Type Finish Fits Material
2003SP
2003SPD RH Small Pin Locking
Small Pin Dummy 26D 1-1/2"
2004SP
2004SPD RH Small Pin Locking
Small Pin Dummy 26D 1-1/4" to
1-3/8"
2003LP
2003LPD RH Large Pin Locking
Large Pin Dummy 26D 1-3/8"
"I applaud your research toward a beneficial solution to all users, including people
with disabilities," and for "creating a system that would not only meet the required
code and ADA standards, but would truly work the best for the widest range of users."
—
Barbara L. Allan, Director Access/Abilities Program, Easter Seals
ADA
2000 Handle Series
102 SERIES Oval Wire Pull
3-3/4” or 4" optional oval wire pull is required for ADA compliance and
is mounted per below. For use with small or large pin handles.
Item No. Finish Description
102-015-96SC
102-015-96
26D
US3
3 3/4" satin chrome pull
3 3/4" polished brass pull
102-015-4SC
102-015-4
26D
US3
4" satin chrome pull
4" polished brass
Pull can be used in door or drawer configuration.
2000SP SERIES
SMALL PIN
* RH or LH can also be used in the drawer position * RH or LH can also be used in the drawer position
* RH can also be used in the drawer position
2000LP SERIES
LARGE PIN
SPECIFICATIONS
Function: Cabinet pull and lock all in one unit
ADA use: Can be used in ADA (American Disabilities
Act) applications when used with optional wire pull
Application: Fits door or drawer applications
Finish: US26D finish
Locking: Accepts small or large pin Olympus cabinet
locks
Non-locking: Matching dummy handles for non-
locking doors and drawers
U.S. Patent No.: 6,412,317 B1
2000SP SERIES - USE WITH
Olympus 7/8" diameter cabinet lock series: 100,
200, 500 or 600.
Olympus 3/4" cam lock series: DCN, DCR, B7
(requires use of cam lock adapter 2000MED-DR for
doors or 2000MED-DW for drawers)
.
2000LP SERIES - USE WITH
Olympus 1-1/8" diameter cabinet lock series:
700, 721, 754, 777, 800, 854, 888 or 931.
2001 Series
Overlay Construction 2002 Series
Flush Construction
2003/2004 Series
Drawer Liner Construction
RH
LH
LH
RH
2000SP-RH
(right-hand)
Handles
Integrated cabinet pull and lock
60 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
DCNP-100-BC5
1/2" offset cam
DCNP-100-LBC
15/16" offset cam
DCNP-100-LC
long 3" straight cam
DCNP-100-HD
1-7/16" heavy duty offset cam
DCNP-100-HD2
1-3/4" heavy duty offset cam
DCNP-100-HD3
1-1/8" heavy duty offset cam
DCNP-100-SC2
1-3/4" heavy duty straight cam
DCNP-HD-875
short cam
SPECIFICATIONS
DCNP cams work with our 3/4" cam lock series DCN, DCR or B7. All
offset cams are reversible and can be used in either the inbent or
outbent position. See the applicable product page for accessories that
ship standard with each product.
DCNP-100-BC5 .........1/2" offset cam
DCNP-100-LBC .........long offset cam
DCNP-100-HD ..........1-7/16" heavy duty offset cam
DCNP-100-HD2 ........1-3/4" heavy duty offset cam
DCNP-100-HD3 ........1/8" heavy duty offset cam
DCNP-100-HC1 .........offset hook cam
DCNP-HD-875 ......... 7/8" short cam
DCNP-HD-1 ............. 1" short cam
DCNP-100-SC2 ........ 1-3/4" heavy duty straight cam
DCNP-100-LC .......... long 3" straight cam
Accessories
For 3/4" cam locks (B7, DCN & DCR Series)
Offset Cams For B7, DCN, DCR
Straight Cams For B7, DCN, DCR SPECIFICATIONS
DCNP cams work with our 3/4" cam lock series DCN, DCR or B7. All
offset cams are reversible and can be used in either the inbent or
outbent position. See the applicable product page for accessories that
ship standard with each product.
APPLICATION NOTE
Use the DCNP-HD-875 cam with
our DCN2 series cam locks to
retrofit Hollman Lockers brand
keyed cam locks.
DCNP-100-HC1
offset hook cam
DCNP-HD-1
short cam
61
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
DCNP-100-WB
short cam with
perpendicular arm
Specialty Cams For B7, DCN, DCR
KEY-RETAINING CAM SHIFTERS
DCNP-300-FP
Finger pull for use with DCN and DCR
series cam locks. Eliminates need
for additional cabinet pull. Mounts
between front of cam lock and cabinet
face. Stainless steel finish.
DCNP-200-KR
key-retaining drawer
cam shifter
DCNP-200-KDR
key-retaining door cam
shifter
SPECIFICATIONS
DCNP cams work with our 3/4" cam lock series
DCN, DCR or B7. All offset cams are reversible and
can be used in either the inbent or outbent position.
See the applicable product page for accessories that
ship standard with each product.
DCNP-100-B1
straight cam w/cutout
DCNP-100-B2
U-shaped cam
DCNP-100-B1 .......... Straight 1-3/32" long with oval cutout
DCNP-100-B2 .......... U-shaped bent cam
DCNP-100-B3 .......... Straight hook cam
DCNP-100-WB ......... short cam with perpendicular arm
T37-NKIT
Number Plate Kit
For use with B7 or T37
only
T37DC-NP
Number Plate
For use with DCN, DCR,
B7, T37
NUMBER PLATES & KITS
DCNP-SPW
pronged wood washer
DCNP-GW
self-adhesive clear plastic washer for
mounting lock on glass
Accessories
For 3/4" cam locks (B7, DCN & DCR Series)
Other Accessories For B7, DCN, DCR
WASHERS
DCNP-100-B3
straight hook cam
62 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
10-350 1/8" thickness
Use with: 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L92, L72
10-351 1/8" thickness
Use with: L78
Spacers For 7/8" diameter locks
10-348 1/4" thickness
Use with 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L92, L72
10-349 1/2" thickness
Use with 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L92, L72
WP725 1/8" thickness
Use with: 725RD, 725RL, CR1125
WP21 3/32" thickness
Use with 100, 200, 500, 600, L20V, N078, R078
WP24 1/8" thickness
Use with 996, 997, 998, 999
WP22 1/4" thickness
Use with 100, 200, 500, 600, L20V, N078, R078
WP23 1/2" thickness
Use with 100, 200, 500, 600, L20V, N078, R078
WP726 1/4" thickness
Use with: 725RD, 725RL, CR1125
Accessories
Internal spacers
Spacers For 1-1/8" diameter locks
63
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
ETS SERIES (a)
Exterior through-bolt plate
Attractive mounting: External metal through-bolt
plate
figure (a)
allows for flush mounting of the
cabinet lock face with face of cabinet
Increases security: Reinforces the cabinet face
by direct connection of lock mounting screws to
through-bolt plate's binder posts
Available finishes: US3 and 26D
Includes: Mounting screws
(a) (b)
Through-bolt plates and spacer/templates
increase security by providing through-bolt
mounting of Olympus cabinet locks.
U.S. Patent No. D490,686 S
Item Finish Description
ETS1-125 26D, US3 1/8" thick through-bolt plate
ETS1-250 26D, US3 1/4" thick through-bolt plate
ETS1B 26D, US3 1/4" thick through-bolt plate (no hole)
ETST1 26D, US3 Through-bolt plate spacer/template
Item Finish Description Use With
ETS4 26D, US3 1/2" thick through-bolt plate 777 Series
ETS5 26D, US3 1/2" thick through-bolt plate 888 Series
ETST1
(template/spacer)
ETS1
(front view)
ETS1-125
(side view)
ETS1-250
(side view)
ETS4
ETS5
ETS1 | ETST1
For use with 700, 721, 754,
777, 800, 850, 854, 888, 931,
950, L72V, L92V
ETS Series Through-bolt mounting hardware
ETST SERIES (b)
Spacer/template for through-bolt plate
Mounting guide: The spacer/template
figure (b)
allows for
proper mounting hole placement of external through-
bolt plate
Spacer: Can be used as a 1/8" shim spacer
Available finishes: US3 and 26D
ETS4 | ETS5
For use with 777, 888
Accessories
ETS Through-Bolt Mounting Hardware
64 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
ETS3
ETST3
ETS6
Includes both pieces
Item Finish Description
ETS2-125 26D, US3 1/8" thick through-bolt plate
ETS2-250 26D, US3 1/4" thick through-bolt plate
ETST2 26D, US3 1/8" spacer/template
Item Finish Description
ETS3 26D, US3 1/4" thick through-bolt plate
ETST3 26D, US3 1/8" spacer/template
Item Finish Description
ETS6 26D, US3 1/4" thick through-bolt plate
ETS2
ETST2
ETS2-125 ETS2-250
ETS2 | ETST2
For use with 100, 200, 500,
600, L20V
ETS3 | ETST3
For use with N078, R078
ETS6
For use with 999, 998, 997, 996
Accessories
ETS Through-Bolt Mounting Hardware
65
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Mounting: The ETS1-PL cabinet pull fits between
our ETS1 through-bolt plate and the face of
the cabinet. If mounted “pull down” in drawer
applications, the pull will protect the face of the
cabinet from the wear and tear of hanging keys.
Through-bolt security: When combined with the
ETS1 through-bolt plate, they provide through-
bolt mounting of the cabinet lock and pull in a
single unit.
Function: Works for both door or drawer
applications
Compatible with: Existing ETS1 hardware and
screws
Available finishes: US3 and US26D
Use with 1-1/8” barrel diameter locks:
700, 721, 754, 777, 800, 850, 854, 888, 931, 950,
L92V, L72V
SPECIFICATIONS
Mounting: The ETS2-PL cabinet pull is mounted on
the face of the cabinet and provides through-bolt
mounting of the cabinet lock and pull in a single
unit. If mounted “pull down” in drawer applica-
tions, the pull will protect the face of the cabinet
from the wear and tear of hanging keys.
Function: Works for both door or drawer applica-
tions. Does not require use of ETS2 through-bolt
plate. Works with existing ETST2 through-bolt
spacer/template.
Available finishes: US3 and US26D
Use with 7/8” barrel diameter locks:
100, 200, 500, 600, L20V
ETS1-PL
ETS1
ETST2 - Template
It is recommended that you use the ETST2 spacer/
template for proper placement and drilling of mount-
ing holes prior to installation.
ETS2-PL
Flush mount with
spacer and pull on
front of cabinet
ETS1-PL Pull for 1-1/8" diameter locks
ETS2-PL Pull for 7/8" diameter locks
Item Finish Description Use With
ETS1-PL 26D, US3 1/8" thick pull 700, 721, 754, 777, 800,
850, 854, 888, 931, 950,
L92V, L72V
ETS1-125 26D, US3 1/8" thick through-bolt plate
ETS1-250 26D, US3 1/4" thick through-bolt plate
Note: ETS1-PL requires use of ETS1-125 or ETS2-250
Flush mount with
spacer and pull on
front of cabinet
Item Finish Description Use With
ETS2-PL 26D, US3 1/8" thick pull 100, 200, 500, 600, L72V
ETST2 26D, US3 1/8" thick through-bolt plate
Accessories
ETS Through-Bolt Cabinet Pulls
66 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
10-052 Slotted strike
Finish: 26D finish
10-054 1/4" bar strike
Finish: White plastic
10-055 1/2" bar strike
Finish: White plastic
10-056 Notched bar strike
Finish: 26D
07S Slotted strike
Finish: 26D or US4
56-1 Bar strike
Finish: 26D or US4
12-1 Angle strike
Finish: 26D or US4
10-057 .65" bar strike
Finish: White plastic
10-058 3/8" bar strike
Finish: White plastic
12-3 Medium angle strike
Finish: 26D or US4
Accessories
Strikes
Strikes
67
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
12-2 Heavy duty angle strike
Finish 26D
725-SP-MD Slotted strike
Use with 725 mortise deadbolt
Finish US3 or (SS) Stainless Steel
725-SP-RD Solid strike
Use with 725/CR1125 rim deadbolt
Finish US3 or (SS) Stainless Steel
725-SP-ML Slotted lip strike
Use with 725 mortise latch
Finish US3 or (SS) Stainless Steel
725-SP-RL Solid lip strike
Use with 725/CR1125 rim latch
Finish US3 or (SS) Stainless Steel
12-4-ZP Frameless drawer strike
Finish Zinc plated
Provides a locking point when there is no frame
between drawers. Can be mounted on left or right
side of cabinet frame.
Accessories
Strikes
68 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
999-STRIKE Lipped strike
Use with: 996, 997, 998, 999, L20V
Finish: US3
L78ST-1 Lipped strike
Use with: L78, 1-1/8" barrel length
and L72V, L92V
Finish: US3 or Stainless Steel
850-210 Lipped strike
Use with: 850/950, 1-1/8" barrel length
Finish: US3
L78ST-2 Lipped strike
Use with: L78, 1-3/8" barrel length
Finish: US3
850-211 Lipped strike
Use with: 850, 1-3/8" barrel length
Finish: US3
Accessories
Strikes
69
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
Switches not
included
SW-1 Kit
SW-1 Switch Accessory Pack SPECIFICATIONS
Use: Includes parts to convert 720, 820, 920,
CR25 ME93, SA54 or YA93 series cam locks
into switch locks
Special note: Cannot be used with 720B-DM
direct drive
Configuration: Can be configured for 1 or 2
switches
Packaged: Each
Item Finish Description Use With
TR201 32D or US3 1/8" thick trim collar
720, 820, 920, CR25,
ME93, SA54, YA93
TR202 32D or US3 1/4" thick trim collar
TR203 32D or US3 3/8" thick trim collar
TR204 32D 5/32" thick trim collar
TR200A 32D or US3 Trim collar pack. Includes TR201, TR202 and
TR203 trim collars.
Trim collars pull lock forward
allowing it to be used on thinner
gauge material thickness.
TR200 Trim Collars
SWITCHES
Switches: Not included.
Accepts: Pin plunger style, snap acting,
miniature switches:
- Omron - V Series
- Honeywell (MicroSwitch) - V Series
- Cherry - E Series
- Panasonic (Aromat) - ABV Type
- C&K (ITT) - TM & TF Series
TR201 - 1/8" TR202 - 1/4" TR203 - 3/8" TR204 - 5/32"
720-3 Optional Cams
720-3-3
inbent cam for
inverted function
720-3-4
3"straight cam for vertical function
(mid-pin style)
720-3-4
3"straight cam for vertical function
(bottom-pin style)
720-3-5
inbent cam for
inverted function
For use with: 720, 820, 920, CR25, ME93, SA54, and YA93 1-1/8" diameter cam locks
(excludes 720B-DM)
Accessories
For 1-1/8" Diameter Cam Locks
70 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
720-CDLM
lost motion cam shifter
(non-key-retaining)
A B C
720-CDDM
key retaining
door cam shifter
720-KR
key retaining
drawer cam shifter
Above referenced 1-1/8" diameter cam locks ship standard with
A, B and C cam shifters (pictured below).
720-3-2 VERTICAL CAM / 720-3-4 LONG 3" CAM
IMPORTANT: If your cam has a brass pin between the two notched
cut outs, use these instructions, otherwise see Box B.
Stop pin
BB
LH Door
Key
Retaining
Key removable in
locked position only.
RH Door
Key
Retaining
Stop pin
CC
Drawer
Key
Retaining
Drawer
Key
Retaining
Key removable in
locked position only.
LH Door
or Drawer
RH Door
or Drawer
Key removable in
locked or unlocked
position.
Stop pin
AA
BOX A
720-3-2 VERTICAL CAM / 720-3-4 LONG 3" CAM
IMPORTANT: If your cam has a brass pin on the bottom of the
cam, use these instructions, otherwise see Box A.
Stop pin
Stop pin
Stop pin
AA
B B
CC
Key removable in
locked or unlocked
position.
Key removable in
locked position only.
Key removable in
locked position only.
LH Door
or Drawer
RH Door
or Drawer
LH Door
Key
Retaining
RH Door
Key
Retaining
Drawer
Key
Retaining
Drawer
Key
Retaining
BOX B
720-3-3 INVERTED CAM / 720-3-5 INVERTED CAM
Stop pin
Drawer
Key removable
in locked or
unlocked
position.
A
Drawer
Key
Retaining
Key removable
in locked
position only.
Drawer
Key
Retaining
CC
A
Stop pin
Drawer
Stop pin Stop pin
Inverted
Drawer
Key Retaining
C
LH Door
Key
Retaining
RH Door
Key
Retaining
BB
Key removable in
locked position only.
720-3-1
SHORT CAM
Correct universal driver position
for 820 cam lock
Schlage compatible
cylinder
820 requires proper installation of
universal driver into back of cylinder
(see picture at right)
The 820 Series includes universal driver (item no. 10-360).
For cam rotation to work properly, the supplied universal
driver must be installed under the cap at the back of the
cylinder in either of the 2 vertical positions indicated at
the right (with tab to the left or right only). DO NOT install
universal driver in the horizontal (tab up) position.
Cam Assembly Instructions
For 1-1/8" Diameter Cam Locks
For 1-1/8" Diameter Cam Locks
720, 820, 920, CR25, ME93, SA54, and YA93
(excludes 720B-DM)
The cam shifter and cams must be assembled per the below instructions to achieve the proper handing and operation. To make cam assembly easier, it is
recommended that a core is installed inito the lock before the cam and cam shifter is assembled onto the back of the lock.
NOTE: These instructions do not apply to the
720B-DM direct drive cam lock. The 720B uses different
cams and cam shifter mechanism.
71
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
100,200,500,600,996,997,998,999,L20V
1. Remove set screw from barrel of lock.
2. Remove internal cylinder housing from lock body.
3. Remove brass retainer on back of cylinder plug.
4. Turn key 1/4 turn and place follower tool into back of cylinder plug.
5. Push follower through lock, removing plug for rekeying.
300SD,400SD
Note: These locks need not be removed from cabinet to be rekeyed
.
1. Open lock (cylinder projects forward).
2. Locate "speed release" button on left side of projected cylinder and
depress with sharp tool. Cylinder will spring forward.
3. Turn key 1/4 turn and pull cylinder forward out of lock.
4. Pull up retaining pin located at rear of cylinder. Cylinder may be
rekeyed in two ways: use a follow tool to remove plug, or access top
slide.
5. After keying, hold bolt stable and reinsert cylinder while depressing
"speed release." Lock cylinder will automatically realign itself and
snap back into place.
329R/429R
1. Remove strap from lock.
2. Turn lock over so that the back of the lock faces up and you have
access to the set screw.
3. Remove the set screw and the small triangular metal cap.
4. Turn the lock onto its side with the protruding section facing you.
5. Using a sharp tool or paperclip, depress the button at the bottom of
the hole. This will release the cylinder housing for removal.
6. Remove the cylinder housing from the lock body.
7. Rekey as necessary.
8. Reassemble lock.
B7,DCN,DCR,FC10
1. Remove cam and screw.
2. Turn lock upside down.
3. Take a sharp tool and push retainer staple out.
4. Turn key 1/4 turn and place follower tool into back of cylinder plug.
5. Push follower through lock removing plug for rekeying.
T37
1. To remove bolt:
a. Turn key to the 2:00 position, pull bolt up
b. Using a small tool, depress the bolt spring through the hole on the
back of the lock and pull the bolt out
2. Remove the trim collar from the lock.
3. Slide the pin retaining cap off to expose springs and pins.
4. Rekey as necessary.
5. After keying, slide pin retaining cap back into place.
6. Replace trim collar.
7. To reinsert bolt:
a. Insert key and turn to 2:00 position.
b. Insert bolt until spring snaps into place.
N078,R078
1. Remove set screw from barrel of lock.
2. Remove internal cylinder housing from lock body.
3. Remove brass retainer on back of cylinder plug.
4. Turn key 1/4 turn and place follower tool into back of cylinder plug.
5. Push follower through lock, removing plug for rekeying.
700,800,L78,754,854
1. Remove set screw from barrel of lock.
2. Turn key 1/4 turn and pull out cylinder and housing from lock body.
3. Extract cylinder and rekey same as a Schlage-style cylinder.
Olympus brass cylinder body will chamber Schlage and Weiser original
cylinders along with Lori replacement plugs. Less cylinder locks may
chamber other manufacturer's cylinders.
4. Replace cylinder in housing. For proper operation, lazy cam must be
timed.
Door timing:
Driver bar faces away from direction the bolt is
projecting.
Drawer timing:
Driver bar faces in same direction the bolt is
projecting.
5. Insert cylinder and housing by aligning set screw and hole.
6. Push until cylinder is approximately 1/8" from seated position. Use
key to pick up lazy cam which will fully seat cylinder. If key does not
withdraw at end of bolt throw, cam is not timed correctly (see "timing"
above - Step 4).
820
1. Remove both set screw and set screw/stop pin from back of lock.
2. Remove rear housing section from back of lock.
3. Remove internal cam driver from back of cylinder.
4. Remove cylinder from lock body.
5. Remove brass retainer on back of cylinder plug.
6. Turn key 1/4 turn and place follower tool into back of cylinder plug.
7. Push follower through lock, removing plug for rekeying.
829
1. Turn lock over and remove the 4 screws from the bottom rectangular
plate.
2. Remove bottom plate, then remove remaining set screw from bottom
of lock.
3. Remove cylinder and cylinder top block from lock body.
4. Rekey cylinder, then reassemble into lock body using the reverse of
above steps.
850
1. Remove set screw from barrel of lock.
2. Remove internal cylinder housing from lock body.
3. Turn key 1/4 turn and pull out cylinder and housing from lock body.
4. Extract cylinder and rekey same as a Schlage-style cylinder.
Olympus brass cylinder body will chamber Schlage and Weiser original
cylinders along with Lori replacement plugs. Less cylinder locks
may chamber other manufacturer's Schlage compatible key-in-knob
cylinders.
5. Insert cylinder and housing by aligning set screw and hole.
Rekeying instructions are also available on our website under each individual product page or videos in our video
library at www.olympus-lock.com
Rekeying Instructions
72 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SMALL PIN National Keyway
4 PIN - 650 key changes available under a master key system
5 PIN - 2,000 key changes available under a master key system
DEADBOLT LOCK —
Olympus 100DR (door) - Olympus 200DW (drawer)
Cabinet locks: Provide Olympus 100DR (door) and Olympus 200DW (drawer) easily
rekeyable cabinet locks such as manufactured by Olympus Lock, Inc. All locks to in-
clude: working cylinder slides and forwardly removable cylinders for rekeying without
totally disassembling lock body. Furnish 2 keys per lock and bar or slotted strikes as
required. Spacers to be provided as required for flush fit with outside face of casework
material. Locks shall be capable of being keyed alike, keyed different and/or master
keyed per supplied schedule. Locks will have passed BHMA/ANSI Grade 1 performance
requirements.
HEAVY DUTY LATCH LOCK —
Olympus L20V (drawer)
Cabinet locks: Provide Olympus L20V easily rekeyable, heavy duty, drawer latch lock
such as manufactured by Olympus Lock, Inc. Lock to include, working cylinder slides,
forwardly removable cylinders for rekeying without totally disassembling lock body.
Spacers will be provided as required for flush fit with outside face of casework mate-
rial. Furnish 2 keys per lock and lipped strike as required. Locks shall be capable of
being keyed alike, keyed different and/or master keyed per supplied schedule.
LATCH LOCK —
Olympus 999R (RH-door) / 999L (LH-door) - Olympus 998 (drawer)
Cabinet locks: Provide Olympus 999 (door) and 998 (drawer) easily rekeyable latch
locks such as manufactured by Olympus Lock, Inc. All locks to include: working cylin-
der slides, forwardly removable cylinders for rekeying without totally disassembling
lock body and four-way reversible handing. Keyway will remain in the vertical position
regardless of installation as a door or drawer. Spacers will be provided as required for
flush fit with outside face of casework material. Furnish 2 keys per lock and lipped
strike as required. Locks shall be capable of being keyed alike, keyed different and/or
master keyed per supplied schedule.
SLIDING DOOR LOCK —
Olympus 300SD (sliding door)
Cabinet locks: Provide Olympus 300SD (sliding door) lock. Locks shall be easily rekey-
able without removal from cabinet via a speed release mechanism such as manufac-
tured by Olympus Lock, Inc. All locks to include: working cylinder slides, forwardly
removable cylinders for rekeying without totally disassembling lock body, built in bolt
extension and strike locator. Locks will include 2 keys per lock and shall be capable of
being keyed alike, keyed different and/or master keyed per supplied schedule.
CAM LOCKS —
Olympus DCN1, DCN2, DCN3, DCN4
Cabinet locks: Provide Olympus DCN Series (cam lock). Cam locks to be easily rekey-
able and field reversible such as manufactured by Olympus Lock, Inc. All cylinders to
include a working top slide mechanism and retainer staple to permit easy rekeying
and field maintenance of lock. Cam locks will have a 1 inch face diameter and include
an anti-rotation plate to trap the hex nut and prevent the lock from twisting in the
hole. All cam locks will be field reversible such that one straight and one offset cam
will provide all locking positions. Locks will include 2 keys per lock and shall be ca-
pable of being keyed alike, keyed different and/or master keyed per supplied schedule.
Locks will have passed BHMA/ANSI Grade 1 performance requirements.
DEADBOLT LOCK —
Olympus N078R (RH-door) / N078L (LH-door) - and N078 (drawer)
Cabinet locks: Provide Olympus N078 (door) and N078 (drawer) easily rekeyable cabi-
net locks such as manufactured by Olympus Lock, Inc. All locks to include: working
cylinder slides and forwardly removable cylinders for rekeying without totally disas-
sembling lock body. Provide spacers as required for flush fit with outside face of case-
work material. Keyway will remain in the vertical position regardless of installation as
a door or drawer. Locks will include 2 keys per lock and shall be capable of being keyed
alike, keyed different and/or master keyed per supplied schedule.
SHOWCASE RATCHET LOCK —
Olympus 329R
Ratchet locks: Provide Olympus 329R easily rekeyable ratchet lock such as manufac-
tured by Olympus Lock, Inc. All locks to include: working cylinder slides and forwardly
removable cylinders for rekeying without totally disassembling lock body. Locks will
include 2 keys per lock and shall be capable of being keyed alike, keyed different and/
or master keyed per supplied schedule.
SMALL PIN CCL Keyway
5 PIN - 2,000 key changes available master key system
6 PIN - 4,000 key changes available master key system
DEADBOLT LOCK —
Olympus 500DR (door) - Olympus 600DW (drawer)
Cabinet locks: Provide Olympus 500DR (door) and Olympus 600DW (drawer) easily
rekeyable cabinet locks such as manufactured by Olympus Lock, Inc. All locks to in-
clude: working cylinder slides and forwardly removable cylinders for rekeying without
totally disassembling lock body. Furnish 2 keys per lock and bar or slotted strikes as
required. Spacers to be provided as required for flush fit with outside face of casework
material. Locks shall be capable of being keyed alike, keyed different and/or master
keyed per supplied schedule. Locks will have passed BHMA/ANSI Grade 1 performance
requirements.
LATCH LOCK —
Olympus 997R (RH-door) / 997L (LH-door) - Olympus 996 (drawer)
Cabinet locks: Provide Olympus 997 (door) and 996 (drawer) easily rekeyable latch
locks such as manufactured by Olympus Lock, Inc. All locks to include: working cylin-
der slides, forwardly removable cylinders for rekeying without totally disassembling
lock body and four-way reversible handing. Keyway will remain in the vertical position
regardless of installation as a door or drawer. Spacers will be provided as required for
flush fit with outside face of casework material. Furnish 2 keys per lock and lipped
strike as required. Locks shall be capable of being keyed alike, keyed different and/or
master keyed per supplied schedule.
SLIDING DOOR LOCK —
Olympus 400SD (sliding door)
Cabinet locks: Provide Olympus 400SD (sliding door) lock. Locks shall be easily rekey-
able without removal from cabinet via a speed release mechanism such as manufac-
tured by Olympus Lock, Inc. All locks to include: working cylinder slides, forwardly
removable cylinders for rekeying without totally disassembling lock body, built in bolt
extension and strike locator. Locks will include 2 keys per lock and shall be capable of
being keyed alike, keyed different and/or master keyed per supplied schedule.
CAM LOCK —
Olympus DCR1, DCR2, DCR3, DCR4
Cabinet locks: Provide Olympus DCR Series (cam lock). Cam locks to be easily rekey-
able and field reversible such as manufactured by Olympus Lock, Inc. All cylinders to
include a working top slide mechanism and retainer staple to permit easy rekeying
and field maintenance of lock. Cam locks will have a 1 inch face diameter and include
an anti-rotation plate to trap the hex nut and prevent the lock from twisting in the
hole. All cam locks will be field reversible such that one straight and one offset cam
will provide all locking positions. Locks will include 2 keys per lock and shall be ca-
pable of being keyed alike, keyed different and/or master keyed per supplied schedule.
Locks will have passed BHMA/ANSI Grade 1 performance requirements.
DEADBOLT LOCK —
Olympus R078 (drawer)
Cabinet locks: Provide R078 (drawer) easily rekeyable cabinet locks such as manufac-
tured by Olympus Lock, Inc. All locks to include: working cylinder slides and forwardly
removable cylinders for rekeying without totally disassembling lock body. Provide
spacers as required for flush fit with outside face of casework material. Locks will
include 2 keys per lock and shall be capable of being keyed alike, keyed different and/
or master keyed per supplied schedule.
SHOWCASE RATCHET LOCK —
Olympus 429R
Ratchet locks: Provide Olympus 429R easily rekeyable ratchet lock such as manufac-
tured by Olympus Lock, Inc. All locks to include: working cylinder slides and forwardly
removable cylinders for rekeying without totally disassembling lock body. Locks will
include 2 keys per lock and shall be capable of being keyed alike, keyed different and/
or master keyed per supplied schedule.
The architectural specifications listed in our catalog are also available on our website at www.olympus-lock.com
Architectural Specifications
73
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
STD CYLINDER Schlage C Keyway
5 PIN - 2,000 key changes available under a master key system
6 PIN - 4,000 key changes available under a master key system
DEADBOLT LOCK —
Olympus 700SC (door) - Olympus 800S (drawer)
Cabinet locks: Provide Olympus 700SC (door) and Olympus 800SC (drawer) easily
rekeyable cabinet locks such as manufactured by Olympus Lock, Inc. All locks to in-
clude: forwardly removable cylinders for rekeying without totally disassembling lock
body. Furnish 2 keys per lock and bar or slotted strikes as required. Spacers to be
provided as required for flush fit with outside face of casework material. Locks shall
be capable of being keyed alike, keyed different and/or master keyed per supplied
schedule. Locks will have passed BHMA/ANSI Grade 1 performance requirements.
CAM LOCK —
Olympus 820S
Cabinet locks: Provide Olympus 820S (cam) locks. Locks shall be easily rekeyable such
as manufactured by Olympus Lock, Inc. All locks will include easily removable cylinders
for rekeying without totally disassembling lock body. Locks shall be capable of being
keyed alike, keyed different and/or master keyed per supplied schedule. Furnish 2 keys
per lock.
SHOWCASE RATCHET LOCK —
Olympus 829R
Cabinet locks: Provide Olympus 829R sliding door ratchet lock such as manufactured
by Olympus Lock, Inc. All locks will include easily removable cylinders for rekeying.
Locks shall be capable of being keyed alike, keyed different and/or master keyed per
supplied schedule. Furnish 2 keys per lock. Locks will comply with clause 6.3 (8.2~8.4)
of Grade 1 ANSI/BHMA A156.11 ANSI standards.
LATCH LOCK (DEAD LATCH) —
Olympus 850S (drawer)
Cabinet locks: Provide Olympus 850S (drawer) locks. Locks shall be easily rekeyable
such as manufactured by Olympus Lock, Inc. All drawer latch locks to provide a dead-
locking function, forwardly removable cylinders for rekeying without totally disassem-
bling lock body, and spacers as required for flush fit with outside face of casework
material. Furnish 2 keys per lock and strikes as required. Locks shall be capable of
being keyed alike, keyed different and/or master keyed per supplied schedule.
LATCH LOCK (SPRING LATCH) —
Olympus L78R / L78L (door) - L78V (drawer)
Cabinet locks: Provide Olympus L78 (door) and Olympus L78 (drawer) latch locks.
Locks shall be easily rekeyable such as manufactured by Olympus Lock, Inc. All latch
locks to provide: forwardly removable cylinders for rekeying without totally disassem-
bling lock body. Locks shall provide for field reversible handings such that keyway will
remain in the vertical position regardless of installation as a door or a drawer. Spacers
to be provided for flush fit with outside face of casework material. Furnish 2 keys per
lock and strikes as required. Locks shall be capable of being keyed alike, keyed differ-
ent and/or master keyed per supplied schedule.
IC CORE Schlage Full-Size
5 PIN - 2,000 key changes available master key system
6 PIN - 4,000 key changes available master key system
DEADBOLT LOCK —
Olympus 777ICP-DR (door) - Olympus 888ICP-DW (drawer)
Cabinet locks: Provide 777ICP-DR (door) and 888ICP-DW (drawer) locks as manu-
factured by Olympus Lock, Inc. All lock bodies to accept Schlage large format inter-
changeable core cylinders such as supplied by Schlage Lock Company. Locks will
provide dedicated door and drawer functions in order to maintain keyway verticality
when installed. Deadbolt door locks to be non-handed. Locks will have passed BHMA/
ANSI Grade 1 performance requirements.
CAM LOCK —
Olympus 920LM/DM
Cabinet locks: Provide 920LM/DM (cam lock) such as manufactured by Olympus Lock,
Inc. Cam locks will be reversible between lost motion or key retaining. All locks to ac-
cept Schlage large format interchangeable core cylinders such as supplied by Schlage
Lock Company. All locks will provide disassembly/reassembly features to facilitate
on-the-job maintenance. Locks will have passed BHMA/ANSI Grade 1 performance
requirements.
SHOWCASE RATCHET LOCK —
Olympus 929R
Cabinet locks: Provide Olympus 929R sliding door ratchet lock such as manufactured
by Olympus Lock, Inc. All locks to accept Schlage large format interchangeable core
cylinders such as supplied by Schlage Lock Company. Locks will comply with clause 6.3
(8.2~8.4) of Grade 1 ANSI/BHMA A156.11 ANSI standards.
LATCH LOCK —
Olympus L92V Series
Cabinet locks: Provide Olympus L92V latch lock such as manufactured by Olympus
Lock, Inc. All locks to accept Schlage large format interchangeable core cylinders such
as supplied by Schlage Lock Company. Include strike as required.
Architectural Specifications
LESS CYLINDER Sargent
6 PIN - 4,000 key changes available with master key system
DEADBOLT LOCK —
Olympus 754LC (door) - Olympus 854LC (drawer)
Cabinet lock: Provide Olympus 754LC (door) and Olympus 854LC (drawer) easily
rekeyable locks such as manufactured by Olympus Lock, Inc. All locks to include:
forwardly removable cylinders for rekeying without totally disassembling lock body,
and spacers as required for flush fit with outside face of caseworak material. All
deadbolt locks to be non-handed and to provide dedicated door and drawer functions
in order to maintain keyway verticality when installed. All lock bodies to accept
Sargent C480-2 (13-3457) deadbolt cylinder as supplied by Sargent Manufacturing
Company.
IC CORE Sargent
6 PIN - 4,000 key changes available with master key system
CAM LOCK —
Olympus SA54 Series (cam lock)
Cabinet locks: Provide Olympus SA54 Series (cam lock) such as manufactured by
Olympus Lock, Inc. Lock to accept 6 pin Sargent interchangeable core cylinders such
as manufactured by Sargent Manufacturing Company. Cam locks to be reversible be-
tween lost motion and key retaining and include disassembly/reassembly features to
facilitate on-the-job maintenance.
The architectural specifications listed in our catalog are also available on our website at www.olympus-lock.com
74 206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
IC CORE Small Format
6 PIN - 4,000 key changes available with master key system
7 PIN - 16,000 key changes available with master key system

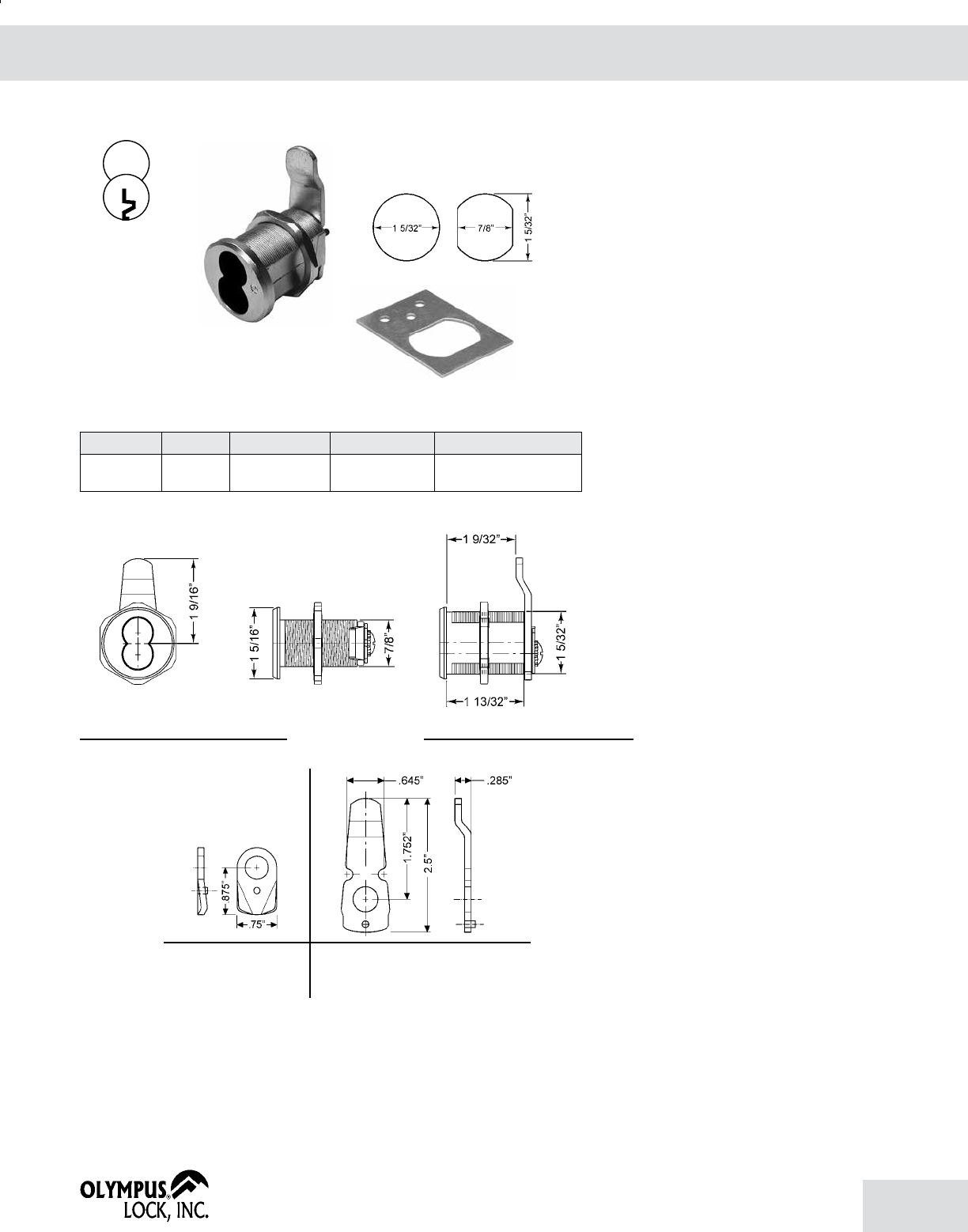

CAM LOCK —
Olympus 720 Series
Cabinet locks: Provide Olympus 720 Series (cam lock) such as manufactured by Olym-
pus Lock, Inc. Lock to accept 6 or 7 pin small format interchangeable core cylinders
such as supplied by Best, Arrow, Falcon, KSP or equivalent. Cam locks to be reversible
between lost motion and key retaining and include disassembly/reassembly features
to facilitate on-the-job maintenance. Locks will have passed BHMA/ANSI Grade 1 per-
formance requirements.
DEADBOLT LOCK —
Olympus 721DR (door) / 721DW (drawer)
Cabinet locks: Provide Olympus 721DR (door) and Olympus 721DW (drawer) such as
manufactured by Olympus Lock, Inc. Locks to accept 6 or 7 pin small format inter-
changeable core cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent.
All locks to be field reversible and to provide dedicated door and drawer functions
in order to maintain keyway verticality when installed. Include strikes and spacers
as required for flush fit with outside face of casework material. Locks will provide
disassembly/reassembly features to facilitate on-the-job maintenance. Locks will have
passed BHMA/ANSI Grade 1 performance requirements.
SLIDING DOOR LOCK —
Olympus 722S (standard mount) - 722S-TBM
(through-bolt mount)
Cabinet locks: Provide Olympus 722 Series sliding door lock such as manufactured
by Olympus Lock, Inc. Lock to accept 6 or 7 pin small format interchangeable core
cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent.
DEADBOLT LOCK —
Olympus 725RD / 725MD Series
Cabinet locks: Provide Olympus 725 Series deadbolt door and drawer locks such as
manufactured by Olympus Lock, Inc. Locks to accept 6 or 7 pin small format inter-
changeable core cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent.
Locks will provide dedicated door and drawer functions in order to maintain keyway
verticality when installed. Include strikes as required. Locks will have passed ANSI
Grade 1 cycle testing.
LATCH LOCK —
Olympus 725RL / 725ML Series
Cabinet locks: Provide Olympus 725 Series door and drawer latch locks such as manu-
factured by Olympus Lock, Inc. Locks to accept 6 or 7 pin small format interchangeable
core cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent. Locks will
provide dedicated door and drawer functions in order to maintain keyway verticality
when installed. Include strikes as required. Locks will have passed ANSI Grade 1 cycle
testing.
MAILBOX LOCK —
Olympus 728MBL
Cabinet locks: Provide Olympus 728MBL mailbox locks such as manufactured by
Olympus Lock, Inc. Locks to accept 6 or 7 pin small format interchangeable core cylin-
ders such as supplied by Best, Arrow, Falcon, KSP or equivalent.
SHOWCASE RATCHET LOCK —
Olympus 729R
Cabinet locks: Provide Olympus 729R sliding door ratchet lock such as manufactured
by Olympus Lock, Inc. Locks to accept 6 or 7 pin small format interchangeable core
cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent. Locks will comply
with clause 6.3 (8.2~8.4) of Grade 1 ANSI/BHMA A156.11 ANSI standards.
LATCH LOCK —
Olympus L72V Series
Cabinet locks: Provide Olympus L72V Series latch lock such as manufactured by Olym-
pus Lock, Inc. Lock to accept 6 or 7 pin small format interchangeable core cylinders
such as supplied by Best, Arrow, Falcon, KSP or equivalent. Include strike as required.
LATCH LOCK (DEAD LATCH) —
Olympus 950IC (drawer)
Cabinet locks: Provide Olympus 950IC (drawer) locks. All drawer latch locks to provide
a deadlocking function, strikes and spacers as required for flush fit with outside face
of casework material. Locks to accept 6 or 7 pin small format interchangeable core
cylinders such as supplied by Best, Arrow, Falcon, KSP or equivalent.
BEST KEYWAY Utility Cam Lock
6 PIN - 4,000 key changes available with master key system
7 PIN - 16,000 key changes available with master key system
CAM LOCK —
Olympus B7 Series
Cabinet locks: Provide Olympus B7 Series (cam lock) such as manufactured by Olym-
pus Lock, Inc. Cam locks to be reversible between lost motion and key retaining and
include disassembly/reassembly features to facilitate on-the-job maintenance.
IC CORE Corbin/Russwin
6 PIN - 4,000 key changes available with master key system
7 PIN - 16,000 key changes available with master key system
DEADBOLT LOCKS —
Olympus CR1125RD (door/drawer)
Cabinet locks: Provide Olympus CR1125RD (door/drawer) lock bodies as manufactured
by Olympus Lock, Inc. Locks to accept 6 or 7 pin interchangeable core cylinders
as supplied by Corbin/Russwin. All deadbolt locks to provide dedicated door and
drawer functions in order to maintain keyway verticality when installed. All locks
to be manufactured with disassembly/reassembly features to facilitate on-the-job
maintenance.
LATCH LOCKS —
Olympus CR1125RL (drawer)
Cabinet locks: Provide Olympus CR1125RL (drawer) lock bodies as manufactured
by Olympus Lock, Inc. Locks to accept 6 or 7 pin interchangeable core cylinders as
supplied by Corbin/Russwin. All latch locks to provide dedicated drawer function in
order to maintain keyway verticality when installed. All locks to be manufactured with
disassembly/reassembly features to facilitate on-the-job maintenance.
CAM LOCK —
Olympus CR25 Series (cam lock)
Cabinet locks: Provide Olympus CR25 Series (cam lock) such as manufactured by
Olympus Lock, Inc. Lock to accept 6 or 7 pin Corbin/Russwin interchangeable core
cylinders such as manufactured by Corbin/Russwin. Cam locks to be reversible be-
tween lost motion and key retaining and include disassembly/reassembly features to
facilitate on-the-job maintenance.
IC CORE Medeco/Yale
6 PIN - 4,000 key changes available with master key system
DEADBOLT LOCK —
Olympus 931DR (door) / 931DW (drawer)
Cabinet lock: Provide Olympus 931DR (door) and Olympus 931DW (drawer) locks
such as manufactured by Olympus Lock, Inc. All locks to accept Medeco 6-pin
interchangeable core cylinder #32-0201 or Yale #1210 series 6-pin interchangeable
core cylinder. Locks will include spacers as required for flush fit with outside face of
casework material. Include bar or slotted strikes as required. All deadbolt locks to be
non-handed and to provide dedicated door and drawer functions in order to maintain
keyway verticality when installed. All locks will be manufactured with disassembly/
reassembly features to facilitate on-the-job maintenance.
CAM LOCK —
Olympus ME93 Series (cam lock)
Cabinet locks: Provide Olympus ME93 Series (cam lock) such as manufactured by
Olympus Lock, Inc. Lock to accept Medeco 6-pin interchangeable core cylinder #32-
0201. Cam locks to be reversible between lost motion and key retaining and include
disassembly/reassembly features to facilitate on-the-job maintenance.
CAM LOCK —
Olympus YA93 Series (cam lock)
Cabinet locks: Provide Olympus YA93 Series (cam lock) such as manufactured by
Olympus Lock, Inc. Lock to accept Yale #1210 series 6-pin interchangeable core cyl-
inder. Cam locks to be reversible between lost motion and key retaining and include
disassembly/reassembly features to facilitate on-the-job maintenance.
Architectural Specifications
The architectural specifications listed in our catalog are also available on our website at www.olympus-lock.com
75
206-362-3290 | 800-525-0954 | Fax 206-362-3569 | www.olympus-lock.com
SPECIFICATIONS
Body: Solid brass body
Cylinder: Pin tumbler
Shackle: Hardened steel
Internal parts: Brass
Locking: Heel and toe
Keying: Keyed different or keyed alike
Special note on our keyed different padlocks:
Keyed different codes are not guaranteed against
interchange.
Use: All weather, indoor/outdoor
Keys: Includes 3 keys per lock
Packaged: Blister packed
Sales unit: Sold in full
box quantities only.
BP Series Mountain Brand Padlocks
Long
Shackle
Regular
Shackle
Item Width Keying Shackle
Box
Qty.
Box
Weight
Case
Qty.
BP075 3/4” — 20mm KD, KA 30 Regular 10 1.1 lbs. 200
BP100 1” — 25mm KD, KA 40,45 Regular 10 1.1 lbs. 200
BP125 1-1/4” — 30mm KD, KA 51 Regular 10 2.1 lbs. 100
BP125LS 1-1/4” — 30mm KD, KA 51,59 Long 10 3.1 lbs. 50
BP150 1-1/2” — 40mm KD, KA 60,61,65 Regular 10 3.9 lbs. 100
BP150LS 1-1/2” — 40mm KD, KA 60,65 Long 10 4.7 lbs. 50
BP175 1-3/4” — 45mm KD, KA 70,75 Regular 5 2.9 lbs. 75
BP200 2” — 50mm KD, KA 80 Regular 5 3.1 lbs. 75
BP SERIES KEYBLANKS
Item Fits Padlock Packaged
KB220 BP075 50/box
KB225 BP100 50/box
KB235 BP125 50/box
KB240 BP150/BP175 50/box
KB250 BP200 50/box
Item A B C D
BP075 3/4" 3/8" 3/8" 1/8"
BP100 1" 1/2" 1/2" 5/32"
BP125 1-1/4" 5/8" 5/8" 7/32"
BP125-LS 1-1/4" 2-1/8" 5/8" 7/32"
BP150 1-1/2" 7/8" 7/8" 1/4"
BP150-LS 1-1/2" 2-1/2" 7/8" 1/4"
BP175 1-3/4" 1" 1" 9/32"
BP200 2" 1-1/8" 1" 11/32"
Note: All fractional measurements are approximate.
PADLOCK
DIMENSIONS
Brass Padlocks
BP (Mountain) Series & CRB Series
MOUNTAIN BRAND - BLISTER PACKED PADLOCKS
Corbin/Russwin IC cylinder
(not included)
Open shackle before
installing core
Item Shackle Keyway
CRB200-IC6 Regular Accepts Corbin/Russwin 6-pin IC Cylinders
CRB200-IC6-LS Long Accepts Corbin/Russwin 6-pin IC Cylinders
SPECIFICATIONS
Body: Extruded brass
Locking: Ball bearing heel and toe
Body width: 2"
Body height: 2"
Shackle: Stainless steel
Finish: BHMA 606 Satin Brass (US4)
CYLINDER INFORMATION
Cores: Not included
Accepts: Corbin/Russwin 6-pin
interchangeable core cylinders
Standard function: Key removable in locked or
unlocked position
REGULAR SHACKLE
Shackle opening: 7/8"
Packed: Each
Weight each: 0.68 lbs.
LONG SHACKLE
Shackle opening: 2-5/8"
Packed: Each
Weight each: 0.78 lbs.
CRB200 For Corbin/Russwin IC Cores
Regular ShackleLong Shackle
Long
Shackle
Regular
Shackle
Warning: This product contains a chemical known to the State of California to cause cancer and birth defects or other
reproductive harm.
AR15107
For more information, installation instructions,
technical videos or pre-written architectural
specifications, please visit our website at:
www.olympus-lock.com
Copyright © 2016 Olympus Lock, Inc. all rights reserved. Other products and companies referred
to herein are trademarks or registered trademarks of their respective companies or mark holders.
Information and specifications in this document are subject to change without notice at any time.
The information provided in this document is as complete and correct as is reasonably possible. We
cannot guarantee the accuracy of information provided to us by other manufacturers as they are
under no obligation to notify us of changes to products or specifications. Printed in USA. 11/16
Literature part-number PC-1611.
The cabinet lock innovators.
18424 Highway 99
Lynnwood, WA 98037
206-362-3290 | 800-525-0954
Fax 206-362-3569
info@olympus-lock.com
www.olympus-lock.com
facebook.com/OlympusLock
twitter.com/OlympusLock
youtube.com/OlympusLock
enews sign up: olympus-lock.com
