Thank you for purchasing an Olympus

Digital Voice Recorder.

Please read these instructions for information

about using the product correctly and safely.

Keep the instructions handy for future reference.

To ensure successful recordings, we recommend that

you test the record function and volume before use.

DETAILED

INSTRUCTIONS

DIGITAL VOICE

RECORDER

DS-5000

DS-5000iD

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Macintosh is a trademark of Apple Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

SD and microSD are trademarks of SD card Association.

SDHC and microSDHC are trademarks of SD card Association.

Other product and brand names mentioned herein may be the trademarks or registered

trademarks of their respective owners.

●The contents of this document may be changed in the future without advanced notice.

Contact our Customer Support Center for the latest information relating to product names

and model numbers.

●The utmost care has been taken to ensure the integrity of the contents of this document. In

the unlikely event that a questionable item, error, or omission is found, please contact our

Customer Support Center.

●Any liability for passive damages or damage of any kind occurred due to data loss incurred

by a defect of the product, repair performed by the third party other than Olympus or an

Olympus authorized service station, or any other reasons is excluded from the Olympus’s

liability.

Trademarks

Introduction

INDEX

Table of Contents

Safe and Proper Usage

Getting Started

Basic Operations

Advanced Operations

Managing Files on Your PC

Other Practical Use Methods

Other Information

P. 11

P.27

P. 4 1

P. 6 9

P. 7 7

P. 7 8

P. 4

P. 6

Table of Contents

Table of Contents ...................................... 4

Safe and Proper Usage ............................ 6

General Precautions ................................. 7

1Getting Started

Main Features ........................................ 11

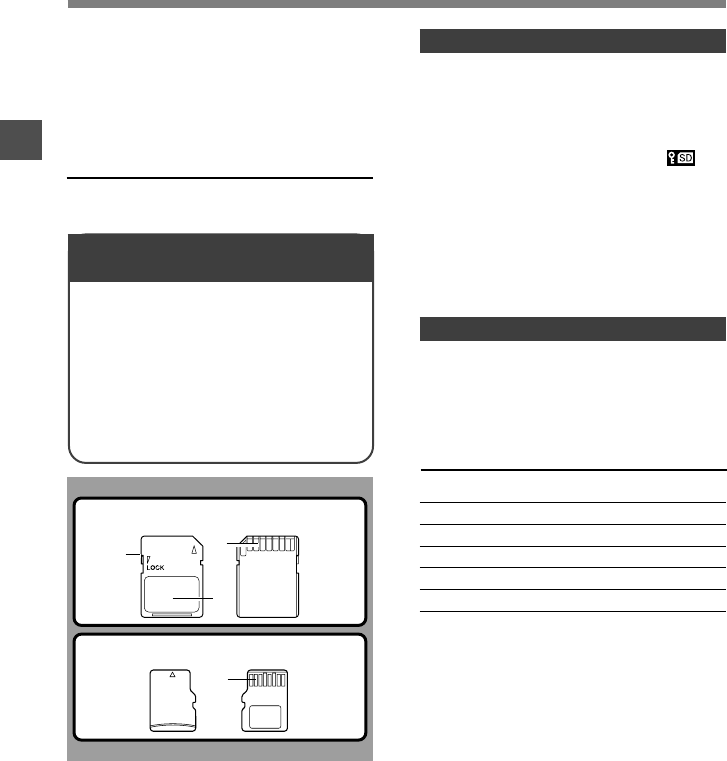

Memory Card ......................................... 12

Identification of Parts ............................. 14

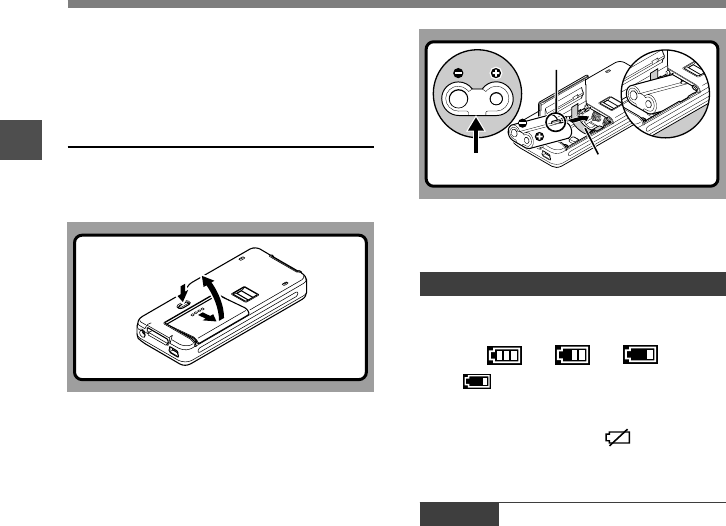

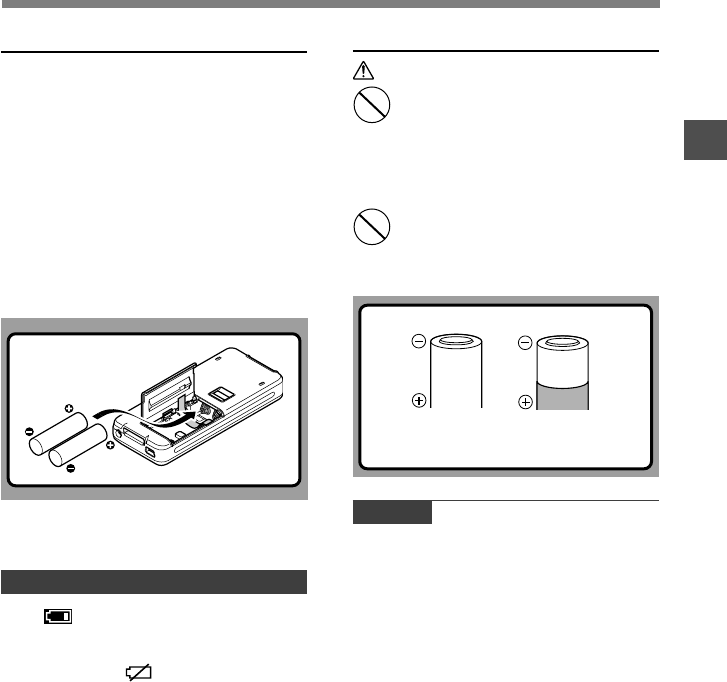

Installing Batteries ................................. 16

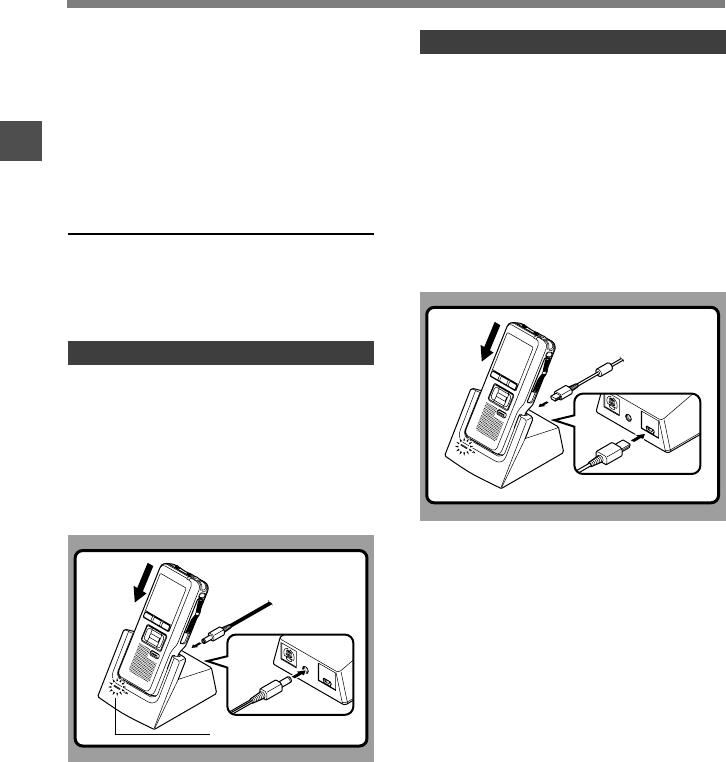

Charging Battery Pack .......................... 18

Using the Battery Pack .......................... 20

Using the AC Adapter ............................ 21

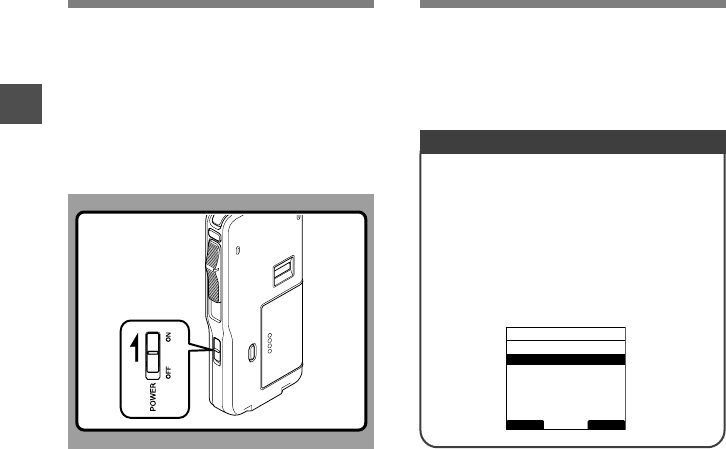

Turning ON the Recorder ...................... 22

Power Save Mode (Power Save) .......... 22

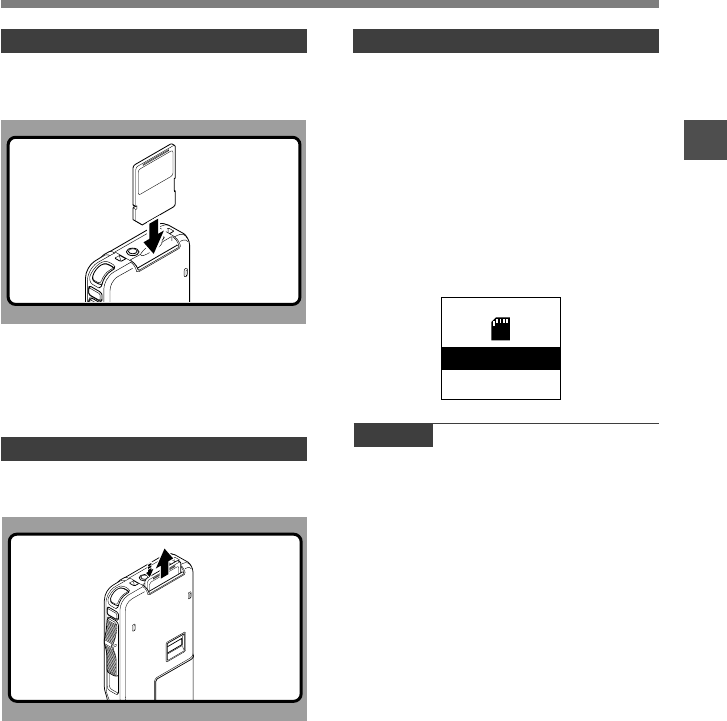

Inserting and Ejecting a SD card .......... 23

Setting Time and Date (Time & Date) ... 24

Setting Recording Destination

(Card Select) ................................... 26

2Basic Operations

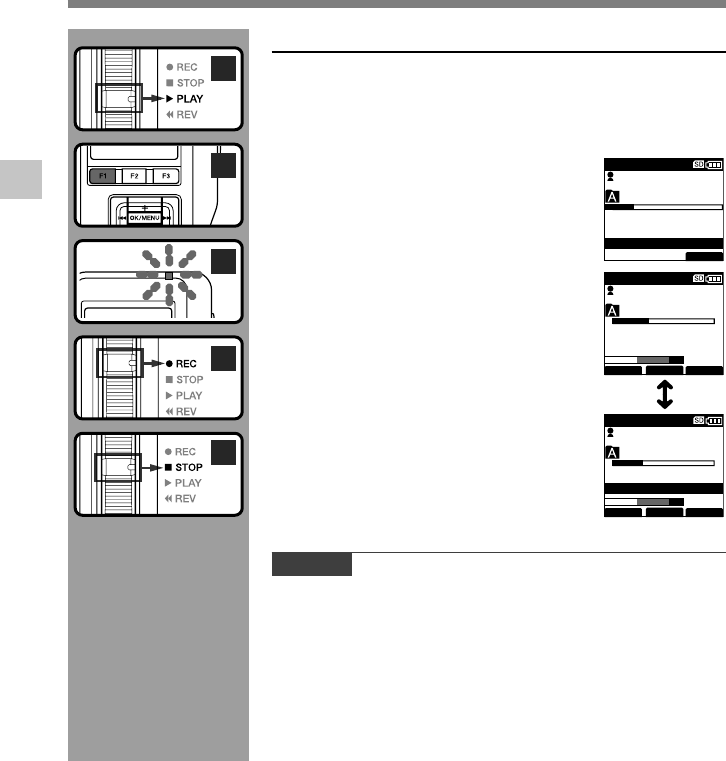

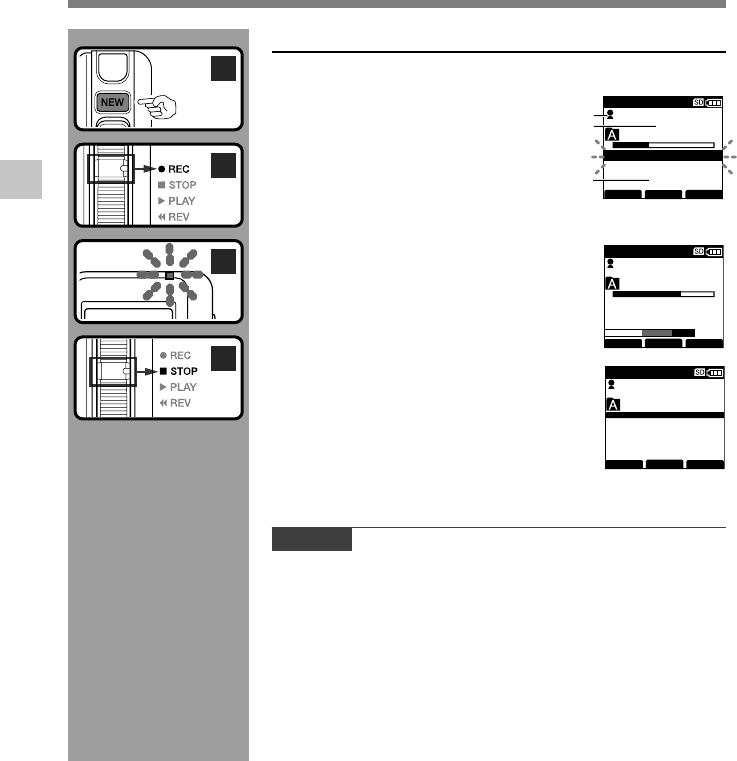

Recording .............................................. 27

Microphone Sensitivity (Mic Sense) ...... 31

Recording Modes (Rec Mode) .............. 32

Using the Variable Control Voice Actuator

(VCVA) ............................................. 33

Hands-free Recording ........................... 34

Recording Monitor ................................. 34

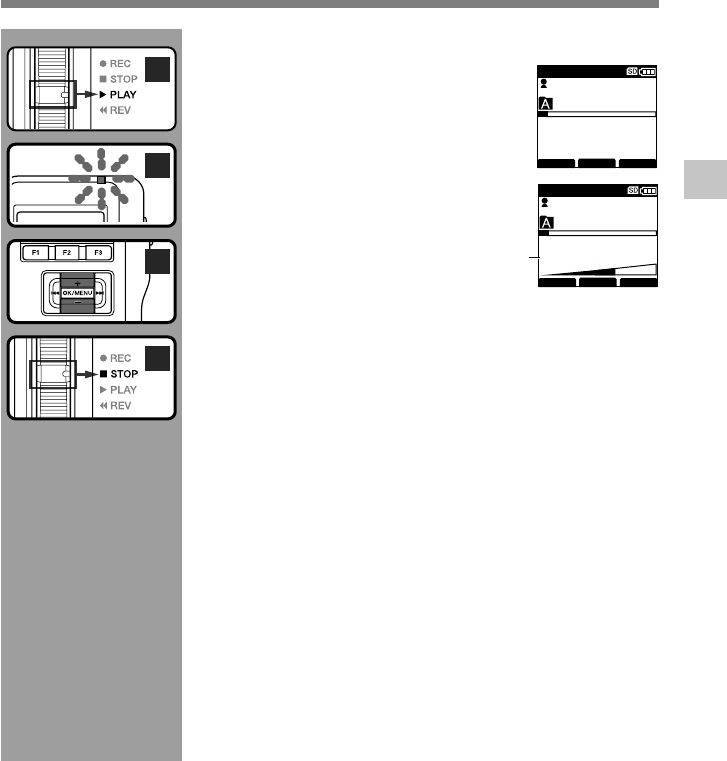

Playing ................................................... 35

Erasing ................................................... 37

3Advanced Operations

Menu List ............................................... 41

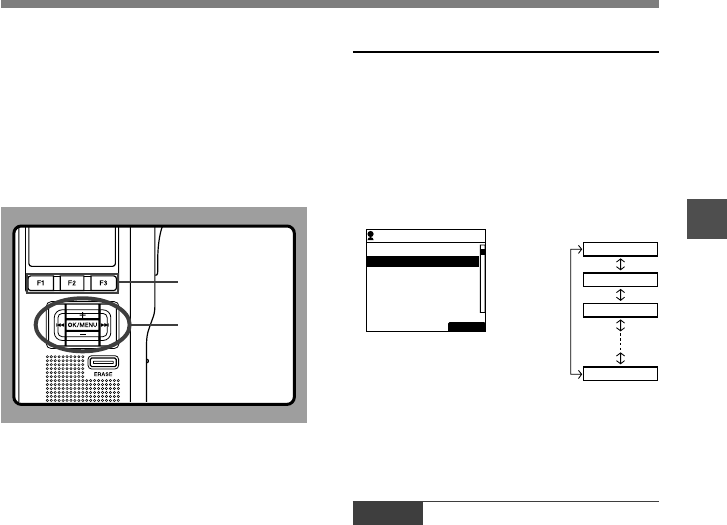

Learning to Use the Menu ..................... 43

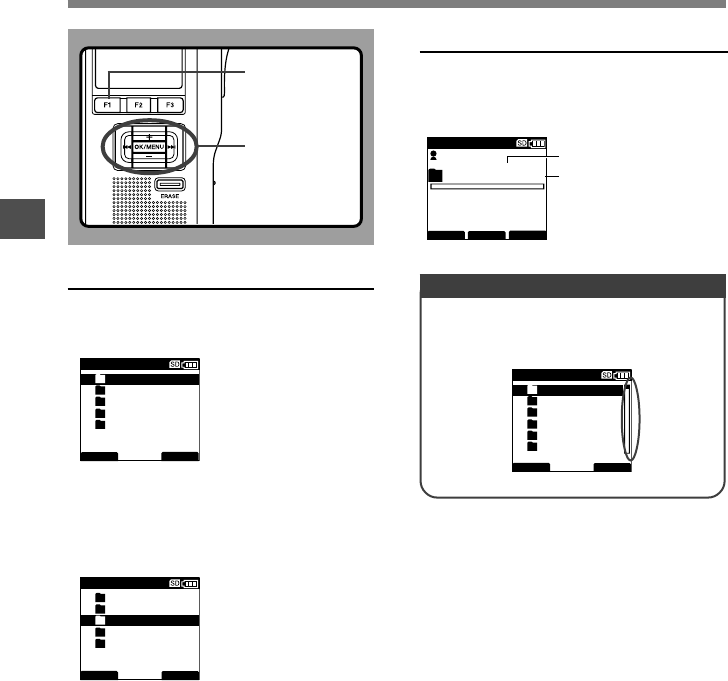

Selecting Folders and Files ................... 44

Displaying File Information .................... 45

Device Lock Function ............................ 46

Locking Files (Lock) .............................. 50

Pending Files (Pending) ........................... 51

Setting Priority Levels (Priority) ............ 52

Setting the Author ID and Work Type.... 53

Verbal Comment .................................... 56

Index Marks ........................................... 57

Language (Language) ........................... 58

Backlight (Backlight) .............................. 59

LED (LED) ............................................. 60

LCD Contrast Adjustment (Contrast) .... 61

System Sounds (Beep) ......................... 62

Inserting and Ejecting a microSD card ....

Formatting the Card (Format) ............... 64

Check System Information (System info.) .. 66

Changing the USB Class (USB Class) .... 67

Customizing the Recorder ..................... 68

4Managing Files on Your PC

DSS Player Software............................. 69

Installing DSS Player Software ............. 71

Uninstalling DSS Player Software......... 72

Using Online Help ................................. 73

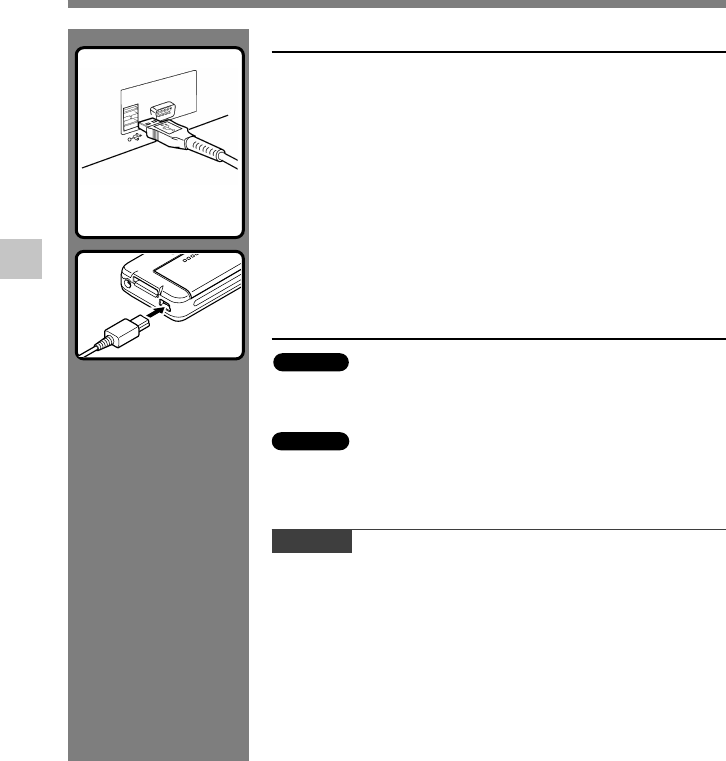

Connecting Recorder to PC .................. 74

Running DSS Player Software .............. 76

Table of Contents

5Other Practical Use Methods

Using as External Memory of the Computer ...

6Other Information

Alarm Message List ............................... 78

Troubleshooting ..................................... 79

Accessories ........................................... 80

Specifications ........................................ 81

Technical Assistance and Support ........ 82

Convention Used In this Manual

•The word “card” is used to refer to the SD

card and microSD card.

•The word “DSS Player” is used to refer to

the DSS Player Pro R5 Dictation Module

in Windows environment and DSS Player

in Apple Macintosh environment.

•The Notes at the bottom of a page are

used for additional information,

exceptions, or related events.

•Words in uppercase form such as PLAY

or REC are used to describe a function,

button, or switch position on the recorder.

Safe and Proper Usage

Before using your new recorder, read this

manual carefully to ensure that you know

how to operate it safely and correctly. Keep

this manual in an easily accessible location

for future reference.

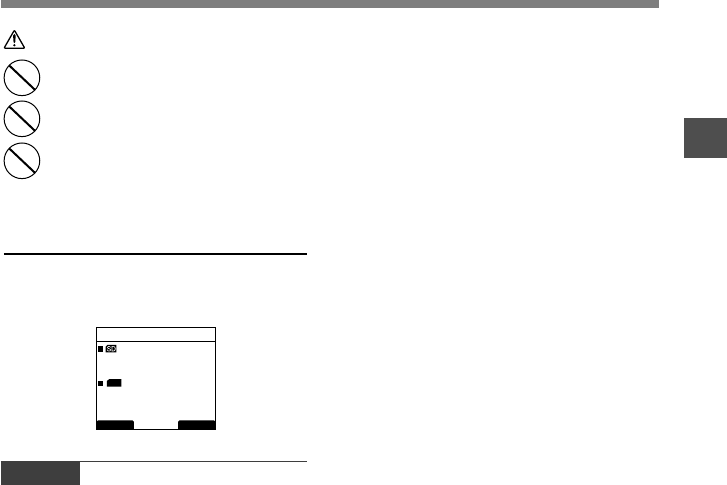

Important Safety Precautions

Certain symbols are used in the user’s

manual and on this product to help protect

users, their surroundings, and their

property from possible injury or damage.

Please familiarize yourself with the

following definitions and meanings for each

symbol before reading the precautions.

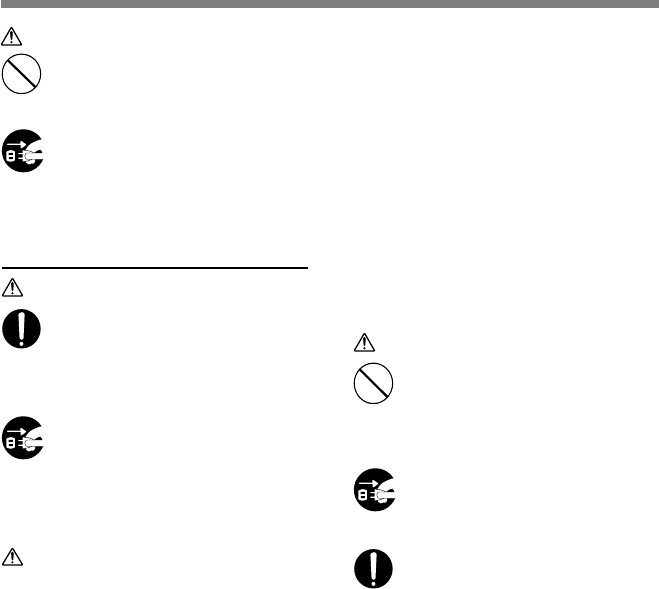

Symbols prohibiting a specific action

Prohibited Do not

disassemble

Symbols requiring a specific action

Mandatory Unplug from

power outlet

Signifies danger which

may result in serious

injury or death.

Indicates items or actions

which may cause serious

injury or death.

Indicates items or actions

which may result in

damage or personal injury.

Danger

Warning

Caution

General Precautions

●Do not leave the recorder in hot, humid

locations such as inside a closed

automobile under direct sunlight or on the

beach in the summer.

●Do not store the recorder in places exposed

to excessive moisture or dust.

●Do not use organic solvents such as

alcohol and lacquer thinner to clean the

unit.

●Do not place the recorder on top of or near

electric appliances such as TVs or

refrigerators.

●Avoid recording or playing back near

cellular phones or other wireless

equipment, as they may cause interference

and noise. If you experience noise, move

to another place, or move the recorder

further away from such equipment.

●Avoid sand or dirt. These can cause

irreparable damage.

●Avoid strong vibrations or shocks.

●Do not disassemble, repair or modify the

unit yourself.

●Do not operate the unit while operating a

vehicle (such as a bicycle, motorcycle, or

go-cart).

●Keep the unit out of the reach of children.

Recorded content in memory may be

destroyed or erased by operating mistakes,

unit malfunction, or during repair work.

It is recommended to back up and save

important content to other media such as a

computer hard disk.

Batteries/Rechargeable Battery Pack

Danger

•Do not solder lead wires or terminals directly

onto a battery or modify it.

•Do not connect the =and -terminals

together. This may cause fire, overheating or

electric shock.

•When carrying or storing the battery, be sure

to put it in the provided case to protect its

terminals. Do not carry or store the battery

with any metal objects (such as key rings).

If this warning is not followed, fire,

overheating or electric shock may occur.

•Do not connect the batteries directly to a

power outlet or a cigarette lighter of an

automobile.

•Do not insert the batteries with their = and

- terminals reversed.

•If any liquid from a battery gets into your

eyes, promptly wash it off with clean water

and consult your doctor at once.

•There is a hole from which gas escapes on the =

terminal. Do not cover or block it.

Warning

•Batteries should never be exposed to flame,

heated, short-circuited or disassembled.

•Do not attempt to recharge alkaline, lithium

or any other non-rechargeable batteries.

•Never use any battery with a torn or cracked

outer cover.

•Keep batteries out of the reach of children.

Do not

disassemble

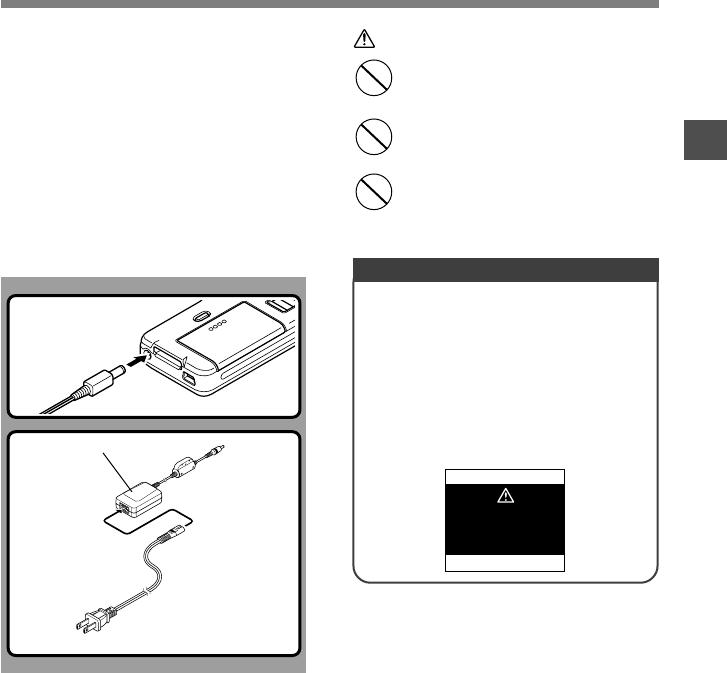

Cradle

Danger

•Never disconnect the AC adapter

or power cord with a wet hand. This

may cause electric shock or injury.

•Only use the included AC adapter

with the cradle. Using it in

combination with other AC

adapters may cause overheating,

fire, or malfunction.

Warning

•Never disassemble, modify, or

repair the recorder yourself. This

may cause fire, electric shock, or

injury.

•Never use it in locations where it

might come into contact with water

(such as a bathroom). Getting the

recorder wet may cause fire or

electric shock.

•Do not drop the recorder or allow

it to suffer a shock. This may cause

damage, fire, or electric shock.

•Do not insert metal wires or similar

objects. This may cause fire,

overheating or electric shock.

•Keep out of the reach of children.

Do not let children use this product

without adult supervision.

•If you notice anything unusual when

using this product such as abnormal

noise, heat, smoke, or a burning odour:

1remove the batteries immediately while

being careful not to burn yourself, and;

2call your dealer or local Olympus

representative for service.

•Do not expose the rechargeable batteries to

water. Do not allow water to contact the

terminals.

•Do not remove or damage the battery

insulating sheet.

•Do not use the batteries if you find

something wrong with them such as leakage,

color change or deformity.

•Unplug the charger if the charging is still

incomplete after the specified time it should

take.

•Should any battery liquid get on skin or

clothing, promptly wash it off with clean

water.

•Keep batteries away from fire.

Caution

•Rechargeable batteries are exclusively for

use with Olympus digital voice recorder DS-

5000/5000iD. Do not use them in combination

with other equipment.

•

Do not subject batteries to strong shocks.

•Do not use batteries of different types, voltages,

and/or brand names.

•When using rechargeable batteries or battery

pack, make sure they are charged at the same

time.

•When using rechargeable batteries or

battery pack that have not been used for a

while, be sure to recharge them before use.

General Precautions

Unplug from

power outlet

Unplug from

power outlet

Caution

•Do not use or store the Cradle in/

on an unstable place, such as a

television set, etc. If it falls, it may

cause injury or break.

•Unplug the AC adapter or power

cord from the cradle and AC outlet

when not using for extended

periods of time. If this precaution

is not followed and the cradle is

damaged then fire may occur.

AC Adapter

Danger

•Be sure to use the AC Adapter with

the proper voltage (AC 100 - 240 V).

Using it with other voltage levels

may cause fire, explosion,

overheating, electric shock or

injury.

•For safety, be sure to unplug the

AC Adapter from the outlet before

performing maintenance or

cleaning. Also, never plug in or

disconnect the power plug with a

wet hand. This may cause electric

shock or injury.

Warning

•Do not attempt to disassemble, repair or

modify the AC adapter in any way.

•Keep foreign objects including water, metal,

or flammable substances from getting inside

the product.

•Do not moisten the AC adapter or touch it

with a wet hand.

•Do not use the AC adapter in the vicinity of

flammable gas (including gasoline, benzine

and lacquer thinner).

General Precautions

In case

•... the internal parts of the AC adapter are

exposed because it has been dropped or

otherwise damaged:

•... the AC adapter is dropped in water, or if

water, metal flammable substances or other

foreign objects get inside it:

•... you notice anything unusual when using

the AC adapter such as abnormal noise, heat,

smoke, or a burning odour:

1do not touch any of the exposed parts;

2immediately disconnect the power supply

plug from the power outlet, and;

call your dealer or local Olympus representative

for servicing. Continued use of the AC adapter

under these circumstances could result in

electric shock, fire or injury.

Caution

•Do not use the AC Adapter if the

power plug is damaged or the plug

is not completely connected to the

outlet. This may cause fire,

overheating, electric shock, short

circuit or damage.

•Unplug the AC Adapter from AC outlet

when not using. If this precaution is

not followed, fire, overheating or

electric shock may occur.

•Make sure to hold the plug when

removing the power plug from the

outlet. Do not bend the cord

excessively or put a heavy object on

it. This may cause fire, overheating,

electric shock or damage.

Unplug from

power outlet

General Precautions

• If something appears to be wrong

with the AC Adapter, unplug the AC

Adapter from the outlet and consult

your nearest service center. Using

the AC Adapter may cause fire,

overheating, electric shock or

injury.

• Do not use or keep the AC Adapter

in very hot places, such as in direct

sunlight, in a closed car on a sunny

day, near a heater, on an electric

carpet, etc. Do not use the AC

Adapter if something is covering it

(such as a blanket). This may cause

fire, explosion, leakage or

overheating.

1Getting Started

Main Features

●Slide switch operation for ease of use and

fast response.

●Supports two types of memory: SD card and

microSD card (☞ P.12).

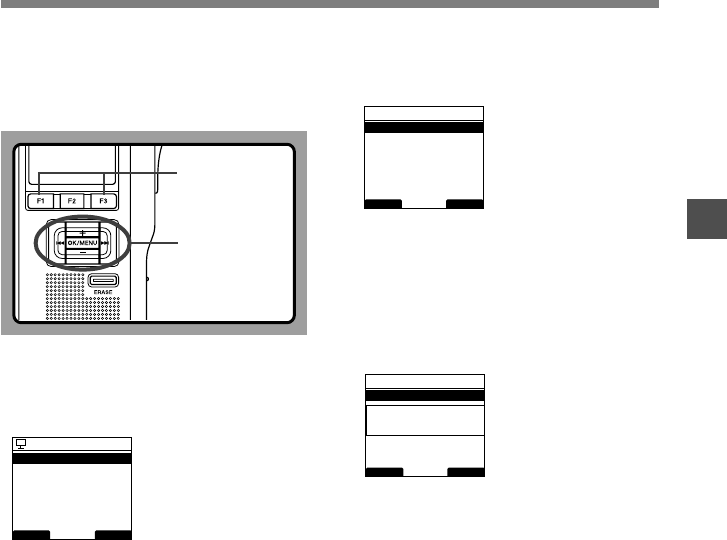

●Three Programmable smart buttons F1,F2

and F3 (☞ P.68).

●Recording and storing voice in Digital

Speech Standard Pro (DS2 format).

●Two recording modes, QP (Quality

Playback) mode or SP (Standard Playback)

mode (☞ P.32).

●Data encryption function for securing

recordings on the device.

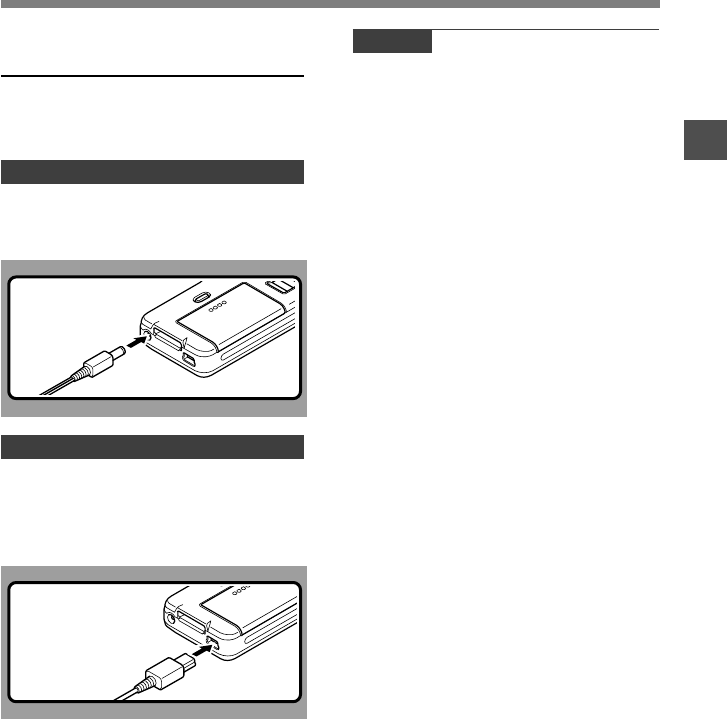

●The recorder’s Ni-MH Rechargeable Battery

Pack can be charged in the recorder using

the USB cable or the AC adapter (☞ P.18,

19).

●Supports USB 2.0. High-Speed, which

enables high-speed data transmission from

the recorder to your computer.

●Five folders and up to 200 files/folder, for a

maximum of 1000 recordings (☞ P.27).

When using DSS Player, it is possible to create

up to a maximum of seven folders (1,400 files) (☞

P.68, 69).

●Large LCD screen with backlight.

●Device Lock function to prevent unauthorized

access to device (☞ P.68).

Authentication system via password or

fingerprint scan* (☞ P.46-49).

●Indexmark function which is useful to search

particular points in the dictation (☞ P.57).

●

Verbal comment function which allows

transcriptionists to instantly search and play

back instructions on their computer (☞ P.56).

●Priority Setting (☞ P.52).

●DSS Player software included (☞ P.69).

It is possible to customize the recorder in a number

of ways.

*DS-5000iD only

SD card

1Card Lock

SD card is equipped with a lock function.

When the lock function is used, important

data is protected by preventing it from being

accidentally overwritten or erased.

When the lock function is set will

appear on the display.

2Index area

For writing down information identifying card

or content.

3Contact area

Comes into contact with the recorder’s

signal read contacts.

microSD card

1Contact area

Comes into contact with the recorder’s

signal read contacts.

Memory Card

The above are the standard times, and the available

recording time will vary depending on the card.

*1: Available recording time for one continuous file.

Available recording time may be shorter if many short

recordings are made.

*2:Total recording time of several files. The maximum

recording time per file is 99 hours 59 minutes.

Memory Card

This recorder uses dual memory in the form of SD

card memory and built-in memory (microSD card),

allowing you to record to the selected memory.

A removable microSD card is used for the built-in

memory thus allowing you to remove your recording

from the recorder safely in case of recorder

malfunction or failure.

Check the latest operating information on the

Olympus homepage (http://www.olympus.com)

when using cards other than the included card.

In addition, refer to the following pages as well

when handling the card.

• Inserting and Ejecting a SD card (☞ P.23)

•

Inserting and Ejecting a microSD card (☞ P. 63)

•

Setting Recording Destination (Card Select) (☞ P.26)

• Formatting the Card (Format) (☞ P.64) Memory Sizes of Cards and

Approximate Recording Times*1

Compatible Cards

The recorder supports cards with memory

capacity between 512 MB to 8 GB.

Settings and operating environment

relating to the card

Memory Size QP Mode SP Mode

512MB 38 hr. 45 min. 79 hr. 30 min.

1GB 77 hr. 40 min. 159 hr. 05 min.*2

2GB 157 hr. 55 min.*2323 hr. 35 min.*2

4GB 310 hr. 10 min.*2635 hr. 25 min.*2

8GB 631 hr. 15 min.*21293 hr. 15 min.*2

SD card

microSD card

Memory Card

Warning

• Do not touch the card contacts.

That may damage the card.

• Do not place the card in locations

with static electricity.

• Store the card in a location that is

out of the reach of children. In case

of accidental ingestion, consult a

physician immediately.

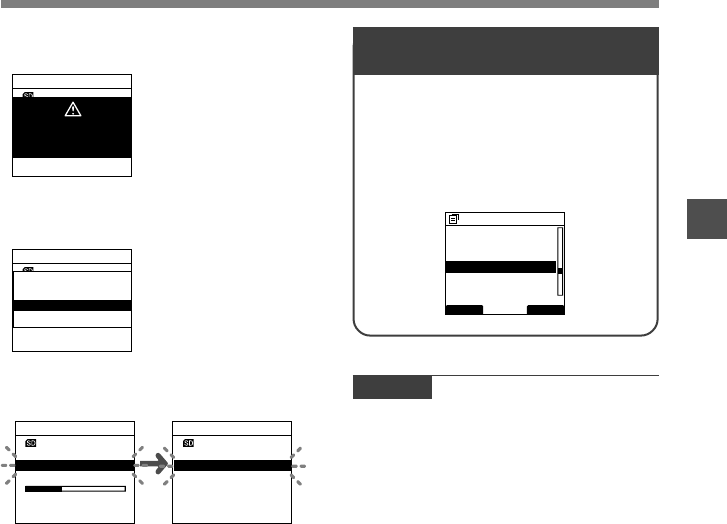

Check Card Information (Card Info.)

Information such as the memory capacity and

remaining memory for installed cards can be

displayed on the recorder (☞ P.42).

Notes

•When initializing (formatting) a card, confirm that

no necessary data is stored on the memory card

beforehand. Initialization completely erases the

existing data on the card.

•In some cases cards which have been formatted

(initialized) by another device, such as a computer,

cannot be recognized. Be sure to format them with this

recorder before using.

•The card has a service life. When reaching the end of

its life, writing or erasing data on the card will be

disabled. In this case, replace the card.

•If you use a PC card adapter compatible with the card

to save or delete some data on the card, the maximum

recording time on the card may be decreased. To

recover the original recording time, initialize/format the

card in the recorder.

•Olympus will not be held liable for any data corruption

or loss due to misuse of the media card.

BACK EXIT

Card Info.

micro SD

mSD

Remain

Capacity

Remain

Capacity

540MB

1024MB

250MB

512MB

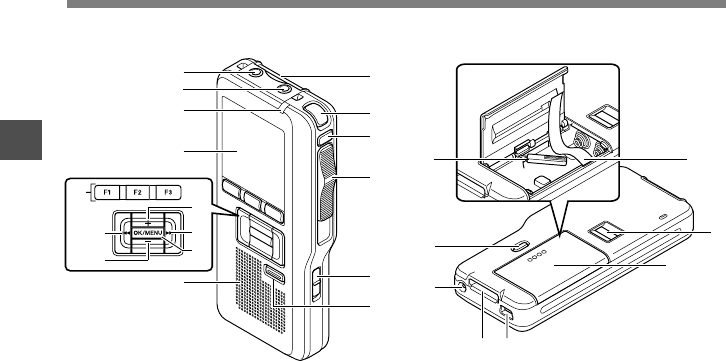

$Programmable smart button

(F1,F2,F3)

%Rewind (0) button

(Volume) button

&Built-in speaker

*Battery removal tape

(Fingerprint sensor*

)Battery cover

-PC (USB) terminal

=Cradle connector

qPower jack

wBattery cover release button

emicroSD card cover

*DS-5000iD only

Identification of Parts

1SD card slot

2Built-in microphone

3NEW button

4Slide (REC/STOP/PLAY/REV)

switch

5POWER (ON/OFF) switch

6ERASE button

7EAR (Earphone) jack

8MIC (Microphone) jack

9Record/Play indicator light

0Display (LCD panel)

!+ (Volume) button

@Fast Forward (9) button

#OK/MENU button

)

(

Identification of Parts

1Record mode indicator

2Current folder

3Memory remaining indicator

(E/F bar)

4Recording elapsed time

5Remaining recording time

6Level meter indicator

7Button guide display

8Microphone sensitivity indicator

Author ID indicator

Battery indicator

SD card indicator

mSD

microSD card indicator

VCVA

VCVA (Variable Control Voice

Actuator) indicator

Display in the recording

mode

Display in the playback

mode

Display Status Indicators

9Current file number

0Total number of files in the folder

!Playback position bar indicator

@Current Playback time

#Total recording time of the

selected file

$Slide Switch Guide

You can display the slide switch guide by using

“Slide Switch Guide settings” (P.68) of the

customize functions of DSS Player.

Pending indicator

Card Lock indicator

Encryption indicator

Priority indicator

Erase Lock indicator

Display in the recording

mode

Display in the playback

mode

VERBAL DISPLY INDEX

MIKE

025

/ 030

QP DICT

00 M 10 S

H 22 M 30

INSERT SPEED INDEX

MIKE

025

/ 030

QP DICT VCVA

02 M 50 S

12M 05S

SPLY INDEX

5 / 030

H 00 M 00S

Ni-MH Rechargeable Battery Pack

(included)

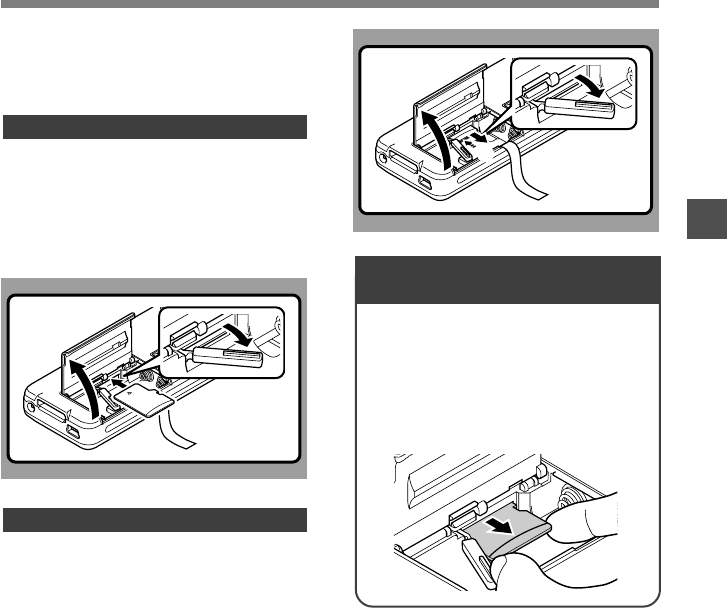

Lightly press down on the battery cover

release button, then open the battery

cover, as shown in the illustration below.

Insert the Ni-MH Rechargeable Battery

Pack, observing the correct polarity as

shown in the illustration below, then

close the battery cover.

Installing Batteries

The battery pack needs to be fully charged in

the recorder before initial use.

Recharging Battery Pack

The battery indicator on the display changes

as the battery pack lose power.

→ →

When appears on the display, charge the

battery pack as soon as possible.

When the battery pack charge is low, the

recorder shuts down and [ Battery Low ]

appears on the display.

Notes

•Removing the battery pack while the recorder is in use

may corrupt the file.

•If power runs out during recording, current file will be

lost or corrupted!.

•It is crucial to charge the battery pack once you see

one hash mark on the display battery indicator.

•Remove the battery pack if you are not going to use

the recorder for an extended period of time.

This recorder can be used with either Ni-MH

Rechargeable Battery Pack or AAA Alkaline

Batteries.

When using the Ni-MH Rechargeable Battery

Pack, insert it so that the flat surface with the

polarities is facing down as shown in the

illustration below. Exercise caution, as the

directions inscribed inside the battery

compartment apply to AAA batteries only.

In addition, when inserting the battery pack, insert

them so that the tape is under the battery pack,

as shown in the illustration. The battery pack can

then be removed easily by pulling up the tape.

When pulling on the tape the battery pack may

suddenly pop out, so be sure to press down lightly

the battery pack with your finger while pulling.

The flat surface is

facing downward.

Battery removal tape

Projection part

Installing Batteries

AAA Alkaline Batteries

Lightly press down on the battery cover

release button, then open the battery

cover.

Insert two AAA batteries, observing the

correct polarity as shown in the illustration

below, then close the battery cover.

Insert the batteries in the direction inscribed on

the inside of the recorder’s battery compartment.

In addition, when inserting the batteries, insert

them so that the tape is under the batteries, as

shown in the illustration. The batteries can then

be removed easily by pulling up the tape. When

pulling on the tape the batteries may suddenly

pop out, so be sure to press down lightly the

batteries with your finger while pulling.

The battery indicator on the display changes

as the batteries lose power.

Replacing Batteries

When appears on the display, replace the

batteries as soon as possible.

When the batteries are too weak, the recorder

shuts down and [ Battery Low] appears

on the display.

Installing Batteries

Notes

•Be sure to turn OFF the recorder before replacing

the batteries. Removing the batteries while the recorder

is in use may corrupt the card. If you are recording into

a file and the batteries run out, you will lose your

currently recorded file since the file header will not be

written. It is crucial to replace the batteries when one

hash mark in shown in the battery icon.

•Be sure to replace both batteries at the same time.

•Never mix old and new batteries, or batteries of

different types and/or brands.

•If it takes longer than 1 minute to replace dead batteries,

you may have to reset the time when you load new

batteries.

•Remove the batteries if you are not going to use the

recorder for an extended period of time.

Cautions Concerning the Battery

Warning

•Using batteries for which part or all

of the external coating (insulating

sheath) is peeling off or batteries

which have ruptured may cause fluid

leaks, overheating, and explosions.

For this reason such batteries should

absolutely not be used.

•Commercially available batteries for

which part or all of the external

coating (insulation sheath) has been

peeled off should absolutely not be

used.

Unusable batteries

Batteries for which the entire external coating

(insulating sheath) is peeled off (naked batteries),

or those where it has partially been peeled off.

Charging Battery Pack

Charge the Ni-MH Rechargeable

Battery Pack using the Cradle

The Ni-MH Rechargeable Battery Pack in the

recorder can be charged by connecting the AC

adapter or USB cable to the cradle with the

recorder set in it.

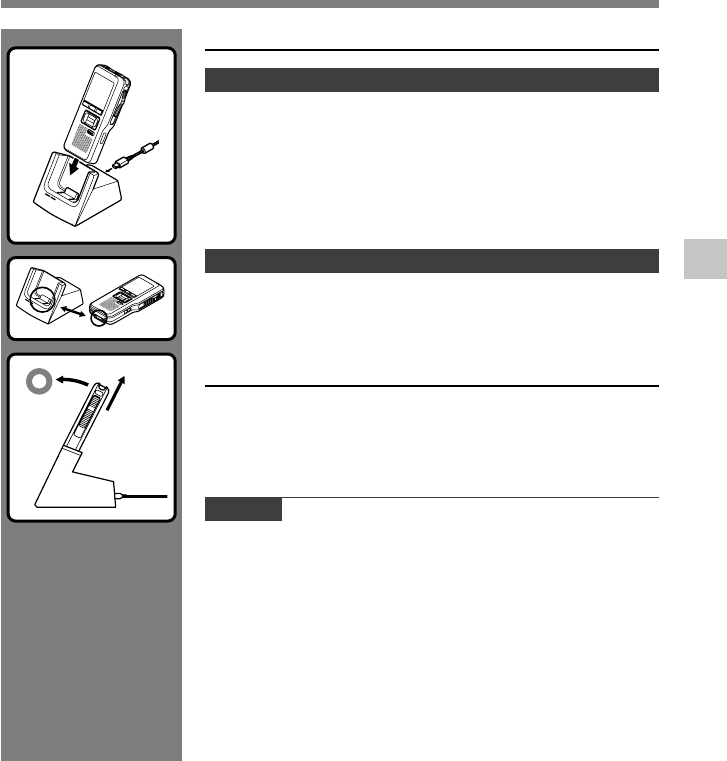

Charging using Cradle and AC Adapter

Connect the AC adapter to the cradle.

For connection procedures, see P.75.

When using the AC adapter for charging, connect the

power plug to the cradle AC connector (☞ P.21).

Firmly press the recorder all the way into

the cradle as shown in the illustration.

CHARGE indicator light glows red and the charging

starts.

The light goes out when the charging is complete.

You can charge the Ni-MH Rechargeable

Battery Pack in the recorder using the cradle

in combination with the USB cable or AC

Adapter. Or by directly connecting the AC

Adapter or USB cable to the recorder.

Battery pack need to be fully charged before

first use.

Full charge time: Approximately 3 hours.

CHARGE indicator light

Charging using Cradle and USB Cable

Connect the USB cable to the cradle.

For connection procedures, see P.75.

Turn the recorder’s POWER switch OFF (☞

P.22), then firmly press the recorder all the

way into the cradle as shown in the

illustration.

CHARGE indicator light glows red and the charging

starts.

The light goes out when the charging is complete.

When the recorder is connected to a USB cable while

its POWER switch is turned OFF, only charging will

be performed, and the computer will not recognize it

as a drive.

Charging Battery Pack

Directly Charging Through the

Recorder

The Ni-MH Rechargeable Battery Pack in the

recorder can be charged by connecting an AC

adapter or USB cable to the recorder.

Charging using AC Adapter (no cradle)

Connect the AC adapter to the recorder.

For connection procedures, see P.21.

When using the adapter for charging, connect the

power plug to the recorder power jack.

Charging using the USB cable (no cradle)

While recorder’s POWER switch is turned

OFF, connect the USB cable to the recorder.

When the recorder is connected to a USB cable while

its POWER switch is turned OFF, only charging will

be performed, and the computer will not recognize it

as a drive.

Notes

•Charge the battery pack often for first few uses. Battery

pack performs better after several full charge/discharge

cycles.

•Battery packs other than the supplied battery pack

cannot be charged.

•If you charge the battery pack right after charging is

complete, it will take only few minutes to charge the

battery pack.

•The PC must be ON when charging battery pack via

the USB cable connection.

•Charging battery pack via the USB cable connection

may not be successful depending on the power supply

capacity of your PC. Use the AC adapter instead.

•Do not set or remove the recorder from the cradle while

it is in operation.

•Do not charge the recorder with the USB hub connected.

•Do not attach or remove the rechargeable battery pack

if the AC adapter or USB cable is connected.

Using the Battery Pack

The battery pack is exclusively for use with

Olympus voice recorder DS-5000/DS-5000iD.

Never use them in combination with other

equipment.

Discharging

Battery pack self-discharge while this is not in

use. Be sure to charge them regularly before

use.

Battery life

Over time, rechargeable battery packs

gradually wear down. If you charge you battery

pack regularly and you notice a decrease in

usage time, then it is probably time to purchase

a new battery pack.

Operating temperature

Rechargeable batteries, such as the battery

pack, are chemical products. Batteries

efficiency may fluctuate even when operating

within the recommended temperature range.

This is an inherent nature of such products.

Recommended temperature range for

use

Discharging (when using appliance):

0°C - 42°C/32°F - 107.6°F

Charging:

5°C - 40°C/41°F - 104°F

Storage:

–20°C - 30°C/–4°F - 86°F

Using the battery pack outside the above

temperature range may result in declining

efficiency and shorter battery life.

In order to prevent battery leakage or rust,

remove the battery pack from the products

when you will not be using them for a long time,

and store them separately.

Notes

•This recorder is designed to fully charge battery

pack regardless of their energy level. However, for

best results when charging newly purchased battery

pack or battery pack that have not been used for a

long time (more than one month), It is recommended

to fully charge the battery pack then discharge

repeatedly for 2 to 3 times.

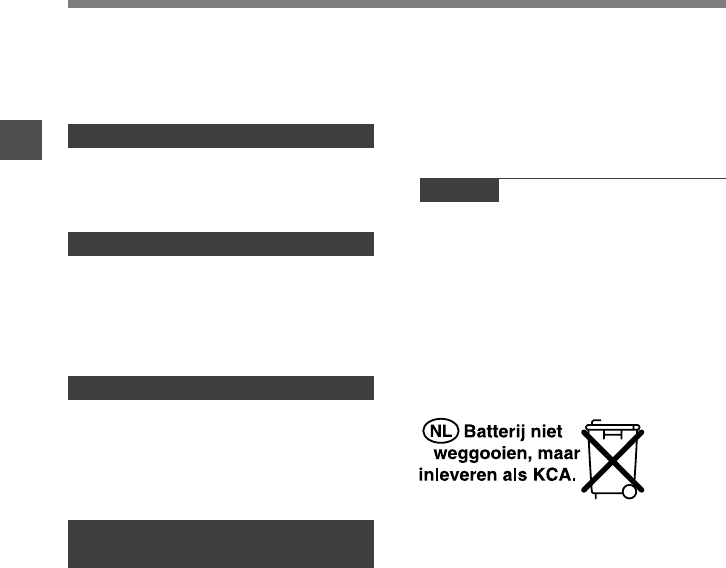

•When disposing battery packs, always observe the local

laws and regulations. Contact you local recycling center

for proper disposal methods.

•If Ni-MH rechargeable battery pack is not fully

discharged, protect against short-circuiting (e.g. by

taping the contacts) before disposing.

For customers in Germany

Olympus has a contract with the GRS (Joint

Battery Disposal Association) in Germany to

ensure environmentally friendly disposal.

Using the AC Adapter

Use the AC adapter (included) in cases

where battery consumption is a concern,

such as when recording for extended

periods of time.

Plug the AC adapter (included) into a

household power outlet and

connect the power plug to the recorder’s

power connector (DC 5V). Always turn off

the recorder before you connect power.

Refer to P.18-19 regarding supplying power

to the recorder and cradle with the aim of

charging the Ni-MH Rechargeable Battery

Pack (☞ P.16).

If the recorder detects a DC power

voltage outside of the allowable voltage

(allowable voltage: 4.6 to 5.5 V), then

[Power Supply Error Remove Power

Plug] will appear on the display and all

operations will stop. The recorder will

not be operable while abnormal voltage

is detected. Use the included AC

adapter.

Detecting abnormal voltage

Warning

•Always stop recording before

connecting or disconnecting

power.

•When the AC adapter is not in use,

disconnect the power supply plug

from the power outlet.

•Use only the correct power supply

voltage as indicated on the

adapter.

connector

The plug type varies

depending on the country

where sold.

AC adapter

AC cable

Power Supply

Error

Remove

Power Plug

Turning ON the

Recorder

With the battery charged in the recorder and

the card inserted properly, the recorder is ready

to work.

While the POWER switch on the side of the

recorder is in the OFF position, none of the

buttons or switch on the recorder will be active.

Move the POWER switch to the ON position

to activate the recorder.

Power Save Mode

(Power Save)

When the recorder is ON but not in use for 10

minutes, by default, it will switch to power save

mode automatically. To reactivate the recorder

again, operate any button or the slide switch.

You can set the time to enter Power Save

mode from among [5 min.], [10 min.], [30

min.], [1 hour], and [Off] .

To exit power save, press any button.

The [Power Save] setting can be changed

from the Menu. For more details, refer to

“Menu List” (☞ P.41) and “Learning to Use

the Menu” (☞ P.43).

Power Save Setting

Turning ON the Recorder/Power Save Mode

BACK EXIT

Power Save

5min.

30min.

1hour

Off

10min.

Inserting and Ejecting a SD card

Inserting a SD card

Insert the SD card into the card slot in the

direction shown in the illustration until it

clicks.

This recorder uses a microSD card as its built-

in memory. The microSD card has been

preloaded. Refer to P.63 when removing or

inserting the card during emergencies.

Ejecting a SD card

Push the SD card inward once to unlock it,

and let it eject.

SD Card

Selected

Notes

•Insert the card keeping it straight.

•The card stops with a click when it is inserted all

the way.

•Inserting the card the wrong way or at an angle

could damage the contact area or cause the card

to jam.

•If the card is not inserted all the way, data may not

be written to the card.

•Hold the card straight and pull it out.

•If a unformatted card is installed, the recorder will

automatically display the menu format option (☞ P.64).

•Never use any card in the recorder unless it has been

formatted on this unit (☞ P.64).

•Never remove the card while the recorder is in

operation. This may damage the data.

•Releasing your finger quickly after pushing the card

inward may cause it to eject forcefully out of the slot.

Recorder Card Selection

When inserting SD card into the SD card slot, the

recorder message [Please Wait] will flashes on the

LCD display for few seconds while validating the

SD card.

The recorder recording destination will be the default

location selected from the menu [Card Select] option

when available. In case the default location is not

available, the recorder will automatically change

over to the other card. When SD card selected from

the menu [Card Select] option is ejected from the

recorder, the recorder will automatically change over

the recording destination to the other card.

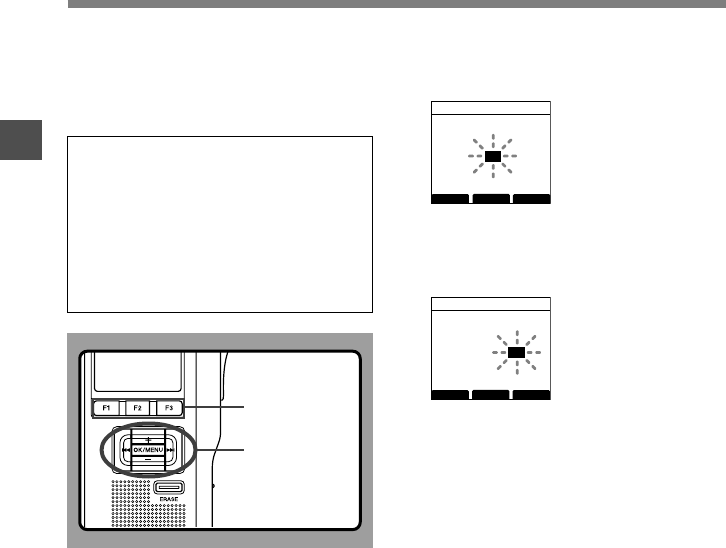

Setting Time and Date (Time & Date)

Setting Time and Date

Setting the correct time and date on the recorder

is very important since every file recorded on the

recorder will have the time and date information

as part of the file header. This will simplify the

file management aspects later on.

The hour indicator will flash automatically

when you load batteries before using the

recorder for the first time, or after the

recorder hasn’t been used for a long time.

However, when a Password or Fingerprint

(DS-5000iD only) has been set as the

device lock function (☞ P.46), the recorder

will go to the time and date set screen after

verification (unlocking).

BACK EXIT

Time & Date

1 M 14 D 2008 Y

5: 00 PM

24H

BACK EXIT

Time & Date

01 M 14 D 2008 Y

5 : 45 PM

24H

F1, F2, F3 button

OK/MENU,+, –,

9, 0

button

Press the 9 or 0 button to select

the item to set.

Select the item from “hour”, “minute”, “year”,

“month” and “day” with a flashing point.

Press the + or – button to set.

Follow the same steps by pressing the 9 or

0 button to select the next item, and press

the + or – button to set.

•You can choose between 12 and 24 hour

display by pressing the F2(24H or 12H)* button

while setting the hour and minute.

Example: 5:45 P.M.

5:45 PM (Initial setting)←→ 17:45

• You can choose the order of the year, month,

day by pressing the F2(D/M/Y or Y/M/D or M/

D/Y)* button while setting them.

Example: January 14, 2008

(Initial setting)

*The display will vary depending on the status of the

settings.

Press the OK/MENU button to

complete the setup screen.

The clock will start from the set date and time.

Press the OK/MENU button according to the time

signal.

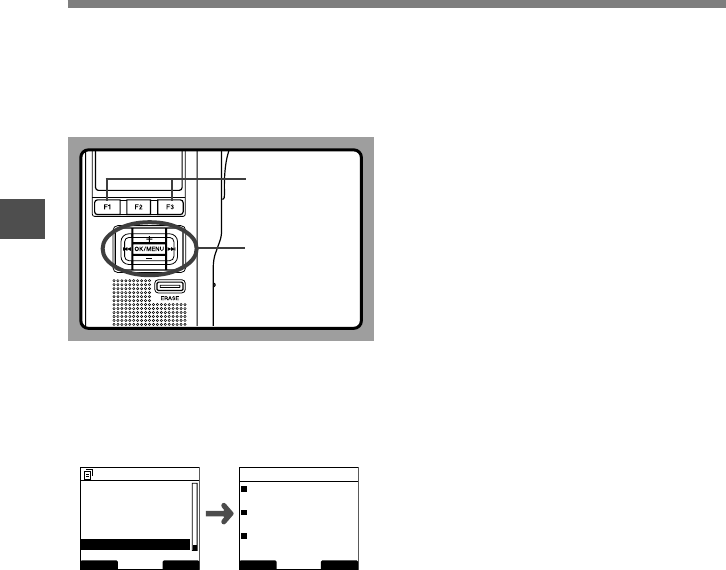

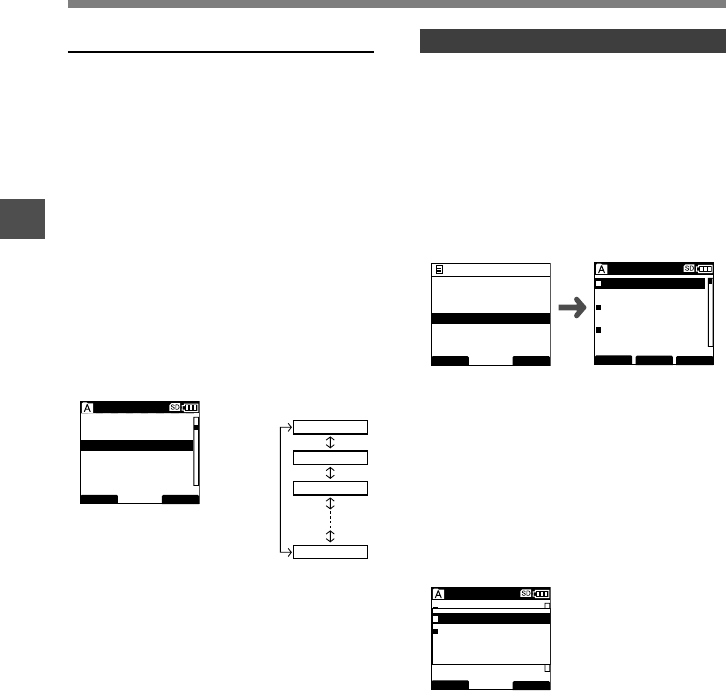

Changing the Time and Date

When the recorder’s POWER switch is turned

ON the [Time & Date] will be displayed for two

seconds. If the time and date is not correct,

set it using the procedure below.

Press the + or – button in the [Device

Menu] screen, then select [Time & Date].

See P.42 regarding the menu.

Press the OK/MENU or 9 button.

The time and date screen appears. The hour

indicator flashes, indicating the start of the time

and date setup process.The following steps are

the same as Step 1 through Step 3 of “Setting

Time and Date (Time & Date)” (☞ P.24).

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

Setting Time and Date

2008

BACK EXIT

Device Menu

USB Class

Time & Date

Power Save

Reset Settings

Card Info.

System Info.

Setting Time and Date (Time & Date)

Notes

•If the slide switch is moved to a position other than STOP

while setting the time and date, the time and date currently

being set (un-finalized time and date) will be cancelled

and it will revert to the previously set time and date.

•You can set the time and date from your PC using DSS

Player software (☞ P.69).

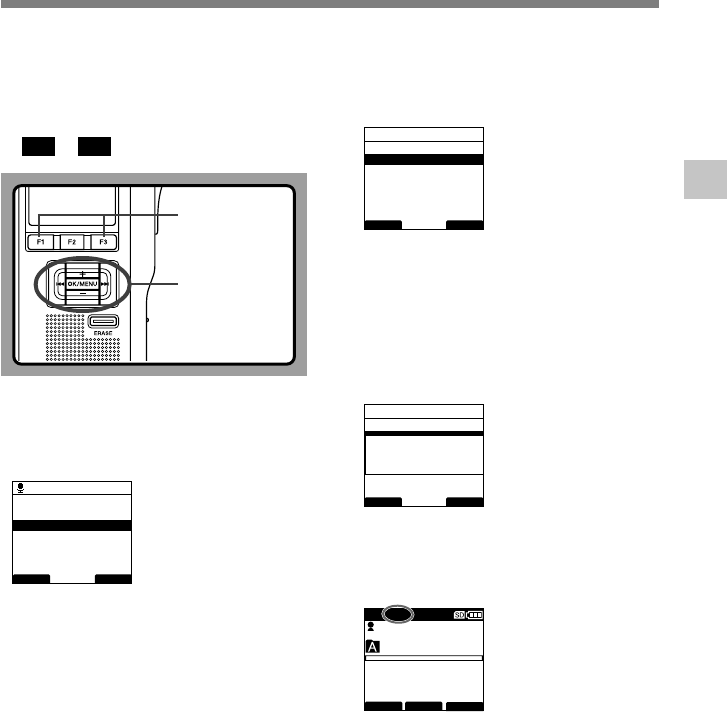

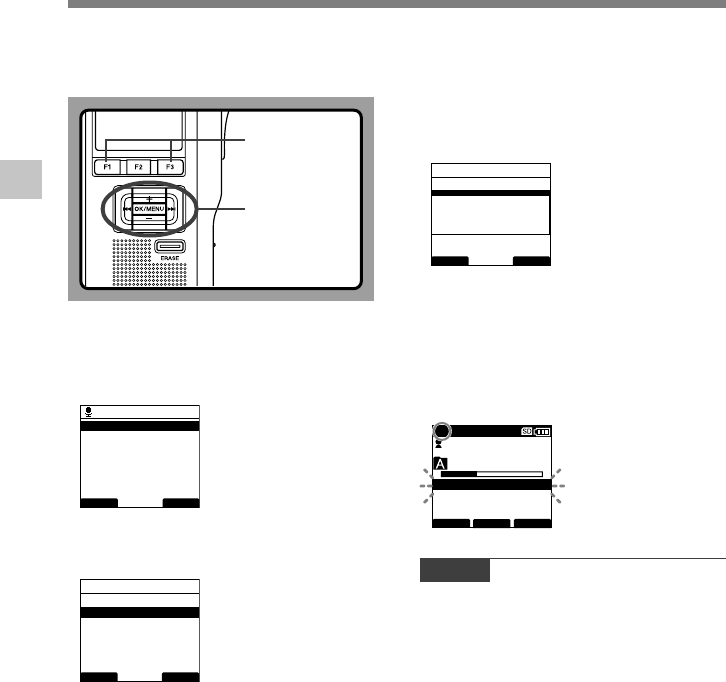

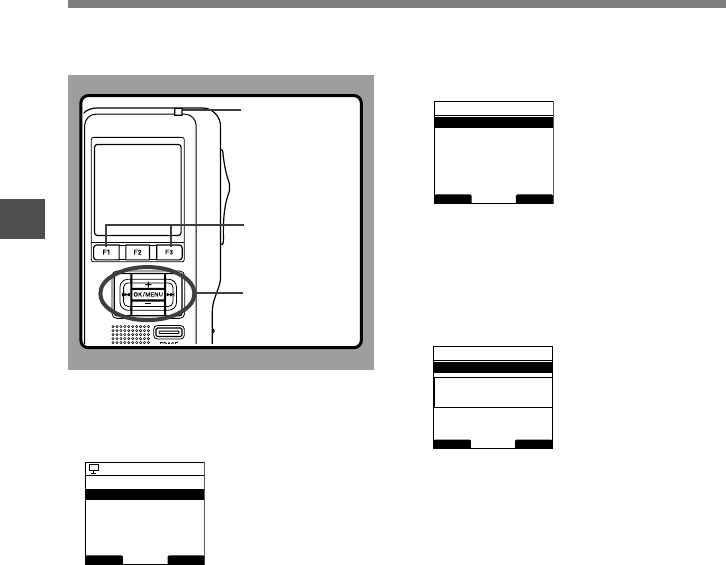

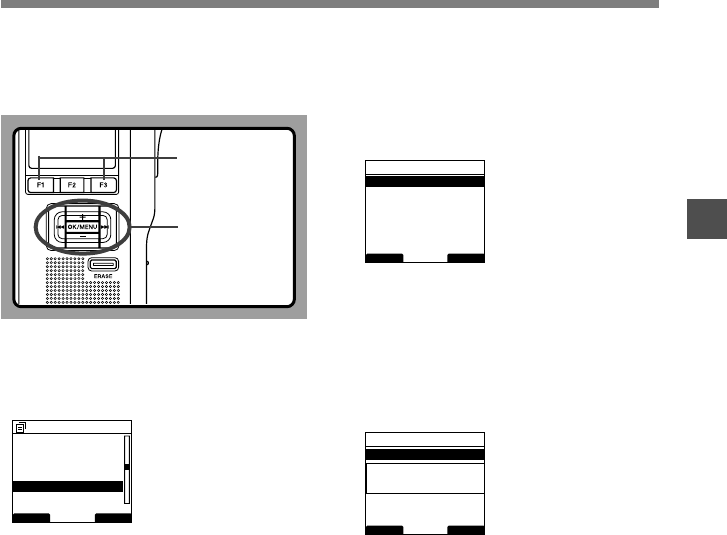

Setting Recording Destination (Card Select)

Setting Recording Destination

By default, the recording destination is set to

the [SD] at the factory. To change the recording

destination, follow the procedure outlined

below.

Select [Card Select] at the [Device Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.42 regarding each menu item settings.

Press the + or – button to select [SD]

or [micro SD].

Press the OK/MENU button to

complete the setup screen.

[SD Card Selected] or [microSD Card Selected]

will light up on the display, and it will return to the

[Device Menu] screen.

If press the 0 or F1(BACK) button the setting

will be cancelled and it will return to the [Device

Menu] screen.

The recording destination ( or ) that was

set will appear on the display.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Device Menu

Fingerprint

Card Select

Beep

Format

USB Class

Time & Date

BACK EXIT

Card Select

microSD Card

Selected

mSD

BACK EXIT

Card Select

micro SD

mSD

F1, F3 button

OK/MENU,+, –,

9, 0

button

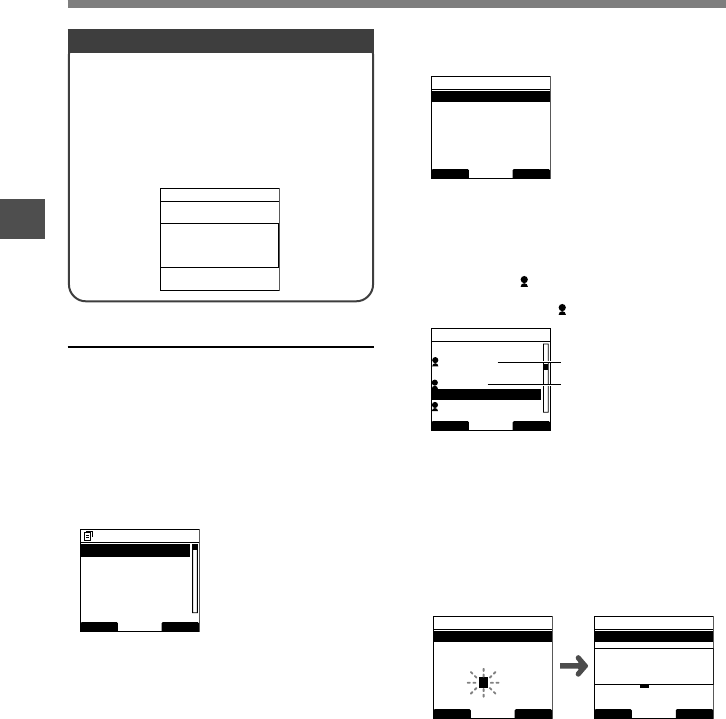

Recording

2 Basic Operations

Recording Related Settings

By default, the recorder has five folders, A,

B, C, D, E and you can select folder by

pressing the F1(FOLDER) button. These

five folders can be selectively used to

distinguish the kind of recording; for

example, Folder A might be used to store

private information, while Folder B might be

dedicated to holding business information.

Up to 200 messages can be recorded per

folder.

Also, by default, the Recording Mode is QP.

Record Function

By default, the RECORD function is configured

to record at the current position (overwrite).

However, that can be changed to any of the

following settings:

•Append: Appends the recording to the end of the

current file (☞ P.28).

•Overwrite: Overwrites the recording starting at the

current position in the file (☞ P.29).

•Insert: Inserts the recording at the current position

in the file (☞ P.30).

Recording related settings can be

configured to provide a suitable recording

environment.

•Microphone Sensitivity (Mic Sense) (☞ P.31)

•Recording Modes (Rec Mode) (☞ P.32)

•Using the Variable Control Voice Actuator

(VCVA) (☞ P.33)

•Hands-free Recording (☞ P.34)

•Recording Monitor (☞ P.34)

•Verbal Comment (☞ P.56)

•Pending Files (Pending) (☞ P.51)

031 / 031

VERBAL DISPLY INDEX

MIKE

QP DICT

00 M 10 s

15 H 2 2 M 3 0 s

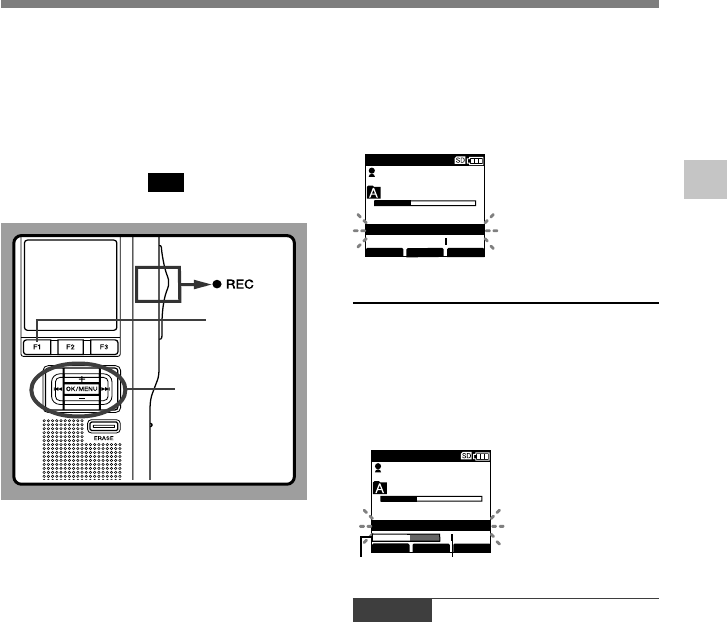

Recording

New Recording

Create a new file to record in.

Press the NEW button to create a new

file.

When [The Worktype List is displayed when a

new file is created.] is set in DSS Player (☞

P.69) you can select the Work Type from the

Work Type list.

aSelected Author ID

bNew file number

cRemaining recording time

Move the slide switch to the REC

position to start recording.

The record/play indicator light glows red.

Aim the microphone at the sound source.

When you press the F2 (DISPLY) button

during recording, you can change the LCD

screen displays.

Move the slide switch to the STOP

position to stop recording.

If you want to append additional recordings to

the same file, move the slide switch to the REC

position again.

031 / 030

FOLDER PRIOR INFO

MIKE

QP DICT

New File

Remain

15 H 22 M 40 s

031 / 031

FOLDER PRIOR INFO

MIKE

QP DICT

02 M 20 s

15 H 0 2 M 2 0 s

Notes

•A beep will sound when the remaining recording time reaches 60 seconds, 30

seconds, and 10 seconds while recording.

•When remaining recording time is less than 60 seconds, the record/play indicator

light starts flashing in red. When the recording time is decreasing to 30 or 10

seconds, the light flashes faster.

•[Memory Full] or [Folder Full] will be displayed when the memory or folder capacity

is full.

- Delete any unnecessary files before recording any further (☞ P.37) or transfer

dictation files to your computer using DSS Player Software (☞ P.69).

- Change the recording destination at [Card select] setting (☞ P.26) or change to a

card with free space.

Overwrite Recording

You can overwrite a previously recorded file from any point within

the file.

Note that the overwritten recordings will be erased.

Select and play the file you want to

overwrite.

Stop playback at the starting point of overwrite.

Move the slide switch to the REC

position to start overwriting.

The record/play indicator light glows red.

aRecording elapsed time

bTotal recording time of the selected file

Move the slide switch to the STOP

position to stop overwriting.

Note

•You cannot select a different recording mode (QP, SP) than that of the original file

before overwrite recording.

Recording

101 / 133

VERBAL DISPLY INDEX

MIKE

QP DICT

10 M 25 s

00H 1 4 M 0 0 s

Recording

134 / 134

EXIT

MIKE

QP DICT VCVA

00 H 00 M 10 s

33 M 2 5 s

Insert Rec?

134 / 134

VERBAL DISPLY INDEX

MIKE

QP DICT

00 M 12s

Insert Rec

134 / 134

VERBAL DISPLY INDEX

MIKE

QP DICT

00 M 11s

4 H 3 3 M 0 6 S

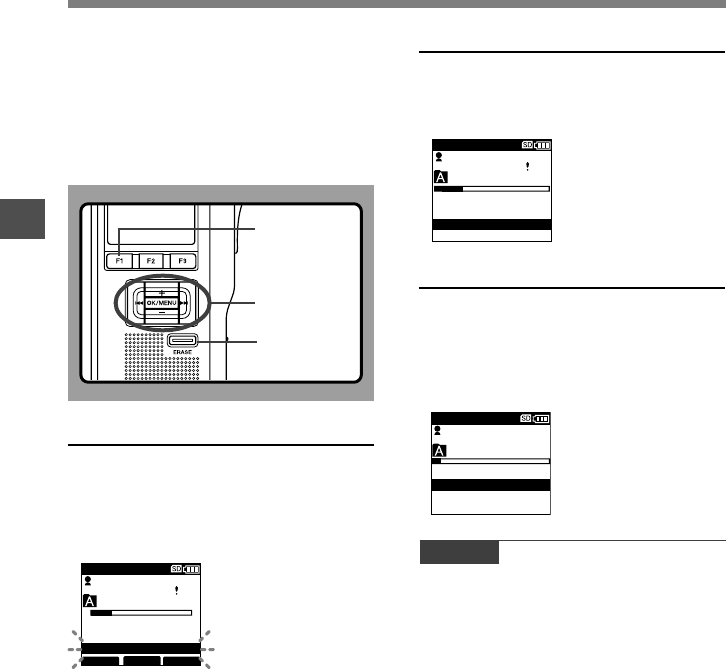

Insert Recording

Additional recording can be inserted into previously recorded file.

Select and play the file you want to

insert an additional recording into.

While playing the file, press the

F1(INSERT) button to insert an

additional recording.

[Insert Rec?] appears on the display.

Move the slide switch to the REC

position to start inserting an additional

recording.

The record/play indicator light glows red.

[Insert Rec] and the remaining recording time will

alternate on the display.

Move the slide switch to the STOP

position to stop inserting the

additional recording.

Notes

•If you place the slide switch in the STOP position for more than two seconds while

moving the slide switch from the PLAY position to the REC position, the Insert

recording will be cancelled.

•The recording time and date of the file is updated to the time and date of the

inserted recording.

•You cannot select a different recording mode (QP, SP) than that of the original file

before inserting.

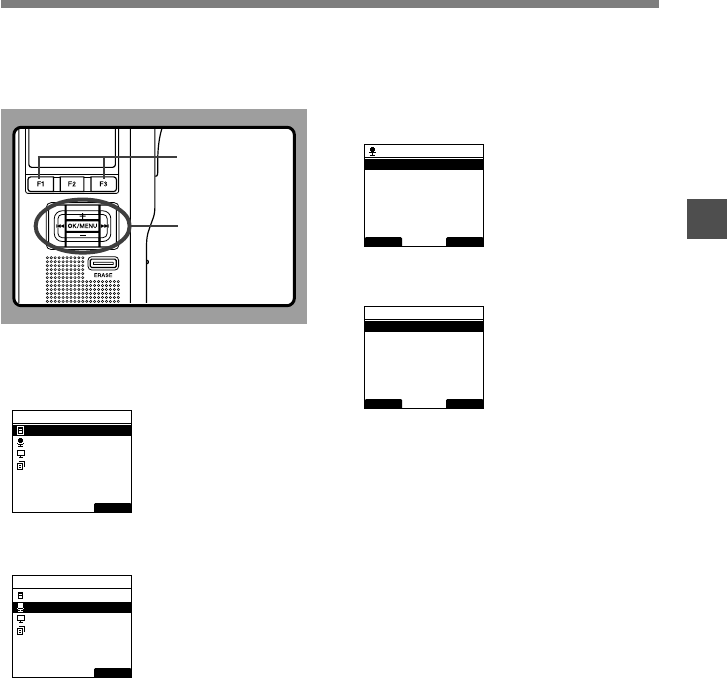

Microphone Sensitivity (Mic Sense)

Microphone Sensitivity

You can switch between two microphone

sensitivities to meet recording needs:

[Dictation] for oral dictation and [Conference]

which is suited for situations like meetings and

conferences with a small number of people.

The setting status will appear on the display

CONF

DICT

F1, F3 button

OK/MENU,+, –,

9, 0 button

Select [Mic Sense] at the [Record Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

Press the + or – button to select

[Conference] or [Dictation].

Conference...High-sensitivity mode that records

sounds in all directions.

Dictation...Low-sensitivity mode suited for

dictation.

Press the OK/MENU button to complete

the setup screen.

[Conference Set] or [Dictation Set] will light up on the

display, and it will return to the [Record Menu] screen.

If press the 0 or F1(BACK) button the setting

will be cancelled and it will return to the [Record

Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Mic Sense

Dictation

Conference

BACK EXIT

Record Menu

Rec Mode

VCVA

Mic Sense

025 / 030

FOLDER PRIOR INFO

MIKE

QP DICT

New File

02 M 10 s

3 H 0 8 M 0 5 s

BACK EXIT

Mic Sense

Conference

Dictation

Set

Dictation

Recording Modes (Rec Mode)

Recording Modes

The recording mode can choose between QP

(Quality Playback) and SP (Standard

Playback).

F1, F3 button

OK/MENU,+, –,

9, 0 button

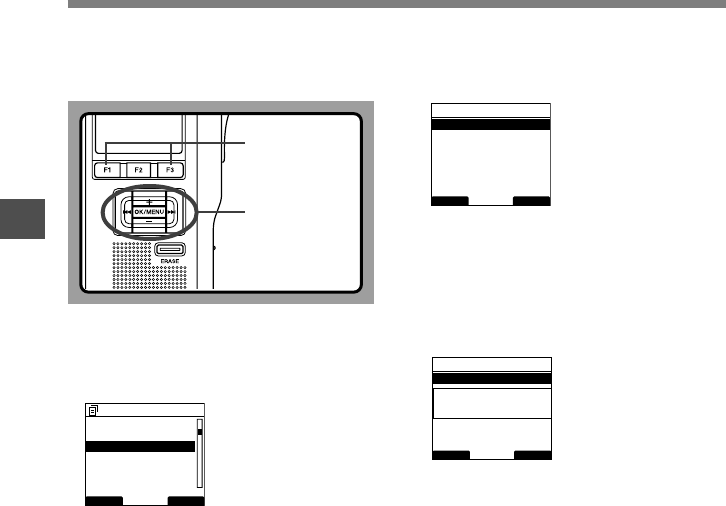

Select [Rec Mode] at the [Record Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

Press the + or – button to select [QP]

or [SP].

Press the OK/MENU button to complete

the setup screen.

[QP Set] or [SP Set] will light up on the display,

and it will return to the [Record Menu] screen.

If press the 0 or F1(BACK) button the setting will

be cancelled and it will return to the [Record Menu].

Pressing the F3(EXIT) button will cancel the contents

being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

Set Recording Mode is displayed when creating

the NEW File and during recording.

The recording mode of file recording is displayed

when during playback and in stop mode.

Note

•You cannot select the QP mode when setting the

recorder to the Classic DSS mode.

For details, see “Dictations Settings” in the “Customizing

the Recorder” (☞P.68).

BACK EXIT

Record Menu

Rec Mode

VCVA

Mic Sense

BACK EXIT

Rec Mode

BACK EXIT

Rec Mode

Set

031 / 030

FOLDER PRIOR INFO

MIKE

SP DICT

New File

Remain

15 H 22 M 40 s

Using the Variable Control Voice Actuator (VCVA)

Using the Variable Control Voice Actuator

The Variable Control Voice Actuator (VCVA) is a

function that starts recording automatically when

the microphone senses that sounds have reached

a preset threshold volume level, and automatically

pauses when the volume drops below the threshold.

The VCVA feature allows you to conserve memory

by automatically stopping recording in instances like

long silent periods during meetings.

When this is enabled,

VCVA

will appear on the

display.

Set the VCVA in the menu to [On].

Refer to P.41 regarding each menu item settings.

Move the slide switch to the REC position to

start recording.

When the sound volume is lower than the preset

actuation sound level, recording automatically

stops after 1 second approximately, and “Stand

by” flashes on the display. The record/play indicator

light glows when recording starts and flashes when

recording pauses.

Adjust the Start/Stop Actuation Level

While the recorder is recording mode, press the

9 or 0 button to adjust the actuation level.

The VCVA level can be set to any of 15 different values.

The higher the value is, the more sensitive the recorder

can react to sounds. At the highest value, even the

faintest sound will activate recording.

The VCVA actuation level can be adjusted according

to the ambient (background) noise.

Notes

•The start/stop actuation level also varies depending on

the selected microphone sensitivity mode (☞P.31).

•To ensure successful recordings, prior testing and

adjustment of the start/stop actuation level is

recommended.

a Start level

(Varies according to

the sound volume

being recorded)

b Level meter

indicator (moves to the

left/right according to

the set level)

F1 button

OK/MENU, 9,

0button

134 /134

VERBAL DISPLY INDEX

MIKE

QP DICT VCVA

Stand by

1 H 25 M 01 s

134 /134

VERBAL DISPLY INDEX

MIKE

QP DICT VCVA

VCVA Level 05

1 H 25 M 02 s

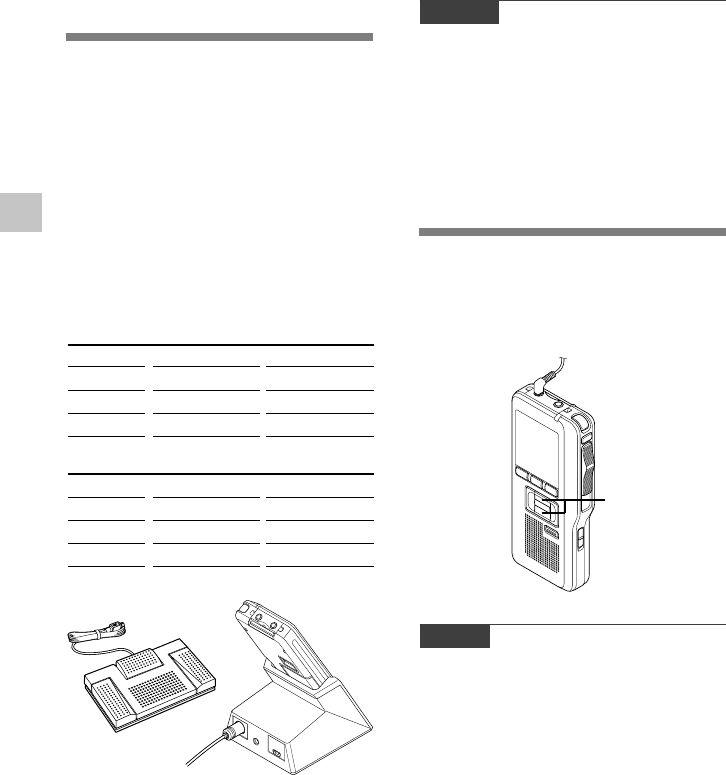

Hands-free Recording

The recorder can be used as a hands-free recording

device. To setup the recorder for hands-free

operation, connect the optional Olympus foot switch

(RS27/28) to the back of the cradle and place the

recorder in the cradle as shown in the diagram below.

You can set Hands-free operation of the

recorder to [Dictation] (default) or

[Transcription] by using the customize

functions of DSS Player (☞P.68) and change

the allocation function to Foot Pedal.

For more details, refer to the online help for

DSS Player (☞P.73).

Recording Monitor

It is possible to monitor your recording by

listening to the recording while recording is in

progress. Insert the earphone plug into the

earphone jack and use the + or – button to

control the volume level.

Notes

•The Olympus foot switch (RS27/28) is sold separately.

•Move the slide switch of the recorder to the STOP

position before connecting it to the cradle for hands-

free recording.

•To record with better quality using the hands-free

recording function, set the microphone sensitivity to

[Conference] mode, or use an external microphone.

Note

•Insert the plugs to the end as shown in the illustration

when inserting the earphone or external microphone.

Hands-free Recording/Recording Monitor

The default settings of the foot switch

functions are as follow (Dictation) :

+ / –

(Volume)

button

RS27

Left

Center

Right

Press and hold

NEW

REC

REV

Release

–

STOP

PLAY

RS28

Left

Center

Right

Press and hold

REW

NEW

REC

Release

PLAY

–

STOP

Playing

You can start playing a file at any point.

Select the file, then move the slide

switch to the PLAY position to start

playback.

The record/play indicator light glows green.

Press the + or – button to adjust the

volume.

The display shows the volume level. You can

choose between 0 to 30.

aVolume level

Move the slide switch to the STOP

position at any point you want to stop

the playback.

101 / 133

INSERT SPEED INDEX

MIKE

QP DICT

00 M 05 s

27 M 5 8 s

101 / 133

INSERT SPEED INDEX

MIKE

QP DICT

00 M 07 s

Volume 15

Playing

Playback

functions

Fast

Forward

(FF)

Rewind

(REW)

Cue

(CUE)

Review

(REV)

Playback

Speed

Operation

Press the 9 button once while stopped.

Press the 0 button once while stopped.

Press and Hold the 9 button while stopped or

playing a file.

Press and Hold the 0 button while stopped or

playing a file.

Move the slide switch to the REV position.

Press the F2 (SPEED) button during playback.

➥Every time the F2(SPEED) button is pressed, the

playback speed will switch.

Play(playback): Playback at normal speed.

Slow Play (slow playback): Playback speed

slows down (-50%), and “Slow play” will turn on.

Fast Play (fast playback): Playback speed

becomes faster (+50%), and “Fast play” will turn on.

How to Cancel

Move the slide switch to a position

other than the STOP position.

➥The recorder starts the operation

of the set position.

Release the button.

Release the slide switch.

Notes

•If you press the 9 button once while fast-forwarding or twice while stopped, the recorder will stop at the end of the file

(F.Skip).

•If you press the 0 button once while rewinding or twice while stopped, the recorder will stop at the beginning of the file

(B.Skip). If the 0 button is pressed within 2 seconds, the recorder skips to the beginning of the previous file.

•If you continue to press and hold the 9 button while Fast Forwarding (FF) the recorder will F.Skip continuously while

the button is held.

•If you continue to press and hold the 0 button while Rewinding (REW) the recorder will B.Skip continuously while the

button is held down.

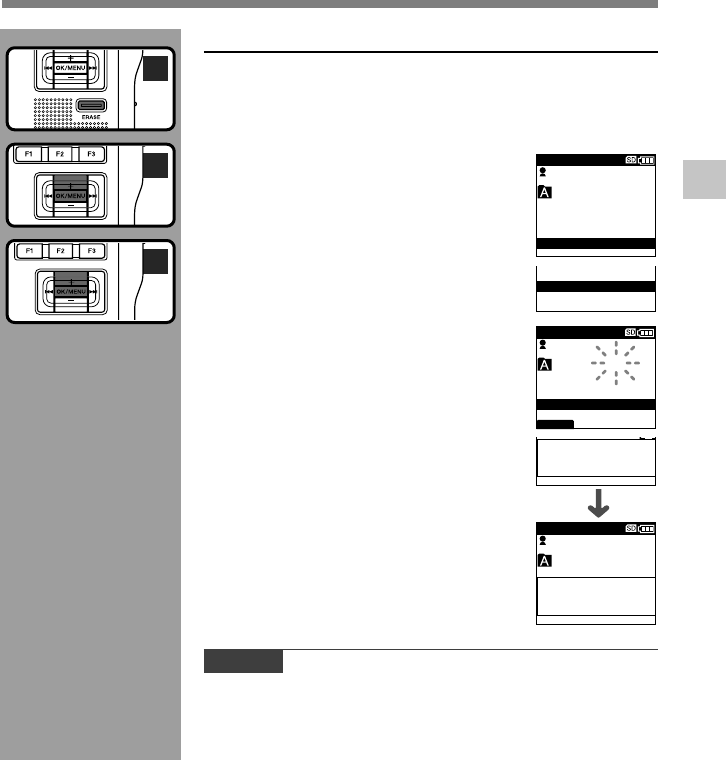

Erasing a File

Erasing or deleting a file from any of the folder on the recorder is a

very simple process.

Select the file you want to erase.

Press the ERASE button.

Press the + button to select [File

Erase], then press the OK/MENU

button.

Press the + button to select [Start],

then press the OK/MENU button.

The display changes to [File Erase !] and

erasing will start.

[Erase Done] is displayed when the file is

erased. File numbers will be reassigned

automatically.

Notes

•An erased file cannot be restored.

•Files cannot be erased in the following cases.

- File being set [Lock] (☞ P.50).

- The SD card lock is turned on while the SD card is selected as the recording

destination (☞ P.12).

Erasing

029 / 031

MIKE

QP DICT

All Erase

File Erase

Cancel

File Erase !

029 / 030

MIKE

QP DICT

Erase Done

029 / 031

BACK

MIKE

QP DICT

File Erase

Start

Cancel

All Erase

File Erase

Cancel

Erasing All Files in a Folder

All files in a folder can be erased simultaneously.

Select the folder you want to erase.

Press the ERASE button.

Press the + button to select [All

Erase], then press the OK/MENU

button.

Press the + button to select [Start],

then press the OK/MENU button.

The display changes to [All Erase !] and erasing

will start.

[Erase Done] is displayed when the files are

erased. Any locked files in the folder will be

reassigned new file numbers in ascending

order.

Notes

•The erasing process may take up to 10 seconds. Do not interrupt this process!

Data will be destroyed.

•Files cannot be erased in the following cases.

- File being set [Lock] (☞ P.50).

- The SD card lock is turned on while the SD card is selected as the recording

destination (☞ P.12).

Erasing

029 / 030

MIKE

QP DICT

All Erase

File Erase

Cancel

All Erase !

000 / 000

MIKE

QP DICT

Erase Done

/ 030

BACK

MIKE

QP DICT

All Erase

Start

Cancel

All Erase

File Erase

Cancel

Erasing

134 / 134

INSERT SPEED INDEX

MIKE

QP DICT

45 M 02 s

01 H 5 5 M 2 5 s

EXIT

01H 5 5 M 2 3 s

Partial Erase

134 / 134

EXIT

MIKE

QP DICT

05 M 01 s

Partial Erase

Start

134 / 134

EXIT

MIKE

QP DICT

45 M 32 s

Partial Erase

End

Erasing

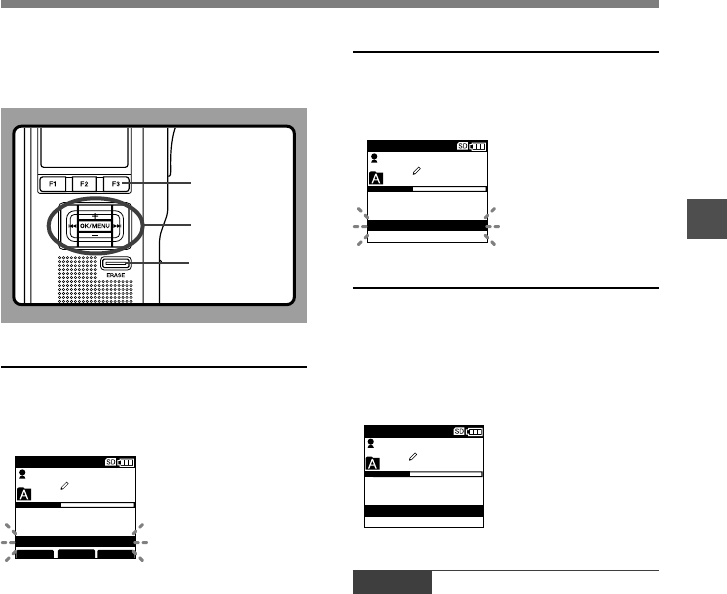

Partially Erasing a File

You can erase a selected file in part.

Start playback the file you want to

erase partially.

Press the ERASE button at the point to

start erasing.

While playback continues, [Partial Erase] will

appear on the display.

Press the ERASE button at the point

to end erasing.

The erase starting point (time) set in step 2 and

the ending point (time) set in this step will

alternate on the display for 8 seconds.

If you playback to the end of file or to the start

position of the Verbal comment (☞ P.56), that

will mark the end position for the partial erase

automatically.

Press the ERASE button to confirm

erase.

The display changes to [Partial Erase!] and

erasing will start.

When [Erase Done] appears on the display,

partial erase is complete.

Notes

•If the ERASE button is not pressed within 8 seconds after the “Partial Erase Start”

and “Partial Erase End” are alternately displayed, the recorder will revert to stop

status.

•An erased file cannot be restored.

•Files cannot be Partial erased in the following cases.

- File being set [Lock] (☞ P.50).

- Files that Verbal comment is being played back (☞ P.56).

- The SD card lock is turned on while the SD card is selected as the recording

destination (☞ P.12).

Erasing

134 / 134

MIKE

QP DICT

1 H 20 M 35 s

Partial Erase !

134 / 134

MIKE

QP DICT

1 H 20 M 35 s

Erase Done

Menu List

Display

Lock

Priority

Work Type

Rec Mode

VCVA

Mic Sense

Backlight

LED

Contrast

Language

Finished, Pending

Off, On

Dictation, Conference

QP, SP

Off, On

Cancel, Set

On, Off

Program contrast level 1~12 (Default is 6).

●Menu Setting (while the recorder is stopped, press the OK/MENU button)

P.51

P.50

P.52

P.53

P.32

P.33

Second layer Setting

Pending

Ref.Page

P.58

P.61

P.60

P.59

P.31

3 Advanced Operations

Main Menu

File Menu

Record

Device Menu

(To the next page)

English, Deutsch, Français, Español,

Italiano, Русском

Edit the Work Type and Option Item.

Menu List

Fingerprint

Card Select

Beep

Format

USB Class

Time & Date

Power Save

Reset Settings

Card Info.

Enroll, Verify

SD, microSD

Initializes the card (SD/microSD).

Composite, Storage

On, Off

Model Name, Version, Serial

In order of hour, minute, year, month and

day.

In order of 5min., 10min., 30min., 1hour

and Off.

Returns the menu settings to their initial

state.

Device

P.48

P.26

P.62

P.64

P.67

P.24

P.22

P.65

P.13

Second layer Setting

SD(Remain, Capacity), microSD(Remain,

Capacity)

P.66

Notes

•The selectable language varies depending on the countries where the product was purchased.

•[Fingerprint] is a menu item for the DS-5000iD only (it will not appear on the DS-5000).

•Items appear in bold letters in the “Setting” column to indicate that they are the initial settings.

System Info.

Ref.PageMain Menu

File Menu

(To the page 41)

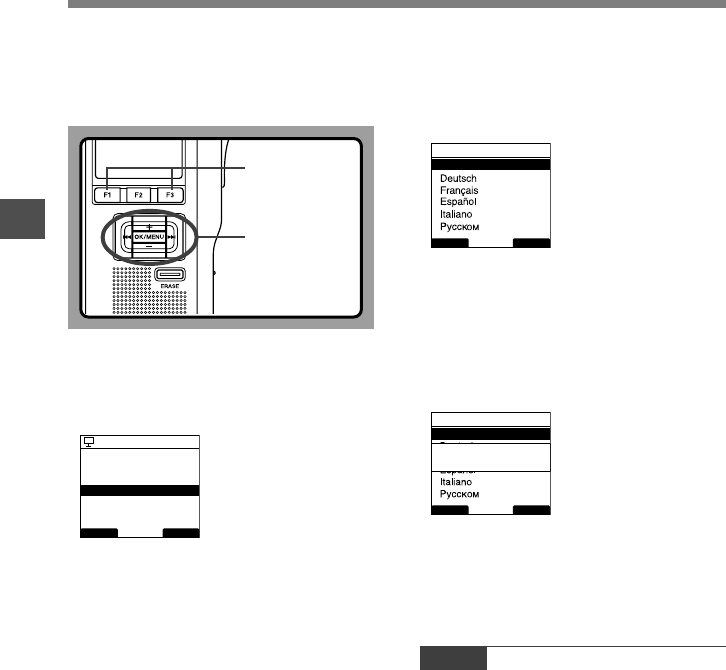

Press the OK/MENU button.

The [Main Menu] screen will appear on the

display (☞ P.41).

Press the + or – button to move to

[Main Menu] item to be set.

Learning to Use the Menu

EXIT

Main Menu

File Menu

Display Menu

Device Menu

Record Menu

BACK EXIT

Record Menu

Rec Mode

Mic Sense

VCVA

EXIT

Main Menu

File Menu

Display Menu

Device Menu

Record Menu

BACK EXIT

Rec Mode

F1, F3 button

OK/MENU,+, –,

9, 0 button

To navigate through the different options in the

Menu, use the Menu List flow chart (☞

P.41,42) and the following steps to modify or

change any settings.

Press the OK/MENU or 9 button.

Move to the setting of the selected menu items.

Press the + or – button to move to the

menu item to be set.

Press the OK/MENU or 9 button.

Move to the setting of the selected item.

Press the + or – button to change the

setting.

Press the OK/MENU button to complete

the setup screen.

If press the 0 or F1(BACK) button, the setting

will be cancelled and it will return to the menu.

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

Selecting Folders and Files

The scroll bar will appear when all of

the items cannot be displayed in the

menu or list display screen.

Scroll bar

FOLDER

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

Folder F

EXIT

Selecting Folders and Files

Changing Folders

While the recorder is stopped, press the

F1(FOLDER) button.

The folder list screen will be displayed.

Press the + or – button to select the

folder, then press the OK/MENU button.

This will change the folder.

You can switch folders by pressing the

F1(FOLDER) button.

FOLDER

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

EXIT

FOLDER

QP DICT

Folder A

Folder B

Folder C

Folder D

Folder E

EXIT

001 / 010

FOLDER PRIOR INFO

MIKE

QP DICT VCVA

00M 00 s

05 M 0 0 s

Changing File

While the file is being displayed, press

the 9 or 0 button.

This will change and display the file number order

for files within the folder.

F1 button

OK/MENU,+, –

button

aCurrent file number

bTotal number of

recorded files in the

folder

Select the file whose information you

want to display.

Refer to P.44 regarding file selection.

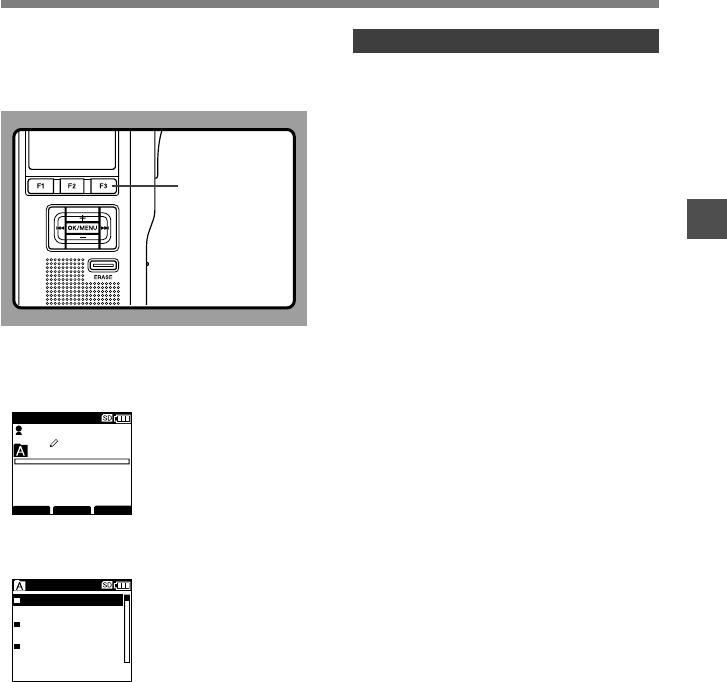

Press the F3(INFO) button.

The file information is displayed.

Displaying File Information

The recorder can display a variety of

information related to the current file.

It is also possible to go to the Work Type and

Option Item edit screen.

029 / 030

FOLDER PRIOR INFO

MIKE

QP DICT

00M 00 s

22 M 4 0 s

029/030

File Name

DS5000006.DS2

12M23D2008Y 12:23

Author ID

Rec Time

MIKE

F3 button

The Displayed Information

The following information will be displayed.

[File Name]...File name

[Rec Time]...Time and date the file was

recorded.

[Author ID]...Display the Author ID of file.

[Work Type]...Displays the Work Type ID of file.

[Option Item]...Displays the Option Item which

has been set.

Displaying File Information

Device Lock Function

Unlocking the Recorder

When the password registry and/or fingerprint

registry is done, the recorder will prompt for

password and/or fingerprint verifications (DS-

5000iD only) on startup.

Unlock the recorder’s device lock through the

method below.

The default password when using the recorder

for the first time is “0000”.

Recorder access can be restricted by enabling the

device lock function. Authentication via password

and/or fingerprint verification (DS-5000iD only) can

act as a safe guard for your data even in case the

recorder is lost or left unattended.

Fingerprint registry (☞ P.47) is performed by

the recorder, while password registry can be

performed by using DSS Player (☞ P.69).

DS-5000iDDS-5000

Unlocking the Recorder with a

Password

Select the numbers you want to enter

by pressing the +, –, 9 or 0 button

to move the cursor.

Press the OK/MENU button to select a

number.

A * will appear in the selected first digit and the

blinking cursor will move to the next one over (to

the right). Repeat steps 1 and 2 to enter all four

digits.

Pressing the ERASE button at any time will erase

the last entry and move the cursor to the previous

entry (to the left).

After all four digits have been entered,

press the F2(ENTER) button.

If the 4 digit number entered matches the

registered password then the startup message

will appear and the recorder will start up.

Entry column

Cursor

Device Lock Function

Unlock Device

Enter Password

Unlock Device

Enter Password

or Sweep Finger

Unlock Device

Enter Password

or Sweep Finger

Unlock Device

Enter Password

or Sweep Finger

Unlock Device

Enter Password

ENTER

or Sweep Finger

F2 button

OK/MENU,+, –,

9, 0

button

Device Lock Function

Press your

finger firmly at

the fingerprint

sensor, and slide

it at a constant

speed.

Unlocking the Recorder Via Fingerprint

Verification (Only DS-5000iD)

Slide the finger to be scanned for

verification over the scanner window on the

back side of the recorder in one sweeping

motion from top down as shown in the

illustration.

If [NG! Sweep Finger Again] is displayed, re-scan

your finger or a different registered finger again. If

there is no fingerprint match after 10 tries [Incorrect

Fingerprint Enter Password] will be displayed and it

is not possible to authenticate via fingerprint

verification.

Device Lock Function

In case the fingerprint may not be scanned correctly,

press your finger firmly against the sensor and sweep it.

How to Scan the Fingerprint

•Place your finger as shown in the diagram

and start scanning from a state where the

first joint of your finger is touched to the

fingerprint sensor.

•Pressing the finger securely, and slide from

the first joint of your finger to fingertip properly

on the sensor in direction of the arrow

approximately 1 second at a constant speed.

•Slide straight the finger to the center of the

fingerprint sensor without winding.

•While sliding, do not move the finger away

from the sensor.

Notes

The register and verification of the fingerprint may

have difficulties in below cases.

•The state of finger is as follows:

➥Using the other registered finger or after washing the

hand, it may improve.

- When the finger is dry.

- When the finger got swollen such as just after taking a bath.

- When the finger is either sweaty and greasy or wet.

- When the finger has a rough skin or is injured..

- When the finger is dirty.

- When the fingerprint is light and wrinkly.

•When the direct sunlight or strong light gets to the

fingerprint sensor.

•When the fingerprint sensor is dirty.

➥Wipe off with a soft cloth etc.

Device Lock Function

Unlock Device

Enter Password

Device is

Locked

09 : 59

Authentication Halt Mode

If there is no password match after five

tries the recorder will enter password

input halt mode for ten minutes.

After ten minutes have passed the

mismatch history will be erased and it

will once again return to the password

input screen.

Fingerprint Registration (Fingerprint)

Fingerprint registration is performed on the

recorder. By selecting an Author ID from the

Author list (☞ P.53) and then registering your

fingerprint, you can associate it to your Author ID.

You can register up to 10 fingerprint data.

Select [Fingerprint] at the [Device Menu]

screen, then press the OK/MENU or

9 button.

BACK EXIT

Device Menu

Fingerprint

Card Select

Beep

Format

USB Class

Time & Date

BACK EXIT

Fingerprint

Enroll

Verify

Press + or – button to select [Enroll],

then press the OK/MENU or 9 button.

Press the + or – button to select a

registration number, then press the OK/

MENU or 9 button.

When making a new registration, select a

registration number that has not already been

registered ( does not appear). When re-

registering a fingerprint, select the previously

registered number ( does appear).

a Connection with

Author ID

b No connection with

Author ID

When re-registering, the re-registration confirmation

screen will appear and you can select [Yes] to

continue with registration.

Recognizing your fingerprint (☞ P.47).

[OK] will appear when the fingerprint is recognized

correctly.

When the fingerprint data is recognized 3 times,

[Completed] appears and the fingerprint data is

registered.

BACK EXIT

Fingerprint

Data1

JONATHAN

Data3

Data2

DS5000ID

_ _ _ _

BACK EXIT

Fingerprint

Data3 Enroll

Sweep

Your Finger

1 / 3 3 / 3

BACK EXIT

Fingerprint

Data3 Enroll

Erasing Fingerprint Data

Select the registration number you want

to erase, then press the ERASE button.

The method for Step 1 on P.48 will appear on the

registration number list screen.

Press the + or – to select [Yes], then

press the OK/MENU button.

The erasing of the selected registration data

will be completed.

Fingerprint

Data1

Jonathan

Data5

Yes

Clear Data3 ?

Fingerprint

Data1

Jonathan

Data4

Data5

Data3 Cleared

Device Lock Function

Verifying the Registered Fingerprint Data

Select [Fingerprint] at the [Device Menu]

screen, then press the OK/MENU or

9 button.

Press the + or – to button select

[Verify], then press the OK/MENU

button.

Recognizing your fingerprint (☞ P.47).

If your fingerprint data matches, [Fingerprint

Accepted] will be displayed and the matching

registration number will appear. In cases where

there is a connection with an author, the Author

ID will appear. If the fingerprint does not match,

then [Incorrect Fingerprint] will appear and then

it will return to the fingerprint scanning screen.

a Verified registration

number

b Related Author ID

When the below error message appeared, scan

again while referring “How to Scan the

Fingerprint” (☞P.47) carefully.

[Sweep Error Sweep your finger again]...Displays

when the fingerprint is not recognized correctly.

[Sweep Error Sweep your finger with

care]...Displays when the recognized fingerprint

data does not match.

Note

•Fingerprint registration and verification in this recorder

cannot guarantee the entire security.

We are not responsible for any damage or loss for use

of fingerprint registration and verification of this recorder

or even if you cannot use this function.

Device Lock Function

BACK EXIT

Fingerprint

Your Finger

Fingerprint

Accepted

Data1

JONATHAN

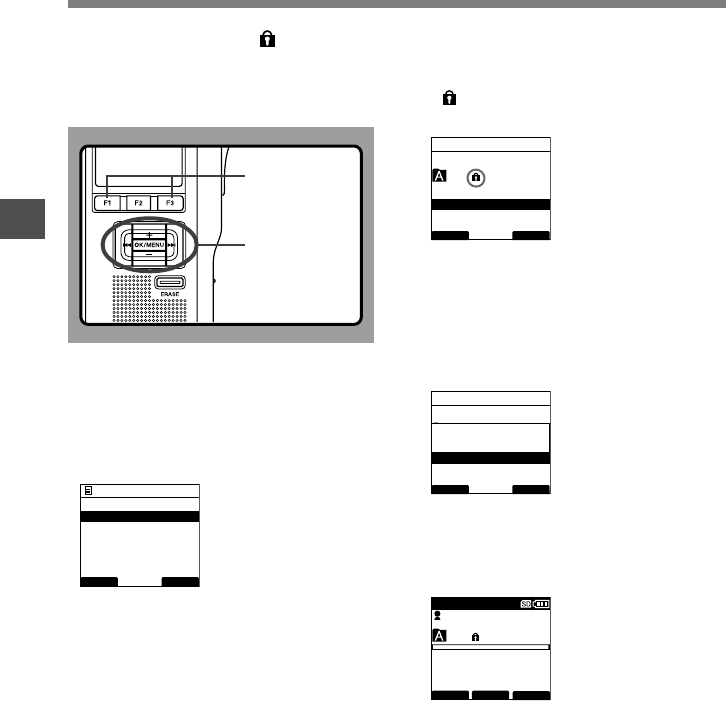

Locking Files (Lock)

When a file is set to [Lock], will appear on

the display, allowing you to prevent important

files from accidental erase. Moreover, the file

will not be erased even when all files within a

folder are erased.

Select the file you want to Lock.

Select [Lock] at the [File Menu] screen, then

press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Locking Files

Press the + or – button to select [On]

or [Off].

On...Locks the file and prevents it from

being erased.

appears on the display.

Off...Unlocks the file and allows it to be erased.

Press the OK/MENU button to complete

the setup screen.

[File Lock ON] or [File Lock OFF] will light up on the

display, and it will return to the [File Menu] screen.

If press the 0 or F1(BACK) button the setting will

be cancelled and it will return to the [File Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

F1, F3 button

OK/MENU,+, –,

9, 0button

BACK EXIT

File Menu

Pending

Lock

Priority

Work Type

029 / 030

BACK EXIT

Lock

OnC

Off

029 / 030

BACK EXIT

Lock

OnC

Off

File Lock

029 / 030

FOLDER PRIOR INFO

MIKE

QP CONF

New File

02 M 10 s

3 H 0 8 M 0 5 s

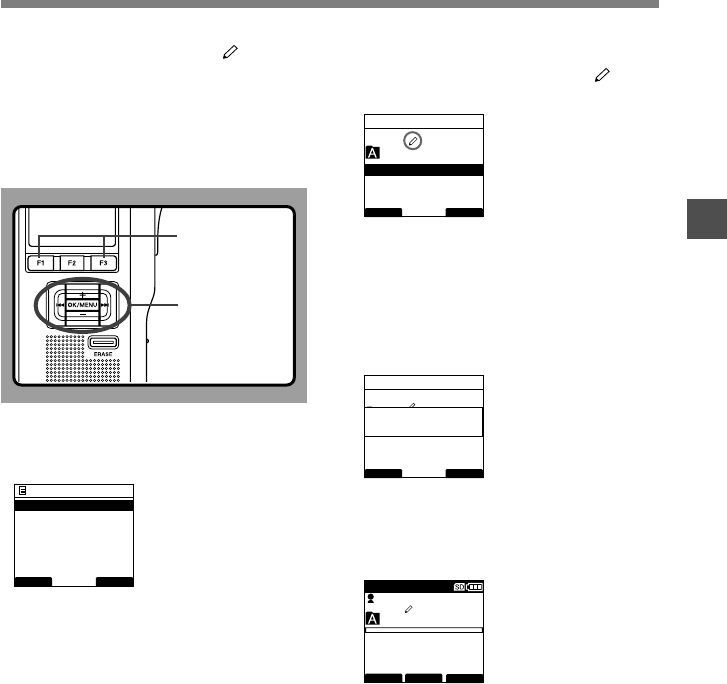

Pending Files (Pending)

When you set [Pending] to the file, the file becomes

“Pending file” and the editing sign of will appear

on the display. If “Download file” is set to “Finished

file” by DSS Player, the [Pending] file is not

transferred and only [Finished] file (edited file) will

be transferred to your PC.

For details, see “Dictation settings” in the

“Customizing the Recorder” (☞ P.68).

Select [Pending] at the [File Menu] screen,

then press the OK/MENU or 9 button.

Refer to P.41 regarding each menu item settings.

Press the + or – button to select

[Pending] or [Finished].

Pending...Sets to a file of “Editing” and appears

on the display.

Finished...Sets to a file of “already edited”.

Press the OK/MENU button to complete

the setup screen.

[Pending Set] or [Finished Set] will light up on the

display, and it will return to the [File Menu] screen.

If press the 0 or F1(BACK) button the setting will

be cancelled and it will return to the [File Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

Pending Files

F1, F3 button

BACK EXIT

File Menu

Pending

Lock

Priority

Work Type

029 / 030

BACK EXIT

Pending

Finished

029 / 030

BACK EXIT

Pending

Set

Pending

Finished

029 / 030

FOLDER PRIOR INFO

MIKE

QP CONF

New File

02 M 10 s

3 H 0 8 M 0 5 s

OK/MENU,+, –,

9, 0button

Performing the Setting from the Menu

Select the file which you would like to

set the Priority level for.

Select [Priority] at the [File Menu]

screen, then press the OK/MENU or

9 button.

Press the + or – button to select [Set]

or [Cancel], then press the OK/MENU

button.

[Set]...High Level.

[Cancel]...Normal Level.

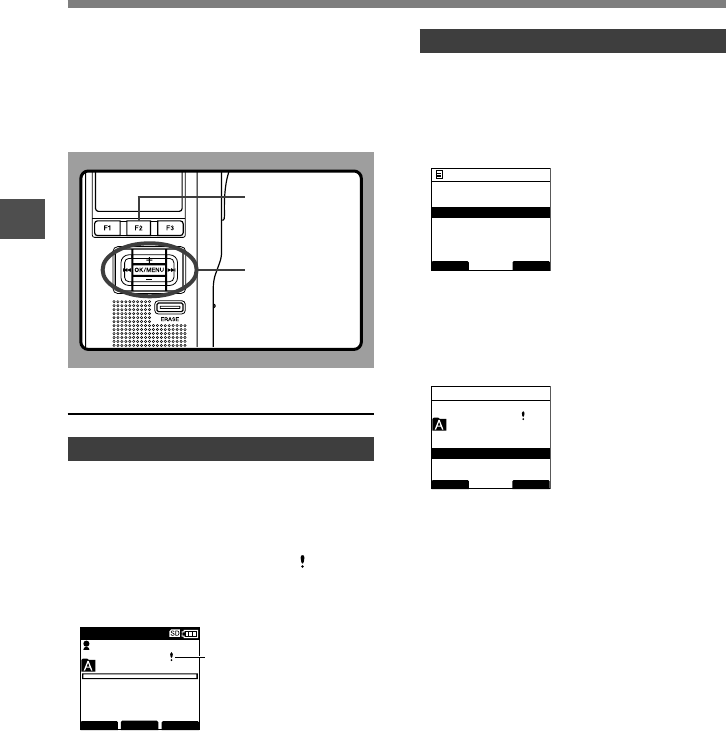

Setting Priority Levels (Priority)

Setting Priority Levels

029 / 030

FOLDER PRIOR INFO

MIKE

QP DICT

0 H 00M 00 s

15 H 2 2 M 4 0 s

BACK EXIT

File Menu

Pending

Lock

Priority

Work Type

029 / 030

BACK EXIT

Priority

Set

Cancel

F2 button

OK/MENU,+, –,

9 button

a Priority indicator

By default, F2 button is programmed with

Priority function. The setting can also be

performed from the menu.

You can set a priority level on each file

recorded. You can choose between “HIGH”

and “NORMAL” The default is Normal level.

To Set a Priority Level on a File

To Set the F2(PRIOR) Button

Select the file you want to perform the

setting on, then press the F2(PRIOR)

button.

Each time the F2(PRIOR) button is pressed the

Priority level will change (HIGH/NORMAL). When

the HIGH level setting is selected, will appear

on the display.

Perform the setting in the same manner after

creating a NEW file.

Setting the Author ID and Work Type

Every file recorded on the recorder will include

the Author ID and Work Type as part of its

header information. To create multiple Author

IDs and Work Types on the recorder, use the

bundled DSS Player software to create and

upload a Data list (list of Author IDs and Work

Types) to the recorder. For more details, refer

to the online help for DSS Player (☞ P.73).

By default the Author ID is set to “DS5000”.

Setting an Author ID

Turn ON the recorder.

When [The Author List is displayed when the

power is on.] has been set through DSS Player

(☞P.69), the registered Author ID List will appear.

Press the + or – button to select the

Author ID that you want to assign to the

recorder from the ID list.

Press the OK/MENU button to set the

ID.

When more than one Author ID exist on the

recorder, the ID list will be displayed.

ID 1

ID 2

ID 3

ID10

Author List

EXIT

Author ID

AUTHOR A

AUTHOR B

AUTHOR D

AUTHOR E

AUTHOR F

AUTHOR C

F1,F2,F3

button

OK/MENU,+, –,

9, 0

button

Note

•Up to 10 Author ID entries can be registered (up to a

maximum of 16 characters).

Setting the Author ID and Work Type

Setting the Work Type

Up to 10 Work Types can be registered in the

DSS Player software and uploaded to the

recorder. Each Work Type can have up to 10

Option Items associated with it. The Work

Types and Option Items can be used on the

recorder to populate the recording file header

information.Refer to the online help for DSS

Player (☞ P.73) regarding registration/set up

details and Option Item through DSS Player.

While the recorder is stopping mode,

press the NEW button.

When [The Worktype List is displayed when a new

file is created.] has been set through DSS Player

(☞ P.69), the Work Types uploaded to the

recorder will appear in a list.

Press the + or – button to select a Work

Type from the Work Type list.

Press the OK/MENU button to select

the Work Type.

The selected Work Type and a maximum of 10

Option Items registered for that Work Type will

be recorded in the New File header information.

When the item of Option Item Label within the

selected Work Type is possible to set for Value

input, it will take you to the file information input

screen (☞ P.55). For more details, refer to the

online help for DSS Player (☞ P.73).

Editing the Work Type

The Work Type information of the recorded or

uploaded files can be edited with the menu

settings of the recorder (☞ P.41)

Select the file you want to edit its Work

Type information (☞ P.45).

Select [Work Type] at the [File Menu]

screen, then press the OK/MENU or

9 button.

The Work Type setting screen will appear.

Press the F2(EDIT) button.

The modification method confirmation screen will

appear.

Press the + or – button to select [Edit

Work Type] or [Select From Work Type

List], then press the OK/MENU button.

Edit Work Type...This will take you to the file

information input screen (☞ P.55) and allow you

to modify the Work Type information that has been

recorded for the file.

Select from Work Type List...You can re-select

Work Type from the Work Type list.

Setting the Author ID and Work Type

Work Type List

Type 1

Type 2

Type 3

Type 10

SCAN EXIT

029/030

Work Type1

Work Type2

Work Type4

Work Type5

Work Type6

Work Type3

BACK EXIT

File Menu

Pending

Lock

Priority

Work Type

EDIT EXIT

029/030

Work Type

Letter

Reference No

Subject

BACK

EXIT

029/030

Work Type

MRI

12345678901234

DEP

BACK

Select From

Work Type List

Edit Work Type

Inputting Option Item Value

Press the + or – button on the file

information input screen to select the

targeting Option Item, then press the

OK/MENU button.

The input screen will be displayed.

When inputting an Option Item value into a new

file or the file with a re-selected Work Type, only

eligible input characters as specified in the DSS

Player can be entered.

Entering characters.

Enter characters through the following method.

● Character selection

+, –, 0, 9 button... Select the character

string (numbers, alphabets or symbols) displayed

in the Keyboard window to move the cursor up,

down, left and right by pressing.

● Character confirmation

OK/MENU button... Use this button to confirm

your selection.

● Moving the entry column

When pressing the + button if the cursor is on top

of the Keyboard window, the cursor will disappear.

An Entry column within the input value display area

will change from flashing to lighting. The Entry

column can be moved when it is lit.

9 button... Each press of the button moves the

Entry column one space to the next (right). The

Entry column can be moved up to the space next

(right) to the last character.

0 button... Each press of the button moves the

Entry column one space to the previous (left). The

Entry column can be moved up to the first character.

Setting the Author ID and Work Type

– button...The Entry column changes from

lighting to flashing. The cursor is lit on the “0”

string within the keyboard Window, and makes

character selection available.

Entry is performed by insert entry. When the

character in the Entry column has already been

finalized, the character after the cursor will move

one column to the right.

● Maximum entered character count

The Option item value can be entered up to the

number of characters specified below. Preset

default values can also be set for the option items

to simplify data entry process.

Option Item Value... 20 characters

● Cancelling the entered contents

Press the F1(BACK) button to select [YES],

then press the OK/MENU button during

entry...This will erase the entered contents for

this item and return you to the File information

input screen.

Press the F3(EXIT) button to select [YES], then

press the OK/MENU button during entry... This

will erase all of the finalized contents for the items,

and the recorder will return to stopped state in the

New file or the state before entering Menu settings.

Press the F2(FINISH) button.

While creating a New File, selected Option Item

Value input appears at the bottom of Option Item

Value.

When the F2 (FINISH) button is pressed, it will

take you to the stopped state in the New File.

Input value display area

b Keyboard window

c Entry column

d Cursor

Setting the Author ID and Work Type

SCAN FINISH EXIT

029/030

Work Type

Letter

Reference No

Subject

012

File information

input screen

Option Item value

input screen

FINISH EXIT

BACK

Reference No

FINISH EXIT

0123456789#,-&

BACK

Reference No

OPQRSTUVWXZ_@

ABCDEFGHIJKLMN

Locating a Verbal Comment

While playing back a file, press and hold

the 9 or 0 button.

The recorder stops for 1 second when it reaches

the Verbal Comment.

Clearing an Verbal Comment

While playing a Verbal Comment, press

the ERASE button.

Press the + button to select [Clear],

then press the OK/MENU button.

The Verbal Comment is erased.

Verbal Comment

029 / 030

VERBAL DISPLY INDEX

MIKE

QP DICT

10 M 56 s

Verbal Comment

2 2 M 4 0 s

029 / 030

MIKE

QP DICT

10 M 56 s

Verbal Comment

2 2 M 4 0 s

029 / 030

MIKE

QP DICT

Verbal Comment

Cancel

Clear

F1 button

OK/MENU, +,

9, 0

button

Notes

•Up to 32 Verbal Comment can be set in a file.

•When a file is locked or set to read-only, or when the

SD card lock is enabled Verbal Comment cannot be

erased. Clear the settings before erasing.

•When the recorder has been set to Classic DSS mode

Verbal comments cannot be recorded.

For details, see “Dictation settings” in the “Customizing

the Recorder” (☞ P.68).

Verbal Comment

The data recorded with the F1(VERBAL)

button being pressed during recording, is

recorded as a Verbal comment position (a

position within a file) in the header.

It is possible to instantly search and play back

Verbal comment sections through DSS Player,

thereby making it useful for things like giving

instructions to transcriptionists.

Setting a Verbal Comment

While the recorder is recording mode,

press and hold the F1(VERBAL) button,

then release it when you want to stop.

Audio recorded while continuing to hold the

F1(VERBAL) button will be recorded as Verbal

Comment.

ERASE

button

Index Marks

Index marks can be placed in a file during

recording or playback. Index marks are used

to provide a quick and easy way to identify

important or significant parts within the file.

Setting an Index Mark

While the recorder is recording or playing

back mode, press the F3(INDEX) button

to set an index mark.

An index number appears on the display.

Locating an Index Mark

While playing back a file, press and hold

the 9 or 0 button.

The recorder stops for 1 second when it reaches

the index mark.

Clearing an Index Mark

Locate the index mark you want to clear.

While the index number appears for

approximately 2 seconds on the display,

press the ERASE button

The index mark is erased.

Index Marks

F3 button

9, 0

button

ERASE

button

029 / 030

INSERT SPEED INDEX

MIKE

QP DICT

3H 10 M 56 s

22M 4 0 s

Index 01 Set

029 / 030

MIKE

QP DICT

3H 10 M 56 s

2 2 M 4 0 s

Index 01 Clear

029 / 030

INDEX

MIKE

QP DICT

3H 10 M 56 s

22M 4 0 s

Index 01

Notes

•Up to 32 indexmark can be set in a file.

•When a file is locked or set to read-only, or when the

SD card lock is enabled Indexmark Comment cannot

be erased. Clear the settings before erasing.

•When the recorder has been set to Classic DSS mode

index marks are limited to a maximum of 16 for each file.

For details, see “Dictation settings” in the “Customizing

the Recorder” (☞ P.68).

Language

Language (Language)

You can select the display language for this

recorder.

The selectable language varies depending on

the countries where the product was

purchased.

Select [Language] at the [Display Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

BACK EXIT

Display Menu

Backlight

LED

Contrast

Language

OK/MENU,+, –,

button

Press the + or

– button to set the language.

English...Displays in English.

Deutsch...Displays in German.

Français...Displays in French.

Español...Displays in Spanish.

Italiano...Displays in Italian.

Русском...Displays in Russian.

Press the OK/MENU button to complete

the setup screen.

The displayed language is changed and will return

to the [Display Menu] screen.

If press the 0 or F1(BACK) button the setting

will be cancelled and it will return to the [Display

Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Language

English

BACK EXIT

Language

English

Set

F1, F3 button

Note

•The selectable language varies depending on the

countries where the product was purchased.

Backlight

Backlight (Backlight)

When the display backlight is set to [On], the

backlight will light up for about 10 seconds

when a button is pressed.

This is useful in that it allows you to check the

display even in dark locations.

Select [Backlight] at the [Display Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

Press the + or – button to select [On]

or [Off].

On...Backlight is enabled.

Off...Backlight is disabled.

Press the OK/MENU button to

complete the setup screen.

[On Set] or [Off Set] will light up on the display, and

it will return to the [Display Menu] screen.

If press the 0 or F1(BACK) button the setting

will be cancelled and it will return to the [Display

Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Display Menu

Backlight

LED

Contrast

Language

BACK EXIT

Backlight

Off

BACK EXIT

Backlight

Off On

Set

OK/MENU,+, –,

9, 0

button

F1, F3 button

Press the + or – button to select [On]

or [Off].

On...LED light will be set.

Off...LED light will be cancelled.

Press the OK/MENU button to complete

the setup screen.

[On Set] or [Off Set] will light up on the display, and

it will return to the [Display Menu] screen.

If press the 0 or F1(BACK), the setting will be

cancelled and it will return to the [Display Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

LED

LED (LED)

You can set it so the Record/Play indicator light

does not turn on.

OK/MENU,+, –,

9, 0

button

Select [LED] at the [Display Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

BACK EXIT

Display Menu

Backlight

LED

Contrast

Language

BACK EXIT

LED

Off

BACK EXIT

LED

Off On

Set

LED

(Record/Play

indicator light)

F1, F3 button

LCD Contrast Adjustment

LCD Contrast Adjustment (Contrast)

Display contrast can be adjusted from level 01

to 12.

Select [Contrast] at the [Display Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.41 regarding each menu item settings.

BACK EXIT

Display Menu

Backlight

LED

Contrast

Language

OK/MENU,+, –,

9, 0

button

Press the + or – button to set the

contrast level.

You can adjust the LCD display contrast level from

1 to 12.

Press the OK/MENU button to complete

the setup screen.

The set contrast level lights up and will return to

the [Display Menu] screen.

If press the 0 or F1(BACK), the setting will be

cancelled and it will return to the [Display Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Contrast

Level

BACK EXIT

Contrast

Level

Level 06

Set

F1, F3 button

System Sounds (Beep)

System Sounds

When this is set to [On], the recorder beeps to

alert you to button operations or warn you of

errors.

OK/MENU,+, –,

9, 0

button

Select [Beep] at the [Device Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.42 regarding each menu item settings.

Press the + or – button to select [On]

or [Off].

On...System sounds are enabled.

Off...System sounds are disabled.

Press the OK/MENU button to

complete the setup screen.

[On Set] or [Off Set] will light up on the display, and

it will return to the [Device Menu] screen.

If press the 0 or F1(BACK) button the setting will

be cancelled and it will return to the [Device Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Device Menu

Fingerprint

Card Select

Beep

Format

USB Class

Time & Date

BACK EXIT

Beep

Off

BACK EXIT

Beep

Off On

Set

F1, F3 button

Inserting and Ejecting a microSD card

Inserting a microSD card

1Open the battery cover (☞ P.16).

2Open the card cover inside the battery

compartment.

3Insert the microSD card into the card

slot in the direction shown in the

illustration until it clicks.

Ejecting a microSD card

1Open the battery cover (☞ P.16).

2Open the card cover inside the battery

compartment.

3Push the microSD card inward once to

unlock it, and let it eject.

The microSD card is sometimes difficult to

take out. In this case, pick up a card with

your fingers as shown in the illustration.

Exercise caution when using things like

tweezers, as there is the risk of accidentally

damaging the card and rendering it unable

to read data out.

When it is Difficult to Eject the

microSD card

Inserting and Ejecting a microSD card

When it is necessary to remove or insert the

microSD card serving as the built-in memory

in emergencies, use the method below to either

remove or insert it. 1

Select [Device Menu] at the [Format]

screen, then press the OK/MENU or

9 button.

Refer to P.42 regarding the menu’s various setting

items.

Press the + or – button to select [SD]

or [microSD], then press the OK/MENU

button.

Press the + or – button to select [Start]

option.

Formatting the Card

BACK EXIT

Device Menu

Format

USB Class

Time & Date

Power Save

Reset Settings

Card info.

BACK EXIT

Format

micro SD

mSD

BACK EXIT

Format

Start

Cancel

OK/MENU,

+, –, 9,

button

Cards that have been used in non-Olympus

devices, or cards that are not recognized by

the recorder, must be formatted before they

can be used with the recorder.

To familiarize yourself with the formatting

process, read the steps below.

In terms of formatting, only selected cards can

be formatted, the recorder’s menu settings

cannot be initialized. The initialization of menu

items should be set up through DSS Player or

the recorder’s [Reset Settings].

Formatting the Card (Format)

Formatting the Card

To return the recorder’s menu settings

to their original status from the time of

purchase (initial settings), perform the

setting from [Reset Settings] in the

[Device Menu], or perform the same

operation by using DSS Player.

Initializing the Recorder’s Menu

Settings (Reset Settings)

Press the OK/MENU button to confirm

[Start] selection.

Press the + or – button again to select

[Start] option.

Press the OK/MENU button again to

initiate the formatting process.

[Format Done] displays when formatting ends.

Format

Data will be

cleared

Format

Are You Sure?

Start

Cancel

Format

Format !

Format

Format Done

BACK EXIT

Device Menu

USB Class

Time & Date

Power Save

Reset Settings

Card Info.

System Info.

Notes

•The time required to format cards differs depending on

the capacity of cards. Do not interrupt the formatting

process by the following operations. Doing so will

damage the data or card.

- Remove the card.

- Remove the batteries.

•When the card is formatted, all the stored data, including

locked files, are erased.

•If an unformatted card is inserted, the recorder

automatically displays the format option in the menu.

•SD cards for which the SD card lock is enabled cannot

be initialized.

•Formatting on the recorder will be Quick Format. If you

format the card, information of file management is

refreshed and the data inside the card is not deleted

completely. When handing over and disposing the card,

be careful about the data leakage from the card. We

recommend the card to be destroyed when you dispose

the card.

Formatting the Card (Format)

Check System Information

Check System Information (System info.)

System information about the recorder like its

[Model Name], [Version] and [Serial] can be

displayed.

In this recorder, you can check the Card Information

(☞ P.13) and File Information (☞ P.45).

OK/MENU,

9, 0

button

Select [System info.] at the [Device Menu]

screen, then press the OK/MENU or 9

button.

[Model Name] [Version] [Serial] will appear.

Refer to P.42 regarding each menu item settings.

Press the OK/MENU, 0 or F1 (BACK)

button.

When you press the F3 (EXIT) button, it will return to

the previous display from MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

BACK EXIT

Device Menu

USB Class

Time & Date

Power Save

Reset Settings

Card info.

System info.

BACK EXIT

System Info.

Model Name

DS-5000

Version

1.00

Serial

123456789

F1, F3 button

Changing the USB Class

Changing the USB Class (USB Class)

OK/MENU,+, –,

9, 0

button

Select [USB Class] at the [Device Menu]

screen, then press the OK/MENU or

9 button.

Refer to P.42 regarding each menu item settings.

Press the + or – button to select

[Composite] or [Storage].

Composite...In the 3 classes of Storage, USB audio

and human interface, USB connection is possible.

While USB connection in [composite], the recorder can

be used as the USB speaker and the USB microphone.

Storage...USB connection is possible in only

Storage class.

Press the OK/MENU button to complete

the setup screen.

[Composite Set] or [Storage Set] will light up on

the display, and it will return to the [Device Menu]

screen.

If press the 0 or F1(BACK) button the setting will

be cancelled and it will return to the [Device Menu].

Pressing the F3(EXIT) button will cancel the

contents being set and take you out of the MENU.

Press the F1(BACK) or 0 button to

return to the [Main Menu] screen, then

press the F3(EXIT) or 0 button to

complete the setting.

When this recorder is connected to the computer

for the first time after being changed to

“Remote(Composite)”, the driver will be installed

automatically to the computer.

BACK EXIT

Device Menu

Fingerprint

Card Select

Beep

Format

USB Class

Time & Date

BACK EXIT

USB Class

Composite

Storage

BACK EXIT

USB Class

Composite

Storage

Composite

Set

You can set the USB class of this recorder with

a USB connection to [Composite] or [Storage].

Set to [Composite] when using this recorder

as a USB speaker or a USB microphone.

F1, F3 button

Customizing the Recorder

You can customize various specifications of the

recorder when using DSS Player (☞ P.69). For

more details, refer to the online help for DSS

Player (☞ P.73).

The Recorder’s Customized Settings

❏ Button settings

You can change the allocated functions for the

Programmable Smart Buttons (F1, F2, F3

buttons), the NEW button, and the slide switch.

❏ Hands-Free settings

You can perform settings related to the Hands-

Free operation with the Foot Switch (RS27/28 sold

optional).

❏ Menu settings

You can set the default values for each of the

recorder’s Menu items.

❏ Security settings

You can perform various settings related to the

recorder’s device lock.

•Device lock function ON/OFF.

•Settings related to the timing for setting the

device lock.

•Password settings.

•Changing the number of allowable input errors

(mismatches) for the password.

❏ Author List settings

You can perform settings related to the Author,

such as Author registration.

❏ Work Type List settings

You can perform settings related to the Work Type,

such as Work Type registration.

❏ Folder settings

You can perform various settings related to the

recorder’s folders.

•Changing the number of folders and folder

name.

•Auto Lock setting which locks files recorded in

designated folders.

•Encryption Password setting which encrypts

files recorded in designated folders.

•Work Type settings for each folder.

❏ Dictation settings

You can perform various settings related to the

recorder’s Dictation.

•Recording format (DSS Pro/Classic DSS)

selection.

•Recording mode (Overwrite/Append/Insert)

setting.

•Settings related to eligible files when

downloading to a PC (All Files/Finished Files).

❏ Alarm settings

You can set occasions for the recorder’s alarm or

beep noise to sound.

❏ Slide Switch Guide settings

You can set the Slide Switch Guide, which

indicates the position of the Slide Switch on the

recorder’s LCD screen, to either enabled or

disabled.

❏ Permission settings

You can perform various settings related to user

authorization, such as prohibiting both file erasure

and MENU settings.

❏ Splash Message settings

You can set the contents that appear in the

message which is displayed during startup.

❏ Display settings

•You can select a default pattern for display

during recording from 5 patterns.

•On the 2nd line of LCD, you can display File

Name or Work Type instead of Author ID which

is currently displayed in the NEW, STOP, REC,

PLAY, CUE/REV, FF/REW or ERASE mode.

4 Managing Files on Your PC

DSS Player Software

The DSS Player is a fully featured software tool that provides a simple to use but sophisticated

method of managing your recordings. Some of the features of the DSS Player are:

• Automatic startup of the application by connecting the device.

• Automatic download of Dictation by connecting the device.

• Backs up downloaded Dictation (Windows only).

• Automatic transmission of downloaded Dictation to addresses specified through e-mail and

FTP (Windows only).

• Automatic transmission of transcribed documents through e-mail and FTP, as well as Dictation

and link management (Windows only).

• Voice recorder’s menu setting.

• Customize functions on the recorder (Windows only).

• Direct recording and editing of existing Dictation through Voice recorder’s button and slide

operation.

• Recording Instruction Comments and Verbal comments (Windows only).

• Encrypt the Dictation within the folder by encrypting the folder itself (Windows only).

Make sure that your computer meets the minimum requirements listed below. Please check

with your system administrator or your Olympus Professional Dealer.

DSS Player Software

Macintosh

Windows

Minimum Requirement

Operating System:

CPU:

RAM:

Hard drive space:

Display:

USB port:

Operating System:

CPU:

RAM:

Hard drive space:

Drive:

Display:

USB port:

Audio I/O terminals:

Note

•Macintosh version does not support voice recognition software.

DSS Player Software

Windows 2000 Professional Service Pack4;

Windows XP Professional/XP Home edition Service Pack2;

Windows XP 64-bit;

Windows Vista Ultimate/Enterprise/Business/Home Premium/Home Basic;

Windows Vista Ultimate 64-bit edition/Enterprise 64-bit edition/Business 64-bit

edition/Home Premium 64-bit edition/Home Basic 64-bit edition;

Windows Server 2003;

Windows Server 2003 x 64 edition

Windows 2000/XP: 500MHz processor or more

Windows Vista: 800MHz processor or more

Windows Server 2003: 550MHz processor or more

Windows 2000/XP: 128MB or more

Windows Vista: 512MB or more

Windows Server 2003: 256MB or more

Dictation Module: 70MB or more;

Microsoft .NET Framework Version 2.0: 150MB

CD or DVD drive

800 x 600 pixels or more, 65536 colors more

One or more free ports

Windows-compatible sound device

Mac OS 10.3.9 - 10.5

Power PC G3 500MHz or more/Intel Core Sole/Duo 1.5GHz or more

256MB or more (512MB or more is recommended)

200MB or more

1024 x 768 pixels or more, 32000 colors more

One or more free ports

Installing DSS Player Software

Be sure to confirm the following before installation:

• Exit all running applications.

• Eject the floppy disk if you are using one.

• If you are running Windows 2000/XP/Vista or Mac OS X on the network, you need to log on

as an Administrator.

Windows

For the Windows version, there is an

installation method for individuals and one for

administrators to install on multiple client PCs.

An explanation of the installation method for

individuals installing the software on a single

PC will be provided here.

Insert Olympus DSS Player CD into the

CD-ROM drive.

The installation program will start automatically.

If the installation program does not start

automatically, browse your CD-ROM drive and

execute “launcher.exe”.

The launcher will startup.

Select the language you would like to install from

the upper-left pull-down menu and click [DSS

Player Pro Installation].

The Install Wizard will begin.

Once you have consented to the licensing

agreement, enter your name, company name, and

license ID number (serial number).

The license ID number is printed on the license

ID card included inside the recorder package.

Proceed with the installation according

to the instructions on the screen.

Macintosh

Insert Olympus DSS Player CD into the

CD-ROM drive.

Double-click the CD icon.

Double-click the setup icon.

The Install Wizard will begin.

Once you have consented to the licensing

agreement, follow the instructions on the screen

to complete the installation.

Proceed with the installation according

to the instructions on the screen.

You will be requested to restart, so

conduct a restart by following the

instructions.

Uninstalling DSS Player Software

Windows

Exit DSS Player program.

Click the [start] button on the taskbar.

Select [Add/Remove programs] from the

[Control Panel].

A list of installed applications is displayed.

Select [Olympus DSS Player Pro], then

click the [Change/Remove] button.

Proceed with the uninstallation

according to the instructions on the

screen.

Macintosh

Exit DSS Player program.

Double-click “DSS Uninstaller” in

[Application] = [DSS Player] folder.

An uninstaller is displayed.

Proceed with the uninstallation

according to the instructions on the

screen.

Note

•The dictation files you made are stored in the

[MESSAGE] folder. If you don’t need them, delete them.

You can confirm the location of the [MESSAGE] folder

by clicking on [Options] in the [Tools] menu before

uninstalling.

Uninstalling DSS Player Software

Using Online Help

For information on the DSS Player usage and features, refer to the online Help.

To start online Help:

Windows

Click the [start] button, then select [All

Programs], [Olympus DSS Player], [Dictation

Help].

While DSS Player is running, select the

[Help] menu, [Contents].

While DSS Player is running, press F1 on

the keyboard.

Macintosh

While DSS Player is running, select [DSS Player

Help] from the [Help] menu.

Note

•Online Help is available after the DSS Player is installed

(☞ P.71).

Connecting Recorder to PC

Connecting to Your PC Using the USB Cable

Turn ON the recorder (☞ P.22).

Connect the USB cable to the USB port of the PC.

Confirm that the recorder has stopped and connect a USB

cable to the connection port on the recorder.

If [Remote] is displayed on the recorder, it indicates proper connections.

Once you connect the recorder to your PC, the recorder will be powered through

the USB cable. When the AC adapter is connected power will be supplied from

the AC adapter.

While PC connection, the SD card and the microSD card are recognized as the

respective separate removable disk drive. Furthermore, removable disk drive is

added in order of the microSD card and the SD card.

Supported computers

Notes

•NEVER remove the card or disconnect the USB cable while the record/play indicator

light is flashing. If you do, the data on the card will get destroyed.

•Some PC’s may not supply sufficient power and the recorder fails to connect. Refer

to your PC User’s Manual regarding the USB port on your PC.

•Do not connect the recorder to a PC by using a USB hub. Make sure to connect to

a USB port on your PC.

•Make sure to push the cable connector all the way in. Otherwise, the recorder may

not operate properly.

•This is an operational environment for saving the files recorded by this recorder to

your PC with USB connection.

•Even if operational environment is satisfied, we do not support upgraded OS, the

multi-boot environment and self-modified computers.

Windows 2000/XP/Vista

Windows computers equipped with more than

one free USB port.

Mac OS 10.3.9 - 10.5

Apple Macintosh series equipped with more

than one free USB port.

Macintosh

Windows

Operating System:

Supported computers:

Operating System:

Supported computers:

Connecting to Your PC Using the Cradle

Place the recorder in the cradle

Connect the USB cable to the USB port of the PC.

The USB cable is connected with cradle as shown in figure.

Turn ON the recorder, then set the recorder in the cradle.

If [Remote] is displayed on recorder, it indicates proper connection.

Disconnecting Recorder from PC

To avoid data corruption or loss, make sure that the recorder’s record/

play indicator light isn’t flashing, before removing the recorder from

the cradle or disconnect the cable from the recorder terminal.

Remove the Recorder from the Cradle

To prevent damage or loss of the data, confirm that the recording/

playback indicator light of this recorder is not on, and remove this

recorder and USB cable from the cradle.

Notes

•Never touch the contact points at the bottom of the cradle, as that may cause bad

connection.

•With a PC connected, the recorder cannot be operated with the foot switch (RS27/

28). When connecting the recorder to a PC via the cradle, remove the foot switch.

Connecting Recorder to PC

Running DSS Player Software

Macintosh

Disabling Automatic Start

Click the Dock’s System Preferences.

Click Device Detector.

Turn the automatic startup setting Off.

Windows

Manual Start

Start your Macintosh.

Double click the DSS Player icon for the

folder in [Application] = [DSS Player].

All program menu will be displayed.

The user’s registration screen will be displayed

at the time of initial startup. Please input the serial

number. Please see the seal attached to the CD-

ROM package included with the DSS Player, for

the serial number. After the input has ended, click

[OK] to complete the registration.

Disabling Automatic Start

Right-click the Device Detector in the

System Tray in the lower right-hand

corner of the screen, then select

[Settings startup application].

Click [DSS Player Pro].

The check mark on [DSS Player Pro] disappears.

Manual Start

Start Windows.

Click the [start] button, then select [All

Programs].

All program menu will be displayed.

Select [Olympus DSS Player Pro],

then click [Dictation Module].

By default, connecting the recorder to your PC, will start the application automatically. Connecting

to your PC Using the Cradle.

5 Other Practical Use Methods

Using as External Memory of the Computer

When the recorder is connected to your PC, it will be recognized on your PC as a removable drive.

You can view and access the recorder card from My Computer and download data from the card to

your PC using standard windows copy/move and delete commands. You can also upload data from

the PC to the card in the recorder in the same way.

Example: Copying Data from PC to Card Using Explorer or Finder

Start Windows.

Connecting the recorder to your PC.

For connection procedure, refer to “Connecting to Your PC Using the USB Cable” (☞ P.74).

Open Windows Explorer or Finder window.

The product’s name is displayed.

Copy the data.

While the data are being written or copied, the record/play indicator light on the recorder will flash.

Unplug the recorder from a computer.

Note

•NEVER remove the card or disconnect the USB cable while the record/play indicator lamp is flashing. If you do, the data

on the card will get destroyed.

6 Other Information

Alarm Message List

Explanation

Battery power is getting low.

Voltage outside of the

allowable limit has been

detected.

Attempt to delete a locked

file.

The file is full of index marks

(maximum of 32 marks).

The folder is full of files

(maximum of 200 files).

The destination folder already

has the maximum number of

files (200).

An error occurred while

erasing.

An incompatible card was

inserted.

The card has no remaining

memory.

There was an error while

formatting the card.

System error detected in the

recorder.

There is no card inserted.

Message

Battery Low

Power Supply

Error Remove

Power Plug

File

Protected

Index Full

Folder Full

Erase Error

Card Error

Memory Full

Format Error

System Error

Insert Card

Action

Charge the battery Pack or

replace with new batteries (☞

P.14-17).

Use the included AC Adapter

(☞ P.21).

Unlock the file (☞ P.50).

Erase index marks that are no

longer required (☞ P.57).

Erase unnecessary files

(☞ P.37).

Erase unnecessary files

(☞ P.37).

Erase once again.

When an Erase Error occurs

format the card

Insert a compatible card

(☞ P.23, 63).

Erase files that are no longer

required or insert another card.

Reformat the card (☞ P.64).

This is a malfunction. Contact

the place of purchase or

Olympus Service Center for

repair.

Insert a card (☞ P.23, 63).

Meaning

Low battery

power

Abnormal voltage

detected

Erase-locked

Index full

Folder full

Maximum number

Erase failure

Incompatible card

Zero remaining

memory

Formatting error

System error

No card

Troubleshooting

Probable cause

The batteries are not loaded properly.

The batteries are dead.

The recorder is in power off mode.

The batteries are dead.

The card does not have enough memory.

The card is unformatted.

The maximum number of files has been

reached.

The SD card is locked.

The earphone is connected.

The volume level is set to 0.

The file is locked.

The SD card is locked.

The recorder was shaken during

recording.

The recorder was placed near a cell

phone or fluorescent lamp while

recording or during playback.

The microphone sensitivity is too low.

The maximum number of index marks

(32) has been reached.

The file is locked.

The SD card is locked.

Wrong folder.

Switch the recording card.

Sometimes a connection cannot be made

with some PCs running Windows XP or

Vista.

Symptom

Nothing appears

on the display

Won’t start

Unable to record

No playback tone

heard

Unable to erase

Noise heard

during playback

Recording level

too low

Unable to set

index marks

Cannot find the

recorded voice

Cannot connect

to a PC using a

cradle

Action

Verify polarity is correct (☞ P.16, 17).

Replace with new batteries (☞ P.17).

Turn the recorder ON

(☞ P.22).

Turn the recorder ON

(☞ P.22).

Replace with new batteries (☞ P.17).

Erase unnecessary files or insert

another card (☞ P.23, 37, 63).

Format the card (☞ P.64).

Check another folder.

Unlock the SD card lock (☞ P.12).

Unplug the earphones to use the

internal speaker.

Adjust the + (Volume) button.

Unlock the file (☞ P.50).

Unlock the SD card lock (☞ P.12).

Move the recorder.

Set the microphone sensitivity to

Conference mode and try again (☞

P.31).

Erase unnecessary index marks

(☞ P.57).

Unlock the file (☞ P.50).

Unlock the SD card lock (☞ P.12).

Switch to the right folder.

The recorder is recording to another

card.

You need to change the PC’s USB

settings. See DSS Player online help

for details (☞ P.73).

Accessories

Headset: E62, E102

Stereo headset for your PC. A helpful tool for PC based transcription.

Monaural binaural earphone: E20

Noise-cancellation microphone: ME12 (Dictation microphone)

Used to get crisp recordings of your own voice by reducing the effects of ambient noise.

Recommended to improve the accuracy when using voice-recognition software.

External microphone: ME15

A lavalier omnidirectional microphone that clips to clothing. Used to record your own voice or

people near you.

PC transcription kit: AS-5000

The AS-5000 transcription kit provides you with a PC-footswitch, a headset and DSS Player

Pro Transcription Module for easy transcription of DSS recordings.

Foot switch: RS27/28

Connect to the USB cradle with DS-5000/DS-5000iD for hands-free transcription.

Connecting cord: KA333

Use to connect the microphone jack of this unit to a radio or other sound source.

Telephone pickup: TP7

Earphone type microphone can be plugged into your ear while phoning. The voice or

conversation over the phone can be clearly recorded.

Ni-MH rechargeable battery: BR403

High-efficiency rechargeable long life batteries.

Highly sensitive noise-cancellation monaural microphone: ME52W

This microphone is used to record sound at a distance while minimizing surrounding noise.

Specifications

Speaker

Built-in ø23mm round dynamic speaker

MIC/EAR jack

ø3.5 mm mini-jack, impedance

MIC 2 kΩ, EAR 8 Ω or more

Maximum working output (3 V DC)

250 mW or more (8 Ω speaker)

Input power requirement

Rated voltage: 5 V

Batteries:

Ni-MH Rechargeable Battery

Pack or Two AAA batteries

(LR03 or R03) or Two Ni-MH

rechargeable batteries

External dimensions

113.5 x 50.0 x 17 mm

(without protrusions)

Weight

110 g (Including Ni-MH Rechargeable

Battery Pack)

*Specifications and design are subject to

change without notice.

*Battery life is measured by Olympus. It

varies greatly according to the type of

batteries used and the conditions of use.

Recording format

DS2 (Digital Speech Standard Pro)

Recording media

micro SD, SD-card: 512 MB to 8 GB

Input level -70 dBv

Sampling frequency

QP mode: 16 kHz

SP mode: 12 kHz

Overall frequency response

QP mode: 200 to 7,000 Hz

SP mode: 200 to 5,000 Hz

Recording time (512 MB Card)

QP mode: 38 hours 45 minutes

SP mode: 79 hours 30 minutes

Alkaline battery life

Recording:

QP mode: Approx. 24 hours

SP mode: Approx. 32 hours

Playback:

All mode: Approx. 13 hours

Ni-MH Rechargeable Battery life

Recording:

QP mode: Approx. 20 hours

SP mode: Approx. 28 hours

Playback:

All mode: Approx. 10 hours

Technical Assistance and Support

DS-5000 is part of the Olympus Professional Dictation System. Your dealer is trained to

troubleshoot and fix many common problems that you may be having with this system. If you

encounter problems using your DS-5000/DS-5000iD, we recommend that you contact your

Olympus Professional Dealer that sold you the system. If your dealer cannot fix your problem,

please call our technical hotline number or send an E-mail.

◆For customers in the U.S. and Canada

Phone: 1-888-553-4448

E-mail: distec@olympus.com

◆For customers in Europe

E-mail : dss.support@olympus-europa.com

Declaration of Conformity

Model Number: DS-5000/DS-5000iD

Trade Name: DIGITAL VOICE RECORDER

Responsible Party: OLYMPUS IMAGING AMERICA INC.

Address: 3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610,

U.S.A.

Telephone Number: 1-888-553-4448

This device Complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

Canadian RFI

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out

in the Radio Interference Regulations of the Canadian Department of Communications.

Cet appareil numérique ne dépasse pas les limites de Catégorie B pour les émissions de bruit radio émanant d’appareils

numériques, tel que prévu dans les Règlements sur l’Interférence Radio du Département Canadien des Communications.

For customers in North and South America

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety,

health, environment and customer protection.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste

electrical and electronic equipment in the EU countries. Please do not throw the equipment into

the domestic refuse. Please use the return and collection systems available in your country for

the disposal of this product.

Applicable Product : DS-5000/DS-5000iD, AC adapter, Cradle

P2-BS0038-02

AP0803

Olympus Ds 5000 Detailed Instructions 5000_DS 5000id_Detailed_Instructions_EN
