Instruction Manual

TG-320

DIGITAL CAMERA

● Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these

instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for

future reference.

● We recommend that you take test shots to get accustomed to your camera before taking important photographs.

● In the interest of continually improving products, Olympus reserves the right to update or modify information

contained in this manual.

Step 1

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

Checking the contents of the box

Step 2

Preparing the Camera

“Preparing the Camera” (p. 13)

Step 3

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 19)

Step 4

How to Use the Camera

“Camera Settings” (p. 3)

Step 5

Printing

“Direct printing (PictBridge)” (p. 54)

“Print Reservations (DPOF)” (p. 57)

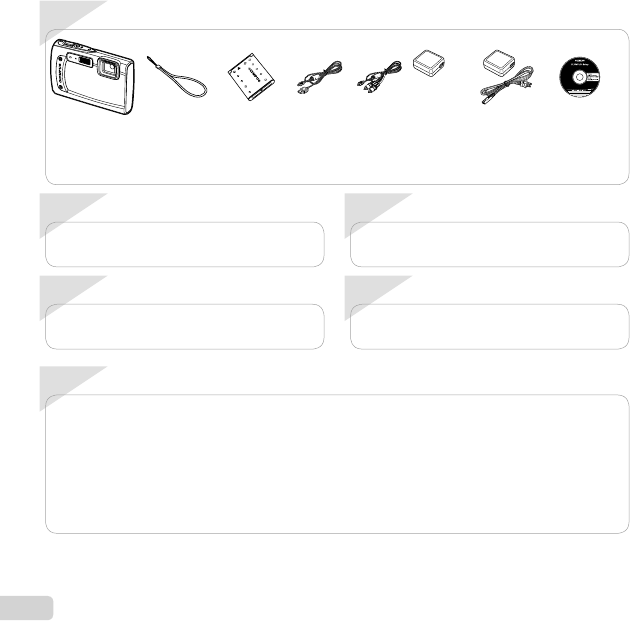

Digital camera Strap Lithium

Ion Battery

(LI-42B)

USB cable AV cable USB-AC adapter (F-2AC) OLYMPUS Setup

CD-ROM

Contents

Names of Parts ............................................... 9

Preparing the Camera .................................. 13

Shooting, Playback, and Erasing ............... 19

Using Shooting Modes ................................ 28

Using Shooting Functions .......................... 34

Menus for Shooting Functions ................... 38

Menus for Playback, Editing, and Printing

Functions ...................................................... 43

Menus for Other Camera Settings .............. 47

Printing .......................................................... 54

Usage Tips .................................................... 59

Appendix ....................................................... 64

Camera Settings

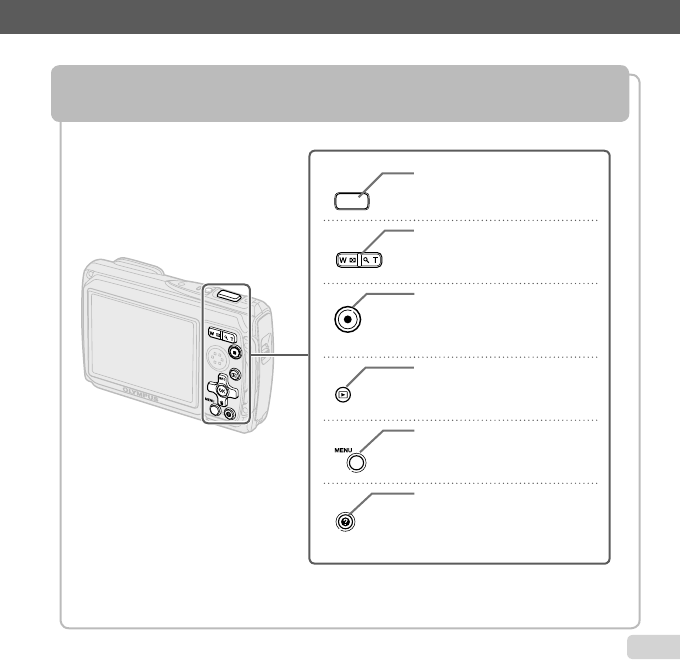

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Shutter button (p. 20, 59)

Zoom buttons (p. 21, 24)

Movie record button (p. 20)

q button (switching between

shooting and playback) (p. 20,

22, 48)

m button (p. 6)

E button (camera guide/

menu guide) (p. 26)

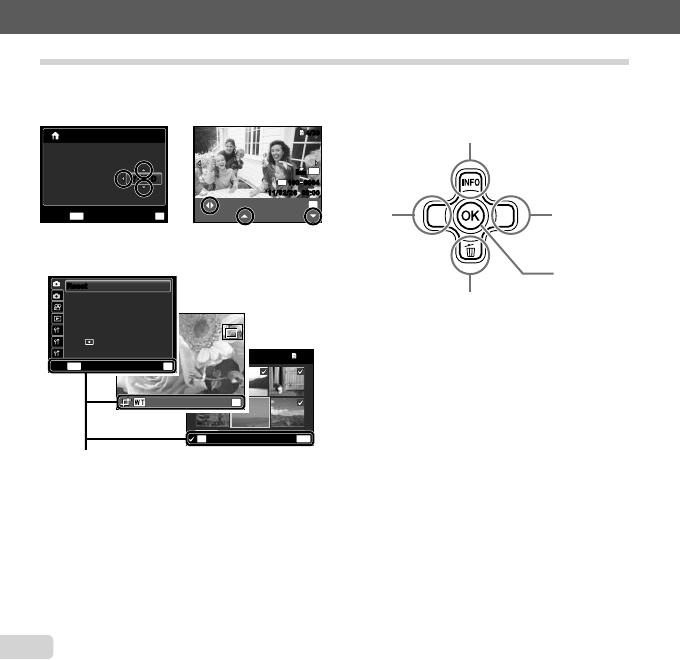

Operation guide

The symbols FGHI displayed for image selections

and settings indicate that the arrow pad shown on the

right is to be used.

ORM

Single Print

4/304/30

’11/02/26’11/02/26 00:0000:00

ORM

14M

FILE

100 0004100 0004

02 26 00 00:..2011

SetCancel

Y M D Time

Y/M/DY/M/D

Operation guides displayed at the bottom of the screen

indicate that the m button, A button, or zoom buttons

can be used.

Sel. Image

Erase/Cancel

5/305/30

Operation guide

Set

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Digital Zoom Off

Image Size 14M

SetExit

ResetReset

Arrow pad

H (left)

G (down) /

D button (erase) (p. 24)

F (up) /

INFO button (changing information

display) (p. 22, 25)

I (right)

A button

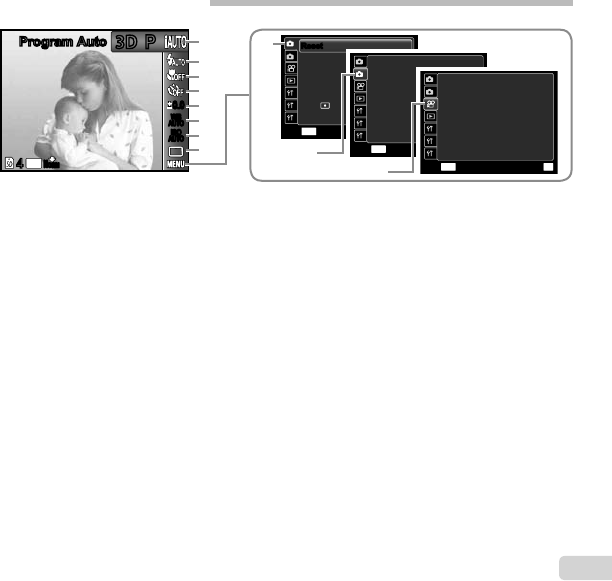

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the s mode (p. 28).

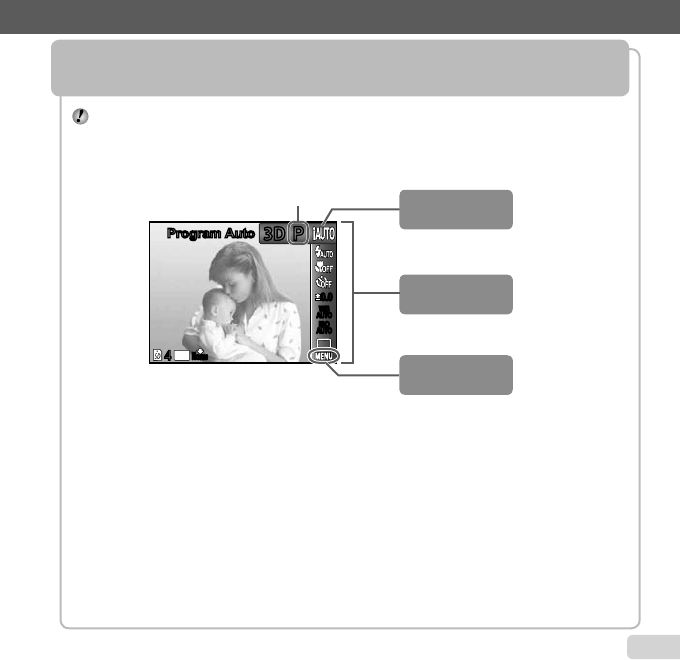

Function menu

Press H during shooting to display the function menu. The function menu is used to choose the shooting mode

and provides access to frequently used shooting settings.

0.00.0

AUTO

ISO

AUTO

ISO

Program AutoProgram Auto

3D3D

ORM

To select the shooting mode

Use HI to select the shooting mode and press the A button.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the A

button to set the function menu.

Shooting

Selected option

Setup menu

Function menu

Shooting mode

1 Press the m button.

The setup menu is displayed.

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Digital Zoom Off

Image Size 14M

SetExit

ResetReset

2 Press H to select the page tabs. Use FG

to select the desired page tab and press I.

Set

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

Exit

ESP

Digital Zoom Off

Image Size 14M

ResetReset

Page tab

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Digital Zoom Off

Image Size 14M

SetExit

ResetReset

Submenu 1

3 Use FG to select the desired submenu 1

and then press the A button.

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Image Size 14M

Set

Exit

ResetReset

Digital Zoom OffDigital Zoom Off

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Image Size 14M

SetBack

ResetReset

Digital Zoom OffDigital Zoom Off

Digital Zoom

OffOff

Submenu 2

●

4 Use FG to select the desired submenu 2

and then press the A button.

Once a setting is selected, the display returns to

the previous screen.

There may be additional operations. “Menu

Settings” (p. 36 to 53)

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Image Size 14M

SetExit

ResetReset

Digital Zoom OnOnDigital Zoom

5 Press the m button to complete the

setting.

●

Setup menu

Press the m button during shooting or playback to display the setup menu. The setup menu provides access

to a variety of camera settings, including options not listed in the function menu, display options, and the time and

date.

Menu Index

Menus for Shooting Functions

1 Shooting mode

P (Program Auto) .............p. 19

M (iAUTO) ...................p. 28

s (Scene Mode) .........p. 28

P (Magic Filter) ..........p. 29

p (Panorama)..................p. 30

W (3D Photo) ..................p. 32

2 Flash .................................p. 34

3 Macro ...............................p. 34

4 Self-timer ..........................p. 35

5 Exposure compensation ...p. 35

6 White balance ...................p. 36

7 ISO ...................................p. 36

8 Drive .................................p. 37

9 p (Shooting menu 1)

Reset ................................p. 38

Image Size .......................p. 39

Compression ....................p. 39

Shadow Adjust ..................p. 40

AF Mode ...........................p. 40

ESP/n ...........................p. 40

Digital Zoom .....................p. 41

0 q (Shooting menu 2)

Image Stabilizer ................p. 41

Rec View ..........................p. 41

Icon Guide ........................p. 42

Date Stamp ......................p. 42

a A (Movie menu)

Image Size .......................p. 39

Image Quality ...................p. 39

IS Movie Mode .................p. 41

R (Movie sound recording)

......................................p. 42

0.00.0

AUTO

ISO

AUTO

ISO

Program AutoProgram Auto

3D3D

ORM

Compression Normal

Shadow Adjust

Auto

AF Mode

ESP/

Face/iESP

ESP

Digital Zoom Off

Image Size 14M

SetExit

ResetReset

Icon Guide

Date Stamp

Rec View On

Image Stabilizer

SetExit

Image Size 720p

IS Movie Mode

Off

Image Quality Normal

SetExit

USB Connection

Pw On Setup

Storage

qPower On

Keep

Settings

Yes

Backup

SetExit

Memory Format

Eye-Fi Off

Off

SetExit

Slideshow

Erase

Edit

Photo Surfing

Print Order

Menus for Playback, Editing, and Printing Functions

1 r (Settings 1)

Memory Format/

Format ........................ p. 47

Backup ......................... p. 47

Eye-Fi ........................... p. 47

USB Connection ........... p. 48

q Power On ............... p. 48

KeepzSettings ............ p. 48

Pw On Setup ................ p. 48

2 s (Settings 2)

Sound Settings ............. p. 49

File Name ..................... p. 49

Pixel Mapping ............... p. 50

s (Monitor) ................ p. 50

TV Out .......................... p. 50

Power Save .................. p. 52

l (Language) ...........p. 52

3 t (Settings 3)

X (Date/time) ............. p. 53

World Time ...................p. 53

Data Repair .................. p. 53

Menus for Other Camera Settings

1 q (Playback)

Slideshow ..................... p. 43

Photo Surﬁ ng ................ p. 43

Edit ............................... p. 44

Erase ............................ p. 45

Print Order .................... p. 46

R (Protect) .................... p. 46

y (Rotate).................... p. 46

Names of Parts

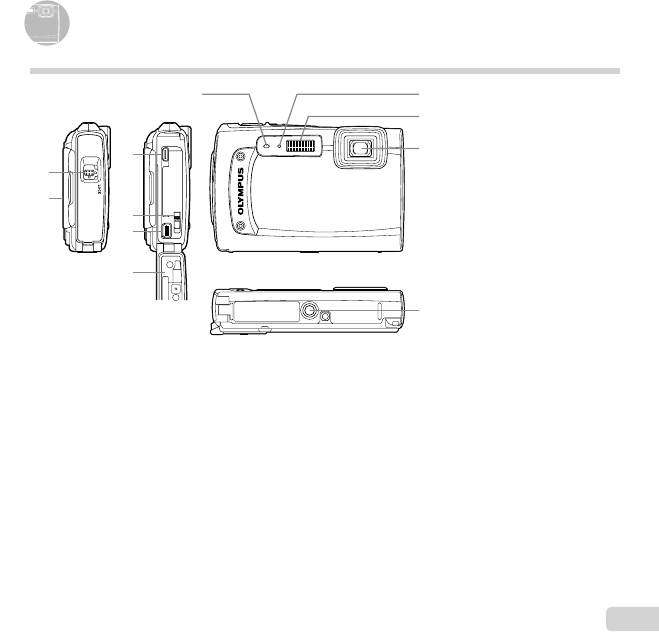

Camera unit

1 Battery/card/connector

cover lock....................p. 13

2 Strap eyelet ..................p. 10

3 HDMI micro connector

....................................p. 51

4 Battery lock knob ..........p. 13

5 Multi-connector

..................p. 14, 16, 51, 54

6 Battery/card/connector cover

............p. 13, 14, 16, 51, 69

7 Microphone ...................p. 44

8 Self-timer lamp .............p. 35

9 Flash .............................p. 34

Lens ..............................p. 64

Tripod socket

1 Indicator lamp .........p. 13, 16

2 n button ........p. 17, 19

3 Monitor .......p. 11, 19, 50, 59

4 Speaker

5 m button ..............p. 4, 6

6 Shutter button .........p. 20, 59

7 Zoom buttons .........p. 21, 24

8 Movie record button ......p. 20

9 q button (switching between

shooting and playback)

........................p. 20, 22, 48

A button (OK)................p. 4

Arrow pad .......................p. 4

INFO button (changing

information display)

..............................p. 22, 25

D button (erase) ..........p. 24

E button

(camera guide/menu guide)

....................................p. 26

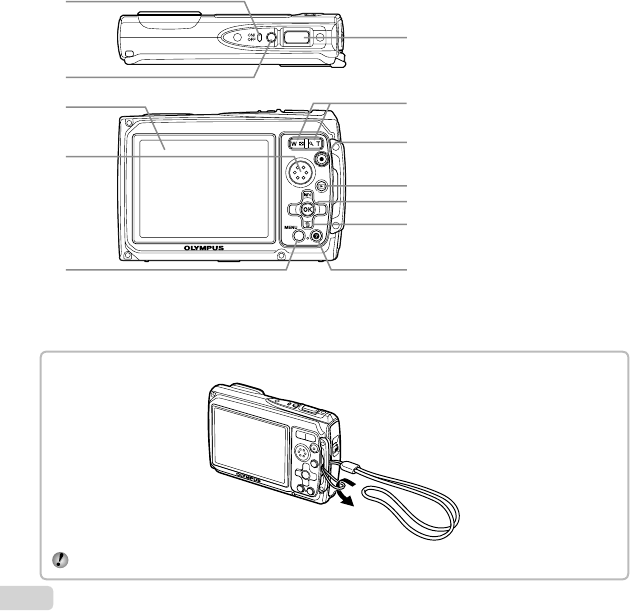

Attaching the camera strap

Pull the strap tight so that it does not come loose.

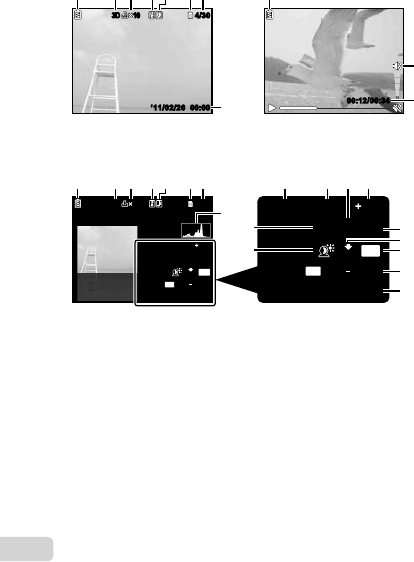

Monitor

Shooting mode display

1/100 F3.5F3.51/100

ORM

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34

DATE

1 2

15161718 14 13 12 1011

2627

Battery check ..........p. 17, 60

Shooting mode .......p. 19, 28

Flash .............................p. 34

Flash standby/ﬂ ash charge

....................................p. 59

Macro/super macro ......p. 34

Self-timer ......................p. 35

Exposure compensation

....................................p. 35

White balance ...............p. 36

ISO ...............................p. 36

Drive .............................p. 37

Date stamp ...................p. 42

Recording with sound

(movies) ......................p. 42

World time ....................p. 53

Image stabilization (still

images) .......................p. 41

Metering .......................p. 40

Shadow Adjustment

Technology..................p. 40

Compression (still images)

..............................p. 39, 67

Image size (still images)

..............................p. 39, 67

Number of storable still

pictures (still images)

....................................p. 19

Current memory ...........p. 66

Movie recording icon ....p. 20

Remaining recording time

(movies) ......................p. 20

Image size (movies)

..............................p. 39, 68

Histogram .....................p. 22

AF target mark ..............p. 20

Camera shake warning

Aperture value ..............p. 20

Shutter speed ...............p. 20

Playback mode display

Standard display●

1 Battery check ..........p. 17, 60

2 3D images ....................p. 26

3 Print reservation/number of

prints ..................p. 57/p. 56

4 Protect ..........................p. 46

5 Adding sound .........p. 42, 44

6 Current memory ...........p. 66

7 Frame number/total number

of images (still images)

....................................p. 22

8 Volume ...................p. 23, 49

9 Elapsed time/total recording

time (movies) ..............p. 23

Histogram .....................p. 22

Shutter speed ...............p. 20

Aperture value ..............p. 20

ISO ...............................p. 36

Exposure compensation

....................................p. 35

White balance ...............p. 36

Compression (still images)

..............................p. 39, 67

Image quality (movies)

..............................p. 39, 68

Image size ........p. 39, 67, 68

File number

Date and time .........p. 17, 53

Shadow Adjustment

Technology..................p. 40

Shooting mode .......p. 19, 28

10103D3D

’11/02/26’11/02/26 00:0000:00

4/30

1 765432

Still image Movie

00:12/00:3400:12/00:34

Advanced display●

1/1000 F3.5 2.0

AUTO

100

ISO

ORM

FILE

100 0004

’11/02/26 00:00

10103D3D

4/304/30 1/1000 F3.5 2.0

AUTO

FILE

100 0004

’11/02/26 00:00

ORM

765432

11112 1413

100

ISO

Preparing the Camera

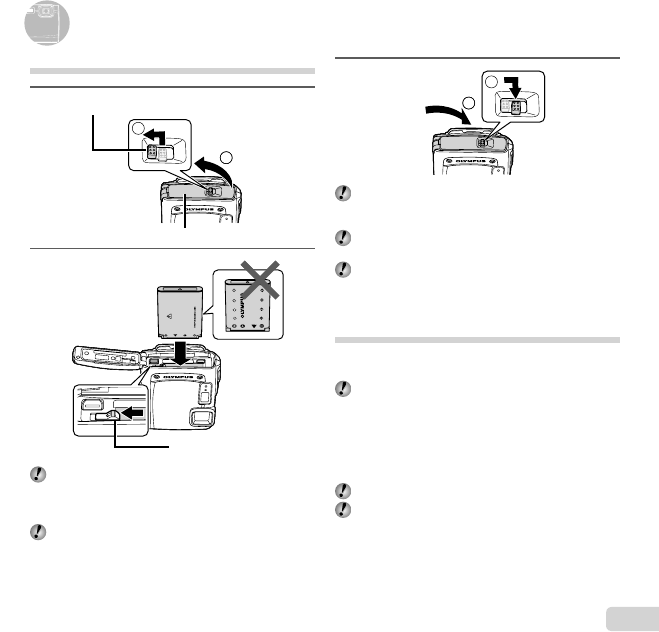

Inserting the battery

Insert the battery by putting in the ▼ marked side

ﬁ rst, with the C marks toward the battery lock knob.

Damage to the battery exterior (scratches, etc.) may

produce heat or an explosion.

Insert the battery while sliding the battery lock knob in

the direction of the arrow.

Battery/card/connector cover

Battery/card/connector cover lock

Battery/card/connector cover

Battery/card/connector cover lock

Battery lock knobBattery lock knob

When removing the battery or card, be sure to turn off

the camera before opening or closing the battery/

card/connector cover.

When using the camera, be sure to close and lock

the battery/card/connector cover.

Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery.

Charging the battery and setting up

using the supplied CD

Connect the camera to the computer to charge the battery

and use the supplied CD for setup.

User registration using the supplied CD and

installation of ib computer software is available on

Windows computers only.

The camera battery can be charged while the camera is

connected to a computer.

The indicator lamp lights during charging and turns

off when charging is complete.

Charging takes up to 3 hours.

If the indicator lamp does not light, the camera is not

correctly connected or the battery, camera, computer,

or USB cable may not be functioning as expected.

●

We recommend that you use a computer equipped

with Windows XP (Service Pack 2 or later), Windows

Vista, or Windows 7. See “Charging the battery with

the included USB-AC adapter” (p. 16) if you are using

a different computer or wish to charge the battery

without using a computer.

Windows

1 Insert the supplied CD in a CD-ROM drive.

Windows XP

A “Setup” dialog will be displayed.

Windows Vista/Windows 7

An Autorun dialog will be displayed. Click “OLYMPUS

Setup” to display the “Setup” dialog.

If the “Setup” dialog is not displayed, select “My

Computer” (Windows XP) or “Computer” (Windows

Vista/Windows 7) from the start menu. Double-click

the CD-ROM (OLYMPUS Setup) icon to open the

“OLYMPUS Setup” window and then double-click

“Launcher.exe”.

If a “User Account Control” dialog is displayed, click

“Yes” or “Continue”.

●

2 Follow the on-screen instructions on your

computer.

If nothing is displayed on the camera screen even

after connecting the camera to the computer, the

battery may be exhausted. Leave the camera

connected to the computer until the battery has

charged, then disconnect and reconnect the camera.

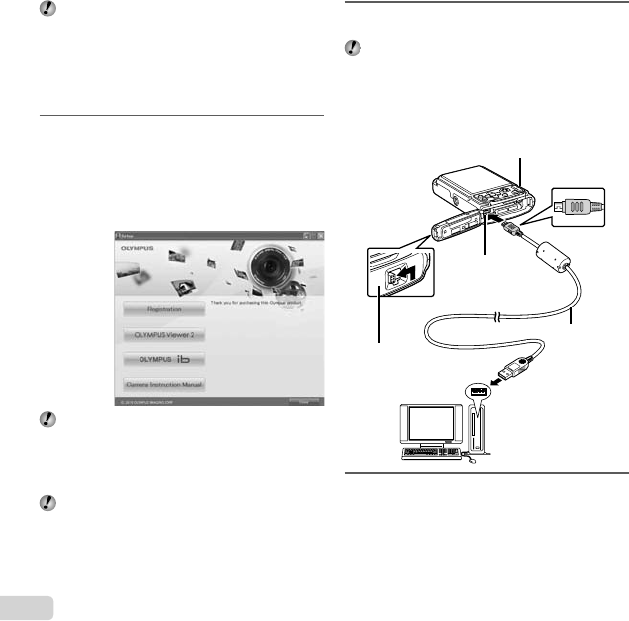

Connecting the camera

Multi-connector

Battery/card/

connector cover

USB cable (supplied)

Computer (on and

running)

Indicator lamp

3 Register your Olympus product.

Click the “Registration” button and follow the on-

screen instructions.

●

4 Install OLYMPUS Viewer 2 and ib computer

software.

Check the system requirements before beginning

installation.

Click the “OLYMPUS Viewer 2” or “OLYMPUS ib”

button and follow the on-screen instructions to

install the software.

OLYMPUS Viewer 2

Operating

System

Windows XP (Service Pack 2 or later) /

Windows Vista / Windows 7

Processor Pentium 4 1.3 GHz or better

RAM 1 GB or more (2 GB or more

recommended)

Free Hard

Drive Space 1 GB or more

Monitor

Settings

1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000

colors recommended)

Operating

System

Windows XP (Service Pack 2 or later) /

Windows Vista / Windows 7

Processor

Pentium 4 1.3 GHz or better

(Pentium D 3.0 GHz or better required

for movies)

RAM

512 MB or more (1 GB or more

recommended)

(1 GB or more required for movies — 2 GB

or more recommended)

Free Hard

Drive Space 1 GB or more

Monitor

Settings

1024 × 768 pixels or more

Minimum 65,536 colors (16,770,000

colors recommended)

Graphics A minimum of 64 MB video RAM with

DirectX 9 or later

* See online help for information on using the software.

●

5 Install the camera manual.

Click the “Camera Instruction Manual” button and

follow the on-screen instructions.

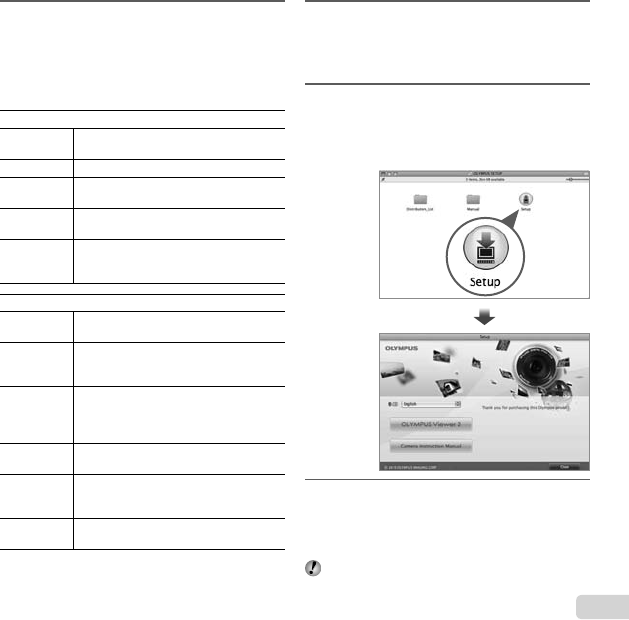

Macintosh

1 Insert the supplied CD in a CD-ROM drive.

Double-click the CD (OLYMPUS Setup) icon on

the desktop.

Double-click the “Setup” icon to display the “Setup”

dialog.

2 Install OLYMPUS Viewer 2.

Check the system requirements before beginning

installation.

Click the “OLYMPUS Viewer 2” button and follow

the on-screen instructions to install the software.

You can make user registration via “Registration” in

OLYMPUS Viewer 2 “Help”.

●

OLYMPUS Viewer 2

Operating

System Mac OS X v10.4.11–v10.6

Processor Intel Core Solo/Duo 1.5 GHz or better

RAM 1 GB or more (2 GB or more

recommended)

Free Hard

Drive Space 1 GB or more

Monitor

Settings

1024 × 768 pixels or more

Minimum 32,000 colors (16,770,000

colors recommended)

* Other languages can be selected from the language

combo box. For information on using the software, see

online help.

3 Copy the camera manual.

Click the “Camera Instruction Manual” button to

open the folder containing the camera manuals.

Copy the manual for your language to the

computer.

Charging the battery with the

included USB-AC adapter

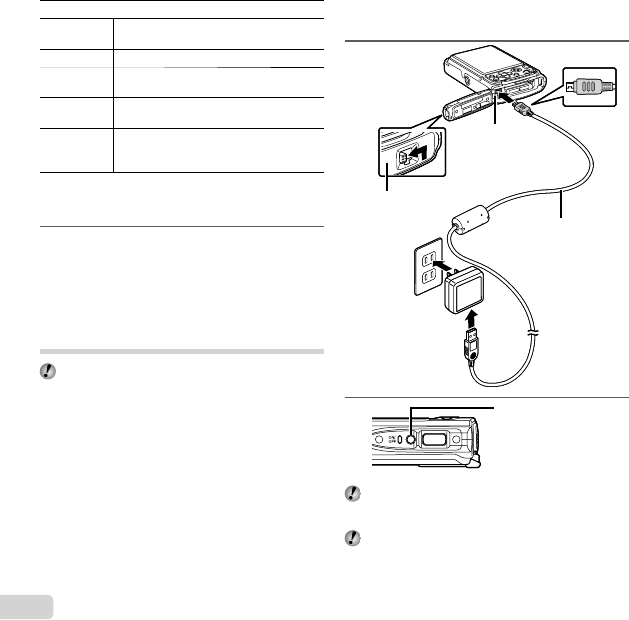

The included USB-AC adapter (F-2AC) (hereafter

referred as USB-AC adapter) has been designed to

be used for charging and playback. Make sure that

shooting is not being used while the USB-AC adapter

is connected to the camera.

●

Example: USB-AC adapter with an AC

cable

The battery is not fully charged at shipment. Before

use, be sure to charge the battery until the indicator

lamp turns off (up to 3 hours).

If the indicator lamp does not light, the USB-AC

adapter is not connected to the camera correctly,

or the battery, camera, or USB-AC adapter may be

broken.

Multi-connector

AC outlet

USB cable (supplied)

Battery/card/

connector cover

Multi-connector

AC outlet

USB cable (supplied)

Battery/card/

connector cover

Indicator lamp

On: Charging

Off: Charged

Indicator lamp

On: Charging

Off: Charged

For details on the battery and the USB-AC adapter,

see “Battery and USB-AC adapter” (p. 64).

The battery can be charged while the camera is

connected to the computer. Charging time varies

depending on the performance of a computer. (There

may be cases in which it takes approx. 10 hours.)

When to charge the batteries

Charge the battery when the error message shown below

appears.

Monitor top left Error message

Flashes in red

Battery Empty

00:3400:34

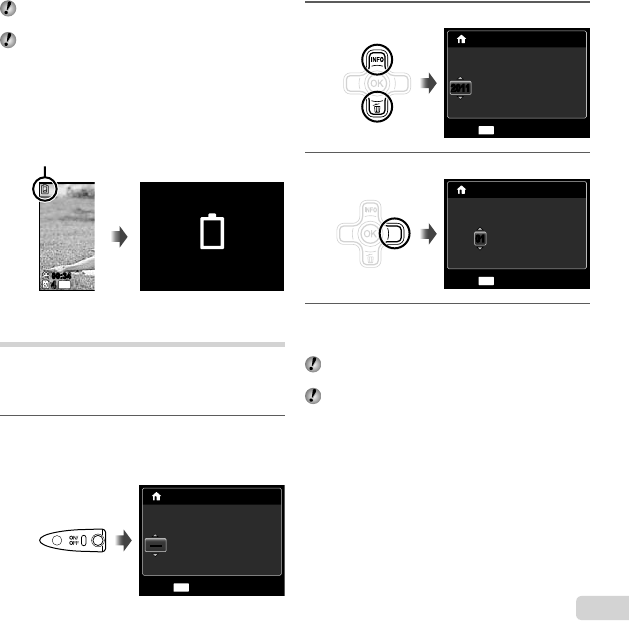

Date, time, time zone, and language

The date and time set here are saved to image ﬁ le names,

date prints, and other data. You can also choose the

language for the menus and messages displayed in the

monitor.

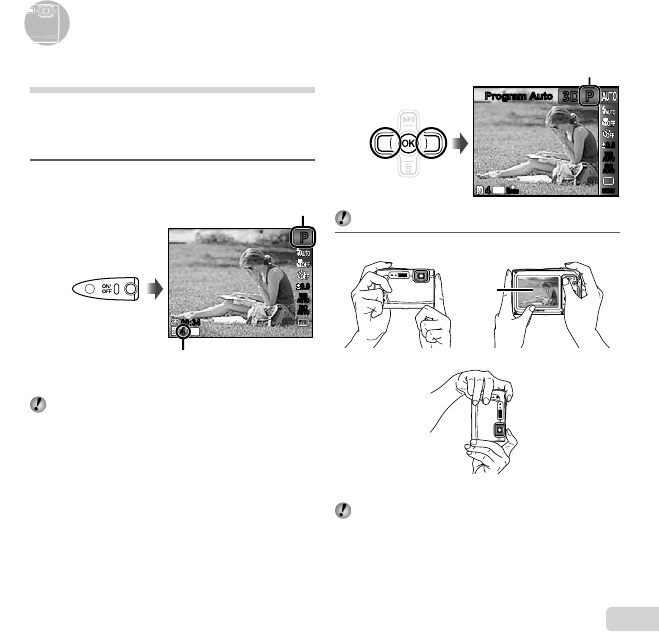

1 Press the n button to turn on the

camera.

The date and time setting screen is displayed when

the date and time are not set.

Y/M/D

Y M D Time

-- -- -- --:..

Cancel

--------

Date and time setting screen

●

2 Use FG to select the year for [Y].

-- -- -- --:.

Time

Cancel

Y/M/D

YMD

20112011

3 Press I to save the setting for [Y].

-- -- --:..2011

Y/M/D

YMDTime

Cancel

0101

4 As in Steps 2 and 3, use FGHI and the

A button to set [M] (month), [D] (day), [Time]

(hours and minutes), and [Y/M/D] (date order).

For precise time setting, press the A button as the

time signal strikes 00 seconds.

To change the date and time, adjust the setting from

the menu. [X] (Date/time) (p. 53)

5 Use HI to select the [x] time zone and

then press the A button.

Use FG to turn daylight saving time ([Summer])

on or off.

Summer

Set

Seoul

Tokyo

Seoul

Tokyo

’11.02.26 00:00

The menus can be used to change the selected time

zone. [World Time] (p. 53)

6 Use FGHI to select your language and

press the A button.

The menus can be used to change the selected

language. [l] (p. 52)

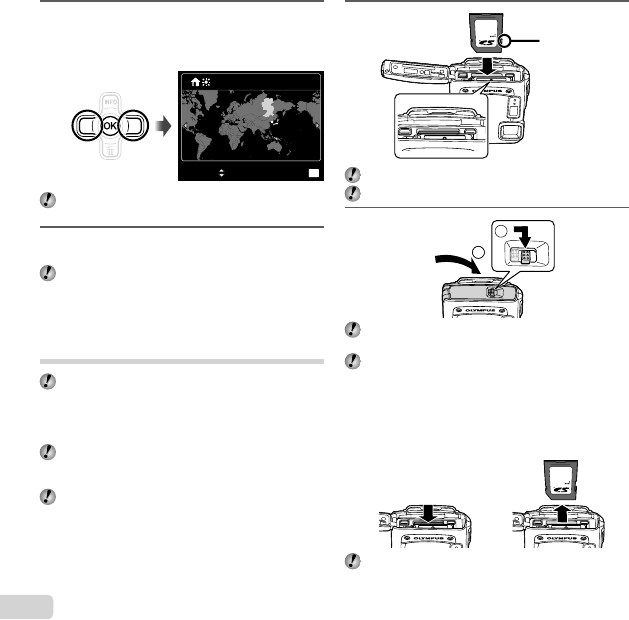

Inserting an SD/SDHC/SDXC memory

card or Eye-Fi card (commercially

available)

Always use SD/SDHC/SDXC memory cards or Eye-

Fi cards with this camera. Do not insert other types of

card.

“Using an SD/SDHC/SDXC memory card or Eye-Fi

card (commercially available)” (p. 65)

The camera can shoot and store images using its

internal memory, without using an SD/SDHC/SDXC

memory card or Eye-Fi card.

The illustrations of the following procedure show the

SD memory card.

●

Insert the card straight until it clicks into place.

Do not touch the contact area directly.

Close the battery/card/connector cover ﬁ rmly so that

lock makes the clicking sound.

“Number of storable pictures (still images)/Continuous

recording length (movies) in the internal memory and

SD/SDHC/SDXC memory cards” (p. 67, 68)

To remove the SD/SDHC/SDXC memory

card and Eye-Fi card

Press the card in until it clicks and comes out slightly,

then remove the card.

Write-protect

switch

Write-protect

switch

Shooting, Playback, and Erasing

Current shooting mode display

3D3D

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Program AutoProgram Auto

ORM

Press the n button again to turn off the camera.

2 Hold the camera and compose the shot.

Horizontal grip

Vertical grip

Monitor

When holding the camera, take care not to cover the

ﬂ ash with your ﬁ ngers, etc.

Shooting with the optimum aperture

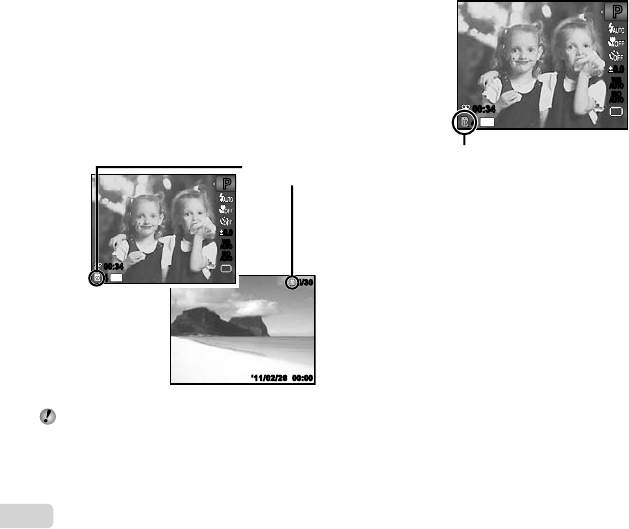

value and shutter speed (

mode)

In this mode, automatic shooting settings are activated

while also allowing changes to a wide range of

other shooting menu functions, such as exposure

compensation, white balance, etc. as needed.

1 Press the n button to turn on the

camera.

P mode indicator

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34

Number of storable still pictures (p. 67)

Monitor (standby mode screen)

If P mode is not displayed, press H to display the

function menu screen and then set the shooting

mode to P. “Using the Menu” (p. 5)

Shooting movies

1 Press the movie record button to start

recording.

00:12

00:34

00:1200:12

RECREC

00:3400:34

Lights up red when recording

Recording time

Continuous recording length

(p. 68)

Effects for the selected shooting mode can be used

when shooting movies (when set to p mode, W

mode, [Beauty] in s mode, or [Fish Eye] or

[Sparkle] in P mode, shooting is performed in P

mode).

Sound will also be recorded.

During sound recording, only the digital zoom can be

used. To record a movie with optical zoom, set [R]

(movies) (p. 42) to [Off].

2 Press the movie record button again to stop

recording.

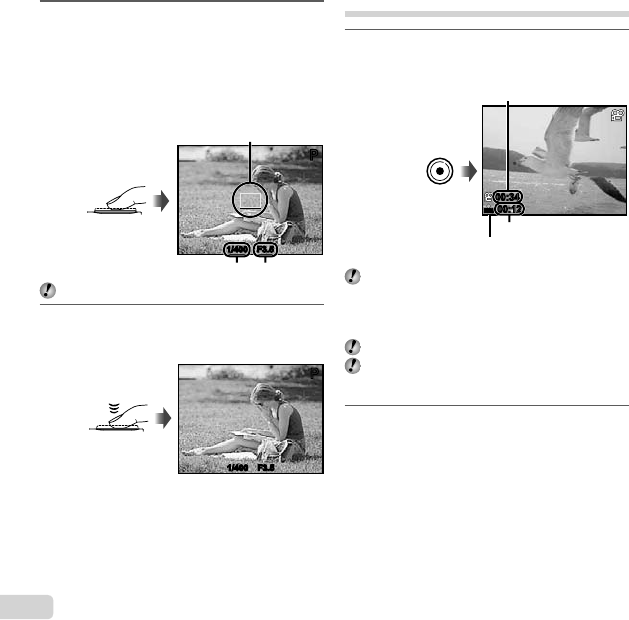

3 Press the shutter button halfway down to

focus on the subject.

When the camera focuses on the subject, the

exposure is locked (shutter speed and aperture

value are displayed), and the AF target mark

changes to green.

The camera was unable to focus if the AF target

mark ﬂ ashes red. Try focusing again.

1/400 F3.51/400 F3.5

AF target mark

Press halfway

Shutter speed Aperture value

“Focusing” (p. 61)

4 To take the picture, gently press the shutter

button all the way down while being careful

not to shake the camera.

1/400 F3.51/400 F3.5

Image review screen

Press fully

To view images during shooting

Pressing the q button enables playback of images. To

return to shooting, either press the q button or press the

shutter button halfway down.

●

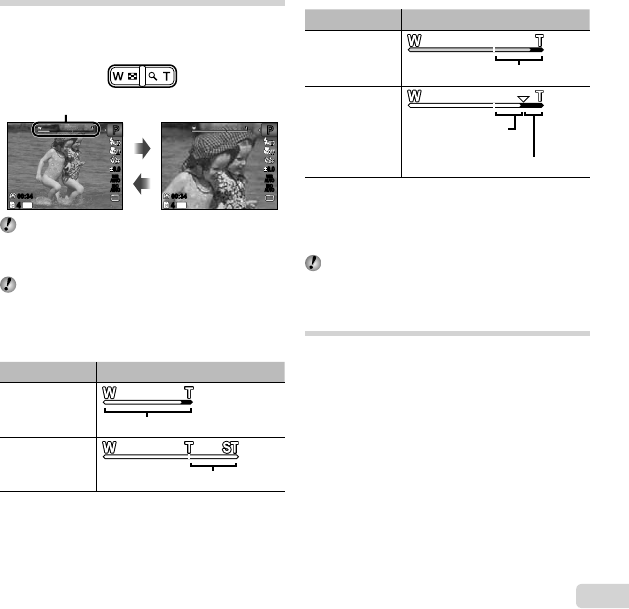

Using the zoom

Pressing the zoom buttons adjusts the shooting range.

Pressing the wide

(W) button

Pressing the telephoto

(T) button

4444

0.00.0

AUTO

ISO

AUTO

ISO

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34 00:3400:34

Zoom bar

Optical zoom: 3.6×

Digital zoom: 4×

To take larger images [Digital Zoom]

The type and amount of zoom can be identiﬁ ed from

the appearance of the zoom bar. The display differs

depending on the options selected for [Digital Zoom]

(p. 41) and [Image Size] (p. 39).

[Off] selected for [Digital Zoom]:

Image size Zoom bar

14M

Optical zoom range

Other

Image zoomed and cropped.*1

[On] selected for [Digital Zoom]:

Image size Zoom bar

14M

Digital zoom range

Other Image zoomed and

cropped.*1

Digital zoom range

*1 If [Image Size] is less than the full resolution, after

reaching the maximum optical zoom, the camera will

automatically resize and crop the image to the selected

[Image Size], then enter the digital zoom range if [Digital

Zoom] is [On].

Photographs taken with the zoom bar displayed in

red may appear “grainy.”

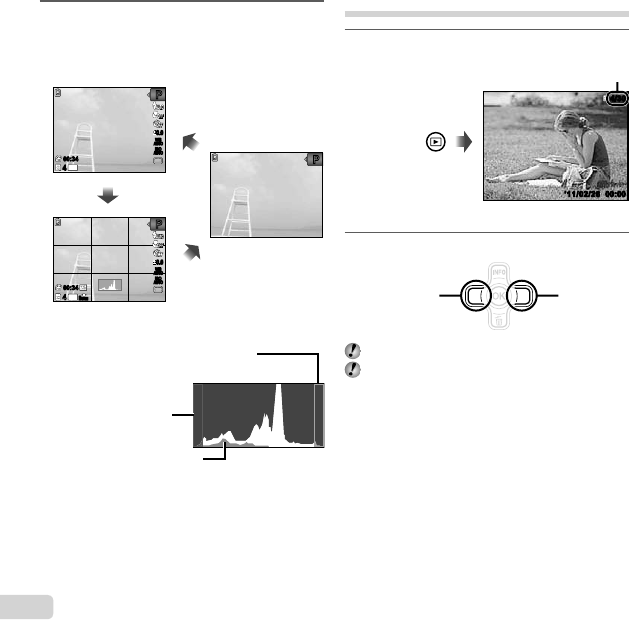

Changing the shooting information

display

The display of the screen information can be changed to

best match the situation, for example, the need for a clear

view of the screen or for making a precise composition by

using the grid display.

Viewing images

1 Press the q button.

Number of frames/

Total number of images

’11/02/26’11/02/26 00:0000:00

4/30

Playback image

2 Use HI to select an image.

Displays


Displays next


Hold I to fast forward and hold H to reverse.

The display size of the images can be changed.

“Index view and close-up view” (p. 24)

1 Press F (INFO).

The displayed shooting information changes in

the order shown below each time the button is

pressed. “Shooting mode display” (p. 11)

14M

0.00.0

AUTO

ISO

AUTO

ISO

14M

ORM

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34

Normal

Detailed

No information

Reading a histogram

If the peak ﬁ lls too much of the frame, the

image will appear mostly white.

If the peak ﬁ lls too much

of the frame, the image

will appear mostly black.

The green section shows

luminance distribution within

the screen’s center.

●

To play sound recordings

To play sound recorded with an image, select the image

and press the A button. A ! icon appears on images

with which sound has been recorded.

During audio playback

To adjust the volume, use FG.

To play back movies

Select a movie, and press the A button.

’11/02/26’11/02/26 00:0000:00

4/30

Movie PlayMovie Play

Movie

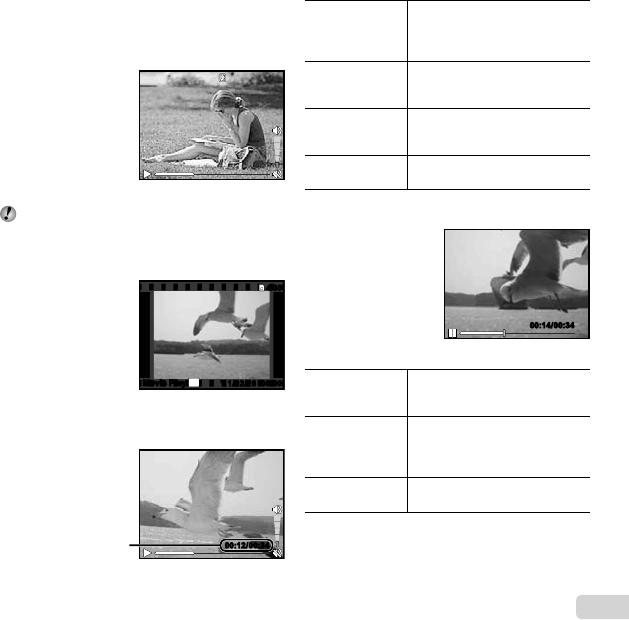

Operations during movie playback

During playback

Elapsed time/

Total recording time

00:12/00:3400:12/00:34

Pausing and

restarting

playback

Press the A button to pause

playback. During pause, fast

forward or reverse, press the A

button to restart playback.

Fast forward

Press I to fast forward. Press I

again to increase the fast forward

speed.

Rewind

Press H to rewind. The speed

at which the recording rewinds

increases each time H is pressed.

Adjusting the

volume Use FG to adjust the volume.

Operations while playback is paused

During pause

00:14/00:3400:14/00:34

Cueing

Use F to display the ﬁ rst frame

and press G to display the last

frame.

Advancing and

rewinding one

frame at a time

Press I or H to advance or

rewind one frame at a time. Hold

I or H pressed for continuous

advance or rewind.

Resuming

playback

Press the A button to resume

playback.

To stop movie playback

Press the m button.

1 Press the zoom buttons.

’11/02/26’11/02/26 00:0000:00

4/30

’11/02/26

’11/02/26 00:0000:00

4/304/30

’11/02/26

ALLALL

35ºN

139ºE

35ºN

139ºE

2011/

02/26

2011/

02/26

Index view

Single-image view Close-up view

Photo Surﬁ ng

When the movie is selected in the index view, the

photo surﬁ ng cannot be displayed even by pressing

the W zoom button.

[Photo Surﬁ ng] (p. 43)

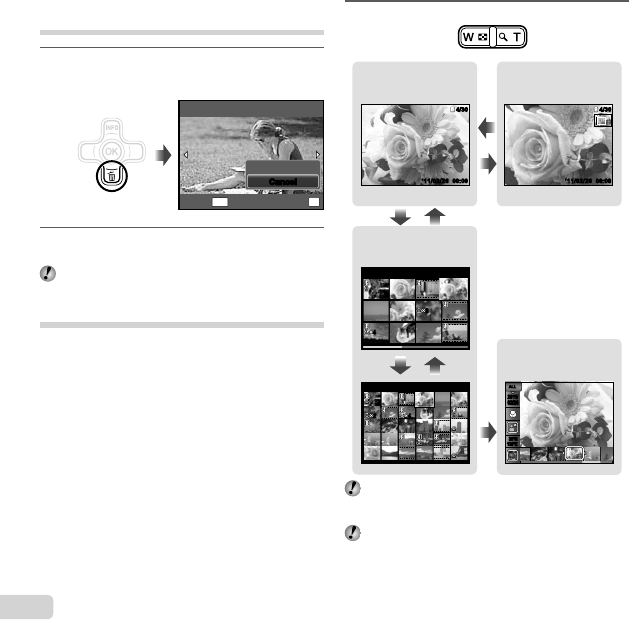

Erasing images during playback

(Single image erase)

1 Display the image you want to erase and

press G (D).

Erase

CancelCancel

Erase

SetCancel

2 Press FG to select [Erase], and press the

A button.

For erasing multiple images at the same time, see

“Erasing images [Erase]” (p. 45).

Index view and close-up view

Index view enables quick selection of a desired image.

Close-up view (up to 10x magniﬁ cation) allows checking

of image details.

To select an image in index view

Use FGHI to select an image, and press the A

button to display the selected image in single-image view.

To scroll an image in close-up view

Use FGHI to move the viewing area.

To stop photo surﬁ ng

Use FG to select [ALL], and press the A button.

Changing the image information

display

Shooting information settings displayed on the screen can

be changed.

1 Press F (INFO).

The displayed image information changes in

the order shown below each time the button is

pressed.

’11/02/26’11/02/26 00:00

4/304/30

1/1000 F3.5 2.0

AUTO

FILE

100 0004

’11/02/26 00:00

10103D3D

00:00

ORM

100

ISO

Normal

Detailed

No information

“Reading a histogram” (p. 22)

●

Playing back panorama images

Panorama images that were combined together using

[Auto] or [Manual] can be scrolled for viewing.

“Creating panoramic images (p mode)” (p. 30)

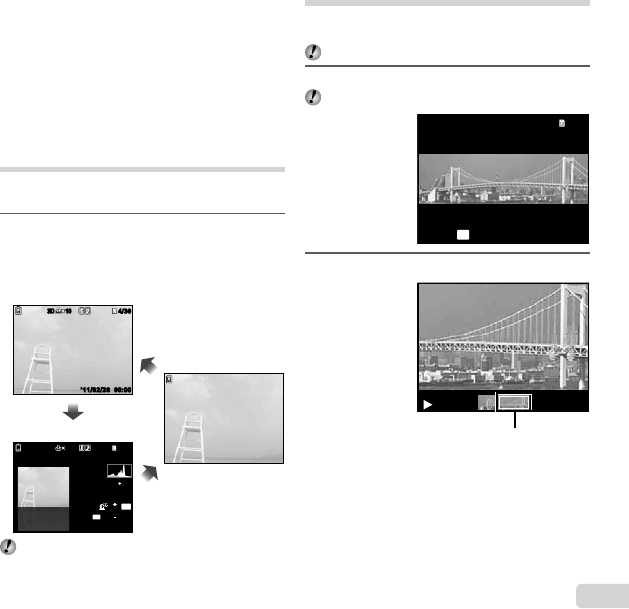

1 Select a panorama image during playback.

“Viewing images” (p. 22)

4/304/30

Replay ’11/02/26 00:00

2 Press the A button.

Current viewing area

To control panorama image playback

Zoom in/Zoom out: Press the A button to pause

playback. Then press the zoom button to enlarge/shrink

the image.

Playback direction: Press the A button to pause

playback. Then press FGHI to scroll the image in the

direction of the pressed button.

Pause: Press the A button.

Restart scrolling: Press the A button.

Stop playback: Press the m button.

Playing back W images

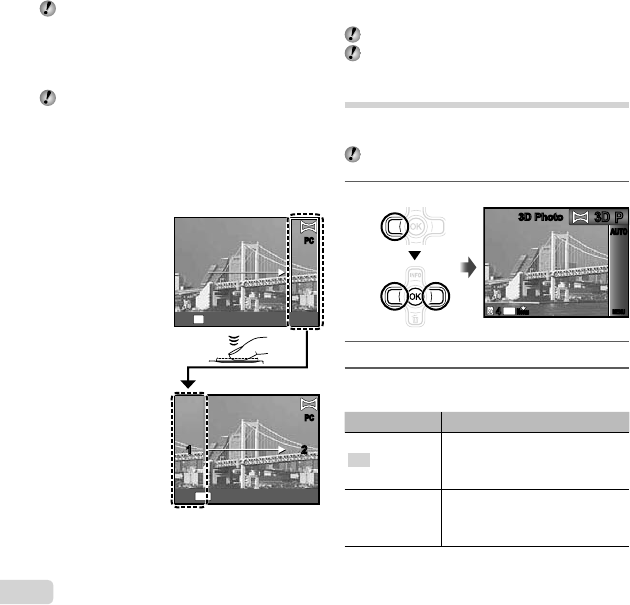

3D images shot with this camera can be played back on

3D-compatible devices connected to this camera using an

HDMI cable (sold separately).

“Shooting 3D images (W mode)” (p. 32)

When playing back 3D images, read the warnings in

the instruction manual for the 3D-compatible devices

carefully.

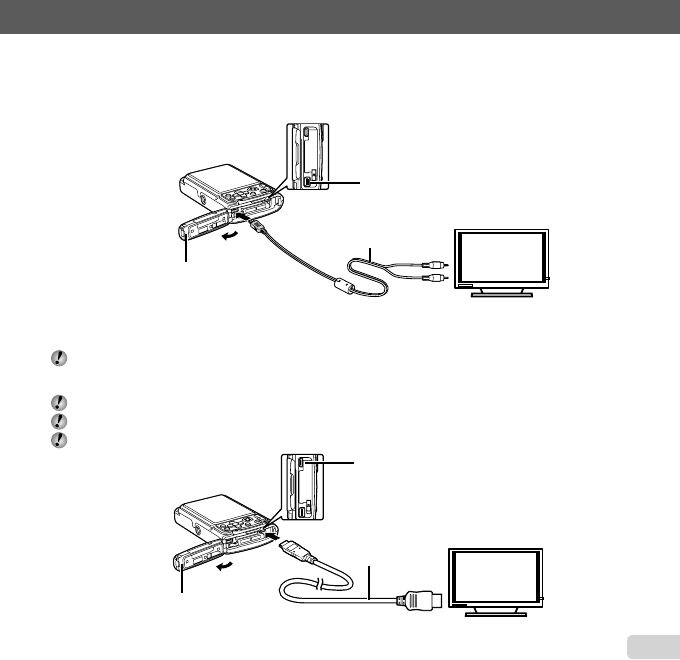

1 Connect the 3D-compatible device and

camera using the HDMI cable.

For the connection and setting method, see

“Connection via HDMI cable” (p. 51)

2 Use FG to select [3D Show] and then press

the A button.

3 Use HI to select the 3D image to play back

and then press the A button.

Set

Slideshow

To start a slideshow, press the m button.

To stop the slideshow, press the m or A button.

3D images are composed of JPEG ﬁ les and MP ﬁ les.

If any ﬁ les are deleted on a computer, playback of 3D

images may not be possible.

Using the menu guide

Pressing the E button in the setup menu displays a

description of the current item.

“Using the Menu” (p. 5)

Using the camera guide

Use the camera guide to look up camera operations.

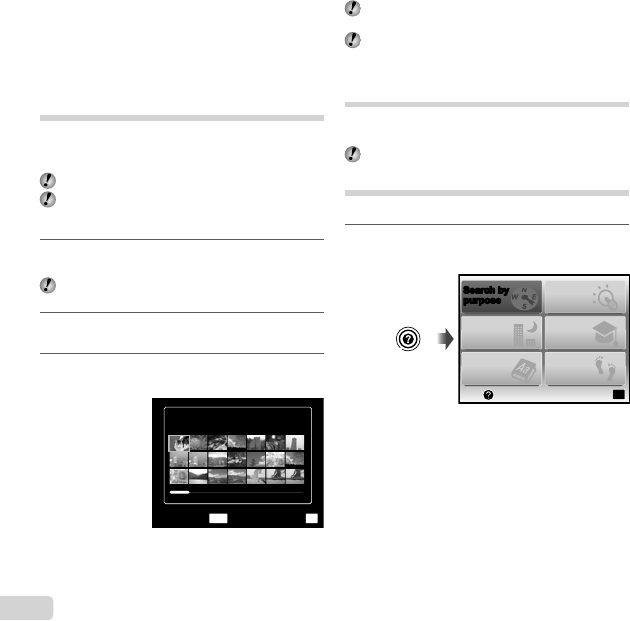

1 Press the E button in the standby mode

screen or the playback screen.

Search by

purpose

Search by

purpose

Search for a

solution

Learn about the

camera

History

Search by

situation

Search by

keyword

Set

Exit

Submenu 2 Application

Search by

purpose

Functions or operating methods can

be searched.

Search for a

solution

A solution can be searched when

having problems during operation.

Search by

situation

Search from shooting/playback

scene.

Learn about the

camera

Information is shown about

recommended functions and basic

operating methods for the camera.

Search by

keyword Search from the camera keyword.

History Searches can be performed from the

search history.

2 Use FGHI to select the desired item, and

press the A button.

Search by

purpose

Search for a

solution

Learn about the

camera

Learn about the

camera

History

Search by

situation

Search by

keyword

Set

Exit

Follow the on-screen instructions to search the

desired contents.

●

To change the shooting mode

The shooting mode (P, M, s, P, p, W)

can be changed using the function menu.

“Using the Menu” (p. 5)

The default settings of the function are highlighted in

Shooting with automatic settings

(

mode)

The camera will automatically select the optimal shooting

mode for the scene. This is a fully automatic mode that

allows you to take a picture suited to the scene by simply

pressing the shutter button. In M mode, some settings

in the shooting menu may not be selected.

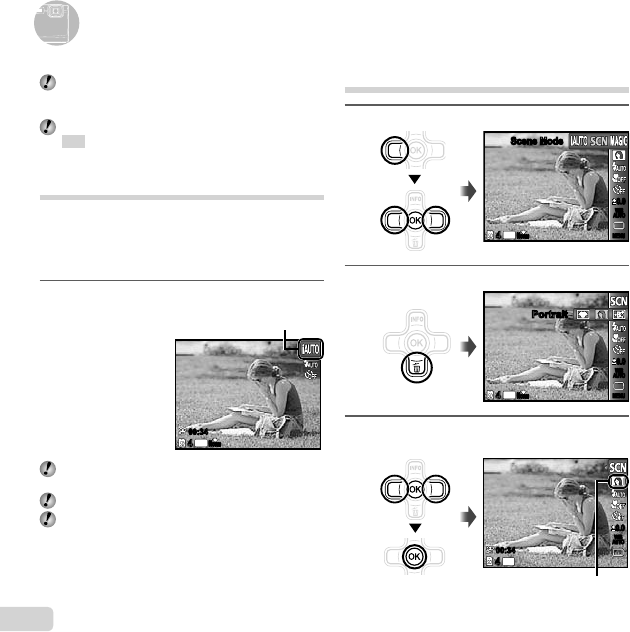

1 Set the shooting mode to M.

The icon changes depending on the scene

that the camera automatically selects.

00:3400:34

ORM

In some cases, the camera may not select the

desired shooting mode.

There are some limitations on settings in M mode.

When the camera cannot identify the optimal mode,

P mode will be selected.

Using Shooting Modes

Using the best mode for the shooting

scene (

mode)

1 Set the shooting mode to s.

Scene ModeScene Mode

0.00.0

AUTO

MENUMENU

ORM

2 Press G to go to the submenu.

0.00.0

AUTO

PortraitPortrait

MENUMENU

ORM

3 Use HI to select the mode and then press

the A button to set.

0.00.0

AUTO

00:3400:34

Icon indicating the scene mode that

is set

s modes, the optimum shooting settings are

pre-programmed for speciﬁ c shooting scenes. For

this reason, settings may not be changed in some

modes.

Option Application

B Portrait/V Beauty/F Landscape/

G Night Scene*1/M Night+Portrait/

C Sport/N Indoor/W Candle/

R Self Portrait/S Sunset*1/

X Fireworks*1/V Cuisine/

d Documents/q Beach & Snow/

T Snapshot/U Pet Mode - Cat/

t Pet Mode - Dog

The camera takes

a picture using the

optimum settings

for the scene

conditions.

*1 When the subject is dark, noise reduction is

automatically activated. This approximately doubles the

shooting time during which no other pictures can be

taken.

To take underwater photos

Select [T Snapshot].

“Important information about water and shock

resistant features” (p. 68)

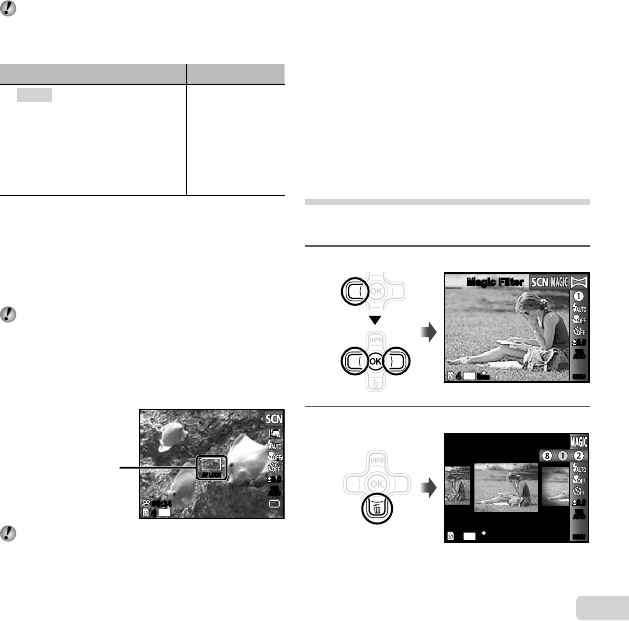

To lock the focus distance for

underwater shoots (AF lock)

When [T Snapshot] is selected, press the A button.

AF lock mark

0.00.0

AUTO

AF LOCKAF LOCK

00:3400:34

To cancel, press the A button again to clear the AF

lock mark.

To take pictures of your pet’s face,

select ([

Pet Mode - Cat]/[

Pet

Mode - Dog])

Use HI to select [U] or [t] and press the A

button to set.

[Auto Release] is automatically selected, and when

the subject’s face is recognized, the picture is

taken automatically.

To cancel [Auto Release], see “Using the self-timer”

(p. 35).

Shooting with special effects

(

mode)

To add expression to your photo, select the desired

special effect.

1 Set the shooting mode to P.

Magic FilterMagic Filter

0.00.0

AUTO

MENUMENU

ORM

2 Press G to go to the submenu.

Pop Art

0.00.0

AUTO

MENUMENU

ORM

●

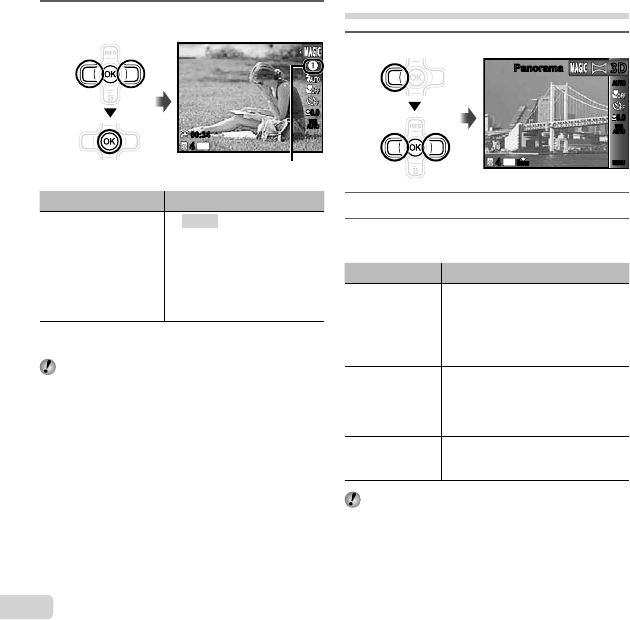

3 Use HI to select the desired effect and then

press the A button to set.

0.00.0

AUTO

00:3400:34

Icon indicating P mode that is set

Shooting mode Option

Magic Filter

[ Pop Art

\ Pin Hole

] Fish Eye

@ Drawing*1

; Soft Focus

: Punk

X Sparkle

Y Watercolor

*1 Two images are saved, an unmodiﬁ ed image and an

image to which the effect has been applied.

P mode, the optimum shooting settings are

pre-programmed for each scene effect. For this

reason, some settings cannot be changed in some

modes.

Creating panoramic images (p mode)

1 Set the shooting mode to p.

ORM

PanoramaPanorama

0.00.0

AUTO

AUTOAUTO

MENUMENU

3D3D

2 Press G to go to the submenu.

3 Use HI to select the desired mode and then

press the A button to set.

Submenu 1 Application

Auto

Three frames are taken and

combined by the camera. The user

only composes the shots so that the

target marks and pointers overlap,

and the camera automatically

releases the shutter.

Manual

Three frames are taken and

combined by the camera. The user

composes the shots using the guide

frame and manually releases the

shutter.

The frames that were taken are

combined into a panorama image

using the PC software.

For details on installing the PC software, see

“Charging the battery and setting up using the

supplied CD” (p. 13).

When set to [Auto] or [Manual], [Image Size]

(p. 39) is ﬁ xed to [2].

The focus, exposure, zoom position (p. 21), and white

balance (p. 36) are locked at the ﬁ rst frame.

The ﬂ ash (p. 34) is ﬁ xed to $ (Flash Off) mode.

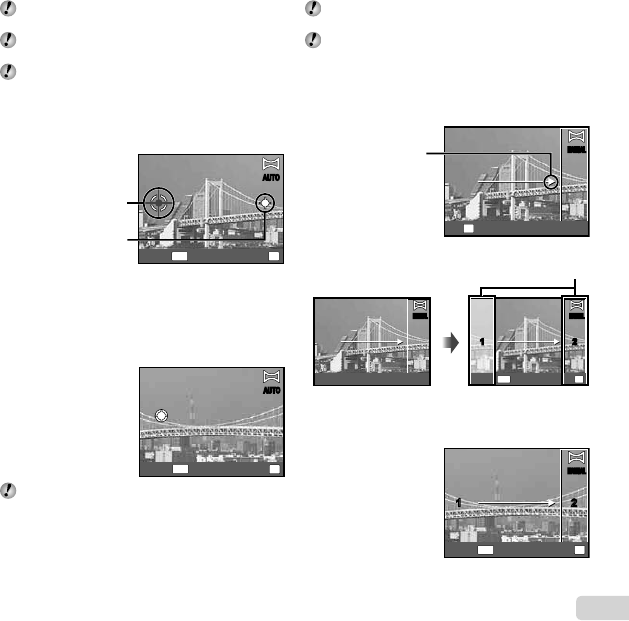

Taking pictures with [Auto]

1 Press the shutter button to take the ﬁ rst frame.

2 Move the camera slightly in the direction of the second

frame.

Target mark

Pointer

Screen when combining images

from left to right

AUTOAUTO

SaveCancel

3 Move the camera slowly while keeping it straight, and

stop the camera where the pointer and target mark

overlap.

The camera releases the shutter automatically.

AUTOAUTO

SaveCancel

To combine only two pictures, press the A button

before taking a third frame.

4 Repeat Step 3 to take a third frame.

After the third frame is taken, the camera

automatically processes the frames and the

combined panorama image is displayed.

●

To exit the panorama function without saving an

image, press the m button.

If the shutter does not automatically release, try

[Manual] or [PC].

Taking pictures with [Manual]

1 Use FGHI to specify at which edge the next

picture is to be connected.

Direction for

combining the next

frame

MANUAL

Set

MANUAL

2 Press the shutter button to take the ﬁ rst frame.

1st frame

MANUALMANUAL MANUALMANUAL

1 212

SaveCancel

Joint areas

3 Compose the next shot so that joint area 1 overlaps

joint area 2.

Composition of the 2nd frame

1 212

SaveCancel

MANUAL

4 Press the shutter button to take the next shot.

To combine only two pictures, press the A button

before taking the third frame.

5 Repeat steps 3 and 4 to take a third frame.

After the third frame is taken, the camera

automatically processes the frames and the

combined panorama image is displayed.

To exit the panorama function without saving an

image, press the m button.

Taking pictures with [PC]

1 Use FGHI to select the direction that the frames

are combined.

2 Press the shutter button to take the ﬁ rst frame, and

then compose the second shot.

PCPC

1 212

Exit

PCPC

Set

Before ﬁ rst shot

After ﬁ rst shot

After the ﬁ rst shot, the area shown in white

reappears on the side of the display opposite the

pan direction. Frame subsequent photographs so

that they overlap with the image in the monitor.

●

3 Repeat Step 2 until the number of desired frames is

taken, and then press the A button or m button

when ﬁ nished.

Panorama shooting is possible for up to 10 frames.

Refer to the PC software help guide for details on

how to make panorama images.

Shooting 3D images (W mode)

In this mode, 3D images are shot for viewing on

3D-compatible display devices.

Images shot in 3D mode cannot be displayed in 3D

on this camera’s monitor.

1 Set the shooting mode to W.

AUTOAUTO

ORM

3D Photo3D Photo

3D3D

MENUMENU

2 Press G to go to the submenu.

3 Use HI to select [Auto] or [Manual] and

then press the A button to set.

Submenu 1 Description

Auto

After shooting the ﬁ rst frame, overlap

the subject with the image in the

monitor. The next frame is taken

automatically.

Manual

After shooting the ﬁ rst frame, move

the camera to overlap the subject

with the image in the monitor. Then

manually release the shutter.

Depending on the subject or the situation (if the

distance between the camera and subject is too

short), the image may not look 3D.

The 3D viewing angle varies depending on the

subject, etc.

Taking pictures with [Auto]

1 Press the shutter button to shoot the ﬁ rst frame.

2 Overlap the subject with the image that is faintly

displayed in the monitor.

The picture is taken automatically.

Taking pictures with [Manual]

1 Press the shutter button to shoot the ﬁ rst frame.

2 Overlap the subject with the image that is faintly

displayed in the monitor, and choose the position for

the second frame.

3 Press the shutter button to take the second shot.

To exit 3D shooting mode without saving an image,

press the m button.

●

“Using the Menu” (p. 5)

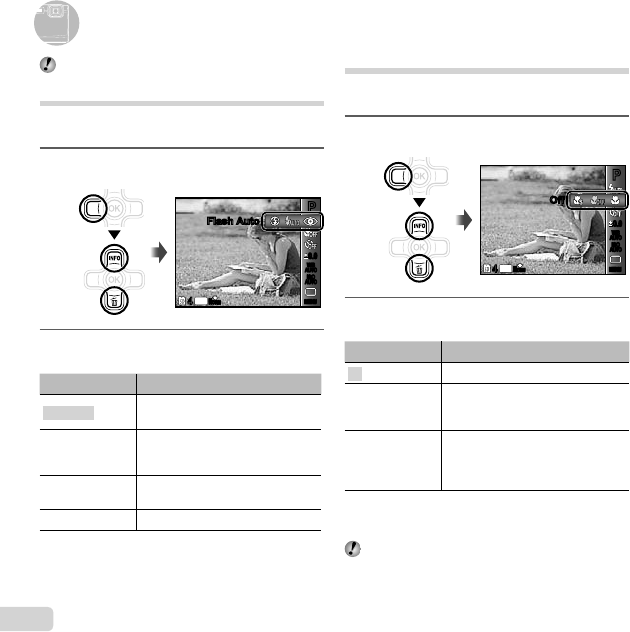

Using the ﬂ ash

The ﬂ ash functions can be selected to best match the

shooting conditions.

1 Select the ﬂ ash option in the shooting

function menu.

0.00.0

AUTO

ISO

AUTO

ISO

Flash AutoFlash Auto

MENUMENU

ORM

2 Use HI to select the setting option, and

press the A button to set.

Option Description

Flash Auto The ﬂ ash ﬁ res automatically in low-

light or backlight conditions.

Redeye

Pre-ﬂ ashes are emitted to reduce

the occurrence of red eye in your

photos.

Fill In The ﬂ ash ﬁ res regardless of the

available light.

Flash Off The ﬂ ash does not ﬁ re.

Using Shooting Functions

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot

subjects at close distances.

1 Select the macro option in the shooting

function menu.

0.00.0

AUTO

ISO

AUTO

ISO

OffOff

MENUMENU

ORM

2 Use HI to select the setting option, and

press the A button to set.

Option Description

Off Macro mode is deactivated.

Macro

This enables shooting as close as

10 cm/3.9 in.*1 (30 cm/11.8 in.*2) to

the subject.

Super Macro*3

This enables shooting as close as

2 cm/0.8 in. to the subject. Subjects

at 50 cm/19.7 in. or farther cannot be

brought into focus.

*1 When the zoom is at the widest (W) position.

*2 When the zoom is at the most telephoto (T) position.

*3 The zoom is automatically ﬁ xed.

The ﬂ ash (p. 34) and zoom (p. 21) cannot be set

when [a Super Macro] (p. 34) is selected.

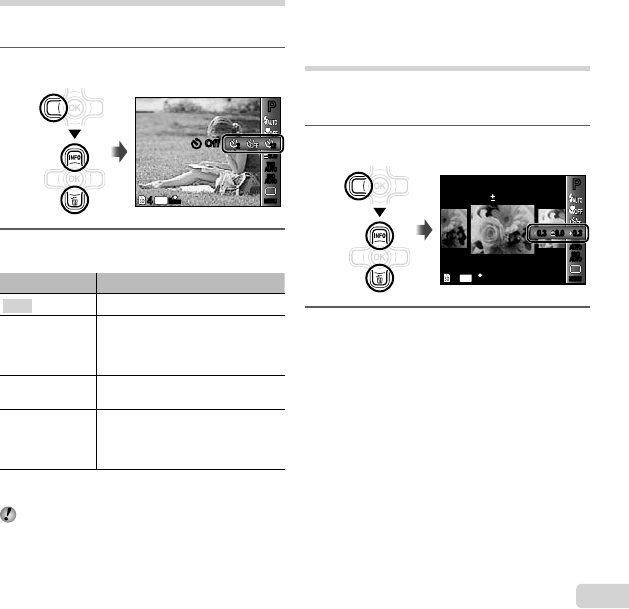

Using the self-timer

After the shutter button is pressed all the way down, the

picture is taken after a short delay.

1 Select the self-timer option in the shooting

function menu.

0.00.0

AUTO

ISO

AUTO

ISO

1212

MENUMENU

Y OffY Off

ORM

2 Use HI to select the setting option, and

press the A button to set.

Option Description

Y Off The self-timer is deactivated.

Y 12 sec

The self-timer lamp turns on for

approx. 10 seconds, then blinks for

approx. 2 seconds, and then the

picture is taken.

Y 2 sec The self-timer lamp blinks for approx.

2 seconds, then the picture is taken.

% Auto

Release*1

When your pet (cat or dog) turns its

head towards the camera, its face is

recognized and the picture is taken

automatically.

*1 [Auto Release] is displayed only when the s mode

is [U] or [t].

Self-timer shooting is automatically canceled after

one shot.

To cancel the self-timer after it starts

Press the m button.

Adjusting the brightness

(Exposure compensation)

The standard brightness (appropriate exposure) set by the

camera based on the shooting mode (except for M)

can be adjusted brighter or darker to obtain a desired shot.

1 Select the exposure compensation option in

the shooting function menu.

0.0

Exposure Comp.

0.30.30.00.00.30.3

AUTO

ISO

AUTO

ISO

MENUMENU

ORM

2 Use HI to select the desired brightness,

and press the A button.

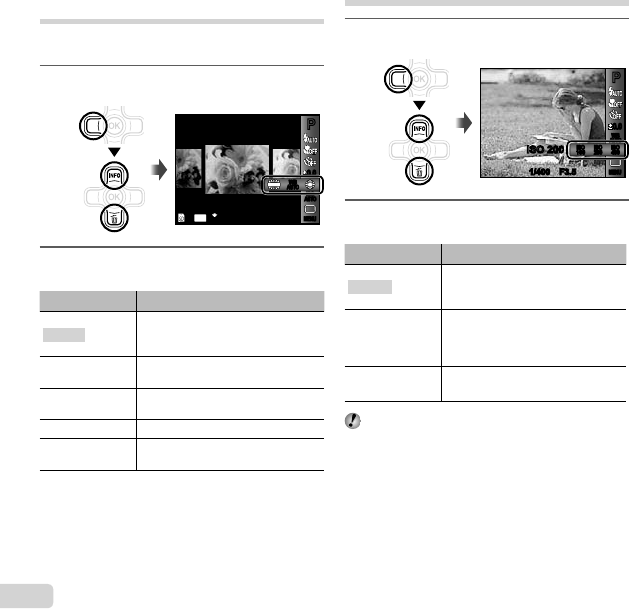

Adjusting to a natural color scheme

(White balance)

For more natural coloring, choose a white balance option

suited to the scene.

1 Select the white balance option in the

shooting function menu.

0.00.0

AUTO

ISO

AUTO

ISO

WB Auto

MENUMENU

ORM

2 Use HI to select the setting option, and

press the A button to set.

Option Description

WB Auto

The camera automatically adjusts

the white balance according to the

shooting scene.

5For shooting outdoors under a

clear sky.

3For shooting outdoors under a

cloudy sky.

1For shooting under tungsten lighting.

>For shooting under white ﬂ uorescent

lighting (in an ofﬁ ce, etc.)

Selecting the ISO sensitivity

1 Select the ISO setting option in the shooting

function menu.

0.00.0

AUTO

200

ISO

200

ISO

100

ISOISO

100

1/400 F3.5F3.51/400

400

ISO

400

ISO

ISO 200ISO 200

MENUMENU

2 Use HI to select the setting option, and

press the A button to set.

Option Description

ISO Auto

The camera automatically adjusts

the sensitivity according to the

shooting scene.

High ISO Auto

The camera uses a higher sensitivity

compared to [ISO Auto] to minimize

blur caused by a moving subject or

by camera shake.

Value The ISO sensitivity is ﬁ xed to the

selected value.

In the ISO setting, although smaller values result in

less sensitivity, sharp images can be taken under fully

lit conditions. Larger values result in higher sensitivity,

and images can be taken at fast shutter speeds even

under low light conditions. However, high sensitivity

introduces noise into the resulting picture, which may

give it a grainy appearance.

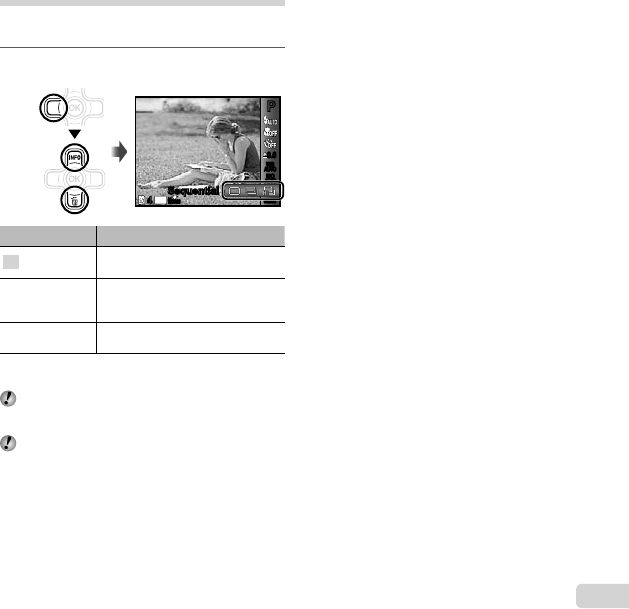

Sequential shooting (Drive)

Pictures are taken sequentially while the shutter button

is held down.

1 Select the drive option in the shooting

function menu.

0.00.0

AUTO

ISO

AUTO

ISO

SequentialSequential

MENUMENU

ORM

Option Description

oOne frame is shot each time the

shutter button is pressed.

j*1

Take sequential shots using the

focus, brightness (exposure) and

white balance set in the ﬁ rst frame.

WThe camera takes sequential shots

at a faster speed than in [j].

*1 The shooting speed varies depending on the settings

for [Image Size/Compression] (p. 39).

When set to [j], the ﬂ ash (p. 34) cannot be set to

[Redeye]. In addition, when set to [W] the ﬂ ash is

ﬁ xed to [Flash Off].

When set to [W], [Image Size] is limited to [3] or

lower, and the ISO sensitivity is ﬁ xed to [ISO Auto].

For information on using the menus, see “Setup menu” (p. 6).

Menus for Shooting Functions

The default settings of the function are highlighted in .

Restoring the shooting functions to the default settings [Reset]

I (Shooting menu 1) X Reset

Submenu 2 Application

Yes

Restores the following menu functions to the default settings.

Shooting mode (p. 28)

Flash (p. 34)

Macro (p. 34)

Self-timer (p. 35)

Exposure compensation (p. 35)

White balance (p. 36)

ISO (p. 36)

Drive (p. 37)

Menu functions in [I, J, A] (p. 38 to 42)

•

No The current settings will not be changed.

For information on using the menus, see “Setup menu” (p. 6).

Selecting the image quality for still images [Image Size/Compression]

I (Shooting menu 1) X Image Size/Compression

Submenu 1 Submenu 2 Application

Image Size

14M (4288×3216) Suitable for printing pictures over A3 (11×17 in.).

8M (3264×2448) Suitable for printing pictures up to A3 (11×17 in.).

5M (2560×1920) Suitable for printing pictures at A4 (8.5×11 in.).

3M (2048×1536) Suitable for printing pictures up to A4 size (8.5×11 in.).

2M (1600×1200) Suitable for printing pictures at A5 (5×7 in.).

1M (1280×960) Suitable for printing pictures at postcard size.

VGA (640×480) Suitable for viewing pictures on a TV or using pictures on emails and web

sites.

16:9G (4288×2416) Suitable for playing pictures on a widescreen TV and for printing on A3 or

11"×17".

16:9F (1920×1080) Suitable for playing pictures on a widescreen TV and for printing on A5 or

5"×7".

Compression Fine Shooting at high quality.

Normal Shooting at normal quality.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/

SDHC/SDXC memory cards” (p. 67, 68)

Selecting the image quality for movies [Image Size/Image Quality]

A (Movie menu) X Image Size/Image Quality

Submenu 1 Submenu 2 Application

Image Size

720p

VGA (640×480)

QVGA (320×240)

Select the image quality based on the image size and frame rate.

Image Quality Fine/Normal Select [Fine] to shoot with higher image quality.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/

SDHC/SDXC memory cards” (p. 67, 68)

When [Image Size] is set to [QVGA], [Image Quality] is ﬁ xed to [Fine].

For information on using the menus, see “Setup menu” (p. 6).

Brightening the subject against

backlight [Shadow Adjust]

I (Shooting menu 1) X Shadow Adjust

Submenu 2 Application

Auto Automatically On when a compatible

shooting mode is selected.

Off The effect is not applied.

Shoot with automatic adjustment to

brighten an area that has become

darker.

When set to [Auto] or [On], [ESP/n] (p. 40) is

automatically ﬁ xed to [ESP].

Selecting the focusing area [AF Mode]

I (Shooting menu 1) X AF Mode

Submenu 2 Application

Face/iESP

The camera focuses automatically.

(If a face is detected, it is shown by

a white frame*1; when the shutter

button is pressed halfway and the

camera focuses, the frame turns to

green*2. If no face is detected, the

camera chooses a subject in the

frame and focuses automatically.)

Spot The camera focuses on the subject

located within the AF target mark.

AF Tracking

The camera tracks the subject

movement automatically to focus on

it continuously.

*1 For some subjects, the frame may not appear or may

take some time to appear.

*2 If the frame blinks in red, the camera cannot focus. Try

refocusing on the subject.

To focus on a moving subject

continuously (AF Tracking)

1 Hold the camera to align the AF target mark on the

subject and press the A button.

2 When the camera recognizes the subject, the AF

target mark automatically tracks the subject movement

to focus on it continuously.

3 To cancel the tracking, press the A button.

Depending on the subjects or the shooting conditions,

the camera may be unable to lock the focus or fail to

track the subject movement.

When the camera fails to track the subject movement,

the AF target mark changes to red.

Selecting the method for measuring the

brightness [ESP/

]

I (Shooting menu 1) X ESP/n

Submenu 2 Application

ESP

Shoots to obtain a balanced

brightness over the entire screen

(Meters the brightness at the center

and surrounding areas of the screen

separately).

5 (spot)

Shoots the subject at the center

during backlighting (Meters the

brightness at the center of the

screen).

When set to [ESP], the center may appear dark when

shooting against strong backlighting.

For information on using the menus, see “Setup menu” (p. 6).

Shooting at higher magniﬁ cations than

optical zoom [Digital Zoom]

I (Shooting menu 1) X Digital Zoom

Submenu 2 Application

Off Disable digital zoom.

On Enable digital zoom.

[Digital Zoom] is not available when [a Super

Macro] (p. 34) is selected.

The option selected for [Digital Zoom] affects the

appearance of the zoom bar.

“To take larger images” (p. 21)

Reducing the blur caused by the

camera shake when shooting

[Image Stabilizer] (still images)/

[IS Movie Mode] (movies)

J (Shooting menu 2) X

Image Stabilizer (still images)/

A (Movie menu) X

IS Movie Mode (movies)

Submenu 2 Application

Off

The image stabilizer is deactivated.

This is recommended for shooting

when the camera is ﬁ xed in place on

a tripod or other stable surface.

On The image stabilizer is activated.

The camera’s default settings are [Image Stabilizer]

(still images) to [On] and [IS Movie Mode] (movies) to

[Off].

There may be a noise coming from inside the camera

when the shutter button is pressed with [Image

Stabilizer] (still images) set to [On].

Images may not be stabilized if camera shake is too

severe.

When the shutter speed is extremely slow, such as

when taking pictures at night, [Image Stabilizer] (still

images) may not be as effective.

When shooting while the [IS Movie Mode] (movies)

is set to [On], the image will be enlarged somewhat

before saving.

Viewing the image immediately after

shooting [Rec View]

J (Shooting menu 2) X Rec View

Submenu 2 Application

Off

The image being recorded is not

displayed. This allows the user

to prepare for the next shot while

following the subject in the monitor

after shooting.

The image being recorded is

displayed. This allows the user to

make a brief check of the image that

was just taken.

For information on using the menus, see “Setup menu” (p. 6).

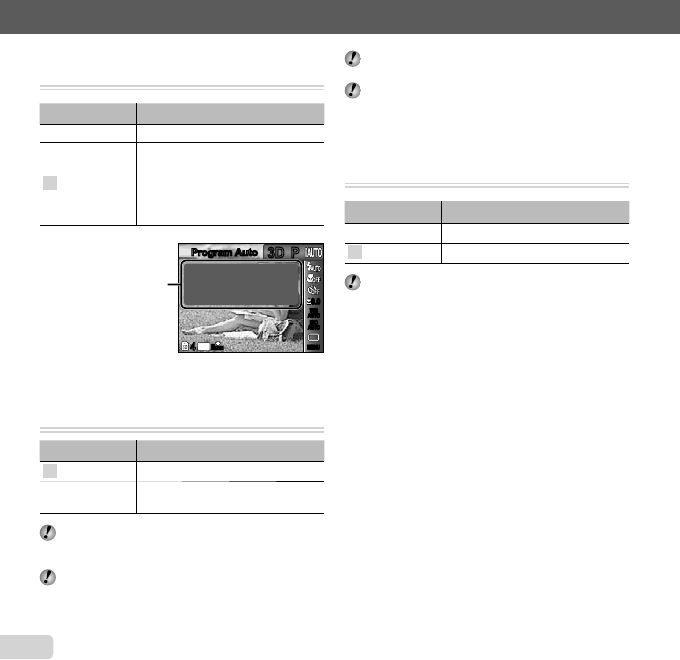

Displaying icon guides [Icon Guide]

J (Shooting menu 2) X Icon Guide

Submenu 2 Application

Off No icon guide is displayed.

The explanation of the selected icon

will be displayed when a shooting

mode or function menu icon is

selected (position the cursor on

the icon for a while to display the

explanation).

Icon guide

0.00.0

AUTO

ISO

AUTO

ISO

PP3D3D

Functions can be changed

manually.

Program AutoProgram Auto

MENUMENU

ORM

Imprinting the date of recording

[Date Stamp]

J (Shooting menu 2) X Date Stamp

Submenu 2 Application

Off Do not imprint the date.

On Stamp new photographs with the

date of recording.

If the date and time are not set, the [Date Stamp]

setting cannot be set.

“Date, time, time zone, and language” (p. 17)

The date stamp can not be deleted.

[Date Stamp] is not available in [Panorama] or [3D

Photo] mode.

The date stamp cannot be imprinted when taking

sequential shots.

Recording sound when shooting

movies [

]

A (Movie menu) X R

Submenu 2 Application

Off No sound is recorded.

On Sound is recorded.

When set to [On], only the digital zoom can be used

during movie recording. To record the movie with the

optical zoom, set [R] (movie sound recording) to [Off].

For information on using the menus, see “Setup menu” (p. 6).

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in

Data must be created with the ib (PC software) before

using some functions.

Refer to the ib (PC software) help guide for details on

how to use the ib (PC software).

For details on installing the ib (PC software), see

“Charging the battery and setting up using the

supplied CD” (p. 13).

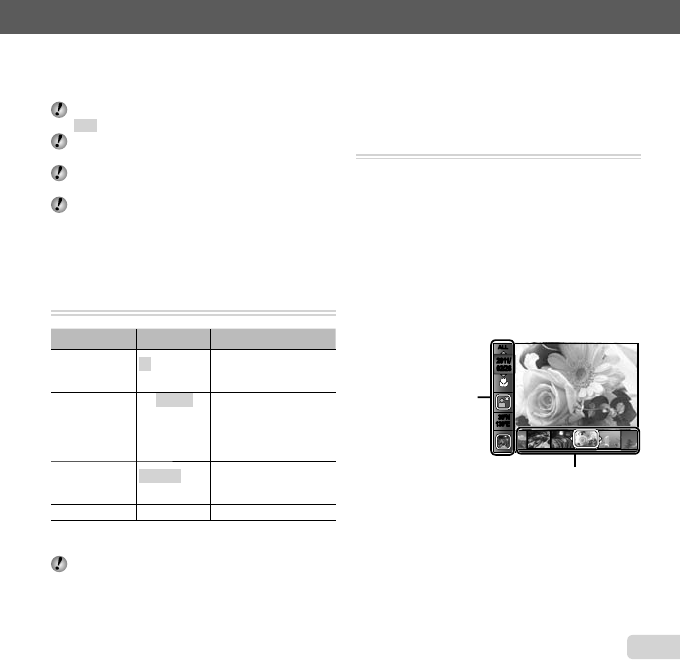

Playing back pictures automatically

[Slideshow]

q (Playback menu) X Slideshow

Submenu 2 Submenu 3 Application

Slide All/Event/

Collection*1

Selects the content

to be included in the

slideshow.

BGM

Off/Cosmic/

Breeze/

Mellow/

Dreamy/

Urban

Selects the background

music options.

Type

Standard/

Fade/Zoom

Selects the type of

transition effect used

between slides.

Start ―Starts the slideshow.

*1 The [Collection] that has been created with the ib (PC

software) and imported back from a computer can play back.

During a slideshow, press I to advance one frame,

H to go back one frame.

Searching for images and playing back

the related images [Photo Surﬁ ng]

q (Playback menu) X Photo Surﬁ ng

In [Photo Surﬁ ng], images can be searched and related

images can be played back by selecting the related items.

To start [Photo Surﬁ ng]

Press the A button to start [Photo Surﬁ ng].

When a related item of the image displayed is selected

with FG, images related to the item are displayed in the

lower part of the monitor. Use HI to display an image.

To select related items that are not displayed, press the

A button when selecting an item.

To stop [Photo Surﬁ ng], use FG to select [ALL], and

press the A button.

related items

35ºN

139ºE

35ºN

139ºE

2011/

02/26

2011/

02/26

ALLALL

For information on using the menus, see “Setup menu” (p. 6).

Using the ib (PC software) and

importing data back to the camera

Refer to the ib (PC software) help guide for details on

how to use the ib (PC software).

The ib (PC software) may not work properly on the

pictures edited by other application software.

The following [Photo Surﬁ ng] functions can be

performed when data created with the ib (PC

software) is imported back to the camera.

[Photo Surﬁ ng]

Information of persons or shooting locations and new

Collections can be added in the related items.

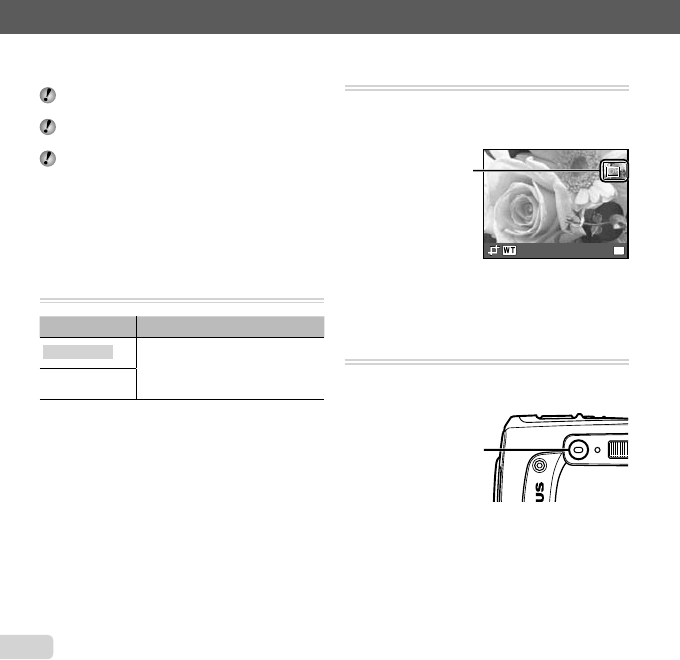

Changing the image size [

]

q (Playback menu) X Edit X Q

Submenu 3 Application

C 640 × 480 This saves a high-resolution image

as a separate image with a smaller

size for use in e-mail attachments

and other applications.

E 320 × 240

1 Use HI to select an image.

2 Use FG to select an image size and press the A

button.

The resized image is saved as a separate image.

●

Cropping image [

]

q (Playback menu) X Edit X P

1 Use HI to select an image, and press the A button.

2 Use the zoom buttons to select the size of the cropping

frame, and use FGHI to move the frame.

Cropping frame

Set

3 Press the A button after you have selected the area

to trim.

The edited image is saved as a separate image.

Adding sound to still images [

]

q (Playback menu) X Edit X R

1 Use HI to select an image.

2 Aim the microphone toward the sound source.

Microphone

3 Press the A button.

Recording starts.

The camera adds (records) sound for approx.

4 seconds while playing back the image.

●

For information on using the menus, see “Setup menu” (p. 6).

Retouching the skin and eyes

[Beauty Fix]

q (Playback menu) X Edit X Beauty Fix

Depending on the picture, the editing may not be

effective.

Submenu 3 Submenu 4 Application

All ―

[Clear Skin], [Sparkle

Eye] and [Dramatic Eye]

are applied together.

Clear Skin Soft/Avg/Hard

Makes skin look smooth

and translucent. Select

the correction effect

from 3 levels.

Sparkle Eye ―Enhances the contrast

of the eyes.

Dramatic Eye ―Enlarges the subject’s

eyes.

1 Use FG to select a correction item, and press the A

button.

2 Use HI to select an image for retouching, and press

the A button.

The retouched image is saved as a separate

image.

When [Clear Skin] is selected

Use FG to select the retouching level, and press the

A button.

Clear Skin

SetBack

Avg

SoftSoft

Hard

●

Brightening areas that are dark

due to backlight or other reasons

[Shadow Adj]

q (Playback menu) X Edit X Shadow Adj

1 Use HI to select an image, and press the A button.

The edited image is saved as a separate image.

Depending on the picture, the editing may not be

effective.

The retouching process may lower the image

resolution.

Retouching red eyes in ﬂ ash shooting

[Redeye Fix]

q (Playback menu) X Edit X Redeye Fix

1 Use HI to select an image, and press the A button.

The edited image is saved as a separate image.

Depending on the picture, the editing may not be

effective.

The retouching process may lower the image

resolution.

Erasing images [Erase]

q (Playback menu) X Erase

Submenu 2 Application

All Erase All images in the internal memory or

card will be erased.

Sel. Image Images are individually selected and

erased.

Erase Deletes the image displayed.

●

For information on using the menus, see “Setup menu” (p. 6).

When erasing pictures in the internal memory, do not

insert the card into the camera.

Before erasing pictures from a memory card, insert

the card into the camera.

Protected images cannot be erased.

To individually select and erase images

[Sel. Image]

1 Use FG to select [Sel. Image], and press the

A button.

2 Use HI to select the image to be erased, and press

the A button to add a R mark to the image.

Press the W zoom button to display an index

view. Images can be quickly selected using the

FGHI buttons. Press the T button to return to

the single frame display.

R mark

Sel. Image

Erase/Cancel

5/305/30

3 Repeat Step 2 to select the images to be erased,

and then press the m button to erase the selected

images.

4 Use FG to select [Yes], and press the A button.

The images with a R mark are erased.

To erase all images [All Erase]

1 Use FG to select [All Erase], and press the

A button.

2 Use FG to select [Yes], and press the A button.

●

Saving print settings to the image data

[Print Order]

q (Playback menu) X Print Order

“Print reservations (DPOF)” (p. 57)

Print reservation can be set only for still images that

are recorded to the card.

Protecting images [

]

q (Playback menu) X R

Protected images cannot be erased by [Erase] (p. 24,

45), [Sel. Image] (p. 46), or [All Erase] (p. 46), but

all images are erased by [Memory Format]/[Format]

(p. 47).

1 Use HI to select an image.

2 Press the A button.

Press the A button again to cancel the settings.

3 If necessary, repeat Steps 1 and 2 to protect other

images, and press the m button.

Rotating images [

]

q (Playback menu) X y

1 Use HI to select an image.

2 Press the A button to rotate the image.

3 If necessary, repeat Steps 1 and 2 to make settings

for other images, and press the m button.

The new picture orientations will be saved even after

the power is turned off.

●

For information on using the menus, see “Setup menu” (p. 6).

Menus for Other Camera Settings

The default settings of the function are highlighted in .

Using an Eye-Fi card (commercially

available) [Eye-Fi]

r (Settings 1) X Eye-Fi

Submenu 2 Application

Off Disable Eye-Fi communication.

On Enable Eye-Fi communication.

When using an Eye-Fi card, read the Eye-Fi card

instruction manual carefully, and comply with the

instructions.

Use the Eye-Fi card in compliance with the laws and

regulations of the country where the camera is used.

In locations such as on an airplane, where the Eye-Fi

communication is prohibited, remove the Eye-Fi card

from the camera, or set [Eye-Fi] to [Off].

This camera does not support the Eye-Fi card’s

Endless mode.

Erasing data completely

[Memory Format]/[Format]

r (Settings 1) X Memory Format/Format

Before formatting, check that no important data is left

in the internal memory or card.

Cards must be formatted with this camera before

ﬁ rst use or after being used with other cameras or

computers.

Submenu 2 Application

Yes

Completely erases the image data

in the internal memory*1 or card

(including protected images).

No Cancels formatting.

*1 Be sure to remove the card before formatting the

internal memory.

Copying images in the internal memory

to the card [Backup]

r (Settings 1) X Backup

Submenu 2 Application

Yes Backs up image data in the internal

memory to the card.

No Cancels the backup.

It takes some time to back up data. Check that

the battery has sufﬁ cient power before starting the

backup.

For information on using the menus, see “Setup menu” (p. 6).

Selecting a method for connecting

the camera to other devices

[USB Connection]

r (Settings 1) X USB Connection

Submenu 2 Application

Auto

When the camera is connected to

another device, the settings selection

screen is displayed.

Storage Select when connecting the camera

to a computer via a storage device.

MTP

Select when transferring images

without using the supplied ib (PC

software) on Windows Vista/

Windows 7.

Print Select when connecting to a

PictBridge-compatible printer.

System requirements

Windows : Windows XP (Service Pack 1 or

later) /Windows Vista / Windows 7

Macintosh : Mac OS X v10.3 or later

When using another system other than Windows XP

(SP2 or later)/Windows Vista/Windows 7, set to

[Storage].

Even if a computer has USB ports, proper operation

is not guaranteed in the following cases:

Computers with USB ports installed using an

expansion card, etc.

Computers without a factory-installed OS and

home-built computers

●

Turning on the camera with the

button [

Power On]

r (Settings 1) X q Power On

Submenu 2 Application

The camera is not turned on. To turn

on the camera, press the n

button.

Yes Press and hold the q button to turn

the camera on in the playback mode.

Saving the mode when the camera is

turned off [Keep

Settings]

r (Settings 1) X KeepzSettings

Submenu 2 Application

No The shooting mode is set to P mode

when the camera is turned on.

Yes

The shooting mode is saved when

the camera is turned off and is

reactivated the next time the camera

is turned on.

Choosing the opening screen display

[Pw On Setup]

r (Settings 1) X Pw On Setup

Submenu 2 Application

Off No opening screen is displayed.

On The opening screen is displayed

when the camera is turned on.

For information on using the menus, see “Setup menu” (p. 6).

Selecting the camera sound and its volume [Sound Settings]

s (Settings 2) X Sound Settings

Submenu 2 Submenu 3 Application

Sound Type 1/2/3 Selects the camera sounds (operation sounds, shutter sound, and

warning sound).

q Volume 0/1/2/3/4/5 Selects the image playback volume.

Volume 0/1/2/3/4/5 Selects the operation volume of camera buttons.

Resetting the ﬁ le names of pictures [File Name]

s (Settings 2) X File Name

Month: 1 to C

(A=October,

B=November,

C=December)

Day: 01 to 31

Pmdd

Folder name Folder name File name

DCIM 100OLYMP

999OLYMP



Automatic

numbering

Automatic

numbering

Submenu 2 Application

Reset

This resets the sequential number

for the folder name and ﬁ le name

whenever a new card is inserted.*1

This is useful when grouping images

on separate cards.

Auto

Even when a new card is inserted,

this continues the numbering for

the folder name and ﬁ le name from

the previous card. This is useful for

managing all image folder names

and ﬁ les names with sequential

numbers.

*1 The number for the folder name is reset to 100, and the

one for the ﬁ le name is reset to 0001.

For information on using the menus, see “Setup menu” (p. 6).

Adjusting the CCD and the image

processing function [Pixel Mapping]

s (Settings 2) X Pixel Mapping

This function has already been adjusted at factory

shipping, and no adjustment is needed right

after purchase. Approximately once a year is

recommended.

For best results, wait at least one minute after taking

or viewing pictures before performing pixel mapping.

If the camera is turned off during pixel mapping, be

sure to perform it again.

To adjust the CCD and the image

processing function

Press the A button when [Start] (Submenu 2) is

displayed.

The camera checks and adjusts the CCD and the

image processing function at the same time.

●

Adjusting the brightness of the monitor

[

]

s (Settings 2) X s

To adjust the monitor brightness

1 Use FG to adjust the brightness while viewing the

screen, and then press the A button.

SetBack

Playing back images on a TV [TV Out]

s (Settings 2) X TV Out

The TV video signal system varies depending on the countries and regions. Before viewing camera images on your

TV, select the video output according to your TV’s video signal type.

Submenu 2 Submenu 3 Application

Video Out

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan,

and so on.

PAL Connecting the camera to a TV in European countries, China, and so on.

HDMI Out

480p/576p

720p

1080i

Set the playback format.

HDMI Control

Off Operate with the camera.

On Operate with the TV remote control.

The factory default settings differ according to the region where the camera is sold.

For information on using the menus, see “Setup menu” (p. 6).

To play back camera images on a TV

Connection via AV cable

1 Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).

2 Connect the TV and camera.

Connect to the TV

video input jack

(yellow) and audio

input jack (white).

Multi-connector

AV cable (supplied)

Open the battery/card/connector

cover in the direction of the arrow.

Connection via HDMI cable

1 On the camera, select the digital signal format that will be connected ([480p/576p]/[720p]/[1080i]).

2 Connect the TV and camera.

When set to [1080i], 1080i format takes priority for HDMI output. However, if this setting does not match the input

setting of the TV, the signal format is changed ﬁ rst to 720p and then to 480p/576p. For details on changing the input

setting of the TV, refer to the TV’s instruction manual.

When the camera is connected to the computer by the USB cable, do not connect the HDMI cable to the camera.

Use an HDMI cable that matches the HDMI micro connector on the camera and the HDMI connector on the TV.

When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take priority.

Connect to the HDMI

connector on the TV.

HDMI micro

connector

HDMI cable (type D/sold

separately: CB-HD1)

Open the battery/card/

connector cover in the

direction of the arrow.

●

For information on using the menus, see “Setup menu” (p. 6).

Type D (CB-HD1)

Type C

3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera).”

For details on changing the input source of the TV, refer to the TV’s instruction manual.

4 Turn on the camera, and use HI to select the image for playback.

Depending on the TV’s settings, the displayed images and information may become cropped.

To operate images with the TV remote control

1 Set [HDMI Control] to [On], and turn off the camera.

2 Connect the camera and TV with an HDMI cable. “Connection via HDMI cable” (p. 51)

3 First turn on the TV, and then turn on the camera.

Operate by following the operation guide that is displayed on the TV.

With some TVs, operations cannot be performed with the TV remote control even though the operation guide is

displayed on the screen.

If operations cannot be performed with the TV remote control, set [HDMI Control] to [Off] and operate using the

camera.

●

Saving battery power between shots

[Power Save]

s (Settings 2) X Power Save

Submenu 2 Application

Off Cancels [Power Save].

When the camera is not being used

for approx. 10 seconds, the monitor

automatically turns off to save

battery power.

To resume standby mode

Press any button.

Changing the display language [

]

s (Settings 2) X l

Submenu 2 Application

Languages

The language for the menus and

error messages displayed on the

monitor is selected.

For information on using the menus, see “Setup menu” (p. 6).

Setting the date and time [

]

t (Settings 3) X X

“Date, time, time zone, and language” (p. 17).

To select the date display order

1 Press I after setting Minute, and use FG to select the date display

order.

2 Press the A button to set.

To check the date and time

Press the INFO button while the camera is turned off. The current time is

displayed for approx. 3 seconds.

Choosing home and alternate time zones [World Time]

t (Settings 3) X World Time

You will not be able to select a time zone using [World Time] if the camera clock has not ﬁ rst been set using [X].

Submenu 2 Submenu 3 Application

Home/Alternate

xThe time in the home time zone (the time zone selected for x in submenu 2).

zThe time in the travel destination time zone (the time zone selected for z in

submenu 2).

x*1 — Select the home time zone (x).

z*1, 2 —Select the travel destination time zone (z).

*1 In areas where daylight saving time is in effect, use FG to turn daylight saving time ([Summer]) on.

*2 When you select a time zone, the camera automatically calculates the time difference between the selected zone and

the home time zone (x) to display the time in the travel destination time zone (z).

Restoring data in the camera [Data Repair]

t (Settings 3) X Data Repair

Playback will become available by performing [Data Repair] when the Photo surﬁ ng function is not activated

properly. However, data such as collections and other groups created with the ib (PC software) is deleted from the

database in the camera.

Import the data back into the camera from a computer to playback the data created with the ib (PC software).

Date order

02 26 00 00:..2011

SetCancel

YMDTime

Y/M/DY/M/D

Date order

02 26 00 00:..2011

SetCancel

YMDTime

Y/M/DY/M/D

Printing

Direct printing (PictBridge

)

By connecting the camera to a PictBridge-compatible

printer, you can print images directly without using a

computer.

To ﬁ nd out if your printer supports PictBridge, refer to the

printer’s instruction manual.

*1 PictBridge is a standard for connecting digital cameras

and printers of different makers and printing out pictures

directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera vary

depending on the printer that is used. For details,

refer to the printer’s instruction manual.

For details on the available paper types, loading

paper, and installing ink cassettes, refer to the

printer’s instruction manual.

Printing images at the printer’s

standard settings [Easy Print]

In the setup menu, set [USB Connection] to [Print].

[USB Connection] (p. 48)

1 Display the image to be printed on the

monitor.

“Viewing images” (p. 22)

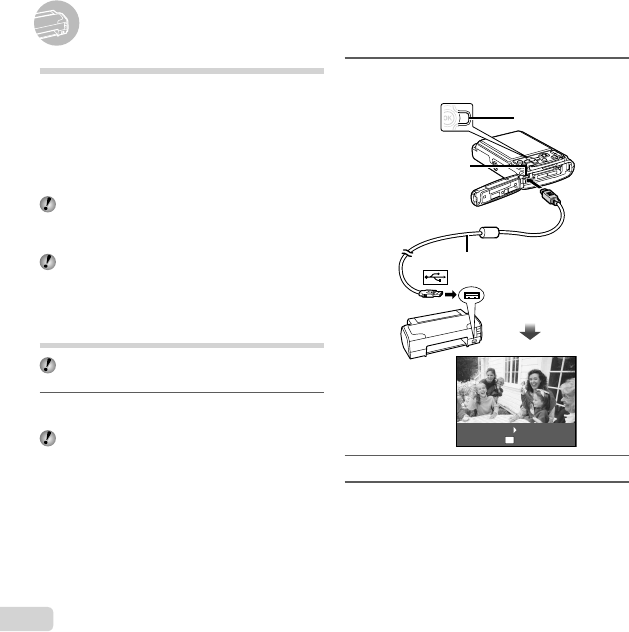

2 Turn on the printer, and then connect the

printer and camera.

USB cable (supplied)

Multi-connector

I button

Custom Print

Easy Print Start

3 Press I to start printing.

4 To print another image, use HI to select an

image, and press the A button.

To exit printing

After a selected image is displayed on the screen,

disconnect the USB cable from the camera and printer.

Changing the printer’s settings for

printing [Custom Print]

1 Follow Steps 1 and 2 for [Easy Print] (p. 54).

2 Press the A button.

3 Use FG to select the print mode, and press

the A button.

Submenu 2 Application

Print This prints the image selected in

Step 6.

All Print This prints all images stored in the

internal memory or card.

Multi Print This prints one image in a multiple

layout format.

All Index This prints an index of all images

stored in the internal memory or card.

Print Order*1 This prints images based on the print

reservation data on the card.

*1 [Print Order] is available only when print reservations

have been made. “Print Reservations (DPOF)” (p. 57)

4 Use FG to select [Size] (Submenu 3), and

press I.

If the [Printpaper] screen is not displayed, the [Size],

[Borderless], and [Pics/Sheet] are set to the printer’s

standard.

Printpaper

Size Borderless

Standard

Set

Back

StandardStandard

5 Use FG to select the [Borderless] or [Pics/

Sheet] settings, and press the A button.

Submenu 4 Application

Off/On*1

The image is printed with a border

around it ([Off]).

The image is printed to ﬁ ll the entire

paper ([On]).

(The number of

images per sheet

varies depending

on the printer.)

The number of images per sheet

([Pics/Sheet]) is selectable only when

[Multi Print] is selected in Step 3.

*1 The available settings for [Borderless] vary depending

on the printer.

If [Standard] is selected in Steps 4 and 5, the image

is printed at the printer’s standard settings.

6 Use HI to select an image.

7 Press F to make a print reservation for the

current image.

Press G to make the detailed printer settings

for the current image.

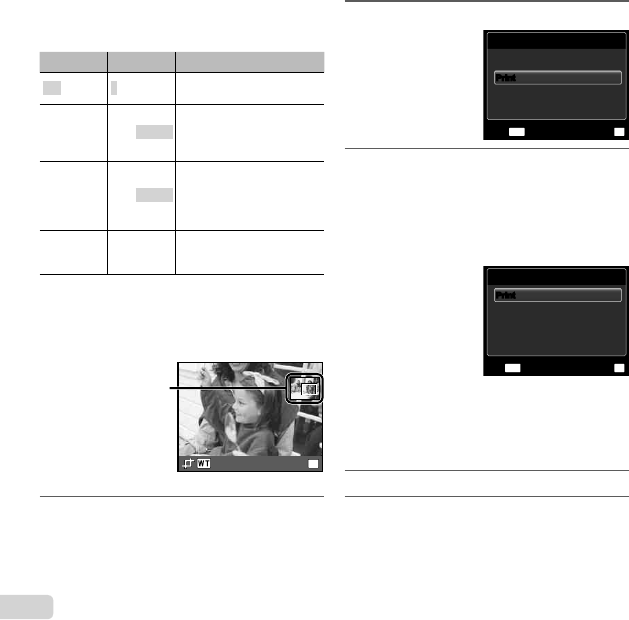

To make the detailed printer settings

1 Use FGHI to select the setting, and press the

A button.

Submenu 5 Submenu 6 Application

<×0 to 10 This selects the number

of prints.

Date With/Without

Selecting [With] prints the

images with the date.

Selecting [Without] prints the

images without the date.

File Name With/Without

Selecting [With] prints the ﬁ le

name on the image.

Selecting [Without] does not

print any ﬁ le name on the

image.

(Proceeds to

the setting

screen.)

This selects a portion of the

image for printing.

To crop an image [

]

1 Use the zoom buttons to select the size of the cropping

frame, use FGHI to move the frame, and then

press the A button.

Set

Cropping frame

2 Use FG to select [OK], and press the A button.

8 If necessary, repeat Steps 6 and 7 to select

the image to be printed, make the detailed

settings, and set [Single Print].

9 Press the A button.

Cancel

SetBack

PrintPrint

Use FG to select [Print], and press the

A button.

Printing starts.

When [Option Set] is selected in [All Print] mode,

[Print Info] screen is displayed.

When printing is ﬁ nished, the [Print Mode Select]

screen is displayed.

Print Mode Select

Multi Print

Print Order

All Index

SetExit

All Print

PrintPrint

To cancel printing

1 Press the m button while [Do Not Remove USB

Cable] is displayed.

2 Select [Cancel] using FG and then press the A

button.

Press the m button.

When the message [Remove USB Cable] is

displayed, disconnect the USB cable from the

camera and printer.

●

Print Reservations (DPOF

)

In print reservations, the number of prints and date imprint

option are saved in the image on the card. This enables

easy printing at a printer or print shop supporting DPOF

by using only the print reservations on the card without a

computer or a camera.

*1 DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the images

stored on the card.

DPOF reservations set by another DPOF device

cannot be changed by this camera. Make changes

using the original device. Making new DPOF

reservations with this camera will erase the

reservations made by the other device.

DPOF print reservations can be made for up to 999

images per card.

Single-frame print reservations [

]

1 Display the setup menu.

“Setup menu” (p. 6)

2 From the playback menu q, select [Print

Order] and then press the A button.

3 Use FG to select [<], and press the

A button.

ORM

4/304/30

’11/02/26

’11/02/26 00:0000:00

ORM

FILE

100 0004100 0004

Set

4 Use HI to select the image for print

reservation. Use FG to select the quantity.

Press the A button.

5 Use FG to select the [X] (date print)

screen option, and press the A button.

Submenu 2 Application

No This prints the image only.

Date This prints the image with the

shooting date.

Time This prints the image with the

shooting time.

6 Use FG to select [Set], and press the

A button.

Reserving one print each of all images

on the card [

]

1 Follow Steps 1 and 2 in [<] (p. 57).

2 Use FG to select [U], and press the A

button.

3 Follow Steps 5 and 6 in [<].

Resetting all print reservation data

1 Follow Steps 1 and 2 in [<] (p. 57).

2 Select either [<] or [U], and press the

A button.

3 Use FG to select [Reset], and press the

A button.

Resetting the print reservation data

for selected images

1 Follow Steps 1 and 2 in [<] (p. 57).

2 Use FG to select [<], and press the

A button.

3 Use FG to select [Keep] and press the

A button.

4 Use HI to select the image with the print

reservation you want to cancel. Use FG to

set the print quantity to “0”.

5 If necessary, repeat Step 4, and then press

the A button when ﬁ nished.

6 Use FG to select the [X] (date print)

screen option, and press the A button.

The settings are applied to the remaining images

with the print reservation data.

7 Use FG to select [Set], and press the

A button.

●

Usage Tips

If the camera does not work as intended, or if an error

message is displayed on the screen, and you are unsure

of what to do, refer to the information below to ﬁ x the

problem(s).

Troubleshooting

Battery

“The camera does not work even when batteries are

installed”.

Insert recharged batteries in the correct direction.

“Inserting the battery” (p. 13), “Charging the battery

and setting up using the supplied CD” (p. 13),

“Charging the battery with the included USB-AC

adapter” (p. 16)

Battery performance may have been reduced

temporarily due to low temperature. Take the

batteries out of the camera, and warm them by

putting them in your pocket for a while.

Card/Internal memory

“An error message is displayed”.

“Error message” (p. 60)

Shutter button

“No picture is taken when the shutter button is pressed”.

Cancel sleep mode.

To save battery power, the camera automatically goes

into sleep mode and the monitor turns off if there is

no operation for 3 minutes when the camera is turned

on. No picture is taken even if the shutter button is

fully pressed in this mode. Operate the zoom buttons

or other buttons to restore the camera from sleep

mode before taking a picture. If the camera is left for

another 12 minutes, it automatically turns off. Press

the n button to turn the camera on.

Press the q button to switch to the shooting

mode.

Wait until #(ﬂ ash charge) stops blinking before

taking pictures.

●

With prolonged camera use, the internal temperature

may increase, resulting in automatic shutdown. If this

occurs, remove the battery from the camera and wait

until the camera has sufﬁ ciently cooled. The camera’s

external temperature may also increase during use,

however this is normal and does not indicate malfunction.

Monitor

“Difﬁ cult to see”.

Condensation*1 may have occurred. Turn off the

power, and wait for the camera body to become

acclimated to the surrounding temperature and dry

out before taking pictures.

*1 Dew drops can form in the camera when it is

suddenly taken from a cold location into a warm,

humid room.

“Vertical lines appear on the screen”.

This condition may occur when the camera is

pointed at an extremely bright subject under a clear

sky and so on. The lines do not appear, however,

in the ﬁ nal image.

“The light is caught in the picture”.

Shooting with ﬂ ash results in an image with many

ﬂ ash reﬂ ections on dust in the air.

Date and time function

“Date and time settings return to the default setting”.

If the batteries are removed and left out of the

camera for about 3 days*2, the date and time settings

return to the default setting, and must be reset.

*2 The time until the date and time settings return to

the default setting varies depending on how long

the batteries have been loaded.

“Date, time, time zone, and language” (p. 17)

Miscellaneous

“The camera makes a noise when taking pictures”.

The camera may activate the lens and make a

noise even if no operation is performed. This

is because the camera automatically performs

actions of auto focus as far as it is ready to shoot.

●

Error message

When one of the messages below is displayed on the

monitor, check the corrective action.

Error message Corrective action

Card Error

Card problem

Insert a new card.

Write Protect

Card problem

The card write-protect switch is

set to the “LOCK” side. Release

the switch.

Memory Full

Internal memory problem

Insert a card.

Erase unwanted images.*1

•

Card Full

Card problem

Replace the card.

Erase unwanted images.*1

•

Card Setup

Set

Format

Power OffPower Off

Card problem

Use FG to select [Format], and

press the A button. Next, use

FG to select [Yes], and press the

A button.*2

Memory Setup

Memory Format

Set

Power OffPower Off

Internal memory problem

Use FG to select [Memory

Format], and press the A button.

Next, use FG to select [Yes], and

press the A button.*2

No Picture

Internal memory/Card problem

Take pictures before viewing them.

Picture Error

Problem with selected image

Use photo retouch software, etc.

to view the image on a computer.

If the image still cannot be viewed,

the image ﬁ le is corrupted.

Error message Corrective action

The Image Cannot

Be Edited

Problem with selected image

Use photo retouch software, etc. to

edit the image on a computer.

Battery Empty

Battery problem

Charge the battery.

No Connection

Connection problem

Connect the camera and computer

or printer correctly.

No Paper

Printer problem

Load paper into the printer.

No Ink

Printer problem

Reﬁ ll the ink in the printer.

Jammed

Printer problem

Remove the jammed paper.

Settings

Changed*3

Printer problem

Return to the status where the

printer can be used.

Print Error

Printer problem

Turn off the camera and printer,

check the printer for any problems,

and then turn the power on again.

Cannot Print*4

Problem with selected image

Use a computer to print.

*1 Before erasing important images, download them to a

computer.

*2 All data will be erased.

*3 This is displayed, for instance, when the printer’s paper

tray has been removed. Do not operate the printer while

making the print settings on the camera.

*4 This camera may be unable to print images taken by

other cameras.

Shooting tips

When you are unsure of how to take a picture that you

envision, refer to the information below.

Focusing

“Focusing on the subject”

Taking a picture of a subject not in the center

of the screen

After focusing on an object at the same distance

as the subject, compose the shot, and take the

picture.

Pressing the shutter button halfway (p. 20)

Set [AF Mode] (p. 40) to [Face/iESP]

Taking a picture in [AF Tracking] mode (p. 40)

The camera tracks the subject movement

automatically to focus on it continuously.

Taking a picture of subjects where autofocus

is difﬁ cult

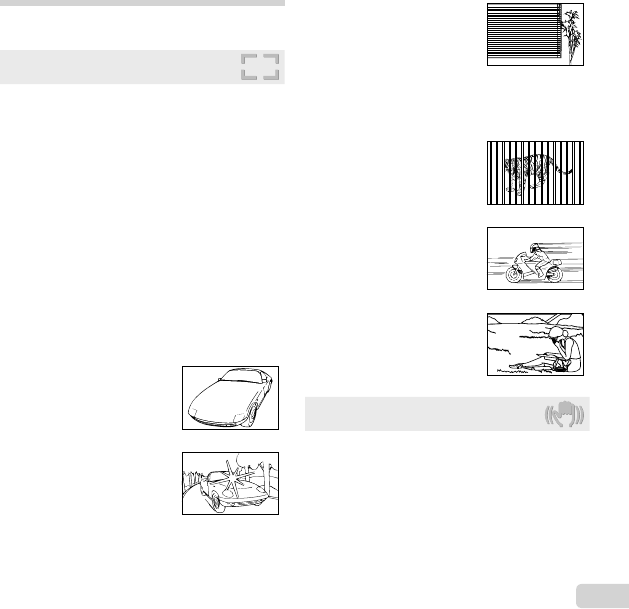

In the following cases, after focusing on an object

(by pressing the shutter button halfway down) with

high contrast at the same distance as the subject,

compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects

appear in the center of the screen

●

Object with no vertical lines*1

*1 It is also effective to compose the shot by holding the

camera vertically to focus, and then returning to the

horizontal position to take the picture.

When objects are at different

distances

Fast-moving object

The subject is not in the center of

the frame

Camera shake

“Taking pictures without camera shake”

Taking pictures using [Image Stabilizer] (p. 41)

When a picture is taken of a shadowed subject,

the CCD*1 shifts to correct for camera shake even

if the ISO speed is not increased. This function is

also effective when taking pictures at a high zoom

magniﬁ cation.

*1 A device that takes light received through the

lens and converts it into electric signals.

●

Shooting movies using [IS Movie Mode] (p. 41)

Select [C Sport] in the scene mode (p. 29)

The [C Sport] mode uses a fast shutter speed and

can reduce the blur incurred by a moving subject.

Taking pictures at a high ISO sensitivity

If a high ISO sensitivity is selected, pictures can

be taken at a high shutter speed even at locations

where a ﬂ ash cannot be used.

“Selecting the ISO sensitivity” (p. 36)

Exposure (brightness)

“Taking pictures with the right brightness”

Taking pictures of a subject against a backlight

Faces or backgrounds are bright even when shot

against backlight.

[Shadow Adjust] (p. 40)

Taking pictures using [Face/iESP] (p. 40)

Appropriate exposure is obtained for a face against

backlight, and the face is brightened.

Taking pictures using [n] for [ESP/n]

(p. 40)

Brightness is matched with a subject in the center

of the screen and the image is not affected by

background light.

Taking pictures using [Fill In] (p. 34) ﬂ ash

A subject against backlight is brightened.

Taking pictures of a white beach or snow scene

Set the mode to [q Beach & Snow] (p. 29)

Taking pictures using exposure compensation

(p. 35)

Adjust the brightness while viewing the screen for

taking the picture. Normally, taking pictures of white

subjects (such as snow) results in images that are

darker than the actual subject. Use the exposure

compensation to adjust in the positive (+) direction

to express whites as they appear. When taking

pictures of black subjects, on the other hand, it is

effective to adjust in the negative (-) direction.

●

Color hue

“Taking pictures with colors at the same shade as

they appear”

Taking pictures by selecting white balance

(p. 36)

Best results in most environments can normally

be obtained with the [WB Auto] setting, but for

some subjects, you should try experimenting

with different settings. (This is especially true for

sunshade under a clear sky, mixed natural and

artiﬁ cial light settings, and so on.)

Image quality

“Taking sharper pictures”

Taking pictures with the optical zoom

Avoid using digital zoom (p. 41) to take pictures.

Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity,

noise (small colored spots and color unevenness

that were not in the original image) can occur, and

the image can appear grainy.

“Selecting the ISO sensitivity” (p. 36)

Panorama

“Taking pictures so that the frames are stitched

smoothly”

A tip for panoramic shooting

Taking pictures by pivoting with the camera at the

center prevents shifting of the image. When taking

pictures of close objects in particular, pivoting with

the lens end at the center produces favorable

results.

[Panorama] (p. 30)

●

Batteries

“Making batteries last longer”

Avoid any of the following operations when not

actually taking pictures because they deplete

the battery power

Repeatedly pressing the shutter button

halfway.

Repeatedly using the zoom.

Set [Power Save] (p. 52) to [On]

Playback/Editing tips

Playback

“Playing images in the internal memory and card”

Remove the card and display the images in

internal memory

“Inserting the battery” (p. 13), “Inserting an

SD/SDHC/SDXC memory card or Eye-Fi card

(commercially available)” (p. 18)

“Viewing images with high picture quality on a high-

deﬁ nition TV”

Connect the camera to the TV using an HDMI

cable (sold separately)

“Playing back images on a TV ” (p. 50)

Editing

“Erasing the sound recorded to a still image”

Record over the sound with silence when

playing back the image

“Adding sound to still images [R]” (p. 44)

●

Appendix

Camera care

Exterior

Wipe gently with a soft cloth. If the camera is very dirty,

soak the cloth in mild soapy water and wring well. Wipe

the camera with the damp cloth and then dry it with a

dry cloth. If you have used the camera at the beach,

use a cloth soaked in clean water and wrung well.

If any dirt, dust, sand, or other foreign materials adhere

to the camera after use, wash the camera using the

method described on p. 69.

Monitor

Wipe gently with a soft cloth.

Lens

Blow dust off the lens with a commercial blower, then

wipe gently with a lens cleaner.

Do not use strong solvents such as benzene or

alcohol, or chemically treated cloth.

Mold may form on the lens surface if the lens is left

dirty.

Battery/USB-AC adapter

Wipe gently with a soft, dry cloth.

Storage

When storing the camera for extended periods, remove

the battery, USB-AC adapter and card, and keep in a

cool, dry place that is well ventilated.

Periodically insert the battery and test the camera

functions.

Avoid leaving the camera in places where chemical

products are handled since this may result in

corrosion.

•

Battery and USB-AC adapter

This camera uses one Olympus lithium ion battery

(LI-42B). No other type of batteries can be used.

Caution:

There is a risk of explosion if the battery is replaced

with the incorrect battery type.

Dispose of the used battery following the instructions.

(p. 72)

Power consumption by the camera varies depending on

which functions are used.

During the conditions described below, power is

consumed continuously and the battery becomes

exhausted quickly.

The zoom is used repeatedly.

The shutter button is pressed halfway repeatedly in

shooting mode, activating the auto focus.

A picture is displayed on the monitor for an extended

period of time.

The camera is connected to a printer.

Using an exhausted battery may cause the camera to

turn off without displaying the battery level warning.

The rechargeable battery is not fully charged at the

time of purchase. Before using the camera, charge it

by connecting it to a computer, or charge it using the

included USB-AC adapter (F-2AC) or charger (LI-41C).

When the included USB-AC adapter (F-2AC) is used,

charging usually takes approximately 3 hours (varies

on usage).

The included USB-AC adapter (F-2AC) is designed to

be used for charging. Images can be played back on

camera while charging. Make sure that shooting is not

being used while the USB-AC adapter is connected to

the camera.

The included USB-AC adapter (F-2AC) is designed to

be used only with this camera. Other cameras cannot

be charged with this USB-AC adapter.

Do not connect the included USB-AC adapter (F-2AC)

to equipment other than this camera.

•

For plug-in type USB-AC adapter:

The included USB-AC adapter (F-2AC) is intended

to be correctly orientated in a vertical or ﬂ oor mount

position.

Charging the battery by connecting

the camera to a computer

The battery can be charged by connecting the camera to

a computer.

Using a separately sold USB-AC adapter

This camera can be used with a separately sold USB-AC

adapter (F-3AC). If using the USB-AC adapter (F-3AC),

it must be connected using the USB cable included with

the camera. Do not use any other AC adapter with this

camera.

The AC cable supplied with the USB-AC adapter (F-3AC)

is designed to be used only with the USB-AC adapter (F-

3AC). Do not use the AC cable with any other products.

Using a separately sold charger

A charger (LI-41C/sold separately) can be used to charge

the battery. In this case, remove the battery from the

camera and set the battery to the charger.

Using your charger and USB-AC

adapter abroad

The charger and USB-AC adapter can be used in

most home electrical sources within the range of 100 V

to 240 V AC (50/60Hz) around the world. However,

depending on the country or area you are in, the AC

wall outlet may be shaped differently and the charger

and USB-AC adapter may require a plug adapter to

match the wall outlet. For details, ask at your local

electrical shop or travel agent.

Do not use travel voltage converters as they could

damage your charger and USB-AC adapter.

•

Eye-Fi card (commercially available)

The Eye-Fi card may become hot during use.

When using an Eye-Fi card, the battery may run out

faster.

When using an Eye-Fi card, the camera may function

more slowly.

Using an SD/SDHC/SDXC memory

card or Eye-Fi card (commercially

available)

A card (and internal memory) also corresponds to the

ﬁ lm that records images in a ﬁ lm camera. Otherwise, the

recorded images (data) can be erased, and retouching is

also available with the use of a computer. Cards can be

removed from the camera and exchanged, but this is not

possible with the internal memory. Use of larger capacity

cards enables you to take more pictures.

SD/SDHC/SDXC memory card write-

protect switch

The SD/SDHC/SDXC memory card body has a write-

protect switch. If you set the switch to the “LOCK”

side, you will not be able to write to the card, delete

data or format. Return the switch to enable writing.

LOCK

Cards compatible with this camera

SD/SDHC/SDXC memory cards and Eye-Fi cards (for

compatibility card details, visit the Olympus website.)

•

Using a new card

Cards must be formatted with this camera before

ﬁ rst use or after being used with other cameras or

computers.

[Memory Format]/[Format] (p. 47)

When using the Eye-Fi card, read the instruction

manual of the Eye-Fi card carefully, and comply

with the instructions.

Checking the image saving location

The memory indicator shows whether the internal

memory or card is being used during shooting and

playback.

Current memory indicator

v: Internal memory is being used

w: Card is being used

’11/02/26’11/02/26 00:0000:00

4/30

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34

Current memory

indicator

Playback mode

Shooting mode

Even if [Memory Format]/[Format], [Erase], [Sel.

Image], or [All Erase] is performed, the data in the

card is not completely erased. When disposing of the

card, damage the card to prevent the disclosure of

personal data.

•

Readout/recording process of the card

During shooting, the current memory indicator lights

up red while the camera is writing data. Never open

the battery/card/connector cover or unplug the USB

cable. This can not only damage the image data but

also render the internal memory or card unusable.

0.00.0

AUTO

ISO

AUTO

ISO

00:3400:34

Lights up red

Number of storable pictures (still images)/Continuous recording length (movies) in the

internal memory and SD/SDHC/SDXC memory cards

The ﬁ gures in the following tables are quoted only as a rough guideline. The actual number of storable pictures or

continuous recording lengths will differ according to the shooting conditions and memory cards used.

The ﬁ gures in the table below are the number of the storable pictures when using the internal memory formatted.

[Memory Format]/[Format] (p. 47)

Still pictures

Image Size Compres sion

Number of storable still pictures

Internal memory SD/SDHC/SDXC memory card

(4GB)

6 4288×3216 L2 574

M5 1,134

4 3264×2448 L5 982

M9 1,921

n 2560×1920 L8 1,574

M16 3,225

3 2048×1536 L12 2,411

M25 5,002

2 1600×1200 L20 4,113

M41 8,085

1 1280×960 L32 6,366

M63 12,406

7 640×480 L120 23,600

M219 42,999

K 4288×2416 L3 764

M7 1,507

0 1920×1080 L19 3,813

M38 7,505

Movies

Image Size Image Quality

Continuous recording length

Internal memory SD/SDHC/SDXC memory card

(4GB)

With sound Without sound With sound Without sound

L 1280×720 L12 sec. 12 sec. 29 min. 29 min.

M18 sec. 18 sec. 29 min. 29 min.

8 640×480 L18 sec. 18 sec. 87 min. 42 sec. 88 min. 46 sec.

M37 sec. 38 sec. 173 min. 19 sec. 177 min. 34 sec.

9 320×240 L38 sec. 39 sec. 179 min. 46 sec. 184 min. 21 sec.

The maximum ﬁ le size of a single movie is 4 GB, regardless of the capacity of the card.

The maximum recording length of a single movie is 29 minutes for [L].

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase

the images in the internal memory or card. [Erase] (p. 24, 45), [Sel. Image] (p. 46), [All Erase] (p. 46),

[Memory Format]/[Format] (p. 47)

Important information about water

and shock resistant features

Water resistance: The waterproof feature is warranted*1 to

operate at depths up to 3 m (9.8 feet) for up to one hour. The

waterproof feature may be compromised if the camera is subject

to substantial or excessive impact.

Shock resistance: The anti-shock feature warrants*2 the

operation of the camera against accidental impact incurred from

everyday use of your digital compact camera. The anti-shock

feature does not unconditionally warrant all defective operation

or cosmetic damage. Cosmetic damage, such as scratches and

dents, are not covered under the warranty.

As with any electronic device, proper care and maintenance are

required to preserve the integrity and operation of your camera.

To maintain camera performance, please take your camera

to the nearest Olympus Authorized Service Center to have it

inspected after any major impact. In the event the camera is

damaged as a result of negligence or misuse, the warranty will

not cover costs associated with the service or repair of your

camera. For additional information on our warranty, please visit

to the Olympus website for your local area.

Please observe the following care instructions for your camera.

*1 As determined by Olympus pressure testing equipment

in accordance with IEC Standard Publication 529 IPX8 -

This means that the camera can be used normally under

water at a speciﬁ ed water pressure.

*2 This anti-shock performance is conﬁ rmed by Olympus’

testing conditions in accordance with MIL-STD-810F,

Method 516.5, Procedure IV (Transit Drop Test). For

more details of Olympus’ testing conditions, please refer

to the Olympus website for your local area.

Before Use:

Check the camera for foreign material including dirt, dust or

sand.

Be sure to close the battery/card/connector cover ﬁ rmly so that

lock makes the clicking sound.

Do not open the battery/card/connector cover with wet hands,

while under water, or in a damp or dusty environment (e.g.

beach).

•

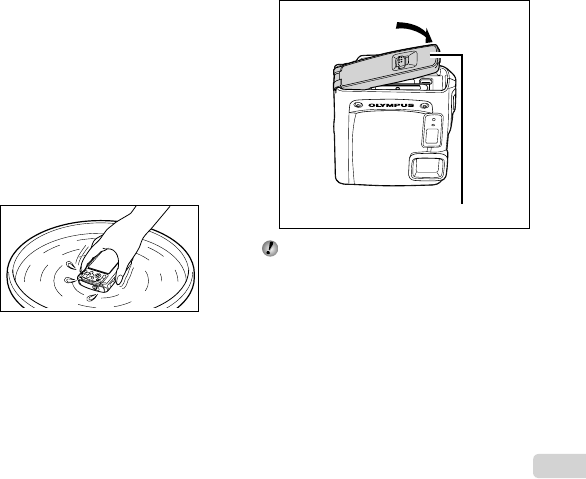

After Use:

Be sure to wipe off any excess water or debris after using the

camera under water.

After the camera is used under seawater, immerse the camera in

a bucket containing fresh water for about 10 minutes (with the

battery/card/connector cover ﬁ rmly closed). After that, dry the

camera in the shade with good ventilation.

Water drops may be observed on the inner surface of the

battery/card/connector cover after you open the cover. If any

water drops are found, be sure to wipe them off before using

the camera.

Notes after use

Foreign materials may be attached to the camera when

using the camera in conditions with foreign materials such as

dirt, dust or sand. If you continue to use the camera in such

conditions, it could cause damage to the camera. To avoid

such damage, wash the camera using the following method.

1 Insert the battery and close the battery/card/

connector cover ﬁ rmly so that lock makes the

clicking sound.

2 Fill a bucket or other container with fresh water,

immerse the camera facing downward in the

bucket and shake the camera thoroughly. Or rinse

the camera by placing it directly under a strong

stream of tap water.

Storage and Maintenance

Do not leave the camera in an environment at high

temperature (40°C (104°F) or more) or at low temperature

(-10°C (14°F) or less). Failure to do so may break down water

resistance.

Do not use chemicals for cleaning, rust prevention, anti-

fogging, repairing, etc. Failure to do so may break down water

resistance.

•

Do not leave the camera in water for a long time. Prolonged

exposure to water will cause damage to the camera’s appearance

and/or deteriorate water resistance.

In order to preserve the water resistant feature, as with any

underwater housing, it is recommended that the waterproof

packing (and seals) are replaced annually.

For the Olympus distributors or service stations where the

waterproof packing can be replaced, visit Olympus website for

your local area.

Closing Battery/card/connector cover

Battery/card/connector cover

The included accessories (e.g. USB-AC adapter) do

not offer shock or water resistance.

•

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL.

An exclamation mark enclosed in a

triangle alerts you to important operating

and maintenance instructions in the

documentation provided with the product.

DANGER If the product is used without observing

the information given under this symbol,

serious injury or death may result.

WARNING If the product is used without observing

the information given under this symbol,

injury or death may result.

CAUTION If the product is used without observing

the information given under this symbol,

minor personal injury, damage to the

equipment, or loss of valuable data may

result.

WARNING!

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK,

NEVER DISASSEMBLE, EXPOSE THIS PRODUCT

TO WATER OR OPERATE IN A HIGH HUMIDITY

ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all

operating instructions. Save all manuals and documentation

for future reference.

Cleaning — Always unplug this product from the wall outlet

before cleaning. Use only a damp cloth for cleaning. Never

use any type of liquid or aerosol cleaner, or any type of

organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the

product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with

weatherproof designs, read the weatherprooﬁ ng sections.

Location — To avoid damage to the product, mount the product

securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power

source described on the product label.

Lightning — If a lightning storm occurs while using a USB-AC

adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a

metal object into the product.

Heat — Never use or store this product near any heat source

such as a radiator, heat register, stove, or any type of

equipment or appliance that generates heat, including stereo

ampliﬁ ers.

Handling the Camera

WARNING

Do not use the camera near ﬂ ammable or explosive gases.

Do not use the ﬂ ash and LED (including AF illuminator) on

people (infants, small children, etc.) at close range.

You must be at least 1 m (3 ft.) away from the faces of your

subjects. Firing the ﬂ ash too close to the subject’s eyes could

cause a momentary loss of vision.

Keep young children and infants away from the camera.

Always use and store the camera out of the reach of young

children and infants to prevent the following dangerous

situations which could cause serious injury:

Becoming entangled in the camera strap, causing

strangulation.

Accidentally swallowing the battery, cards or other small

parts.

Accidentally ﬁ ring the ﬂ ash into their own eyes or those of

another child.

Accidentally being injured by the moving parts of the

camera.

Do not look at the sun or strong lights with the camera.

Do not use or store the camera in dusty or humid places.

Do not cover the ﬂ ash with a hand while ﬁ ring.

Use SD/SDHC/SDXC memory cards or Eye-Fi cards only. Never

use other types of cards.

If you accidently insert another type of card into the camera,

contact an authorized distributor or service center. Do not try to

remove the card by force.

CAUTION

Stop using the camera immediately if you notice any unusual

odors, noise, or smoke around it.

Never remove the batteries with bare hands, which may

cause a ﬁ re or burn your hands.

•

Do not leave the camera in places where it may be subject to

extremely high temperatures.

Doing so may cause parts to deteriorate and, in some

circumstances, cause the camera to catch ﬁ re. Do not use

the charger or USB-AC adapter if it is covered (such as a

blanket). This could cause overheating, resulting in ﬁ re.

Handle the camera with care to avoid getting a low-temperature

burn.

When the camera contains metal parts, overheating can

result in a low-temperature burn. Pay attention to the

following:

When used for a long period, the camera will get hot. If you

hold on to the camera in this state, a low-temperature burn

may be caused.

In places subject to extremely cold temperatures, the

temperature of the camera’s body may be lower than the

environmental temperature. If possible, wear gloves when

handling the camera in cold temperatures.

Be careful with the strap.

Be careful with the strap when you carry the camera. It could

easily catch on stray objects and cause serious damage.

Do not touch the metallic parts of the camera for a long period of

time at low temperatures.

This may damage your skin. At low temperatures, handle the

camera while wearing gloves.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking,

overheating, burning, exploding, or causing electrical shocks or

burns.

DANGER

The camera uses a lithium ion battery speciﬁ ed by Olympus.

Charge the battery with the speciﬁ ed USB-AC adapter or

charger. Do not use any other USB-AC adapters or chargers.

Never heat or incinerate batteries.

Take precautions when carrying or storing batteries to prevent

them from coming into contact with any metal objects such as

jewelry, pins, fasteners, etc.

Never store batteries where they will be exposed to direct

sunlight, or subjected to high temperatures in a hot vehicle,

near a heat source, etc.

To prevent causing battery leaks or damaging their terminals,

carefully follow all instructions regarding the use of batteries.

Never attempt to disassemble a battery or modify it in any

way, solder, etc.

•

If battery ﬂ uid gets into your eyes, ﬂ ush your eyes immediately

with clear, cold running water and seek medical attention

immediately.

Always store batteries out of the reach of small children. If a

child accidentally swallows a battery, seek medical attention

immediately.

WARNING

Keep batteries dry at all times.

To prevent batteries from leaking, overheating, or causing a

ﬁ re or explosion, use only batteries recommended for use with

this product.

Insert the battery carefully as described in the operating

instructions.

If rechargeable batteries have not been recharged within the

speciﬁ ed time, stop charging them and do not use them.

Do not use a battery if it is cracked or broken.

If a battery leaks, becomes discolored or deformed, or

becomes abnormal in any other way during operation, stop

using the camera.

If a battery leaks ﬂ uid onto your clothing or skin, remove the

clothing and ﬂ ush the affected area with clean, running cold

water immediately. If the ﬂ uid burns your skin, seek medical

attention immediately.

Never subject batteries to strong shocks or continuous vibration.

CAUTION

Before loading, always inspect the battery carefully for leaks,

discoloration, warping, or any other abnormality.

The battery may become hot during prolonged use. To avoid

minor burns, do not remove it immediately after using the

camera.

Always unload the battery from the camera before storing the

camera for a long period.

Caution for Usage Environment

To protect the high-precision technology contained in this

product, never leave the camera in the places listed below, no

matter if in use or storage:

Places where temperatures and/or humidity are high or go

through extreme changes. Direct sunlight, beaches, locked

cars, or near other heat sources (stove, radiator, etc.) or

humidiﬁ ers.

In sandy or dusty environments.

Near ﬂ ammable items or explosives.

In wet places, such as bathrooms or in the rain. When using

products with weatherproof designs, read their manuals

as well.

In places prone to strong vibrations.

•

Never drop the camera or subject it to severe shocks or

vibrations.

When the camera is mounted on or removed from a tripod,

adjust the position of the camera using the tripod head. Do not

twist the camera.

When carrying the camera, remove all accessories other

than genuine Olympus accessories, such as a tripod (sold

separately).

Do not touch electric contacts on cameras.

Do not leave the camera pointed directly at the sun. This may

cause lens or shutter curtain damage, color failure, ghosting on

the CCD, or may possibly cause ﬁ res.

Do not push or pull severely on the lens.

Before storing the camera for a long period, remove the

batteries. Select a cool, dry location for storage to prevent

condensation or mold from forming inside the camera. After

storage, test the camera by turning it on and pressing the

shutter button to make sure that it is operating normally.

The camera may malfunction if it is used in a location where

it is subject to a magnetic/electromagnetic ﬁ eld, radio waves,

or high voltage, such as near a TV set, microwave, video

game, loud speakers, large monitor unit, TV/radio tower, or

transmission towers. In such cases, turn the camera off and on

again before further operation.

Always observe the operating environment restrictions

described in the camera’s manual.

Battery Handling Precautions

This camera uses a lithium ion battery speciﬁ ed by Olympus.

Do not use any other type of battery.

If the battery’s terminals get wet or greasy, camera contact

failure may result. Wipe the battery well with a dry cloth

before use.

Always charge a battery when using it for the ﬁ rst time, or if it

has not been used for a long period.

When operating the camera with battery power at low

temperatures, try to keep the camera and spare battery

as warm as possible. A battery that has run down at low

temperatures may be restored after it is warmed at room

temperature.

The number of pictures you can take may vary depending on

the shooting conditions or battery.

Before going on a long trip, and especially before traveling

abroad, purchase extra batteries. A recommended battery may

be difﬁ cult to obtain while traveling.

When storing the battery for a long period, select a cool

location for storage.

•

Please recycle batteries to help save our planet’s resources.

When you throw away dead batteries, be sure to cover their

terminals and always observe local laws and regulations.

LCD Monitor

Do not push the monitor forcibly; otherwise the image may

become vague, resulting in a playback mode failure or damage

to the monitor.

A strip of light may appear on the top/bottom of the monitor, but

this is not a malfunction.

When a subject is viewed diagonally in the camera, the

edges may appear zigzagged on the monitor. This is not a

malfunction; it will be less noticeable in playback mode.

In places subject to low temperatures, the LCD monitor may

take a long time to turn on or its color may change temporarily.

When using the camera in extremely cold places, it is a good

idea to occasionally place it in a warm place. An LCD monitor

exhibiting poor performance due to low temperatures will

recover in normal temperatures.

The LCD used for the monitor is made with high-precision

technology. However, black spots or bright spots of light may

appear constantly on the LCD Monitor. Due to its characteristics or

the angle at which you are viewing the monitor, the spot may not

be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

Olympus makes no representations or warranties regarding

any damages, or beneﬁ t expected by using this unit lawfully,

or any request from a third person, which are caused by the

inappropriate use of this product.

Olympus makes no representations or warranties regarding

any damages or any beneﬁ t expected by using this unit

lawfully which are caused by erasing picture data.

Disclaimer of Warranty

Olympus makes no representations or warranties, either

expressed or implied, by or concerning any content of these

written materials or software, and in no event shall be liable for

any implied warranty of merchantability or ﬁ tness for any particular

purpose or for any consequential, incidental or indirect damages

(including but not limited to damages for loss of business proﬁ ts,

business interruption and loss of business information) arising from

the use or inability to use these written materials or software or

equipment. Some countries do not allow the exclusion or limitation

of liability for consequential or incidental damages or of the implied

warranty, so the above limitations may not apply to you.

Olympus reserves all rights to this manual.

•

Warning

Unauthorized photographing or use of copyrighted material

may violate applicable copyright laws. Olympus assumes no

responsibility for unauthorized photographing, use or other acts

that infringe upon the rights of copyright owners.

software may be reproduced or used in any form or by any

means, electronic or mechanical, including photocopying

and recording or the use of any type of information storage

and retrieval system, without the prior written permission of

Olympus. No liability is assumed with respect to the use of the

information contained in these written materials or software, or

for damages resulting from the use of the information contained

therein. Olympus reserves the right to alter the features and

contents of this publication or software without obligation or

advance notice.

FCC Notice

•Radio and Television Interference

•Changes or modiﬁ cations not expressly approved by the

manufacturer may void the user’s authority to operate this

equipment. This equipment has been tested and found to

comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a

residential installation.

•This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications.

•However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

•Adjust or relocate the receiving antenna.

•Increase the distance between the camera and receiver.

•Connect the equipment to an outlet on a circuit different from

that to which the receiver is connected.

•Consult your dealer or an experienced radio/TV technician

for help. Only the OLYMPUS-supplied USB cable should

be used to connect the camera to USB enabled personal

computers (PC).

Any unauthorized changes or modiﬁ cations to this equipment

would void the user’s authority to operate it.

Use Only Dedicated Rechargeable Battery,

Battery Charger and USB-AC adapter

We strongly recommend that you use only the genuine Olympus

dedicated rechargeable battery, battery charger and USB-AC

adapter with this camera. Using a non-genuine rechargeable

battery, battery charger and/or USB-AC adapter may result

in ﬁ re or personal injury due to leakage, heating, ignition or

damage to the battery. Olympus does not assume any liability

for accidents or damage that may result from the use of a

battery, battery charger and/or USB-AC adapter that are not

genuine Olympus accessories.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number: TG-320

Trade Name: OLYMPUS

Responsible Party:

Address: 3500 Corporate Parkway, P.O. Box 610,

Center Valley, PA 18034-0610, U.S.A.

Telephone Number: 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in CANADA

This Class B digital apparatus complies with Canadian ICES-

003.

OLYMPUS WORLDWIDE LIMITED WARRANTY

- IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging

product(s) and related Olympus® accessories (individually

a “Product” and collectively the “Products”) will be free from

defects in materials and workmanship under normal use and

service for a period of one (1) year from the date of purchase.

If any Product proves to be defective within the one-year

warranty period, the customer must return the defective Product

to any of Olympus Service Centers, following the procedure

set forth below (See “WHAT TO DO WHEN SERVICE IS

NEEDED”).

Olympus, at its sole discretion, will repair, replace, or adjust

the defective Product, provided that Olympus investigation and

factory inspection disclose that (a) such defect developed under

normal and proper use and (b) the Product is covered under this

limited warranty.

Repair, replacement, or adjustment of defective Products shall

be Olympus’s sole obligation and the customer’s sole remedy

hereunder.

The customer is liable and shall pay for shipment of the

Products to the Olympus Service Center.

Olympus shall not be obligated to perform preventive

maintenance, installation, deinstallation, or maintenance.

Olympus reserves the right to (i) use reconditioned, refurbished,

and/or serviceable used parts (that meet Olympus’s quality

assurance standards) for warranty or any other repairs and (ii)

make any internal or external design and/or feature changes

on or to its products without any liability to incorporate such

changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED

WARRANTY

Excluded from this limited warranty and not warranted by

Olympus in any fashion, either express, implied, or by statute,

are:

(a) products and accessories not manufactured by Olympus

and/or not bearing the “OLYMPUS” brand label (the

warranty coverage for products and accessories of other

manufacturers, which may be distributed by Olympus, is the

responsibility of the manufacturers of such products and

accessories in accordance with the terms and duration of

such manufacturers’ warranties);

(b) any Product which has been disassembled, repaired,

tampered with, altered, changed, or modiﬁ ed by persons

other than Olympus’s own authorized service personnel

unless repair by others is made with the written consent of

Olympus;

tear, misuse, abuse, negligence, sand, liquids, impact,

improper storage, nonperformance of scheduled operator

and maintenance items, battery leakage, use of non-

“OLYMPUS” brand accessories, consumables, or supplies,

or use of the Products in combination with non-compatible

devices;

(d) software programs;

(e) supplies and consumables (including but not limited to

lamps, ink, paper, ﬁ lm, prints, negatives, cables and

batteries); and/or

(f) Products which do not contain a validly placed and recorded

Olympus serial number, unless they are a model on which

Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH

ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER

REPRESENTATIONS, GUARANTIES, CONDITIONS, AND

WARRANTIES CONCERNING THE PRODUCTS, WHETHER

DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING

UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE

OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY

WARRANTY OR REPRESENTATION AS TO THE SUITABILITY,

DURABILITY, DESIGN, OPERATION, OR CONDITON OF

THE PRODUCTS (OR ANY PART THEREOF) OR THE

MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS

FOR A PARTICULAR PURPOSE, OR RELATING TO THE

INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER

PROPRIETARY RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW,

THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS

LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR

LIMITATION OF WARRANTIES AND/OR LIMITATION OF

LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS

MAY NOT APPLY.

THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR

ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM

STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT

OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY

DAMAGES THAT THE CUSTOMER MAY INCUR FROM

DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT

DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA

LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE,

WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT

(INCLUDING NEGLIGENCE AND STRICT PRODUCT

LIABILITY) OR OTHERWISE. IN NO EVENT SHALL

OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND

(INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR

LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE

OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH

POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including

but not limited to dealers, representatives, salespersons, or

agents of Olympus, which are inconsistent or in conﬂ ict with

or in addition to the terms of this limited warranty, shall not be

binding upon Olympus unless reduced to writing and approved

by an expressly authorized ofﬁ cer of Olympus.

This limited warranty is the complete and exclusive statement of

warranty which Olympus agrees to provide with respect to the

Products and it shall supersede all prior and contemporaneous

oral or written agreements, understandings, proposals, and

communications pertaining to the subject matter hereof.

This limited warranty is exclusively for the beneﬁ t of the original

customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on

a Product to another image or data storage medium and/or

remove any ﬁ lm from the Product prior to sending the Product to

Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR

SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA

SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE,

OR ON ANY FILM CONTAINED WITHIN A PRODUCT

RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE

RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY

IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS

BEING PERFORMED (INCLUDING, WITHOUT LIMITATION,

DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR

SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE),

WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE

AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS

OR IMPAIRMENT.

Package the Product carefully using ample padding material to

prevent damage in transit and either deliver it to the Authorized

Olympus Dealer that sold you the Product or ship it postage

prepaid and insured to any of our Olympus Service Centers.

When returning Products for service, your package should

include the following:

1 Sales receipt showing date and place of purchase.

2 Copy of this limited warranty bearing the Product serial

number corresponding to the serial number on the

Product (unless it is a model on which Olympus does not

place and record serial numbers).

3 A detailed description of the problem.

4 Sample prints, negatives, digital prints (or ﬁ les on disk) if

available and related to the problem.

When service is completed, the Product will be returned to you

postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See “WORLDWIDE WARRANTY” for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies

with the European requirements for safety,

health, environment and customer protection.

“CE” mark cameras are intended for sales in

Europe.

This symbol [crossed-out wheeled bin WEEE

Annex IV] indicates separate collection of waste

electrical and electronic equipment in the EU

countries.

Please do not throw the equipment into the

domestic refuse.

Please use the return and collection systems

available in your country for the disposal of

this product.

This symbol [crossed-out wheeled bin

Directive 2006/66/EC Annex II] indicates

separate collection of waste batteries in the

EU countries.

Please do not throw the batteries into the

domestic refuse. Please use the return and

collection systems available in your country for

the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been

used properly (in accordance with the written Handling

Care and Operating instructions supplied with it), during the

applicable national warranty period and has been purchased

from an authorized Olympus distributor within the business

area of Olympus Europa Holding GmbH as stipulated on

the website: http://www.olympus.com this product will be

repaired, or at Olympus’s option replaced, free of charge.

To claim under this warranty the customer must take the

product before the end of the applicable national warranty

period to the dealer where the product was purchased or any

other Olympus service station within the business area of

Olympus Europa Holding GmbH as stipulated on the website:

http://www.olympus.com. During the one year period of the

World Wide Guarantee the customer may turn the product in

at any Olympus service station. Please notice that not in all

countries such Olympus service station exists.

2 The customer shall transport the product to the dealer or

Olympus authorized service station at his own risk and shall

be responsible for any costs incurred in transporting the

product.

Provisions of Guarantee

1 “OLYMPUS IMAGING CORP., Shinjuku Monolith, 2-3-1

Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a

one year World Wide Guarantee. This worldwide Guarantee

must be presented at an Olympus authorized repair service

station before any repair can be made under conditions

of this Guarantee. This Guarantee is valid only if the

Guarantee Certiﬁ cate and proof of purchase are presented

at the Olympus repair service station. Please note that this

Guarantee is in addition to and does not affect the customer’s

legal warranty rights under the applicable national legislation

governing the sale of consumer goods mentioned above.

2 This Guarantee does not cover the following and the

customer will be required to pay repair charge, even for

defects occurring within the Guarantee period referred to

above.

Any defect that occurs due to mishandling (such as an

operation performed that is not mentioned in the Handling

Care or other sections of the instructions, etc.)

Any defect that occurs due to repair, modiﬁ cation, cleaning,

etc. performed by anyone other than Olympus or an

Olympus authorized service station.

Any defect or damage that occurs due to transport, a fall,

shock, etc. after purchase of the product.

Any defect or damage that occurs due to ﬁ re, earthquake,

ﬂ ood damage, thunderbolt, other natural disasters,

environmental pollution and irregular voltage sources.

Any defect that occurs due to careless or improper

storage (such as keeping the product under conditions

of high temperature and humidity, near insect repellents

such as naphthalene or harmful drugs, etc.), improper

maintenance, etc.

Any defect that occurs due to exhausted batteries, etc.

Any defect that occurs due to sand, mud, etc. entering the

inside of the product casing.

When the Guarantee Certiﬁ cate is not returned with the

product.

When any alterations whatsoever are made to the

Guarantee Certiﬁ cate regarding the year, month and date

of purchase, the customer’s name, the dealer’s name, and

the serial number.

When proof of purchase is not presented with this

Guarantee Certiﬁ cate.

3 This Guarantee applies to the product only; the Guarantee

does not apply to any other accessory equipment, such as

the case, strap, lens cap and batteries.

4 Olympus’s sole liability under this Guarantee shall be limited

to repairing or replacing the product. Any liability under the

Guarantee for indirect or consequential loss or damage of

any kind incurred or suffered by the customer due to a defect

of the product, and in particular any loss or damage caused

to any lenses, ﬁ lms, other equipment or accessories used

with the product or for any loss resulting from a delay in repair

or loss of data, is excluded. Compelling regulations by law

remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certiﬁ cate

is duly completed by Olympus or an authorized dealer or

other documents contain sufﬁ cient proof. Therefore, please

make sure that your name, the name of the dealer, the

serial number and the year, month and date of purchase

are all completed or the original invoice or the sales receipt

(indicating the dealer’s name, the date of purchase and

product type) is attached to this Guarantee Certiﬁ cate.

Olympus reserves the right to refuse free-of-charge service

if neither Guarantee Certiﬁ cate is completed nor the above

document is attached or if the information contained in it is

incomplete or illegible.

2 Since this Guarantee Certiﬁ cate will not be re-issued, keep it

in a safe place.

* Please refer to the list on the web site: http://www.olympus.

com for the authorized international Olympus service

network.

For customers in Asia

Provisions of warranty

1 lf this product proves to be defective, although it has been

used properly (in accordance with the written Handling Care

and Operating instructions supplied with it), during a period

of up to one year from the date of purchase this product

will be repaired, or at Olympus’s option replaced, free of

charge. To claim under warranty the customer must take the

product and this Warranty certiﬁ cate before the end of the

one year warranty period to the dealer where the product was

purchased or any Olympus authorized service station listed in

the instructions and request the necessary repairs.

2 The customer shall transport the product to the dealer or

Olympus authorized service station at his own risk and shall

be responsible for any costs incurred in transporting the

product.

3 This warranty does not cover the following and the customer

will be required to pay repair charge, even for defects

occurring within the one year period referred to above.

Any defect that occurs due to mishandling (such as an

operation performed that is not mentioned in the Handling

Care or other sections of the instructions, etc.)

Any defect that occurs due to repair, modiﬁ cation, cleaning,

etc. performed by anyone other than Olympus or an

Olympus authorized service station.

Any defect or damage that occurs due to transport, a fall,

shock, etc. after purchase of the product.

Any defect or damage that occurs due to ﬁ re, earthquake,

ﬂ ood damage, thunderbolt, other natural disasters,

environmental pollution and irregular voltage sources.

Any defect that occurs due to careless or improper

storage (such as keeping the product under conditions

of high temperature and humidity, near insect repellents

such as naphthalene or harmful drugs, etc.), improper

maintenance, etc.

Any defect that occurs due to exhausted batteries, etc.

Any defect that occurs due to sand, mud, etc. entering the

inside of the product casing.

When this Warranty Certiﬁ cate is not returned with the

product.

When any alterations whatsoever are made to the

Warranty Certiﬁ cate regarding the year, month and date of

purchase, the customer’s name, the dealer’s name, and

the serial number.

When proof of purchase is not presented with this

Warranty Certiﬁ cate.

4 This Warranty applies to the product only; the Warranty does

not apply to any other accessory equipment, such as the

case, strap, lens cap and batteries.

5 Olympus’ sole liability under this warranty shall be limited to

repairing or replacing the product and any liability for indirect

or consequential loss or damage of any kind incurred or

suffered by the customer due to a defect in the product, and

in particular any loss or damage caused to any ﬁ lm or lenses

or other equipment or accessories used with the product or

for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the

customer’s statutory right.

2 lf you have any queries regarding this Warranty, call any

of the Olympus authorized service stations listed in the

instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certiﬁ cate is

duly completed by Olympus or the dealer. Make sure that

your name, the name of the dealer, the serial number and the

year, month and date of purchase are all completed.

2 Since this Warranty Certiﬁ cate will not be re-issued, keep it in

a safe place.

3 Any request for repair by a customer in same country where

the product was purchased shall be subject to the terms

of the warranty issued by the Olympus distributor in that

country. Where the local Olympus distributor does not issue a

separate warranty or where the customer is not in the country

where the product was purchased the terms of this worldwide

warranty shall apply.

4 Where applicable, this Warranty is valid worldwide. The

Olympus authorized service stations listed in this Warranty

will gladly honor it.

* Please refer to the appended list for the authorized

international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either

expressed or implied, by or concerning any content if these

written materials or software, and in no event shall be liable

for any implied warranty of merchantability or ﬁ tness for any

particular purpose or for any consequential, incidental or

indirect damages (including but not limited to damages for loss

of business proﬁ ts, business interruption and loss of business

information) arising from the use of inability to use these written

materials or software. Some states do not allow the exclusion or

limitation of liability for consequential or incidental damages, so

the above limitations may not apply to you.

Trademarks

IBM is a registered trademark of International Business

Machines Corporation.

Microsoft and Windows are registered trademarks of Microsoft

Corporation.

Macintosh is a trademark of Apple Inc.

The SDHC/SDXC logo is a trademark.

Eye-Fi is a registered trademark of Eye-Fi, Inc.

All other company and product names are registered

trademarks and/or trademarks of their respective owners.

The standards for camera ﬁ le systems referred to in this

manual are the “Design rule for Camera File system/DCF”

standards stipulated by the Japan Electronics and Information

Technology Industries Association (JEITA).

THIS PRODUCT IS LICENSED UNDER THE AVC

PATENT PORTFOLIO LICENSE FOR THE PERSONAL

AND NONCOMMERCIAL USE OF A CONSUMER TO

(i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC

STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE

AVC VIDEO THAT WAS ENCODED BY A CONSUMER

ENGAGED IN A PERSONAL AND NON-COMMERCIAL

ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO

PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO

LICENSE IS GRANTED OR SHALL BE IMPLIED FOR

ANY OTHER USE. ADDITIONAL INFORMATION MAY BE

OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.

MPEGLA.COM

The software in this camera may include third party software. Any third

party software is subject to the terms and conditions, imposed by the

owners or licensors of that software, under which software is provided

to you.

Those terms and other third party software notices, if any, may be found in

the software notice PDF ﬁ le stored within the accompanying CD-ROM or at

http://www.olympus.co.jp/en/support/imsg/digicamera/download/notice/

notice.cfm

•

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying)

Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge

3D still image : MP format

Sound with still

pictures

:Wave format

Movie : MPEG-4AVC./H.264

Memory : Internal memory

SD/SDHC/SDXC memory card

Eye-Fi card

No. of effective pixels : 14,000,000 pixels

Image pickup device : 1/2.3” CCD (primary color ﬁ lter)

Lens : Olympus lens 5.0 to 18.2 mm, f3.5 to 5.1

(equivalent to 28 to 102 mm on a 35 mm camera)

Photometric system : Digital ESP metering, spot metering system

Shutter speed : 4 to 1/2000 sec.

Shooting range : 0.5 m (1.6 ft.) to (normal)

0.1 m (0.3 ft.) to (W), 0.3 m (1.0 ft.) to (T) (macro mode)

0.02 m (0.07 ft.) to 0.5 m (1.6 ft.) (W only) (super macro mode)

Monitor : 2.7” TFT color LCD display, 230,000 dots

Connector : DC-IN jack, USB connector, A/V OUT jack (Multi-connector)/

HDMI micro connector (type D)

Automatic calendar system : 2000 up to 2099

Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test conditions),

available in 3 m (9.8 feet) deep water

Meaning : Camera can normally be used under water at a speciﬁ ed water pressure.

Dust resistance : IEC Standard publication 529 IP6X (under OLYMPUS test conditions)

Operating environment

Temperature : -10 °C to 40 °C (14 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage)

Power supply : One Olympus lithium ion battery (LI-42B)

Dimensions : 96.3 mm (W) × 63.4 mm (H) × 22.7 mm (D)

(3.8 × 2.5 × 0.9 in.) (excluding protrusions)

Weight : 155 g (5.5 oz) (including battery and card)

Lithium ion battery (LI-42B)

Product type : Lithium ion rechargeable battery

Standard voltage : DC 3.7 V

Standard capacity : 740 mAh

Battery life : Approx. 300 full charges (varies on usage)

Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (charging)/

-10 °C to 40 °C (14 °F to 104 °F) (operation)

USB-AC adapter (F-2AC)

Model No. : F-2AC-1A/F-2AC-2A/F-2AC-1B/F-2AC-2B

Power requirements : AC 100 to 240 V (50/60 Hz)

Output : DC 5 V, 500 mA

Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Design and speciﬁ cations subject to change without notice.

Using in low temperatures

Low temperature operation of the Olympus lithium ion battery is guaranteed to 0°C (32°F).

However, the Olympus lithium ion battery has been tested for use with this product in temperatures up to -10°C (14°F).

Olympus lithium ion battery

LI-42B

The number of storable still pictures is reduced in low temperatures.●

HDMI, the HDMI Logo and High-Deﬁ nition Multimedia

Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

VM289101

Olympus Camcorder Tg 320 Users Manual

TG-320 to the manual 6049e760-4d11-49c3-8266-f99c0668ba93

Navigation menu

Versions of this User Manual:

Views

Navigation
