Omega Engineering MWTC-2 Wireless Mini Thermocouple Connector Series User Manual M4721 0309 MWTC Layout 1

Omega Engineering, Inc. Wireless Mini Thermocouple Connector Series M4721 0309 MWTC Layout 1

User Manual

omega.com
e-mail: info@omega.com
For latest product manuals:
omegamanual.info
MWTC/MWRTD SERIES
The Smart ConnectorTM
Wireless Thermocouple/RTD
Connector/Transmitter & Receivers
MADE IN
Shop online at
User’s Guide
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certified Stamford, CT 06907-0047 USA
Toll Free: 1-800-826-6342 TEL: (203) 359-1660
FAX: (203) 359-7700 e-mail: info@omega.com
Canada: 976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: (514) 856-6928
FAX: (514) 856-6886 e-mail: info@omega.ca
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA®
Customer Service: 1-800-622-2378/1-800-622-BEST®
Engineering Service: 1-800-872-9436/1-800-USA-WHEN®
Mexico: En Español: 001 (203) 359-7803 FAX: (001) 203-359-7807
info@omega.com.mx e-mail: espanol@omega.com
Servicing Europe:
Benelux: Managed by the United Kingdom Office
Toll-Free: 0800 099 3344 TEL: +31 20 347 21 21
FAX: +31 20 643 46 43 e-mail: sales@omega.nl
Czech Republic: Frystatska 184
733 01 Karviná, Czech Republic
Toll-Free: 0800-1-66342 TEL: +420-59-6311899
FAX: +420-59-6311114 e-mail: info@omegashop.cz
France: Managed by the United Kingdom Office
Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00
FAX: +33 (0) 130 57 54 27 e-mail: sales@omega.fr
Germany/Austria: Daimlerstrasse 26
D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0
FAX: +49 (0) 7056 9398-29 e-mail: info@omega.de
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certified One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: +44 (0)161 777-6611
FAX: +44 (0)161 777-6622 e-mail: sales@omega.co.uk
OMEGAnet®Online Service Internet e-mail
omega.com info@omega.com
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI
regulations that apply. OMEGA is constantly pursuing certification of its products to the European New
Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
MTWC/MWRTD Series - The Smart ConnectorTM
- Wireless Thermocouple/RTD
i
Table of Contents
Section Page
Section 1 Introduction ......................................................................................... 1-1
1.1 Precautions ................................................................................................. 1-1
1.2 Safety Warnings and IEC Symbols ........................................................ 1-1
1.3 Product Labeling ....................................................................................... 1-2
1.4 Statement on FCC and CE Marking ....................................................... 1-3
1.5 General Description & System Components ........................................ 1-3
Section 2 Hardware .............................................................................................. 2-1
2.1 Package Inspection ................................................................................... 2-1
2.2 Included Items ........................................................................................... 2-1
Section 3 Software ................................................................................................ 3-1
3.1 Getting Started ........................................................................................... 3-1
3.2 Software Installation ................................................................................. 3-1
3.3 USB Driver Installation ............................................................................ 3-4
3.4 MWTC Connector/Transmitter Setup Utility Program ...................... 3-6
3.5 TC-Central Measurement and Recording Program ............................. 3-6
3.6 Charting Tab ............................................................................................ 3-10
3.7 Charting Options .................................................................................... 3-12
3.8 Data Logging Tab .................................................................................... 3-14
3.9 Menu Tabs ................................................................................................ 3-16
Section 4 Transmitter/Connector Operation .................................................... 4-1
4.1 Setup and Configuration .......................................................................... 4-2
4.2 Mounting, Installation and Antenna Connection ................................ 4-8
4.3 Thermocouple Connections ................................................................... 4-10
4.4 RTD Connection ...................................................................................... 4-11
4.5 Battery Installation or Replacement ..................................................... 4-12
Section 5 Receiver Operation ............................................................................. 5-1
5.1 Mounting and Installation ....................................................................... 5-2
Section 6 System Operation ............................................................................... 6-1
6.1 Introduction ............................................................................................... 6-1
6.2 RF Communication Basics ...................................................................... .6-1
6.3 Basic System Overview ............................................................................ 6-1
6.4 Connector/Transmitter Operation ........................................................ 6-2
6.5 Receiver Operation ................................................................................... 6-3
6.6 Environment/Operating Conditions ..................................................... 6-4
6.7 Determining and Maximizing Range ..................................................... 6-5
6.8 Antenna Basics ........................................................................................... 6-7
6.9 Antenna Placement ................................................................................... 6-7
6.10 Factory Preset Values .............................................................................. 6-8
6.11 Transmit Rate vs. Battery Life ................................................................ 6-8
MTWC/MWRTD Series - The Smart ConnectorTM
- Wireless Thermocouple/RTD
ii
Section 7 Troubleshooting .................................................................................. 7-1
7.1 Connector/Transmitter Troubleshooting .............................................. 7-1
7.2 Receiver Troubleshooting ........................................................................ 7-1
Section 8 Service and Calibration ..................................................................... 8-1
8.1 Service and Calibration ............................................................................ 8-1
Section 9 Specifications ...................................................................................... 9-1
9.1 Connector/Transmitter Specifications (Thermocouple Models) ........ 9-1
9.2 Receiver Specifications ............................................................................. 9-2
Section 10 Approvals & Regulatory Compliance ........................................ 10-1
10.1 FCC (Domestic Use: USA & Canada).................................................. 10-1
10.2 International Usage & CE Marking (Pending) .................................. 10-1
10.3 CE Declaration of Conformity (DOC) ................................................ 10-1
10.4 Patent Notice .......................................................................................... 10-2
MTWC/MWRTD Series - The Smart ConnectorTM
- Wireless Thermocouple/RTD
iii
Table of Figures
Figure Description Page
Section 1 Introduction
Figure
1-1 IEC Symbols ........................................................................................ 1-1

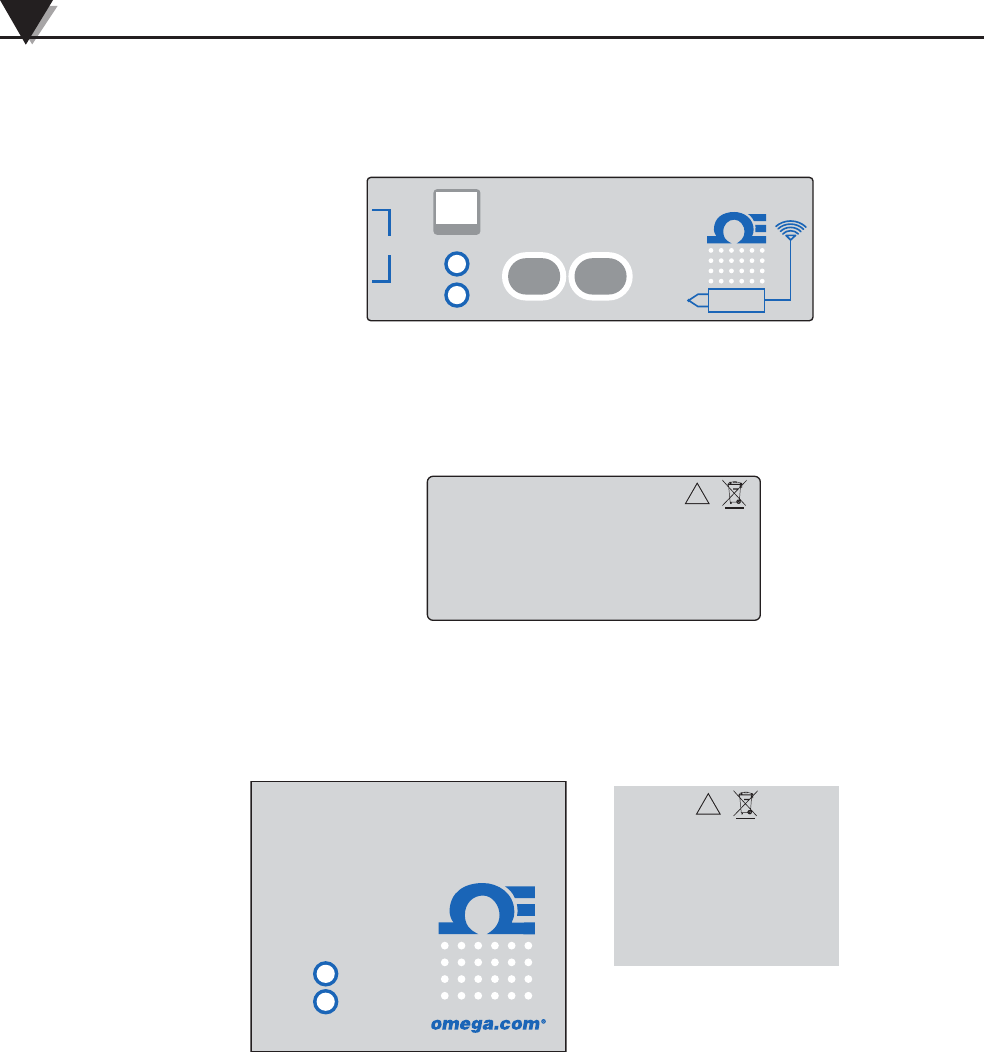

1-2 TC Connector Front Label ................................................................. 1-2
1-3 Connector Rear Label ........................................................................ 1-2
1-4 MWTC-REC1 Receiver Front and Rear Labels ............................. 1-2
1-5 System Components .......................................................................... 1-3
Section 3 Software
Figure
3-1 Welcome Screen .................................................................................. 3-1
3-2 Select Install Screen ............................................................................ 3-2
3-3 Confirm Installation Screen .............................................................. 3-2
3-4 License Agreement Screen ................................................................ 3-3
3-5 Installation Complete Screen ............................................................ 3-3
3-6 Welcome To The New Found Hardware Wizard Screen .............. 3-4
3-7 Install Software Automatically Wizard Screen .............................. 3-5
3-8 Completing The New Found Hardware Wizard Screen .............. 3-5
3-9 Channels Tab Menu Screen ............................................................... 3-6
3-10 TC-Central Program Screen .............................................................. 3-6

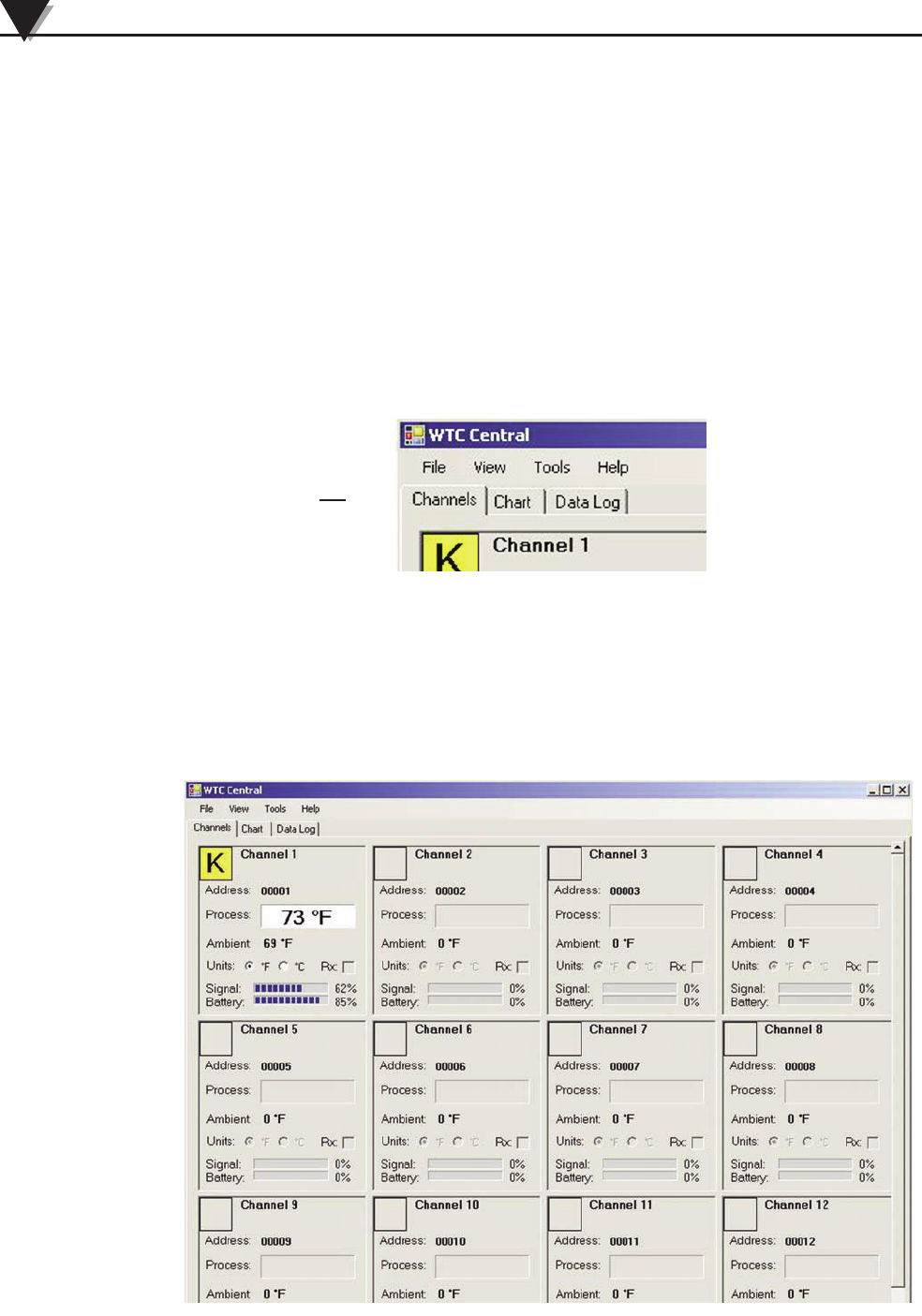

3-11 Channel Configuration .......................................................................3-7
3-12 Configuration Channel 1 ................................................................... 3-7
3-13 Channel Display Box ......................................................................... 3-8
3-14 Charting Tab Menu Screen .............................................................. 3-10
3-15 Charting Screen ................................................................................ 3-10
3-16 Start Data Logging/Plotting Screen .............................................. 3-10

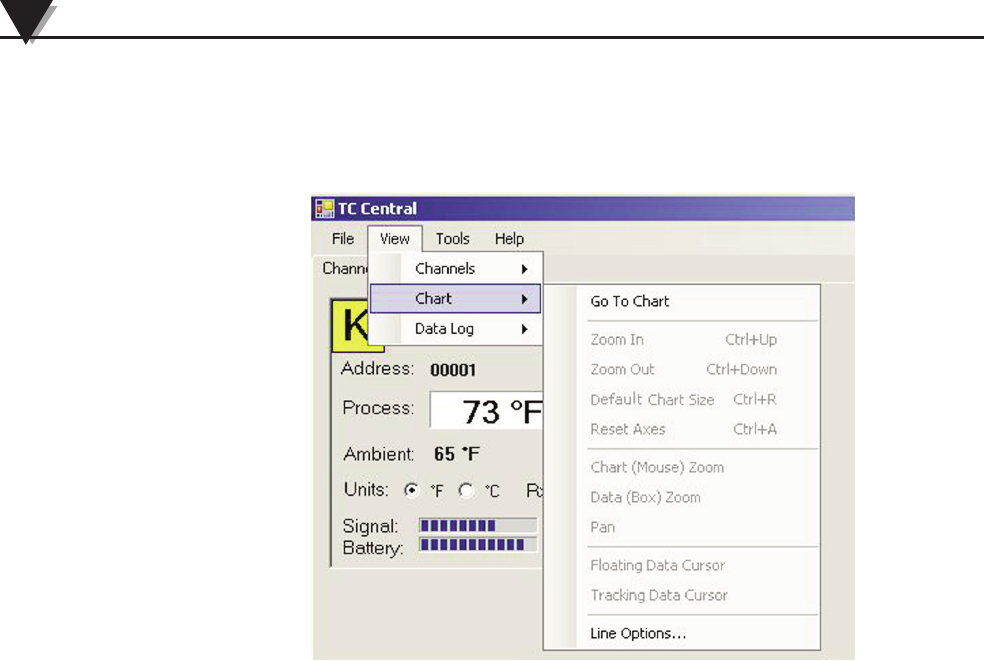

3-17 Charting Options Screen ................................................................. 3-12
3-18 Data Log TAB Screen ....................................................................... 3-14
3-19 Data Logging Screen ........................................................................ 3-14
3-20 Start Data Logging/Plotting Screen .............................................. 3-14
3-21 File Menu Tab .................................................................................... 3-16
3-22 View Menu Tab ................................................................................. 3-17
3-23 Tools Menu Tab ................................................................................. 3-18
Section 4 Connector Operation
Figure

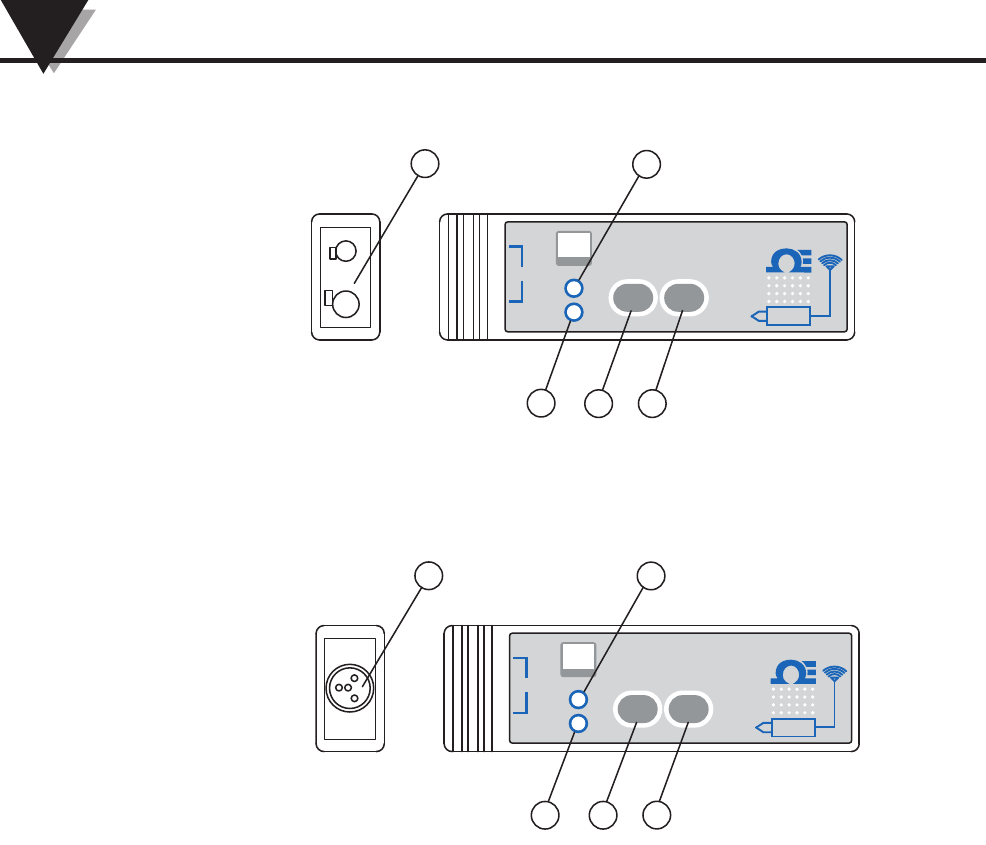

4-1A Thermocouple Connector ................................................................. 4-1
4-1B RTD Connector ................................................................................... 4-1
4-2A Transmitter Programming Connection ............................................ 4-2
4-2B Transmitter Programming Connector with Cable Installed ......... 4-2
4-3 Setup Mode ......................................................................................... 4-4
4-4 Launch Setup Utility Program ......................................................... 4-4

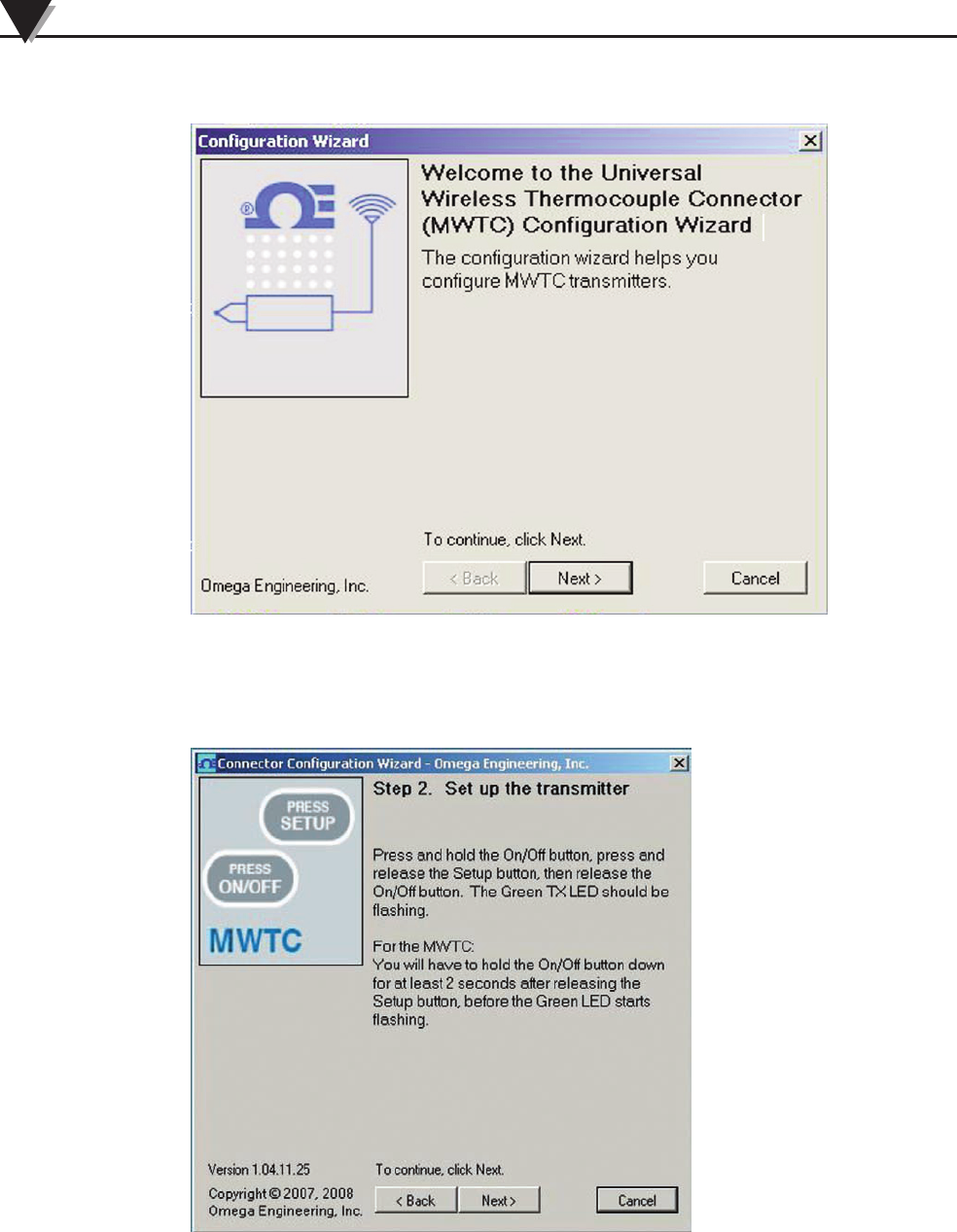

4-5 Welcome to Universal Wireless Screen ............................................ 4-5

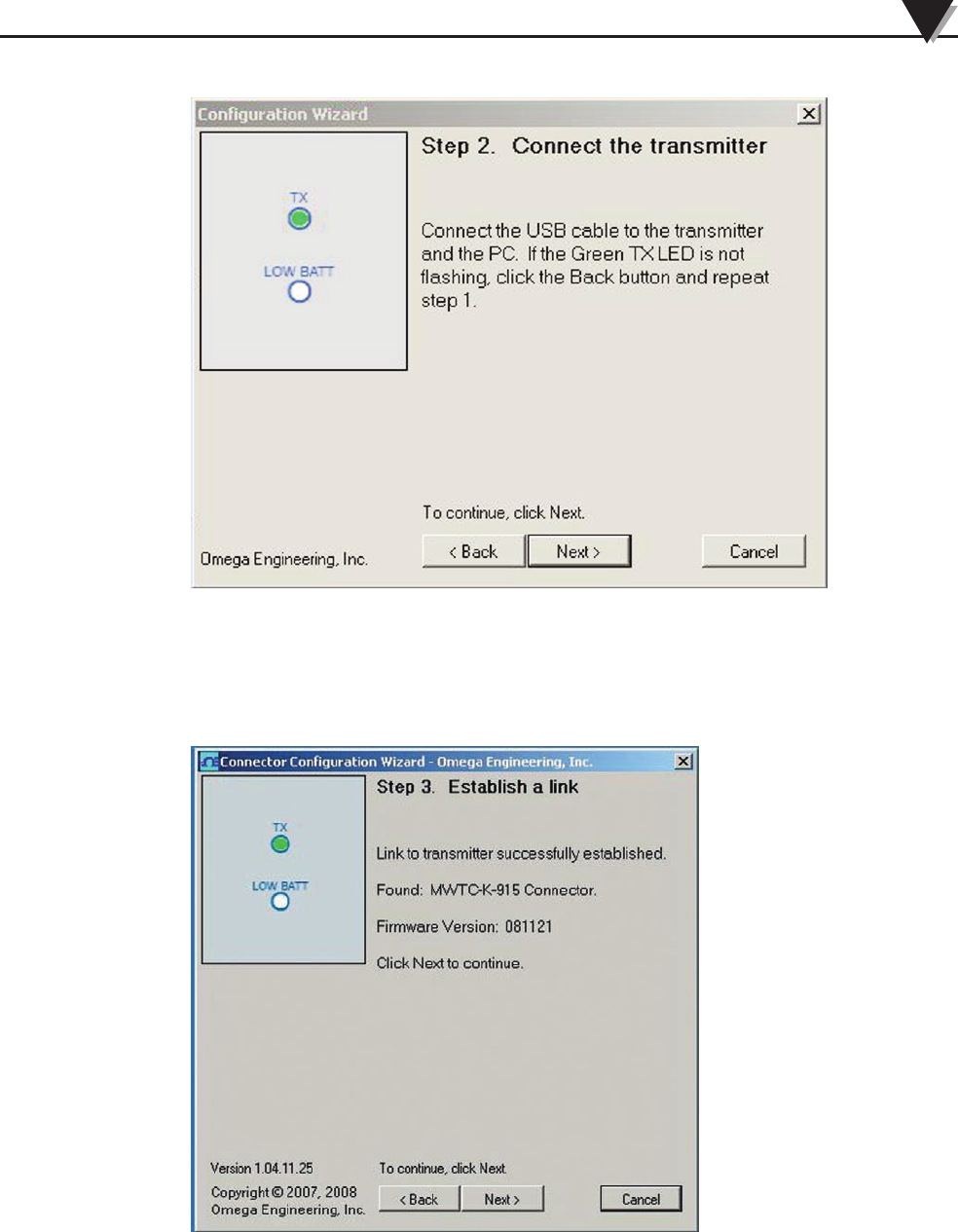

4-6 Setup the Transmitter Screen ............................................................. 4-5
4-7 Connect the Transmitter Screen ........................................................ 4-6
4-8 Establish a Link Screen ...................................................................... 4-6
MTWC/MWRTD Series - The Smart ConnectorTM
- Wireless Thermocouple/RTD
iv
Section 4 Connector Operation Continued
Figure Description Page
4-9 Choose Options Screen ...................................................................... 4-7
4-10 Send Settings to The Transmitter Screen ......................................... 4-7

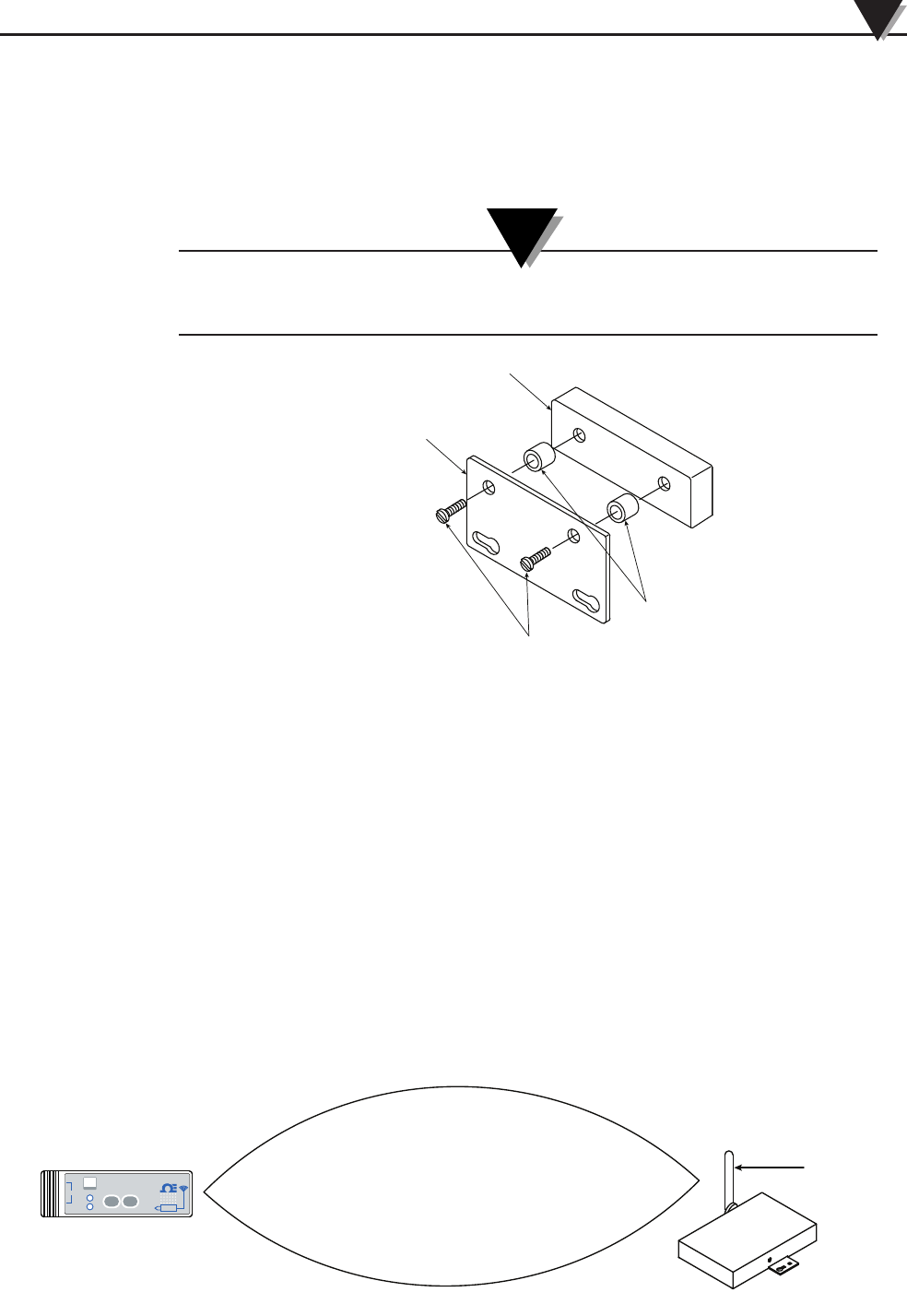

4-11 Mounting Bracket Installation .......................................................... 4-8
4-12 Fresnel Zone ........................................................................................ 4-8
4-13 Thermocouple Connection .............................................................. 4-10
4-14 Recommended Thermocouple Placement .................................... 4-10
4-15 RTD Connection ................................................................................ 4-11
4-16 Recommended RTD Placement ...................................................... 4-11
4-17 Connector Battery Compartment ................................................... 4-12
Section 5 Receiver Operation
Figure
5-1 Receiver Operation - Model UWTC-REC1 ..................................... 5-1
5-2 Mounting ............................................................................................. 5-2
5-3 Installation ........................................................................................... 5-3
Section 6 System Operation
Figure

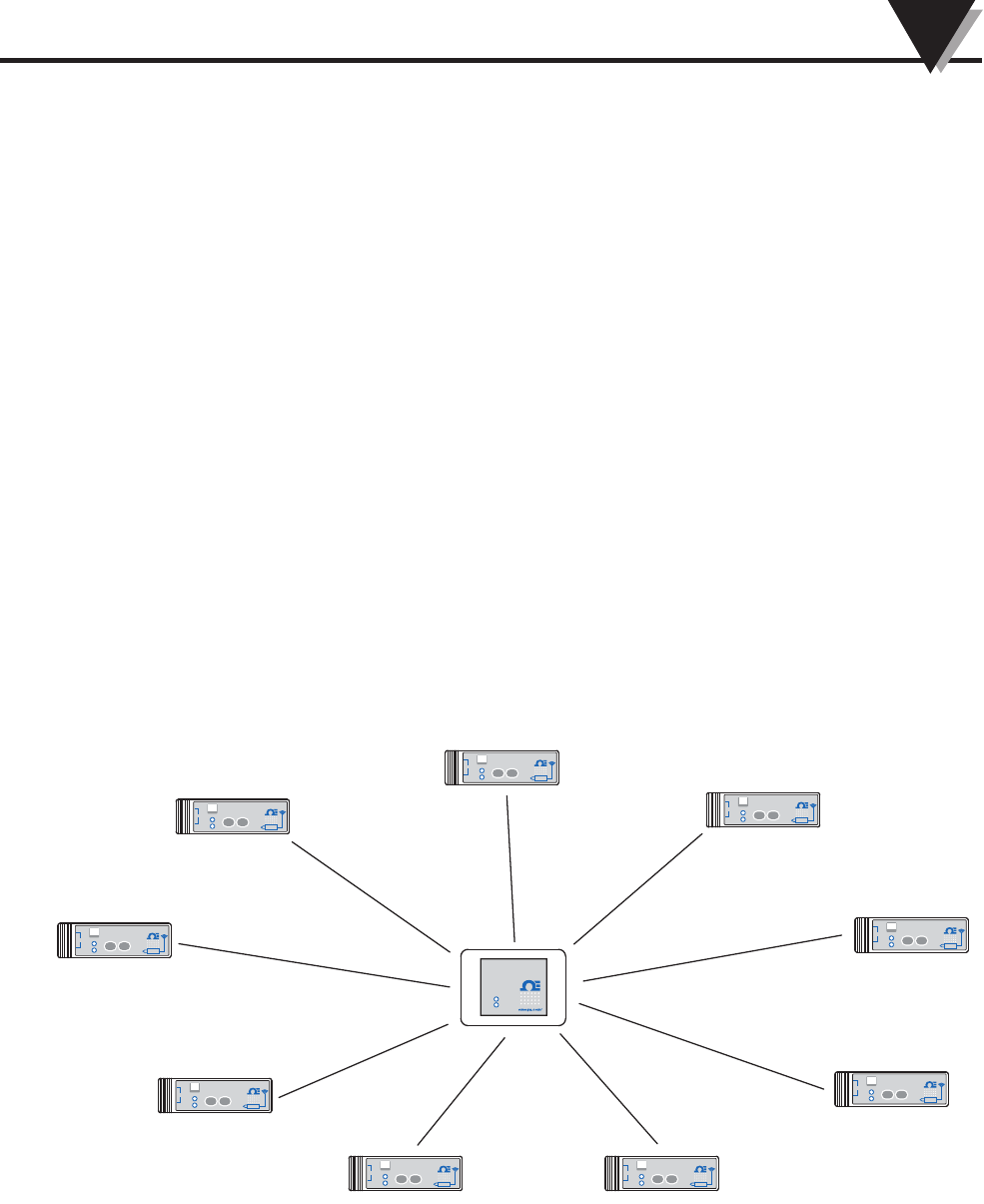

6-1 Basic System Overview ..................................................................... 6-1
6-2 Connector/Transmitter Button Operation ..................................... 6-2
6-3 Transmit and Low Battery Lights .................................................... 6-3
6-4 Receiver Indicator Lights .................................................................. 6-3
6-5 Determining Maximum Range ......................................................... 6-5
6-6 Operation In Buildings....................................................................... 6-6
6-7 Horizontal Antenna Placement ........................................................ 6-7
6-8 Vertical Antenna Placement .............................................................. 6-8
NOTE:
Introduction
1-1
Section 1 - Introduction
Please read this manual completely before installing and operating your wireless
connector/transmitter and receiver system. It’s important to read and follow all
notes, cautions, warnings and safety precautions before operating this device.
“Device” refers to your connector/transmitter or receiver unit.
1.1 Precautions
• This device is not designed for use in any medical or nuclear applications.
• Do not operate this device in flammable or explosive environments.
• Never operate with a power source other than the one recommended in this
manual.
• This device has been designed for dry, moisture free indoor applications only.
• Do not operate this device outside the recommended use outlined in this
manual. Any change made to the unit without the manufacturer's approval
could void the user's authority to operate the equipment.
• No co-location with other radio transmitters is allowed. By definition, co-
location is when another radio device or it’s antenna is located within 20 cm
of your connector/transmitter and can transmit simultaneously with your
MWTC unit.
• Never install MWTC connector/transmitters within 20 cm or less from each
other.
• Never install and/or operate your MWTC connector/transmitter closer than
20 cm to nearby persons.
• Never use your MWTC connector/transmitter as a portable device. Your unit
has been designed to be operated in a permanent installation only.
There are no user serviceable parts inside your device. Attempting to repair or
service your unit may void your warranty:
1.2 Safety Warnings and IEC Symbols
This device is marked with international safety and hazard symbols in
accordance with IEC standards. It is important to read and follow all precautions
and instructions in this manual before operating or commissioning this device as
it contains important information relating to safety and EMC. Failure to follow
all safety precautions may result in injury and or damage to your device. Use of
this device in a manner not specified will void your warranty
IEC symbols Description
Caution, refer to accompanying documentation
EU’s Waste Electrical and Electronic Equipment
Compliance
Figure 1-1. IEC Symbols
1

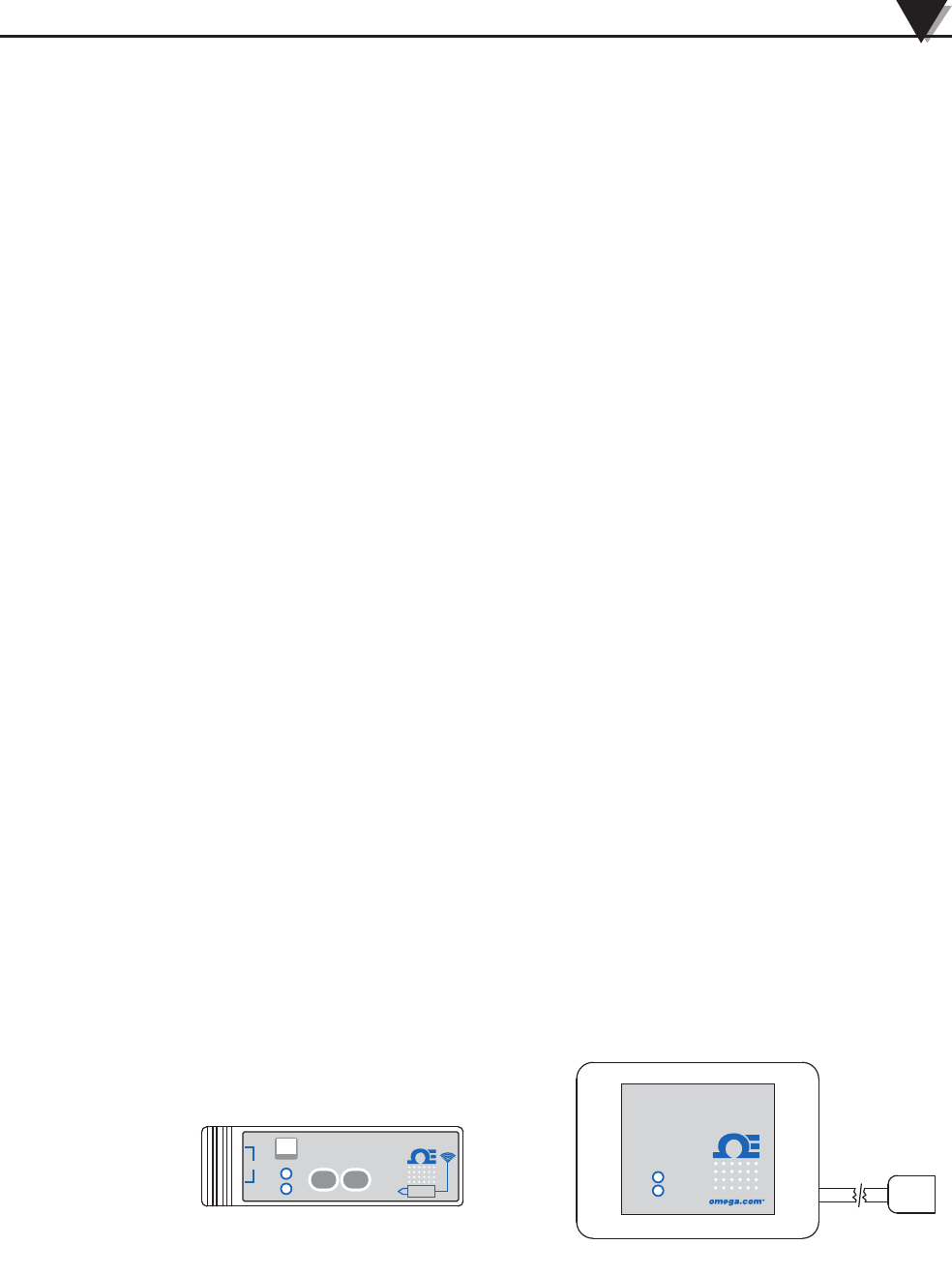

1.3 Product Labeling
1.3.1 Connector Front Label

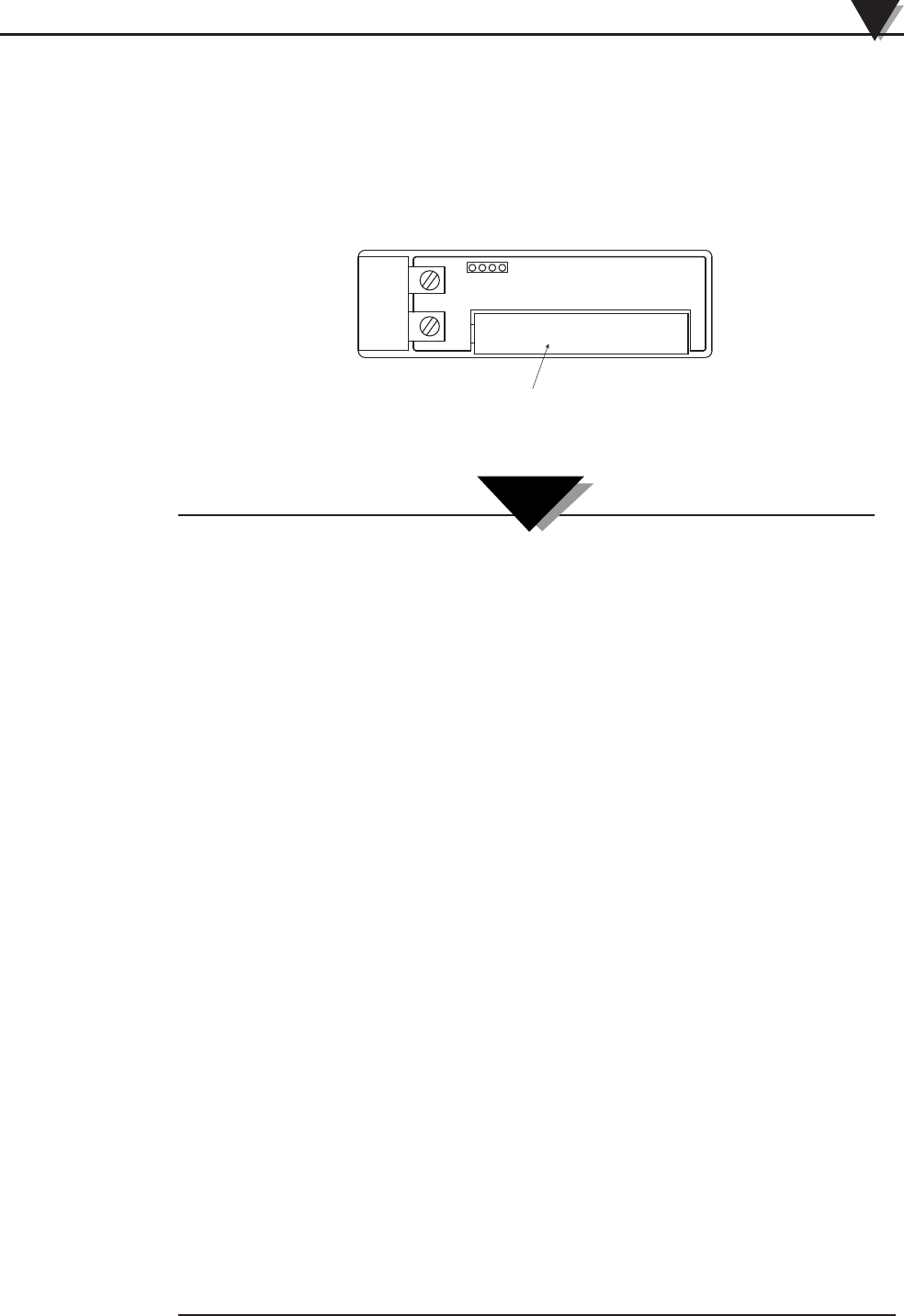

1.3.2 Connector Rear Label
Figure 1-3 Connector Rear Label
1.3.3 MWTC-REC1 Receiver Front and Rear Labels
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
This device complies with Part 15
of the FCC rules. Operation is subject
to the following two conditions:
1) This device may not cause harmful
interference; 2) This device must
accept any interference received,
including interference that may cause
undesired operation.
OMEGA ENGINEERING, INC.
Stamford, CT 06907
Made
in U.S.A.
omega.com
®
!
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
Figure 1-2 TC Connector Front Label
Front Label
Figure 1-4 UWTC-REC1 Receiver
Rear Label
1-2
Introduction
1
1-3
Introduction
1.4 Statement on FCC and CE Marking
1.4.1 FCC Marking
FCC ID: WR3-MWTC-2
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
1.4.2 CE Marking
It is the policy of OMEGA®to comply with all worldwide safety and EMI/EMC
regulations that apply. OMEGA is constantly pursuing certification of its
products to the European New Approach Directives. OMEGA will add the CE
mark to every appropriate device upon certification. For additional information
see Section 10 - Approvals & Regulatory Compliance.
1.5 General Description & System Components
1.5.1 General Description
Your Wireless Thermocouple/RTD Connector Series features stand-alone,
compact, battery powered wireless connectors that transmit their readings back
to a host receiver up to 90 m (300') away. Each thermocouple unit is factory set to
work as a type J, K, T, E, R, S, B, N or C calibration connector. Each RTD
connector can be programed for a 100 ohm, 2 or 3 wire configuration with a
0.000385 or 0.000392 curve. When activated the connector will transmit readings
continuously at a pre-set time interval that was programmed by the user during
the initial setup. Each unit measures and transmits: Process Input Reading,
Connector Ambient Temperature, RF Signal Strength and Battery Condition to
the host and is displayed on the PC screen in real time using the provided
software. When used with host receiver model MWTC-REC1 data from up to 48
wireless connectors can be received and displayed. Each unit includes free
software that converts your PC into a strip chart recorder or data logger so
readings can be saved and later printed or exported to a spread sheet file.

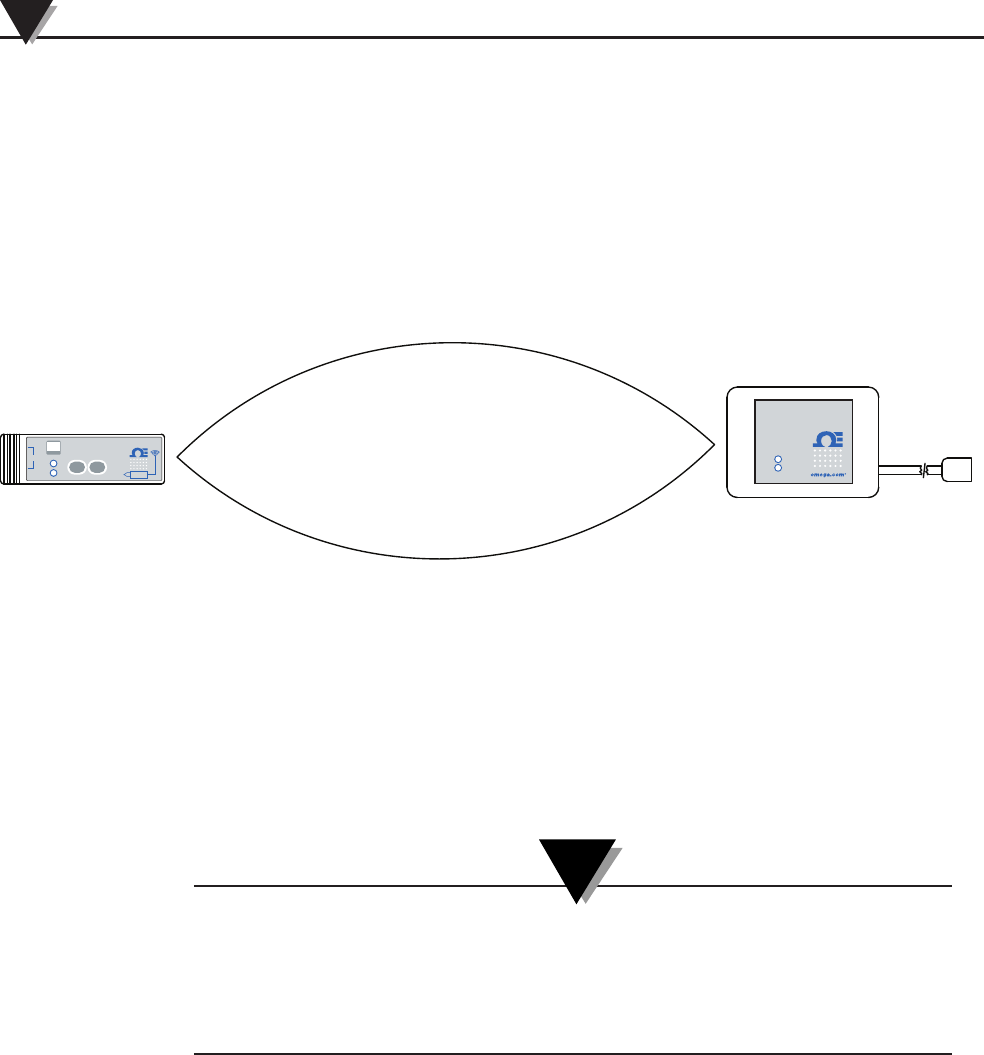

1.5.2 System Components
Figure 1-5 System Components
1
NOTE:
Hardware
2-1
Section 2 – Hardware
It is important that you read this manual completely and follow all safety
precautions before operating this instrument.
2.1 Package Inspection
Remove the packing list and verify that you have received all your equipment. If
you have any questions about the shipment, please call our Customer Service
Department at 1-800-622-2378 or 203-359-1660. We can also be reached on the
Internet at omega.com, e-mail: cservice@omega.com. When you receive the
shipment, inspect the container and equipment for any signs of damage. Note
any evidence of rough handling in transit. Immediately report any damage to
the shipping agent.
The carrier will not honor any damage claims unless all shipping material is
saved for inspection. After examining and removing contents, save packing
material and carton in the event reshipment is necessary.
2.2 Included Items
The following items are supplied in the box.
With Model MWTC-2, or MWRTD-2 Connector/Transmitter:
• 1 Connector/Transmitter
• 1 User’s Quick Start Guide
• 1 Type-K Thermocouple Sensor (Omega No. SC-GG-K-30-36-PP)
(MWTC models only)
• 1 Standard (AAA) 3.6V Lithium Battery, (Omega No. MWTC-BATT) for use
with Model MWTC-2.

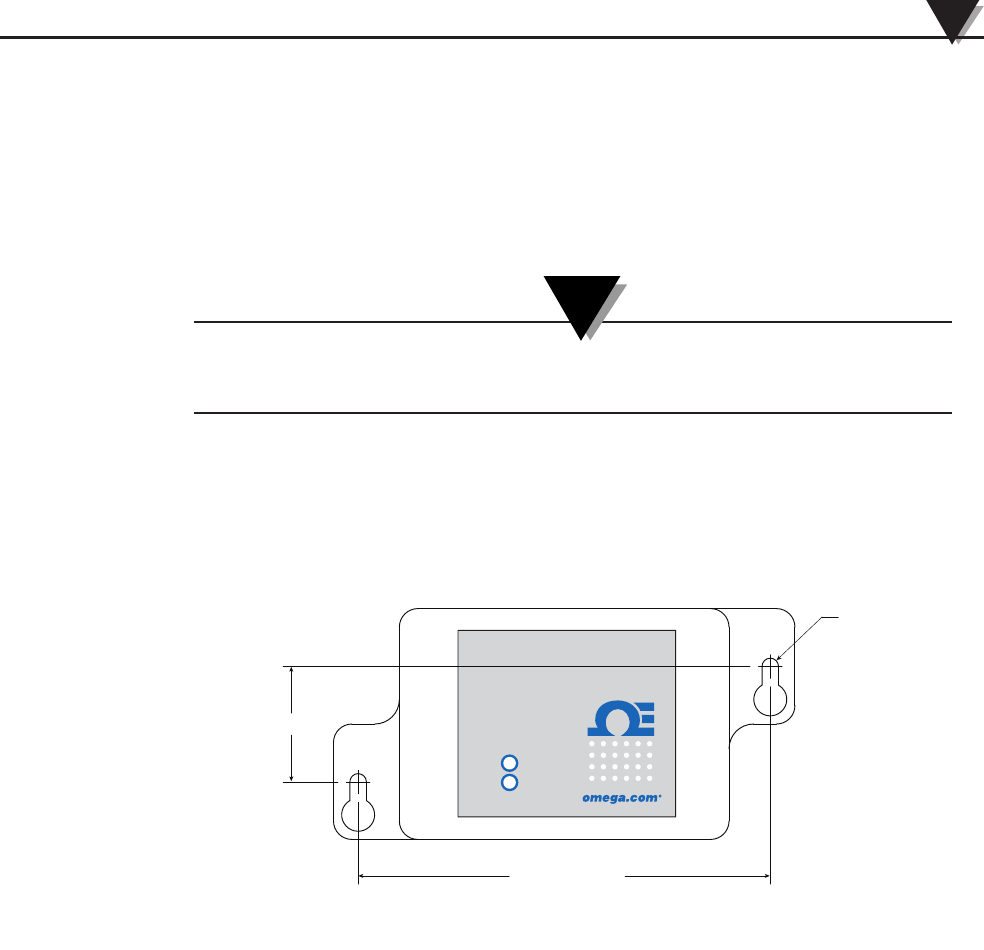

• 1 Mounting Bracket Kit
• 1 TA4F Mating Connector (MWRTD models only)
With Model MWTC-REC1, MWTC-REC2, MMTC-REC2-D Receiver:
• 1 Receiver Device
• 1 MWTC Series User’s Manual (M-4721)
• 1 USB Interface Cable
• 1 TC-Central User Software CD
• 4 Rubber Enclosure Feet
• 1 MWTC Transmitter Programming Cable
2
Software
3-1
Section 3 – Software
3.1 Getting Started
The following program files are included on the MWTC User Software CD
supplied with your Receiver. These files can also be downloaded from the
omega.com website should you misplace your CD.
• MWTC Connector/Transmitter Setup Utility Program
• TC-Central Measurement and Data Logging Program
• MWTC Series Receiver Setup Utility Program
3.2 Software Installation
3.2.1 System Requirements
Your PC should meet the following minimum requirements:
• Pentium Class processor
• Hard Drive Space: 210 meg
• Ram: 256 meg or higher
• 1 Available USB Port
• 1 CD-ROM Drive
• Windows 2000, XB, or Vista (32bit) Operating System
3.2.2 Software Installation
Insert the MWTC Series User CD that was included with your receiver unit into
the CD-ROM drive on your PC. Your system should begin the installation
process automatically. If the software installation does not start automatically
please see the “Troubleshooting” Section 7.

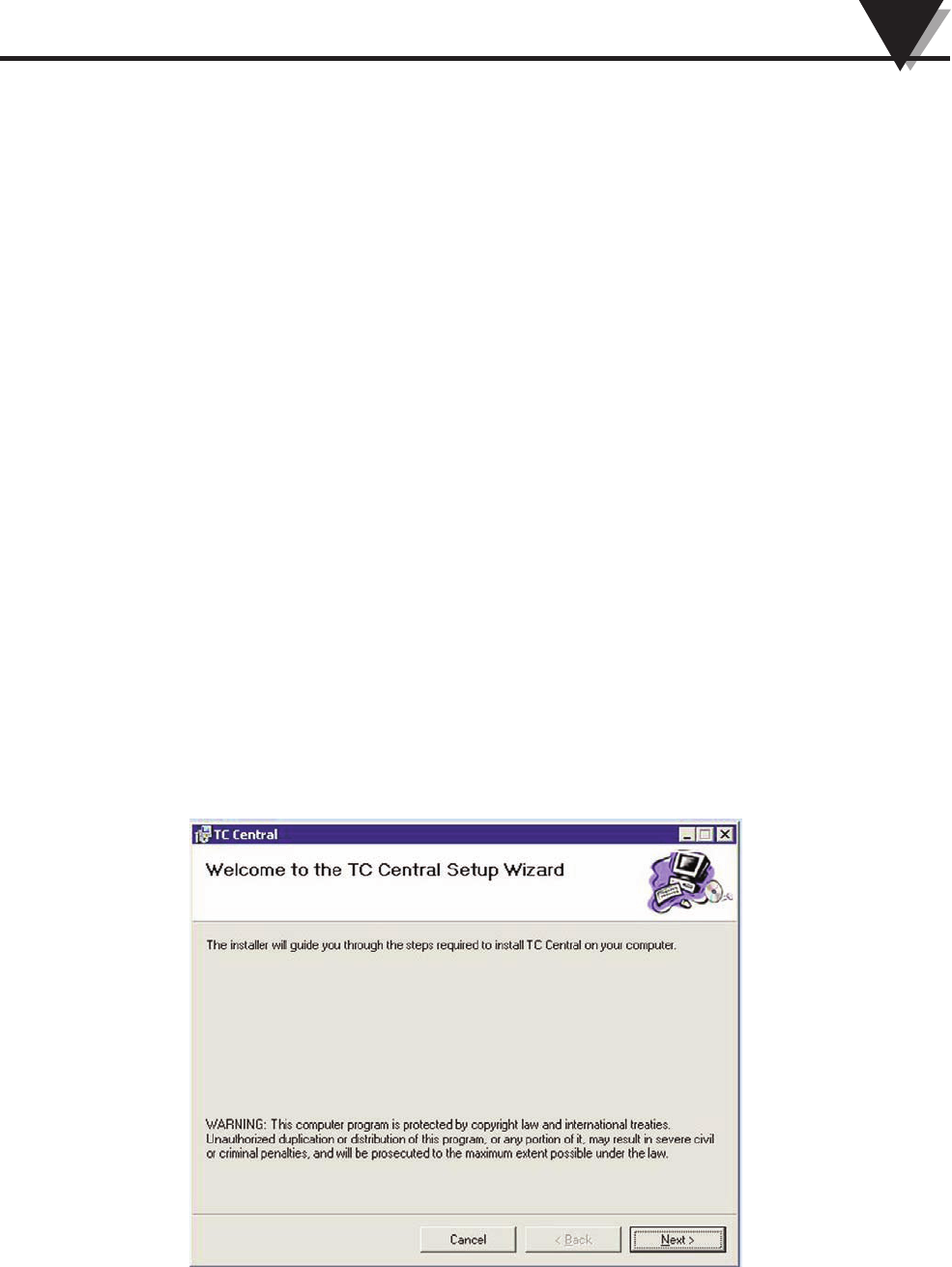

This welcome screen should be visible on your computer screen. To continue
with installing the program click the “Next >” button.
3
Figure 3-1
Welcome Screen

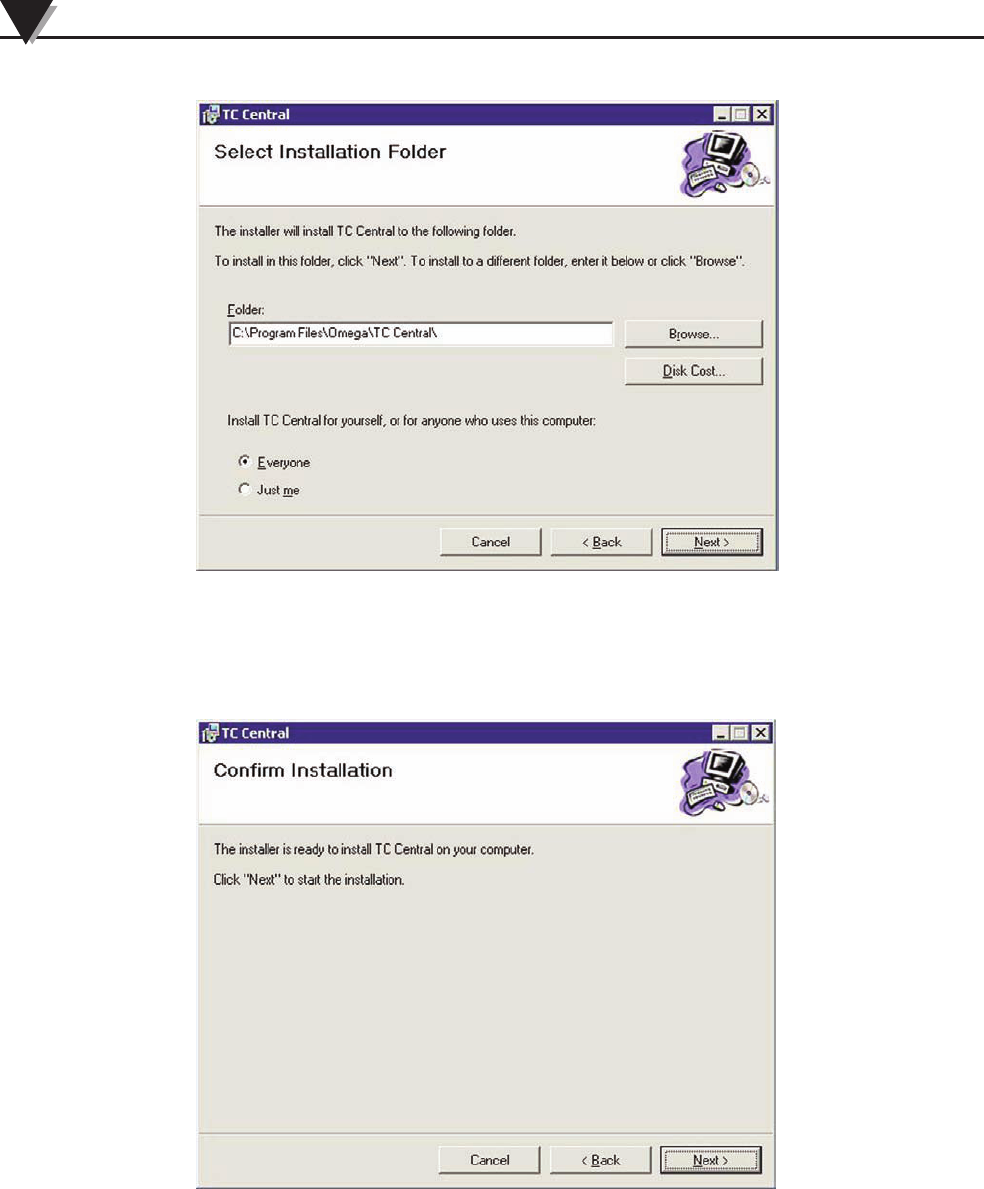

From this screen you select the folder were you want the program files installed
on your PC. The default setting will install the software under your “Program”
folders in a new folder named “Omega” To continue with installing the program
click the “Next >” button.
“Program” folders in a new folder named “Omega” To continue with installing
the program click the “Next >” button.
The setup wizard now has all the information to complete the installation of the
software on your PC. To continue with installing the program click the “Next >”
button.
Software
3
3-2
Figure 3-2
Select Install Screen
Figure 3-3
Confirm Installation
Screen
From this screen you must select “Agree” to continue installing your program.
After making your selection click the “Next >” button. The setup wizard will
now install the software.
Congratulations! You have just successfully installed the TC-Central Program on
your PC. To end installing the program and close the setup wizard click the
“Close” Button.
From this screen you must select “Agree” to continue installing your program.
After making your selection click the “Next >” button. The setup wizard will
now install the software.
Congratulations! You have just successfully installed the WTC Central Program
on your PC. To end installing the program and close the setup wizard click the
“Close” button.
Software 3
3-3

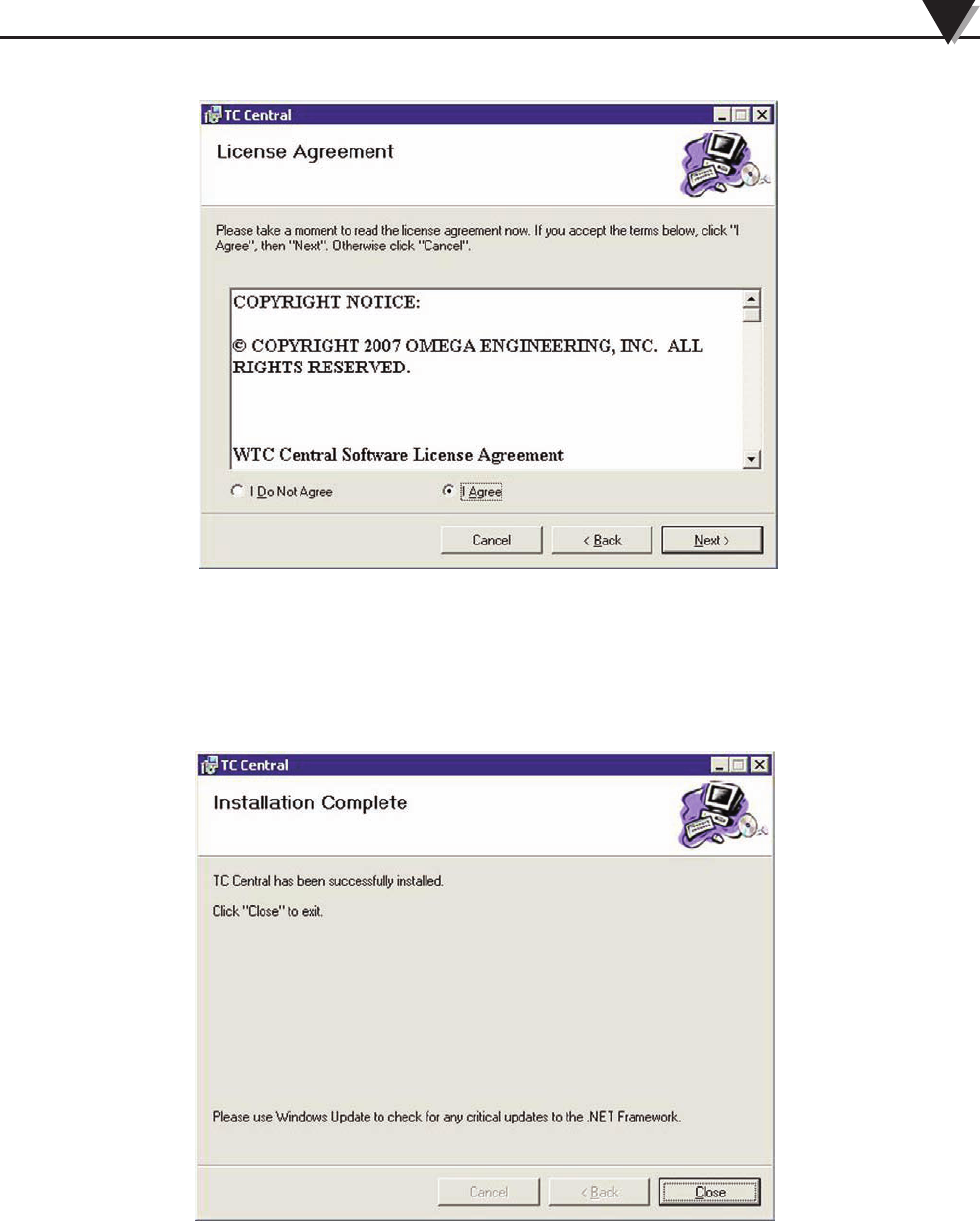

Figure 3-4
License
Agreement Screen
Figure 3-5
Installation
Complete Screen
NOTE:
NOTE:
3-4
Software
3.3 USB Driver Installation
To install the USB software drivers that are required for your MWTC system
components to operate correctly follow these procedures.
You need to have the TC-Central User Software CD that was supplied with your
receiver loaded into the CD drive on your PC.
1. Connect your MWTC receiver to your computer with the USB cable
provided in the box with your device. You should get a notice box that
indicates that your computer “Has Found New Hardware”
2. Your computer will then launch the Found New Hardware Wizard. Follow
the instructions indicated on the Wizard boxes and the additional
instructions noted in this manual with each box.
After completing the Found New Hardware Wizard your system will ask that
you repeat this process. This is normal. You should repeat the steps outlined
here twice. After the second driver is installed you should then get the “New
Hardware Ready For Use” notice.

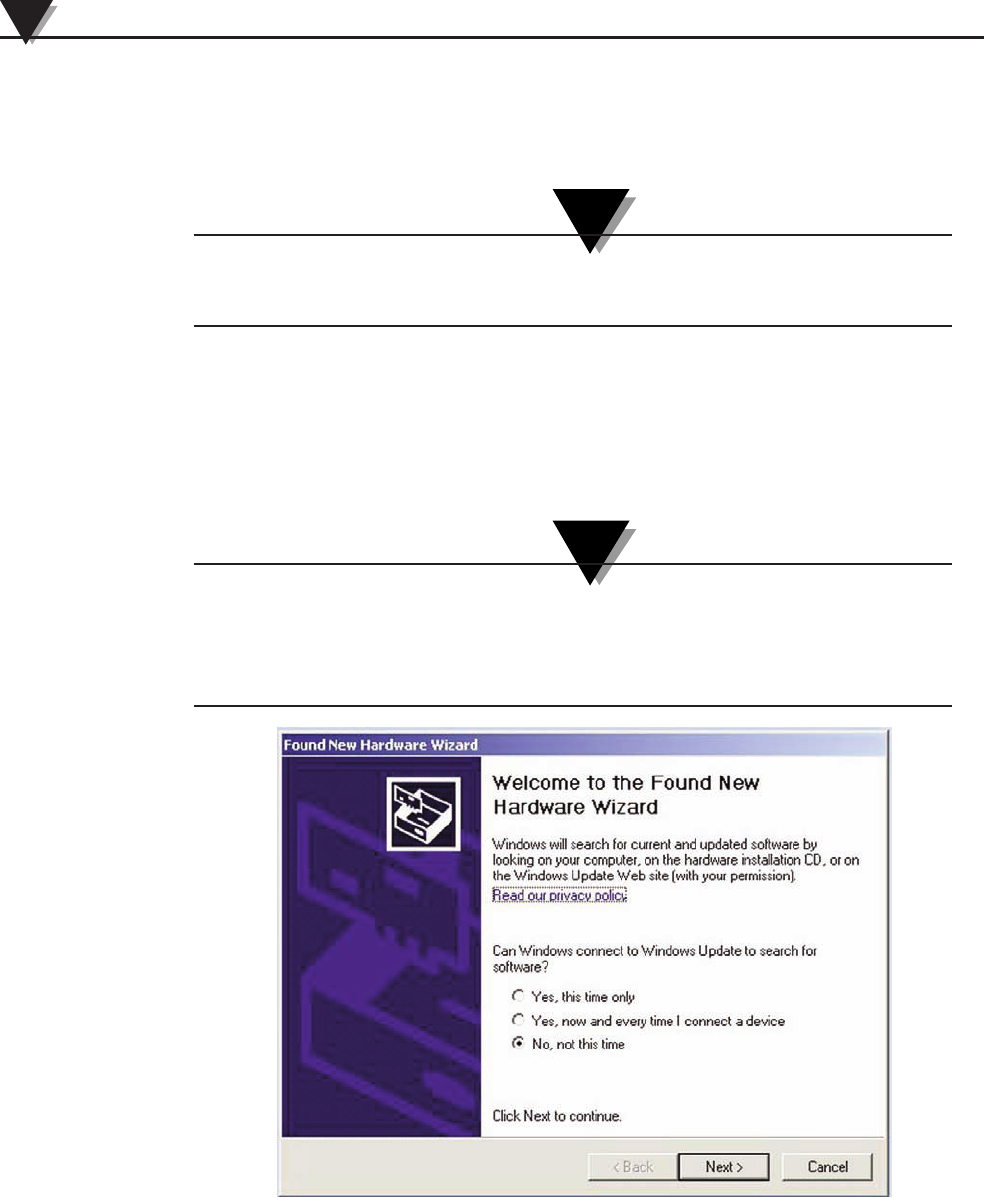

Figure 3-6 Welcome To The Found New Hardware Wizard Screen
From this box you should check the “No, not at this time” button. Then click the
“Next >” button to continue with the driver installation process.
3
3-5
Software

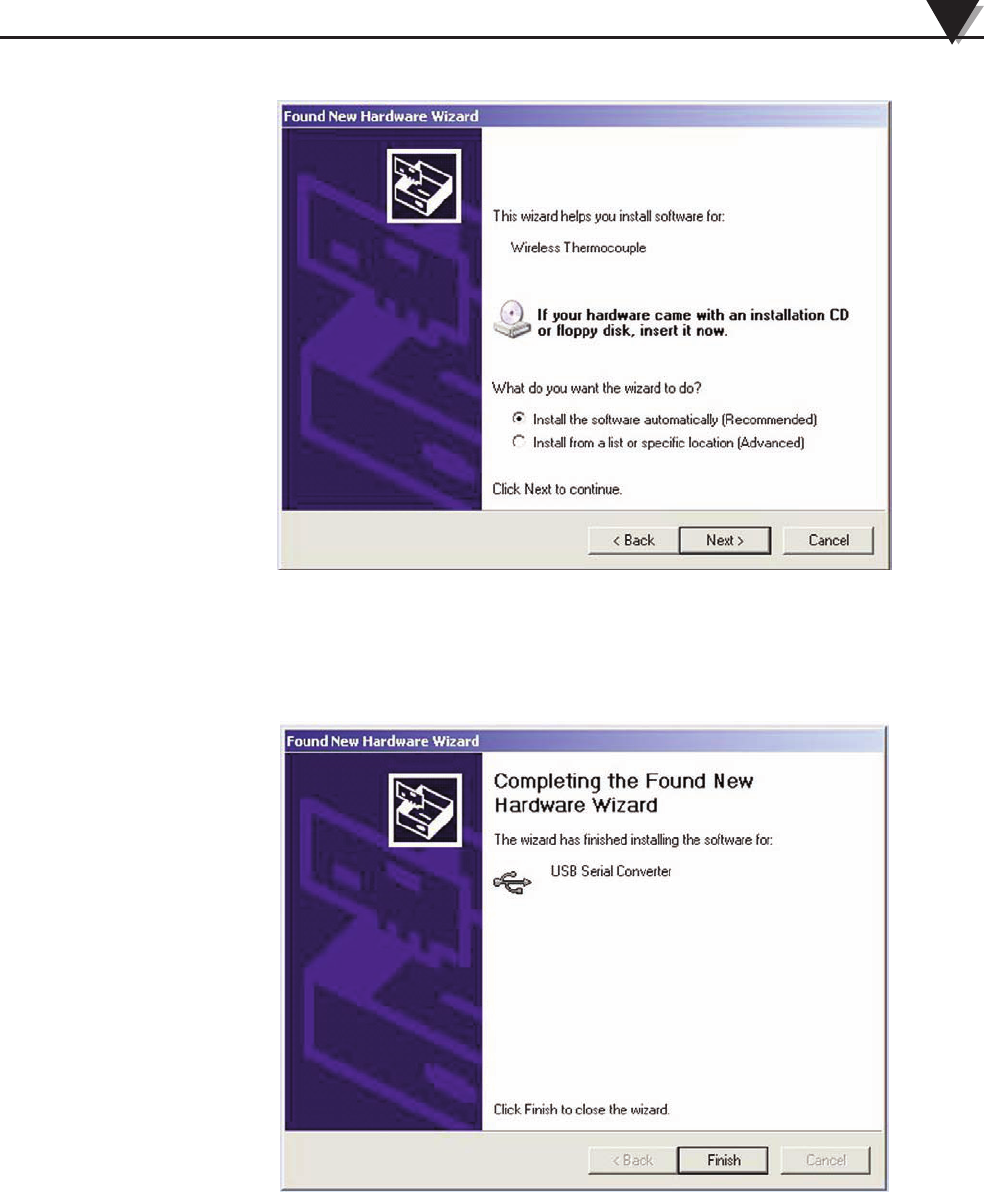

Figure 3-7 Install Software Automatically Screen
Next, check the “Install the software automatically” button. Then click the
“Next>” button to continue.
Figure 3-8 Completing The Found New Hardware Wizard Screen
This screen will be displayed to indicate that the software drivers have been
installed. You should click the “Finish” button to complete the process.
3
3-6
Software
3.4 MWTC Connector/Transmitter Setup Utility Program
This utility is used to program your connector/transmitter for the following
operating parameters: Channel Number and Sample Rate. For complete
instructions on using this program please see Section 4.
3.5 TC-Central Measurement and Recording Program

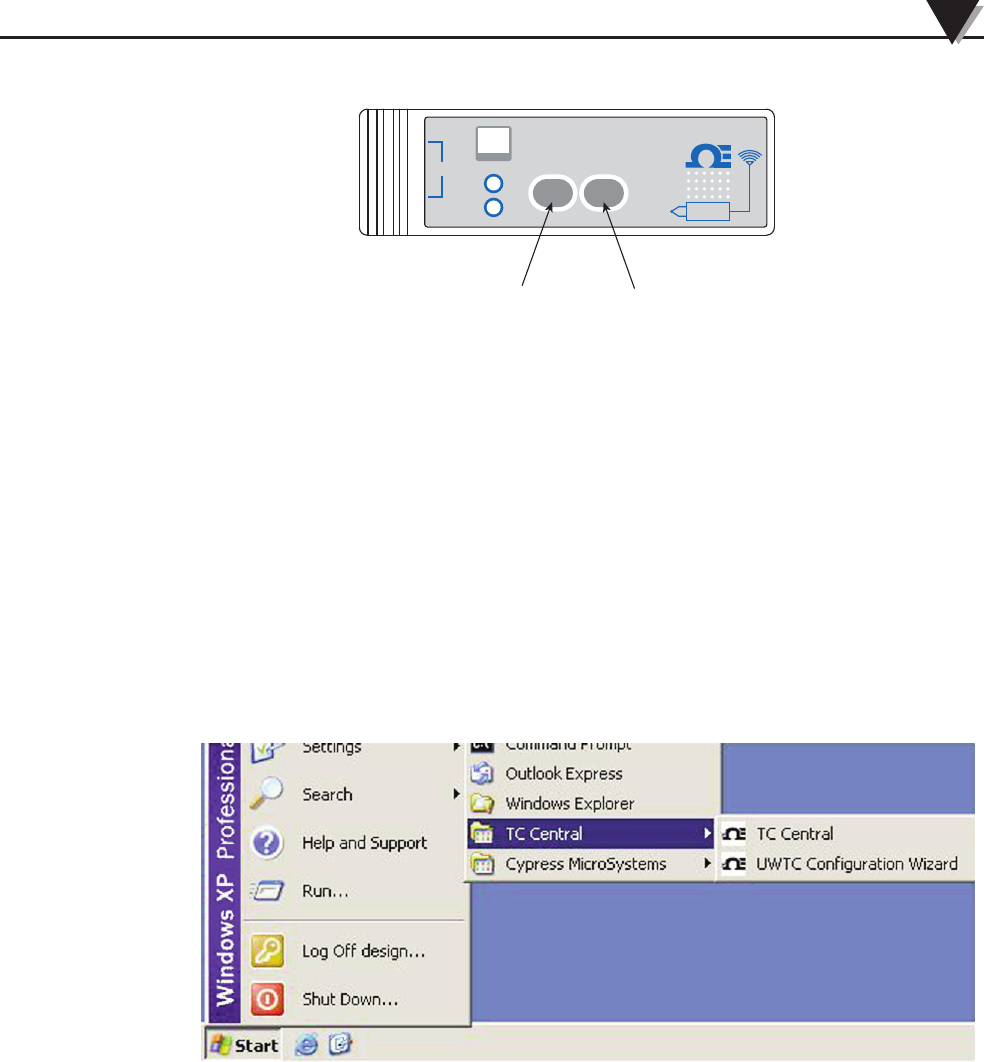

To launch the TC-Central program on your PC begin by accessing the
“Programs” list under your “Start Menu” Next, scroll through the list of
program folders to find the “TC-Central” folder. Inside the “TC-Central” folder
click on the “TC-Central” program link. This will start the software running.

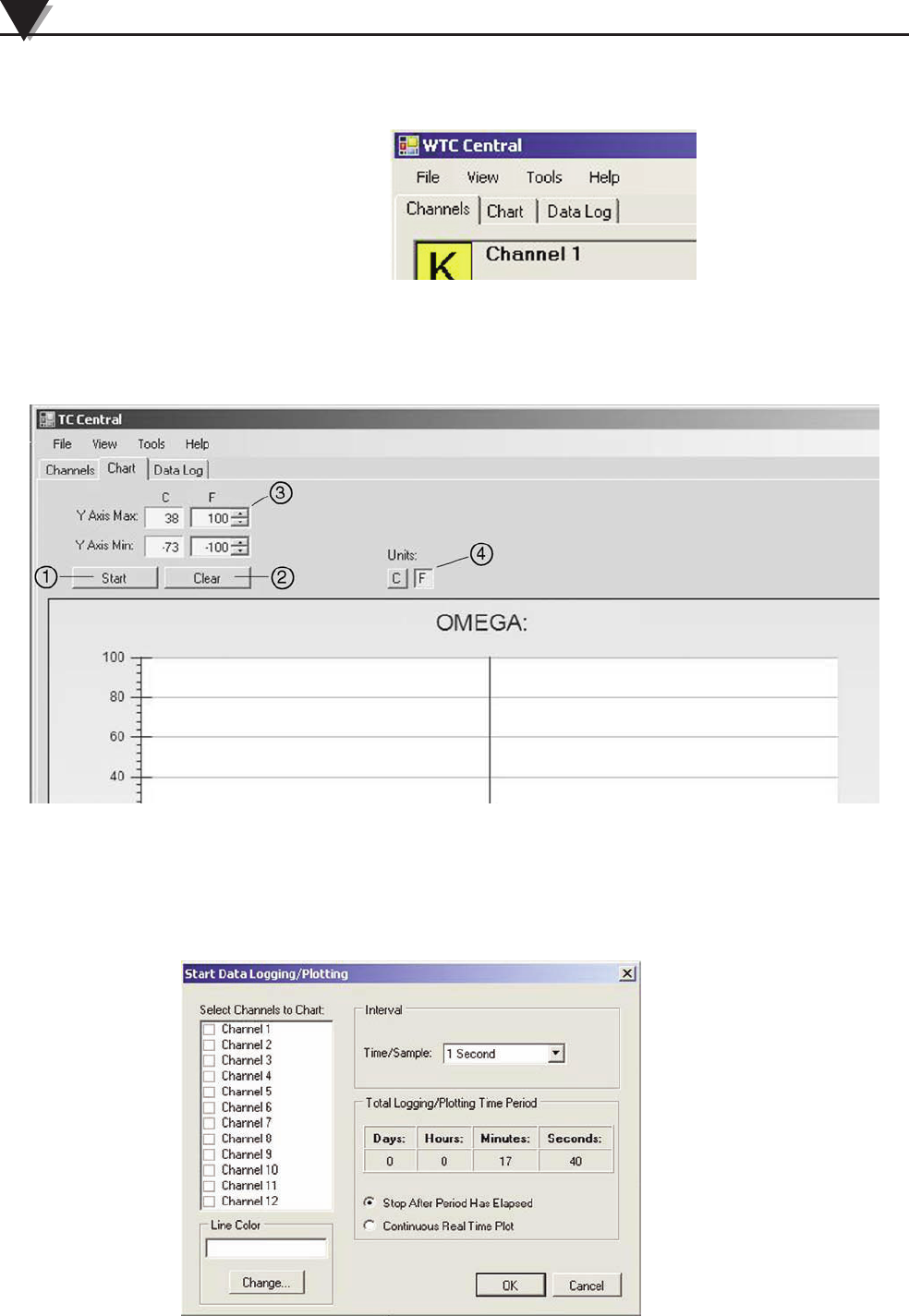

3.5.1 Channels TAB Menu
CHANNELS
TAB
Figure 3-9 Channels TAB Menu Screen
Channels Tab
When TC-Central starts up, the “Channels” tab is displayed. This view allows
you to see temperatures and properties for up to 12 connector/transmitter at one
time

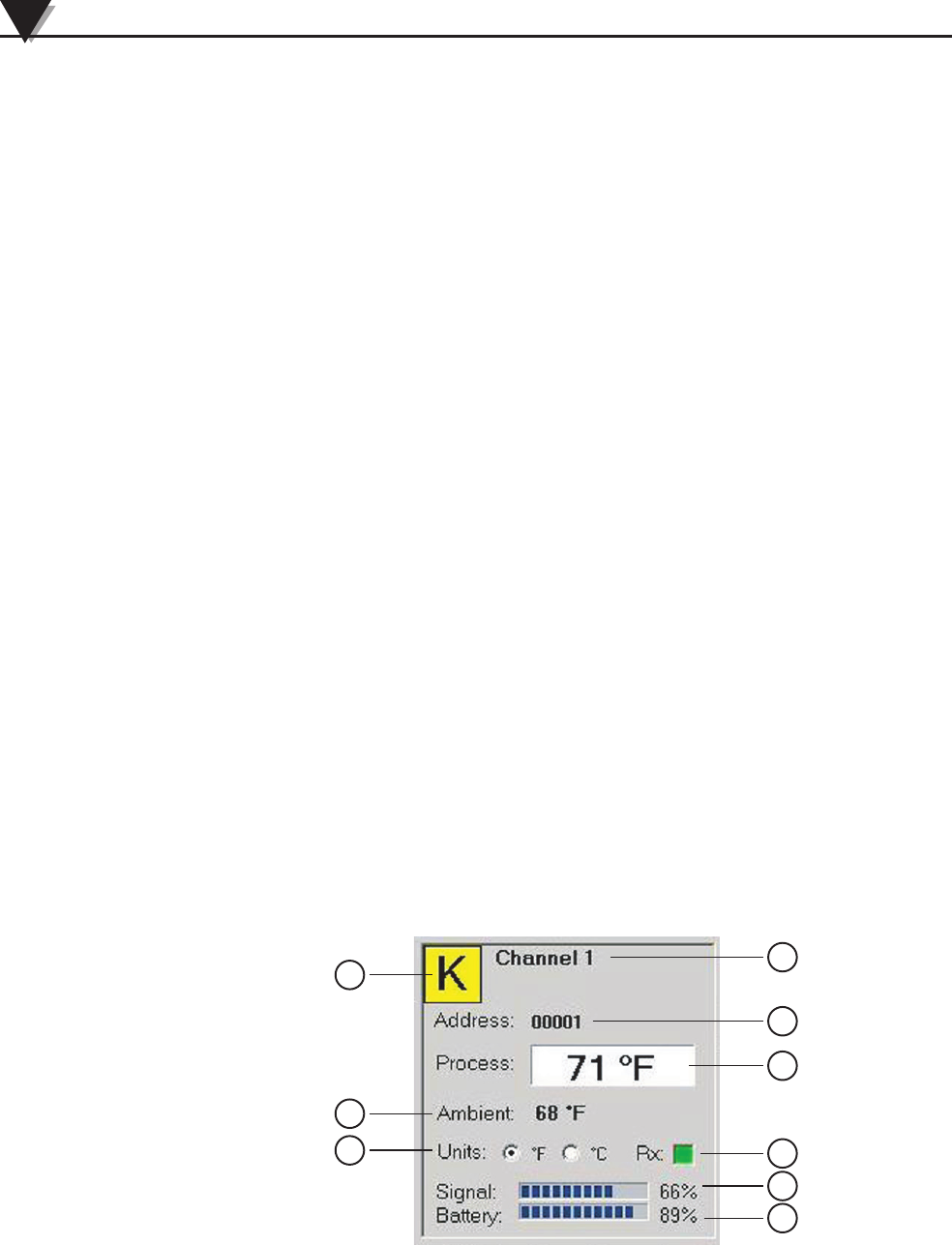

Figure 3-10 TC-Central Program
3
3-7
Software
This is a partial view of the TC-Central Program in operation. You will not have
any blocks receiving data until you have programmed and placed into operation
your connector/transmitters.
3.5.2 Setting up the TC-Central Program
Before you can make wireless measurements with your connector/transmitter
the TC-Central software must be configured properly. The following steps
outline how to setup your program.
3.5.3 Channel Configuration

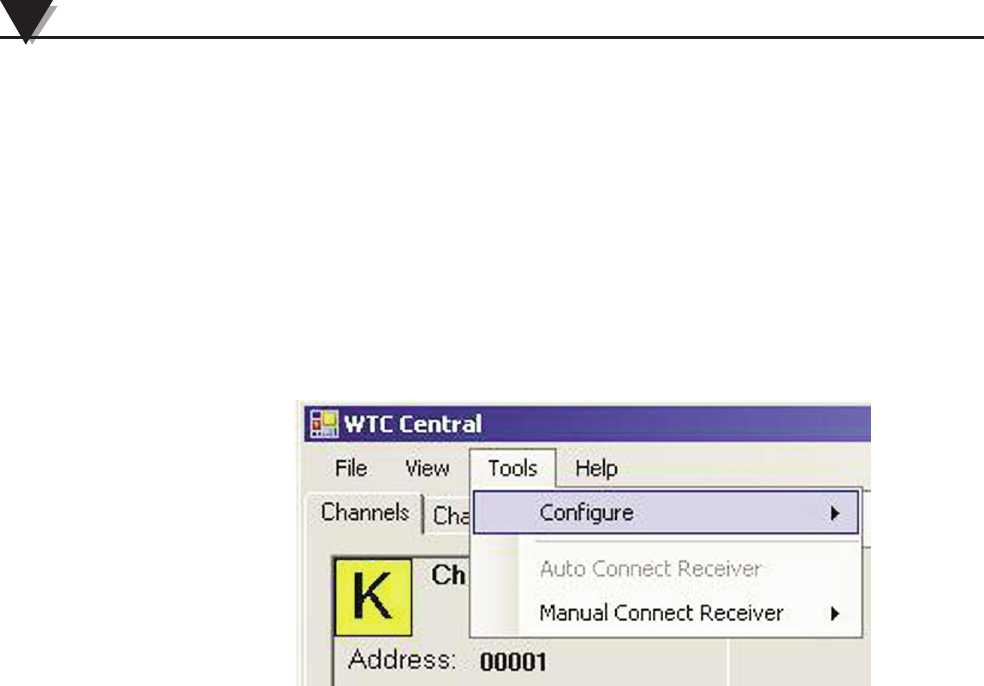

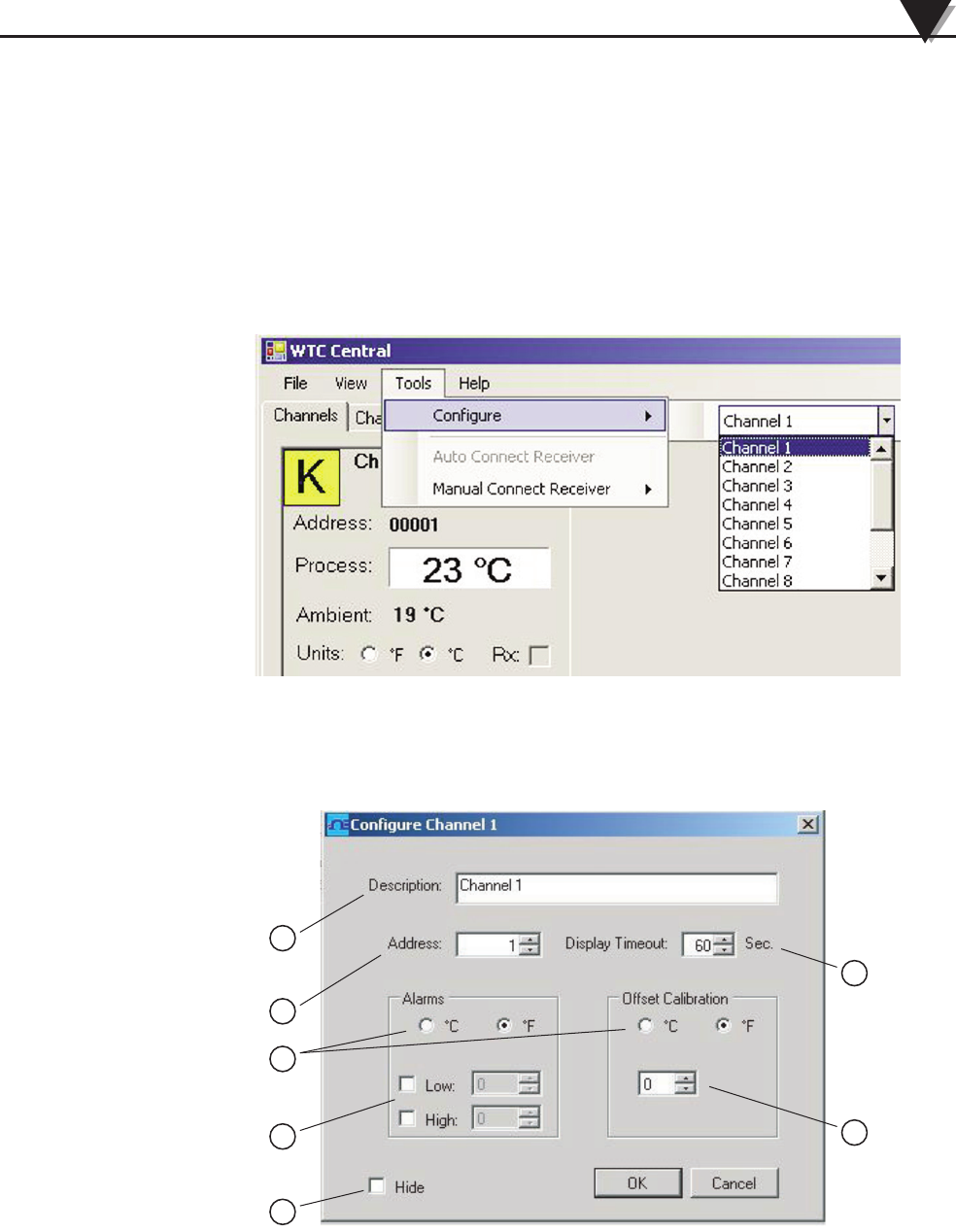

Figure 3-11 Channel Configuration
From the “Tools” pull-down menu select “Configure”….”Channel 1”. This will
open the program settings table were you can make selections on how you want
your system to operate.
Figure 3-12 Configuration Channel 1
➀Description Field
In the Description Field you can type a reference name that is associated with the
location or process being measured by the connector/transmitter for address.
Example.. “Test Chamber 1”
1
7
3
2
5
6
4
3
3-8
Software
➁ Address Field
Here you must set an address number into this box that corresponds to a
matching Connector/Transmitter unit that you are using in your system. For the
system to work correctly each Connector/Transmitter must have a number
programmed that is different then other units in your system. Click with your
mouse on the “Up” and “Down” buttons to advance to a higher or lower
address number.
➂ Display Timeout
The Display Timeout setting is used to set how long you want the unit to
continue showing the last reading data when communication between the
Connector/Transmitter and receiver has been lost. Make sure not to set this
value to a time less than the current sample rate programmed into the
Connector/Transmitter or you will never receive and or display any readings.
➃ Low Alarm / High Alarm
When the “High” or “Low” Alarm box is checked the alarm feature becomes
active. Click with your mouse on the “Up” and “Down” buttons to advance to a
higher or lower setting. The displayed temperature reading will change to RED
digits and begin blinking to indicate that the process temperature has gone
below the low alarm or exceeded the high alarm value.
➄ °C or °F
Selecting the °C or °F button will configure the particular box to display readings
in the desired units of measurement.
➅ Hide
When the “Hide” box is checked the particular box that you are configuring will
become inactive and will not show up on the screen when running the TC-
Central program. This is used to remove unused boxed when less than 12
Connector/Transmitter units are being used.
➆ Sensor Offset
Figure 3-13 Channel Display Box
➀Thermocouple Type
This box indicates the type of thermocouple sensor that your connector/
transmitter is programmed to operate with. As a default the thermocouple color
12
3
4
7
8
9
5
6
3
3-9
Software
codes have been set to the ANSI color codes. You can change these to IEC color
codes, see section 3.5.2
➁ Reference
This location will display the reference name you typed into the “Description”
field when this box was configured. This can be changed at any time
➂ Address
The number displayed here is the address number you specified when this
display box was configured. This number must match the corresponding
Connector/Transmitter that has the same number specified or your system will
not receive the correct data readings.
➃ Process
This is the actual process temperature reading that is being measured by your
thermocouple or RTD sensor.
➄ Ambient
This is the actual ambient temperature connector inside the body of your
Connector/Transmitter. If the unit is exposed to temperatures outside the limits
specified in this manual the reading will begin to blink and the digits will turn
red to provide a visual warning.
➅ Units
Units of measurement setting can be changed from here without going into the
main channel configuration menu. Just click with your mouse onto the desired
°C or °F button to make a change.
➆ RX
The “RX” indicator box will display a green light that blinks each time the
receiver acquires data from the corresponding connector transmitter.
➇ Signal
This percentage bar graph indicates the radio signal strength being received by
the receiver. This should be used as guidance when installing your system to
help determine the best location and positioning of your equipment.
➈ Battery
This percentage bar graph indicates the amount of remaining usable available
power the battery installed in the Connector/Transmitter has left to operate
normally.
3.5.4 Changing Thermocouple Color Codes.
By default the setting for thermocouple color code is the American National
Standards Institute (ANSI) standard. You can change the default setting to the
International Electrotechnical Commission (IEC) standard here under this menu
in the TC-Central software.
3
3-10
Software
3.6 Chart Tab
Figure 3-14 Chart TAB Menu Screen
The “Chart” tab allows you to start, stop and view real-time data from the
transmitters in a screen plot that you can save and print.
Figure 3-15 Charting Screen
➀Start Button
The “Start” button will open the dialog box shown below. This box allows you to
select one or more channels to be plotted. Click the checkbox next to the
channel(s) number you want to include in your plot.
3
CHART TAB
Figure 3-16
Start Data
Logging/
Plotting
Screen
3-11
Software
Line Color
You can change the color specified for each channel’s line. Click the “Change”
button to select a new color for the Channel selected.
Interval
The total logging time is displayed for the interval setting selected. In general,
the interval should normally be set to a value equal to or greater than the same
sample time you programmed into the corresponding connector/transmitter for
that channel.
You can choose to have the data logging/chart recording session end after
1000 data points, or have the session run continuously. After 1000 data points
have been collected in the continuous mode, the oldest data point is shifted out
on the left, and the newest data point is added to the right. Data will continue to
be collected and displayed until you click on the “Stop” button above the chart.
If you click the OK button, the data logging session will start, and “Recording
Data” will flash in the status bar. The “Start” button above the chart will change
to “Stop”, indicating that if you click it again, the logging session will be
terminated.

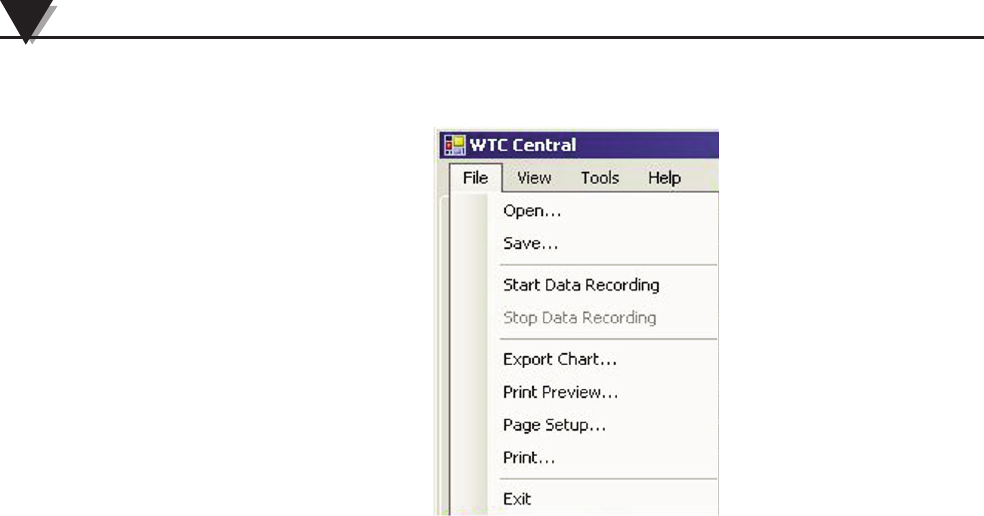

You can also start or stop a data recording session from the File menu. Once data
has been collected, you can save it in a (*.csv) (comma separated values) file and
open it in Microsoft Excel for further analysis. It is recommended that you “Save
As” in Excel as a Microsoft Excel Workbook (*.xls). If you do not modify the
(*.csv) version of the file, you can open it from TC Central’s File menu, and
display it in the chart and data log.
➁ Clear Button
The “Clear” button will delete all data from the chart and the data log.
➂ Y Axis Control
The Y Axis Min and Y Axis Max controls allow you to adjust the viewable range
of temperatures to suit your particular application. The narrower the range
between min and max, the more detail can be seen on the chart.
➃ C or F Button
The C or F button allows you to change the units of degrees displayed on the
chart, and on the data logging.
3
3-12
Software
3.7 Charting Options

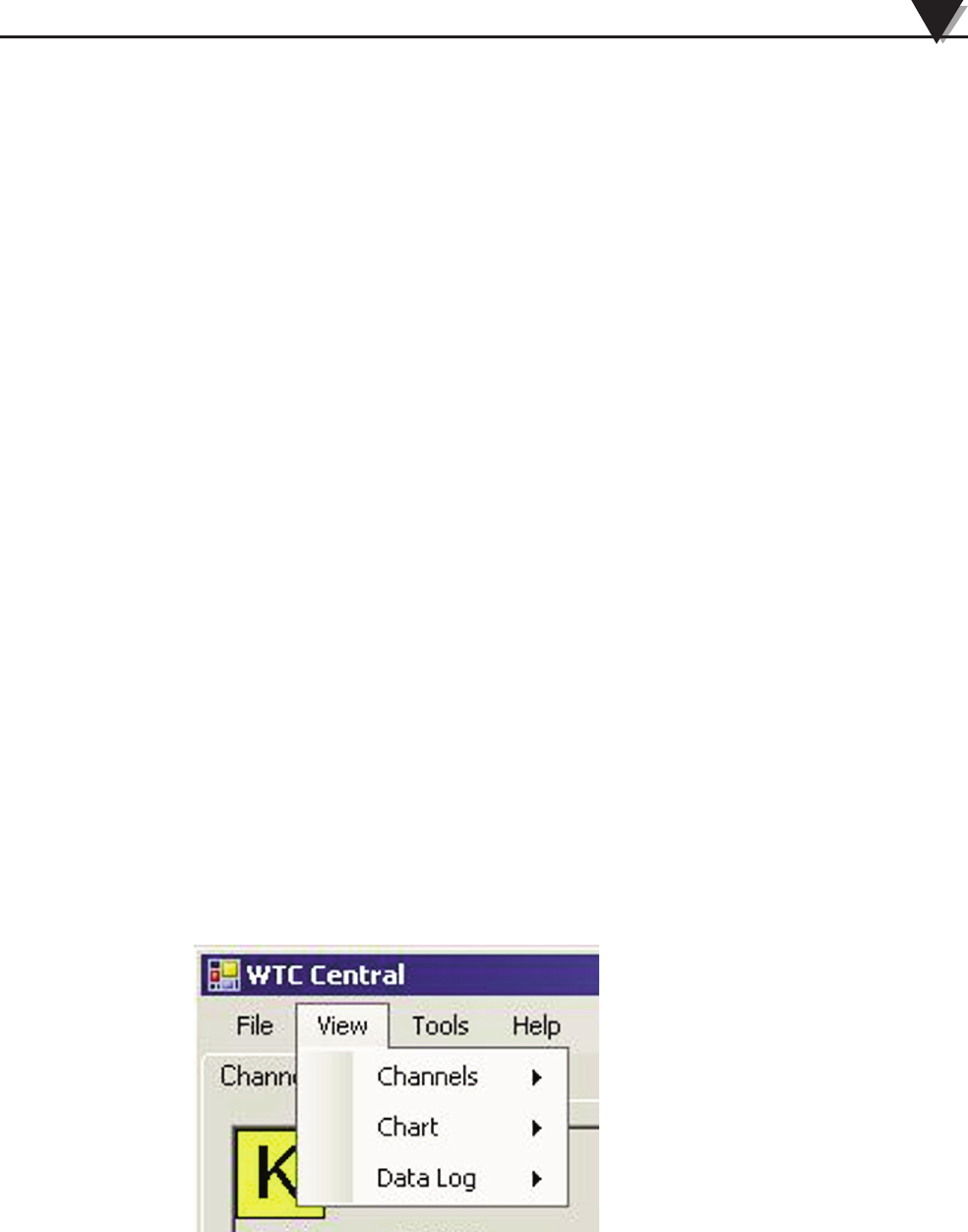

You can access all of the charting options that are available by opening the chart
option menu found under the “View” Tab. See below.
Figure 3-17 Charting Options Screen
Zoom In/Zoom Out
Allow you to change the size of the chart on the screen. You can also use the
Control-Up Arrow and Control-Down Arrow keys as well.
Default Chart Size
Returns the chart to its normal size (after zooming or panning), and places the
title and legend in their normal positions.
Reset Axes
Reset Axes will effectively cancel the results of a Data Zoom and return the axes
back to their original dimensions, but will not change the size of the chart.
Chart (Mouse) Zoom
Perform the same function as mentioned above, by moving the mouse up or
down, or rolling the mouse wheel.
Data (Box) Zoom
When checked, you can use the mouse to click and drag a rectangle around a
line of data to magnify that portion of the chart. The chart size will remain the
same, but the axes will be expanded as well and the data line(s) to allow viewing
more detail. You can close either of the axis scroll bars by clicking on the Red
button of each scroll bar.
Pan
Allows you to move the chart as well as the title and legend around on the
screen. If the Pan item is checked, you can still use the mouse wheel to zoom in
and out, while holding the left button down to move the chart as desired.
3
3-13
Software
Reset Axes will effectively cancel the results of a Data Zoom and return the axes
back to their original dimensions, but will not change the size of the chart.
Floating Cursor
When checked, will display a crosshair type cursor that you can move with the
mouse. You can use the Floating Cursor to pinpoint a particular temperature
and time. The status bar displays the data point number, the time, and the
temperature, where the crosshairs meet. If the horizontal cursor line is touching
a data plot line, the corresponding channel number is also displayed in the status
bar.
Tracking Cursor
When checked, will perform similarly to the Floating Cursor, except that you can
specify a channel for the horizontal cursor line to lock on to. This channel is also
displayed in the status bar. With this option enabled, you can move the mouse
left and right without regard to up and down, and the horizontal cursor will
remain pointing to the line (channel) you specify. Assuming you have more than
one channel plotted on the chart, you can switch tracking to another channel by
moving the mouse over the data line of that channel until the mouse cursor
becomes a hand with a pointing finger. If you left-click at this point, the
Tracking Cursor will track that line. You can also change the channel of the
Tracking Cursor from the chart’s context menu, Tracking Cursor menu item
combo box. The same option is also available in the View Chart menu in the
main menu bar
Line Options
Allows you to select which channel(s) you want to display, and/or change the
color of each channel data line. This allows you to limit your view to either a
single channel, or a selected two or more channels for comparison, instead of
having all twelve channels displayed at once.
3
3-14
Software

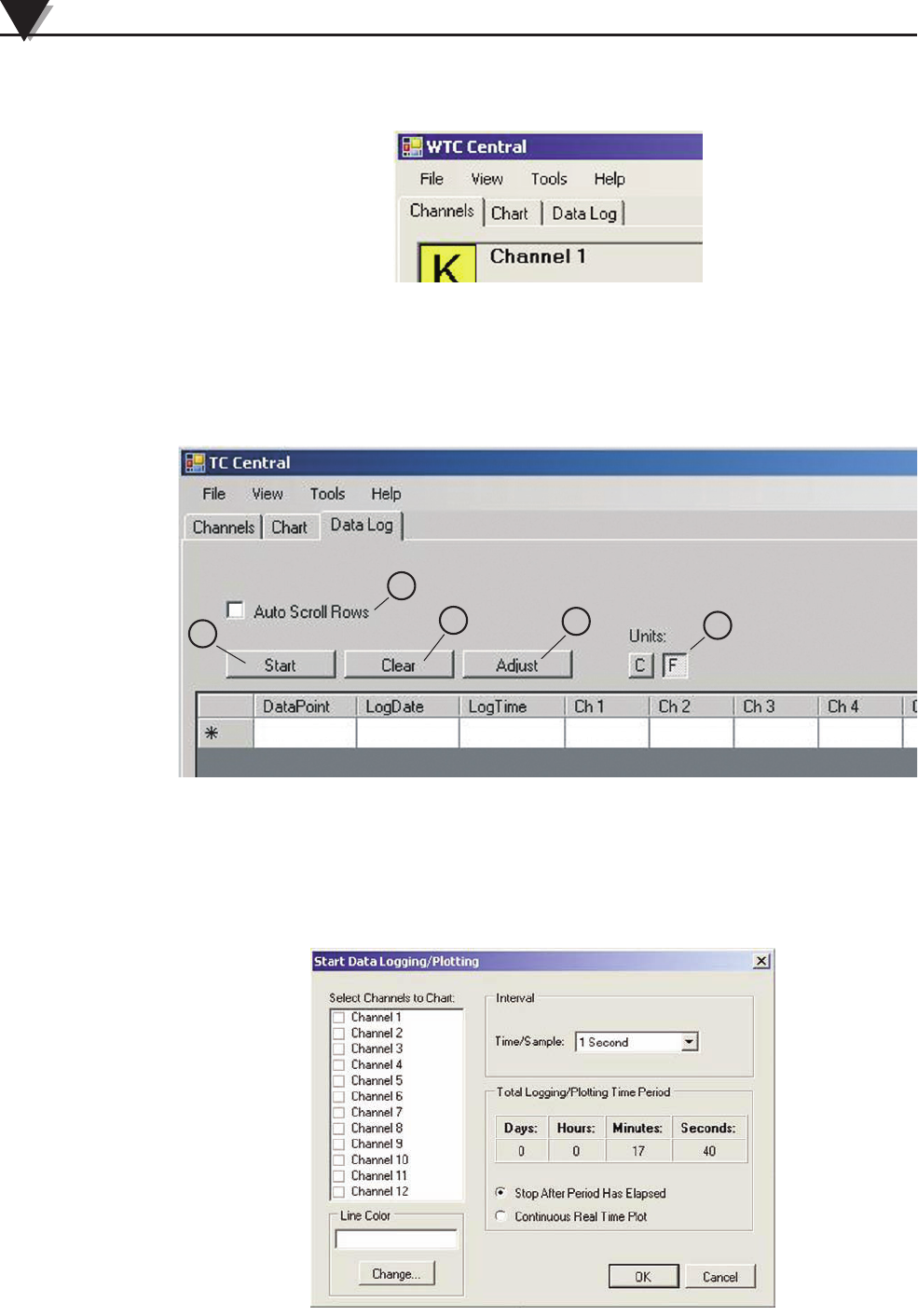

3.8 Data Log Tab
Figure 3-18 Date Log TAB Screen
The “Data Log” tab allows you to view received data from a connector/
transmitter in a table format as it is being recorded. This data can be saved and
printed.
Figure 3-19 Data Logging Screen
➀Start Button
The “Start” button will open the dialog box shown below. This box allows you to
select one or more channels to be plotted. Click the checkbox next to the
channel(s) number you want to include in your plot.
Figure 3-20 Start Data Logging/Plotting Screen
3
DATA LOG TAB
1 2 3 4
5
3-15
Software
Line Color
You can change the color specified for each channel’s line. Click the “Change”
button to select a new color for the Channel selected.
Interval
The total logging time is displayed for the interval setting selected. In general,
the interval should normally be set to a value equal to or greater than the same
sample time you programmed into the corresponding connector/transmitter for
that channel.
You can choose to have the data logging/chart recording session end after
1000 data points, or have the session run continuously. After 1000 data points
have been collected in the continuous mode, the oldest data point is shifted out
on the left, and the newest data point is added to the right. Data will continue to
be collected and displayed until you click on the “Stop” button above the chart.
If you click the OK button, the data logging session will start, and “Recording
Data” will flash in the status bar. The “Start” button above the chart will change
to “Stop”, indicating that if you click it again, the logging session will be
terminated.
You can also start or stop a data recording session from the File menu. Once data
has been collected, you can save it in a (*.csv) (comma separated values) file and
open it in Microsoft Excel for further analysis. It is recommended that you “Save
As” in Excel as a Microsoft Excel Workbook (*.xls). If you do not modify the
(*.csv) version of the file, you can open it from TC Central’s File menu, and
display it in the chart and data log.
➁ Clear Button
The “Clear” button will delete all data from the data log.
➂ Adjust Button
Resizes the columns to the smallest size necessary to fit all the data in the
columns.
➃ C or F Button
The C or F button allows you to change the units of degrees displayed during
the data logging.
➄ Auto Scroll Rows
The Auto Scroll Rows checkbox causes the data to be scrolled up one line each
time a new row of data is added to the grid.
3
3-16
Software
3.9 Menu Tabs
3.9.1 File Menu
Figure 3-21
File Menu Tab
Open…
Displays a dialog box which allows you to choose a data file to open and display
on the chart and in the data log. This file must be a file that was saved by the
Save menu item in TC Central. If the file has been modified externally, you may
not be able to open it.
Save…
Displays a dialog box which allows you to save the data currently displayed on
the chart and in the data log. The file format is (*.csv) (comma separated values),
which can be opened by Microsoft Excel for further analysis and charting. It is
strongly recommended that you do not modify this file, or you may not be able
to open it again in TC Central. Use Excel’s “Save As” option to save it as a
Microsoft Excel Workbook (*.xls), which you can then modify.
Start Data Recording…
Performs the same function as the Start button on the Chart and Data Log Tabs.
A dialog box is displayed allowing you to select one or more channels to be
plotted and logged by checking the checkbox next to the channel number. You
can also change the color of each channel’s line.
The interval should be set as desired for your particular needs. The total logging
time is displayed for the interval setting selected. In general, the interval should
normally be set to a value equal to or greater than the “Seconds per Sample” you
configured into the transmitter using the MWTC Configuration Wizard.
You can choose to have the data logging/chart recording session end after 1000
data points, or have the session run continuously. After 1000 data points have
been collected in the continuous mode, the oldest data point is shifted out on the
left, and the newest data point is added to the right. Data will continue to be
collected and displayed until you click on the “Stop” button above the chart,
above the Data Log, or select Stop Data Logging from the File menu.
If you click the OK button, the data logging session will start, and “Recording
Data” will flash in the status bar. The “Start” button above the chart and data log
will change to “Stop”, indicating that if you click it again, the logging session
will be terminated.
3
3-17
Software
Stop Data Logging…
Performs the same function as the “Stop” buttons on the Chart and Data Log
Tabs, by terminating any data logging/plotting session in progress.
Export Chart…
Displays a dialog box that allows you to either save an image of the current chart
on the Chart Tab, or copy it to the clipboard.
Print Preview…
Displays a standard Windows Print Preview dialog, allowing you to view the
item(s) as they would be printed on a printer. You can also print from this dialog
by clicking the printer icon in the upper left corner. If the Channels Tab is
displayed before choosing this option, a screen snapshot of the Channels Tab
will be previewed. If the Chart Tab is displayed before choosing this option, the
current chart image will be previewed. If the Data Log Tab is displayed, the data
table in grid style format will be previewed.
Page Setup…
Displays a standard page setup dialog box which allows you to change the page
orientation, margins, paper size, etc. You can then select the Print Preview menu
to view your changes without printing.
Print…
Displays a standard print dialog box. This allows you to select printers, printer
preferences, page ranges, number of copies, etc. If you click the “Print” button,
the specified page(s) will be sent to the printer. If you click the “Apply” button,
you can then select the Print Preview menu to view your changes without
printing.
Exit…
Will exits and close the TC-Central program.
3.9.2 View Menu Tab
Figure 3-22 View Menu
Channels
Performs the same functions as the Channels context menu, except for the
Configure menu item. See Channels TAB Menu (Section 3.9) for an explanation
of this menu.
3
3-18
Software
Chart
Performs the same functions as the Chart context menu. See Chart Tab Menu
(Section 3.6) for an explanation of this menu.
Data Log
Performs the same functions as the “Auto Scroll Rows” checkbox and the
“Adjust” button on the data log. See Data Log Menu (Section 3.8) for an
explanation of these functions.
3.9.3 Tools Menu
Figure 3-23 Tools Menu Tab
Configure
Displays the same dialog box as the Channels context menu, Configure menu
item, after you select a channel to configure. See Channels Tab above for an
explanation of this dialog box.
Auto Connect Receiver
Normally disabled, if you have established communications with a receiver
connected to your PC. If for some reason such as the receiver being replaced
with a different one, this menu item will be available. When selected, TC Central
will send “+++” to each and every available COM port in an attempt to identify
a port with a receiver connected to it. If TC Central finds a receiver, it will
perform the necessary configuration of the receiver and display the COM port
number in Green in the status bar. Even though your receiver is connected via a
USB Cable, the USB drivers installed create a “virtual” COM port, usually a port
number greater than COM4. Once connected, TC Central saves (remembers) the
port number you are using, and will automatically connect to it the next time TC
Central is started.
Manual Connect Receiver
Is available if you do not want TC Central to send “+++” to all of your serial
ports. If you know the COM port number used by your receiver, you can connect
to it from this menu without disturbing other COM ports. You can also use this
menu to connect to a second receiver connected to the PC on a different COM
port.
Configure Transmitter
Launches the UWTC Configuration Wizard. When you follow the steps in the
wizard, you will be able to configure each transmitter (one at a time) for the
thermocouple type, the transmitter address, and the sample rate.
3
3-19
Software
NOTES:
3
Transmitter Operation
4-1
Section 4 – Transmitter/Connector Operation

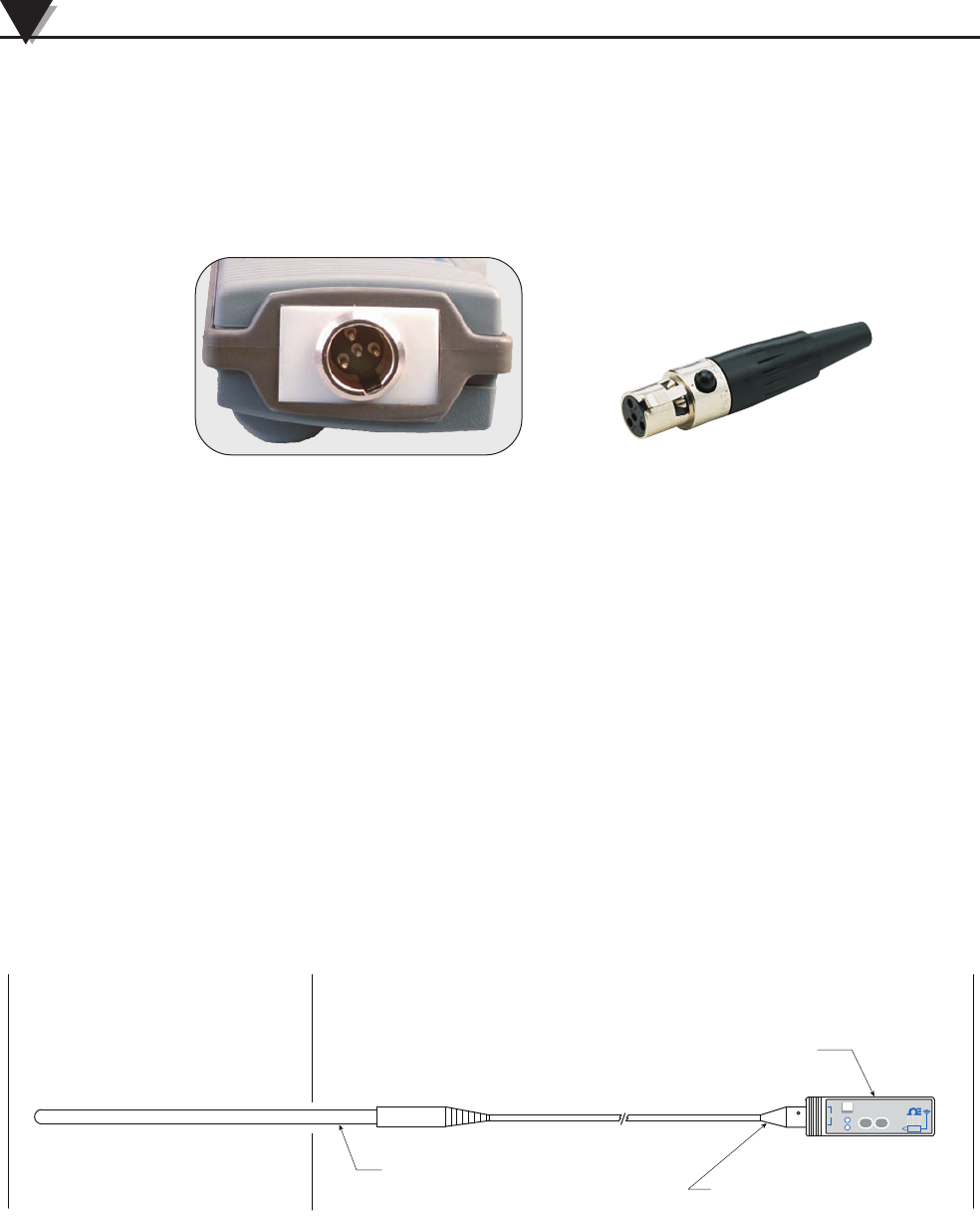

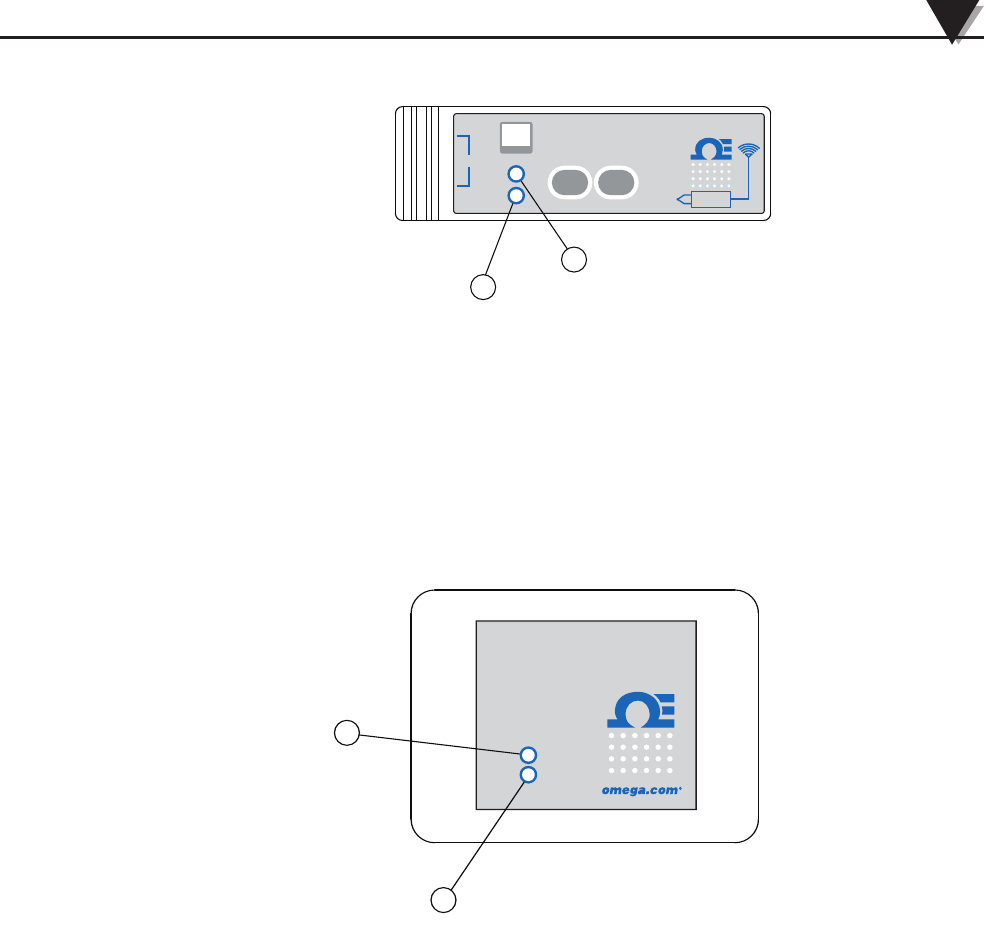

Figure 4-1A Thermocouple Connector
Figure 4-1B RTD Connector
(1) “ON/OFF” Button (2) “SETUP” Button (3) Transmit Indicator
(4) Low Battery Indicator (5) Sensor Input
4
Connecting Your Programming Cable

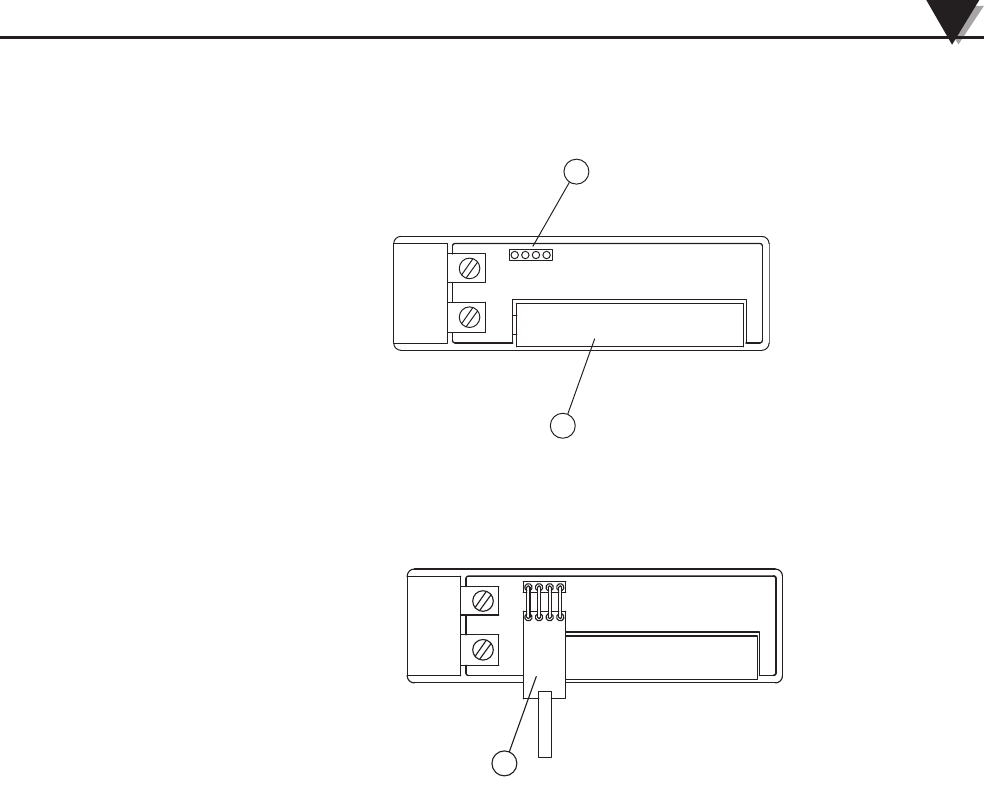

Figure 4-2A Transmitter Programming Connection
Figure 4-2B Transmitter Programming Connector with Cable Installed
(1) Programming Connector (2) Battery (3) Programming Cable
4.1 Setup and Configuration
4.1.1 Connecting your device
Connect the USB programming cable to your connector/transmitter unit and also
to an available USB port on your computer. See figures above. This cable was
provided in the box with your receiver unit.
2
1
+-
3
4-2
Connector Operation 4
Connector Operation
4
4-3
4.1.2 Configure Your Connector/Transmitter
Now that you have connected your USB cable to your PC and connector
transmitter you will complete the following steps to configure your
connector/transmitter before placing the unit into operation. You will be using
the configuration software utility that you installed onto your PC in Section 3.2.
If you have not installed the configuration software utility you should do so
now.
During this procedure you will be setting the following parameters in your
connector transmitter.
Channel Number
This sets a unique address number into your connector/transmitter. Later, when
you set up your measurement software you will again set channel numbers to
receive readings from the corresponding unit(s). Each connector must be set for a
different channel number for your system to operate correctly.
If you will be using more than one receiver unit in your area it is important to
set the connector/transmitter address numbers to be a corresponding number
in your TC-Central software. See Examples below.
For the first receiver:
Set the channels on your connector/transmitters to 101, 102, 103, 104, etc.
Then set the channels in your TC-Central user software to match.
For the second receiver:
Set the channels on your connector/transmitters to 201, 202, 203, 204, etc.
Then set the channels in your TC-Central user software to match.
This numbering scheme can be expanded to match the number of receivers you
are using.
Sample Rate
This will program your device to transmit 1 data reading to your receiver at a
specified time interval. Available settings are 2, 3, 5, 15, 30, 45, 60, 75 or 90
seconds
The sample rate you set will have the most direct effect on the life of the battery in
your connector/transmitter. It is recommended that you set the longest sample time
that your application can live with to extend time between battery replacement.
See Section 6 for more information on battery life.
STEP 1. Enter the “SETUP” mode.
To place your connector/transmitter into the “SETUP” mode for programming
follow this procedure.
NOTE:
NOTE:
Connector Operation 4
4-4

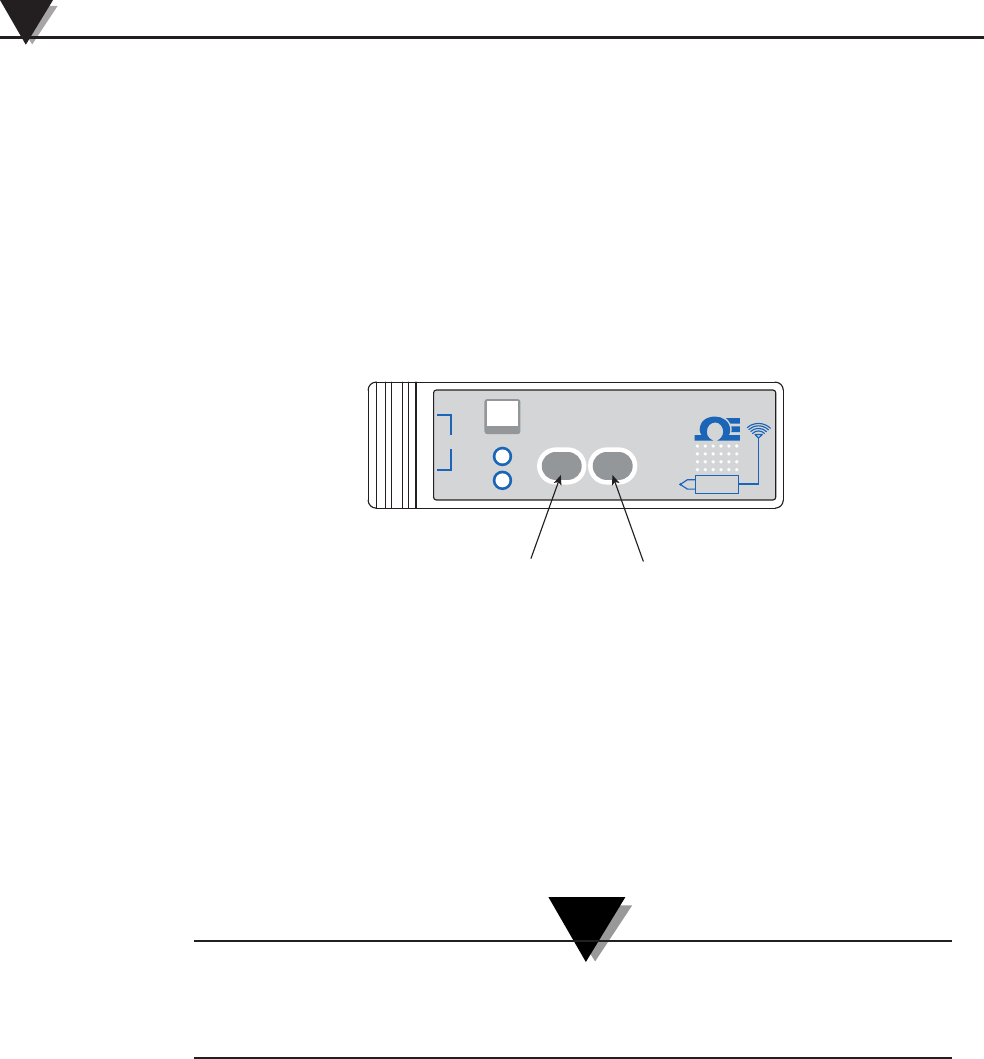

Figure 4-3 Setup Mode
Press and hold the “ON/OFF” button. While the “ON/OFF” button is being
held, press the “SETUP” button one time and then release the “ON/OFF”
button. The green (TX) indicator on the front of your device should be blinking
at a steady rate. This indicates your connector/transmitter is ready to run the
configuration utility software.
STEP 2. Launch Setup Utility Program.
To launch the MWTC Connector/Transmitter setup utility program on your PC
begin by accessing the “Programs” list under your “Start Menu”.
Scroll through the list of to find the “TC-Central” folder, then select the MWTC
Configuration Program.
Figure 4-4 Launch Setup Utility Program
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
SETUP BUTTON ON/OFF BUTTON
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department. BEFORE
RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED RETURN
(AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE
contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
FOR NON-WARRANTY REPAIRS,
consult OMEGA
for current repair charges. Have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2009 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
Connector Operation
4
4-5
STEP 3. Programing your settings into a connector/transmitter.
After starting the setup utility program this will be the first screen you will see.
Click the “Next >” button to proceed and continue setting up your connector/
transmitter. Each screen will provide instruction details on how to proceed.
If you have not already placed your connector/transmitter into the “Setup”
mode you should do this now before continuing. After your unit has been placed
into the “Setup” mode click the “Next >” button to proceed and continue setting
up your connector/transmitter.
Figure 4-5
Welcome To
Universal
Wireless
Screen
Figure 4-6
Setup The
Transmitter
Screen
Connector Operation 4
4-6
If you have not already connected your connector/transmitter to a USB port on
your PC you must do this now before continuing. After your unit has been
connected click the “Next >” button to proceed and continue setting up your
connector/transmitter.
After successful communication between your connector/transmitter has been
established you can click the “Next >” button to proceed and continue setting up
your connector/transmitter. If you did not receive this confirmation of proper
communication you should click the “Back” button to try connecting again. If
you still do not obtain a good connection visit the “Troubleshooting” Section of
this users guide for additional help.
Figure 4-7
Connect The
Transmitter
Screen
Figure 4-8
Establish A
Link Screen
Connector Operation
4
4-7
From this screen you will select the main operating settings for your
connector/transmitter. Start by selecting the address setting for this unit. (Note:
Each connector/transmitter must have a different address number than other
units in your system for proper operation). Then select the sample rate that your
unit will transmit data to the receiver. After making your selections click the
“Next >” button to proceed and program your settings into
connector/transmitter.
RF Chanel Selection
Here you can select from 3 channels choices, this gives tou the flexibility to
change the transmitting frequency should you have interference from other
devices close to your system.
Congratulations! You have successfully programmed your connector transmitter.
After your unit has been programmed click the “Finish” button to close the utility
program or click the “Start" button to begin setting up a second unit. You can now
disconnect your connector transmitter from the programming cable. Press the
“Setup” button on the connector/transmitter one time to exit the “Setup” mode.

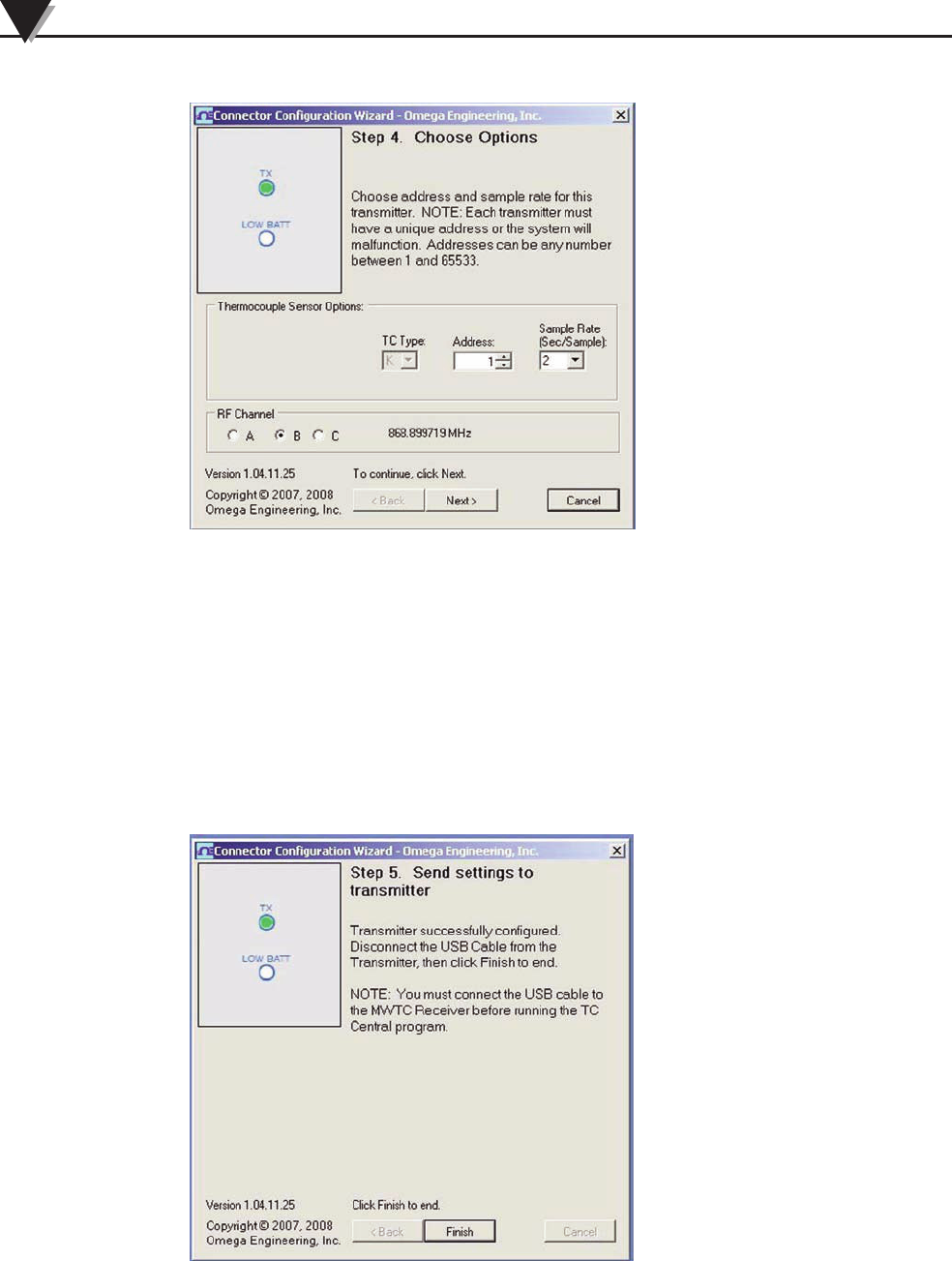

Figure 4-9
Choose
Options
Screen
Figure 4-10
Send
Settings To
Transmitter
Screen
Connector Operation 4
4-8
4.2 Mounting, Installation and Antenna Connection
4.2.1 Mounting Bracket Installation
A mounting bracket kit has been supplied with your connector/transmitter. The
diagram below shows dimensions and how to install your mounting bracket.
TIP: Use the plate as a template to mark the location of the mounting holes you
need to drill before installing the mounting kit onto the connector transmitter.
Figure 4-11 Mounting Bracket Installation
4.2.2 Mounting
When mounting your connector/transmitter, care should be taken to make sure
it is as far away from any metal objects. If nearby metal gets too close to your
connector/transmitter, it has the potential to interfere with the way the unit
radiates and may cause signal lose or possibly even the inability to communicate
at all with your receiver.
4.2.3 Installation
When installing your connector/transmitter it is important to position your
device in such a way as to optimize the antenna location within what’s known as
the “Fresnel Zone”.
The Fresnel Zone can be thought of as a football-shaped invisible tunnel between
two locations that provides a path for RF signals between your
connector/transmitter and your receiver.
Figure 4-12 Fresnel Zone
SPACERS
MWTC TRANSMITTER
MOUNTING SCREWS
MOUNTING PLATE
NOTE:
FRESNEL ZONE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
RECEIVER
ANTENNA
Connector Operation
4
4-9
In order to achieve maximum range, the football-shaped path in which radio
waves travel must be free of all obstructions. Obstacles in the path (especially
metal) will decrease the communication range between your
connector/transmitter and receiver. Also, If the antennas are mounted just barely
off the ground, over half of the Fresnel zone ends up being obstructed by the
earth resulting in significant reduction in range. To avoid this problem, the
antennas should be mounted high enough off of the ground so that the earth
does not interfere with the central diameter of the Fresnel zone.
It is important to understand that the environment may change over time due to
new equipment or machinery being installed, building construction, etc. If new
obstacles exist between your connector/transmitter and receiver, the devices can
be raised on one end or on both ends to hopefully clear the Fresnel Zone of
obstructions.
No co-location with other radio transmitters is allowed. By definition, co-
location is when another radio device or it’s antenna is located within 20 cm of
your connector/transmitter and can transmit simultaneously with your MWTC
unit.
Never install MWTC connector/transmitters within 20 cm or less from each
other.
Never use your MWTC connector/transmitter as a portable device. Your unit
has been designed to be operated in a permanent installation only.
4.2.4 Antenna
Use of any other antenna then what’s supplied with your device will void all
FCC and CE regulatory compliance.
Additional Information on installation and system operation can be found in
Section 6.
NOTE:
NOTE:
NOTE:
NOTE:
NOTE:
Connector Operation 4
4-10
4.3 - Thermocouple Connections
Your connector/transmitter has been design with a patented universal input that
will interface with most industry thermocouple connectors. Omega’s Miniature
(SMP) Series and Standard (OST) Series of connectors will plug directly into the
side of your unit. Omega’s line of thermocouple probes with connectors attached
will also plug directly into your unit.
Patented Universal Miniature Connector Standard Connector
Input OST Series
Figure 4-13 Thermocouple Connection
4.3.1 Thermocouple Operating Environment and Placement
4.3.2 Ambient Temperature Concerns
Your Connector/Transmitter is rated for use in ambient temperatures between
-10 to 70°C (14 to 158°F). Exposure to temperatures below or above these stated
temperatures can cause your device to malfunction and produce incorrect
operation. When installing your thermocouple probe care should be taken to
make sure your connector/transmitter will not be operated in an environment
outside the specifications outlined in Section 9.
4.3.3 Recommended Placement
For applications were the ambient temperature around the thermocouple probe
has the possibility of exceeding the operating conditions outlined in Section 9 of
this manual, the connector/transmitter should be mounted away from the
thermocouple probe in an area within the normal operating conditions of -10 to
70°C (14 to 158°F). See Below.
Figure 4-14 Recommended Thermocouple Placement
Installing your connector/transmitter in an application were the device will be
exposed to ambient temperatures above or below the operating limits specified
in this manual will damage your unit and cause the unit to malfunction and
produce incorrect operation.
CAUTION:
THERMOCOUPLE
MEASUREMENT AREA
THERMOCOUPLE PROBE
CONNECTOR/TRANSMITTER
MATING CONNECTOR
SAFE
AMBIENT AREA
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
4.4 RTD Connection
Your connector/transmitter has been designed with a RTD input that will
interface with Omega's TA4F connector. This connector will plug directly into
the side of your unit as shown below. A Mating connector was provided in the
box with your unit.
RTD Receptacle RTD Connector
Figure 4-15 RTD Connection
4.4.1 RTD Operating Environment and Placement
4.4.2 Ambient Temperature Concerns
Your Connector/Transmitter is rated for use in ambient temperatures between
-10 to 70°C (14 to 158°F). Exposure to temperatures below or above these stated
temperatures can cause your device to malfunction and produce incorrect
operation. When installing your RTD probe care should be taken to make sure
your connector/transmitter will not be operated in an environment outside the
specifications outlined in Section 9.
4.4.3 Recommended Placement
For applications were the ambient temperature around the RTD probe has the
possibility of exceeding the operating conditions outlined in Section 9 of this
manual, the connector/transmitter should be mounted away from the
thermocouple probe in an area within the normal operating conditions of -10 to
70°C (14 to 158°F). See Below.
Figure 4-16 Recommended RTD Placement
RTD
MEASUREMENT AREA
SAFE
AMBIENT AREA
RTD PROBE
CONNECTOR/TRANSMITTER
TA4F MATING CONNECTOR
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
4-11
Connector Operation
4
M4721/0309
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
SM
TEMPERATURE
Ⅺߜ Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
Ⅺߜ Wire: Thermocouple, RTD & Thermistor
Ⅺߜ Calibrators & Ice Point References
Ⅺߜ Recorders, Controllers & Process Monitors
Ⅺߜ Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
Ⅺߜ Transducers & Strain Gages
Ⅺߜ Load Cells & Pressure Gages
Ⅺߜ Displacement Transducers
Ⅺߜ Instrumentation & Accessories
FLOW/LEVEL
Ⅺߜ Rotameters, Gas Mass Flowmeters & Flow Computers
Ⅺߜ Air Velocity Indicators
Ⅺߜ Turbine/Paddlewheel Systems
Ⅺߜ Totalizers & Batch Controllers
pH/CONDUCTIVITY
Ⅺߜ pH Electrodes, Testers & Accessories
Ⅺߜ Benchtop/Laboratory Meters
Ⅺߜ Controllers, Calibrators, Simulators & Pumps
Ⅺߜ Industrial pH & Conductivity Equipment
DATA ACQUISITION
Ⅺߜ Data Acquisition & Engineering Software
Ⅺߜ Communications-Based Acquisition Systems
Ⅺߜ Plug-in Cards for Apple, IBM & Compatibles
Ⅺߜ Data Logging Systems
Ⅺߜ Recorders, Printers & Plotters
HEATERS
Ⅺߜ Heating Cable
Ⅺߜ Cartridge & Strip Heaters
Ⅺߜ Immersion & Band Heaters
Ⅺߜ Flexible Heaters
Ⅺߜ Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
Ⅺߜ Metering & Control Instrumentation
Ⅺߜ Refractometers
Ⅺߜ Pumps & Tubing
Ⅺߜ Air, Soil & Water Monitors
Ⅺߜ Industrial Water & Wastewater Treatment
Ⅺߜ pH, Conductivity & Dissolved Oxygen Instruments
4-12
Connector Operation
4.5 Battery Installation or Replacement
4.5.1 Model MWTC-(*)-915
To install or replace the battery in your Connector/Transmitter you must first
remove the two screws located on the back side of your device. This will allow
you to access the battery compartment.
Figure 4-17 Battery Compartment
Lithium batteries may get hot, explode or ignite and cause serious injury if exposed
to abusive conditions. Be sure to follow the safety warnings listed below: Your MWTC
Transmitter operates with one 3.6V AAA Lithium Battery. Omega Replacement Part
Number MWTC-BATT. Never operate your MWTC transmitter with a different battery
than what is specified in this manual or on the MWTC data sheet. Do not discharge
the battery using any device except your MWTC Transmitter unit. When the battery is
used in devices other than the specified device, it may damage the battery or reduce
its life expectancy. If the device causes an abnormal current to flow, it may cause the
battery to become hot, explode or ignite and cause serious injury. Refer to the
Omega technical data sheet or this manual for the temperature ranges over which
the battery can be operated. Use of the battery outside this temperature range may
damage the MWTC Transmitter or reduce the performance and life of the battery.
• Do not place the battery in fire or heat the battery.
• Do not store batteries with other hazardous or combustible materials.
• Do not install the battery backwards so the polarity is reversed.
• Do not connect the positive terminal and negative terminal of the battery to each
other with any metal object (such as wire).
• Do not carry or store the battery together with metal objects.
• Do not pierce the battery with nails, strike the battery with a hammer, step on the
battery or otherwise subject it to strong impacts or shocks.
• Do not solder directly onto the battery.
• Do not expose battery to water or salt water, or allow the battery to get wet.
• Do not disassemble or modify the battery.
• When the battery is discharged, insulate the terminals with adhesive tape or
similar materials before disposal.
• Immediately discontinue use of the battery if, while using or storing the battery,
the battery emits an unusual smell, feels hot, changes color or shape, leaks or
appears abnormal in any other way. Contact Omega if any of these problems
are observed.
• Do not place the battery in microwave ovens or high-pressure containers.
• Always dispose of discharged batteries in accordance with all local, state and
national laws.
+ -
BATTERY (NOTE POLARITY)
4
WARNING:
• Immediately discontinue use of the battery if, while using or storing the
battery, the battery emits an unusual smell, feels hot, changes color or shape,
leaks or appears abnormal in any other way. Contact Omega if any of these
problems are observed.
• Do not place the battery in microwave ovens, high pressure containers.
• Always dispose of discharged batteries in accordance with all local, state and
national laws.
Section 5 - Receiver Operation

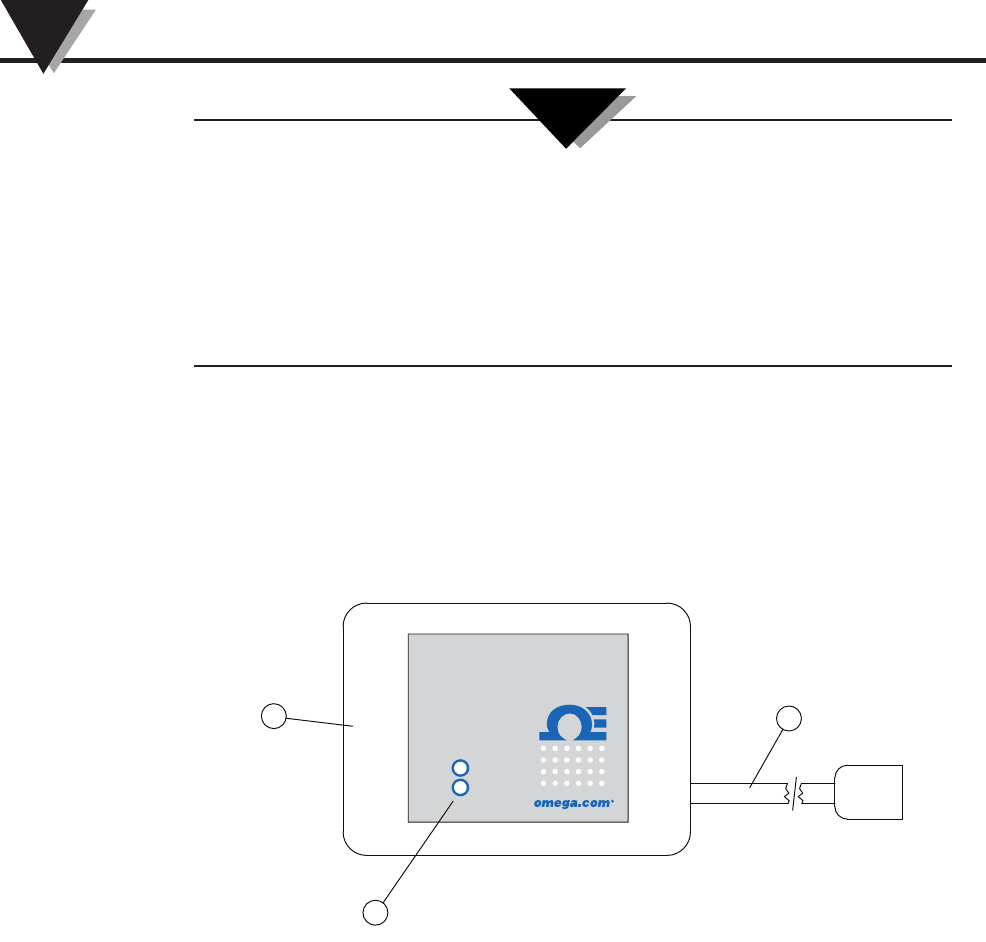

Model: MWTC-REC1 (1) Antenna (2) USB Port (mini-B) (3) Indicator Lights
Figure 5-1 Receiver Operation - Model MWTC-REC1
5-1
Receiver Operation
5
3
12
USB RECEIVER
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
WARNING:
5.1 Mounting, Installation
5.1.1 Mounting
A mounting bracket was included with included with your receiver. The
diagram below shows dimensions and mounting hole location. Rubber bumpers
have also been supplied with your receiver should you wish to use the device on
a desk or a work bench next to your PC.
TIP: Mounting your receiver on a wall away from your PC will provide better
signal strength and help to maximize system range.
When mounting your receiver, care should be taken to make sure it is as far
away from any metal objects. If nearby metal gets too close to your receivers
antenna, it has the potential to interfere with the way the unit receives data and
may cause signal lose or possibly even the inability to communicate at all with
your connector/transmitter.
Figure 5-2 Mounting
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
23 (0.87)
3.2 (0.125) DIA.
2 PLACES
79 (3.12)
DIMENSIONS mm (in)
NOTE:
5-2
Receiver Operation 5
5.1.2 Installation
When installing your receiver it is important to position your device in such a
way as to optimize the antenna location within what’s known as the “Fresnel
Zone”.
The Fresnel Zone can be thought of as a football-shaped invisible tunnel between
two locations that provides a path for RF signals between your
connector/transmitter and your receiver
Figure 5-3 Installation
In order to achieve maximum range, the football-shaped path in which radio
waves travel must be free of all obstructions. Obstacles in the path (especially
metal) will decrease the communication range between your
connector/transmitter and receiver. Also, If the antennas are mounted just barely
off the ground, over half of the Fresnel zone ends up being obstructed by the
earth resulting in significant reduction in range. To avoid this problem, the
antennas should be mounted high enough off of the ground so that the earth
does not interfere with the central diameter of the Fresnel zone.
It is important to understand that the environment may change over time due to
new equipment or machinery being installed, building construction, etc. If new
obstacles exist between your connector/transmitter and receiver, the devices can
be raised on one end or on both ends to hopefully clear the Fresnel Zone of
obstructions.
FRESNEL ZONE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
Receiver Operation
5
5-3
NOTE:
Section 6 - System Operation
6.1 Introduction
Compared to wired thermocouple systems, wireless thermocouple systems
provide much simpler installation. Based on the physical principle of the
propagation of radio waves, certain basic conditions should be observed. The
following simple recommendations are provided to insure proper installation
and correct operation of your MWTC Series system.
6.2 RF Communication Basics
The Model MWTC wireless Thermocouple Connector/Transmitter sends
wireless transmissions to the MWTC-REC1 receiver. The receiver checks the
incoming data for accuracy and processes this data for use by the measurement
software on your PC. Radio signals are electromagnetic waves, hence the signal
becomes weaker the further it travels. While radio waves can penetrate some
solid materials like a wall, they are dampened more than when a direct line-of-
sight between the transmitting and receiving antenna exist.
6.3 Basic System Overview
The MWTC wireless thermocouple system is comprised of only two main
components; a Thermocouple Connector with a built-in battery powered radio
transmitter, and a USB powered radio receiver.

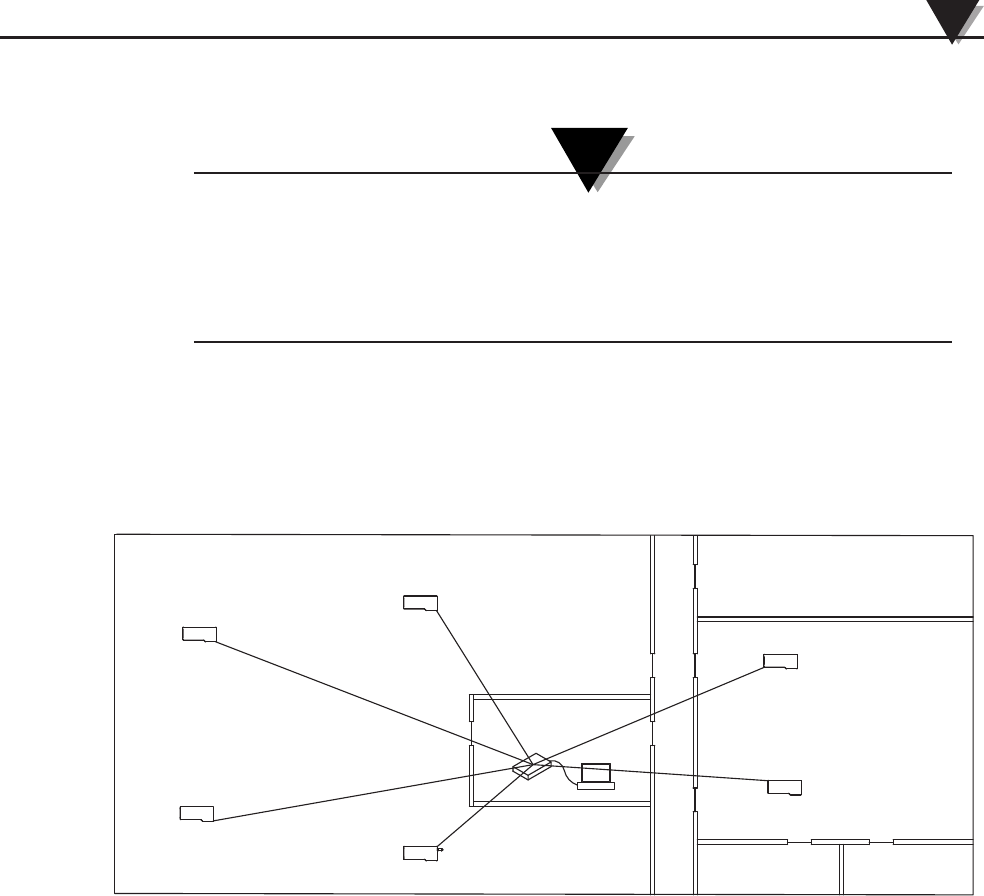

Figure 6-1 Basic System Overview
Up to 48 connector/transmitters can be used with one Model MWTC-REC1
receiver.
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
6-1
System Operation 6
NOTE:
6-2
System Operation
6.4 Connector/Transmitter Operation
6.4.1 Button Operation
(1.) “PRESS ON/OFF”
The “PRESS ON/OFF” button on the front of your connector/transmitter is used
to turn your unit “ON” or “OFF”
(2.) “PRESS SETUP”
The “PRESS SETUP” button on the front of your connector/transmitter is only
used during the setup and configuration of your unit. See Section 4.1.2 for more
information.
Figure 6-2 Button Operation
6.4.2 Ambient Temperature Readings
The ambient temperature reading displayed on your screen when running the
TC-Central program, is the actual ambient temperature that your
connector/transmitter is being exposed to. This reading is only provided as
reference and to aid you in proper installation of your unit. The ambient
temperature reading will blink and change to RED digits to alert you that your
have exceed the maximum recommended safe operating conditions for your
connector/transmitter. You should not rely on this feature as sole protection.
Additional protection should be taken by you “the user” to protect your unit
from extreme conditions.
Operating your connector/transmitter outside the specified ambient conditions
listed in Section 9 of this manual may cause your unit to malfunction and stop
working correctly.
6.4.3 Indicator Lights
(1) Transmit (TX) Green Indicator Light
The green indicator light marked “TX” on the front of the connector/transmitter
will blink every time the unit sends data to the receiving unit. Example; If you
selected a 5 sec sample rate the green TX led will blink one time every 5 seconds.
(2) Low Battery (Low Bat) Red Indicator Light
The red indicator light marked “Low Bat” on the front of the
connector/transmitter will turn on when the battery reaches a level at or below
the power level required for normal operation. When this indicator turns on it’s
time to install a fresh battery in your unit. For procedures on how to change your
battery see Section 4.5. For information on battery life see Section 6.11.
(See diagram on next page)
6
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
SETUP BUTTON ON/OFF BUTTON
6-3
System Operation
Figure 6-3 Transmit and Low Battery Lights
6.5 Receiver Operation
6.5.1 Indicator Lights
(1) Power (PWR) Green Indicator Light
Figure 6-4 Indicator Lights
(2) Transmit/Receive (TX) Red Indicator Light
The red indicator light marked "TX" on the front of the receiver will blink each
time the receiver receives incoming data during USB programming and also
when data is received from one of your transmitters.
1
USB RECEIVER
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
2
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
2
1
6
6-4
System Operation
6.6 Environment/Operating Conditions
6.6.1 Environment
Omega’s MWTC series connector/transmitter and receiver unit has been
designed to be fixed mounted and operated in a clean and dry indoor
environment. Care should be taken to prevent the components of your wireless
system from being exposed to moisture, toxic chemicals and extreme cold or hot
temperature that are outside the specifications listed in this manual.
6.6.2 Operating Conditions
The following is a list of basic good practice you should apply when operating
your wireless system.
• Never operate your wireless device outside the recommended
environmental limits specified in this manual.
• Never operate your wireless device in flammable or explosive
environments.
• Never use your wireless device in medical, nuclear or other dangerous
applications were failure can cause damage or harm.
• Never operate your transmitter/connector with any other battery or power
source than what’s specified in this manual or on the battery compartment
label.
• No co-location with other radio transmitters is allowed. By definition, co-
location is when another radio device or it’s antenna is located within 20 cm
of your connector/transmitter and can transmit simultaneously with your
MWTC unit.
• Never install a connector/transmitters within 20 cm or less from each other.
• Never use your connector/transmitter as a portable device. Your unit has
been designed to be operated in a permanent installation.
• Never install and/or operate your connector transmitter closer than 20 cm
to nearby persons.
• Never operate your connector transmitter with any other antenna than what
is supplied or listed here in this manual for approved use.
6
NOTE:
6-5
System Operation
6.7 Determining and Maximizing Range
The available maximum range specified for the wireless Series system in this
manual is only achievable under optimum installation conditions. Mounting
height, obstructions in your “Fresnel Zone” and ambient conditions can cause a
decrease in signal strength resulting in a shorter range between your
transmitter/connector and receiver unit.
The following recommendations will help to improve the range of your wireless
system.
Position your receiver in a central location
When multiple connector/transmitters are in operation, position your receiver
unit in a central space if possible in equal distance to each connector transmitter.
Figure 6-5 Determining Maximum Range
Test your system before permanent mounting
Before permanently mounting your connector/transmitters in your application
try moving the devices to different locations and mounting angles to determine
what installation achieves the best signal strength.
Move your system components higher off the floor and away from exterior walls
Avoid installing your system components to close to the floor or near your
buildings exterior walls. The closer your connector/transmitter and receiver unit
are the greater the interference and lose of signal strength will be.
Maintain a line of sight (LOS) between antennas
Maintaining a line of sight between your connector/transmitter and receiver
unit will produce greatly improved signal strength over a system were the
antenna’s in your system have obstacles blocking them.
Maintain a constant ambient temperature environment
Maintaining a constant ambient temperature environment is important to
achieving maximum signal strength. Exposing your system components to
extreme hold or cold temperatures, or sudden changes in ambient conditions
will have an effect on the performance of your system.
6
STORAGE ROOM
CONTROL ROOM
OFFICE OFFICE
PC
MANUFACTURING
AREA
MANUFACTURING
AREA
RECEIVER
TRANSMITTER
CHAN 3
CHAN 6
CHAN 5
CHAN 4
CHAN 2
CHAN 1
TRANSMITTER
TRANSMITTER
TRANSMITTER
TRANSMITTER
TRANSMITTER
6-6
System Operation
6.7.1 Operation in Buildings
Your Connector/Transmitter sends wireless data transmissions to a receiver
connected to your PC. Radio signals are electromagnetic waves. A radio signal
becomes weaker the further it travels. Range is decreased by different types of
materials found in the direction of the signals propagation. Radio waves can
penetrate most types of wall materials, but they are dampened more than they
would be by a direct line-of-sight installation.
6.7.3 Building Materials
Examples of how different types of wall material may reduce your signal:
Material Type Possible Signal Reduction
Wood, Plaster, Sheetrock, Uncoated 0 to 10%
Glass w/o Metal, Fiberglass
Brick, Pressboard 5 to 35%
Reinforced Concrete 10 to 90%
Metal Walls, Metal Doors, Elevators,
Metal Stair Cases, Metal Piping, 90 to 100%
Metal Mesh, Metal Screening
Figure 6-6 Operation In Buildings
Avoid dampening materials by repositions the connector/transmitting and/or
receiver.
6.7.2. Penetration Angle of Radio Waves Through Walls
The angle at which the transmitted radio signal hits a wall is very important and
also has a big effect on maximizing range. Signals between your
connector/transmitter should be transmitted as directly as possible.
6
NOTE:
6-7
6.8 Antenna Basics
6.8.1 Antenna Basics
By definition, an antenna is a device used to transform an RI signal, traveling on
a conductor, into an electromagnetic wave in free space. Antennas demonstrate a
property known as reciprocity, this means that an antenna will always maintain
the same characteristics regardless if it is used to transmit or receive. Most
antennas are resonant devices, which means they operate efficiently over a
relatively very narrow frequency band. An antenna must be tuned to the same
frequency band of the radio system to which it is connected, otherwise the
reception and the transmission will be impaired. The antennas in your wireless
thermocouple connector system have been tuned to operate in the 915 or 868
band.
6.9 Antenna Placement
Proper antenna installation is important and will allow you to achieve maximum
performance and range between your connector/transmitter and receiver unit.
Your connector/transmitter should not be installed on the same side of the wall
as the receiver. If mounted close to each other on the same wall, the radio
waves are likely to be subject to interfering dispersions or reflections. The best
positioning is to have the connector/transmitter installed on the opposite or
connecting wall to the receiver.
6.9.1 Horizontal Antenna Placement
Figure 6-7 Horizontal Antenna Placement
If your Connector/Transmitter is mounded in a horizontal position in your
application you should mount your receiving so that the same polarization is
achieved with the receiving antenna. As shown in the “Horizontal” example above.
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
System Operation 6
6-8
6.9.2 Vertical Antenna Placement
If your Connector/Transmitter is mounded in a
vertical position in your application you should
mount your receiving so that the same
polarization is achieved with the receiving
antenna. As shown in the “Vertical” example
Fig 6-8.
6.10 Factory Preset Values
Your Connector/Transmitter has been factory
programmed for the following default operation;
Channel Number: 1, Thermocouple Type: By
model number, Transmit Rate: 1 sample/5 sec
6.11 Transmit Rate vs. Battery Life
Many factors such as ambient temperature
conditions and transmitting rate can have a big
effect on the life of the battery used in your
connector/transmitter. Transmitting data places
a big demand of the battery in your
connector/transmitter. The transmit rate is the
single most contributing factor in the life of your
battery. The slower the transmit rate you set, the
longer the battery in your device will last. The
table below give some estimates on how long the
battery should last vs. the transmit rate you
selected when you setup your
connector/transmitters and under normal
operating conditions.
Transmit Time Estimated Battery Life
1 Sample/2 Seconds 60 days
1 Sample/3 Seconds 84 days
1 Sample/5 Seconds 128 days
1 Sample/10 Seconds 215 days
1 Sample/15 Seconds 278 days
1 Sample/30 Seconds 393 days
1 Sample/45 Seconds 455 days
1 Sample/60 Seconds 500 days
1 Sample/120 Seconds 570 days
®
TX
WIRELESS THERMOCOUPLE CONNECTOR
TC
–
+
MWTC
LOW
BATT
PRESS
SETUP
PRESS
I / O
TYPE
®
TX
PWR
MWTC SERIES
WIRELESS RECEIVER
System Operation
6
Figure 6-8 Vertical
Antenna Placement
Troubleshooting
7-1
Section 7 - Troubleshooting
The information provided in this section should solve most of the common
problems you may experience when installing or operating your wireless
System. If the problems and solutions outlined here do not solve your problem,
please contact Omega’s customer service department. Contact information can
be found in Section 2 of this manual or by visiting omega.com.
7.1 Connector/Transmitter Troubleshooting
Problem Solution
1. Unit will not enter “Setup” mode a. Check USB cable connection
b. Contact Customer Service
2. Configuration Utility will not connect a. Check USB cable connection
to device being programmed
b. Confirm you are in the
“SETUP”mode. See Section 3
c. Contact Customer Service
7.2 Receiver Troubleshooting
Problem Solution
1. Unit will not turn on a. Check power cord
connections
b. Unit requires service, contact
Customer Service
7
Service and Calibration
8-1
Section 8 – Service & Calibration
Your MWTC Series components have been built and factory calibrated to meet
or exceed the specifications listed here in this manual. The following two sub-
sections provide information on how to have your device serviced and also on
how to re-calibrate your unit in the field.
8.1 Service & Calibration
If any of your wireless system components require service or calibration, please
call our Customer Service Department at 1-800-622-2378 or 203-359-1660. They
will assist you in arranging the return and service of your device. We can also be
reached on the Internet at www.omega.com, e-mail: cservice@omega.com
8
Specifications
9-1
Section 9 – Specifications
9.1 Connector/Transmitter Specifications (Thermocouple Models)
Thermocouple Types: J, K, T, E, R, S, B, C or N
(Factory Set)
Thermocouple J: -100 to 760°C (-148 to 1400°F)
Measurement Range: K: -100 to 1260°C (-148 to 2300°F)
T: -200 to 400°C (-328 to 752°F)
E: -200 to 1000°C (-328 to 1832°F)
R: 260 to 1760°C (500 to 3200°F)
S: 260 to 1760°C (500 to 3200°F)
B: 870 to 1820°C (1598 to 3308°F)
C: 0 to 2315°C (32 to 4200°F)
N: -100 to 1260°C (-148 to 2300°F)
TC Measurement Accuracy: J, K: ±0.5% of reading or ±1.0°C (1.8°F),
whichever greater
T, E, N: ±0.5% of reading or ±2.0°C (3.6°F),
whichever is greater
R, S, B, C: ±0.5% of full scale
TC Measurement Resolution: Type J, K, T, E, N: 1°C/1°F
Type R, S, B, C: 1°C/1°F
Cold Junction Compensation: -10 to 70°C (14 to 158°F)
Thermocouple Connection: Patented universal female accepts both
standard male (OSTW Series) or miniature
male (SMPW Series) mating connector
Operating Environment: -10 to 70°C (14 to 158°F)
Computer Interface: USB (one interface cable included
with receivers)
Transmit Sample Rate: Programmable from 1 sample/15 minute to
1 sample/every 2 seconds
Radio Frequency: ISM 915 MHz or ISM 868 MHz
RF Output Power: -5 dbm
Range of RF Link: Up to 90 m (300'): Outdoor line of sight
Up to 39 m (130'): Indoor/urban
Software: Requires Windows®OS
Battery: One 3.6 V lithium, 650 mA capacity
(AAA) (included)
Battery Life (Typical): 500 days at 1 sample/minute reading rate
@25°C (77°F)
Data Transmitted to Receiver: Thermocouple reading and connector ambient
reading
Dimensions: 76 L x 25.4 W x 13 H mm (3 x 1 x 0.5")
Enclosure: Plastic (Nylon)
9
9-2
Specifications
9.2 Receiver Specifications
Power
Model MWTC-REC1: USB bus +5V powered, 300 mA consumption
max.
USB Compatibility: USB 1.1, USB 2.0
LED Indicators: TX Transmit/Receive (red),
USB Power (Green)
Radio Frequency (RI): 915/868 mHz
Cable Type: USB 4P(A) Male
Ambient Operating Conditions: -10 to 70°C, 0-95% Relative Humidity
(Non-condensing)
Dimensions: 69.8 L x 50.8 W x 20.3 mm H
(2.75 L x 2 W x 0.8" H)
Weight: 89 grams (0.24 lb) with cable
Enclosure/Housing: Plastic
9
Section 10 – Approvals, Regulatory Compliance & Patent Notice
All approvals outlined in this manual are based on testing that was done with
antennas that are supplied with your wireless Series System Components.
Removing and or installing a different antenna will void the product compliance
demonstrated in these documents.
10.1 FCC (Domestic Use: USA & Canada)
FCC ID: WR3-MWTC-2
IC: 8205A-MWTC2
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1.) This device may not cause harmful interference.
2.) This device must accept any interference received, including interference that
may cause undesired operation.
To satisfy FCC RF exposure requirements for mobile transmitting devices, a
separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during device operation. To ensure
compliance, operations at closer than this distance is not recommended. The
antenna used for this transmitter must not be co-located in conjunction with any
other antenna or transmitter.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Consult the dealer or an experienced radio/TV technician for help.
10-1
NOTE:
NOTE:
WARNING:
Approvals, Regulatory Compliance & Patent Notice 10
10.2 International Usage & CE Marking (Pending)
The MWTC (868 mHz mode) Series system components are CE marked and
certified for use in several European countries. Please contact OMEGA for
information on International Regulatory Compliance for each country.
It is your (the user’s) responsibility to insure that these products are operated
within the guidelines here in this manual and in conformance with all local or
national regulations and laws.
Transmitting Power
Your MWTC Series System Components have been designed and manufactured
so that the transmitting power will not exceed 10 dBm (10 mW).
10.3 Declaration of Conformity (DOC)
Contact OMEGA for status on CE marking and DOC availability.
10.4 Patent Notice
(Product is covered by patents for Super MCJ, Uniconnector and pending wireless
connector)
PATENT NOTICE: U.S. PAT. NO. 6,074,089 / Canada 2,228,333; 1,288,142 / UK GB
2,321,712; 2,193,048 / Holland 1008153 / Israel 123052 / France 2 762 908 / Germany
19803351.6 Other U.S. and international patents pending.
10-2
MWTC PATENT NOTICE
Approvals, Regulatory Compliance & Patent Notice
10
