Omimo Technology SOMC530 Omimo Wifi Camera User Manual W1
Omimo Technology Co., Ltd. Omimo Wifi Camera W1
User Manual
W1 Plus WIFI Camera
Product Manual
Thank you for choosing our home security
camera. Through this camera, you can view your
family, record every sweet moment of your daily
life, or protect anything valuable at anyme and
anywhere.
Before using this camera, please read this Manual
carefully.
Appearance
Front
LED
Lonc
Mic
Back
Micro SD
Card Slot
Reset Key
Speaker
Power
Port
Packing List
W1 Plus WIFI Camera
Qualified Cerficate
Screw-hole
Placement sheet
Cerficate
QC
PASS
USB Cable
DC 5V/2A
A/C Adapter Screw bag Quick Qperaon Guide
1080P
Device Installation
Config 1: Camera can be set on any hard-flat
surface with ample space.
Config 2: Using the Screw hole placement sheet to
set the camera mount base to the desired locaon
on wall, then use the screws to install the mount
base to the wall.
Aer camera has A/C adapter connected and
plugged in, a red LED comes up. When hearing
“Please wait for WIFI connecng”,the LED turns
into blue, indicates the camera is ready for the
addion.
Download APP
ATTENTION: The SD card will be
automacally formaed when it is inserted
into the SD card slot.
Please back up any data from the SD card
before inserng it into the camera to
ensure no data is lost.
Please use only the included power adapter and
micro-USB cable as the camera's power source.
Please contact the distributor/retailer where the
camera was originally purchased to buy addional
A/C adapter accessories if needed.
For Android users, download the Danale APP
from the Google Play store by searching
"Danale".
For iPhone users, download the Danale APP
from the App Store by searching "Danale".
Sign-up and Create APP Account
1. Open the Danale APP and click the "Signup"
buon. Enter the mobile number or email
you would like to use, click "Next", and wait to
receive the verificaon code that was sent to
your mobile phone or email.
2.Enter the verificaon code you received into
the designated area, click "Next", and set the
account password (click the small eye to see
the password entered). Click "OK" to complete
account registraon.

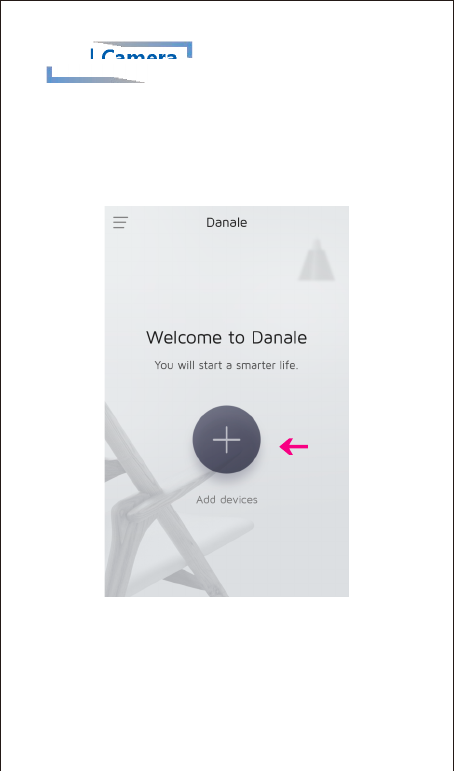

Add Camera
1.Open Danale APP and use the registered
account to login into the APP, then click the “+"
to add the camera.
NOTE: If the device does not give the prompt
"Please wait for WIFI connecng, ", power cycle
the camera or press the reset buon unl it
gives the prompt "Reset success".
The name of the WiFi network that appears in
the box should match the WiFi network that the
mobile phone is currently connected to.

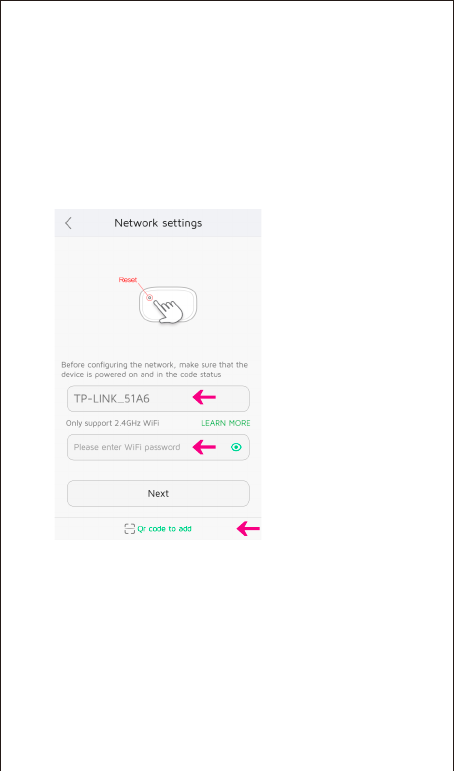

2.Input WiFi account and password of local
network, then click “Next”.
Or add the
camera by
clicking "Qr code
to add" and scan
the Qr code
underneath the
camera base.
This device does not support 5GHz WiFi band
of router, please use 2.4GHz WiFi router or
switch 5GHz to 2.4GHz for Dual-Band routers.
Please ensure that the AP Mode funcon on the
router is disabled.

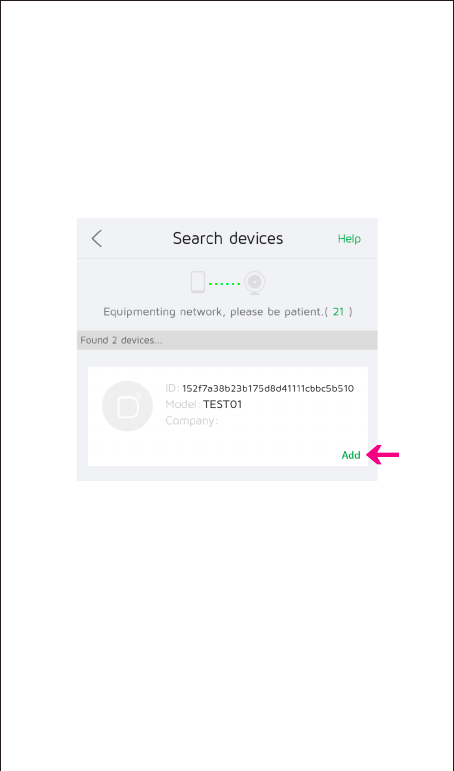

3. Aer subming the WiFi credenals, the
applicaon will open the "Search Devices” page.
This page will search for and find your IP camera.
Once found, select the camera and wait for the
camera's audio prompt, "WIFI connect success,
internet connected."
Once the search is complete and your camera
is found, click the "add" buon to add the
camera.(Note: If the "add" buon is missing for
the camera or shows that the camera has been
added already but the account is not yours,
please contact customer service for assistance).
Due to different network speeds, 60-100 seconds
may be needed to find your camera ID.
APP Function List
Add Device: add the needed device Alarm
Messages: review the moon detecon alarm
message
Playback: playback the cloud video record from
the camera
Share: share the camera with another user
Add Device
Share
Alarm
Messages
Playback
Icon Description
Share Seng
Playback
Switch
Full
Screen
Record
Video
Speaker
Snapshot Microphone
Alarm Messages
Share: share the camera with another user
Speaker: turn-on/off the listening funcon Alarm
Messages: review the moon detecon alarm
message
Playback: playback the cloud video record from
the camera
Microphone: turn-on/turn-off the microphone
funcon on the camera for two-way
communicaon
Two-way Communication
Click on the speaker “( )"and microphone
“( ) " buons to ensure they are on. There
may be a dialog box pop-up asking for access to
the microphone. Please allow this by pressing
"OK" to enable this.
When speaker and microphone are on and the
mobile phone and camera are close to each
other, you will experience audio feedback. To
avoid this, please keep an adequate amount of
distance between the mobile phone and camera
when using the speaker and microphone for
two-way communicaon.
Note: Aer pressing the mic buon, it will turn
green to indicate it is on and it will stay on unl
pressed again.

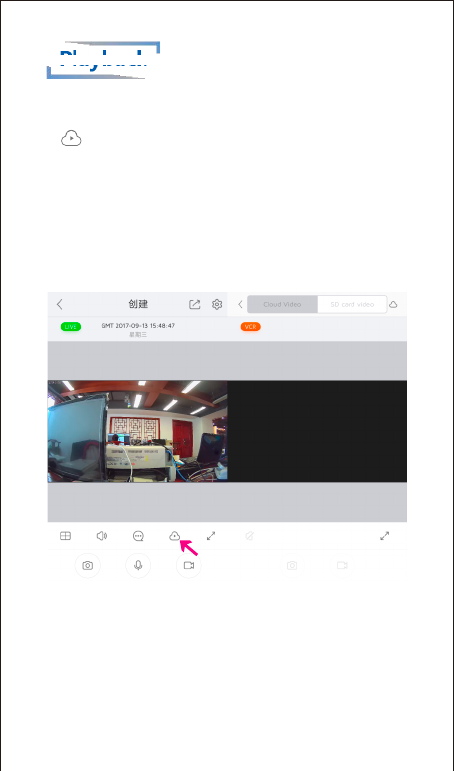

Playback
1.You can access video playback by clicking on the
"( )". This allows you to access both the cloud
and SD card video (Note: Cloud video viewing
requires a cloud video subscripon. SD card video
playback requires an SD card to be installed in the
camera). The video playback will be the same for
both the cloud and SD card.
Note: The SD card will be formaed and will
begin to record automacally once inserted. It
takes 5-10 minutes for the SD card video playback
to appear.

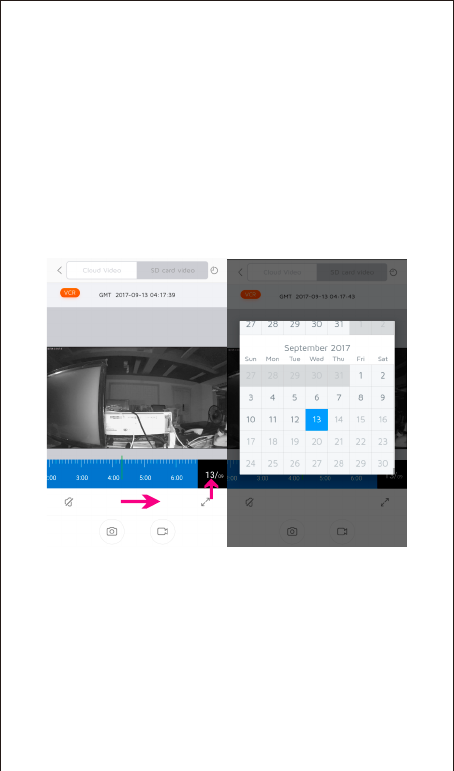

2. Click on the tab labeled "SD card video" to view
the SD card video playback page. The device
automacally plays the earliest video files of the
day. Drag the me-line to the le or right to select
the me to play. Click on the date to the right of
the me-line to select a date to view video
playback.

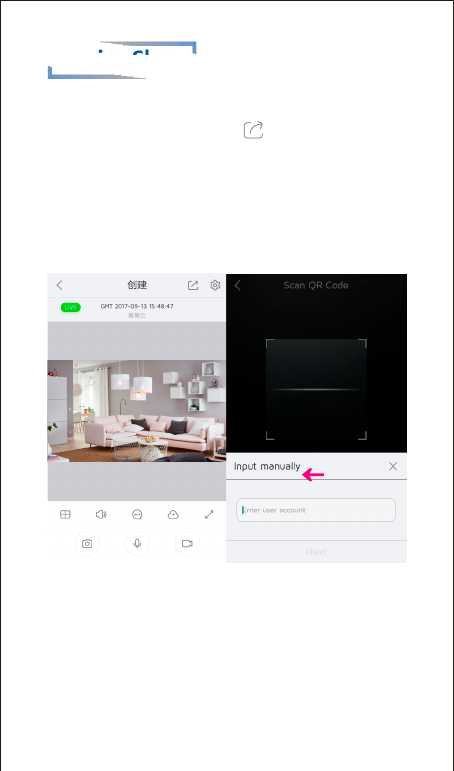

Device Share
1. Click the share buon "( )" to share the
device. Choose "Manual Input", input the other
user's account name (mobile phone or email),
and click the "Next" buon to share the camera
with other users.
The user you want to share the camera with
needs to have a registered Danale account.
2. Other users accept sharing requests by clicking
the "( )" in the APP main interface and click
"Message" in the menu to see the permission
request. Click "Agree" to accept the video
sharing request.
Note: The shared user can only view the
camera's live feed and use the microphone.
Video Qualityand ImageRollover
Adjustment
In the device main screen, click "( )" to view
full screen mode of camera's live feed. Click
"( )" to open the "Video Quality" and"Change
Screen View" adjustment window. To adjust the
video quality, drag the slider to the right to
increase clarity and to the le to decrease clarity.
To change screen view,select one of the four listed
opons for the desired effect.
Fluent
Picture Flip Mode
Clear HD
Q & A
1.Is it normal for the camera to get warm?
The camera heats up when it is on, especially
when the infrared lights are on at night. This is
normal - the working temperature range is 14°F
-120°F.
Please avoid placing the camera lens towards or
close to glass or other reflecve objects, as the
reflected light will cause the image to appear
overexposed nearby and dark in the distance.
Please make sure there are no objects/barriers
obstrucng the views from the camera as this
will impact the viewing angle and image quality.
Please check to ensure that the A/C adapter of
the camera is plugged in and funconing normally.
If the A/C adapter is working, check to make sure
the Internet is properly connected. If the Internet
is not working, contact your Internet service
provider. If the Internet is working, check to make
sure your WiFi credenals are properly entered
into the applicaon. If the WiFi credenals have
changed, please reset camerausing the reset tool,
and go through camera setup process again.
2.What should be avoided when camera is in
3. How can I fix the camera if it becomes
disconnected or goes off-line?
Warranty
1.The warranty is 1 year once purchased
(manufacture date is based on the ID inproducts).
During warranty period, if there is any problem
caused by product quality, we promise to fix it for
2.Below situaon cannot be listed for warranty:
Breakdown caused by installed in wrong
environment/ Improper installaon/ operaon/
unauthorized maintenance/ modifying/accident/
force majeure, and any failure caused by outside
environment. Beyond warranty period. Products
code cannot be configured out or not matched.
Failure not related to products quality/design/
technical/ manufacture.
3.Company will take some charge if products
cannot meet warranty condion.
4.To avoid unnecessary damage, do not send
products with SD card/ baery/ hard disk/ cable,
it will beyond our warranty service.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party.
Responsible for compliance could void the user’s authority to operate this
equipment. (Example- use only shielded interface cables when connecting to
computer or peripheral devices).
This equipment complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC Radiation Exposure Statement:
The equipment complies with FCC Radiation exposure limits set forth for
uncontrolled enviroment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.
.
