Tri Band Swivel Type Antenna
RP-SMA (M)
VNW0768A1
1
Table of Contents
Table of Contents ……… 1
Specification ……… 2
Antenna Drawing ……… 3

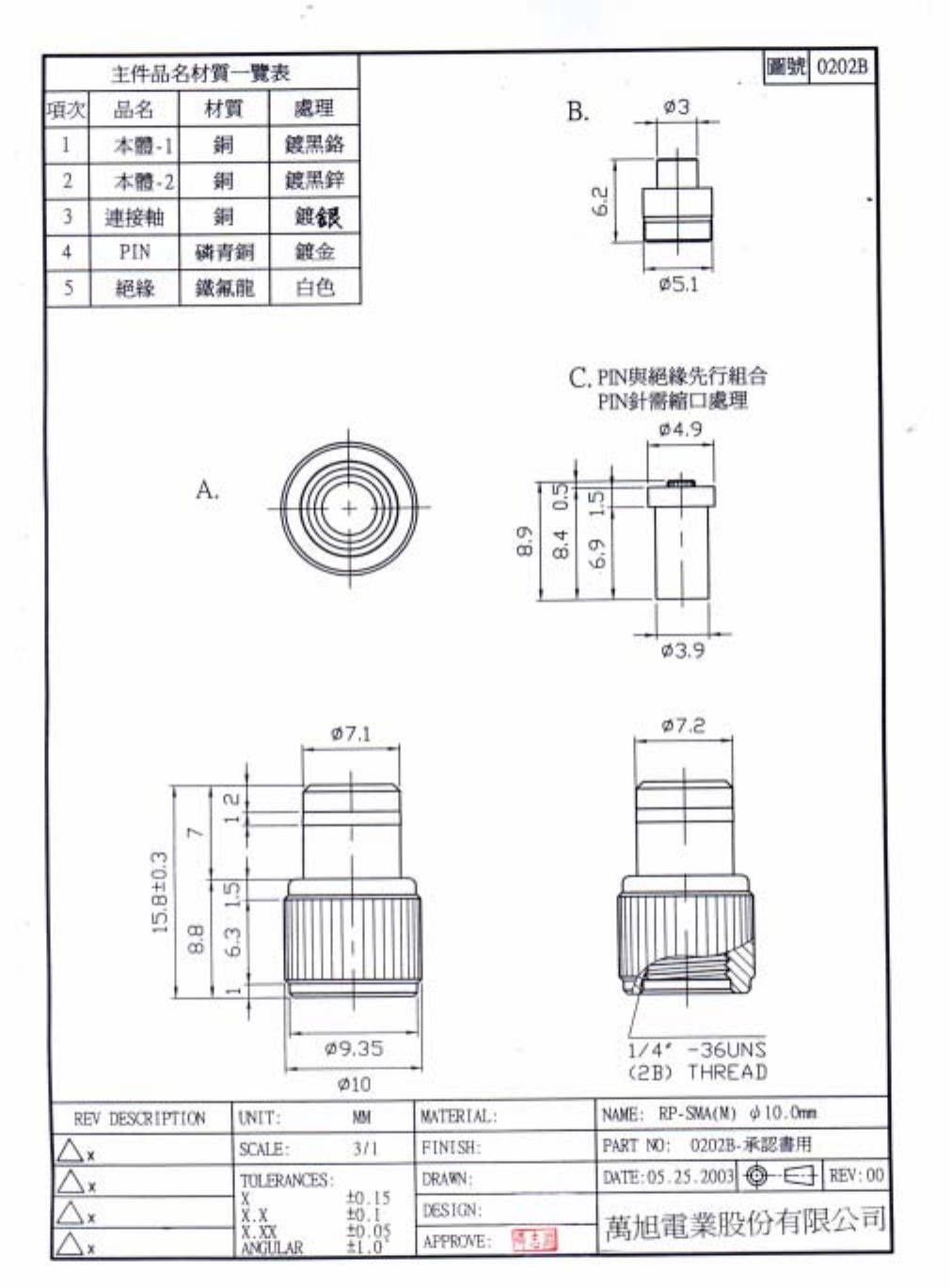

Connector Drawing ……… 4
Electrical Properties
Return Loss ……… 5
V.S.W.R ……… 6
Radiation Pattern ……… 7-8
Material Data Sheet
Coaxial Cable ……… 9-11
Housing ……… 12
Hinge ……… 13
2
SPECIFICATION
1. Description ：Tri Band Swivel Type Antenna
2. Customer ：Alpha Micro Components Ltd
3. Model No. ：WSS015
4. Part No. ：VNW0768A1
5. Standard ：IEEE 802.11a/b/g Wireless LAN
6. Antenna Profile ：83.3 mm length (see Drawing)
7. Color : black
8. Electrical Characteristics
Operating Frequency ：2.4~2.5 & 4.9~5.35 &
5.7~5.85GHz
Antenna Type ：PCB
Polarization Type ：Linear
Type of Radiation ：Toroidal
Peak Gain ：2.0 dBi Max@2.4~2.5GHz
5.0 dBi Max@4.9~5.8GHz
Impedance ：50 Ohm nominal
V.S.W.R. ：2.0:1 Max.
9. Mechanical Characteristics
Action ：Swivel Type
Connector ：RP-SMA (M)
Core ：N/A
10. Raw Material
Coaxial Cable ：MIL-C-17 RG-178 B/U
Housing ：TPU
Hinge ：Polycarbonate
3
Tri Band Swivel Type Antenna
RP-SMA (Black)
：
Revised
Scale：FREE
Page：1/1
UNIT：mm
Data: 93/09/07 Customer
Part No.
Part No.
Part Name
WANSHIH ELECTRONIC
CO,. LTD.
Arthur
Checked
Jim Ju
Approval
Mandy
Drawed
VNW0768
X.XX ± 0.1
ANGULAR ± 5.0°
X.X ± 0.3
X ± 0.5
TOLERANCES:
9 Reverse SMA ψ10 Body 0202B-A Body Reverse SMAψ10 Connector Black 1 or Equivalent
8 Reverse SMA φ 10 PIN 0062B-B PIN+TEFLON Reverse SMAφ10 1 or Equivalent
7 Reverse SMA φ 10 Shaft 0202B-C1 Shaft Reverse SMAφ10 Connector silver 1 or Equivalent
6 Housing 9.3φ*50.5L Housing Black 1 or Equivalent
5 PCB PCB 1 or Equivalent
4 Rivet 23-15-1 Rivet 1.90 φ,3.8L Black 2 or Equivalent
3 Hinge-Base IY113BK000 9.3φ Hinge-Base Black 1 or Equivalent
2 Hinge-Holder 9.5φ*20.0L Hinge-Holder Black 1 or Equivalent
1 RG-178 Coaxial Cable RG-178 CABLE 105SV Orange 48 1 or Equivalent
NO Material GM Descriptiom Color Dim Qt'y Remark
4
5
Electrical Properties

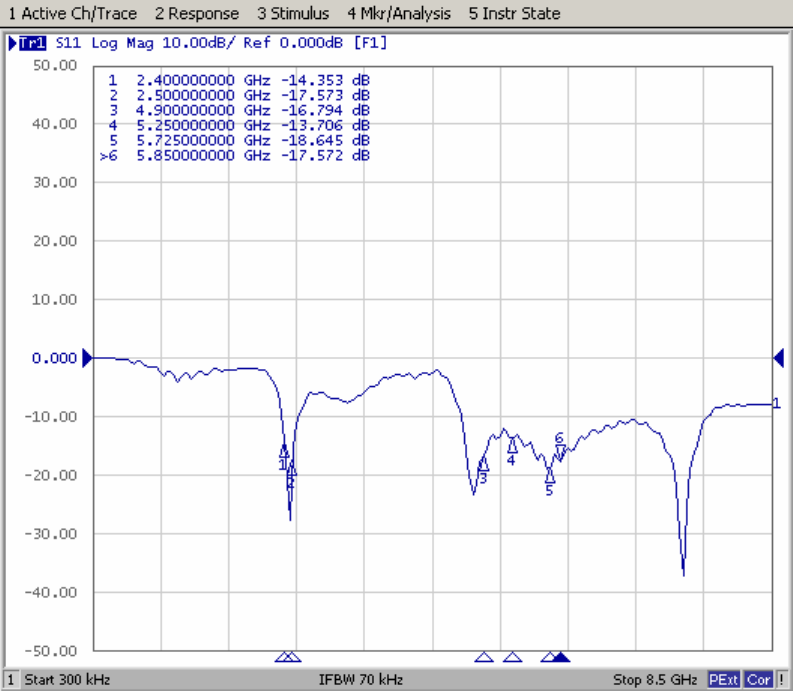

Return Loss
6
Electrical Properties

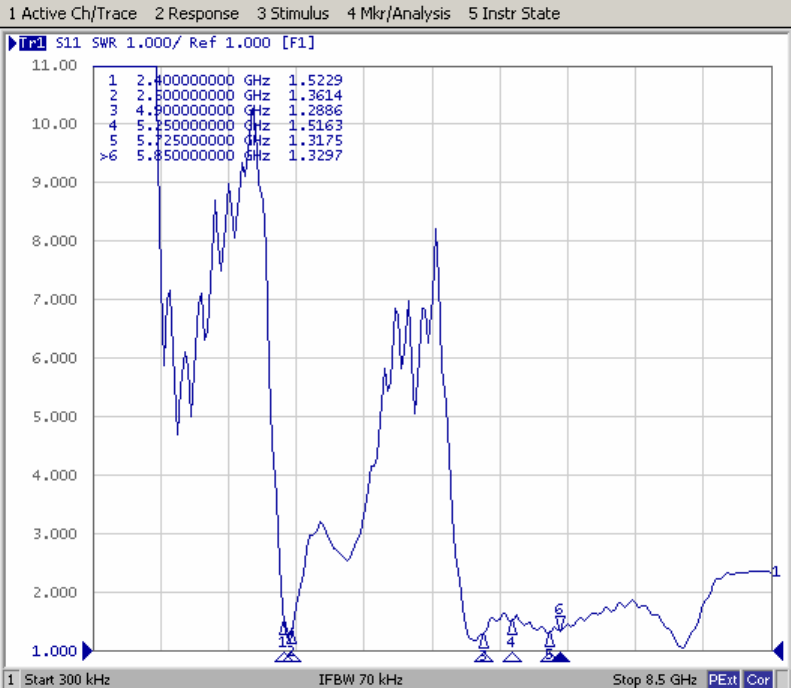

V. S . W. R
7
Electrical Properties

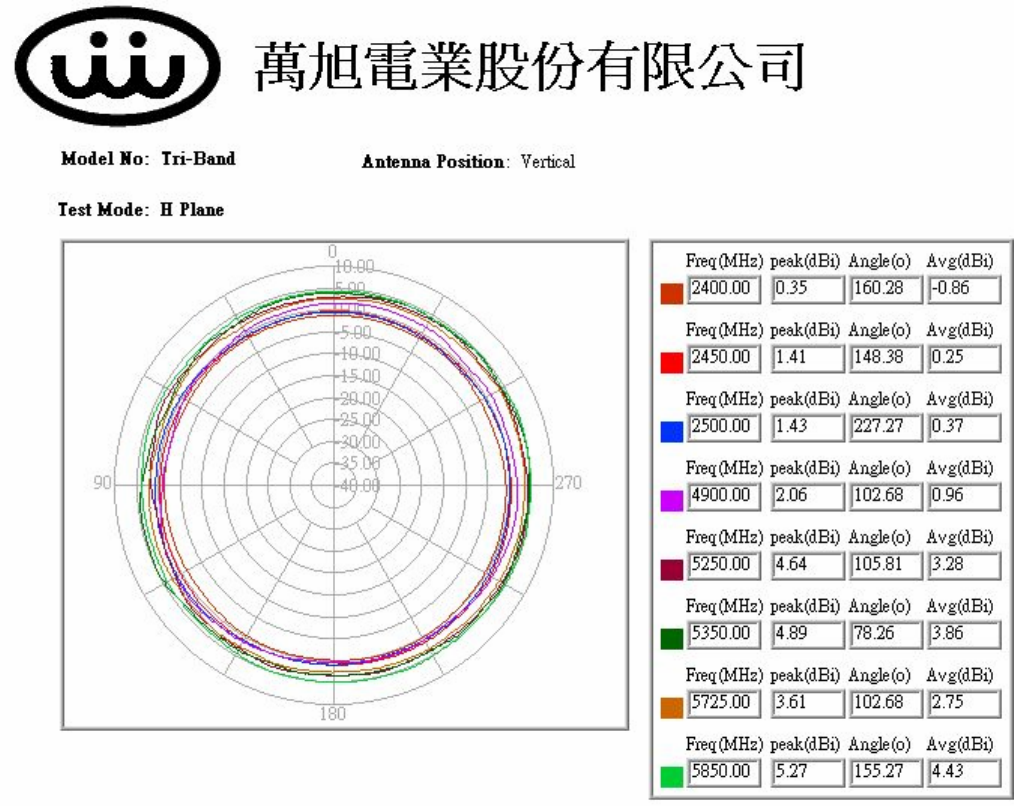

Radiation Pattern – H Plane
8
Electrical Properties

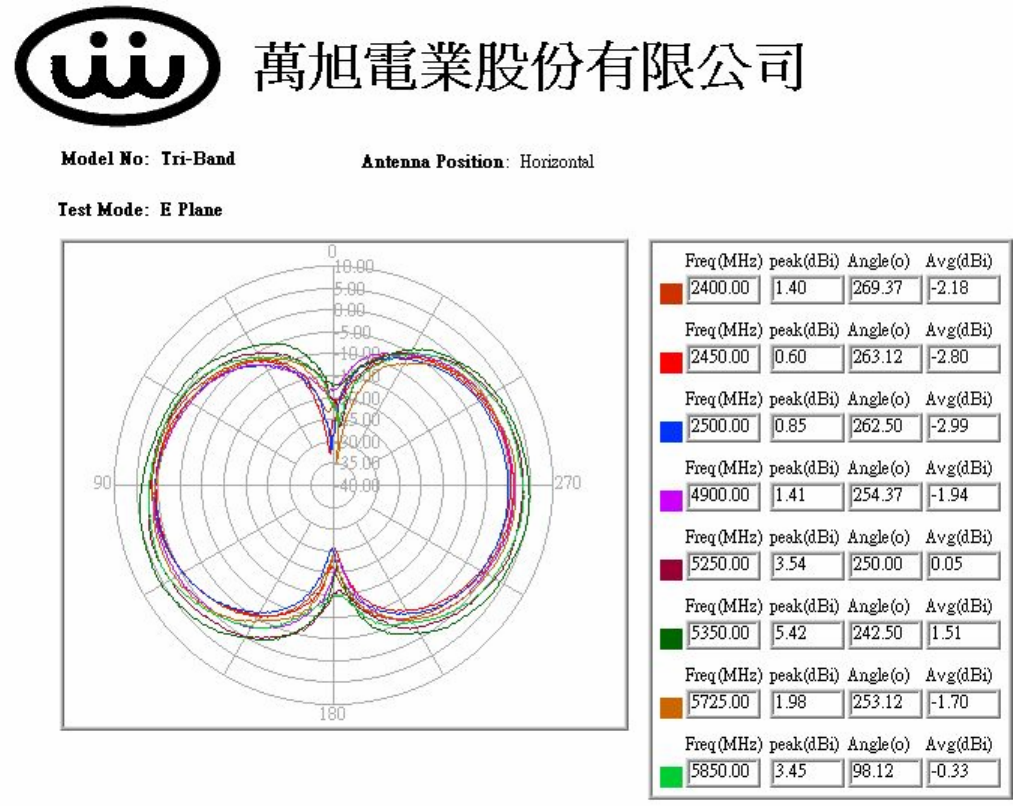

Radiation Pattern – E Plane
9
Coaxial Cable Data Sheet
RG-178
SPECIFICATION FOR APPROVAL
DOCUMENT: A30178B001
STYLE： 200℃ 30V
RG-178B/U
SIZE: 7/0.102 SCCS
RECOGNIZED:
WONDERFUL HI-TECH CO.,LTD
OFFICE：72WU KONG 6TH ROAD,
WU KU IND. DISTRICT
TAIPEI HSIEN,TAIWAN
TEL：(02)22988033
FAX：(02)22988031-2
FACTORY：17 PEI YUAN ROAD,
CHUNG-LI IND. PARK
TAIWAN, R.O.C.
TEL：(03)4527777
FAX：(03)4517214
10
WONDERFUL HI-TECH CO., LTD

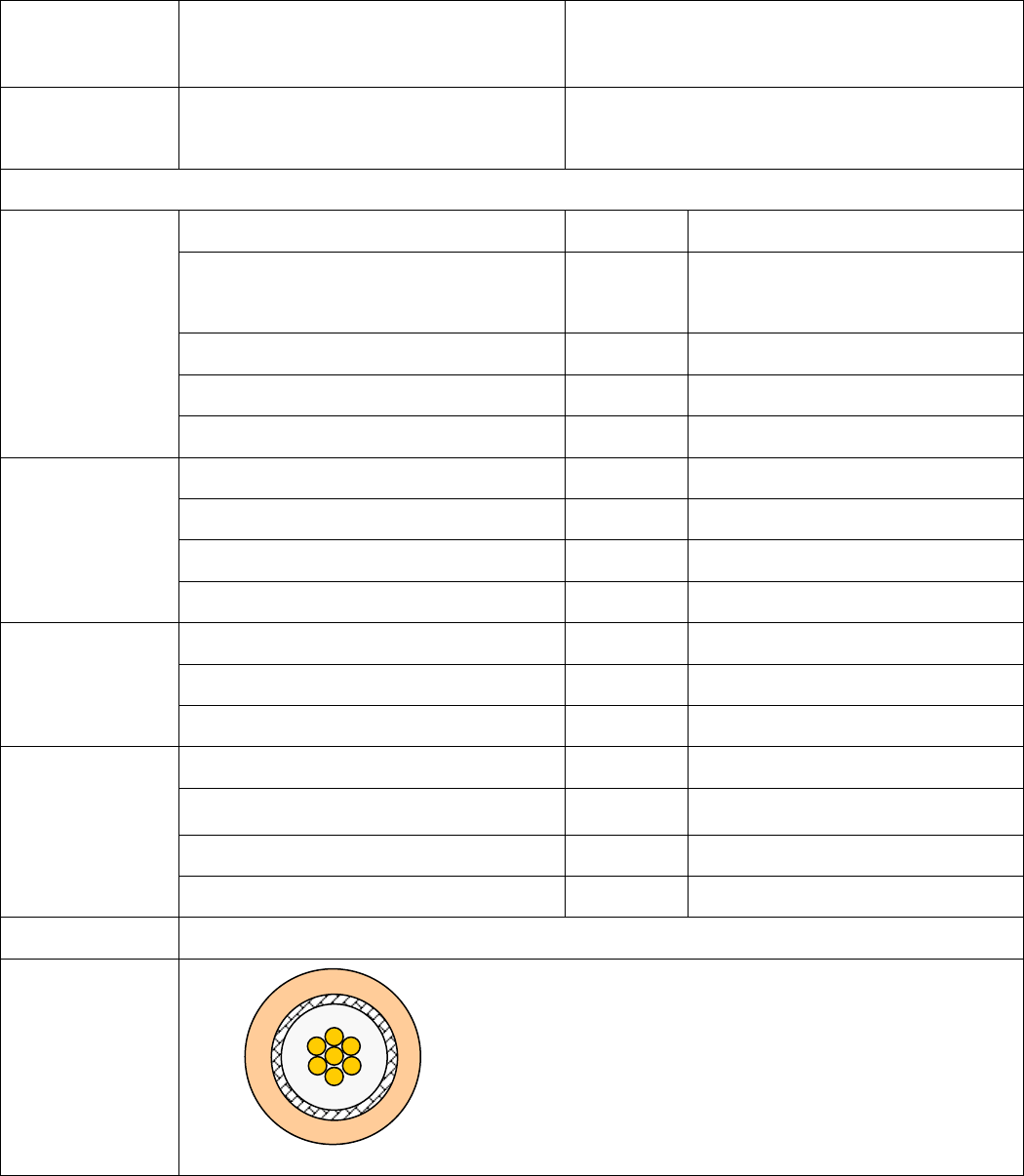

SPECIFICATION
STYLE 200℃ 30V
COAXIAL
DOCUMENT NO :
A30178B001
SIZE RG-178B/U ESTABLISHED DATE:
2003/02/13
STANDARD : MIL-C-17
Size AWG 30
Material ---- Silver-Coated Copper
Clad Steel
Conductors No. ---- 7
Conductors Size mm 0.102
Conductor
O.D. mm 0.30
Average Thickness mm 0.28
Diameter mm 0.86
Material ---- FEP
Insulation
Color ---- Clear
Material ---- Silver-Coated Copper
Construction mm 16 / 3 / 0.10
Braid
Coverage % 95
Average Thickness mm 0.25
Diameter mm 1.80 ±0.05
Material ---- FEP
Jacket
Color ---- Brown
Marking
Drawing
AK001/210X297/1.0 PAGE : 1
EDITION : 1.1 REVISED DATE :
MAKER : C.Y.CHEN CONFIRM : S.N.WONG APPROVAL : W.J.WANG
11
WONDERFUL HI-TECH CO., LTD
SPECIFICATION
Electrical & Physical Properties
Item RG-178B/U
Rating Temp Voltage 200℃ 30V
Conductor Resistance 838 OHM/KM/20℃ MAX.
Insulation Resistance 3000 MEGA OHM/KM MIN.
Dielectric Strength AC 1.0 KV/Minute
Spark Test 2.0 KV
Tensile Strength 2500 PSI MIN.( 1.76 Kg / ｍ㎡)
Unaged Elongation 200% MIN.
Tensile Strength UNAGED MIN 75%(168HRS×232℃)
Insulation
Aged Elongation UNAGED MIN 75%(168HRS×232℃)
Tensile Strength 2500 PSI MIN.( 1.76 Kg / ｍ㎡)
Unaged Elongation 200% MIN.
Tensile Strength UNAGED MIN.75%(168HRS×232℃)
Jacket
Aged Elongation UNAGED MIN.75%(168HRS×232℃)
Nom. Impedance 50 Ohms
Nom. Capacitance 95.8 pF/m
Nom. Vel. of Prop. 69.5%
VSWR (0 – 6 GHZ) UNDER 1.3
100MHz 1GHz 1.8GHz 2.4GHz 5.2GHz 6GHz
Attenuation
(dB/100m) 46 155 295 340 505 550
AK001/210X297/1.0 PAGE : 2
EDITION : 1.1 REVISED DATE :
MAKER : C.Y.CHEN CONFIRM : S.N.WONG APPROVAL : W.J.WANG
12

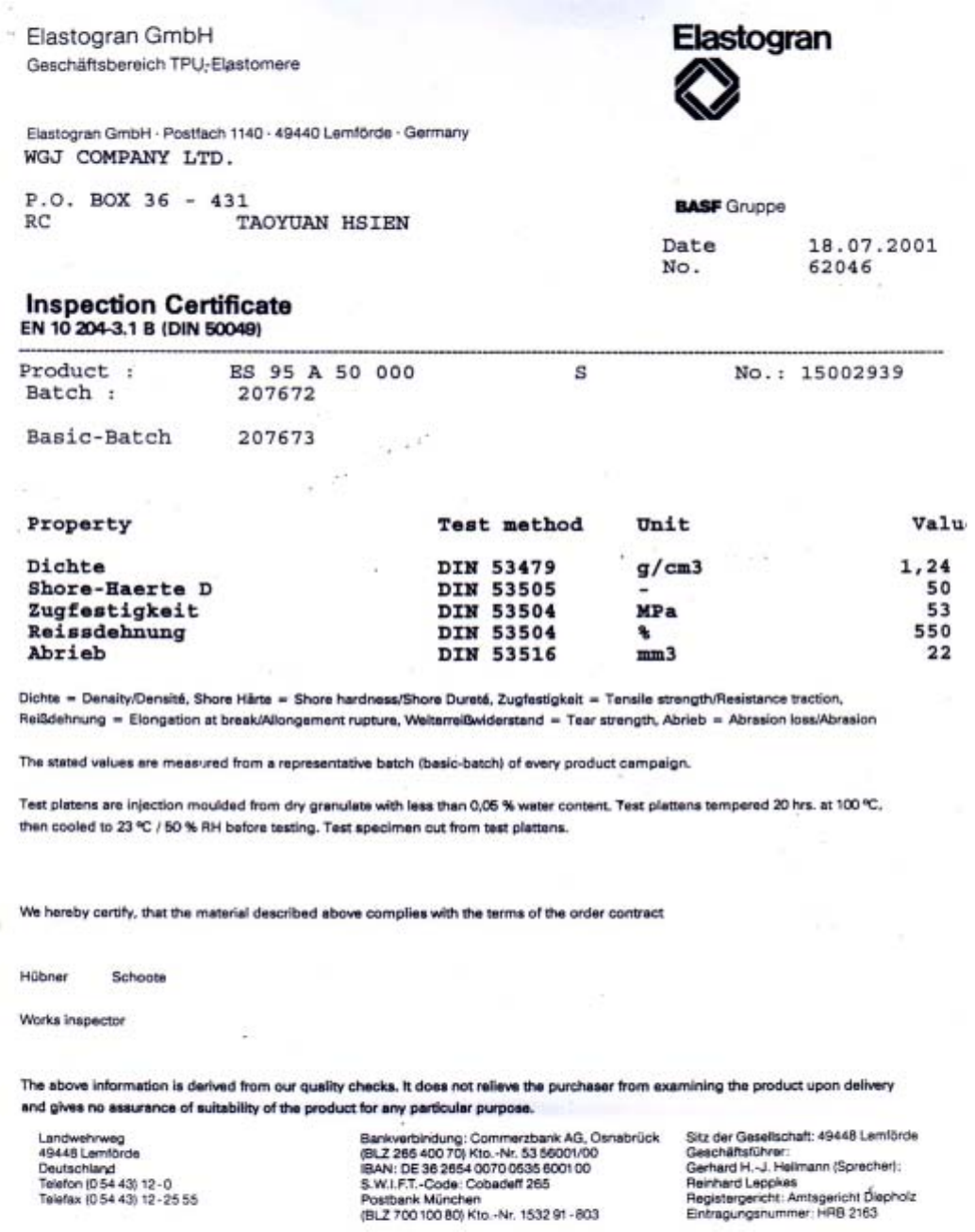

Housing Material Data Sheet
Housing - TPU
13

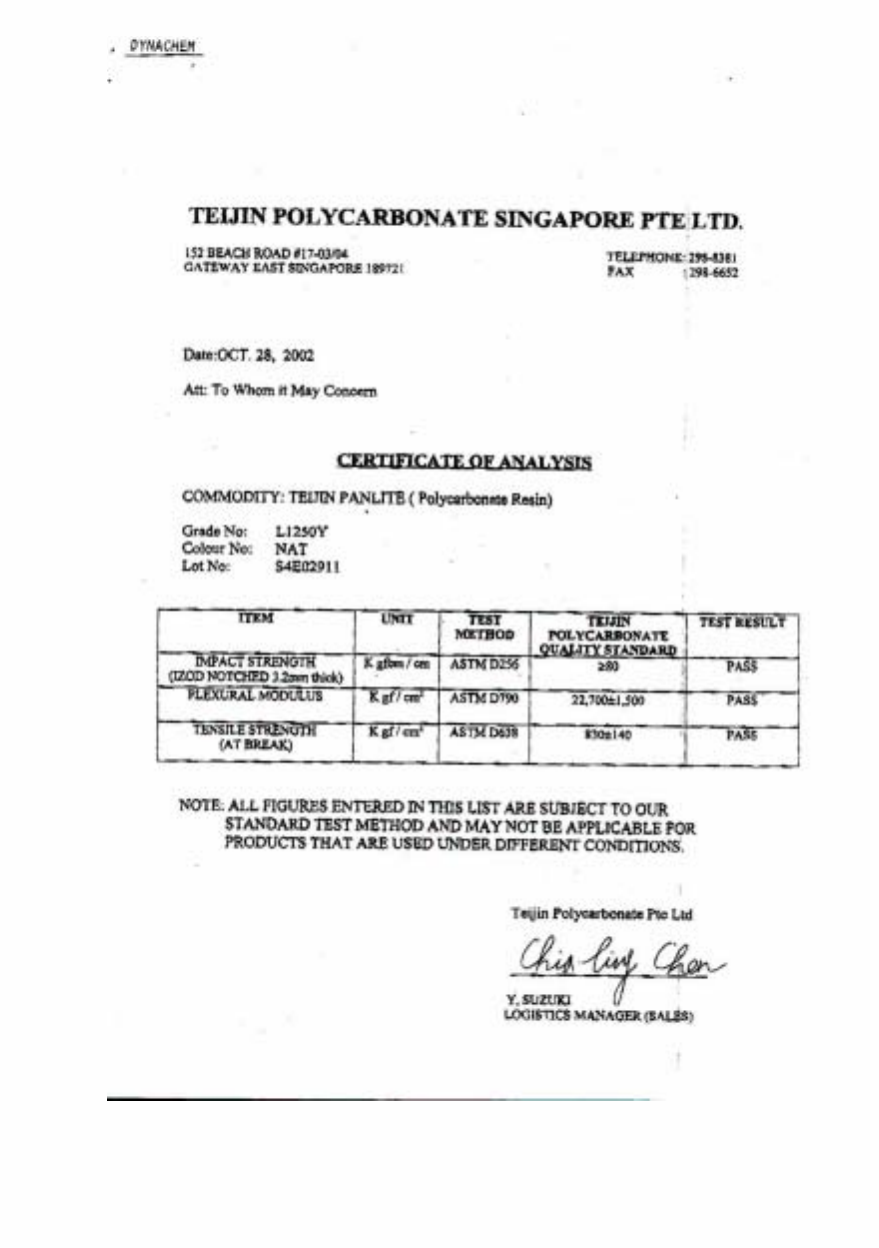

z Hinge(Base/Holder)- Polycarbonate(PC)
