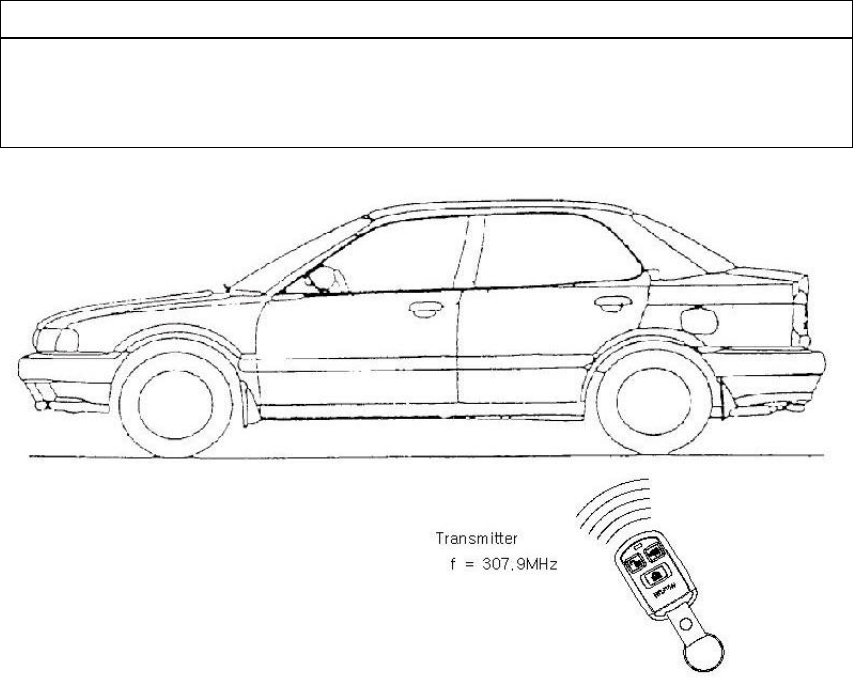

1. Constitution of the Radio Frequency Keyless Entry System for vehicle
The radio frequency keyless entry is a system that it controllers locking and unlocking the door by
wireless remote controller. This system consists of three components. The TRANSMITTER is a device
that transmits the signal when the button is pressed. The transmission signal consists of several
synchronous codes, unique identification code, security code and function code. The RECEIVER is fixed
inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the
synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the
receiver decides which operation will be performed. The user can select the following operations by
pressing the button of the remote transmitter.
OPERATION ACTION
LOCK lock the door
UNLOCK unlock the door
PANIC alarm the siren
- 3 -
2. User's manual (provisionally)

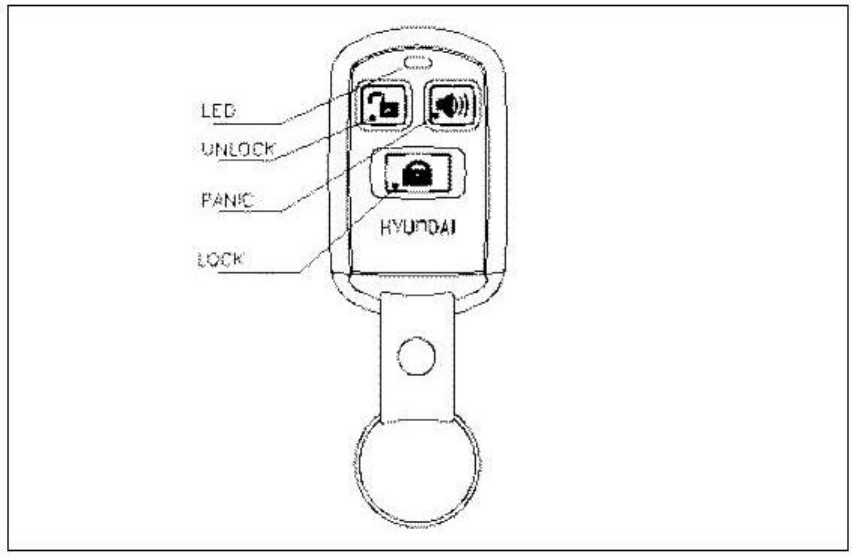

REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition
switch.
UNLOCK
When you push the UNLOCK button, all the doors will unlock.
You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
PANIC
When you push the PANIC button, Siren will alarm.
- 4 -

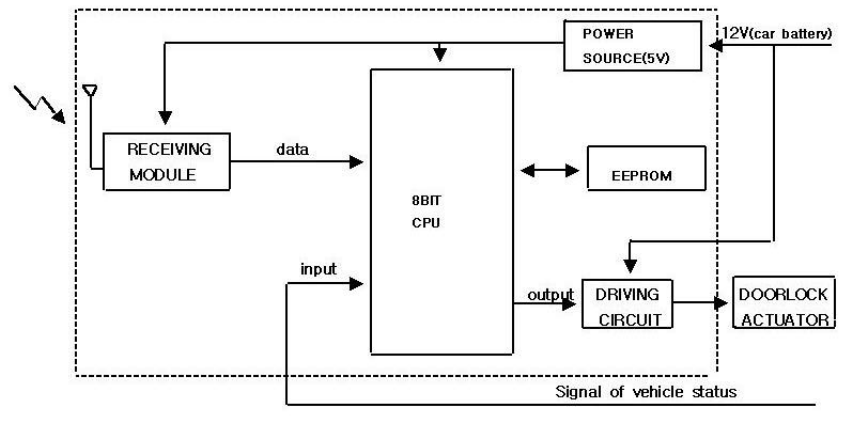

3. Block diagram
This is the block diagram concerning to the receiver.
Figure 3.1. block diagram of the transmitter
- 5 -
4. Specification
4.1 CPU
Type
ROM
RAM
Clock frequency
Clock frequency generation
Package
MB89636 (8bit)
Manufacturer: FUJITSU
32K × 8bit
1K × 8bit
10MHz
Crystal resonator
64pin QFP
4.2 EEPROM
Type
Memory
Package
S-93C46XXX
Manufacturer: Seiko. Elec.
1Kbit
8pin SOP
4.3 RF Receiver Module
Type
Local clock frequency
Frequency generation
Modulation Scheme
Bandwidth
Carrier Detect Sensitivity
WMF-R13
Manufacturer: Mitsumi Elec.
318.6MHz
Crystal resonator
FM (Single Superheterodyne)
±200kHz
11dBuVemf
4.4 Others
Dimension
Weigh
Battery
Operation Voltage, Current
Operation Temperature
113mm×99.4mm×30mm
184g
CAR Battery (DC 12V)
DC12V, 50mA (4mA on standby)
-30 °C~+80 °C
- 6 -
5. Features
5.1 Door lock control
The LOCK relay in the receiver drives the door lock actuators to "LOCK"-side when LOCK button of
transmitter was pressed. The UNLOCK relay in the receiver drives the door lock actuators to
“UNLOCK”-side when UNLOCK button of transmitter was pressed. These facility doesn't work if the
key is inserted the key cylinder or the door is open.
5.2 Battery saving
Because of the power source of the receiver is car Battery, it is very important problem to minimize
power consumption. The receiver's CPU works intermittently to prevent the battery exhaustion.
6. Derivatives
OKA-601R is an integrated controller for a car body control, includes the keyless entry receiver.
The integrated controller consists of the multiple control functions as follows, centralized door lock, turn-
signal lamp, room-lamp, intermitted wiper, power window timer, ignition key illumination, warning
buzzer and so on.
