1. Constitution of the Radio Frequency Keyless Entry System for vehicle
The radio frequency keyless entry is a system that it controls locking and unlocking the door by wireless remote controller. This
system consists of two components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The
transmission signal consists of several synchronous codes, unique identification code, security code and function code. The
RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the
synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which
operation will be performed. The user can select the following operations by pressing the button of the remote transmitter.
- 2 -
2. User's manual (provisionally)

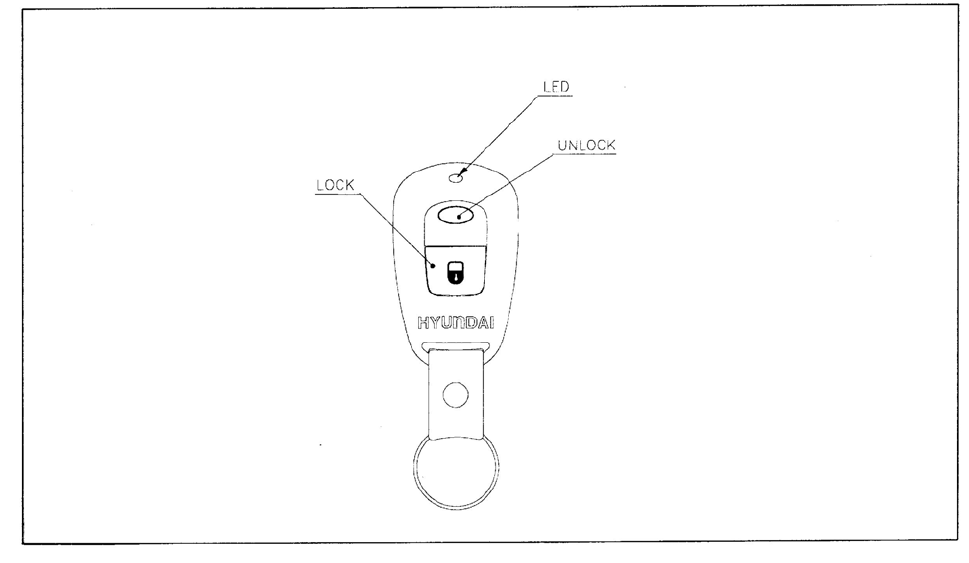

REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch.
UNLOCK
When you push the UNLOCK button, all the doors will unlock.
You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch.
- 3 -
3. Block diagram

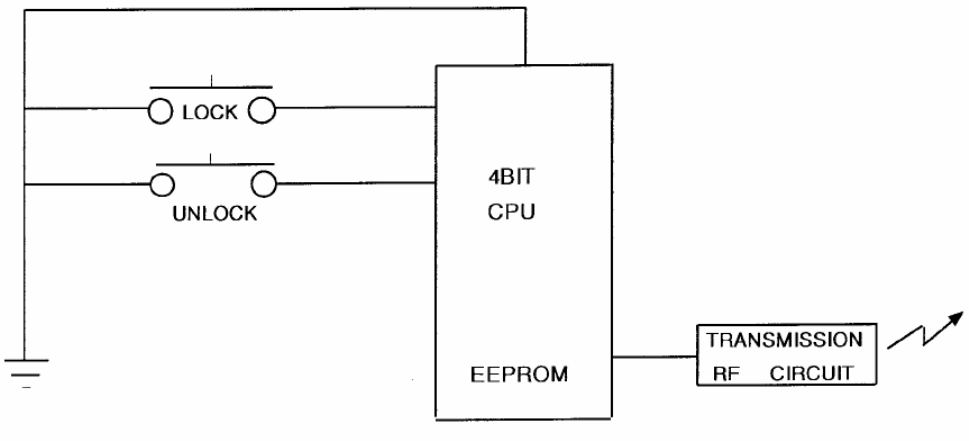

This is block diagram concerning to the transmitter
figure 3.1 block diagram of the transmitter
- 4 -
4. Specification
4.1 CPU
4.2 RF block
4.3 Others
Type
ROM
RAM
EEPROM
Clock frequency
Clock frequency generation
Package
uPD754144-xxx(4bit)
Manufacturer : NEC Corporation
4096 x 8bit(4kbytes)
128 x 4bit
16 x 8bit
500KHz
CR oscillation
20pin SSOP
Carrier frequency
Frequency generation
Modulation
Bit transmission rate
Bandwidth
RF output power (field strength)
307.9MHz
SAW resonator
FSK
100bps or 500bps
120KHz
≤ 75.6㏈µ V/m
Dimension
Weigh
Battery
Operation Voltage
Operation Temperature
52.5mm x 33mm x 11mm
20g
Lithium cell (CR2032)
Manufacturer: PARASONIC Battery corporation etc.
DC3V, 5mA
-20℃∼+60℃
- 5 -
5.Features
5.1 Transmission frame
The transmission begins immediately in case of LOCK or UNLOCK button is pressed.
The transmission frame consists of the synchronous frame and the data frame. The synchronous frame has 30 synchronous codes
that it will be used for the receiver to wake up. The data frame consists of 24bit length identification code, 16bit security code
and function code. 16million different identification codes are available.
The security code is always changed in case of any of the buttons is pressed. The transmission time is typically 600
milliseconds.
5.2 Battery saving
To prevent the battery exhaustion, the micro-computer of the transmitter is usually inactive. When the button will be pressed, the
micro-computer wakes up immediately and judges which button is pressing. Then the micro-computer constructs the
transmission frame and radiates it from the antenna .After transmitting , the micro-computer switches stand-by mode by itself.
