Omron Automotive Electronics Korea Co., Ltd. Remote Keyless Entry System (Receiver)
User Manual
Transmitter, RF Keyless Entry System
OMRON
AUTOMOTIVE
ELECTRONICS
KOREA
OKA-750R
FCC Compliance statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to the equipment not expressly approved
by the party responsible for compliance could void your authority
to operate the equipment.
Table of contents
1. Constitution of the Radio Frequency Keyless Entry system Controller
for vehicle .....……………………………………………………………………….. 1
2. User's manual (provisionally) ..................................................... 2
3. Block diagram ........................................................................... 3
4. Specification .............................…………………………………………. 4
4.1 CPU
4.2 EEPROM
4.3 RF Receiver Module
4.4 Other
5. Features .................................................................................….. 5
5.1 Door lock control
5.2 Battery saving
6. Derivatives .................................................................................... 6
- 2 -
1. Constitution of the Radio Frequency Keyless Entry
System for vehicle

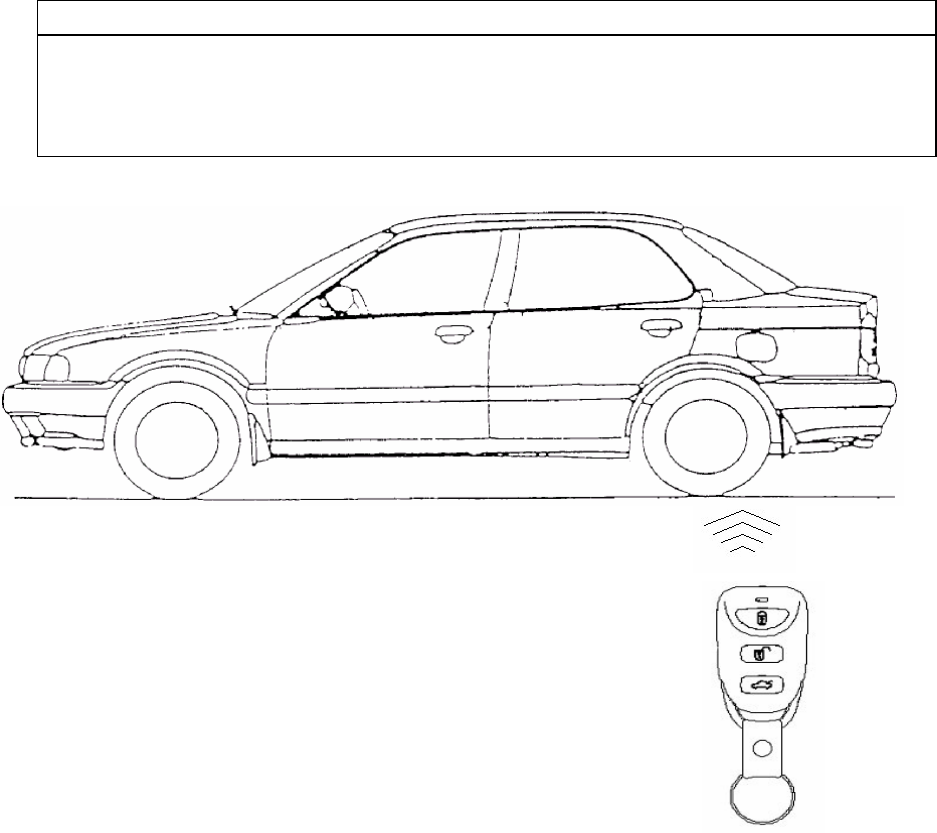

The radio frequency keyless entry is
a system that it controls locking and unlocking the door and the
trunk and the panic by wireless remote controller. This system consists of three components. The TRANSMITTER is
a device that transmits the signal when the button is pressed. The transmission signal consists of several
synchronous codes, unique identification code, security code and function code and crc code. The RECEIVER is
fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the
synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver
decides which operation will be performed.
The user can select the following operations by pressing the button of the remote transmitter.
Transmitter
f = 313.85MHz
- 3 -
OPERATION ACTION
LOCK lock the door
UNLOCK unlock the door
TRUNK open the trunk
PANIC alarm the horn
2. User's manual (provisionally)

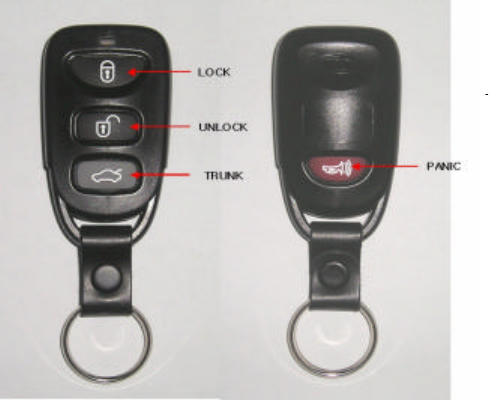

REMOTE TRANSMITTER
You can lock and unlock your vehicle with the remote transmitter.
LOCK
When you push the LOCK button, all the doors will lock.
You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch.
UNLOCK
When you push the UNLOCK button, all the doors will unlock.
You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the
ignition switch.
TRUNK
When you push continuously the TRUNK button during 0.5s, TRUNK will open.
PANIC
When you push the PANIC button, horn will alarm.
- 4 -

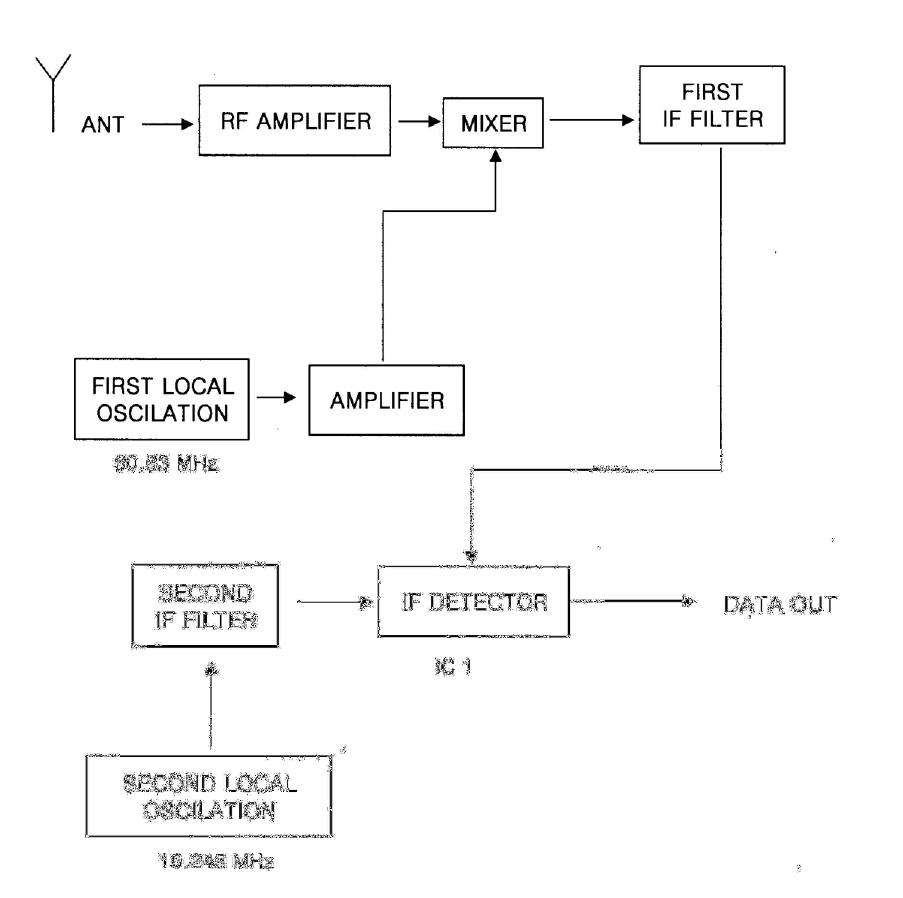

3. Block diagram
This is block diagram concerning to the receiver
- 5 -
4. Specification
4.1 CPU
4.2 EEPROM
4.3 RF Receive Module
4.4 Others
- 6 -
Type
ROM
RAM
Clock frequency
Clock frequency generation
Package
MB90F548GLSPF(16bit)
Manufacturer : Fujitsu
128Kbytes
4Kbytes
4MHz
Crystal resonator
100pin QFP
Type
Memory
Package
S
-
93C46XXX
Manufacturer: Seiko. Elec
1Kbit
8pin SOP
Type
Receiver frequency
Frequency generation
Modulation Scheme
Bandwidth
Carrier Detect Sensitivity
OKA
-
No.4
Manufacturer: OMRON Korea
313.85 MHz
Crystal resonator
FSK
±10 KHz
11dBuVemf
Dimension
Weigh
Battery
Operation Voltage, Current
112mm× 92mm × 36mm
324g
CAR Battery(DC 12V)
DC12V,50mA (4mA on standby)
-40℃ ～ +105℃
5.Features
5.1 Door lock control
The LOCK relay in the receiver drives the door lock actulators to "LOCK"-side when LOCK button of
transmitter was pressed. The UNLOCK relay in the receiver drives
5.2 Battery saving
To prevent the battery exhaustion , the micro-computer of the transmitter is usually inactive. When the button
will be pressed, the micro-computer wakes up immediately and judges which button is pressing. Then the
micro-computer constructs the transmission frame and radiates it from the antenna .After transmitting, the
micro-computer switches stand-by mode by itself.
6. Derivatives
OKA-750R is an integrated controller for a car body control, includes the keyless entry receiver.
The integrated. controller consists of the multiple control functions as follows, centralized door lock,
turn-signal lamp, room-lamp, intermitted wiper, power window timer, ignition key illumination,
warning buzzer and so on.
