Ultra Premium

Blood Pressure Monitor

featuring ComFitTM Cuff

Model HEM-775

INSTRUCTION MANUAL

ESPAÑOL

ENGLISH

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 1

Before Using the Monitor

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Operating the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Risk of Electrical Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Operating Instructions

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Movement Error Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

USER ID Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Morning Hypertension Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Average Value Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Morning Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Evening Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

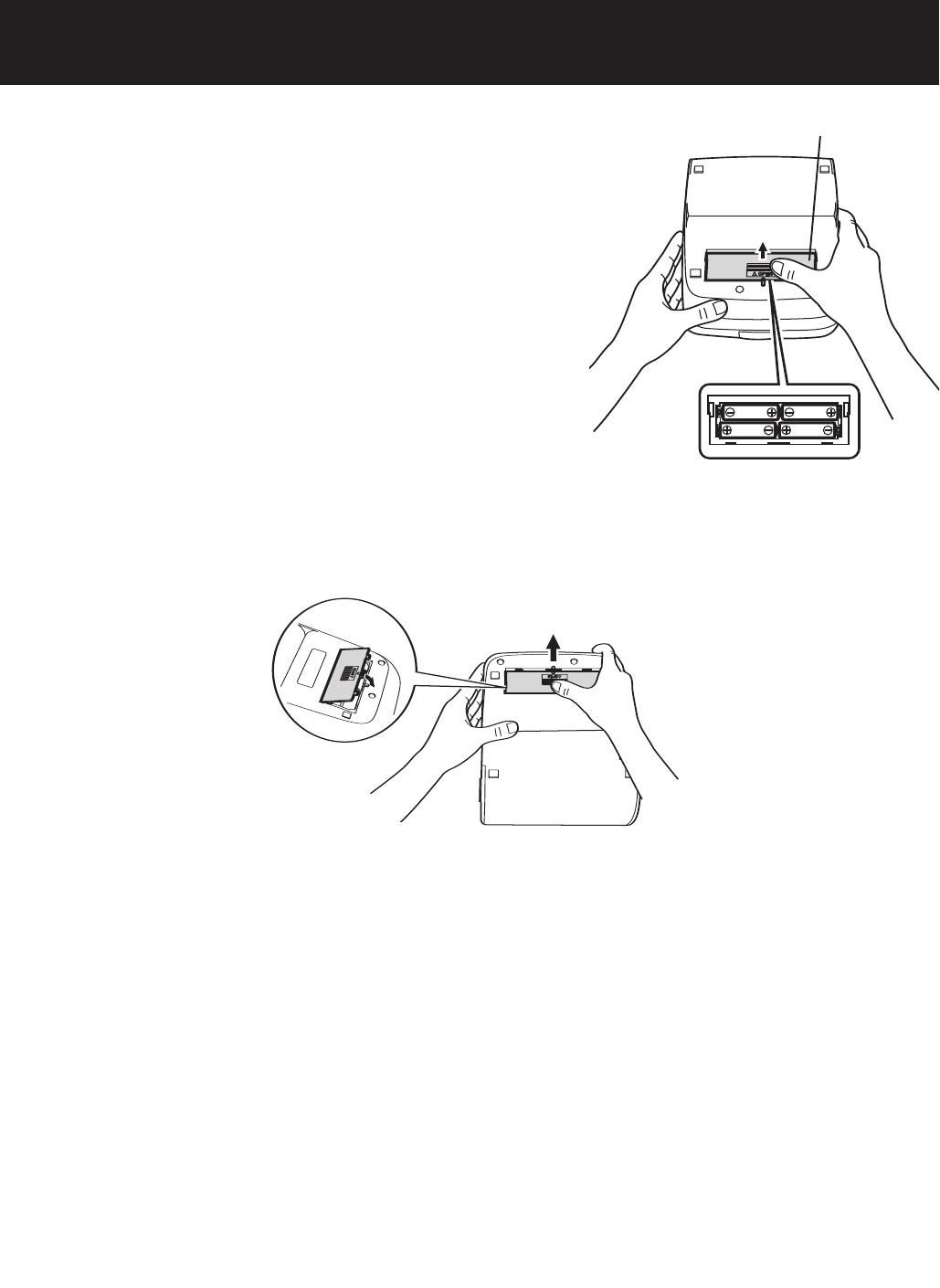

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

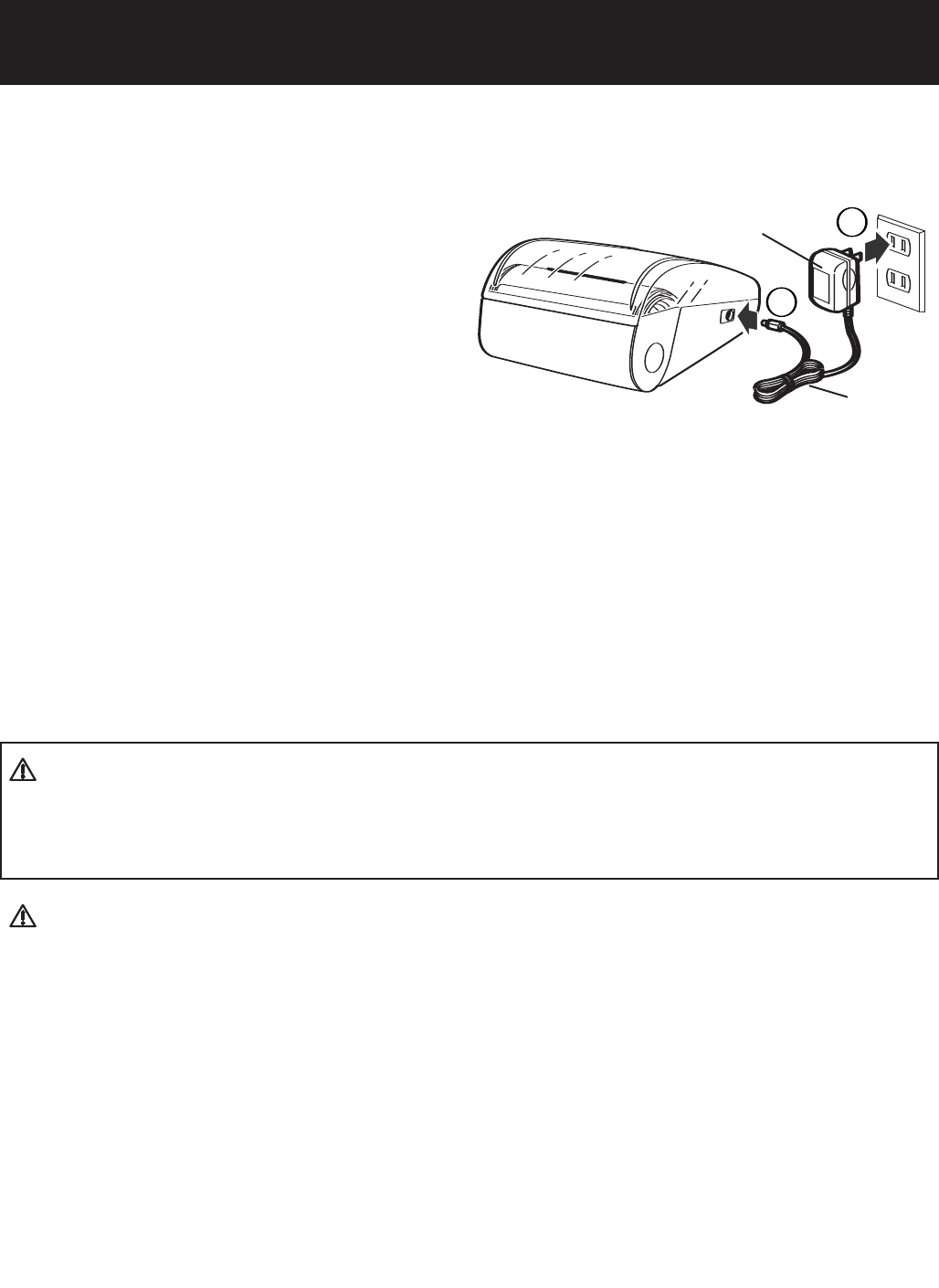

Using the AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

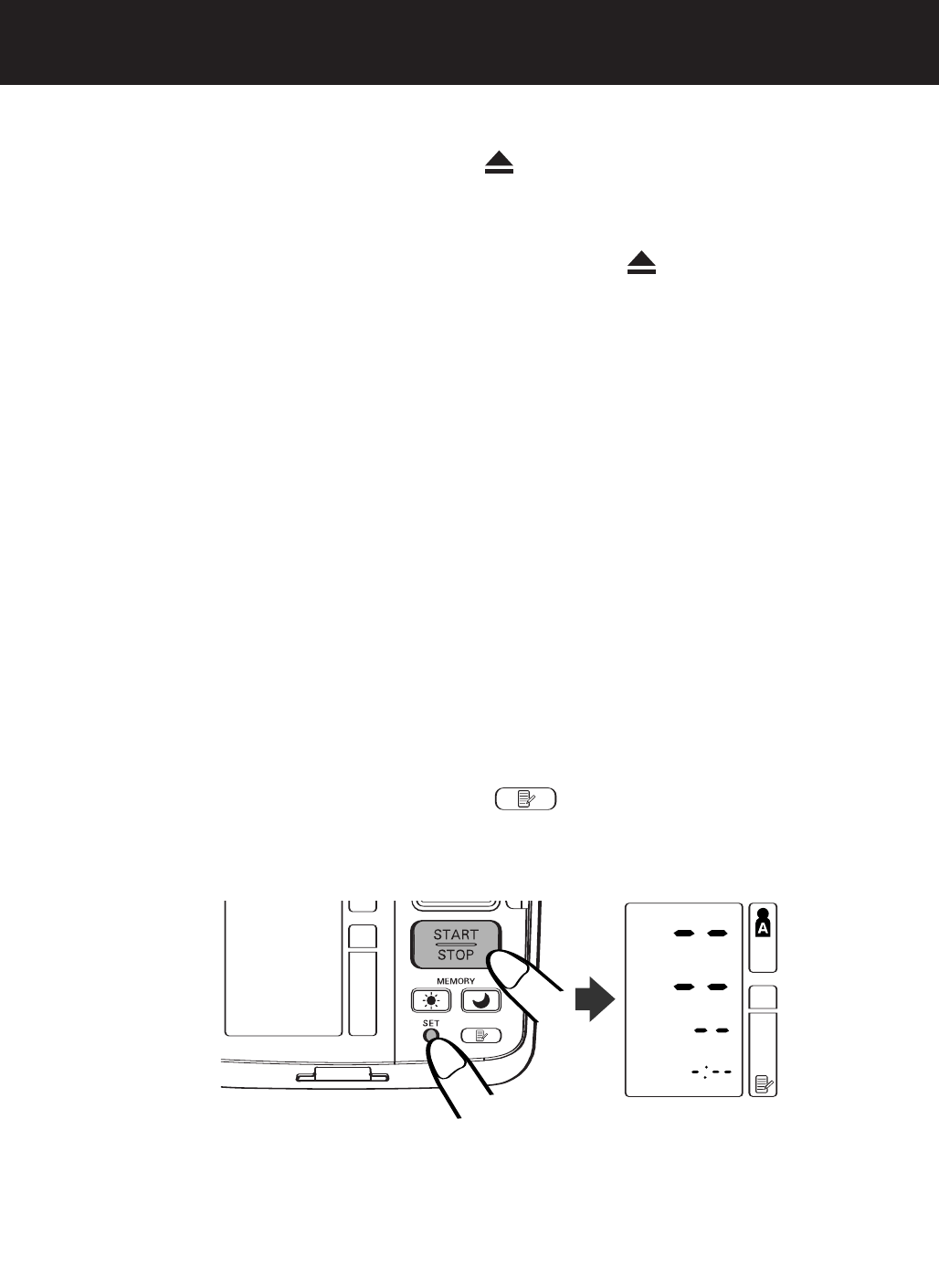

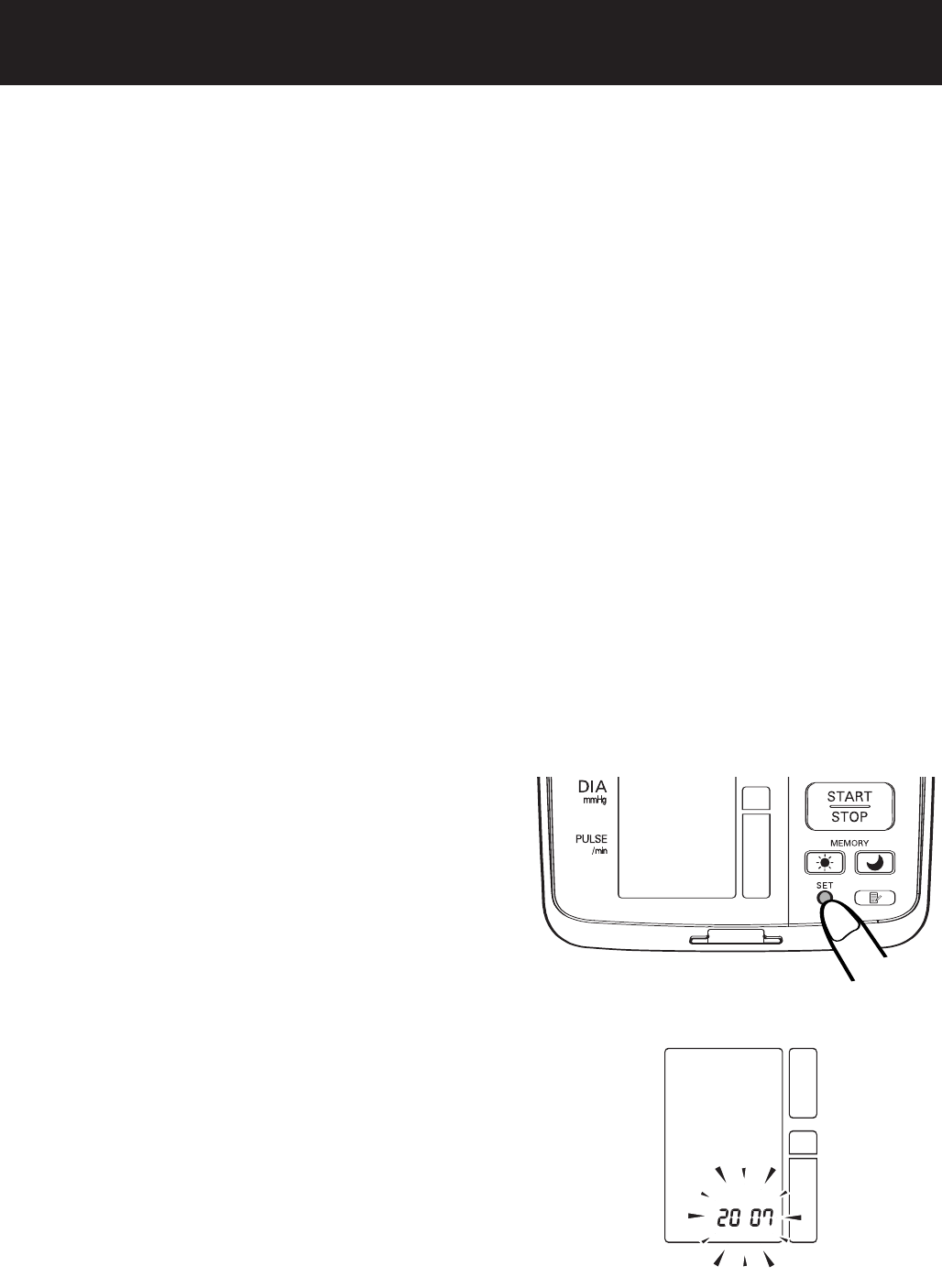

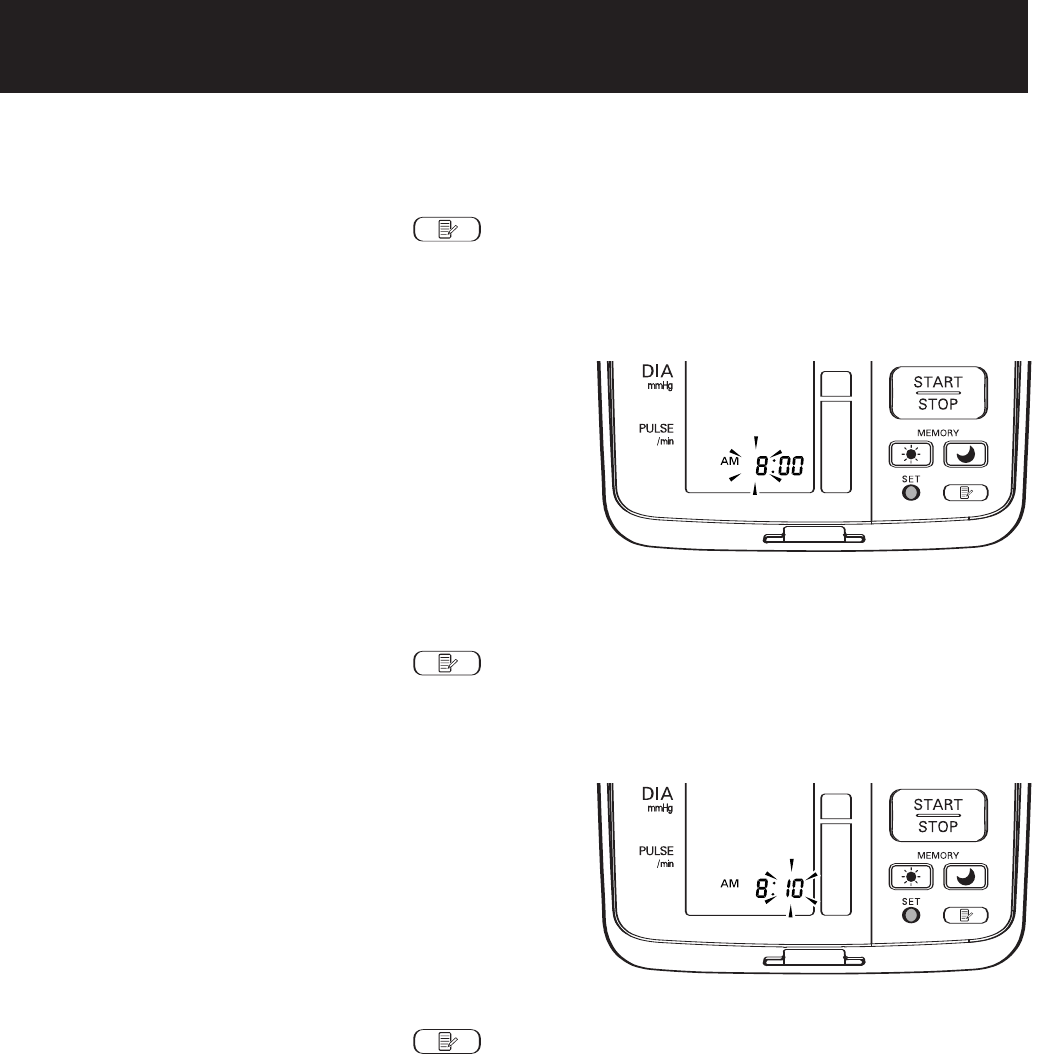

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

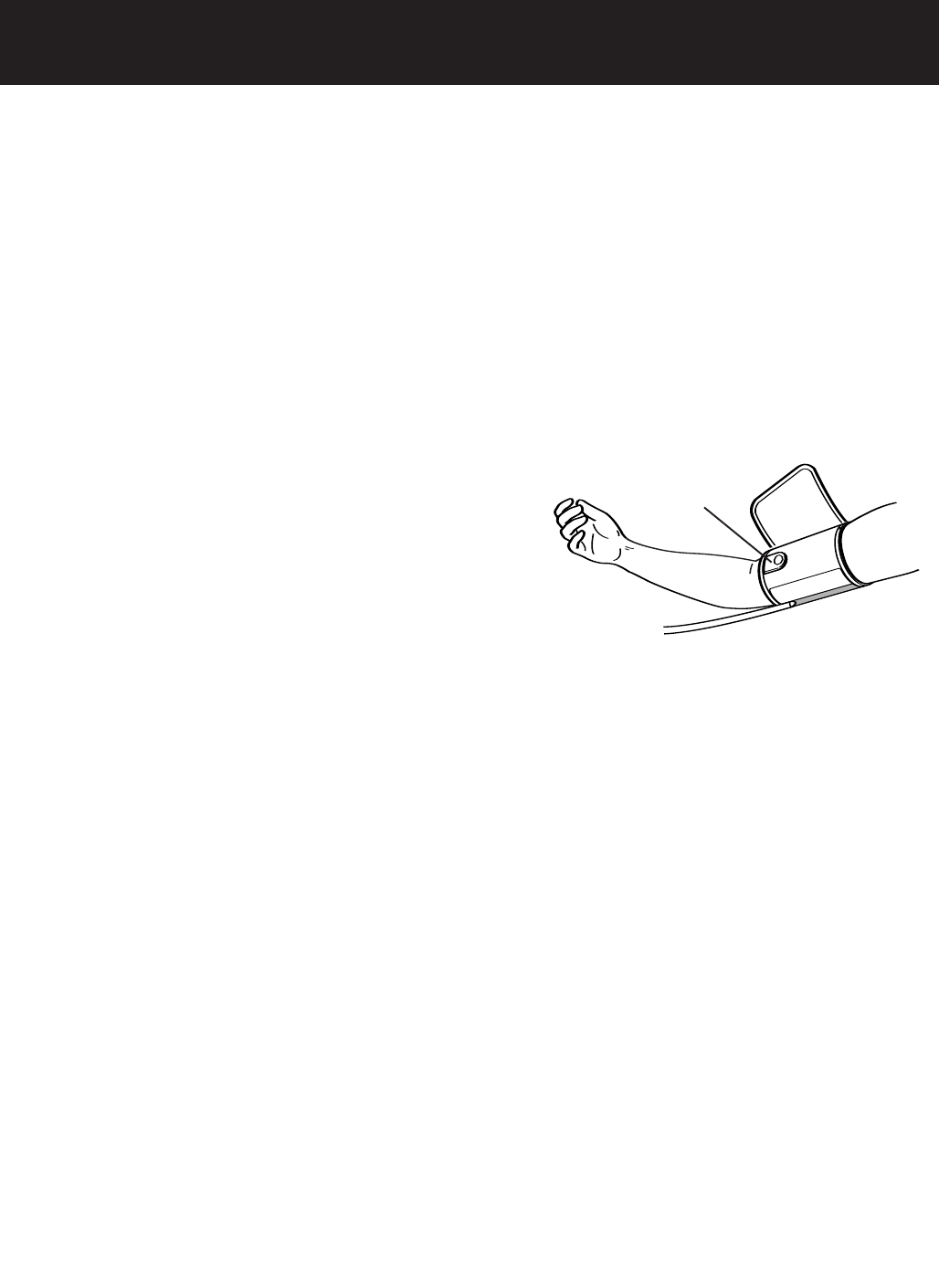

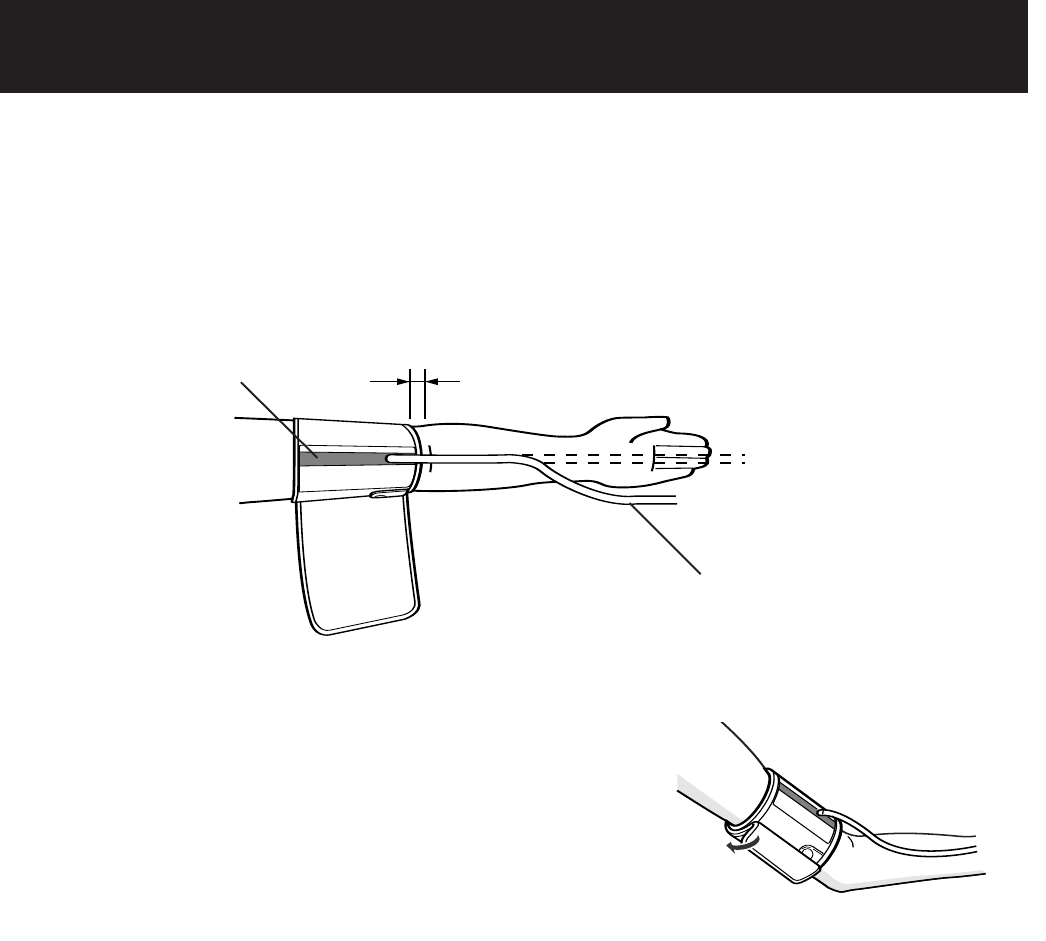

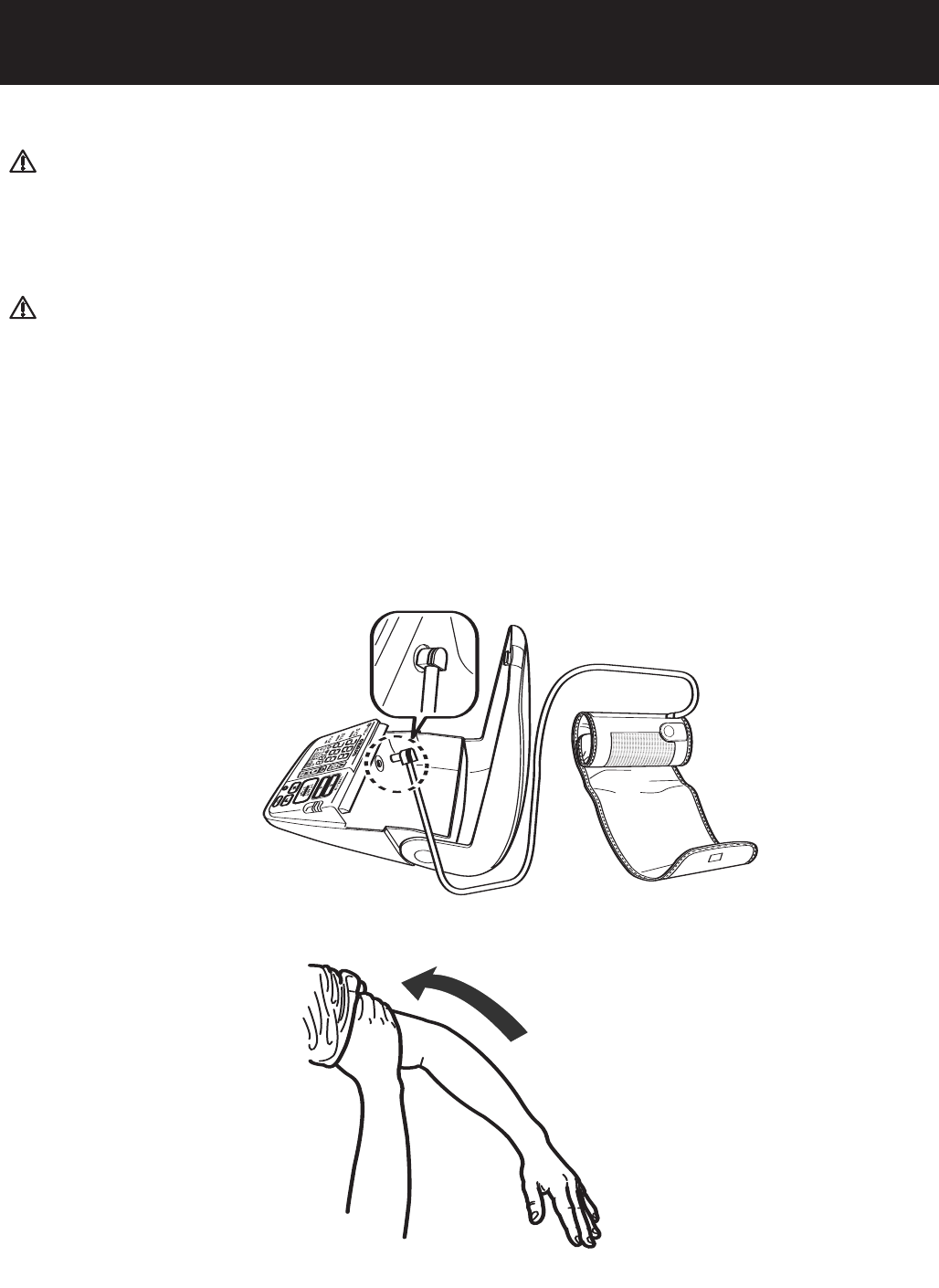

Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

TABLE OF CONTENTS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 2

Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Using the Guest Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Selecting the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Using the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

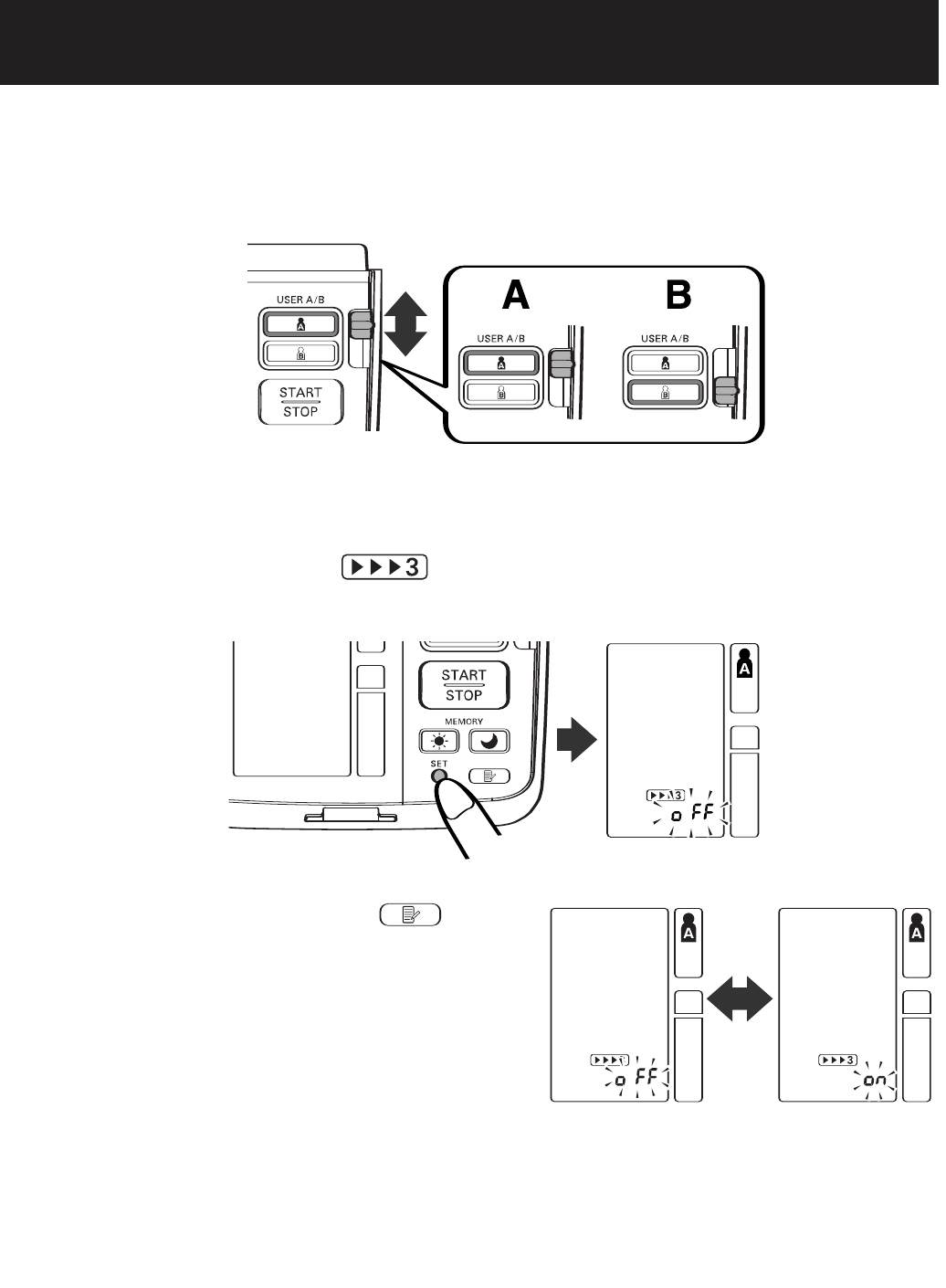

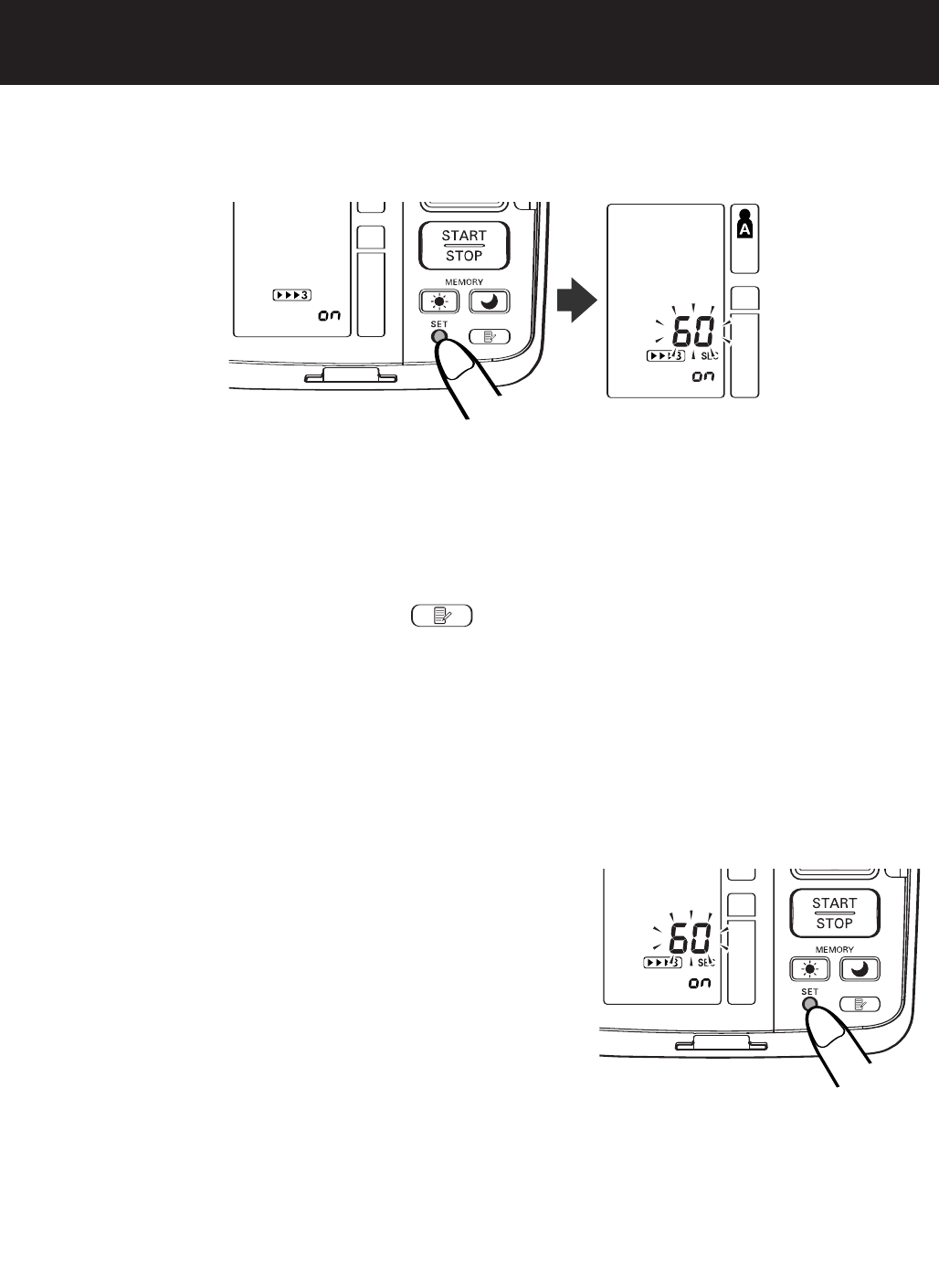

Selecting the TruReadTM Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Using the Single Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

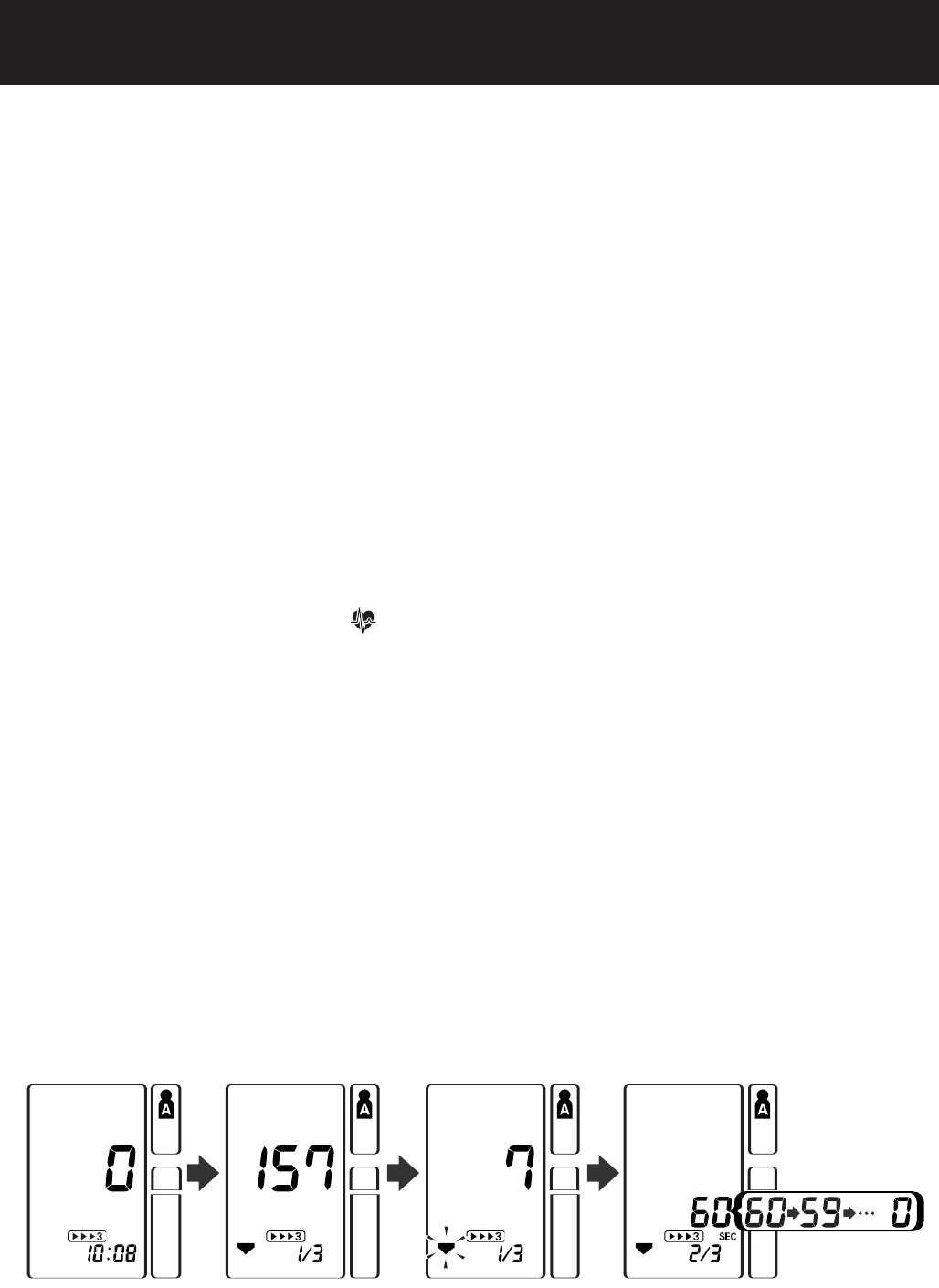

Using the TruReadTM Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Special Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

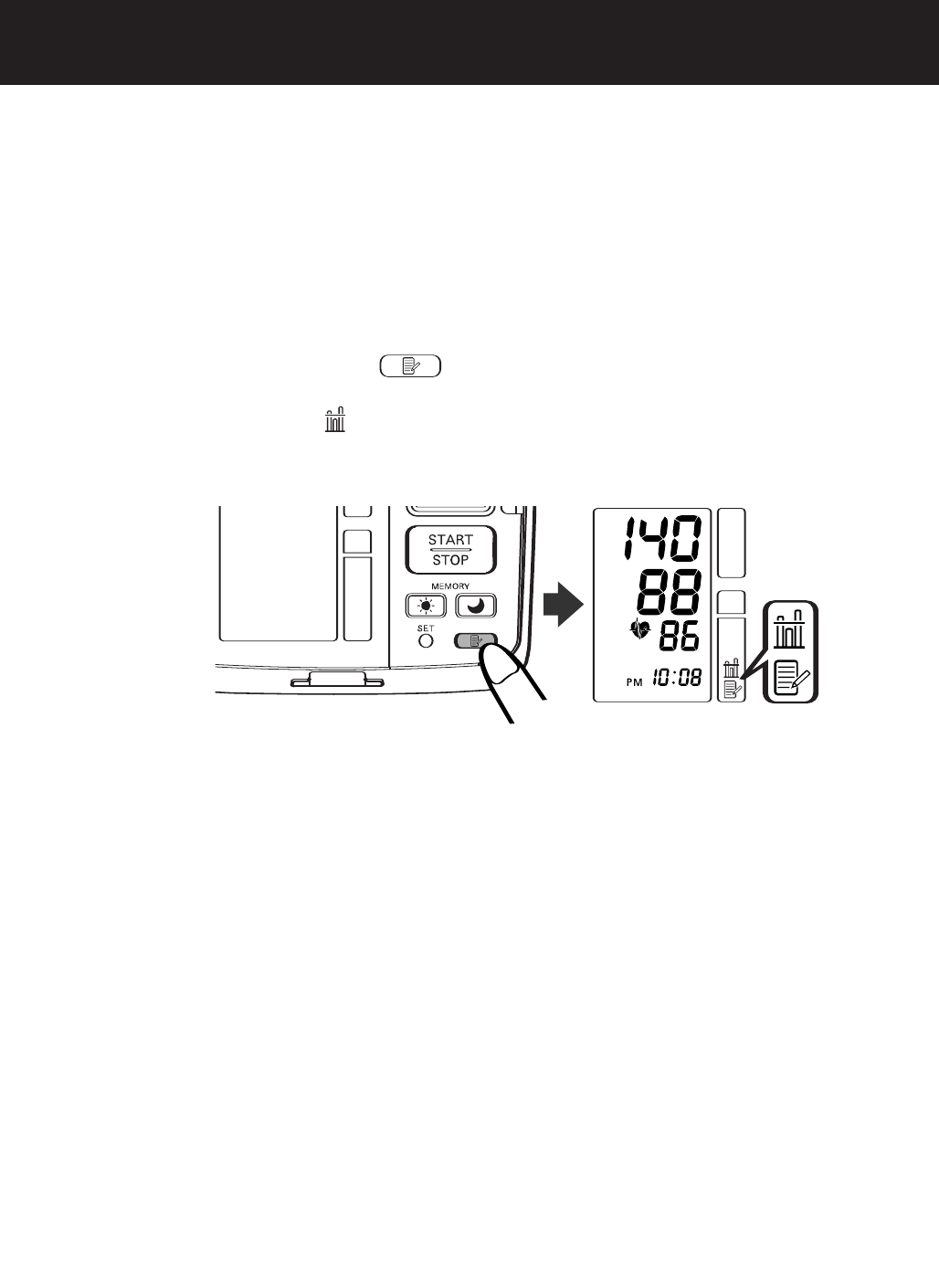

Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Averaging Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

To Display the Measurement Values . . . . . . . . . . . . . . . . . . . . . . . .37

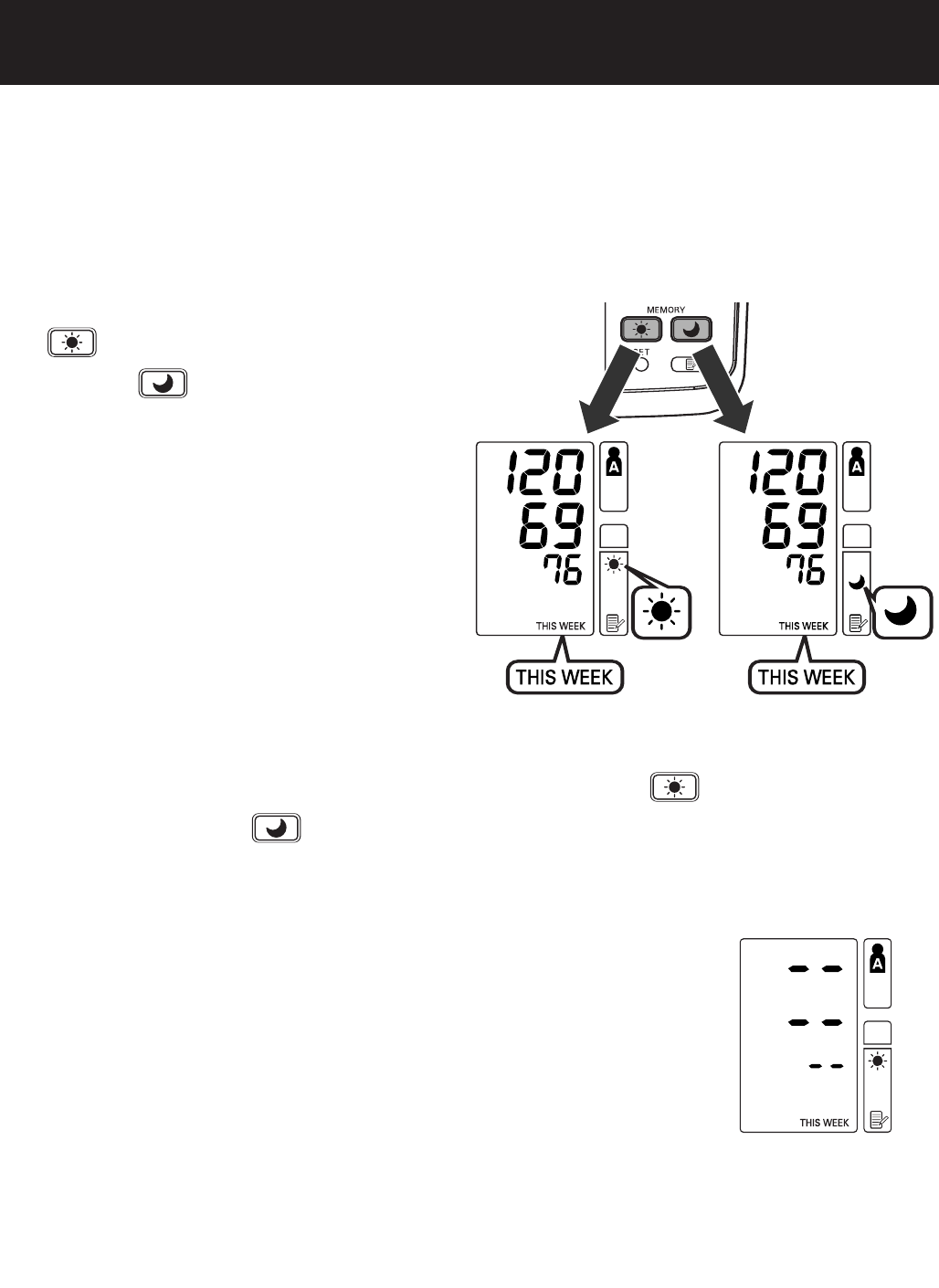

Morning and Evening Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Morning Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Evening Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

To Display Morning and Evening Averages . . . . . . . . . . . . . . . . . .40

Display Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

To Delete All Values Stored in the Memory . . . . . . . . . . . . . . . . . .42

Care and Maintenance

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

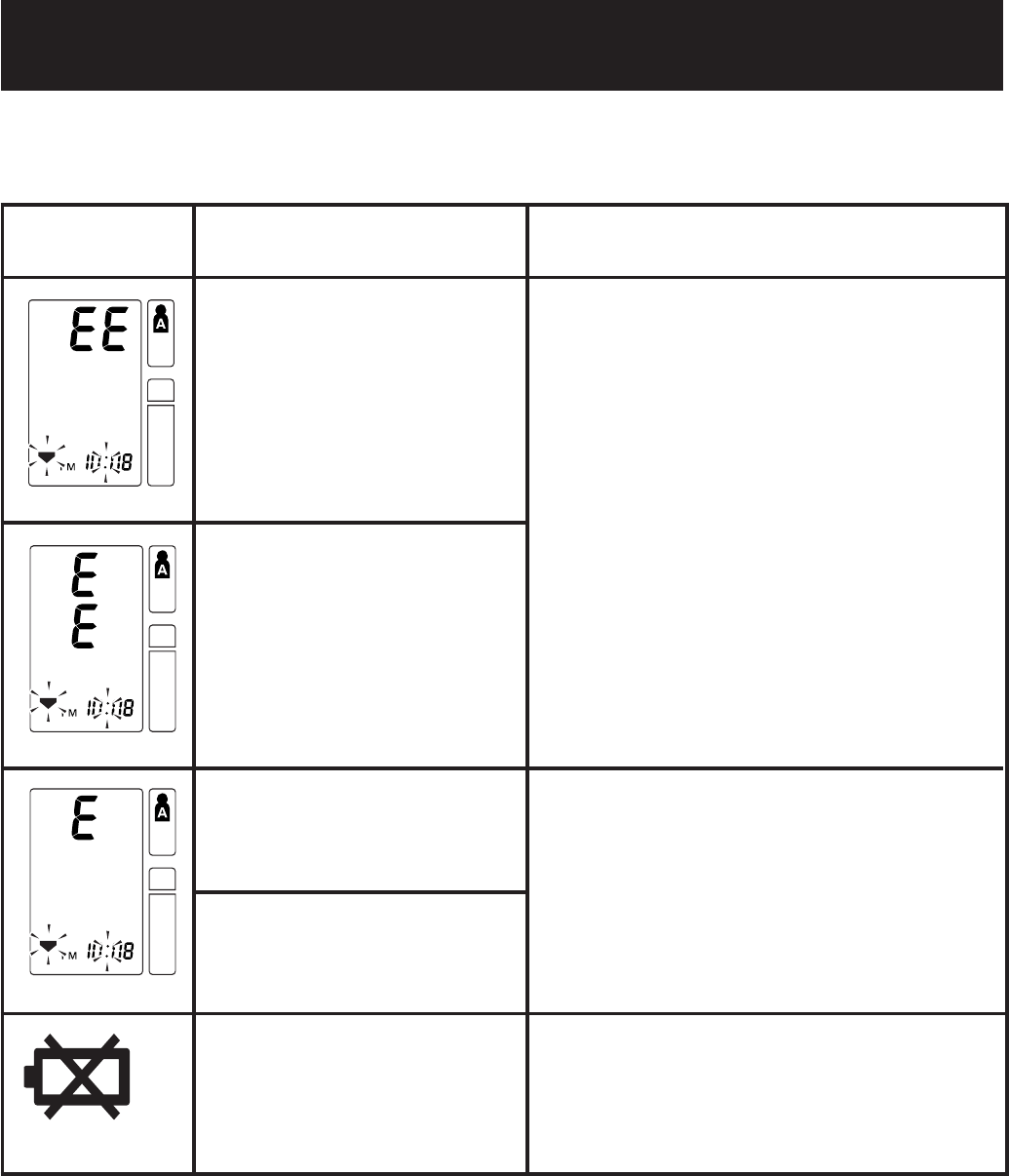

Error Indicators and Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . .45

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

TABLE OF CONTENTS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 3

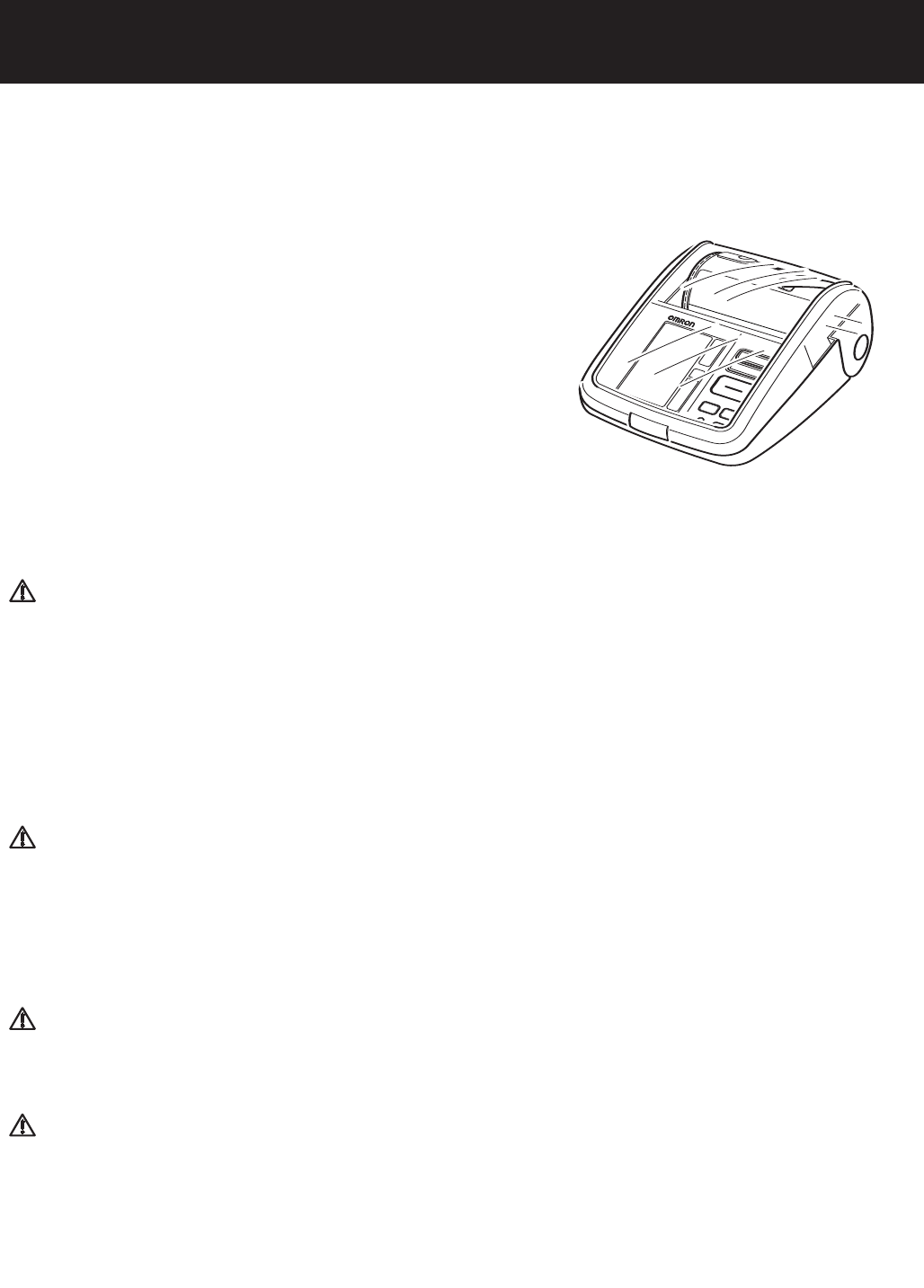

Thank you for purchasing the Omron®HEM-775 IntelliSense®

Automatic Blood Pressure Monitor with ComFitTM Cuff.

INTRODUCTION

Fill in for future reference.

DATE PURCHASED: __________________

SERIAL NUMBER: ____________________

Staple your purchase receipt here

Your new digital blood pressure monitor uses the oscillometric method

of blood pressure measurement. This means the monitor detects your

blood’smovement through your brachial artery and converts the

movements into a digital reading. The monitor stores measurement

results for two people and features Morning and Evening Averages.

TruReadTM allows for three consecutivemeasurements with timed

intervals for an average reading.

The HEM-775 comes with the following components:

•Monitor •ComFitTM Cuff •AC Adapter

• 4 “AA” Batteries • Warranty Card

•Instruction Manual printed in English and Spanish

The HEM-775 IntelliSense®Automatic Blood Pressure Monitor is

intended for home use.

SAVE THESE INSTRUCTIONS

Before Using the Monitor

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 4

To assure the correct use of the product basic safety measures should

always be followed including the warnings and cautions listed in this

instruction manual.

WARNING

Indicates a potentially hazardous situation

which, if not avoided, could result in death or

serious injury.

SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL

CAUTION

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury to the user or patient or

damage to the equipment or other property.

OPERATING THE DEVICE

Contact your physician for specific information about your blood

pressure. Self-diagnosis and treatment using measured results may

be dangerous. Follow the instructions of your physician or licensed

healthcare provider.

If battery fluid should get in your eyes, immediately rinse with

plenty of clean water.Contact a physician immediately.

Read all of the information in the instruction manual and any other

literature in the box before operating the unit.

This device is intended for use in measuring blood pressure and

pulse rate in the adult population. Do not use this device on infants

or persons who cannot express their intentions.

SAFETY INFORMATION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 5

OPERATING THE DEVICE (continued)

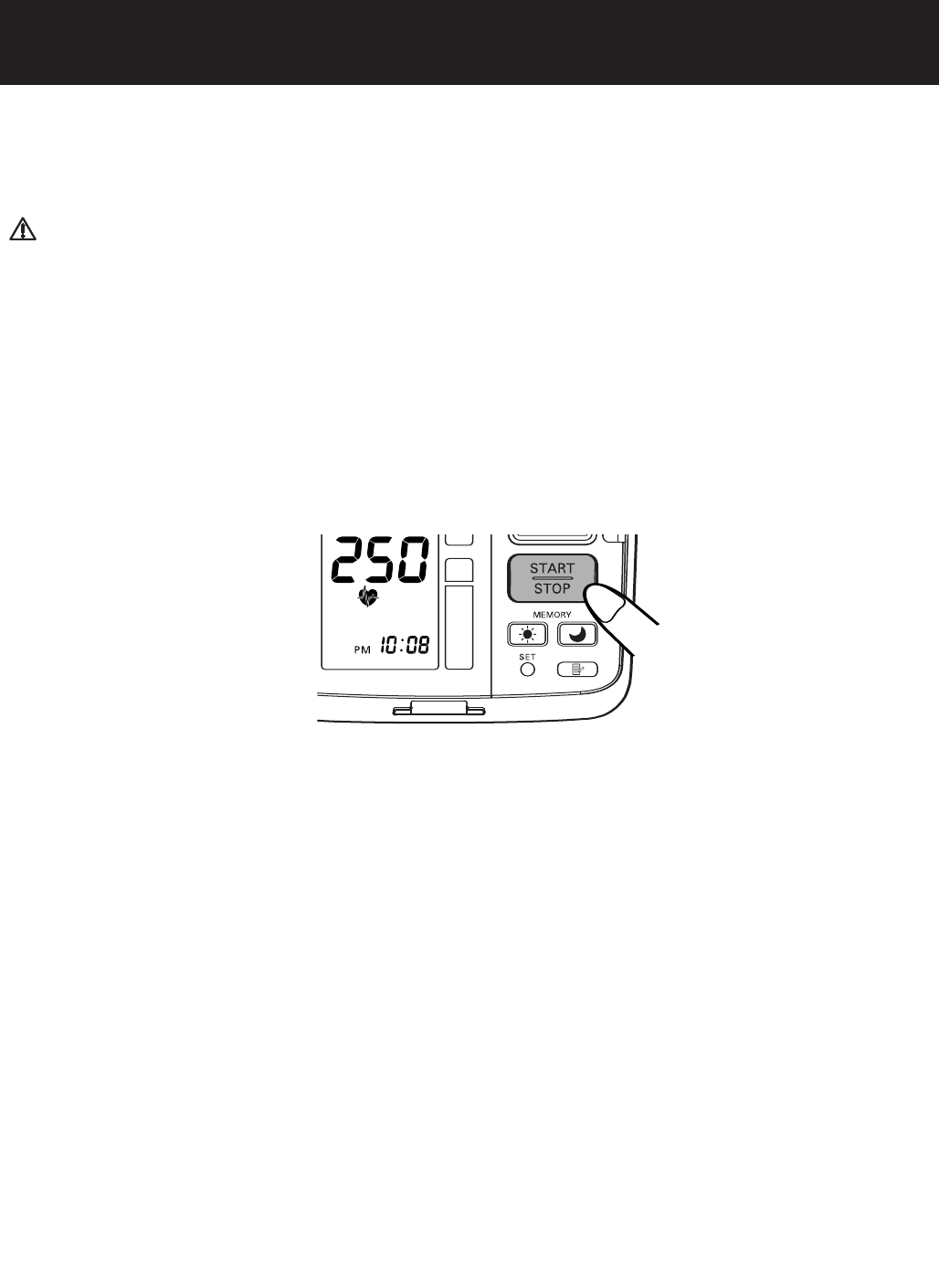

Read the Special Conditions section (page 35) of the instruction

manual if your systolic pressure is known to be more than 220

mmHg. Inflating to a higher pressure than necessary may result

in bruising where the cuff is applied.

Operate the device only as intended. Do not use the device for any

other purpose.

Dispose of the device, components and optional accessories

according to applicable local regulations. Unlawful disposal

may cause environmental pollution.

Do not use a cellular phone near the device. It may result in an

operational failure.

Use only Omron authorized parts and accessories. Parts and

accessories not approved for use with the device may damage

the unit.

Use only 1.5V manganese or alkaline batteries with this device.

Do not use other types of batteries. This may damage the unit.

RISK OF ELECTRICAL SHOCK

Do not plug or unplug the power cord into the electrical outlet with

wet hands.

Do not overload power outlets. Plug the device into the appropriate

voltage outlet.

SAFETY INFORMATION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 6

CARE AND MAINTENANCE

Do not subject the monitor to strong shocks, such as dropping the

unit on the floor.

Do not submerge the device or any of the components in water.

Store the device and the components in a clean, safe location.

Changes or modification not approved by Omron Healthcare will

void the user warranty. Do not disassemble or attempt to repair the

unit or components.

Do not store the AC adapter in the cuff compartment. This may

damage the cuff.

SAFETY INFORMATION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 7

BEFORE TAKING A MEASUREMENT

To ensure a reliable reading follow these recommendations:

1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for

30 minutes before taking a measurement. Rest for at least 15

minutes before taking the measurement.

2. Stress raises blood pressure. Avoid taking measurements during

stressful times.

3. Measurements should be taken in a quiet place.

4. Remove tight-fitting clothing from your arm.

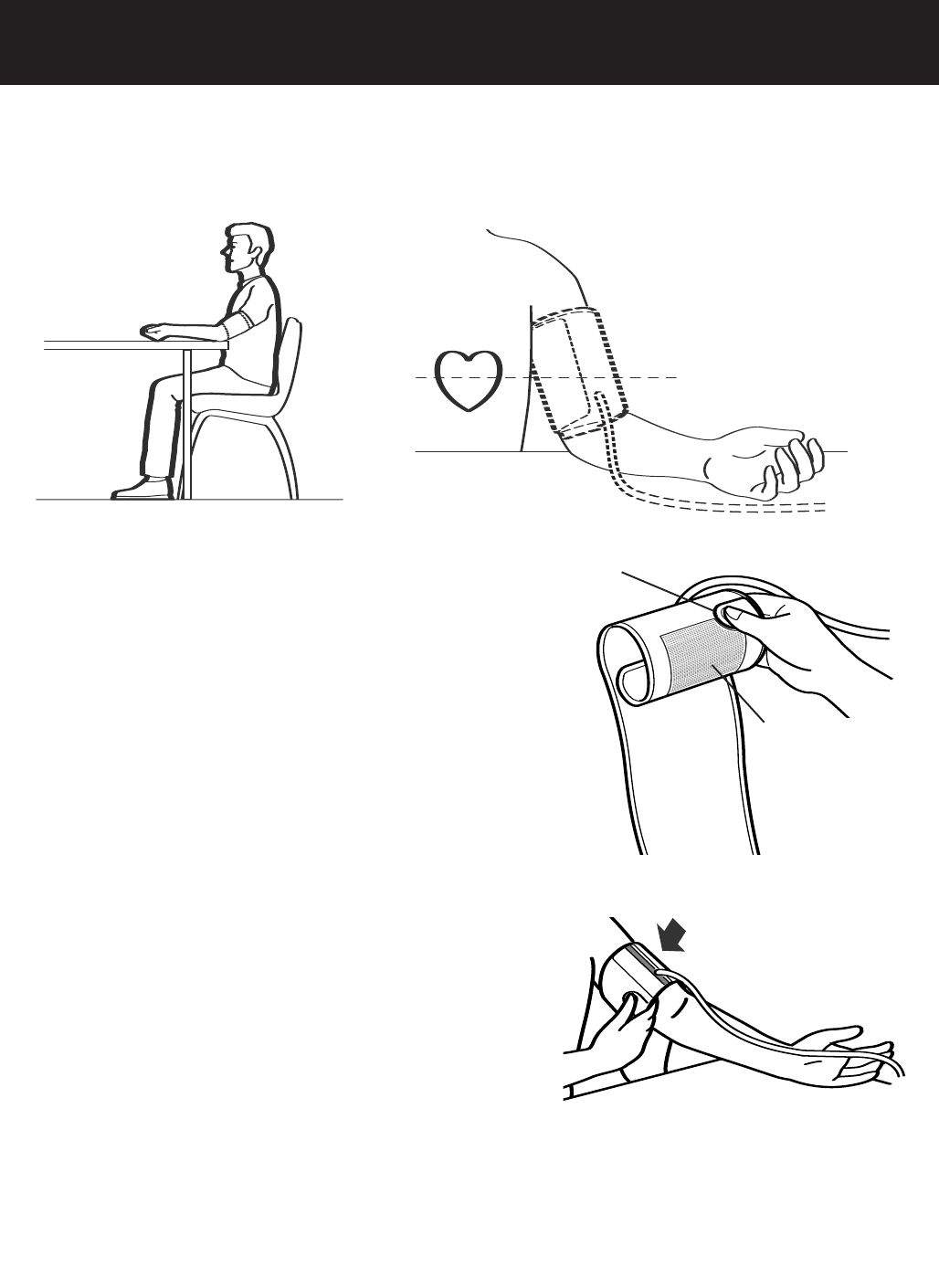

5. Sit in a chair with your feet flat on the floor. Rest your arm on

atable so that the cuff is at the same level as your heart.

6. Remain still and do not talk during the measurement.

7. Keep a record of your blood pressure and pulse readings for your

physician. A single measurement does not provide an accurate

indication of your true blood pressure. You need to take and record

several readings over a period of time. Try to measure your blood

pressure at about the same time each day for consistency.

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 8

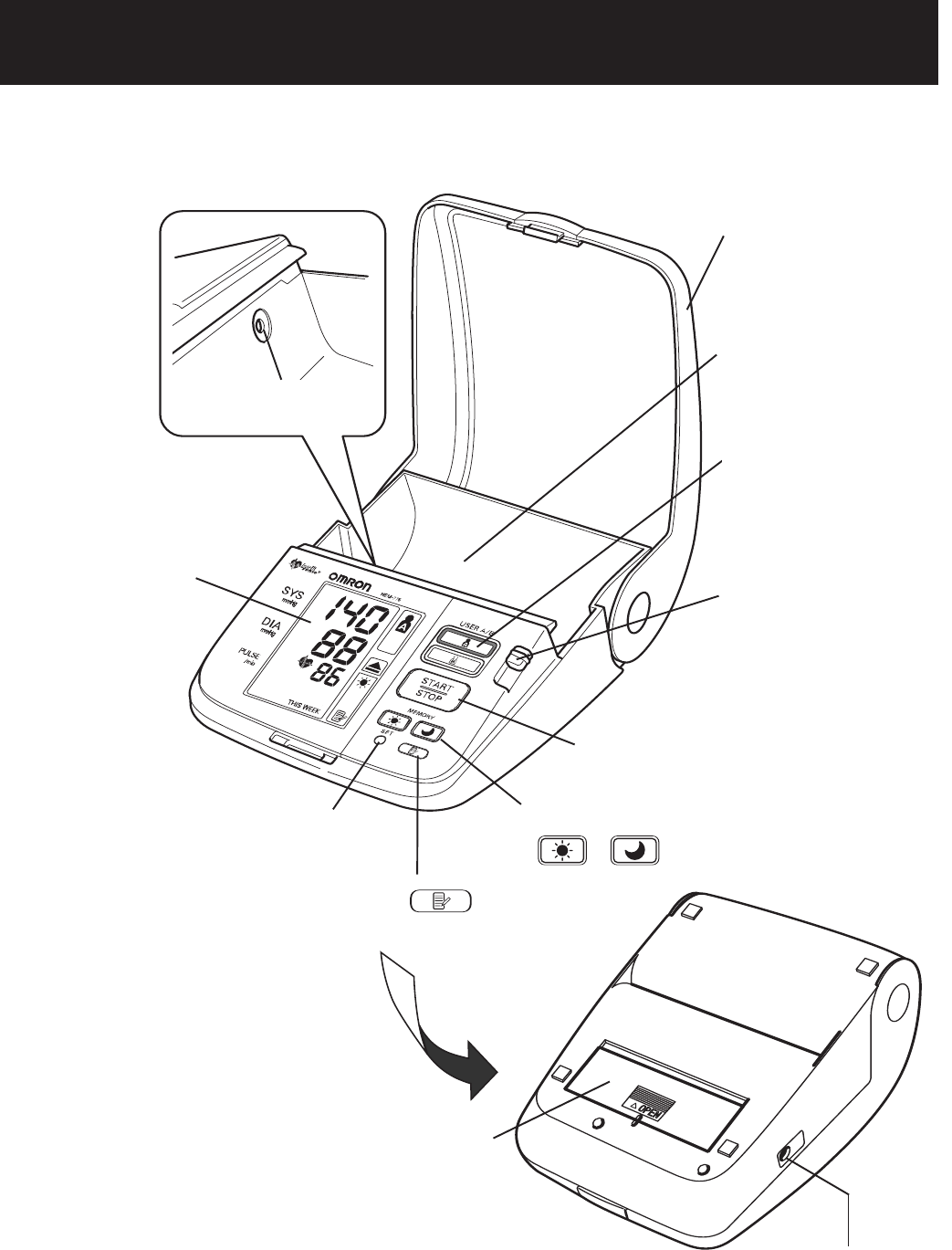

KNOW YOUR UNIT

Main Unit:

Air Jack

Battery Compartment

Start/Stop Button

USER ID

Selection Switch

USER ID

Symbol (A or B)

Monitor Cover

Cuff

Compartment

Morning/Evening Average

( / ) Buttons

Memory ( )Button

SET Button

Display

AC Adapter Jack

Operating Instructions

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 9

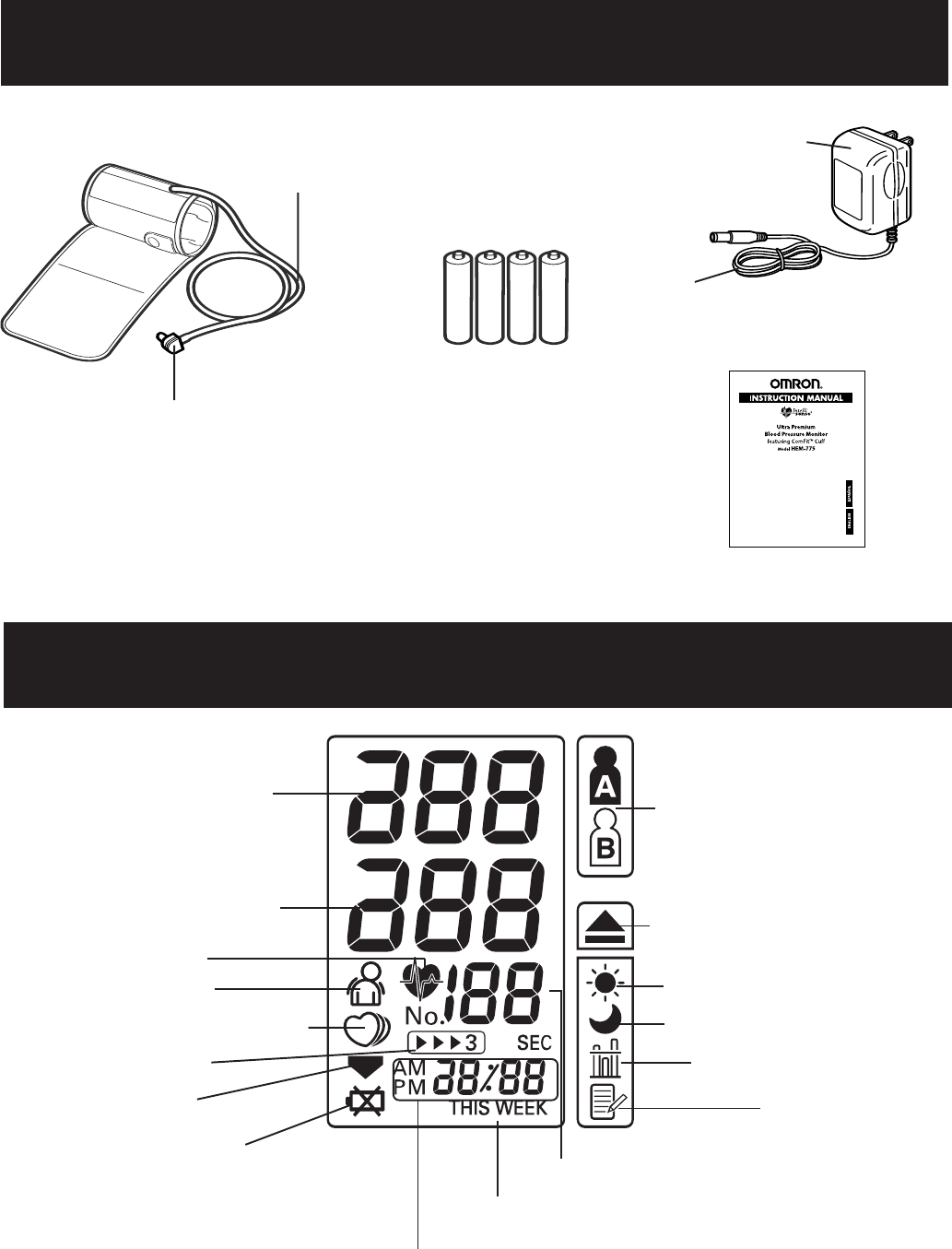

UNIT DISPLAY

Diastolic Blood Pressure

Systolic Blood Pressure

Movement Symbol

Pulse Display

Date/Time Display

Low Battery Indicator

Deflation Symbol

Morning Average Symbol

Heartbeat Symbol

Irregular Heartbeat Symbol Evening Average Symbol

Average Value Symbol

Memory Symbol

USER ID Symbol (A or B)

Morning Hypertension Symbol

Week Display

TruReadTM Symbol

KNOW YOUR UNIT

Components:

Arm Cuff

Air Tube

Air Plug

(Connects to Air Jack)

AC Adapter

Four “AA” Batteries

Instruction Manual

Housing

Cord

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 10

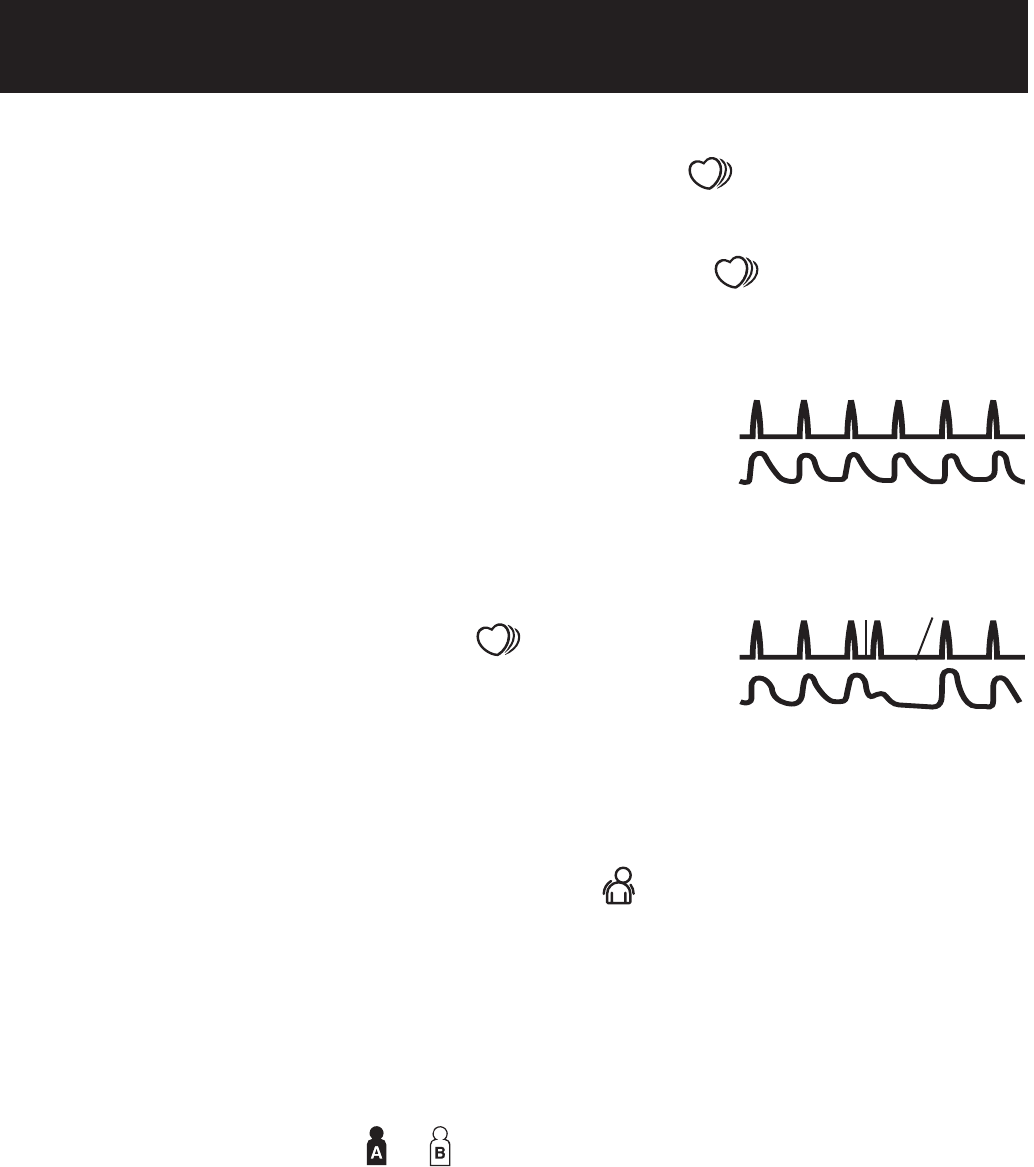

IRREGULAR HEARTBEAT SYMBOL ( )

When the monitor detects an irregular rhythm two or more times during

the measurement, the Irregular Heartbeat Symbol ( ) will appear on

the display with the measurement values.

An irregular heartbeat rhythm is defined as

arhythm that is more than 25% slower or

25% faster from the average rhythm

detected while the monitor is measuring the

systolic blood pressure and the diastolic

blood pressure.

If the irregular heartbeat symbol ( )

displays with your measurement results,

we recommend you consult your physician.

Follow the directions of your doctor.

MOVEMENT ERROR SYMBOL ( )

The Movement Error Symbol is displayed if you move your body during

the measurement. Please remove the arm cuff, and wait 2-3 minutes.

Take another measurement.

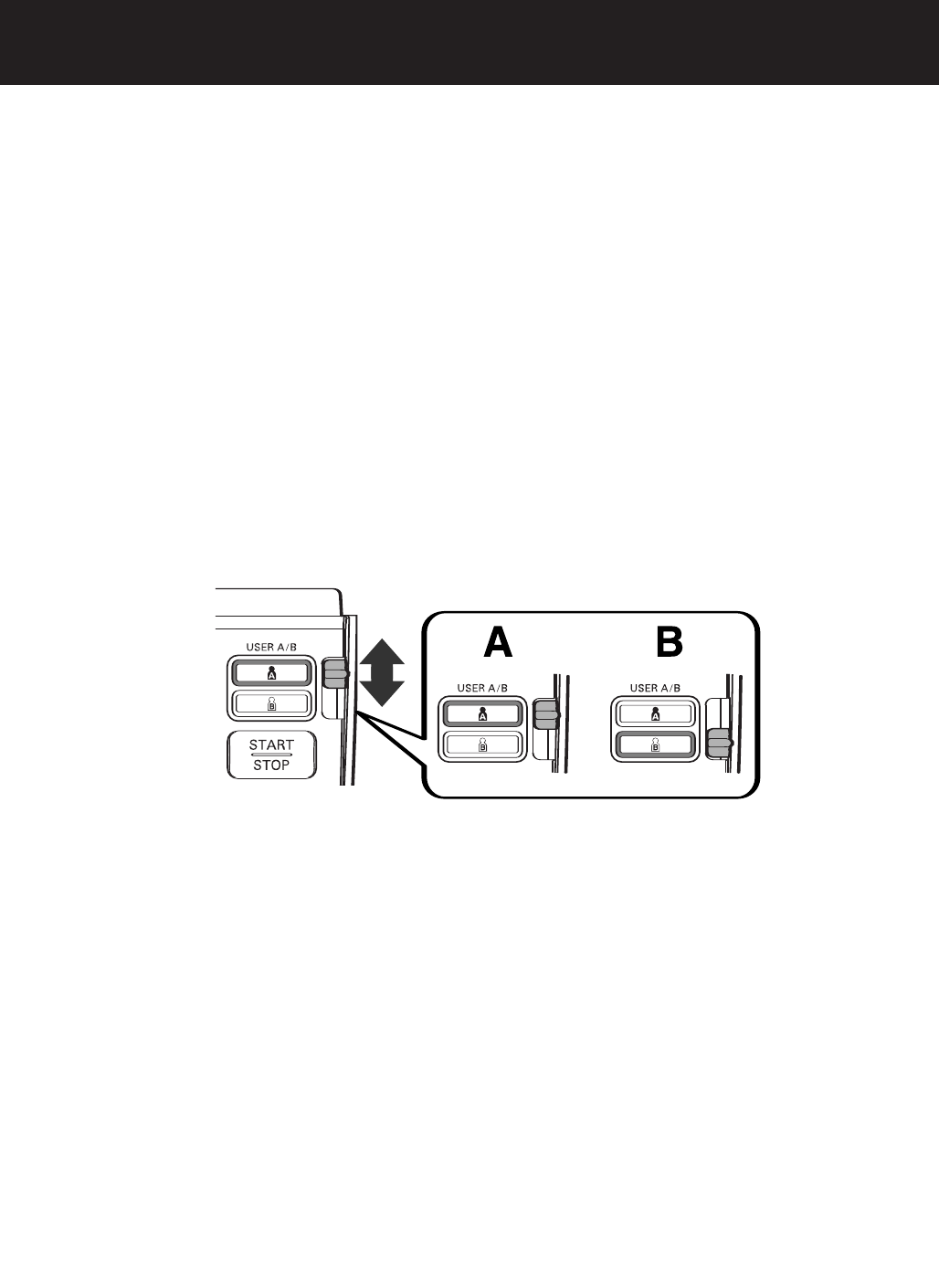

USER ID SYMBOL (/)

The USER ID Symbol indicates USER A or USER B as selected by

the user to take a measurement or when using the memory function.

The USER ID Symbol is not displayed when using the Guest Mode

to take a measurement.

Normal Heartbeat

Irregular Heartbeat

Pulse

Blood

pressure

Pulse

Blood

pressure

Short Long

DISPLAY SYMBOLS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 11

The American Heart Association1recommends the following guideline

for upper limit of normal for home blood pressure readings:

AHA Home Guideline for Upper Limit of Normal BP

Systolic Blood Pressure 135 mmHg

Diastolic Blood Pressure 85 mmHg

This is a general guideline because blood pressure depends on age

and morbidity. The AHA recommends a lower home blood pressure

goal for certain patients, including diabetic patients, pregnant women,

and patients with renal failure1.

The monitor is not intended to be a diagnostic device.

WARNING

Contact your physician for specific information about your blood

pressure. Self-diagnosis and treatment using measured results may

be dangerous. Follow the instructions of your physician or licensed

healthcare provider.

Omron Healthcare recommends you contact your physician if the

MORNING HYPERTENSION SYMBOL and/or the HEARTBEAT

SYMBOL appear on the display with your measurement values.

MORNING HYPERTENSION SYMBOL ( )

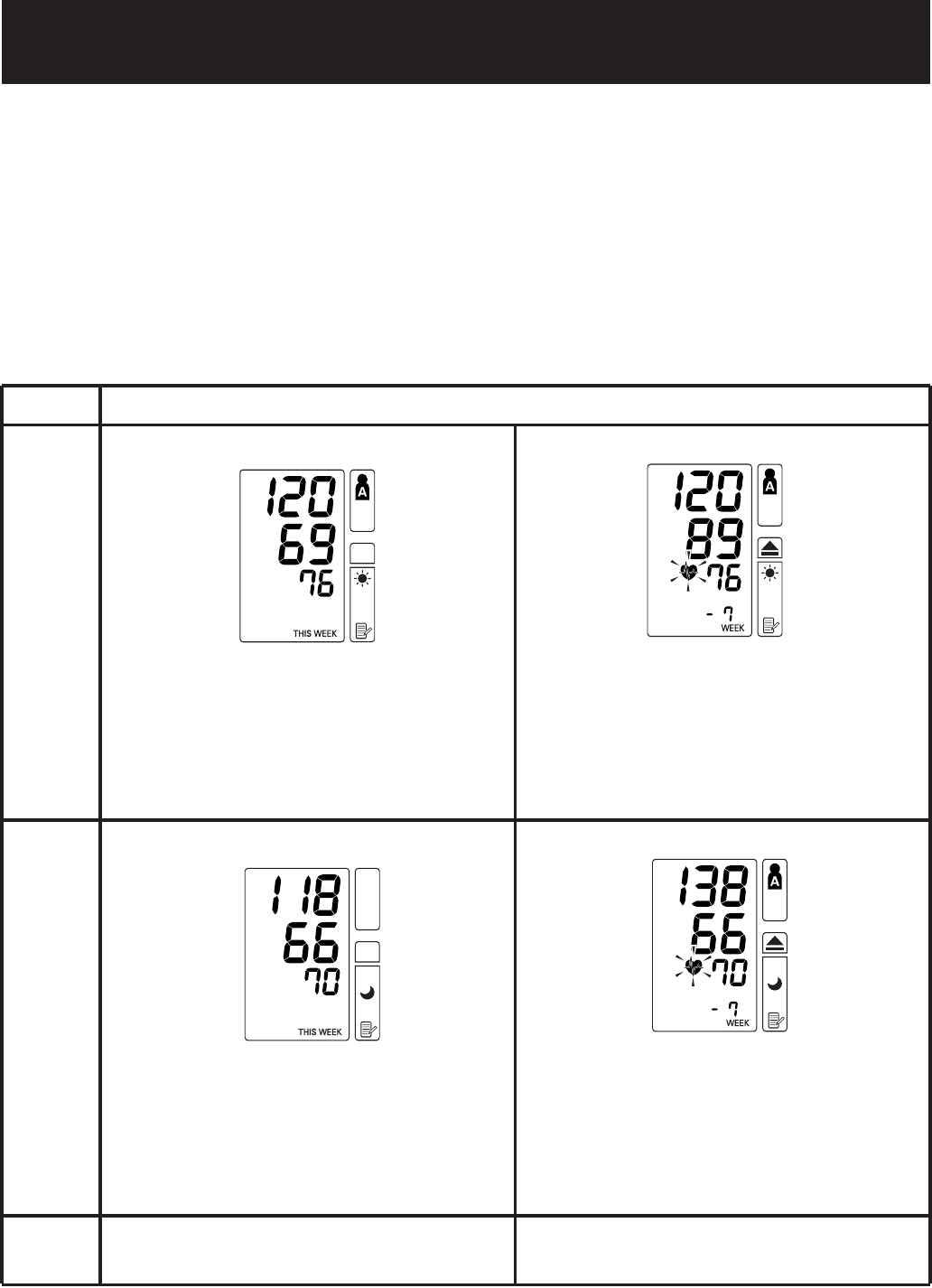

The Morning Hypertension Symbol is displayed if the morning average

reading for a week is above 135 for the Systolic Blood Pressure value

and/or 85 for the Diastolic Blood Pressure value when viewing the

Morning Averages and the Evening Averages in the memory.

DISPLAY SYMBOLS

1American Heart Association Scientific Statement 2004

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 12

HEARTBEAT SYMBOL ( )

TAKING A MEASUREMENT

The Heartbeat Symbol flashes on the display during

the measurement.

The Heartbeat Symbol flashes at every heartbeat.

When the measurement is complete, the Heartbeat Symbol

flashes on the display with your blood pressure and pulse rate if

the reading is above 135 for the Systolic Blood Pressure value

and/or 85 for the Diastolic Blood Pressure value.

USING THE MEMORY FUNCTION

The Heartbeat Symbol flashes when the blood pressure reading

stored in the memory is above 135 for the Systolic Blood

Pressure value and/or 85 for the Diastolic Blood Pressure value.

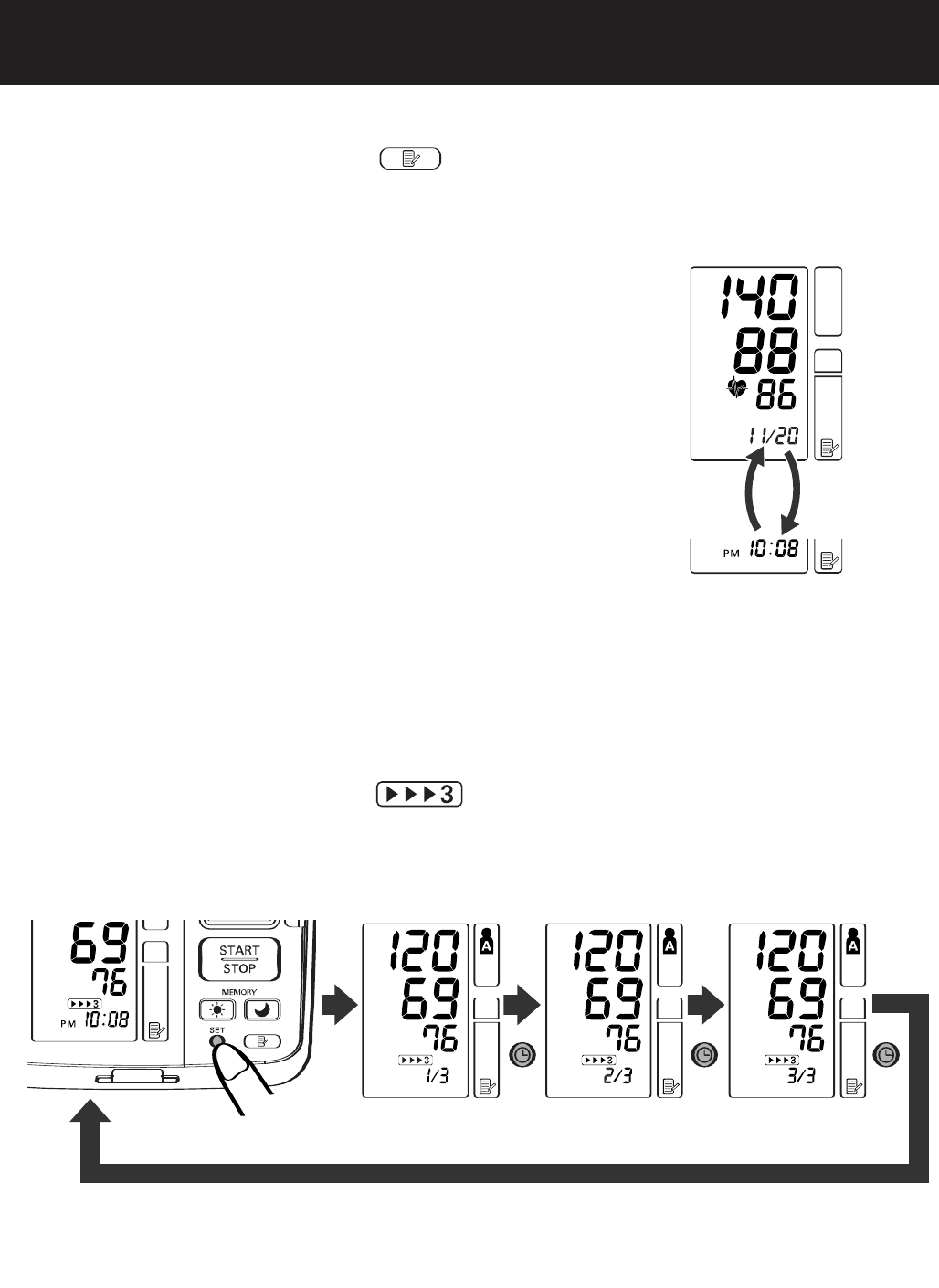

AVERAGE VALUE SYMBOL ( )

The Average Value Symbol is displayed when you press the memory

button. The most recent average reading appears on the display screen.

MORNING AVERAGE SYMBOL ( )

The Morning Average symbol is displayed when viewing Morning

Averages using the Memory Function.

EVENING AVERAGE SYMBOL ( )

The Evening Average symbol is displayed when viewing Evening

Averages using the Memory Function.

DISPLAY SYMBOLS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 13

1. Press the ▼indicator on the battery cover

and slide the cover off in the direction of

the arrow.

2. Install 4 “AA” size batteries so the +

(positive) and - (negative) polarities match

the polarities of the battery compartment

as indicated.

3. Replace the battery cover.

BATTERY INSTALLATION

Battery Cover

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 14

BATTERY REPLACEMENT

When the LowBattery Indicator appears on the display screen turn the

monitor off and remove all the batteries. Replace with four new batteries

at the same time. Longlife alkaline batteries are recommended.

CAUTION

If battery fluid should get in your eyes, immediately rinse with

plenty of clean water. Contact a physician immediately.

NOTES: •Turn the unit off before replacing the batteries. If the

batteries are removed while the unit is still on, the date and

time will be reset to that of the previous use. However, the

measurement results are not deleted.

•When the batteries are replaced, you may need to reset the

date and time. If the year is flashing on the display screen,

refer to page 21, RESETTING THE DATE AND TIME.

• The supplied batteries may have a shorter life.

CAUTION

Dispose of the device, components and optional accessories

according to applicable local regulations. Unlawful disposal may

cause environmental pollution.

BATTERY INSTALLATION

Low Battery Indicator

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 15

Use only the authorized Omron AC Adapter, Model Number

HEM-ADPT1,with this monitor.

We recommend you install the batteries even if the AC Adapter

is used. If no batteries are installed, you may need to reset the date

and time if the AC Adapter is disconnected. The measurement results

will not be deleted.

CAUTION

Use only Omron authorized parts and accessories. Parts and

accessories not approved for use with the device may damage

the unit.

USING THE AC ADAPTER

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 16

TO CONNECT THE AC ADAPTER

①Insert the AC Adapter Plug

into the AC Adapter Jack on

the back side of the monitor

as illustrated.

②Plug the AC Adapter into a

120V AC outlet (60 cycles).

TO DISCONNECT THE AC ADAPTER

①Hold and pull the Housing to remove the AC Adapter from the

electrical outlet. Do not remove by pulling on the cord.

②Remove the AC Adapter plug from the monitor.

WARNING

Do not plug or unplug the power cord into the electrical outlet with

wet hands.

CAUTION

Do not overload power outlets. Plug the device into the appropriate

voltage outlet.

USING THE AC ADAPTER

Housing

Cord

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 17

Set the monitor to the current date and time before taking a

measurement for the first time. If the date and time are not set correctly,

the measurement values stored in the memory and the average values

may not be correct.

The Blood Pressure Monitor automatically stores up to 84 individual

measurement values with the dates and times. The monitor also

calculates weekly averages for measurements in the morning and in the

evening. Morning and Evening averages are stored for this week and the

last seven weeks.

The monitor can also calculate an average reading based on the three

most recent measurements taken within 10 minutes of the last reading.

NOTE: •If only two readings are stored in the memory for the 10-

minute period, the average is based on the tworeadings.

•If one reading is stored in the memory for the 10-minute

period, this reading is displayed as the average.

1. TOSTART THE SETTING

Press and hold the SET button to

adjust the date and time.

The year flashes on the display.

SETTING THE DATE AND TIME

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 18

SETTING THE DATE AND TIME

2.SETTING THE YEAR

The year can be set between 2007 and

2030. When the display reaches 2030,

it will return to 2007.

Press the Memory button ( ) to

advance by increments of one year.

Press the SET button to set the

current year.

The month flashes on the display.

NOTE: Press and hold the Memory button ( )

to advance the date and time values faster.

3. SETTING THE MONTH

Press the Memory button ( )to advance by increments of one

month.

Press the SET button to set the current month.

The day flashes on the display.

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 19

4. SETTING THE DAY

Press the Memory button ( ) to advance by increments

of one day.

Press the SET button to set the current day.

The hour flashes on the display.

5. SETTING THE HOUR

The time is set using AM or PM.

Press the Memory button ( ) to advance by increments of one

hour.

Press the SET button to set the current hour.

The minute flashes on the display.

6. SETTING THE MINUTE

Press the Memory button ( ) to advance by increments of one

minute.

Press the SET button to set the minute setting.

7. TO TURN THE MONITOR OFF

Press the START/STOP button.

NOTE: The monitor will automatically turn offafter the minute has

been set after battery replacement.

SETTING THE DATE AND TIME

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 20

RESETTING THE DATE AND TIME

To adjust the date or time after it has been setup when you first

use the unit.

Start with the monitor in the off position.

1. Press and hold the SET button.

The TruReadTM symbol and the current setting (on or oFF)

will appear on the display for the USER ID selected.

To change the on or oFF setting press the Memory button, then press

the SET button.

The interval time flashes on the display. Press the Memory button

to select the desired interval time, then press the SET button.

The year flashes on the display.

2. Refer to page 18, SETTING THE DATE AND TIME.

NOTE:If you need to change the Date and Time,

always adjust the Date and Time setting before taking

the next measurement.

SETTING THE DATE AND TIME

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 21

CAUTION

Read all of the information in the instruction manual and any other

literature in the box before operating the unit.

CAUTION

This device is intended for use in measuring blood pressure and

pulse rate in the adult population. Do not use this device on infants

or persons who cannot express their intentions.

APPLYING THE CUFF ON THE LEFT ARM

1. Make sure the air plug is securely inserted in the main unit.

2. Remove tight-fitting clothing from your upper left arm.

APPLYING THE ARM CUFF

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 22

3. Sit in a chair with your feet flat on the floor. Place your left arm on

atable so the cuff is level with your heart.

4. Hold the grip on the cuff securely with

your right hand, placing your thumb

on the thumb grip.

5. Turn the palm of your left

hand upward.

APPLYING THE ARM CUFF

Thumb Grip

Cloth Strip

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 23

6. Apply the cuff to your left upper arm so the blue strip is on the inside

of your arm and aligned with your middle finger. The air tube runs

down the inside of your arm. The bottom of the cuff should be

approximately 1/2" above your elbow.

7. Wrap the cuff firmly in place around your arm using the cloth strip.

APPLYING THE ARM CUFF

1/2 inch (1 - 2 cm)

Air Tube

Blue Strip

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 24

APPLYING THE CUFF ON THE RIGHT ARM

When taking a measurement using the right arm use this instruction

for Step 6 on page 24.

Apply the cuff to your right upper arm so the thumb grip is centered

on the inside of your inner arm. The bottom of the cuff should be

approximately 1/2'' above your elbow.

NOTE: Be careful not to rest your arm on the air tube. This will restrict

the flow of air to the cuff.

APPLYING THE ARM CUFF

Thumb Grip

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 25

The monitor is designed to take measurements and store the

measurement values in the memory for two people using

USER ID A and USER ID B.

The monitor can also be used to take a single measurement for other

persons using the GUEST Mode. The USER ID symbol is not displayed

when using the GUEST Mode. Measurements taken using the GUEST

Mode are not stored in the memory.

CAUTION

Operate the device only as intended. Do not use the device for any

other purpose.

USING THE GUEST MODE

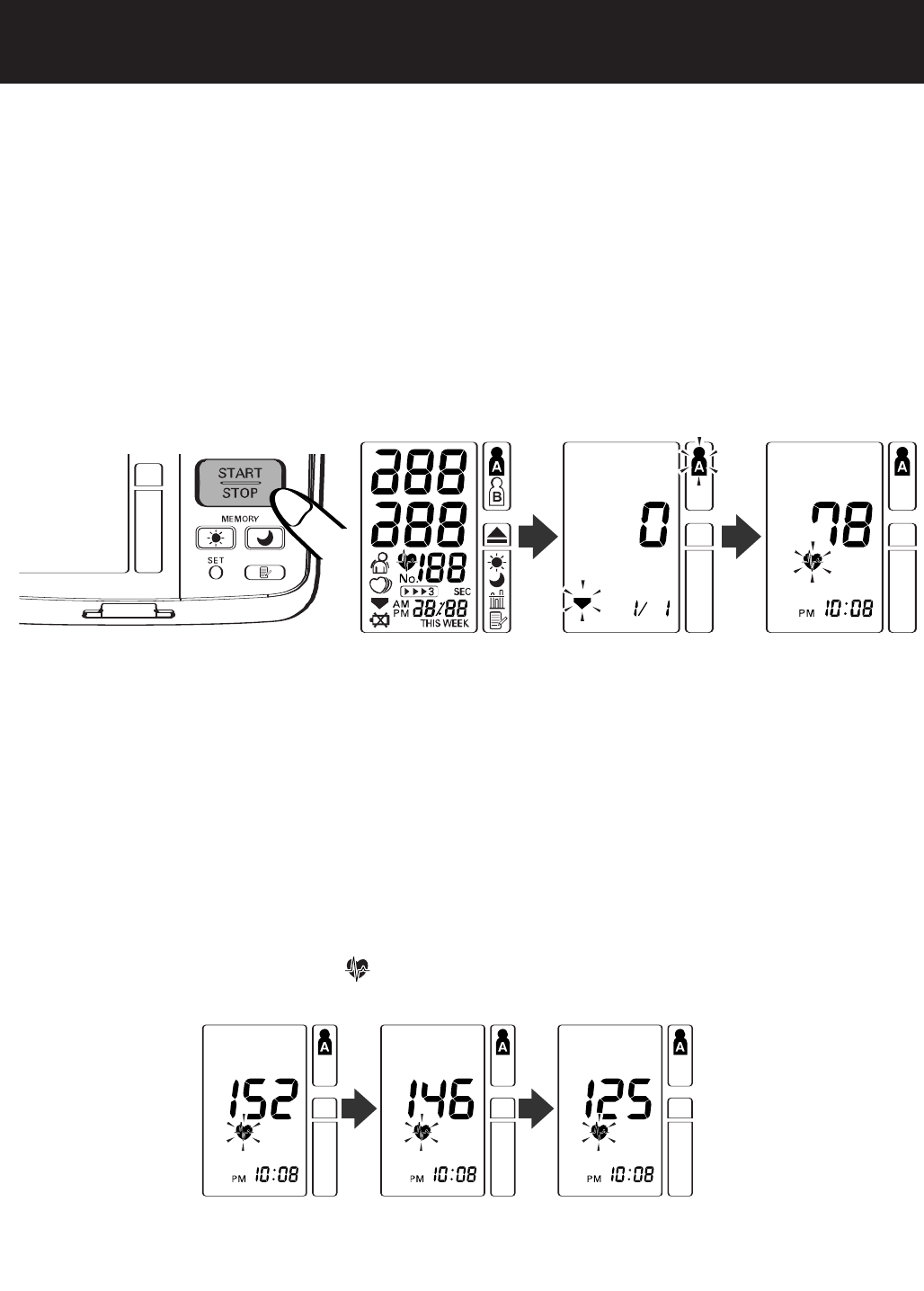

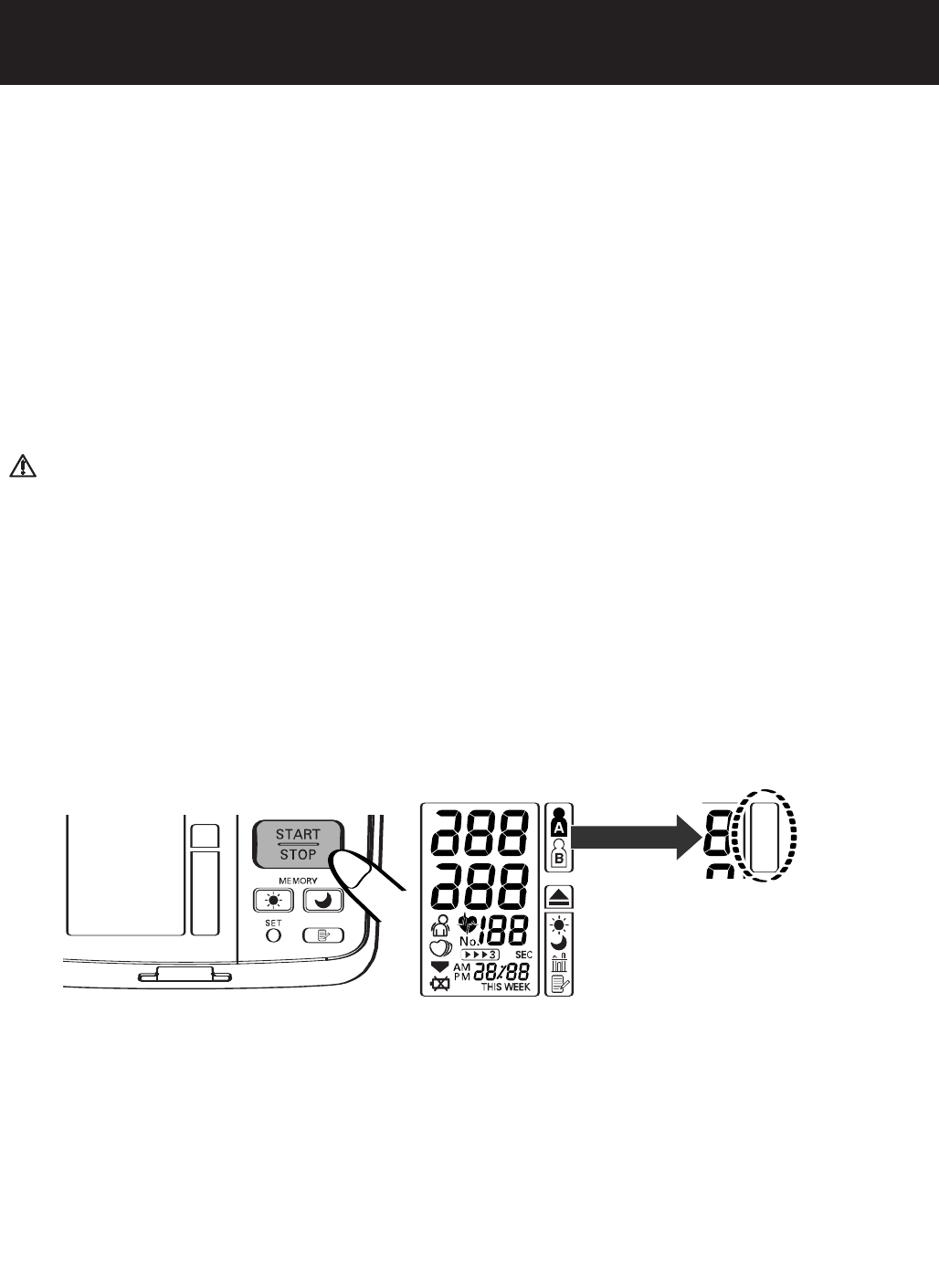

1. Press and hold the START/STOP button.

The A and B Symbols disappear from the display.

2. Release the START/STOP button.

The cuffstarts to inflate automatically.

NOTE: To stop the inflation press the START/STOP button.

The monitor will stop inflating, start deflation and turn off.

TAKING A MEASUREMENT

Aand B Symbols disappear

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 26

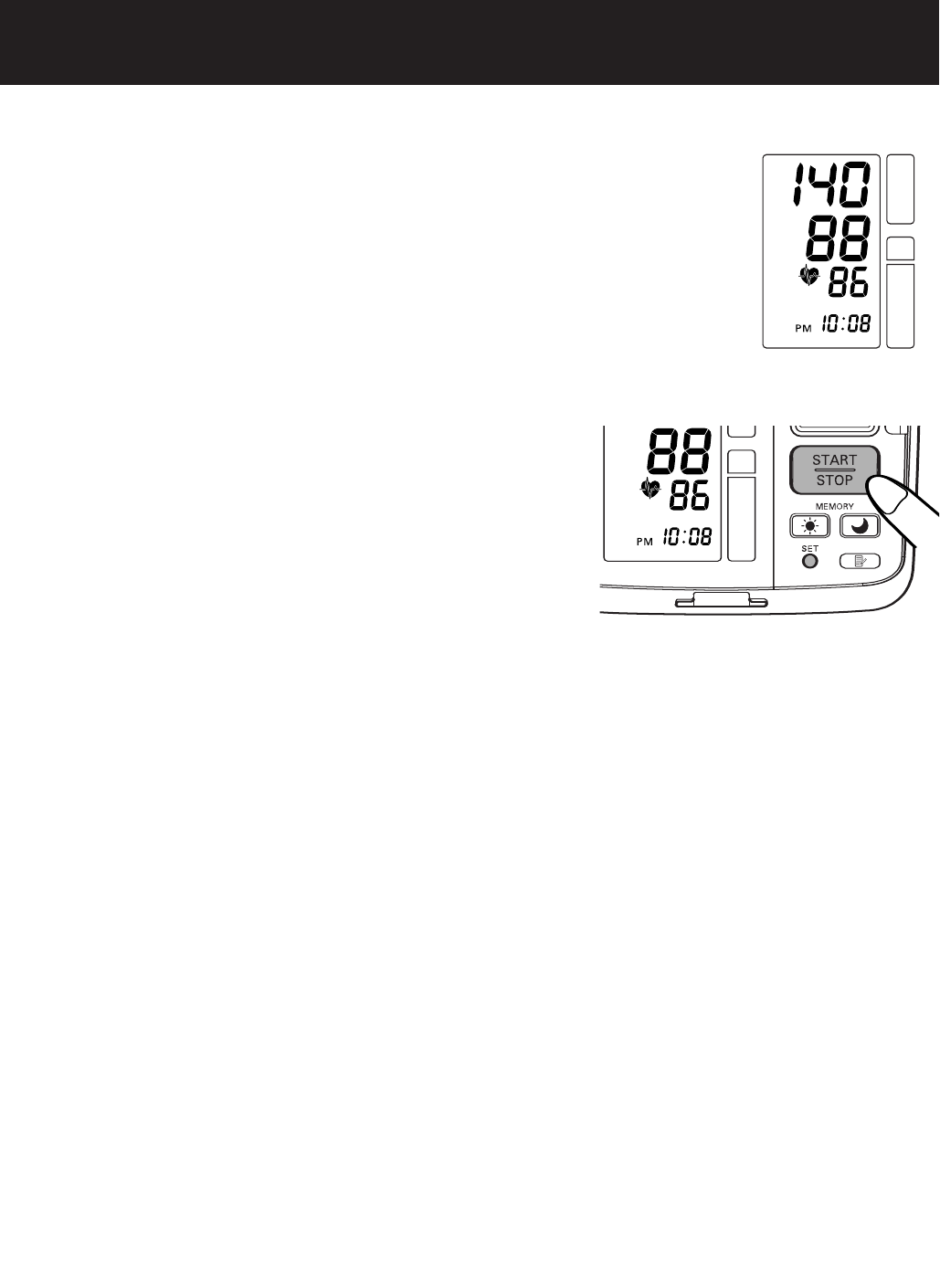

3. Inflation stops and the measurement is started. When the

measurement is completed, your blood pressure and pulse rate appear

on the display.

SELECTING THE USER ID

Select your USER ID. Always use the same USER ID when taking a

measurement. The monitor stores the measurement values in the

memory by the USER ID selected. These measurement values are used

to calculate the Morning Averages and Evening Averages.

Slide the USER ID Selection Switch up or down to select USER A or B.

USING THE USER ID

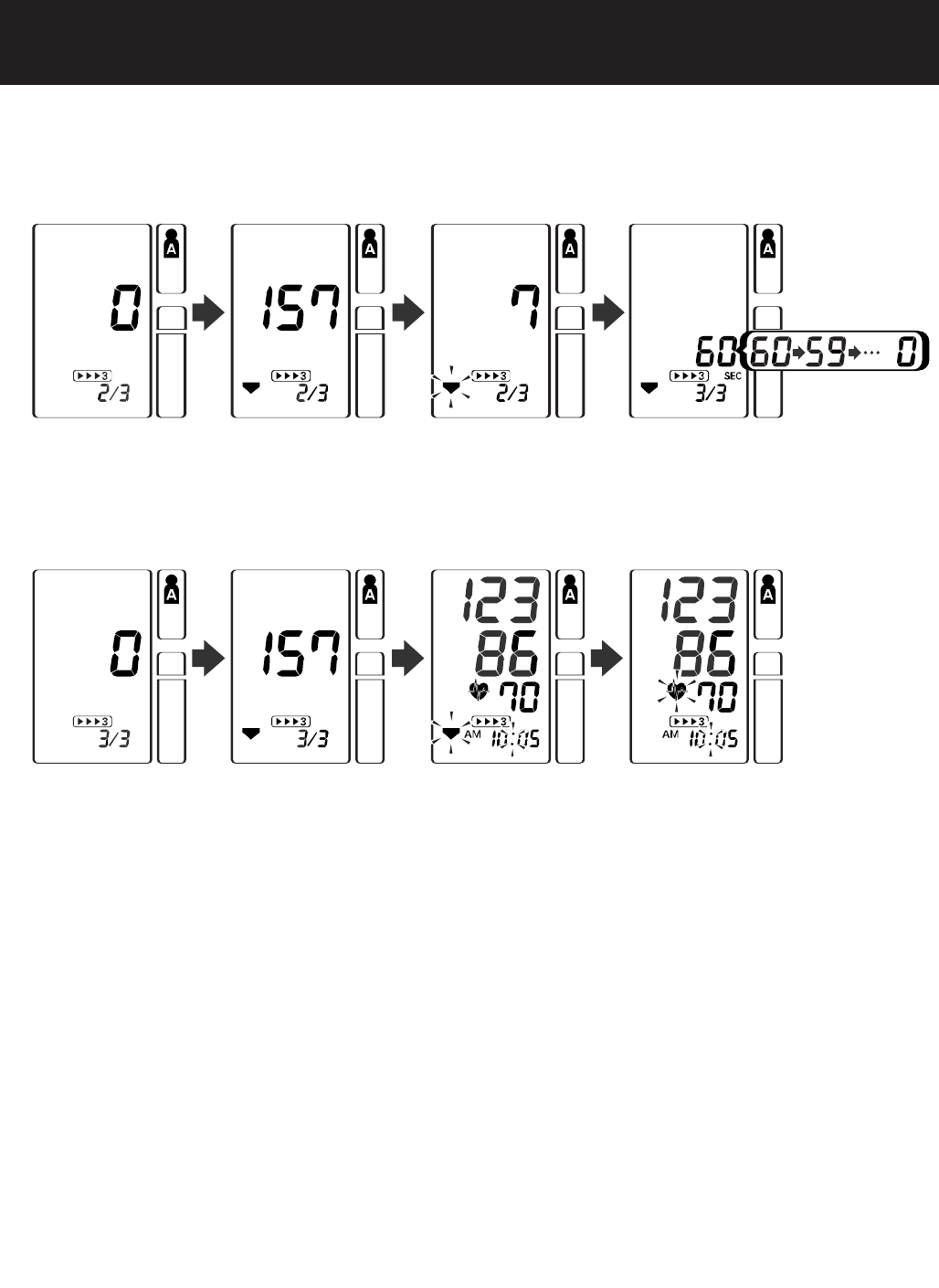

When you select a USER ID the monitor can be set to takeone

measurement using the Single Mode or three consecutivemeasurements

using the TruReadTM Mode when you press the START/STOP button.

NOTE:The default value is set to the Single Mode to take one

measurement.

The TruReadTM Mode takes three consecutive measurements. The

monitor will inflate, take a measurement, and deflate three times

separated by a short interval of time between each measurement.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 27

SELECTING THE TruReadTM MODE

1. Select your USER ID (A or B).

2. Press and hold the SET button.

The TruReadTM symbol and the oFF setting appears

on the display.

3. Press the Memory button ( )

to select on.

NOTE:Press the Memory button to

alternate between on and oFF.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 28

4. Press the SET button to confirm the change.

The number of seconds between each measurement is displayed.

NOTE:The default value between each measurement is 60 seconds.

5. Press the MEMORY button ( ) to change the interval of time

between each measurement.

The interval can be set to 15 seconds, 30 seconds, 60 seconds or 120

seconds. Continue to press the MEMORY button until the desired

interval appears on the display.

6. Press the SET button to confirm

the setting.

The year flashes on the display.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 29

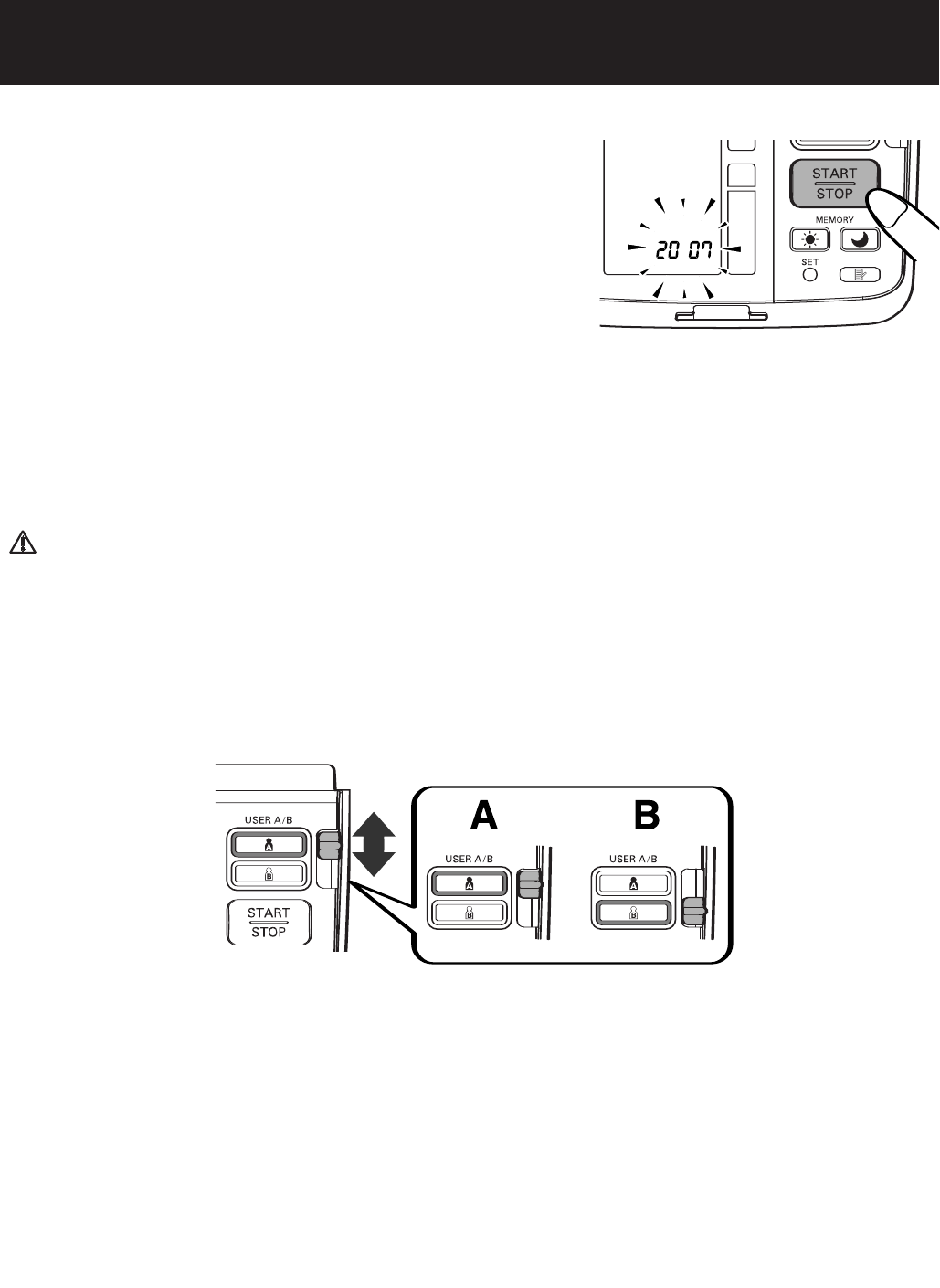

7. If the date and time are correct, press the

START/STOP button to turn the monitor

off.

To change the date and time refer to page

18, SETTING THE DATE AND TIME.

CAUTION

Do not use a cellular phone near the device. It may result in an

operational failure.

USING THE SINGLE MODE

1. Select your USER ID (A or B).

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 30

2. Press the START/STOP button.

All symbols appear on the display. The USER ID Symbol you

selected flashes on the display.

The cuff starts to inflate automatically. As the cuff inflates, the

monitor automatically determines your ideal inflation level. This

monitor detects the pulse during inflation. Do not move your arm and

remain still until the entire measurement process is completed.

NOTE:To stop the inflation or measurement, press the START/STOP

button. The monitor will stop inflating, start deflating and will

turn off.

3. Inflation stops automatically and the measurement is started.

As the cuffdeflates, decreasing numbers appear on the display.

The Heartbeat Symbol ( ) flashes at every heartbeat.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 31

4. When the measurement is complete, the arm cuff

completely deflates. Your blood pressure and pulse

rate are displayed.

5. Press the START/STOP button to turn the

monitor off.

NOTE:The monitor will automatically turn

off after five minutes.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 32

USING THE TruReadTM MODE

1. Select your USER ID (A or B).

2. Press the START/STOP button.

All symbols appear on the display. The USER ID Symbol you

selected flashes on the display. The cuff starts to inflate automatically.

NOTE:To stop the inflation or measurement, press the START/STOP

button. The monitor will stop inflating, start deflating and will

turn off.

3. Inflation stops automatically and the measurement is started.

As the cuff deflates, decreasing numbers appear on the display.

The Heartbeat Symbol ( )flashes at every heartbeat. When the

measurement is complete, the arm cuffcompletely deflates.

NOTE:Do not move your arm and remain still until the entire

measurement process is completed.

4. Check the progress of the consecutive measurements.

NOTE:If a measurement fails, the monitor will repeat taking a

measurement up to five times during the consecutive

measurement process.

The first measurement is complete, waiting to start the next

measurement. The interval of time set between each measurement

will appear on the display.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 33

The second measurement is complete, waiting to start the next

measurement.

The consecutive measurements are complete. The average for three

measurements appears on the display.

5. Press the SET button to display the blood pressure and pulse rate for

the first measurement. Press the SET button again to display the next

measurement.

6. Press the START/STOP button to turn the monitor off.

TAKING A MEASUREMENT

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 34

TAKING A MEASUREMENT

SPECIAL CONDITIONS

CAUTION

Inflating to a higher pressure than necessary may result in bruising

where the cuff is applied.

If your systolic pressure is known to be more than 220 mmHg, press

and hold the START/STOP button until the monitor inflates 30 to 40

mmHg higher than your expected systolic pressure.

NOTES: •Do not apply more pressure than necessary.

•The monitor will not inflate above 299 mmHg.

When the measurement is complete, the arm cuff completely deflates.

Your blood pressure and pulse rate are displayed.

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 35

The monitor is designed to store the blood pressure and the pulse rate in

the memory for two people (USER A and USER B) every time a

measurement is completed.

The monitor automatically stores up to 84 sets of measurement values

(blood pressure and pulse rate) for each user (A and B). When 84 sets of

measurement values are stored, the oldest record is deleted to save the

most recent values. The monitor also stores 8 weeks of Morning

Averages and 8 weeks of Evening Averages for each user (A and B).

AVERAGING FUNCTION

The monitor calculates the average reading based on the three most

recent sets of measurement values taken within 10 minutes of the most

recent reading.

NOTE:If two sets of measurement values are stored in the memory for

the 10 minutes period, the average is based on the two sets of

measurement values. If one set of measurement values is stored,

this is displayed as the average.

USING THE MEMORY FUNCTION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 36

TO DISPLAY THE MEASUREMENT VALUES

1. Select your USER ID (A or B).

2. Press the Memory button ( ).

The Average Symbol ( ) appears on the display when the average

reading is shown.

USING THE MEMORY FUNCTION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 37

3. Press the Memory button ( ) to display the most recent set of

measurement values on the screen. The values are displayed from the

most recent to the oldest.

NOTE:The date and time are

alternately displayed with

the measurement values.

Press the Memory button to display the

next set of values.

Press and hold the Memory button to display the values faster.

TruReadTM Mode

The average for the consecutive measurements appears on the display

with the TruReadTM symbol ( ). To display the values for the

individual measurements press the SET button while the average is

displayed.

4. Press the START/STOP button to turn the power off.

USING THE MEMORY FUNCTION

Alternating display

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 38

MORNING AND EVENING AVERAGES

The monitor calculates and displays a weekly average for measurements

taken in the morning ( ) and evening ( ). The monitor stores 8 weeks

of Morning Averages and 8 weeks of Evening Averages for each user

(A and B).

NOTE:The week begins Sunday at 4:00 AM

MORNING AVERAGES

Morning averages are based on the first average reading using the

TruReadTM Mode or the first reading using the Single Mode.

Measurement times must be between:

4:00 AM and 9:59 AM.

EVENING AVERAGES

Evening averages are based on the last average reading using the

TruReadTM Mode or the last reading using the Single Mode.

Measurement times must be between:

7:00 PM and 1:59 AM.

USING THE MEMORY FUNCTION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 39

TO DISPLAY MORNING AND EVENING AVERAGES

1. Select your USER ID (A or B).

2. Press the Morning Average button

( ) or the Evening Average

button ( ).

The average for the current

week “THIS WEEK” appears

on the display.

3. Continue to press the Morning Average button ( ) or the Evening

Average button ( ) to display the previous weeks. The monitor

displays “-1 WEEK” for the previous week to “-7 WEEK” for the

oldest set of averages.

NOTE:If no measurement is taken in a given

week, the display will appear

as illustrated.

4. Press the START/STOP button to turn the monitor off.

USING THE MEMORY FUNCTION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 40

USING THE MEMORY FUNCTION

DISPLAY COMBINATIONS

In addition to the Morning Average and Evening Average Symbols,

the monitor may also display the Morning Hypertension Symbol if the

morning average for that week is above the AHA guidelines. (See page

12 for details.) Depending on your measurement results, these may be

displayed in the following combinations.

Display

Average above AHA guidelines +

Morning Hypertension

Average within AHA guidelines

Morning

Average

Evening

Average

Morning average from This Week

with Morning Average Symbol

Morning average from 7 weeks ago

with Morning Average Symbol +

blinking Heartbeat Symbol + Morn-

ing Hypertension Symbol

Evening average from This Week

with Evening Average Symbol

Evening average from 7 weeks ago

with Evening Average Symbol +

blinking Heartbeat Symbol + Morn-

ing Hypertension Symbol

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 41

The Morning Hypertension Symbol ()appears if the weekly average

for morning measurements is above 135/85.

In this case the Morning Hypertension Symbol ()is displayed when

the Evening Average is displayed, regardless of the values for the

Evening Average.

TO DELETE ALL VALUES STORED IN THE MEMORY

The values stored in the memory are deleted by USER ID.

You cannot partially delete values stored in the memory. All values for

the user you select will be deleted.

1. Select your USER ID (A or B).

2. While holding the Memory button ( ) and the START/STOP

button simultaneously for more than 2 seconds all values will

be deleted.

USING THE MEMORY FUNCTION

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 42

To keep your digital blood pressure monitor in the best condition and

protect the unit from damage, follow the directions listed below:

Close the monitor cover when not in use.

Do not forcefully bend the arm cuff or air

tube. Do not fold tightly.

CAUTION

Do not store the ACadapter in the cuff compartment. This may

damage the cuff.

Clean the monitor with a soft dry cloth. Do not use any abrasive or

volatile cleaners. Do not attempt to clean the cuff.

CAUTION

Do not submerge the device or any of the components in water.

Do not subject the monitor to extreme hot or cold temperatures,

humidity or direct sunlight.

CAUTION

Store the device and the components in a clean, safe location.

CAUTION

Do not subject the monitor to strong shocks, such as dropping the

unit on the floor.

CARE AND MAINTENANCE

Care and Maintenance

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 43

Remove the batteries if the unit will not be used for three months or

longer. Always replace all the batteries with new ones at the same time.

Use the unit consistent with the instruction provided in this manual.

CAUTION

Changes or modification not approved by Omron Healthcare will

void the user warranty. Do not disassemble or attempt to repair the

unit or components.

CAUTION

Use only Omron authorized parts and accessories. Parts and

accessories not approved for use with the device may

damage the unit.

CARE AND MAINTENANCE

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 44

SYMBOL CAUSE CORRECTION

Cuffunder-inflated.

Cuffnot applied

correctly.

Single Mode

Remove the arm cuff. Read,

“Taking a Measurement”.

Take another measurement.

TruReadTM Mode

The monitor will repeat the

process up to 5 times.

Cuff over-inflated

Takeanother measurement and

remain still until the

measurement is complete.

Monitor could not

detect pulse wave.

Air plug is not

connected.

Batteries are worn Replace the four batteries. Refer

to “Battery Installation.”

ERROR INDICATORS

ERROR INDICATORS AND TROUBLESHOOTING TIPS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 45

ERROR INDICATORS AND TROUBLESHOOTING TIPS

PROBLEM CAUSES AND SOLUTIONS

No power.

No display appears on the unit.

Replace all four batteries with new

ones.

Check the battery installation

for proper placement of the

battery polarities.

Measurement values appear

too high or too low.

Blood pressure varies constantly.

Many factors including stress, time

of day, and how you wrap the cuff,

may affect your blood pressure.

Review the sections “Before Taking

aMeasurement” and “Taking a

Measurement.”

TROUBLESHOOTING TIPS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 46

FCC STATEMENT

Note:

POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only)

This product has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. The product generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If the product does cause harmful interference to radio or television

reception, which can be determined by turning the product on and off, the

user is encouraged to try to correct the interference by one or more of the

following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the product and the receiver.

•Connect the product into an outlet on a circuit different from that to which

the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for Canada only)

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the interference-causing equipment

standard entitled “Digital Apparatus”, ICES-003 of the Canadian Department of

Communications.

Cet appareil numérique respecte les limites de bruits radioeléctriques

applicables aux appareils numériques de Clase B prescrites dans la norme sur le

materiel brouilleur: “Appareils Numériques”, ICES-003 édictée par le minister

des communications.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 47

WARRANTY

Your HEM-775 IntelliSense®Automatic Blood Pressure Monitor, excluding the

arm cuff, is warranted to be free from defects in materials and workmanship appearing

within 5 years from the date of purchase, when used in accordance with the

instructions provided with the monitor. The arm cuff is warranted to be free from

defects in materials and workmanship appearing within one year from the date of

purchase when the monitor is used in accordance with the instructions provided

with the monitor. The above warranties extend only to the

original retail purchaser.

We will, at our option, repair or replace without charge any monitor or arm cuff

covered by the above warranties. Repair or replacement is our only

responsibility and your only remedy under the above warranties.

To obtain warranty service contact Omron Healthcare for the address

of the repair location. Shipping instructions and repair information is available by

calling 1-800-634-4350 or visit our website at www.omronhealthcare.com.

Enclose the Proof of Purchase. Include $5.00 for the return shipping and handling.

Include a letter, with your name, address, phone number, and description of the

specific problem. Pack the product carefully to prevent damage in transit.

Because of possible loss in transit, we recommend insuring the product with

return receipt requested.

ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF

THE APPLICABLE WRITTEN WARRANTY ABOVE. Some states do not

allow limitations on how long an implied warranty lasts, so the above limitation

may not apply to you.

OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR ANY OTHER

INCIDENTAL, CONSEQUENTIAL OR INDIRECT COSTS, EXPENSES

OR DAMAGES. Some states do not allow the exclusion or limitation of incidental

or consequential damages, so the above exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

FOR CUSTOMER SERVICE

Visit our web site at: www.omronhealthcare.com

Call toll free: 1-800-634-4350

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 48

Model: HEM-775

Display: LCD Digital Display

Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40-180/min.

Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading

Pulse: ±5% of reading

Inflation: Automatic by electric pump

Deflation: Automatic pressure release valve

Rapid Air Release: Automatic exhaust valve

Pressure Detection: Capacitive pressure sensor

Measurement Method: Oscillometric method

Pulse Wave Detection: Capacitance type pressure sensor

Power Source: 120V 60Hz AC adapter or 4 “AA” batteries

Battery Life: Approx. 1400 uses when used 6 times a day

with 4 new alkaline batteries

Operating Temperature 50ºF to 104ºF (10ºC to 40ºC) /30 to 85% RH

/Humidity:

Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC) /10 to 95% RH

/Humidity/Air Pressure: /700 - 1060 hPa

Main Unit Weight: Approximately 33.9 oz. (960 g)

not including batteries

Main Unit Dimensions: Approximately 9 3/4" (l) ×7" (w) ×43/8" (h)

(Approximately 249 mm ×178 mm ×110 mm)

Cuff Size: Approximately 6" (w) (152 mm)

Cuff tube 23 5/8" (l) (600 mm)

Cuff Circumference: Fits arm circumferences 9" to 17"

220 mm to 420 mm

Memory: Up to 84 per user

Weekly Averages: Up to 8 weeks

Contents: Main Unit, ComFitTM Cuff, AC Adapter,

Instruction Manual, 4 “AA” Batteries and Warranty Card

UPC Code: 0 73796 85775 2

NOTE:These specifications are subject to change without notice.

SPECIFICATIONS

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 49

NOTES

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 50

NOTES

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 51

Manufactured by OMRON HEALTHCARE

Made in China

Distributed by:

OMRON HEALTHCARE, INC.

1200 Lakeside Drive

Bannockburn, Illinois 60015

www.omronhealthcare.com

HEM-775INST Rev

HEM-775 IM Final.qxd 11/16/06 4:03 PM Page 52

Omron Intellisense Hem 775 Instruction Manual ManualsLib Makes It Easy To Find Manuals Online!

Navigation menu

Versions of this User Manual:

Views

Navigation
