Omron V640HAM11LV2 Carrier ID Reader/Writer (RFID) User Manual 9704175 4A V640 HAM11 ETN V2

Omron Corporation Carrier ID Reader/Writer (RFID) 9704175 4A V640 HAM11 ETN V2

Contents

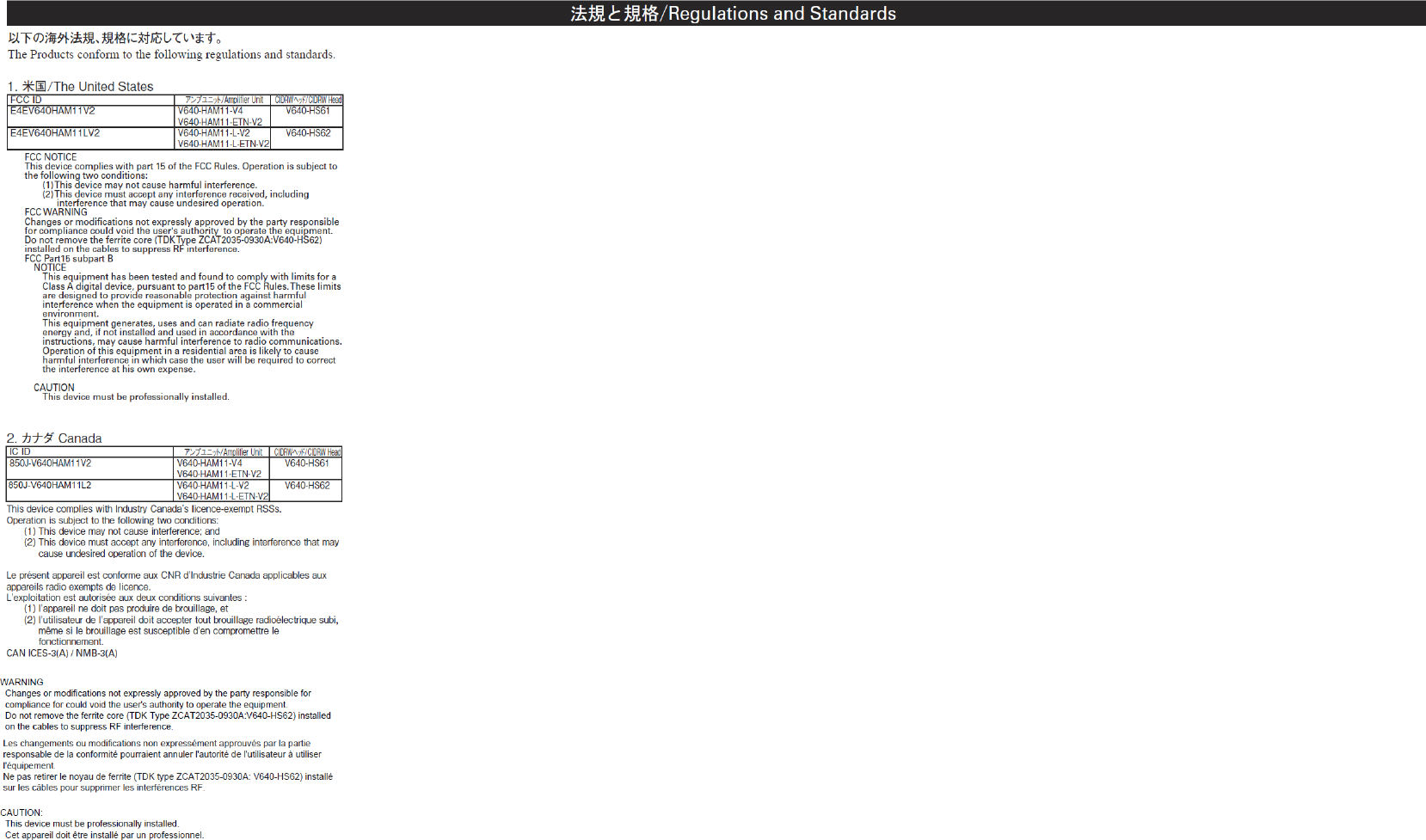

User Manual (V640-HAM11-L-ETN-V2)

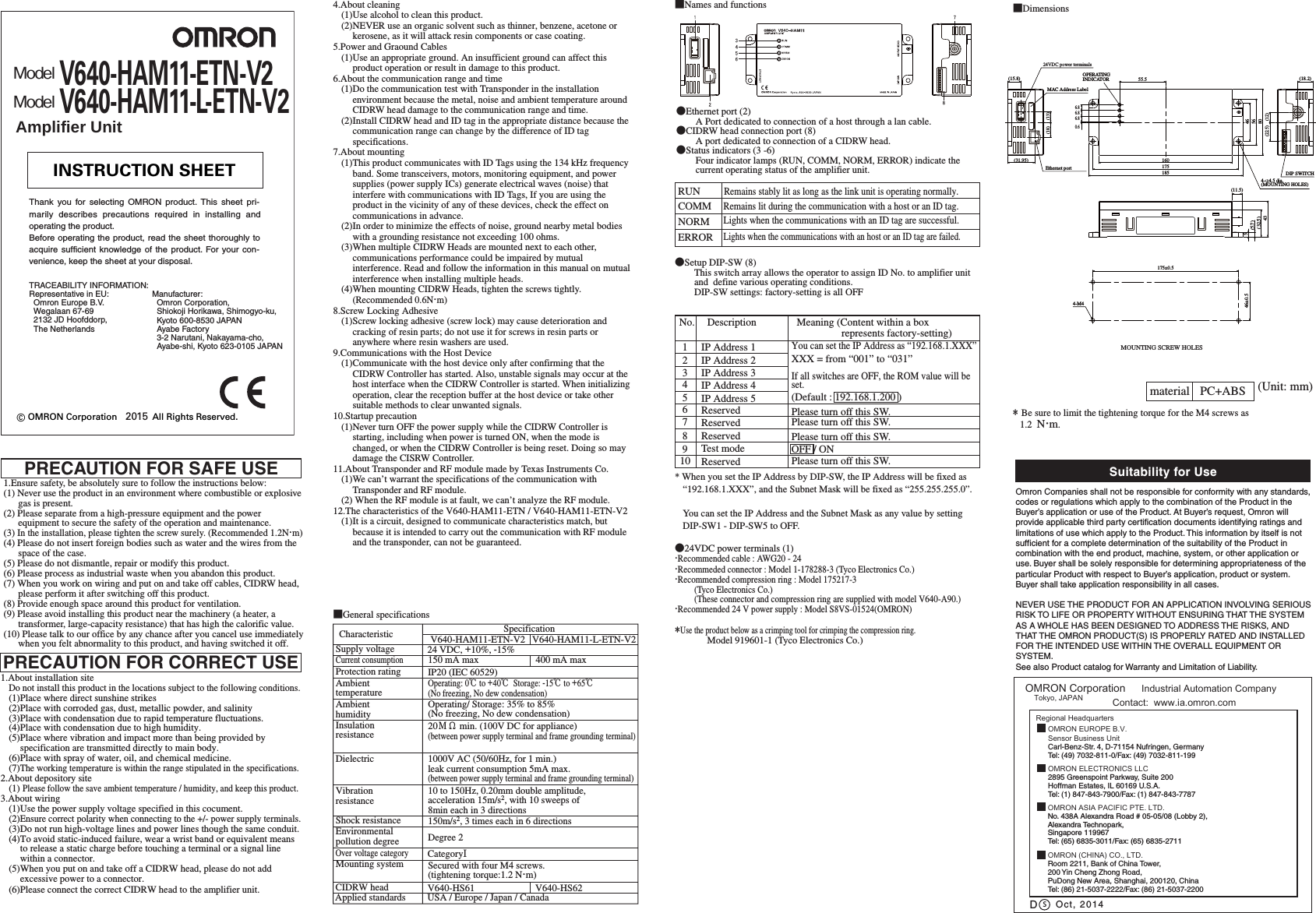

●Ethernet port (2)A Port dedicated to connection of a host through a lan cable.●CIDRW head connection port (8)A port dedicated to connection of a CIDRW head.●Status indicators (3 -6)Four indicator lamps (RUN, COMM, NORM, ERROR) indicate the current operating status of the amplifier unit.●24VDC power terminals (1)・Recommended cable : AWG20 - 24・Recommeded connector : Model 1-178288-3 (Tyco Electronics Co.) ・Recommended compression ring : Model 175217-3(Tyco Electronics Co.)(These connector and compression ring are supplied with model V640-A90.)・Recommended 24 V power supply : Model S8VS-01524(OMRON)*Use the product below as a crimping tool for crimping the compression ring.Model 919601-1 (Tyco Electronics Co.)●Setup DIP-SW (8)This switch array allows the operator to assign ID No. to amplifier unit and  define various operating conditions.DIP-SW settings: factory-setting is all OFFPRECAUTION FOR SAFE USE■Dimensions■Names and functionsRUNRemains stably lit as long as the link unit is operating normally.COMMRemains lit during the communication with a host or an ID tag.Lights when the communications with an ID tag are successful.Lights when the communications with an host or an ID tag are failed.NORMERROR* Be sure to limit the tightening torque for the M4 screws as   1.2  N・m.material PC+ABS (Unit: mm)■General specificationsMOUNTING SCREW HOLESNo. Description IP Address 1IP Address 2IP Address 3IP Address 4IP Address 5ReservedReservedReservedTest modeReserved Meaning (Content within a box                   represents factory-setting)12345678910 Please turn off this SW.OFF / ONPlease turn off this SW.Please turn off this SW.Supply voltageProtection ratingInsulationresistanceDielectricShock resistanceVibrationresistanceMounting systemAmbienthumidityAmbienttemperatureCurrent consumptionSpecification 24 VDC, +10%, -15%150 mA maxIP20 (IEC 60529)150m/s2, 3 times each in 6 directionsSecured with four M4 screws.(tightening torque:1.2 N・m)1000V AC (50/60Hz, for 1 min.) leak current consumption 5mA max.(between power supply terminal and frame grounding terminal)20MΩ min. (100V DC for appliance)(between power supply terminal and frame grounding terminal)Operating/ Storage: 35% to 85%(No freezing, No dew condensation)Operating: 0℃ to +40℃  Storage: -15℃ to +65℃(No freezing, No dew condensation)10 to 150Hz, 0.20mm double amplitude, acceleration 15m/s2, with 10 sweeps of8min each in 3 directionsCIDRW head V640-HS61Environmentalpollution degree Degree 2Over voltage categoryCategoryⅠCharacteristic V640-HAM11-ETN-V2 V640-HAM11-L-ETN-V2400 mA maxApplied standards USA / Europe / Japan / CanadaV640-HS62Please turn off this SW.(12)(18.2)(22.5)DIP SWITCH16017518555.54656806.86.86.80.64-φ4.5 dia.(MOUNTING HOLES)OPERATINGINDICATOR(11.5)(32.5)435(5.7)4-M4175±0.546±0.5(13)(18)(31.95)(15.8)24VDC power terminalsMAC Address LabelEthernet port* When you set the IP Address by DIP-SW, the IP Address will be fixed as “192.168.1.XXX”, and the Subnet Mask will be fixed as “255.255.255.0”.You can set the IP Address and the Subnet Mask as any value by setting DIP-SW1 - DIP-SW5 to OFF.1.Ensure safety, be absolutely sure to follow the instructions below:(1) Never use the product in an environment where combustible or explosive gas is present.(2) Please separate from a high-pressure equipment and the power equipment to secure the safety of the operation and maintenance.(3) In the installation, please tighten the screw surely. (Recommended 1.2N・m)(4) Please do not insert foreign bodies such as water and the wires from the space of the case.(5) Please do not dismantle, repair or modify this product.(6) Please process as industrial waste when you abandon this product.(7) When you work on wiring and put on and take off cables, CIDRW head, please perform it after switching off this product.(8) Provide enough space around this product for ventilation.(9) Please avoid installing this product near the machinery (a heater, a transformer, large-capacity resistance) that has high the calorific value.(10) Please talk to our office by any chance after you cancel use immediately when you felt abnormality to this product, and having switched it off.1.About installation siteDo not install this product in the locations subject to the following conditions.(1)Place where direct sunshine strikes(2)Place with corroded gas, dust, metallic powder, and salinity(3)Place with condensation due to rapid temperature fluctuations.(4)Place with condensation due to high humidity.(5)Place where vibration and impact more than being provided by specification are transmitted directly to main body.(6)Place with spray of water, oil, and chemical medicine.(7)The working temperature is within the range stipulated in the specifications.2.About depository site(1) Please follow the save ambient temperature / humidity, and keep this product.3.About wiring(1)Use the power supply voltage specified in this cocument.(2)Ensure correct polarity when connecting to the +/- power supply terminals.(3)Do not run high-voltage lines and power lines though the same conduit.(4)To avoid static-induced failure, wear a wrist band or equivalent means to release a static charge before touching a terminal or a signal line within a connector.(5)When you put on and take off a CIDRW head, please do not add excessive power to a connector.(6)Please connect the correct CIDRW head to the amplifier unit.PRECAUTION FOR CORRECT USE4.About cleaning(1)Use alcohol to clean this product.(2)NEVER use an organic solvent such as thinner, benzene, acetone or kerosene, as it will attack resin components or case coating.5.Power and Graound Cables(1)Use an appropriate ground. An insufficient ground can affect this product operation or result in damage to this product.6.About the communication range and time(1)Do the communication test with Transponder in the installation environment because the metal, noise and ambient temperature around CIDRW head damage to the communication range and time.(2)Install CIDRW head and ID tag in the appropriate distance because the communication range can change by the difference of ID tag specifications.7.About mounting(1)This product communicates with ID Tags using the 134 kHz frequency band. Some transceivers, motors, monitoring equipment, and power supplies (power supply ICs) generate electrical waves (noise) that interfere with communications with ID Tags, If you are using the product in the vicinity of any of these devices, check the effect on communications in advance.(2)In order to minimize the effects of noise, ground nearby metal bodies with a grounding resistance not exceeding 100 ohms.(3)When multiple CIDRW Heads are mounted next to each other, communications performance could be impaired by mutual interference. Read and follow the information in this manual on mutual interference when installing multiple heads.(4)When mounting CIDRW Heads, tighten the screws tightly. (Recommended 0.6N・m)8.Screw Locking Adhesive(1)Screw locking adhesive (screw lock) may cause deterioration and cracking of resin parts; do not use it for screws in resin parts or anywhere where resin washers are used.9.Communications with the Host Device(1)Communicate with the host device only after confirming that the CIDRW Controller has started. Also, unstable signals may occur at the host interface when the CIDRW Controller is started. When initializing operation, clear the reception buffer at the host device or take other suitable methods to clear unwanted signals.10.Startup precaution(1)Never turn OFF the power supply while the CIDRW Controller is starting, including when power is turned ON, when the mode is changed, or when the CIDRW Controller is being reset. Doing so may damage the CISRW Controller. 11.About Transponder and RF module made by Texas Instruments Co.(1)We can’t warrant the specifications of the communication with Transponder and RF module.(2) When the RF module is at fault, we can’t analyze the RF module. 12.The characteristics of the V640-HAM11-ETN / V640-HAM11-ETN-V2(1)It is a circuit, designed to communicate characteristics match, but because it is intended to carry out the communication with RF module and the transponder, can not be guaranteed.You can set the IP Address as “192.168.1.XXX”XXX = from “001” to “031”If all switches are OFF, the ROM value will be set.(Default : 192.168.1.200 )© OMRON Corporation              All Rights Reserved.2015INSTRUCTION SHEETThank you for selecting OMRON product. This sheet pri-marily describes precautions required in installing andoperating the product.Before operating the product, read the sheet thoroughly toacquire sufficient knowledge of the product. For your con-venience, keep the sheet at your disposal.Manufacturer:  Omron Corporation,  Shiokoji Horikawa, Shimogyo-ku,Kyoto 600-8530 JAPANAyabe Factory  3-2 Narutani, Nakayama-cho,Ayabe-shi, Kyoto 623-0105 JAPANTRACEABILITY INFORMATION:Representative in EU:  Omron Europe B.V.Wegalaan 67-69  2132 JD Hoofddorp,  The NetherlandsModelV640-HAM11-ETN-V2Amplifier UnitModelV640-HAM11-L-ETN-V2Suitability for UsesOmron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases. NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.See also Product catalog for Warranty and Limitation of Liability.Oct, 2014DOMRON Corporation      Industrial Automation Company Contact:  www.ia.omron.comTokyo, JAPANOMRON ELECTRONICS LLC2895 Greenspoint Parkway, Suite 200Hoffman Estates, IL 60169 U.S.A.Tel: (1) 847-843-7900/Fax: (1) 847-843-7787OMRON ASIA PACIFIC PTE. LTD.No. 438A Alexandra Road # 05-05/08 (Lobby 2), Alexandra Technopark, Singapore 119967Tel: (65) 6835-3011/Fax: (65) 6835-2711OMRON (CHINA) CO., LTD.Room 2211, Bank of China Tower, 200 Yin Cheng Zhong Road, PuDong New Area, Shanghai, 200120, ChinaTel: (86) 21-5037-2222/Fax: (86) 21-5037-2200OMRON EUROPE B.V.Sensor Business UnitCarl-Benz-Str. 4, D-71154 Nufringen, GermanyTel: (49) 7032-811-0/Fax: (49) 7032-811-199Regional Headquarters
