Omron V680S64 Radio Frequency Identification System (RFID System) User Manual V680S HMD64 ETN
Omron Corporation Radio Frequency Identification System (RFID System) V680S HMD64 ETN
Omron >
05_User Manual
Model
V680S-HMD64-ETN
2013
RFID System Reader/Writer
Observe the following precautions to ensure safe usage of the product.
1.
Installation and Storage Environment
・Do not install the Products near any equipment that generates a large
amount of heat (such as heaters,transformers, and large-capacity
resistors).
・If many Reader/Writer are mounted near each other, communications
performance may decrease due to mutual interference. Refer to
Reference Data in Section 7 Appendices of User’s Manual and check
to make sure there is no mutual interference.
2.
Installation and Removing
・Do not use the AC power supply.
・Do not perform wiring incorrectly. Doing so may result in rupture or
damage from burning.
・Ground to 100 Ω or less through a host device (Ethernet switch
or PLCs etc).
PRECAUTIONS FOR SAFE USE
1.
Installation and Storage Environment
Do not use or store the Product in the following locations.
・
Locations subject to corrosive gases, dust, dirt, metal powder, or salt.
・Locations where ambient temperature or ambient humidity range
is over the specified.
・Locations subject to extreme temperature changes that may result
in dew condensation.
・Locations where the product would be directly subjected to
vibration or shock exceeding specifications.
2.
Installation
・The Products communicate with RF Tags using the 13.56-MHz
frequency. Any transceivers, motors, inverters, or switching power
supplies generate noise that can affect communications with the
Tags and cause errors. If such devices are located near the Tags,
always test operation in advance to confirm whether the system
may be affected.
・When you use the Reader/Writer in RUN mode, the control signal
should be connected to the +24 V of the power supply the
Reader/Writer will operate in safe mode when the control signal
is connected to 0 V of the power supply.
・
Make sure the power supplied by the DC power supply unit is
within the rated power supply voltage (24 VDC +10%/−15%)
before using the Product.
・
Securely tighten the screws to a torque of 1.2N・m when mounting the
reader/writer.
・
Use a tightening torque of 0.3 to 0.49N・m when mounting the cable connector.
3.
Prohibitions
・
Do not drop the Products.
・
Do not pull on the cables with excessive strength.
・Do not attempt to disassemble, repair, or modify the Procuct.
4.
Maintenance
・
The reader/writer must be inspected on a daily or regular basis.
PRECAUTIONS FOR CORRECT USE
© OMRON Corporation All Rights Reserved.

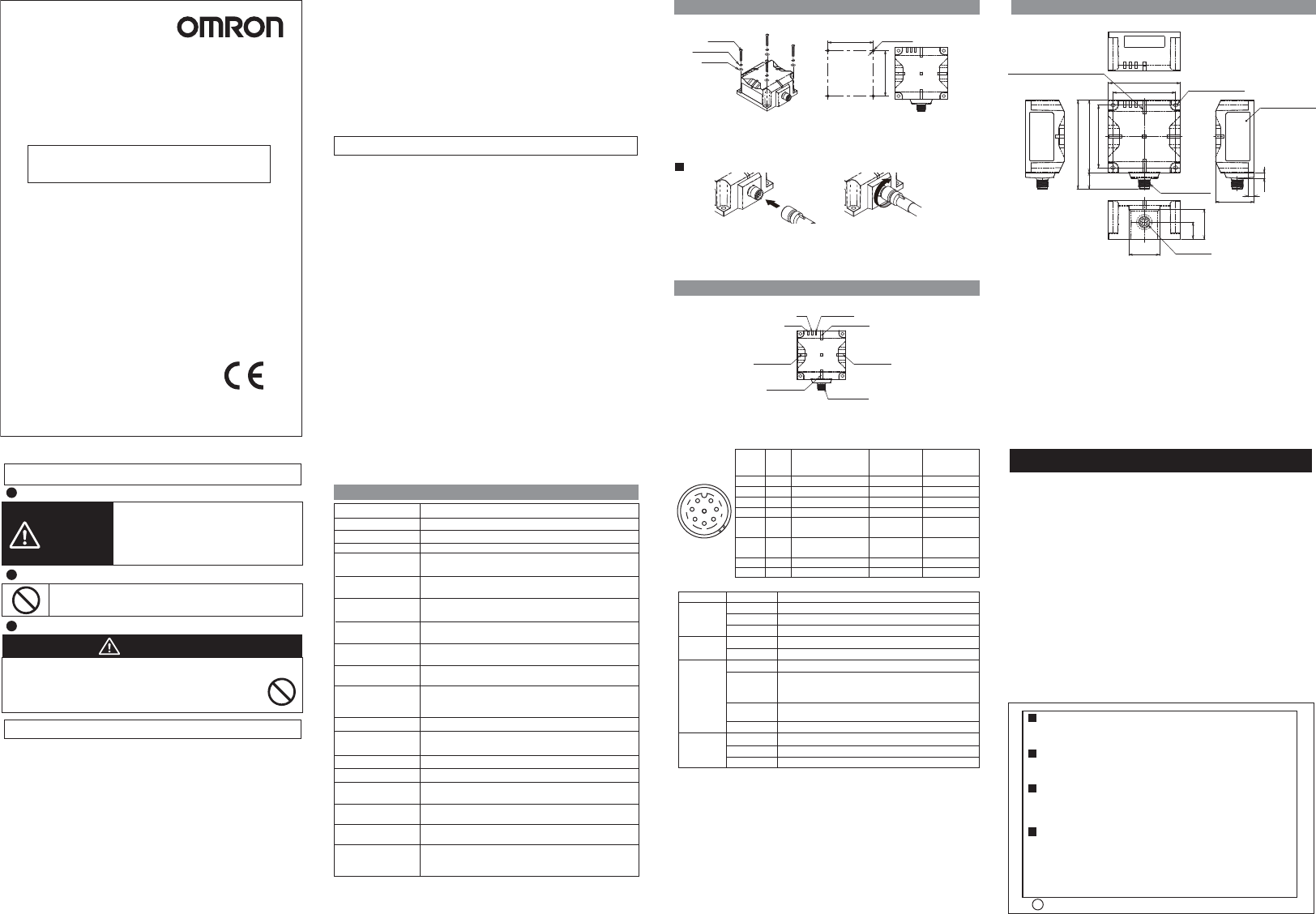

INSTRUCTION SHEET
Thank you for selecting OMRON product. This sheet pri-
marily describes precautions required in installing and
operating the product.
Before operating the product, read the sheet thoroughly to
acquire sufficient knowledge of the product. For your con-
venience, keep the sheet at your disposal.
OMRON Corporation
Suitability for Use
EUROPE
OMRON EUROPE B.V. Sensor Business Unit
Carl-Benz Str.4, D-71154 Nufringen Germany
Phone:49-7032-811-0 Fax: 49-7032-811-199
NORTH AMERICA
OMRON ELECTRONICS LLC
One Commerce Drive Schaumburg,IL 60173-5302 U.S.A.
Phone:1-847-843-7900 Fax : 1-847-843-7787
ASIA-PACIFIC
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road #05-05-08(Lobby 2),
Alexandra Technopark, Singapore 119967
Phone : 65-6835-3011 Fax :65-6835-2711
o
THE PRODUCTS CONTAINED IN THIS SHEET ARE NOT SAFETY RATED.
THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF
PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY
COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES.
Please refer to separate catalogs for OMRON's safety rated products.
OMRON shall not be responsible for conformity with any standards, codes, or
regulations that apply to the combination of the products in the customer's
application or use of the product.
Take all necessary steps to determine the suitability of the product for the
systems, machines, and equipment with which it will be used.
Know and observe all prohibitions of use applicable to this product.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING
SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE
SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS,
AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL
EQUIPMENT OR SYSTEM.
See also Product catalog for Warranty and Limitation of Liability.
CHINA
OMRON(CHINA) CO., LTD.
Room 2211, Bank of China Tower,
200 Yin Cheng Zhong Road,
PuDong New Area, Shanghai, 200120, China
Phone : 86-21-5037-2222 Fax :86-21-5037-2200
OCT, 2009
D
Manufacturer:
Omron Corporation,
Shiokoji Horikawa, Shimogyo-ku,
Kyoto 600-8530 JAPAN
Ayabe Factory
3-2 Narutani, Nakayama-cho,
Ayabe-shi, Kyoto 623-0105 JAPAN
TRACEABILITY INFORMATION:
Representative in EU:
Omron Europe B.V.
Wegalaan 67-69
2132 JD Hoofddorp,
The Netherlands
Item Specifications
Supply voltage 24 VDC (-15% to +10%)
Consumption surrent
0.2A max.
Ambient operating
temperature
Insulation resistance
20MΩ min.（with 500 VDC megohmmeter）
Between cable terminals and casing
Dielectric strengh 1000VAC,50/60Hz,1min
Between cable terminals and casing
Vibration resistanse
10 to 500 Hz, double amplitude: 1.5 mm,
Max. Acceleration: 100m/s2, with 10 sweeps for 11 min.
each in 3 directions
Shock resistance
Mechanical durability: 500m/s2, 3times each in 6 directions
Dimensions
Degree of protection
IP67 (IEC 60529)
Oil resistance equivalent to IP67F (JIS C 0920:2003, Appendix 1)
Material Case: PBT resin, Filled resin: Urethane resin
Mass Approx. 270 g
Mounting method M4 screws
Please use more than 12 mm of the screw length.
Ambient operating
humidity
25 to 85％RH(No dew condensation)
Host communication
interface
EtherNet 10/100BASE-T
1. Rating performance
Ambient storage
temperature
-25 to 70℃（No freezing.）
Ambient storage
humidity
25 to 85％RH(No dew condensation)
Host communication
protocol
MODBUS TCP
Accessory
75 × 75 × 40 mm (excluding protruding parts)
-10 to 55℃（No freezing.）
Instruction Seet: 1 sheet
Description of Regulations and Standard: 1 sheet
IP Address label: 1 sheet
(Unit ： mm)
4. Dimensions
3. Part Names and functions
2. Installation
Connector
NORM/ERR
LINK/ACT
RUN
RF
NORM/ERR NORM/ERR
NORM/ERR
Attaching Reader/Writer to the cable
1. Hold the cable connector, and insert the
cable connector into the Reader/Writer
connector.
2. Turn the threaded portion of the cable
connector clockwise to lock it in place.
Recommended tightening torque: 0.39 to 0.49 N・m
SAFETY PRECATIONS
Meaning of Signal Words
Warning
WARNING
These Products are not designed to be used either directly
or indirectly in applications that detect human presence for
the purpose of maintaining safety. Do not use these
Products as a sensing means for protecting human lives.
InIndicates a potentially hazardous situation
which, if not avoided, will result in minor or
moderateinjury, or may result in serious injury
or death. Additionally, there may be significant
property damage.
WARNING
Meaning of Alert Symbols
Indicates general prohibitions for which there is no
specific symbol.
・Use an exclusive cable as model V680S-A40, V680S-A41, or
V680S-A42.
3.
Using
・Do not bend the cable past a bending radius of 40 mm. The cable
may be disconnected.
・If you find an abnormal operation of the product, immediately stop
its operation and turn OFF the power supply. Consult with an
OMRON representative.
4.
Cleaning
・
Do not clean the Products with paint thinner, benzene, acetone, or kerosene.
5.
Disposing
・Dispose of the Products as industrial waste. Mount the Reader/Writer with four M4 screws with spring washers and flat washers
as shown above. Recommended tightening torque: 1.2 N
・m
M4 screw
Spring washer
Flat washer
65±0.2
65±0.2 Four, M4
Mounting Hole Dimensions
65
75(17) 92
65
75
32
31
17.5
5.9
6
40
Connector
M12 threaded
section
Seven, Operation indicators Four, 4.5-dia.
mounting holes
Standards label
（2）Status indicators
RUN
RF
Flashing green
green
yellow
ColorName
green
Flash while the Reader/Writer is operating in Safe mode.
Lighting while the Reader/Writer is operating normally.
Lighting during communication for RF Tag.
Description
Lighting when the communications finish with no error.
red
Lighting once when an error occurs during communications
with the host device, or during communications with an RF Tag.
Lighting when unrecoverable error occurs.
Flashing red Flash when recoverable error occurs.
(Configuration memory error, or Control signal wiring mistake, etc.)
LINK/ACT green Lighting during linking normaly.
NORM/ERR
Flashing green Flash during detects a carrier.
（1）Connector
The connector is used to connect the
exclusive cable as
model V680S-A40,
V680S-A41, or V680S-A42
.
1
2
3
4
5
6
7
8
1
2
3
4
5
FG
TD-
CONT
24P
RD+
Name
PIN No.
6
7
8
TD+
RD-
24N
Frame ground
Ethernet send data -
Control signal
+24V
Ethernet receive data +
Function
Ethernet send data +
Ethernet receive data -
0V
(Drain wire)
Orange
Purple
Brown
Green/White
(stripe)
Orange/White
(stripe)
Green
Blue
-
-
Purple
Brown
-
The color of the
wiring of the
V680S-A41.
-
-
Blue
The color of the
wiring of the
V680S-A42.
Not lit Turn off when power is not supplied.
Not lit Turn off when not in communication with the RF tags.
Not lit Turn off when the standby state.
Not lit Turn off when the ethernet cable is not connected.
法規と規格/Regulations and Standards
以下の海外法規、規格に対応しています。
The Products conform to the following regulations and standards.
2. カナダ/Canada
This device complies with Industry Canada Iicence-exempt RSS standards.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le
fonctionnement.
FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
1. 米国/The United States
FCC ID： E4EV680S64
FCC ID： E4EV680S66
リーダライタ/Reader/Writer
V680S-HMD64-ETN
V680S-HMD66-ETN
FCC Part 15 Subpart C
IC ID: 850J-V680S64
IC ID: 850J-V680S66
リーダライタ/Reader/Writer
V680S-HMD64-ETN
V680S-HMD66-ETN
