Introduction
page 4
1 Introduction
1.1 Concept
Easy Fuel combines Long-range and Proximity RF technologies offering a
revolutionary solution to gasoline management.
Long range RF communication between the station fueling controller and
the vehicles, combined with a short range proximity RF communication
between the vehicles and the fueling nozzles, enable quick and easy secured
controlled refueling transactions.
The RF communication replaces hardwired communication between station
components, hence greatly simplifying system installation at the gasoline
station and reducing the maintenance expenses.
For standard installations the RF frequency is in the range of 902-928MHz
as required by the applications.
For special applications which are reached with high power RFID systems
radiation (up to 4W between 902.5-927.5 MHz) a special off-
communication channel is selected at 902.1 MHz.
EF system comprises three elements:
• NID (Nozzle IDentification unit):
A very low power RF transmitter, mounted on the refueling
nozzles. The NID periodically transmit its ID when off
hook.
This ID is used to identify the specific requested nozzle to
the station controller.
• VID (Vehicle IDentification unit):
The VID is mounted in the vehicle.
It is connected to fuel inlet antenna to retrieve the Nozzle
ID and to an RF antenna to communicate with the SC.
• SC (Site Controller):
The SC is usually mounted at the station office.
It communicates with the vehicles VIDs via an RF antenna
and with the station controller via serial communication
line.
EasyFuel Version 1.00
Introduction
page 5
1.2 Operational Scenario.
When a nozzle is inserted into a vehicle fuelling inlet, the vehicle VID reads
the NID ID. Its Long-range transceiver communicates this nozzle ID,
together with the Vehicle ID, to the Site Controller.
The Site Controller transfers the NID and vehicle IDs information to the
station controller to approve the refueling.
When the nozzle is removed from the vehicle's fuel inlet, RF
communication between the vehicle tag and the nozzle tag is interrupted.
This information is transmitted to the Site Controller that routes it to the
station controller that disables the fuel flow to the specific nozzle.
EasyFuel Version 1.00
System Block Diagram
page 6
System Block Diagram
EasyFuel Version 1.00
System Components
page 7
2 System Components
2.1 SC - Site Controller
The SC serves as wireless access point to the vehicles VIDs. It receives
information from the vehicles' VIDs in the station and relays this
information to the station controller.
TB3
TB4
TB5
T
B
6
P
2
T
B
7
T
B
8
T
B
9
P
1
ANT
S
A
M
SC
OEM
Power
Module
L
N
110/230 VAC
VIN
VOUT
G
N
D
A
CA
C
R
X
T
X
G
N
D
DD*
S
C
N
RS485 RS232 VIN
RS232 Interface
to Host
SC Enclosure
G
N
D
A
CA
C
IN2
IN1
OUT2
OUT1
RF Antenna
ON
SW1
12345678

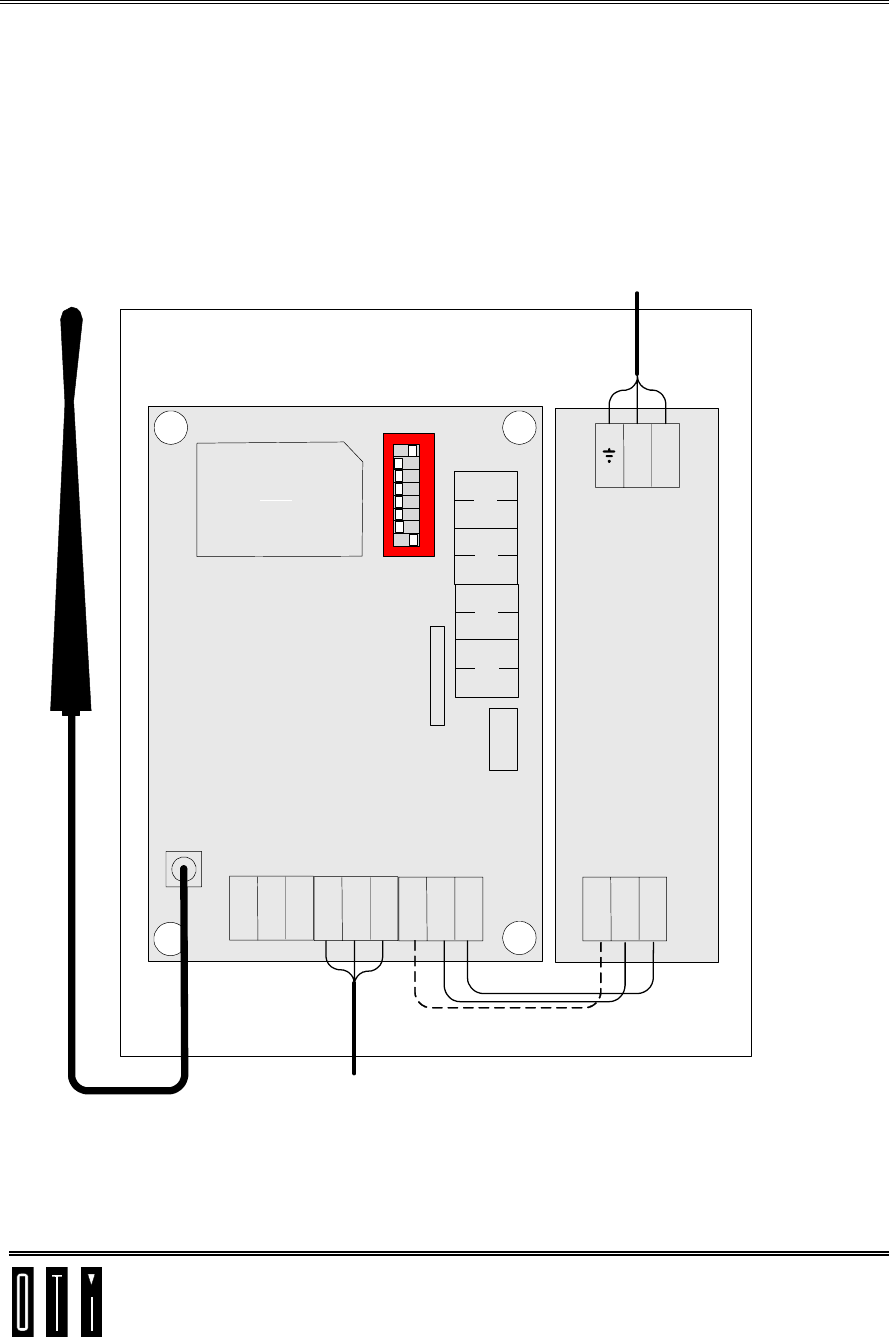

Figure 2-1: SC
EasyFuel Version 1.00
System Components
page 8
2.2 VID – Vehicle ID
The VID is installed in the vehicle and stores relevant vehicle data
The VID employs short and longer-range wireless communication systems:
• Proximity receiver reads nozzle ID during refueling.
• Longer-range communication transmits the VID and NID data
through the SC to the station controller.
VID
TB2 TB1
VCC
PLS
NID
ADJ
RC

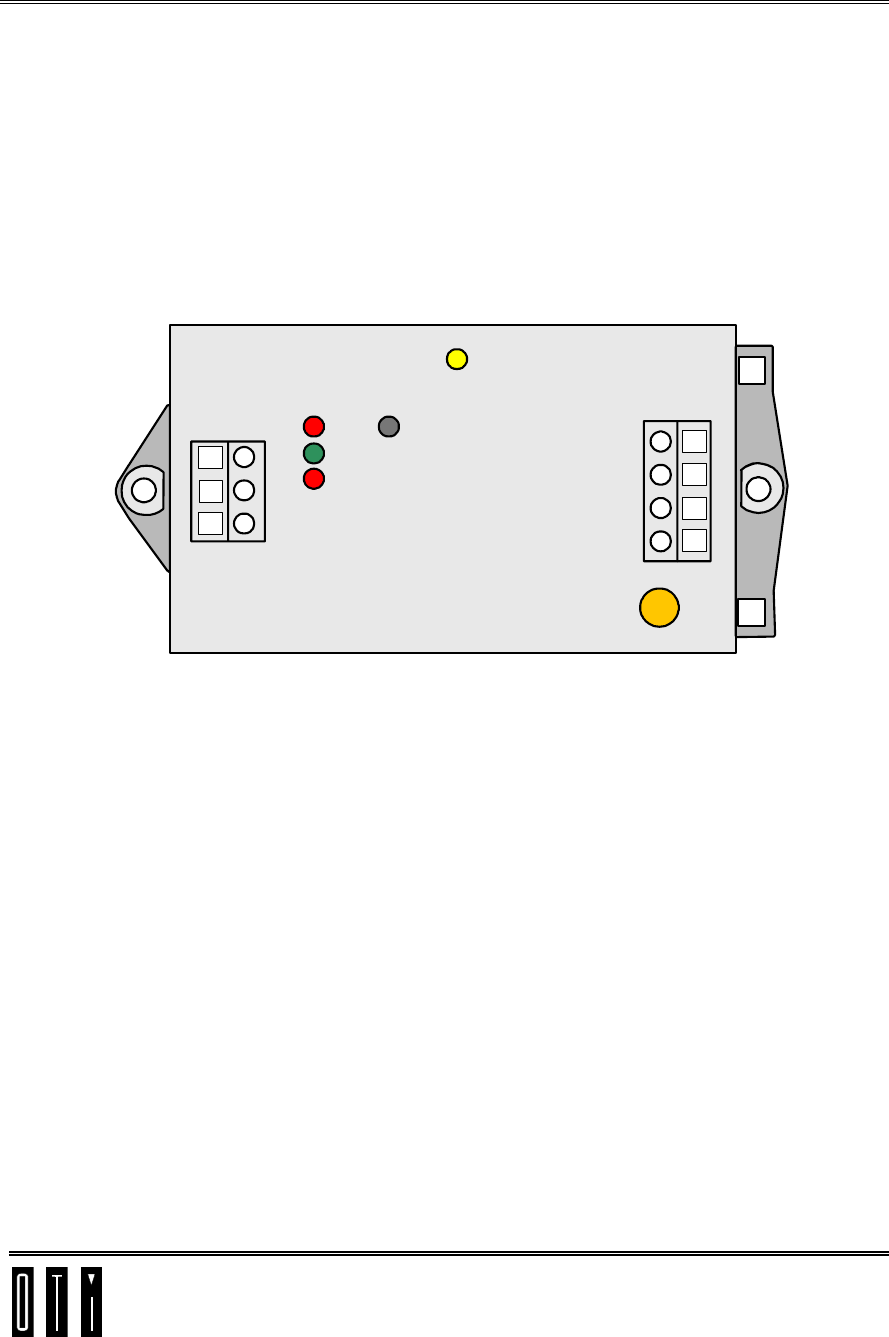

Figure 2-2: VID
EasyFuel Version 1.00
System Components
page 9
2.3 NID – Nozzle ID
The NID is attached to the fuel nozzle and identifies the nozzle to the
system. Its data is transmitted to the station controller through the VID and
the SC.
Nozzle ID placed
under Nozzle cover
Nozzle Spout
Nozzle cover
sleeve
Nozzle handle
Front
Front
Nozzle ID

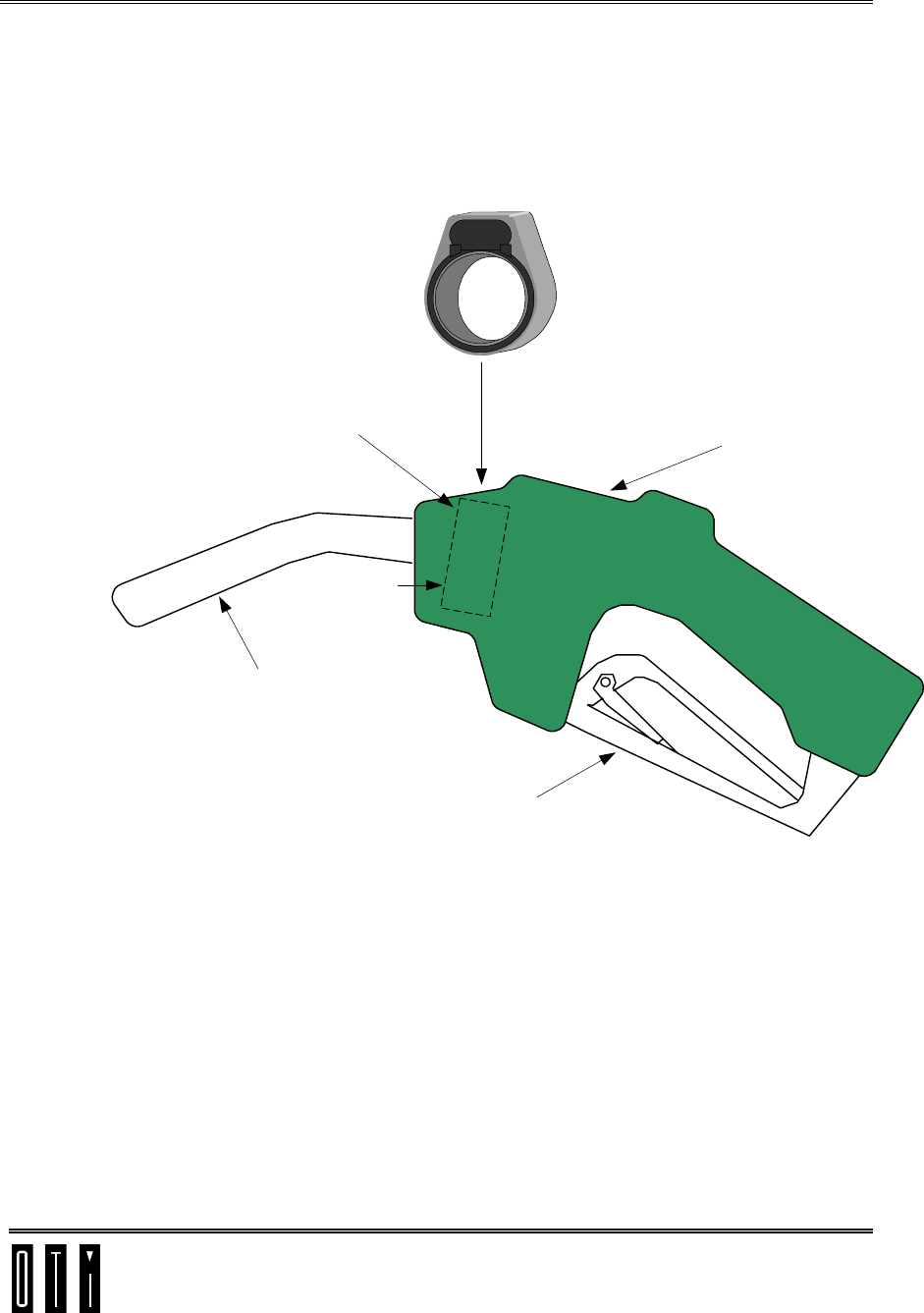

Figure 2-3: NID
