ES3001 MOISTURE METER
IMPORTANT SAFETY INSTRUCTIONS
Thank you for purchasing RYOBI™ Phone Works™
If you need assistance
DO NOT RETURN TO THE STORE
Please contact us at 1-877-578-6736
TM
TM
Do not expose device to rain or wet conditions. Water
entering a device will increase the risk of electric shock.
Use the device in accordance with these instructions
and in the manner intended for the device, taking into
account the environmental conditions and the work to
be performed. Use of the device for operations different
from those intended could result in a hazardous situation.
The electrode measurement pins are extremely sharp.
Use care when handling this device. Cover the pins with
the protective cap when the device is not in use.
Keep device away from children and do not allow them
to handle. Store in a secure area away from children.
Handle the device with care. Treat it as you would any
other optical device such as a camera or binoculars.
Avoid exposing the device to shock, continuous
vibration, or extreme hot or cold temperatures.
Damage to the device and/or serious injury to the user
could result.
Ensure the device is disconnected before inserting or
changing batteries.
Do not mix old and new batteries or different brands
of batteries.
Remove batteries from the device when not in use for
an extended time.
This app is optimized for:
iOS versions 6.0 and higher ∙ Android versions 4.0 and higher
For a full list of compatible phones please visit
www.ryobitools.com/phoneworks
995000xxx
6-26-18 (REV:01)
2 – English
SYMBOLS
Always replace the alkaline battery with the same type
of alkaline battery. Use of any other battery packs may
create a risk of injury and fire.
This device should not be operated unless the battery
compartment is closed.
Do not place battery devices or their batteries near
fire or heat. This will reduce the risk of explosion and
possibly injury.
Do not crush, drop or damage battery. Do not use
batteries that have been dropped or received a sharp
blow. A damaged battery is subject to explosion. Properly
dispose of a dropped or damaged battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
IMPORTANT SAFETY INSTRUCTIONS
serious personal injury, never use any battery device in
the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Under extreme usage or temperature conditions, bat-
tery leakage may occur. If liquid comes in contact with
your skin, wash immediately with soap and water. If
liquid gets into your eyes, flush them with clean water
for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious
personal injury.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this device. If you
loan someone this device, loan them these instructions
also.
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Puncture Hazard
The electrode measurement pins are extremely sharp. Use care
when handling this device. Cover the pins with the protective cap
when the device is not in use.
SYMBOL NAME DESIGNATION/EXPLANATION
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or
serious injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or
serious injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or
moderate injury.
NOTICE: (Without Safety Alert Symbol) Indicates information considered important, but
not related to a potential injury (e.g. messages relating to property damage).
3 – English
App images may vary.
FEATURES
YOU MAY USE THE MOISTURE METER FOR THE
FOLLOWING PURPOSES:
Measure approximate moisture levels in wood, concrete
and other materials as designated by the app
Capture, save, and share data images on your smartphone
Chart moisture levels over time on specific projects
Save and access previous projects
Record a voice note in saved projects

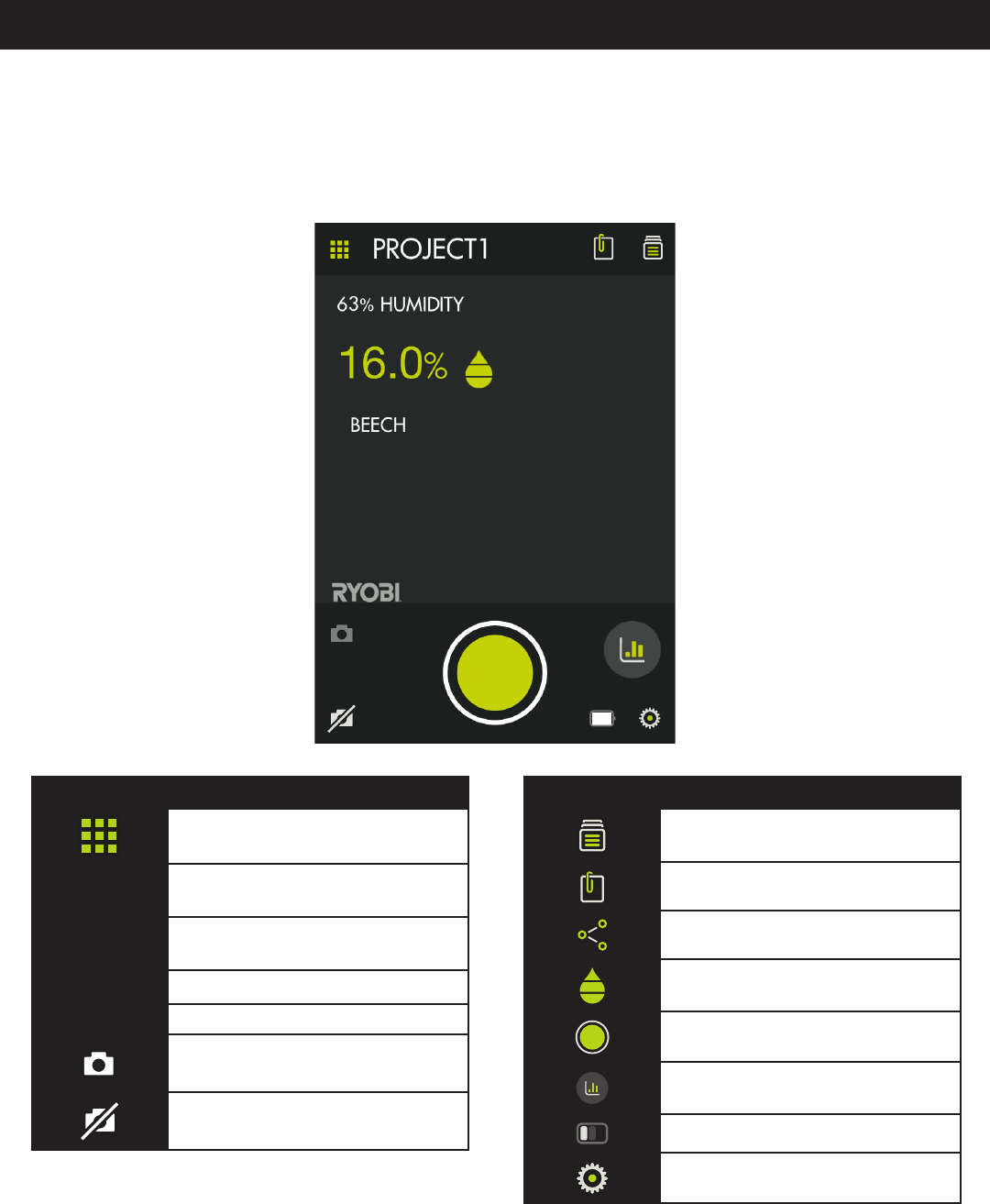

ICON DESCRIPTION/FUNCTION
Main RYOBI™ Phone Works™
app home screen
PROJECT 1 Project name (displays current
project name)
63% HUMIDITY Current outdoor relative
humidity in your area
16.0% Measured moisture content
BEECH Select material
Turn camera on
Turn camera off
ICON DESCRIPTION/FUNCTION
Save or access projects in file
cabinet
Notes
Share
Quick reference scale
Take a picture
Graph moisture levels
Device battery level
Settings
4 – English
App images may vary.
WARNING:
Do not use this product if it is not completely assembled
or if any parts appear to be missing or damaged. Use of
a product that is not properly and completely assembled
or with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
If any parts are damaged or missing, please call 1-877-578-6736 for assistance.
ASSEMBLY
OPERATION
INSTALLING/REPLACING THE AAA BATTERY

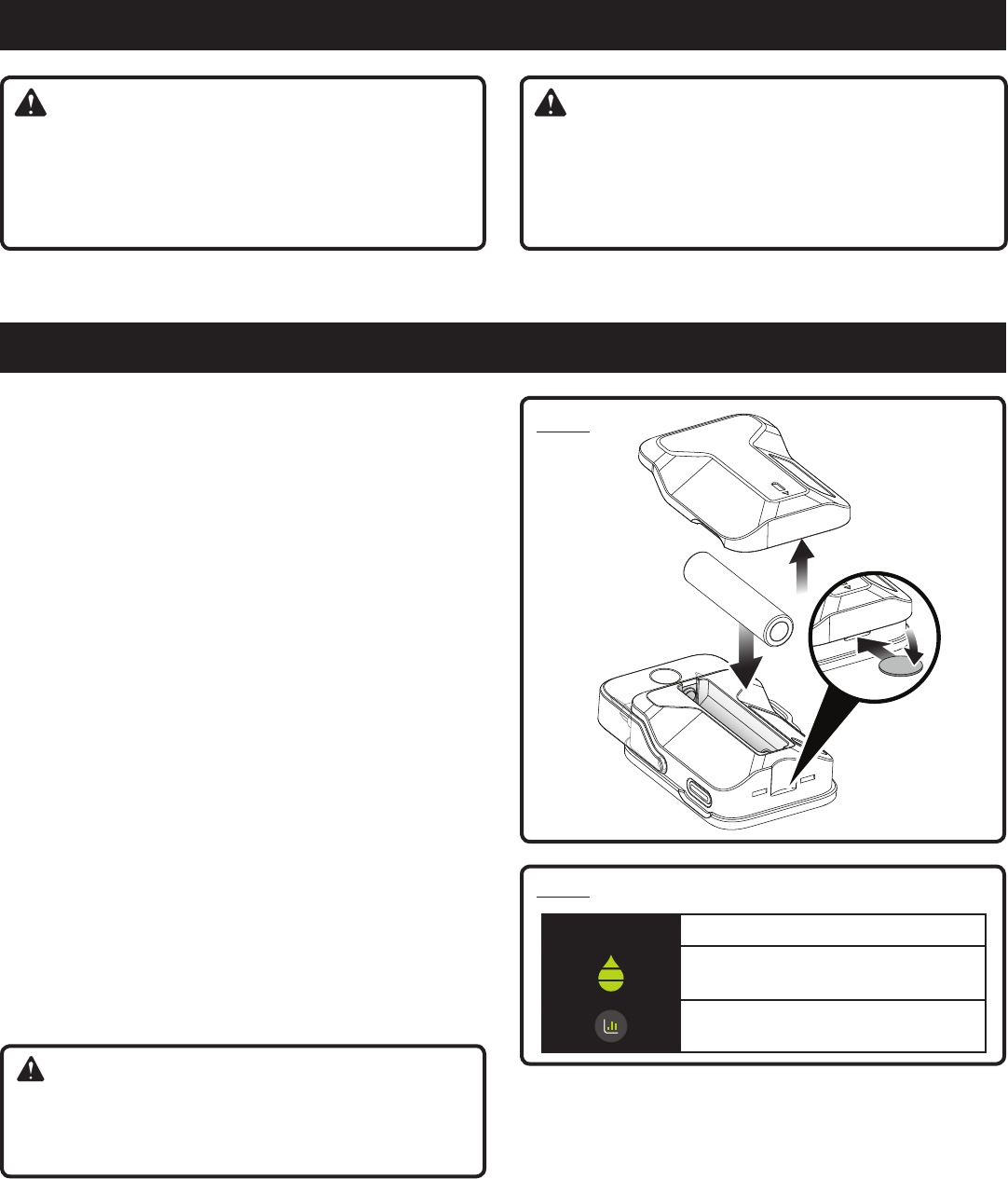

See Figure 1.
One AAA battery is preinstalled in the unit. Before first use,
locate and remove the red pull tab to activate the battery.
Remove the battery cover by inserting the edge of a coin
into the slot on the bottom and twisting.
Install the battery according to the polarity indicators.
Replace the battery cover, making sure the notches
align, and press it securely into place.
Do not use the product without the battery cover in-
stalled.
NOTE: Remove the battery for storage when device will
not be used for long periods of time.
PAIRING THE DEVICE TO YOUR SMARTPHONE
Select and open the RYOBI™ Phone Works™ app.
Open the MOISTURE METER app segment.
Press and hold the ON/OFF button until the LED light
starts to flash.
Select the moisture meter under the list of devices
shown on the app.
NOTE: If you do not see the moisture meter listed, se-
lect scan in the app. Select the device.
USING THE MOISTURE METER
See Figure 2.
WARNING
:
The electrode measurement pins are extremely sharp.
Use care when handling this device. Cover the pins with
the protective cap when the device is not in use.
Select and open the RYOBI™ Phone Works™ app.
Tap Material on the app screen and choose the applica-
ble material from the list.
Remove the electrode cover.
Insert the electrode measurement pins into the material.
Allow a few seconds for the device to process the mea-
surement.
QUICK REFERENCE SCALE
Shows the moisture level at a glance:
GREEN: Selected material is suitably dry for its intended
purpose.
YELLOW: Moisture content is higher than normal, but
may be acceptable for use.
RED: Moisture content is too high for most purposes.
Fig. 1
BEECH Select material
Quick reference scale
Graph moisture levels
Fig. 2
5 – English
TAKING A PICTURE
The RYOBI™ Phone Works™ app allows you to take a pic-
ture of the screen to save for future reference or share via
email or social media. This function captures all settings
displayed on the current screen. It will work with or without
activating the smartphone’s built-in camera.
Tap the appropriate camera icon in the lower left portion
of the screen.
Tap the large green button to take the picture on the
screen.
The picture just taken will appear on the screen.
To save, swipe the picture toward the file cabinet.
To delete, swipe to the right and the picture will be delet-
ed.
NOTE: Pictures will be saved into the project name. To
save into another project, see Managing Your Projects
below.
Multiple pictures can be saved into each project.
MANAGING YOUR PROJECTS

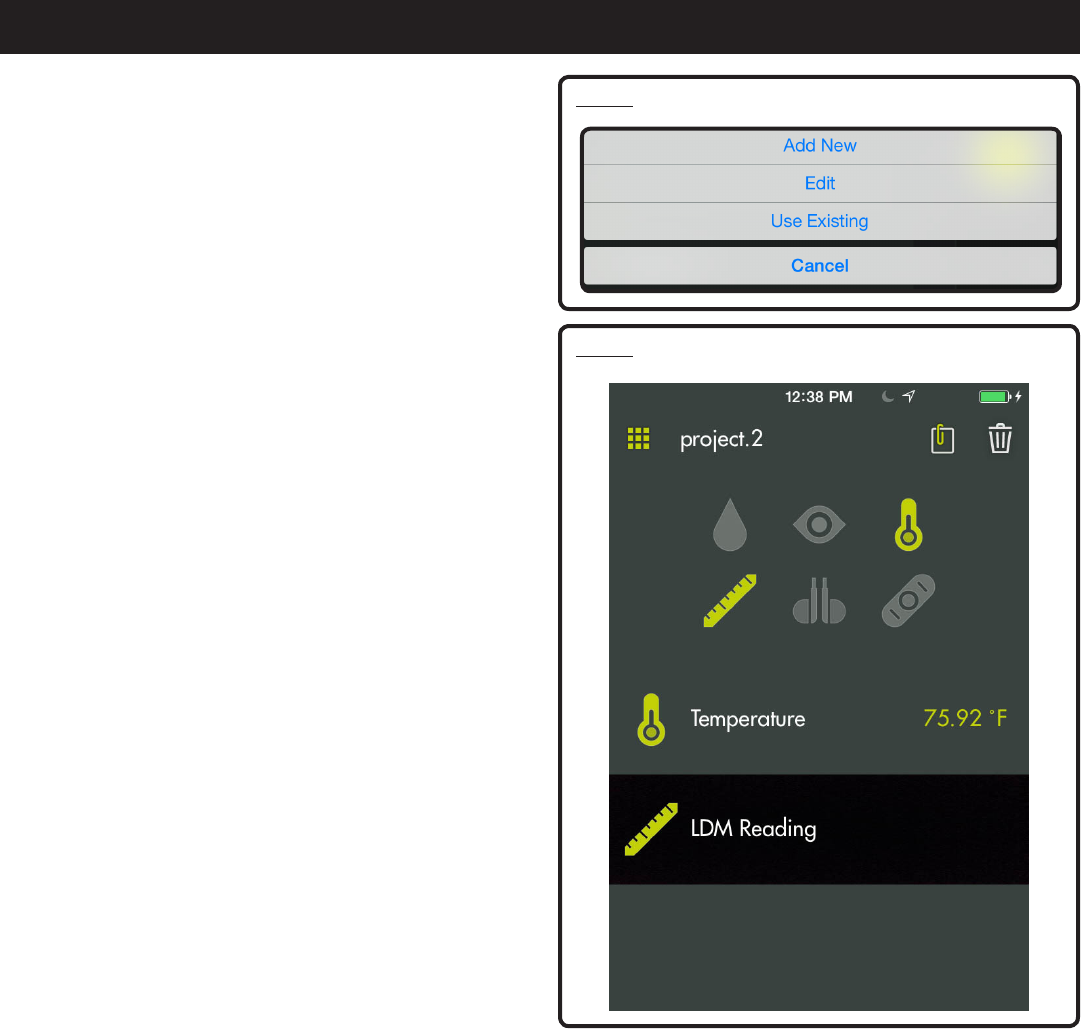

See Figure 3.
To edit, delete or share your images:
Tap the project name. A menu appears displaying Add New,
Edit, Use Existing or Cancel.
Add New
Tap Add New and enter the name of your new project.
Tap Done to return to the screen. Any screen shots
or images saved will be stored under this new project
name.
To review images, tap the file cabinet icon in the lower
left corner of the screen. Tap the image to display the
saved screenshot.
NOTE: If no images have been saved, you will receive a
notice that no readings are available in this project. You
must save an image before you can open to review.
Edit
Delete or add characters in the open project name and
type in a new or revised name for your project.
Use Existing
Scroll through the list of project names and select the
one you wish to access.
Tap Done to load the project.
CREATING NOTES
Tap the notes icon. A menu appears displaying Photos,
Audio Memo, Location and Notes.
Tap plus (+) for Photos to take a picture in the selected
project or to view current photos.
OPERATION
Tap plus (+) for Audio Memo to record a voice memo
in the selected project. Tap the green button to begin
recording. Tap again to stop.
Tap plus (+) for Location and select Use Current Lo-
cation to record your current location in the selected
project. To edit or manually enter the location, tap plus
(+) again to access the keyboard.
Tap plus (+) for Notes to access the notes screen. Tap
plus (+) again to access the keyboard.
Fig. 3
Fig. 4
App images may vary.
6 – English
SHARING NOTES
Select the share icon .
Select the share icon on each piece of data you wish to
share.
Select the share method.
PROJECT FOLDER SUMMARY
See Figure 4.
The file cabinet may be accessed from the RYOBI™
Phone Works™ home screen or from any app segment.
Accessing the file cabinet from the home screen will dis-
play all projects and icons representing the app segments
used for each project.
PROJECT SUMMARY
See Figure 5.
Accessing the file cabinet from within a project will display
the app segments containing photos or data.
Tap an icon to select or deselect an app segment within a
project. When an app segment is selected, stored items
will be visible.
Tap a stored item to preview its details.
SHARING PROJECTS
See Figure 6.
To share the picture, tap the share icon ( ) to the right
of Preview. A blank email opens with the image attached.
Tap Cancel to save the email as a draft or delete the draft.
Sending the email returns you to the Preview screen.
To exit preview, tap the arrow to the left of Preview.
DELETING PROJECTS
See Figure 7.
To delete a project view, tap the trash can icon. Tap the
project view(s) you wish to delete. A red trash can ap-
pears next to each item you have selected to delete. Tap
DELETE . Tap delete again to remove the item.
OPERATION
Fig. 5
App images may vary.
Fig. 6
Fig. 7
To delete an entire project across multiple devices, return
to the RYOBI™ Phone Works™ home screen. Select the
file cabinet icon and then select the project you wish to
delete. Swipe to reveal the DELETE option and select
DELETE.
7 – English
CHART MOISTURE LEVELS
Automatically chart recorded moisture levels within
the selected project.
GLOBAL SETTINGS/SETTINGS

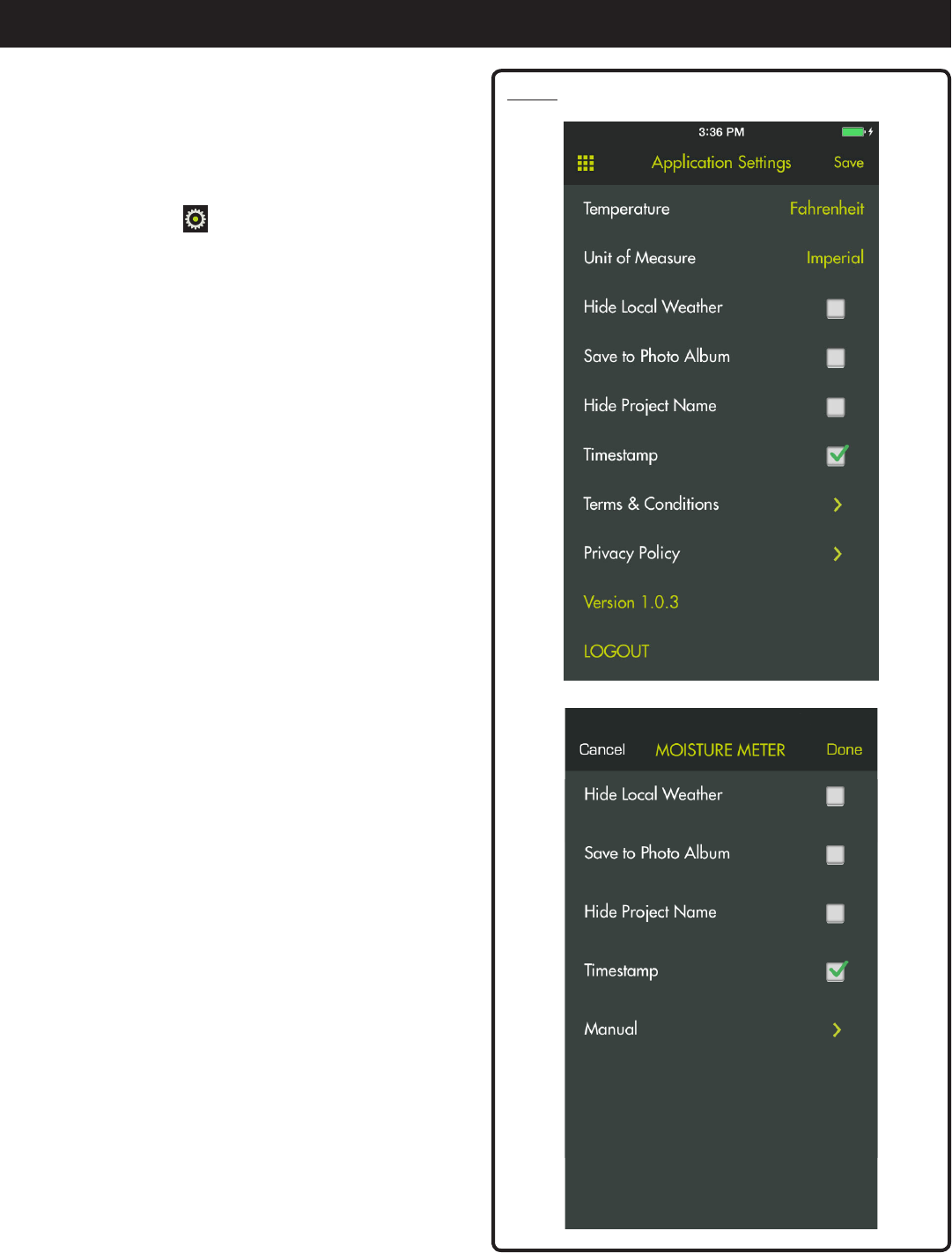

See Figure 8.
Tap the Settings icon on the RYOBI™ Phone
Works™ home screen to make changes based on your
preferences.
Settings specific to some app segments can only be
changed within the app segment.
Tap Save to apply changes.
You may also LOGOUT from this screen, view the Terms
and Conditions, and view the Privacy Policy.
OPERATION
Fig. 8
8 – English
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts could create a hazard or cause
product damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
STORAGE
Store in a cool, dry location to prevent condensation or
mold from forming inside the product.
Do not store the device at temperatures greater than 122º F
(such as on a dashboard or vehicle interior).
BATTERY RECYCLING
Consult the Earth 911 website (www.earth911.com) or your
local waste authority for information regarding available
recycling and/or disposal options.
WARNING:
Do not attempt to destroy or disassemble batteries or
remove any of their components. All batteries must be
recycled or disposed of properly. Do not discard large
amounts of used batteries together. “Dead” batteries
often have residual charge. When grouped together, these
batteries can become “live” and pose a risk of possible
serious injury.
MAINTENANCE
FCC COMPLIANCE
NOTE: This device complies with part 15 of the FCC RULES and Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for
compliance. Such modifications could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum
(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,
the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
BLUETOOTH® LICENSE STATEMENT
The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by TECHTRONIC POWER TOOLS TECHNOLOGY LIMITED is under license. Other trademarks and trade names are
those of their respective owners.
9 – English
RYOBI™ Phone Works™– LIMITED 1 YEAR WARRANTY
One World Technologies, Inc., warrants its RYOBI™ Phone Works™ products with the following conditions:
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI™ Phone
Works™ for a period of one year from the date of purchase.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover wearable parts, malfunction, failure or defects
resulting from misuse, abuse, neglect, alteration, modification or repairs by other than RYOBI™ Phone Works™ Service De-
partment. One World Technologies, Inc. makes no warranties, representations or promises as to the quality or performance
of its power tools other than those specifically stated in this warranty.
HOW TO GET SERVICE: Return the RYOBI™ Phone Works™ Item to RYOBI™ Phone Works™ Service Department at the
address below, freight prepaid. Insurance is required.
RYOBI™ Phone Works™ Service Department
P.O. Box 1288,
Anderson, SC 29622
When you request warranty service, you must also present proof of purchase documentation, which includes the date of
purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace any defective part,
at our option. We will do so without any charge to you. We will complete the work in a reasonable time, but, in any case,
within ninety (90) days or less.
For any additional questions or customer service please contact RYOBI™ Phone Works™ at 1-877-578-6736 or by logging
on to www.ryobitools.com/phoneworks.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to three years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARRANTY
