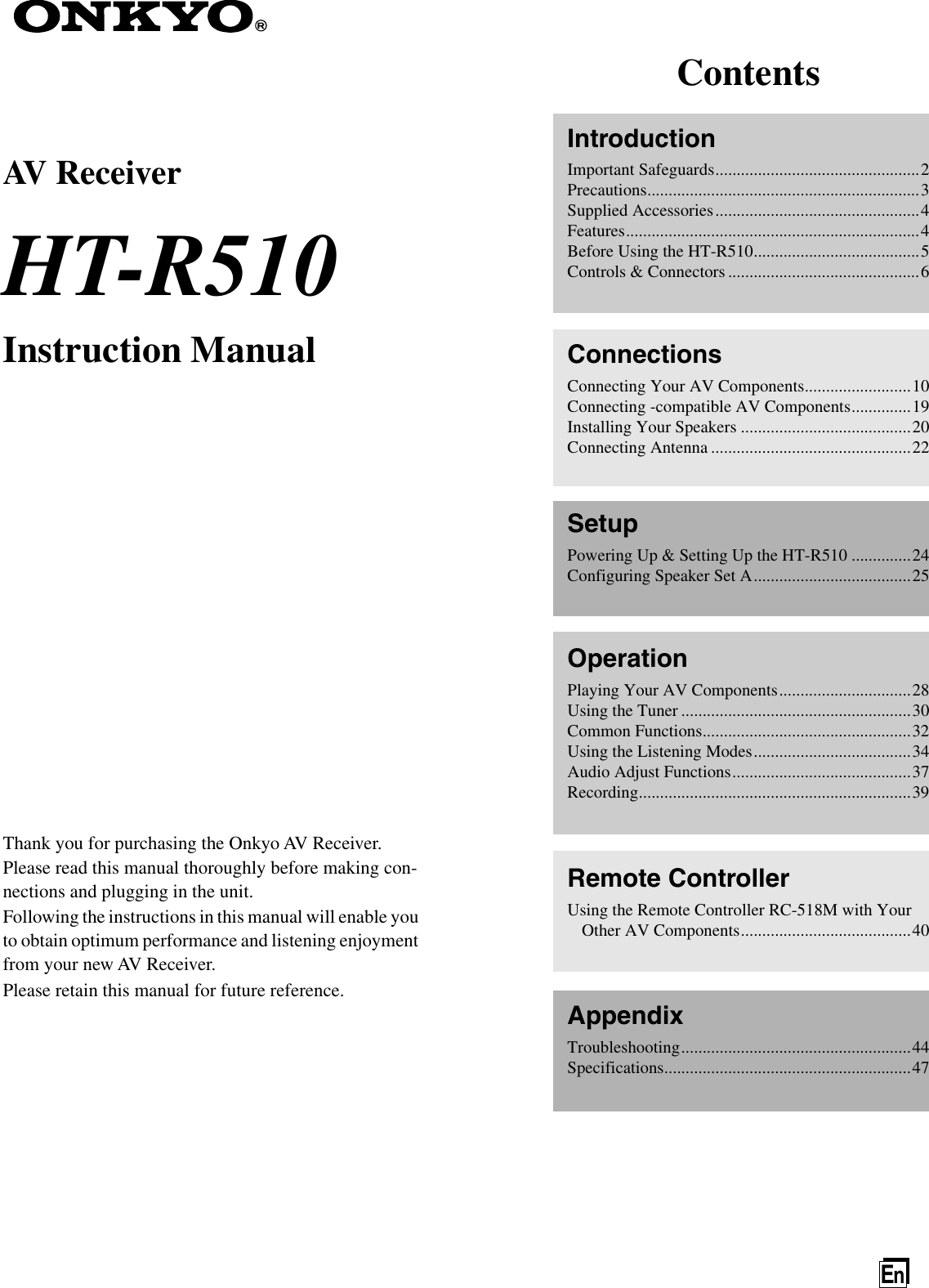

AV Receiver HT-R510 Instruction Manual Thank you for purchasing the Onkyo AV Receiver. Please read this manual thoroughly before making con-nections and plugging in the unit.Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference. Contents Introduction Important Safeguards................................................2Precautions................................................................3Supplied Accessories................................................4Features.....................................................................4Before Using the HT-R510.......................................5Controls & Connectors .............................................6 Connections Connecting Your AV Components.........................10Connecting -compatible AV Components..............19Installing Your Speakers ........................................20Connecting Antenna ...............................................22 Setup Powering Up & Setting Up the HT-R510 ..............24Configuring Speaker Set A.....................................25 Operation Playing Your AV Components...............................28Using the Tuner ......................................................30Common Functions.................................................32Using the Listening Modes.....................................34Audio Adjust Functions..........................................37Recording................................................................39 Remote Controller Using the Remote Controller RC-518M with Your Other AV Components........................................40 Appendix Troubleshooting......................................................44Specifications..........................................................47 En

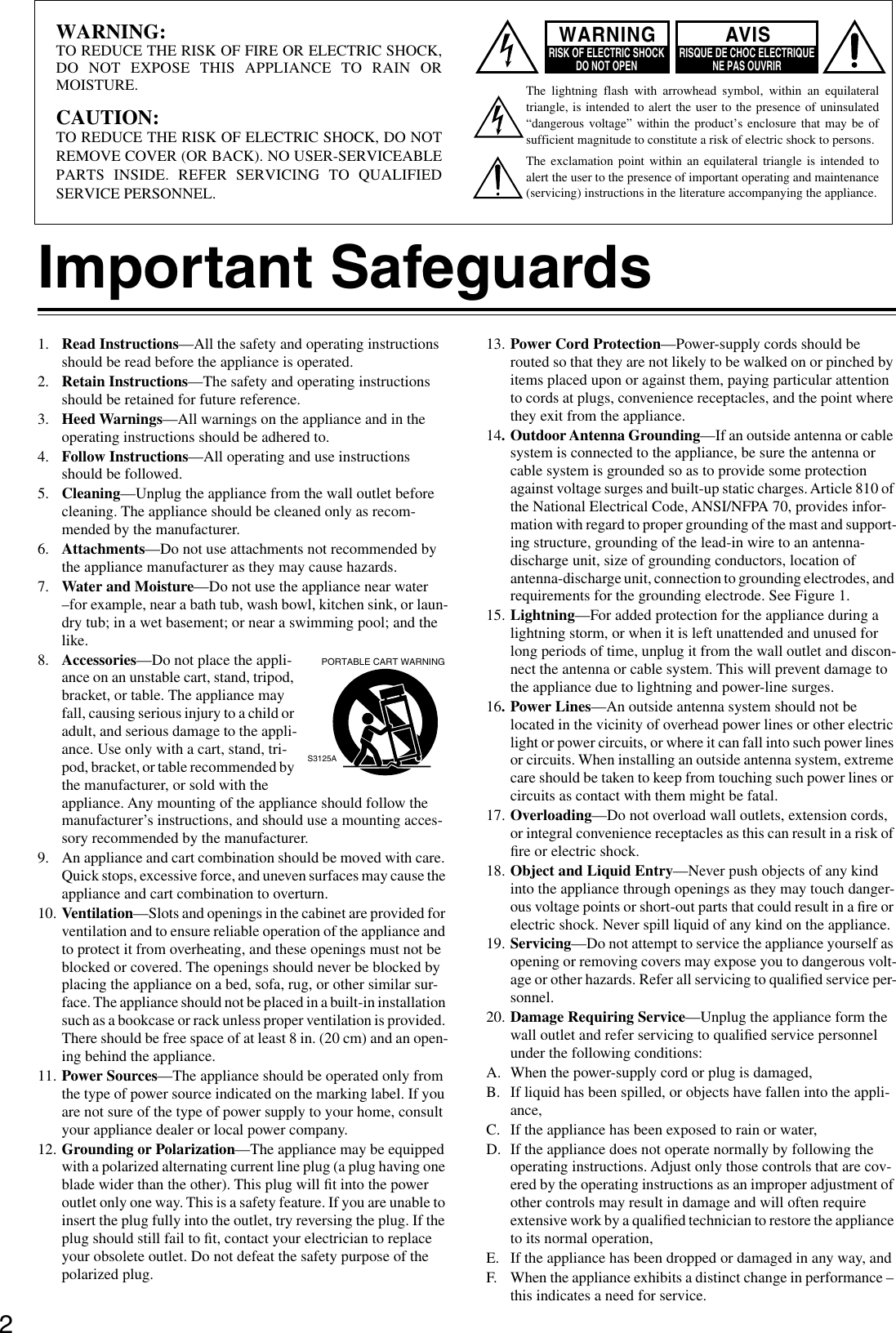

2 Important Safeguards 1. Read Instructions —All the safety and operating instructions should be read before the appliance is operated.2. Retain Instructions —The safety and operating instructions should be retained for future reference.3. Heed Warnings —All warnings on the appliance and in the operating instructions should be adhered to.4. Follow Instructions —All operating and use instructions should be followed.5. Cleaning —Unplug the appliance from the wall outlet before cleaning. The appliance should be cleaned only as recom-mended by the manufacturer.6. Attachments —Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.7. Water and Moisture —Do not use the appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laun-dry tub; in a wet basement; or near a swimming pool; and the like.8. Accessories —Do not place the appli-ance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall, causing serious injury to a child or adult, and serious damage to the appli-ance. Use only with a cart, stand, tri-pod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manufacturer’s instructions, and should use a mounting acces-sory recommended by the manufacturer.9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.10. Ventilation —Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar sur-face. The appliance should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 8 in. (20 cm) and an open-ing behind the appliance.11. Power Sources —The appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company.12. Grounding or Polarization —The appliance may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will ﬁt into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to ﬁt, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.13. Power Cord Protection —Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.14 .Outdoor Antenna Grounding —If an outside antenna or cable system is connected to the appliance, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides infor-mation with regard to proper grounding of the mast and support-ing structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.15. Lightning —For added protection for the appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and discon-nect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.16 .Power Lines —An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.17. Overloading —Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁre or electric shock.18. Object and Liquid Entry —Never push objects of any kind into the appliance through openings as they may touch danger-ous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the appliance.19. Servicing —Do not attempt to service the appliance yourself as opening or removing covers may expose you to dangerous volt-age or other hazards. Refer all servicing to qualiﬁed service per-sonnel.20. Damage Requiring Service —Unplug the appliance form the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the appli-ance,C. If the appliance has been exposed to rain or water, D. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are cov-ered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the appliance to its normal operation,E. If the appliance has been dropped or damaged in any way, andF. When the appliance exhibits a distinct change in performance – this indicates a need for service.WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNINGRISK OF ELECTRIC SHOCKDO NOT OPENRISQUE DE CHOC ELECTRIQUENE PAS OUVRIRAVISPORTABLE CART WARNINGS3125A
