2015 NEW PRODUCT RELEASE

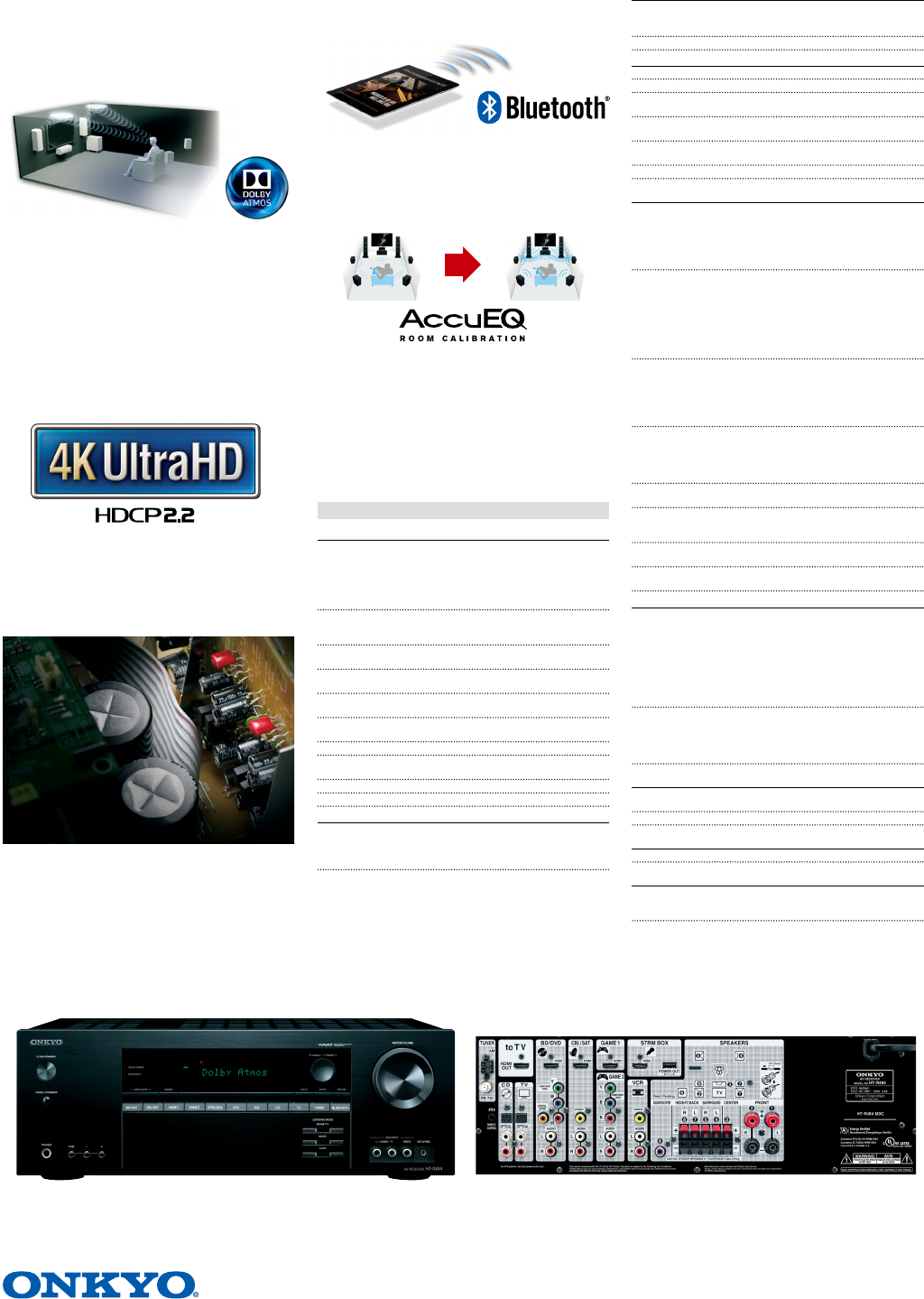

HT-S5800
5.1.2-Channel Dolby Atmos® Home Theater Package
Movie Night Will Change Forever
What an awesome way to experience game-changing Dolby Atmos® sound! Everything you need to create a face-melting entertainment system is
right here in one simple package, starting with a 115 W/Ch A/V receiver that connects all your media players and sends video to the TV via a single
HDMI® cable—from your old analog game consoles to the latest 4K/60 Hz video with 4:4:4 color space and 21:9 cinema aspect. Want full Smart
TV capabilities? Plug a media streaming stick into the rearside STRM Box port and enjoy a wealth of audio and video streaming apps. Once you’ve
connected the speaker system—which allows multidimensional Atmos soundtracks to ow above and around you—AccuEQ optimizes the sound
to suit the unique shape of your room. We’ve also included Bluetooth technology so you can hear streamed audio with Onkyo’s legendary clarity
and dynamism. Unleash tomorrow’s entertainment at home today!
• Supports Dolby Atmos® up to 5.1.2 Channels
(Speakers Included)
• 115 W per Channel
• HDMI® 4 In / 1 Out
(4K UltraHD / HDCP 2.2 / 4:4:4)
• Pure Driving Power from Discrete Amp
Technology
• Bluetooth Wireless Audio Streaming
• Simple Rear Panel Layout for Easy Connection
HT-R494 7.1-Channel A/V Receiver
• 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD,
1 Channel Driven, FTC);
65 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.7% THD,
2 Channels Driven, FTC)
• 4K/60 Hz-Capable HDMI® Terminals with 4:4:4 Color
Space for UltraHD Entertainment (4 In/1 Out)
• Bluetooth Version 2.1 + EDR Capability (Compatible
Prole: A2DP v1.2, AVRCP v1.3)
• Advanced Music Optimizer to Improve Compressed
Digital Audio Quality (Bluetooth Audio Included)
• Phase-Matching Bass Boost for Deep Bass and Clear
Mid-Range
• AccuEQ Room Acoustic Calibration
• WRAT (Wide Range Amplier Technology)
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology for S/PDIF Audio
• Dolby® TrueHD and DTS-HD Master Audio™ Decoding
• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby Atmos®,
Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio,
Super Audio CD, Multichannel PCM, and CEC
• TI Burr-Brown 192 kHz/24-bit DAC for All Channels
• Advanced 32-bit DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• CinemaFILTER™
• Direct Mode
• Double Bass Function
• Non-Scaling Conguration
• A-Form Listening Mode Memory
• STRM Box Port (Rear) for Powering Media
Streaming Sticks
• 2 Component Video Inputs (Rear)
• 3 Composite Video Inputs (1 Front/2 Rear)
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 7 Analog Audio Inputs (1 Front/6 Rear)
• Subwoofer Pre-Out
• Headphone Jack
• Crossover Adjustment
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control
(Up to 500 ms in 10 ms Steps at 48 kHz)
• Overlaid On-Screen Display (OSD) via HDMI with
Quick Set-Up
• HDMI Passthrough Function
• Tone Control (Bass/Treble) for Front L/R Channels
• 3-Mode Display Dimmer (Normal/Dim/Dimmer)
• 40 FM/AM Random Presets
• RIHD (Remote Interactive Over HDMI)
for System Control
• Full-Function RI (Remote Interactive) Remote Control
HTP-594
5.1.2-Channel Home Theater Speaker System
SKF-594
2-Way Bass Reex Front Speakers/Full-Range Acoustic-
Suspension Height Speakers
• 5˝ (12 cm) Cone Woofer
• 1˝ (2.5 cm) Balanced-Dome Tweeter
• 3 1/4˝ (8 cm) Cone
(Separately Powered By Height Channel)
• Max. Input Power: 130 W
• Wall-Mounting Capability
SKC-594
2-Way Bass Reex Center Speaker
• 3 1/4˝ (8 cm) Cone Woofer x 2
• 1˝ (2.5 cm) Balanced-Dome Tweeter
• Max. Input Power: 130 W
• Wall-Mounting Capability
SKR-594
Full-Range Acoustic-Suspension Surround Speakers
• 3 1/4˝ (8 cm) Cone
• Max. Input Power: 130 W
• Wall-Mounting Capability
SKW-593
Bass Reex Powered Subwoofer
• 10˝ (25 cm) Cone
• Rated Output Power: 120 W
(Minimum Continuous Power, 4 Ohms, 100 Hz, 1%, FTC)
• Energy-Saving High Power Amplier
• Down-Firing Design
HIGHLIGHTS
BLACK
HT-S5800 5.1.2-Channel Dolby Atmos® Home Theater Package
Due to a policy of continuous product improvement, Onkyo reserves the right to change specications and appearance without notice. Manufactured under license from Dolby Laboratories. Dolby, Atmos, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. For
DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. HDMI, the
HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. WRAT, Music Optimizer, CinemaFILTER, Theater-
Dimensional, and AccuEQ are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.
NPR No. 15N18 05/15
http://www.onkyo.com/ Copyright © 2015 Onkyo Corporation. All rights reserved.
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 120 V~, 60 Hz
Power Consumption 4.3 A
No-Sound Power Consumption
80 W
Standby Power Consumption
0.1 W
Dimensions (W x H x D) 17
1/8˝ x 6 5/16˝ x 12 15/16˝
(435 x 160 x 328 mm)
Weight 17.2 lbs. (7.8 kg)
SPEAKER SYSTEM
Speaker Type
Front 2-Way, Bass Reex
Height Full-Range, Acoustic-Suspension
Center 2-Way, Bass Reex
Surround Full-Range, Acoustic-Suspension
Subwoofer Bass Reex, Powered
Drivers
Front 5˝ (12 cm) Cone Woofer
1˝ (2.5 cm) Balanced-Dome Tweeter
Height 3 1/4˝ (8 cm) Cone
Center 3 1/4˝ (8 cm) Cone Woofer x 2
1˝ (2.5 cm) Balanced-Dome Tweeter
Surround 3 1/4˝ (8 cm) Cone
Subwoofer 10˝ (25 cm) Cone
Frequency Response
Front 55 Hz–50 kHz
Height 80 Hz–20 kHz
Center 65 Hz–50 kHz
Surround 80 Hz–20 kHz
Subwoofer 25 Hz–150 Hz
Output Sound Pressure Level
Front 83 dB/W/m
Height 81 dB/W/m
Center 86 dB/W/m
Surround 81 dB/W/m
Max. Input Power Front/Height/Center/Surround
130 W
Rated Output Power
Subwoofer 120 W (Minimum Continuous Power,
4 Ohms, 100 Hz, 1%, FTC)
Nominal Impedance Front/Height/Center/Surround
6 Ohms
Input Sensitivity/Impedance
Subwoofer 540 mV/20 k-ohms
General
Dimensions (W x H x D)
Front/Height 6 1/8˝ x 18 3/8˝ x 7 3/16˝
(155 x 467 x 183 mm)
Center 6 1/8˝ x 4 1/2˝ x 4 3/4˝
(409 x 115 x 121 mm)
Surround 4
1/2˝ x 9 1/16˝ x 3 3/4˝
(115 x 230 x 96 mm)
Subwoofer 12 1/2˝ x 18 1/4˝ x 15 11/16˝
(317.5 x 463 x 398 mm)
Weight
Front/Height 7.9 lbs. (3.6 kg)
Center 4.9 lbs. (2.2 kg)
Surround 2.2 lbs. (1.0 kg)
Subwoofer 21.2 lbs. (9.6 kg)
CARTON
Dimensions (W x H x D) 30 3/8˝ x 33 11/16˝ x 20 1/4˝
(772 x 855 x 514 mm)
Weight 77.2 lbs. (35 kg)
UPC CODE
(B) 751398012273
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker setup microphone
• Color-coded speaker cables • Subwoofer cable • Instruction manual
• Remote controller • AA (R6) batteries x 2
Extraordinary Dolby Atmos®
Dolby Atmos transports you into an extraordinary surround
sound experience with captivating multidimensional sound
objects that ll your room and ow all around you. This
7.1-channel receiver powers a 5.1.2-channel Dolby Atmos
speaker setup: 5.1 standard surround conguration plus two
height channels inside the front speakers.
Top Quality Speaker System
Onkyo knows a thing or two about building great speakers,
having almost 70 years’ experience in Hi-Fi. The included
speaker package features precision drivers housed in solid
cabinets—the front speakers also housing up-ring height
drivers that unlock the magic of Dolby Atmos.
HDMI® 4 In / 1 Out for UltraHD
All HDMI terminals support the latest TV video displays,
and HDCP 2.2 copy protection encoded in content from
movie studios, broadcasters, and streaming services, for next-
generation UltraHD.
True Power from Discrete Ampliers
Discrete amps deliver high instantaneous current to increase
speaker control for accurate and dynamic audio reproduction.
This precise power is the cornerstone of Onkyo’s amplication
philosophy.
Bluetooth Audio Streaming
Stream virtually any audio from your smartphone, tablet, or
PC to your home cinema for clear and powerful sound.
AccuEQ Room Acoustic Calibration
AccuEQ measures and corrects speaker distances, output
levels, crossover frequencies, and frequency response from one
quick and easy listening position to ensure clear and balanced
surround-sound.
HDMI Video Up-Conversion
Only one wire! Every video signal is converted and sent to
your TV through one HDMI cable.
Ready for Streaming Media Devices
The handy STRM Box port supplies power to streaming media
players. Keep up with your video subscription services and
other programs streamed from the Internet.
SPECIFICATIONS
A/V RECEIVER
Amplier Section
Power Output
All Channels 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD,
1 Channel Driven, FTC)
65 W/Ch (8 Ohms, 20 Hz–20 kHz,
0.7% THD, 2 Channels Driven, FTC)
Dynamic Power 160 W (3 Ohms, Front)
125 W (4 Ohms, Front)
85 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance
200 mV/47 k-ohms (Line)
Rated RCA Output Level and Impedance
1 Vrms/470 Ohms (Subwoofer Pre Out)
Maximum RCA Output Level and Impedance
2 V/470 Ohms (Subwoofer Pre Out)
Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Speaker Impedance 6 Ohms–16 Ohms
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ohms (Component Y)
0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR)
1.0 Vp–p/75 Ohms (Composite)
Text on receiver may vary with region.
Rear ViewFront View
HT-R494
