7.1ch Home Theater Speaker Package

HTP-750X

Front Speakers (SKF-750XF L/R)

Center Speaker (SKC-750XC)

Surround Speakers (SKM-750XS L/R)

Surround Back Speakers (SKB-750X L/R)

Subwoofer (SKW-750X)

Speaker Stand

AS-140

Instruction Manual

Thank you for purchasing an Onkyo home theater speaker package.

Please read this manual thoroughly before using your new speakers.

Following the instructions in this manual will enable you to obtain

optimum performance and listening enjoyment from your speaker

package.

Please retain this manual for future reference.

Contents

Getting Started

Important Safety Instructions........... 2

Precautions ....................................... 3

Speaker Precautions ......................... 3

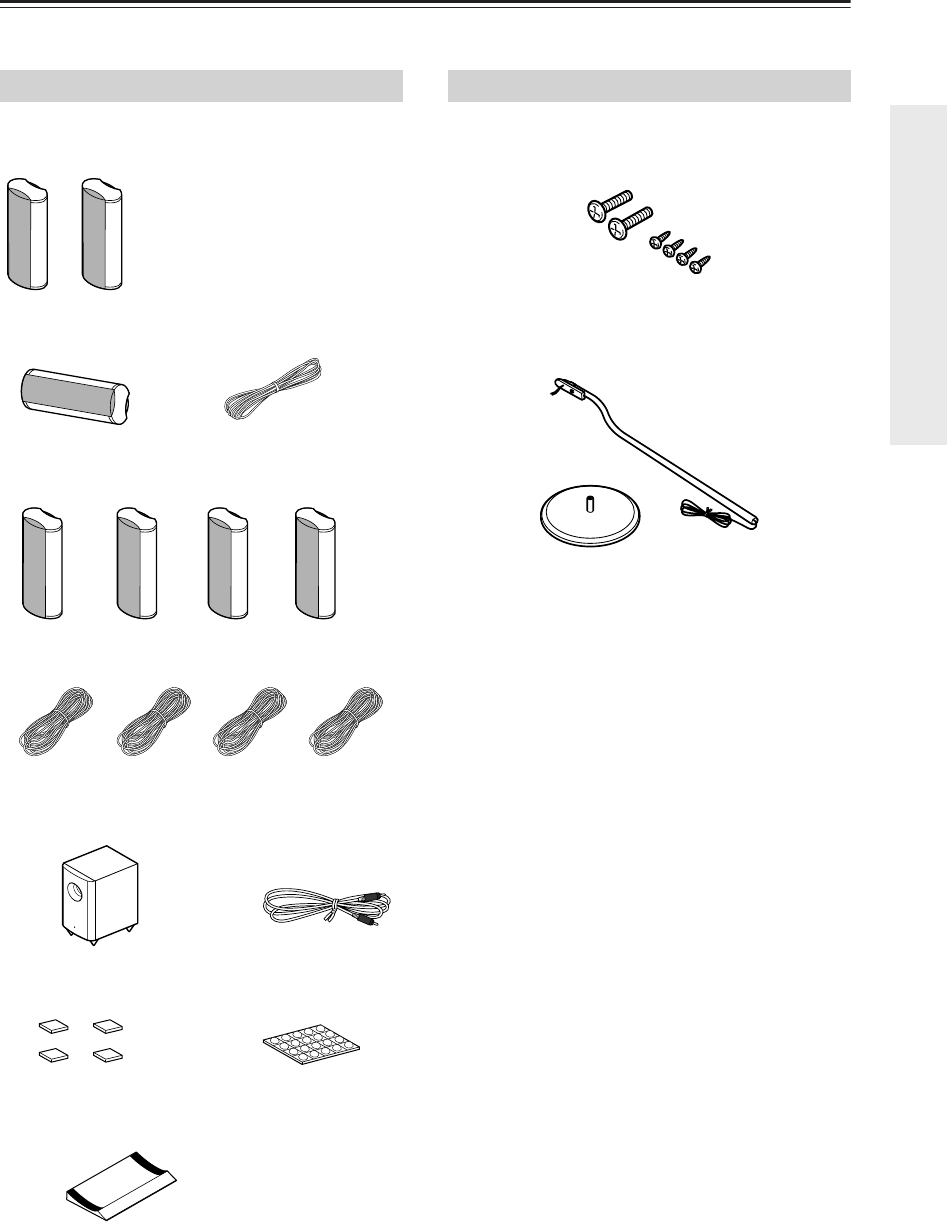

Package Contents...........................5

Getting to know Your Speaker

Package.......................................6

Installing & Using

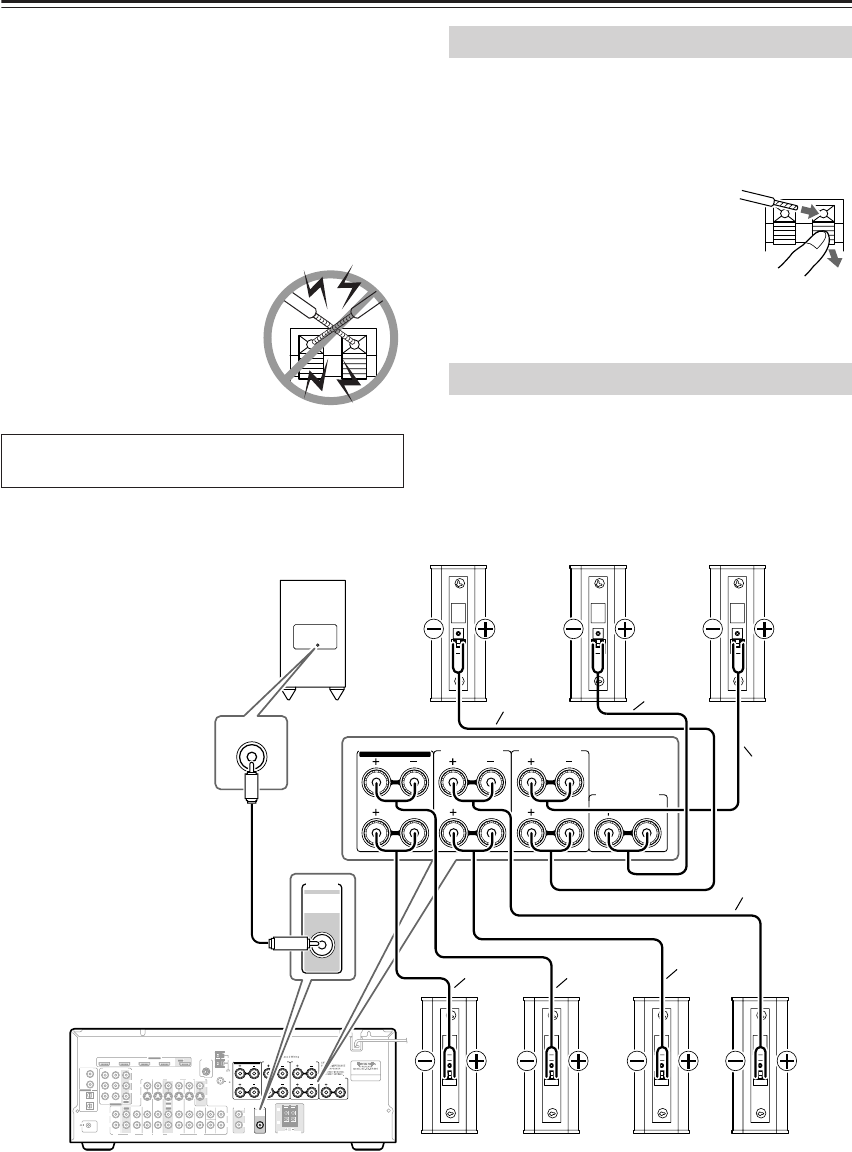

Connecting the Speakers ................ 10

Appendix

Troubleshooting.............................. 11

Specifications

2

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are pro-

vided for your safety. If the provided plug does not

fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience recepta-

cles, and the point where they exit from the appara-

tus.

11. Only use attachments/accessories specified by the

manufacturer.

12.

Use only with the cart, stand,

tripod, bracket, or table spec-

ified by the manufacturer, or

sold with the apparatus.

When a cart is used, use cau-

tion when moving the cart/

apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or

plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has

been exposed to rain or moisture, does not operate

normally, or has been dropped.

15. Damage Requiring Service

Unplug the apparatus from the wall outlet and refer

servicing to qualified service personnel under the

following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry

Never push objects of any kind into the apparatus

through openings as they may touch dangerous volt-

age points or short-out parts that could result in a

fire or electric shock.

The apparatus shall not be exposed to dripping or

splashing and no objects filled with liquids, such as

vases shall be placed on the apparatus.

Don’t put candles or other burning objects on top of

this unit.

17. Batteries

Always consider the environmental issues and fol-

low local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation,

such as a bookcase or rack, ensure that there is ade-

quate ventilation.

Leave 20 cm (8") of free space at the top and sides

and 10 cm (4") at the rear. The rear edge of the shelf

or board above the apparatus shall be set 10 cm (4")

away from the rear panel or wall, creating a flue-like

gap for warm air to escape.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO

USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within

the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

AVIS

PORTABLE CART WARNING

S3125A

3

Precautions

1. AC Fuse

—The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact

your Onkyo dealer.

2. Care

—Occasionally you should dust the unit all

over with a soft cloth. For stubborn stains, use a soft

cloth dampened with a weak solution of mild deter-

gent and water. Dry the unit immediately afterwards

with a clean cloth. Don’t use abrasive cloths, thin-

ners, alcohol, or other chemical solvents, because

they may damage the finish or remove the panel let-

tering.

3. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE

FIRST TIME, READ THE FOLLOWING SEC-

TION CAREFULLY.

AC outlet voltages vary from country to country.

Make sure that the voltage in your area meets the

voltage requirements printed on the unit’s rear panel

(e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit

from the AC power source. Make sure that the plug

is readily operable (easily accessible) at all times.

Auto standby function does not fully shutdown the

SKW-750X. If you do not intend to use the SKW-

750X, remove the power cord from the AC outlet.

For Canadian models

For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

Modèle pour les Canadien

Sur les modèles dont la fiche est polarisée:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLEC-

TRIQUES, INTRODUIRE LA LAME LA PLUS

LARGE DE LA FICHE DANS LA BORNE CORRE-

SPONDANTE DE LA PRISE ET POUSSER

JUSQU’AU FOND.

Speaker Precautions

Placement

• The subwoofer cabinet is made out of wood and is

therefore sensitive to extreme temperatures and

humidity, do not put it in locations subject to direct

sunlight or in humid places, such as near an air condi-

tioner, humidifier, bathroom, or kitchen.

•Do not put water or other liquids close to the speakers.

If liquid is spilled over the speakers, the drive units

may be damaged.

•Speakers should only be placed on sturdy, flat surfaces

that are free from vibration. Putting them on uneven or

unstable surfaces, where they may fall and cause dam-

age, will affect the sound quality.

• Subwoofer is designed to be used in the upright verti-

cal position only. Do not use it in the horizontal or

tilted position.

•If the unit is used near a turntable, CD player or DVD

player, howling or slipping of sound may occur. To

prevent this, move the unit away from the turntable,

CD player or DVD player, otherwise lower the unit’s

output level.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive

devices and as such are likely to suffer discoloration or

picture distortion when conventional speakers are

placed nearby. To prevent this, the SKF-750XF and

SKC-750XC feature internal magnetic shielding. In

some situations, however, discoloration may still be an

issue, in which case you should turn off your TV or

monitor, wait 15 to 30 minutes, and then turn it back on

again. This normally activates the degaussing function,

which neutralizes the magnetic field, thereby removing

any discoloration effects. If discoloration problems per-

sist, try moving the speakers away from your TV or

monitor. Note that discoloration can also be caused by a

magnet or demagnetizing tool that’s too close to your

TV or monitor.

Do not place SKM-750XS/SKB-750X close to TV or a

computer monitor because they have no magnetic shield.

Input Signal Warning

The speakers can handle the specified input power when

used for normal music reproduction. If any of the fol-

lowing signals are fed to them, even if the input power is

within the specified rating, excessive current may flow

in the speaker coils, causing burning or wire breakage:

1. Interstation noise from an untuned FM radio.

2. Sound from fast-forwarding a cassette tape.

3. High-pitched sounds generated by an oscillator,

electronic musical instrument, and so on.

4. Amplifier oscillation.

5. Special test tones from audio test CDs and so on.

6. Thumps and clicks caused by connecting or discon-

necting audio cables (Always turn off your amplifier

before connecting or disconnecting cables.)

7. Microphone feedback.

4

Speaker Precautions

—Continued

Speaker care

Wipe the cabinet occasionally with a dry silica or soft

cloth. For heavier dirt, after dampening a soft cloth in a

weak solution of mild detergent and water and wringing

it out dry, wipe off the dirt. Then, dry immediately with

a clean cloth. Do not use rough material, thinners, alco-

hol or other chemical solvents or cloths since these could

damage the finish, remove the panel lettering, or cause

discoloration. If you are using a chemical cloth, always

follow the instructions that come with the cloth. For dust

accumulated on grilles, use a vacuum cleaner or brush it

off.

Power Cord Precautions

•Before connecting the power cord, connect all of your

speakers and AV components.

•Turning on the SKW-750X may cause a momentary

power surge that might interfere with other electrical

equipment on the same circuit. If this is a problem,

plug the SKW-750X into a different branch circuit.

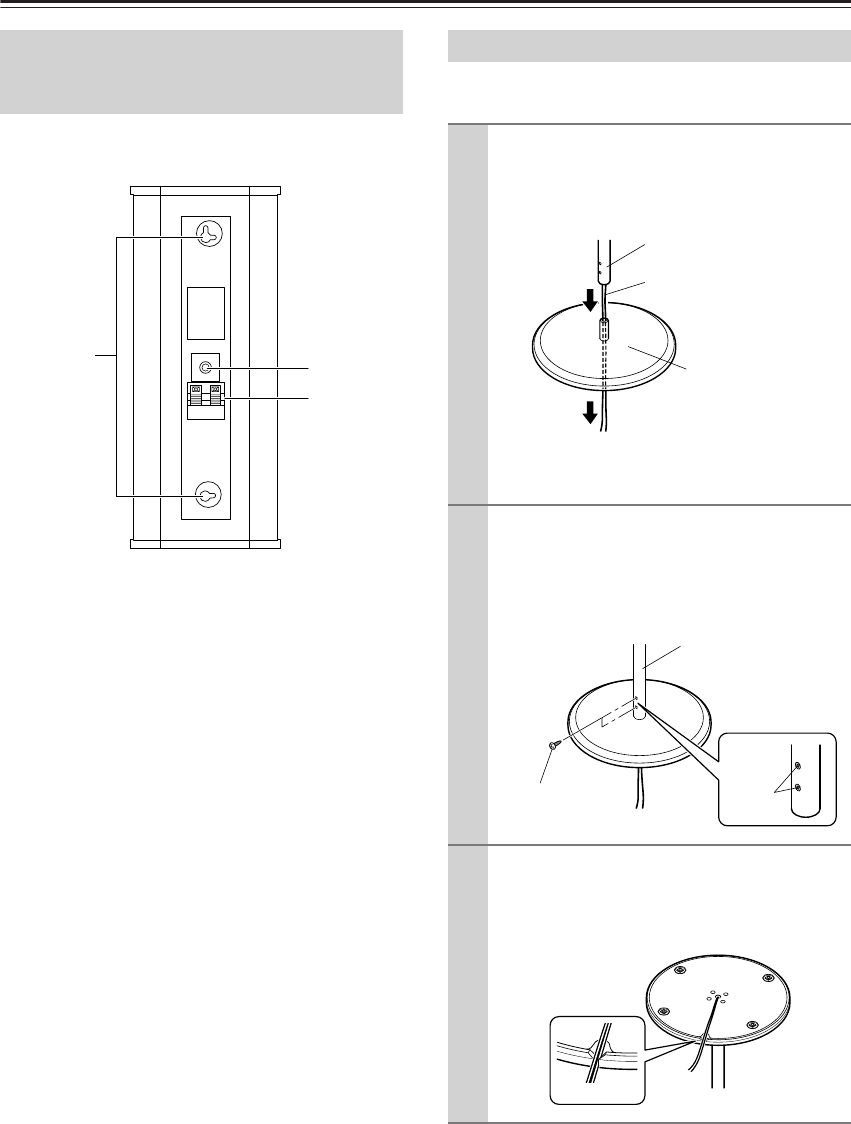

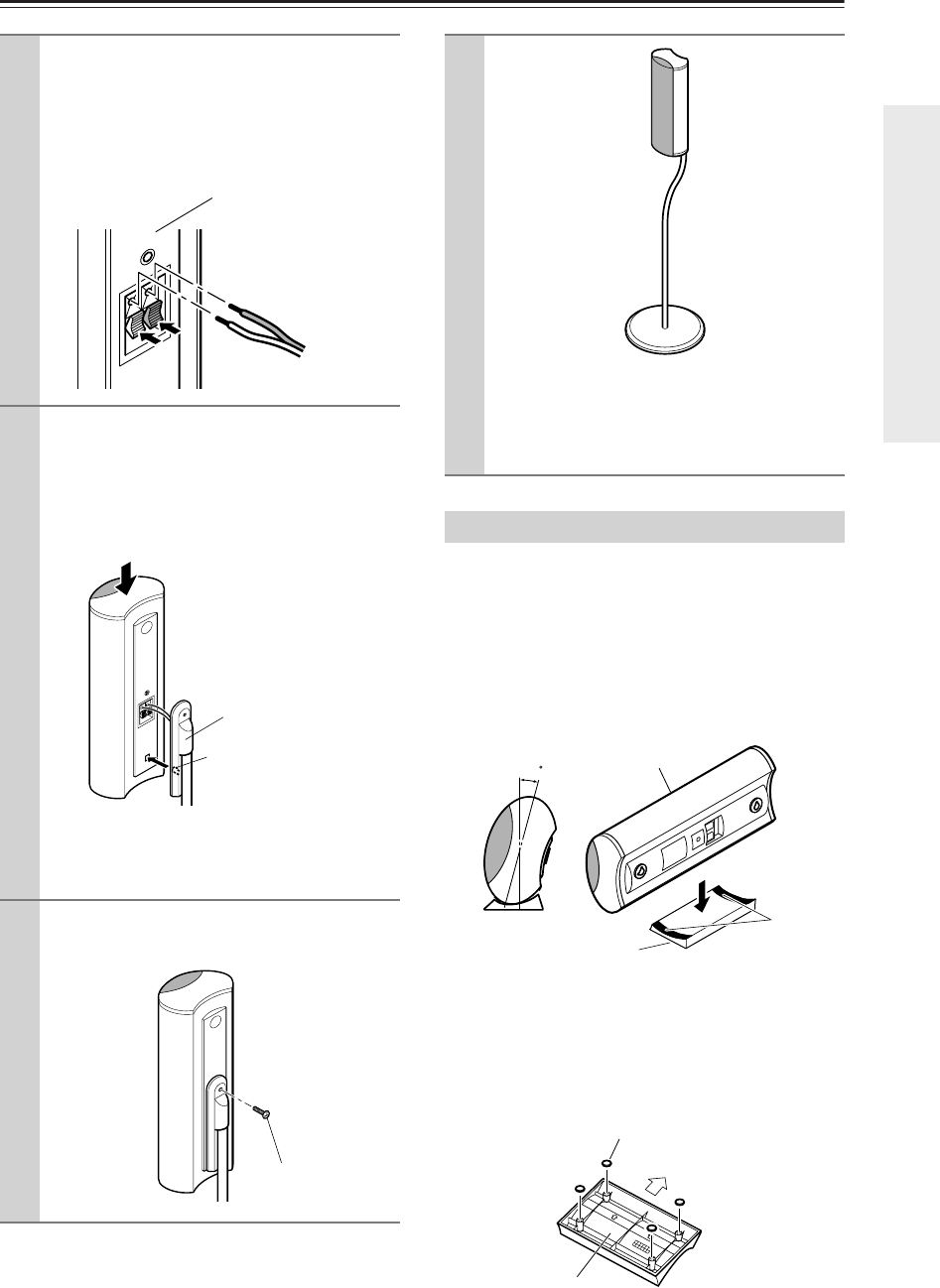

1.

Be sure to tighten the screws when you assemble the

speaker stands and attach the brackets to the speak-

ers.

2.

The speaker stands are tall. Install the stands in a

manner that will not allow the speakers to tip over.

You may want to use commercially available chains

to prevent the stands from falling in the event of an

earthquake.

3.

Do not place the stands on an unstable table, slope,

or thick carpet. Otherwise, the stands may fall, caus-

ing injury.

4.

Place the stands in a location in which they would

not cause injury if they accidentally fell.

5.

Do not place the stands in an area at risk of fire or

damage, such as near a fireplace, heater, glass win-

dow, etc.

Speaker Stand AS-140 Precautions

5

Package Contents

Make sure your box contains all of the items below. If anything is missing, contact the nearest Onkyo dealer.

The alphabet displayed at the end of the product name

found in catalogs and on package represents the color of

the system. Though the color varies, the specifications

and operations are the same.

Speaker Package HTP-750X

• Front speakers

(SKF-750XF)

Speaker cables for the left and right

front speakers have been attached

to the speaker stand AS-140.

• Center speaker

(SKC-750XC)

• Speaker cable for center

speaker 10 ft. (3 m)

(Green)

• Surround and Surround back speakers

(SKM-750XS/SKB-750X)

• Speaker cables for surround and surround back

speakers 30 ft. (9 m)

(Blue) (Gray)

• Subwoofer (SKW-750X)

•RCA cable for sub-

woofer connection

10 ft. (3 m)

(Brown) (Tan)

• Base for horizontal mounting

(For the center speaker)

•Rubber spacers [20 pcs.]

(For the speakers)

•4 floor pads for the

subwoofer

Speaker Stand AS-140

• Screws (large) [2]

• Screws (small) [4]

• Pipe stands [2] (with the speaker cables wired)

• Base panels [2]

6

Getting to know Your Speaker Package

A

Keyhole slots

These keyhole slots can be used to wall-mount the

speaker.

They can also be used to install the speaker on the

stand.

B

Speaker terminals

These push terminals are for connecting the speaker

to your AV Receiver with the supplied speaker

cables. The supplied speaker cables are color-coded

for easy identification. Simply connect each cable to

the same-colored positive speaker terminal.

C

Speaker mount/bracket inserts

These threaded inserts can be used to attach the

speaker either horizontally or vertically to a speaker

mount or bracket.

Note:

Use commercially available 1/4" screws to attach

the speaker to a speaker mount or bracket.

Follow the steps below to install each front speaker onto

a speaker stand.

Front, Center, Surround, and

Surround back speakers (SKF-750XF,

SKC-750XC, SKM-750XS, SKB-750X)

3

2

1

Rear

Speaker Stand

1

Loosen the bundled speaker cable, insert

the cable into the hole of the base panel

from the top, then pull the cable out and

downward.

Do not pull the speaker cable too hard, as it may

break.

2

Attach the pipe stand to the base panel in

the correct orientation so that the screw

holes on the pipe stand and the holes in

the base panel will align. Tighten the

screws firmly.

3

Guide the speaker cable along the arrow

on the base panel bottom, and snap the

cable into the notch on the perimeter of

the base panel bottom.

Pipe stand

Speaker cable

Base panel surface

Pipe stand

Screws (small, × 2) Align.

Notch

7

Getting to know Your Speaker Package

—Continued

The center speaker base is for mounting the center

speaker horizontally. If you put it on a TV stand or AV

stand, aim it toward the listening position. The center

speaker should sit securely on the base. If it’s loose, try

resetting it.

The cradle surface of the base features two stoppers to

prevent the speaker from moving. Therefore, you can tilt

the speaker toward the front by up to 11 degrees.

■

Using the included rubber spacers

We recommend using the supplied rubber spacers to

achieve the best possible sound from your speakers. The

rubber spacers prevent the speakers from moving, pro-

viding a more stable setup.

4

While pressing in the lever on the speaker

terminal on the rear panel of the speaker,

connect the speaker cable to the terminal.

The supplied speaker cables are color-coded for

easy identification. Simply connect each cable to

the same-colored positive speaker terminal.

5

(1) Insert the hook on the pipe stand into

the key hole on the speaker’s rear panel,

then (2) press and slide the speaker

downward.

Note:

Be careful not to pinch the speaker cable between

the pipe stand cover and the speaker’s rear panel.

6

Attach the pipe stand to the speaker

securely using the included screw (large).

Speaker rear panel

(2) Press and slide the

speaker downward.

Pipe stand

(1) Insert the hook into the

hole on the speaker’s rear

panel.

Screw (large x 1)

7

Completed.

Caution:

To remove the speaker from the stand, remove the

screw, slide the speaker upward to release the

hook, and reverse the steps for installing the

speaker to the stand.

Center Speaker Base

11 SKC-750XC

Base for horizontal

mounting

Stoppers

Bottom of the base

Rubber spacers

Front

8

Getting to know Your Speaker Package

—Continued

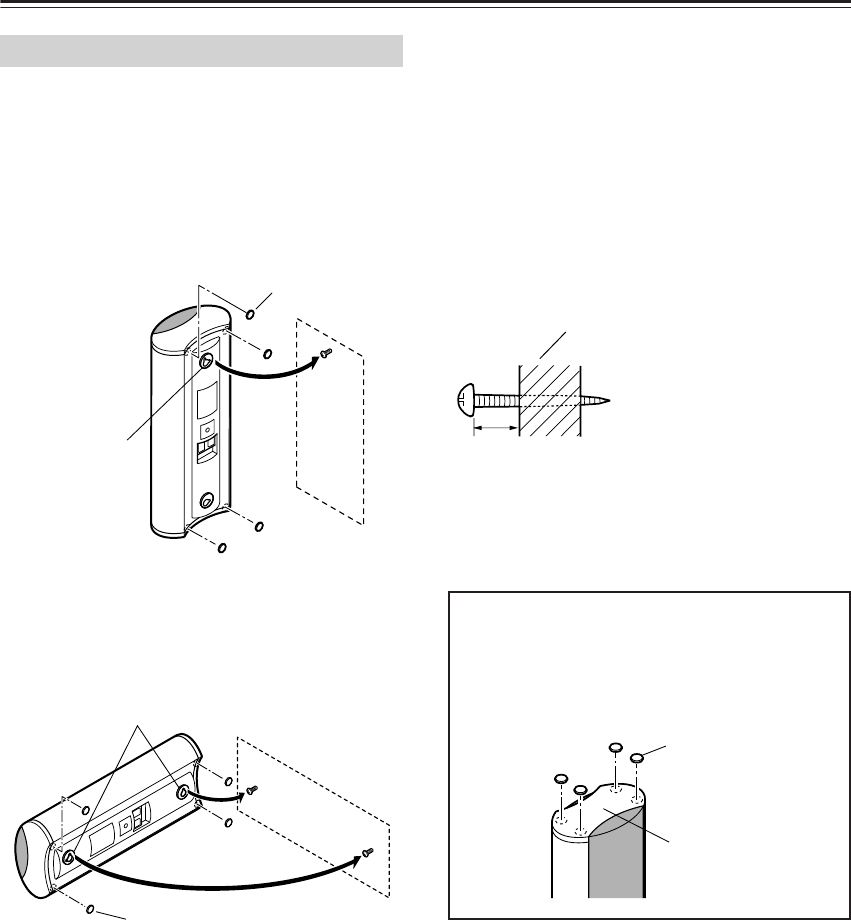

The speakers can easily be wall mounted by using the

keyhole slots. To prevent the speaker from vibrating

against the wall, attach four of the supplied spacers to the

keyhole fins on the rear of each speaker.

■

Mounting vertically

To mount the front speakers vertically, use the keyhole

slot shown to hang each speaker on a screw that’s

securely screwed into the wall.

■

Mounting horizontally

To mount the center speaker horizontally, use the two

keyhole slots shown to hang each speaker on two screws

that are securely screwed into the wall.

Caution:

A mounting screw’s ability to support a speaker depends

on how well it’s anchored to the wall. If you have hollow

walls, screw each mounting screw into a stud. If there are

no studs, or the walls are solid, use suitable wall anchors.

Use screws with a head diameter of 3/8" (9 mm) or less

and a shank diameter of 1/8" (3.5 mm) or less. With hol-

low walls, use a cable/pipe detector to check for any

power cables or water pipes before making any holes.

Leave a gap of between 1/4" and 5/16" (6–8 mm)

between the wall and the base of the screw head, as

shown.

(We recommend that you consult a home installation

professional.)

Wall Mounting

Keyhole slot for

vertical wall

mounting

Rubber spacers

Keyhole slots for horizontal

wall mounting

Rubber spacers

1/4"–5/16"

(6–8 mm)

Wall

■Using Rubber Spacers with the Speakers

We recommend using the supplied rubber spacers

to achieve the best possible sound from your

speakers. The rubber spacers prevent the speakers

from moving, providing a more stable setup.

Bottom of the

speaker

Rubber spacers

9

Getting to know Your Speaker Package

—Continued

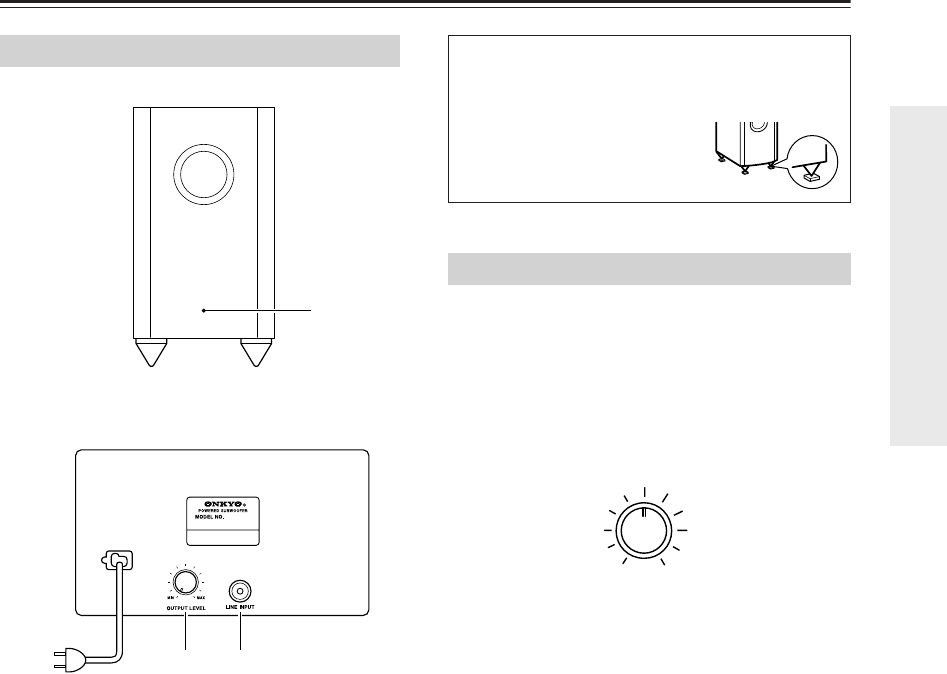

A

STANDBY/ON indicator

Red: Subwoofer in standby mode

Blue: Subwoofer on

With the Auto Standby function, the SKW-750X

automatically turns on when an input signal is

detected in Standby mode. When there’s no input

signal for a while, the SKW-750X automatically

enters Standby mode.

B

OUTPUT LEVEL control

This control is used to adjust the volume of the sub-

woofer.

C

LINE INPUT

This RCA input should be connected to the sub-

woofer pre out on your AV receiver with supplied

RCA cable.

Note:

The Auto Standby function turns the subwoofer on when

the input signal exceeds a certain level. If the Auto

Standby function does not work reliably, try slightly

increasing or decreasing the subwoofer output level on

the AV receiver.

To set the level of the subwoofer, use the OUTPUT

LEVEL control. Set it so that bass sounds are evenly bal-

anced with the treble sounds from the other speakers.

Because our ears are less sensitive to very low bass

sounds, there’s a temptation to set the level of the sub-

woofer too high. As a rule of thumb, set the subwoofer

level to what you think is the optimal level, and then back

it off slightly.

Subwoofer (SKW-750X)

23

SKW-750X

1

■Rear

To AC outlet

■Front

Setting the Subwoofer Level

If the subwoofer is placed on a hard floor (wood,

vinyl, tile, etc.) and playback is very loud, the sub-

woofer's feet may damage the flooring. To prevent

this, place the supplied pads

underneath the subwoofer's feet.

The pads also provide a stable

base for the subwoofer.

OUTPUT LEVEL

MAX

MIN

10

Connecting the Speakers

Read the following before connecting your speakers:

•Turn off your receiver or amp before making any con-

nections.

•Disconnect the power cord from the wall outlet before

making any connections.

•Pay close attention to speaker wiring polarity. Connect

positive (+) terminals to only positive (+) terminals,

and negative (–) terminals to only negative (–) termi-

nals. If the speakers are wired incorrectly, the sound

will be out of phase and will sound unnatural.

• Be careful not to short the posi-

tive and negative wires. Doing so

may damage your amp.

Use the supplied cables to connect each

speaker’s input terminals to the corresponding

speaker output terminals on your receiver.

Match the color of each cable to the corresponding

speaker terminal.

To make a connection, while pressing

the terminal lever, insert the wire into

the hole, and then release the lever.

Make sure that the terminals are grip-

ping the bare wires, not the insulation.

Using the supplied RCA cable, connect the sub-

woofer’s LINE INPUT to your receiver’s SUB-

WOOFER PRE OUT.

For more information, please refer to the TX-SR606

Instruction Manual.

Connecting the Speaker Cables

Connecting the Subwoofer

ZONE 2 SPEAKERS

R

L

PRE OUT

ZONE 2

LINE OUT

ANTENNA

FM

AM

75

REMOTE

CONTROL

COAXIAL

OPTICAL

1

(DVD)

2

(CBL/SAT)

1

(GAME/TV)

2

(CD)

DIGITAL IN

ASSIGNABLE

IN 1(DVD)IN 2

COMPONENT VIDEO

Y

CB/PB

CR/PR

ASSIGNABLE

HDMI

IN 1

IN 2

IN 3

IN 4

ASSIGNABLE

L

R

L

R

SURR BACK SPEAKERS

SURR SPEAKERS FRONT SPEAKERS

CENTER SPEAKER

Bi-AMP for FRONT SPEAKERS

R

L

R

L

IN IN IN

IN

IN

IN

IN

IN IN

SUB

WOOFER

FRONT SURR

SURR BACK

CENTER

CBL/SAT

GAME/TV

GAME/TV

CBL/SAT

VCR/DVR

VCR/DVR

DVDTAPECD

DVD

MONITOR

OUT

S

V

S

V

OUT

SIRIUS

(DVD)

(GAME/TV) (CBL/SAT) (VCR/DVR)

SUB

WOOFER

R

L

OUT

OUT

OUT

OUT

PRE OUT

SUB

WOOFER

L

R

L

R

SURR BACK SPEAKERS

SURR SPEAKERS FRONT SPEAKERS

CENTER SPEAKER

Bi-AMP for FRONT SPEAKERS

LINE INPUT

Red Green

White

Blue

Gray

Brown

Ta n

Subwoofer Front Right Center Front Left

Surround

Back Right

Surround

Right

Surround

Back Left

Surround

Left

11

Troubleshooting

Symptom Possible cause Remedy

There’s no sound coming

from certain speakers?

The speaker cables are not connected properly. Check the speaker cables and correct as necessary.

The speaker configuration is not set correctly. Check the speaker configuration.

The subwoofer does not

turn on?

The power plug is not fully inserted into the

wall outlet.

Insert the power plug fully into the wall outlet.

The subwoofer produces

no sound?

The OUTPUT LEVEL control is set to mini-

mum.

Turn up the OUTPUT LEVEL control.

The RCA cable is not properly connected to

the subwoofer’s LINE INPUT.

Make sure that the RCA cable is properly con-

nected to the subwoofer’s LINE INPUT.

The level of the input signal was too low and

the subwoofer entered Standby mode.

Slightly increase the subwoofer pre out output level

on your AV receiver.

The Subwoofer configuration is not set cor-

rectly.

Check the subwoofer setting in the speaker config-

uration on your AV receiver.

The subwoofer produces

hardly any sound?

The source material contain little or no bass

content.

Choose source material with more bass content.

A humming sound can be

heard from the sub-

woofer?

The RCA cable is not properly connected to

the subwoofer’s LINE INPUT.

Make sure that the RCA cable is properly con-

nected to the subwoofer’s LINE INPUT.

External interference from a TV or other elec-

tronic device is being picked up.

Move the subwoofer and RCA cable away from the

interference source. Make sure your audio system

is grounded properly.

12

SN 29344829

I0806-1

(C) Copyright 2008 ONKYO CORPORATION Japan. All rights reserved.

http://www.onkyo.com/

HOMEPAGE

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN

Tel: 072-831-8023 Fax: 072-831-8124

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/

ONKYO EUROPE UK Office

Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ

UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452

ONKYO CHINA LIMITED

Unit 1&12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung,

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039

http://www.ch.onkyo.com/

* 2 9 3 4 4 8 2 9 *

Specifications

■Powered Subwoofer (SKW-750X)

Type: Bass-reflex

Input sensitivity/impedance: 140 mV / 20 kΩ

Maximum output power: 290 W (Dynamic Power)

Frequency response: 25 Hz–150 Hz

Cabinet capacity: 1.3 cubic feet (37 L)

Dimensions (W × H × D): 10-13/16" × 19-15/16" ×

16-3/16"

(275 × 507 × 411 mm)

Weight: 25.6 lbs. (11.2 kg)

Drivers unit: 10" (25 cm) Cone Woofer

× 1

Power supply: AC 120 V, 60 Hz

Power consumption: 163 W

Other: Auto Standby function

■Front/Center Speaker

(SKF-750XF/SKC-750XC)

Type: 2 Way Closed Type

Impedance: 8 Ω

Maximum input power: 110 W

Output sound pressure level:

79 dB/W/m

Frequency response: 60 Hz–50 kHz

Crossover frequency: 3 kHz

Cabinet capacity: 0.07 cubic feet (2 L)

Front speaker (SKF-750XF)

Dimensions (W × H × D): 5-1/2" × 14" × 3-11/16"

(140 × 355 × 93 mm)

Center speaker (SKC-750XC)

Dimensions (W × H × D): 14" × 5-1/2" × 3-11/16"

(355 × 140 × 93 mm)

Weight: 4.0 lbs. (1.8 kg)

Drivers unit: 3-1/8" (8 cm) Cone

Woofer × 2

1 inch (2.5 cm) Balanced

Dome Tweeter × 1

Te r minal: Spring Type Color Coded

Keyhole slots: 2

Grille: Fixed

Other: Magnetic shielding

■Surround/Surround Back Speaker

(SKM-750XS/SKB-750X)

Type: 2 Way Closed Type

Impedance: 8 Ω

Maximum input power: 110 W

Output sound pressure level:

76 dB/W/m

Frequency response: 60 Hz–50 kHz

Crossover frequency: 3 kHz

Cabinet capacity: 0.07 cubic feet (2 L)

Dimensions (W × H × D): 5-1/2" × 14" × 3-11/16"

(140 × 355 × 93 mm)

Weight: 2.9 lbs. (1.3 kg)

Drivers unit: 3-1/8" (8 cm) Cone

Woofer × 1

1 inch (2.5 cm) Balanced

Dome Tweeter × 1

Te r minal: Spring Type Color Coded

Keyhole slots: 2

Grille: Fixed

Other: Magnetic shielding

■Speaker Stand (AS-140)

Dimensions (W × H × D): 10-5/8" × 35-3/16" ×

10-5/8"

(270 × 894 × 270 mm)

Assembly height

(with supplied speaker SKF-750XF):

41-5/16" (1050 mm)

Weight: 6.0 lbs. (2.7 kg)

Specifications and appearance are subject to change

without prior notice.
