Contents

Before using

Important Safeguards........................ 2

Precautions ....................................... 3

Features............................................. 4

Supplied accessories......................... 4

Before operating this unit................. 5

Preparation

Audio equipment connections.......... 6

Video equipment connections .......... 7

Connecting other devices ................. 8

Connecting speakers....................... 10

Positioning speakers....................... 11

Connecting the power..................... 11

Making antenna connections.......... 12

Operation

Speaker setup.................................. 14

Selecting a sound source ................ 17

Using Listening Mode.................... 21

Tuning in a radio station................. 24

Using preset radio stations.............. 25

Receiving RDS broadcasts

(European models only)............... 27

Recording a source ......................... 29

Using the remote controller............ 31

Programming the remote controller

codes of other devices into the

RC-392M..................................... 34

Using a Macro function.................. 36

Appendix

Troubleshooting guide.................... 40

Specifications ................................. 41

Control guide

Control positions and names .......... 42

AV Receiver

TX-DS575X

Instruction Manual

Thank you for purchasing the Onkyo AV Receiver.

Please read this manual thoroughly before making

connections and turning on the power.

Following the instructions in this manual will enable

you to obtain optimum performance and listening

enjoyment from your new AV Receiver.

Please retain this manual for future reference.

2

Important Safeguards

1.

Read Instructions

– All the safety and operating instructions

should be read before the appliance is operated.

2.

Retain Instructions

– The safety and operating instructions

should be retained for future reference.

3.

Heed Warnings

– All warnings on the appliance and in the

operating instructions should be adhered to.

4.

Follow Instructions

– All operating and use instructions

should be followed.

5.

Water and Moisture

– The appliance should not be used near

water – for example, near a bathtub, washbowl, kitchen sink,

laundry tub, in a wet basement, or near a swimming pool, and

the like.

6.

Carts and Stands

– The appliance should be used only with a

cart or stand that is recom-

mended by the manufacturer.

6A.An appliance and cart combina-

tion should be moved with care.

Quick stops, excessive force,

and uneven surfaces may cause

the appliance and cart combina-

tion to overturn.

7.

Wall or Ceiling Mounting

– The appliance should be mounted

to a wall or ceiling only as recommended by the manufacturer.

8.

Ventilation

– The appliance should be situated so that its loca-

tion or position does not interfere with its proper ventilation.

For example, the appliance should not be situated on a bed,

sofa, rug, or similar surface that may block the ventilation

openings; or if placed in a built-in installation, such as a book-

case or cabinet that may impede the flow of air through the

ventilation openings, there should be free space of at least 20

cm (8 in.) and an opening behind the appliance.

9.

Heat

– The appliance should be situated away from heat

sources such as radiators, heat registers, stoves, or other appli-

ances (including amplifiers) that produce heat.

10.

Power Sources

–

The appliance should be connected to a

power supply only of the type described in the operating

instructions or as marked on the appliance.

11.

Polarization

– If the appliance is provided with a polarized

plug having one blade wider than the other, please read the fol-

lowing information:

The polarization of the plug is a safety feature. The polarized

plug will only fit the outlet one way. If the plug does not fit

fully into the outlet, try reversing it. If there is still trouble, the

user should seek the services of a qualified electrician. Under

no circumstances should the user attempt to defeat the polar-

ization of the plug.

12.

Power-Cord Protection

– Power-supply cords should be

routed so that they are not likely to be walked on or pinched by

items placed upon or against them, especially near plugs, con-

venience receptacles, and the point where they exit from the

appliance.

13.

Cleaning

– The appliance should be cleaned only as recom-

mended by the manufacturer.

14.

Power Lines

– An outdoor antenna should be located away

from power lines.

15.

Nonuse Periods

– The power cord of the appliance should be

unplugged from the outlet when left unused for a long period

of time.

16.

Object and Liquid Entry

– Care should be taken so that

objects do not fall and liquids are not spilled into the enclosure

through openings.

17.

Damage Requiring Service

– The appliance should be ser-

viced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or

D. The appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18.

Servicing

– The user should not attempt to service the appli-

ance beyond that described in the operating instructions. All

other servicing should be referred to qualified service person-

nel.

19.

Outdoor Antenna Grounding

– If an outside antenna is con-

nected to the receiver, be sure the antenna system is grounded

so as to provide some protection against voltage surges and

built up static charges. Article 810 of the National Electrical

Code, ANSI/NFPA 70, provides information with regard to

proper grounding of the mast and supporting structure, ground-

ing of the lead-in wire to an antenna-discharge unit, size of

grounding conductors, location of antenna-discharge unit, con-

nection to grounding electrodes, and requirements for the

grounding electrode. See Figure 1.

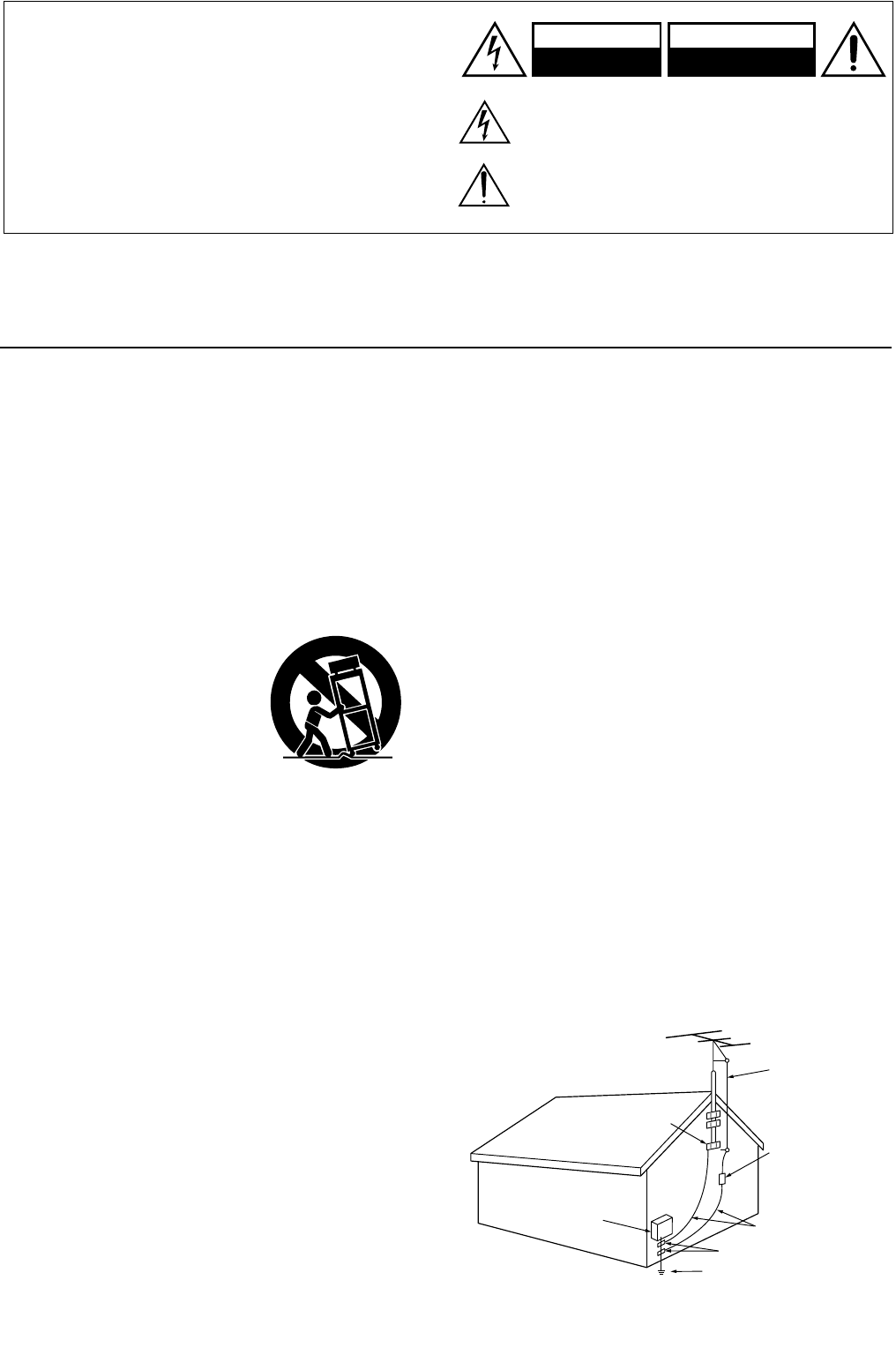

FIGURE 1:

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL

ELECTRICAL CODE

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

ANTENNA

DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC – NATIONAL ELECTRICAL CODE

ELECTRIC

SERVICE

EQUIPMENT

GROUND

CLAMP

ANTENNA

LEAD IN

WIRE

S2898A

PORTABLE CART WARNING

S3125A

3

Precautions

1. Warranty Claim

You can find the serial number on the rear panel of this unit. In case

of warranty claim, please report this number.

2. Recording Copyright

Recording of copyrighted material for other than personal use is

illegal without permission of the copyright holder.

3. AC Fuse

The fuse is located inside the chassis and is not user-serviceable. If

power does not come on, contact your Onkyo authorized service

station.

4. Care

From time to time you should wipe the front and rear panels and the

cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a

weak solution of mild detergent and water, wring it out dry, and

wipe off the dirt. Following this, dry immediately with a clean cloth.

Do not use rough material, thinners, alcohol or other chemical sol-

vents or cloths since these could damage the finish or remove the

panel lettering.

5. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,

READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to

country or region. Be sure that the power supply voltage of the area

where this unit will be used meets the required voltage (e.g., AC

230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.

Worldwide models are equipped with a voltage selector to conform

to local power supplies. Be sure to set this switch to match the volt-

age of the power supply in your area before plugging in the unit.

For British model

Replacement and mounting of an AC plug on the power supply cord

of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the

following code:

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this apparatus may

not correspond with the coloured markings identifying the termi-

nals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal

which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the termi-

nal which is marked with the letter L or coloured red.

IMPORTANT

A 5 amp fuse is fitted in this plug. Should the fuse need to be

replaced, please ensure that the replacement fuse has a rating of 5

amps and that it is approved by ASTA or BSI to BS1362. Check for

the ASTA mark or the BSI mark on the body of the fuse.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE

SOCKET OUTLET IN YOUR HOME THEN THE FUSE

SHOULD BE REMOVED AND THE PLUG CUT OFF AND

DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE

ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED

INTO ANY 13 AMP SOCKET.

If in any doubt, please consult a qualified electrician.

For U.S. model

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s

attention to Article 820-40 of the NEC, ANSI/NFPA 70, which pro-

vides guidelines for proper grounding and, in particular, specifies

that the cable ground shall be connected to the grounding system of

the building, as close to the point of cable entry as practical.

FCC Information for User

CAUTION:

The user changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority to

operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or televi-

sion reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

For Canadian model

NOTE:

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH

CANADIAN ICES-003.

For models having a power cord with a polarized plug:

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modele pour les Canadien

REMARQUE:

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CON-

FORME À LA NORME NMB-003 DU CANADA.

Sur les modèles dont la fiche est polarisée:

ATTENTION:

POUR ÉVITER LES CHOCS ÉLEC-

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE

ET POUSSER JUSQU’AU FOND.

Declaration of Conformity

We, ONKYO EUROPE

ELECTRONICS GmbH

INDUSTRIESTRASSE 20

82110 GERMERING,

GERMANY

GERMERING, GERMANY

ONKYO EUROPE ELECTRONICS GmbH

A.HORIUCHI

declare in own responsibility, that the ONKYO product described

in this instruction manual is in compliance with the corresponding

technical standards such as EN60065, EN55013, EN55020 and

EN61000-3-2, -3-3 (or EN60555-2, -3)

4

Features

■

70 WATTS MINIMUM of continuous RMS power to each

of the five channels into 8

Ω

from 20 Hz to 20 kHz with no

more than 0.08 % THD (USA models, FTC rating)

■

100 WATTS MINIMUM of continuous RMS power to

each of the five channels into 6

Ω

at 1 kHz (European

models, DIN)

■

130 WATTS MINIMUM to each of the five channels into

6

Ω

at 1 kHz (Asian models, EIAJ )

■

WRAT — WIDE RANGE AMPLIFIER TECHNOLOGY

■

DTS

®

*, DOLBY

®

** DIGITAL AND DOLBY

®

PRO

LOGIC DECODERS

■

5.1 CHANNEL EXTERNAL INPUTS

■

8 DSP LISTENING MODES

■

CINEMA Re-EQ

TM

*** CIRCUITRY

■

STATE-OF-THE-ART 96 kHz/24-BIT D/A CONVERTER

■

4 ASSINGNABLE DIGITAL INPUT (2 coaxial and 2 opti-

cal)

■

HEAVY-DUTY MULTIWAY SPEAKER BINDING

POSTS FOR ALL CHANNELS; ALL DUAL BANANA-

PLUG COMPATIBLE

■

3 AUDIO INPUTS AND 4 A/V INPUTS

■

4 S-VIDEO INPUTS, 2 S-VIDEO OUTPUTS

■

AUTO DIGITAL/ANALOG SIGNAL DETECTION &

SWITCHING

■

“POWER ON” VOLUME FUNCTION

■

POWERFUL BACKLIT LEARNING REMOTE WITH

MACRO FUNCTIONS

*Manufactured under license from Digital Theater Systems, Inc. US Pat.

No.5,451,942 and other worldwide patents issues and pending. “DTS” and

“DTS Digital Surround” are trademarks of Digital Theater Systems, Inc.©

1996 Digital Theater Systems, Inc. All rights reserved.

** Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of

Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby

Laboratories, Inc. All rights reserved.

*** Re-Equalization and the “Re-EQ” logo are trademarks of Lucasfilm

Ltd. Manufactured under license of Lucasfilm Ltd..

Supplied accessories

Check that the following accessories are supplied with this unit.

Memory Preservation

This unit does not require memory preservation batteries. A

built-in memory power back-up system preserves the contents

of the memory during power failures and even when the

POWER switch is set to off. The POWER switch must be set to

on in order to charge the back-up system.

The memory preservation period after the unit has been turned

off varies depending on climate and placement of the unit. On

the average, memory contents are protected over a period of a

few weeks after the last time the unit has been turned off. This

period is shorter when the unit is exposed to a very humid cli-

mate.

Available on the models

other than U.S., Canadian,

and European models.

Available for worldwide

models.

75/300 ohm antenna

adapter × 1

FM antenna × 1

AM loop antenna × 1

Remote controller (RC-392M) × 1

Batteries (size AA or UM-3) × 2

Conversion plug × 1

Use this plug if the power

cord plug of the TX-DS575X

does not fit your AC outlet.

(Shape may vary depending

on the area which it was

purchased.)

5

Before operating this unit

Worldwide models are equipped with a switch that controls the AM

band tuning steps. Please set this switch to match the AM band tun-

ing step frequency in your area.

U.S.A. and Canada : 10 kHz

Other areas : 9 kHz

Worldwide models are equipped with a voltage selector to conform with

local power supplies. Be sure to set this switch to match the voltage of

the power supply in your area before plugging in the unit.

1. Determine the proper voltage for your area: 220-230 V or

120 V.

2. If the preset voltage is not correct for your area, insert a screw-

driver into the groove in the switch. Slide the switch all the way

to the right (120 V) or to the left (220-230 V), whichever is

appropriate.

1. Remove the battery compartment cover by pressing and sliding it

out.

2. Insert two AA (R6- or UM-3)-size batteries into the battery compart-

ment. Carefully follow the polarity diagram (positive (+) and nega-

tive (–) symbols) inside the battery compartment.

3. After batteries are installed and seated correctly, replace the com-

partment cover.

Notes

•

Do not mix new batteries with old batteries or different kinds of

batteries.

•

To avoid corrosion, remove the batteries if the remote controller

is not to be used for a long time.

•

Remove dead batteries immediately to avoid damage from cor-

rosion. If the remote controller doesn’t operate smoothly,

replace both the batteries at the same time.

•

The life of the batteries supplied is about six months but this

will vary depending on usage.

Point the remote controller toward the remote control sensor.

The STANDBY indicator lights up when the unit receives a signal

from the remote controller.

Notes

•

Place the unit away from strong light such as direct sunlight or

inverted fluorescent light which can prevent proper operation of the

remote controller.

•

Using another remote controller of the same type in the same

room or using the unit near equipment which uses infrared rays

may cause operational interference.

•

Do not put any object such as a book on the remote controller.

The buttons of the remote controller may be pressed by mistake

and drain the batteries.

•

Make sure the audio rack doors do not have colored glass. Plac-

ing the unit behind such doors may prevent proper remote con-

troller operation.

•

If there is any obstacle between the remote controller and the

remote control sensor, the remote controller will not operate.

Setting the AM tuning step frequency

(Worldwide models only)

Setting the Voltage selector (Worldwide models

only)

Installing the remote controller batteries

Using the remote controller

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS AV RECEIVER

MODEL NO. TX-DS575X

AM FREQUENCY

STEP

10kHz

9kHz

120V

VOLTAGE SELECTOR

220-230V

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

DIGITAL INPUT

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

AC OUTLETS

SWITCHED

TOTAL 100W MAX.

120V

VOLTAGE SELECTOR

220-230V

AM FREQUENCY

STEP

10kHz

9kHz

3

2

1

TX-DS575X

STANDBY indicator

Remote control sensor

30˚ 30˚ approx. 5 m

(16 feet)

6

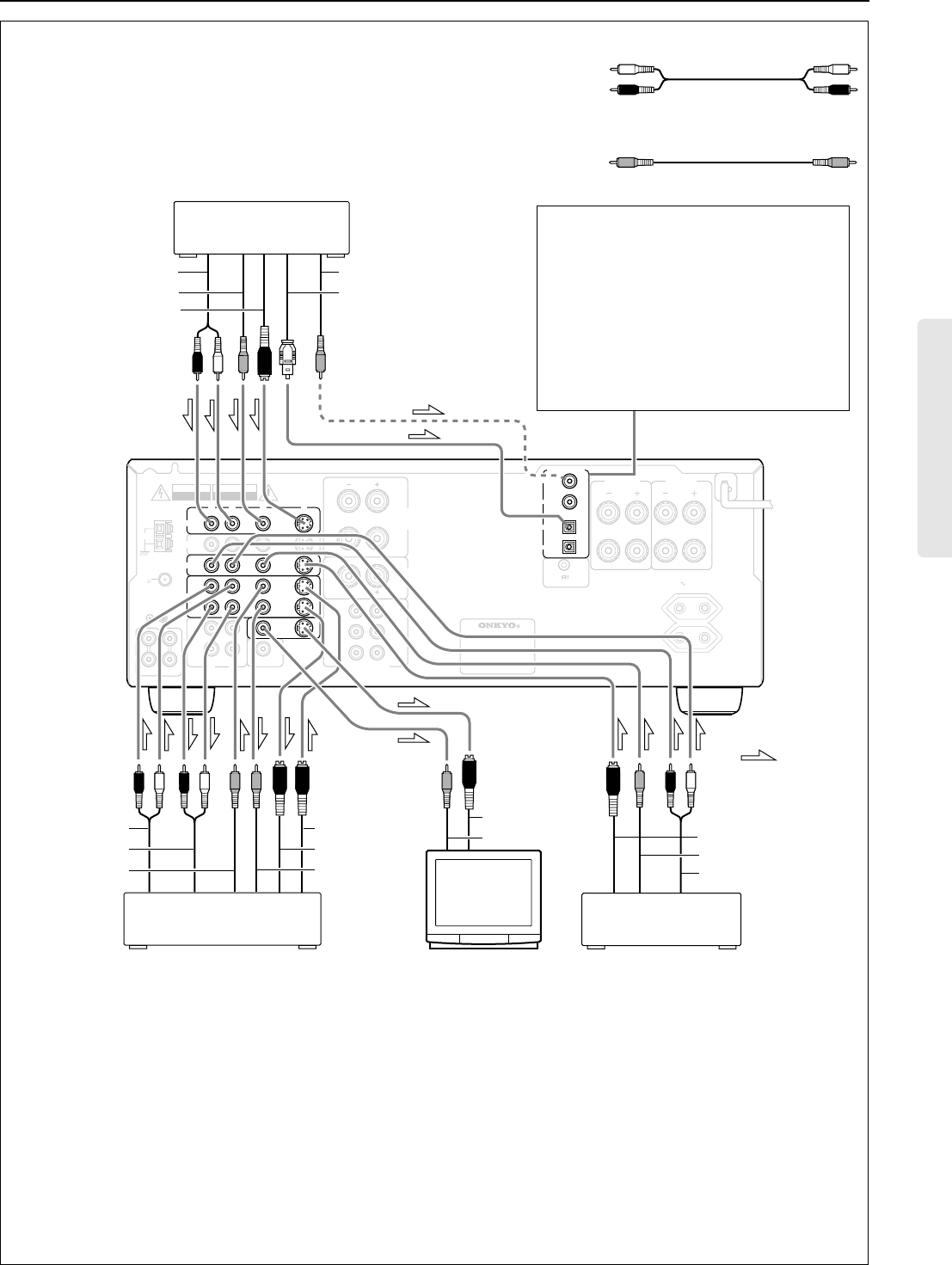

Audio equipment connections

•

On each pair of input jacks, a red connector (marked R) corresponds to the right

channel, and a white connector (marked L) to the left channel.

•

Please refer to the instruction manual of each component when making any con-

nections.

•

This receiver is designed for use with turntables using moving magnet cartridges.

•

Insert the plugs and connectors securely. Remember that improper connection

can result in noise, poor performance, or damage to the equipment.

L (Left)

R (Right)

L

R

Audio connection cable

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

VS AV RECEIVER

MODEL NO. TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

RL

DIGITAL INPUT

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

INPUT

(REC) OUTPUT

(PLAY)

Tape Deck

Turntable

CD Player

OUTPUT

(ANALOG) DIGITAL COAXIAL OUTPUT

OUTPUT

Ground

To wall

outlet

Do not plug in the power

cord until all connections

have been made.

Improper connection

Insert completely

See page 7

: signal flow

DIGITAL OPTICAL OUTPUT

•A DVD or other component equipped with a digital output can be connected to this receiver. The digital connection must be

used in conjunction with an analog connection, because if the analog cable is disconnected, the audio output from TAPE OUT

(REC) and VIDEO 1 OUT will not work.

•Remove the protective cap attached to the DIGITAL INPUT OPTICAL jack before making the connec-

tion. When this jack is not used, replace the protective cap.

7

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS AV RECEIVER

MODEL NO. TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

DIGITAL INPUT

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

VIDEO 2

VIDEO 1

DVD Player

Monitor TV

Video Cassette Recorder

VIDEO IN

S-VIDEO IN

VDP Player

AUDIO IN

S-VIDEO OUT

S-VIDEO IN

VIDEO IN

AUDIO OUT

AUDIO OUT

VIDEO OUT VIDEO OUT

S-VIDEO OUT

AUDIO OUTPUT DIGITAL COAXIAL OUTPUT

VIDEO OUTPUT

S-VIDEO OUTPUT

DIGITAL OPTICAL OUTPUT

: signal flow

L (Left)

R (Right)

L

R

V (Video) V

Audio connection cable

Video connection cable

Video equipment connections

•On each pair of input jacks, a red connector (marked R) corresponds to the right

channel, and a white connector (marked L) to the left channel.

•A yellow connector (marked V) is used for video connection.

•Please refer to the instruction manual of each component when making any con-

nections.

Notes:

•When using a playback-only VCR, connect it to VIDEO 2 or VIDEO 3. If you connect it to VIDEO 1, you need to make only the out-

put connections.

•This receiver can be used with only a monitor TV equipped with a video input jack.

•Interference may be caused between the TV and this receiver. If this interference occurs, place the receiver and the TV as far apart

as possible. We do not recommend the use of a common TV/FM antenna (see antenna section).

•A DVD or other component equipped with a digital output can be connected to this receiver. The digital connection must be used in

conjunction with an analog connection, because if the analog cable is disconnected, the audio output from TAPE OUT (REC) and

VIDEO 1 OUT will not work.

•A signal input from the S-video connector will be routed to the S-video out, and the signal input from the video connector will be

routed to the video out.

•Refer to the instruction manual for the devices you wish to connect for information on whether you need to connect only the S-video

connector, or both S-video connector and video connector.

•Remove the protective cap attached to the DIGITAL INPUT (OPTICAL) jack before making the connection. When this jack is not

used, replace the protective cap.

Digital audio connections

This receiver has a powerful digital signal

processor for use with DVD players, DAT

decks, and CD players. The digital inputs,

COAXIAL 1, 2 and OPTICAL1, 2 can be

assigned to individual input selector buttons,

so when an input selector button is pressed, the

assigned digital input is used instead of the

corresponding analog input. (See page 18.)

8

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS AV RECEIVER

MODEL NO. TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

DIGITAL INPUT

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

DVD player or

a decoder with Multi (5.1) channel outputs

FRONT OUT

CENTER OUT

SUBWOOFER OUT

AUDIO OUT

VIDEO OUT

SURROUND OUT

L (Left)

R (Right)

L

R

V (Video) V

Audio connection cable

Video connection cable

•On each pair of input jacks, a red connector (marked R) corresponds to the right

channel, and a white connector (marked L) to the left channel.

•A yellow connector (marked V) is used for video connection.

•Please refer to the instruction manual of each component when making any con-

nections.

Monaural audio cable (mono)

Decoder with 5.1 channel output

You may connect the 5.1 channel outputs of an external decoder (such as MPEG decoder) to the MULTI CHANNEL INPUTs of this

unit.

Use the DVD player or decoder controls to adjust the speaker settings for multi-channel input.

Connecting other devices

9

Connecting other devices

AC outlet connection

You can connect the power cord from another

audio device to the rear of this receiver.

Since the AC outlets on the unit are a

SWITCHED type outlet, you can use the

STANDBY/ON button, or the POWER ON

button on the remote controller to turn on/off

the power to both this receiver and the con-

nected audio devices.

First turn the POWER switch ON ( ).

The shape, number, and total capacity of the

AC outlets may differ depending on the area of

purchase. Make sure that the total capacity of

other components connected to this unit does

not exceed the capacity that is printed on the

rear panel.

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS

AV RECEIVER

MODEL NO.

TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

DIGITAL INPUT

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

AC OUTLETS

AC 120V 60Hz

SWITCHED

TOTAL 120W 1A MAX.

Capacity is total

120 watts.

U.S.A. and

Canadian models

Worldwide and

European models

Capacity is total

100 watts.

ON

REMOTE CONTROL

SURROUND

CENTER

SPEAKER

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

SUBWOOFER

PRE OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS AV RECEIVER

MODEL NO. TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

DIGITAL INPUT

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

TX-DS575X

CD Player

Cassette Tape Deck

Connections for remote control ( )

You can use the remote controller of this

receiver to operate cassette tape decks and

compact disc players that have Onkyo con-

nectors.

Connect a remote control cable to the connec-

tor with the mark.

•An remote control cable equipped with

a 3.5mm (1/8 in.)-diameter miniature two-

conductor phone plug comes with every

compact disc player or cassette tape deck

that has an connector.

•Remote control operation is not possible if

only the remote control cable is connected –

the audio connection cables must also be

connected.

•This receiver’s remote controller does not

support control of Onkyo turntables.

•If the connecting device has two con-

nectors lined-up vertically or horizontally,

you can use either of them. They both offer

the same functionality.

•You can use the remote controller for the

TX-DS575X to control a Onkyo DVD

player or MD recorder that is not connected

via an cable. When you control such a

DVD player or MD recorder, point the

remote controller toward the sensor area of

the DVD player or MD recorder.

10

•If you want to use the surround effects, connect surround speakers. For the best results, connect a center speaker.

•Use FRONT SPEAKERS B terminals to connect a second pair of front speakers.

•This receiver is designed to produce optimum sound quality when speakers with impedances within the specified ranges are con-

nected. Please check the following information and choose speakers with appropriate impedances for the connections.

FRONT SPEAKERS: A or B: 6 ohms min./speaker

SURROUND SPEAKERS: 6 ohms min./speaker

CENTER SPEAKER: 6 ohms min.

15 mm

1. Twist wire ends very tight. 2. Unscrew. 3. Insert wire. 4. Screw.

REMOTE CONTROL

SURROUND

SUB

WOOFER

MULT

I

CH I

NPUT

FRONT

CENTER

R

L

R

L

R

R

L

L

FRONT

SPEAKERS

A

AM

FM

75

ANTENNA

C

D

(PLAY)

(REC)

MONITOR

OUT

DVD

TAPE

VIDEO 1

VIDEO 2

VIDEO 3

I

N

OUT

OUT

I

N

I

N

I

N

I

N

PHONO

R

L

GND

RLV S

RL

VS AV RECEIVER

MODEL NO. TX-DS575X

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

DIGITAL INPUT

SURROUND

SPEAKERS

R

L

R

L

FRONT

SPEAKERS

B

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

AC OUTLETS

AC 230V 50Hz SWITCHED

TOTAL 100W MAX.

CENTER

SPEAKER

SUBWOOFER

PRE OUT

+–+–

+–+–

L ch.

R ch.

R ch. L ch.

Front Speakers B

+–+–

R ch. L ch.

Front Speakers A

Surround Speakers

Active subwoofer

–+

Center Speaker

NO

Connecting the speaker cable

NOTE:

To prevent damage to circuitry,

never short-circuit the positive (+)

and negative (–) speaker wire.

•When you use only one speaker or wish to listen

to monaural (mono) sound, a single speaker

should never be connected in parallel to both the

right and left channel terminals simultaneously.

+––+ +––+

RL RL

Connecting speakers

11

Positioning speakers

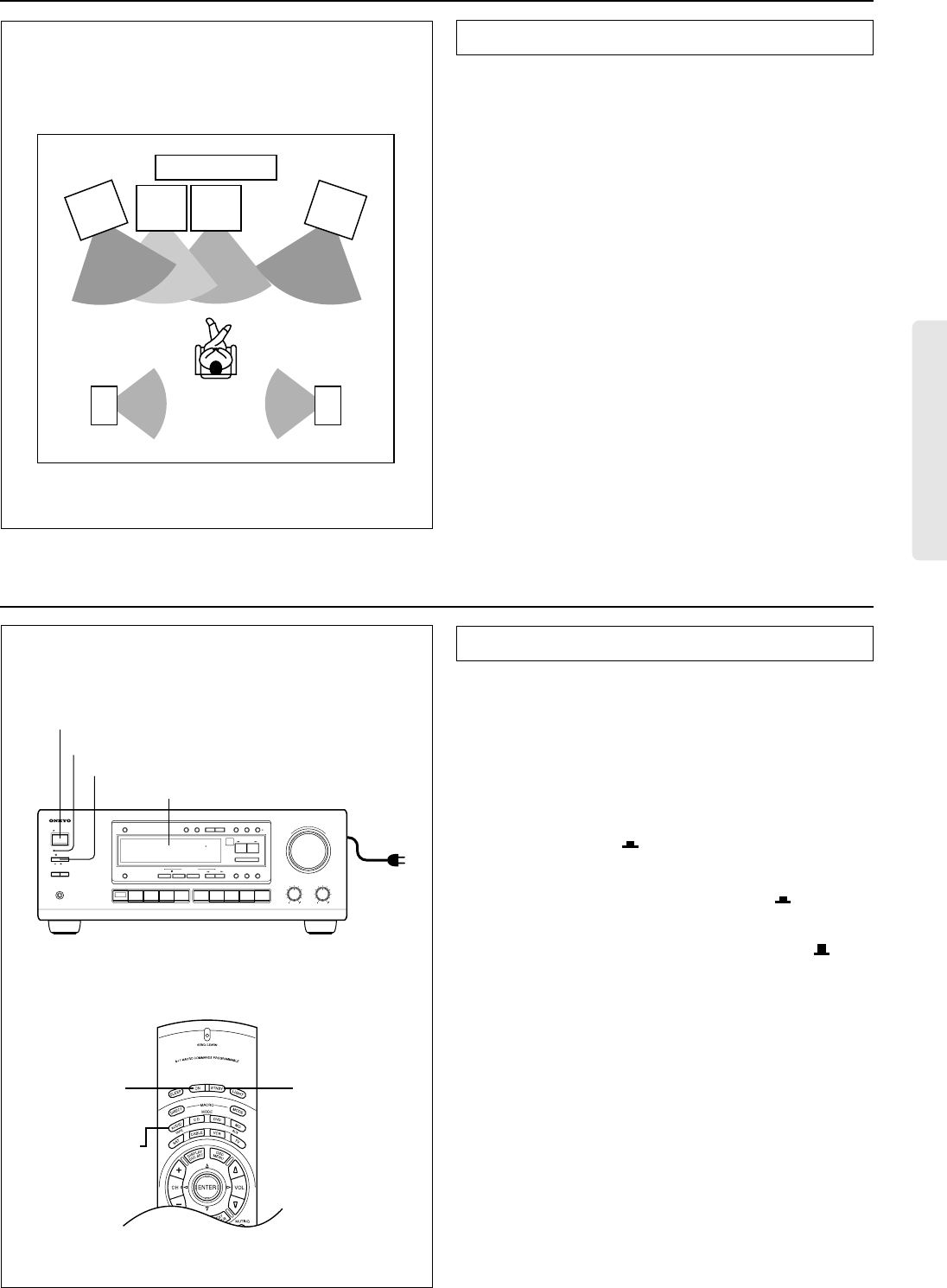

Speaker placement plays an important role in the reproduction of

Surround sound. The placement of the speakers varies depending

on the size of the room and the wall coverings used in the room.

The illustration shows an example of a layout for standard speaker

placement. Refer to this example when you position the speakers in

order to experience the best of Surround sound.

Standard speaker placement

For ideal Surround effects, all speakers should be installed. If a

center speaker or subwoofer is not connected, the sound from the

unused channel is properly distributed to the connected speakers in

order to produce the best Surround sound possible.

Front: The left, right, and center speakers should face the seated

listener and be placed at ear level. The center speaker produces a

richer sound image by enhancing the perception of the sound’s

source and movement.

Surround: Place the left and right Surround speakers 1 meter

(3 feet) above the listener’s ear level and facing toward the sides of

the room, making sure that the listener is within the speakers’ dis-

persion angle. These speakers produce the feel of a moving sound

while creating the sensation of being in the middle of the action.

Subwoofer: Install a subwoofer with a built-in power amplifier for

powerful bass sounds. The placement of the subwoofer does not

affect the final quality of the sound image too much, so you can

install it with the room layout in mind.

Refer to the speaker’s instruction manual for more details.

Positioning speakers

TV or Screen

Center

speaker

Surround

speaker

Right

Surround

speaker

Left Listener

Sub-

woofer

speaker

Front

speaker

Left

Front

speaker

Right

Connecting the power

•Before you plug in the receiver, confirm that all connections

have been made properly.

•Turning on this receiver’s power may cause a momentary power

surge, which might interfere with other electrical equipment, such as

computers. If this happens, use a wall outlet on a different circuit.

1. Plug the power cord into an AC wall outlet.

NOTE:

When you use the TX-DS575X for the first time:

When the TX-DS575X is shipped from the factory, the POWER

switch is set to ON ( ). Therefore, when you plug in the

power cord to the AC outlet, the Standby indicator lights up and

the unit enters Standby mode as described in Step 2.

2. Press the POWER switch to set it to the ON( ) position to

place the receiver in Standby mode.

The STANDBY indicator will light up.

Press the POWER switch again to set it to the OFF ( ) posi-

tion to turn off the power to the receiver.

3. Press the STANDBY/ON button to turn on the receiver. The

display will light up and the STANDBY indicator will be

turned off.

If you press the STANDBY/ON button, the receiver returns to

Standby mode.

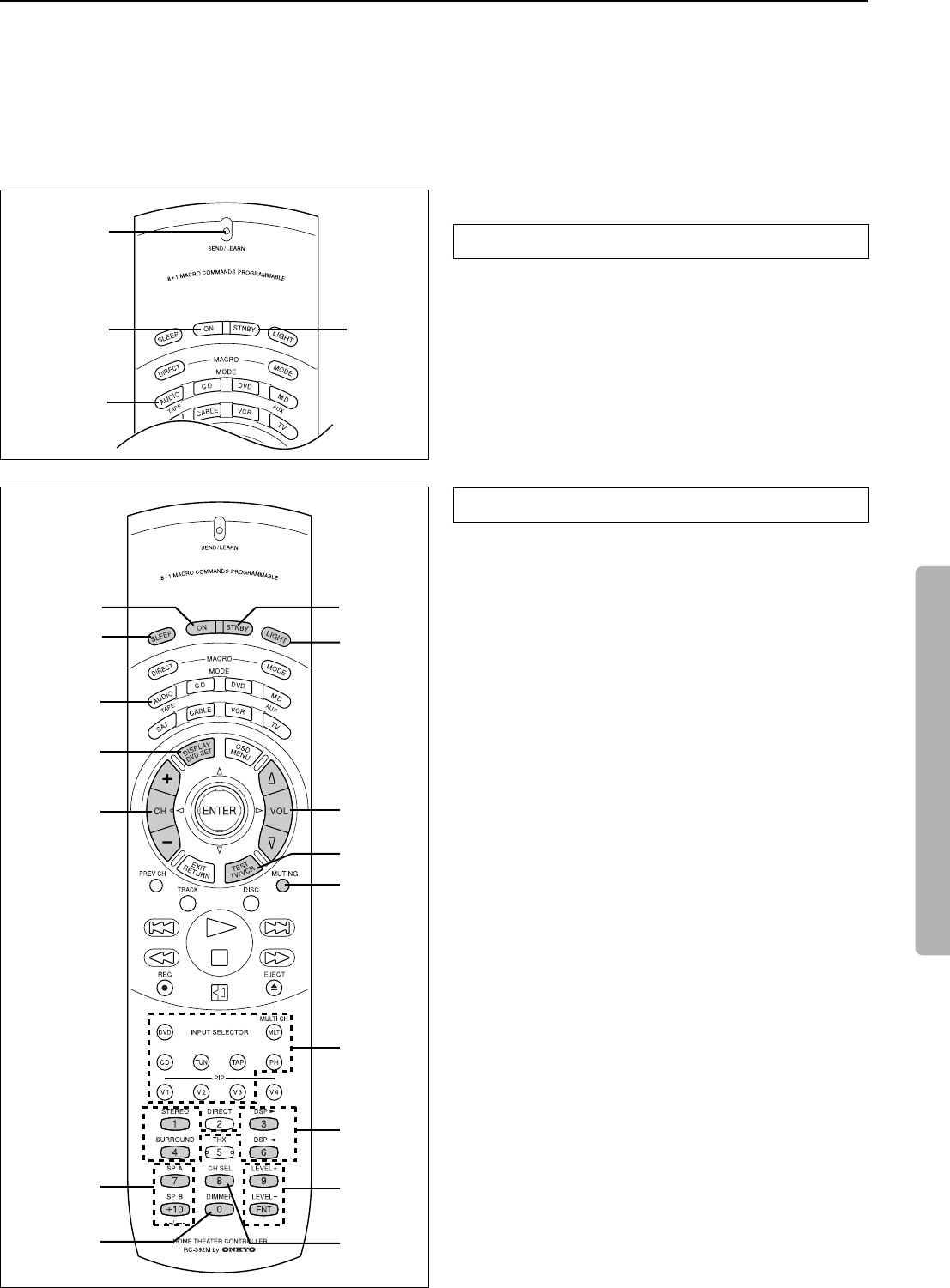

Turning the power on from the remote controller:

1. Press the POWER switch of the TX-DS575X to turn on the

power to the unit.

2. Press the MODE AUDIO button.

3. Press the ON button to turn on the power to the TX-

DS575X, or press the STNBY button to set the receiver in

standby mode.

•You cannot use the remote controller if the POWER switch on

the receiver is set to OFF.

•Set the volume level to minimum before you turn off the power

to the receiver.

Connecting the power

2. POWER switch

3. STANDBY/ON button

STANDBY indicator

Display

To wall

outlet

1.

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

3. ON button

2. MODE AUDIO

button

3. STNBY button

12

Making antenna connections

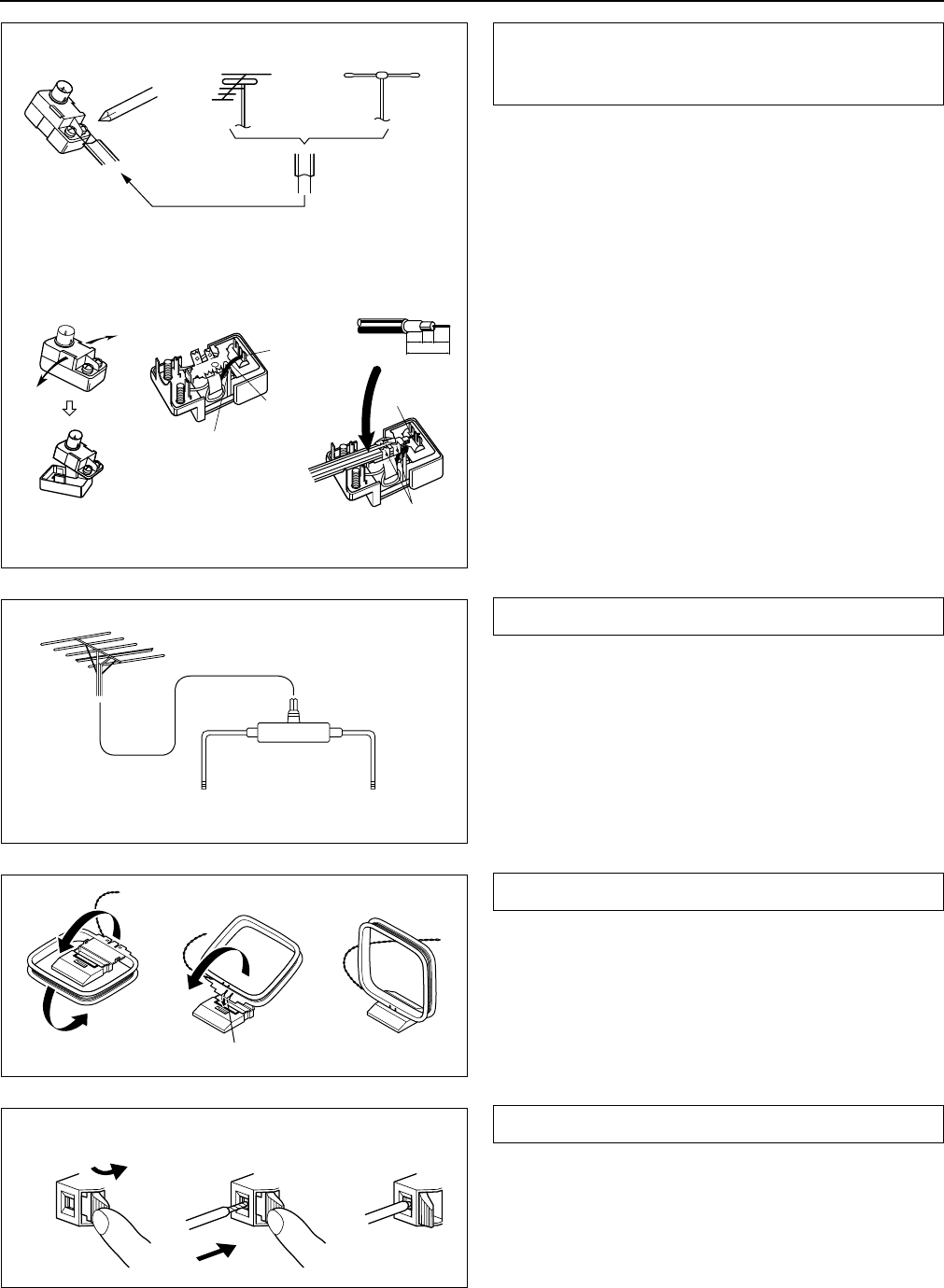

Connecting the 300 ohm ribbon wire:

Loosen the screws and wrap the wire around these screws. Then

tighten the screws with a screwdriver.

Connecting the coaxial cable:

1. With your fingernail or a small screwdriver, press the stoppers

outward and remove the cover.

2. Remove the transformer wire A from slit B and insert it into slit

C.

3. Prepare the coaxial cable as shown in the diagram.

Connect the 75/300 ohm antenna adapter to the coaxial cable.

1Insert the end of the cable.

2Clamp it in place with pliers.

4. Re-install the cover.

Do not use the same antenna for both FM and TV (or VCR) recep-

tion since the FM and TV (or VCR) signals can interfere with each

other. If you must use a common FM/TV (or VCR) antenna, use a

directional linkage type splitter.

Assemble the loop antenna as shown in the illustration.

•Refer to the next page for details on connecting the AM loop

antenna.

1. Press down the lever.

2. Insert the wire into the hole.

3. Release the lever to replace it.

Connecting the antenna cable to the 75/300 ohm

antenna adapter (Non-U.S., Canadian and Euro-

pean models)

Directional Iinkage

Assembling the AM loop antenna

Connecting the antenna cable

12 3

Insert into the hole.

Directional linkage

type splitter

To TX-DS575X To TV (or VCR)

Outdoor

antenna Indoor

antenna

300 ohms

ribbon wire

1

2

12 3

✦✦✦

✦✦✦✦

✦

✦✦

✦

6

mm 3

mm 6

mm

15mm

Slit C

Slit B

Wire A

13

Making antenna connections

Connecting the FM indoor antenna:

The FM indoor antenna is for indoor use only. Extend the antenna

and move it in various directions until the clearest signal is

received. Fix it with push pins or similar implements in the posi-

tion that will cause the least amount of distortion.

If the reception is not very clear with the attached FM indoor

antenna, the use of an outdoor antenna is recommended.

U.S. and Canadian models

Remove the insulation at the tip of the cable, and insert the cable

securely, fully to the end of the exposed tip.

Connecting the AM loop antenna:

The AM loop antenna is for indoor use only. Set it in the direction

and position where you receive the clearest sound. Put it as far

away as possible from the unit, TVs, speaker cables, and power

cords.

When reception is not satisfactory with the attached AM loop

antenna alone, connection of an outdoor antenna is recommended.

Please make sure that you follow the considerations below regard-

ing the location.

Keep the antenna away from noise sources (neon signs, busy roads,

etc.).

It is dangerous to put the antenna close to power lines. Keep it well

away from power lines, transformers, etc.

•To avoid the risk of lightning and electrical shock, grounding is

necessary. Follow item 19 of the “Important Safeguards” on

page 2 when you install the outdoor antenna.

The outdoor antenna will be more effective if it is stretched hori-

zontally above a window or outside.

•Do not remove the AM loop antenna.

•To avoid the risk of lightning and electrical shock, grounding is

necessary. Follow item 19 of the “Important Safeguards” on

page 2 when you install the outdoor antenna.

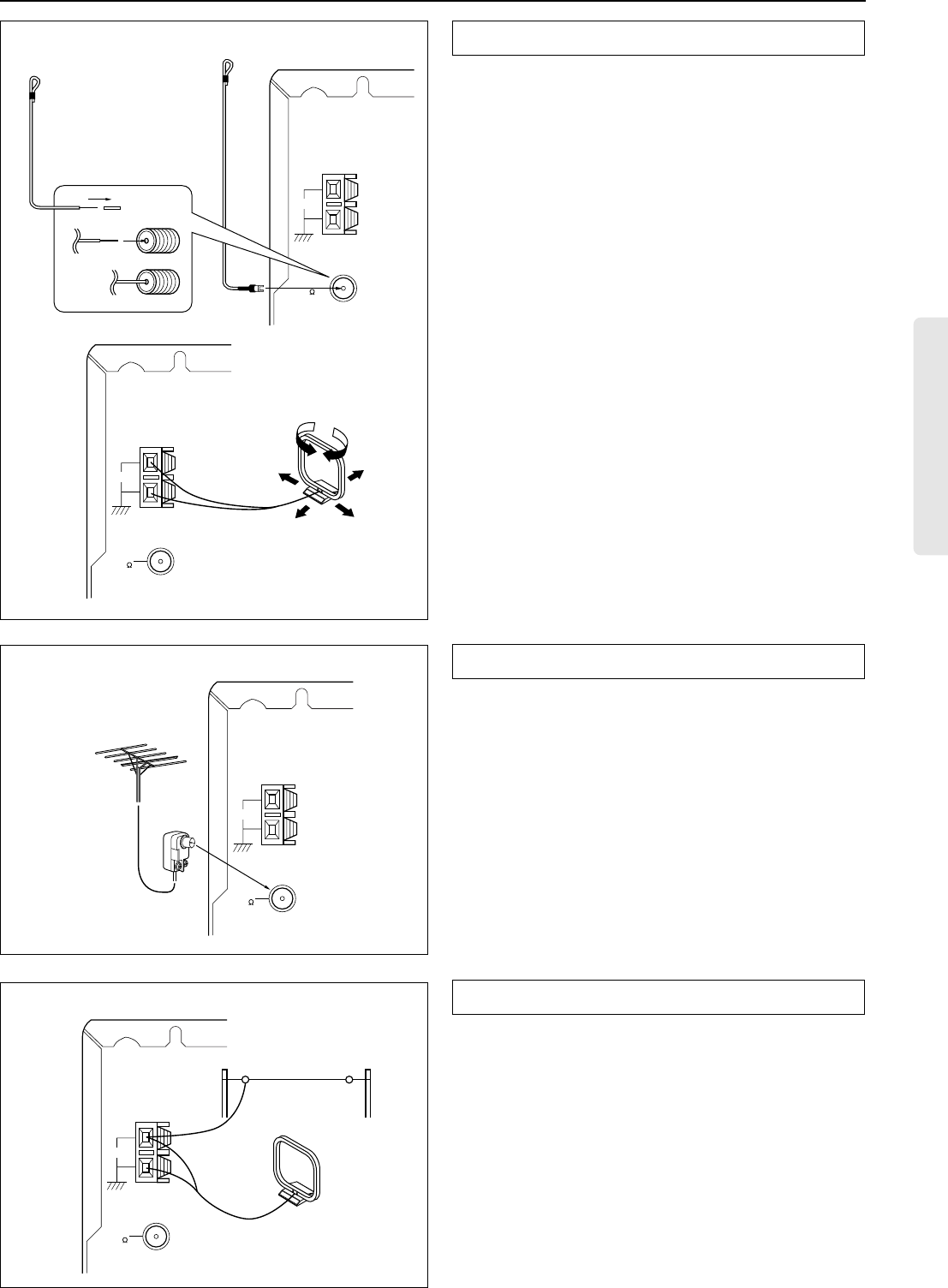

Connecting the included antennas

Connecting an FM outdoor antenna

Connecting an AM outdoor antenna

AM

FM

75

ANTENNA

Outdoor

antenna

AM

FM

75

ANTENNA

AM

FM

75

ANTENNA

U.S. and Canadian

models Other models

AM

FM

75

ANTENNA

14

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

or

ENTER

/

SCAN

ENTER

/

SCAN

ENTER

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

2

3

1

SP

/

SYS

SETUP

ENTER

/

SCAN

ENTER

or

or

or

or

Speaker setup

Follow the steps below before you start operating the unit.

AV RECEIVER

TX-DS575X

TREBLE

BASS

PHONES

OFF

ON

STANDBY/ON

STANDBY

SPEAKERS

AB

FM AM PHONO C

D

TAPE

DVD

MULTI

CH

INPUT

VIDEO 3

VIDEO 2

VIDEO 1

UP

DOWN

MASTER VOLUME

POWER

SP

/

SYS

SETUP

MODE

TUNING

UP

DOWN

CH

LEVEL

MEMORY

FM

MUTE

/

MODE

DIGITAL/

ANALOG

PTY/TP

DOWN

UP

PRESET/MODE ADJ

ENTER/SCAN

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY

LFE

LEVEL

CONTROL

STEREO5

CH STEREODSP

LISTENING

MODE

/DTS

SURROUND

Re

-EQ

PRESET/MODE ADJ √/® button

ENTER/SCAN button (European models only)

ENTER button (other than European models)

SP SYS/SETUP button

Set whether a speaker is used or not, and set the size of the con-

nected speakers.

1. Press the buttons in the following sequence to display

“CONFIG SETUP.”

2. Set whether a subwoofer is used or not.

When you press the ENTER/SCAN or ENTER button while

“CONFIG SETUP” is displayed, the current setting (“SUB-

WOOFER YES” or “NO”) appears. Press the PRESET/MODE

ADJ √/® buttons to select “YES” or “NO.”

YES: When the subwoofer is connected.

NO: When the subwoofer is not connected.

Select whichever appropriate and press the ENTER/SCAN or

ENTER button.

3. Select the size of the front speakers.

If you have set the subwoofer parameter to “NO” in step 2, pro-

ceed to step 4. (At this time, the front speaker parameter auto-

matically sets to LARGE.)

Pressing the PRESET/MODE ADJ √/® buttons toggles

between “LARGE” and “SMALL.”

LARGE: When large speakers are used as the front speakers.

SMALL: When small speakers are used as the front speakers.

Select whichever appropriate and press the ENTER/SCAN or

ENTER button.

Setting the CONFIG parameters

15

Speaker setup

4. Select the size of the center speaker.

Pressing the PRESET/MODE ADJ

√

/

®

buttons switches

among “LARGE,” “SMALL,” and “NONE.”

Note:

If you have selected “SMALL” for the front speakers, you can

select only “SMALL” or “NONE” for the center speaker.

LARGE:

When a large speaker is used as the center speaker.

SMALL:

When a small speaker is used as the center speaker.

NONE:

A center speaker is not connected.

Select whichever appropriate and press the ENTER/SCAN or

ENTER button.

5. Select the size of the surround speakers.

Note:

If you have selected “SMALL” for the front speaker, you can

select only “SMALL” or “NONE” for the surround speakers.

LARGE:

When large speakers are used as the surround

speaker.

SMALL:

When small speakers are used as the surround

speaker.

NONE:

Surround speakers are not connected.

Select whichever appropriate and press the ENTER/SCAN or

ENTER button.

This completes the CONFIG SETUP settings.

Set the distance from the listening position to each speaker.

1. Press the buttons in the following sequence to display “DIS-

TANCE SETUP.”

2. Set the distance to the front speakers.

Pressing the ENTER/SCAN or ENTER button while “DIS-

TANCE SETUP” is displayed will cause the “FRONT” distance

parameter to appear.

Press the PRESET/MODE ADJ

√

/

®

buttons to set the closest

distance value. You can set the distance in the range of 1feet

(0.3m) – 30feet (9m) in 1feet (0.3m) steps.

Press the ENTER/SCAN or ENTER button to confirm the

value.

3. Set the distance to the center speaker.

Press the PRESET/MODE ADJ

√

/

®

buttons to set the closest

distance value.

Press the ENTER/SCAN or ENTER button to confirm the

value.

Note:

If you have selected “NONE” for the center speaker of the

CONFIG parameter, skip this note.

You cannot set a larger value than the front speaker distance.

You cannot set a smaller value than the front speaker distance

deducted by 5feet (1.5m).

4. Set the distance to the surround speakers.

Press the PRESET/MODE ADJ

√

/

®

buttons to set the closest

distance value and press the ENTER/SCAN or ENTER button.

Note:

If you have selected “NONE” for the surround speaker of the

CONFIG parameter, skip this note.

You cannot set a larger value than the front speaker distance.

You cannot set a smaller value than the front speaker distance

deducted by 15feet (4.5m).

This completes the DISTANCE settings.

Setting the DISTANCE parameters

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

f

t

f

t

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

f

t

f

t

SP

/

SYS

SETUP

SP

/

SYS

SETUP

ENTER

ENTER

/

SCAN

1

2

3

4

ENTER

/

SCAN

(ENTER)

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

meter feet

f

t

f

t

or

or

or

or

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

or

or

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

4

or

5

or

or

or

16

Speaker setup

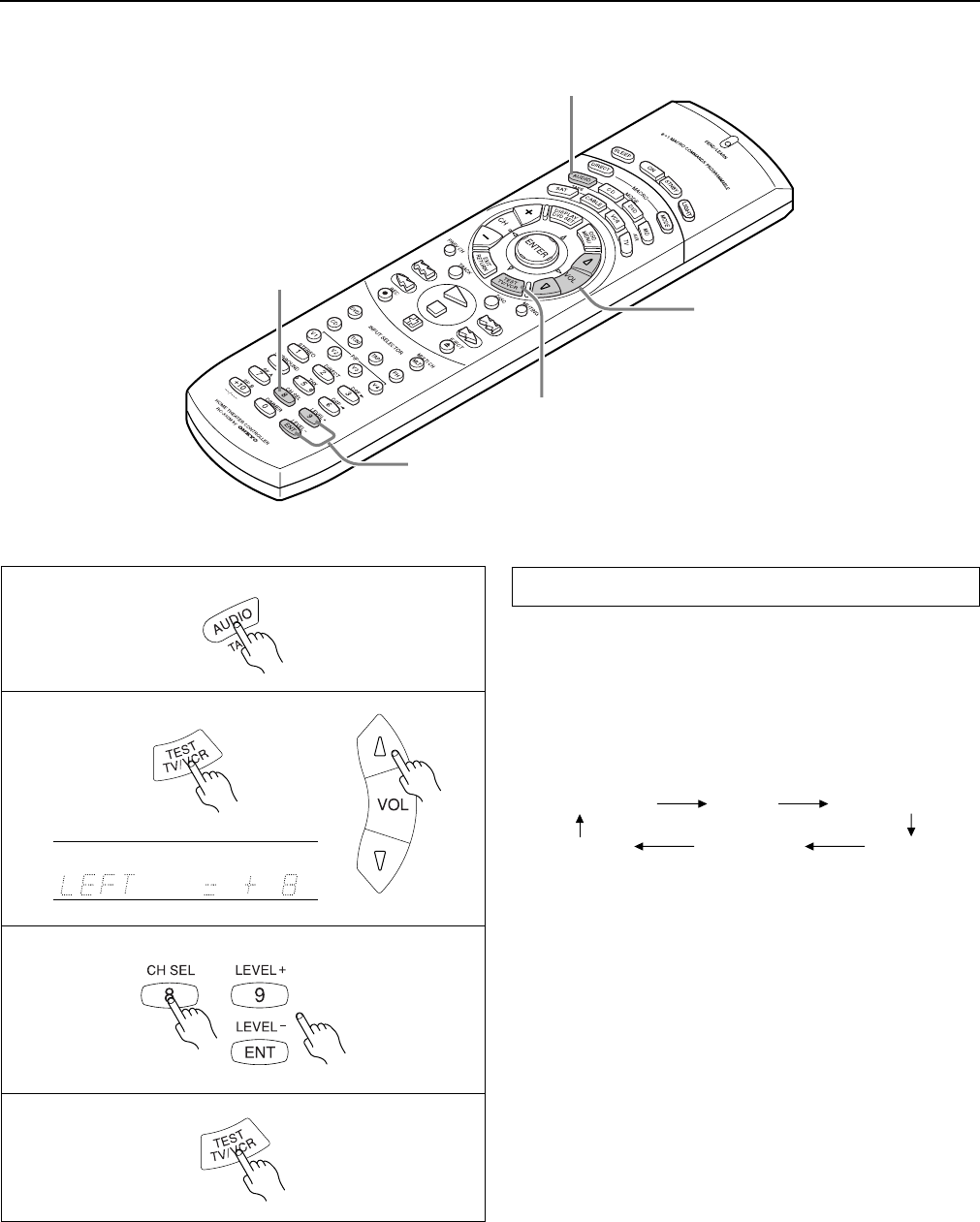

3. CH SEL button

1. MODE AUDIO button

2.

3. LEVEL +/– buttons

2. VOL q/u buttons

4. TEST button

Use the remote controller and produce the test tone to adjust the

level of the connected speakers.

1. Press the MODE AUDIO button.

2. Press the TEST button.

Press the VOL q button repeatedly to gradually raise the

volume to an appropriate level.

Each speaker produces the test tone (pink noise) in the follow-

ing order:

No sound will be output from the speakers for which the CON-

FIG parameters is set to NO or NONE.

3. To adjust the level of each speaker, press the CH SEL button

to select a speaker and press the LEVEL +/– buttons to raise

or lower the level.

The test tone should sound at the same level when you hear it in

your listening position. You can adjust the level in the range

between –12dB and +12dB.

If the speaker level is set to +1dB or higher, the maximum level

indicated on the display will change if you raise the volume

level. Refer to “About volume (VOLUME)” on page 20 for

more information.

4. Press the TEST button to complete adjustment.

Note

•The Test Tone function is not available when SPEAKERS B is

selected, when the headphones are connected, or when MULTI-

CH INPUT is selected.

Test Tone

LEFT (Front L ch)

L-SURROUND

CENTER RIGHT (Front R ch)

R-SURROUND

SUBWOOFER

(Center ch)

dB

2

3

1

4

Using the Test Tone function on the main unit

1. Press the SP/SYS SETUP button.

2. Press the ENTER/SCAN or ENTER button while “SPEAKER SETUP” appears on the display.

3. Press the SP/SYS SETUP button twice while “CONFIG SETUP” appears on the display.

4. Press the ENTER/SCAN or ENTER button while “LEVEL SETUP” appears on the display.

Each speaker produces the test tone in the order described above.

5. Use the PRESET MODE ADJ √/® buttons to adjust the level.

6. Press the SP/SYS SETUP to complete adjustment.

17

Selecting a sound source

AV RECEIVER

TX-DS575X

TREBLE

BASS

PHONES

OFF

ON

STANDBY/ON

STANDBY

SPEAKERS

AB

FM AM PHONO C

D

TAPE

DVD

MULTI

CH

INPUT

VIDEO 3

VIDEO 2

VIDEO 1

UP

DOWN

MASTER VOLUME

POWER

SP

/

SYS

SETUP

MODE

TUNING

UP

DOWN

CH

LEVEL

MEMORY

FM

MUTE

/

MODE

DIGITAL/

ANALOG

PTY/TP

DOWN

UP

PRESET/MODE ADJ

ENTER/SCAN

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY

LFE

LEVEL

CONTROL

STEREO5

CH STEREODSP

LISTENING

MODE

/DTS

SURROUND

Re

-EQ

STEREO5

CH STEREODSP

LISTENING

MODE

/DTS

SURROUND

1. Press the desired input selector button or

MULTI CH INPUT button.

The selected source name appears on the display. If

you have selected DVD, CD, VIDEO 1, VIDEO 2,

VIDEO 3, or TAPE, see page 18. Refer to page 19

for more information on MULTI CH INPUT.

2. Make sure that the SPEAKERS

A indicator is lit on the display.

If it is not lit, press the

SPEAKERS A button.

(Refer to the “Speakers selector”

section on the page 20 for more

details.)

3. Start playing the selected input

source.

Follow the operating instructions

for the source device.

5. Adjust the volume to an appropriate level.

These controls allow you to adjust the volume of the

Front, Center, Surround speakers and subwoofer

simultaneously. Turning the control clockwise

increases the volume level. Turning the control

counter-clockwise decreases the volume level.

(Refer to page 20 for more details.)

DIMMER button (other than

European models)

Use this button to change the brightness

of the display (normal or dim).

5. VOLUME button (qup/udown)

Use this button to adjust the

volume level.

3. INPUT SELECTOR button

Use this button to select a desired sound source.

(V4 button is not used for this TX-DS575X.)

DIMMER button

Use this button to change the brightness

of the display (normal or dim).

SLEEP button

This button allows you

to set the sleep timer.

(Refer to page 20 for

more details.)

MUTING button

This button mutes the sound temporarily.

(Refer to page 20 for more details.)

6. Use the bass, treble

controls to adjust the tone.

(Refer to page 20 for more

details.)

1. Press the MODE AUDIO button

4. LISTENING MODE

Select a Listening mode.

(Refer to page 21)

2. SP A button

Use this button

to select Speaker A.

4. Select a Listening mode. (Refer to page 21)

PTY/TP button (European models only) (Refer to page 27)

Follow the steps below to select a device to play the sound source.

Warning:

•Do not play CD-ROM discs that contain computer data as they may damage the speakers when the sound is amplified by the receiver.

Note:

If you hear no sound from the speakers, check the following items:

•Make sure that all devices and speakers are connected correctly and securely.

•The sound is muted when the “MUTING” is on the display. Press the MUTING button on the remote controller to cancel the mute func-

tion.

•When you select a source that is connected to the DIGITAL INPUT jacks on the rear panel. Check to see if the audio (digital or analog)

selection is correct (when DVD, CD, VIDEO 1-3, or TAPE is selected) (refer to page 18.).

•If you have selected MULTI CH INPUT, you need to adjust the level of each speaker (refer to page 19).

18

Selecting a sound source

Assigning the digital input

If another device is connected to the digital input jack of the TX-

DS575X, assign the digital input to DVD, CD, VIDEO 1,

VIDEO 2, VIDEO 3, or TAPE depending on the type of connected

device. Follow the steps (1–4) below.

Note:

The default setting is “ANALOG.” In this case, you cannot play

any digital signals from the digital input jacks (Dolby digital, DTS,

etc.).

OPT1 — The TX-DS575X plays back a digital signal input

from the OPTICAL 1 jack.

OPT2 — The TX-DS575X plays back a digital signal input

from the OPTICAL 2 jack.

COAX1 — The TX-DS575X plays back a digital signal input

from the COAX 1 jack.

COAX2 — The TX-DS575X plays back a digital signal input

from the COAX 2 jack.

ANALOG — The TX-DS575X plays back an analog signal

input from the ANALOG input jack. (Digital signals input from

the digital input jacks will not be played.)

Selecting the input signal format

Normally, select AUTO for this parameter. You can also select

DIGITAL or ANALOG depending on the source. Follow the steps

(4–6) below to change the setting.

AUTO (digital signal/analog signal playback mode)

Digital signals have priority for playback. If no digital signals are

input, the TX-DS575X plays back analog signals.

When the TX-DS575X plays back digital signals, it automatically

detects the signal format (Dolby Digital, DTS, or PCM) and per-

forms the necessary decoding process.

DIGITAL (digital signal playback mode)

The TX-DS575X plays back digital signals. (Input analog signals

will be ignored.)

The TX-DS575X automatically detects the signal format (Dolby

Digital, DTS, or PCM) and performs the necessary decoding pro-

cess.

ANALOG (analog signal playback mode)

The TX-DS575X plays back analog signals. (Input digital signals

will be ignored.)

Assume that you have connected a DVD player to the COAXIAL 1

connector.

1. Use the INPUT button to select “DVD.”

2. Press the DIGITAL/ANALOG button to set digital input.

“DGTL/ANLG SETUP” appears, followed by the current set-

ting (“DVD =” OPT1, OPT2, COAX1, COAX2, or ANALOG).

3. Press “PRESET/MODE ADJ √/®” to select COAX1.

4. Press the ENTER/SCAN or ENTER button.

The unit displays “INPUT FORMAT” in a few seconds, fol-

lowed by the current setting (AUTO, DIGITAL, or ANALOG).

5. Press “PRESET/MODE ADJ √/®” to select AUTO, DIGI-

TAL or ANALOG.

6. Press the ENTER/SCAN or ENTER button.

Tip:

You may play analog audio while digital input is selected if you

select “ANALOG” in Step 5.

Note:

•You cannot select “INPUT FORMAT” as described in Step 4 if

you select “ANALOG” in Step 3.

•You can assign digital input to DVD, VIDEO 1, VIDEO 2,

VIDEO 3, TAPE, and CD.

Assigning the digital input/Selecting the input

signal format

ENTER

/

SCAN

ENTER

1

2

3

4

5

6

DVD Player

TX-DS575X

DIGITAL INPUT

COAXIAL 1

COAXIAL 2

OPTICAL 1

OPTICAL 2

DVD

DIGITAL/

ANALOG

PRESET

/

MODE

ADJ

DOW

NUP

PRESET

/

MODE

ADJ

DOW

NUP

ENTER

/

SCAN

ENTER or

or

19

Selecting a sound source

Follow the steps below to adjust the level of each speaker if you

have selected MULTI CH INPUT.

1. Press MODE AUDIO button on the remote controller.

2. Press MULTI CH button on the remote controller.

You cannot select any listening mode.

3. Play the device connected to the MULTI CHANNEL INPUT

jack.

4. Adjust the volume level of each speaker.

4-1. Press the CH SEL button to select the desired speakers.

4-2. Use the LEVEL +/– button to change the volume level of

the speakers.

You can adjust the volume level of each speaker individu-

ally. Adjust the level while listening to the sound in the lis-

tening position.

You can adjust the level of the front, center, and surround

speakers in the range between –12dB and +12dB.

You can adjust the subwoofer level in the range between –

30dB and +12dB.

Note

•Adjusting the volume level of each speaker for the MULTI CH

INPUT source does not affect the speaker level adjusted by the

Test Tone function, and vice versa.

•If the speaker level is set to +1dB or higher, the maximum level

indicated on the display will change if you raise the volume

level. Refer to “About volume (VOLUME)” on page 20 for

more information.

This function automatically selects the volume level you set last

time.

Follow the steps below:

How to set the Power On Volume function:

1. Press the SP/SYS SETUP button repeatedly to select

“POWER ON VOLUME.”

2. Press the ENTER/SCAN or ENTER button.

The unit displays “PWR ON VOL=OFF” or the current volume

level.

If “PWR ON VOL=OFF” appears, press the PRESET/MODE

ADJ√/® button to display the current level (PWR ON

VOL=XX).

3. Use the MASTER VOLUME control to set the desired level.

4. Press the ENTER/SCAN or ENTER button to complete the

setting.

Note:

If the PWR ON VOL parameter is set to OFF, the Power On Vol-

ume function is disabled. In this case, when you turn on the power

to the unit next time, it will use the volume level that was set when

you turned off the power.

When Multi channel input is selected as a source

Using the Power On Volume function

LEFT

L-SURROUND

CENTER RIGHT

R-SURROUNDSUBWOOFER

2

4-1

4-2

1

ENTER

/

SCAN

ENTER

2

3

1SP/SYS

SETUP

ENTER

/

SCAN

ENTER

PRESET

/

MODE

ADJ

DOW

NUP

U

P

MASTER VOLUME

D

O

W

N

4

or

or

20

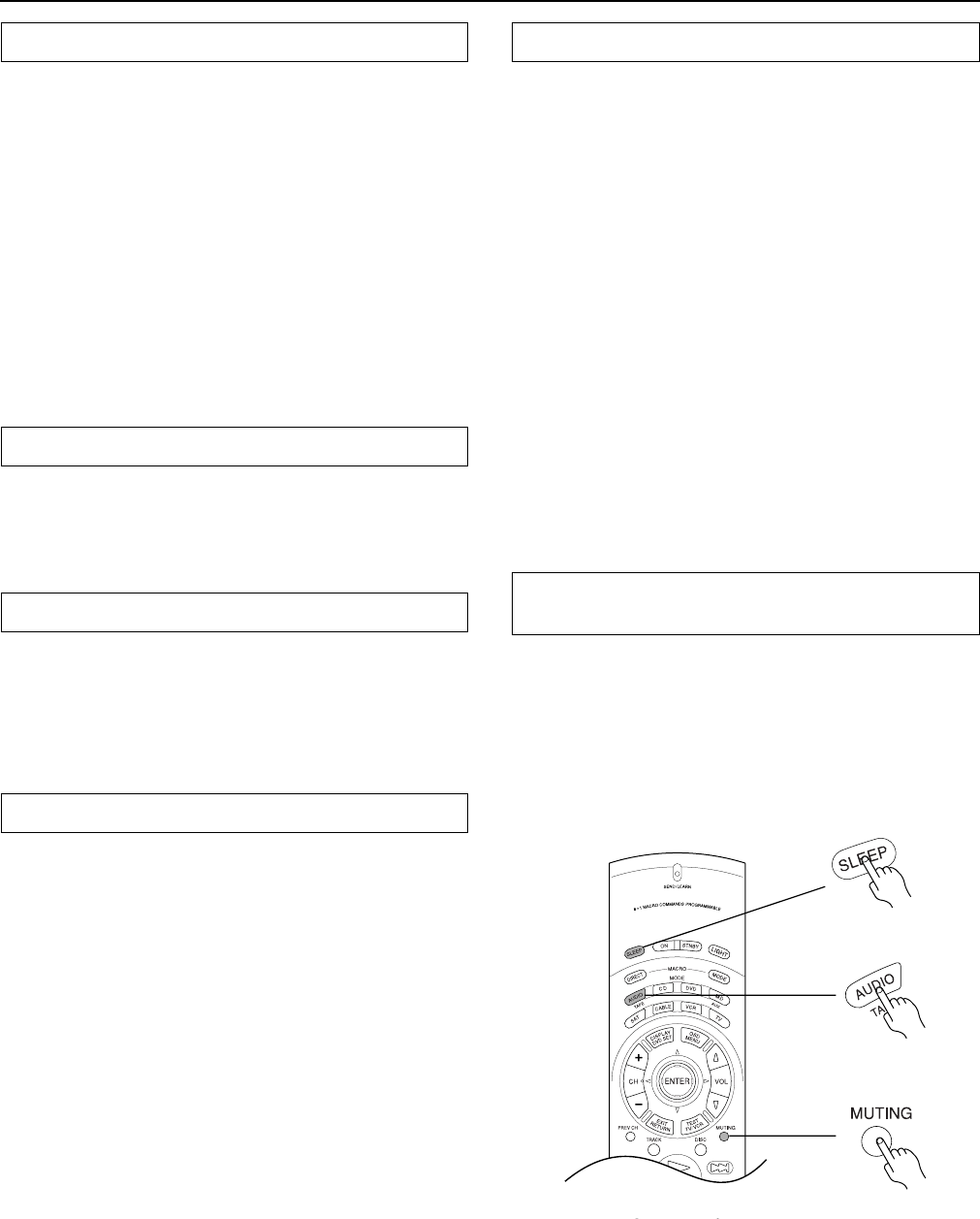

Selecting a sound source

SPEAKERS A:

This button turns on or off the speakers connected

to the FRONT SPEAKERS A, CENTER SPEAKER, SURROUND

SPEAKERS and SUBWOOFER terminals.

When you listen to surround audio or select Multi CH INPUT, be

sure to turn on SPEAKERS A.

When the speakers are turned on, the SPEAKERS A indicator

lights up.

SPEAKERS B:

This button turns on or off the speakers connected

to the FRONT SPEAKERS B terminals.

When the speakers are turned on, the SPEAKERS B indicator

lights up.

Note:

You cannot select Surround sound when you are using SPEAKERS

B. If you select SPEAKERS B while Surround sound is selected,

Surround mode will be automatically canceled.

Treble and bass adjustment is effective only for the Front speakers

and headphones.

BASS:

Boosts or cuts the bass response.

TREBLE:

Boosts or cuts the treble response.

You can connect stereo headphones to the PHONES jack using a

standard stereo plug.

If you connect headphones, the unit will enter STEREO mode

automatically, and no sound will be produced from the speakers. If

you have selected MULTI CH INPUT, you will hear sound only

from the FRONT L and R channels.

You have the option of displaying your volume settings either of

two ways:

•

ABSOLUTE — on a scale of MIN (0: no sound) to MAX (80:

extremely sound);

or

•

RELATIVE — on a scale which is measured “plus or minus,”

relative to the calibrated reference volume.

With either settings, the volume level changes in the same incre-

ment.

ABSOLUTE: MIN, 1, 2, 3, 4, ......., 77, 78, 79, MAX

RELATIVE: –

∞

, –61, –60, –59, ......., +16, +17, +18 (dB)

1. Press the SP/SYS SETUP button twice.

“VOLUME DISPLAY” appears.

2. Press the ENTER/SCAN or ENTER button.

“VOLUME=ABSOLUTE or RELATIVE” appears.

3. Press “PRESET/MODE ADJ

√

/

®

” to select the desired

display.

4. Press the ENTER/SCAN or ENTER button.

•

If the speaker level is set to +1dB or higher, the maximum level

indicated on the display will change if you raise the volume level.

Refer to the following sections for more information on adjusting

the speaker level:

“Test Tone (Remote controller only)” on page 16.

“When Multi channel input is selected as a source” on page 19.

The sleep timer can turn off the power to the system after a speci-

fied time period.

To set up this function, use the remote controller supplied with this

receiver.

1. Start playing the source you would like to listen to (CD,

tape, or radio broadcast).

2. Press the MODE AUDIO button.

3. Press the SLEEP button repeatedly to set the duration of

time after which you want the system to turn off.

The longest timer value you can set is 90 minutes. Pressing the

SLEEP button each time reduces the time value in 10-minute incre-

ments.

When the specified time comes, the power will be switched off

automatically.

Disabling the Sleep function

Press the SLEEP button until it returns to the selected input source

name.

or

The timer setting will be cancelled if you turn off the power to the

unit.

Press the MUTING button.

The “MUTING” appears on the display and the sound from the

speakers or headphones will be switched off by the receiver’s audio

muting circuits.

To cancel,

•

press the MUTING button again,

or

•

set the unit to stand-by mode, then turn the power on.

Speakers selector (SPEAKERS A, B)

Adjusting the tone (BASS, TREBLE)

Listening through headphones (PHONES)

About volume (VOLUME)

Sleep function (Remote controller only)

Temporary muting (MUTING)

(Remote controller only)

21

Using Listening Mode

Listening Modes

The TX-DS575X’s surround sound enables you to enjoy the pres-

ence of a movie theater or concert hall in your room.

Before using a listening mode, make sure the Speaker Setup

parameters have been set (refer to page 14). Once the parameters

have been set, it is not necessary to set them again.

The configuration of the speakers are very important for the sur-

round sound. Refer to “connecting speakers” on page 10.

DOLBY DIGITAL Surround,

DTS (Digital Theater System) Surround

This 5.1-channel digital surround format enables you to individu-

ally record and play five full-range (20Hz–20kHz) channels (left

and right front, center, two surround channels) plus an LFE chan-

nel (Low Frequency Effect) for the low-range effect sound. It will

create a realistic sound that could be heard in the theaters and con-

cert halls.

DOLBY DIGITAL: Select this option when you play a DVD video

that has a mark.

DTS: Select this option when you play a DVD player, laser disc, or

CD that has a mark.

DOLBY PRO LOGIC

This surround format consists of four channels (left and right front,

center, and monaural surround channels) and emphasizes the cen-

ter channel. This format is very effective for panning music, con-

versation, and three-dimensional sound movement output from

three front channels. It also simulates the atmosphere and surround

effects of the sound reflected from the side and rear walls of the

theater. Select this option when you play a VHS, VHS Hi-Fi, laser

disc, or DVD video that has a mark.

Onkyo’s listening modes

The TX-DS575X offers the following special Onkyo listening

modes for the sources other than Dolby Digital and DTS sounds.

ORCHESTRA: This mode is suitable for classics and opera

music. The center channel is cut and the surround channels are

emphasized to widen the stereo image. It will simulate a natural

reverberation that can be created in a large hall.

UNPLUGGED: This mode is suitable for acoustic instrumental

sounds, vocals, and jazz music. By emphasizing the front stereo

image, it will simulate the acoustics in front of the stage.

STUDIO-MIX: This mode is suitable for rock and popular

music. Lively sounds with a powerful acoustic image will make

you feel as if you are in a club.

TV LOGIC: This mode offers a realistic acoustics of a TV pro-

gram being aired in the TV studio. It enhances the entire sur-

round sound and clarity of conversation.

5CH STEREO: This mode is useful for background music.

The front and surround channels will create a stereo image.

STEREO

Select this mode when you do not wish to use the surround mode.

All input sound is output from the front speakers.

•A system with L/R front and center speakers

The following modes are available:

DOLBY 3 STEREO

The surround channel sound is output from the left and right

front speakers.

STEREO

This is a normal stereo mode. Surround mode is cancelled.

•A system with L/R front speakers

The following mode is available:

STEREO

This is a normal stereo mode.

Notes on DTS

1. If you play a CD or LD that supports DTS when the “ANA-

LOG” setting is selected on the TX-DS575X, the DTS encoded

signal will not be decoded and noise will be output. This noise

could damage the amplifier and speakers. Therefore, be sure to

select “DIGITAL” and use the digital input jacks (OPTICAL/

COAXIAL) to connect the DTS source. (Refer to “Assigning

the digital input/Selecting the input signal format” on page 18.)

2. If you play a CD or LD that supports DTS when the “DIGITAL”

setting is selected, you may hear a noise for a short while until the

DTS decoder recognizes the DTS encoded signal and starts oper-

ating. This is not a malfunction.

3. If you press the PAUSE or SKIP button on the player while play-

ing a DTS source, a short noise may be heard. This is not a mal-

function.

4. The DTS indicator on the TX-DS575X lights up while it plays

the DTS source. When playback concludes and the DTS signal

transmission stops, the TX-DS575X remains in DTS mode and

the DTS indicator remains lit. This prevents noise when you

operate the PAUSE or SKIP button on the player. Therefore, if the

source switches from the DTS signal to the PCM signal immedi-

ately, the PCM signal may not be played. In this case, stop the

playback of the source on the player for about three seconds, then

resume playback.

5. Some CD players and LD players may be unable to play DTS

sources correctly even if you connect the player to the TX-

DS575X digitally. This is because the digital signal has been pro-

cessed (such as the output level, sampling frequency, frequency

response, etc.), and the TX-DS575X cannot recognize the signal

as DTS data. Therefore, you may hear noise when you play a

DTS source while processing the signal.

6. The Rec Out jacks of the TX-DS575X output analog audio. Do

not record CDs or LDs that support DTS using these jacks. Oth-

erwise, you will record a DTS encoded signal as noise.

Before Using Listening Mode

DIGITAL

DOLBY SURROUND

PRO LOGIC

22

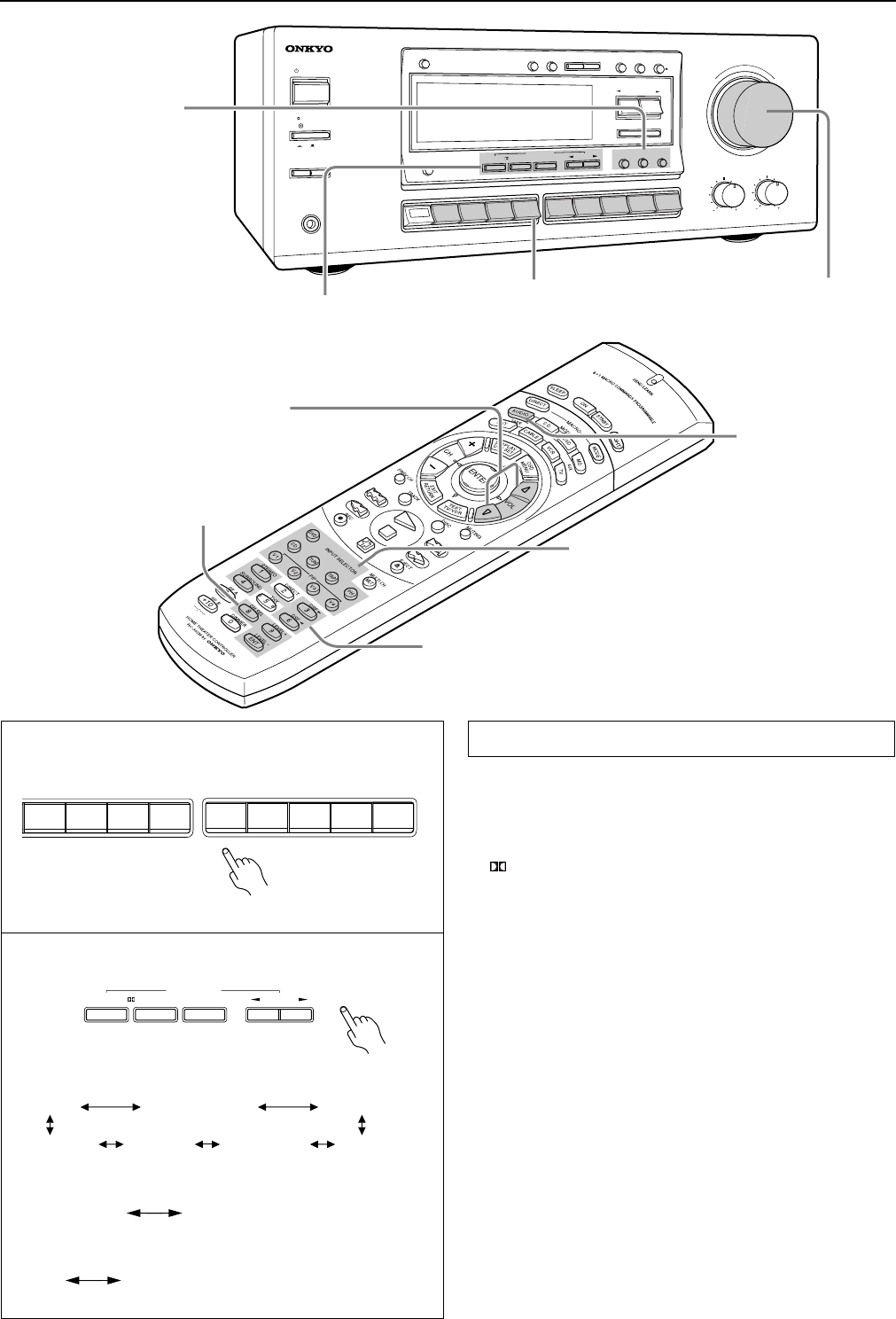

Using Listening Mode

AV RECEIVER

TX-DS575X

TREBLE

BASS

PHONES

OFF

ON

STANDBY/ON

STANDBY

SPEAKERS

AB

FM AM PHONO C

D

TAPE

DVD

MULTI

CH

INPUT

VIDEO 3

VIDEO 2

VIDEO 1

UP

DOWN

MASTER VOLUME

POWER

SP

/

SYS

SETUP

MODE

TUNING

UP

DOWN

CH

LEVEL

MEMORY

FM

MUTE

/

MODE

DIGITAL/

ANALOG

PTY/TP

DOWN

UP

PRESET/MODE ADJ

ENTER/SCAN

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY

LFE

LEVEL

CONTROL

STEREO5

CH STEREODSP

LISTENING

MODE

/DTS

SURROUND

Re

-EQ

LATE

NIGHT

/

FRONT

EFFECT

LFE

LEVEL

CONTROL

STEREO5

CH STEREODSP

LISTENING

MODE

/DTS

SURROUND

Re

-EQ

VOL button (qup/udown)

Use this button to adjust the volume level.

1. Input selector buttons

Select the desired input source.

2. LISTENING MODE buttons

These button allow you to select a

listening mode.

3. Use these buttons to

set the Listening mode

parameters.

(Refer to page 23).

VOLUME knob

Use this knob to adjust

the volume level.

3. Listening mode button

These buttons allow you to select a Surround mode.

2. INPUT SELECTOR buttons

Select the desired input source.

CH SEL/LEVEL+/– buttons

1. Press the MODE

AUDIO button

1. Press one of the INPUT SELECTOR buttons to select the

desired sound source.

2. Use the LISTENING MODE buttons to select the desired

Listening mode.

STEREO: Press this button to listen to a normal stereo audio.

/DTS SURROUND: Press this button when you wish to

play Dolby ProLogic, Dolby Digital, or DTS Surround sound.

5CH STEREO: Press this button to play 5-ch stereo sound (see

page 21).

DSP √/®: Press this button repeatedly to select the desired

Listening mode. Each option appears as shown at left.

3. Play the selected source.

Notes:

•Select a digital input to play Dolby digital or DTS sound

sources. (See page 18.)

•You cannot select Orchestra, Unplugged, Studio-Mix, TV

Logic, or 5ch Stereo if you have selected a Dolby digital or

DTS surround source.

•To play a Dolby digital or DTS Surround source, you need to

connect the sound source using the digital input connector.

•When you play the Dolby Digital or DTS Surround source, the

TX-DS575X automatically enters Dolby Digital Surround (ste-

reo) or DTS Surround (stereo) mode respectively.

Follow the steps below to make adjustment to the speaker level

set by the Test Tone.

1. Press the MODE AUDIO button.

2. Press the CH SEL button to select a speaker.

3. Press the LEVEL +/– buttons to adjust the level.

Using Listening Mode

1

2

STEREO 5

CH STEREO DSP

LISTENING

MODE

/DTS

SURROUND

FM AM PHONO C

D

TAPE

DVD

LT

I

CH

P

UT VIDEO 3

VIDEO 2

VIDEO 1

Playing the DOLBY DIGITAL source

Dolby Digital Dolby Digital (stereo)

Playing the DTS source

DTS DTS (stereo)

STEREO PRO LOGIC

5ch STEREO

ORCHESTRA

UNPLUGGEDSTUDIO-MIX TV LOGIC

(Dolby Pro Logic)

23

Using Listening Mode

Main unit operation:

1. Press the CH LEVEL button.

2. Press the PRESET/MODE ADJ

√

/

®

buttons to adjust the

level.

3. Press the ENTER/SCAN or ENTER button to select a

speaker.

•

You can adjust the level in the range of –12dB to +12dB.

•

You cannot select a speaker if the CONFIG parameter of the

speaker is set to NO or NONE.

•

If the speaker level is set to +1dB or higher, the maximum level

indicated on the display will change if you raise the volume

level. Refer to “About volume (VOLUME)” on page 20 for

more information.

•

When you turn off the power, the level will be reset to the origi-

nal level (the value you set using the test tone).

•

When you press the TEST button after you set the level, the cur-

rent level will be used as the value set via the test tone.

The following parameters are available for each Listening mode.

LATE NIGHT

If you play a movie at a low volume at night, set this parameter to

“ON” to narrow the dynamic range of the sound to make it easier to

hear.

The Late Night function works only with source material that con-

tains necessary Dolby Digital information.

Note:

•

The Late Night effect is determined by each Dolby Digital

sound. Some sounds may produce no or little effect.

•

The Late Night function is effective only on the Dolby Digital

sound.

While the Dolby Digital sound is playing, press the LATE NIGHT/

FRONT EFFECT button. The current setting appears on the dis-

play. (LATE NIGHT=ON or OFF)

Pressing the LATE NIGHT/FRONT EFFECT button repeatedly

will toggle between ON and OFF.

FRONT EFFECT

Some live recordings contain acoustic reverberation. When you

play these sources, more reverberation will be applied by the DSP,

creating too much reverb effects and the sound loses its frame or

presence. In this case, set FRONT EFFECT to OFF. No reverbera-

tion from the DSP will be applied to the sound output from three

front channels, and the sound source will be played as it is without

any further reverberation.

Note:

The Front Effect function is effective only on the ORCHESTRA,

UNPLUGGED, STUDIO-MIX, and TV LOGIC sound.

While ORCHESTRA, UNPLUGGED, STUDIO-MIX, or TV

LOGIC is selected for Listening mode, press the LATE NIGHT/

FRONT EFFECT button. The current setting appears on the dis-

play. (FRT EFFECT=ON or OFF)

Pressing the LATE NIGHT/FRONT EFFECT button repeatedly

will toggle between ON and OFF.

Re-EQ

Cinema Re-Equalization

Re-Equalization takes the edginess or “brightness” out of your

home cinema sound, compensating for the fact that sound mixed

for theaters will sound too bright when played back through speak-

ers in the home environment.

To enable Re-Equalization, set the Re-EQ to ON.

While the Dolby ProLogic Surround, Dolby Digital Surround, or

DTS Surround sound is playing, press the Re-EQ button. The cur-

rent setting appears on the display. (RE-EQ=ON or OFF)

Pressing the Re-EQ button repeatedly will toggle between ON and

OFF.

Note:

The Re-EQ function is effective on the Dolby ProLogic Surround,

Dolby Digital Surround, and DTS Surround sound.

LFE (Low Frequency Effect) Level Control

This control function enables you to adjust the level of LFE in the

Dolby Digital/DTS Surround sound.

Notes:

•

The LFE Level Control function is effective only on the Dolby

Digital/DTS Surround sound.

•

The LFE function may not be effective on some Dolby Digital

or DTS Surround sources.

Dolby Digital sound:

Press the LFE LEVEL CONTROL button repeatedly to select 0dB,

–10dB, or –

∞

dB. “0dB” is recommended. If the low range sounds

too loud for your taste, select –10dB or –

∞

dB.

DTS sound:

Press the LFE LEVEL CONTROL button repeatedly to select

+10dB, 0dB, or –

∞

dB. “+10dB” is recommended for cinema

sound sources. If the low range sounds too loud for your

taste, select 0dB or –

∞

dB. “0dB” is recommended for music

sound source. If the low range sounds too loud for your taste,

select –

∞

dB.

Setting the Listening mode parameters

Dolby Digital DTS Surround Dolby Pro Logic Orchestra, Unplugged, Studio-Mix, TV Logic

LATE NIGHT

❍

—— —

FRONT EFFECT

—— —

❍

Re-EQ

❍❍ ❍

—

LFE level control

❍❍

——

24

Tuning in a radio station

FM

AM

TUNING DOWN/UP

FM MUTE/MODE

DISPLAY

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

1. Press the FM or AM button.

2. Use the TUNING UP/DOWN buttons to change the fre-

quency.

UP .................... the frequency increases.

DOWN............. the frequency decreases.

•The frequency changes in 50 kHz steps in FM and 10 kHz (or

9 kHz) in AM each time you press the TUNING UP/DOWN

button.

•In FM, if this button is held continuously for more than 0.5 sec-

onds, the frequencies are scanned automatically (FM auto tun-

ing mode). When a broadcast is received, scanning stops.

When you tune in a stereo FM station, the FM STEREO indicator

lights up if the signal is sufficiently strong.

If the signal is weak, it may be impossible to tune in to the desired

station. In this case, tune in as follows.

Press the FM MUTE/MODE button. The FM MUTE indicator

turns off. At this time, the station will be in mono and interstation

noise will be heard. Select the station to which you want to listen.

Pressing the DISPLAY button each time will change the indication

as follows:

Frequency (preset No.) ↔ Listening mode

Manual tuning

Listening to a stereo radio station (FM mode)

DISPLAY button

FM AM

1

2

TUNING

UPDOWN

ch

FM

MUTE

/

MODE

DISPLAY

25

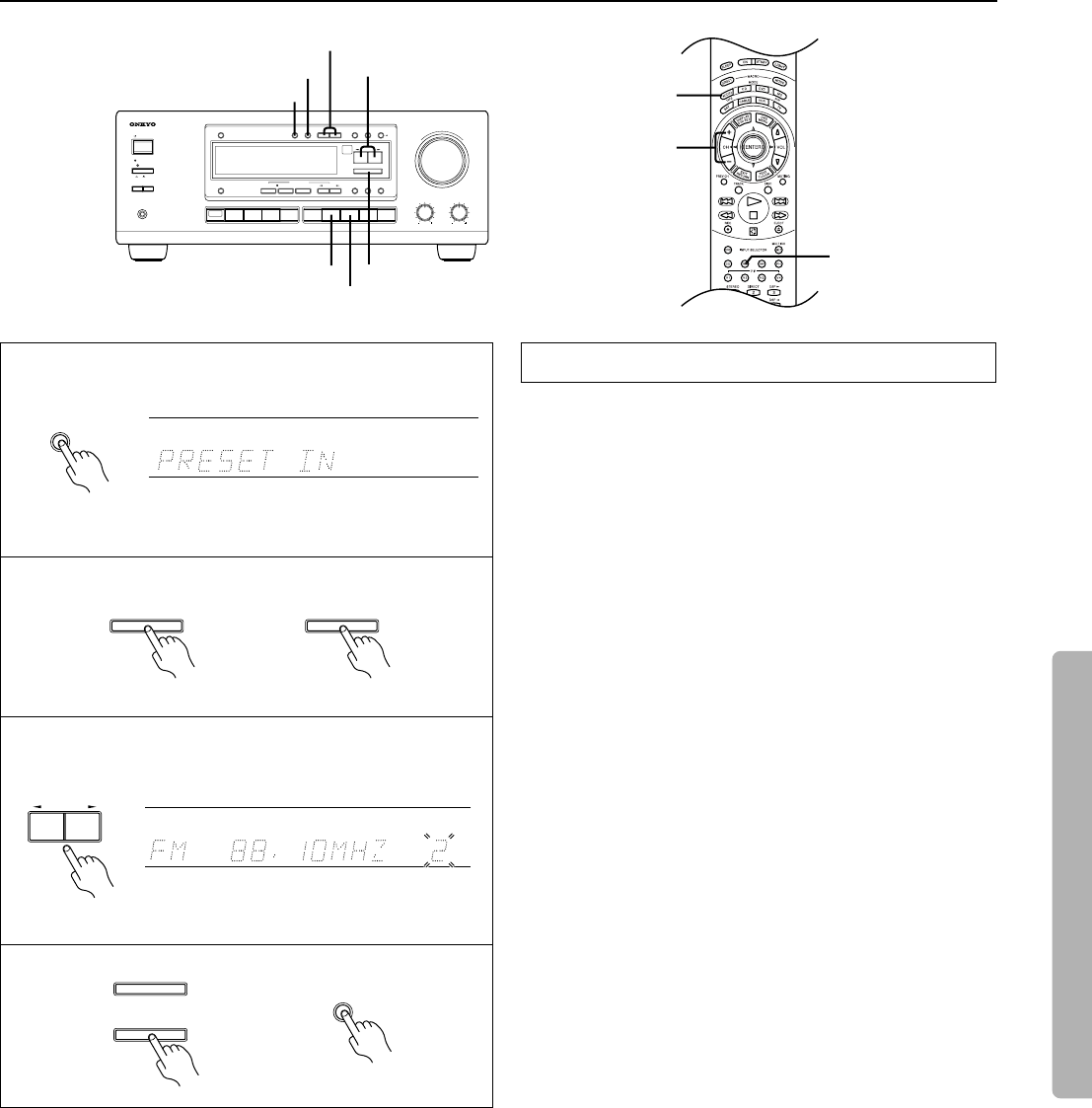

Using preset radio stations

MODE AUDIO

CH +/–

TUN

PRESET/MODE ADJ

ENTER/SCAN

TUNING DOWN/UP

FM MUTE/MODE

MEMORY

AM

FM

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

1. Select the frequency that you want to store in the memory.

(See Tuning in a radio station on page 24.)

2. Press the MEMORY button.

“PRESET IN” appears.

3. Press the ENTER/SCAN or ENTER button while the PRE-

SET IN indicator is illuminated.

The “MEMORY” indicator lights up on the display.

4. Select the desired memory number using PRESET/MODE

ADJ √/®button.

5. Press the ENTER/SCAN (ENTER) or MEMORY button.

The received station will be stored in the specified preset num-

ber.

•A total of 30 stations can be stored in the memory.

Programming radio stations

PRESET

/

MODE

ADJ

DOW

NUP

ch

MEMORY

ENTER ENTER

/

SCAN

2

3

4

5

ENTER

/

SCAN

ENTER

MEMORY

or

or

or

26

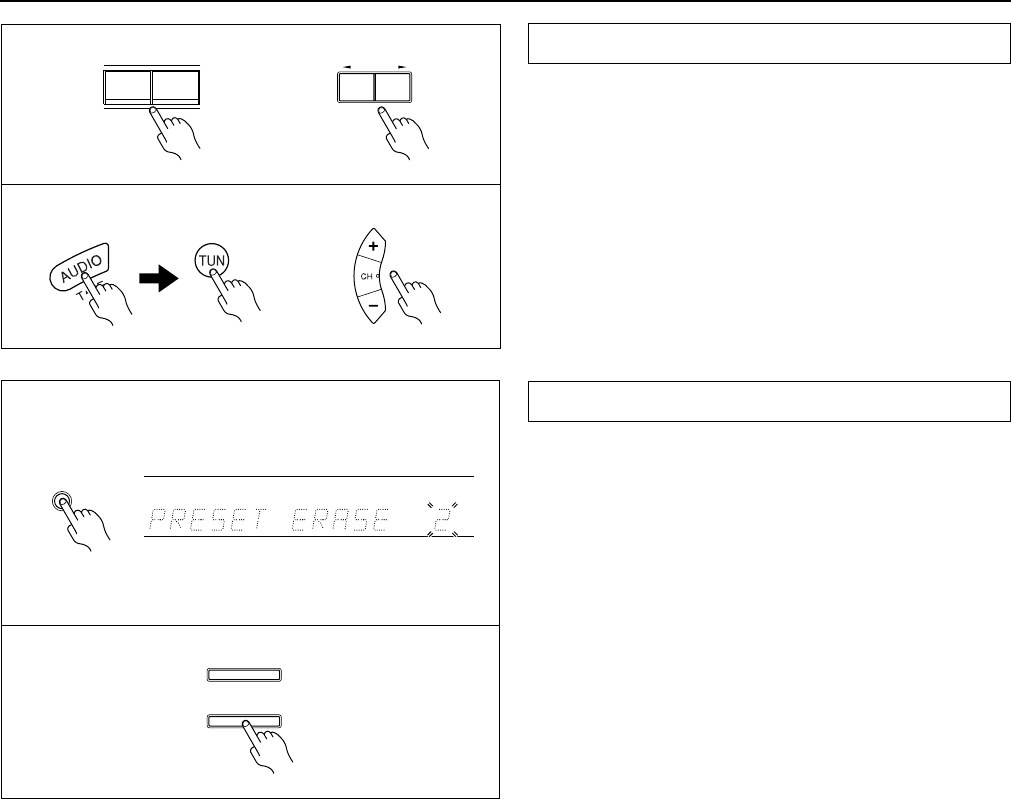

Using preset radio stations

1. Select the tuner as the source by pressing the AM or FM

input selector button on the main unit.

2. Enter the desired preset number using the PRESET/MODE

ADJ √/® button.

Remote controller operation

1. Press the MODE AUDIO button.

2. Select the tuner as the source by pressing the TUN input

selector button on the remote controller.

3. Press the CH (– or +) button.

1. Select the preset station you wish to remove as explained in

the previous section.

2. Press the MEMORY button twice.

“PRESET ERASE” appears on the display.

3. While “PRESET ERASE” is displayed, press the ENTER/

SCAN or ENTER button.

•Once the preset station has been cancelled, the memory location

can be used to store another station.

Selecting a preset station

Cancelling preset stations

Remote controllerRemote controller

FM AM

PRESET

/

MODE

ADJ

DOW

NUP

1

1, 2

2

3

MEMORY

ch

2

3

ENTER

/

SCAN

ENTER

or

27

Receiving RDS broadcasts (European models only)

RDS reception is available only on the European model, and only

in areas where RDS broadcasts are available.

What is RDS?

Many FM broadcasting stations now transmit RDS signals, which

provide additional information. RDS provides you with various

services so that, for example, you can choose a station broadcast-

ing your favorite categories of music or other information. (Refer

to the right column for details.)

PS: Program Service Name

When an RDS station broadcasting PS information is

selected, the station’s name is displayed instead of the fre-

quency.

PTY: Program Type

When an RDS station broadcasting PTY information is

selected, the station type (classification) is displayed.

TP: Traffic Program

When an RDS station broadcasting TP information is

selected, the traffic information is displayed.

RT: Radio Text

When an RDS station broadcasting RT information is

selected, the information received from the station is dis-

played.

NOTE:

In some cases, the characters displayed on the TX-DS575X’s dis-

play may not be exactly the same as the ones broadcast by the radio

station. Unusual characters may appear on the display if the TX-

DS575X receives characters that cannot be displayed correctly.

This is not a malfunction.

PTY Classifications in Europe

None No program type.

News reports Reports on current events and happenings.

Current affairs Topical reporting of current affairs, often with a wider range of topics than news reports.

Information General information such as whether forecasts, consumer affairs, medical help, etc.

Sport Live sports action, sports news, and interviews.

Education Formal educational programs.

Drama Radio plays and serials.

Culture Cultural programs (including religious affairs).

Science and technology Programs about the natural sciences and technology.

Varied Speech-based programs not covered by the above categories (e.g., quizzes, panel games, comedy, etc.).

Pop music Popular commercial music, usually from past or present sales charts (e.g., Top 40).

Rock music Popular music with an alternative appeal, often not appearing on sales charts.

Middle of the road music Easy listening music (as opposed to Pop, Rock or Classical).

Light classics Classical music for general rather than specialist appreciation.

Serious classics Performances of major orchestral works, symphonies, chamber music etc., including Grand Opera.

Other music Music styles not covered by the above categories, e.g. Jazz, Rhythm & Blues, Folk, Country, Reggae.

Alarm When an RDS station is making an emergency broadcast, this ALARM will flash on the display.

28

ENTER/SCAN

DISPLAY

PRESET/MODE ADJ

PTY/TP

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

Receiving RDS broadcasts (European models only)

1. Select FM as the input.

2. Press the PTY/TP button repeatedly until “Not RDS” or the

program type appears on the display.

3. Press the PRESET/MODE ADJ √/® button to select the

program type (PTY), for example “ROCK M”.

Refer to the explanation of PTY on the previous page.

4. Press the ENTER/SCAN button to start searching for sta-

tions of the desired program type.

If you press the ENTER/SCAN button without selecting any

program type, “Type?” will appear on the display. Return to

Step 2.

When a station of the desired program type is tuned in, scanning

stops for approximately three seconds, then resumes.

5. When the desired station is located, press the ENTER/

SCAN button again to stop scanning.

6. Press the ENTER/SCAN button.

1. Press the PTY/TP button twice to select “TP-SCAN.”

2. Press the ENTER/SCAN button to start searching for other

TP stations.

When a station broadcasting traffic information is located, scan-

ning stops. If “Not find” appears on the display, a TP station

cannot be located.

If the selected station is not broadcasting RT signals, this function

cannot be used.

1. Each time you press the DISPLAY button, the displayed

RDS information changes as shown at left.

•If the current station you are listening to is not an RDS station,

only the frequency appear.

•When RT signals are received, it takes about 15 seconds for the

Radio Text to appear on the display.

•If “Wait” appears on the display, more time is required to

receive the RT information. When the information is received,

the characters will scroll across the display.

•If “No text” appears on the display for 3 seconds, RT informa-

tion is not available.

Searching for a station of your favorite program

type (PTY scan)

Searching for traffic information (TP scan)

Displaying Radio Text (RT)

DISPLAY

1Frequency (preset No.)

Program Service Name (Preset No.)

Listening mode

Radio Text

Program Type

Frequency (preset No.) Listening mode

When an AM station is selected:

PTY/TP

ENTER

/

SCAN

1

2

1

PTY/TP

FM

2

3

4~6

PRESET

/

MODE

ADJ

DOW

NUP

ENTER

/

SCAN

29

Recording a source

•You can record analog Audio, but not digital audio. Make sure that you have made a correct analog connection.

•You cannot record the source connected to MULTI CHANNEL INPUT jack.

•If you select another device as the input source during recording, the input signal from that device will be recorded.

•You cannot record audio source along with the surround effects.

Make all connections between the tape deck and the receiver as

shown in the “Audio equipment connections” diagram (page 6).

1. Insert a blank tape into the tape deck.

2. Press the input selector button for the source you want to

record.

•If you select DVD, VIDEO 1, VIDEO 2 or VIDEO 3, only the

audio will be recorded.

•If you select FM or AM, set the tuner to the station you want to

record.

3. Set the tape deck in recording mode. Start playing the

source.

Set the proper recording level using the controls on the tape

deck.

•Please read the corresponding instruction manuals for more

information on how to operate the corresponding equipment.

Video disc programs can be recorded onto a VCR (VIDEO 1).

1. Load a disc in the video disc player or DVD player, and

insert a blank tape in the VCR (VIDEO 1).

2. Press the VIDEO 2, VIDEO 3 or DVD button.

3. Start playing the video disc player and recording on the

VCR.

•Refer to the Video equipment connections section on the page 7.

Recording an audio source

Recording data from a video disc player (or a

video camcorder) to VCR

Tape deck

(TAPE)

Turntable

CD player

DVD

VCR, VDP

1·3 3

2

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

1

DVD VIDEO 3

VIDEO 2

VIDEO 1

FM AM PHONO C

D

2

2

VCR

(VIDEO 1) VDP, DVD player

(VIDEO 2, VIDEO 3)

1·3 1·3

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

1

2or

VIDEO 3

VIDEO 2

DVD

30

Recording a source

During video tape editing, you can add sound to the recording

VCR from various audio program sources.

1. Insert the disc or tape that you want to record into the

player connected to VIDEO 2 or VIDOE 3.

2. Insert a blank video tape in the VCR connected to VIDEO 1.

3. Press the VIDEO 2 or 3 button.

4. Select the audio program source (TAPE, FM, AM, PHONO,

CD).

5. Start playing the video connected to the VIDEO 2 or

VIDEO 3 terminal and start playing the sound source. Then,

start recording on the VCR that is connected to the

VIDEO 1 terminal.

•Refer to the video disc player, video camcorder, DVD or VCR

instruction manuals for additional information.

Adding new sound to a video tape during video

editing

FM AM PHONO C

D

TAPE

VIDEO 3

VIDEO 2

VCR (VIDEO 1)

CD player

TAPE

VDP, VCR, DVD

(VIDEO 2, VIDEO 3)

2·5

Turntable

1·5 5

34

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

1

3

4

31

Using the remote controller

Overview

When you use a remote controller, typically you press one of the MODE buttons that corresponds to the device you wish to control, then

press the operation buttons. For example, if you wish to control the TX-DS575X from a remote controller, first press the MODE AUDIO but-

ton, then press an appropriate operation button. To control a CD player, press the MODE CD button, then press an appropriate operation but-

ton.

First, press the desired MODE button to make sure that the TX-DS575X is set to a correct mode.

Using the RC-392M to control each device

Note:

Before operating the RC-392M, turn on the POWER switch on the

TX-DS575X so that the unit enters standby mode.

1. Press the MODE AUDIO button.

2. Pressing the ON button will power on.

Pressing the STNBY button will power standby.

SEND/LEARN indicator

This indicator acts as a guide when commands are programmed

into or sent by the remote controller. It also warns the user when

an error is made or battery power is low.

1. Press the MODE AUDIO button.

2. Press the desired operation button.

Shaded buttons in the figure are the operation buttons used to

control the TX-DS575X.

SLEEP : Sleep function

ON/STNBY : Power on/standby

DISPLAY : Changing the display

VOL q/u: Adjusting the volume

CH +/– : Tuner preset number increment/decrement

INPUT SELECTOR

Listening mode (STEREO/DSP√/DSP®/SURROUND)

: Changing Listening mode

SP A/SP B : Switching between Speakers A and B

CH SEL : Selecting a speaker

DIMMER : Adjusting the brightness of the display

LEVEL +/– : Adjusting the speaker levels

TEST : Test tone

MUTING : Muting

LIGHT : Iluminating the buttons.

Turning the power on and off to the TX-DS575X

Controlling the TX-DS575X

MODE

AUDIO

CH +/

-

SP A/B

DISPLAY

STNBY

LIGHT

VOL

MUTING

Listening

mode

LEVEL +/

-

DIMMER CH SEL

INPUT

SELECTOR

TEST

ON

SLEEP

MODE AUDIO

STNBYON

SEND/LEARN

indicator

32

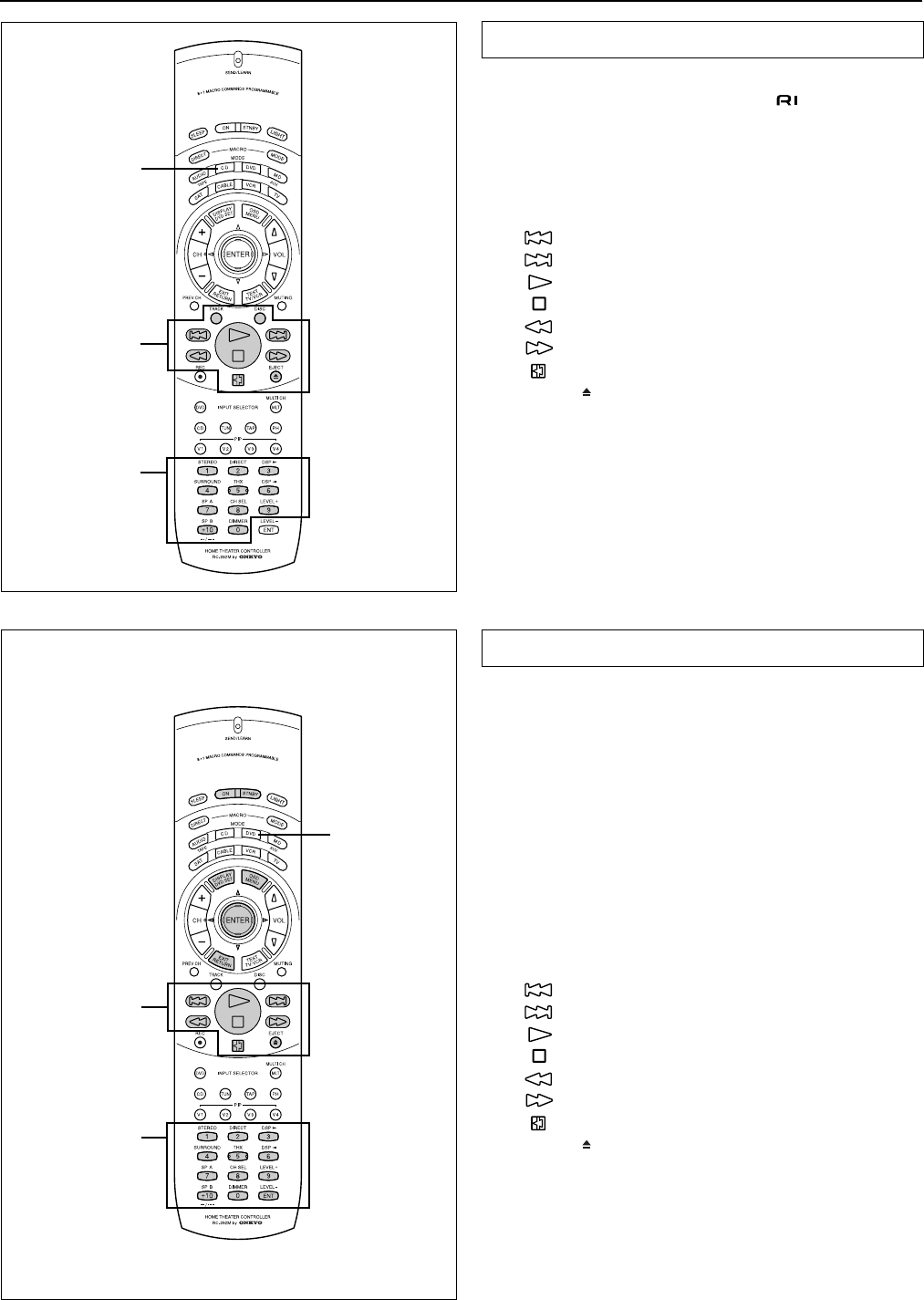

Using the remote controller

Note:

First connect an Onkyo CD player using the connection.

1. Press the MODE CD button.

2. Press the desired CD operation button.

CD operation buttons

TRACK : Selecting a track

DISC : Selecting a disk in the CD changer

: Track Down

: Track Up

: Playback

: Stop

: Fast reverse

: Fast forward

: Pause

EJECT : Eject

0, 1~9, +10 : Numeric keys

You may also use the following buttons:

VOL q/u: Adjusting the volume level of the TX-

DS575X

MUTING : Muting the sound from the TX-DS575X

Note:

Make sure that you point the transmission part on the remote con-

troller toward the sensor area on the DVD player.

1. Press the MODE DVD button.

2. Press the desired DVD operation button.

ON/STNBY : Turning the power on and off to the DVD

player

DVD SET : DVD setup

DVD player on-screen button

MENU : Displaying the menu

ququ : Moving the cursor

ENTER : Confirming the selection

RETURN : Return

DVD operation buttons

: Track/Chapter Down

: Track/Chapter Up

: Playback

: Stop

: Fast reverse

: Fast forward

: Pause

EJECT : Eject

0, 1~9, +10 : Numeric keys

ENT : Confirm

You may also use the following buttons:

VOL q/u: Adjusting the volume level of the TX-

DS575X

MUTING : Muting the sound from the TX-DS575X

Note:

The ENT button on the right below the numeric keys has the same

function as “ENTER” of the ENTER/cursor button.

Controlling an Onkyo CD player

Controlling an Onkyo DVD player

MODE CD

CD

operation

buttons

Numeric keys

MODE DVD

DVD

operation

buttons

Numeric keys,

ENT button

33

Using the remote controller

Note:

Make sure that you point the transmission part on the remote con-

troller toward the sensor area on the MD recorder.

1. Press the MODE MD/AUX button.

2. Press the desired MD operation button.

Turning the power on and off to the MD recorder

ON/STNBY : Turning on or standby the power to the MD

recorder

MD operation buttons

: Track Down

: Track Up

: Playback

: Stop

: Fast reverse

: Fast forward

: Record

: Pause

EJECT : Eject

1~9, +10 : Numeric keys

ENT : Confirm

You may also use the following buttons:

VOL q/u: Adjusting the volume level of the TX-

DS575X

MUTING : Muting the sound from the TX-DS575X

Note:

First connect an Onkyo tape deck using the connection. (See

page 9.)

1. Press the MODE AUDIO/TAPE button.

2. Press the desired tape deck operation button.

TAPE operation buttons

: Playback

: Stop

: Fast rewind

: Fast forward

: Recording/pause

: Reverse play

You may also use the following buttons:

VOL q/u: Adjusting the volume level of the TX-

DS575X

MUTING : Muting the sound from the TX-DS575X

No preset codes are programmed into the MODE SAT, CABLE,

VCR, and TV buttons. You can use these buttons to program

remote controller signals of other devices. (See page 34.)

You may use the following buttons:

VOL q/u: Adjusting the volume level of the TX-

DS575X

MUTING : Muting the sound from the TX-DS575X

Controlling an Onkyo MD recorder

Controlling an Onkyo tape deck

MODE SAT, CABLE, VCR, and TV buttons

REC

REC

MODE MD

MD

operation

buttons

Numeric keys,

ENT button

MODE

AUDIO

TAPE

operation

buttons

MODE SAT,

CABLE, VCR,

TV

34

Programming the remote controller codes of

other devices into the RC-392M

The RC-392M has two learning functions. One is a normal learning function that enables the RC-392M to learn other remote controllers’

codes. The other is a macro learning function, which enables the RC-392M to learn a series of codes already memorized in the remote con-

troller into one MACRO button.

Program the codes for each mode (AUDIO, CD, DVD, MD, SAT, CABLE, VCR, and TV).

1. Place the RC-392M and the remote controller for another

device, with 5–15cm (2–6 inches) apart and the light-emit-

ting parts facing each other.

2. While pressing and holding down the desired MODE button

on the RC-392M (AUDIO, CD, DVD, MD, SAT, CABLE,

VCR, or TV), press the ENT button, then release the but-

tons.

When you press and hold down one of the MODE button, the

SEND/LEARN indicator lights up. When you press the ENT

button, the indicator turns off. When you release the buttons, the

SEND/LEARN indicator lights up again.

3. Press and release the desired operation button on the RC-

392M.

You may select any button within the rectangle shown in the figure.

When you press the button, the SEND/LEARN indicator turns off.

When you release the button, the indicator lights up again.

4. Press and hold down the desired button on the remote con-

troller of the other device until the SEND/LEARN indicator

on the RC-392M flashes twice.

The SEND/LEARN indicator flashes twice slowly, then lights up.

5. Repeat Steps 3–4 to program other buttons in the same

MODE.

Repeat Steps 2-4 to program other buttons in a different MODE.

6. Press the MODE button to complete programming.

7. Operate the programmed button to make sure the learning

function works.

Note:

The remote controller codes for the Onkyo CD player, tape

deck, DVD player, and MD recorder have already been pro-

grammed into the buttons on the RC-392M. You may program

other remote controller codes into these buttons. If you wish to

restore the Onkyo preset codes after you program new codes,

erase the new codes. (See page 35.)

Note:

•The remote controller has 408 memory slots (51 buttons × 8

modes), although this number varies significantly depending on

the manufacturers and types of the remote controller you wish to

program into the RC-392M. It is recommended that you deter-

mine which button functions have priority for programming.

•If you do not press any button for more than 30 seconds during

the procedure, the SEND/LEARN indicator flashes three times

quickly, then the RC-392M exits Learning mode. Resume Step 2.

•If you make a mistake during programming, the SEND/LEARN

indicator flashes three times quickly, then the RC-392M exits

Learning mode.

•If you try to program beyond the learning capacity of the RC-

392M, the SEND/LEARN indicator flashes six times quickly,

then the RC-392M exits Learning function. Try programming in

a button of other MODE.

•Follow the same procedure when you wish to program new

codes into the already-programmed buttons.

•This remote controller uses infrared rays. Most remote control-

ler codes can be memorized using the infrared system; however,

depending on the degree to which the system differs, there may

be some rare occasions when memorization is not possible.

•Some remote controllers use a single button to perform different

functions, with the function code changing each time the button

is pressed. If you are using this kind of controller, please per-

form the “learn” operations for each function individually to

store each function to a button on the RC-392M.

•For instructions regarding the operation of “learned” units,

please refer to the instruction manual for each product.

•Even after codes have been memorized, please keep your old

remote controller in a safe place. If the memorized codes are

lost when the batteries run down, it will be necessary to memo-

rize them once again using the old remote controller.

•Make sure both the RC-392M and the product’s own remote

controller have fresh batteries. If either of them has batteries

that are wearing down, it may be impossible to store the remote

controller codes into the RC-392M or the product may not

respond properly to the buttons on the RC-392M for which the

remote controller codes were stored into memory.

Programming procedure

1

3

2

64

Light

5 to 15 cm

(2 to 6 inches)

The button you wish to memorize

RC-392M

35

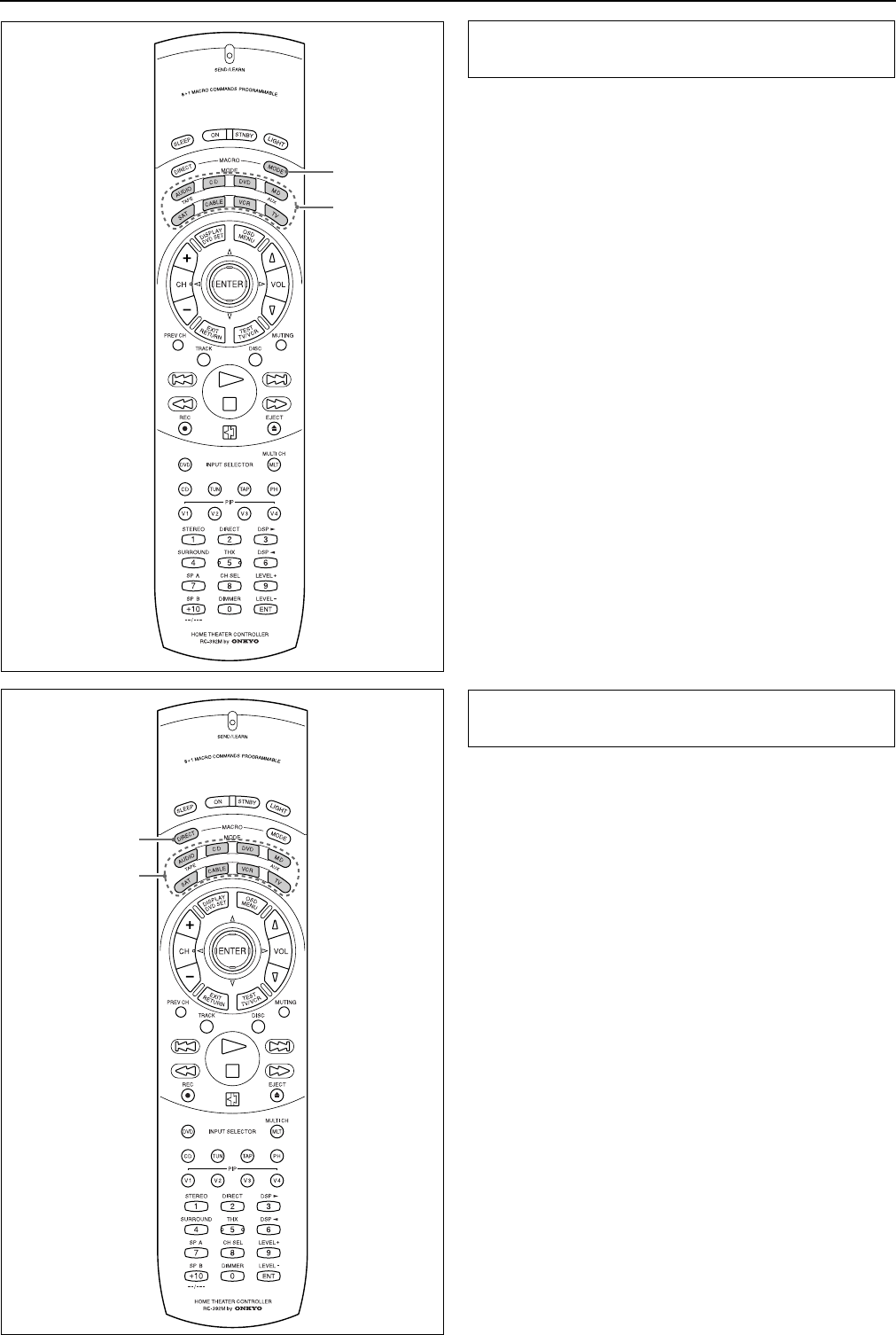

Programming the remote controller codes of other devices into the RC-392M

See page 39 for information on how to erase the learned codes from all buttons.

You can erase a learned code. You cannot erase preset codes.

•Erasing a code programmed in a button

1. Press and hold down the corresponding MODE button and

press the ENT button, then release the buttons.

When you press the MODE button, the SEND/LEARN indica-

tor lights up. When you press the ENT button, the indicator

turns off. When you release the buttons, the indicator lights up

again.

2. Press and release the button from which you wish to erase

the learned code.

When you press the button, the SEND/LEARN indicator turns

off. When you release the button, the indicator lights up again.

3. Press and release the same button again.

The SEND/LEARN indicator flashes twice slowly. The learned

code is erased.

Note:

•If you do not press the button in step 2 or 3 for more than 30 sec-

onds, the SEND/LEARN indicator flashes three times quickly,

then the RC-392M exits Learning mode. Resume Step 1.

1. Press and hold down the MODE button from which you

wish to erase the learned code, and press the ENT button

twice. Then release the buttons.

When you press the MODE button, the SEND/LEARN indica-

tor lights up. When you press the ENT button, the indicator

turns off. When you release the buttons, the indicator flashes

twice slowly, then lights up again.

2. Press and release the same MODE button again.

When you release the button, the SEND/LEARN indicator

flashes twice slowly. The learned code is erased.

Note:

•If you do not press any button for more than 30 seconds, the

SEND/LEARN indicator flashes three times quickly, then the

RC-392M exits Learning mode. Resume Step 1.

•If you make a mistake during programming, the SEND/LEARN

indicator flashes three times quickly, the RC-392M exits Learn-

ing mode. Resume Step 1.

•If have programmed many button operations to a single MODE

button, the SEND/LEARN indicator may remain illuminated

continuously in Step 2. This is not malfunction.

Erasing a learned code

Erasing a learned code from a MODE button

SEND/LEARN

indicator

MODE

buttons

ENT

SEND/LEARN

indicator

MODE

buttons

ENT

36

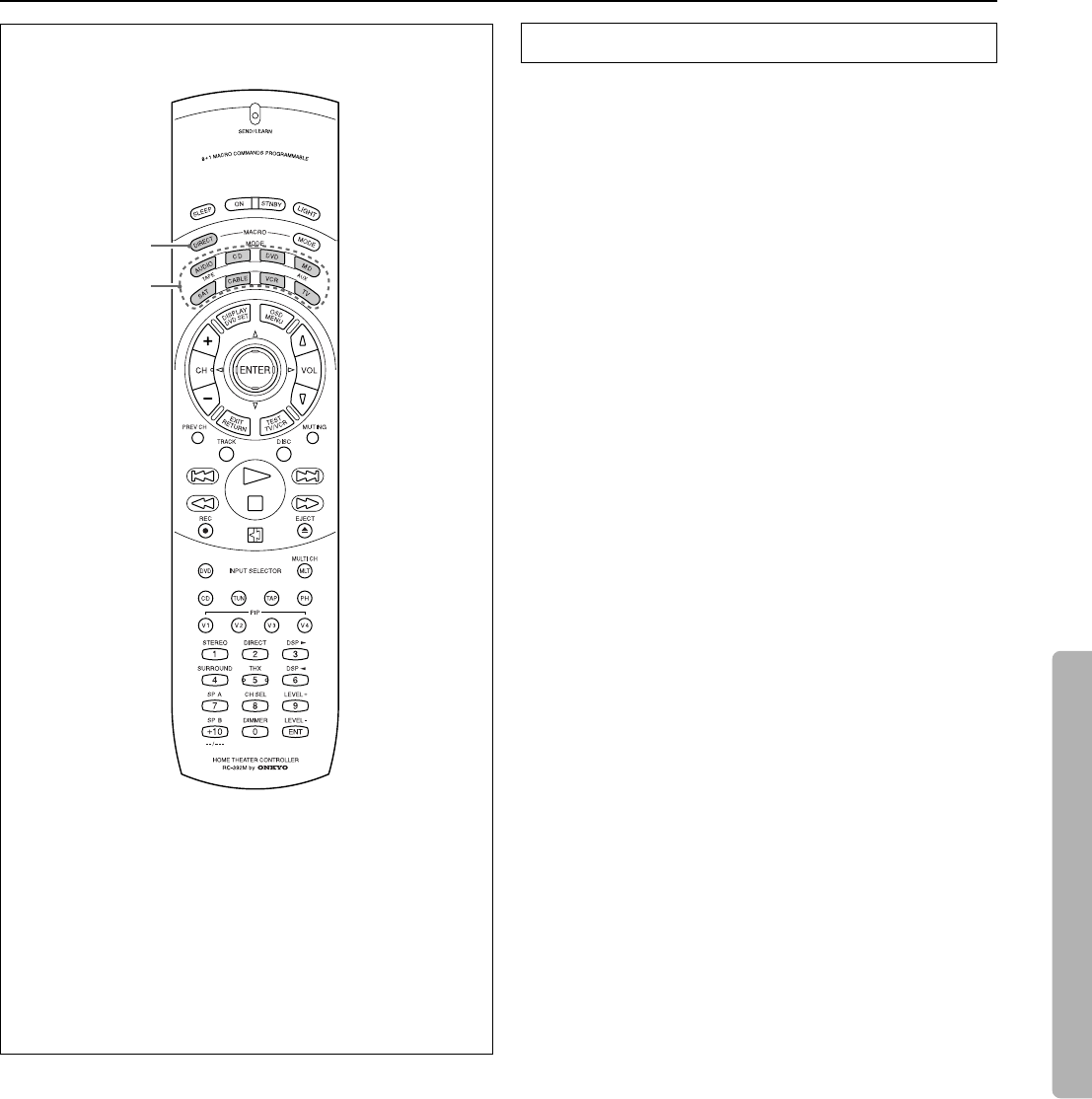

Using a Macro function

A Macro function enables you to program a series of button operations on the remote controller into a single button. For example, you need

to follow the steps below to play a CD player connected to the TX-DS575X without using the Macro function:

1: Press the MODE AUDIO button. → 2: Press the ON button. → 3: Press the CD (INPUT SELECTOR) button. → 4: Press the MODE CD

button. → 5: Use the numeric keys to select the desired song.

This operation will be two button presses away if you program these steps into a macro button.

What is a Macro function?

You may program the desired steps into each of eight MODE but-

tons. The following example explains how to program Steps 1–5

(described above) into the MACRO MODE button under the

MODE CD button (CD mode).

1. Press and hold down the desired MODE button you wish to

program (in this case, MODE CD button), and press the

MACRO MODE button. Then release the buttons.

When you press the MODE CD button, the SEND/LEARN

indicator lights up. When you press the MACRO MODE button,

the indicator turns off.

When you release the buttons, the indicator flashes briefly, then

lights up again.

2. Press the operation buttons in series you wish to program

into the MACRO MODE button.

Press the MODE AUDIO, ON, CD (INPUT SELECTOR),

MODE CD buttons, and a numeric key. When you press the but-

ton, the SEND/LEARN indicator turns off. When you release

the button, the indicator lights up.

3. Press the MACRO MODE button to complete program-

ming.

The SEND/LEARN indicator flashes twice slowly.

Repeat Steps 1–3 to program other series of button operations

into another MODE button.

4. Check to see if the series of button operation has been cor-

rectly learned.

Point the remote controller toward the TX-DS575X, press the

MODE CD button, and press the MACRO MODE button to see

if the unit responds as programmed.

Transmitting the codes in Macro mode takes a while. During

transmission, point the remote controller toward the device to

be controlled.

Note:

•You may program up to 16 button operations into each MACRO

button. If you try to program the 17th step, it will be ignored.

•If you do not press any button for more than 30 seconds during

the procedure, the SEND/LEARN indicator flashes three times

quickly, then the RC-392M exits Learning mode. Resume Step

1.

•If you make a mistake during programming, the SEND/LEARN

indicator flashes three times quickly, then the RC-392M exits

Learning mode. Resume Step 1.

•If you erase one of the operation buttons already programmed in

the MACRO MODE button, or if you program a different code

into such a button, the operation button will no longer work. In

this case, program the buttons again to avoid malfunction.

Programming Macro mode

1, 3

2

1, 2

2

2

2

Tip:

The codes programmed into a MACRO button will be

transmitted with an interval of 0.5 seconds. However,

some devices may not be able to complete one opera-

tion in 0.5 seconds and may miss the next code. In this

case, press one operation button, press the correspond-

ing MODE button, then press another operation button

to extend the interval between the two operations up to

one second.

37

Using a Macro function

A series of remote controller button operations can be memorized

into the MACRO DIRECT button for one-touch control.

Note:

You can program only one series of button operations into the

MACRO DIRECT button.

1. Press and hold down any one of the eight MODE buttons

and press the MACRO DIRECT button. Then, release the

buttons.

When you press the MODE button, the SEND/LEARN indica-

tor lights up. When you press the MACRO DIRECT button, the

indicator turns off. When you release the buttons, the indicator

flashes briefly, then lights up again.

2. Follow Steps 2 in the “Programming Macro Mode” on page

36.

3. Press the MACRO DIRECT button to complete the proce-

dure.

The SEND/LEARN indicator flashes twice slowly.

4. Check to see if the button has been programmed correctly.

Point the RC-392M toward the TX-DS575X and press the

MACRO DIRECT button, and make sure that the device

responds as programmed.

Transmitting the codes in Macro mode takes a while. During

transmission, point the remote controller toward the device to

be controlled.

Note:

•You may program up to 16 button operations into the MACRO

DIRECT button. If you try to program the 17th step, it will be

ignored.

•If you do not press any button for more than 30 seconds during

the procedure, the SEND/LEARN indicator flashes three times

quickly, then the RC-392M exits Learning mode. Resume Step

1.

•If you make a mistake during programming, the SEND/LEARN

indicator flashes three times quickly, then the RC-392M exits

Learning mode. Resume Step 1.

•If you erase one of the operation buttons already programmed in

the MACRO DIRECT button, or if you program a different

code into such a button, the operation button will no longer

work. In this case, program the buttons again to avoid malfunc-

tion.

Macro Direct Learning function

1, 3

1

Tip:

The codes programmed into a MACRO button will be

transmitted with an interval of 0.5 seconds. However,

some devices may not be able to complete one opera-

tion in 0.5 seconds and may miss the next code. In this

case, press one operation button, press the correspond-

ing MODE button, then press another operation button

to extend the interval between the two operations up to

one second.

38

Using a Macro function

1. Press and hold down the corresponding MODE button and

press the MACRO MODE button, then release the buttons.

When you press the MODE button, the SEND/LEARN indica-

tor lights up. When you press the MACRO MODE button, the

indicator turns off. When you release the buttons, the indicator

flashes once.

2. Press the MACRO MODE button again.

The SEND/LEARN indicator flashes twice slowly. The learned

operation is erased.

1. Press and hold down any one of the MODE buttons and

press the MACRO DIRECT button. Then release the but-

tons.

When you press the MODE button, the SEND/LEARN indica-

tor lights up. When you press the MACRO DIRECT button, the

indicator turns off. When you release the buttons, the indicator

flashes once.

2. Press the MACRO DIRECT button again.

The SEND/LEARN indicator flashes twice slowly. The learned

operation is erased.

Note:

•If you do not press any button for more than 30 seconds, the

SEND/LEARN indicator flashes three times quickly, then the

RC-392M exits Learning mode. Resume Step 1.

•If you press a wrong button in Step 2, you may have overwritten

the memory of the button you pressed.

Erasing a learned remote controller button oper-

ation from the MACRO MODE buttons

Erasing a learned remote controller button oper-

ation from the MACRO DIRECT button

1

1, 2

1, 2

1

39

Using a Macro function

This procedure will erase all remote controller codes for the other

devices and all macro operations that have been programmed in the

RC-392M (see pages 34, 36 and 37).

1. Open the battery cover and remove the batteries.

2. While pressing and holding down the ON button and the

STNBY button, insert the batteries in the correct direction.

After inserting the batteries, release the buttons. The SEND/

LEARN indicator flashes slowly.

3. Press the ENT button.

The SEND/LEARN indicator lights up for about ten seconds,

then turns off. All programmed codes are erased and the button

memories return to the factory presets.

Note:

•Proceed to Step 3 immediately after Step 2. Otherwise, the bat-

teries will be consumed quickly.

•If you press any button other than the ENT button in Step 3, no

codes will be erased. In this case, repeat the steps from the

beginning.

Erasing all codes and operations programmed

in the buttons

1

2

3

2

3

40

Troubleshooting guide

If a problem occurs while you are using the remote controller, first try to operate the front panel controls on the main unit to make sure that it

is not due to a malfunction (or worn out batteries) in the remote controller.

Also refer to the respective instruction manuals of the video disc player, video cassette recorder, TV monitor, etc., that compose your enter-

tainment system.

Because the unit contains a microcomputer to provide advanced functions, it may malfunction due to external noise or static electricity. If

this happens, press the POWER switch on the unit and then press it in again after about five seconds.

Trouble Cause Remedy See

page

No power.

•

Power cord is disconnected.

•

There is external noise in the microcomputer

circuits of this unit.

•

AC fuse blown.

•

Connect power cord.

•

Turn the power button off and then on again

or remove the AC plug from the outlet and

then plug it again.

•

Contact your Onkyo Service Center.

11

11

–

Power on but no sound.

•

MUTING indicator is lit.

•

The digital/analog input setting is incorrect.

•

Bad connections.

•

Amplifier protection circuitry has been acti-

vated. (STANDBY indicator flashes.)

•

Press the MUTING button on the remote con-

troller to turn it off.

•

Select the correct input.

•

Check connections, speaker leads, etc.

•

Contact your Onkyo Service Center.

20

18

10

–

No sound from the center

speaker, or very minimal

sound.

•

Speaker cable is not corrected.

•

Listening mode is set to ORCHESTRA or

STEREO.

•

CENTER level is set to minimum.

•

CENTER SPEAKER is set to NONE.

•

Check the connection between the amplifier

and the speaker.

•

Set the Listening mode to any mode other

than ORCHESTRA or STEREO.

•

Set the CENTER level to the appropriate volume.

•

Set CENTER SPEAKER to LARGE or SMALL.

10

22

16

15

Pressing the ON button on the

remote controller does not turn on

the power to the main unit.

•

You have not pressed MODE AUDIO button.

•

Press the MODE AUDIO button, then press

the ON button. 31

The unit or connected device does

not respond to the operation.

•

You have not pressed any MODE button.

•

Press an appropriate MODE button, then

press the operation button. 31~33

Hum, low-frequency noise.

•

Poor or no input ground.

•

Poor or no phono motor ground.

•

The placement of the audio connection cables

on the rear panel is incorrect.

•

Check outer conductor of input plugs.

•

Check for proper ground connection.

•

Adjust the placement of the cable to reduce

hum.

6

6

–

Howling when the volume is

turned up.

•

Turntable and speakers are too close

together.

•

Move them farther apart. –

Rough or scratchy sound.

High range is not clear.

•

Stylus of turntable pick-up is worn.

•

Turntable stylus tip is dirty.

•

Treble control too high.

•

Replace.

•

Clean.

•

Turn treble control down.

–

–

20

AM stations cannot be

received.

•

AM loop antenna is not attached.

•

Connect the included AM loop antenna to the

AM antenna terminals.

12

Buzzing noise on AM (particu-

larly conspicuous at night or

with weak stations).

•

Noise from electrical apparatus such as fluo-

rescent lamp.

•

Move the AM loop antenna to different posi-

tion.

•

Set up an outdoor AM antenna.

13

13

High-pitched noise or buzzing

noise on AM.

•

Noise from TV set.

•

Place the AM loop antenna as far as possible

from the TV.

•

Move unit away from TV set.

13

–

Crackling noise on AM, FM.

•

Noise caused by turning fluorescent lamp on

and off.

•

Noise from automobile ignition.

•

Move antenna as far as possible from the flu-

orescent lamp.

•

Install an FM outdoor antenna as far as possi-

ble from the road.

•

Change the position or direction of the out-

door antenna.

13

TUNED and STEREO indica-

tors light but sound is distorted

and stereo separation is bad.

•

Station is too strong.

•

Multiple reflection of the radio waves because

of tall buildings or mountains.

•

Change to FM indoor antenna.

•

Use antenna which has better directivity and

select a point where the distortion is least.

12

13

TUNED and STEREO indica-

tors flicker and hiss is heard

on FM.

•

Station is too weak.

•

Stereo FM broadcasts cover only about half

the distance of an ordinary broadcast.

•

Install an outdoor FM antenna.

•

Change the position or direction of the out-

door antenna.

13

No station is recalled.

•

The power cord has been unplugged or the POWER

switch has been turned off for a long time.

•

The memory contents are lost. Store all sta-

tions again.

25

Front panel controls function

but remote controller does not.

•

No batteries in remote controller.

•

Batteries have worn out.

•

Insert batteries.

•

Replace batteries.

5

5

The sound of the playback

source is not heard.

•

The input selector is not set properly.

•

Set it to the playback source. 17

41

Specifications

AMPLIFIER SECTION

VIDEO SECTION

TUNER SECTION

FM

AM

GENERAL

REMOTE CONTROL

Specifications and features are subject to change without notice.

Power supply and voltage vary depending on the area in which the unit is

purchased.

Continuous Average Power

output (FTC)

All channels: 70 watts per channel min. RMS at

8 ohms, 2 channels driven from 20 Hz

to 20 kHz with no more than 0.08%

total harmonic distortion.

90 watts min. RMS at 6 ohms, 2 chan-

nels driven from 1 kHz with no more

than 0.1% total harmonic distortion.

Continuous Power output (DIN) 100 watts × 5 at 6 ohms

Maximum Power output (EIAJ) 130 watts × 5 at 6 ohms

Total Harmonic Distortion: 0.08% at rated power (Front)

IM Distortion: 0.08% at rated power (Front)

Damping Factor: 60 at 8 ohms (Front)

Input Sensitivity and Impedance

PHONO: 2.5 mV, 50 kohms

LINE (CD, TAPE, DVD,

VIDEO 1, 2, 3): 300 mV, 50 kohms

MULTICHANNEL INPUT

(FRONT L/R, SUR-

ROUND L/R, CENTER): 300 mV, 50 kohms

(SUBWOOFER): 53 mV, 50 kohms

COAXIAL 1, 2 (DIGITAL): 0.5 Vp-p, 75 ohms

Output Level and Impedance

Rec out (TAPE, VIDEO 1): 300 mV, 2.2 kohms

Pre out (SUBWOOFER): 1 V, 2.2 kohms

Phono Overload: 70 mV RMS at 1 kHz, 0.5% T.H.D.

Frequency Response: 5 Hz to 100 kHz, +1dB, –3dB

RIAA Deviation: 20 Hz to 20 kHz, ±0.8 dB

Tone Control

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Signal-to-Noise Ratio

Phono: 80 dB (IHF A, 5 mV input)

CD/Tape: 100 dB (IHF A)

Input sensitivity/Impedance

(DVD, VIDEO 1, 2, 3)

VIDEO (Composite):

S-VIDEO (Y signal):

1 Vp-p, 75 ohms

1 Vp-p/75 ohms

Output Level/Impedance

(VIDEO 1, MONITOR)

VIDEO (Composite):

S-VIDEO (Y signal):

1 Vp-p, 75 ohms

0.28 Vp-p/75 ohms

Tuning Range: 87.5 — 108.0 MHz

Usable Sensitivity

Mono: 11.2 dBf, 1.0 µV (75 ohms)

Stereo: 17.2 dBf, 2.0 µV (75 ohms)

50 dB Quieting Sensitivity

Mono: 17.2 dBf, 2.0 µV (75 ohms)

Stereo: 37.2 dBf, 20 µV (75 ohms)

Capture Ratio: 2.0 dB

Image Rejection Ratio

U.S.A. & Canadian models: 40 dB

Other area models: 85 dB

IF Rejection Ratio: 90 dB

Signal-to-Noise Ratio

Mono: 76 dB

Stereo: 70 dB

Alternate Channel Attenuation: 55 dB

Selectivity: 50 dB (DIN)

AM Suppression Ratio: 50 dB

Total Harmonic Distortion

Mono: 0.2%

Stereo: 0.3%

Frequency Response: 30 Hz — 15 kHz, ±1.0 dB

Stereo Separation: 45 dB at 1 kHz

30 dB at 100 Hz — 10 kHz

Tuning Range

U.S.A. & Canadian models: 530—1,710 kHz (10 kHz steps)

European & Australian

models:

522—1,611 kHz (9 kHz steps)

Worldwide models: 531—1,602 kHz (9 kHz steps),

530—1,710 kHz (10 kHz steps)

Usable Sensitivity: 30 µV

Image Rejection Ratio: 40 dB

IF Rejection Ratio: 40 dB

Signal-to-Noise Ratio: 40 dB

Total Harmonic Distortion: 0.7%

Power Supply: AC 120 V, 60 Hz

AC 230 V, 50 Hz

AC 220-230 V and 120 V switchable,

50/60 Hz

AC 220 V, 50/60 Hz

Power Consumption: 3.9 A

325 W

Dimensions (W × H × D): 435 × 175 × 390 mm

17-1/8" × 6-7/8" × 15-3/8"

Weight: 12.5 kg, 27.6 lbs. (AC 120 V, 60 Hz model)

13.2 kg, 29.1 lbs. (other models)

Transmitter: Infrared

Signal range: Approx. 5 meters, 16 ft.

Power supply: Two “AA” batteries (1.5 V × 2)

42

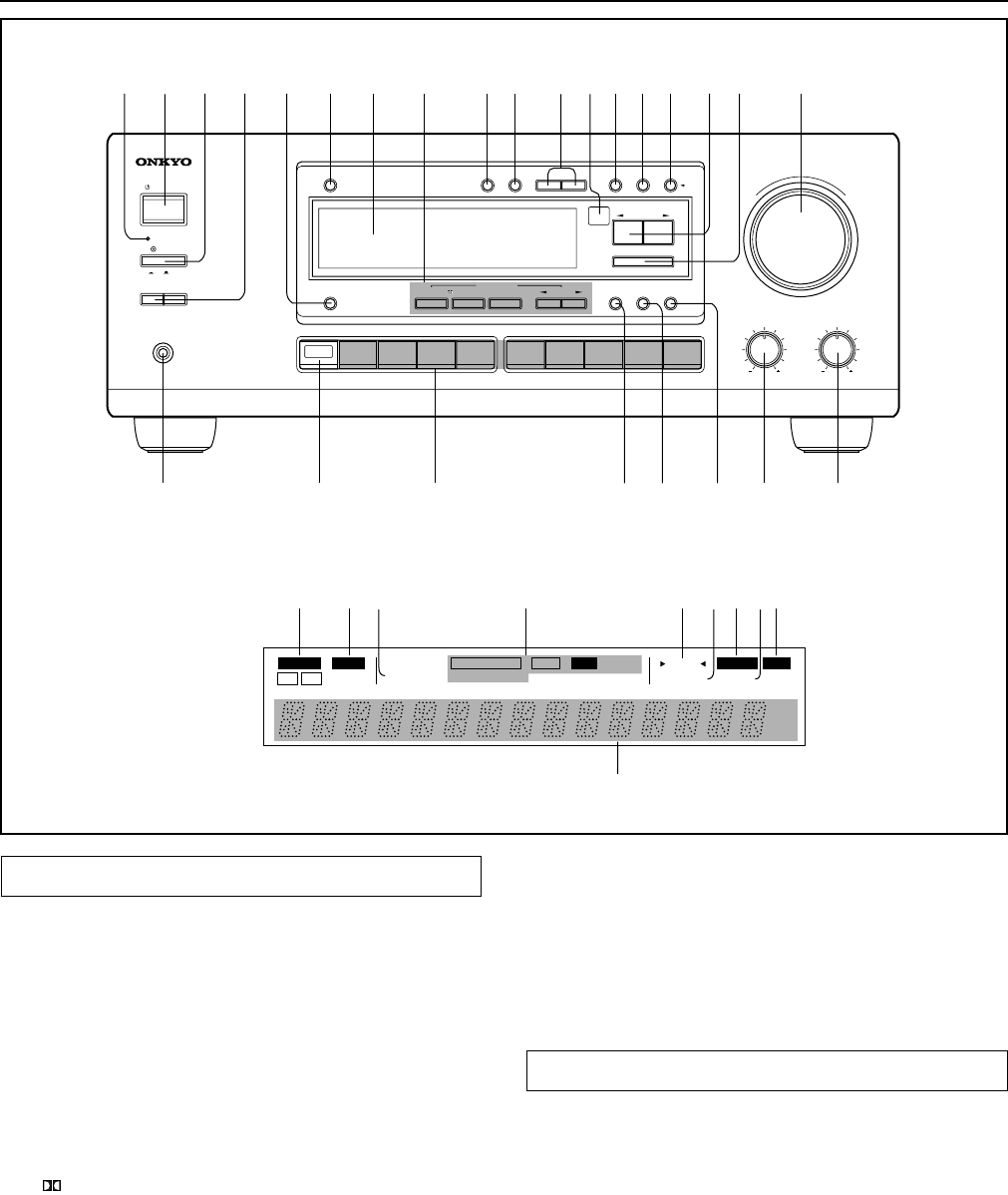

Control positions and names

abcdf

eghi

j

ch

f

t

AUTO

DIRECT

DS

P

RDS

SLEEP

MEMORY

SPEAKERS

FM MUTE

PC

M DIGITAL

DOLBY

PRO LOGIC

TUNED

FM STEREO

dB

STEREO

AB

ALDOLBY DIGIT

MPEG

DTS

STANDBY

Display

2 6 9 10 13 14 15 1816 1712117 83 451

19

20

242526 212223

OFF

ON

STANDBY

POWER

STANDBY/ON

BASS TREBLE

UP

DOWN

PHONES

AV RECEIVER

TX-DS575X

SPEAKERSAB

MASTER VOLUME

PRESET

/

MODE

ADJ

ENTER

/

SCAN

DOW

NUP

SP

/

SYS

SETUP

MODE

TUNING

UPDOWN

CH

LEVEL

MEMORY FM

MUTE

/

MODE

LATE

NIGHT

/

FRONT

EFFECT

DISPLAY STEREO 5

CH STEREO DSP

LISTENING

MODE

LFE

LEVEL

CONTROL

/DTS

SURROUND

Re

-EQ

DIGITAL/

ANALOG

PTY/TP

FM AM PHONO C

D

TAPEDVD

MULTI

CH

INPUT VIDEO 3

VIDEO 2

VIDEO 1

For more information about buttons or knobs, refer to the pages listed

in the brackets ( [ ] ) below.

1. STANDBY indicator [5, 11]

2. STANDBY/ON button[9, 11]

3. POWER switch [9, 11]

4. SPEAKERS A/B button [17, 20]

5. DISPLAY button [24]

6. DIMMER button [17] or

PTY/TP button (European model only) [28]

7. Display (Refer to the “Display” illustration.)

8. LISTENING MODE buttons

STEREO button [22]

/DTS SURROUND button [22]

5 CH STEREO button [22]

DSP √/® (DOWN/UP) buttoun [22]

9. MEMORY button [25]

10. FM MUTE/MODE button [24]

11. TUNING UP/DOWN buttons [24]

12. Remote control sensor [5]

13. DIGITAL/ANALOG button [18]

14. SP/SYS SETUP button [14, 15]

15. CH LEVEL button [23]

16. PRESET/MODE ADJ √/® button [14, 15, 18, 25, 28]

17. ENTER button (other than European model) or

ENTER/SCAN button (European model only)

[14, 15, 18, 25, 26, 28]

18. MASTER VOLUME control knob [17, 20]

Front panel 19. TREBLE control knob [17, 20]

20. BASS control knob [17, 20]

21. LEF LEVEL CONTROL button [23]

22. Re-EQ button [23]

23. LATE NIGHT/FRONT EFFECT button [23]

24. Input selector buttons [17, 22, 29]

25. MULTI CHANNEL INPUT button [17, 19]

26. PHONES jack [20]

If a protective film on the surface of the screen making it difficult

to read the display, remove the film.

a. Speakers A/B indicators

b. Sleep indicator

c. PCM digital indicator

d. Listening mode indicators

e. Tuned indicators

f. FM Stereo indicator

g. FM Mute On/Off indicator

h. Memory indicator

i. RDS station received indicator

(European model only)

j. Multi function display

(Frequency and Preset station/Input selector/Sleep time/

Volume level/Listening mode)

Display

43

Control positions and names

Using the remote controller, you can control a CD player or cas-

sette tape deck connected to the connector of the TX-DS575X.

(See page 9 for more information.)

1. SEND/LEARN indicator [31]

2. ON/STNBY button [31]

Power on/Standby on

3. SLEEP button [20]

Sleep function button

4. MACRO DIRECT button [37]

Macro Direct function

5. MODE buttons [31~39]

6. DISPLAY/DVD SET button [32]

7. CH +/– buttons [31]

8. EXIT/RETURN button [32]

9. PREV CH button [This button is not used for the

TX-DS575X.]

10. TRACK button [32]

11. CD/TAPE/DVD/MD operation buttons [31~33]

12. Input Selector buttons [17]

The V4 button is not used for the TX-DS575X.

13. Numeric key/STEREO/DSP√, ®/SURROUND/SP

A, B/CH SEL/LEVEL+,–/DIMMER buttons

[31~33]

[The DIRECT button and THX* button are not used for the

TX-DS575X.]

14. ENT button [34, 35, 39]

15. DISC button [32]

16. MUTING button [20]

Mute button

17. TEST/TV/VCR button [16]

18. ENTER/cursor buttons [32]

19. VOLq/u button [17]

Volume adjustment

20. OSD/MENU button [32]

21. MACRO MODE button [36]

22. LIGHT button [31]

*The THX® button activates the THX mode on products certified by

Lucasfilm.

This control will not function on products which are not THX-certified.

THX is a registered trademark of Lucasfilm, Ltd.

Remote controller

5

7

11

12

10

9

8

13

6

21

19

20

16

15

14

17

18

2

3

1

4

22

44

E

http://www.onkyo.co.jp/

HOMEPAGE

SN 29342860 I0003-1

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN

Tel: 072-831-8111 Fax: 072-833-5222 http://www.onkyo-intl.com

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: 089-849-320+49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.onkyochina.com
