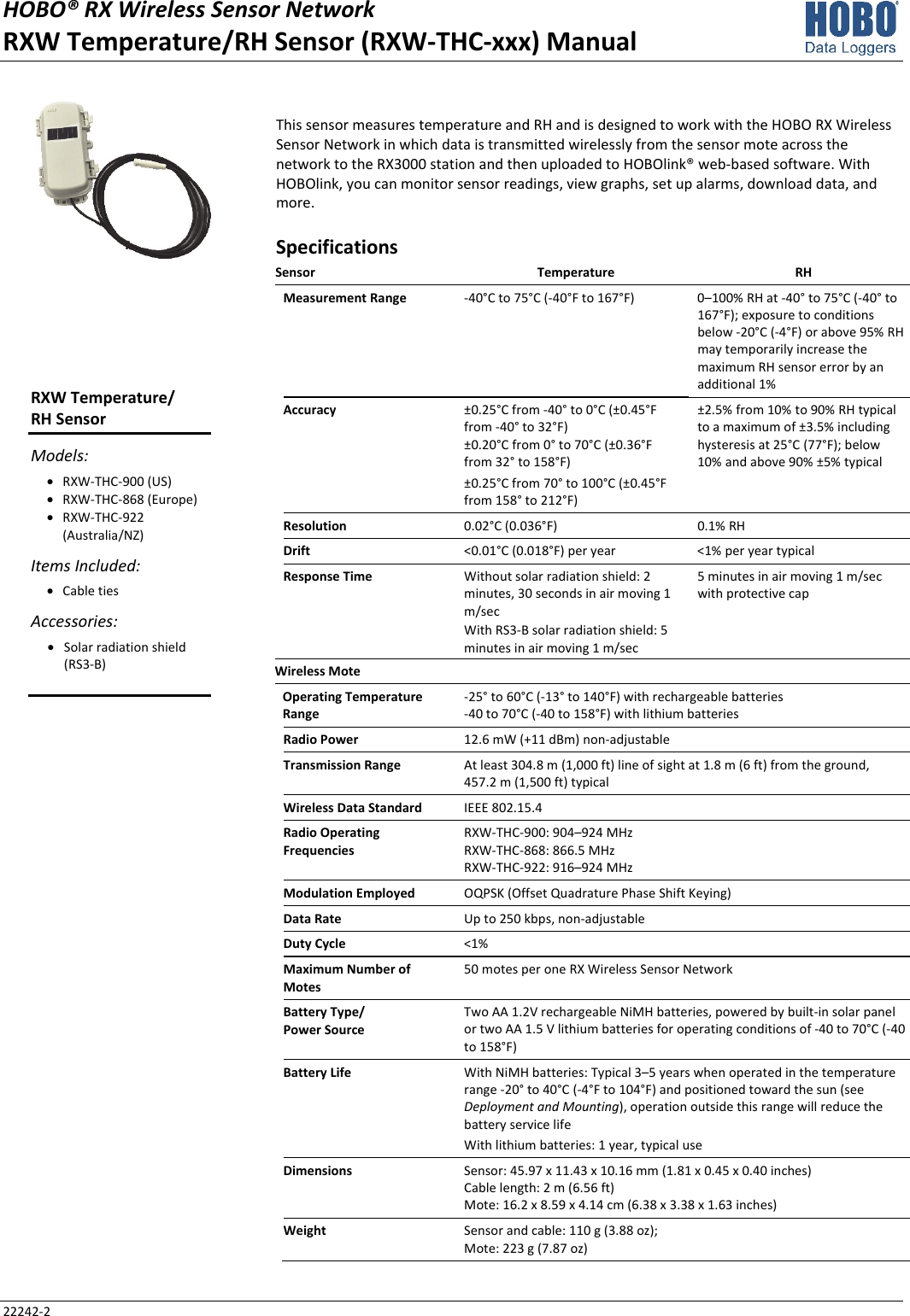

HOBO® RX Wireless Sensor Network RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 22242-2 This sensor measures temperature and RH and is designed to work with the HOBO RX Wireless Sensor Network in which data is transmitted wirelessly from the sensor mote across the network to the RX3000 station and then uploaded to HOBOlink® web-based software. With HOBOlink, you can monitor sensor readings, view graphs, set up alarms, download data, and more. Specifications Sensor Temperature RH Measurement Range -40°C to 75°C (-40°F to 167°F) 0–100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1% Accuracy ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F) ±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F) ±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F) ±2.5% from 10% to 90% RH typical to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical Resolution 0.02°C (0.036°F) 0.1% RH Drift <0.01°C (0.018°F) per year <1% per year typical Response Time Without solar radiation shield: 2 minutes, 30 seconds in air moving 1 m/sec With RS3-B solar radiation shield: 5 minutes in air moving 1 m/sec 5 minutes in air moving 1 m/sec with protective cap Wireless Mote Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries -40 to 70°C (-40 to 158°F) with lithium batteries Radio Power 12.6 mW (+11 dBm) non-adjustable Transmission Range At least 304.8 m (1,000 ft) line of sight at 1.8 m (6 ft) from the ground, 457.2 m (1,500 ft) typical Wireless Data Standard IEEE 802.15.4 Radio Operating Frequencies RXW-THC-900: 904–924 MHz RXW-THC-868: 866.5 MHz RXW-THC-922: 916–924 MHz Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying) Data Rate Up to 250 kbps, non-adjustable Duty Cycle <1% Maximum Number of Motes 50 motes per one RX Wireless Sensor Network Battery Type/ Power Source Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F) Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life With lithium batteries: 1 year, typical use Dimensions Sensor: 45.97 x 11.43 x 10.16 mm (1.81 x 0.45 x 0.40 inches) Cable length: 2 m (6.56 ft) Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches) Weight Sensor and cable: 110 g (3.88 oz); Mote: 223 g (7.87 oz) RXW Temperature/ RH Sensor Models: • RXW-THC-900 (US) • RXW-THC-868 (Europe) • RXW-THC-922 (Australia/NZ) Items Included: • Cable ties Accessories: • Solar radiation shield (RS3-B)

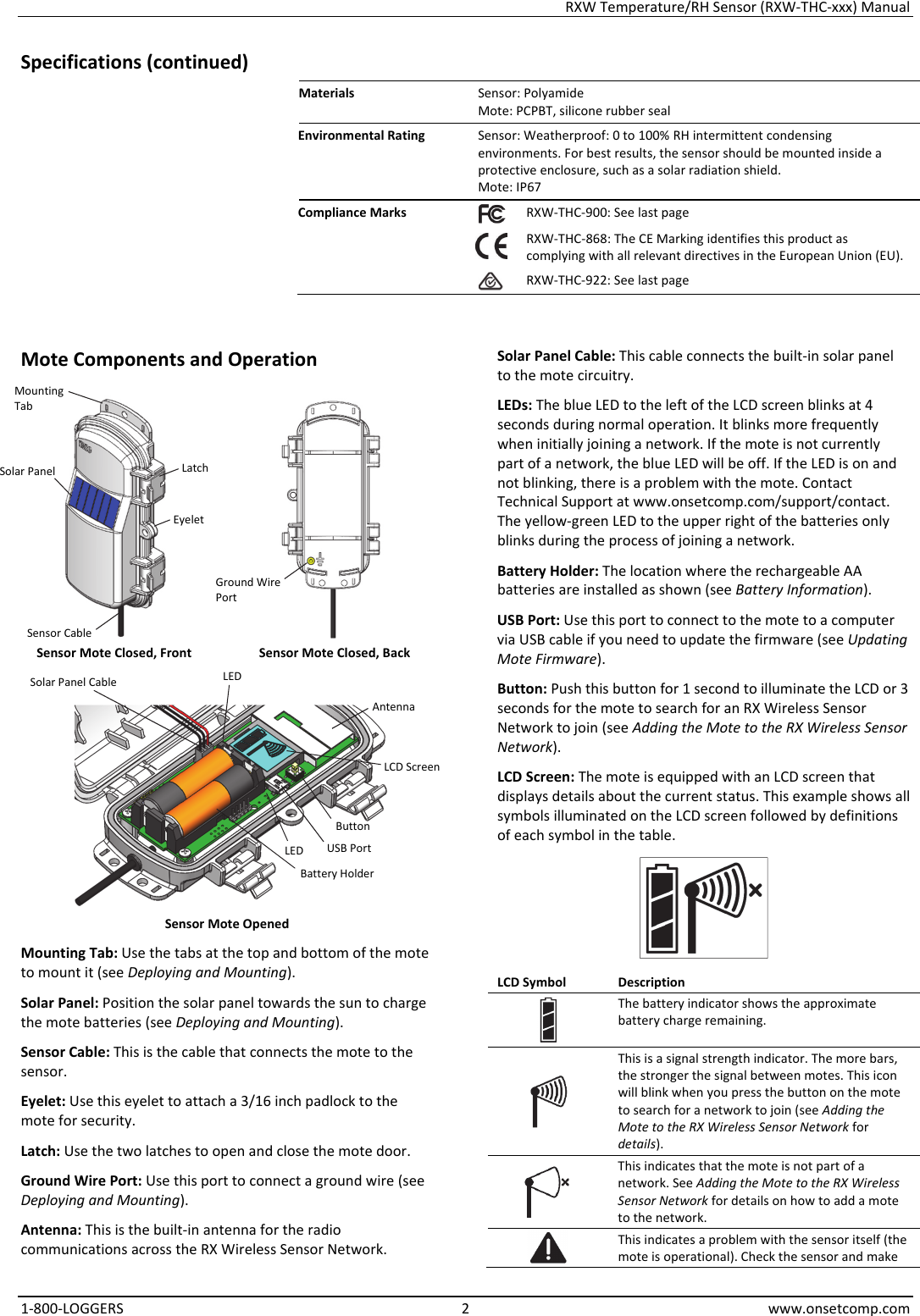

RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 1-800-LOGGERS 2 www.onsetcomp.com Specifications (continued) Materials Sensor: Polyamide Mote: PCPBT, silicone rubber seal Environmental Rating Sensor: Weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the sensor should be mounted inside a protective enclosure, such as a solar radiation shield. Mote: IP67 Compliance Marks RXW-THC-900: See last page RXW-THC-868: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). RXW-THC-922: See last page Mote Components and Operation Sensor Mote Closed, Front Sensor Mote Closed, Back Sensor Mote Opened Mounting Tab: Use the tabs at the top and bottom of the mote to mount it (see Deploying and Mounting). Solar Panel: Position the solar panel towards the sun to charge the mote batteries (see Deploying and Mounting). Sensor Cable: This is the cable that connects the mote to the sensor. Eyelet: Use this eyelet to attach a 3/16 inch padlock to the mote for security. Latch: Use the two latches to open and close the mote door. Ground Wire Port: Use this port to connect a ground wire (see Deploying and Mounting). Antenna: This is the built-in antenna for the radio communications across the RX Wireless Sensor Network. Solar Panel Cable: This cable connects the built-in solar panel to the mote circuitry. LEDs: The blue LED to the left of the LCD screen blinks at 4 seconds during normal operation. It blinks more frequently when initially joining a network. If the mote is not currently part of a network, the blue LED will be off. If the LED is on and not blinking, there is a problem with the mote. Contact Technical Support at www.onsetcomp.com/support/contact. The yellow-green LED to the upper right of the batteries only blinks during the process of joining a network. Battery Holder: The location where the rechargeable AA batteries are installed as shown (see Battery Information). USB Port: Use this port to connect to the mote to a computer via USB cable if you need to update the firmware (see Updating Mote Firmware). Button: Push this button for 1 second to illuminate the LCD or 3 seconds for the mote to search for an RX Wireless Sensor Network to join (see Adding the Mote to the RX Wireless Sensor Network). LCD Screen: The mote is equipped with an LCD screen that displays details about the current status. This example shows all symbols illuminated on the LCD screen followed by definitions of each symbol in the table. LCD Symbol Description The battery indicator shows the approximate battery charge remaining. This is a signal strength indicator. The more bars, the stronger the signal between motes. This icon will blink when you press the button on the mote to search for a network to join (see Adding the Mote to the RX Wireless Sensor Network for details). This indicates that the mote is not part of a network. See Adding the Mote to the RX Wireless Sensor Network for details on how to add a mote to the network. This indicates a problem with the sensor itself (the mote is operational). Check the sensor and make Button USB Port Battery Holder LCD Screen Solar Panel Latch Mounting Tab Solar Panel Cable Antenna LED LED Eyelet Ground Wire Port Sensor Cable

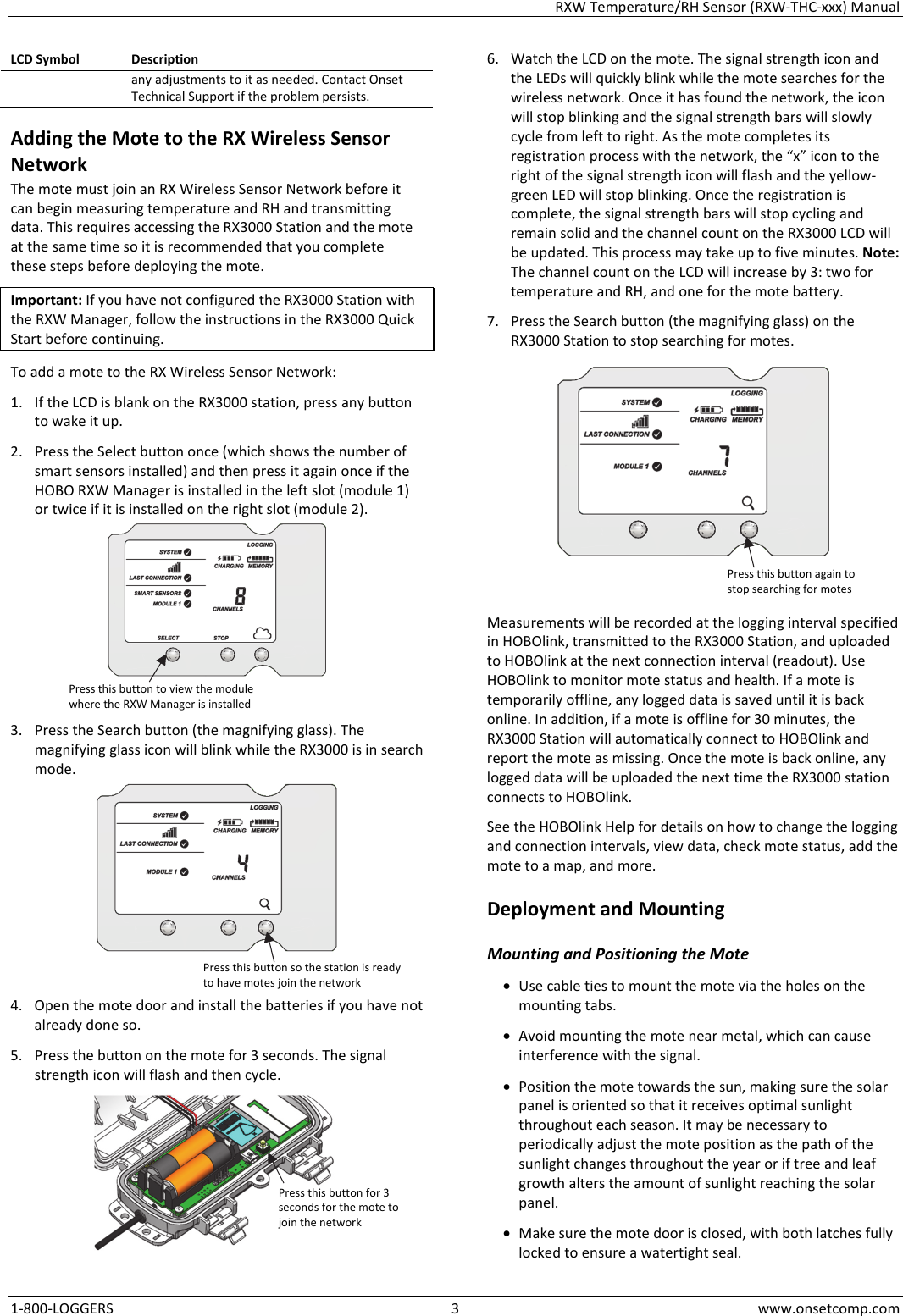

RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 1-800-LOGGERS 3 www.onsetcomp.com LCD Symbol Description any adjustments to it as needed. Contact Onset Technical Support if the problem persists. Adding the Mote to the RX Wireless Sensor Network The mote must join an RX Wireless Sensor Network before it can begin measuring temperature and RH and transmitting data. This requires accessing the RX3000 Station and the mote at the same time so it is recommended that you complete these steps before deploying the mote. Important: If you have not configured the RX3000 Station with the RXW Manager, follow the instructions in the RX3000 Quick Start before continuing. To add a mote to the RX Wireless Sensor Network: 1. If the LCD is blank on the RX3000 station, press any button to wake it up. 2. Press the Select button once (which shows the number of smart sensors installed) and then press it again once if the HOBO RXW Manager is installed in the left slot (module 1) or twice if it is installed on the right slot (module 2). 3. Press the Search button (the magnifying glass). The magnifying glass icon will blink while the RX3000 is in search mode. 4. Open the mote door and install the batteries if you have not already done so. 5. Press the button on the mote for 3 seconds. The signal strength icon will flash and then cycle. 6. Watch the LCD on the mote. The signal strength icon and the LEDs will quickly blink while the mote searches for the wireless network. Once it has found the network, the icon will stop blinking and the signal strength bars will slowly cycle from left to right. As the mote completes its registration process with the network, the “x” icon to the right of the signal strength icon will flash and the yellow-green LED will stop blinking. Once the registration is complete, the signal strength bars will stop cycling and remain solid and the channel count on the RX3000 LCD will be updated. This process may take up to five minutes. Note: The channel count on the LCD will increase by 3: two for temperature and RH, and one for the mote battery. 7. Press the Search button (the magnifying glass) on the RX3000 Station to stop searching for motes. Measurements will be recorded at the logging interval specified in HOBOlink, transmitted to the RX3000 Station, and uploaded to HOBOlink at the next connection interval (readout). Use HOBOlink to monitor mote status and health. If a mote is temporarily offline, any logged data is saved until it is back online. In addition, if a mote is offline for 30 minutes, the RX3000 Station will automatically connect to HOBOlink and report the mote as missing. Once the mote is back online, any logged data will be uploaded the next time the RX3000 station connects to HOBOlink. See the HOBOlink Help for details on how to change the logging and connection intervals, view data, check mote status, add the mote to a map, and more. Deployment and Mounting Mounting and Positioning the Mote • Use cable ties to mount the mote via the holes on the mounting tabs. • Avoid mounting the mote near metal, which can cause interference with the signal. • Position the mote towards the sun, making sure the solar panel is oriented so that it receives optimal sunlight throughout each season. It may be necessary to periodically adjust the mote position as the path of the sunlight changes throughout the year or if tree and leaf growth alters the amount of sunlight reaching the solar panel. • Make sure the mote door is closed, with both latches fully locked to ensure a watertight seal. Press this button to view the module where the RXW Manager is installed Press this button so the station is ready to have motes join the network Press this button for 3 seconds for the mote to join the network Press this button again to stop searching for motes

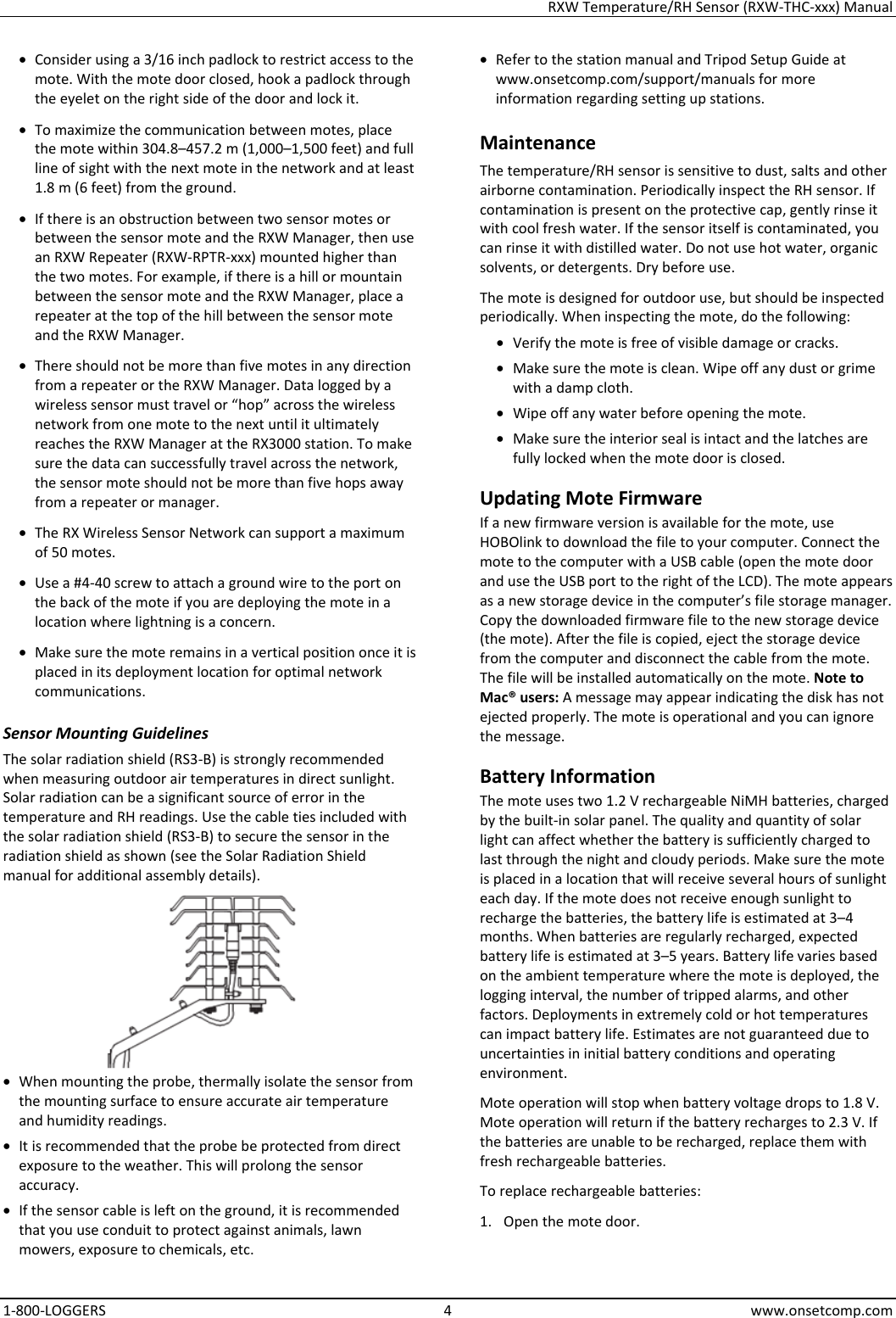

RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 1-800-LOGGERS 4 www.onsetcomp.com • Consider using a 3/16 inch padlock to restrict access to the mote. With the mote door closed, hook a padlock through the eyelet on the right side of the door and lock it. • To maximize the communication between motes, place the mote within 304.8–457.2 m (1,000–1,500 feet) and full line of sight with the next mote in the network and at least 1.8 m (6 feet) from the ground. • If there is an obstruction between two sensor motes or between the sensor mote and the RXW Manager, then use an RXW Repeater (RXW-RPTR-xxx) mounted higher than the two motes. For example, if there is a hill or mountain between the sensor mote and the RXW Manager, place a repeater at the top of the hill between the sensor mote and the RXW Manager. • There should not be more than five motes in any direction from a repeater or the RXW Manager. Data logged by a wireless sensor must travel or “hop” across the wireless network from one mote to the next until it ultimately reaches the RXW Manager at the RX3000 station. To make sure the data can successfully travel across the network, the sensor mote should not be more than five hops away from a repeater or manager. • The RX Wireless Sensor Network can support a maximum of 50 motes. • Use a #4-40 screw to attach a ground wire to the port on the back of the mote if you are deploying the mote in a location where lightning is a concern. • Make sure the mote remains in a vertical position once it is placed in its deployment location for optimal network communications. Sensor Mounting Guidelines The solar radiation shield (RS3-B) is strongly recommended when measuring outdoor air temperatures in direct sunlight. Solar radiation can be a significant source of error in the temperature and RH readings. Use the cable ties included with the solar radiation shield (RS3-B) to secure the sensor in the radiation shield as shown (see the Solar Radiation Shield manual for additional assembly details). • When mounting the probe, thermally isolate the sensor from the mounting surface to ensure accurate air temperature and humidity readings. • It is recommended that the probe be protected from direct exposure to the weather. This will prolong the sensor accuracy. • If the sensor cable is left on the ground, it is recommended that you use conduit to protect against animals, lawn mowers, exposure to chemicals, etc. • Refer to the station manual and Tripod Setup Guide at www.onsetcomp.com/support/manuals for more information regarding setting up stations. Maintenance The temperature/RH sensor is sensitive to dust, salts and other airborne contamination. Periodically inspect the RH sensor. If contamination is present on the protective cap, gently rinse it with cool fresh water. If the sensor itself is contaminated, you can rinse it with distilled water. Do not use hot water, organic solvents, or detergents. Dry before use. The mote is designed for outdoor use, but should be inspected periodically. When inspecting the mote, do the following: • Verify the mote is free of visible damage or cracks. • Make sure the mote is clean. Wipe off any dust or grime with a damp cloth. • Wipe off any water before opening the mote. • Make sure the interior seal is intact and the latches are fully locked when the mote door is closed. Updating Mote Firmware If a new firmware version is available for the mote, use HOBOlink to download the file to your computer. Connect the mote to the computer with a USB cable (open the mote door and use the USB port to the right of the LCD). The mote appears as a new storage device in the computer’s file storage manager. Copy the downloaded firmware file to the new storage device (the mote). After the file is copied, eject the storage device from the computer and disconnect the cable from the mote. The file will be installed automatically on the mote. Note to Mac® users: A message may appear indicating the disk has not ejected properly. The mote is operational and you can ignore the message. Battery Information The mote uses two 1.2 V rechargeable NiMH batteries, charged by the built-in solar panel. The quality and quantity of solar light can affect whether the battery is sufficiently charged to last through the night and cloudy periods. Make sure the mote is placed in a location that will receive several hours of sunlight each day. If the mote does not receive enough sunlight to recharge the batteries, the battery life is estimated at 3–4 months. When batteries are regularly recharged, expected battery life is estimated at 3–5 years. Battery life varies based on the ambient temperature where the mote is deployed, the logging interval, the number of tripped alarms, and other factors. Deployments in extremely cold or hot temperatures can impact battery life. Estimates are not guaranteed due to uncertainties in initial battery conditions and operating environment. Mote operation will stop when battery voltage drops to 1.8 V. Mote operation will return if the battery recharges to 2.3 V. If the batteries are unable to be recharged, replace them with fresh rechargeable batteries. To replace rechargeable batteries: 1. Open the mote door.

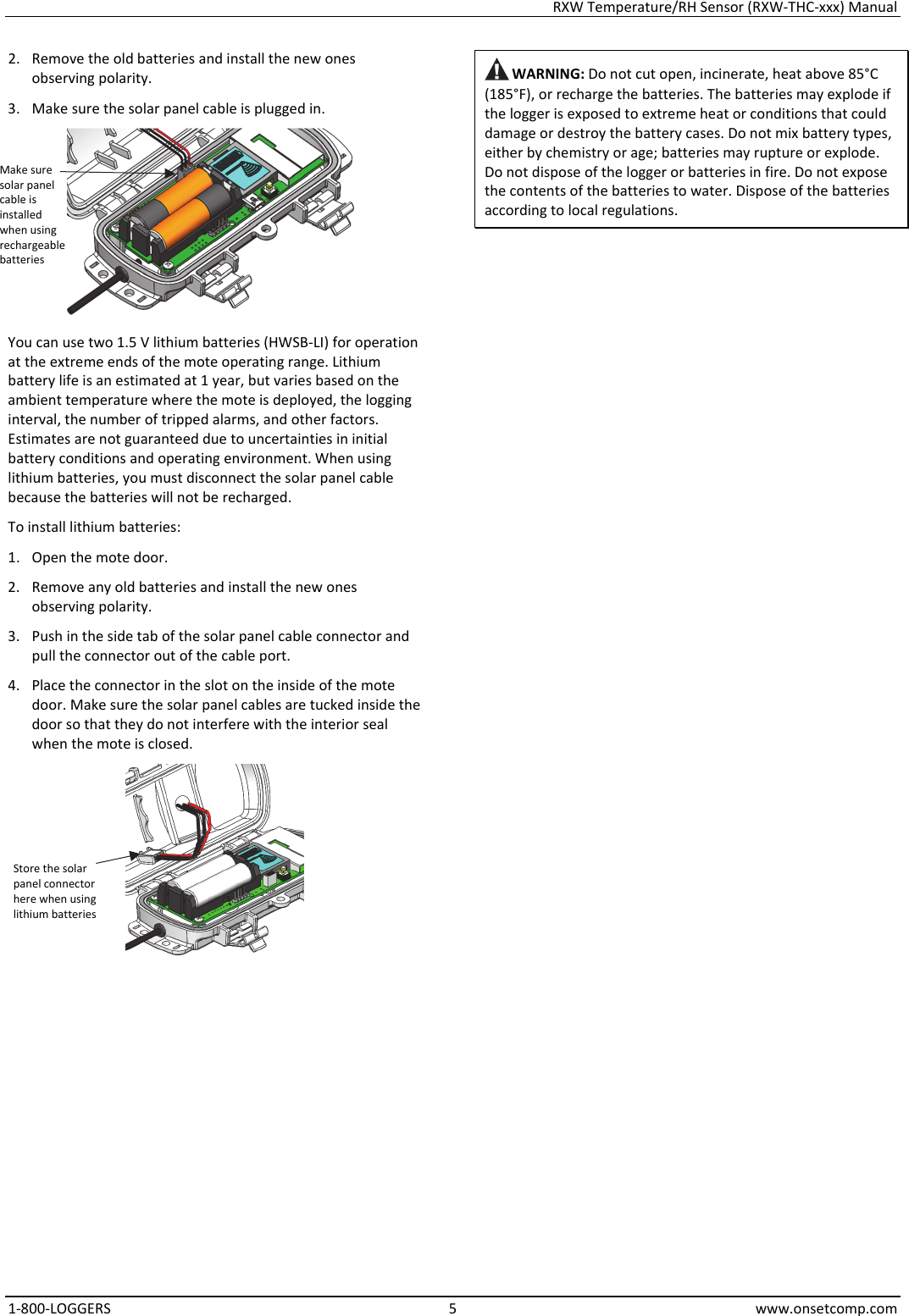

RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 1-800-LOGGERS 5 www.onsetcomp.com 2. Remove the old batteries and install the new ones observing polarity. 3. Make sure the solar panel cable is plugged in. You can use two 1.5 V lithium batteries (HWSB-LI) for operation at the extreme ends of the mote operating range. Lithium battery life is an estimated at 1 year, but varies based on the ambient temperature where the mote is deployed, the logging interval, the number of tripped alarms, and other factors. Estimates are not guaranteed due to uncertainties in initial battery conditions and operating environment. When using lithium batteries, you must disconnect the solar panel cable because the batteries will not be recharged. To install lithium batteries: 1. Open the mote door. 2. Remove any old batteries and install the new ones observing polarity. 3. Push in the side tab of the solar panel cable connector and pull the connector out of the cable port. 4. Place the connector in the slot on the inside of the mote door. Make sure the solar panel cables are tucked inside the door so that they do not interfere with the interior seal when the mote is closed. WARNING: Do not cut open, incinerate, heat above 85°C (185°F), or recharge the batteries. The batteries may explode if the logger is exposed to extreme heat or conditions that could damage or destroy the battery cases. Do not mix battery types, either by chemistry or age; batteries may rupture or explode. Do not dispose of the logger or batteries in fire. Do not expose the contents of the batteries to water. Dispose of the batteries according to local regulations. Store the solar panel connector here when using lithium batteries Make sure solar panel cable is installed when using rechargeable batteries

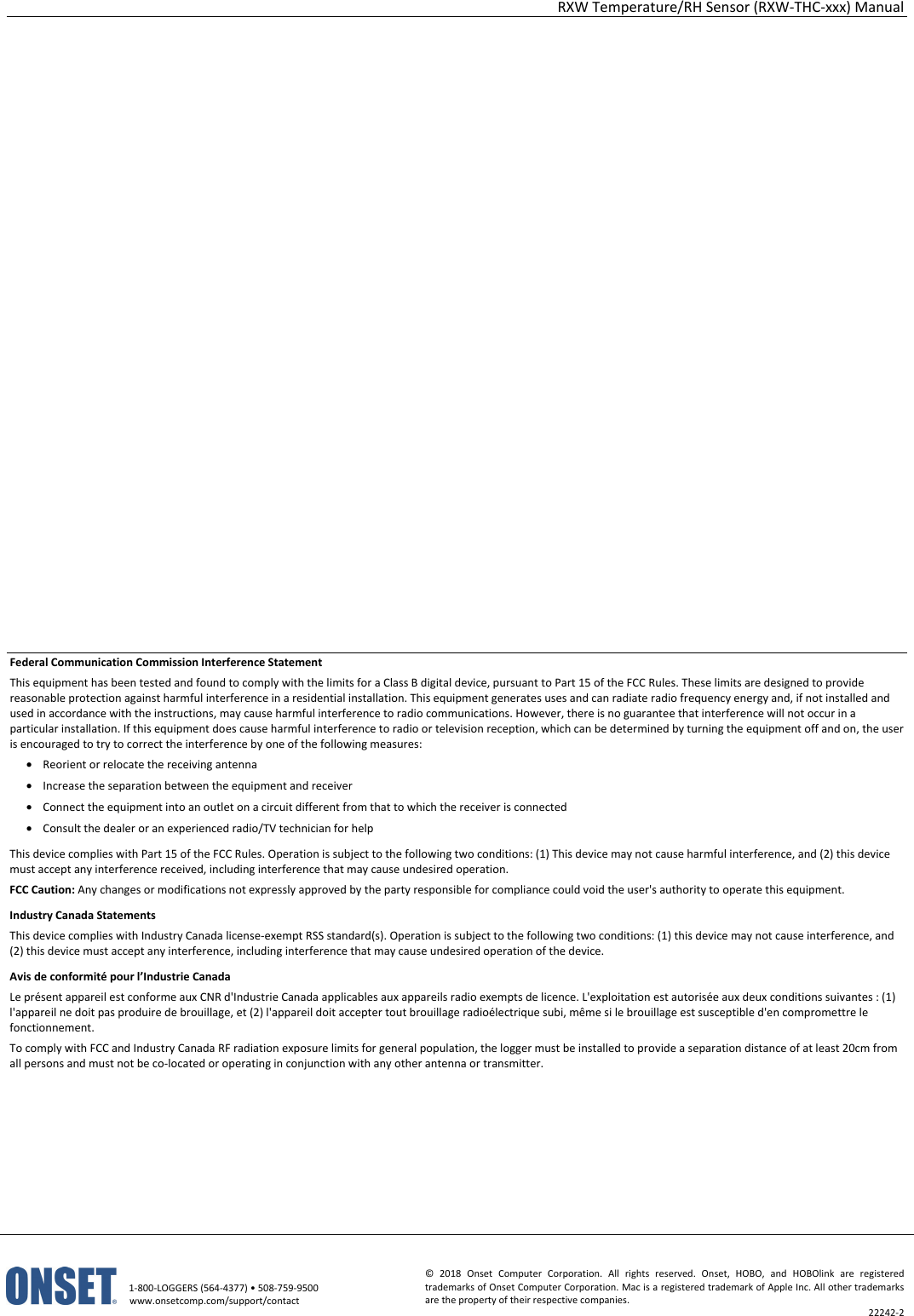

RXW Temperature/RH Sensor (RXW-THC-xxx) Manual 1-800-LOGGERS (564-4377) • 508-759-9500 www.onsetcomp.com/support/contact © 2018 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOlink are registered trademarks of Onset Computer Corporation. Mac is a registered trademark of Apple Inc. All other trademarks are the property of their respective companies. 22242-2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Industry Canada Statements This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Avis de conformité pour l’Industrie Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. To comply with FCC and Industry Canada RF radiation exposure limits for general population, the logger must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
