Data Collector with GPS & Bluetooth
OPL- 9815
The OPL-9815 is a laser data collector featuring GPS
(Global Positioning System) feature, Bluetooth 2.1
communication and time stamp functionality.
Specifications Manual
![](/img.php?id=2420702&img=bg2.png)
Opticon
OPL- 9815
Specifications Manual
All information subject to change without notice.
Document History
Model Number: OPL-9815 Specification Number:
Edition: 1 Original Spec Number:
Date: 2012-02-18
Copyright 2012 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE
PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in
materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by
modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and software, even if
Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need to
transport your data collector or send it for service. Damage caused by improper packaging during shipment is not
covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12-
17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
2
![](/img.php?id=2420702&img=bg3.png)
Opticon
OPL- 9815
Specifications Manual
Contents
1. Abstract ..................................................................................................................................... 5
2. Overview ................................................................................................................................... 5
3. Physical Features ..................................................................................................................... 5
3.1. Dimensions ....................................................................................................................... 5
3.2. Weight ............................................................................................................................... 5
3.3. Color ................................................................................................................................. 5
4. Environmental Specifications .................................................................................................. 6
4.1. Operating Temperature and Humidity ................................................................................ 6
4.2. Storage Temperature and Humidity ................................................................................... 6
4.3. IP (dust/water) rating ......................................................................................................... 6
4.4. Drop .................................................................................................................................. 6
4.5. Ambient Light Immunity ..................................................................................................... 6
4.6. Supported symbologies: .................................................................................................... 7
5. Controls ..................................................................................................................................... 8
6. Electrical Specifications ........................................................................................................... 8
6.1. Main Battery ...................................................................................................................... 8
6.2. Battery Operating Time and Charging Time (TBD) ............................................................ 8
7. Optical Specifications .............................................................................................................. 9
7.1. Laser Scan Specifications ................................................................................................. 9
8. Technical Specifications .......................................................................................................... 9
8.1. Print Contrast Signal (PCS) ............................................................................................... 9
8.2. Minimum Resolution .......................................................................................................... 9
8.3. Scan Area and Resolution ............................................................................................... 10
8.4. Pitch, Skew, and Tilt ........................................................................................................ 11
8.5. Curvature ........................................................................................................................ 14
9. Interface Specifications .......................................................................................................... 14
9.1. Bluetooth ......................................................................................................................... 14
9.2. Infrared Transmission (IrDA) ........................................................................................... 15
9.3. GPS ................................................................................................................................ 15
10. Serial Number ......................................................................................................................... 16
10.1.1. Detailed drawing ...................................................................................................................... 17
10.1.2. Serial number ........................................................................................................................... 17
10.1.3. Manufacturing date .................................................................................................................. 18
10.2. White box label ................................................................................................................ 18
11. Packaging Specifications ....................................................................................................... 19
3
![](/img.php?id=2420702&img=bg4.png)
Opticon
OPL- 9815
Specifications Manual
11.1. Individual Packaging Specification (TBD) ........................................................................ 19
11.2. Accessory Specification (TBD) ........................................................................................ 20
11.3. Collective Packaging Specification .................................................................................. 20
12. Durability ................................................................................................................................. 21
12.1. Drop Test (without packaging) ......................................................................................... 21
12.2. Dust and Drip Proof ......................................................................................................... 21
13. Reliability ................................................................................................................................ 21
14. Regulatory Compliance .......................................................................................................... 22
14.1. Laser Safety .................................................................................................................... 22
14.2. Certifications.................................................................................................................... 22
14.3. RoHS .............................................................................................................................. 22
14.4. State of California: Perchlorate Best Management Practices ........................................... 23
15. Safety precautions .................................................................................................................. 24
15.1. Shock .............................................................................................................................. 24
15.2. Temperature Conditions .................................................................................................. 24
15.3. Foreign Materials ............................................................................................................. 24
15.4. Other ............................................................................................................................... 24

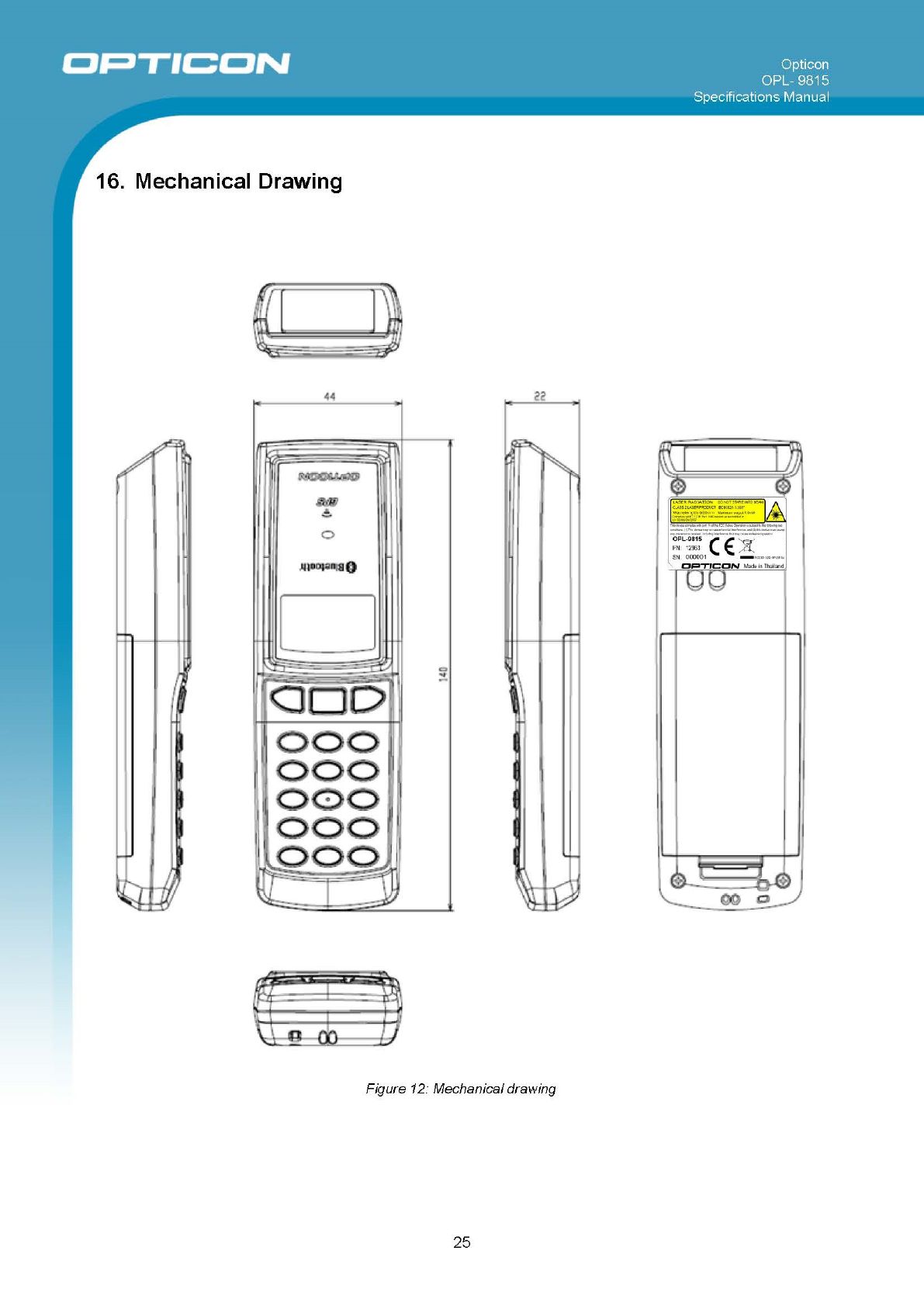

16. Mechanical Drawing ............................................................................................................... 25

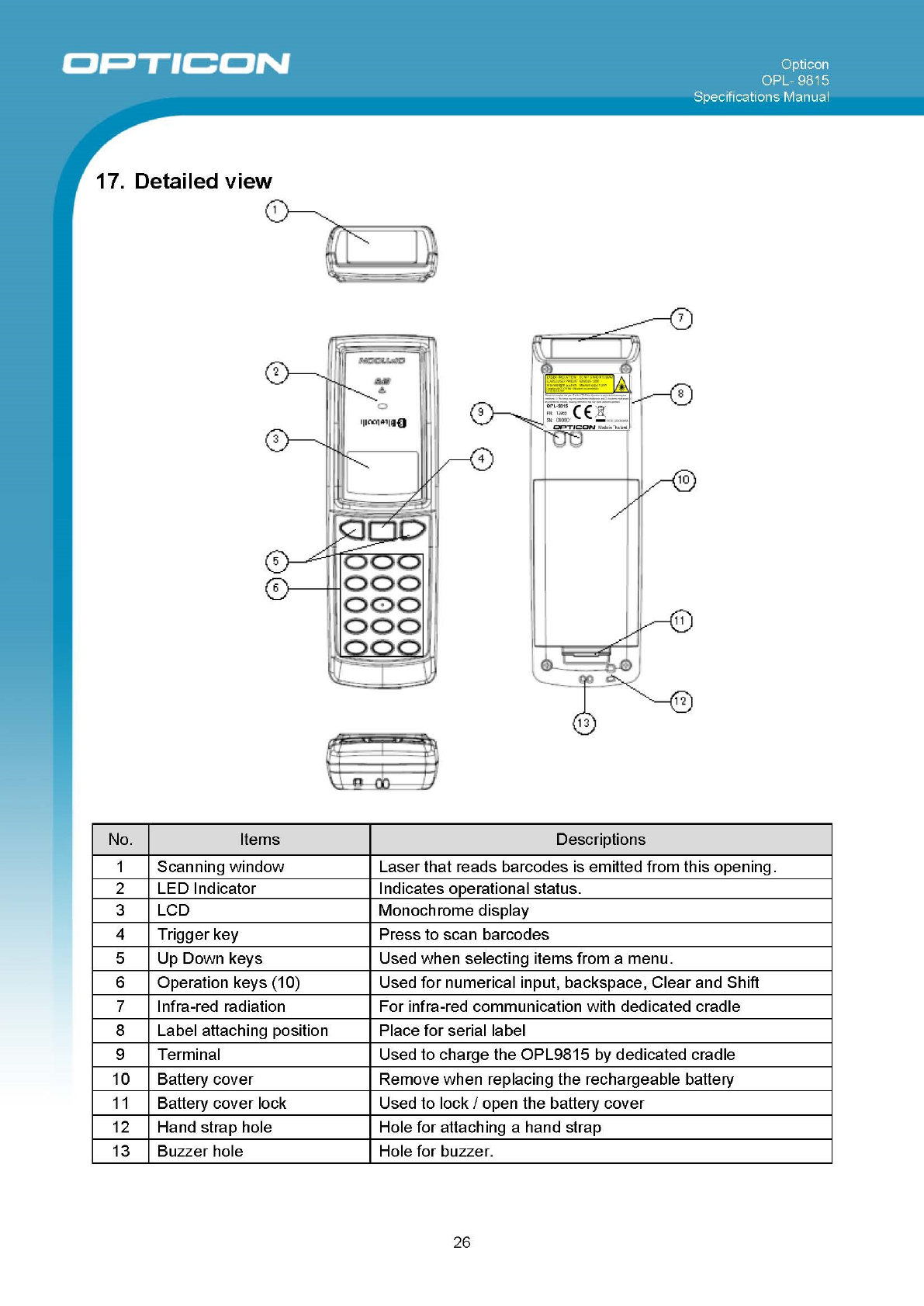

17. Detailed view ........................................................................................................................... 26
Table of Figures
Figure 1: Ambient Light Immunity ................................................................................................ 6

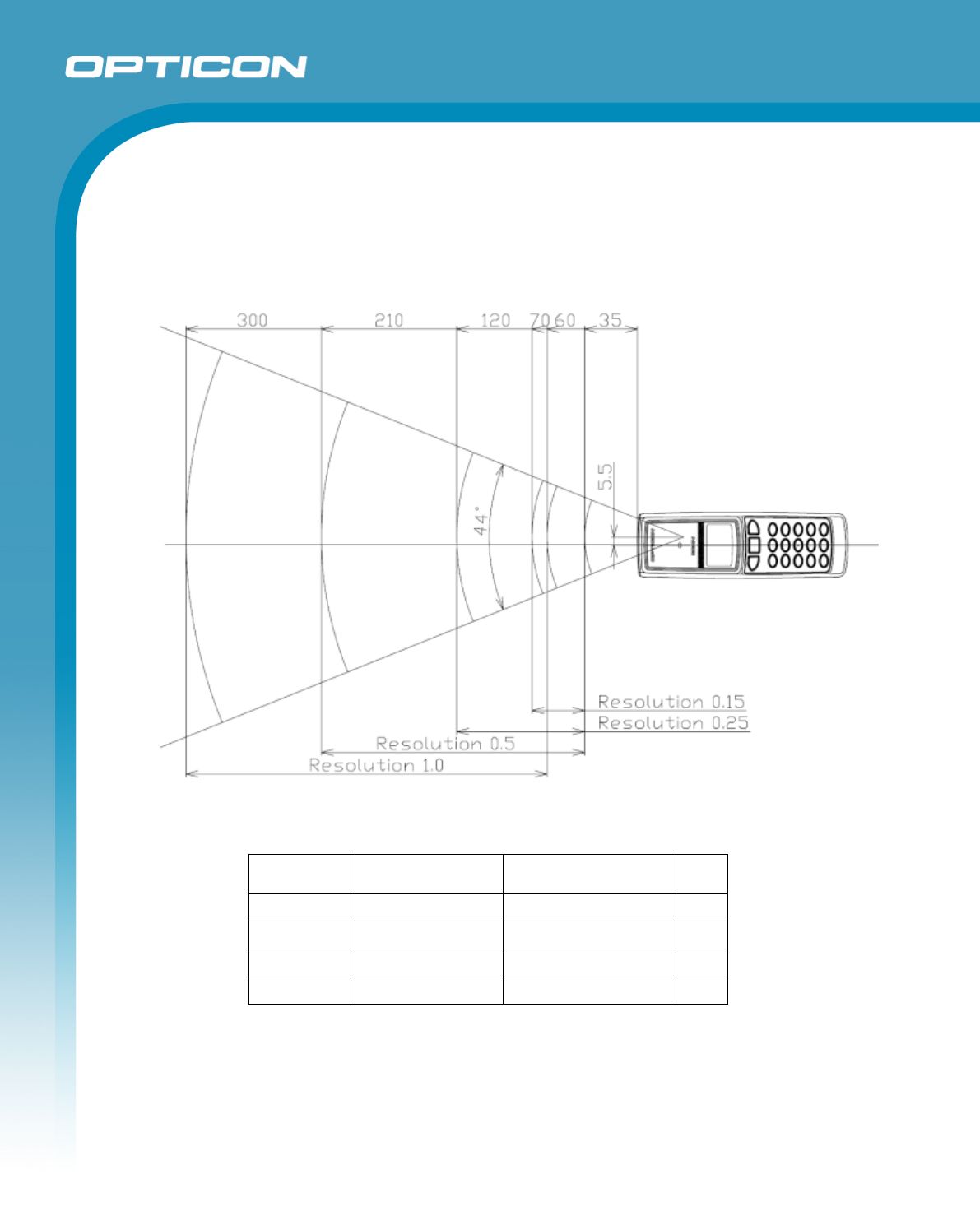

Figure 2: Depth of field ............................................................................................................. 10
Figure 3: Pitch .......................................................................................................................... 11

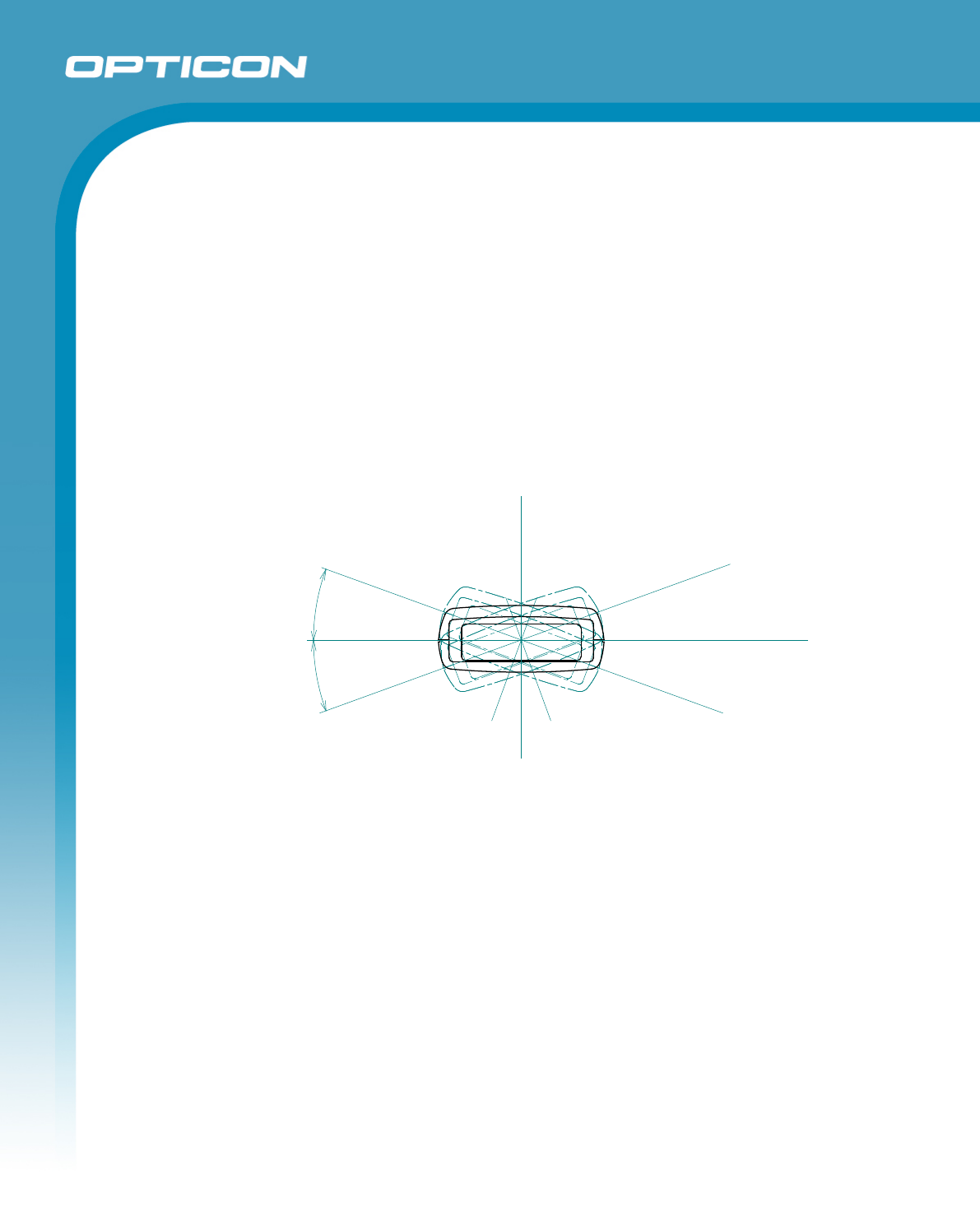

Figure 4: Skew and dead zone ................................................................................................. 12
Figure 5: Tilt angle .................................................................................................................... 13

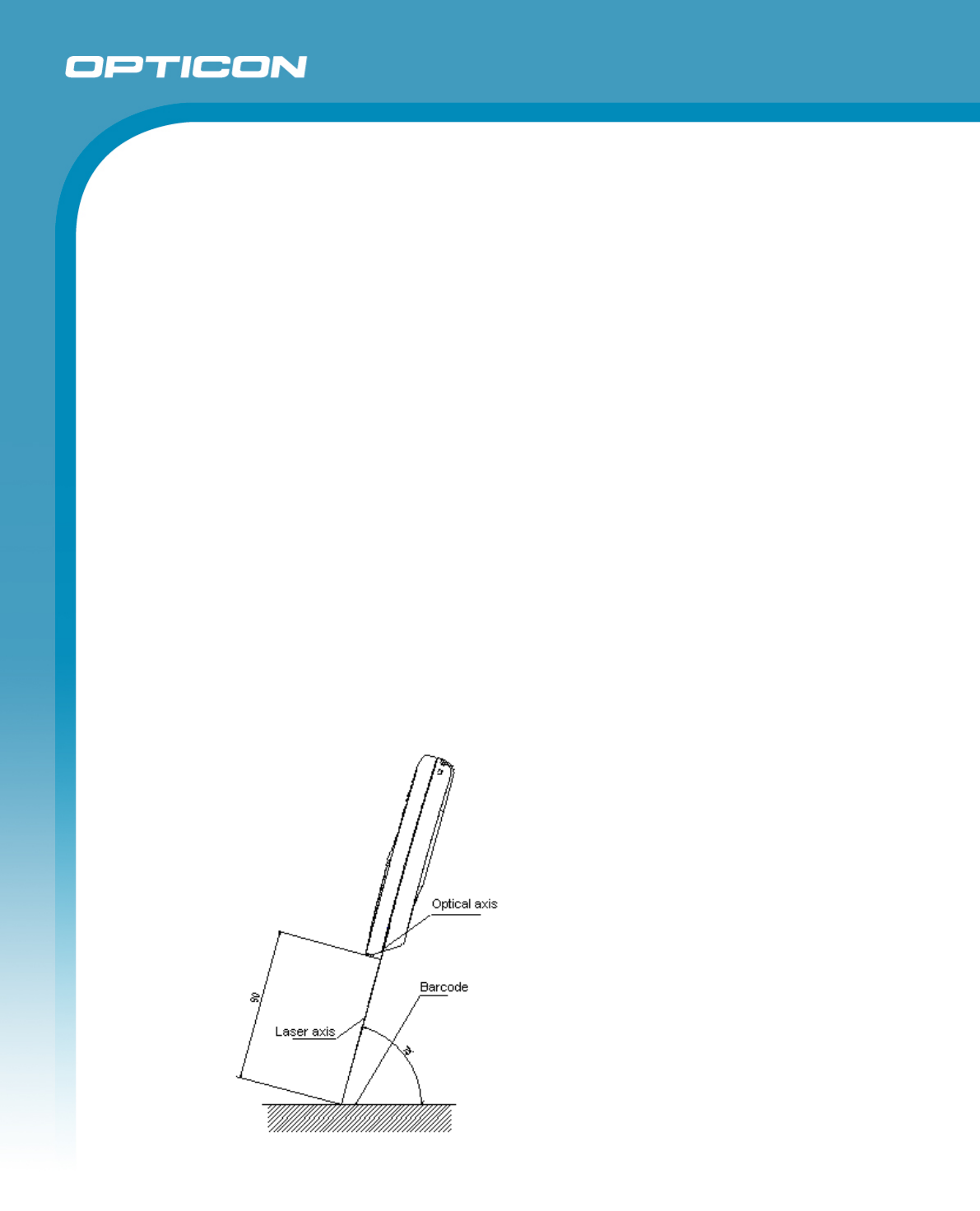

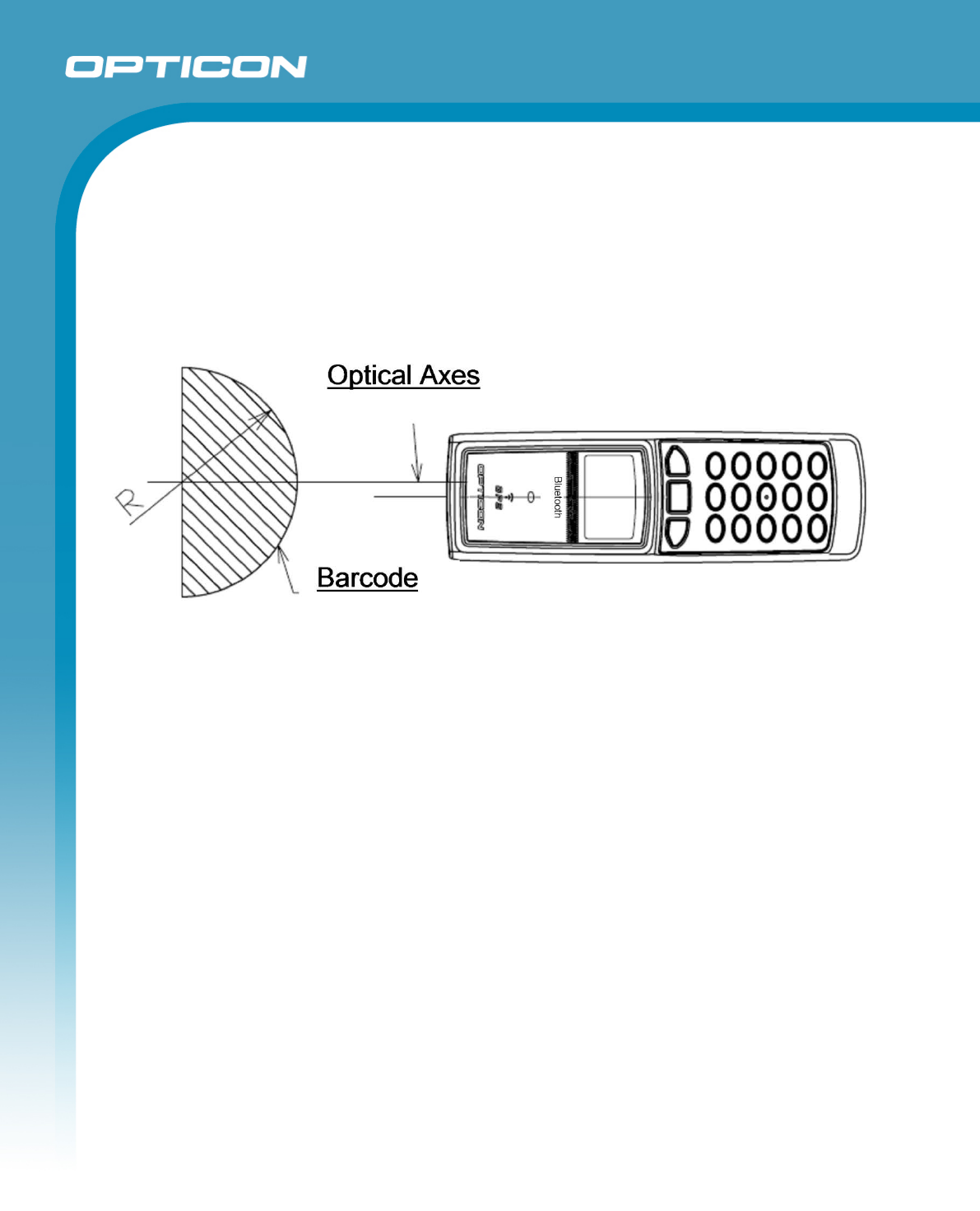

Figure 6: Curvature ................................................................................................................... 14

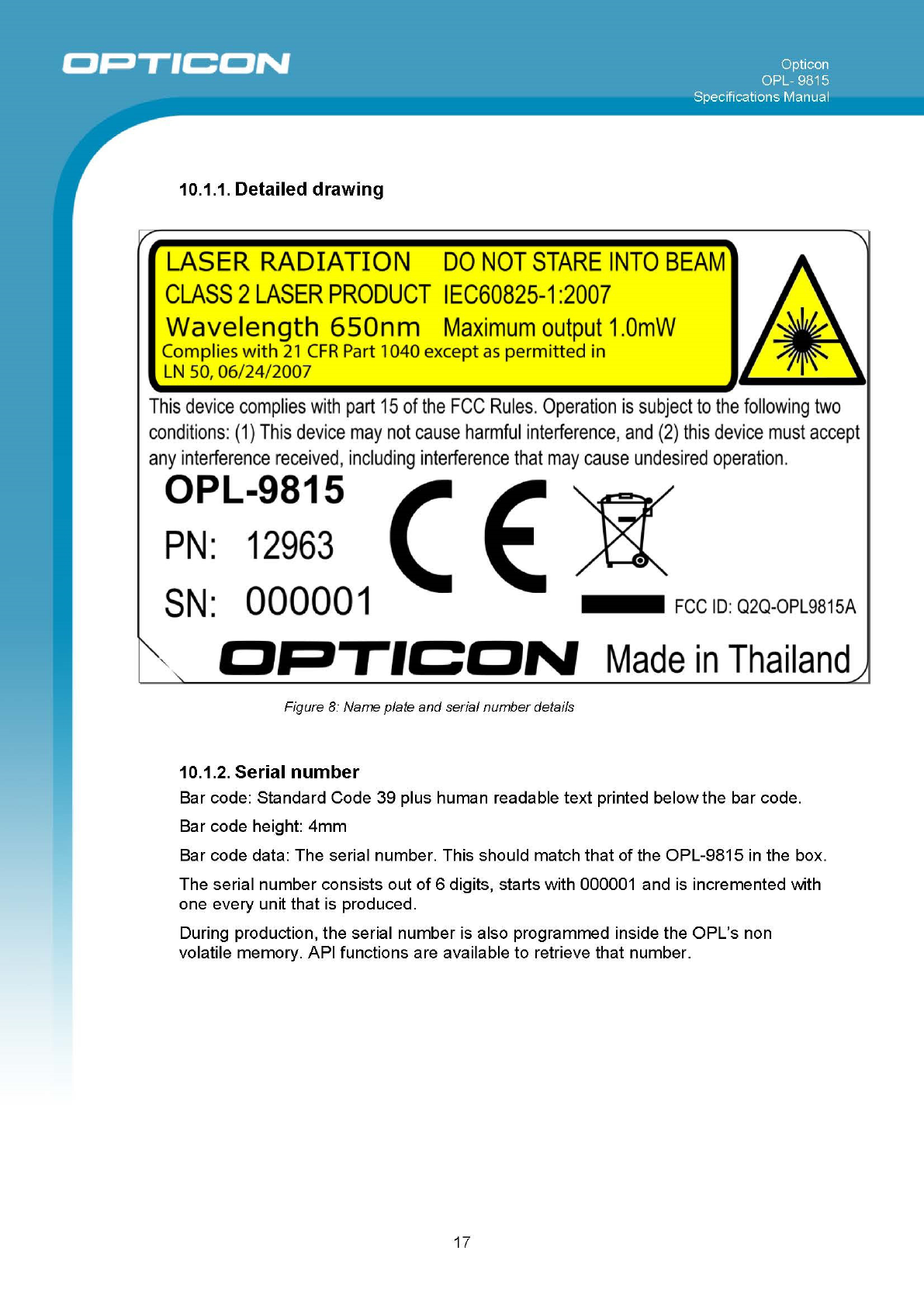

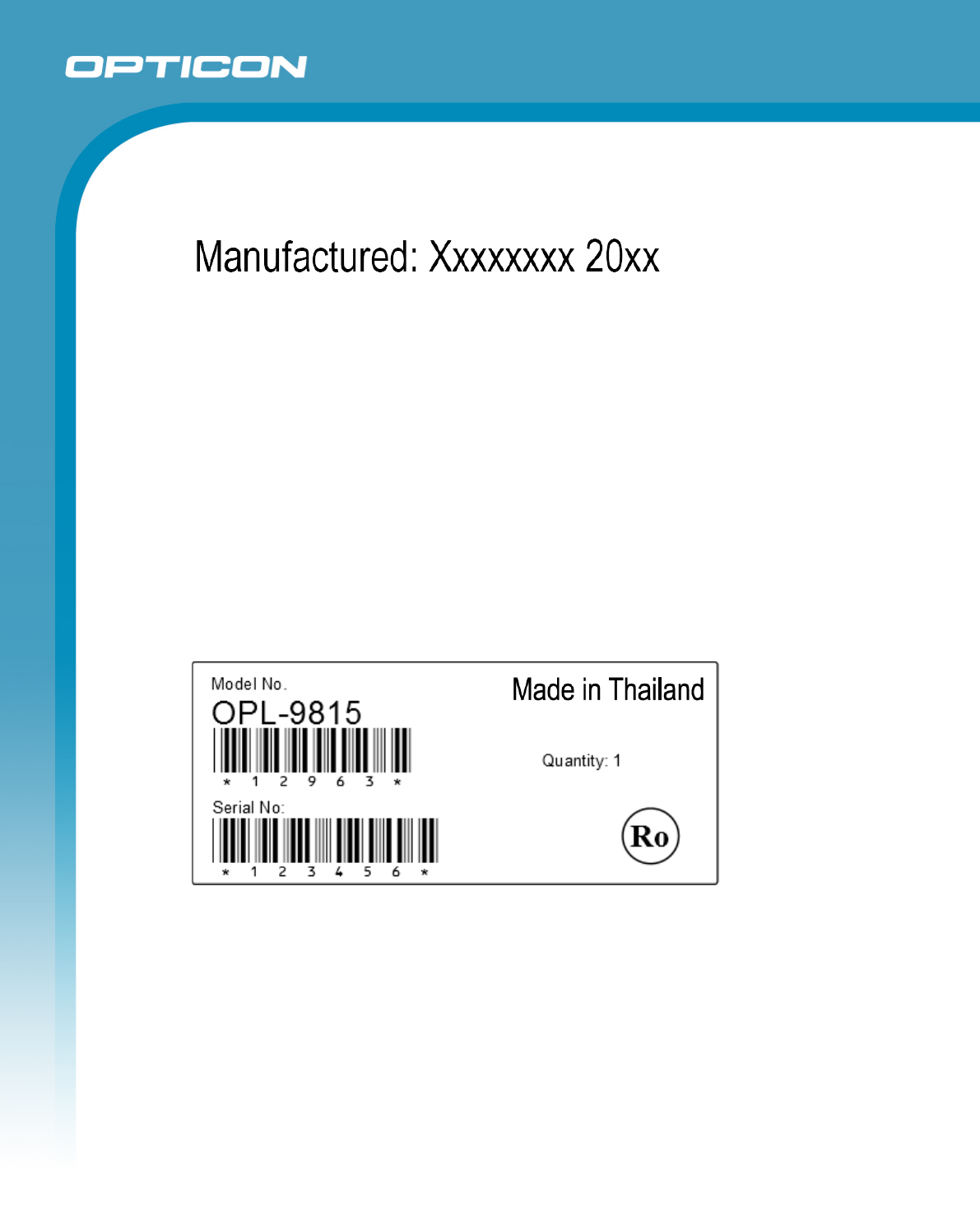

Figure 7: Name plate and serial number ................................................................................... 16

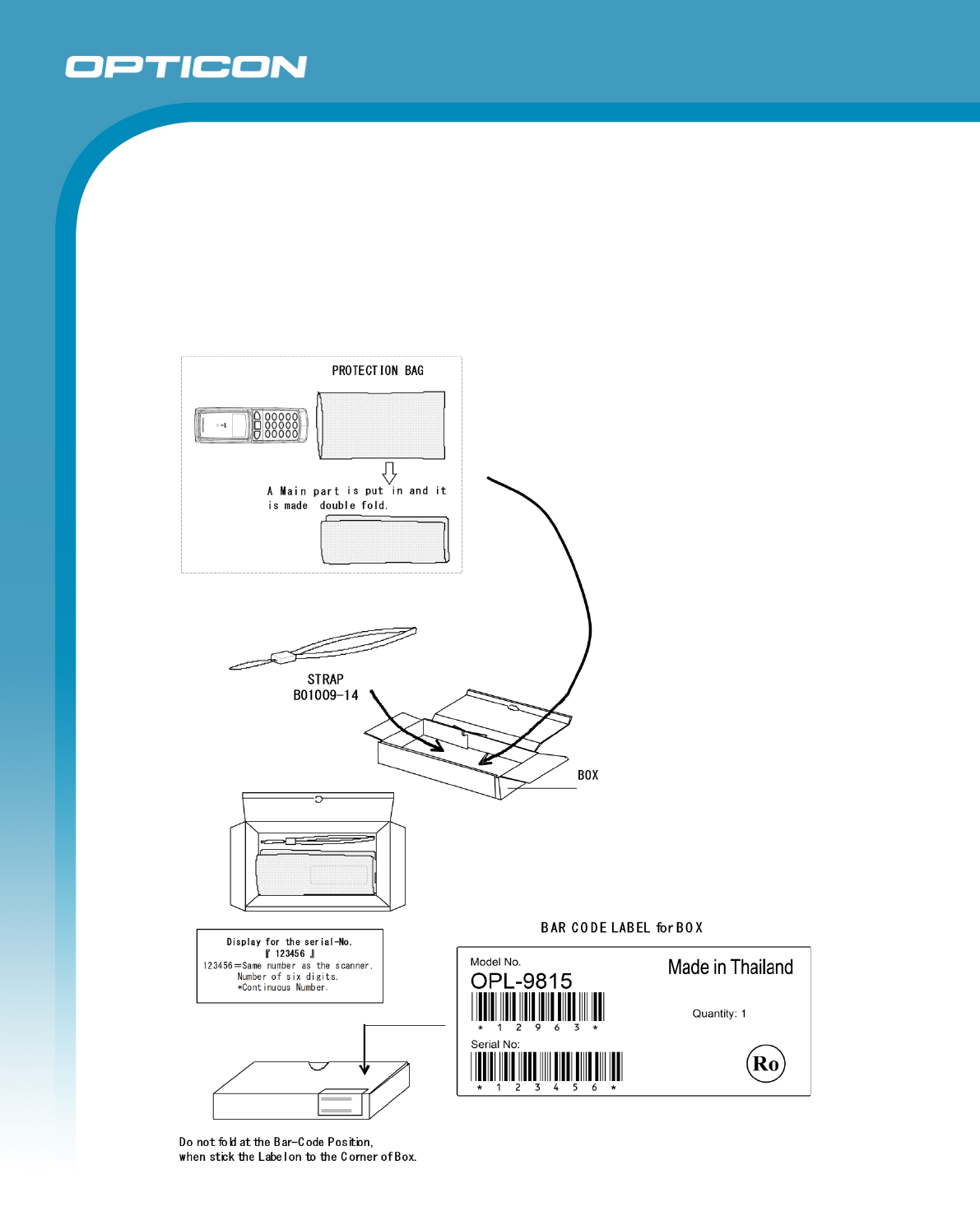

Figure 8: Individual packaging .................................................................................................. 19
Figure 9: Collective packaging .................................................................................................. 20

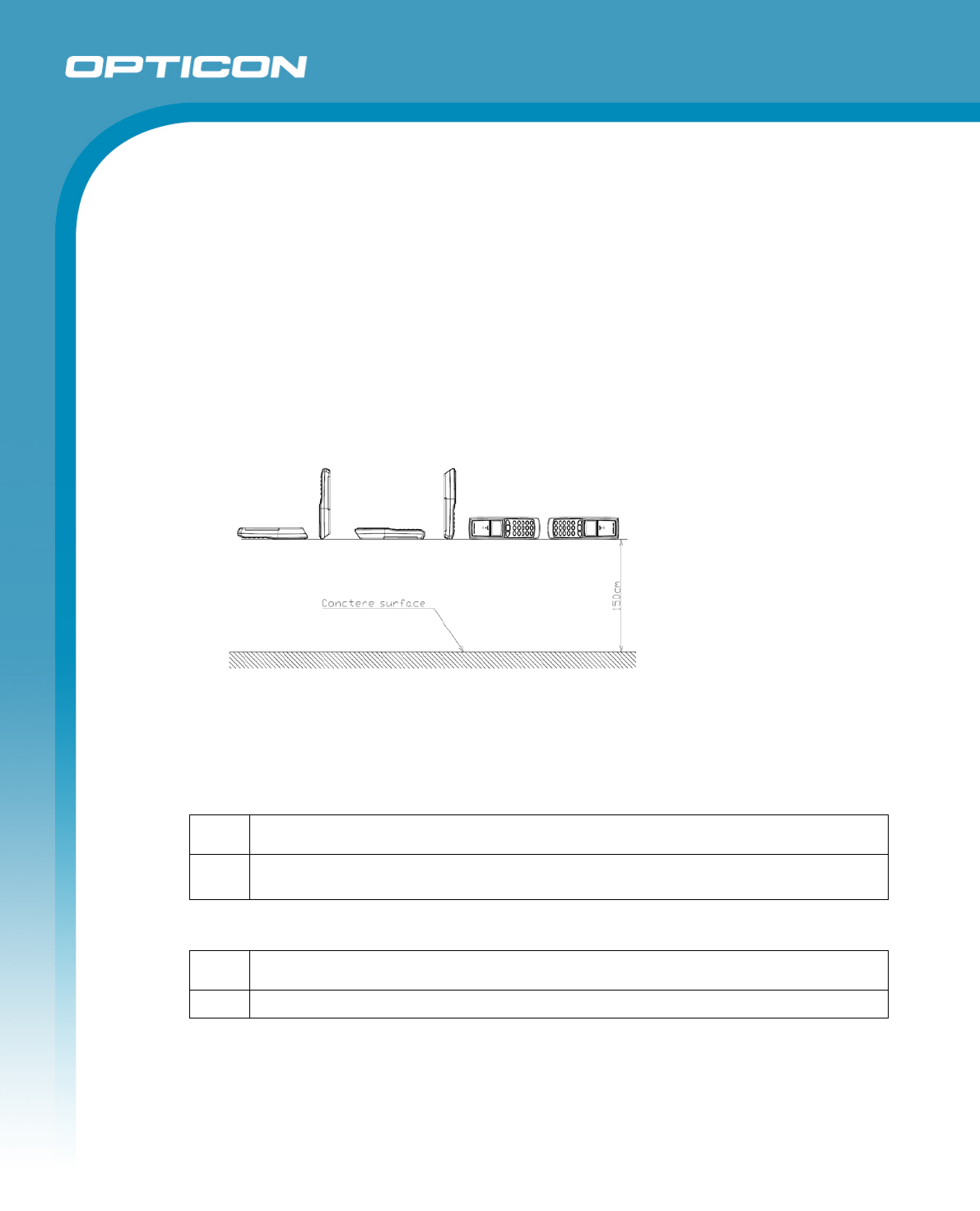

Figure 10: Drop test .................................................................................................................. 21
Figure 11: Mechanical drawing ................................................................................................. 25
4
![](/img.php?id=2420702&img=bg5.png)
Opticon
OPL- 9815
Specifications Manual
1. Abstract
This manual provides specifications for the OPL-9815 barcode data collector.
2. Overview
The OPL-9815 is a barcode data collector that contains a compact laser module.
This data collector offers efficient scanning performance that is suitable for various business
environments and is able to store scanned data and data configured via keyboard input.
Bluetooth ver 2.1 is one of the communication options for this device allowing it to wirelessly
connect to many peripherals like printers, smart phones and tablets. The supported profiles
are SPP (Serial port profiles) and HID (keyboard emulation).
Infra-red is another communication option of the OPL-9815. Stored data can be sent out via
an IrDA Ver.1.2-compliant infra-red transceiver. For easy connection to a computer, Opticon
sells several cradles that can be used to receive the infra-red transmission and convert that
to a standard RS232 or USB signal that can be connected to any computer. On top of the
communication features that the cradles can offer, they can also be used to charge the
battery inside the data collector.
The OPL-9815 also has a GPS (Global Positioning System) feature and clock function.
Those extra features of the OPL-9815 make it possible to add location data and a time
stamp to scanned barcode data. Additional to the OPL 9813, this model features a backlit
display and a keyboard with 18 keys.
The OPL-9815 can use a variety of cradles:
• CRD 9723 single-bay cradle (1 x charging, 1 x communication)
• CRD 9723 multi-bay cradle (5 x charging, 1 x communication)
• CRD 9723 multi-bay cradle (5 x charging, 5 x communication)
• CRD 9722 single-bay cradle (1 x charging, no communication)
• CRD 9726 Single-bay cradle with land-line modem
• CRD 9727 Single-bay cradle with GSM modem
Use a dedicated C-language-based development tool to develop applications for the OPL-
9815.
3. Physical Features
3.1. Dimensions
W 44.0 mm x D 22.0 mm x H 140.0 mm
3.2. Weight
115 g (max.), excluding the lithium-ion battery
3.3. Color
Black
5
![](/img.php?id=2420702&img=bg6.png)
Opticon
OPL- 9815
Specifications Manual
4. Environmental Specifications
4.1. Operating Temperature and Humidity
Temperature: 0 to 40° C
Humidity: 20 to 85%
4.2. Storage Temperature and Humidity
Temperature: -20 to 60° C
Humidity: 20 to 90%
4.3. IP (dust/water) rating
IP 54
4.4. Drop
1.5m on concrete
4.5. Ambient Light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode
surface is between zero and the following values:
Incandescent light 3,000 lx
Fluorescent light 3,000 lx
Sunlight 50,000 lx
Figure 1: Ambient Light Immunity
6
![](/img.php?id=2420702&img=bg7.png)
Opticon
OPL- 9815
Specifications Manual
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS: 0.9
Resolution: 0.25 mm
Symbology: 8-digit Code 39
Quiet Zone: 10 mm
N/W Ratio: 1:2.5
Direct light or specular reflection light from a source should be prevented from
entering the acceptance area.
Note: α, β and γ respectively represent pitch, skew and tilt. Please see section 8 for
how these values are defined.
4.6. Supported symbologies:
Linear (1D) Postal 2D
JAN/UPC/EAN, incl. add-on Chinese Post Composite Codes
Codabar/NW-7 Korean Postal Authority Code MicroPDF417*
Code 11 PDF417*
Code 39
Code 93
Code 128
GS1-128 (EAN-128)
GS1 Databar (RSS)
IATA
Industrial 2of5
Interleaved 2of5
ISBN-ISSN
Matrix 2of5
MSI/Plessey
S-Code
Telepen
Tri-Optic
UK/Plessey
* Requires use of an external library.
7
![](/img.php?id=2420702&img=bg8.png)
Opticon
OPL- 9815
Specifications Manual
5. Controls
Item Specifications Remarks
Controls
MPU 32-bit microprocessor
Built-in ROM 512 KB
Built-in RAM 64 KB
External
memory
Flash ROM 1 MB
SRAM 512 KB
Display
LCD Monochrome
Dots 112 x 64
Backlight Yes
Scanning
indicators Tricolor LED and buzzer
Keyboard Keys
Shift, backspace, Clear, dot, Enter, up, down
and trigger.
0~9 numeric keys
Scanning
Laser wavelength/
output 650 nm / 1mW or less
Scanning
frequency 100 times/s
Clock Real time clock Supports year, month, date, hour, minute and
seconds (leap year supported)
Buzzer Loudness 75 dBA or higher
6. Electrical Specifications
6.1. Main Battery
The main battery is a lithium-ion secondary battery.
Nominal capacity: 1100 mAh
Battery charging time: Approximately 3 hours
6.2. Battery Operating Time and Charging Time (TBD)
Parameter Specifications Notes
Backup battery 3 mAh manganese dioxide battery
Current
consumption
1 mA or less (on standby)
160 mA or less (when operating) GPS, Bluetooth and backlight on.
Usable time 50 hours or more (not using GPS)
10 hours or more (using GPS)
1 scan/5s
Data hold time 72 hours or more After main battery discharged
Note: Battery life may be shorter than specified above when the quality of the battery
pack is degraded.
8
![](/img.php?id=2420702&img=bg9.png)
Opticon
OPL- 9815
Specifications Manual
7. Optical Specifications
7.1. Laser Scan Specifications
Parameter Specification Unit
Light-emitting element Red laser diode —
Emission wavelength 650 ±10 (25° C) nm
Light output 1.0 or less mW
Scanning method Bi-directional vibration mirror —
Scanning speed 100 ±20 scans/s
Scan angle Scan angle: 54 ±5 °
Read angle: 44 (Min) °
Resolution 0.127 and above Mm
Note: Refer to chapter 8, “Technical Specifications,” to read about scanning
performance.
8. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each
section.
Conditions
Ambient temperature
and humidity:
Room temperature (5 to 35º C)
Room humidity (45% to 85% RH)
Ambient light: 500 to 900 lx
Background: Barcode = black
Space = white
Margin = white
Background of label = black
8.1. Print Contrast Signal (PCS)
PCS = 0.45 or higher (over 70% of reflectivity of space and quiet zone).
Scanning performance may decline if dirt or scratches mark the optical window. Keep
the optical window clean.
8.2. Minimum Resolution
0.15 mm
9
![](/img.php?id=2420702&img=bga.png)
Opticon
OPL- 9815
Specifications Manual
8.3. Scan Area and Resolution
8.3.1. Depth of Field
The depth of field is measured from the edge of the data collector. The
scanning range is within the circular arc centered on the scan origin.
Figure 2: Depth of field
Symbology Resolution (mm) Decode Depth (mm) PCS
Code 39 1.0 60–300 0.9
Code 39 0.5 35–210 0.9
Code 39 0.25 35–120 0.9
Code 39 0.15 35–70 0.9
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
N/W ratio: 1:2.5
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
10
![](/img.php?id=2420702&img=bgb.png)
Opticon
OPL- 9815
Specifications Manual
Resolution Symbology PCS Quiet Zone Digit
1.0 mm Code 39 0.9 25 mm 1
0.5 mm Code 39 0.9 18 mm 3
0.25 mm Code 39 0.9 10 mm 8
0.15 mm Code 39 0.9 7 mm 10
Note: dirt or scratches on the mask will degrade scanning performance. Always
handle the data collector carefully.
8.4. Pitch, Skew, and Tilt

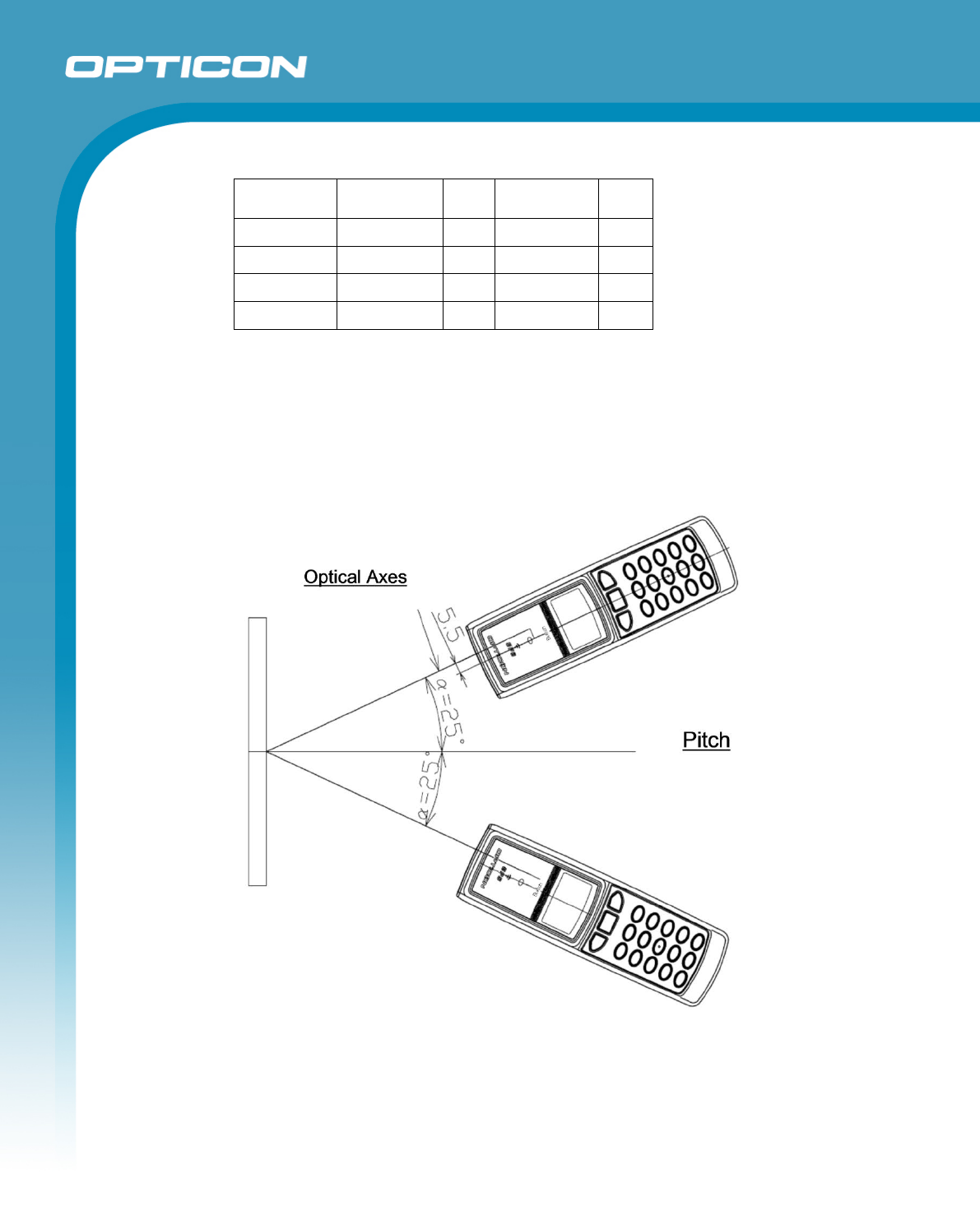

8.4.1. Pitch Angle
α = ±25°
Figure 3: Pitch
11
![](/img.php?id=2420702&img=bgc.png)
Opticon
OPL- 9815
Specifications Manual
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 90 mm from the edge of the data collector
Label: Pitch, Skew Angle
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Dead Zone, Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Angle: Curvature: R = ∞, Skew Angle = β +15° (for measuring Pitch Angle and Tilt Angle)
8.4.2. Skew Angle and Dead Zone
Skew angle: β = ±50° (Excluding dead zone)
Dead zone: β = ±8° (There are some areas in which decoding fails due to
specular reflection)
Figure 4: Skew and dead zone
12
![](/img.php?id=2420702&img=bgd.png)
Opticon
OPL- 9815
Specifications Manual
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 90 mm from the edge of the data collector
Label: Pitch, Skew Angle
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Dead Zone, Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Angle: Curvature: R = ∞, Skew Angle = β +15° (for measuring Pitch Angle and Tilt Angle)
8.4.3. Tilt Angle
γ = ±20°
γ=20°
γ=20
°
Figure 5: Tilt angle
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 90 mm from the edge of the data collector
Label: Pitch, Skew Angle
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Dead Zone, Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Angle: Curvature: R = ∞, Skew Angle = β +15° (for measuring Pitch Angle and Tilt Angle)
13
![](/img.php?id=2420702&img=bge.png)
Opticon
OPL- 9815
Specifications Manual
8.5. Curvature
With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when
R ≥ 20 mm.
With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when
R ≥ 25 mm.
Figure 6: Curvature
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
PCS = 0.9, Resolution = 0.26 mm, Quiet Zone = 10 mm
Distance: 90 mm from the edge of the data collector
Angle: Skew Angle β = +15°
The scanning range will vary according to the depth of field.
9. Interface Specifications
9.1. Bluetooth
9.1.1. Module
The OPL-9815 is equipped with a low power fully certified Bluetooth module.
9.1.2. Specifications
Bluetooth standard: 2.1
High speed UART interface
Supported profiles: SPP (serial port profile) and HID (keyboard emulation)
14
![](/img.php?id=2420702&img=bgf.png)
Opticon
OPL- 9815
Specifications Manual
9.2. Infrared Transmission (IrDA)
9.2.1. Specifications
The dedicated cradle enables the OPL-9815 to perform infrared transmission
of data with IrDA Ver1.2 low power specification.
9.2.2. Transmission Speed
Default transmission speed is set at 115.2 kbps. However, you can easily
change the transmission rate to 57.6 kbps, 38.4 kbps, 19.2 kbps, 9600 bps,
4800 bps, or 2400 bps.
9.3. GPS
9.3.1. Module
The OPL-9815 is equipped with a GPS (Global Positioning System) module
plus a compact patch antenna (15 mm X 15 mm)
9.3.2. Receiving Frequency
1575.42MHz (L1 C/A Code)
9.3.3. Receiving Channel
66 channels (max)
9.3.4. Sensitivity
Acquisition -148 dBm
Tracking -165 dBm
9.3.5. Time to First Fix (TTFF)
TTFF is the time required for a GPS receiver to acquire satellite signals and
navigation data, and calculate a position. It may differ depending on the
environmental conditions, such as the number of satellites, obstacles between
the satellite and the GPS antenna, or multipath conditions.
• 1 second: Hot Start
• 33 seconds: Warm Start
• 35 seconds: Cold Start
9.3.6. Position-fix Accuracy
3.0 m 2D-RMS
Values may differ, depending on the environmental conditions.
9.3.7. Baud Rate
4800 bps to 115200. Default is 9600 baud
9.3.8. Protocol
NMEA-0183 (Default)
15
![](/img.php?id=2420702&img=bg10.png)
![](/img.php?id=2420702&img=bg11.png)
![](/img.php?id=2420702&img=bg12.png)
Opticon
OPL- 9815
Specifications Manual
10.1.3. Manufacturing date
The manufacturing date has to be printed on the label and will be the month (starting
with an upper case character, rest lower case characters) followed by the year of
production. So e.g. August 2014
10.2. White box label
Size is 70mm x 25mm with a tolerance of ± 2 mm
Example labels: Avery 3421 or similar.
Label material: Paper, white, with permanent adhesive backing.
Bar codes:
Article number: Standard code 39 + human readable text
Bar code data: 12963
Serial number: Standard code 39 + human readable text
Bar code data: The serial number. This should match that of the OPL-9815
18
![](/img.php?id=2420702&img=bg13.png)
Opticon
OPL- 9815
Specifications Manual
11. Packaging Specifications
11.1. Individual Packaging Specification (TBD)
Put the data collector in a protective foam bag and place it in an individual packing
box, then place the accessories into the box. Close the box and affix a label to the
side of the box. Size of the package after assembly: 247 (W) x 113 (D) x 38 (H) mm
Figure 9: Individual packaging
19
![](/img.php?id=2420702&img=bg14.png)
Opticon
OPL- 9815
Specifications Manual
11.2. Accessory Specification (TBD)
These accessories are enclosed in an individual package:
• 1 hand strap
11.3. Collective Packaging Specification

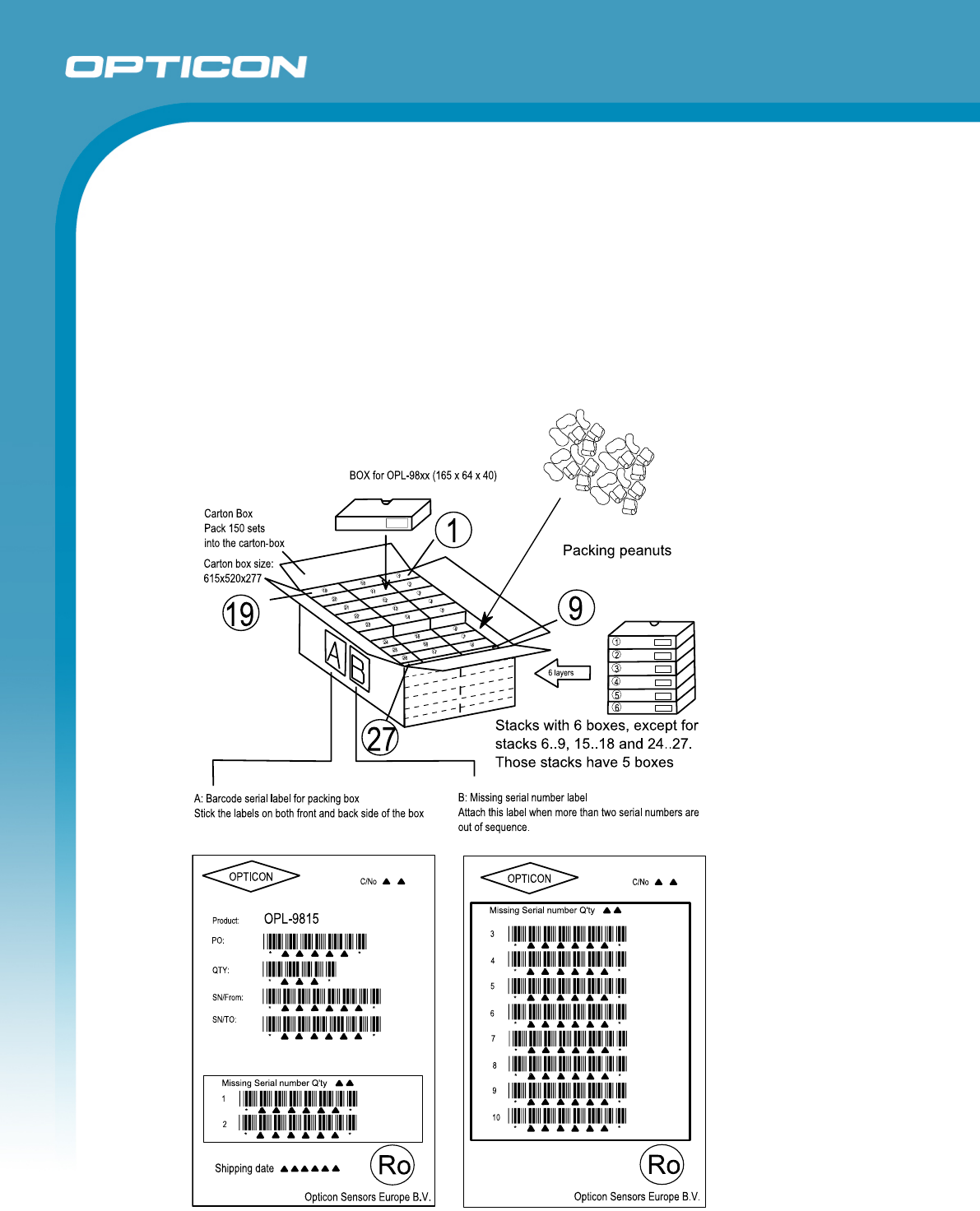

Put 150 individually packaged data collectors in a collective packing box. The box can
hold 162 boxes, so there will be some empty space in the shipping box. That should
be filled by packing peanuts.
Dimensions: 615 mm (W) by 520 mm (D) by 277 mm (H).
Figure 10: Collective packaging
20
![](/img.php?id=2420702&img=bg15.png)
Opticon
OPL- 9815
Specifications Manual
Note: The “RO” mark labeled on the package tray or package box guarantees that the
applicable product has passed our test of RoHS restrictions compliance (the
restriction of the use of certain hazardous substances in electrical and electronic
equipment, 2002/95 EC). However, this document does not have any legal weight in
the European Union.
12. Durability
12.1. Drop Test (without packaging)
No malfunction occurred after the following drop test.
Drop Test: Drop the data collector from a height of 150 cm onto a concrete floor. Each
side of the data collector impacted the floor three times.
12.2. Dust and Drip Proof
IEC IP54
Dust Prevention
Level Details
5 Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere
with the satisfactory operation of the equipment; complete protection against contact.
Water Prevention
Level Details
4 Water splashing against the enclosure from any direction shall have no harmful effect.
13. Reliability
MTBF (Mean Time Between Failures) of this product is 10,000 hours.
Figure 11: Drop test
21
![](/img.php?id=2420702&img=bg16.png)
Opticon
OPL- 9815
Specifications Manual
14. Regulatory Compliance
14.1. Laser Safety
The data collector emits a laser beam.
IEC 825-1/EN 60825-1: Laser class 2
FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to laser notice No. 50 dated June 24, 2007.
Class II laser devices are not considered to be hazardous when used for their
intended purpose. Avoid staring into the laser beam.
14.2. Certifications
FCC Part 15 Subpart B Class B:
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1) This device may not cause harmful interference and
2) This device must accept any interference received, including interference that may
cause undesired operation of the device.
22
![](/img.php?id=2420702&img=bg17.png)
Opticon
OPL- 9815
Specifications Manual
14.3. RoHS
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EU.
14.4. State of California: Perchlorate Best Management Practices
The batteries on some Opticon products may contain Perchlorate. To comply with
California Perchlorate Best Practice Regulations and the Law for the Promotion of
Utilization of Recyclable Resources (Japan), products that may contain Perchlorate
materials should be properly labeled on the exterior of all outer shipping packages
and/or in locations that otherwise satisfy the California Perchlorate Best Management
Practices.
23
![](/img.php?id=2420702&img=bg18.png)
Opticon
OPL- 9815
Specifications Manual

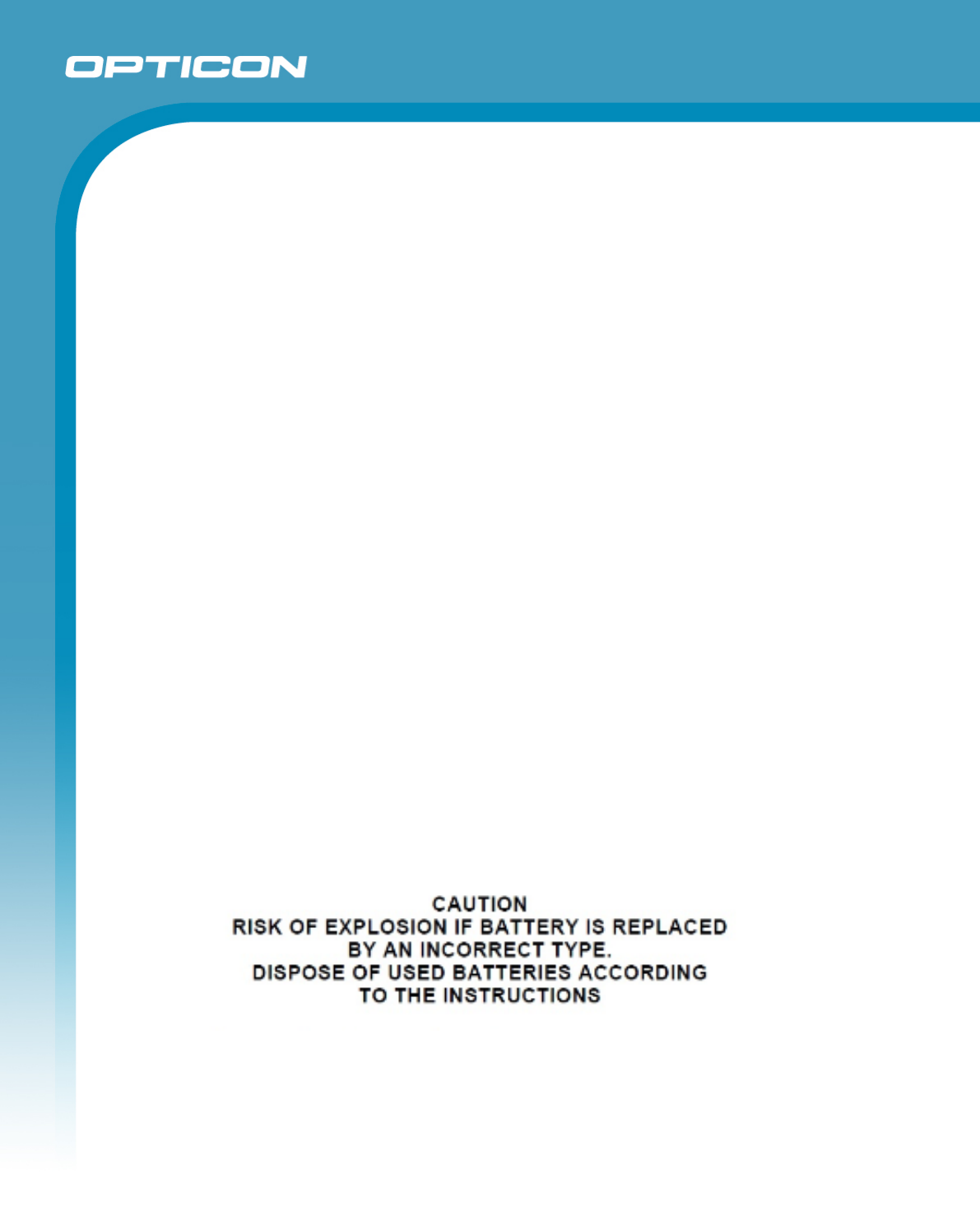

15. Safety precautions
Handle this product carefully. Do not deliberately subject it to any of the following.
15.1. Shock
Do not throw or drop the data collector.
Do not drop or put heavy items on this product.
15.2. Temperature Conditions
Do not use the data collector at temperatures outside the specified range.
Do not use near heat sources such as radiators, heat registers, stoves, or other types
of devices that produce heat.
Do not use in areas exposed to direct sunlight for long periods of time.
Do not pinch or forcibly bend the cable, especially at very low temperature.
15.3. Foreign Materials
Do not use the data collector near water or other liquids, as well as in extremely high
humidity.
Do not immerse the data collector in liquids.
Do not use in dusty environments.
Do not subject the data collector to chemicals.
Do not insert foreign substances into the device.
15.4. Other
Do not attempt to disassemble, modify or update this device.
Do not use near microwaves, medical devices, or RF-emitting devices.
The data collector may be damaged by high voltage discharges.
24
![](/img.php?id=2420702&img=bg19.png)
![](/img.php?id=2420702&img=bg1a.png)
