1English
Table of Contents ............................1
Usage Notice ...................................2
Safety Information ...............................2
Precautions .........................................3
Eye Safety Warnings ..........................5
Product Features ................................5
Introduction ......................................6
Package Overview ..............................6
Product Overview ...............................7
Main Unit .............................................. 7
Control Panel ....................................... 8
Input/Output Connections .................... 9
Remote Control .................................. 11
Installation .....................................12
Connecting the Projector ..................12

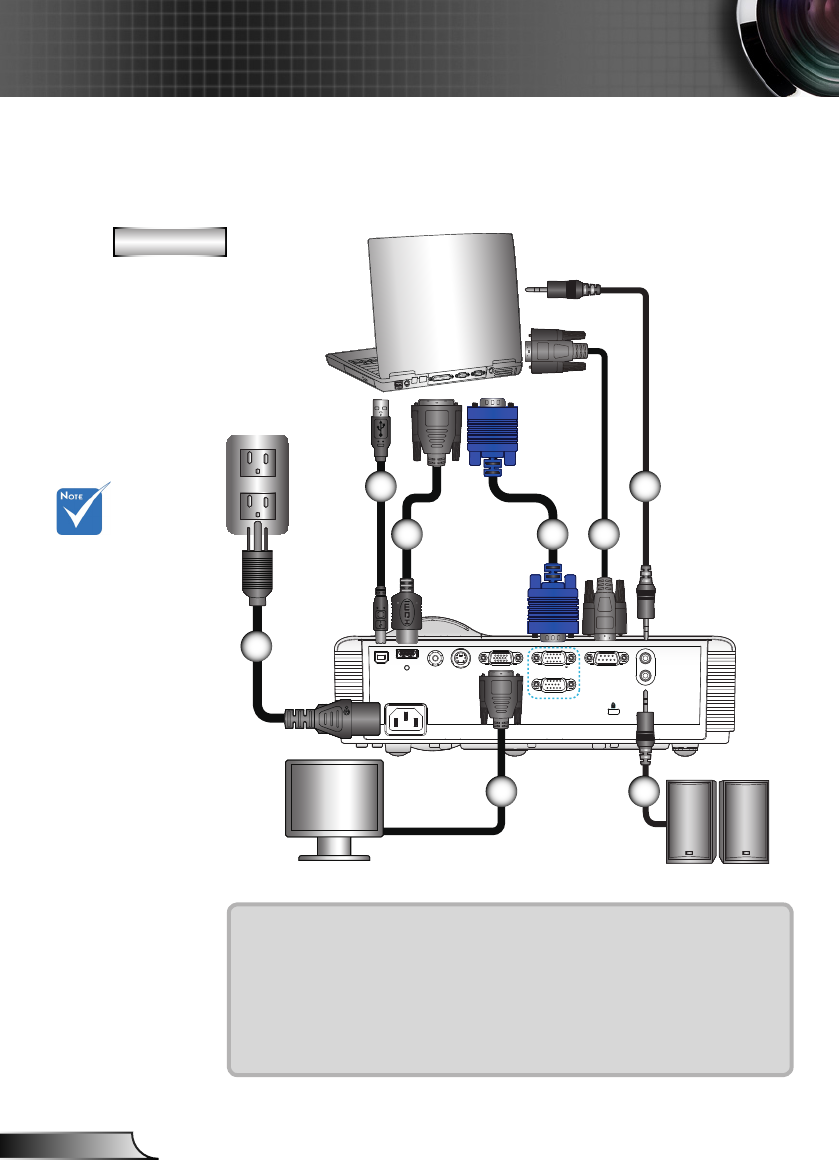

Connect to Computer/Notebook ........ 12

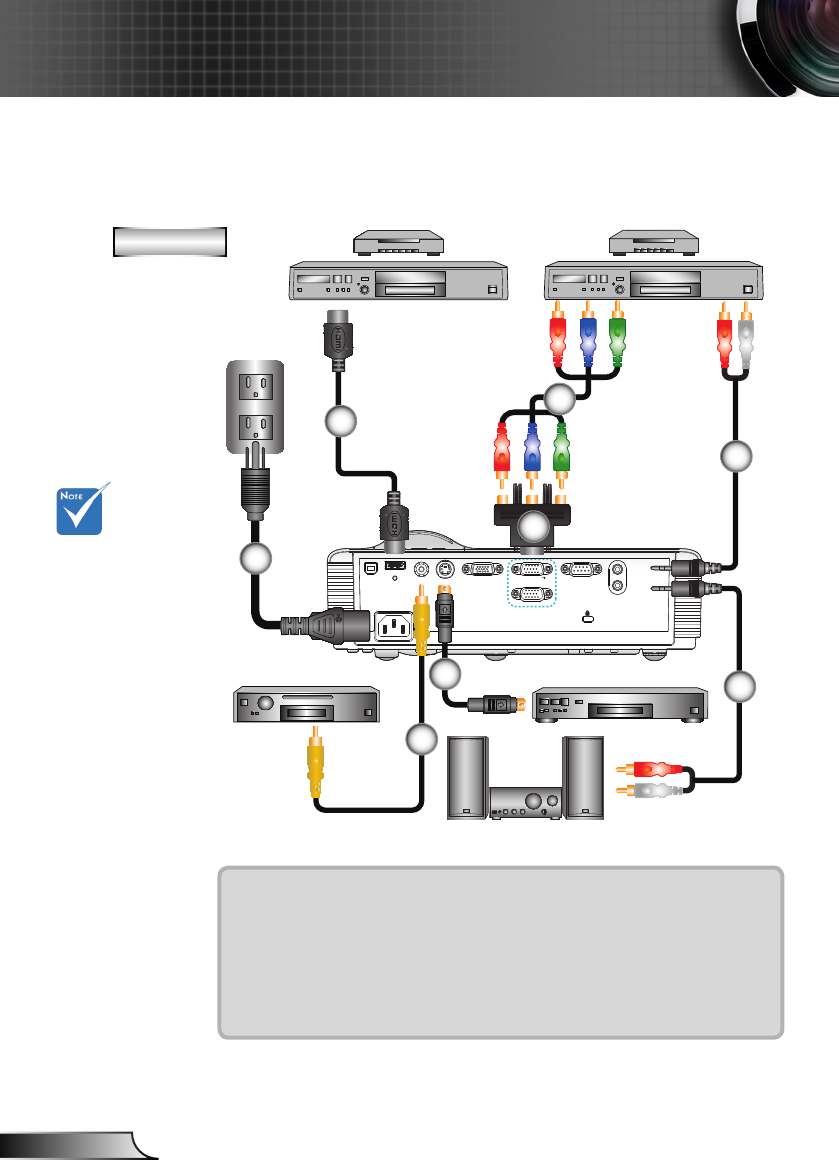

Connect to Video Sources ................. 14
Powering the projector On / Off ........16
Powering On the Projector ................. 16

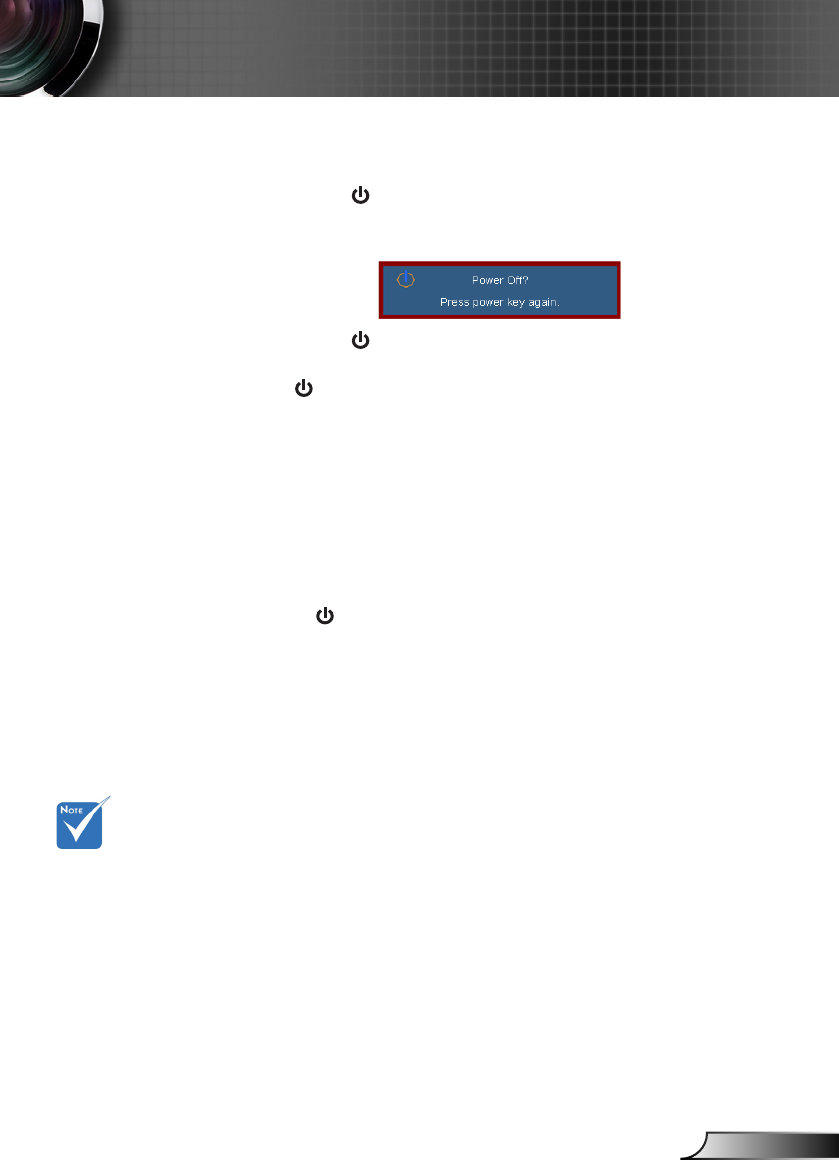

Powering Off the Projector ................. 17
Warning Indicator ............................... 17
Adjusting the Projected Image ..........18

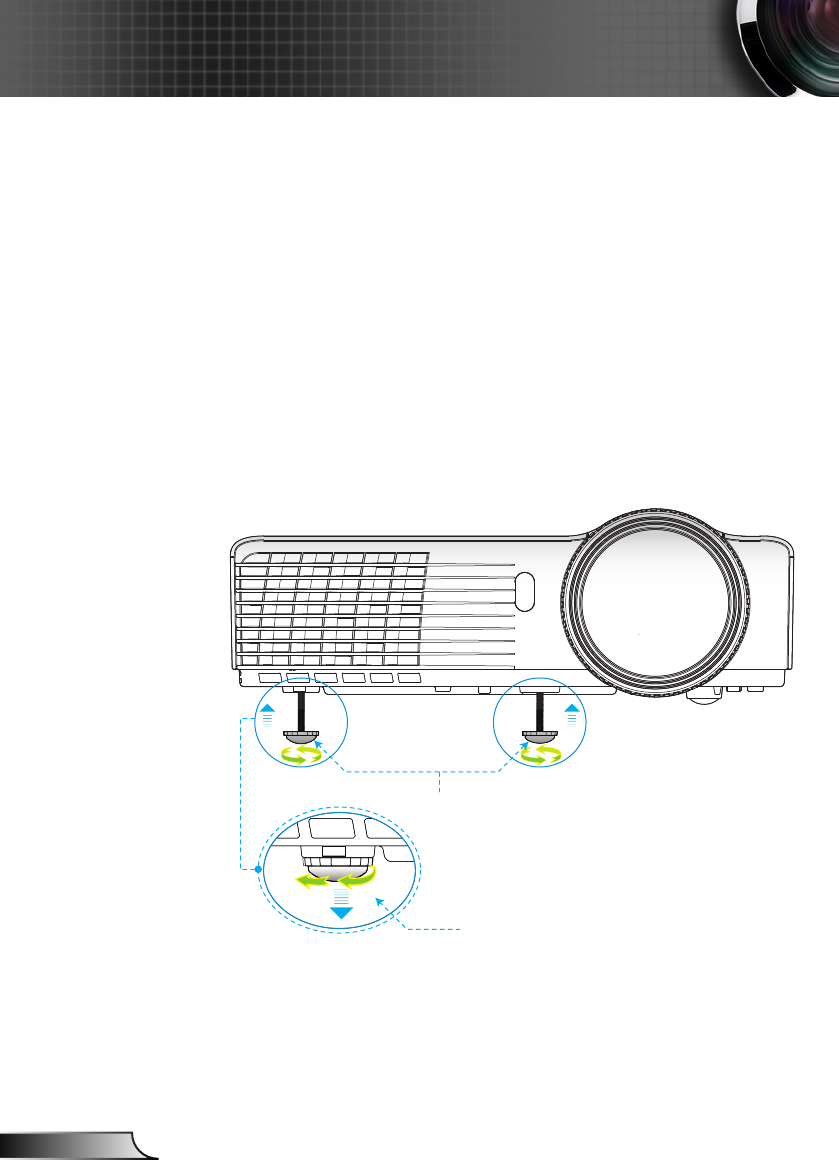

Adjusting the Projector’s Height ........18
Adjusting the Projector’s Focus ......... 19
Adjusting Projection Image Size ........ 19
User Controls ................................21
Control Panel & Remote Control ......21
Control Panel ..................................... 21

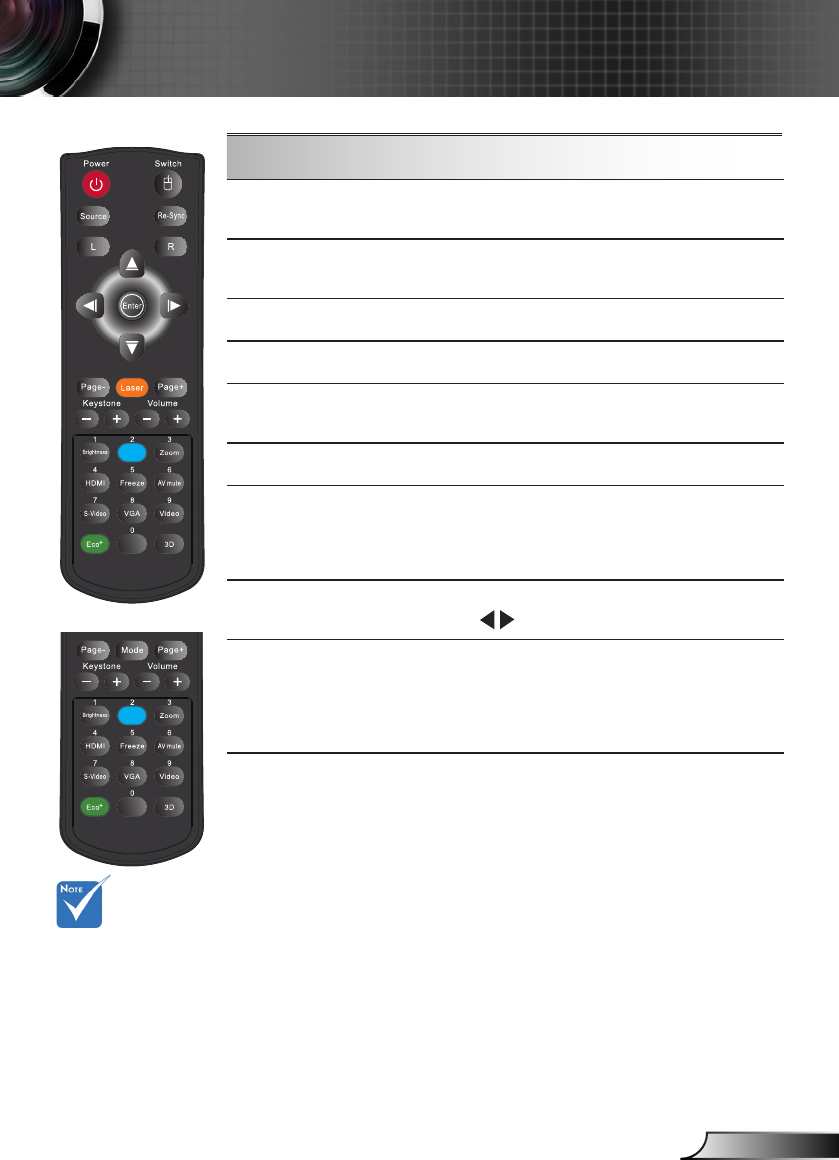

Remote Control .................................. 22
On-screen Display Menus ................27
How to operate ................................. 27
Menu Tree .......................................... 28

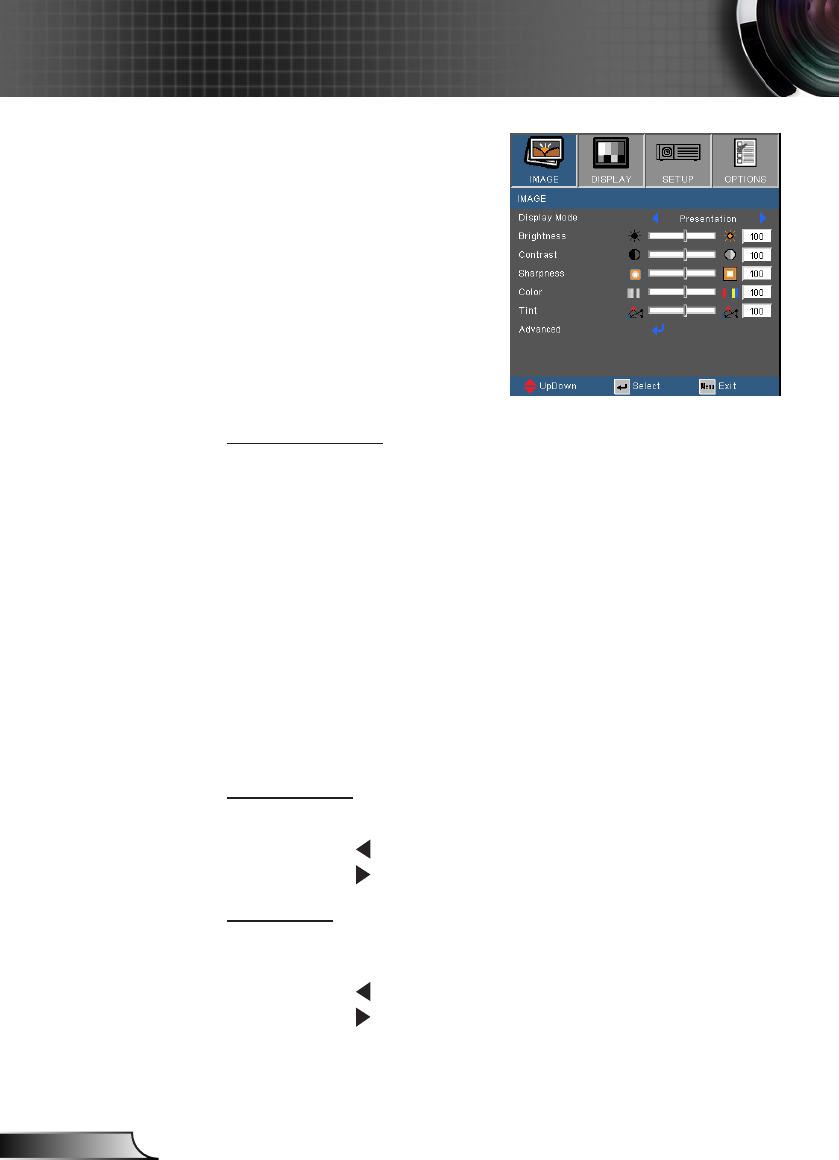

IMAGE ............................................... 30

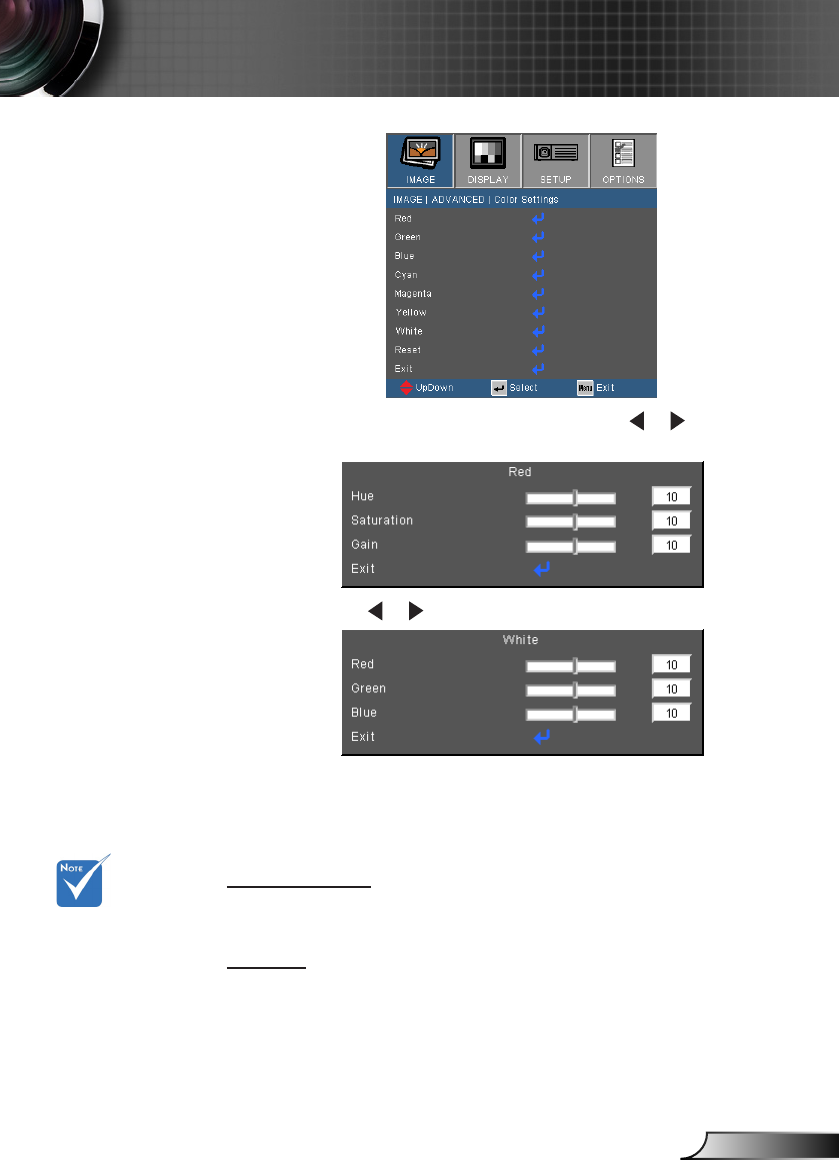

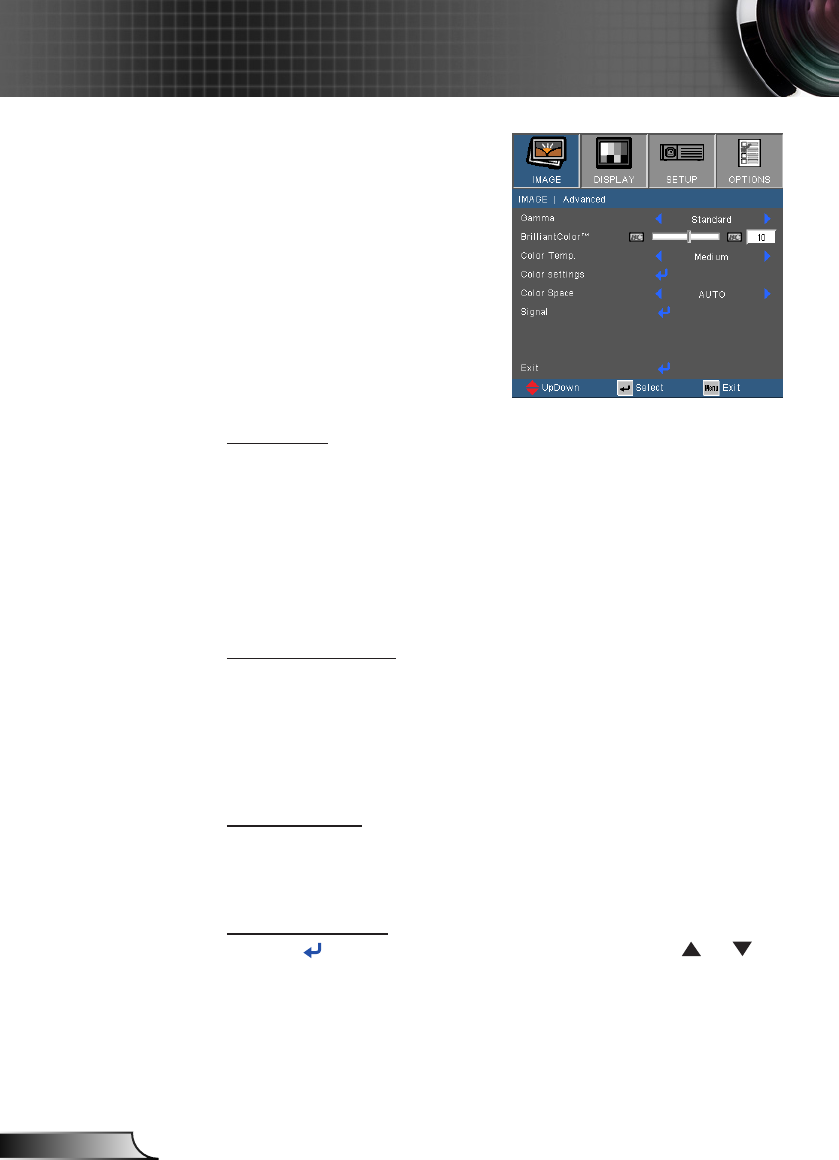

IMAGE | Advanced ............................ 32

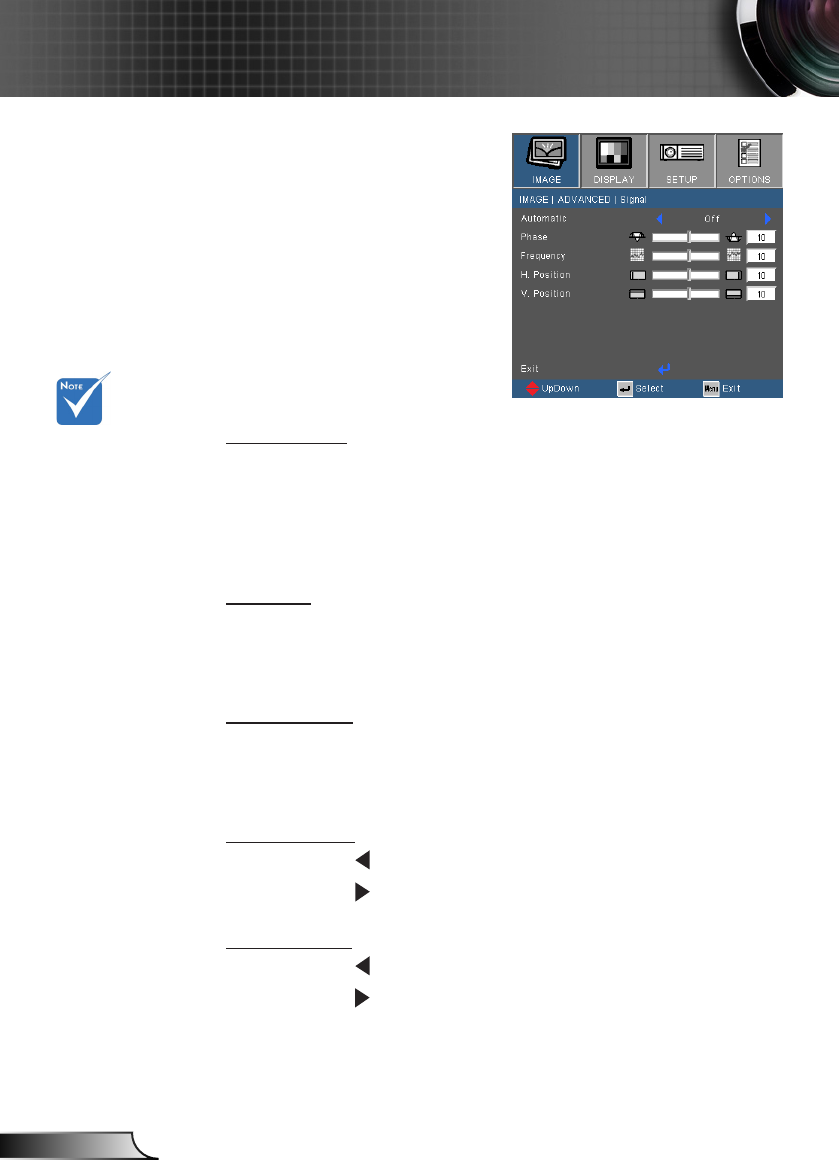

IMAGE | Advanced | Signal (RGB) ... 34
DISPLAY ............................................ 35

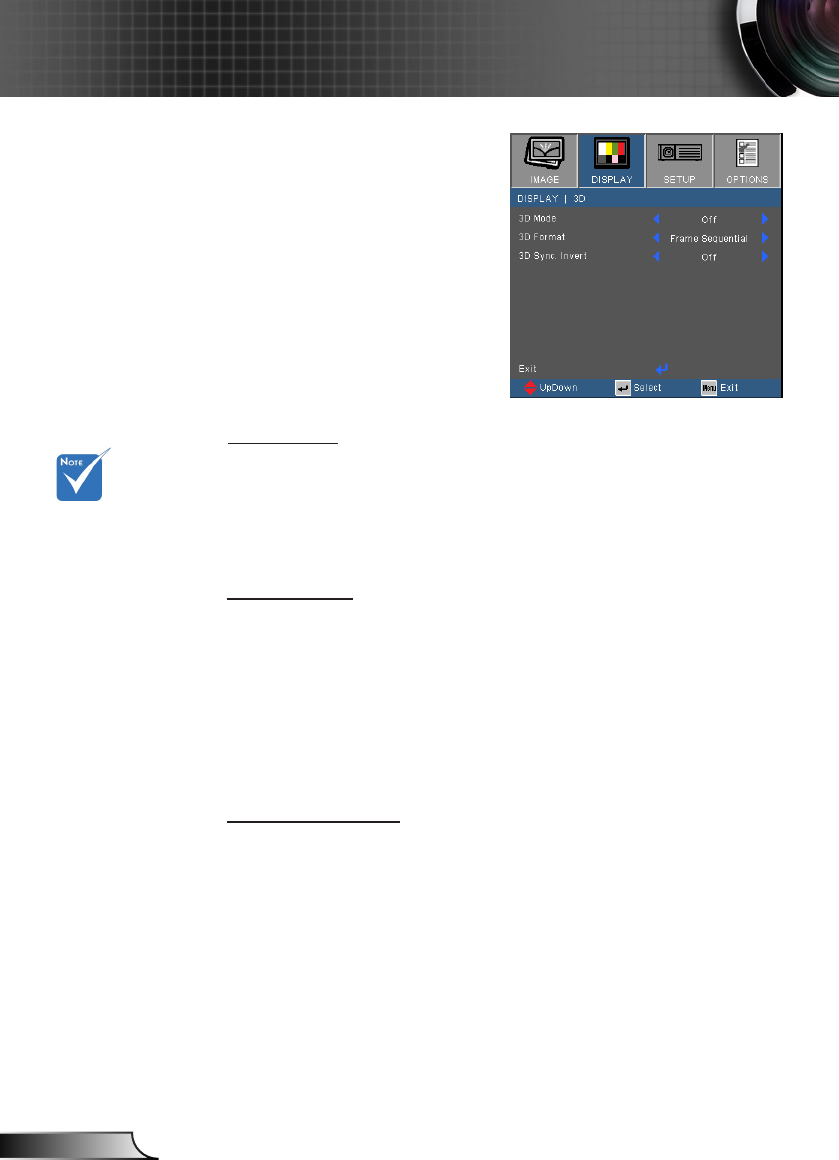

DISPLAY | 3D ................................... 38

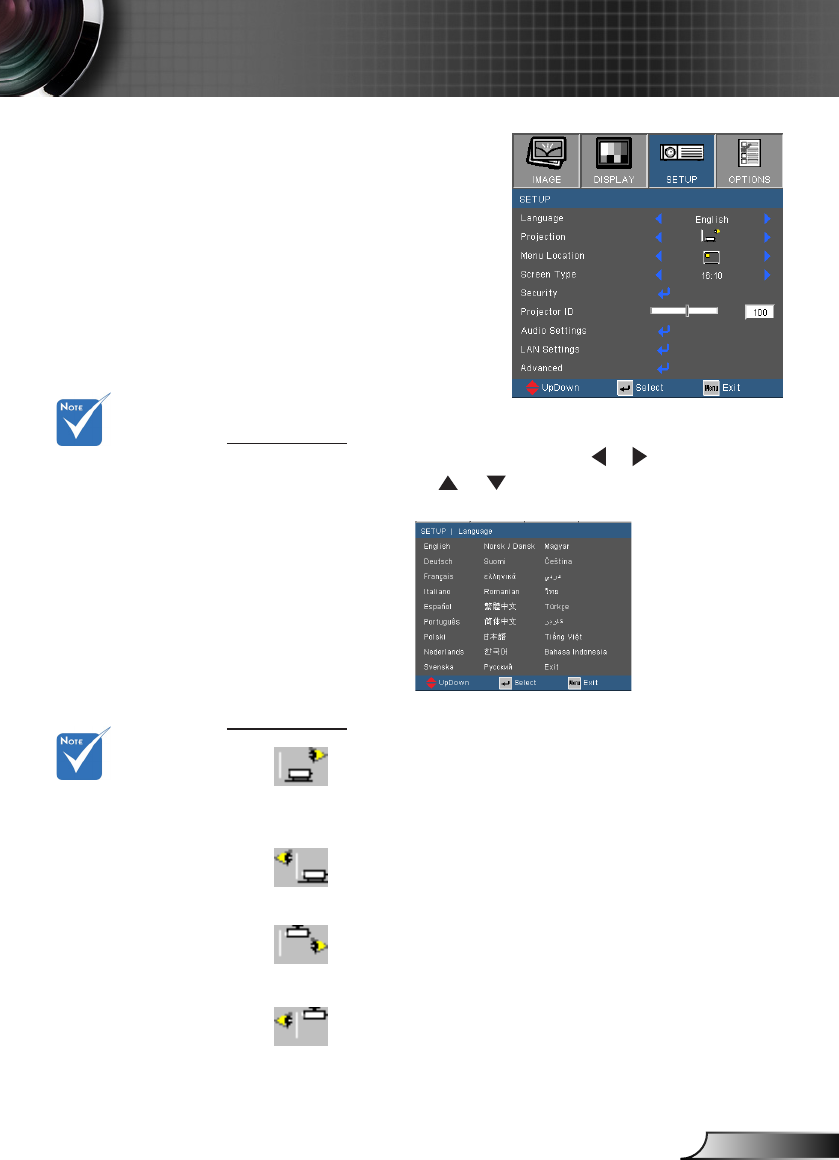

SETUP ............................................... 39

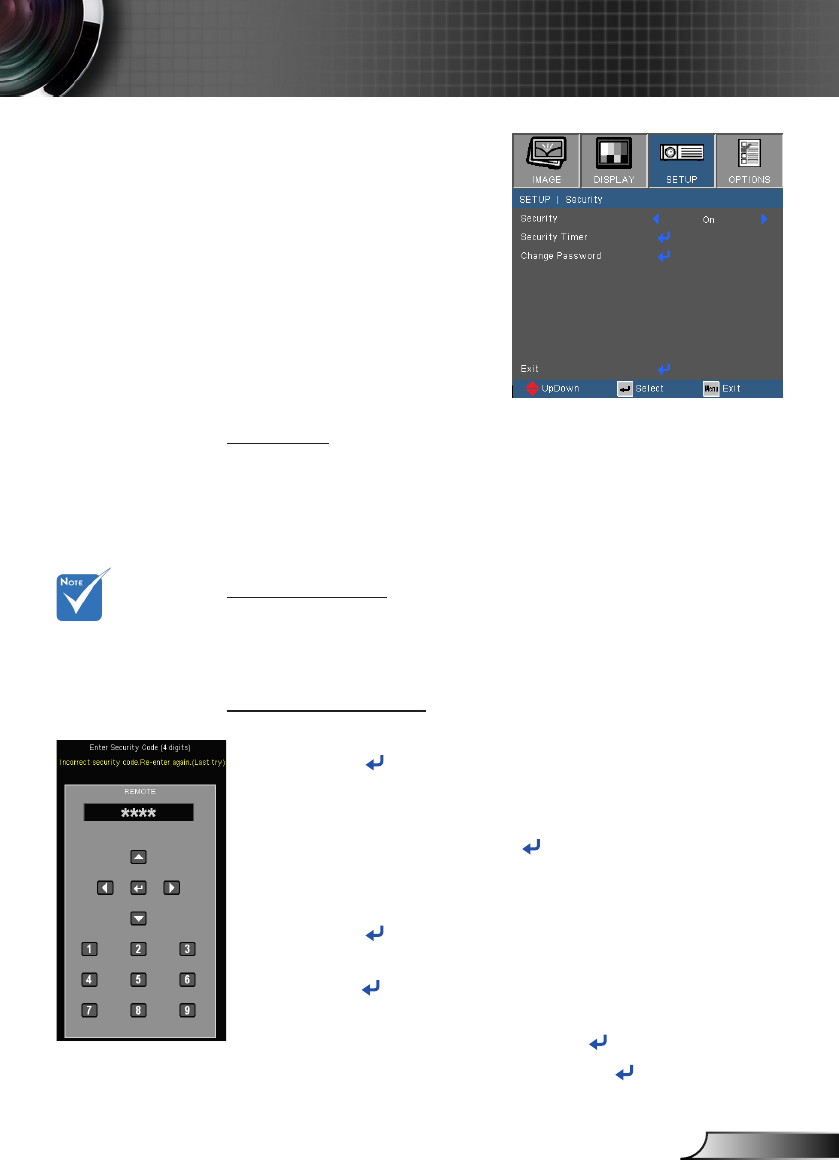

SETUP | Security ............................... 41
SETUP | Audio Settings ..................... 43

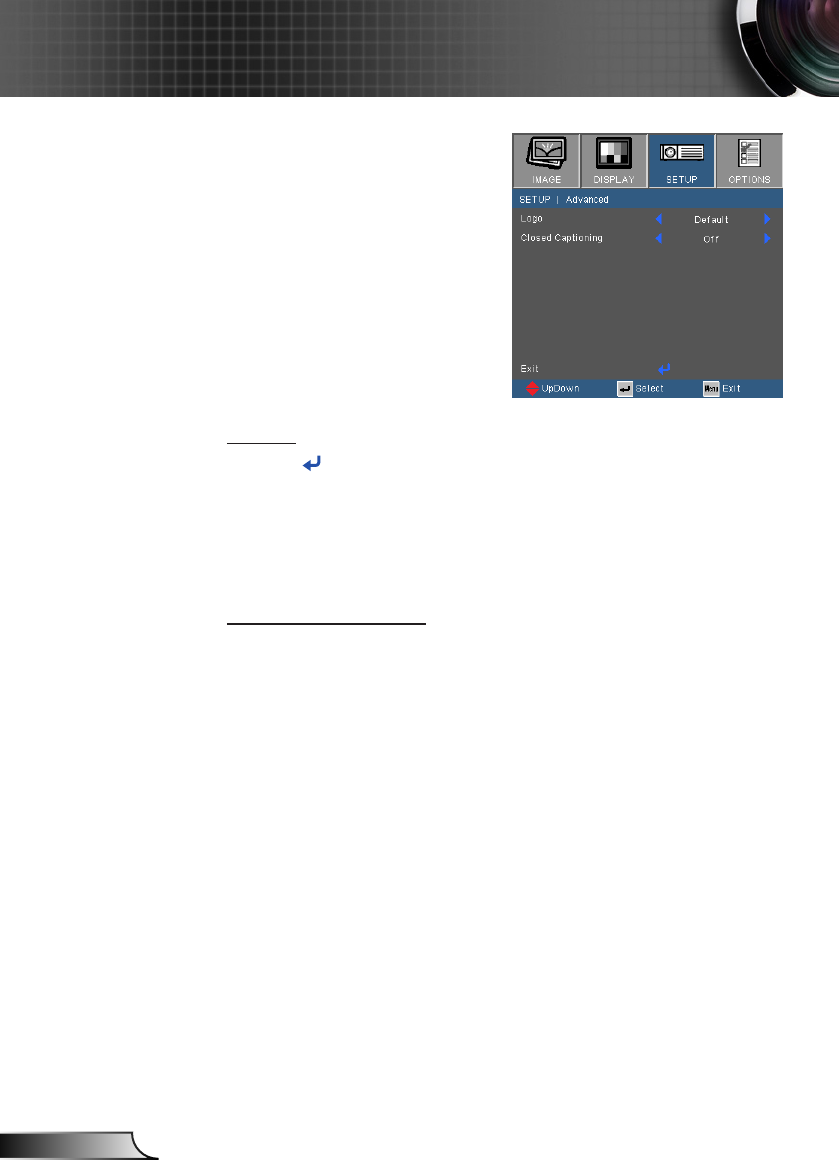

SETUP | Advanced ............................ 44

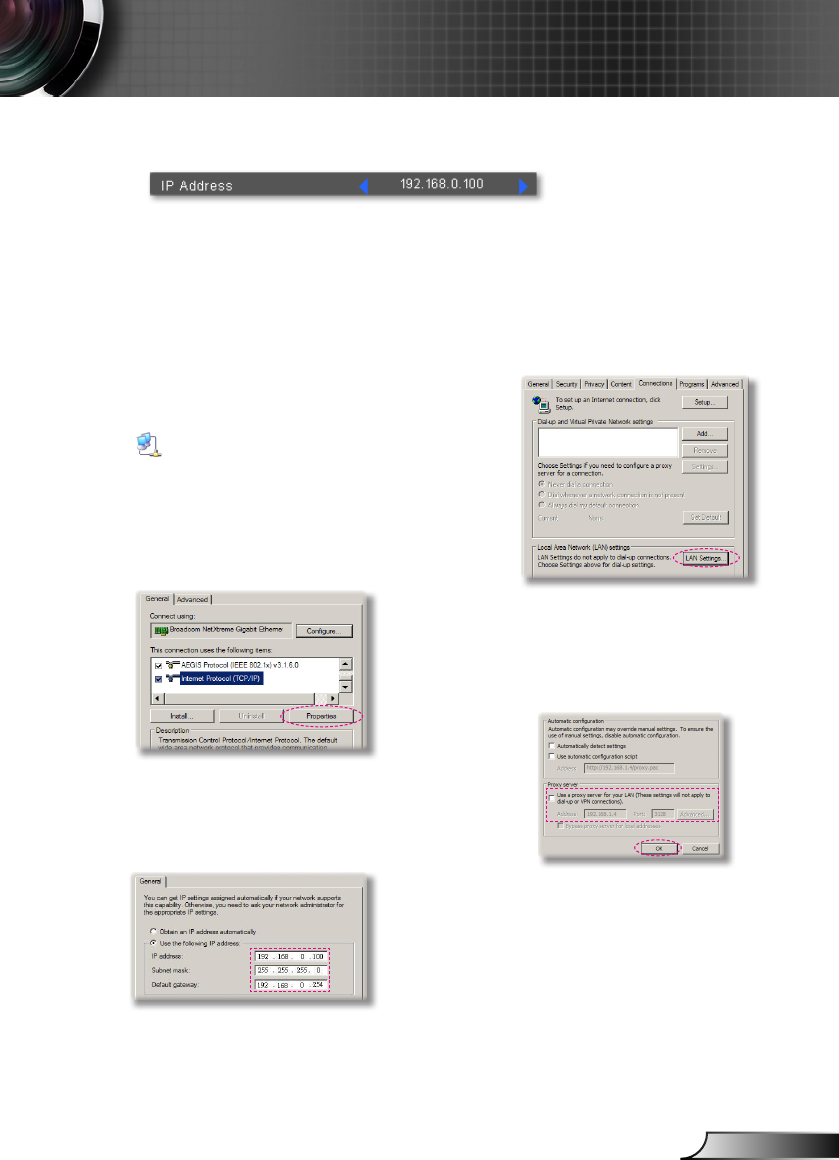

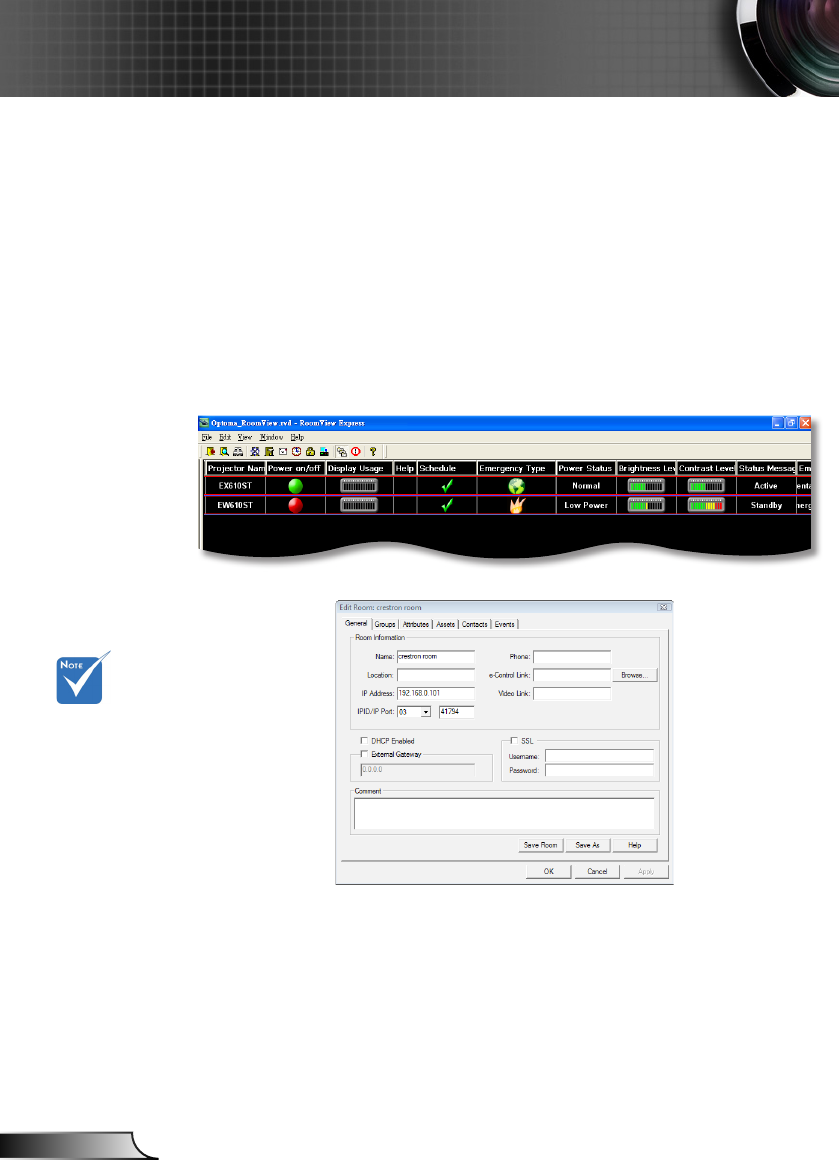

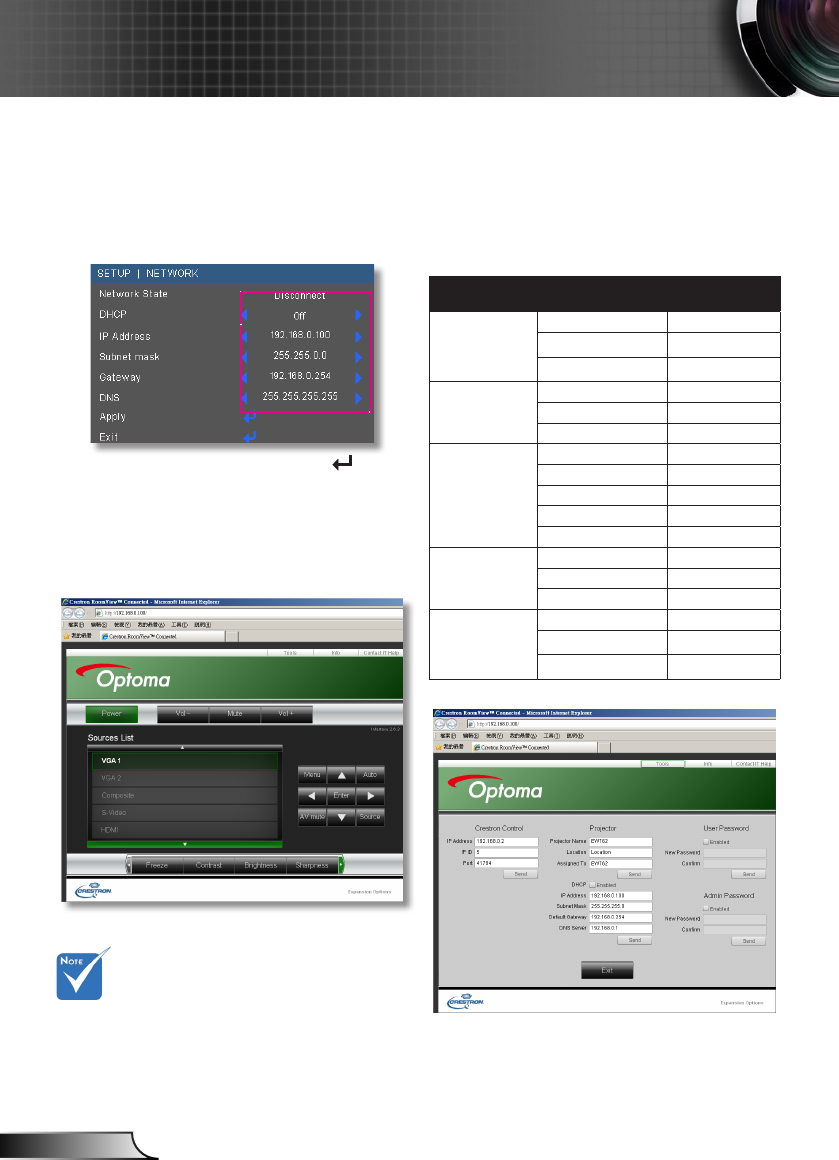

SETUP | LAN ..................................... 45

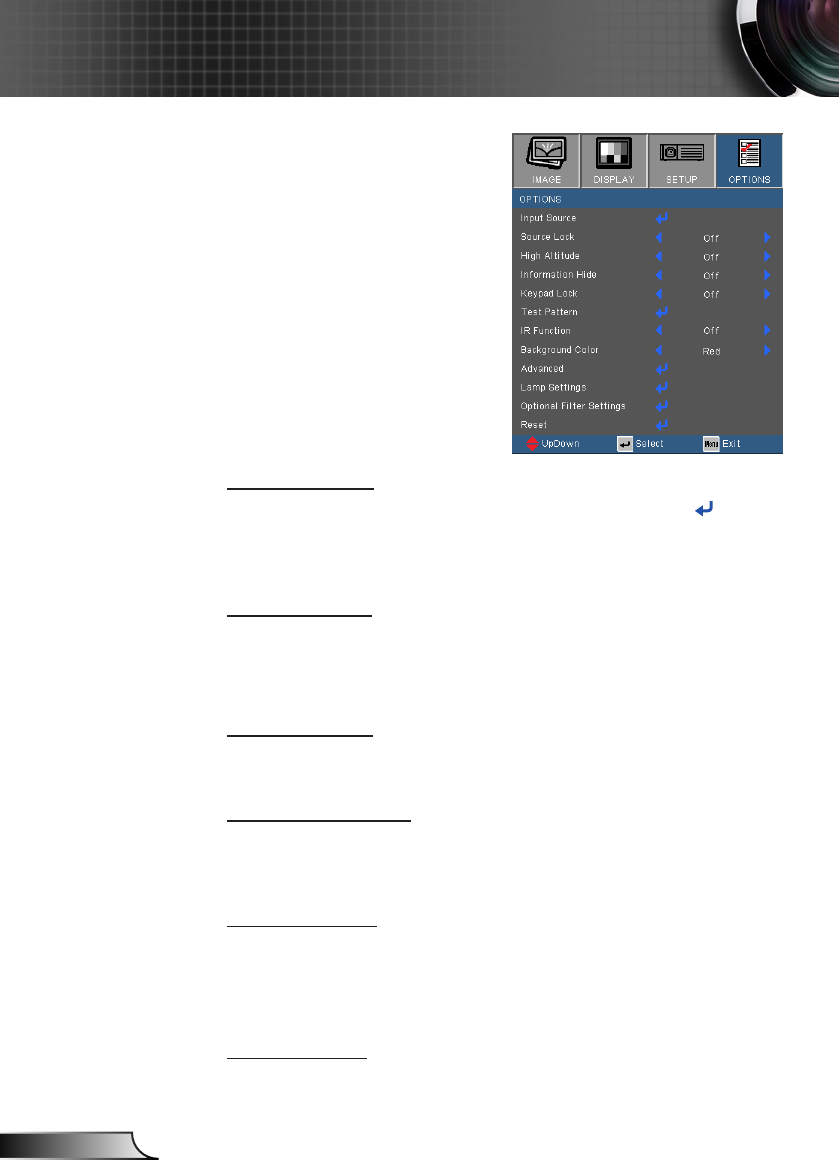

OPTIONS ........................................... 50

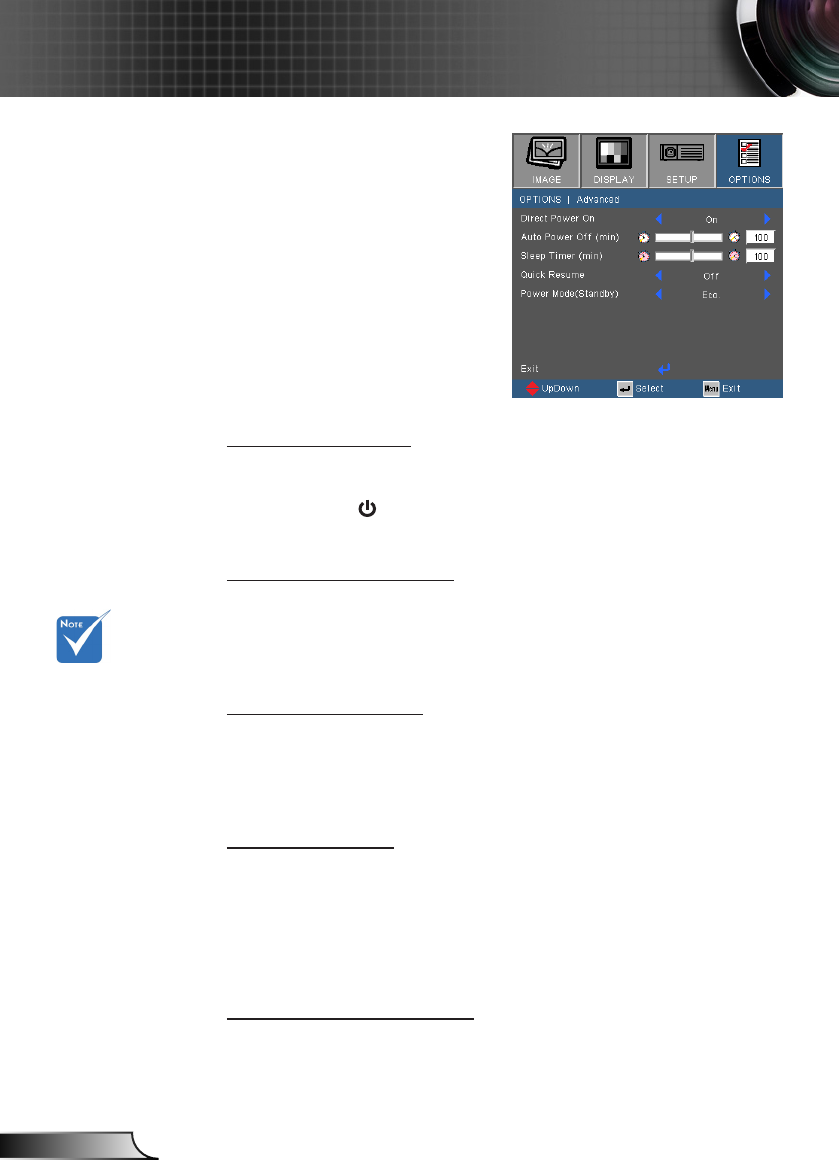

OPTIONS | Advanced ........................ 52

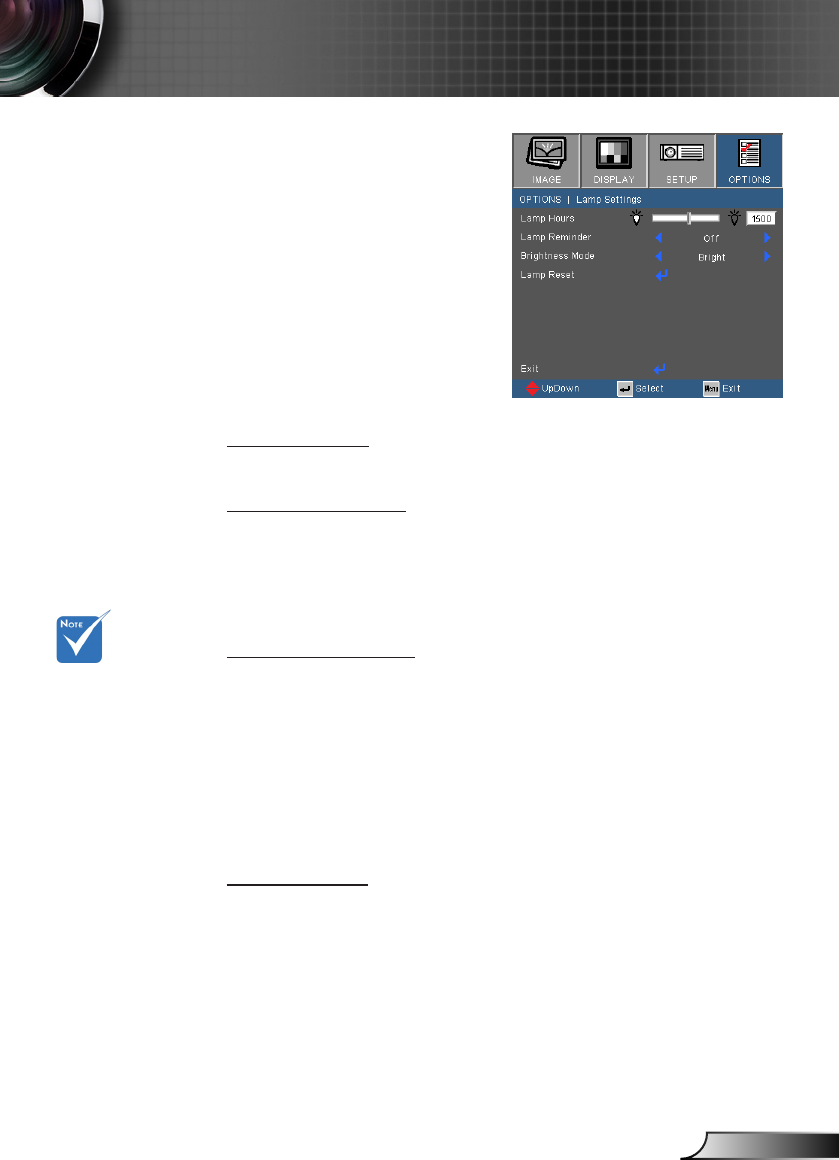

OPTIONS | Lamp Settings ................. 53

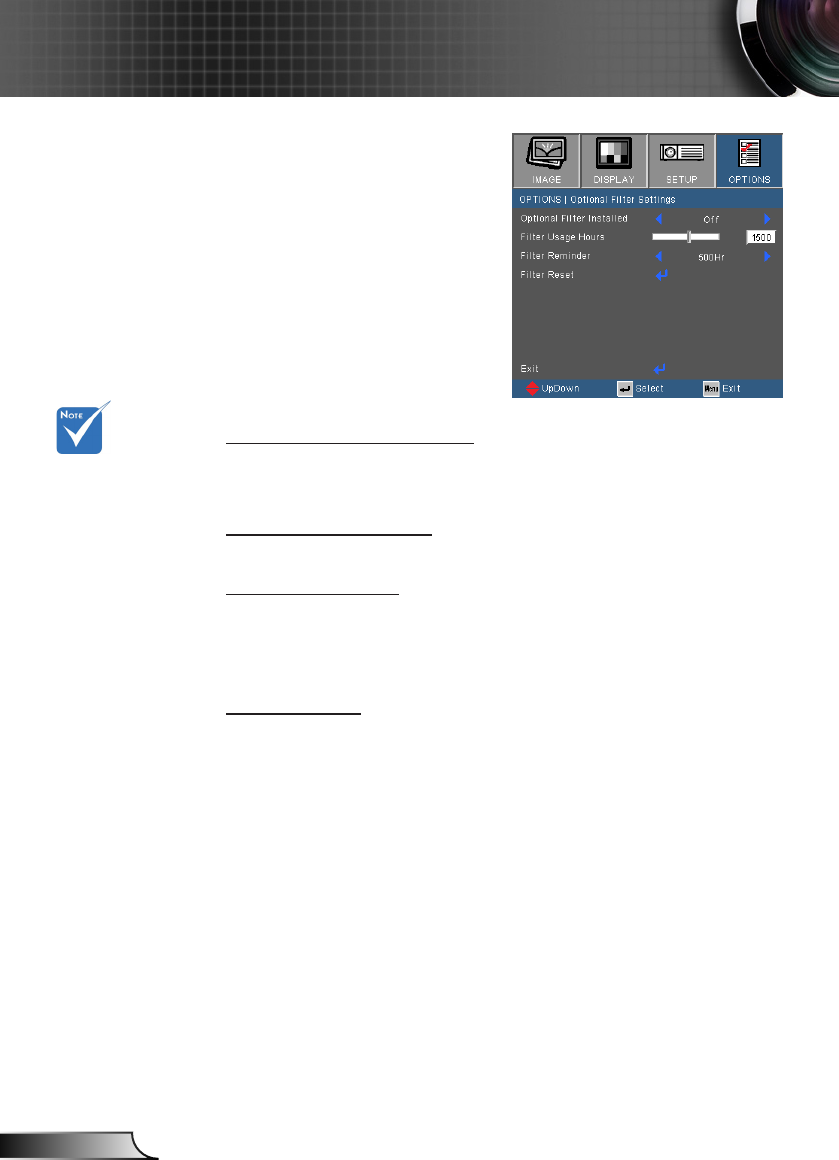

OPTIONS | Optional Filter Settings ... 54
Appendices ....................................55
Troubleshooting ................................55
Replacing the lamp ...........................60
Compatibility Modes .........................62
Computer/Video/HDMI/Mac
Compatibility ...................................... 62
3D Input Video Compatibility ............. 63
RS232 Commands and Protocol
Function List .....................................64

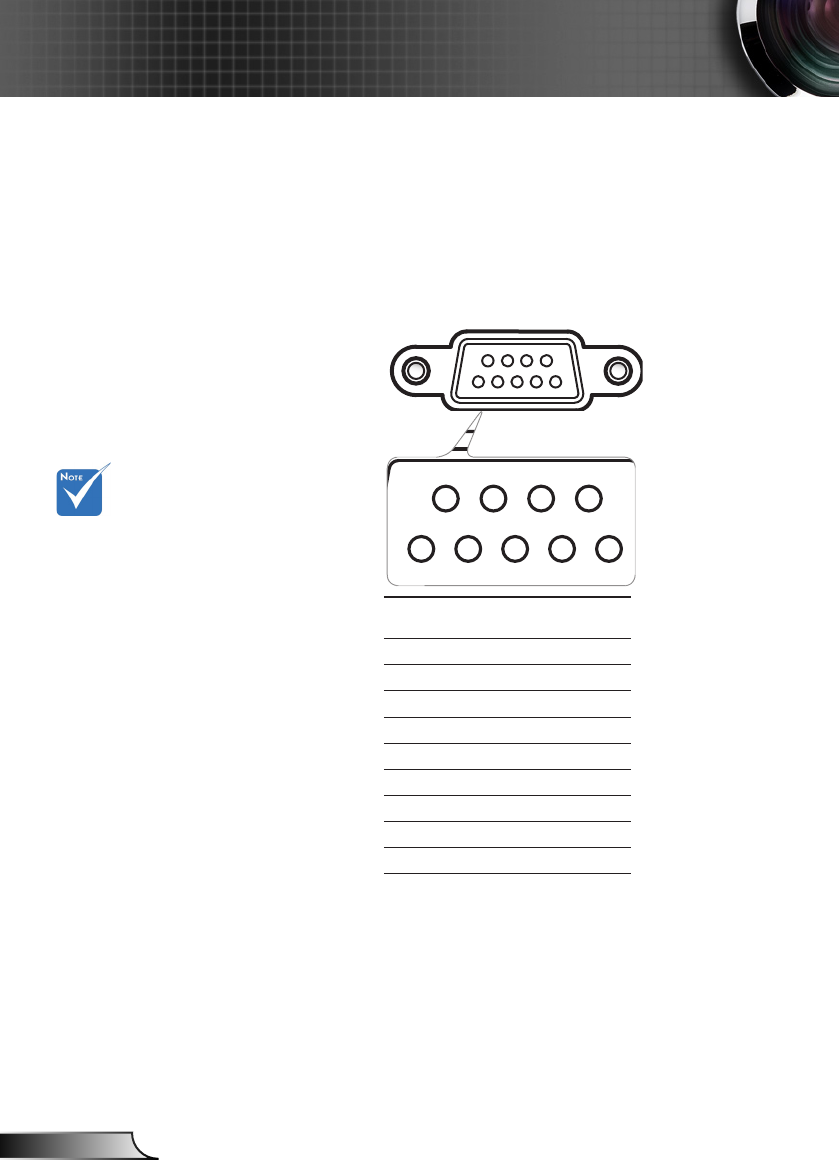

RS232 Pin Assignments .................... 64
RS232 Protocol Function List ............ 65
Wall Mount Installation ......................69
Optoma Global Ofces .....................70
Regulation & Safety Notices .............72
Table of Contents
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3English
Usage Notice
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
60-61.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “OPTIONS | Lamp Settings” menu after
replacing the lamp module (refer to page 53).
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.

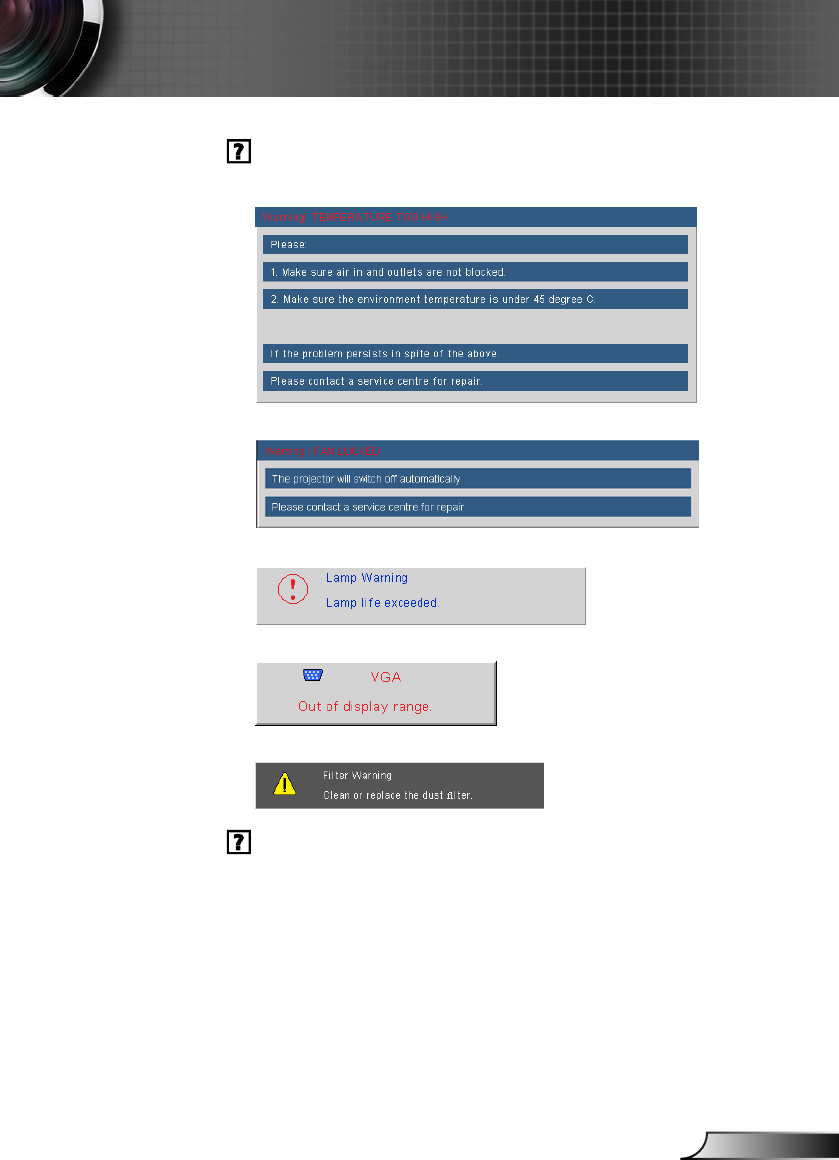

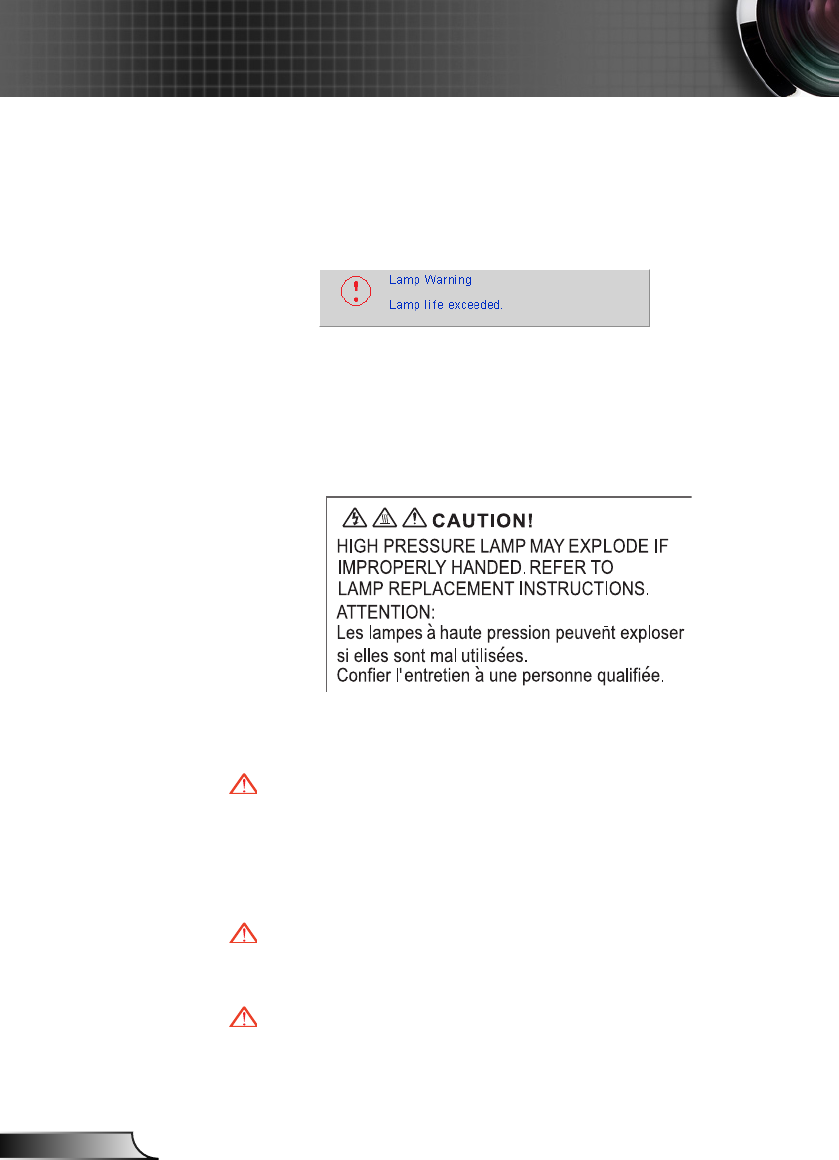

▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■ Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser
pointer can cause permanent damage to eyesight.
When the lamp
reaches the end
of its life, the pro-
jector will not turn
back on until the
lamp module has
been replaced.
To replace the
lamp, follow the
procedures listed
under “Replacing
the Lamp” section
on pages 60-61.
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 40°C.
Relative Humidity is 5 - 40°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5English
Usage Notice

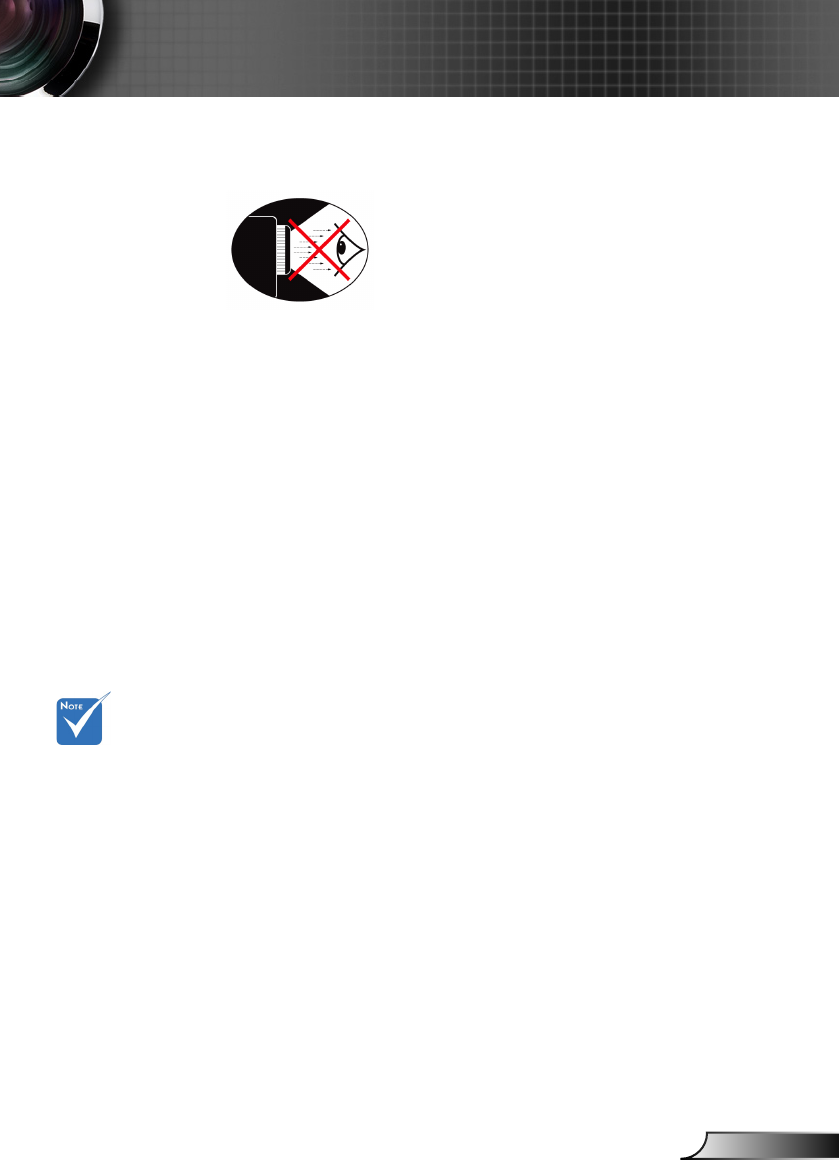

Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
▀■ XGA (1024x768) / WXGA (1280x800) Native resolution
▀■ HD compatible – 720p and 1080p supported
▀■ VGA monitor loop through
(works in standby mode > 0.5W)
▀■ BrilliantColorTM Technology
▀■ Security Bar and Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown
▀■ Built-in speakers
▀■ Network support
▀■ Full 3D
▀■ Eco+ and Quick Resume
Monitor loop
through only sup-
ported in VGA1-
In/YPbPr.
6
English
Introduction
Documentation :

User’s Manual

Warranty Card

Quick Start Card

WEEE Card
(for EMEA only)

STOP Card
(for US Only)
Due to different
applications in
each Country,
some regions
may have
different
accessories.
Power Cord
IR Remote Control

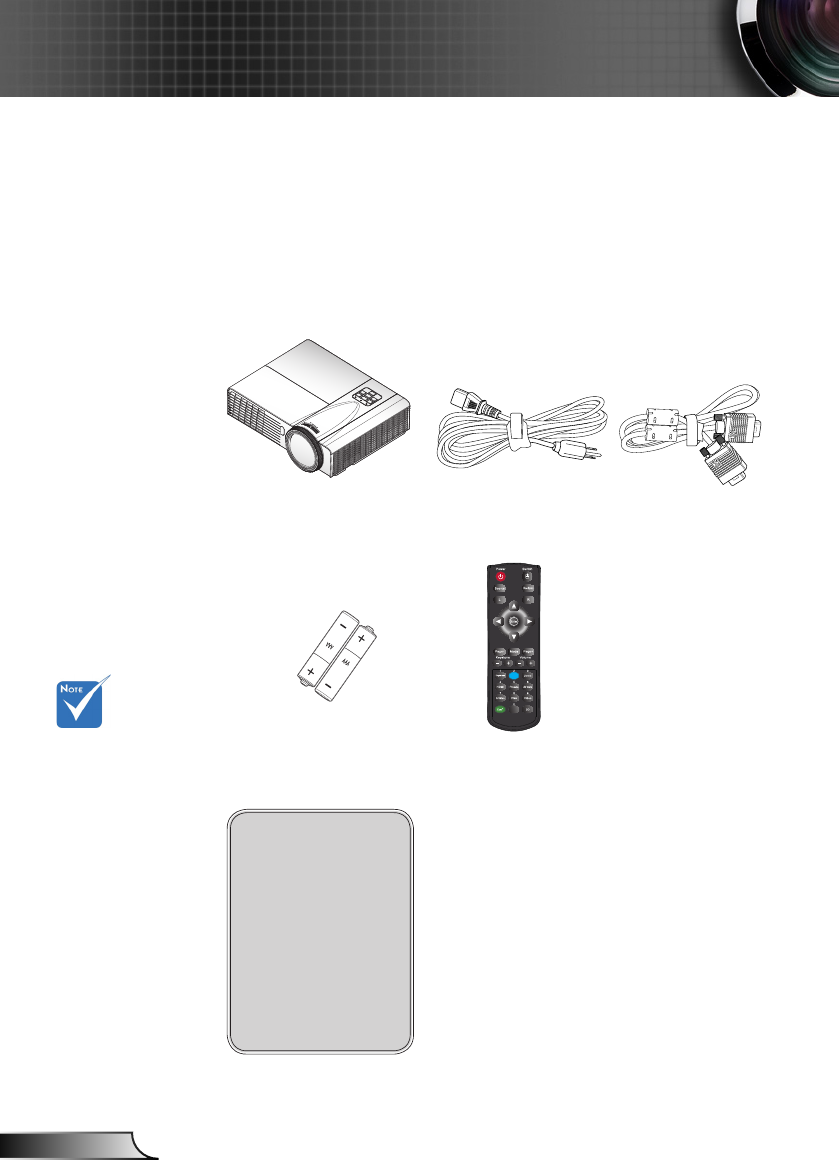

Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
2 × AAA Batteries
Projector with lens cap VGA Cable
Menu
7English
Introduction

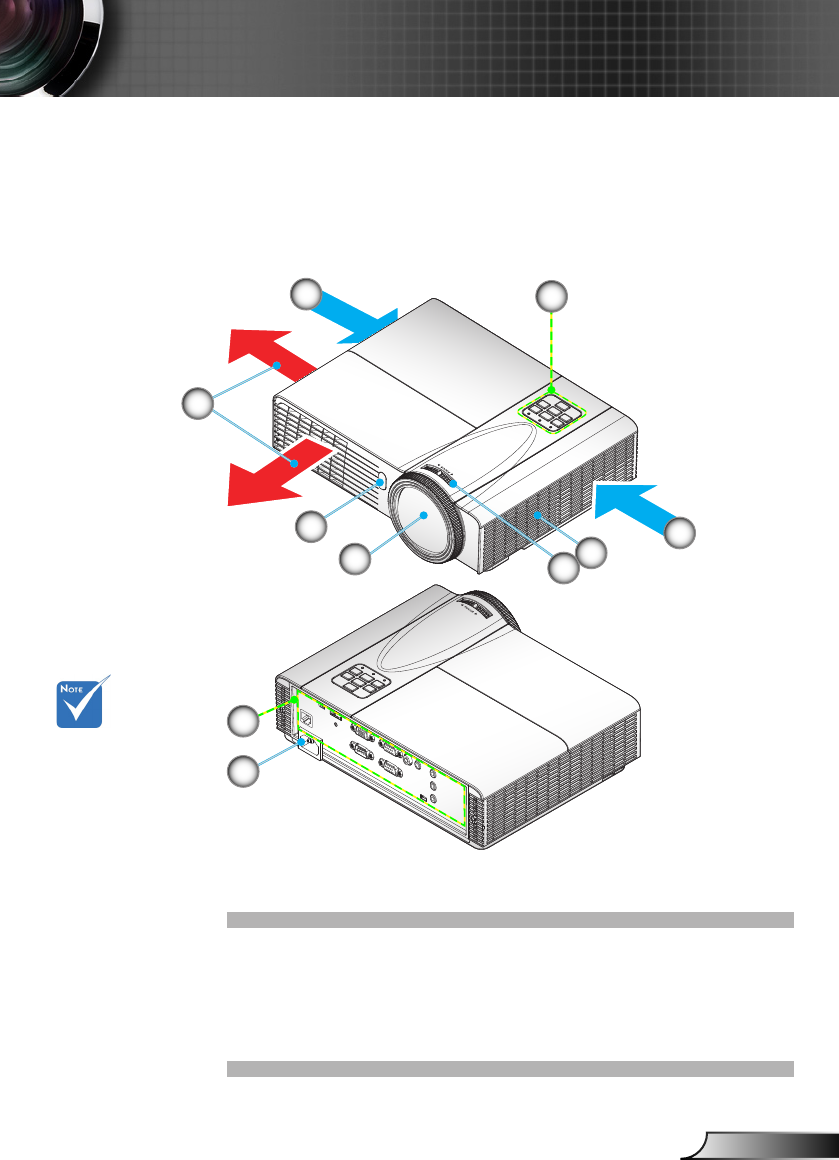

Product Overview
Main Unit
Control Panel1.
Focus Ring2.
Speaker3.
Zoom Lens4.
IR Receiver5.
Input / Output Connections6.
Power Socket7.
Ventilation (inlet)8.
Ventilation (outlet)9.
The interface
is subject to
model’s speci-
cations.
Do not block
projector in/out
air vents.
3
7
6
8
4
5
2
8
9
1
8
English
Introduction
/
/

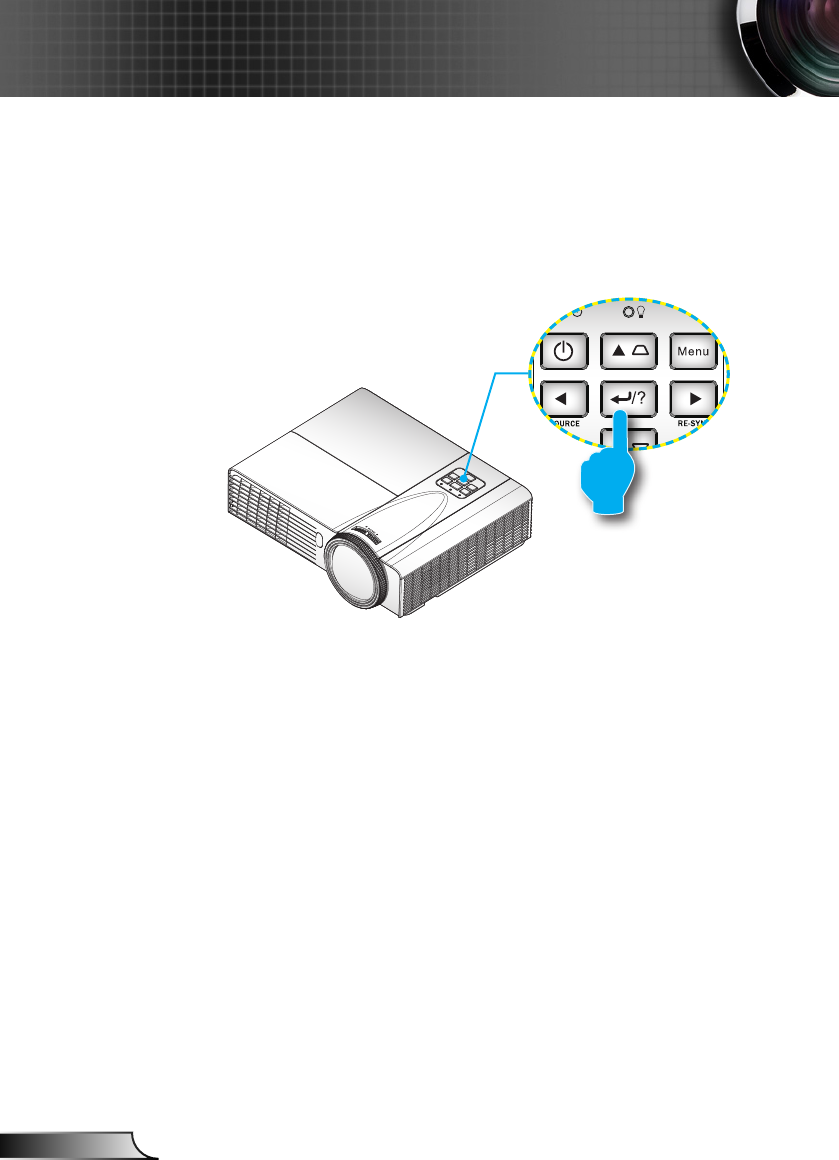

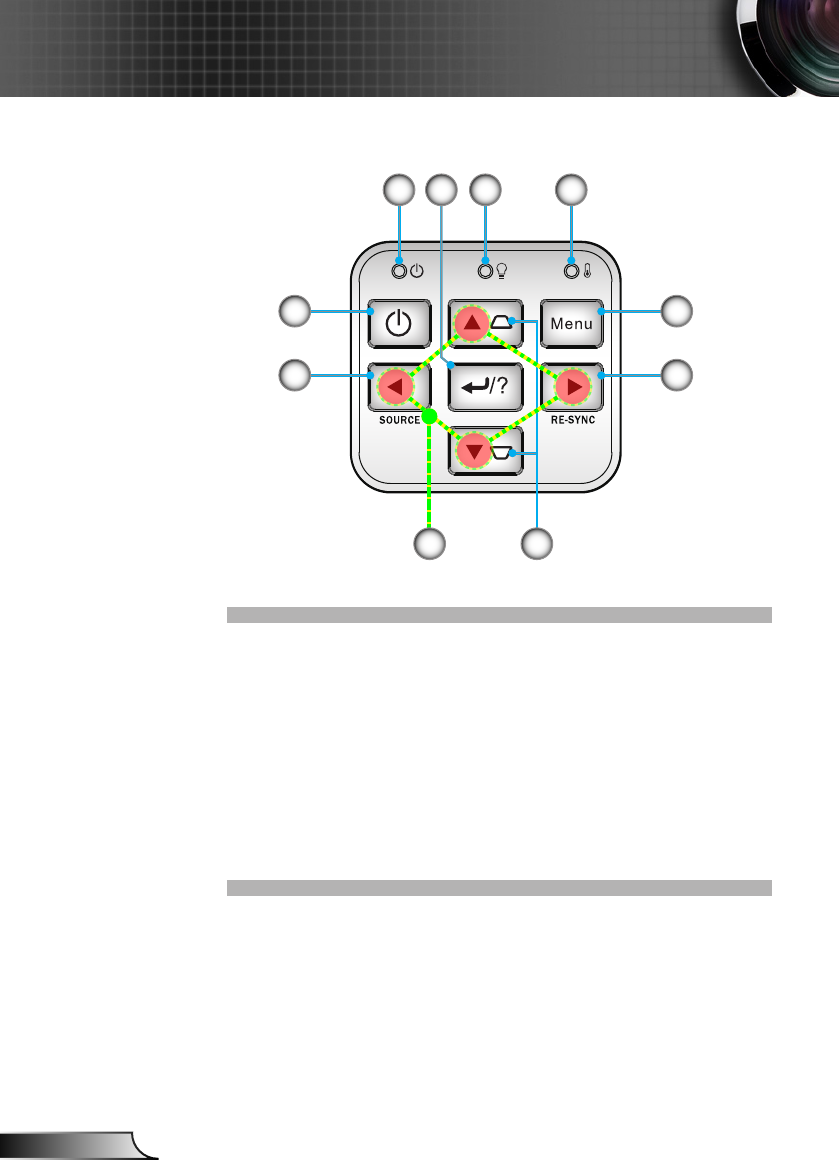

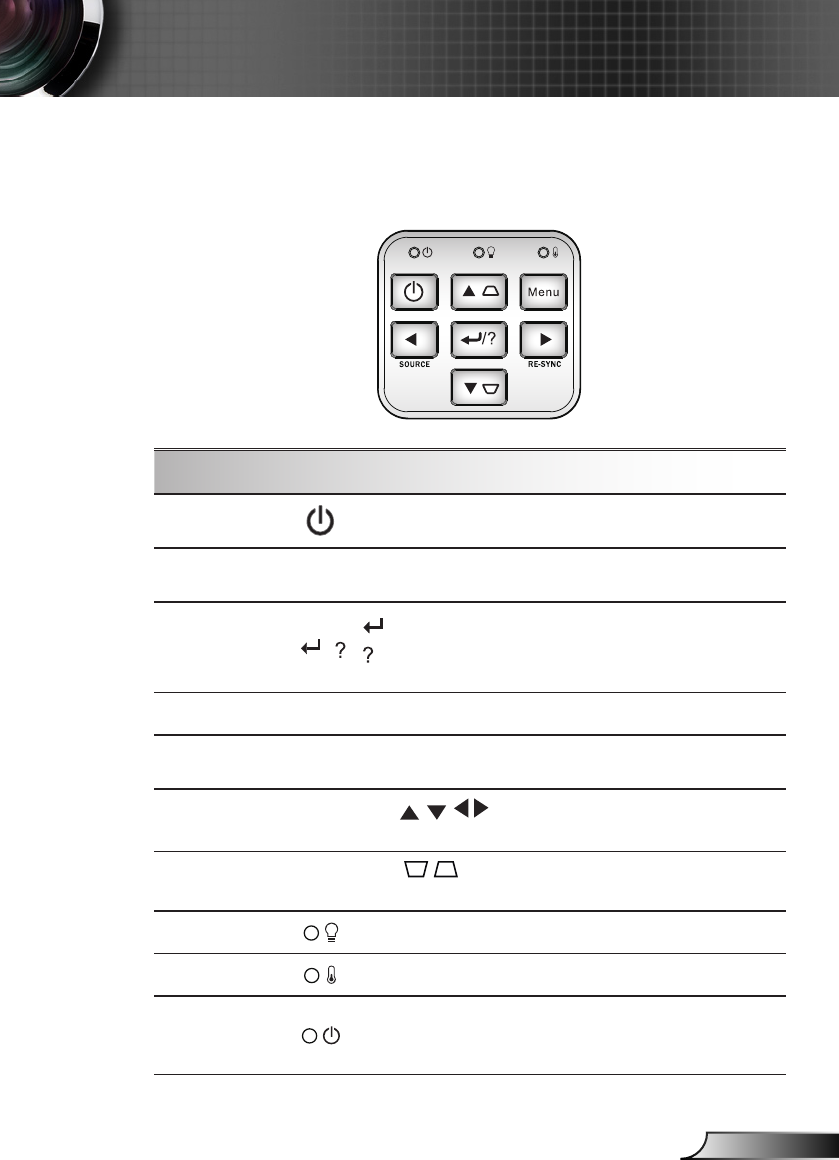

Control Panel
2 31
7
Power LED1.
Lamp LED 2.
Temp LED3.
Enter / Help4.
Menu5.
Re-Sync6.
Keystone Correction7.
Four Directional Select Keys8.
Source9.
Power/Standby button10.
510
69
8
4
9English
Introduction
HDMI
VGA-OUT RS-232C
VGA2-IN/YPbPr
VIDEO S-VIDEO
AUDIO-IN
AUDIO-OUT
MOUSE
(SERVICE)
VGA1-IN/YPbPr/
5421 3 86 7
10

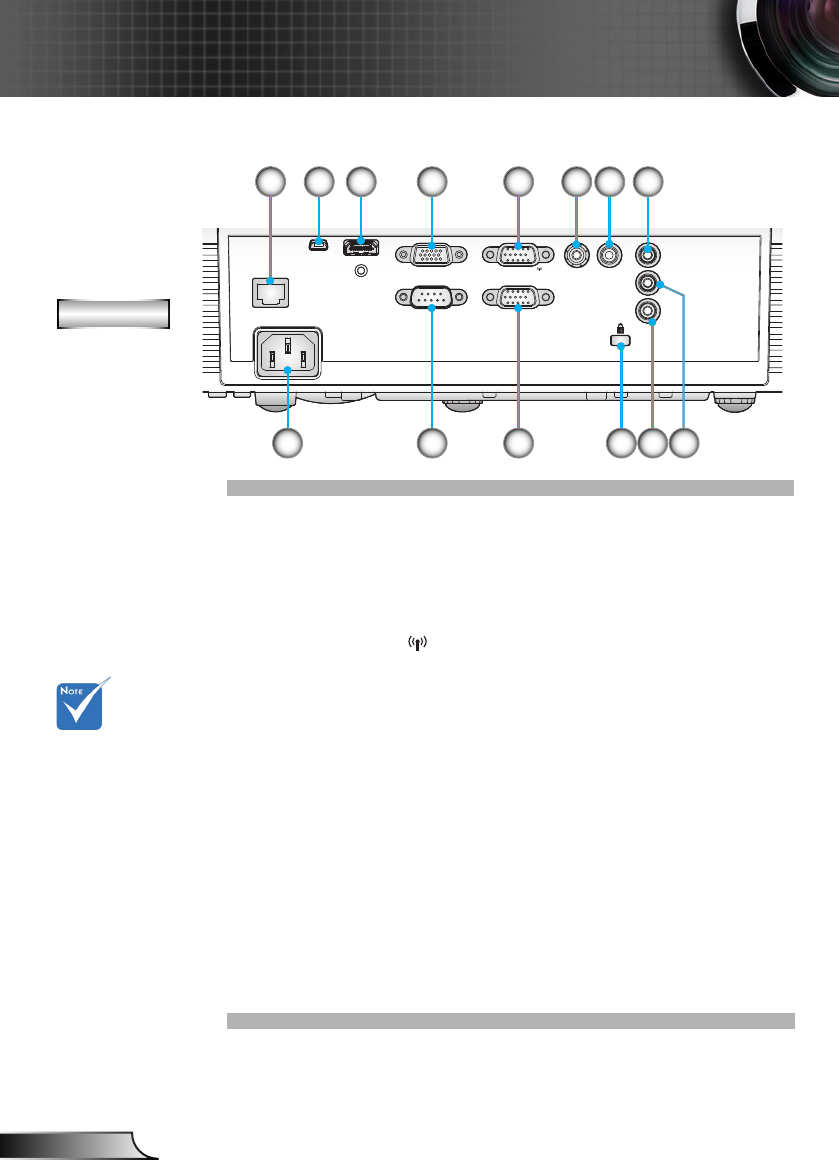

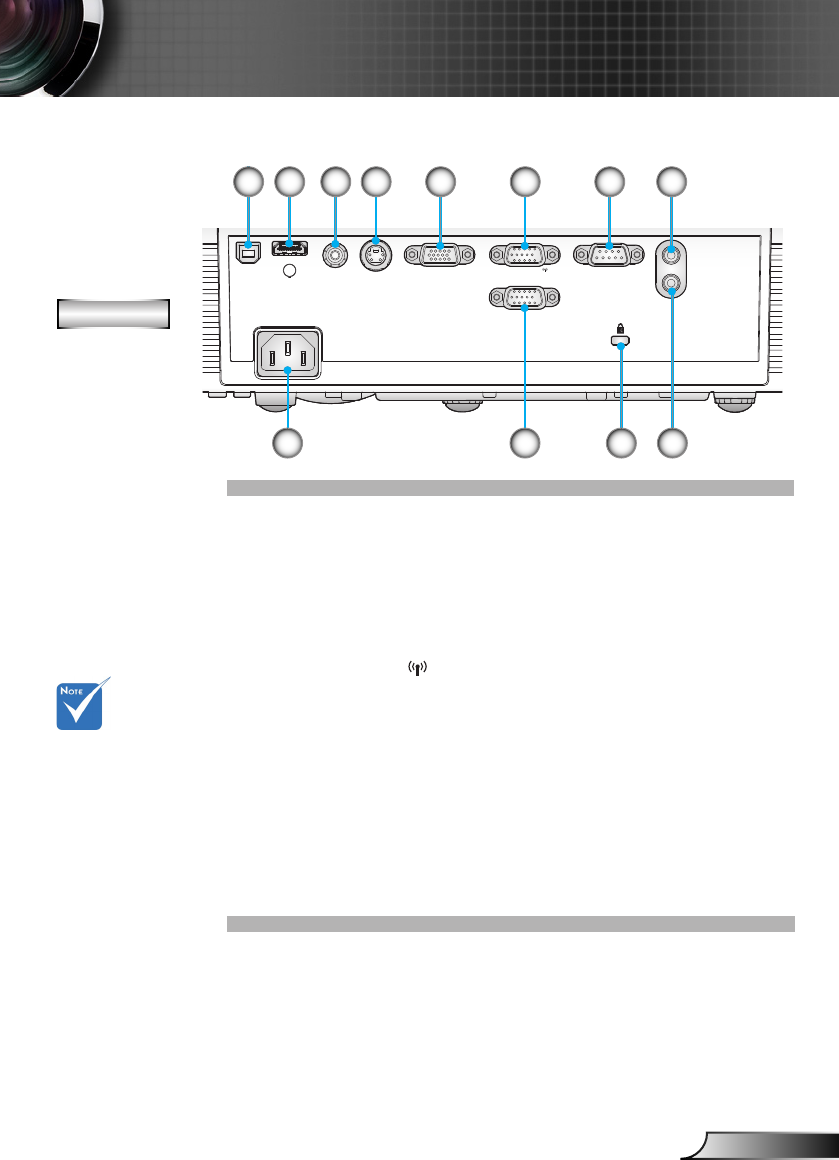

Input/Output Connections
Monitor loop
through only sup-
ported in VGA1-
IN/YPbPr.
USB Connector / Type-B (Connect to PC for Remote Mouse 1.
function)
HDMI Connector2.
Composite Video Input Connector3.
S-Video Input Connector4.
VGA-Out Connector (Monitor Loop-through Output)5.
VGA1-In/YPbPr/6. Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPrr/
Wireless function via VGA Dongle)
RS-232 Connector (9-pin DIN Type)7.
Audio Input connector (3.5mm mini jack)8.
Power Socket9.
VGA2-In/YPbPr Connector 10.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
Kensington11. TM Lock Port
Audio Output Connector (3.5mm Mini Jack)12.
Type A
9 1211
10
English
Introduction
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C VGA2-IN/YPbPr
VGA1-IN/YPbPr/ VIDEO AUDIO1-IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
431 2 85 7
11
Monitor loop
through only sup-
ported in VGA1-
IN/YPbPr.
RJ-45 Networking Connector1.
USB Connector / Type: mini-USB (Connect to PC for Re-2.
mote Mouse function)
HDMI Connector3.
VGA-Out Connector (Monitor Loop-through Output)4.
VGA1-In/YPbPr/5. Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPrr/
Wireless function via VGA Dongle)
Composite Video Input Connector6.
Audio 1 Input connector (3.5mm mini jack) 7.
(for VGA1/VGA2)
Audio 2 Input connector (3.5mm mini jack) 8.
(for Video)
Power Socket9.
RS-232 Connector (9-pin DIN Type)10.
VGA2-In/YPbPr Connector 11.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
Kensington12. TM Lock Port
Microphone Input Connector13.
Audio Output Connector (3.5mm Mini Jack)14.
Type B
9 1312
6
10 14
11 English
Introduction

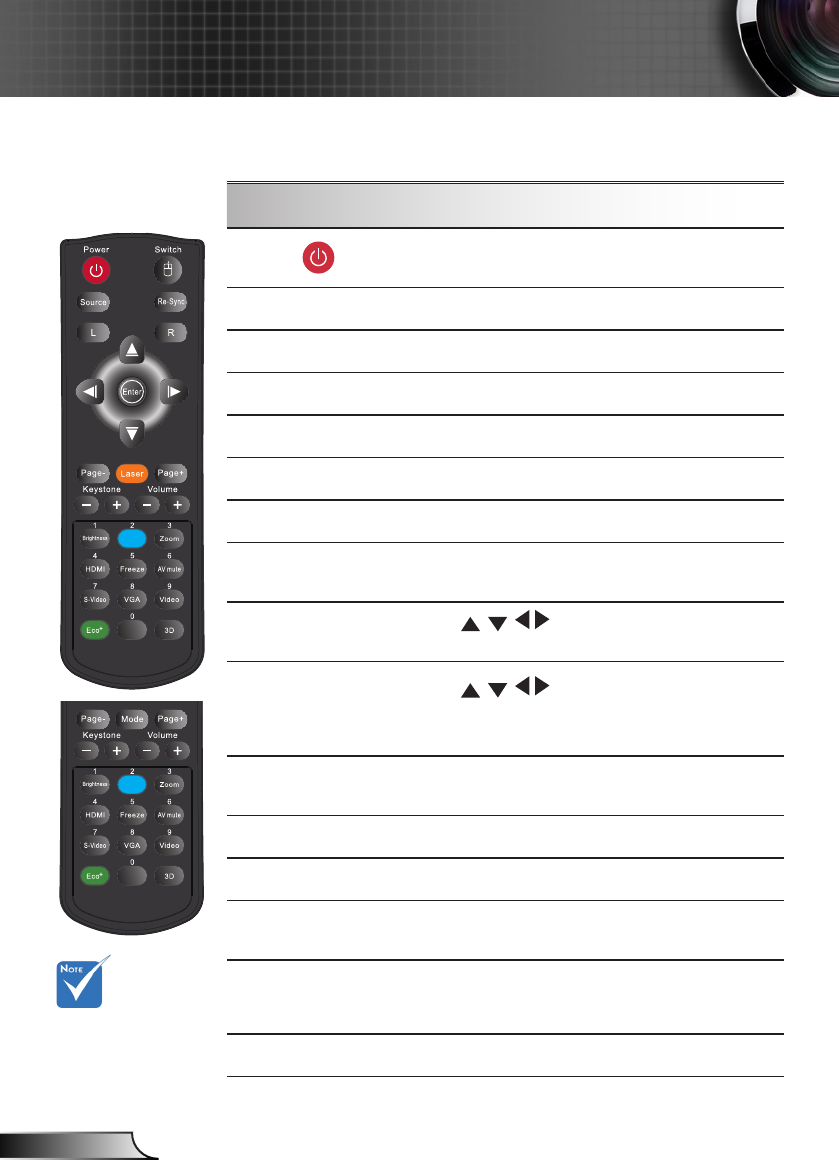

Remote Control
The interface
is subject to
model’s speci-
cations.
IR LED Indicator1.
Power On/Off2.
Source3.
Mouse Left Click4.
Enter5.
Four Directional Select 6.
Keys / Mouse control
Mouse on/off7.
Re-Sync8.
Mouse Right Click9.
Laser Pointer10.
Page Up11.
Volume +/-12.
Menu13.
Zoom14.
AV mute15.
Video 16.
3D17.
VGA18.
Page Down19.
Keystone +/-20.
Brightness21.
HDMI22.
S-Video23.
Eco+24.
Numbered keypad 25.
(for password input)
Freeze26.
Mode27.
Menu
Menu
2
18
26
24
23
5
22
25
20
3
13
6
19
14
10
1
7
8
4 9
12
17
16
15
21
11
27
12
English
Installation
Connect to Computer/Notebook
Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
1....................................................................................................Power Cord
2....................................................................................................*USB Cable
3...........................................................................................*DVI/HDMI Cable
4.....................................................................................................VGA Cable
5................................................................................................*RS232 Cable
6.........................................................................................*Audio Input Cable
7.............................................................................................*VGA Out Cable
8......................................................................................*Audio Output Cable
AUDIO-IN
AUDIO OUT
RS-232C
VGA-OUT
VGA2-IN/YPbPr
HDMI
S-VIDEO
VIDEO
VGA1-IN/YPbPr/
MOUSE
(SERVICE)
molex
MOLEX
E62405SP
R
1
2
3
Audio OutputMonitor Output
4 5
7 8
Type A
6
13 English
Installation
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
1..............................................................................................*Network Cable
2.............................................................................................*VGA Out Cable
3......................................................................................*Audio Output Cable
4....................................................................................................Power Cord
5....................................................................................................*USB Cable
6...........................................................................................*DVI/HDMI Cable
7................................................................................................*RS232 Cable
8.....................................................................................................VGA Cable
9.........................................................................................*Audio Input Cable
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C VGA2-IN/YPbPr
VGA1-IN/YPbPr/ VIDEO AUDIO1-IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
molex
MOLEX
E62405SP
R
1
7
6
Audio OutputMonitor Output
8
4
5
Type B
9
2 3
14
English
Installation
AUDIO-IN
AUDIO OUT
RS-232C
VGA-OUT
VGA2-IN/YPbPr
HDMI
S-VIDEO
VIDEO
MOUSE
(SERVICE)
VGA1-IN/YPbPr/
E62405SP
R
Connect to Video Sources
1....................................................................................................Power Cord
2..................................................................................................*HDMI Cable
3................................................*15-Pin to 3 RCA Component/HDTV Adaptor
4.............................................................................*3 RCA Component Cable
5.........................................................................................*Audio Input Cable
6................................................................................*Composite Video Cable
7.............................................................................................. *S-Video Cable
8......................................................................................*Audio Output Cable
1
6
4
5
2
3
S-Video Output
Composite Video Output
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
DVD Player, Set-top Box,
HDTV receiver
Audio Output
7
Type A
DVD Player, Set-top Box,
HDTV receiver
8
15 English
Installation
1................................................................................*Composite Video Cable
2.........................................................................................*Audio Input Cable
3......................................................................................*Audio Output Cable
4....................................................................................................Power Cord
5..................................................................................................*HDMI Cable
6................................................*15-Pin to 3 RCA Component/HDTV Adaptor
7.............................................................................*3 RCA Component Cable
8........................................................................................ *Microphone Cable
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
RJ-45
MOUSE
(SERVICE)
HDMI
VGA-OUT
RS-232C VGA2-IN/YPbPr
VGA1-IN/YPbPr/ VIDEO AUDIO1 -IN
(VGA1/VGA2)
AUDIO2-IN
(VIDEO)
AUDIO-OUT
MIC
E62405SP
R
1
6
7
Audio Output
2
4
5
Type B
8
2
3
DVD Player, Set-top Box,
HDTV receiver
Composite Video Output
16
English
Installation
Powering the projector On / Off
Turn on the
projector rst and
then select the
signal sources.
Powering On the Projector
1. Remove the lens cap. (optional)
2. Securely connect the power cord and signal cable. When
connected, the POWER/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The POWER/STANDBY LED
will now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
When Power mode
(Standby) is set
to Eco (<0.5W),
the VGA output
and Audio pass-
through will be
deactivated when
the projector is in
standby.
Lens Cap (optional)
POWER/STANDBY
2
1
17 English
Installation

Contact the
nearest service
center if the
projector displays
these symptoms.
See pages
70-71 for more
information.
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “POWER/STANDBY”
indicator ashes amber.
“TEMP” LED indicator is lit red and if “POWER/STANDBY”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
“TEMP” LED indicator ashes red and if “POWER/STAND-
BY” indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
Powering Off the Projector
1. Press the “ ” button on the remote control or
on the control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you press
the “ ” button for the second time, the fan will start cool-
ing the system and will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the POWER/STANDBY LED will
Flash Green. When the POWER/STANDBY LED lights
solid Amber, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
18
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector
or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
19 English
Installation
Adjusting the Projector’s Focus
To focus the image, rotate the focus ring until the image is clear.
XGA series: The projector will focus at distances from 2.46
to 3.61 feet (0.75 to 1.10 meters). Up to 0.4 to 10 meters
with mechanism travel.
WXGA series: The projector will focus at distances from 2.56
to 3.70 feet (0.78 to 1.13 meters). Up to 0.4 to 10 meters
with mechanism travel.
Adjusting Projection Image Size
XGA series: Projection Image Size from 59” to 86” (1.50 to
2.18 meters). Up to 300” with mechanism travel.
WXGA series: Projection Image Size from 69” to 98” (1.75 to
2.49 meters). Up to 300” with mechanism travel.
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
Focus Ring
20
English
Installation
Diagonal length
(inch) size of
16:10 Screen
Screen Size W x H Projection Distance (D)
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
40.00 0.86 0.54 33.92 21.20 0.45 0.45 1.47 1.47 0.07 2.63
60.00 1.29 0.81 50.88 31.80 0.67 0.67 2.21 2.21 0.10 3.94
70.00 1.51 0.94 59.36 37.10 0.79 0.79 2.58 2.58 0.12 4.60
80.00 1.72 1.08 67.84 42.40 0.90 0.90 2.95 2.95 0.13 5.26
90.00 1.94 1.21 76.32 47.70 1.01 1.01 3.31 3.31 0.15 5.91
100.00 2.15 1.35 84.80 53.00 1.12 1.12 3.68 3.68 0.17 6.57
120.00 2.58 1.62 101.76 63.60 1.35 1.35 4.42 4.42 0.20 7.89
150.00 3.23 2.02 127.20 79.50 1.68 1.68 5.52 5.52 0.25 9.86
180.00 3.88 2.42 152.64 95.40 2.02 2.02 6.63 6.63 0.30 11.83
250.00 5.38 3.37 212.00 132.50 2.81 2.81 9.20 9.20 0.42 16.43
300.00 6.46 4.04 254.40 159.00 3.37 3.37 11.05 11.05 0.50 19.72
This table is for user’s reference only.
WXGA
XGA
Diagonal length
(inch) size of
4:3 Screen
Screen Size W x H Projection Distance (D)
Offset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
40.00 0.81 0.61 32.00 24.00 0.51 0.51 1.67 1.67 0.09 3.60
60.00 1.22 0.91 48.00 36.00 0.76 0.76 2.50 2.50 0.14 5.40
70.00 1.42 1.07 56.00 42.00 0.89 0.89 2.92 2.92 0.16 6.30
80.00 1.63 1.22 64.00 48.00 1.02 1.02 3.34 3.34 0.18 7.20
90.00 1.83 1.37 72.00 54.00 1.14 1.14 3.76 3.76 0.21 8.10
100.00 2.03 1.52 80.00 60.00 1.27 1.27 4.17 4.17 0.23 9.00
120.00 2.44 1.83 96.00 72.00 1.53 1.53 5.01 5.01 0.27 10.80
150.00 3.05 2.29 120.00 90.00 1.91 1.91 6.26 6.26 0.34 13.50
180.00 3.66 2.74 144.00 108.00 2.29 2.29 7.51 7.51 0.41 16.20
250.00 5.08 3.81 200.00 150.00 3.18 3.18 10.43 10.43 0.57 22.50
300.00 6.10 4.57 240.00 180.00 3.82 3.82 12.52 12.52 0.69 27.00
21 English
User Controls
Control Panel
Control Panel & Remote Control
/
/
Using the Control Panel
POWER Refer to the “Power On/Off the Projector” section on
pages 16-17.
RE-SYNC Automatically synchronize the projector to the input
source.
Enter / Help /
Conrm your item selection.
Help Menu (only available when OSD menu is not
shown).
SOURCE Press “SOURCE” to select an input signal.
Menu Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.
Four Directional
Select Keys
Use to select items or make adjust-
ments to your selection.
Keystone Use to adjust image distortion caused
by tilting the projector. (±40 degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
POWER/
STANDBY
LED
Indicate the projector’s status.
22
English
User Controls
Remote Control
Using the Remote Control
Power
Refer to the “Power On/Off the Projector”
section on pages 16-17.
L Button Mouse left click.
R Button Mouse right click.
Page + Use this button to page up.
Page - Use this button to page down.
Enter Conrm your item selection.
Source Press “Source” to select an input signal.
Re-Sync Automatically synchronizes the projector to
the input source.
Four Directional
Select Keys
Use to select items or make
adjustments to your selection.
PC/Mouse Control Use for emulation of USB
mouse via USB when you press “Switch”
button.
Keystone +/- Adjust image distortion caused by tilting the
projector.
Volume +/- Adjust to increase / decrease the volume.
Brightness Adjust the brightness of the image.
3D Press the “3D” to turn the 3D OSD menu
on/off.
Menu
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
HDMI Press “HDMI” to choose HDMI source.
Menu
Menu
The interface
is subject to
model’s speci-
cations.
23 English
User Controls
Using the Remote Control
Freeze Press “Freeze” to pause the screen image.
Press this button again to unlock.
AV mute Momentarily turns off/on the audio and
video.
S-Video Press “S-Video” to choose S-Video source.
VGA Press “VGA” to choose VGA sources.
Video Press “Video” to choose Composite video
source.
Mouse on/off USB mouse switch.
Mode
Select the display mode from Presentation,
Bright, Movie, sRGB, Blackboard, Class-
room, User and 3D.
Zoom Zoom in on an image.
Press buttons to alter zoom.
Eco+
When Eco+ mode is activated, the bright-
ness level of the content is automatically
detected to signicantly reduced lamp
power consumption (up to 70%) during
periods of inactivity.
Menu
Menu

AV mute: Save
up to 70% of the
lamp power when
AV mute is ap-
plied.
24
English
User Controls
Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
/
/
25 English
User Controls
Please refer to the
“Troubleshooting”
section on pages
55-59 for more
details.
Help menu button functions only when no input source
is detected.
If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
26
English
User Controls
27 English
User Controls
The Projector has a fully loaded multilingual On-Screen Dis-
play menu which allows you to make variety adjustments from
single colours to pre-calibrated display modes, eco-friendli-
ness to full power powerhouse, volume, brightness, contrast,
keystone, etc.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use keys to select any item in the
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use keys to select the desired item and adjust the settings
using key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to conrm, and the screen will return to the main
menu.
6. To exit, press “MENU” again. The OSD menu will close and the
projector will automatically save the new settings.

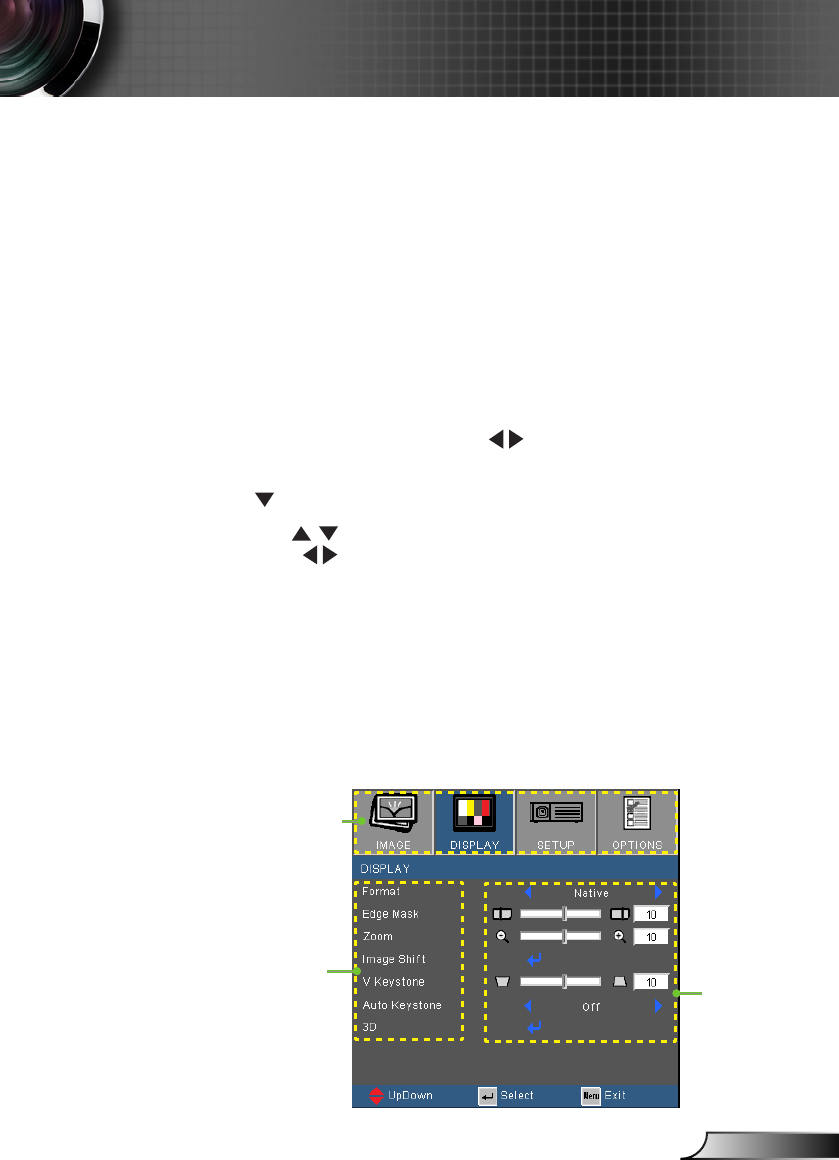

On-Screen Display Menu (OSD)
Main Menu
Sub Menu
Settings
28
English
User Controls
Menu Tree
W3055S OSD Menu Tree.xls
Main Menu Sub Menu Settings
Image Display Mode
Brightness -50~50
Contrast -50~50
Sharpness 1~15
Color -50~50
Tint -50~50
Advanced Gamma Film / Video / Graphics / Standard
1~10
Color Temp. Warm / Medium / Cold
Color Settings Hue / Saturation / Gain
White R / G / B
Reset
Exit
Color Space AUTO / RGB / YUV
Signal Automatic On / Off
Phase (VGA) 0~31
Frequency (VGA) -5~5
H. Position (VGA) -5~5
V. Position (VGA) -5~5
Exit
Exit
Reset
Display Format 4:3 / 16:9 / Native / AUTO
Edge Mask 0~10
Zoom -5~25 (80%~200%)
Image Shift H Image Shift -100~100
V Image Shift -100~100
V Keystone -40~40
Auto Keystone On / Off
3D 3D Mode
3D Format
3D Sync. Invert On / Off
Exit
Setup Language
Projection
Menu Location
Screen Type 16:10 / 16:9
Security Security On / Off
Security Timer Month / Day / Hour
Change Password ʳ
Exit
Presentation / Bright / Movie / sRGB /
Blackboard / User / 3D
#1
#1
BrilliantColor™
Red / Green / Blue
/ Cyan / Magenta /
Yellow /
#3 AUTO / RGB (0-255) / RGB (16-235) /
YUV
#2
#4
#5 4:3 / 16:9 or 16:10 / LBX / Native /
AUTO
#5
Off / DLP-Link / IR
#6 Auto / SBS / Top and Bottom / Frame
Sequential
#6
English / Deutsch / Français /
Italiano / Español / Português /
Svenska / Nederlands / Norsk/Dansk /
Polski / Suomi / Ɋɭɫɫɤɢɣ / İȜȜȘȞȚțȐ /
Magyar / ýeština / ̶γέΎϓ / ϲΑήϋ /᜗᧯խ
֮ʳ/ 亞᫿խ֮ʳ/ ֲء፿!0ᾂ᝖᱑ʳ/ ࡷࡎ࡙/
Türkçe / ViӋt / Bahasa Indonesia /
Română
#7
29 English
User Controls
W3055S OSD Menu Tree.xls
Main Menu Sub Menu Settings
Setup Projector ID 0~99
Audio Settings Internal Speaker On / Off
Mute On / Off
Audio Input Default / Audio1 / Audio2
Volume Audio 0~10
Mic 0~10
Volume 0~10
Advanced Logo Default / Neutral
Closed Captioning Off / CC1 / CC2
Exit

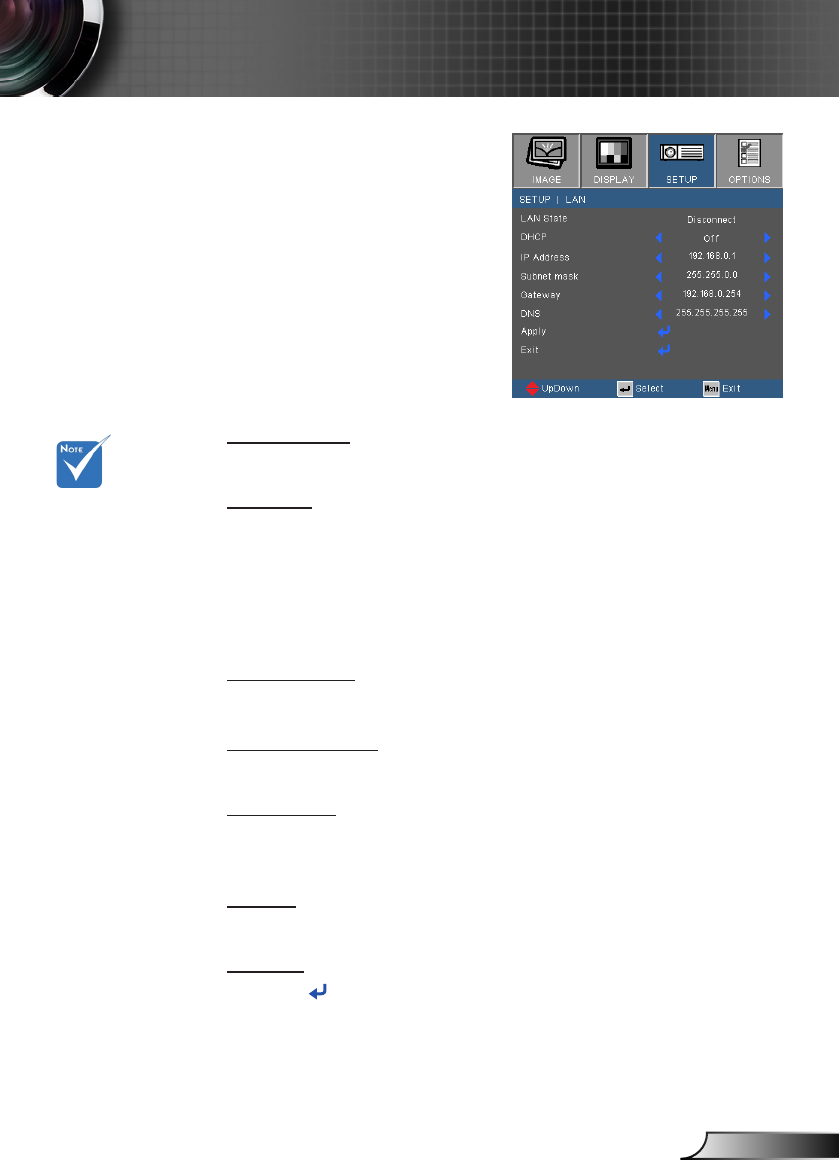

LAN Settings LAN State
DHCP On / Off
IP Address
Gateway
DNS
Apply Yes / No
Exit
Options Input Source
Source Lock On / Off
High Altitude On / Off
Information Hide On / Off
Keypad Lock On / Off
Test Pattern None / Grid / White Pattern
Background Color Black / Red / Blue / Green / White
Advanced Direct Power On On / Off
Auto Power Off (min.) 0~180
Sleep Timer (min.) 0~990
Quick Resume On / Off
Power Mode (Standby) Active / Eco
Exit
Lamp Settings Lamp Hours
Lamp Reminder On / Off
Brightness Mode Bright / Eco
Lamp Reset Yes / No
Exit
Optional Filter Installed Yes / No
Filter Usage Hours 0~9999
Filter Reminder Off / 300hr / 500hr / 800hr / 1000hr
Filter Reset Yes / No
Exit
Reset Yes / No
#5
#5
#5
#4
#5
Subnet mask
#4 VGA1 / VGA2 / S-Video / Video / HDMI
#5 VGA1 / VGA2 / Video / HDMI
Optional Filter
Settings
Please note that the on-screen display (OSD) menus vary according to the signal type
selected and the projector model you are using.
(#1) “Color” and “Tint” are only supported in Video mode.
(#2) “Signal” is only supported in Analog VGA (RGB) signal.
(#3) For HDMI Source only.
(#4) For Type A model only.
(#5) For Type B model only.
(#6) “3D Sync Invert” is only available when 3D is enabled and this mode 3D is for DLP
link glass only.
(#7) For WXGA model only.
30
English
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum
color settings when projecting onto a blackboard (green).
User: User’s settings.
3D: Recommend setting for 3D mode enabled. Any further ad-
justments by the user in 3D will be saved in this mode for further
use.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture.
Press the to decrease the contrast.
Press the to increase the contrast.
31 English
User Controls
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
Color
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Tint
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
“Color” and “Tint”
functions are only
supported under
Video mode.
32
English
User Controls
IMAGE | Advanced
Gamma
This allows you to choose a degamma table that has been
ne-tuned to bring out the best image quality for the input.
Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
Standard: for PC or computer source.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while
providing true, more vibrant colors in picture. The range is from
“0” to “10”. If you prefer a stronger enhanced image, adjust toward
the maximum setting. For a smoother, more natural image, adjust
toward the minimum setting.
Color Temp
If set to cold temperature, the image looks more blue. (cold image)
If set to warm temperature, the image looks more red.
(warm image)
Color Settings
Press into the next menu as below and then use or to
select item.
33 English
User Controls
Red/Green/Blue/Cyan/Magenta/Yellow: Use or to select
Hue, Saturation and Gain Colors.
White: Use or to select Red, Green and Blue Colors.
Reset: Choose “Yes” to return the factory default settings for
color adjustments.
Color Space
Select an appropriate color matrix type from AUTO, RGB,
RGB(0-255)(*), RGB(16-235)(*) or YUV.
Reset
Choose “Yes” to return the display parameters on all menus to the
factory default settings.
(*) For HDMI only.
34
English
User Controls
IMAGE | Advanced
| Signal (RGB)
Automatic
Automatically selects the singal. If you use this function, the
Phase, frequency items are grayed out, and if Signal is not auto-
matic, the phase, frequency items will appear for user to manually
tune and saved in settings after that for next time projector turns
off and on again.
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
“Signal” is only
supported in Analog
VGA (RGB) signal.
35 English
User Controls
DISPLAY
Format
Use this function to choose your desired aspect ratio.
XGA
4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.
Native: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
Auto
Input resolution Auto/Scale
H V H V
4:3
640 480 1024 768
800 600 1024 768
1024 768 1024 768
1280 1024 1024 768
1400 1050 1024 768
1600 1200 1024 768
Wide
Laptop
1280 720 1024 576
1280 768 1024 614
1280 800 1024 640
SDTV 720 576 1024 576
720 480 1024 576
HDTV 1280 720 1024 576
1920 1080 1024 576
36
English
User Controls
Aspect ratio
(source detected) Resize image (XGA)
4:3 1024 x 768 center
16:9 1024 x 576 center
Native
No resize image, 1:1 mapping and
centered. This format shows the
original image without scaling.
WXGA
4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.
16:10: This format is for 16×10 input sources, like widescreen
laptops.
LBX: This format is for non-16x9, letterbox source and for users
who use external 16x9 lens to display 2.35:1 aspect ratio using
full resolution.
Native: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
16:10 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 1066 x 800 center
16:10 1280 x 800 center
LBX 1280 x 960 center, then get the central 1280 x 800 image
to display
Native 1:1 mapping
centered.
1:1 map-
ping (960 x
540) display
1280 x 800
1280 x 720
center
1:1
mapping
centered.
16:9 Screen 480i/p 576i/p 1080i/p 720p PC
4:3 960 x 720 center
16:9 1280 x 720 center
LBX 1280 x 960 center, then get the central 1280 x 720 image
to display
Native 1:1 mapping
centered.
1:1 map-
ping (960 x
540) display
1280 x 720
1280 x 720
center
1:1
mapping
centered.
16:9 or 16:10
depend on “Screen
Type” setting.
37 English
User Controls
Edge Mask
Edge mask function removes the noise in a video image. Edge
mask the image to remove video encoding noise on the edge of
video source.
Zoom
Press the to reduce the size of an image.
Press the to magnify an image on the projection screen.
Image Shift
Press into the next menu as below and then use or to
select item.
H: Use or to shift the projected image position horizontally.
V: Use or to Shift the projected image position vertically.
V Keystone
Press the or to adjust image distortion vertically. If the image
looks trapezoidal, this option can help make the image rectangular.
Auto Keystone (*)
Automatically adjusts vertical image distortion.
Each I/O has
different setting of
“Edge Mask”.
“Edge Mask” and
“Zoom” can’t work at
same time.
(*) For Type B
model only.
38
English
User Controls
3D Mode
Off: Select “Off” to turn 3D settings off for 3D images.
DLP Link: Select “DLP Link” to use optimized settings for DLP
Link 3D images.
IR (*): Select “IR” to use optimized settings for IR-based 3D
images.
3D Format
Auto : When a 3D identication signal is detected, the 3D
format is selected automatically.
SBS: Use this mode for “Side-by-side” format 3D content.
Top and Bottom: Use this mode for “Top and Bottom” format 3D
content.
Frame Sequential: Use this mode for “Frame Sequential”
format 3D content.
3D Sync. Invert
Press the “On” to invert left and right frame contents.
Press the “Off” for default frame contents.
“IR” options may
vary according to
model.
“3D Sync Invert” is
only available when
3D is enabled and
this mode 3D is for
DLP link glass only.
Compatible 3D
source, 3D content
and active shutter
glasses are required
for 3D viewing.
See page 63 for
supported 3D
formats.
(*) For Type B
model only.
DISPLAY | 3D
39 English
User Controls
SETUP
Language (*)
Choose the multilingual OSD menu. Press or into the sub
menu and then use the or key to select your preferred
language. Press “Enter” to nalize the selection.
Projection
Front-Desktop
This is the default selection. The image is projected straight on
the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down
position.
Rear-Desktop and
Rear-Ceiling are
to be used with a
translucent screen.
(*) depend on
model.
40
English
User Controls
Menu Location
Choose the menu location on the display screen.
Screen Type
Choose the screen type from16:10 or 16:9.
Projector ID
ID denition can be set up by menu (range 0-99), and allow user
control an individual projector by RS232. Refer to page 65-68 for
the complete list of RS232 commands.
“Screen Type” is for
WXGA only.
41 English
User Controls
SETUP | Security
Security
On: Choose “On” to use security verication when the turning
on the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Security Timer
Use this function to set the how long (Month/Day/Hour) the
projector can be used. Once this time has elapsed you will be
requested to enter your password again.
Change Password
First time:
1. Press “ ” to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new
password and then press “ ” key to conrm your
password.
Change Password:
1. Press “ ” to input old password.
2. Use number button to enter current password and then
press “ ” to conrm.
3. Enter new password (4 digits in length) using the number
buttons on the remote, then press “ ” to conrm.
4. Enter new password again and press “ ” to conrm.
Password default
value is “1234” (rst
time).
42
English
User Controls
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
ofce for support.
43 English
User Controls
SETUP |
Audio Settings
Internal Speaker (*)
Choose the “On” or “Off” to turn on or off the internal speaker.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Audio Input (*)
The default audio settings are on the back panel of the projector.
Use this option to reassign any of the Audio Inputs (1 or 2) to the
current image source. Each Audio input can be assigned to more
than one video source.
Default.
Audio 1: VGA 1 and VGA 2.
Audio 2: Video.
Volume
Adjust the volume from “Audio”, “MIC” connector. (*)
Press the to decrease the volume.
Press the to increase the volume.
(*) For Type B
model only.
44
English
User Controls
SETUP | Advanced
Logo
Press to capture an image of the picture currently displayed on
screen. If changes are made they will take effect the next time the
projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Closed Captioning
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
Off: select “Off” to turn off the closed captioning feature.
CC1:CC1 language: American English.
CC2:CC2 language (depending on the TV channel of the
user):Spanish, French, Portuguese, German, Danish.
45 English
User Controls
SETUP | LAN
LAN State
Display the network connection status.
DHCP
On: Projector will obtain an IP address automatically from your
network.
Off: To assign IP, Subnet Mask, Gateway and DNS congura-
tion manually.
Exiting OSD will automatically apply the entered values.
IP Address
Display an IP address.
Subnet Mask
Display subnet mask number.
Gateway
Display the default gateway of the network connected to the
projector.
DNS
Display DNS number.
Apply
Press “ ” and then choose “Yes” to apply the selection.
“LAN” is for Type B
model only.
46
English
User Controls
1. Turn on DHCP to allow a DHCP
server to automatically assign an IP, or
manually enter the required network
information.
2. Then choose apply and press “
” button to complete the conguration
process.
3. Open your web browser and type in IP
Address from the OSD LAN screen then
the web page will display as below:
How to use web browser to control your projector
When you use the projector IP ad-
dress, you cannot link to your service
server.
4. Based on network web-page for the
input-string in [tools] tab, the limitation for
Input-Length is in the below list (“space”
and the other punctuation key included):
Category Item Input-Length
(characters)
Crestron Control
IP Address 15
IP ID 2
Port 5
Projector
Projector Name 10
Location 9
Assigned To 9
Network
Conguration
DHCP (Enabled) (N/A)
IP Address 15
Subnet Mask 15
Default Gateway 15
DNS Server 15
User Password
Enabled (N/A)
New Password 15
Conrm 15
Admin Password
Enabled (N/A)
New Password 15
Conrm 15
47 English
User Controls
When making a direct connection from your computer to the projector
Step 1: Find an IP Address (192.168.0.100) from LAN function of projector.
Step 2: Select apply and press “Enter” button to submit function or press “menu” key to
exit.
Step 3: To open Network Connections,
click Start, click Control Panel,
click Network and Internet
Connections, and then click
Network Connections. Click the
connection you want to congure,
and then, under Network Tasks
, click Change settings of
this connection.
Step 4: On the General tab, under
This connection uses the
following items, click Internet
Protocol (TCP/IP), and then click
“Properties.”
Step 5: Click Use the following IP
address, and type in as below:
1) IP address: 192.168.0.100
2) Subnet mask: 255.255.255.0
3) Default gateway:192.168.0.254
Step 6: To open Internet Options, click
IE web browser, click Internet
Options, click the Connections
tab and click “LAN Settings...”
Step 7: The Local Area Network (LAN)
Setting dialog box appears, In the
Proxy Server area, cancel the
Use a proxy server for your LAN
check box., then click “OK” button
twice.
Step 8: Open your IE and type in the IP
address of 192.168.0.100 in the
URL then press “Enter” key.
48
English
User Controls
Crestron RoomView™ provides a central monitoring station for 250+
control systems on a single Ethernet network (more are possible,
the number depends on the combination of IP ID and IP address).
Crestron RoomView monitors each projector, including projector’s
online status, system power, lamp life, network setting and hardware
faults, plus any custom attribute as dened by the Administrator.
The Administrator can add, delete, or edit room information, contact
information and events, which are logged automatically by the
software for all users. (Operation UI as following image)
1. Main Screen
2. Edit Room
Crestron RoomView Control Tool
Crestron Room-
View function sup-
port is dependent
on model.
49 English
User Controls
3. Edit Attribute
4. Edit Event
For more information, please visit
http://www.crestron.com & www.crestron.com/getroomview.
50
English
User Controls
Input Source
Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will not search for inputs that
are not selected.
Source Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current
input signal is lost.
High Altitude
When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.
Information Hide
On: Choose “On” to hide the info message.
Off: Choose “Off” to show the “searching” message.
Keypad Lock
When the keypad lock function is “On”, the control panel will be
locked however, the projector can be operated by the remote
control. By selecting “Off”, you will be able to reuse the control
panel.
Test Pattern
Display a test pattern. There are Grid, White pattern and None.
OPTIONS
51 English
User Controls
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or
“White”, screen when no signal is available.
IR Function (*)
When this function is “On” , the projector can be operated by the
remote control from IR receiver. By selecting “Off”, you will be able
to use the control panel keys.
Reset
Choose “Yes” to return the display parameters on all menus to the
factory default settings.
(*) For Type B
model only.
52
English
User Controls
OPTIONS |
Advanced
Direct Power On
Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the “ ” key on the projector control panel or on the
remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Quick Resume
On: If the projector is accidentally turned off, this feature allows
the projector to be instantly powered on again, if selected
within a period of 100 seconds.
Off: The fan will start cooling the system immediately when user
turns off the projector.
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 0.5W.
Active: Choose “Active” to return to normal standby and the
VGA out port will be enabled.
When Power mode
(Standby) is set to
Eco (<0.5W), the
VGA output and
Audio pass-through
will be deactivated
when the projector is
in standby.
53 English
User Controls
OPTIONS |
Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
Brightness Mode
BRIGHT: Choose “BRIGHT” to increase the brightness.
Eco.: Choose “Eco.” to dim the projector lamp which will lower
power consumption and extend the lamp life.
Eco+: When Eco+ mode is activated, the brightness level of the
content is automatically detected to signicantly reduced
lamp power consumption (up to 70%) during periods of
inactivity.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
When ambient tem-
perature is over 40°C
in operating, the
projector will switch
to Eco automatically.
54
English
User Controls
OPTIONS |
Optional Filter
Settings
Optional Filter Installed
Select “Yes” to display warning message after 500 hours of use.
Select “No” to turn off warning message.
Filter Usage Hours
Display the lter time.
Filter Reminder
Choose this function to show or hide the warning massage when
the changing lter message is displayed. (Factory default setting:
500 hours)
Filter Reset
Reset the dust lter counter after replacing or cleaning the dust
lter.
“Optional Filter
Settings” is only
for Type B model.
55 English
Appendices
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap (optional) and the pro-
jector is switched on.
Ensure that the “AV mute” feature is not turned on.
Partial, scrolling or incorrectly displayed image
Press “Re-Sync” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP, Windows 7:
1. Open the “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Settings” tab.
3. Verify that your display resolution setting is lower than or equal
to UXGA (1600 × 1200).
4. Click on the “Advanced Properties” button.
If the projector is still not projecting the whole image, you will also
need to change the monitor display you are using. Refer to the
following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 × 1200).
6. Select the “Change” button under the “Monitor” tab.
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a
problem persists, please contact your local
reseller or service center.
56
English
Appendices
7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower
than or equal to UXGA (1600 × 1200).
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the appropriate keys listed below for your notebook
manufacturer to send signal out from notebook to projector.
Example: [Fn]+[F4]
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use “Phase” to correct it. See page 34 for more information.
Change the monitor color setting on your computer.
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 34 for more
information.
Check and re-congure the display mode of your graphic card to
make it compatible with the projector.
Acer [Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
Mac Apple:
System Preference Display Arrangement Mirror
display
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba [Fn]+[F5]
57 English
Appendices
Image is out of focus
Make sure the lens cap (optional) is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance.
See pages 19-20.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image when the projector display mode is set to
16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3
in the projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Image is too small or too large
Move the projector closer to or further from the screen.
Press “Menu” button on the remote control, go to “Display
Format” and try the different settings.
Image has slanted sides
If possible, reposition the projector so that it is horizontally
centered on the screen and below the bottom of the screen.
Press “Keystone +/-” button on the remote control or press
“ / ” on the projector panel, until the sides are vertical.
Image is reversed
Select “SETUP Projection” from the OSD and adjust the
projection direction.
Use of Keystone
is not recom-
mended.
58
English
Appendices
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Check that “Keypad Lock” is not activated by trying to control the
projector with the remote control.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace the
lamp, follow the procedures in the “Replacing the Lamp” section on
pages 60-61.
LED lighting message
Steady light
No light
Message POWER/STAND-
BY LED Temp-LED Lamp-LED
(Green/Amber) (Red) (Red)
Standby State
(Input power cord) Amber
Power on (Warming) Flashing
Green
Lamp lighting Green
Power off (Cooling) Flashing
Green
Quick Resume(100
secs)
Flashing
Green
Error (Over Temp.) Flashing
Amber
Error (Fan fail) Flashing
Amber Flashing
Error (Lamp fail) Flashing
Amber
＊ POWER/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
59 English
Appendices
On Screen Messages
Temperature warning:
Fan failed:
Lamp warning:
Out of display range:
Filter warning:
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of one of the IR receivers on the
projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 7 m (±0°) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
60
English
Appendices
Replacing the lamp
The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.
When you see this message, please contact your local reseller
or service center to change the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Warning: Lamp compartment may be hot! Allow it to cool
down before changing the lamp!
Warning: To reduce the risk of personal injury, do not drop
the lamp module or touch the lamp bulb. The bulb may shat-
ter and cause injury if it is dropped.
Warning: If ceiling mounted, please use caution when
opening the lamp access panel. It is recommended to wear
safety glasses if changing the bulb when ceiling mounted.
“Caution must be used to prevent any loose parts from fall-
ing out of projector.”
61 English
Appendices

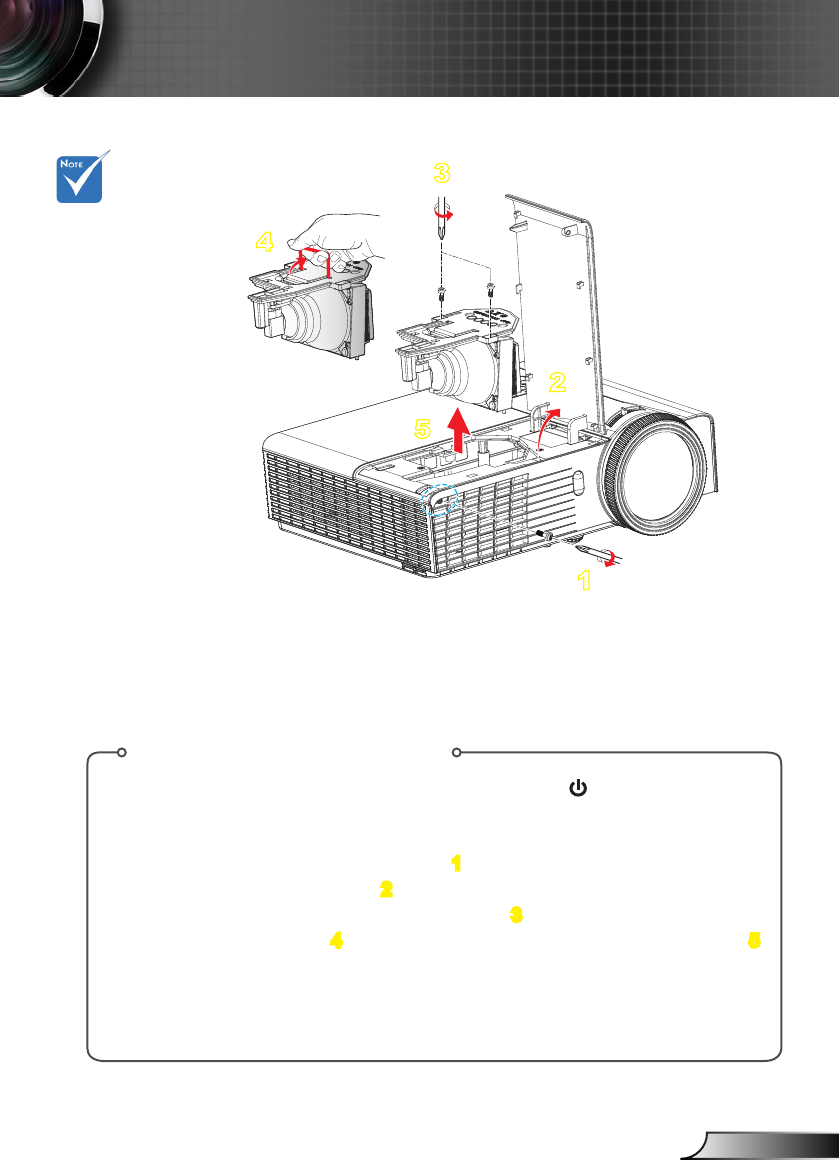

Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the two screws on the lamp module. 3
7. Lift up the lamp handle 4 and remove the lamp module slowly and carefully. 5
To replace the lamp module, reverse the previous steps.
8. Turn on the projector and reset the lamp timer.
Lamp Reset: (i) Press “Menu” (ii) Select “OPTIONS” (iii) Select
“Lamp Settings” (iv) Select “Lamp Reset” (v) Select “Yes”.
The screws on the
lamp cover and the
lamp cannot be
removed.
The projector
cannot be turned
on if the lamp
cover has not been
placed back on the
projector.
Do not touch the
glass area of the
lamp. Hand oil can
cause the lamp to
shatter. Use a dry
cloth to clean the
lamp module if it
was accidentally
touched.
1
2
3
4
5
62
English
Appendices
For widescreen
resolution
(WXGA), the
compatibility sup-
port is dependent
on Notebook/PC
models.
Please note that
using resolutions
other than native
1024 x 768 (XGA
model), 1280
x 800 (WXGA
model) may result
in some loss of
image clarity.
(*1) 1920 x1200
@60Hz only sup-
port RB (reduced
blanking).
(*2) 3D timing for
True 3D projector.
(*3) is not sup-
ported HDMI
input singal for
Mac.
(*4) is only for
Type A model.
120Hz input
signals may be
dependent on
graphics cards
support.
Compatibility Modes
Computer/Video/HDMI/Mac Compatibility
Signal Resolution Refresh Rate
(Hz) Video Analog HDMI Mac
NTSC 720 x 480 60 O - - -
PAL/SECAM 720 x 576 50 O - - -
VGA
640 x 480 60 - O O O
640 x 480 67 - O - -
640 x 480 72.8 - O - O
640 x 480 85 - O - O
SVGA
800 x 600 56.3 - O - -
800 x 600 60.3 (*2) - O O O
800 x 600 72.2 - O O O
800 x 600 85.1 - O O O
800 x 600 120 (*2) - O O -
XGA
1024 x 768 60 (*2) - O O O
1024 x 768 70.1 - O O O
1024 x 768 75 - O O O
1024 x 768 85 - O O O
1024 x 768 120 (*2) - O O -
WSVGA 1024 x 600 60 - - O O
HDTV (720p)
1280 x 720 50 O O O -
1280 x 720 60 (*2) OOOO
1280 x 720 120 (*2) - O O -
WXGA
1280 x 768 60 - O O O (*3)
1280 x 768 75 - O O O
1280 x 768 85 - O O O (*3)
1280 x 800 60 - O O O
1366 x 768 60 (*4) - O O -
WXGA+ 1440 x 900 60 (*4) - O O -
SXGA
1280 x 1024 60 - O O O
1280 x 1024 75 - O O O
1280 x 1024 85 - O O -
SXGA+ 1400 x 1050 60 - O O -
UXGA 1600 x1200 60 - O O -
HDTV (1080p)
1920 x 1080 24 O O O -
1920 x 1080 30 - - O -
1920 x 1080 50 O O O -
1920 x 1080 60 O O O O
HDTV (1080i)
1920 x 1080 50 O - O -
1920 x 1080 60 O - O -
WUXGA 1920 x 1200 60 (*1) - O O O
63 English
Appendices
3D Input Video Compatibility
Signal Resolution Refresh Rate
(Hz) Video Analog HDMI Mac
SDTV (576i) 768 x 576 50 O - O -
SDTV (576p) 768 x 576 50 O - O -
SDTV (480i) 640 x 480 60 O - O -
SDTV (480p) 640 x 480 60 O - O -
Input
Resolution
HDMI 1.4a 3D
Input
Input Timing
1280 x 720p @ 50Hz Top-and-Bottom
1280 x 720p @ 60Hz Top-and-Bottom
1280 x 720p @ 50Hz Frame packing
1280 x 720p @ 60Hz Frame packing
1920 x 1080i @ 50 Hz Side-by-Side (Half)
1920 x 1080i @ 60 Hz Side-by-Side (Half)
1920 x 1080p @ 24 Hz Top-and-Bottom
1920 x 1080p @ 24 Hz Frame packing
HDMI 1.3 3D
Content
1920 x 1080i @ 50Hz
Side-by-Side (Half) While 3D Format is
“SBS”
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
1280 x 720p @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom While 3D Format is
“Top and Bottom”
1920 x 1080i @ 60Hz
1280 x 720p @ 50Hz
1280 x 720p @ 60Hz
480i HQFS While 3D Format is
“Frame sequential”
64
English
Appendices
RS232 Pin Assignments
RS232 Commands and Protocol
Function List
RS232 shell is
grounded.
Pin no. Spec.
(from projector side)
1N/A
2 RXD
3 TXD
4N/A
5 GND
6N/A
7N/A
8N/A
9N/A
12345
6789
65 English
Appendices
RS232 Protocol Function List
Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
1. There is a <CR> after
all ASCII commands.
2. 0D is the HEX code
for <CR> in ASCII
code.
XX=00-99, projector's ID,
XX=00 is for all projectors
Optoma X305ST/W305ST/X306ST/W306ST RS232 & Telnet Command
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
sdna mmoc IIC SA l la retfa > RC < a si erehT : eto N 0 0 6 9 : e t a R d u a B
edoc IIC S A ni > RC < rof edoc X EH eht s i D0 8 : s t i B a t a D
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
P : ) s s a P ( n r u t e R r o t c e j o r P
Projector Return (Fail): F XX=01-99, projector's ID, XX=00 is for all projectors
Note : the ~XX must be set as ~00 when use on telnet command no matter what ID projector has. eg: telnet with ~0004 1 can execute Freeze function but ~3804 1 can't.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to projector (telnet supported)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute On
~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
(Type A : X305ST/W305ST)
~XX12 1 7E 30 30 31 32 20 31 0D HDMI
~XX12 5 7E 30 30 31 32 20 35 0D VGA 1
~XX12 6 7E 30 30 31 32 20 36 0D VGA 2
~XX12 9 7E 30 30 31 32 20 39 0D S-Video
~XX12 10 7E 30 30 31 32 20 31 30 0D Video
~XX100 3 7E 30 30 31 30 30 20 33 0D Next source
(Type B : X306ST/W306ST)
~XX12 7 7E 30 30 31 32 20 37 0D VGA1 SCART
~XX12 8 7E 30 30 31 32 20 38 0D VGA1 Component
~XX12 9 7E 30 30 31 32 20 39 0D VGA2 Component
~XX12 10 7E 30 30 31 32 20 31 30 0D Video
~XX100 3 7E 30 30 31 30 30 20 33 0D Next source
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30)
~9999 (a=7E 39 39 39 39)
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColorTM n = 0 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film
~XX35 2 7E 30 30 33 35 20 32 0D Video
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 4 7E 30 30 33 35 20 34 0D Standard
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation
~XX20 2 7E 30 30 32 30 20 32 0D Bright
~XX20 3 7E 30 30 32 30 20 33 0D Movie
~XX20 4 7E 30 30 32 30 20 34 0D sRGB
~XX20 5 7E 30 30 32 30 20 35 0D User
~XX20 7 7E 30 30 32 30 20 37 0D Blackboard
~XX20 8 7E 30 30 32 30 20 39 0D 3D
~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 1 (a=31) ~ 15 (a=31 35)
~XX170 n 7E 30 30 31 37 30 20 a 0D Color Settings Red Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX171 n 7E 30 30 31 37 31 20 a 0D Red Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX24 n 7E 30 30 32 34 20 a 0D Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX172 n 7E 30 30 31 37 32 20 a 0D Green Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX173 n 7E 30 30 31 37 33 20 a 0D Green Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX174 n 7E 30 30 31 37 34 20 a 0D Blue Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX175 n 7E 30 30 31 37 35 20 a 0D Blue Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX176 n 7E 30 30 31 37 36 20 a 0D Cyan Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX177 n 7E 30 30 31 37 37 20 a 0D Cyan Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX30 n 7E 30 30 33 30 20 a 0D Cyan Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX180 n 7E 30 30 31 38 30 20 a 0D Magenta Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX181 n 7E 30 30 31 38 31 20 a 0D Magenta Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX32 n 7E 30 30 33 32 20 a 0D Magenta Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX178 n 7E 30 30 31 37 38 20 a 0D Yellow Hue n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX179 n 7E 30 30 31 37 39 20 a 0D Yellow Saturation n= -45 (a=2D 34 35)~ +45(a=34 35)
~XX31 n 7E 30 30 33 31 20 a 0D Yellow Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1 7E 30 30 33 33 20 31 0D Reset
66
English
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB\RGB(0-255)
~XX37 3 7E 30 30 33 37 20 33 0D YUV
~XX37 4 7E 30 30 33 37 20 34 0D RGB(16 - 235)
~XX45 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n 7E 30 30 34 35 20 a 0D Tint n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3
~XX60 2 7E 30 30 36 30 20 32 0D 16:9
~XX60 3 7E 30 30 36 30 20 33 0D 16:10 (WXGA)
~XX60 5 7E 30 30 36 30 20 35 0D LBX
~XX60 6 7E 30 30 36 30 20 36 0D Native
~XX60 7 7E 30 30 36 30 20 37 0D Auto
~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
~XX230 3 7E 30 30 32 33 30 20 31 0D 3D Mode Off (Type A model)
~XX230 1 7E 30 30 32 33 30 20 31 0D 3D Mode DLP-Link
~XX230 2 7E 30 30 32 33 30 20 31 0D 3D Mode IR (Type B model)
~XX405 0 7E 30 30 34 30 35 20 30 0D 3D format Off
~XX405 1 7E 30 30 34 30 35 20 31 0D 3D format SBS
~XX405 2 7E 30 30 34 30 35 20 32 0D 3D format Top and Bottom
~XX405 3 7E 30 30 34 30 35 20 33 0D 3D format Frame Sequential
~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert On
~XX231 0 7E 30 30 32 33 31 20 30 0D 3D Sync Invert Off (0/2 for backward compatible)
~XX70 1 7E 30 30 37 30 20 31 0D Language English
~XX70 2 7E 30 30 37 30 20 32 0D German
~XX70 3 7E 30 30 37 30 20 33 0D French
~XX70 4 7E 30 30 37 30 20 34 0D Italian
~XX70 5 7E 30 30 37 30 20 35 0D Spanish
~XX70 6 7E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7E 30 30 37 30 20 37 0D Polish
~XX70 8 7E 30 30 37 30 20 38 0D Dutch
~XX70 9 7E 30 30 37 30 20 39 0D Swedish
~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7E 30 30 37 30 20 31 39 0D Czech
~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi
~XX70 25 7E 30 30 37 30 20 32 35 0D Vietnamese
~XX70 26 7E 30 30 37 30 20 32 36 0D Indonesia
~XX70 27 7E 30 30 37 30 20 32 37 0D Romanian
~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7E 30 30 37 32 20 32 0D Top Right
~XX72 3 7E 30 30 37 32 20 33 0D Centre
~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
WXGA only
~XX90 1 7E 30 30 39 31 20 31 0D Screen Type 16:10
~XX90 0 7E 30 30 39 31 20 30 0D 16:9
~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 n 7E 30 30 39 31 20 a 0D Automatic n = 0 disable; n = 1 enable
~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh
mm= 00 (aa=30 30) ~ 12 (aa=31 32)
dd = 00 (bb=30 30) ~ 30 (bb=33 30)
hh= 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable
~XX78 0 ~nnnn 7E 30 30 37 38 20 32 20 a 0D Disable(0/2 for backward compatible)
~nnnn = ~0000 (a=7E 30 30 30 30)
~9999 (a=7E 39 39 39 39)
~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
67 English
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to emulate Remote
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Type B model only
~XX310 1 7E 30 30 33 31 30 20 31 0D Internal Speaker On
~XX310 0 7E 30 30 33 31 30 20 30 0D Off (0/2 for backward compatible)
~XX80 1 7E 30 30 38 30 20 31 0D Mute On
~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)
~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 10 (a=31 30)
~XX82 1 7E 30 30 38 32 20 31 0D Logo Default
~XX82 3 7E 30 30 38 32 20 33 0D Neutral
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off
~XX88 1 7E 30 30 38 38 20 31 0D cc1
~XX88 2 7E 30 30 38 38 20 32 0D cc2
~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On
~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)
~XX100 3 7E 30 30 31 30 30 20 33 0D Next Source
~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)
~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On
~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)
~XX103 1 7E 30 30 31 30 33 20 31 0D Keypad Lock On
~XX103 0 7E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7E 30 30 31 30 34 20 32 0D Black
~XX104 3 7E 30 30 31 30 34 20 33 0D Red
~XX104 4 7E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White
~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible)
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30)
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 995 (a=39 39 39)
~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On
~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)
~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby) Eco.(<=0.5W)
~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible)
~XX322 1 7E 30 30 33 32 32 20 31 0D Filter Reminder On
~XX322 0 7E 30 30 33 32 32 20 30 0D Off (0/2 for backward compatible)
~XX323 1 7E 30 30 33 32 33 20 31 0D Filter Reset Ye s
~XX323 0 7E 30 30 33 32 33 20 30 0D No (0/2 for backward compatible)
~XX321 1 7E 30 30 33 32 31 20 31 0D Filter Hour
~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)
~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright
~XX110 2 7E 30 30 31 31 30 20 32 0D Eco
~XX110 3 7E 30 30 31 31 30 20 33 0D Eco+
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)
~XX320 1 7E 30 30 33 32 30 20 31 0D Optional Filter Installed Yes
~XX320 0 7E 30 30 33 32 30 20 30 0D Optional Filter Installed No (0/2 for backward compatible)
~XX322 0 7E 30 30 33 32 32 20 30 0D Filter Reminder Off
~XX322 1 7E 30 30 33 32 32 20 31 0D Filter Reminder 300hr
~XX322 2 7E 30 30 33 32 32 20 32 0D Filter Reminder 500hr
~XX322 3 7E 30 30 33 32 32 20 33 0D Filter Reminder 1000hr
~XX323 1 7E 30 30 33 32 33 20 31 0D Filter Reset Yes
~XX323 0 7E 30 30 33 32 33 20 30 0D Filter Reset No (0/2 for backward compatible)
~XX195 0 7E 30 30 31 39 35 20 30 0D Test pattern None
~XX195 1 7E 30 30 31 39 35 20 31 0D Grid
~XX195 2 7E 30 30 31 39 35 20 32 0D White Pattern
~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes
~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert
~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters
~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up
~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone –
~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume –
~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom
68
English
Appendices
SEND from projector automatically
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector (telnet supported)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
System status INFOn n : 0/1/2/3/4/6/7/8 = Standby/Warming/Cooling/Out of Range/
Lamp fail/Fan Lock/Over Temperature/
Lamp Hours Running Out
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source OKn
(Type A model) n : 0/1/2/3/4/5 = None/VGA1/VGA2/S-Video/Video/HDMI
(Type B model) n : 0/1/2/3/4 = None/VGA1/VGA2/Video/HDMI
~XX122 1 7E 30 30 31 32 32 20 31 0D Software Version OKdddd dddd: FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5/6/7 = None/Presentation/Bright/Movie/sRGB/
User/Blackboard/3D
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0/1/2/3 = 4:3/16:9/Native/AUTO (XGA)
n: 0/1/2/3/4/5 = 4:3/16:9/16:10/LBX/Native/AUTO (WXGA)
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/Rear-Desktop/Front-Ceiling/
Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde
a : 0/1 = Off/On
bbbb: LampHour
cc: source
(Type A model) 00/01/02/03/04/05 = None/VGA1/VGA2/S-Video/Video/HDMI
(Type B model) 00/01/02/03/04 = None/VGA1/VGA2/Video/HDMI
dddd: FW version
e : Display mode 0/1/2/3/4/5/6/7 = None/Presentation/Bright/Movie/
sRGB/User/Blackboard/3D
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn (Type A) n:1/2 = X305ST/W305ST
(Type B) n:1/2 = X306ST/W306ST
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours
69 English
Appendices
Please note that
damage resulting
from incorrect
installation will void
the warranty.

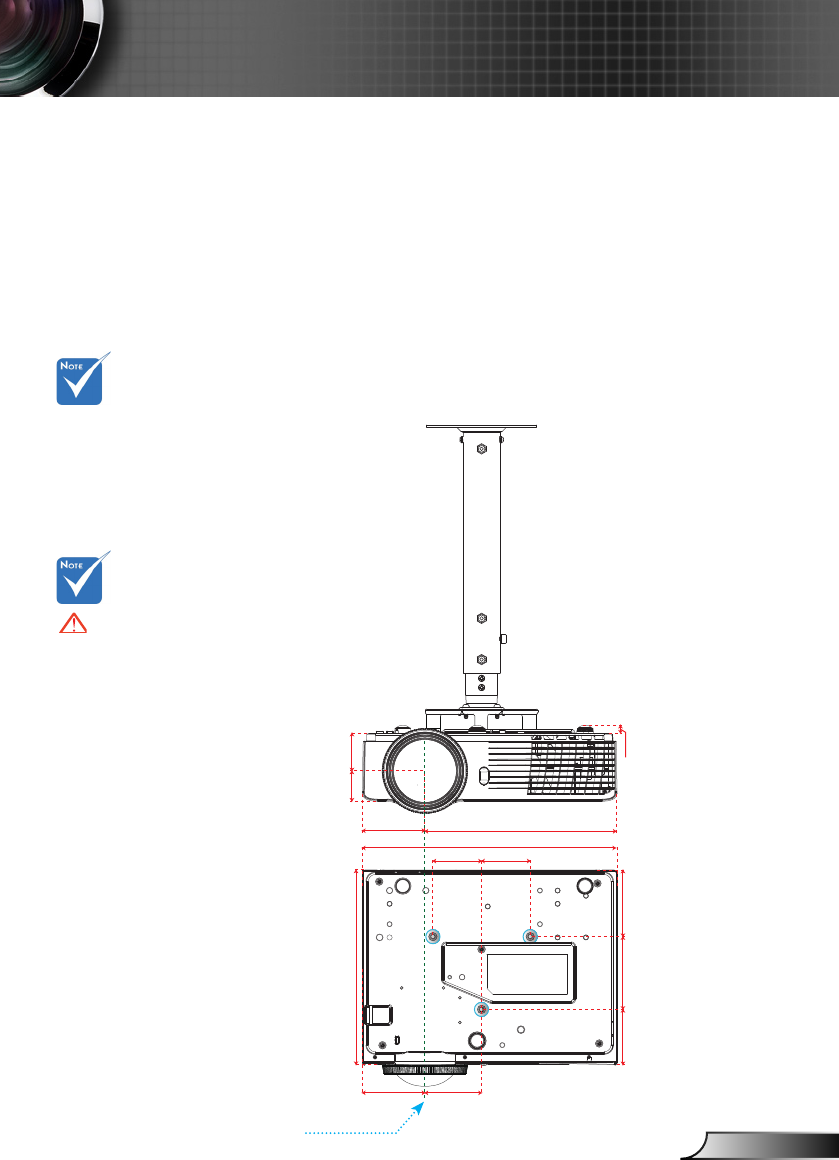

Wall Mount Installation
1. To prevent damage to your projector, please use the
Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attach a mount to the projector
meet the following specifications:
Screw type: M4*3
Maximum screw length: 11mm
Minimum screw length: 8mm
Warning:
1. If you buy a ceiling
mount from another
company, please
be sure to use the
correct screw size.
Screw size will vary
depending on the
thickness of the
mounting plate.
2. Be sure to keep
at least 10 cm gap
between the ceiling
and the bottom of the
projector.
3. Avoid installing the
projector near a heat
source.
82.30
75.23
55.00 55.00
62.56
64.00
70.80
288.00
220.09 42.77
34.23
70.80 216.20
9.00
Unit: mm
Lens
70
English
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Canada
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Latin America
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Europe
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire,
WD18 8QZ, UK +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Service Tel : +44 (0)1923 691865 service@tsc-europe.com
Benelux BV
Randstad 22-123 +31 (0) 36 820 0253
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
92100 Boulogne Billancourt, France savoptoma@optoma.fr
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
71 English
Appendices
USA
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Canada
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Latin America
3178 Laurelview Ct. 888-289-6786
Fremont, CA 94538, USA 510-897-8601
www.optomausa.com services@optoma.com
Europe
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire,
WD18 8QZ, UK +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Service Tel : +44 (0)1923 691865 service@tsc-europe.com
Benelux BV
Randstad 22-123 +31 (0) 36 820 0253
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
92100 Boulogne Billancourt, France savoptoma@optoma.fr
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670
D40549 Düsseldorf, +49 (0) 211 506 66799
Germany info@optoma.de
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
Norway info@optoma.no
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD.
4F,Minu Bldg.33-14, Kangnam-Ku, +82+2+34430004
seoul,135-815, KOREA +82+2+34430005
Japan
東京都足立区綾瀬3-25-18
株式会社オーエス info@os-worldwide.com
コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.215,Sec. 3, Beixin Rd., +886-2-8911-8600
Xindian Dist., New Taipei City 231, +886-2-8911-6550
Taiwan, R.O.C. services@optoma.com.tw
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, +852-2396-8968
Cheung Sha Wan, +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376
Changning District +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
72
English
Appendices
Regulation & Safety Notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television
technician for help.
Notice: Shielded cables
All connections to other computing devices must be
made using shielded cables to maintain compliance with
FCC regulations.
Caution
Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission, to
operate this projector.
73 English
Appendices
Disposal instructions
Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian
ICES-003.
Remarque à l’intention des utilisateurs
canadiens
Cet appareil numerique de la classe B est conforme a la
norme NMB-003 du Canada.
Declaration of Conformity for EU
countries
• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)

Navigation menu
