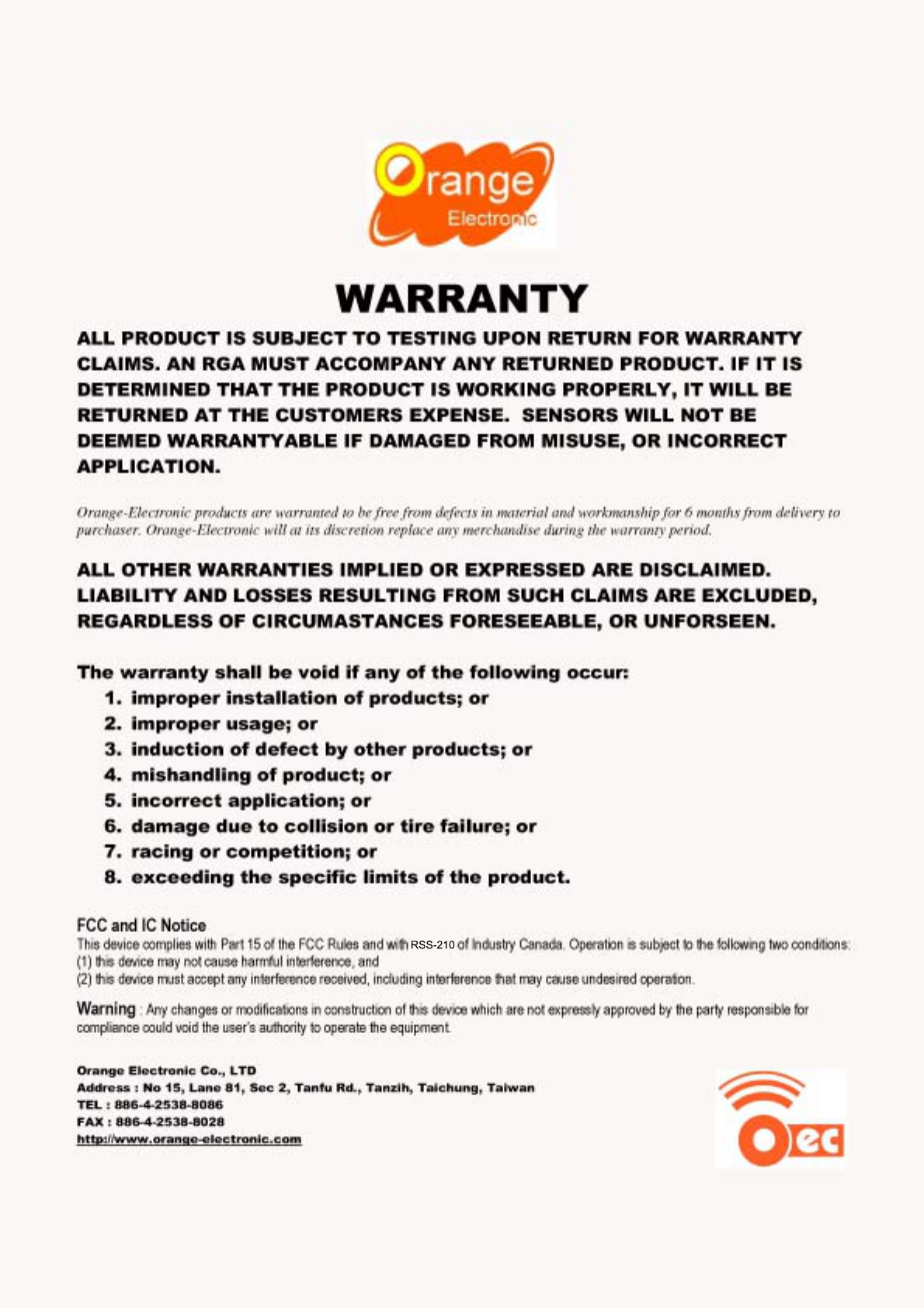

Orange Electronic AMF01 Tire pressure sensor User Manual WARRANTY Orange 2010 9 9 V1 2
Orange Electronic CO., LTD Tire pressure sensor WARRANTY Orange 2010 9 9 V1 2
Users Manual

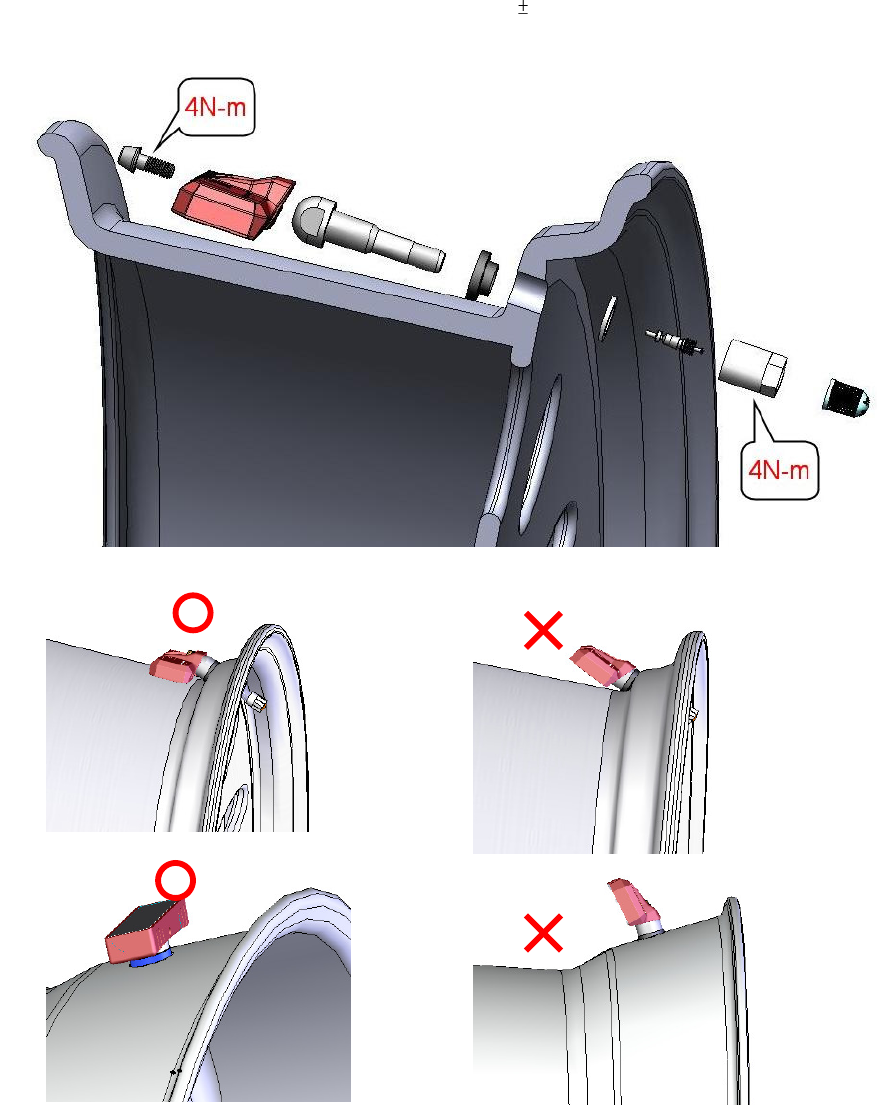

TPM Sensor Installation Instructions
1. Make sure and clean valve stem hole in rim of any corrosion or dirt
2. Remove washer, nut and cap from the valve stem on the sensor.
3. Push valve stem through the rim, install washer, tighten nut to 4 0.5Nm then tighten cap.
4. Holding sensor body down against rim while tighten screw.
Replace grommet and screw with every tire change.
It is imperative to replace the sensor if sensor is externally damaged (especially the plastic bridge part where the valve
stem is connected.)
