Oregon Scientific Lw301 Lw302 Owners Manual

2014-08-26

: Oregon-Scientific Oregon-Scientific-Lw301-Lw302-Owners-Manual oregon-scientific-lw301-lw302-owners-manual oregon-scientific pdf

Open the PDF directly: View PDF .
Page Count: 13

CONTENTS

Introduction ............................................................... 2

Packaging Contents ................................................. 2

Communications set ............................................ 2

Wind sensor ......................................................... 2

Temperature & humidity sensor ........................... 3

Rain gauge .......................................................... 3

Accessories - Sensors ............................................. 3

Overview .................................................................... 4

Internet-connected hub ........................................ 4

Weather sensor receiver ...................................... 4

Wind sensor ......................................................... 4

Outdoor temperature / humidity sensor ............... 5

Rain gauge .......................................................... 5

Getting Started .......................................................... 5

Set up remote wind sensor .................................. 5

Set up remote temperature / humidity sensor ...... 6

Set up rain gauge ................................................ 6

Set up weather sensor receiver ........................... 6

Internet-connected hub installation ...................... 7

Download application ...........................................7

Verify Connection ..................................................... 8

Mounting / Placing of sensors ................................8

Wind sensor ......................................................... 8

Temperature & humidity sensor ........................... 9

Rain gauge .......................................................... 9

View Readings on PC ............................................. 10

Reset ........................................................................ 10

Specications ......................................................... 10

Weather sensor receiver .................................... 10

Indoor barometer ............................................... 10

Remote wind sensor unit ................................... 10

Outdoor temperature & humidity unit

Relativetemperature .......................................... 10

Relative humidity ............................................... 11

RF transmission ................................................. 11

Remote rain gauge ............................................ 11

Precautions ............................................................. 11

About Oregon Scientic ........................................12

EU-Declaration of Conformity ............................... 12

FCC Statement ........................................................ 12

Anywhere Weather Kit

Model: LW301/LW301U/LW301A

Anywhere Weather Kit Basic

Model: LW302/LW302U/LW302A

USER MANUAL

LW301_UM_EN_R8.indd 1 2012/8/14 3:05:30 PM

INTRODUCTION

LW301/302

Thank you for selecting the Oregon Scientic™ Anywhere

Weather Kit (LW301) or Kit Basic (LW302). Either one can

collect weather data via a weather sensor receiver from

different accessorial sensors, and then send the data

back to Oregon Scientic Internet server via Internet-

connected hub through Internet. It also provides a solution

for the user to have a weather station connection that can

be remote accessed from their mobile device, such as

smartphone or tablet PC.

NOTE Please keep this manual handy as you use

your new product. It contains practical step-by-step

instructions, as well as technical specifications and

warnings you should know about.

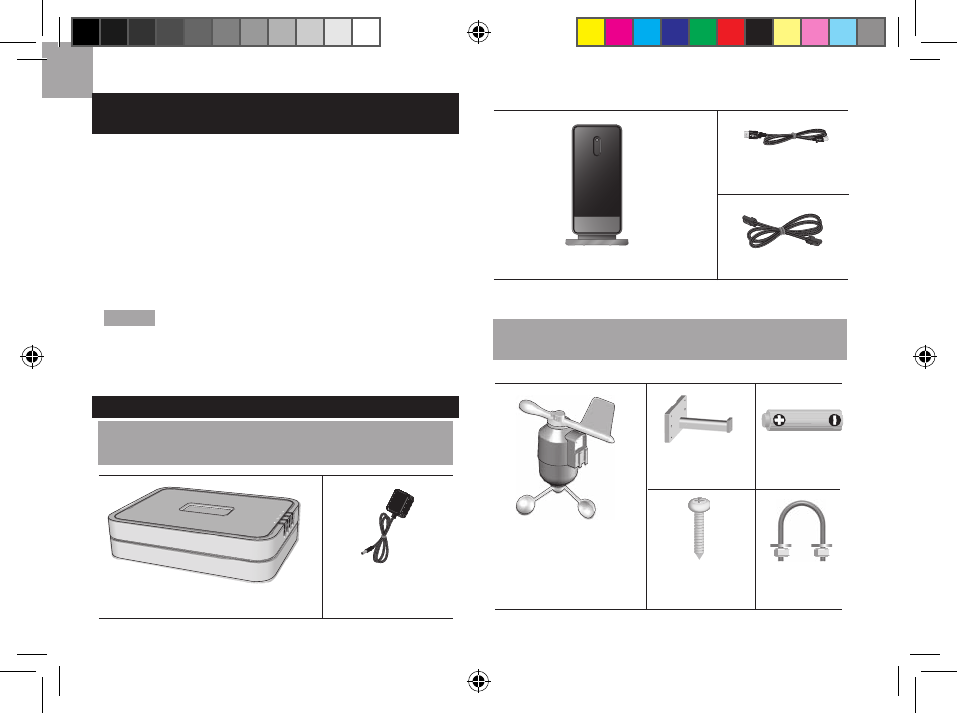

PACKAGING CONTENTS

COMMUNICATIONS SET

LW301/302

WIND SENSOR

LW301

1 x Internet-connected hub

1 x Weather sensor receiver

1 x Power adapter

(May vary in

different countries)

1 x receiver

connection cable

1 x LAN cable

1 x sensor

connector 2 x AA UM-3

1.5V batteries

4 x Screws

(Type A)

1 x Round

U- bolt

1 x Wind Sensor

(WGR800)

(1 x Wind Vane above

and

1 x Anemometer below)

LW301_UM_EN_R8.indd 2 2012/8/14 3:05:44 PM

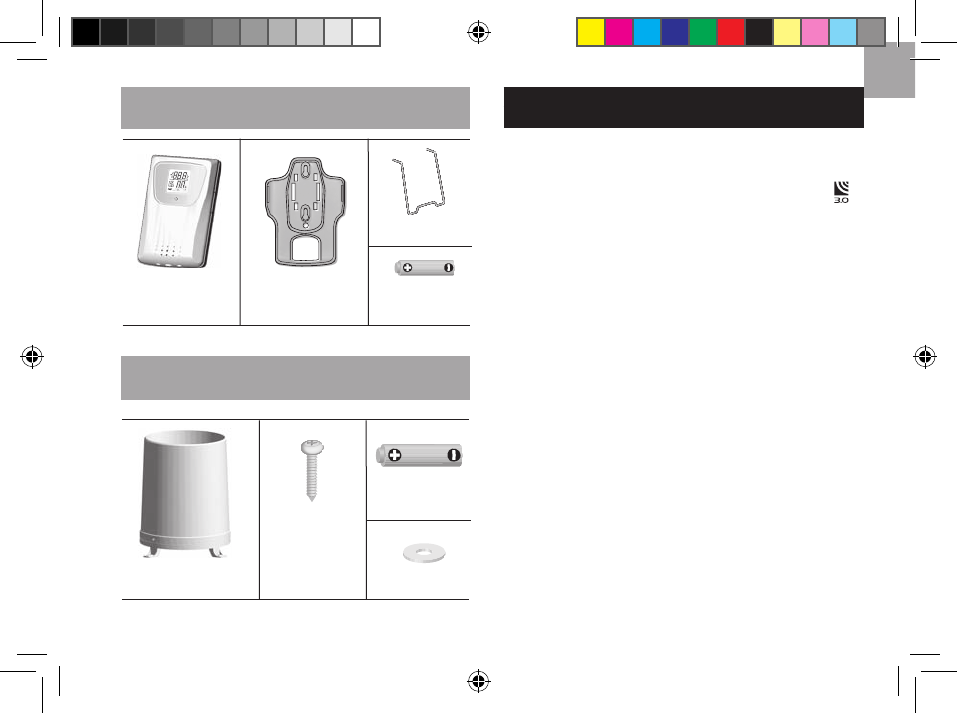

TEMPERATURE & HUMIDITY SENSOR

LW301/302

RAIN GAUGE

LW301

ACCESSORIES – SENSORS

LW301/302

You can expand the system by adding up to 8 sensors

at any one time to capture outdoor temperature and

relative humidity in various locations.

Optional wireless remote sensors with this logo

such as those listed below are also compatible with the

weather sensor receiver. For more information of these

sensors, please contact your local retailer.*

• THGN801 (Wireless Temp. & Humidity Sensor)

• THGR/THGN800 (Thermometer & Humidity Sensor

with 3 Channels

• THGR/THGN810 (Thermometer & Humidity Sensor

with 10 Channels

• UVN800 (Ultra-violet Index Sensor)

• PCR800 (Wireless Rain Gauge)

• THWR800 (Wireless Floating Temperature Sensor)

* Features and accessories will not be available in

all countries.

2 x AAA UM-4

1.5V battery

1 x wall mount

bracket

1 x Temperature /

Humidity Sensor

(THGR800)

1 x Table stand

2 x AA UM-3

1.5V batteries

4 x Screws

(Type C)

1 x Rain Collector

(PCR800) 6 x Washers

LW301_UM_EN_R8.indd 3 2012/8/14 3:06:02 PM

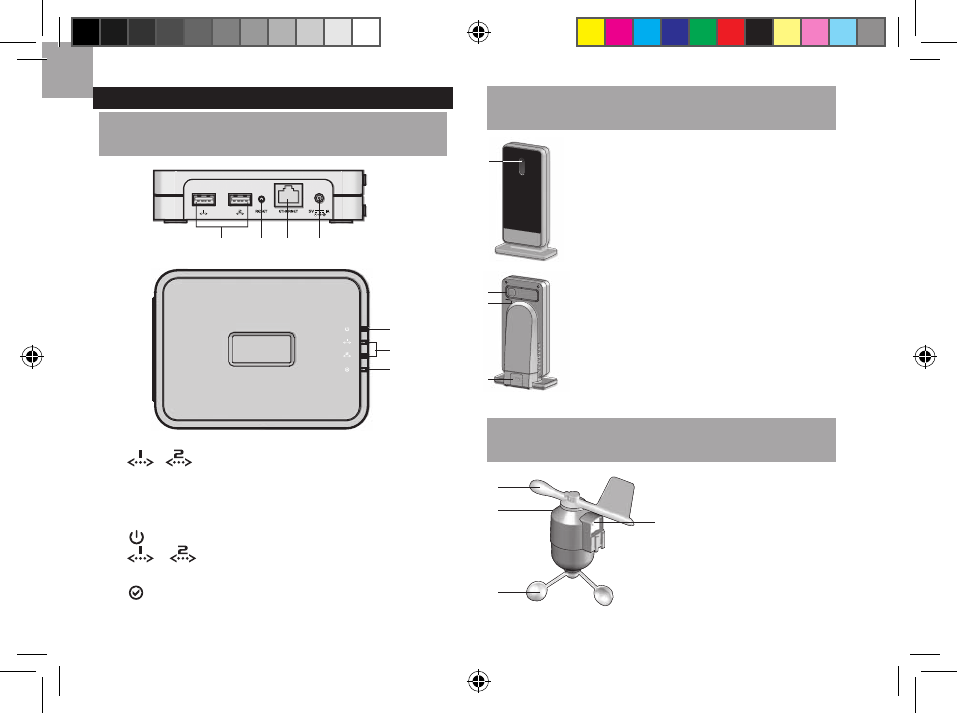

OVERVIEW

INTERNET-CONNECTED HUB

LW301/302

4321

1. / Receiver connection socket (1 or 2)

2. RESET hole: return to default settings

3. ETHERNET socket: connect LAN cable

4. Power adaptor socket

5. : power indicator

6. / indicators: Receiver connection cable

(1 or 2) is plugged

7. : data is being transferred

WEATHER SENSOR RECEIVER

LW301/302

WIND SENSOR

LW301

Front View:

1. Wind direction

2. Wind vane casing

3. Anemometer

4. Solar power socket

LED status indicator: Blinks during

search; continuous light indicates a

successful connection

1. SEARCH:

Initiate search for remote sensors

2. RESET: return to default settings

3. USB socket: Upload records to

Internet-connected hub

Back View:

LW301_UM_EN_R8.indd 4 2012/8/14 3:06:08 PM

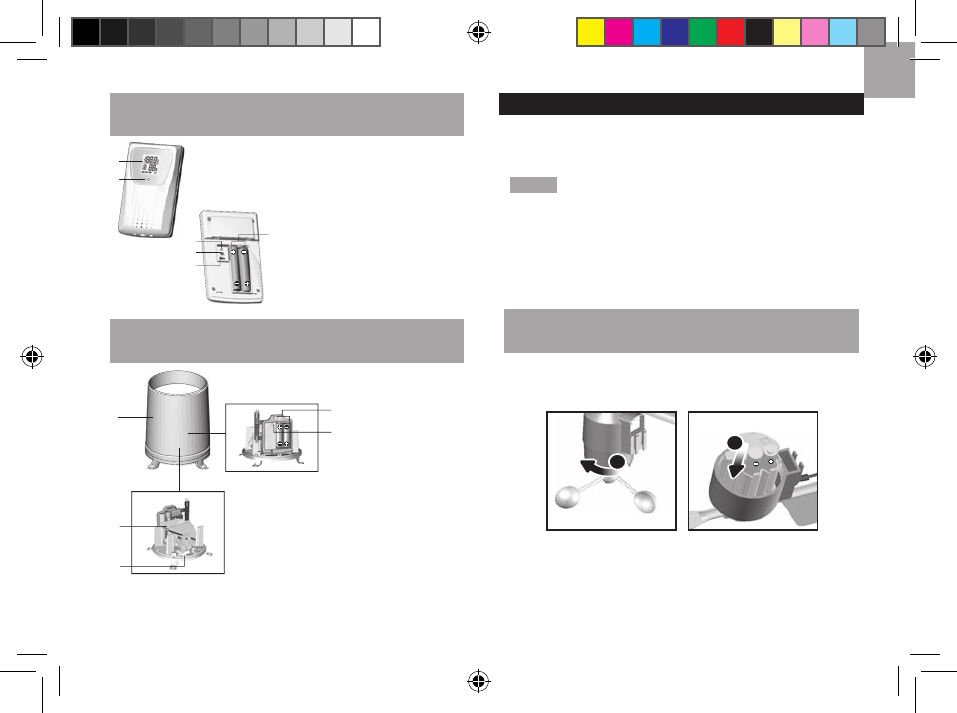

OUTDOOR TEMPERATURE / HUMIDITY SENSOR

LW301/302

RAIN GAUGE

LW301

GETTING STARTED

The provided sensors are battery operated. Each is capable

of transmitting data to the weather sensor receiver wirelessly

within an approximate operating range of 100 meters (328 feet).

NOTE

• Use disposable alkaline batteries for longer usage

and consumer grade lithium batteries in temperatures

below freezing. Do not use rechargeable batteries.

• Batteries should not be exposed to excessive heat

such as sunshine or re.

SET UP REMOTE WIND SENSOR

LW301

The wind sensor takes wind speed and direction readings.

To insert batteries:

Unscrew the anemometer from the wind sensor carefully.

2. Insert batteries matching the polarities (+ / -) and replace the

anemometer. Press RESET after each battery change.

C F

1. LCD screen

2. LED status indicator

3. RESET hole

4. °C / °F:

select temperature unit

5. CHANNEL switch

6. Battery compartment

1. Rain gauge

2. Battery compartment

3. RESET

4. Funnel

5. Balance indicator

LW301_UM_EN_R8.indd 5 2012/8/14 3:06:13 PM

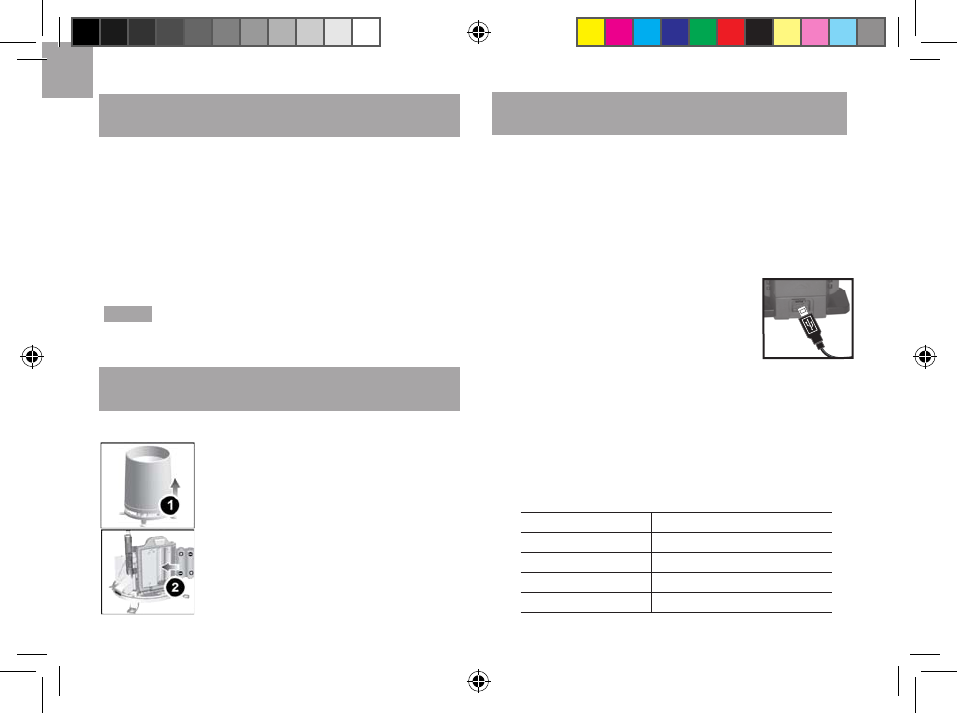

SET UP REMOTE TEMPERATURE / HUMIDITY SENSOR

LW301/302

1. Slide to open the battery compartment cover.

2. Slide channel switch to select a channel (1, 2, 3).

Ensure you use a different channel for each sensor.

3. Place the batteries in the compartment following the

polarity label +/-.

4. Press RESET after each battery change.

5. Align the cover at against the battery compartment,

then slide it until it clicks into place to lock the cover.

NOTE Ensure to set at least one sensor to be channel

one, the data of channel one will be shown on LIVE page

in the application (page 8).

SET UP RAIN GAUGE

LW301

The rain gauge collects rain and takes rainfall readings.

SET UP WEATHER SENSOR RECEIVER

LW301/302

For continuous use, connect the weather sensor receiver

to Internet-connected hub using receiver connection

cable provided.

1. Using provided LAN cable, connect one end to the

ETHERNET socket on the Internet-connected hub

and the other end to the router.

2. Using provided receiver connection cable, connect one

end to the receiver connection socket

(1 or 2) on the Internet-connected hub

and the other end into the USB socket

on the weather sensor receiver. on the

weather sensor receiver.

3. Plug the large end of the power adapter into a power

outlet not controlled by a wall switch. Plug the small

end of the power adapter into the power socket on

the Internet-connected hub.

4. Once connected, the weather sensor receiver will

send the data to the Internet-connected hub via

receiver connection cable.

LED Light Meaning

Continuously on Connection successful

Fast blink Searching

Slow blink Lost link

Protracted blink No device found

1. Remove screws and slide the cover

off in an upwards motion.

2. Place the batteries in the compartment

following the polarity label +/-. Press

RESET after each battery change.

3. Remove the bre tape.

LW301_UM_EN_R8.indd 6 2012/8/14 3:06:15 PM

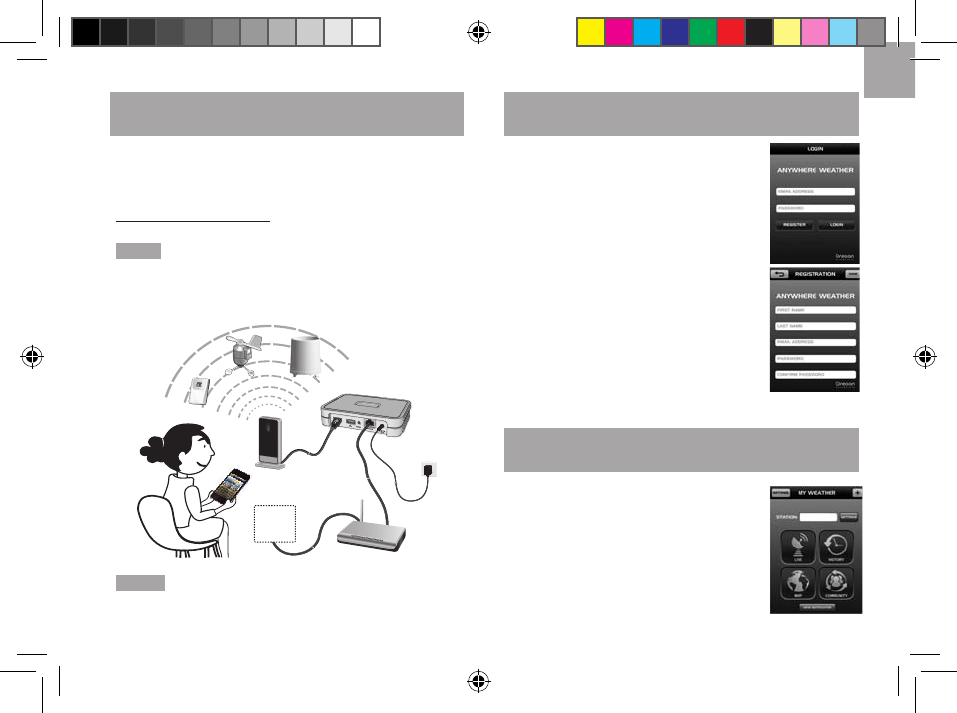

INTERNET-CONNECTED HUB INSTALLATION

LW301/302

Connect the Internet-connected hub to be a system

as shown below. If you purchased model LW302

product and want to add more weather sensors,

please contact your local retailer or visit our website at

www.oregonscientic.com.

NOTE The power adapter of the Internet-connected hub

is intended to be correctly oriented in a vertical position.

The prongs are not designed to hold the plug in place if it is

plugged into a ceiling, under-the-table or cabinet outlet.

NOTE If the network you use is restricted, please contact

the technical staff of that organization for support.

DOWNLOAD APPLICATION

LW301/302

1. Download the ‘Anywhere weather’

application from your device, such

as smartphone or tablet PC. The

application is available in Apple App

Store (iOS version) or Google Play

Store (android version).

2. For your rst time use, tap

select DONE.

3. After registration, enter email

address and password again then

tap LOGIN.

LW301/302

1. Once you login to the application,

the below display is shown. Click +

to register a weather station.

Internet-connected Hub

Weather

Sensor Receiver

Power Adapter

Rain Gauge

Wind Sensor

T & H Sensor

Router

Your Internet

Connection

LW301_UM_EN_R8.indd 7 2012/8/14 3:06:22 PM

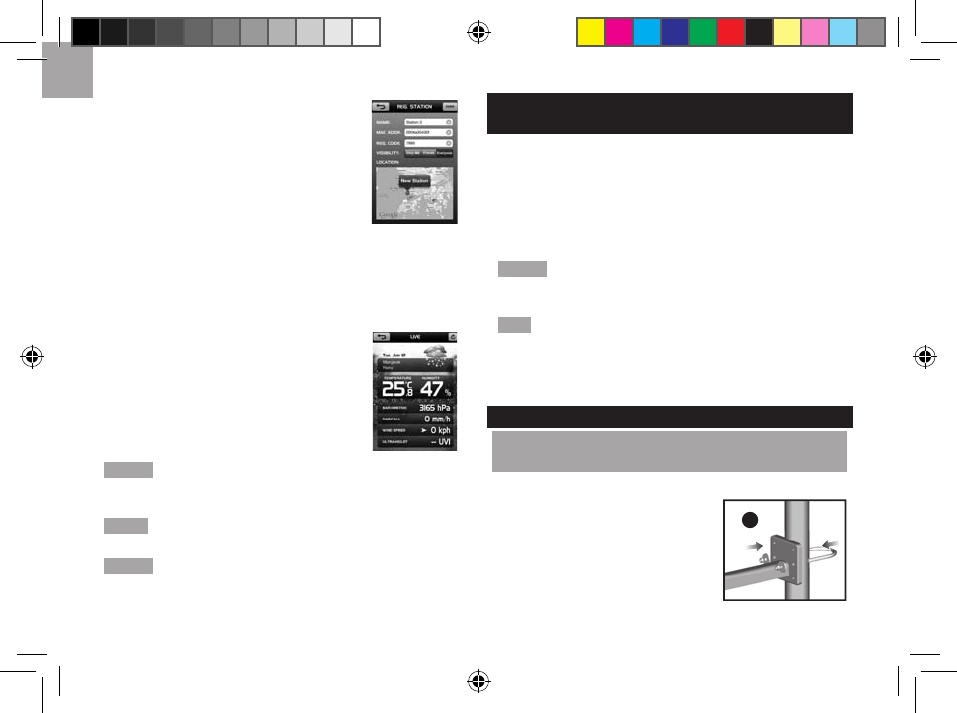

2. On REG. STATION page, fill out

all elds (you can nd MAC ADDR.

and REG CODE at the bottom of the

Internet-connected hub).

3. The map displays your location.

You can make a zoom by simply

tap-and-drag the map by your two

ngers at a time. Once you nd out the

specic location for your new station,

press and hold until a red pin appears on

the map. (Tap the red pin again, you can

see New Station message pops up).

Tap DONE to conrm the selection.

4. Once successful, LIVE page with

real-time weather data will pop up.

If application fails to connect to a

station, the display goes back to

REG.STATION page again.

NOTE The default temperature and humidity data on

LIVE page is from your channel 1 of temperature and

humidity sensor.

NOTE The weather icon represents the weather situation

for the next 12 hours, not the real-time situation.

NOTE Please save a copy of your MAC ADDR. and

REG CODE for preventing the label faded or damaged

that cannot be recognized for registration in the future.

VERIFY CONNECTION

LW301/302

Before proceeding to install sensors outside, please verify

communication and transfer of data.

Enter MY WEATHER page, then tap HISTORY prole.

To search for a sensor:

Press and hold SEARCH (located at the back of the

weather sensor receiver).

NOTE Unit will search only for already registered sensor

or new sensor reset within last 30 minutes. To register a

new sensor, reset sensor prior to search.

TIP The transmission range may vary depending on

many factors. Sensors should be positioned in an open

area away from trees or other obstructions. Relocate your

sensor to various locations to have better reception.

MOUNTING / PLACING OF SENSORS

WIND SENSOR

LW301

Secure the sensor connector in the desired location:

a. Align the back of the sensor

connector to an existing pole.

Secure in place by inserting the

ends of the U-bolt into the holes on

the sensor connector and securing

it with washers and bolts.

LW301_UM_EN_R8.indd 8 2012/8/14 3:06:27 PM

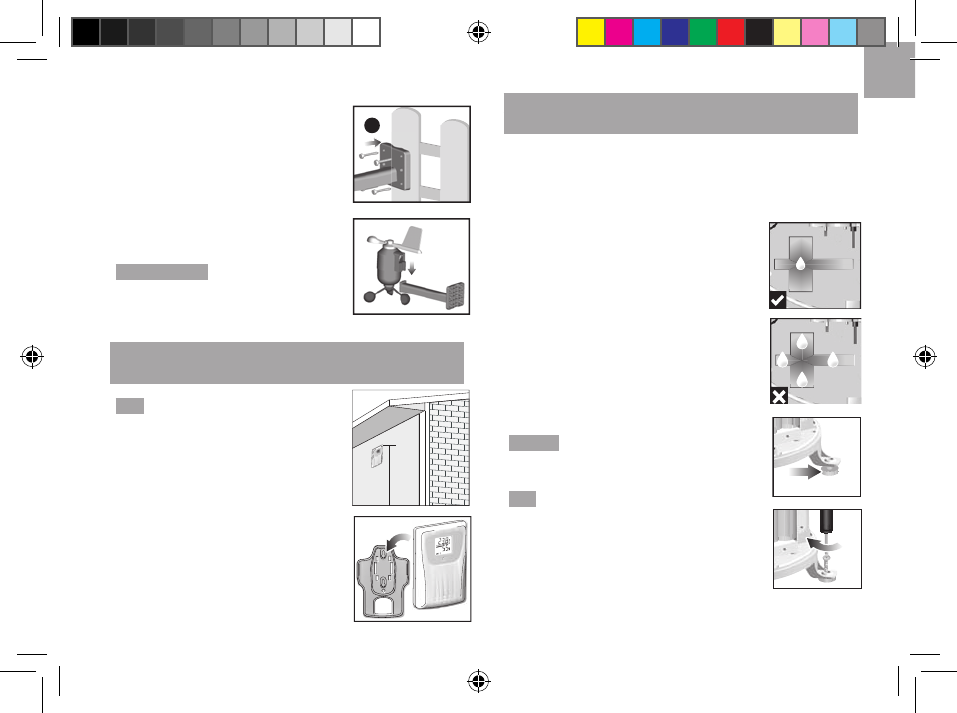

b. Insert 4 type A screws into the

holes of the sensor connector.

Screw rmly into place, i.e. fence.

Align the wind vane at against the

small end of the sensor connector,

and then slide it until it clicks into

place to lock the cover.

IMPORTANT Ensure that the wind

sensor is pointing north to enable it to

record accurate readings.

TEMPERATURE & HUMIDITY SENSOR

LW301/302

TIP Ideal placements for the sensor

would be in any location on the

exterior of the home at a height of not

more than 1.5 m (5 ft) and which can

shield it from direct sunlight or wet

conditions for an accurate reading.

Secure the sensor in the desired

location using the wall mount bracket

or table stand.

RAIN GAUGE

LW301

The rain gauge should be mounted horizontally about

1 meter (3 feet) from the ground in an open area away from

trees or other obstructions to allow rain to fall naturally for an

accurate reading.

To ensure a level plane:

Put a few drops of water on the cross

at the base of the funnel to check the

horizontal level.

Water will pool to the centre of the cross

when the rain gauge is level.

If water remains on 1-4, the gauge is

not horizontal.

If necessary, adjust the level using

the screw.

NOTE For best results, ensure the base

is horizontal to allow maximum drainage

of any collected rain.

TIP Erase all testing data from application

before formal use.

150cm(5ft)

LW301_UM_EN_R8.indd 9 2012/8/14 3:06:42 PM

VIEW READINGS ON SERVER

LW301/302

For your convenience, data is uploaded onto our weather

server. User can go to www.oregonscientic.com to check

the data.

RESET

LW301/302

Press RESET to return to the default settings.

SPECIFICATIONS

WEATHER SENSOR RECEIVER

Dimensions 149 x 198 x 47 mm

(L x W x H) (5.9 x 7.8 x 1.9 inches)

Weight 510 g (1.12 lbs) without battery

INDOOR BAROMETER

Barometer unit mb/hPa, inHg and mmHg

Measuring range 700 – 1050mb/hPa

Accuracy +/- 10 mb/hPa

Resolution 1mb (0.0 inHg)

Altitude setting Sea level

User setting for compensation

Weather display Sunny, Clear night, Partly Cloudy,

Cloudy, Cloudy at night, and Rainy

REMOTE WIND SENSOR UNIT

Dimensions 178 x 76 x 214 mm

(L x W x H) (7 x 3 x 8.4 inches)

Weight 100 g (0.22 lbs) without battery

Wind speed unit m/s, kph, mph, knots

Speed accuracy 2 m/s ~ 10 m/s (+/- 3 m/s)

10 m/s ~ 56 m/s (+/- 10%)

Direction accuracy 16 positions

Transmission of

wind speed signal

Approx. every 14 seconds

Memory Max speed gust

Battery 2 x UM-3 (AA) 1.5V batteries

OUTDOOR TEMPERATURE & HUMIDITY UNIT

RELATIVE TEMPERATURE

Dimensions 115 x 87 x 118 mm

(L x W x H) (4.5 x 3.4 x 4.6 inches)

Weight 130 g (0.286 lbs) without battery

Temp. unit °C / °F

Displayed range -50°C to 70°C (-58°F to 158°F)

Operating range -30°C to 60°C (-4°F to 140°F)

Accuracy -20°C – 0°C: +/- 2°C (+/- 4.0°F)

0°C - 40°C: +/- 1°C (+/- 2.0°F)

40°C - 50°C: +/- 2°C (+/- 4.0°F)

50°C - 60°C: +/- 3°C (+/- 6.0°F)

LW301_UM_EN_R8.indd 10 2012/8/14 3:06:44 PM

Comfort 20°C to 25°C (68°F to 77°F)

Memory Current, Min and Max temp.

Dew Point w/ Max and Min

Wind chill temp. and min

RELATIVE HUMIDITY

Displayed range 2% to 98%

Operating range 25% to 90%

Resolution 1%

Accuracy 25% - 40%: +/- 7%

40% - 80%: +/- 5%

80% - 90%: +/- 7%

Comfort 40% to 70%

Memory Current, Min and Max

Battery 2 x UM- 4 (AAA) 1.5V batteries

RF TRANSMISSION

RF frequency 433MHz

Range Up to 100 meters (328 feet) with

no obstructions

Transmission Approx. every 60 seconds

No. of Channel 1 for Wind/ Rain/ UV and 8 for

Temp. / Humidity

REMOTE RAIN GAUGE

Dimensions 107 x 87 x 56 mm

(L x W x H) (4.2 x 3.4 x 2.2 inches)

Weight 134 g (0.3 lbs) without battery

Rainfall unit Mm/hr and in/hr

Range 0 mm/hr – 999 mm/hr

Resolution 1 mm/hr

Accuracy < 15 mm/hr: +/- 1 mm

15 mm to 9999 mm: +/- 7%

Memory Past 24hrs, hourly and accumulated

from last memory reset

Battery 2 x UM-3 (AA) 1.5V

PRECAUTIONS

• Do not subject the unit to excessive force, shock,

dust, temperature or humidity.

• Do not cover the ventilation holes with any items such

as newspapers, curtains etc.

• Do not immerse the unit in water. If you spill liquid

over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive materials.

• Do not tamper with the unit’s internal components.

This invalidates the warranty.

• Only use fresh batteries. Do not mix new and

old batteries.

LW301_UM_EN_R8.indd 11 2012/8/14 3:06:44 PM

• Images shown in this manual may differ from the

actual display.

• When disposing of this product, ensure it is collected

separately for special treatment.

• Placement of this product on certain types of wood

may result in damage to its nish for which Oregon

Scientic will not be responsible. Consult the furniture

manufacturer's care instructions for information.

• The contents of this manual may not be reproduced

without the permission of the manufacturer.

• Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for special

treatment is necessary.

• Please note that some units are equipped with a

battery safety strip. Remove the strip from the battery

compartment before rst use.

NOTE The technical specications for this product and

the contents of the user manual are subject to change

without notice.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientic.com) to learn

more about Oregon Scientic products.

For any enquiry, please contact our Customer Services

at (info@oregonscientic.com).

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that Anywhere

Weather Kit (model: LW301) or Anywhere Weather Kit

Basic (model: LW302) is in compliance with the essential

requirements and other relevant provisions of Directive

1999/5/EC. A copy of the signed and dated Declaration

of Conformity is available on request via our Oregon

Scientic Customer Service.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference,

and (2) This device must accept any interference

received, including interference that may cause

undesired operation.

WARNING Changes or modications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

COUNTRIES RTTE APPROVED COMPLIED

All EU countries, Switzerland CH

and Norway N

LW301_UM_EN_R8.indd 12 2012/8/14 3:06:45 PM

NOTE This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician

for help.

DECLARATION OF CONFORMITY

The following information is not to be used as contact for

support or sales. Please call our customer service number

(listed on our website at www.oregonscientic.com), or on

the warranty card for this product) for all inquiries instead.

Name: Oregon Scientic, Inc.

Address: 19861 SW 95th Ave.,Tualatin,

Oregon 97062 USA

Telephone No.: 1-800-853-8883

declare that the product

Product No. & Name: LW301/LW301U/LW301A

(Anywhere Weather Kit)

LW302/LW302U/LW302A

(Anywhere Weather Kit Basic)

Manufacturer: IDT Technology Limited

Address: Block C, 9/F, Kaiser Estate,

Phase 1,41 Man Yue St.,

Hung Hom, Kowloon,

Hong Kong

is in conformity with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: 1) This device may

not cause harmful interference, and 2) This device must

accept any interference received, including interference that

may cause undesired operation.

LW301_UM_EN_R8.indd 13 2012/8/14 3:06:45 PM

Oregon Scientific Lw301 Lw302 Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
