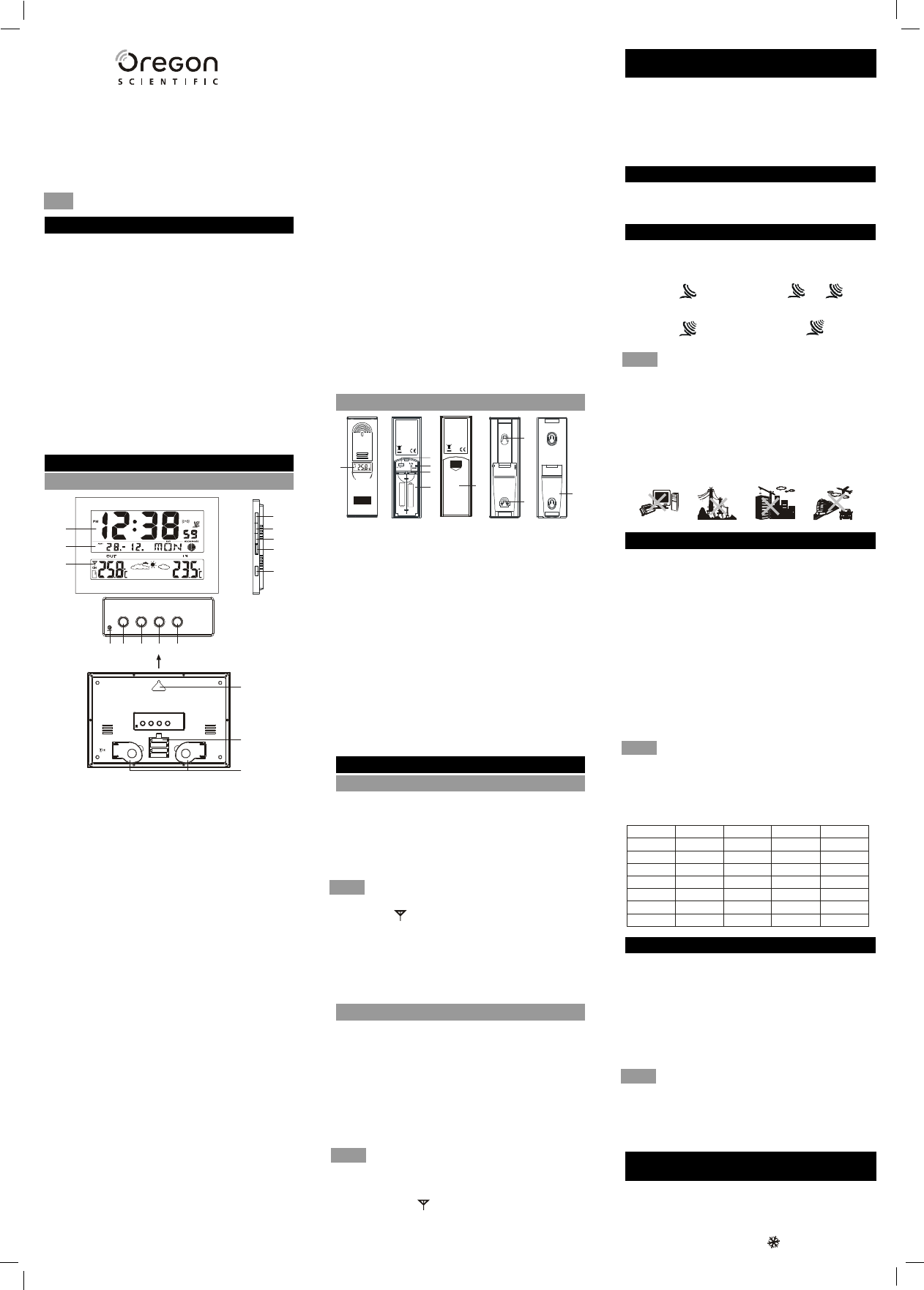

RADIO CONTROLLED

WIRELESS WEATHER STATION

MODEL:JW102

USER MANUAL

BRIEF INTRODUCTION

Thank you for your purchase of this delicate Wireless

Weather Station. The utmost care has gone into the

design and manufacture of your clock. Please read

these instructions carefully and keep the manual well

for future reference.

The multifunctional weather station is equipped with

many functions providing thorough weather information

to you. The receiver unit has a clear, easy-to-read

display that shows the indoor temperature, moon phase,

time, month, date as well as the temperature measured

and transmitted from the remote sensors. It is able to

receive and display readings from up to 3 remote

sensors.

The 433 MHz technology means no wire installation is

required and you can place the sensors anywhere you

like.

With radio controlled function, the current time and

date are automatically synchronized with the time signal

transmitted from Germany(DCF).

MAIN FEATURES:

WEATHER STATION

1. CLOCK WINDOW:

•Displays time, year, signal strength indicator,

daylight savings time (DST), alarm icons.

2. CALENDAR AND MOON PHASE WINDOW:

•Displays the month, date, day of the week, alarm

time as well as the moon phase.

3. WEATHER FORECAST AND TEMPERATURE

W INDOW:

•Shows the current indoor & outdoor temperature,

the maximum/minimum temperature as well as

the current channel.

4. TIME key:

•In normal time mode, press it to enter alarm1

and alarm2 time mode.

•Press and hold it for 2 seconds to enter the

normal time setting mode.

•In normal time setting mode, press it to step the

setting items.

5. CHANNEL key:

•Press it to switch among channel 1, 2 and 3.

•Press and hold it for 2 seconds to show the

channels automatically, and press it once again

to exit the automatic display mode.

6. MAX/MIN key:

•Press it to show the maximum and minimum

temperature records.

•Press and hold it for 3 seconds to delete the

max. and min. records.

7. SNOOZE key:

•Press it to stop the current alarm when it is

sounding.

8. ALARM ON/OFF key:

•In normal time mode, press it to turn on/off alarm1

& alarm2.

•In alarm time mode, press it to turn on/off alarm

and temperature pre-alarm.

•In alarm time mode, press and hold it for 2

seconds to enter the alarm time setting mode.

•In alarm time setting mode, press it to step the

setting items.

•Press it once to stop the current alarm when it is

sounding.

9. RESET key:

•Press it to reset all values to default values.

•In case of malfunction, the unit may be required

to reset.

10. UP key:

•In normal time mode, press it to switch between

M-D (Month-Date) and D-M ( Date-Month)

formats.

•In time setting mode, press it to increase the

setting values.

•Press and hold it for 3 seconds to receive the

RC signal for reception testing.

11. DOWN key:

•Press it to switch 12/24-hour format.

•In time setting mode, press it to decrease the

setting values.

12. SYNC key:

•Press and hold it for 3 seconds to turn on/off the

signal reception of transmitter (433 MHz)

manually.

13. °C/°F key:

•Press it to switch between Celsius and Fahrenheit.

14. WALL-MOUNTING HOLDER:

•Use it to support the main unit in the wall

mounting.

15. BATTERY COMPARTMENT:

•Accommodates 4 AA size batteries.

16. TABLE STAND:

•Use it to stand the clock on the desktop.

TRANSMITTER

1. LCD indicator:

•Displays the current temperature monitored by

the remote unit.

2. CHANNEL slide switch:

•Assign the transmitter to Channel 1, 2 or 3.

3. RESET key:

•Press it to restart the transmitter and return all

values to default values.

4. °C/°F key:

•Switches between Celsius and Fahrenheit.

5. BATTERY COMPARTMENT:

•Accommodates 2 AA size batteries.

6. BATTERY DOOR

7. WALL-MOUNTING HOLDER:

•Use it to support the transmitter on the wall.

8. TABLE STAND:

•Use it to stand the transmitter on the desktop.

RECEPTION OF TRANSMITTER SIGNAL

OPERATING THE WEATHER STATION

1. Remove the battery door and insert 4 AA size

batteries into the battery compartment as per

the polarity information marked on the battery

compartment.

2. Replace the battery door.

3. Press “RESET” key to restart the clock.

4. Press “CHANNEL” key to set the desired

channel.

Note:

1. When the transmitter signal is received, the

icon “ ” will be shown and flash for 3 times.

2. The building material and position of receiver

and transmitter affect the effective range. So

try various locations to obtain the best result.

3. Place the units away from metal objects and

electrical appliances to minimize the interference.

Position the receiver within the effective

transmission range: 30 meters in usual

circumstances.

OPERATING THE TRANSMITTER

1. Remove the transmitter from the stand and

open the battery door.

2. Insert 2 AA size batteries into the battery

compartment as per the polarity information

marked on the battery compartment.

3. Slide “CHANNEL” switch to synchronize the

channel with receiver.

4. Press “RESET” key individually by a pin to

confirm the channel setting.

5. Press “°C/°F” key to select the temperature

unit.

6. Replace the battery door.

Note:

1. To receive the transmitter signal, the channels

of receiver and transmitter must be

synchronized.

2. The icon “ ” will flash for 3 times when the

signal is being transmitted.

3. Once the channel is assigned to a transmitter,

you can only change it by removing the batteries

or resetting the unit.

RECEPTION OF RADIO CONTROLLED

TIME SIGNAL

The time and date are radio-controlled. The current

time and date are automatically synchronized with the

signal transmitted from Germany (DCF).

When used for the first time (after inserting the

batteries or pressing “RESET” key), the clock will start

to receive the signals and the reception display will

flash in 8 seconds.

DAYLIGHT SAVINGS TIME (DST)

The clock has been programmed to automatically

switch when the daylight savings time is in effect.Your

clock will show “DST” during the summe.

SIGNAL STRENGTH INDICATOR

The signal indicator displays signal strength in 4 levels.

Wave segment flashing means time signals are being

received. The signal quality could be classified into 4

types:

Note:

1. The unit will automatically search for the time

signal at 2:00 (3:00 or 4:00 is also available if

the signal was not received at 2:00), 8:00, 14:00

and 20:00 each day.

2. Always place the unit away from interfering

sources such as TV set, computer etc.

3. Avoid placing the unit on or next to metal plates.

4. Closed area such as airport, basement, tower

block or factory is not recommended.

5. Do not start reception in moving articles such

as vehicles or trains.

TIME AND CALENDAR MANUALSETTING

If you are out of reach of the Radio Controlled

transmitter or if the reception is not reachable, the

time and calendar can be set manually. As soon as the

signal of transmitter is received again, the clock will

automatically synchronize with the exact time and

calendar.

1. Press and hold “TIME” key for 2 seconds until

the Year digit flashes.

2. Press “UP” or “DOWN” key to change its value.

3. Press “TIME” key once until the Month digit

flashes.

4. Press “UP” or “DOWN” key to change its value.

5. Repeat the above operations (point 3, 4) to set

the below items in this order: Date > Hour >

Minute > Second > Day language > +/-23 hours

time difference.

6. Press “TIME” key to save and exit the setting

mode, or let it exit automatically 30 seconds

later without pressing any key.

Note:

1. Through“+/-23 hours time difference” setting,

the precise time of another area will be shown.

2. The 5 languages weekday settings are

represented by the below abbreviations:

GB=English FR=French DE=German

ES=Spanish IT=Italian.

ALARM TIME SETTING

1. In normal time mode, press “TIME” key to enter

the alarm1 (alarm2) time mode.

2. Press and hold “ALARM ON/OFF” key for 2

seconds until the alarm Hour digit flashes.

3. Press “UP” or “DOWN” key to change its value.

4. Press “ALARM ON/OFF” key once until the alarm

Minute digit flashes.

5. Press “UP” or “DOWN” key to change its value.

6. Press “ALARM ON/OFF” key to save and exit

the setting mode, or let it exit automatically 30

seconds later without pressing any key.

Note:

1. The alarm will be automatically turned on when

you set the alarm time.

2. The dual-alarm (alarm1 & alarm2) design of this

unit provides you with more convenience, and

you can set two-alarm time if needed.

USING ALARM & TEMPERATURE

PRE-ALARM FUNCTIONS

1. Set the alarm time as the above section with

alarm1 (alarm2) turned on when you set the alarm

time.

2. In alarm1 (alarm2) time mode, press “ALARM

ON/OFF” key once to turn on the temperature

pre-alarm with the icon “ ” displayed.

4

5

6

7

8

1

2

3

DOWN

UP

C / F

SYNC

O

O

14

15

16

DOWNUP C / FSYNC

O O

9 10 11 12 13

3

2

5

7

14

7

6

8

433 MHz

THERMO SENSOR

433 MHz

THERMO SENSOR

No signal quality

Acceptable signal qualityExcellent signal quality

Weak signal quality

DOM

LUN

MAR

MIE

JUE

VIE

SAB

DOM

LUN

MAR

MER

GIO

VEN

SAB

English

SON

MON

DIE

MIT

DON

FRE

SAM

German

DIM

LUN

MAR

MER

JEU

VEN

SAM

French

Spanish

Italian

SUN

MO N

TUE

WED

THU

FRI

SAT

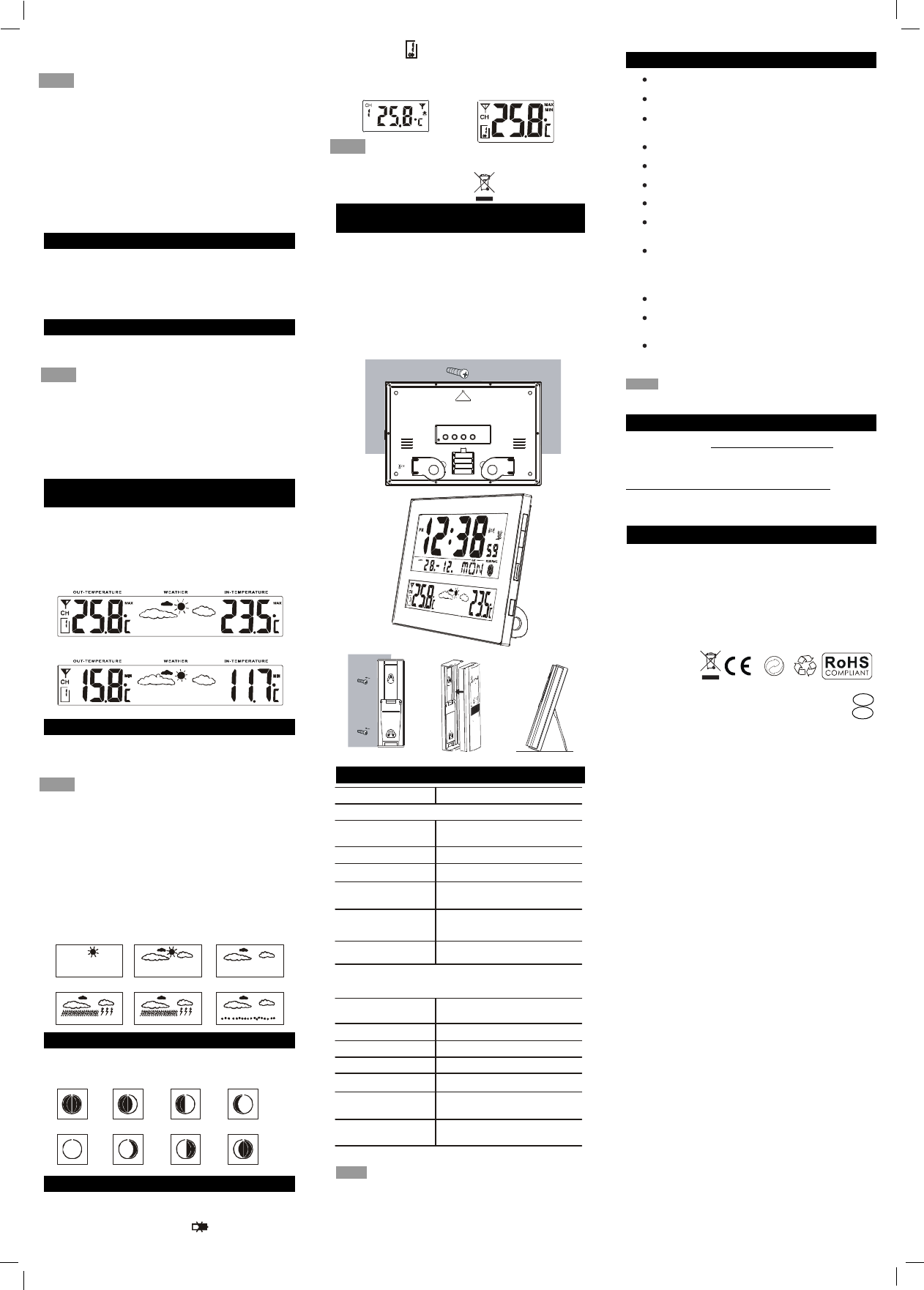

3. Press it again to turn off both of them until the

icons disappear.

Note:

1. To turn on temperature pre-alarm, ALARM must

be on.

2. The temperature pre-alarm can sound 30 minutes

earlier than the alarm only when the outdoor

temperature is below -3°C (26°F).

3. If no key is pressed during the alarm period, the

clock will enter the snooze mode automatically.

Besides, you can also press “SNOOZE” key

once to stop the current alarm and activate the

snooze function.

4. Once the snooze function is activated, the 4-

step crescendo alarm will sound 13 times in 5-

minute interval. The alarm duration is 60

seconds.

VIEWING THE CHANNEL

The default channel is Channel 1. Press “CHANNEL”

key to view the channels from 1 to 3.

Besides, press and hold “CHANNEL” key for 2 seconds

to show the channels automatically; press it once again

to exit the automatic display mode.

HOW TO READ TEMPERATURE RECORDS

Change the temperature unit to °C for Celsius or °F for

Fahrenheit by pressing “°C/°F” key.

Note:

1. If no signals are received or the transmission is

interfered, “---” will appear on the LCD.

2. Relocate the clock or transmitter in other

positions and make sure the transmission is

within the effective range of 30 meters approx.

3. After several trials in vain, please reset the

clock thoroughly. Try out where your

multifunctional alarm clock receives the signals

best.

CHECKING AND DELETING MAX./MIN.

TEMPERATURE RECORDS

1. Press “MAX/MIN” key once to check the

maximum temperature records. Press it twice to

check the minimum records. Press it again to

exit.

2. Press and hold “MAX/MIN” key for 3 seconds to

delete the max. and min. temperature records.

WEATHER FORECAST INDICATOR

The built-in barometer can notice atmosphere pressure

changes. Based on the data collected, it can predict

the weather conditions in the forthcoming 12-24 hours.

Note:

1. The accuracy of a general pressure-based

weather forecast is about 70% to 75%.

2. The weather forecast is meant for next 12 to 24

hours. It may not necessarily reflect the current

situation.

3. The “Rainy” and “Stormy” icons are different

only in the dropping frequency of the rain. The

rain dropping frequency in “Stormy” icon is faster

than that in “Rainy” icon.

4. The “Snowy” weather forecast is not based on

the atmosphere pressure but on the outdoor

temperature. When the outdoor temperature is

below -3°C (26°F), the “Snowy” icon will be

displayed on the LCD.

ABOUT THE MOON PHASE

The unit has 8 different moon phases. It will change

according to the lunar calendar.

BATTERY REPLACEMENT

If the LCD becomes dim, it means that you should

replace batteries of the clock immediately.

If the low battery indicator “ ” appears in the

WEATHER FORECAST AND TEMPERATURE window

of the clock (“ ”) or on the LCD of transmitter, you

should replace batteries of transmitter at once.

Note:

Attention! Please dispose of used unit or batteries in

an ecologically safe manner.

USING THE TABLE STAND OR

WALL-MOUNTING STAND

The receiver and transmitter have both the desktop

and wall-mounting structures.

For the receiver, place the screw on the desired wall

and hang the receiver by the recessed hole in the

back of it or just simply place it on the desktop by its

table stand.

For the transmitter, fix the separate wall-mounting

stand outside in the area protected from direct rain by

the screw. Once the stand is mounted, place the

transmitter into the stand on the wall. Besides, you

can also place it on the desktop by its table stand.

SPECIFICATIONS

Note We recommend that you use alkaline batteries

with this product for longer usage and lithium batteries

in temperatures below freezing.

PRECAUTIONS

Do not subject the unit to excessive force,

shock, dust, temperature or humidity.

Do not cover the ventilation holes with any items

such as newspapers, curtains etc.

Do not immerse the unit in water. If you spill

liquid over it, dry it immediately with a soft, lint-

free cloth.

Do not clean the unit with abrasive or corrosive

materials.

Do not tamper with the unit’s internal components.

This invalidates the warranty.

Only use fresh batteries. Do not mix new and old

batteries.

Images shown in this manual may differ from

the actual display.

When disposing of this product, ensure it is

collected separately for special treatment and

not as normal household waste.

Placement of this product on certain types of

wood may result in damage to its finish for which

Oregon Scientific will not be responsible. Consult

the furniture manufacturer’s care instructions for

information.

The contents of this manual may not be reproduced

without the permission of the manufacturer.

Do not dispose old batteries as unsorted municipal

waste. Collection of such waste separately for

special treatment is necessary.

Please note that some units are equipped with a

battery safety strip. Remove the strip from the

battery compartment before first use.

Note The technical specifications for this product

and the contents of the user manual are subject to

change without notice.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn

more about Oregon Scientific products. If you’re in the

US and would like to contact our Customer Care

department directly, please visit:

www2.oregonscientific.com/service/support

OR

Call 1-800-853-8883.

MAX. Temperature records

MIN. Temperature records

Sunny

Slightly cloudy

Cloudy

Rainy Stormy Snowy

Waxing crescent

New moon

First quarter

Waxing gibbous

Full moon Waning gibbous Last quarter Waning crescent

Transmitter’s low battery indicator

(shows on the transmitter)

Transmitter’s low battery indicator

(shows on the main unit)

DOWNUP C / FSYNC

O O

DESCRIPTION

430 (W) x 33 (D) x (H) mm288

(16.93 x 1.3 x 11.34 in)

433 MHz

0 °C to 45 °C 32 °F to 113 °F ( )

from year 2000 to 2099

4 x AA 1.5V batteries

40 (W) x (D) x (H) mm23.5 128

(1.57 x0.93 x in)5.04

433 MHz

3

TYPE

MAIN UNIT

L x W x H

Signal frequency

Temperature

range

Moon phase

scanner range:

Power

REMOTE UNIT

L x W x H

Signal frequency

Number of channel

Transmission range 30 m (98 ft) unobstructed

Weight

Weight

-20 °C to 55 °C

-4 °F to 131 °F

2 x AA 1.5V batteries

Temperature range

Power

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that the Indoor /

Outdoor Thermometer (Model JW102

) is in compli-

ance with the essential requirements and other rel-

evant provisions of Directive 1999/5/EC.

A copy of the signed and dated Declaration of

Conformity is available on request via our Oregon

Scientific Customer Service.

COUNTRIES RTTE APPROVAL COMPLIED

ALL EU countries, Switzerland CH

and Norway N
