INSTRUCTION MANUAL
IN 296 Rev. B 02/09
Providing Exceptional Consumer Optical Products Since 1975
Customer Support (800)-676-1343
E-mail: support@telescope.com
Corporate Offices (831)‑763‑7000
89 Hangar Way, Watsonville, CA 95076
Orion® SkyView Pro
GoTo System
#7817
![](asset-2.png)
2

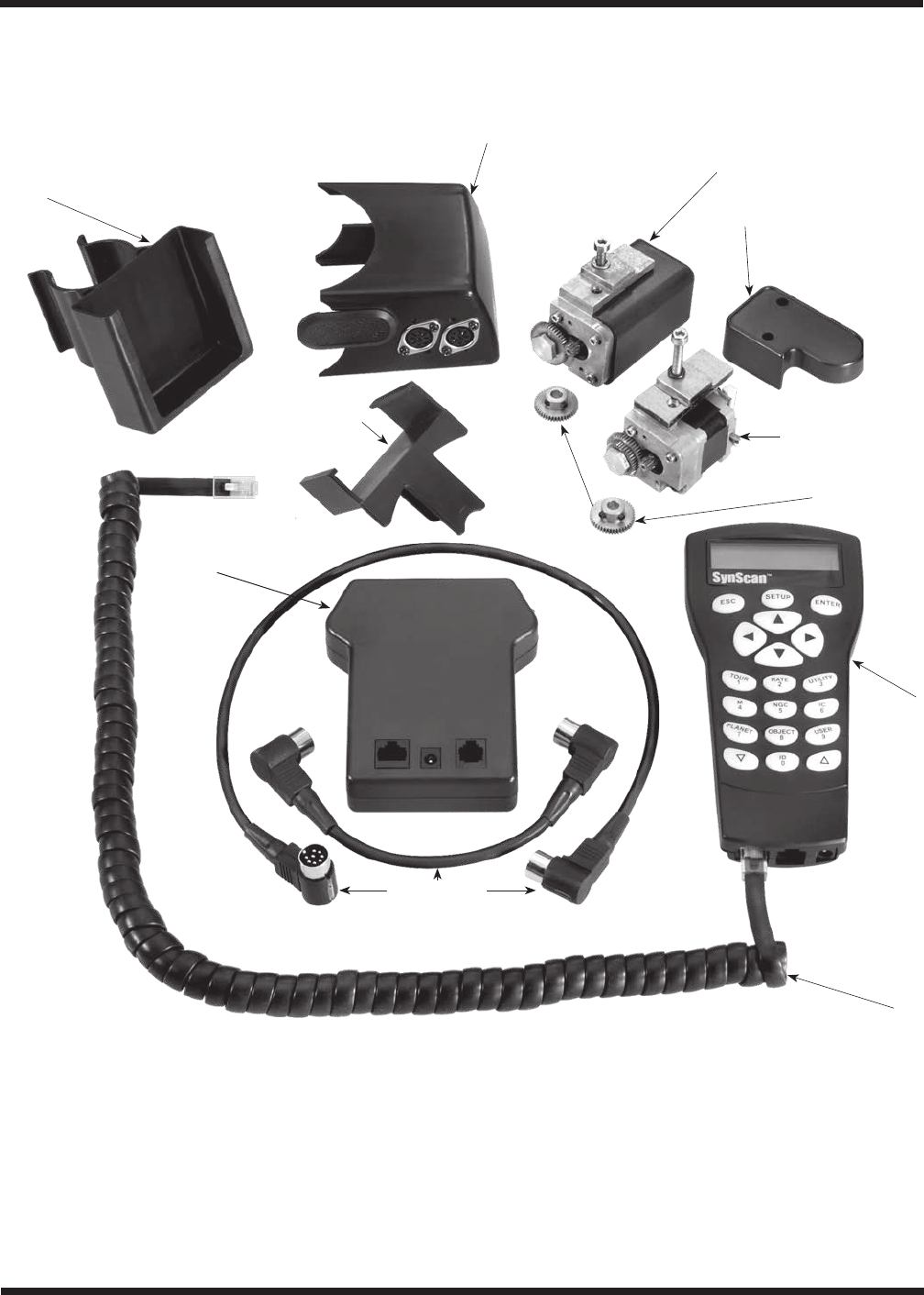

Figure 1. The SkyView Pro GoTo System (not all parts on parts list are shown)
Motor control box bracket
R.A. GoTo motor cover
Dec. GoTo motor cover
Dec. GoTo motor
Motor control box
GoTo hand controller
bracket
GoTo hand
controller
Motor cables
GoTo hand controller cable
R.A. GoTo motor
Brass gears
![](asset-3.png)
3
1. Parts List
Qty. Description
1 Declination (Dec.) GoTo motor assembly
1 Right ascension (R.A.) GoTo motor assembly
2 Brass gears w/ 2mm socket-head set screws
1 Motor control box
1 Motor control box bracket
1 GoTo hand controller
1 GoTo hand controller cable (coiled, 30")
1 GoTo hand controller bracket
1 Motor Cable (13"): motor control box-to-R.A. motor
1 Motor Cable (27"): R.A. motor-to-Dec. motor
1 Hand controller-to-PC cable (5')
1 12V DC power cable
1 Declination (Dec.) motor cover
1 Right ascension (R.A.) motor cover
1 Right ascension (R.A.) motor attachment screw
(40mm length)
1 Declination (Dec.) motor attachment screw
(17mm length)
1 Phillips screw (10mm length)
2 Phillips screws (8mm length)
2 flat washers, 10mm outer diameter
1 lock washer, 9mm outer diameter
1 4mm hex key
1 2mm hex key
1 Phillips screwdriver
2. Installation
Attaching the R.A. GoTo Motor
Remove the telescope tube, counterweight, and counter-
weight shaft from the SkyView Pro mount before attaching
the motor drives.
1. Remove the R.A. motor cover from the mount by loosening
the Phillips head screw on the bottom of the cover (Figure
2). Slide the cover off the mount.
Congratulations on your purchase of the Orion SkyView Pro GoTo system. The GoTo system will add brains to
your SkyView Pro equatorial mount’s brawn. Once the GoTo system has been installed, it enables you to locate and automati-
cally slew to thousands of celestial objects using the included hand controller. Views of the planets, Moon, galaxies, nebulae,
stars, and star clusters will all be as close as the touch of a button. You’ll find using your SkyView Pro GoTo mount will provide
an entirely new astronomical experience that will open up new realms of celestial exploration.
These instructions will help you install and properly use the SkyView Pro GoTo system. Please read them over thoroughly before
getting started. It may take a few observing sessions to become familiar with all the features of the SkyView Pro GoTo mount, so
keep this manual handy as you master your mount’s operation.

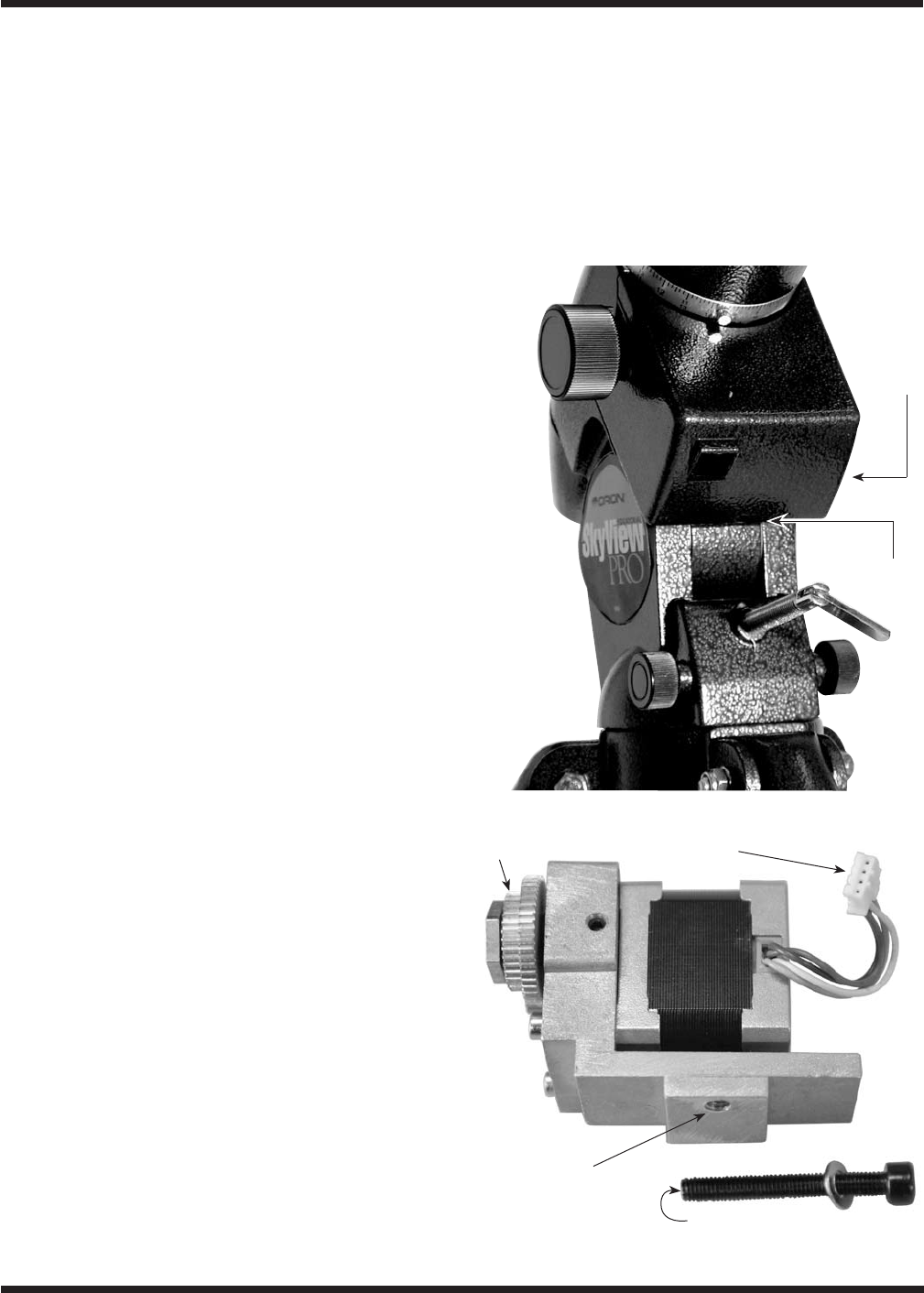

Figure 2. The R.A. motor cover
Phillips-head
screw
R.A. motor
cover
Figure 3. The R.A. GoTo motor assembly
4-pin rectangular connectors
R.A. GoTo motor attachment screw
Attachment hole
Smaller gear
![](asset-4.png)
4
2. Remove the R.A. slow-motion control knob from the R.A.
worm gear shaft. The slow-motion knob will not be usable
once the SkyView Pro GoTo system has been installed.
All slow-motion adjustments will be made using the GoTo
hand controller.
3. The R.A. GoTo motor assembly is identified by the 4-pin
rectangular connector attached to the motor body (Figure
3). The motor will be attached to the mount by a 40mm
long socket-head cap screw that goes through the hole
in the rear of the equatorial mount, just above the rear
latitude adjustment L-bolt (Figure 4). It will be helpful to
remove the rear latitude adjustment L-bolt while installing
the R.A. GoTo motor. Place one of the 10mm flat wash-
ers onto the R.A. motor attachment screw. Attach the R.A.
motor attachment screw to the end of a 4mm hex key and
push it up through the hole in the rear of the equatorial
mount (Figure 4). Hold the R.A. GoTo drive in your hand
so its threaded hole meets the screw as it comes out the
other end of the hole. Thread the screw into the threaded
hole of the R.A. motor assembly until secure, but do not
overtighten. You will need to make small adjustments to
the motor position in the following steps.
4. Slide the geared end of one of the small brass gears onto
the worm gear shaft so it resembles Figure 5. Rotate the
small brass gear so that one of the setscrews will press
against the flat part of the R.A. worm gear shaft. Secure
the small brass gear by tightening the setscrews with the
included 2mm hex key, but do not overtighten. You may
have to make small adjustments to the gear’s position in
the following step to ensure proper gear engagement.
5. Make certain that the teeth of the smaller motor assembly
gear correctly mesh with the teeth of the brass gear (Figure
6). Also, make certain the gears are not too tightly pressed
together. You may have to adjust the way the gears mesh
by tightening or loosening the socket-head cap screw that
is used to attach the R.A. GoTo motor assembly to the
mount and/or the small setscrews on the brass gear. If the
gears are not meshed correctly or are too tightly pressed
together, then the drive will not track properly, or at all.
This attachment process is tricky, and it may take several
adjustments before the gears properly mesh.
6. Take the R.A. GoTo motor cover and hold it near the
installed R.A. GoTo motor. On the inside of the motor
cover, you will see a set of wires with a white 4-pin rectan-
gular connector attached. Carefully connect the 4-pin rect-
angular connector attached to the R.A. GoTo motor cover
to the corresponding 4-pin rectangular connector on the
R.A. GoTo motor. Once connected, the wiring of your R.A.
GoTo motor should resemble Figure 7.
Note: Inside the R.A. GoTo motor cover you will find an addi-
tional set of wires connected to each other with 5-pin rect-
angular connectors. Make certain these wires are connected
before proceeding to step 7.
7. Once the rectangular connector has been attached, you
can install and secure the R.A. GoTo motor cover with the
10mm long Phillips head screw. Don’t forget to re-install
the rear latitude adjustment L-bolt if you have removed it
previously.
Note: There is a small packet of grease included with your
SkyView Pro GoTo system. Once you have installed the GoTo
motor so the gears mesh properly, you can apply a very small
amount of the included grease to the meshed gears to ensure
optimal gear mating.

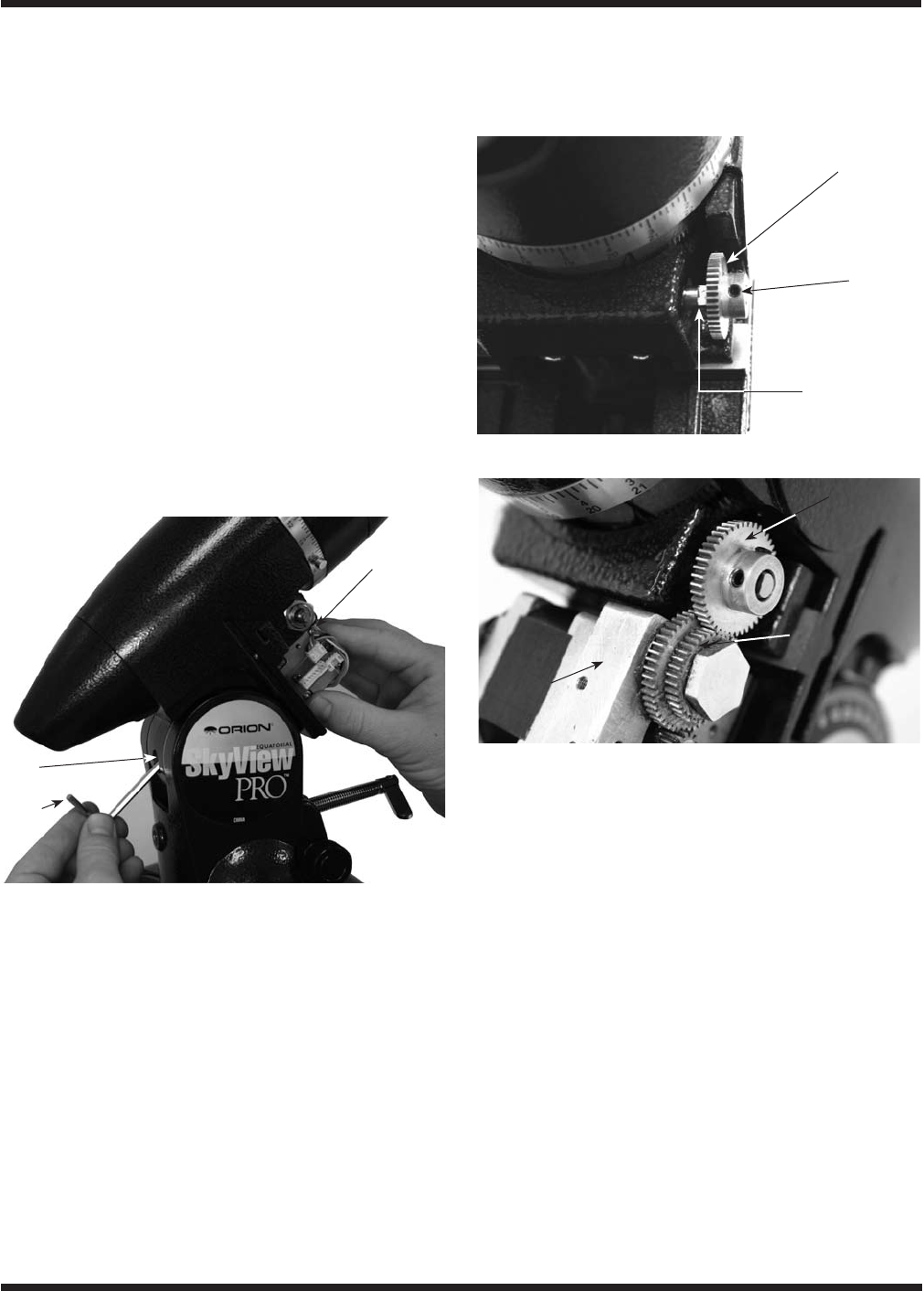

Figure 4. Attaching the R.A. GoTo motor
Figure 5. Correct orientation of brass gear for R.A. axis
Hole
4mm
hex
key
Brass gear
Setscrew
R.A. worm gear
shaft
Brass gear
Small R.A. GoTo
motor gear
R.A. GoTo
motor
Figure 6. Correctly meshed gears (R.A.)
R.A.
GoTo
motor
![](asset-5.png)
5
Attaching the Dec. GoTo Motor
Before attaching the Dec. GoTo motor drive, the telescope
tube must be removed from the equatorial mount.
1. Remove the Dec. slow-motion control knob from the Dec.
worm gear shaft. The Slow-motion knob will not be usable
once the SkyView Pro GoTo system has been installed.
All slow-motion adjustments will be made using the GoTo
hand controller.
2. Slide the geared end of the remaining small brass gear
onto the Dec. worm gear shaft of your SkyView Pro mount
so it resembles Figure 8. Rotate the small brass gear so
that one of the setscrews will press against the flat part of
the Dec. worm gear shaft. Secure the small brass gear
by tightening the setscrews with the included 2mm hex
key, but do not overtighten. You may have to make small
adjustments to the gear’s position in the following step to
ensure proper gear engagement.
3. The Dec. GoTo motor assembly is identified by its black,
rectangular body (Figure 9). It is attached to the equato-
rial mount using the Dec. GoTo motor attachment screw
that goes through the hole in the flange at the top of the
equatorial mount (Figure 10). The motor assembly should
attached so that it is oriented as shown in Figure 11. Hold
the motor assembly so that its threaded hole lines up with
the hole in the top of the mount. Place the lock washer and
then a flat washer onto the Dec. GoTo motor attachment
screw. Use the 4mm hex key to thread the attachment
screw into the motor assembly attachment hole until it is
secure, but do not overtighten.

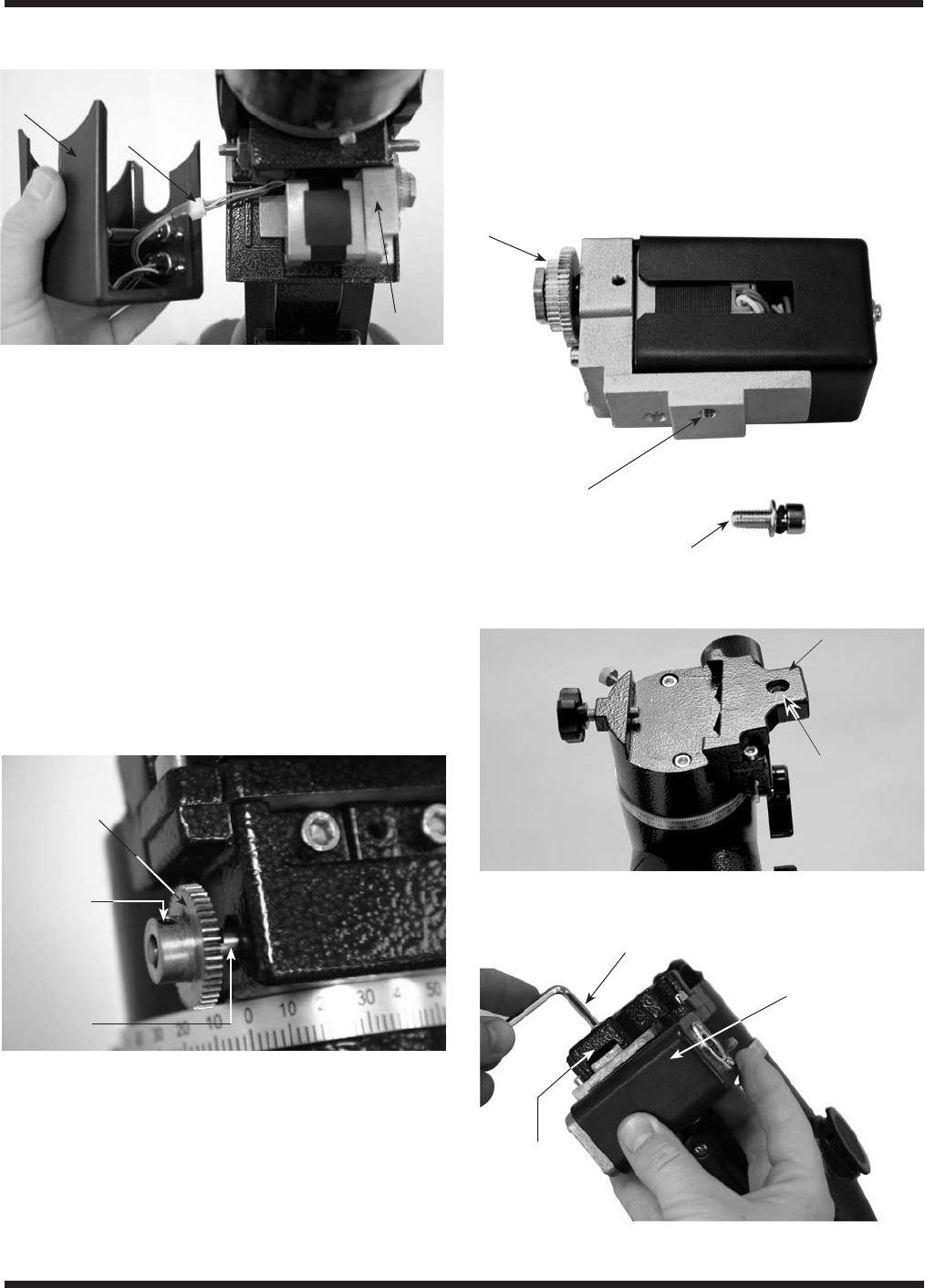

Figure 8. Correct orientation of brass gear for Dec. axis
Brass gear
Setscrew
Dec. worm
gear shaft
Figure 9. The Dec. GoTo motor assembly
Figure 10. The location of the flange on the mount
Flange
Hole
Figure 11. Attaching the Dec. GoTo motor
Dec. GoTo motor
4mm hex key
Flange
Dec. GoTo motor attachment screw
Attachment hole
Smaller gear
Figure 7. R.A. GoTo motor wiring
R.A.
GoTo
motor
R.A. GoTo
motor cover
Connected
4-pin
rectangular
connectors
![](asset-6.png)
6
4. Make certain that the teeth of the smaller gear of the Dec.
GoTo motor assembly meshes with the brass gear. Also,
make certain the gears are not too tightly pressed togeth-
er. You can adjust the way the gears mesh by tightening
or loosening the socket-head cap screw that is used to
attach the Dec. GoTo motor assembly to the mount and/or
the small setscrews on the brass gear. If the gears are not
meshed correctly or are too tightly pressed together, then
the drive will not track properly, or at all. This attachment
process is tricky, and it may take several adjustments
before the gears properly mesh.
Note: There is a small packet of grease included with your
SkyView Pro GoTo system. Once you have installed the GoTo
motor so the gears mesh properly, you can apply a very small
amount of the included grease to the meshed gears to ensure
optimal gear mating.

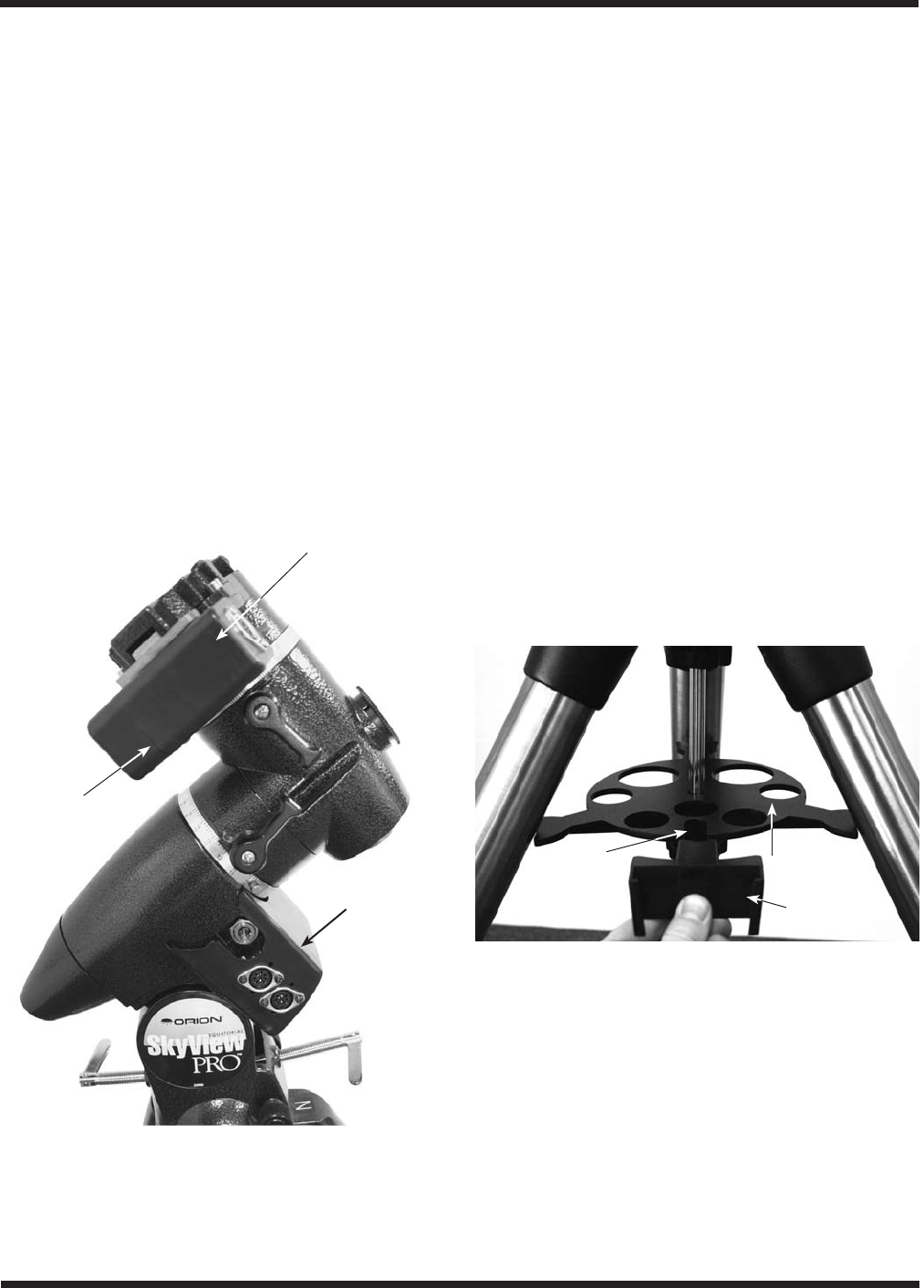

5. Once the Dec. GoTo motor and gear have been installed
and the gears mesh appropriately, you can install and
secure the Dec. GoTo motor cover with the two 8mm long
Phillips screws. Once you have installed the Dec. GoTo
motor and cover, your mount should resemble Figure 12.
Attaching the Motor Control Box
Once both of the GoTo motors have been installed, you can
attach and connect the motor control box.
1. Attach the motor control box bracket to the top of one of
the legs of the SkyView Pro tripod. It will be most conve-
nient to attach the bracket to the leg closest to the side
of the R.A. GoTo motor cover with the two 8-pin circular
jacks.
2. Slide the motor control box into the motor control box
bracket.
3. Connect one end of the 13" long motor cable to the 8-
pin circular jack marked “R.A. IN” on the R.A. GoTo motor
cover.
4. Connect the other end of the 13" long motor cable to the
8-pin circular jack on the motor control box.
5. Connect one end of the 27" long motor cable to the 8-pin
circular jack marked “Dec. OUT” on the R.A. GoTo motor
cover.
6. Connect the other end of the 27" long motor cable to the
8-pin circular jack on the Dec. GoTo motor.
Attaching the GoTo hand controller
1. The included GoTo hand controller bracket attaches to the
built-in notch in the tripod center support tray. To install the
hand controller bracket, simply line up the tab on the back
of the bracket with the notch in the tripod center support
tray and slide the bracket forward until it clicks into place
(Figure 13). You now have a convenient place to put the
GoTo hand controller while you are viewing.
2. The SkyView Pro GoTo hand controller cable is a 30" long
coiled cable with modular connectors (RJ-45) on both
ends. Connect one end of the coiled cable to the modular
jack on the motor control box marked “Hand Controller.”
3. Connect the other end of the coiled cable to the hand con-
troller modular jack (Figure 14).
Your SkyView Pro GoTo system is now installed and should
resemble the image on the manual cover. You can now pro-
ceed to power the system and utilize the many functions of
the GoTo hand controller.
Figure 12. Installed GoTo motors
Dec. GoTo motor
Dec. GoTo
motor cover
R.A. GoTo
motor cover
Figure 13. Installing the GoTo hand controller bracket
Notch Tripod center
support tray
Hand controller
bracket
![](asset-7.png)
7
3. The GoTo Hand
Controller
Once aligned, the GoTo hand controller and dual-axis GoTo
motors allow you to automatically point your SkyView Pro
mounted telescope at a specific object, or tour the skies with
pushbutton simplicity. The user-friendly menu allows auto-
matic slewing to over 13,400 objects. Even inexperienced
astronomers will find themselves quickly mastering the vari-
ety of features the GoTo hand controller offers in just a few
observing sessions.
Powering the SkyView Pro GoTo system
The SkyView Pro GoTo system should be powered by an 11V
to 15V DC power supply (tip positive) capable of producing
continuous current of a minimum 2 amps. We recommend
using a portable rechargeable battery, like the Dynamo or
Dynamo Pro available from Orion.
If you are using a portable battery like the Orion Dynamo, use
the 12V DC power cable supplied with your mount (male ciga-
rette lighter plug on one end, standard 12V DC power plug on
other end) to connect the battery to the 12V DC power jack on
the motor control box. Make sure the Dynamo’s power switch
is in the “on” position after connecting. Then, to turn the GoTo
system on, simply press the switch on the motor control box
so it is in the “on” position.
The 12V DC power jack on the hand controller allows inde-
pendent use of the GoTo hand controller for users who wish
to browse the object database without connecting to the tele-
scope mount (Figure 14). The power jack is also used when
updating the firmware in the hand controller (see “Updating
the GoTo Hand Controller’s Firmware”).
Functions of the GoTo Hand Controller
There are four main categories of control buttons on the GoTo
hand controller (Figure 15a):
1. Mode buttons
2. Directional buttons
3. Scroll buttons
4. Dual Purpose buttons
Mode Buttons
The three mode buttons are located at the top of the con-
troller, directly below the LCD screen. They include the ESC,
ENTER, and SETUP buttons.
The ESC button is used to escape from a certain command or
go back a level in the menu tree.
The ENTER button is used to select the functions and sub-
menus in the menu tree, and to confirm certain functional
operations.
The SETUP button is a “hot key” that takes you to the Setup
Menu.
Directional Buttons
The directional buttons allow the user to have complete
motion control of the SkyView Pro GoTo system at almost
any step in operation. These controls are locked out when the
mount is slewing to an object. The directional buttons are very
helpful when initially aligning the mount, centering objects in
the eyepiece field of view, and manual guiding. The directional
buttons are typically used in conjunction with the RATE but-
ton. The left and right directional buttons can also be used to
move the text cursor when entering data into the hand con-
troller.
Scroll Buttons
The up and down scroll buttons allow you to scroll up and
down within the menu tree or selections displayed on the
hand controller screen.
Dual Purpose Buttons
The dual purpose buttons serve two distinct purposes. They

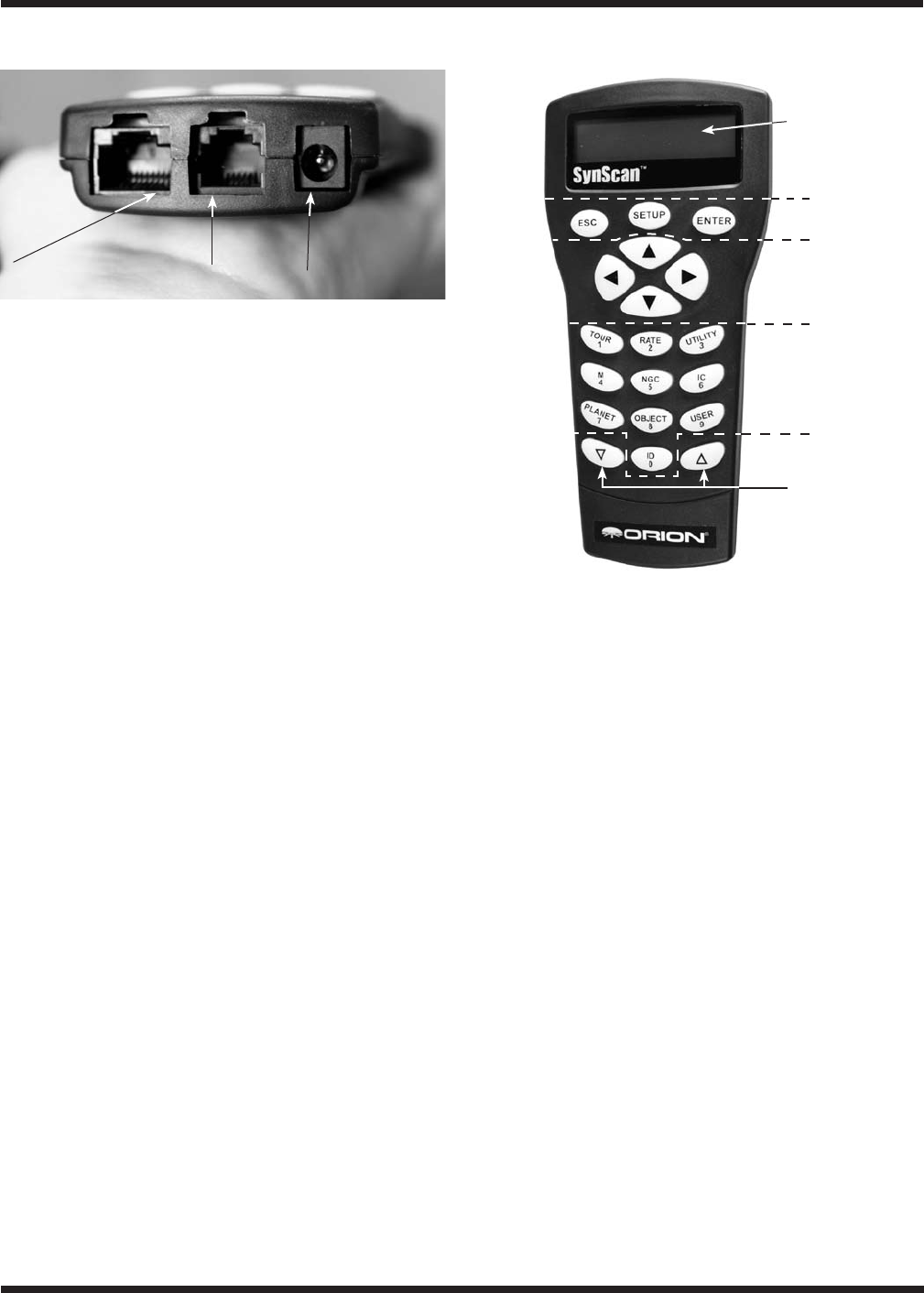

Figure 15a. The GoTo hand controller.
Display screen
Mode buttons
Directional
buttons
Dual purpose
buttons
Scroll buttons
Figure 14. GoTo hand controller jacks
Hand controller
modular jack
Computer interface
modular jack
12V DC power jack
![](asset-8.png)
8
are used for data entry and as quick reference keys.
TOUR button: Takes you on a preset tour of the best night sky
objects visible
RATE button: Changes the speed of the motors when the
directional buttons are pressed. There are 10 speeds to
choose from, with 0 being the slowest and 9 being the fast-
est.
UTILITY button: “Hot key” access to the Utility Functions
menu.
USER button: Enter or recall coordinates for up to 25 objects
in the User Defined database.
ID button: Identifies the object the mount is currently pointing
to.
NGC, IC, M, Planet, and Object buttons: Allow direct access
to catalogs and databases of over 13,400 objects.
GoTo Hand Controller Operation
This section provides a guide for initial setup and alignment of
the SkyView Pro mount with the GoTo hand controller.
Initial Setup
1. Perform the polar alignment using the procedure previ-
ously outlined in Section 6 of the instruction manual that
came with your SkyView Pro mount. A rough polar align-
ment will suffice, but an accurate polar alignment using
the polar axis finder scope will increase tracking accuracy
(and pointing accuracy for one-star alignments).
2. Rotate the telescope tube about the mount’s declination
axis so the tube is parallel with the mount’s R.A. axis (and
the front of the tube is pointed to the sky, not the ground).
Rotate the mount’s R.A. axis so the counterweight shaft is
pointed straight down. This will be called the “home” posi-
tion of the mount (Figure 15b).
Note: Once the mount is initially set to its “home” position, the
mount should not be moved manually. Otherwise, the GoTo
hand controller will lose track of the mount’s position, and the
alignment procedure will need to be performed again. Keep
both the R.A. and Dec. lock levers engaged.
3. Turn on the power switch on the motor control box.
4. The initial screen displayed on the hand controller is the
version screen. Press ENTER to proceed.
5. The hand controller’s LCD screen will show a safe solar
viewing warning message. Press the ESC button to con-
tinue.
Note: The GoTo hand controller’s LCD backlighting will
become dim and the illuminated buttons will turn off if left idle
for 30 seconds. Pressing any button will re-illuminate the hand
controller.
6. Enter your observing site’s longitude and latitude coordi-
nates. First enter the longitude coordinate and hemisphere,
followed by the latitude coordinate and hemisphere. Use
the numerical keypad to enter the digits, and use the left
and right directional buttons to move to the next digit. Use
the scroll buttons to choose W or E (for longitude) and N
or S (for latitude). If you do not know the longitude and
latitude coordinates of your viewing location, consult an
atlas or geographical map of your area. Press ENTER to
confirm your coordinates.
Note: Longitude and latitude coordinates must be entered
in degrees and arcminutes. If your map or atlas gives coor-
dinates in decimal values (i.e. latitude = 36.95 N) you must
convert into degrees and arcminutes (i.e. latitude 36.95 N =
latitude 36°57’ N).
Note: If a mistake is entered into the hand controller during
the initial setup procedure, press the ESC button to go back
to the previous screen.
7. Enter the time zone in which you are observing in hours
(see Appendix D), using the scroll buttons (+ for east of
Prime Meridian, - for west of Prime Meridian) and numeric
keypad. Use the left and right directional buttons to move
to the next digit. Press ENTER to confirm your choice.
8. Enter the date in mm/dd/yyyy format using the numeric
keypad. Use the left and right directional buttons to move
to the next digit. Press ENTER to confirm your choice.

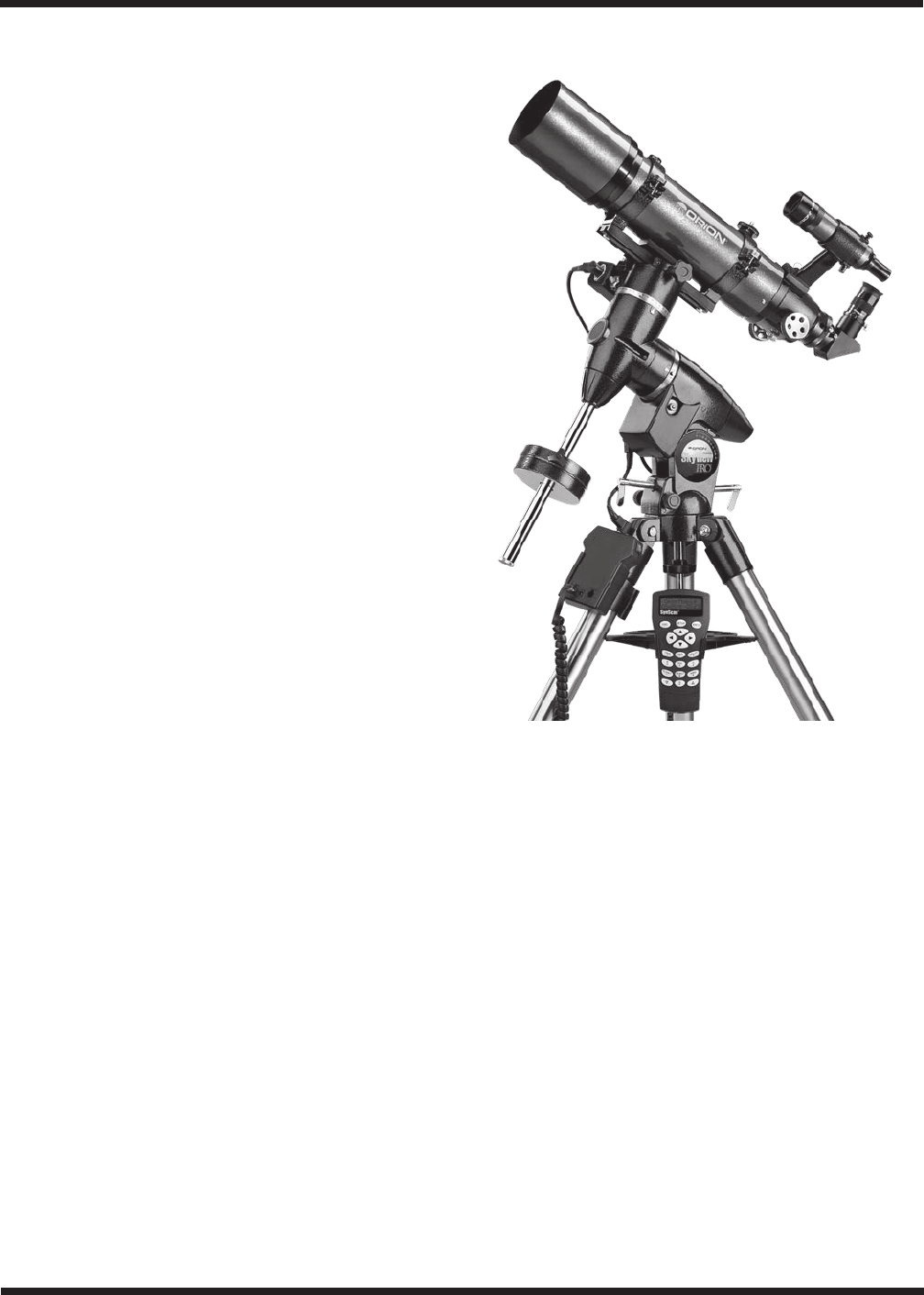

Figure 15b. SkyView Pro mount in its “home” position
![](asset-9.png)
9
9. Enter your current local time using the 24 hour clock format
(example: 2:00PM = 14:00). Press ENTER to view the time
you entered. If the time is incorrect, press ESC to go back
to the previous screen. If the time is correct, press ENTER
again.
10. If the date entered in step 8 falls between March and
November, the hand controller will ask “DAYLIGHT
SAVING?” on the LCD screen. Use the scroll buttons to
select “YES” or “NO” to indicate if you are currently on
Daylight Savings Time or not, and press ENTER.
11. The hand controller will now display “Begin Alignment?”
Press 1 or ENTER to start the alignment procedure. Press
2 or ESC to skip the alignment and exit to the Main Menu.
You are now ready to begin the alignment procedure.
Alignment
In order for the GoTo hand controller to accurately locate and
point to objects in the sky, it must first be aligned on known
positions (stars). With the supplied information, the controller
can replicate a model of the sky and the movements of astro-
nomical objects.
There are three ways to align depending on your demand for
accuracy. If you are using the GoTo controller for the first time,
we recommend you begin with the three-star alignment. In
most cases, a three-star alignment produces the most accu-
rate alignment among the three methods. The description
below will lead you through a step-by-step procedure on how
to perform the three-star alignment.
Note: Before performing any of the alignment methods, be
sure your finderscope is well aligned with the telescope tube.
Three-Star Alignment
1. From the alignment screen, select “3-Star Align” using the
scroll buttons. Press ENTER to confirm your choice.
2. The hand controller will provide a list of stars available in
your current sky for you to choose as the first alignment
star. Choose a star you are familiar with using the scroll
buttons. Press ENTER to confirm your choice. The mount
will start slewing the telescope towards the chosen object.
When the telescope stops slewing, adjust its position using
the controller’s directional buttons until the chosen star is
centered on the crosshairs of the finderscope. Now look
in the eyepiece and adjust the position of the telescope
(again using the directional buttons) so the chosen star is
centered in the field of view of the eyepiece. Press ENTER
to confirm the star is centered .
Note: The slewing speed can be adjusted by pressing the
RATE button. Choose a desired rate between 0 (slowest) and
9 (fastest).
Note: The hand controller will make a “beep” sound once it
has finished slewing to an object. Do not try to adjust the tele-
scope before you hear the “beep” sound. The controller will
only respond to the ESC button while slewing (which stops the
slewing).
3. The controller will provide a list of stars that can be used as
the second alignment star. Choose a star using the scroll
buttons and press ENTER to confirm your choice. Repeat
the centering procedure for the second alignment star
using the directional buttons and press ENTER to confirm
alignment.
4. The controller will once again provide a list of stars that can
be used as the third alignment star. Choose a star using
the scroll buttons and press ENTER to confirm your choice.
Once again, repeat the centering procedure for the third
alignment star and press ENTER to confirm alignment.
5. Once the three alignment stars have been entered and
alignment is completed, the hand controller will display
“Alignment Successful.” Press ENTER to access the Main
Menu. Otherwise, “Alignment Failed” will be displayed, and
the alignment procedure must be performed again. To do
this, turn the mount’s power switch off, then on again.
Two-Star Alignment
Two-star alignment requires only two alignment stars but may
produce lesser pointing accuracy than the three-star align-
ment. The description below will lead you on a step-by-step
procedure on how to perform the two-star alignment.
1. From the alignment screen, select “2-Star Align” using the
scroll buttons. Press ENTER to confirm your choice.
2. The hand controller will provide a list of stars available in
your current sky for you to choose as the first alignment
star. Using the scroll buttons, choose a star you are familiar
with and press ENTER to confirm your choice. The mount
will start slewing the telescope towards the chosen star.
When the telescope stops slewing, adjust its position with
the controller’s directional buttons until the star is centered
on the crosshairs of the finderscope. Now look in the eye-
piece and adjust the position of the telescope (again using
the directional buttons) so the chosen star is centered in
the field of view of the eyepiece. Press ENTER to confirm
the star is centered.
3. The controller will provide a list of stars that can be used as
the second alignment star. Choose a star using the scroll
buttons and press ENTER to confirm your choice. Repeat
the centering procedure for the second alignment star and
press ENTER to confirm alignment.
4. Once the two alignment stars have been entered and
alignment is complete, the hand controller will display
“Alignment Successful.” Press ENTER to access the Main
Menu. Otherwise, “Alignment Failed” will be displayed, and
the alignment procedure must be performed again. To do
this, turn the mount’s power switch off, then on again.
One-Star Alignment
One-star alignment is the simplest and quickest alignment
method, as only one alignment star is required. Due to minimal
data input, however, a one-star alignment will not yield optimal
results unless polar alignment is very accurate, and any cone
error is minimized (see Appendix A). The description below will
lead you on a step-by-step procedure on how to perform the
one-star alignment.
![](asset-a.png)
10
1. From the alignment screen, select “1-Star Align” using the
scroll buttons. Press ENTER to confirm your choice.
2. The hand controller will provide a list of stars available in
your current sky for you to choose as the first alignment
star. Using the scroll buttons, choose a star you are familiar
with and press ENTER to confirm your choice. The mount
will start slewing the telescope towards the chosen star.
When the telescope stops slewing, adjust its position with
the controller’s directional buttons until the star is centered
on the crosshairs of the finderscope. Now look in the eye-
piece and adjust the position of the telescope (again using
the directional buttons) so the chosen star is centered in
the field of view of the eyepiece. Press ENTER to confirm
the star is centered.
3. Once the alignment star has been entered and alignment
is complete, the hand controller will display “Alignment
Successful”. Press ENTER to access the Main Menu.
Tips for Choosing Alignment Stars
If possible, use the following tips when choosing alignment
stars for best pointing accuracy.
One-star alignment: Choose a star close to the Celestial
Equator (Dec close to 0°).
Two-star alignment: Choose two stars on the same side of the
meridian, and at least 3 hours apart in right ascension and
3° apart in declination. If you suspect your polar alignment is
poor, choose two stars that are 20° to 60° apart in declina-
tion.
Three-star alignment: For the first two stars, follow the tip
above for two-star alignment. For the third alignment star,
choose a star on the other side of the meridian. The first and
third alignment stars should have declination coordinates
between +30° and +70° or between -30° and -70°.
Pointing Accuracy Enhancement (PAE)
The three-star alignment should provide excellent point-
ing accuracy for visual observation. For other applications,
such as CCD imaging, even better pointing accuracy can be
obtained in a specific region of the sky by use of the Pointing
Accuracy Enhancement (PAE) function. Perform the following
procedure to use the PAE function.
1. Choose a bright star near the area of interest in the night
sky. Consult a planisphere or software program to choose
this bright star, if necessary.
2. Find this star in the hand controller’s object database.
This is easily done by pressing the OBJECT button, which
will take you directly to the Named Star database. Press
ENTER to access the list of named stars. Use the scroll
buttons to peruse the list, and press ENTER to select
the star. Press ENTER again, and the LCD will ask “View
Object?” Press ENTER to issue a command to the mount
to GoTo the star. If the mount is under the control of a
computer running planetarium software, click on the star
to slew the mount to it.
3. Use the directional buttons (and RATE button) to accu-
rately center the star in a high-powered eyepiece (10mm
or less focal length).
4. Press the ESC button, then press and hold the ESC but-
ton for 2 seconds. The hand controller LCD will read “Re-
center”, and the name of the chosen bright star will blink
three times. If the GoTo command was sent by a computer
running planetarium software, the LCD will read “Last goto
object” instead of the star’s name.
5. Make sure the chosen star is still centered in the eyepiece,
and press the ENTER button. If you don’t want to record
the star position, press the ESC button to exit the PAE
function.
After the PAE function is performed, the hand controller will
recalculate its model of the sky. The pointing accuracy in the
area of sky around the chosen bright star should now be
improved. To improve pointing accuracy in another region of
the sky, perform the PAE function again, this time choosing a
bright star in the new region of interest.
Note: If the mount is “parked” before it is powered off (see
“Utility Functions”), the star alignments and PAE corrections
will remain stored in the hand controller. As long as the mount
is not moved between uses, the alignment will not need to be
performed again when the mount is subsequently powered on.
Object Catalog
The GoTo hand controller boasts a vast database of over
13,400 object coordinates and information. The database
contains the following catalogs:
Named Star - A list of 212 well-known bright stars.
Solar System - The other 8 planets of our solar system, and
the Moon.
NGC - 7,840 of the brightest deep sky objects from the NGC
2000.0 database (edited by Roger W. Sinnott, copyright by
Sky Publishing Corp., used with permission).
IC - 5,386 objects from the Index Catalog.
Messier - Complete list of all 110 Messier objects. These are
some of the most spectacular objects to view in the night sky.
Caldwell - Complete list of all 109 Caldwell objects.
Double Stars - Includes 55 of the best double stars to view.
Variable Stars - Includes 20 of the most well-known variable
stars.
User Defined - Up to 25 objects can be saved in the User
Defined database (see “Using the User Defined Database”).
Selecting an Object
Once the telescope has been aligned, you can access and
view the variety of different objects in the GoTo hand con-
troller’s database. There are three methods of selecting a
celestial object to view.
1. Shortcut Buttons
TOUR: Takes you on a preset tour across the night sky.
The brightest and most beautiful deep-sky objects will auto-
![](asset-b.png)
11
matically be chosen by the hand controller for your viewing
pleasure. Use the scroll buttons to view the different deep-
sky objects that are available for viewing through the tour
function. Choose the desired object by pressing ENTER. The
LCD screen will display the coordinates of the chosen object.
Press ENTER again, and the hand controller will ask “View
Object?” Press ENTER once more to have the telescope slew
to the object.
M, NGC, IC: These shortcut buttons give you direct access to
the most popular celestial catalogs. Use the numeric buttons
to select an object by entering its catalog number. Pressing
ENTER will display its coordinate. Primary information such
as size, magnitude, and constellation are obtained by press-
ing the scroll buttons. Press ENTER again, and the hand
controller will ask “View Object?” Press ENTER once more to
have the telescope slew to the object.
PLANET: This shortcut button takes you straight to the Planets
submenu in the hand controller’s database. Use the scroll but-
tons to scroll through the list of planets (and the Moon) in
our solar system. Press ENTER to display the chosen planet’s
coordinates. Press ENTER again, and the hand controller will
ask “View Object?” Press ENTER once more to have the tele-
scope slew to the object. If the planet you selected is currently
below the horizon, the hand controller will prompt you to make
another choice.
USER: This shortcut button will take you to the database that
you have defined for yourself. You can enter a new location or
recall the objects that have been previously saved (see “Using
the User Defined Database”).
2. Object Button
The OBJECT button takes you to the Objects Catalog, where
you have complete access to all of the celestial objects in the
database. Simply scroll through the object catalogs using the
scroll buttons and choose the catalog of objects you wish to
view. Press ENTER to confirm your choice. Use the scroll
buttons to choose an individual object within the catalog and
press ENTER a second time to display the object’s coordi-
nate. Press ENTER again, and the hand controller will ask
“View Object?” Press ENTER once more to have the tele-
scope slew to the object.
3. Menu
You can also access the Objects Catalog through the Main
Menu. In the Main Menu, scroll down to “Object Catalog”
and press ENTER. Like the OBJECT button, this gives you
complete access to the 13,400 celestial objects in the hand
controller’s database.
Other Functions
The GoTo hand controller is equipped with a variety of addi-
tional functions that allow you to optimize performance and
access other features of the system.
Utility Functions
Utility Functions are useful tools that provide simple, yet
handy, processes to enhance your observing experience.
Show Position: Displays the coordinates (right ascension and
declination) of the location where the telescope is currently
pointing.
Display Time: Displays the local time and local sidereal time.
Park Scope: Moves the telescope to the “home” position.
This allows you to power off the SkyView Pro GoTo system
while saving alignment and PEC training data. When subse-
quently powered on, the initial setup information must again
be entered (be sure to enter the current time accurately!), but
the alignment procedure can be skipped.
Inquire Version: Displays the hardware, firmware, and data-
base version of the GoTo hand controller. If the hand controller
is connected to the mount, this will also display the firmware
version of the motor control board. Use the scroll buttons to
view the version numbers.
PEC Training: See Appendix B for information
LCD/LED Tuning: Allows adjustments of the LCD character
contrast, the LCD backlighting, and the LED backlighting of
the pushbuttons. Use the scroll buttons to select which of
these you wish to adjust. Use the left and right directional but-
tons to increase or decrease the value.
Setup Functions
The Setup functions allow you to change any system variable
or information regarding location, time, date, and alignment.
To access the Setup functions, either press the SETUP button
on the hand controller or scroll to “Setup Mode” from the Main
Menu using the scroll buttons and press ENTER. The different
types of functions available to you are listed below, along with
their respective purposes.
Date: Allows you to change the date entered during the initial
setup.
Time: Allows you to change the current time.
Observing site: Allows you to change the current location
(longitude and latitude) setting.
Daylight Savings: Allows you to change the Daylight Savings
option.
Alignment: Allows you to re-perform the star alignment, (see
“Alignment”).
Set Backlash: This function allows you to insert a value for
each axis to compensate for slewing backlash experienced
on that axis. Backlash is a delay in motorized motion of the
mount due to slack between gears. Backlash is experienced
when the slewing direction is reversed on one or both axes
of motion. For improved pointing accuracy, it is important the
backlash value is set to be equal or greater than the actual
amount of backlash between the gears. The default value for
the backlash compensation is 0° 10’ 0” (0 degrees, 10 arc-
minutes, 0 arcseconds). Use the numeric pushbuttons to
enter the desired backlash compensation value. First set the
value for R.A. backlash compensation, then press ENTER to
set the value for DEC. Press ENTER again to return to the
![](asset-c.png)
12
Setup Menu.
Set Tracking:
-Sidereal Rate: Activates tracking at sidereal rate. This is
the default tracking rate.
-Lunar Rate: Activates tracking at lunar rate.
-Solar Rate: Activates tracking at solar rate.
-PEC + Sidereal: Activates sidereal rate tracking with
Periodic Error Correction.
-Stop Tracking: Stops tracking.
Auto Guide Speed: When using an autoguider, this sets
the guiding speed to 1.125x, 1.25X, 1.5X, 1.75X, or 2X sid
real rate.
Using the User Defined Database
The GoTo hand controller allows you to save up to 25 objects
in the User Defined database. You can save unidentifiable
objects, current comet and/or asteroid positions, or make a
custom list of your favorite objects to view.
Saving an Object to the Database
1. Press the USER button. You can also select “User Defined”
in the Object Catalog menu and then press ENTER.
2. Use the scroll buttons to select “Input Coordi.” and press
ENTER.
3. You can ENTER the object’s location by its R.A. and Dec.
coordinates, or its azimuth and altitude coordinates. Press
1 (RA-Dec) or 2 (AzAlt) to make your selection.
4. The default setting will display the R.A./Dec. or Az/Alt coor-
dinates the telescope is currently pointed to. Therefore, if
the telescope is pointing at the object you wish to save
(i.e. the object is centered in the eyepiece), simply press
ENTER. If the object you wish to save is at another location
in the sky, enter its coordinates using the numeric keypad.
When finished inputting the coordinates, press ENTER.
Note: If the coordinates entered do not exist, the hand con-
troller will not respond when ENTER is pressed. Check the
coordinates for data entry mistakes, and re-enter the correct
coordinates.
5. The hand controller will then ask “Save?” If you do wish
to save the entered object coordinates, press ENTER.
Otherwise, press ESC.
The controller will now prompt you to choose a number
between 1 and 25 for your chosen object. Using the scroll but-
tons, select a number you wish to represent the object, then
press ENTER. Keep in mind that if the object is assigned a
User Object number that is already in use, the hand controller
will overwrite the previously saved coordinates.
The hand controller will now display “View Object?” Press ENTER
to slew the telescope to the object, or press ESC to exit.
Recalling a User Defined Object
1. Press the USER button. You can also select “User Defined”
in the Object Catalog menu and then press ENTER.
2. Choose “Recall Object” and press ENTER.
3. Select the User Object number representing the object
you wish to view using the scroll buttons. Press ENTER to
display the object’s coordinate. Press ENTER again, and
the hand controller will ask “View Object?” Press ENTER
once more to have the telescope slew to the object. (If a
vacant User Object number is selected, the hand control-
ler will not respond.)
Note: If the recalled User Object is currently below the hori-
zon, the controller will display “Below Horizon!! Try another
obj.” and will automatically return to “Recall Object”.
Identifying an Unknown Object
The GoTo hand controller has the ability to identify celestial
objects that are unknown to you. To identify an object the
telescope is pointing at, simply press the ID button. You can
also scroll to “Identify” in the Main Menu and press ENTER to
identify the object. The hand controller will then show a list
containing the close objects in the M, IC, NGC, and Named
Star catalogs and their angular distance from the location
where the telescope is pointed. Use the scroll buttons to view
this list of objects. Press ESC when finished.
Linking with a Computer
The GoTo hand controller can be connected to a computer
via the supplied computer interface cable. Many commer-
cially available planetarium software programs can utilize this
function and be used to control the SkyView Pro GoTo sys-
tem. Look for software that is compatible with the Celestron
NexStar 5i/8i or NexStar GPS, like Starry Night Pro. The
description below will lead you through the procedure on how
to connect and disconnect the SkyView Pro GoTo hand con-
troller to a computer.
1. Align the mount as described previously (see
“Alignment”).
2. Connect the supplied computer interface cable to the
smaller modular jack (RJ-11) on the hand controller (Figure
10). Connect the other end of the cable to the COM port of
your computer.
3. In the planetarium software of your choice, choose
“Celestron NexStar 5i” or “Celestron 8/9/11 GPS” for the
driver setup and follow the instructions provided by the
program to connect the mount and computer through the
hand controller. The mount will be under the full control of
your computer once the connection is successfully estab-
lished.
4. When finished observing, follow the software’s instructions
to close the computer connection to the hand controller.

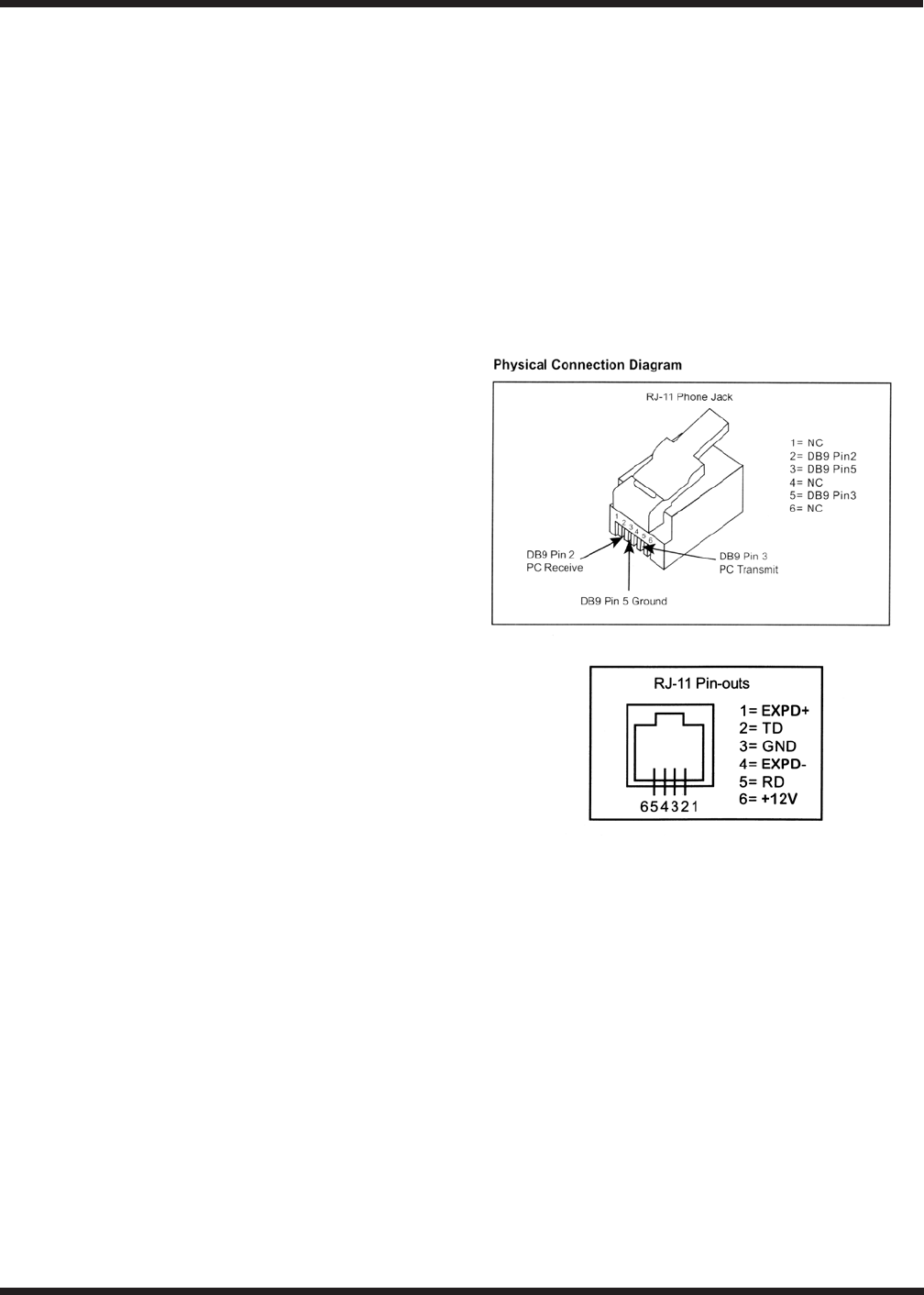

See Appendix C for more information on computer interfac-
ing.
![](asset-d.png)
13
Auto Guiding
For astronomical imaging, the SkyView Pro GoTo motor con-
trol box has a designated autoguider jack. The pin-outs on
the 6 pin modular jack are SBIG compatible and can be used
with most autoguiders available. Refer to Figure 16 when
connecting the autoguider cable to the mount and calibrating
the autoguider. Autoguiding speed can be adjusted using the
“Auto Guide Speed” function in the Setup Menu.
Updating the GoTo Hand Controller’s
Firmware
From version 3.0 and up, the GoTo hand controller’s firmware
can be updated over the internet. Users can download firmware
updates from Orion’s website www.OrionTelescopes.com.
System Requirements
- GoTo hand controller version 3.0 or greater
- Windows95 or later
- An available RS-232 COM port on the PC
- Computer interface cable (supplied)
- DC power supply (7.5V to 15V @ 100mA or greater output
with 2.1mm tip positive plug)
Preparing the Computer for the Update
1. Create a folder where you will store the files necessary for
the update.
2. Go to the website www.OrionTelescopes.com, and access
the support page for the SkyView Pro GoTo system.
3. Download and save the Firmware Loader program to the
folder you have created on your computer. You will need to
download this program only once; after it is saved on your
computer, only the firmware data file is needed for future
updates.
4. Download and save the firmware update date file to the
folder you created. The file will be named OrionVxxxxEQ.
ssf, where xxxx indicates the version number of the firm-
ware.
Updating the GoTo Hand Controller
1. Plug the modular plug end of the computer interface cable
into the middle jack in the hand controller (Figure 14). Plug
the serial connector end of the cable to the COM port on
your PC.
2. Press and hold down the 0 and 8 numerical buttons simul-
taneously, then plug the power supply into the hand con-
troller’s DC power jack. The hand controller will beep and
display “SynScan Update Ver. x.x” on the LCD screen.
3. Run the Firmware Loader program on your computer.
4. Click on the “Browse” box and select the OrionVxxxx.ssf
file location where it was saved previously on your com-
puter.
5. Click on the “Update” button, and the new firmware will
begin loading into the hand controller. The Firmware
Loader will show the progress of the update on your com-
puter screen. It will usually take approximately 5 minutes
for the new firmware to load into the hand controller. It
may take significantly longer if a serial-to-USB adapter is
employed on your computer.
6. When the download is complete, the Firmware Loader will
display “Update Complete”.
The firmware in the GoTo hand controller has now been
updated. You can click on the “HC. Version” button to confirm
the new version number of the firmware (and possibly the
database, but the hardware version will not change with inter-
net updates).
Note: If the error message “Can not connect to a SynScanhand
control” appears on your computer, check all cable connec-
tions. Also, try closing all other computer programs that might
be attempting to use the COM port.
Note: If the error message “Firmware update failed...” appears
on your computer, remove the power plug from the hand con-
troller, and then reconnect it. Now, repeat the firmware update
procedure.
By default, the data communication rate between the GoTo
hand controller and the computer is 115kbps. The RS-232
port on some PCs may not support this high data transfer
rate. If the firmware update procedure fails after a few tries,
try reducing the data transfer rate by pressing the SETUP but-
ton on the hand controller. This will reduce the data transfer
rate to 9.6kbps. The controller’s LCD screen will show “Lo” in
the lower right hand corner to indicate the lower transfer rate
setting. The firmware update procedure remains the same
except it will take much longer for the firmware to load into the
hand controller.

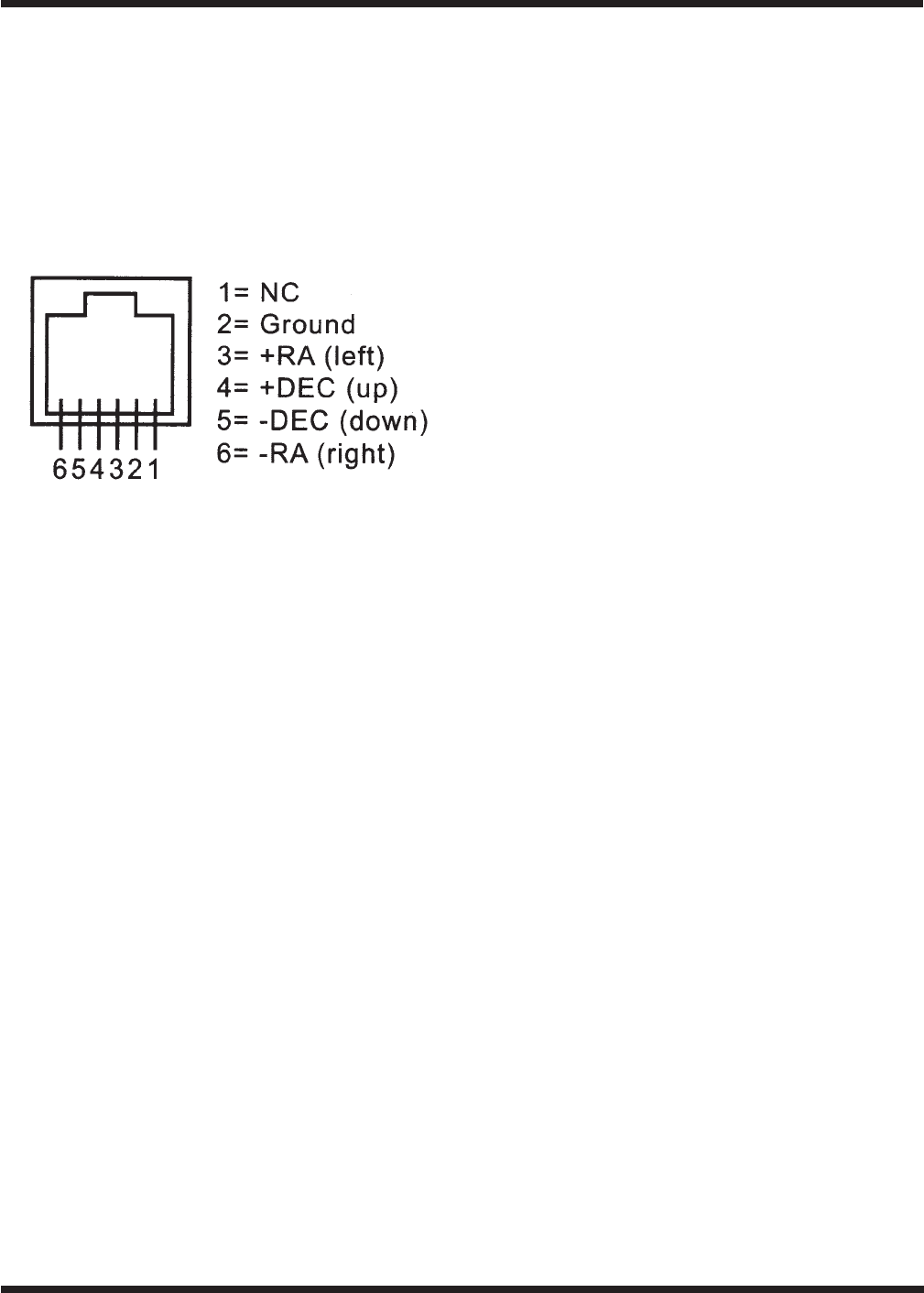

Figure 16. Pin diagram for the SkyView Pro GoTo autoguider jack
![](asset-e.png)
14

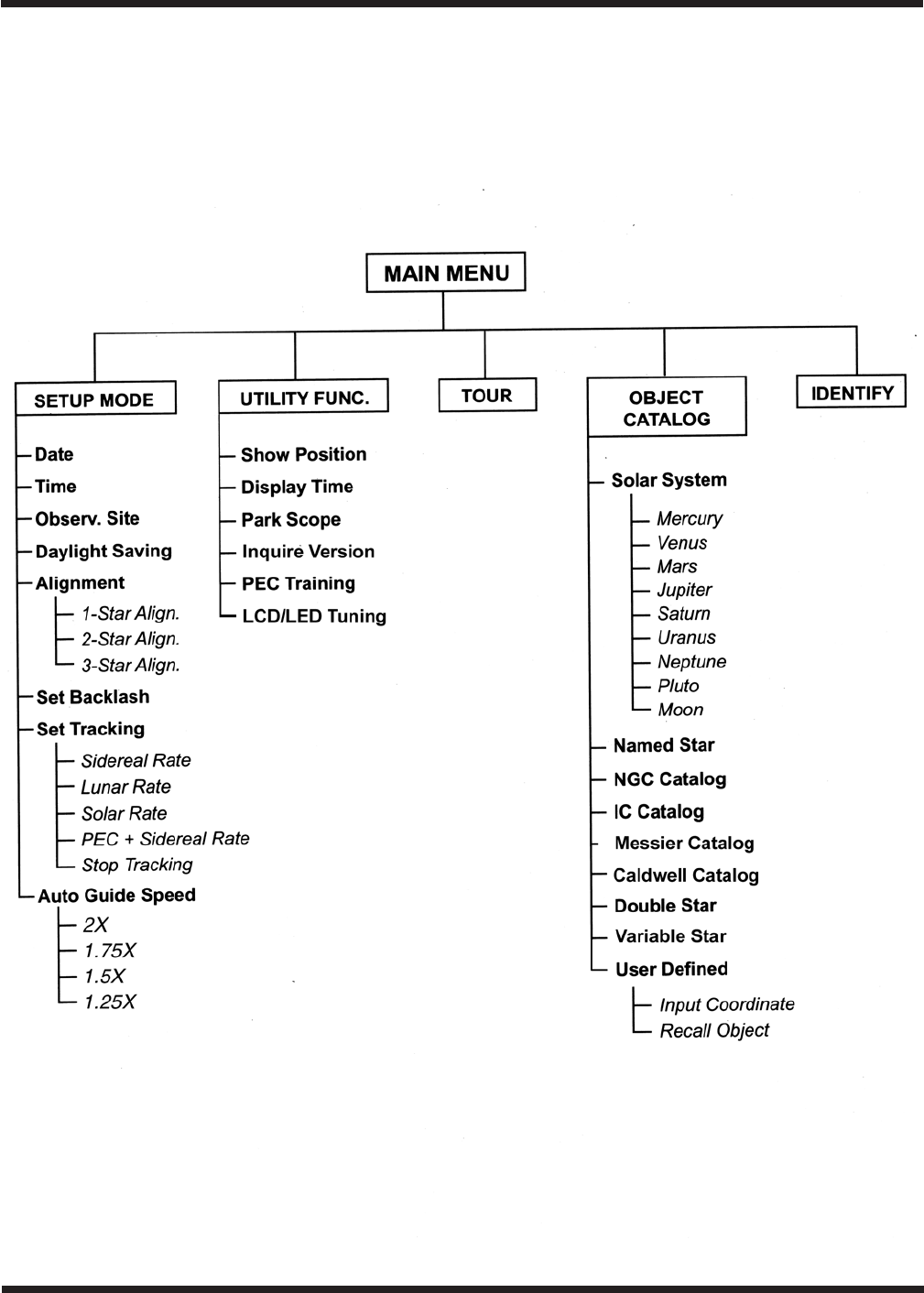

SkyView Pro GoTo
Hand Controller Menu Tree
![](asset-f.png)
15
3. Technical Specifications
Motor drives: Dual-axis, GoTo comput-
erized.
Operation: Northern or Southern
hemisphere
Autoguiding rates: 1.25X / 1.5X / 1.75X / 2X
sidereal rate
Power requirrement: 12V DC, 2A (tip posi-
tive)
Motor type and resolution: Microstep driven
stepper motors
Slew speeds: Rate 0 = 1.5X
Rate 1 = 2X
Rate 2 = 8X
Rate 3 = 16X
Rate 4 = 32X
Rate 5 = 64X
Rate 6 = 400X
Rate 7 = 500X
Rate 8 = 600X
Rate 9 = 800X (3.4°/sec)
Tracking rates: S i d e r e a l ( d e f a u l t )
lunar, solar, PEC +
sidereal.
Tracking modes: R.A. tracking
Alignment method: One-star alignment, two-
star alignment, three-star
alignment
Database: 25 user-defined objects,
complete M, NGC. and
IC catalogs, total 13,436
objects.
Pointing accuracy: Up to 1 arcminute with
cone error calibration, up
to 15 arcminutes without
cone error calibration
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device nay
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Changes of modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a resi-
dential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is
no guarantee that interference will no occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an output on a circuit different
from that to which the receiver in connected.
-Consult the dealer or an experienced radio/TV technician
for help.
A shielded cable must be used when connecting a peripheral
to the serial ports.
Appendix A: Enhancing the
Precision
The Skyview Pro GoTo system produces pointing accuracy
and tracking accuracy adequate for most applications. If
higher precision is required, “cone” error calibration may be
necessary.
Cone Error Calibration
“Cone” error is a common inaccuracy found on all German
equatorial mount designs. Cone error results from the optical
axis of the telescope not being aligned to the R.A. axis of the
mount. This affects the pointing accuracy of the GoTo sytem.
Three-star alignment automatically compensates for some of
the “cone” error, but pointing accuracy will be optimized by
mechanically minimizing the “cone” error. The following cali-
bration procedure should be performed before the initial use
of the telescope and periodically thereafter to ensure peak
accuracy.
Testing for Cone Error
This test is performed at night using two bright stars located
on opposite hemispheres of the night sky. Confirm that the
telescope is properly polar-aligned using the polar axis finder
scope. Perform the one-star alignment using an eastern star
as the alignment star (see “One-Star Alignment”). After com-
pleting the star alignment, choose a bright star in the western
sky from the GoTo hand contoller's object database and press
ENTER to slew the telescope to the star. If the optical axis
is perfectly aligned to the R.A. axis, the telescope will accu-
rately put the star in the center of the eyepiece. This shows
that there is no “cone” error in your telescope setup and you
will not need to perform the calibration. It is acceptable if the
star is slightly off-center as long as it appears in the eyepiece
field of view and reasonable close to the center. Many factors
determine the pointing accuracy of the GoTo hand contoller's.
![](asset-10.png)
16
Incorrect star alignment, loose R.A. or Dec. lock-knobs, or
“cone” error. If the GoTo hand contoller puts the star outside
the eyepiece field of view, you need to determine which of
these factors is causing the pointing inaccuracy. To determine
if the inaccuracy is caused by “cone” error, simply move the
telescope about the R.A. axis by pressing the Left or Right
direction button. If the star can be moved into the eyepiece
field of view without adjusting the Dec. axis, it is likely that
“cone” error exists in your telescope setup.
Calibration Procedure
1. Insert an illuminated reticle eyepiece (not supplied) into
the focuser (or diagonal) of the telescope. Confirm the
telescope is properly set up and balanced, and the finder-
scope is aligned with the optical tube of the telescope.
Note: Steps 2 to 4 are to identify R.A. and DEC movements in
the reticle eyepiece. If you are already familiar with the move-
ments, proceed to step 5.
2. Find a bright star and position the telescope so the star is
centered in the eyepiece field of view.
3. Look into the eyepiece. Move the telescope about the R.A.
axis using the R.A. direction buttons on the hand controller
while carefully observing the movement of the star.
4. Keep moving the telescope about the R.A. axis back and
forth to keep the star within the eyepiece field of view.
Rotate the eyepiece in the focuser (or diagonal) until the
movement of the star becomes parallel to one of the illu-
minated crosshairs (Figure 17). This crosshair will repre-
sent R.A. movement in the course of this procedure, and
the perpendicular crosshair will represent Dec. movement.
Tighten the set screws to secure the eyepiece in position.
Make sure the eyepiece will remain stationary while the
telescope is moved.
5. Point the telescope North and set the latitude scale to
your local latitude using the altitude adjustment L-bolts.
Alternatively, place Polaris in the polar axis finder scope if
your polar axis finder scope is accurately aligned with the
mount.
6. Loosen the R.A. lock knob and rotate the telescope about
the R.A. axis until the counterweight shaft is parallel to the
ground (as shown in Figure 19a).
7. Using the Dec. direction button on the hand controller,
adjust the telescope in Dec. so Polaris lies on the R.A.
crosshairs of the illuminated reticle eyepiece (Figure 18).
8. Without moving the R.A. axis, adjust the azimuth control
knobs to orient Polaris in the center of the eyepiece field
of view. Adjustment in Dec. axis using the hand controller
may be necessary.
9. Loosen the R.A. lock knob and carefully rotate the tele-
scope 180° about the R.A. axis (Figure 19a &19b) This
should be done as accurately as possible referencing the
R.A. mechanical setting circle.
10.Adjust the position of the telescope in the Dec. axis so
Polaris lies on the R.A. crosshairs of the illuminated reticle
eyepiece (Figure 18).
11.Carefully push the telescope in horizontal motion while
observing the movement of Polaris in the eyepiece field of
view (Figure 20). This will determine which direction (left
or right) moves Polaris closer to the center of the eyepiece
field of view.
12.Carefully and gently loosen both the tube ring attachment
screws by a couple of turns.
13.Make adjustments to the optical axis offset adjustment
screws (the socket head cap screws located at each cor-
ner of the mounting plate), according to the results of step
11. If Polaris moves toward the center when the telescope
is pushed as indicated in Figure 20, loosen the adjust-
ment screws near the front of the tube and tighten the
adjustment screws closer to the back of the tube (Figure
21a). If Polaris moves away from the center when the tele-
scope is pushed as in Figure 20, loosen the adjustment
screws near the back of the tube and tighten the adjust-
ment screws closer to the front of the tube (Figure 21b).
Look into the eyepiece. Adjust the adjustment screws just
enough to place Polaris HALF the distance back to the
center of the illuminated reticle eyepiece (Figure 22).
14.Repeat steps 7 to 12 until Polaris remains in the center
of the eyepiece field of view, or moves slightly around the
center, when the mount is rotated about the R.A. axis.

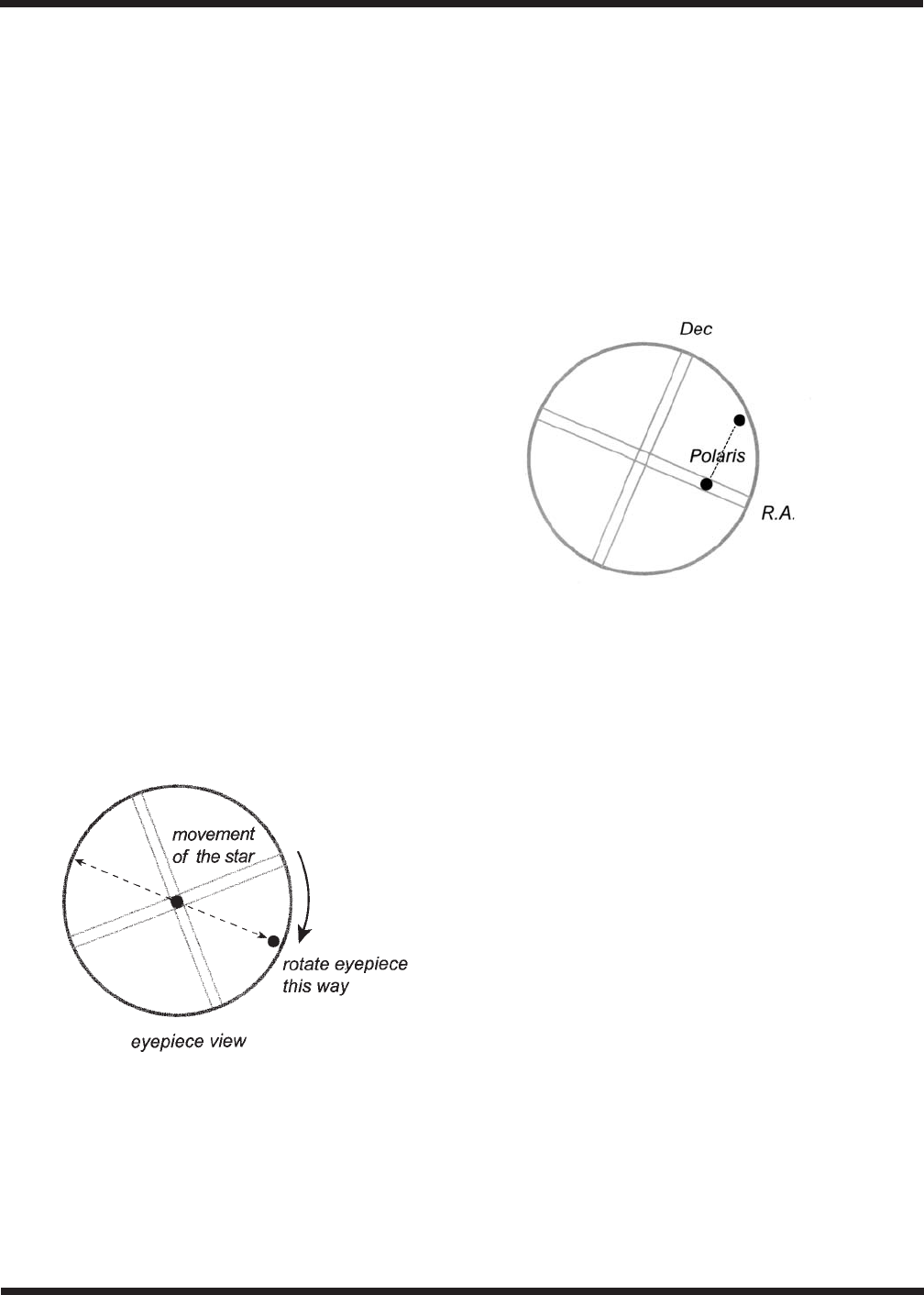

Figure 17. Aligning
the R.A. motion of the
star with the crosshairs.
Figure 18. Adjust the telescope in Dec. (with the hand controller) to
place the star on the R.A. crosshair.
![](asset-11.png)
17
Note: This calibration method can be applied to both refract-
ing and reflecting telescope designs. Differences in the optical
path of telescopes do not affect how the telescope tube and
tube rings should be adjusted on the mounting plate.

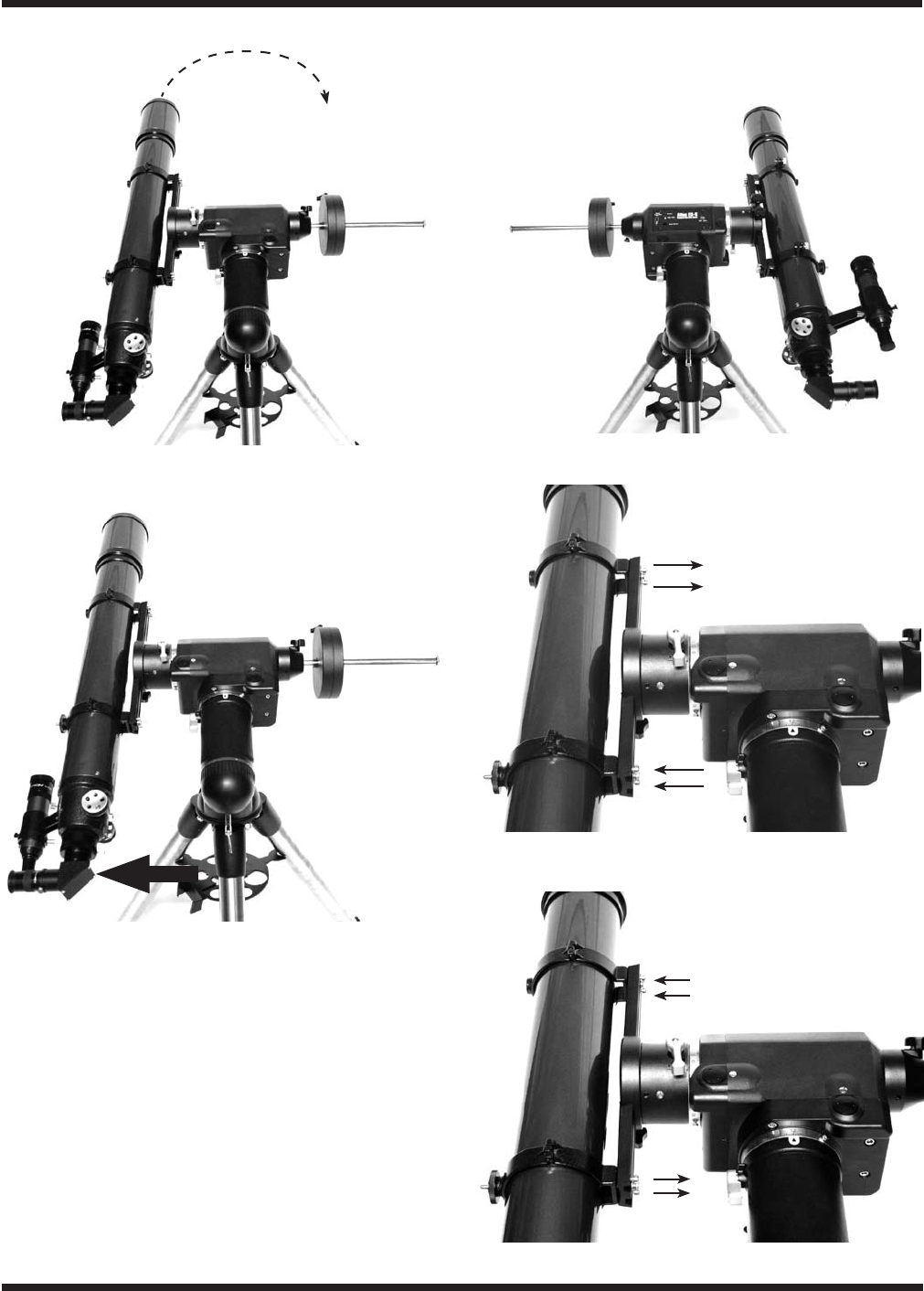

Figure 20. gently push the telescope horizontally to determine
direction of optical axis offset.
Figure 19a-b. Rotate the telescope 180° about the R.A.axis.
Figure 21a. Adjust the optical axis offset screws this way if Polaris
moves toward the center of the eyepiece when the tube is pushed as
in Figure 19.
Figure 21b. Adjust the screws
this way if Polaris moves away
from the center of the eyepiece.
a. b.
![](asset-12.png)
18
Appendix B: Periodic Error
Correction (PEC)
(Requires an illuminated reticle eyepiece capable of producing
at least 300X magnification when used with your telescope.
For best results, the true field of view should not exceed 10
arcminutes.)
Periodic errors are inherent in almost all worm gears due to
slight eccentricities and misalignments. The PEC (Periodic
Error Correction) Training function provides a manual correct-
ing method to reduce the amplitude of the worm gear errors.
By recording a full cycle of guiding actions, the SkyView Pro
GoTo system can compensate for drifting in the R.A. sidere-
al tracking caused by periodic errors. The description below
will lead you on a step-by-step procedure for performing the
PEC.
Note: The PEC training function is recommended for
advanced users with interest in long-exposure astro-
photography only. Careful guiding is required. Standard
sidereal tracking is sufficient for all casual visual applica-
tions of the SkyView Pro GoTo system, and PEC training
is not required.
PEC Training
1. Perform an accurate polar alignment using the polar axis
finder scope.
2. Electronically slew the telescope mounted on the SkyView
Pro to a star with a small value DEC coordinate (DEC
between +10° and –10°). This object will be used as the
guide star.
3. Activate “Sidereal Tracking” from the Setup menu (see
“Setup Functions”). Once tracking has initiated, press ESC
to return to the Setup menu.
4. Rotate the reticle eyepiece in the focuser (or diagonal)
until the R.A. movement of the star becomes parallel to
(matches) one of the illuminated crosshairs
5. Move the guide star designated in step 2 to the center of
the eyepiece field of view using the direction buttons.
6. On the hand controller, select PEC Training in the Utility
Functions and press ENTER.
Note: Utility Functions can be accessed by pressing the
UTILITY quick rererence button on the hand controller.
7. Select the R.A. guide speed for the PEC Training. You have
two guide speed choices: 1) 0.25X and 2) 0.5X. Press the
numeric button 1 to choose a guide speed of 0.25X or
press 2 to choose a guide speed of 0.5X.
8. The SkyView Pro GoTo hand controller will display the
current time once the guide speed has been selected,
indicating the recording has begun.
9. Using the left or right direction button only, move the tele-
scope so the guide star remains centered in the eyepiece
field of view (Figure 23). Repeat as necessary.
The SkyView Pro GoTo hand controller will record the manual
guiding actions for 8 minutes in order to characterize the peri-
odic errors. Pressing ESC will immediately stop the recording
and exit from the PEC Training function.
Note: Guiding actions are recorded even when the PEC
training is stopped midway. The PEC + sidereal tracking
will not be accurate until a full cycle of the PEC Training
is performed.
Figure 22. Using the optical axis offset screws move Polaris
halfway to the eyepiece’s center.
Figure 23. Drifting caused by periodic error.
![](asset-13.png)
19
The SkyView Pro GoTo system will emit a “beep” sound and
display “Record completed” when the training time is up. Press
any button to exit from the PEC Training upon completion.
Play Back the PEC Record
PEC tracking can be activated under the Setup menu or by
pressing the Setup quick reference button when needed. In
the Setup menu, choose “Set Tracking”, then “PEC + Sidereal”.
The SkyView Pro GoTo system will play back the corrections
you made during the PEC training cycle and start tracking
with periodic error compensated.
Note: The SkyView Pro will continue to track in the PEC
+ sidereal mode until another tracking mode is selected.
If the power is turned off while the SkyView Pro is in the
PEC + sidereal mode, the hand controller loses synchro-
nization with the R.A. worm gear and the PEC training
will have to be repeated when the power is turned back
on. To avoid this, be sure to return the telescope to its
home position by selecting “Park Scope” under “Utility
Functions” before turning off the power.
Appendix C: RS-232
Connection
The SkyView Pro GoTo hand controller must be set to RS-232
mode in order to establish an interface connection with a PC.
Under the UTILITIES menu, select RS232 and press ENTER
to initiate the computer interface mode. The hand controller
will now communicate with the PC at a rate of 9600 bits/sec,
no parity and stop bit. All angles are communicated with 16
bit numbers.
Initialization
1. PC sends one byte ( 63 = ASCII “?”) to check wheteher
the hand controller is ready.
2. The hand controller responds with one byte (35 = ASCII
“#”) when the hand controller is ready to respond.
Note: All INITIALIZATION steps are recommended but not
necessary
GoTo R.A.-DEC positions
1. NITIALIZATION
2. PC sends (82 = ASCII “R”)
3. PC sends the R.A. high byte, R.A. low byte, DEC high
byte, DEC low byte.
4. When the scope is finished slewing, it will display a “@” on
the hand controller.
GoTo Alt-Az positions
1. INITIALIZATION
2. PC sends (65 = ASCII “A”)
3. PC sends the Azm high byte, Azm low byte, Alt high byte,
Alt low byte.
4. When the scope is finished slewing, it will display a “@” on
the hand controller.
Get R.A.-DEC positions
1. INITIALIZATION
2. PC sends (69 = ASCII “E”)
3. The hand controller sends the R.A. high byte, R.A. low
byte, DEC high byte, DEC low byte.
Get Alt-Az positions
1. INITIALIZATION
2. PC sends (90 = ASCII “Z”)
3. The hand controller sends the Azm high byte, Azm low
byte, Alt high byte, Alt low byte.
![](asset-14.png)
20
Orion Telescopes & Binoculars
89 Hangar Way, Watsonville, CA 95076
Customer Support Help Line (800)‑676‑1343 • Day or Evening
One-Year Limited Warranty
This Orion SkyView Pro GoTo system is warranted against defects in materials or workmanship for a
period of one year from the date of purchase. This warranty is for the benefit of the original retail pur-
chaser only. During this warranty period Orion Telescopes & Binoculars will repair or replace, at Orion’s
option, any warranted instrument that proves to be defective, provided it is returned postage paid to:
Orion Warranty Repair, 89 Hangar Way, Watsonville, CA 95076. If the product is not registered, proof of
purchase (such as a copy of the original invoice) is required.
This warranty does not apply if, in Orion’s judgment, the instrument has been abused, mishandled, or
modified, nor does it apply to normal wear and tear. This warranty gives you specific legal rights, and
you may also have other rights, which vary from state to state. For further warranty service information,
contact: Customer Service Department, Orion Telescopes & Binoculars, 89 Hangar Way, Watsonville, CA
95076; (800)-676-1343.
Appendix D: Standard Time Zones of the World
