OWNER'S MANUAL

COMBINED 14" TV AND DVD PLAYER

TV/DVD-1432

CONTENTS

Before Operation

Basic operation

Warning and cautions...........................................................................2

Installation..............................................................................................3

Aerial connection..................................................................................3

Preparation of the remote control.........................................................3

Function buttons and external sockets...............................................4

Front panel of the TV set.....................................................................4

Rear panel of the TV set.......................................................................4

Using the remote control......................................................................5

Switching on/off the TV set ..................................................................6

Watching TV ..........................................................................................7

Watching TV program..........................................................................7

Program swap and auto scan functions...............................................8

Searching channel.................................................................................9

Full automatic mode...........................................................................9

Semi-automatic search......................................................................10

Manual fine tune.................................................................................11

Program skip .....................................................................................12

Convenient picture and sound control functions.............................13

Multiple picture modes .....................................................................13

Black stretch and noise reduce..........................................................14

Mute , Select the language and Fade function..................................15

Time functions.....................................................................................16

Clock setting and timer on/off functions..........................................16

Sleep timer and program preset ......................................................17

Setup function ....................................................................................18

Screen saver and childlock functions.................................................18

AVL and calendar functions ..............................................................19

Position exchange function...............................................................20

Teletext..................................................................................................21

DVD Operation

Basic Playback.....................................................................................23

Advanced Playback..............................................................................24

Special Function Playback..................................................................25

DVD System Setup...............................................................................26

Playable Discs......................................................................................30

Disc Protection and DVD Characteristics..........................................31

Others

Connection to the external audio and video equipment..................32

Troubleshooting guide........................................................................33

Specifications......................................................................................34

Warning and cautions

1. When you clean the TV set, please

pull out the power plug from AC outlet.

Don't clean the cabinet and the

screen with benzene, petrol and other

chemicals.

4. Do not place the TV set near rain or

moisture as it may cause an electric

shock, or the TV set to catch fire. The

TV set must only

be used in dry in

door locations.

5. The back cover must only be

removed by a registered electrical

service person. Removing the back

cover may result in electric shock, fire

or damage to

the TV set.

3. Don't place the

TV set in direct

sunlight or near a

heat source.

6. If the TV set is not going to be used

for a long time, or there is a severe

thunder & Lighting storm, it is

recommended that the TV set be

disconnected from the AC power outlet

and the aerial plug removed.

Cleaning the tube

If the picture tube require cleaning, disconnect the power and use a dry

soft cotton cloth. Do not use any cleaner or abrasive cloths.

22

2.In order to prolong the live of the

product, please use in a well

ventilated location.

Installation

Preparation for the remote control

Battery installation Tips for remote operation

Remove the battery cover. When the remote control will not be used

for a long period of time or when the

batteries are worn out, remove the

batteries to prevent leakage.

Do not throw the batteries into fire.

Dispose of used batteries in the specified

manner.

Do not drop, dampen or disassemble

the remote control.

Insert two size AA batteries matching

the +/-polarities of the battery to the +/-

marks inside the battery compartment.

Antenna connection

300 twin-lead cable

Antenna adapter

75 coaxial cable

Plug

AC power socket

Aerial input

75 standard

coaxial type

Note:

* It is recommended that a 75 ohm coaxial antenna is used to avoid

interference.

*To avoid interference from electrical signals, do not bind the antenna

cable together with any mains lead.

*The DC input AC input is separately. Do not use them together.

(Not supplied)

If the picture is not clear or is snowy, it is recommended that an External Aerial

is used, this is usually mounted outside.

DC power socket

110V~240V 50 60Hz~

DC 12V 10A

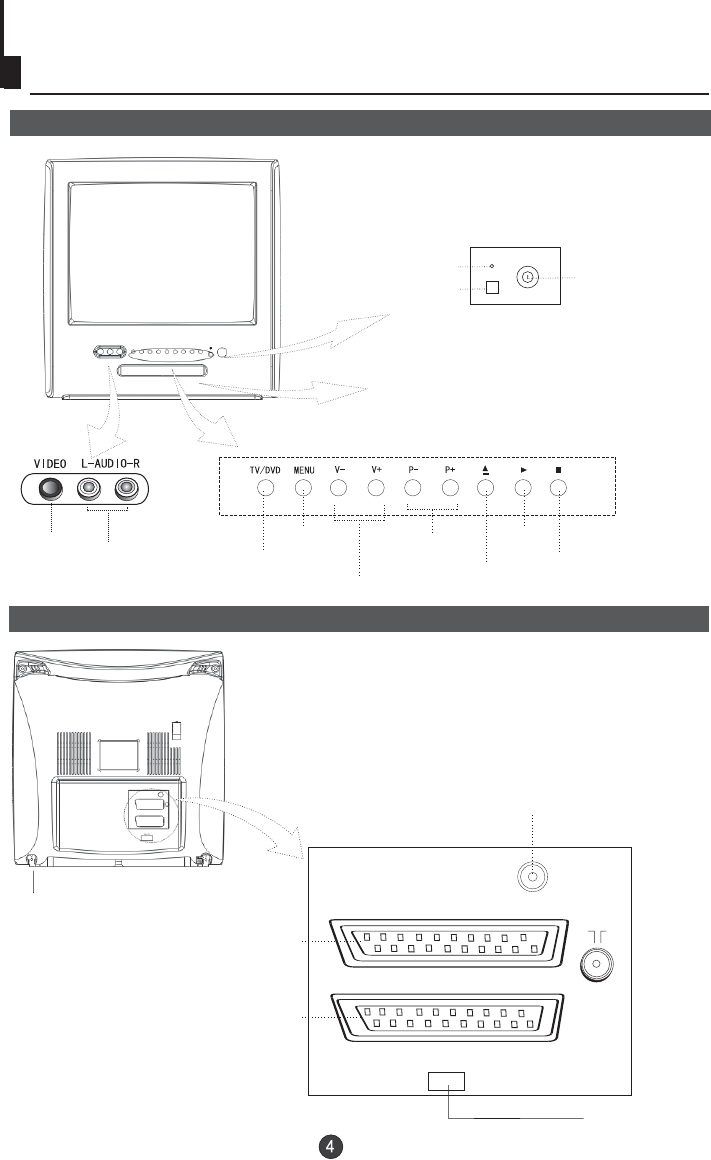

Function Buttons and External Sockets

Front panel the TV set

Rear panel of the TV set

Power Switch

Power Indicator

Signal Receiver

Video R/L

Audio

Menu

TV/DVD

Switching Volume up/ down

Channel Position

up/down

Open/close

the DVD

Play

the DVD

Stop

the DVD

The DVD Player

DVD EXT

TV EXT

COAXIAL

DVD SCART Terminal

TV SCART Terminal

Digital audio coaxial output

terminal

AC input socket

DC IN

DC input socket

Using the Remote Control

Stand By

DVD Open/close

DVD 10+

Scan

Zoom

Mute

Former Program

Call Screen Display

Program Number

(No available)

TV/AV Exchange

Digital Selector

TV/DVD

Volume/Channel Selection

MENU

DVD Audio

Picture Mode

DVD STOP

Tune Menu Button

DVD SETUP

DVD PAUSE/STEP

DVD FAST REVERSE

DVD FAST FORWARD

DVD MENU

DVD NEXT

DVD PREVIOUS

DVD REPEAT

DVD PLAY/ENTER

DVD A-B REPEAT

DVD Cursor Move button

DVD SLOW

DVD ANGLE

DVD SEARCH

DVD PROGRAM

DVD TITLE

DVD SUBTITLE

DVD CALL

(No available)

TELETEXT BUTTONS

Exit Screen Display

PICTURE MENU BUTTON (Red)

Green Button

FUNCTION MENU BUTTON (Blue)

TIME MENU BUTTON (Yellow)

Buttons on the remote control

UP

DOWN

LEFT RIGHT

POWER ZOOM OPEN/CLOSE

SCAN SWAP CALL MUTE

1234

5678

9 0 -/--

TV/AV

TV/DVD

P+

P-

V- V+

MENU

AUDIO P.STD

STOP SETUP PAUSE/STEP

REV FWD PREV NEXT

D.MENU REPEAT A-B

PLAY/ENTER SLOW

ANGLE TITLE/PBC SEARCH

SUBTITLE D.CALL

10+

PROGRAM

TUNE

PICTURE SOUND TIME FUNCTION

EXIT

4

AUTO

BG

Switching on/ off the TV set

1 Please press the power switch to switch on AC

power supply and the power indicator will light.

2 If the indicator is lighting in red, press the button

on the remote control again.

Note

1 When you don't operate the TV set with a

remote control, you can turn on it directly

through pressing the channel on the TV set

(Child Lock must be turned off).

buttons

2 If you want to exchange to standby status,

please press down the button on the remote

control.

3 If you want to fully switch off the power supply

for the TV set, please press the power switch

button on the TV set.

Auto switch-off function

This section explains the use of the power button and remote handset

to turn your unit on and off.

If transmissions are finished for the day, the

Automatic Power Off feature will put the TV to

standby automatically. The Automatic Power

Off feature will not operate in AV mode or

when the background is set to off (see page

18).

POWER

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Watching TV

Watching TV program

How to select TV program

Select the desired program

Select the desired sound

You can watch TV program in a preset channel.

1 Using "Program number" buttons

Press the V-/+ buttons on the remote or the front of the TV

set to adjust the volume level. The range is 0~100. When the

volume buttons are pressed the volume level is displayed

automatically on the TV screen.

Directly enter the channel number with the numeric keypad

on the remote control.

To select channel numbers from 10 ~ 99 press [-/--] button

and enter the two digit channel number

To select channel numbers from 100 ~ 218 press [-/--] button

twice and enter the 3 digit channel number

2 Using the P+/- buttons

Press the P+ button to increase channel number.

Press the P- button to decrease channel number.

1234

5678

90

Press the TUNE button, the

TUNE menu shown on the right

display on the screen.

If the picture colour is incorrect

This may be due to the TV being set to the incorrect

standard. Use P+ or P- to select Colour then the V+ /V-

buttons to change between Auto, PAL, NTSC and

NTSC443. Press the EXIT button to save the setting.

If the picture sound is abnormal

Use the CH+/- buttons to select Sound then press the

VOL-/+ buttons to select the sound system.

In general, BG will display in turn.

DK,

TUNE

SOUND BG

BAND VHFL

SKIP OFF

PROGRAM 0

SEARCH

FINE TUNE

AUTO SEARCH

COLOUR AUTO

TUNE

18

AUTO

BG

8

AUTO

BG

18

AUTO

BG

Watching TV continued

Swap function enables quick swap to the last watched program.

Auto scan function enables automatic successive scanning of all the programs in

memory with (each channel will last about 2 seconds)."OFF" skip status

Program swap and auto scan functions

Program swap

1 Suppose the channel number

you used just now is 8 and the

channel number you are using

is 18 (as shown in the figure).

2 If you want to return to the

last watched program channel

8, you can simply press the

SWAP button.

3 If you want to return to

channel 18, press the button

again. Through this function,

you can easily change

between the channel you are

using and the channel you

used last time.

Auto program scan

2 If you want to stop the function

during auto scanning, simply

press the SCAN button again.

1

AUTO

BG

SCAN

2

AUTO

BG

SCAN

3

AUTO

BG

SCAN

1

AUTO

BG

SCAN

1 Press the SCAN button to

scan through all the memorized

TV channels. The scan will

pause for about 2 seconds on

each channel.

SWAP

SCAN

P+

P-

V- V+

MENU

Searching channel

This TV set has three methods to set the channels, which are respectively full

automatic, semi automatic and manual fine tune.

-

In this section, how to use the remote control to set the channel is explained. You

can also use the buttons on the TV set to set channel.

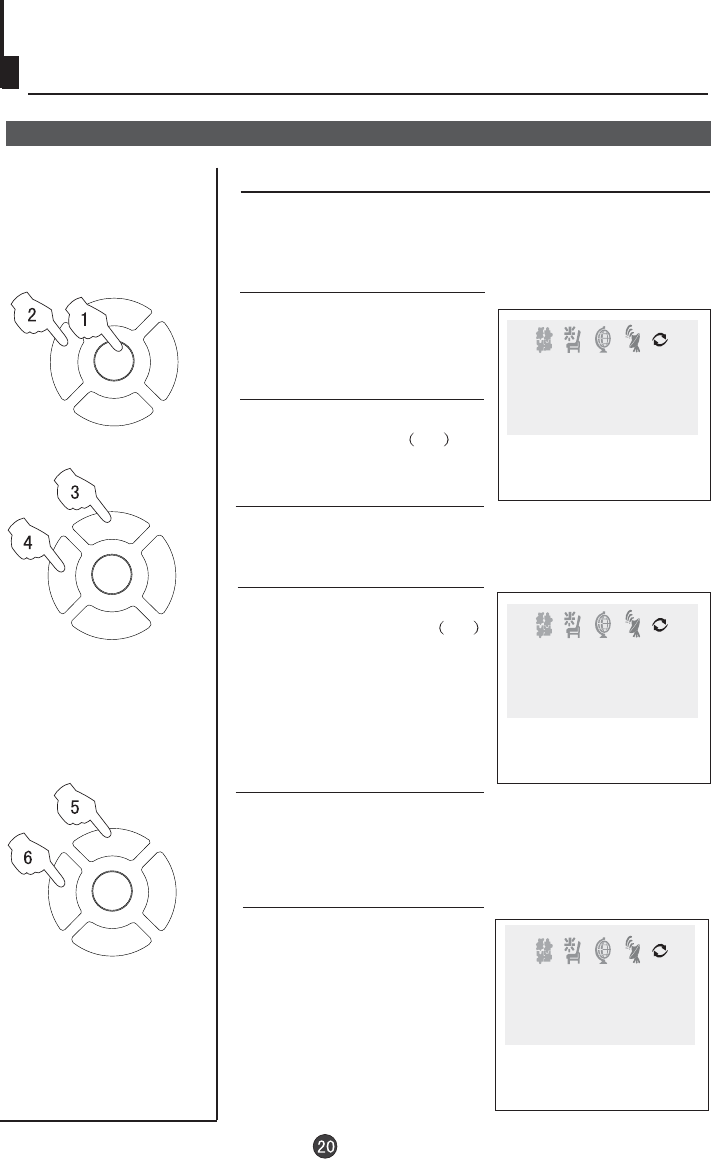

Full automatic mode

1 Press the TUNE button, the

TUNE menu shown on the right

display on the screen.

2 buttons to

select "AUTO SEARCH".

Press the P+/-

3 Press the V+ button to

ensure automatic search

function operates. All channels

now playing program will be

automatically preset in order .

,

the first program number will

display on the screen.

After the search has finished

TUNE

SOUND BG

BAND VHFL

SKIP OFF

PROGRAM 0

SEARCH

FINE TUNE

AUTO SEARCH

COLOUR AUTO

Display function

Press the CALL button, then

the channel number and the

systems will be displayed on

the screen.

3

AUTO

BG

TUNE

COLOUR AUTO

SOUND BG

BAND VHFL

SKIP OFF

PROGRAM 0

SEARCH

FINE TUNE

AUTO SEARCH

TUNE

CALL

P+

P-

V- V+

MENU

1

AUTO

BG

6

Searching channel

Continued

Semi-automatic search

1 Press the P+/- buttons or

PROGRAM NUMBER 0-9

buttons to choose desired

channels I.E. channel 1

2 Press the TUNE button, the

TUNE menu shown on the right

display on the screen.

3 buttons to

select " SEARCH".

Press the P+/-

4 Press the V-/+ buttons to

start searching.

The V- down button is used for

lower side program search.

The V+ up button is used for

higher side program search.

Repeat this step, till find the

desired channel.

SEARCH

152.25MHz

To turn off the on-screen menu

In general, after you press the MENU button, the menu

display (PICTURE, TIME

ETC.) will automatically disappear within 15 seconds. If you

want to eliminate these contents immediately, please press

the EXIT button.

item

, FUNCTION, TUNE, EXCHANGE,

TUNE

COLOUR AUTO

SOUND BG

BAND VHFL

SKIP OFF

PROGRAM 0

SEARCH

AUTO SEARCH

FINE TUNE

TUNE

EXIT

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

5

FINE TUNE

152.25MHz

Searching channel

Continued

Manual fine tune

2 Press the TUNE button, the

TUNE menu shown on the right

display on the screen.

3 buttons to

select " FINE TUNE".

Press the P+/-

4 Press the V-/+ buttons all

through to carry out fine tune,

till the best picture and sound

are obtained.

TUNE

COLOUR AUTO

SOUND BG

BAND VHFL

SKIP OFF

PROGRAM 0

SEARCH

AUTO SEARCH

FINE TUNE

1

AUTO

BG

If the picture and/or sound are poor, try using the FINE

TUNE feature. Do not use this feature unless

reception is poor.

1 Press the P+/- buttons or

PROGRAM NUMBER 0-9

button to choose desired

channels I.E. channel 1

TUNE

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Searching channel

Continued

Program skip

2 Press the TUNE button , the

TUNE menu shown on the right

display on the screen.

3 buttons to

select "SKIP".

Press the P+/-

4 Press the V-/+ buttons to

turn the SKIP function "ON".

5 Press the TUNE button to close

the menu. When you use the P /

buttons to select channel, this

channel will be skipped. However,

you can still use the PROGRAM

NUMBER buttons to select the

skipped channel numbers.

+-

If you want to recover the skipped channel

1 Use the PROGRAM NUMBER buttons to select the channel

number to be recovered.

2 Repeat those steps just now.

3 Press the V-/+ buttons to turn the SKIP function "OFF".

TUNE

COLOUR AUTO

SOUND BG

BAND VHFL

PROGRAM 0

SEARCH

FINE TUNE

AUTO SEARCH

SKIP OFF

TUNE

COLOUR AUTO

SOUND BG

BAND VHFL

PROGRAM 0

SEARCH

FINE TUNE

AUTO SEARCH

SKIP ON

1 Press the P+/- buttons or

PROGRAM NUMBER 0-9

button to choose desired

channels I.E. channel 1

1

AUTO

BG

Channels can be set so that they are skipped during

program selection.

TUNE

P+

P-

V- V+

MENU

Multiple picture modes

How to select picture modes

You can quickly select the desired picture mode from

four preset modes and one customized mode.

Convenient picture and sound control functions

Press the P.STD button to select the

desired picture quality. Five kinds

of picture modes (i.e.,

"RICH", "USER","LISTEN",

"SOFT" ) can be selected in turn.

"STANDARD", USER

LISTEN

RICH

STANDARD

SOFT

How to customize your own picture status

1 Press the PICTURE button, the menu shown on

the right display on the screen.


2 Press the P+/- buttons to

select the item to adjusted,

then press the V-/+ buttons

to obtain the desired effect.

BRIGHTNESS

SHARPNESS

*Hue

CONTRAST

COLOUR

Weak

Shallow

Dark

Soft

lean to purple

Strong

Deep

Bright

Sharp

lean to green

ITEM

Press V -

Press V +


BRIGHTNESS 32

COLOUR 48

SHARPNESS 40

*HUE 60

BLACK STRETCH OFF

CONTRAST 48

Note:

The "Hue" item only appears when the colour system is NTSC.

The 5 modes are

Listen-This is a new feature that blacks out the TV

screen when listening to music only channels;

Soft-Designed for night time low light viewing;

Standard -Designed for rooms that have good all round

lighting;

Rich-Designed for rooms with high ambient lighting such

as daytime sport;

User-A spare setting that can be adjusted to personal

tastes.

P.STD


P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Black stretch and noise reduce

Convenient picture and sound control functions

Continued

How to select BLACK STRETCH

How to select NOISE REDUCE

1 Press the button, the

menu shown on the

right display on the screen.


1 Press the FUNCTION button,

the menu shown on

the right display on the screen.

FUNCTION

2 buttons to

select "BLACK STRETCH".

Press the P+/-

2 buttons to

select "NOISE REDUCE".

Press the P+/-

3 Press the V-/+ buttons to

turn the BLACK STRETCH

function "ON" or "OFF".

3 Press the V-/+ buttons to

turn the NOISE REDUCE

function "ON" or "OFF".


BRIGHTNESS 32

COLOUR 48

SHARPNESS 40

*HUE 60

BLACK STRETCH OFF

CONTRAST 48


BRIGHTNESS 32

COLOUR 48

SHARPNESS 40

*HUE 60

BLACK STRETCH ON

CONTRAST 48

Noise Reduce Picture Noise & Grain Reduction Circuit. (Use only on poor reception)

Black Stretch Automatically increases the contrast range

FUNCTION

ENGLISH

BACKGROUND ON

FADE ON

CHILD LOCK OFF

AVL ON

CALENDAR

NOISE REDUCE ON

FUNCTION

ENGLISH

NOISE REDUCE ON

FADE ON

CHILD LOCK OFF

AVL ON

CALENDAR

BACKGROUND ON


FUNCTION

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Convenient picture and sound control functions

Continued

MUTE

Sound mute

MUTE

1 Press the MUTE button on the

remote control to turn off the

sound. MUTE will appear on the

top left of the display.

2 Press MUTE again to turn the

sound back on.

How to select Language

1 Press the FUNCTION menu

button , till the FUNCTION menu

shown on the right display on the

screen.

2 button to

select " ENGLISH .

Press the P+/-

"

3 Press the V-/+ buttons to

select the OSD language.

FUNCTION

BACKGROUND ON

NOISE REDUCE OFF

FADE ON

CHILD LOCK OFF

AVL ON

CALENDAR

ENGLISH

FUNCTION

Mute, Select Language and Fade function

FADE FUNCTION

1 Press the FUNCTION button,

the FUNCTION menu shown on

the right display on the screen.

FUNCTION

ENGLISH

BACKGROUND ON

NOISE REDUCE OFF

CHILD LOCK OFF

AVL ON

CALENDAR

FADE ON

FUNCTION Using on/off fade function, the TV turn on or turn

off mild.

2 Press the P+/- button to

select FADE.

3 Press V-/V+ buttons to turn

the FADE function ON or OFF.

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

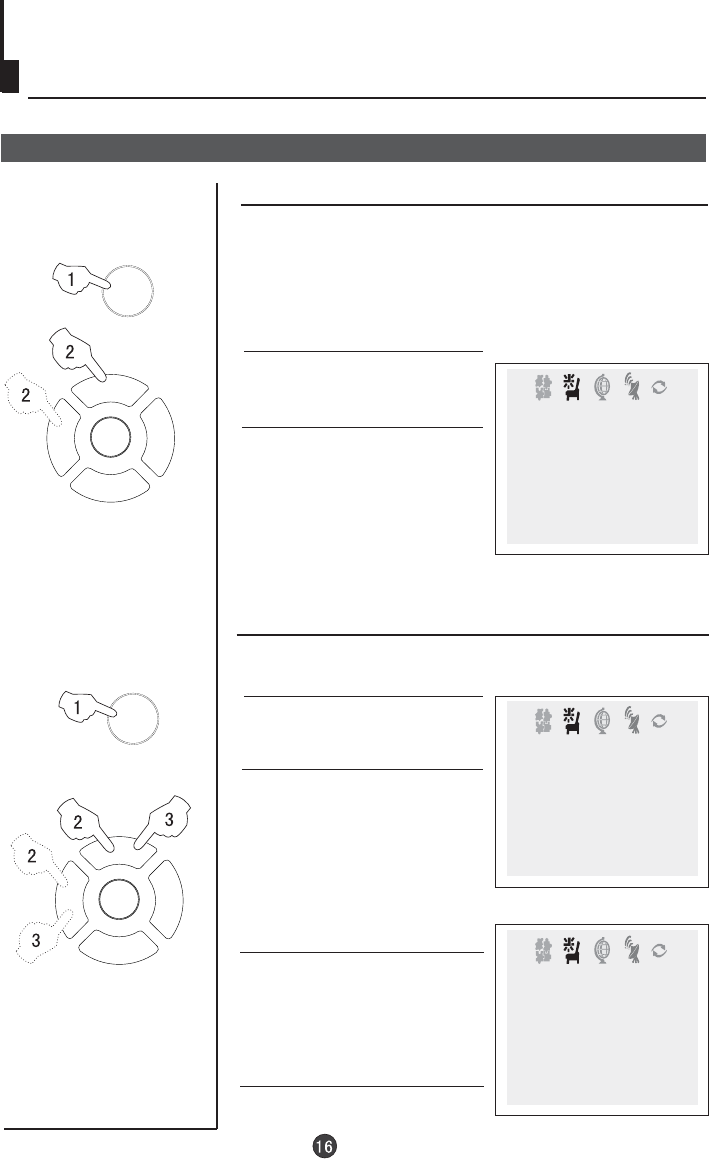

On/off timer

Clock setting

Time functions

Clock setting and timer on/off functions

1 Press the TIME button, and

the TIME menu display on the

screen.

2Press the P

.

+/- buttons select

"CLOCK", then press the V-/+

buttons to adjust the time in

hour position; press again the

P+/- buttons to select the time

in minute position, then press

the V-/ +buttons to adjust the

value of minutes

The clock will only work if the TV set if left turned on

or in standby. When the set is disconnect from the

power supply or is turned off by the main power on

the front panel, the clock loses power and will need to

be reset when the power is reconnected.

4 Repeat step 1-2 to set OFF

TIME.(take 23:00 as an example)

3 Press the P+/- buttons to

select "ON PROG", then press

the V-/+ or program direct

number buttons to select your

desired channel (take 8 as an

example).

2 Press the P+/- buttons to

select "ON TIME", then press

the V-/+ buttons to set the value

in hour position; press again the

P+/- buttons to select the minute

position and set the value of the

minute.(take 18:00 as an

example)

1 Press the TIME button to call

up the TIME menu on the

screen.

Using on/off timer function, the TV set can automatically

turn on to a preset program or shut down in a preset time.

TIME

ON TIME 18:00

ON PROG 1

OFF TIME --:--

SLEEP TIMER 0

REMIND TIME --:--

REMIND PROG 1

CLOCK 17:18

TIME

ON TIME 18:00

ON PROG 1

OFF TIME --:--

SLEEP TIMER 0

REMIND TIME --:--

REMIND PROG 1

CLOCK 17:18

TIME

ON TIME 18:00

ON PROG 8

OFF TIME 23:00

SLEEP TIMER 0

REMIND TIME --:--

REMIND PROG 1

CLOCK 17:18

TIME

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Sleep timer and program preset

Sleep timer

REMIND PROG function

The TV set have 18 sections

option

(each section has a time

interval of 10 minutes)

for sleep timer function

(See right

chart):

0

10

20

170

180

1 Press the TIME button, and

the TIME menu display on the

screen.

2 Press the P+/- buttons to

select "SLEEP TIMER".

1 Press the TIME button to call

up the TIME menu on the

screen.

2 Press the P+/- buttons to

select "REMIND TIME", then

press the V-/+ buttons to set

the value in hour position;

press again the P+/- buttons to

select the minute position, and

then set the value of the

minute.(take 19:00 as an

example)

3.Press the P+/- buttons to

select "REMIND PROG", then

press the V -/+ buttons or the

program direct number buttons

to set the desired channel

(take 18 as an example).

Time functions

Continued

TIME

ON TIME 18:00

ON PROG 8

OFF TIME 23:00

SLEEP TIMER 120

REMIND TIME --:--

REMIND PROG 1

CLOCK 17:18

TIME

CLOCK 17:18

ON TIME 18:00

ON PROG 8

OFF TIME 23:00

SLEEP TIMER 120

REMIND PROG 1

REMIND TIME 19:00

TIME

CLOCK 17:18

ON TIME 18:00

ON PROG 8

OFF TIME 23:00

SLEEP TIMER 120

REMIND TIME 19:00

REMIND PROG 18

NOTE: For

CHILD LOCK must be

turned off.

REMIND PROG to

operate

Program remind timer, that displays an on-screen reminder

prompt, when a program on a different channel is due to start.

3 press the V -/+ buttons to set

the value of the SLEEP TIMER.

TIME

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

NO SIGNAL

Set up function

Screen saver and childlock functions

How to start screen saver function

1 Press the FUNCTION button,

the menu shown on

the right display on the screen.

FUNCTION

2 Press the P+/- buttons

.

to

select "BACKGROUND" and press

the V-/+ buttons to turn the

BACKGROUND function "ON"

1 Press the FUNCTION button,

the menu shown on

the right display on the screen.

FUNCTION

2 Press the P+/-

.

buttons to

select "CHILD LOCK" and press

the V-/+ buttons to turn

CHILD LOCK function "ON"

Child lock function

NOTE:

All the control panel buttons on the front of the TV are disabled

when CHILD LOCK is turned on. The power switch will still turn

the TV set off.

Enables the TV front control buttons to be locked.

When the background

function if ON a bouncing

'NO SIGNAL' will be

displayed on a blue

back ground.

FUNCTION

BACKGROUND ON

NOISE REDUCE ON

CHILD LOCK OFF

AVL ON

CALENDAR

LANGUAGE

FADE ON

FUNCTION

LANGUAGE

BACKGROUND ON

NOISE REDUCE ON

AVL ON

CALENDAR

FADE ON

CHILD LOCK ON

FUNCTION

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

AVL and calendar functions

Set up function

Continued

1 Press the FUNCTION button,

the FUNCTION menu shown on

the right display on the screen.

2 Press the P+/-

.

buttons to select

"AVL"

3 Press

.

V-/+ buttons to turn the

AVL function "ON" or "OFF"

1 Press the FUNCTION button,

the menu shown on

the right display on the screen.

FUNCTION

3 Press the P+/- buttons to turn

the YEAR/MONTH/DAY, press

V-/+ buttons to set or adjust

the YEAR/MONTH/DAY.

Calendar function

2 Press the P+/- buttons to select

"CALENDAR" , then press the

V-/+ buttons to the CALENDAR

display on the screen.

AVL function

Enables the TV sets internal calendar to be set.

Automatic Volume Limit Control reduces the effect of

large volume changes. For instance, when

advertisements come on.

FUNCTION

BACKGROUND ON

NOISE REDUCE ON

CHILD LOCK OFF

AVL ON

CALENDAR

LANGUAGE

FADE ON

FUNCTION

LANGUAGE

BACKGROUND ON

NOISE REDUCE ON

CHILD LOCK OFF

CALENDAR

FADE ON

AVL ON

FUNCTION

BACKGROUND ON

NOISE REDUCE ON

CHILD LOCK OFF

AVL ON

CALENDAR

LANGUAGE

FADE ON

FUNCTION

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

P+

P-

V- V+

MENU

Position exchange function

Exchange

EXCHANGE

PROGRAM 1 6

PROGRAM 2 9

EXCHANGE

1 Press the MENU button ,

till the EXCHANGE menu

display on the screen.

2 Press the V / buttons or the

PROGRAM NUMBER 0-9

buttons to set PROGRAM 1 TO 6.

-+

4 Press the V / buttons or

the PROGRAM NUMBER 0-9

buttons to set PROGRAM 2 TO 9.

-+

3 buttons to

select " PROGRAM 2".

Press the P+/-

5 buttons to

select "EXCHANGE".

Press the P+/-

6 Press the V-/+ buttons to set

"EXCHANGE".

EXCHANGE

PROGRAM 2 2

EXCHANGE

PROGRAM 1 6

EXCHANGE

PROGRAM 1 6

EXCHANGE

PROGRAM 2 9

This feature enables TV programs that may be on a wrong TV

channel number to be swapped/exchanged. This feature is

very useful when Automatic Search Tuning has been used, to

reallocate the found programs to the correct channel numbers.

P+

P-

V- V+

MENU

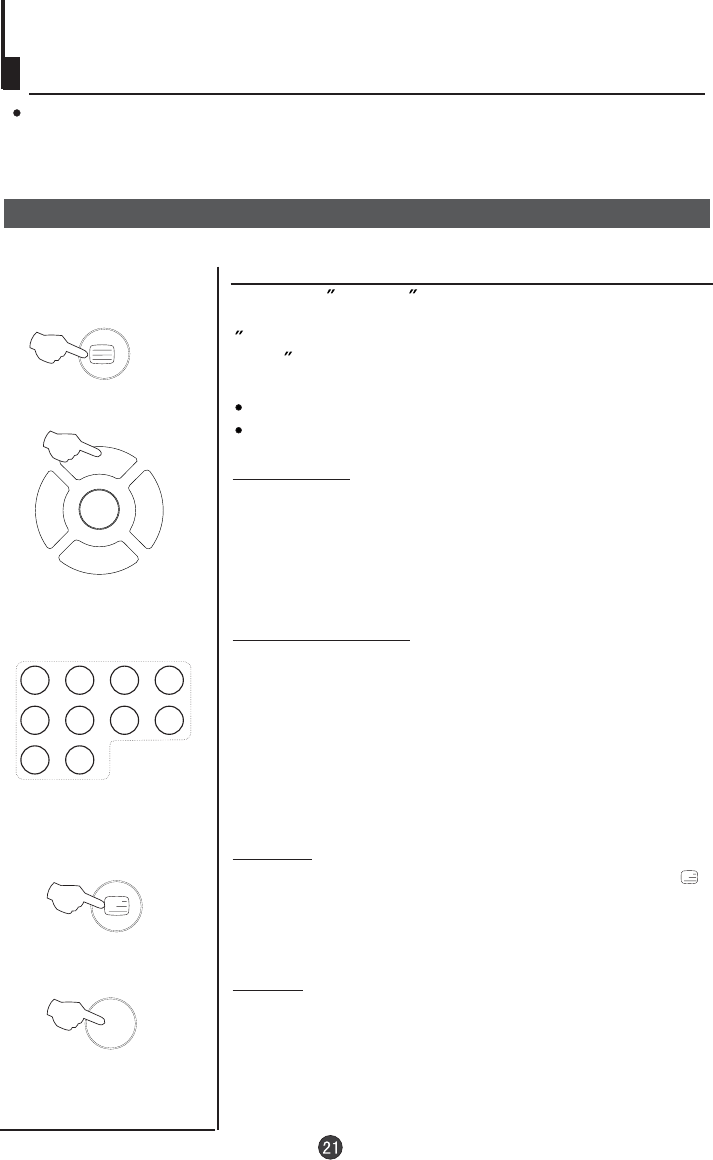

Teletext

Teletext is an information system, broadcast by certain channels, which can be read like

a newspaper . It also provides subtitles for people with hearing difficulties or those who

are unfamiliar with the language in which a particular program is being broadcast (cable

networks, satellite channels, etc.).

Teletext functions

Page up/down

Use the P+/- buttons to browse next or previous page.

Page number entering

Mix mode

Volume adjustment, but without OSD display.

Mute function, but without OSD display.

1234

5678

90

To select Teletext press the Teletext button on the

handset. To switch off Teletext, press the button again.

Note all menu functions are not available in Teletext

mode . Only a few direct button control functions are

available in TELETEXT mode, they are:

To select a Teletext page, enter the page number using

the numeric key pad on the remote control, or use the

P+ or P- buttons, or the coloured Fast text buttons.

To view the TV picture while in Text mode press the

button, this will superimpose the Teletext data on top

of the Tv picture. Press this button again to return to

Full text.

TUNE INDEX

Press the tune button to go to the index page of teletext.

Teletext

Continued

Cancel mode

Language change

Hold

Size

Reveal

Subcode / Time

By entering its 4-digit number to enter a secondary page;

Switch teletext on/off

This feature allows the TV picture to be displayed while next

page to be searched is entered and found. Only the top

teletext line is displayed until the page is found. Press the

button to hide the teletext information. Either press the

button or the Text button to exit the cancel display mode.

Pressing the button will change the Teletext characters

between Eastern and Western.

Pressing the button will stop the teletext page automa-

tically updating. This feature is very useful where there are

several teletext pages or data on the same page number.

Pressing the button changes between full screen top

half bottom half full screen. This feature is very useful as it

magnifies the image making the characters easier to read.

Pressing the button will reveal hidden text. This feature

is used to reveal information such as answers to Teletext

on-line interactive puzzles.

While

in normal TV mode only, pressing the button will display the

teletext time in the top right hand corner for a few seconds.

Press the button on the remote control to turn teletext

On/Off.

Fast text coloured buttons

Fast text automatically displays the four most commonly

used pages that the broadcaster thinks that you may want

to choose next. Press the same coloured button on the

remote control as the coloured link at the bottom of the

teletext page to go directly to that page.

PICTURE SOUND TIME FUNCTION

Preparations

Press the TV/DVD button on the remote control

or the TV to enter the DVD status.

1. Press OPEN/CLOSE to open the disc tray,

place a disc on the disc tray.

There are two different disc sizes. Place the

disc in the correct guide on the disc tray. If the

disc is out of the guide, it may damage the disc

and cause the DVD player to malfunction.

Do not place a disc which is unplayable in this

DVD player.

2. Press OPEN/CLOSE to close the disc tray, the

playback will automatically start.

3. Some discs may start playback with a menu. Use

the cursor buttons on the remote control to select

menu options and press PLAY/ENTER to start. You

may also press the digit buttons to select a menu

option directly. Many DVDs will not allow this during

start-up.

1. Press PAUSE/STEP to pause playback (still mode).

The sound will be muted during still mode.

2. Press PLAY/ENTER to resume normal playback.

Pause playback

Stop playback

Previous and Next

Fast forward and Fast reverse

1. Press FWD to fast forward through the disc.

Each time the FWD button is pressed, the

fast forward motion speed changes.

2. Press PLAY/ENTER to resume normal playback.

3. Press REV to fast reverse through the disc.

Each time the REV button is pressed, the

fast reverse motion speed changes.

4. Press PLAY/ENTER to resume normal playback.

Basic playback

Single step playback

Basic Playback

Some discs do not start automatically. Press

PLAY/ENTER to start playback.

1. When paused, press PAUSE/STEP repeatedly

to single step forward frame by frame in the video.

2. Press PLAY/ENTER to resume normal playback.

During Playing, pressing the PREV key will

restart the current chapter and skip chapters

backwards with each subsequent press until the

start of the disc is reached.

Each press of NEXT key during playing will

skip the current chapter and play the next one.

In the case of CD audio and photo discs the next

track, song or photo is selected.

1. Press STOP button to go to stop mode, the TV

screen will show the start logo.

player can recall the location where stopped, such

as DVDs and audio CDs.

2. Press PLAY/ENTER to resume play-back from the

location where playback was stopped.

3. Press STOP twice to stop completely.

For some discs the

Play must then resume from the title beginning.

PROGRAM

REPEAT

Press " REPEAT " and Chapter repeat will be

displayed on screen, the second press will display

Title repeat, the third press will display All repeat,

the fourth press will cancel this function.

IMPORTANT NOTE:

ALL DESCRIBING FUNCTION IS FOR DVD DISCS. IF YOU PLAY OTHER FORMAT DISC, THE OPERATION

AND DISPLAY ON SCREEN WILL BE SOME DIFFERENCE.

SBUTITLE

Press " SUBTILTLE ", the screen will display "SUBTI-

TLE 01/XX XXXXX", "01" indicates the ordinal

number of this language; "XX" indicates total number

of language; "XXXXXX" indicates the language of

country. (the number of language depends on disc).

This function can select up to 32 languages display-

ed on screen.

A-B

Press " A-B " to begin start-point, press again

to set an end point and complete setting. The

selected section A-B will be repeated. The third

press will cancel this function.

SEARCH

Advanced Playback

SLOW

Press SLOW to play a disc in slow forward. Each

time the SLOW button is pressed, the slow

motion speed changes.

Press PLAY/ENTER to resume normal playback;

Note: This function is invalid for CD and MP3.

D.MENU

Press this key to display root menu,select item

according to your preference. (This function will work

with a DVD having a multi-layer menu.)

ANGLE

When enjoying sports, concert or theatre, press this

key to watch same actions in different angles. (Valid

for discs possessing this function. Using a disc

recorded in multi-angle you can view the scene from

different angles,for example,front, side, whole view

and exterior scene).

AUDIO

TITLE/PBC

With some DVD discs pressing this key will display

the title menu. You can then use the digit buttons

to select the item you prefer.

D.CALL Note: When press this button continuously, you must

above 3 seconds interval.

When playing discs, press "PROGRAM" to enter

program mode. Starting with program number "01"

highlighted, press the digit buttons to select the title

and chapter number that you want. When finished

move the cursor to select "START" . This will start

the program playback.

Press SEARCH" " once to display Disc Go To --:--,

use numeric key to enter the desired time of Disc.

Press " SEARCH " twice to display Track Go To --:--,

use numeric keys to enter the desired time of track.

Press " SEARCH " 3 times to display Select Track

--/03, use numeric keys to enter the desired track.

Pressing this key will cycle through "title elapsed",

"title remain", "chapter elapsed", "chapter remain"

and "display off ". Each displays the appropriate

time information.

Press this key can change the audio mode.

such as: Audio 1/2: AC 3 2 CH English

Audio 2/2: AC 3 5.1 CH English

For CD audio, press this button to cycle between

Mono Left, Mono Right, Mix-Mono and Stereo.

When a disc containing standard JPEG picture files is inserted into the player, a

navigation menu will be displayed automatically. Use the UP and DOWN cursor

buttons to select a file then press PLAY/ENTER. The slide show will commence.

Press PREVIOUS or NEXT to move between pictures. Press pause to stop on the

current picture. Press PLAY/ENTER to resume normal playing.

NOTE: The actual content will be different as per disc.

JPEG DISC PLAYBACK

MP3 PLAYBACK

SCREEN SAVER FUNCTION

Special Function Playback

When playing an MP3 disc, a navigation menu will be displayed automatically. In the

menu, use UP or DOWN cursor buttons to choose the folder, then press

PLAY/ENTER to enter the folder. Use the UP and DOWN cursor buttons to select

the file and press PLAY/ENTER. Pressing the LEFT cursor button will take you to

the previous screen/menu.

This unit employs a screen saver mode to help protect the tube during static video

pictures. This can be turned off on the GENERAL SETUP PAGE (see Pg. 27)

AVi_1

AVi_ 2

AVi_ 3

AVi_ 4

AVi_ 5

AVi_ 6

00:00 00:00

001/010

MPEG-4 is the forth video and audio encoding standard released by

MPEG (The abbreviation of " Moving Pictures Experts Group"). VCD is

based on MPEG-1 technology and DVD is based on MPEG-2. MPEG-4

takes advantage of narrow bandwidth, pursue the best picture quality

by compress and transmit the data in frame reconstruct technology.

The audio data is compressed by WMA or MP3 standard. MPEG-4 is

the most advanced compression technology standard in AV field. It has

the highest compression rate. By MPEG-4 technology, we can encode

and compress a DVD film into one or two CD-R disc with pretty good

picture quality, or can burn several films that has same quality as VCD

into one CD-R disc, or can burn several films that has similar quality to

DVD into DVD-ROM disc.

Note:

1. The MPEG-4 discs in market now have many different formats, such as XVID, AVI, DIVX, RM etc. But

some

discs with "MPEG4" logo in market are not encoded by MPEG technology. It is normal that some of the discs

can't be played well in this player because of the incorrect encoding standard.

2.The MPEG-4 disc in market now have many different type of subtitle, it is normal that some of

the subtitle cannot be read.

3. WMA format will be supported as a single audio file or associated with a DivX5 or Xvid video file.

4. GMC supported with DivX5 files, but not with Xvid files

MPEG4 DISC FUNCTION INTRODUCTION

PLAY/ENTER

DVD System Setup

General Setup Process

1.Press the SETUP button, the

General Setup Page,Preference

Page will be displayed in turn.

2.Press CH+/- b to select, the

item, then press to enter the

submenu.

3.Press CH+/- bu to select then

press PLAY/ENTER to confirm.

4.Press SETUP repeatedly to

exit the set-up menus.

or

General Setup Page

When using the DVD with the internal TV,

select 4 3/LB.

The following information applies only

when the DVD output is connected to an

external TV.

4 3/PS (PS = Pan and Scan)

You may select if you have a normal aspect

ratio (4:3) TV, although the NORMAL/LB

(letter box) is a more common choice. In PS

mode, widescreen material will fill the screen, but at the expense of chopping

off extreme left and right edges of the original film picture. For this feature to

work, the disc must be specially coded. Such discs are uncommon.

4 3/LB (LB = Letter Box)

You may select this if you have a normal aspect ratio (4:3) TV. Widescreen

material will be shown in pure unaltered form, allowing the entire picture area

of the original film to be viewed without any side cropping. Black bars will

appear above and below the picture.

16 9

You may select this if you have a widescreen (16:9) TV. Back bars may still

appear above and below the picture even if using a widescreen TV. This is

because some film directors prefer to use ultra widescreen aspect ratios e.g.

2.35:1. This will normally be indicated on the DVD packaging.

ASPECT RATIO DESCRIPTION

..General Setup Page..

TV Display LB

Angle Mark On

OSD Lang ENG

Spdif Output

Caption Off

Screen Saver Off

Hdcd Off

4:3/Ps

4:3/Lb

16:9

SETUP

..General Setup Page..

Tv Display LB

Angle Mark On

OSD Lang ENG

Spdif Output

Caption Off

Screen Saver On

4 3:Ps

4 3:Lb

16 9

.

TV Type PAL

Parental

Password

Default

PAL

AUTO

NTSC

..Preference Page..

PLAY/ENTER

SETUP

Angle Mark On

OSD Lang ENG

Spdif Output

Caption On

Screen Saver Off

HDCD Off

Off

44.1K

88.2K

TV Display LB

HDCD: When default setting is off, it will display "CD"

by reading HDCD, for HDCD playback, please choose

44.1K or 88.2K.

..General Setup Page..

DVD System Setup(Continued)

DVD System Setup

General Setup Page

CAPTIONS: This functionallows you to display or hide the caption.

SCREEN SAVER: If the screen saver is on,then there

will be an animated picture of DVD on the screen

whenever the DVD player is idle for more than 3

minutes .

SPDlF OUTPUT MODE: Sets the audio outputs.

This DVD player includes three kinds of audio output:

1. SPDlF OFF: An analog surround sound format is output through the

back-paneI connections for 2-CH audio out or 5.1 CH audio out.

2. SPDlF/RAW or SPDIF/PCM: This

surround sound format is output to a Dolby Digital/DTS decoder

through the coaxial connector on the back panel of the product.

This item allows you to set Angle Mark ON or OFF.

ANGLE MARK: Users can select a particular

camera angle when playing a DVD which offers

multiple angles.

On Screen Display (OSD) Language: Users

can select on-screen display language.

.

..General Setup Page..

Angle Mark On

OSD Lang ENG

Spdif Output

Caption On

Screen Saver Off

Hdcd Off

Spdif Off

Spdif / Raw

Spdif / Pcm

Tv Display LB

..General Setup Page..

Angle Mark On

OSD Lang ENG

Spdif Output

Caption Off

Screen Saver On

Hdcd Off

On

Off

Tv Display LB

..General Setup Page..

Tv Display LB

Angle Mark On

OSD Lang ENG

Spdif Output

Captions On

Screen Saver Off

On

Off

..General Setup Page..

Tv Display LB

Angle Mark On

OSD Lang ENG

Spdif Output

Caption Off

Screen Saver On

Hdcd Off

..General Setup Page..

Angle Mark On

OSD Lang ENG

Spdif Output

Caption Off

Screen Saver On

Hdcd Off

On

Off

Tv Display LB

English

France

German

Russian

DVD System Setup(Continued)

DVD System Setup

The Preference Page is only available when there is no disc

in the player. These settings are applied consistently to all

discs which are inserted and played.

Preference Page

TV TYPE: This player

supports different TV output,

including MULTI(Auto),

NTSC, and PAL systems.

Usually please set to MULTI.

PARENTAL: The parental

control function works in

conjunction with the

different censorship classes

assigned to DVDs. These

classes help to control the

types of DVDs that the family

watches, There are up to 8

censorship classes for DVDs.

Note:

1 To change this setting you must enter your password.

(Initial password is 1234)

2 When set to OFF, all discs may be viewed.

PASSWORD CHANGE:

You can change your password

by entering 4 digits. Your must

confirm the 4 digits before the

new password can be accepted.

NOTE:If you forget your password

or a password is accidentally set

enter 1369 as the password. This

will enable you to regain control.

..Preference Page..

TV Type PAL

Parental

Password

Default

2 G

3 Pg

4 Pg 13

5 Pgr

6 R

7 Nc17

8 Adult

Off

TV Type PAL

Parental

Password

Default

PAL

AUTO

NTSC

..Preference Page..

TV Type PAL

Parental

Password Change

Default

Old Password

New Password

Confirm Pwd

PLAY/ENTER

SETUP

DVD System Setup(Continued)

DVD System Setup

DEFAULT: Resets all settings

(except password and parental

lock status) for this DVD player

back to the manufacturers

original settings. Press ENTER

to perform the reset.

Note:

Some functions may not be available depending on the type of disc.

TV Type PAL

Parental

Password

Default

..Preference Page..

Reset

PLAY/ENTER

SETUP

The following discs can be played:

Playable Discs

You cannot play discs other than those listed above.

You cannot play discs of non-standardized discs, even if they may be labelled as above.

The performance of CD-R or CD-RW disc is depend on the way of disc-burning. In a few cases,

their performance may be not very well or even no performance.

DIVX

Support discs: DVD, VCD, CD-R, CD-RW, SVCD, DVCD, HDCD, JPEG,CD+G, DIVX,

Kodak CD , W MA.

Disc Protection and DVD Characteristics

Compare DVD disc with other discs:

DVD LD SVCD VCD CD

Encode

method Digital/MPEG Analog Digital Digital/

MPEG Digital

Capacity 650MB 650MB 650MB

133

minutes

242

minutes

266

minutes

484

minutes

Playing Time

Single-side

60 minutes

double-side

120 minutes

45 minutes 74 minutes 74 minutes

12cm/8cm 12cm/8cm

Disc diameter 30cm/20cm 12cm 12cm

Horizontal

resolution More than 500 line No more than

430 line

No more than

350 line

No more than

250 line

Multiple kinds


proportion One kind One kind One kind

Subtitle 32 kinds 16 kinds

at most

4 kinds

at most

4 kinds

at most

4 kinds

2 kinds 2 kinds

Language 8 kinds

Sound quality 48KHz, 96KHz/

6, 20, 24bit

44.1KHz/

16bit

44.1KHz/

16bit

44.1KHz/

16bit

44.1KHz/

16bit

Single-

side

single-

layer

4.7G

Double

-side

single

-layer

8.5G

Single-

side

double-

layer

9.4G

Double-

side

double-

layer

17G

I

Connecting the TV set to the other video and audio equipment

Connecting to the other video and audio equipment

You can attach optional equipment such as another TV or other audio

amplification equipment to the scart/digital coaxial sockets at the rear

of the set to enjoy higher quality sound and picture.

Stereo

To video/audio input

DVD, VCD and other reproducing equipment

To outside input

DVD EXT

TV EXT

COAXIAL

Coaxial cable

To COAXIAL

type digital

audio input

Amplifier

To TV EXT To TV EXT

To DVD EXT

To another

TV SCART

terminal

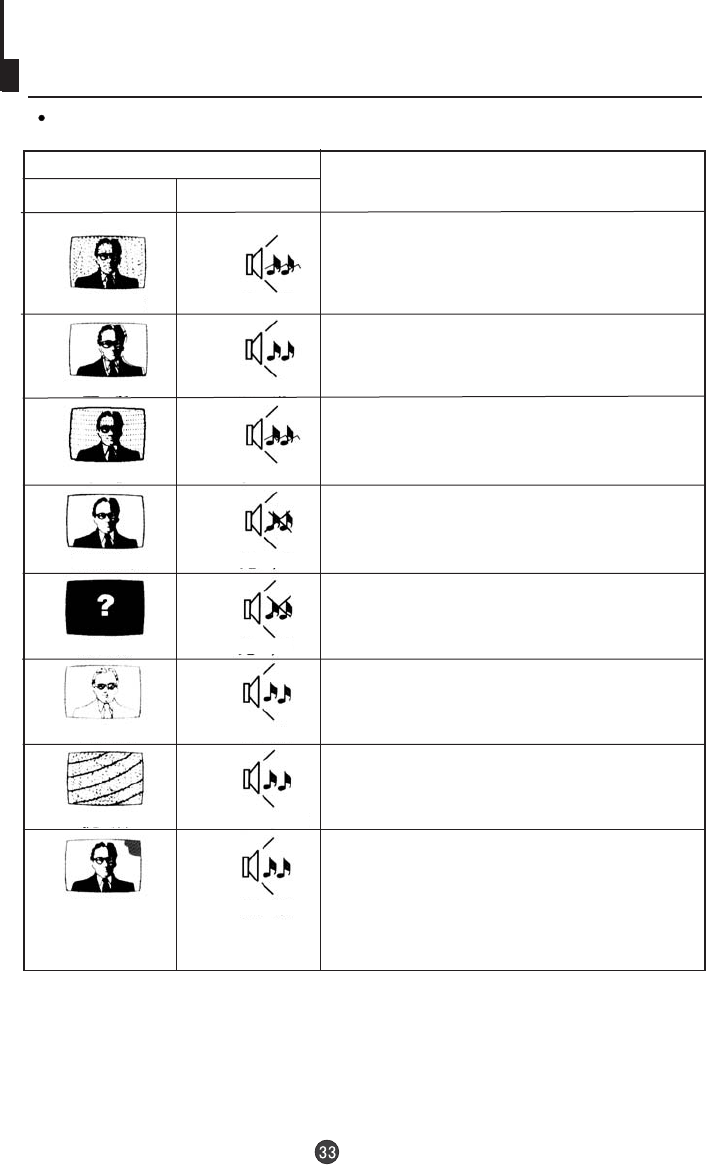

Troubleshooting guide

To assist in location possible faults use help guide below.

BREAKDOWN PHENOMENON

PICTURE SOUND CHECKING

The aerial direction and connection

Ensure that the power supply is connected to

the TV set and turned on. Also ensure that the

TV set is not in "Listen Mode" or that the

brightness and contrast are not turned down.

Adjust colour control

Adjust channel again

Colour Purity fault which can be caused by moving the

TV set, placing magnets near the TV screen or turning

on/off house hold appliances such as vacuum cleaners

near the TV set. Turn the TV off with the mains power

switch for 15 minutes. When the power is turn on again

the TV set will automatically degauss the picture. In

server cases leave the TV set turned off over night.

Picture with snow Noise

Colour Spot Normal volume

Scramble Normal or Weak Volume

No colour Normal volume

No Picture No sound

No soundNormal

Normal

Disturb Noise

Double or Triple Image

Note:

1.If the fault can not be repaired using the above guide consult with your local authorized service

center.

2.The TV set must only be repaired by a qualified registered service person. Never attempt to

remove the back cover as the TV set has dangerous voltages in side that may cause a fatally or fire.

3. The cabinet may produce the occasional "snapping sound" This is normal and caused by the

materials in the cabinet expanding with room temperature changes.

Electrical interference which can be caused by cars,

motorbikes etc, Fluorescent lamps and dirty

insulators on overhead power cables.

This is called ghosting which can be minimized with

an outside aerial, and good quality cable and

terminations. Altering the aerial direction can also

minimize this effect.

Volume Sound mute

Specifications

The specifications offered you here are only for reference and, with the improvement

of the products ,there may be some different between the description and the practicality.

NOTE

Design and specifications are subject to change without notice.

Dimensions quoted in this manual are approximate.

34

PAL, SECAM, NTSC PLAYBACK

110V 240V 50 60Hz ,DC 12V 10A

BG,DK

70W

Picture tube

Accessories

Colour system

Sound system

Sound output power

Power requirements

Power consumption

Dimension

2X2W 10% THD

14"colour picture tube (33.5 cm viewable)

Remote control X1

Owner's manual X1

Battery(AA) X2

Antenna X1

X1warranty card

368 Width x378 Depth x371 Height mm

Orion Tv Dvd 1432 Users Manual DTA 1486拢篓脫垄脦脛脣碌脙梅脢茅脦脷驴脣脌录 ORION脡脤卤锚 DIVX+DC拢漏06 01 21

Navigation menu

Versions of this User Manual:

Views

Navigation

Orion Tv Dvd 1432 Users Manual DTA 1486拢篓脫垄脦脛脣碌脙梅脢茅 脦脷驴脣脌录 ORION脡脤卤锚 DIVX+DC拢漏06 01 21

Navigation menu

Orion Tv Dvd 1432 Users Manual DTA 1486拢篓脫垄脦脛脣碌脙梅脢茅脦脷驴脣脌录 ORION脡脤卤锚 DIVX+DC拢漏06 01 21
