Bluetooth Music Receiver
User’s Manual
BMR-300
Version 1.0 2013/03
ID NO:
About This Manual
This manual is designed to assist you in installing and using the
Bluetooth music receiver Information in this document has been
carefully checked for accuracy; however, no guarantee is given to
the correctness of the contents. The information in this document is
subject to change without notice.
Edition
1st Edition,
Copyright
© Copyright 2013
This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the property of their
respective owners.
FEDERAL COMMUNICATIONS COMMISSION STATEMENT
This Equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the Federal
Communications Commission (FCC) rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference that may cause undesired operation.
Introduction
Thank you for purchasing the Bluetooth music receiver. This User’s
Manual contains information that will help to operate the device as
well as answering possible questions. Please keep this manual in a
safe place for future reference.
Available Devices
Features:
Single-chip Bluetooth 3.0 transceiver supporting Bluetooth2.1
and Bluetooth 2.0, 1.2 and 1.1 backward compatibility
Built-in NFC function for Smartphone Bluetooth pairing
NFC tag distance up to 1 cm
Bluetooth pairing/data transmission LED indicator
Working distance: 10 meters (30 feet)
Built-in 150mW stereo audio power amplifier
A traditional 3.5-millimeter-to-RCA connection
Package Includes:
Bluetooth® Music Receiver, Manual, Power Adaptor (5V/1A),
3.5-millimeter-to-RCA cable
Installation Process:
NFC Smart Phones with Android OS 4.0 or higher
i Phone, i Pad, i Pod
Compatible with all devices enabled with A2DP stereo
Bluetooth®
Connect Power Micro USB Cable to Bluetooth music receiver
Connect Audio Cable to the Stereo device
Press ID button to turn the power on
For pairing process, please refer to below methods

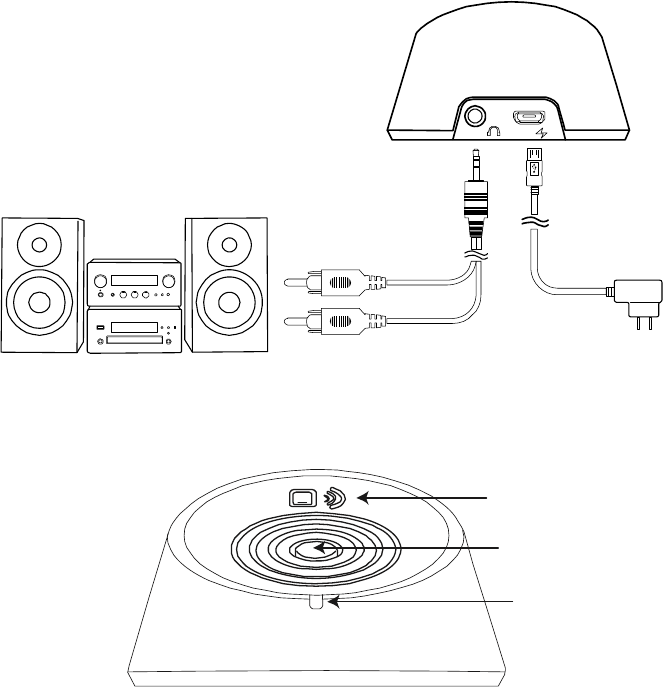

Wiring Diagram:
Audio Cable 5V/1A Adaptor
NFC induction area
ID button
LED indicator
Operation Description
Note: When BMR-300 power is on but not connect to any
Smartphone, the LED flashes every 3 seconds.
Function
Name Key Operation Function
Description Blue LED Indicate
Power ON
(re-establish the
connection)
Press ID button for 1
second then release BMR-300 Power on LED flashes
4 times
Power Off Press the ID button for 5
seconds then release BMR-300 Power off LED flashes
4 times
Pairing
1. Press the ID button
for 3 seconds then
release
2. NFC Auto Pairing
BMR-300 in paring
mode
LED flashes every 0.5
seconds
Play/Pause Press ID button
Switch between Play
and Pause. Once
Pause is pressed,
pressing ID button
again resumes Play
LED is on
NFC Bluetooth Pairing Method
NFC tag distance up to 1 cm
1. Turn on the NFC function from Smartphone

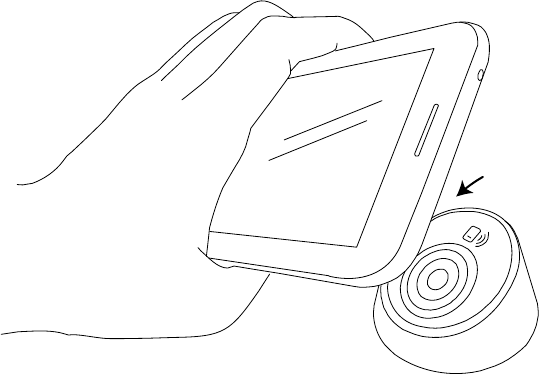

2. Put the Smartphone near the Bluetooth music receiver
3. The device” Bluetooth Stereo Audio” displays on Smartphone
and choose “Connect”
4. Start to play music from Smartphone after completing the
connection
Bluetooth Pairing Method (Smartphone w/o NFC)
1. Turn on the Bluetooth from Smartphone
2. Pressing the ID button for 3 seconds then release (Please
make sure the blue LED is turn on)
3. Searching for Bluetooth device
4. The device” Bluetooth Stereo Audio” displays on Smartphone
and choose “Connect”
5. Start to play music from Smartphone after completing the
connection
When product is in use:
When there's an incoming call, the music will stop. After the call,
the music will resume automatically.
Troubleshooting
Product Does Not Work
Make sure the Power Cable is connected correctly
Make sure the Audio Cable is connected correctly
