3 Steps before start the game
STEP 1
Prepare the APP
Start the game
b
d
e
f
c
Safety Notification
1.Please refrain from throwing darts at people or animals to prevent injury. 2.Please do not proceed the game with children around to prevent accidents from falling or other matters. 3.The dart tip is sharp, please do not use in other occasion. 4.Please do
not touch the product with wet hands. 5.Please choose the wall with strong intensity to set up the Dart Board. 6.If the intensity of the wall isn’t enough, there might be the possibility of Dart Board falling down. Please refrain from locating the Dart Board on
plaster wall. 7.When throwing darts, please make sure there are no human, animals or fragile products around. 8.The darts might be misthrow or bouncing back, please watch to protect the floor and other materials around. 9.Children should proceed the
game under guardians guidance. Do not use without supervision. 10.Please preserve the product properly after gaming. Please do not leave it on the floor or somewhere reachable by children.
Usage Notification
1.The dart game can be download by iOS and/or Android smart phones and/or tablets. 2.When downloading the APP, please make sure the hardware devices support the game. 3.This product is for soft-tip darts only. Please do not use steel-tip to prevent
product damaging and malfunctioning. 4.When the dart is misthrow, it might damage the surface of the wall surface, please be aware. 5.Please refrain the Dart Board from falling or crashing to prevent product from damaging, malfunctioning, and deforming.
6.Please do not throw darts with the similar force like throwing baseballs to prevent product from damaging. 7.Please do not place the product somewhere with high temperature, humidity, or direct sunlight. 8.This product is not water proof, please keep
away from water.
Assembly of the darts
Screw the tip and shaft together as
indicated into the barrel and insert the
unfolded flight into the cross-slots.
®
E-mail
sales@ortek.com
Tel: 886-2-8226-5123
Fax: 886-2-8226-5125
®
www.ortek.com
13F, No. 150, Jian-Yi Rd.,
Zhonghe Dist., New Taipei City,
Taiwan, R.O.C.
APP :
Eagle Dart
(free download)
a
b
c
c
This dashed line should 2m above the ground
a
This dashed line should 2m above the ground
Tape here
b
Tape here
Mount the screw
Mount the screw
c
Mount the screw

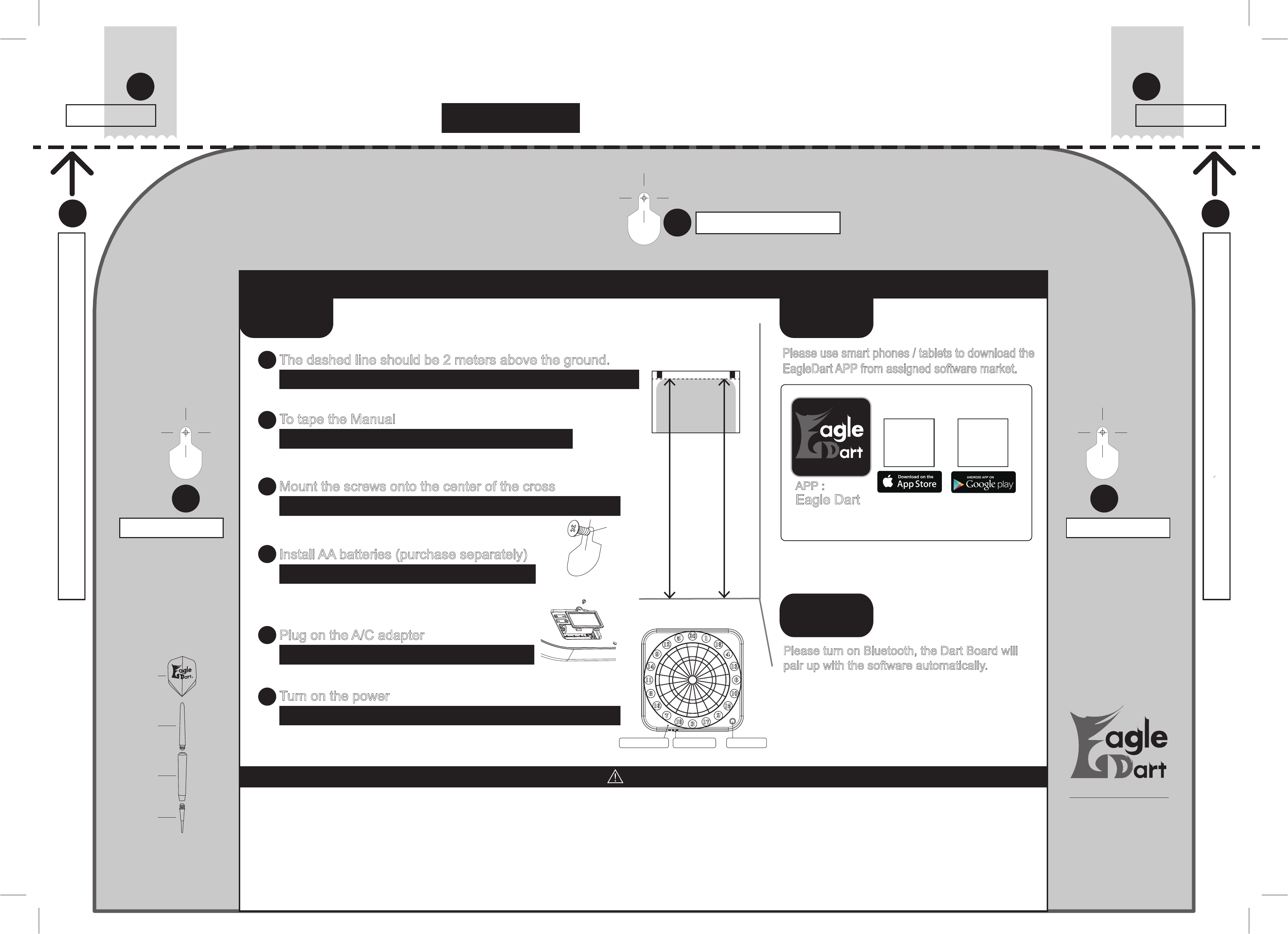

Setting up the Dart Board
Important Notification: When setting up, please ensure the backboard (if used) is paralleled to the wall.
If the backboard is deformed due to unfitted hanging case used, it might cause the internal sensor of
the dart board occurring error or malfunction.
The dashed line should be 2 meters above the ground.
Please measure and place the dashed line on this Manual 2m above the ground.
Mount the screws onto the center of the cross
Please mount the screws onto the center of the cross printed on the Manual.
Install AA batteries (purchase separately)
Please turn on Bluetooth, the Dart Board will
pair up with the software automatically.
Install the batteries from the back of the Dart Board.
To tape the Manual
After locating the spot, please tape this Manual on the wall.
※Please make sure the battery compartment cover is locked after installing the batteries.
Please make sure the batteries are installed in the correct position.
※
Run the EagleDart APP (please refer to Step 2 for APP downloading)
after turning on Bluetooth from the smart devices. The Dart Board
will pair with the software automatically. The LED on the number
zone will be on spinning around until pairing process is completed.
The LED of the numbers will be all on. Now, you can tap “SELECT
GAME” to start the game.
Apple, the Apple logo is trademark of Apple, Inc., registered in the U.S. and other
countries. App Store, the App Store logo is trademark of Apple, Inc.. Google Play, the
Google Play logo and Android are trademarks of Google, Inc., registered in the U.S.
and other countries.
Plug on the A/C adapter
Please use the adapter included in this packaging.
Note: The Dartboard can be powered by two AA batteries or A/C adapter.
Turn on the power
Please turn on the power switch. The Bluetooth LED will display red.
※If the LED light isn’t on, please check if the power adapter is plugged properly. Please also
check if the batteries are installed properly.
※If the screws are mounted too uptight, it would be difficult to hang the dart
board.It’s suggested to keep 6mm between the screw head and the wall.
※If the manual is not taped properly, the location of the screw mounting
position may be misled.Please ensure the Manual is taped well.
※To ensure the altitude, it’s necessary to measure from both end of the dashed line.
Please use smart phones / tablets to download the
EagleDart APP from assigned software market.
2m 2m
Wall
floor
Start buttonPower button
Status indicator
Notification
Tip
Barrel
Shaft
Flight
User’s Manual
EDB-300L
STEP 2
STEP 3
Note: The Dartboard can be powered by two AA batteries or A/C adapter.
