1. INTRODUCTION
Thank you for purchasing the Wireless Mini Keyboard with
Touchpad. This User’s Manual contains information that will help
you to operate your keyboard as well as answer questions about
certain special keys and buttons.
• MCE Buttons: My Music, My Videos, My Pictures, My TV,
My Radio, DVD.
• Internet Buttons: WWW, E-mail, Back, Forward
• Multimedia Buttons: Volume down, Volume up, Mute, Pre
track, Next track, Play/Pause and Stop
Note: All the MCE buttons need to work under MCE application.
If press in Windows XP or Vista, will not work.
2. SYSTEM REQUIREMENTS
• Microsoft Windows® XP with MCE/ Vista/Windows 7
operating system
• Microsoft Internet Explorer 6.0 or later.
3. INSTALLATION
Connect the receiver to your PC USB port.
A Windows dialog box, New Hardware Found.
Install the battery to your keyboard and turn it on.
Start to use your wireless keyboard.
Note: After 30 minutes non-operation, the keyboard will go to
sleep mode. Please press any key to wake up.
4. Keyboard Button Functions
Function Name Function Description
Start Open the MCE application.
Back
Goes back to a previous item that was already
viewed in programs that support the “Back”
command, such as a Web browser
Forward
Goes to the next item—if it was previously
viewed in the same session, in programs that
support the “Forward” command, such as a
Web browser.
WWW
Starts the default Web browser and goes to
the home page. If the Web browser is active, it
opens the home page.
Email Starts the default e-mail program.
Play/Pause
Switches between Play and Pause of
DVD/VCD/MP3/Audio media. Once Pause is
pressed, pressing this button again resumes
play.
Stop Stops playing the media.
V- Decreases the computer’s sound volume.
Hold down to decrease volume more quickly.
V+ Increases the computer’s sound volume.
Hold down to increase volume more quickly.
Mute Mutes the computer’s sound volume. Press it
again to turn the system volume back on.
Next track Switches to the next media track. Press once
for each subsequent media track.
Pre-track Switches to the previous media track. Press
once for each preceding media track.
Enhanced Function Keys: (12 Embedded MCE Hotkeys that are controlled
by the “Fn Key”)
Fn Fn key Enables the 12 Embedded Keys, press the
Fn key with the hotkey.
1: My Music Open My Music application
2: My Video Open My Videos application.
3: My Picture Open My Pictures application.
4: My Radio Open My Radio application.
5: My TV Open My TV application.
6: DVD Open DVD menu application.
7: Close Close the active Windows® application.
8: Win Select Call the Win Select function.
9:Zoom in Zoom in the picture.
0:Zoom out Zoom out the picture.
-: Minimum Minimum all current windows. Press again to
recover.
=: Flip 3D Call the Flip 3D function
5. Touch pad

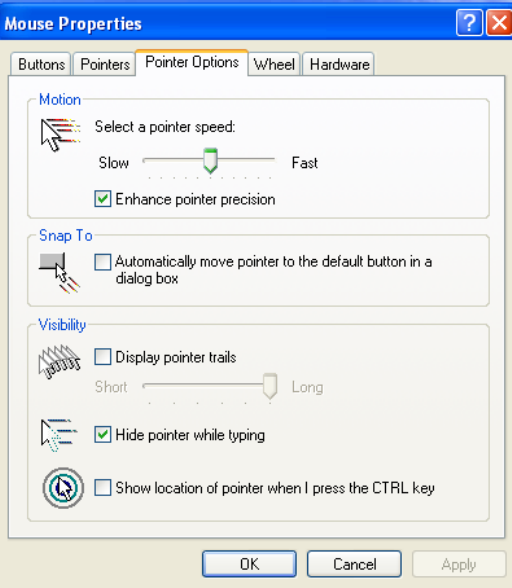

To adjust the touchpad, you can go to 【Control Panel】→
【Mouse】→【Pointer Options】to select a pointer speed.

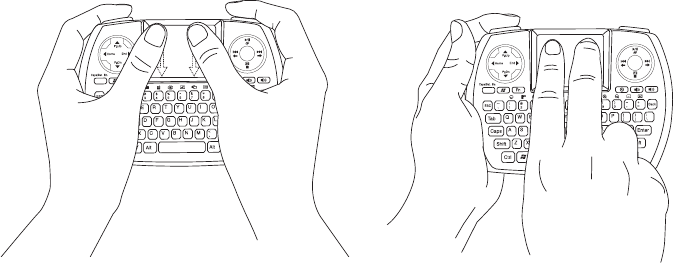

Scroll function: Using two fingers on the touchpad up and down.
6. Troubleshooting
Wireless Product Does Not Work
• Make sure you have connected the receiver correctly.
• Make sure you have installed the batteries correctly. Check
to make sure the batteries you have installed are not dead.
Try the batteries in another device.
• Try unplugging then reconnecting the receiver to the
computer and press the ID button at back of the keyboard.
• When it connected, the led of the receiver will start flashing.
RF Distance Does Not Reach 10M
It is possible that computer monitor (or a large metal object)
may be interfering with the receiver's radio reception. Also, the
batteries may be low. Check the batteries status. You may also
need to re-establish the connection between the keyboard and
receiver.
