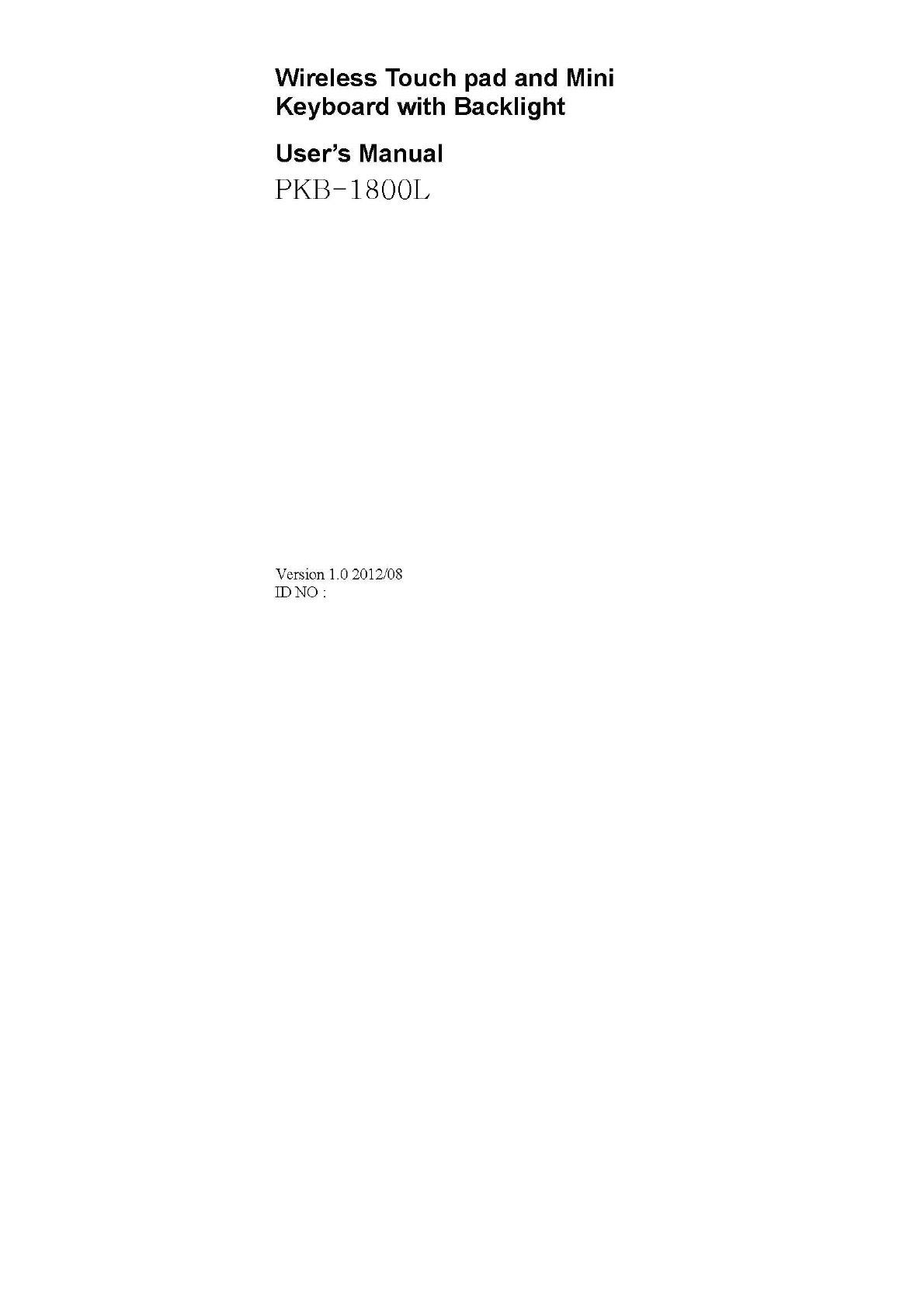

Ortek Technology PKB1800L Wireless Touch pad and Mini Keyboard with Backlight User Manual PKB 1800L Keyboard manual
Ortek Technology Inc Wireless Touch pad and Mini Keyboard with Backlight PKB 1800L Keyboard manual
user manual
About This Manual
This manual is designed to assist you in installing and
using the Wireless Touchpad Keyboard. Information in
this document has been carefully checked for
accuracy; however, no guarantee is given to the
correctness of the contents. The information in this
document is subject to change without notice.
Edition
1st Edition,
Copyright
© Copyright 2012
This document contains proprietary information
protected by copyright. All rights are reserved. No part
of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior
written permission of the manufacturer.
FEDERAL COMMUNICATIONS COMMISSION
STATEMENT
This Equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
Part 15 of the Federal Communications Commission
(FCC) rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
♦ Reorient or relocate the receiving antenna.
♦ Increase the separation between the equipment
and receiver.
♦ Connect the equipment into and outlet on a circuit
different from that to which the receiver is
connected.
♦ Consult the dealer or an experienced radio/TV
technician for help.
WARNING
A shielded-type power cord is required in order to
meet FCC emission limits and to prevent interference
to nearby radio and television reception. It is essential
that only the supplied power cord be used.
Use only shielded cables to connect I/O devices to
this equipment.
You are cautioned that changes or modifications not
expressly approved by the party responsible for
compliance could void your authority to operate the
equipment.
15.21
You are cautioned that changes or modifications not
expressly approved by the part responsible for
compliance could void the user’s authority to operate
the equipment.
15.105(b)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two
conditions:
1) this device may not cause interference and
2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
Caution:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
1. INTRODUCTION
Thank you for purchasing the Wireless Entertainment
Touch Pad Keyboard. This User’s Manual contains
information that will help to operate the keyboard as well as
answering questions about certain special keys and buttons.
Please keep this manual in a safe place for future reference.
2. SYSTEM REQUIREMENTS
• Microsoft Windows® XP / Vista/Windows 7/
Linux operating system
• Microsoft Internet Explorer 6.0 or later.
3. KEYBOARD FUNCTION
• 3 Application Hot Keys: WWW, My Computer,
Email
• 6 Multimedia Hot Keys: Volume down,
Volume up, Mute, Pre track, Next track,
Play/Pause.
4. INSTALLATION
z Connect the receiver to your PC USB port.
z “New Hardware Found” will display.
z Place batteries into keyboard and turn it on.
z Start using the wireless touchpad keyboard.
Note: keyboard goes into sleep mode after 30
minutes non-operation; press any key to wake up.
5. Touch Pad function:
Press “M” button to switch
function between touchpad /
Hotkey function. When the
Mode LED is on, it means the
hotkey on touchpad is standby.
6. Backlight Control
Pressing the “M” button for more than 3 seconds then
release, it allows keyboard backlight function to be
switched on and off.
7. Troubleshooting
¾ Wireless Product Does Not Work
• Make sure the receiver is connected correctly.
• Make sure the batteries are installed correctly.
Check to see if the battery power is dead.
• Please unplug then re-plug the receiver, then
press the ID button at back of the keyboard
for re-pairing.
• When the receiver LED starts flashing, the
keyboard is connected with the computer.
¾ RF Distance Does Not Reach 10M
• It is possible that computer monitor (or a large
metal object) may be interfering with the
receiver's radio reception.
• The interference might be affected when the
battery power is low. Please check battery
status
• Re-establish the connection between the
keyboard and receiver might be necessary to
keep the RF distance working in 10 meters.
