Ortek Technology WKP3270T Wireless Keypad for notebooks User Manual
Ortek Technology Inc Wireless Keypad for notebooks
Users Manual
0
Wireless Keypad For
Notebooks User’s Manual
Version: 1.0 2007/11
ID NO: PAKL-131W7001-00
1
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not
expressly approved by the part responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
2
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
3
2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any other
antenna or transmitter.
4
Introduction
Congratulations on your purchase of the Wireless
Keypad. This new wireless keypad combines Excel,
Calculator and WWW hotkeys. It makes the calculation
process more easily and more convenient.
System Requirements
Microsoft® Windows® 2000/XP/Vista and Microsoft
Office
One USB v. 1.1 or 2.0 Compliant Port
Installation
Windows 2000/XP /Vista Operating System
1. Plug the USB receiver connector to your PC.
2. The Found New Hardware Wizard appears and the OS
will install the driver automatically. No other steps are
necessary.
You are now ready to begin using your wireless keypad
5
Using the Wireless Keypad
Turning the keypad Off and On
Just take out the receiver, the keypad will turn on. To turn it
off, just stow the receiver into storage. We design this
function to save the power.
ID setting
Plug the receiver into your notebook’s USB port and press
the ID button at the back of the keypad, then the ID setting is
accomplished.

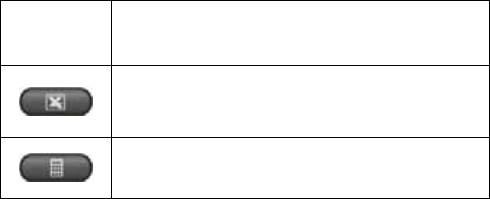

z Description of the function keys
Key
Functions Definition
Open the Excel application
Open the Calculator application
6

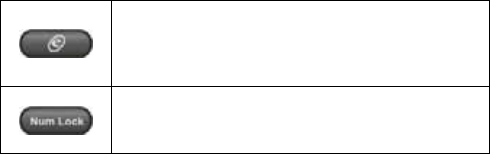

Starts the default Web browser and goes
to the home page
Switch keypad Num lock On/Off
Special Function:
This new keypad has no synchronized problem; users can
use the keypad and inputting characters from a notebook at
the same time. Especially, it doesn’t need any drivers and
fully support Plug & Play.
No matter the Host’s Num Lock function status, users can
choose the Num Key or direction key on the keypad. When
users press the keypad’s Num Lock key once, it can change
the keypad’s Num Lock status. Users can know the Num
Lock status on the screen and don’t need to care the
keypad’s Num Lock status. It makes the method of operation
easily.
7

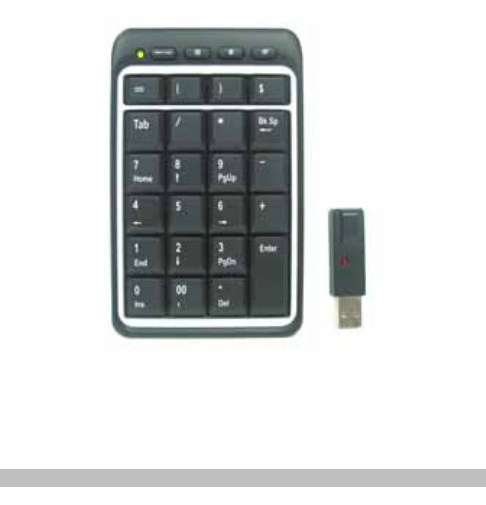

Specification of WKP-3270
Operation Force 60±15gm
Weight 130gm
Total Travel 2.2 mm
Operation Frequency 27 MHz/ 1 communication channel/256
security ID codes/ 1M distance
Battery type 1 * AA Nickel-Metal Hydride battery
Dimension: L×W×H 145×90×25mm
Receiver Connector USB
Working mode: 6mA max
TX Suspend mode: <100 uA
Working mode: 16mA max
Power consumption
RX Suspend mode: <500uA
Switch Life 3 million cycles
Keycaps type Low profile
Agency Approvals FCC, CE
