PTT041207

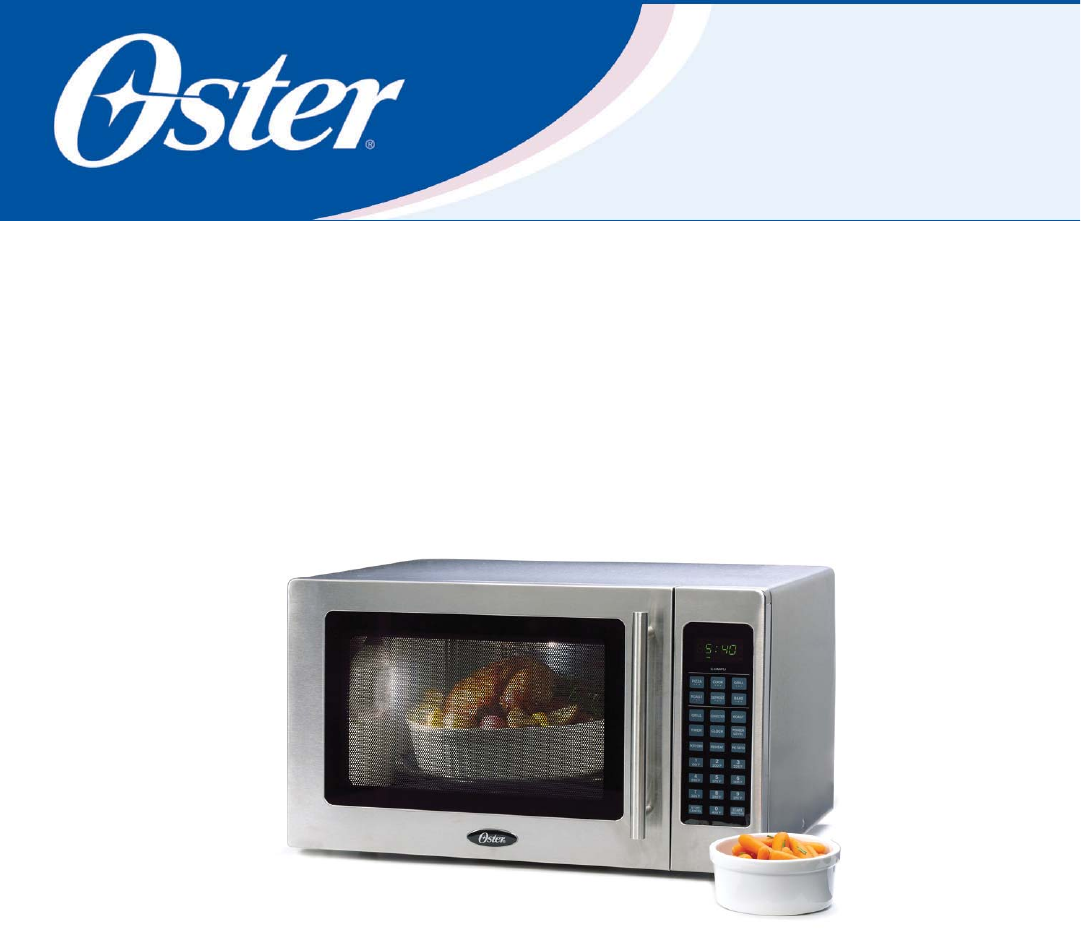

1.1 Cu. Ft. Stainless Steel Convection Microwave

User’s Manual

Model: OTM1101VBS

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 3

INSTALLATION GUIDE 4

GROUNDING INSTRUCTIONS 5

PRODUCT DIAGRAM 5

CONTROL PANEL 6

OPERATION INSTRUCTIONS 7

SPECIAL FEATURES 9

COOKING UTENSILS GUIDE 14

COOKING TECHNIQUES 15

CLEANING AND CARE 17

BEFORE CALLING FOR SERVICE 18

SPECIFICATIONS 18

ATTENTION:

This microwave has a special convection cooking function.

This is different from normal microwave cooking. When using

the convection setting, cooking times and cooking processes

differ. Please refer to the convection section of this manual

(see page 8) for more information on convection cooking.

3

IMPORTANT SAFETY INSTRUCTIONS

READ ALL SAFETY INSTRUCTIONS BEFORE USING THIS MICROWAVE

When using electrical appliances, basic safety precautions should be followed, including the following:

Read all instructions before using the microwave.

This microwave must be grounded. Connect only to property grounded outlets.

Install or place this microwave only in accordance with installation instructions.

Some products, such as sealed glass jars, may explode and should not be heated in this microwave.

This microwave is intended for use only as described in this manual. Do not use corrosive chemicals

or vapors in this microwave. This type of microwave is specifi cally designed to heat, cook, or dry

foods. It is not designed for laboratory use.

As with any appliance, close supervision is necessary when used by children.

Do not overcook food. Carefully attend to the microwave when paper, plastic, or other combustible

materials are placed inside the microwave to facilitate cooking.

Remove wire twist-ties from paper or plastic bags before placing in microwave.

If materials inside the microwave should ignite, keep microwave door closed, turn it off, and

disconnect the power cord or turn off the power fuse at the circuit breaker panel.

Do not use the microwave cavity for storage purposes. Do not leave paper products, cooking

utensils, or food in the cavity when not in use.

Liquids, such as water, coffee, or tea may overheat beyond the boiling point without appearing

to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container

is removed form the microwave is not always present. THIS COULD RESULT IN VERY HOT

LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED

INTO THE LIQUID. To reduce the risk of injury: do not overheat the liquid; stir the liquid both

before and halfway through heating; do not use straight-sided containers with narrow necks; after

heating, allow the container to stand in the microwave a short time before removing; use extreme

care when inserting a spoon or other utensil into the container.

Do not heat oil or fat for deep-frying in this microwave. It is diffi cult to control the temperature of

oil in the microwave.

Pierce foods with heavy skins, such as potatoes, before cooking.

The contents of feeding bottles and baby jars should be stirred or shaken and the temperature

should be checked before serving to avoid burns.

Cooking utensils may become hot from heat transferred from the heated food. Pot holders may be

needed to handle these utensils.

Do not cover or block any openings on the microwave.

Do not store or use this microwave outdoors. Do not use this microwave near water.

Do not operate this microwave if it has a damaged cord or plug, if it is not working properly, or if it

has been damaged or dropped.

Do not immerse the cord or plug in water. Keep cord away from heated surfaces. Do not let the

cord hang over the edge of the table or counter.

Use only thermometers specifi cally designed for microwaves.

Do not operate any heating or cooking under this microwave.

Be certain the tray and roller rings are in place when using the microwave.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

4

Do not attempt to operate this microwave with the door open. Door open operation can result in

harmful exposure to microwave energy.

Do not place any objects between the microwave front face and the door, or allow soil or cleaner

residue to accumulate on sealing surfaces.

Do not operate the microwave if damaged. It is particularly important that the microwave door be

properly closed and there is no damage to the door, hinges and latches, or door seals and sealing

surfaces.

The microwave should not be adjusted or repaired by anyone except properly qualifi ed service

personnel.

1.

2.

3.

4.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY

IMPORTANT SAFETY INSTRUCTIONS (continued)

This microwave should be serviced only by qualifi ed service personnel.

When cleaning microwave surface and door, use only mild, nonabrasive soaps or detergents applied with a

sponge or soft cloth.

23.

24.

INSTALLATION GUIDE

Make sure all packing materials are removed from inside the microwave door.

Check the microwave for damage, such as misaligned or bent door, damaged door seals and sealing

surface, broken or loose door hinges and latches, and dents inside the cavity or on the door. If there

are any damages, do not operate the microwave and contact Customer Service at 1-866-866-6283.

This microwave must be placed on a fl at, stable surface to hold its weight and the heaviest food

likely to be cooked inside.

Do not place the oven where heat, moisture, or high humidity are generated. Do not place

microwave near combustible materials.

For correct operation, the oven must have suffi cient air fl ow. Allow 8” of space above the

microwave, 4” at the back, and 2” on each side of the unit. Do not cover or block any openings on

the microwave. Do not remove microwave feet.

Do not operate the oven without the tray, roller support, and shaft in their proper positions.

Make sure the power supply cord is undamaged and does not run under the microwave or over any

hot or sharp surface.

The socket must be readily accessible so the microwave can be easily unplugged in an emergency.

1.

2.

3.

4.

5.

6.

7.

8.

5

GROUNDING INSTRUCTIONS

This microwave must be grounded. In the event of an electrical short circuit, grounding reduces risk of

electric shock by providing an escape wire for the electric current.

WARNING: Improper use of the grounding plug can result in risk of electric shock.

ELECTRICAL REQUIREMENTS

The electrical requirements for this microwave are a 120V, 60Hz, AC only, 20 amp.

It is recommended that a separate circuit serving only the microwave be provided.

The microwave is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet

properly installed and grounded.

•

•

•

POWER CORD

A short power supply cord is provided to reduce the risks resulting from becoming entangled in or

tripping over a long cord.

Longer cord sets or extension cords are available and may be used if care is taken in using them.

If using a longer cord, the marked electrical rating of the cord set or extension cord should be

at least as great as the electrical marking of the microwave itself and the extension cord must be

a grounded-type 3-wire cord. The longer cord should be arranged so it will not drape over the

counter or tabletop.

•

•

•

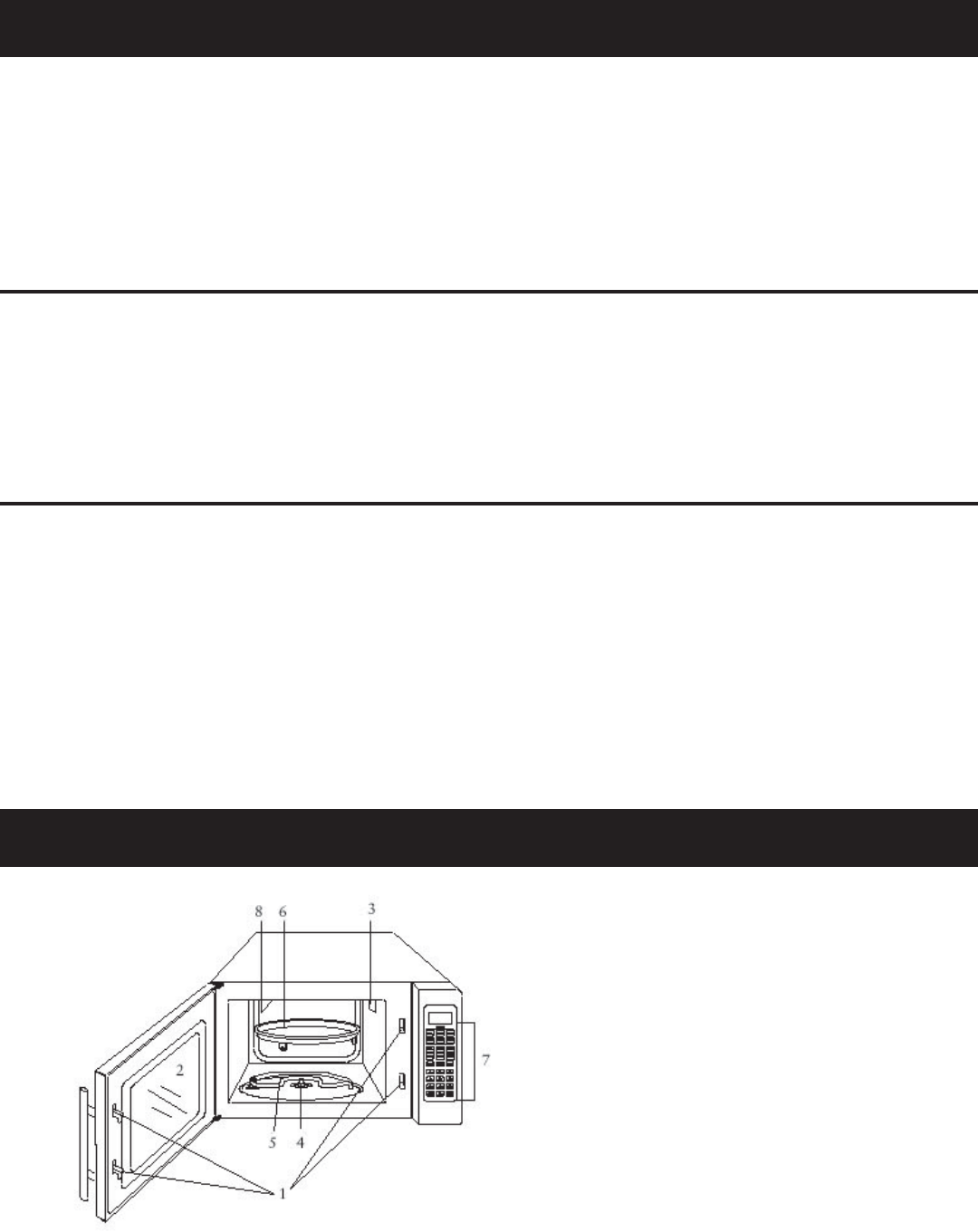

PRODUCT DIAGRAM

Door Safety Lock System

Microwave Window

Microwave Air Vent

Shaft

Bottom Grill

Roller Ring

Control Panel

Top Grill

1.

2.

3.

4.

5.

6.

7.

8.

6

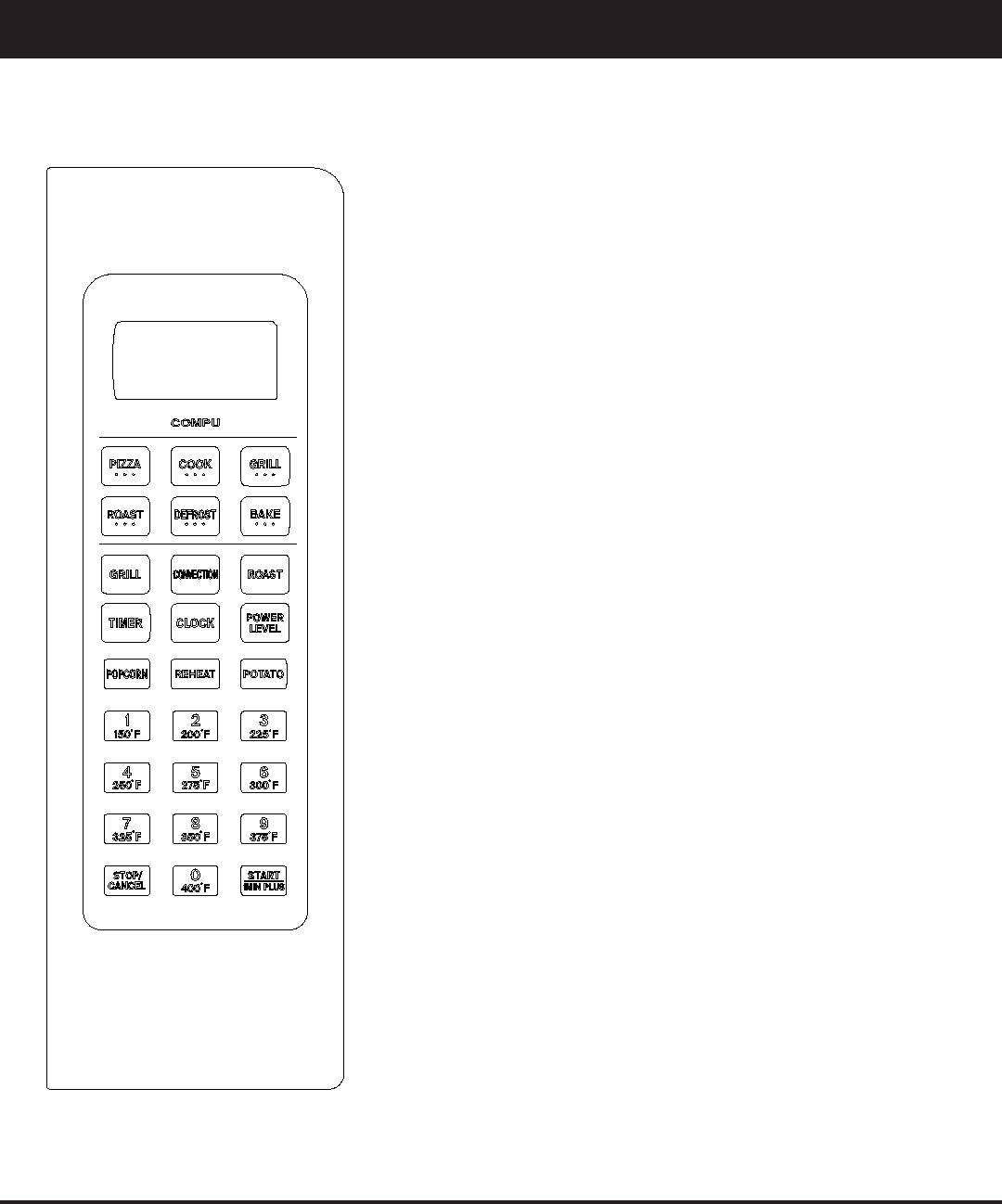

CONTROL PANEL

DISPLAY SCREEN: Cooking time, power,

indicators, and present time are displayed.

COMPU COOKING: Instant settings to cook/defrost

particular foods.

POWER LEVEL: Used to set cooking power level.

GRILL: Used to set a grill-cooking program.

CONVECTION: Used to set convection cooking

ROAST: Used to roast food.

TIMER: Timer functions independently, even while a

cooking program is in progress.

COOK: Used for multi-staged cooking. Enables

cooking at multiple power levels and time settings.

NUMBER PAD (0-9): Touch to set time or amount.

CLOCK: Sets current time.

START/1 MIN PLUS: Touch to start cooking or add

cooking time.

STOP/CANCEL: Touch to stop cooking or clear

previous settings.

NUMBER PADS/CONVECTION

TEMPERATURE ENTRY: Used to set cooking

time, enter weight or number of servings, or program

convection temperatures.

COOK SIGNALS

One signal = microwave accepts entry.

Two signals = microwave does not accept entry, check and try again.

•

•

7

OPERATION INSTRUCTIONS

SETTING THE CLOCK

Touch CLOCK.

Use the number pads to enter the correct time. You must touch at least three numbers to set the

clock (one for the hour, two for the minutes).

Touch CLOCK again.

Notes:

This is a 12-hour clock. When the microwave is fi rst plugged in or when power resumes after a

power outage, the display will show ENTER CLOCK TIME. If you prefer to not have the clock

displayed, touch RESET.

You can check the clock time while cooking is in progress by touching the CLOCK pad.

1.

2.

3.

•

•

MICROWAVE COOKING

Touch POWER LEVEL the appropriate number of times to select the power level. (see chart below)

Use the number pads to enter the desired cook time.

Touch START/1 MIN PLUS to start cooking.

PRESS POWER DESCRIPTION

1 time 100% High

2 times 90%

3 times 80%

4 times 70% High

Medium

5 times 60%

6 times 50% Medium

7 times 40%

8 times 30% Medium

Low/Defrost

9 times 20%

10 times 10% Low

11 times 0%

Notes:

To temporarily stop cooking, press the STOP/CANCEL button once. To restart, press the START/1

MIN PLUS button. To completely cancel the cooking, press the STOP/CANCEL button twice.

1.

2.

3.

•

8

OPERATION INSTRUCTIONS (continued)

GRILL

Touch GRILL the appropriate number of times to select the grill setting. (see chart below)

Use the number pads to enter the desired cook time.

Touch START/1 MIN PLUS to start cooking.

Press once Top grill

Press twice Top and bottom grill

1.

2.

3.

CONVECTION

During convection cooking, hot air is circulated around the oven cavity to brown and crisp food evenly.

This is different than using the normal microwave cooking function. Cooking times will vary.

Touch CONVECTION once.

Use the number pads to enter the desired temperature and then to enter the desired cook time.

Touch START/1 MIN PLUS to start cooking.

Please note the fan will continue to run after the cooking cycle is complete to cool the microwave.

Notes:

To preheat microwave before convection cooking, follow the above steps with the microwave

cavity empty and set the temperature to 200°F. The microwave will beep when the program has

completed. The microwave is then preheated.

To check the convection cooking temperature while cooking is in progress, press CONVECTION.

1.

2.

3.

•

•

ROAST

Touch ROAST button and then the appropriate number pad to select the roast setting. (see chart below)

Use the number pads to enter the desired cook time.

Touch START/1 MIN PLUS to start cooking.

PROGRAM PRESS TEMP (°F)

COMB1 1 250

COMB2 2 300

COMB3 3 350

COMB4 4 400

1.

2.

3.

9

SPECIAL FEATURES

POPCORN

Touch POPCORN. CODE and cooking time appears in the display. POPCORN automatically sets

the cooking time for a 3-3.5 oz bag of microwave popcorn.

Touch START/1 MIN PLUS.

Note:

To change the preset POPCORN time: touch POPCORN twice. ENTER TIME appears on the

display. Touch the number pads to enter minutes and seconds. Touch START/1 MIN PLUS. This

new cooking time will remain whenever you use the POPCORN setting.

1.

2.

•

POTATO

For 3.5-5 oz potatoes:

Touch POTATO.

Enter the number of potatoes by touching the number pads 1-4.

Touch START/1 MIN PLUS.

For 6-8 oz potatoes:

Touch POTATO twice.

Enter the number of potatoes by touching the number pads 1-4.

Touch START/1 MIN PLUS.

1.

2.

3.

1.

2.

3.

REHEAT

Touch REHEAT. CODE and cooking time appear on the display.

Touch START/1 MIN PLUS.

1.

2.

10

SPECIAL FEATURES (continued)

Touch PIZZA the appropriate number of times to select the pizza setting. (see chart below)

Press START/1 MIN PLUS to start cooking.

Press PIZZA Setting Food Quantity

1 time 1. Bake frozen pizza, regular crust 1

2 times 2. Bake frozen pizza, rising crust 1

3 times 3. Bake refrigerated pizza 1

4 times 4. Microwave pizza 1

5 times 5. Reheat pizza* 1-6 slices

* When reheating pizza, enter the cook time and press START/1 MIN PLUS

1.

2.

COMPU PIZZA

Touch COOK the appropriate number of times to select the food setting. (see chart below)

Press START/1 MIN PLUS to start cooking.

During cooking, you may hear beeps telling you to turn food over for even cooking.

Press COOK Items Amount

1 time 1. Baked potato 1-4 medium

2 times 2. Fresh vegetables 1-4 cups

3 times 3. Frozen vegetables 1-4 cups

4 times 4. Ground meat* 0.3-1.5 pounds

5 times 5. Seafood, fi sh* 0.3-1.5 pounds

* For ground meat and fi sh, enter the weight when asked by using the number pads.

1.

2.

COMPU COOK

11

SPECIAL FEATURES (continued)

Touch DEFROST the appropriate number of times to select the food setting. (see chart below)

Use the number pads to enter food weight.

Press START/1 MIN PLUS to start cooking.

To defrost other foods, use 30% power and program defrosting time.

Press COOK Items Amount

1 time 1. Ground meat 0.5-3.0 pounds

2 times 2. Steaks, chops, fi sh 0.5-3.0 pounds

3 times 3. Chicken pieces 0.5-3.0 pounds

4 times 4. Roast 2.0-4.0 pounds

5 times 5. Casserole 2-6 cups

1.

2.

3.

COMPU DEFROST

Touch GRILL the appropriate number of times to select the food setting. (see chart below)

Use the number pads to enter food weight.

Press START/1 MIN PLUS to start cooking.

During cooking, you may hear beeps telling you to turn food over for even cooking.

Press GRILL Food Setting Quantity

1 time 1. Hamburgers 1-7 (0.25 pounds each)

2 times 2. Steaks 0.5-2.0 pounds

3 times 3. Fish steaks 0.5-2.0 pounds

4 times 4. Boneless poultry 0.5-2.0 pounds

5 times 5. Chicken pieces 0.5-3.0 pounds

1.

2.

3.

COMPU GRILL

12

SPECIAL FEATURES (continued)

Touch ROAST the appropriate number of times to select the food setting. (see chart below)

Use the number pads to enter food weight.

Press START/1 MIN PLUS to start cooking.

During cooking, you may hear beeps telling you to turn food over for even cooking.

Press ROAST Food Setting Quantity

1 time 1. Chicken, turkey (whole) 2.5-7.0 pounds

2 times 2. Pork loin 2.0-3.5 pounds

3 times 3. Turkey breast 3.0-6.0 pounds

4 times 4. Beef eye or round 2.0-4.0 pounds

5 times 5. Cornish hen 1.0-6.5 pounds

1.

2.

3.

COMPU ROAST

Touch BAKE the appropriate number of times to select the food setting. (see chart below)

Use the number pads to enter food weight.

Press START/1 MIN PLUS to start cooking.

Press BAKE Food Setting Quantity

1 time 1. French fries 0.3-1.0 pounds

2 times 2. Frozen snack number on turntable

3 times 3. Brownies 8” x 8” x 2”

4 times 4. Snack cake 8” x 8” x 2”

5 times 5. Biscuits 8-10 (from packaged convenience biscuits)

When cooking takes place for items 3 and 4 in the above chart, the microwave will fi rst preheat to

350°F before reminding you to place food into the microwave cavity.

When cooking takes place for item 5, the microwave will fi rst preheat to 400°F before

reminding you to place food into the microwave cavity.

If the preheat temperature is reached but food is not placed into the microwave cavity

shortly thereafter, the temperature will decrease and preheat again.

1.

2.

3.

•

•

•

COMPU BAKE

13

SETTING CHILD LOCK

The safety lock prevents unsupervised operation by children.

To set, press and hold RESET for three seconds. LOCK is indicated on the display.

To cancel, press and hold RESET for three seconds. LOCK indication disappears.

•

•

SPECIAL FEATURES (continued)

ADD COOK TIME

For non-pre-programmed cooking, you can add cook time by pressing START/1 MIN PLUS. The cook

time increases by one minute per touch.

Touch TIMER.

Enter the amount of time by touching the number pads.

Touch START/1 MIN PLUS

Notes:

The time countdown can be seen in display for three seconds before clock or cooking time is

returned to the display.

Touch TIMER and then RESET to cancel timer during process.

1.

2.

3.

•

•

SETTING MICROWAVE TIMER

AUTOMATIC PROTECTION MECHANISM

Anytime while the microwave is in use, if the microwave reaches a temperature of 525°F, the

microwave will automatically enter into self-protection mode beeping every 1.5 seconds

until the temperature drops and STOP/CANCEL is pressed to bring the microwave back to

normal.

During grilling of combination cooking, when the temperature of the oven is lower than

104°F after cooking has taken place for 5 minutes, the oven will automatically enter into

self-protection mode and the screen with display error code E 02. The error message will

disappear when you press STOP/CANCEL.

Error may also occur to the system sensor, which will make the microwave enter self-

protection mode and display error code E 04 and beep. Press STOP/CANCEL to stop.

•

•

•

14

COOKING UTENSILS GUIDE

This section lists which utensils can be used in this microwave, which have limited use for short periods,

and which should not be used in this microwave.

RECOMMENDED

Microwave browning dish -- Use to brown the exterior of small items such as steaks, chops, or

pancakes. Follow the directions provided with your browning dish.

Microwaveable plastic wrap -- Use to retain steam. Leave a small opening for some steam to escape

and avoid placing it directly on the food.

Paper towels and napkins -- Use for short-term heating and covering; these absorb excess moisture and

prevent splattering. Do not use recycled paper towels which may contain metal and could ignite.

Glass and glass-ceramic bowls and dishes -- Use for heating and cooking.

Paper plates and cups -- Use for short-term heating at low temperatures. Do not use recycled paper

which may contain metal and could ignite.

Wax paper -- Use as a cover to prevent splattering.

Thermometers -- Use only those labeled “Microwave Safe” and follow all directions. Check the food

in several places. Conventional thermometers may be used on microwaved food once the food has been

removed from the microwave.

LIMITED USE

Aluminum foil -- Use narrow strips of foil to prevent overcooking exposed areas. Using too much foil

can damage your microwave, so be careful. Keep 1” between foil and microwave cavity.

Ceramic, porcelain, and stoneware -- Use these if they are labeled “Microwave Safe”. If they are not

labeled, test them to make sure they can be used safely.

Plastic -- Only use if labeled “Microwave Safe”. Other plastics may melt.

15

COOKING UTENSILS GUIDE (continued)

NOT RECOMMENDED

Glass jars and bottles -- Regular glass is too thin to be used in a microwave. It can shatter and cause

damage and injury.

Paper bags -- These are a fi re hazard, except for popcorn bags that are designed for microwave use.

Styrofoam plates and cups -- These can melt and leave unhealthy reside on food.

Plastic storage and food containers -- Containers such as margarine tubs can melt in the microwave.

Metal utensils -- These can damage your microwave. Remove all metal before cooking.

Note:

Should you wish to check if a dish is safe for microwaving, place the empty dish in the microwave

and microwave on high for 30 seconds. A dish that becomes very hot should not be used.

•

COOKING TECHNIQUES

Your microwave makes cooking easier than conventional cooking, provided you keep these

considerations in mind:

STIRRING

Stir foods such as casseroles and vegetables while cooking to distribute heat evenly.

Food at the outside of the dish absorbs more energy and heats quicker, so stir from the outside to the

center.

The microwave will turn off when you open the door to stir your food.

•

•

•

ARRANGEMENT

Arrange evenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts

towards the outside of the turntable where they receive more microwave energy.

To prevent overcooking, place delicate areas, such as asparagus tips, towards the center of the

turntable.

•

•

16

COOKING TECHNIQUES (continued)

SHIELDING

Shield food with narrow strips of aluminum foil to prevent overcooking.

Areas that need shielding include poultry wing tips, the ends of poultry legs, and corners of square

baking dishes.

Use only small mounts of aluminum foil, as larger amounts may damage your microwave.

•

•

•

TURNING

Turn foods over midway through cooking to expose all parts to microwave energy.

This is especially important when cooking large foods such as roasts.

•

•

STANDING

Foods cooked in a microwave build up internal heat and continue to cook for a few minutes after

heating stops.

Let foods stand to complete cooking, especially for foods such as cakes and whole vegetables.

Roasts need this time to complete cooking in the center without overcooking the outer areas.

All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete.

When heating baby food, stir well after removing from microwave and test temperature before

serving.

•

•

•

•

•

ADDING MOISTURE

Microwave energy is attracted to water molecules.

Food that is uneven in moisture content should be covered or allowed to stand so that the heat

disperses evenly.

Add a small amount of water to dry food to help it cook.

•

•

•

17

CLEANING AND CARE

Turn off the microwave and unplug the power cord from the wall when cleaning.

Keep the inside of the microwave clean. When food splatters or spilled liquids adhere to microwave

walls, wipe with a damp cloth. Mild detergents may be used if the microwave gets very dirty. Avoid

using spray or other harsh cleaners may stain, streak, or dull the door surface.

The outside of the microwave should be cleaned with a damp cloth. To prevent damage to the

operating parts inside the microwave, water should not be allowed to seep into the ventilation

openings.

Wipe the window on both sides with a damp cloth to remove any spills or splatters.

Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

panel, leave the microwave door open to prevent it from accidentally turning on.

If steam accumulates inside or around the outside of the door, wipe with a soft cloth. This may

occur when the microwave is operated under high humidity. This is normal.

It may be necessary to remove the tray for cleaning. Wash the tray in warm, soapy water or in a

dishwasher.

The roller ring and microwave fl oor should be cleaned regularly to avoid excessive noise. Wipe the

bottom surface of the microwave with a mild detergent. The roller ring may be washed in mild,

soapy water or in a dishwasher. When removing the roller ring, be sure to replace it in the proper

position.

Remove odors from your microwave by combining a cup of water with the juice and skin of one

lemon in a microwaveable bowl. Microwave for 5 minutes. Wipe thoroughly and dry with a soft

cloth.

If the light bulb burns out, please contact customer service (1-866-866-6283) to have it replaced.

The microwave should be cleaned regularly and any food deposits should be removed. Failure

to maintain the microwave in a clean condition could lead to deterioration of surfaces that could

adversely affect the life of the unit and could possibly result in a hazardous situation.

Please do not dispose of this appliance into a regular garbage receptacle. Please check to see where

you can dispose such appliances.

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

12.

18

SPECIFICATIONS

Power Consumption 120 V, 60 Hz, 1450 W (Microwave)

120 V, 1350 W (Convection)

120 V, 1350 W (Top and Bottom Grill)

Output 1000W

Operation Frequency 2450 MHz

Outside Dimensions (H x W x D, inches) 12 x 21 x 19

Microwave Cavity Dimensions (H x W x D, inches) 9 x 14 x 14

Microwave Capacity 1.1 Cu. Ft.

Cooking Uniformity Turntable System ( Ф 11”)

Net Weight (pounds) Approx. 34.4

BEFORE CALLING FOR SERVICE

Before asking for service, please check each item below:

Check to ensure the microwave is plugged in securely. If not, remove the plug from the outlet, wait

10 seconds, and plug it in again securely.

Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating

properly, test the outlet with another appliance.

Check to ensure the control panel is programmed correctly and the timer is set.

Check to ensure the door is securely closed, engaging the door safety lock system. If the door is not

properly closed, the microwave energy will not fl ow inside.

•

•

•

•

© 2007 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved.

Oster® is a registered trademark of Sunbeam Products, Inc. used under license.

Distributed by Petters Consumer Brands, LLC. 4400 Baker Road, Minnetonka, MN 55343.

For service, support and warranty information, in the US call 1-866-866-6283.
