Oticon Radio Model - Quick Installation Guide
Radio Model Name: BTE/RITE Fusion 2
The mini RITE Fusion 2 radio model is a low power, inductive radio transceiver working at 3.84 MHz and consisting of a Digital-Signal-Processor (DSP), a radio
Front-End (FE) and memory (EEPROM) – connected to an antenna coil, a telecoil and smaller components, all mounted on a flexible Printed-Circuit-Board (PCB).
This Printed-Circuit-Board (PCB)
with all its mounted components
is intended to be installed as a
module into Oticon wireless
hearing aid devices of BTE and
RITE wearing styles.
The module also has all voltage
regulators included inside the
DSP and FE and buffered data
programming inputs on the
board.
The module requires a battery,
one or two microphones and an
audio receiver to be attached and
must be mounted in an external
plastic shell.

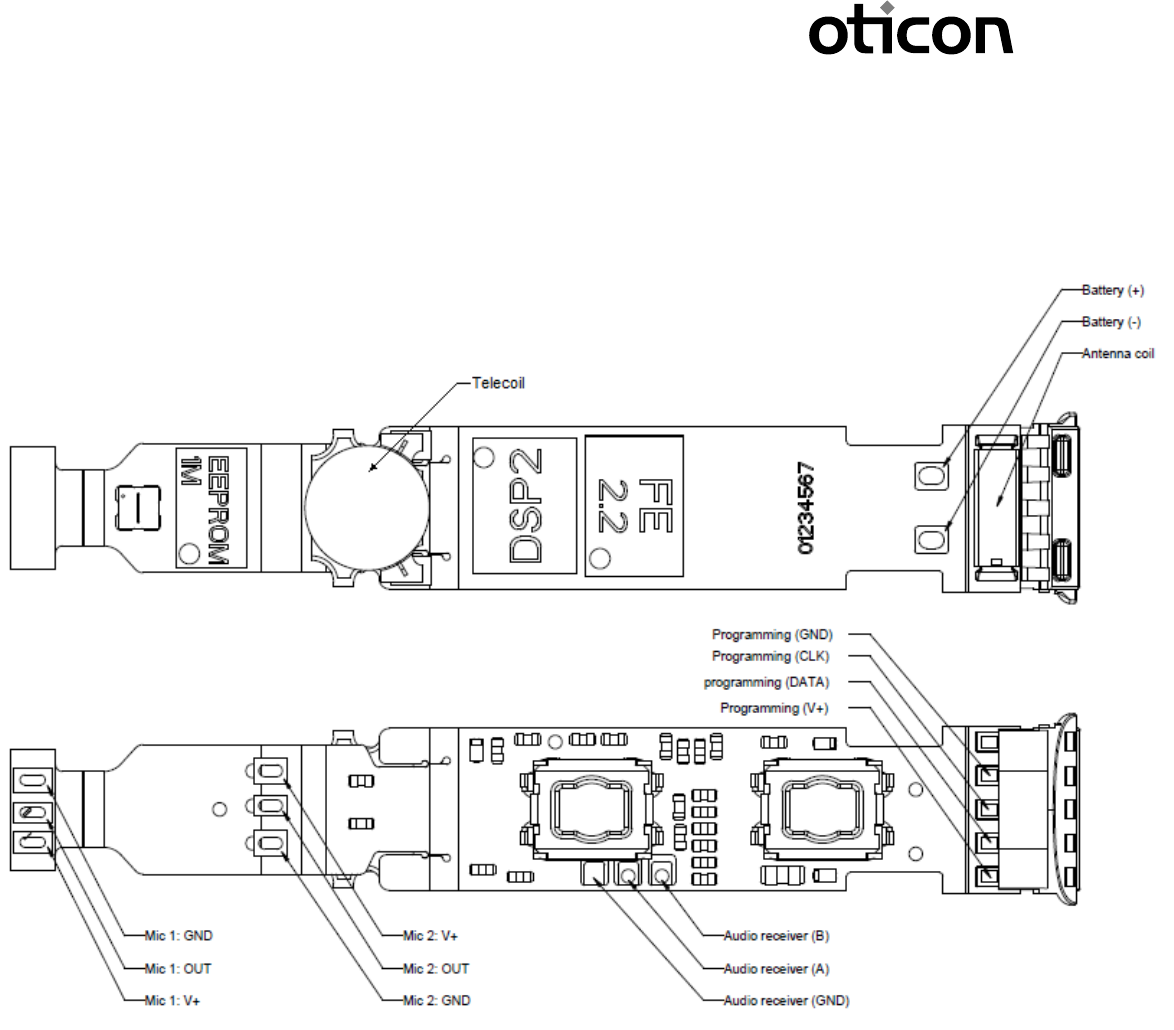

The module is depicted to the
right with its main components
and connections:
PEOPLE FIRST
Oticon A/S Kongebakken 9 DK-2765 Smørum www.oticon.com
Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 2
Oticon Radio Model - Quick Installation Guide
Radio Model Name: BTE/RITE Fusion 2
When the BTE/RITE Fusion 2 module is to be implemented inside the RITE wearing styles of Oticon’s wireless hearing aids, an extra small add-on
PCB with passive filtering components is added due to EMC reasons. It bears no relevance to the radio performance of the wireless hearing aids, in
which it is included, but it is shown here below (seen from 3 sides) to provide a complete overview of the devices:

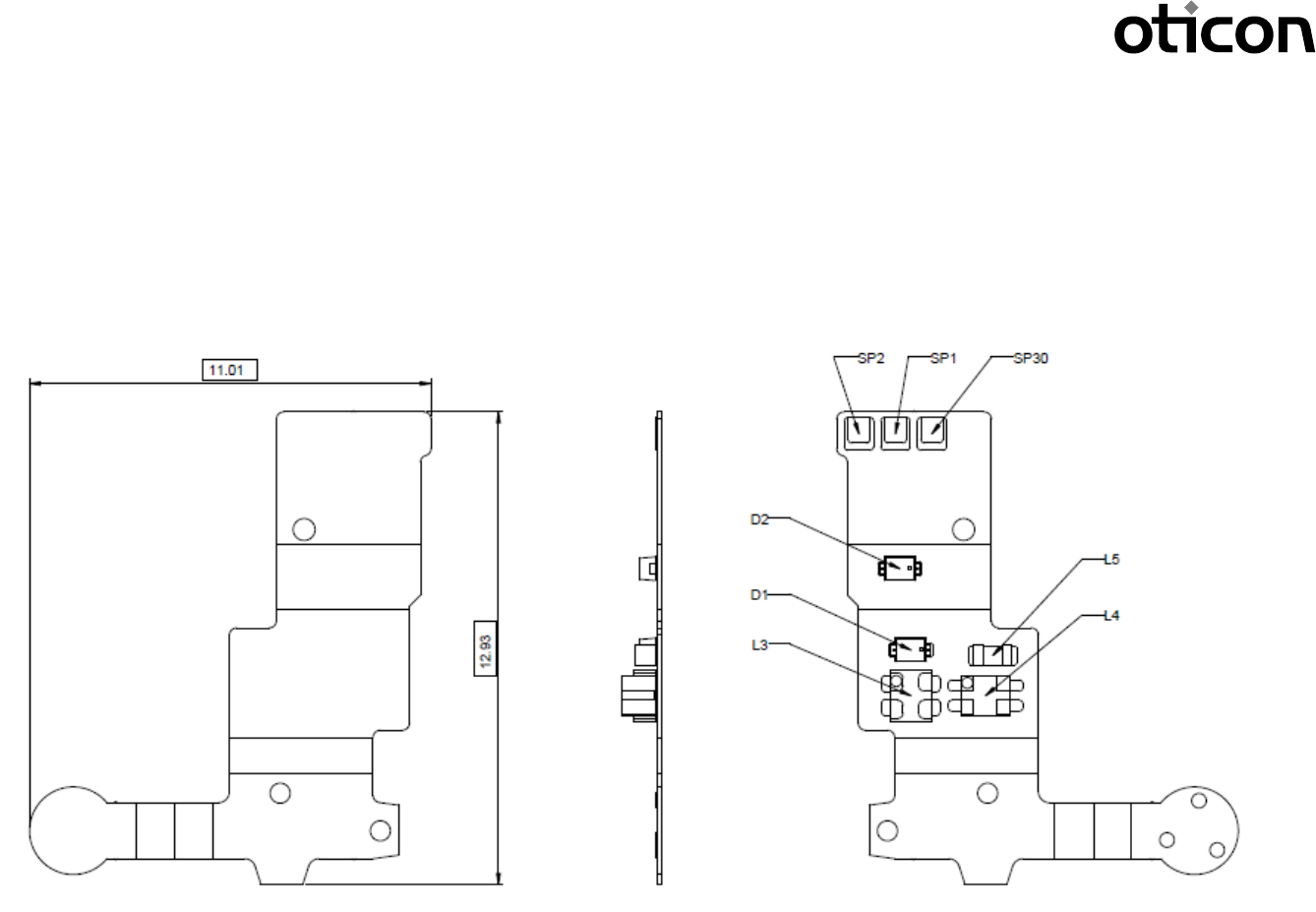

Add-On PCB for RITE styles:
PEOPLE FIRST
Oticon A/S Kongebakken 9 DK-2765 Smørum www.oticon.com
Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 3
Oticon Radio Model - Regulatory Label Information
Radio Model Name: BTE / RITE Fusion 2
Contains: FCC ID: U28FU2BTERIT
IC: 1350B-FU2BTERIT
NOTICE:
This device complies with Part 15 of the FCC Rules and with the license exempt standard RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Oticon A/S may void the FCC authorization to operate this equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
