Installation Guide
PEOPLE FIRST
Oticon Radio Model - Quick Installation Guide
Radio Model Name: DRITE
The DRITE 4 radio model is a low power, inductive radio transceiver working at 3.84 MHz consisting of an RF Engine Block (incl. DSP, radio & memory),
antenna coil, motherboard (incl. small passive components) and intended to be installed as a module into Oticon wireless hearing aid devices only. The module also
has all voltage regulators included inside the engine block. The module requires a battery, one or two microphones on a flex PCB and a speaker to be attached and
must be mounted in an external plastic shell. It is possible for authorized personnel only to program the module through a flex I/O. The module is depicted below:
DRITE Radio Model (seen from the top side)
DRITE Radio Model (seen from the bottom)
RF Engine
Block
Antenna
Motherboard
Battery -
Battery +
Program flex I/O
Speaker unit connectors
Mic flex
Oticon A/S Kongebakken 9 DK-2765 Smørum www.oticon.com
Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 1
PEOPLE FIRST
Oticon Radio Model - Quick Installation Guide
Radio Model Name: DRITE

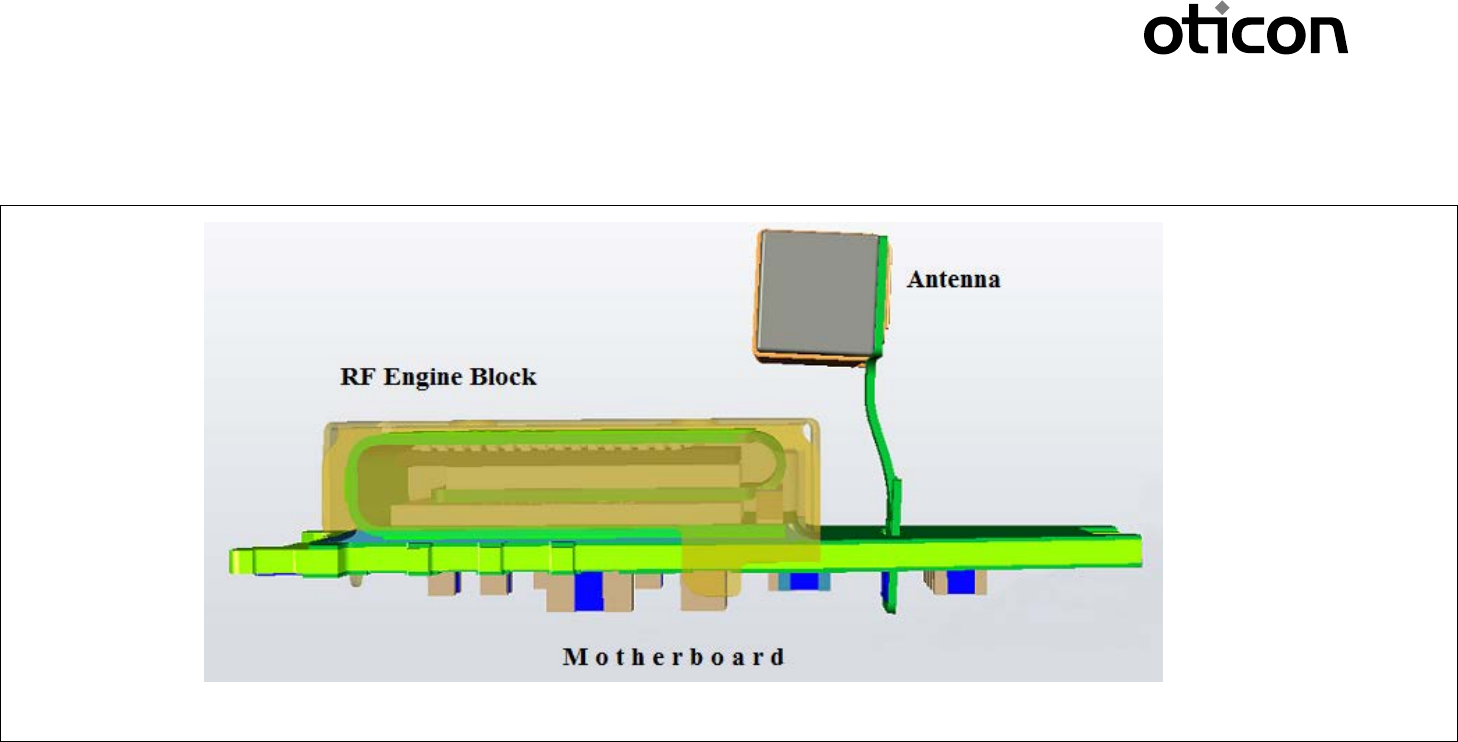

DRITE Radio Model (seen from the side)
FCC ID: U28FU2DRIT IC: 1350B-FU2DRIT
Oticon A/S Kongebakken 9 DK-2765 Smørum www.oticon.com
Main +45 39 17 71 00 Fax +45 39 27 79 00 Denmark CVR-no. 42334219 2
PEOPLE FIRST
Oticon Radio Model - Regulatory Label Information
Radio Model Name: DRITE
Contains: FCC ID: U28FU2DRIT
IC: 1350B-FU2DRIT
NOTICE:
This device complies with Part 15 of the FCC Rules and with the license exempt standard RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications made to this equipment not expressly approved by Oticon A/S may void the FCC authorization to operate this equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
