Oticon A/S Hearing Aid Module Installation Guide
Installation Guide
PEOPLE FIRST
OticonA/S Kongebakken9 DK‐2765Smørum www.oticon.com
Main+4539177100 Fax+4539277900 DenmarkCVR‐no.42334219 1
Oticon Radio Model - Quick Installation Guide
Radio Model Name: BTE Super Power
The BTE Super Power radio model is a low power, inductive radio transceiver working at 3.84 MHz consisting of a Digital-Signal-Processor (DSP), a radio Front-
End (FE), memory, antenna coil and smaller components mounted on a flexible Printed-Circuit-Board (PCB) and intended to be installed as a module into Oticon
wireless hearing aid devices only. The module also has all voltage regulators included inside the DSP and FE. The module requires a battery, one or two

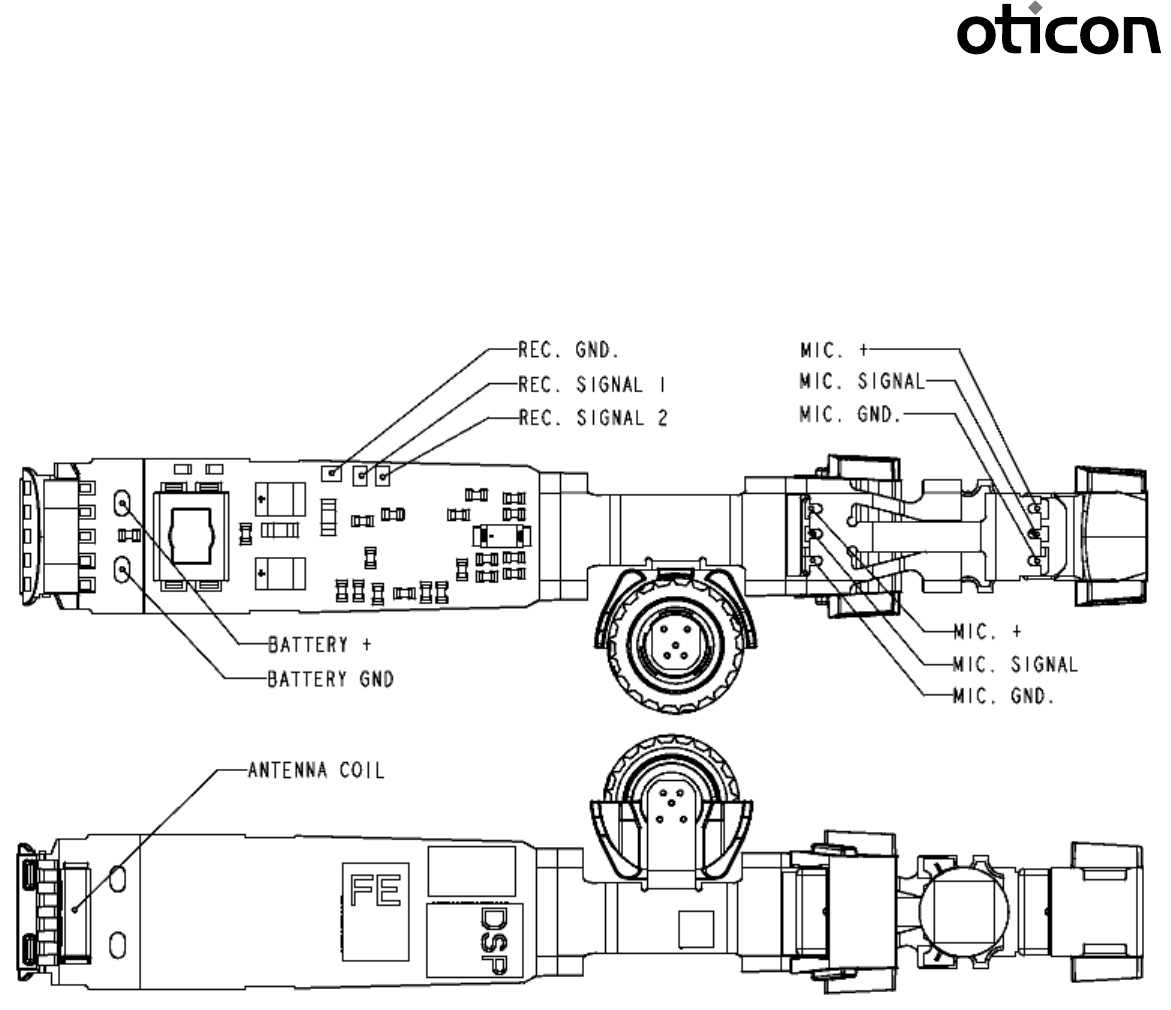

microphones and an audio receiver to be attached and must be mounted in an external plastic shell. The module is depicted below with its main components and
connections:
PEOPLE FIRST
OticonA/S Kongebakken9 DK‐2765Smørum www.oticon.com
Main+4539177100 Fax+4539277900 DenmarkCVR‐no.42334219 2
Oticon Radio Model - Quick Installation Guide
Radio Model Name: BTE Super Power
FCC ID: U28FUSPR01 IC: 1350B-FUSPR01
NOTICE:
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
