Otodata Wireless Network C004 Wireless Telematic Base Station User Manual CONFIDENTIAL AND PROPRIETARY

Otodata Wireless Network Inc. Wireless Telematic Base Station CONFIDENTIAL AND PROPRIETARY

User Manual

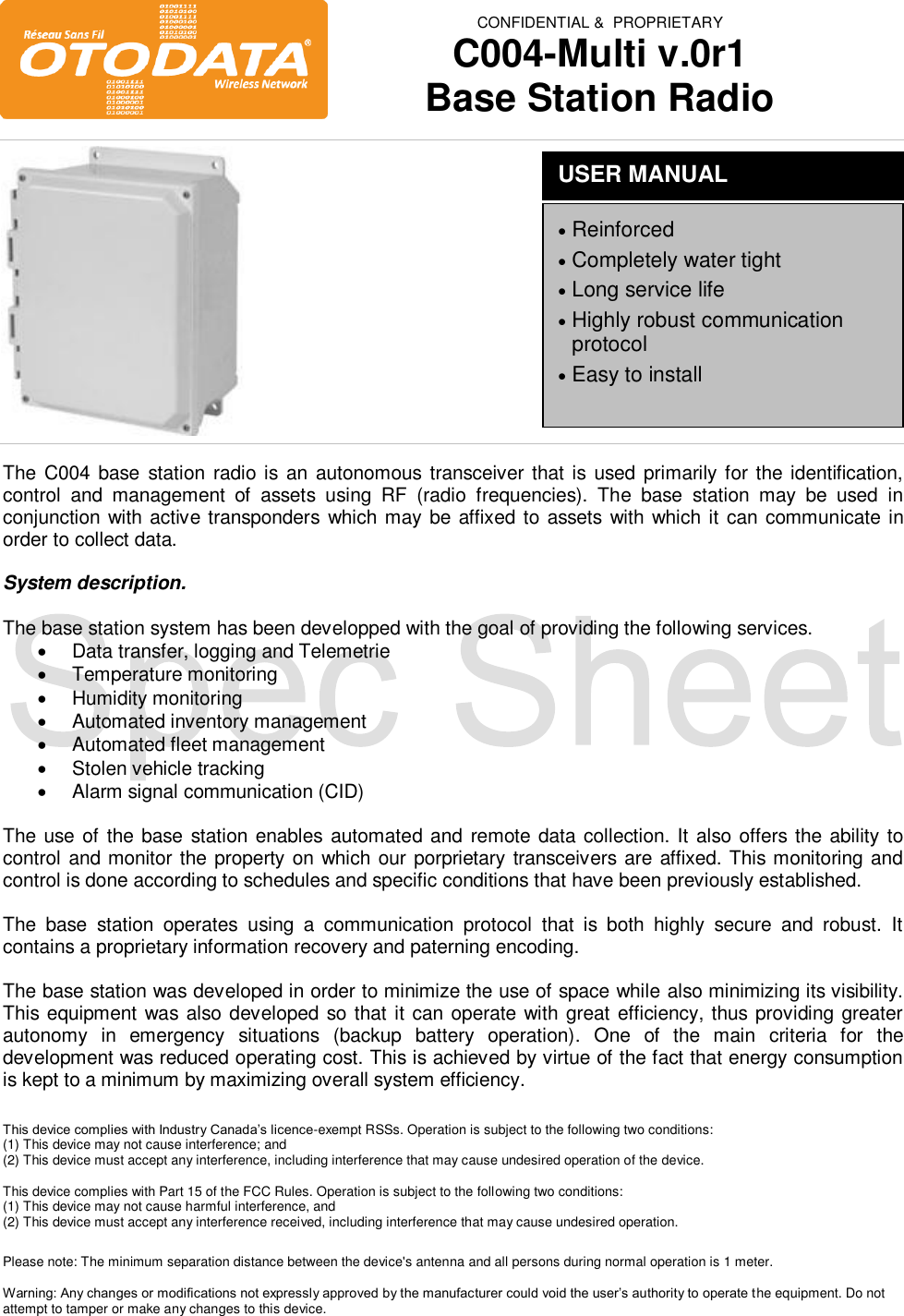

 CONFIDENTIAL &  PROPRIETARY C004-Multi v.0r1 Base Station Radio                   The C004  base  station  radio is an autonomous transceiver that is used primarily for the identification, control  and  management  of  assets  using  RF  (radio  frequencies).  The  base  station  may  be  used  in conjunction with active transponders which may be affixed to assets with which it can communicate in order to collect data.  System description.  The base station system has been developped with the goal of providing the following services.   Data transfer, logging and Telemetrie   Temperature monitoring   Humidity monitoring   Automated inventory management   Automated fleet management   Stolen vehicle tracking   Alarm signal communication (CID)  The use of the base station enables automated and remote data collection. It also offers the ability to control and monitor the property on which our porprietary transceivers are affixed. This monitoring and control is done according to schedules and specific conditions that have been previously established.   The  base  station  operates  using  a  communication  protocol  that  is  both  highly  secure  and  robust.  It contains a proprietary information recovery and paterning encoding.   The base station was developed in order to minimize the use of space while also minimizing its visibility. This equipment was also developed so that it can operate with great efficiency, thus providing greater autonomy  in  emergency  situations  (backup  battery  operation).  One  of  the  main  criteria  for  the development was reduced operating cost. This is achieved by virtue of the fact that energy consumption is kept to a minimum by maximizing overall system efficiency.   This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and  (2) This device must accept any interference, including interference that may cause undesired operation of the device.  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  (1) This device may not cause harmful interference, and  (2) This device must accept any interference received, including interference that may cause undesired operation.  Please note: The minimum separation distance between the device's antenna and all persons during normal operation is 1 meter.  Warning: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Do not attempt to tamper or make any changes to this device.  USER MANUAL  Reinforced   Completely water tight  Long service life   Highly robust communication protocol  Easy to install

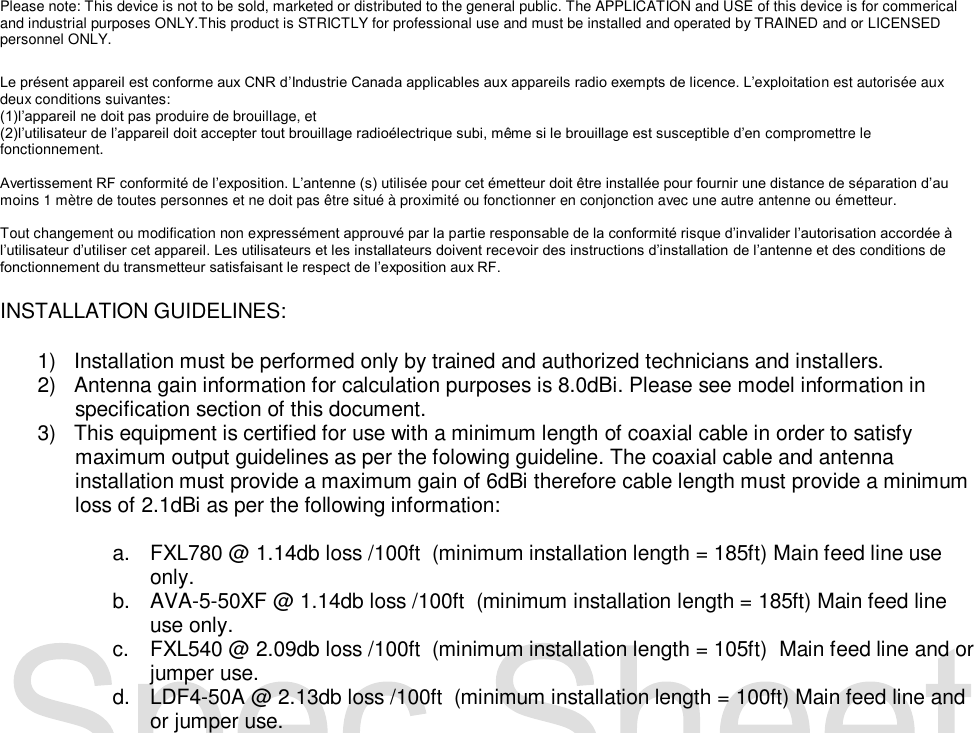

 Please note: This device is not to be sold, marketed or distributed to the general public. The APPLICATION and USE of this device is for commerical and industrial purposes ONLY.This product is STRICTLY for professional use and must be installed and operated by TRAINED and or LICENSED personnel ONLY.   Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)l’appareil ne doit pas produire de brouillage, et (2)l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.   Avertissement RF conformité de l’exposition. L’antenne (s) utilisée pour cet émetteur doit être installée pour fournir une distance de séparation d’au moins 1 mètre de toutes personnes et ne doit pas être situé à proximité ou fonctionner en conjonction avec une autre antenne ou émetteur.  Tout changement ou modification non expressément approuvé par la partie responsable de la conformité risque d’invalider l’autorisation accordée à l’utilisateur d’utiliser cet appareil. Les utilisateurs et les installateurs doivent recevoir des instructions d’installation de l’antenne et des conditions de fonctionnement du transmetteur satisfaisant le respect de l’exposition aux RF.  INSTALLATION GUIDELINES:  1)  Installation must be performed only by trained and authorized technicians and installers. 2)  Antenna gain information for calculation purposes is 8.0dBi. Please see model information in specification section of this document. 3)  This equipment is certified for use with a minimum length of coaxial cable in order to satisfy maximum output guidelines as per the folowing guideline. The coaxial cable and antenna installation must provide a maximum gain of 6dBi therefore cable length must provide a minimum loss of 2.1dBi as per the following information:  a.  FXL780 @ 1.14db loss /100ft  (minimum installation length = 185ft) Main feed line use only. b. AVA-5-50XF @ 1.14db loss /100ft  (minimum installation length = 185ft) Main feed line use only. c.  FXL540 @ 2.09db loss /100ft  (minimum installation length = 105ft)  Main feed line and or jumper use. d.  LDF4-50A @ 2.13db loss /100ft  (minimum installation length = 100ft) Main feed line and or jumper use.

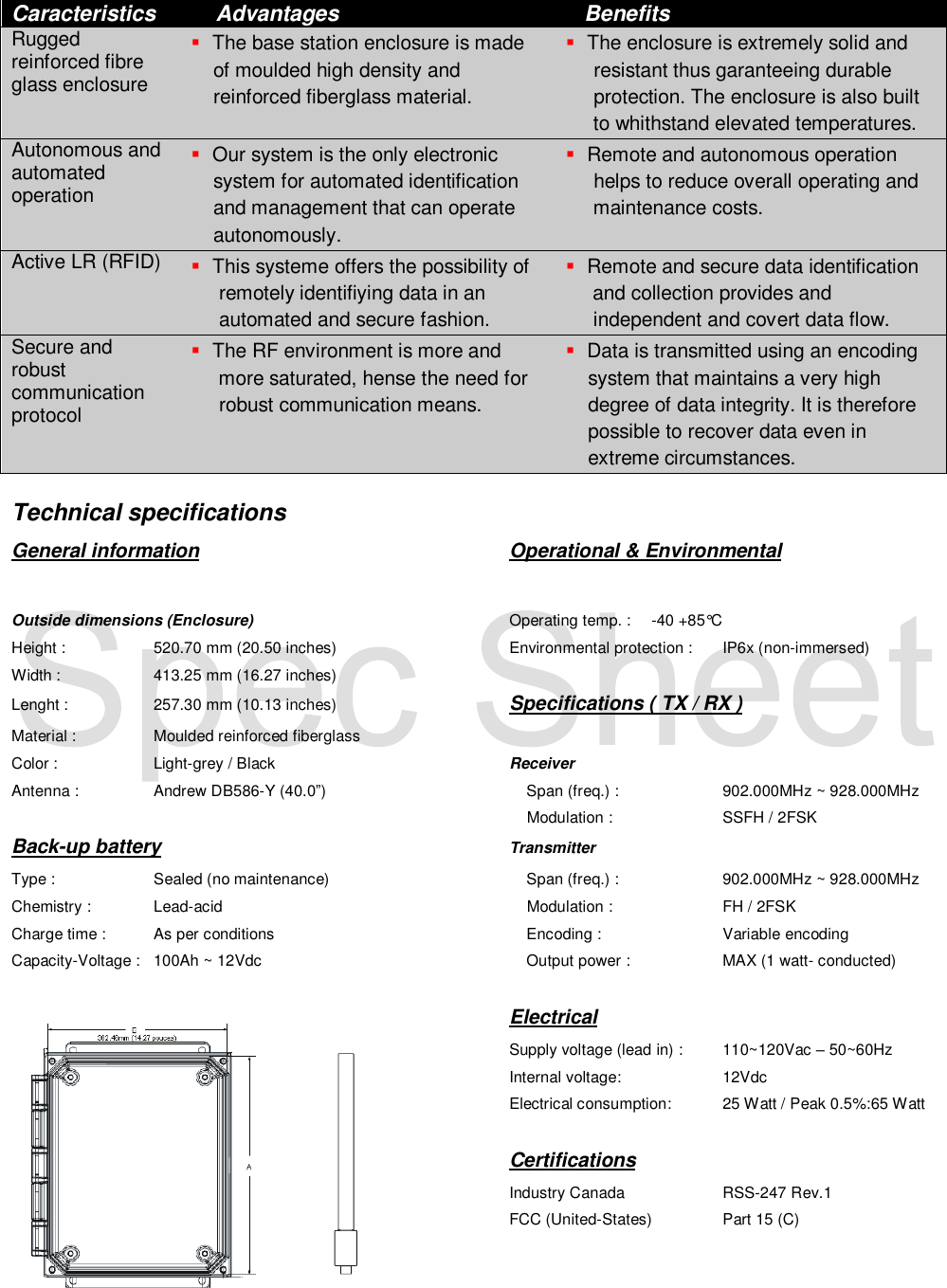

 Caracteristics     Advantages    Benefits Rugged reinforced fibre glass enclosure    The base station enclosure is made     of moulded high density and      reinforced fiberglass material.  The enclosure is extremely solid and      resistant thus garanteeing durable      protection. The enclosure is also built      to whithstand elevated temperatures. Autonomous and automated operation    Our system is the only electronic     system for automated identification     and management that can operate     autonomously.  Remote and autonomous operation      helps to reduce overall operating and      maintenance costs. Active LR (RFID)    This systeme offers the possibility of      remotely identifiying data in an      automated and secure fashion.  Remote and secure data identification  and collection provides and      independent and covert data flow. Secure and robust communication protocol    The RF environment is more and      more saturated, hense the need for      robust communication means.  Data is transmitted using an encoding     system that maintains a very high     degree of data integrity. It is therefore     possible to recover data even in     extreme circumstances.  Technical specifications General information          Operational & Environmental  Outside dimensions (Enclosure)        Operating temp. :  -40 +85°C Height :    520.70 mm (20.50 inches)      Environmental protection :  IP6x (non-immersed) Width :    413.25 mm (16.27 inches)         Lenght :    257.30 mm (10.13 inches)      Specifications ( TX / RX ) Material :   Moulded reinforced fiberglass      Color :    Light-grey / Black        Receiver Antenna :   Andrew DB586-Y (40.0”)          Span (freq.) :     902.000MHz ~ 928.000MHz                      Modulation :     SSFH / 2FSK Back-up battery          Transmitter Type :    Sealed (no maintenance)          Span (freq.) :    902.000MHz ~ 928.000MHz Chemistry :  Lead-acid                 Modulation :    FH / 2FSK Charge time :  As per conditions            Encoding :    Variable encoding Capacity-Voltage :   100Ah ~ 12Vdc            Output power :    MAX (1 watt- conducted)                          Electrical               Supply voltage (lead in) :  110~120Vac – 50~60Hz               Internal voltage:    12Vdc               Electrical consumption:  25 Watt / Peak 0.5%:65 Watt   Certifications               Industry Canada    RSS-247 Rev.1               FCC (United-States)  Part 15 (C)
