Otodata Wireless Network C005 Wireless Alarm Communicator User Manual CONFIDENTIAL AND PROPRIETARY
Otodata Wireless Network Inc. Wireless Alarm Communicator CONFIDENTIAL AND PROPRIETARY
User Manual
CONFIDENTIAL & PROPRIETARY
C005 v.0r1

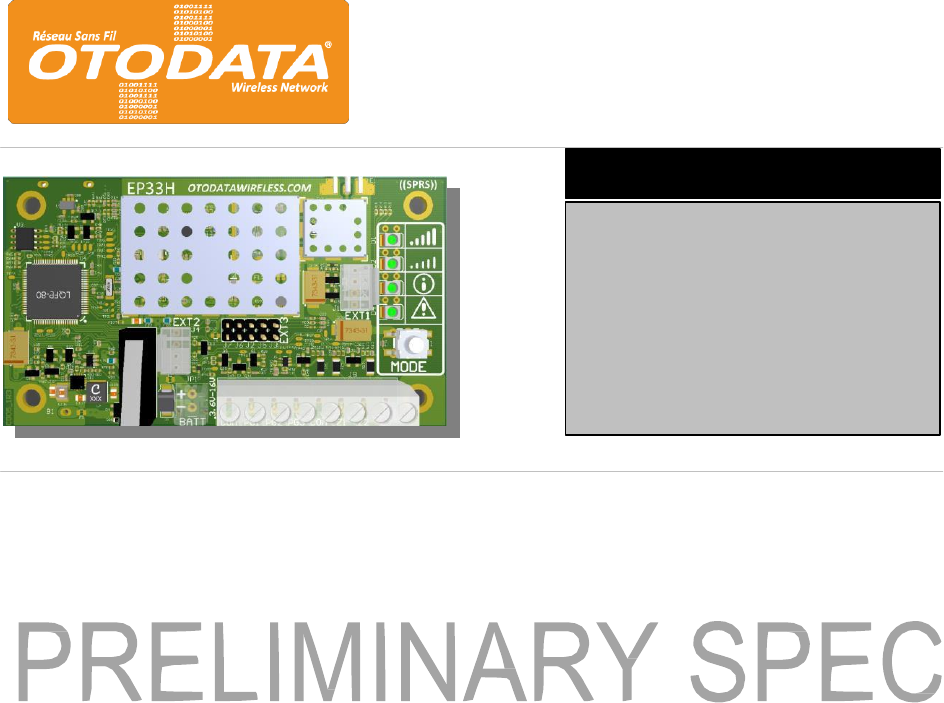

Modem
The C005 modem is an autonomous transceiver that is used primarily for the communication of
identification, control and management information using RF (radio frequencies). The modem may be used
in conjunction with active transponders which may be affixed to assets with which it can communicate in
order to collect data.
System description.
The C005 system has been developed with the goal of providing the following services.
Data transfer, logging and Telemetry
Temperature monitoring
Humidity monitoring
Automated inventory management
Automated fleet management
Stolen vehicle tracking
Alarm signal communication (CID)
The use of the C005 enables automated and remote data collection. It also offers the ability to control and
monitor the property on which our proprietary transceivers are affixed. This monitoring and control is done
according to schedules and specific conditions that have been previously established.
The modem operates using a communication protocol that is both highly secure and robust. It
contains a proprietary information recovery and patterning encoding.
The C005 was developed in order to minimize the use of space while also minimizing its visibility. This
equipment was also developed so that it can operate with great efficiency, thus providing greater
autonomy in emergency situations. One of the main criteria for the development was reduced operating
cost. This is achieved by virtue of the fact that energy consumption is kept to a minimum by maximizing
overall system efficiency.
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Please note: The minimum separation distance between the device's antenna and all persons during normal operation is 25 centimeters.
Warning: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Do not attempt
to tamper or make any changes to this device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
SPRS Ready
Self-contained
Extended service life
Highly robust communication
protocol
USER MANUAL
Avertissement RF conformité de l’exposition. L’antenne (s) utilisée pour cet émetteur doit être installée pour fournir une distance de séparation d’au moins 25
cm de toutes personnes et ne doit pas être situé à proximité ou fonctionner en conjonction avec une autre antenne ou émetteur.
Tout changement ou modification non expressément approuvé par la partie responsable de la conformité risque d’invalider l’autorisation accordée à
l’utilisateur d’utiliser cet appareil. Les utilisateurs et les installateurs doivent recevoir des instructions d’installation de l’antenne et des conditions de
fonctionnement du transmetteur satisfaisant le respect de l’exposition aux RF.
Caracteristics
Advantages
Benefits
Rugged
reinforced
enclosure
The enclosure is made
of molded high density and
reinforced fiberglass material.
The enclosure is extremely solid and
resistant thus guaranteeing durable
protection. The enclosure is also built
to withstand elevated temperatures.
Autonomous and
automated
operation
Our system is the only electronic
system for automated identification
and management that can operate
autonomously.
Remote and autonomous operation
helps to reduce overall operating and
maintenance costs.
Active LR (RFID)
This system offers the possibility of
remotely identifying data in an
automated and secure fashion.
Remote and secure data identification
and collection provides an
independent and covert data flow.
Secure and
robust
communication
protocol
The RF environment is more and
more saturated, hence the need for
robust communication means.
Data is transmitted using an encoding
system that maintains a very high
degree of data integrity. It is therefore
possible to recover data even in
extreme circumstances.

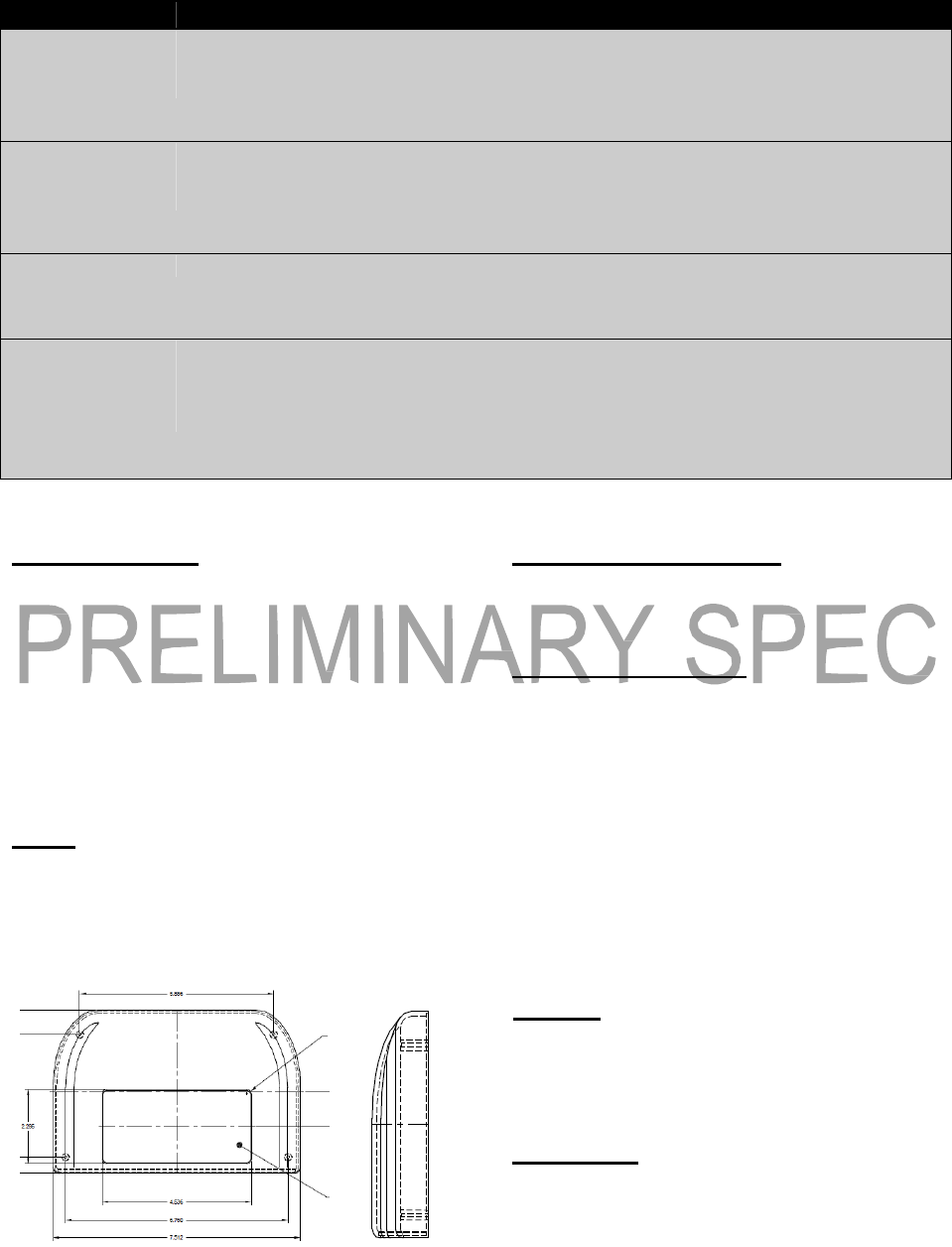

Technical specifications
General information Operational & Environmental
Outside dimensions (Enclosure) Operating temp. : -40 +85°C
Height : 44.45 mm (1.75 inches) Environmental protection :
IP6x (non-immersed)
Width : 190.50 mm (7.50 inches)
Length : 127.00 mm (5.00 inches) Specifications ( TX / RX )
Material : Molded reinforced fiberglass
Color : Light-grey / Beige Receiver
Antenna : Rubber duck 1/4 Span (freq.) : 902.000MHz ~ 928.000MHz
Modulation : SSFH / 2FSK
Sensitivity:
-114 dBm
Battery
Transmitter
Type : LisoC Primary (no maintenance) Span (freq.) : 902.000MHz ~ 928.000MHz
Chemistry : Lithium Thyonil Chloride Modulation : FH / 2FSK
Charge time :
Non-Rechargeable
Encoding : Variable encoding
Capacity-Voltage : 10Ah ~ 14.75Vdc Output power : 30 dbm
Electrical
Supply voltage (lead in) : N/A (Internal sealed bat pack)
Internal voltage: 3.3Vdc
Electrical consumption: Variable. Peak 0.05%
Certifications
Industry Canada RSS-247 Issue1
FCC (United-States) Part 15 (C)
The information contained in this document may be changed or modified without notice.
This information remains the sole and exclusive property of Otodata Wireless Network Inc.
