Intergration Manual

OBRF2402 Module Instructions Version: 1.1
State: 2005-07-28
Made by: Dipl.-Ing.(FH) Erik Laatsch Electronics Development
Engineer
Validated: Dipl.-Ing.(FH) Erik Laatsch :
Clearance: Dipl.-Ing.(FH) Erik Laatsch

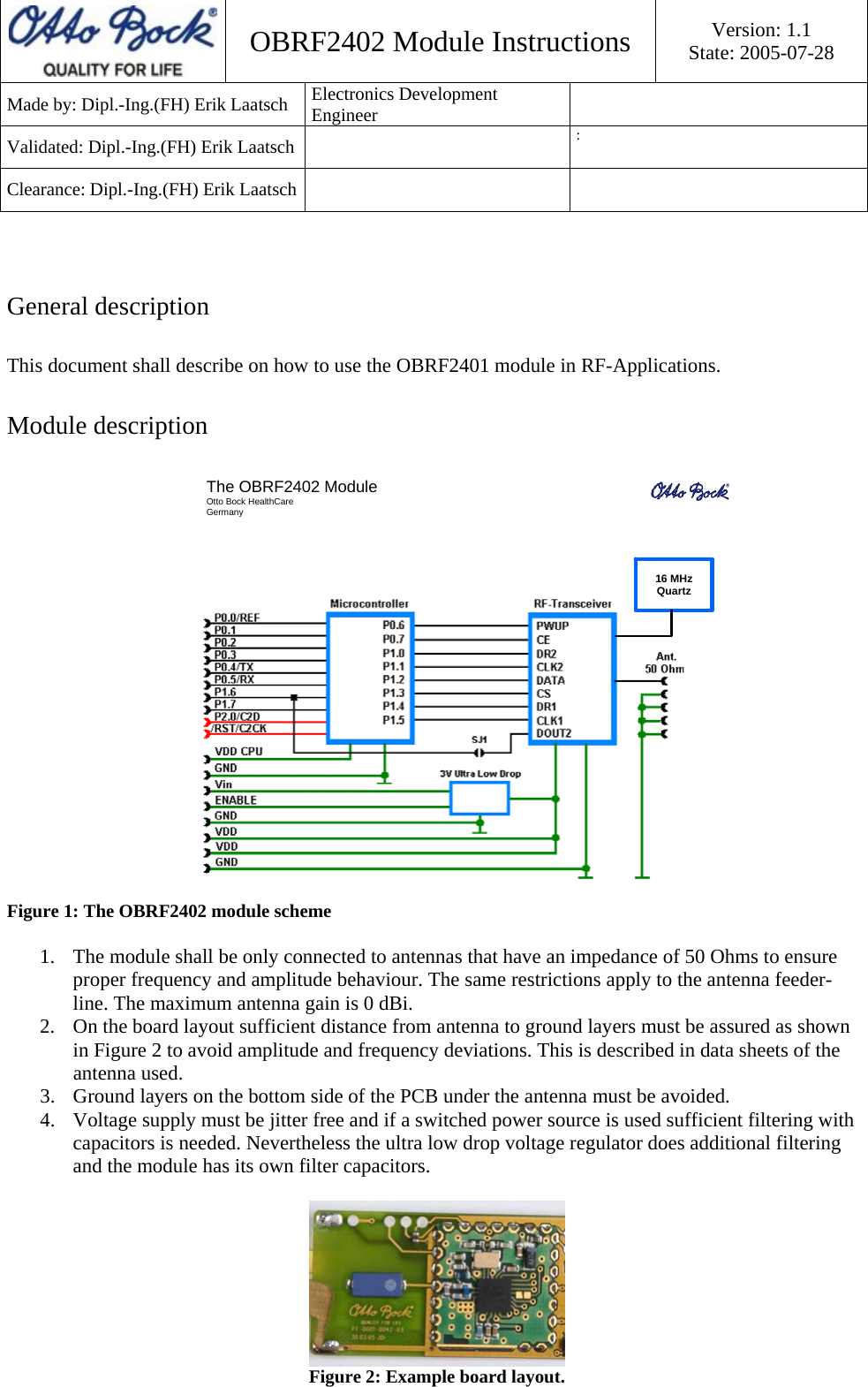

General description
This document shall describe on how to use the OBRF2401 module in RF-Applications.
Module description
The OBRF2402 Module
Otto Bock HealthCare
Germany
16 MHz
Quartz

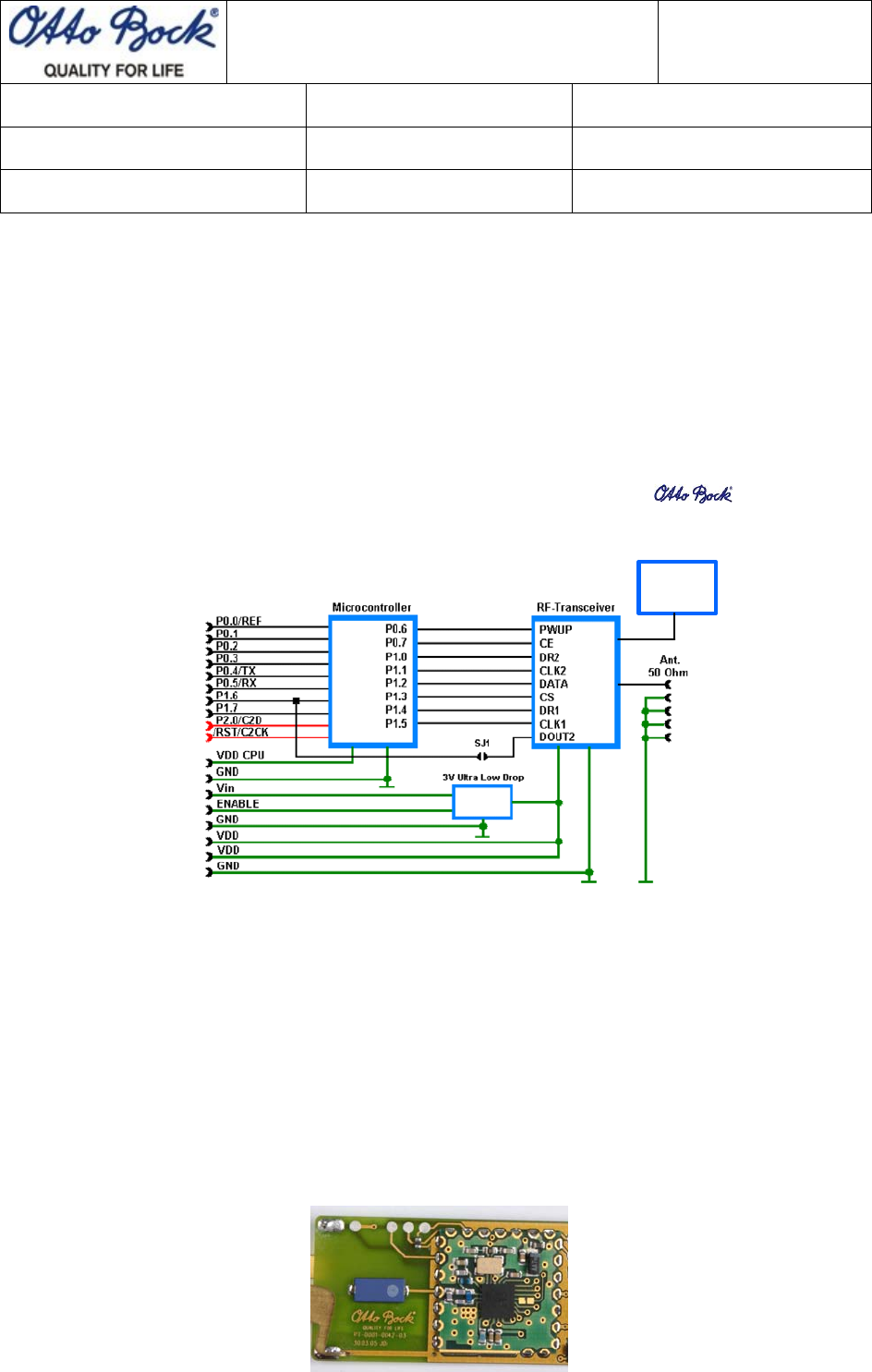

Figure 1: The OBRF2402 module scheme
1. The module shall be only connected to antennas that have an impedance of 50 Ohms to ensure
proper frequency and amplitude behaviour. The same restrictions apply to the antenna feeder-
line. The maximum antenna gain is 0 dBi.
2. On the board layout sufficient distance from antenna to ground layers must be assured as shown
in Figure 2 to avoid amplitude and frequency deviations. This is described in data sheets of the
antenna used.
3. Ground layers on the bottom side of the PCB under the antenna must be avoided.
4. Voltage supply must be jitter free and if a switched power source is used sufficient filtering with
capacitors is needed. Nevertheless the ultra low drop voltage regulator does additional filtering
and the module has its own filter capacitors.
Figure 2: Example board layout.
OBD OBRF2402MI 01 Seite 2 von 2 2005-07-28

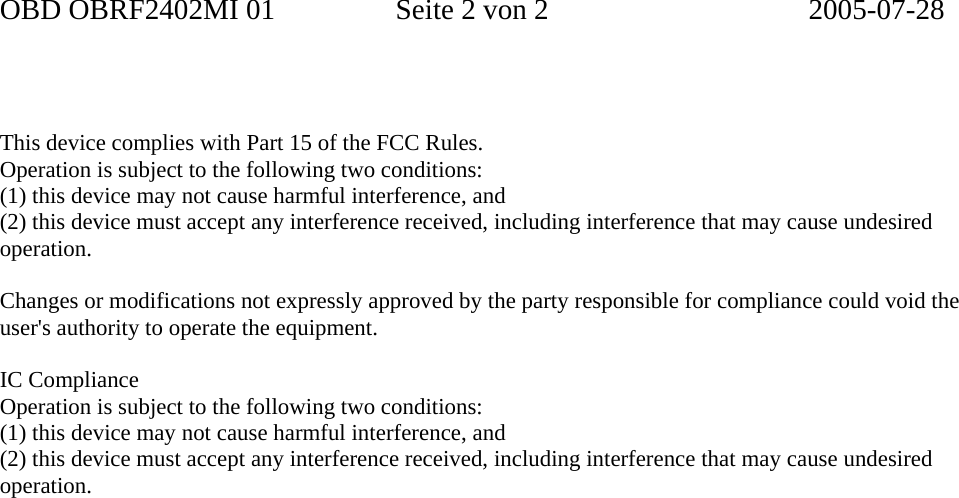

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
IC Compliance
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
