Welcome
Thank you for purchasing this tablet.
It brings you much convenience for your business (supports Word, Excel,
send & receive e-mails...) and entertainment (supports 3D game,
chatting, movie playback, eBooks.....).
Running on Android 4.4, with a 1.8GHz processor and highly responsive
capacitive touch screen, it brings you wonderful user experience.
Before beginning, please refer to this user manual carefully.
３
Important Notices
⊙ While using the earphone, if the volume is excessively high it may
cause hearing damage. So please adjust the volume of the player
to a moderate level and balance the time of using.
⊙ Do not disconnect the tablet suddenly when formatting or uploading
and downloading, which can lead to program errors.
⊙ Do not dismantle the tablet by yourself, and do not use alcohol,
thinner or benzene to clean its surface.
⊙ The tablet dose not support USB charge. If you want to charge the
tablet, please use the AC adaptor supplied. Please use the original
accessories.
⊙ Read this User Manual carefully, Make sure you know how to
upgrade the tablet, other wise do not upgrade it by yourself.
Keys and Functions
1. Volume +
2. Volume -
3. ESC Tap to return to home screen
4. Speakers
5. Speakers
6. Power and lock
key
Hold and press to turn on or turn off the unit.
Briefly press to turn on or turn off the screen.
7. TF card slot To insert your TF card
8. Micro USB slot Connect to a computer via a USB cable to transfer data
9. jack(DC input) Connect to a 9V2.5A output adaptor as included in the
accessories
10. MIC MIC, microphone for recording invoice.
11. Earphone Jack To connect your earphone
４
12. SIM card slot To insert your 3G card (optional, only 3G version with this)
13. Reset Press to reset the tablet if it freezes or behaves abnormal
I. Getting Started
1.1 Turn on/off
1.1.1 Turn on
To start your tablet, press and hold the power key at the right side of

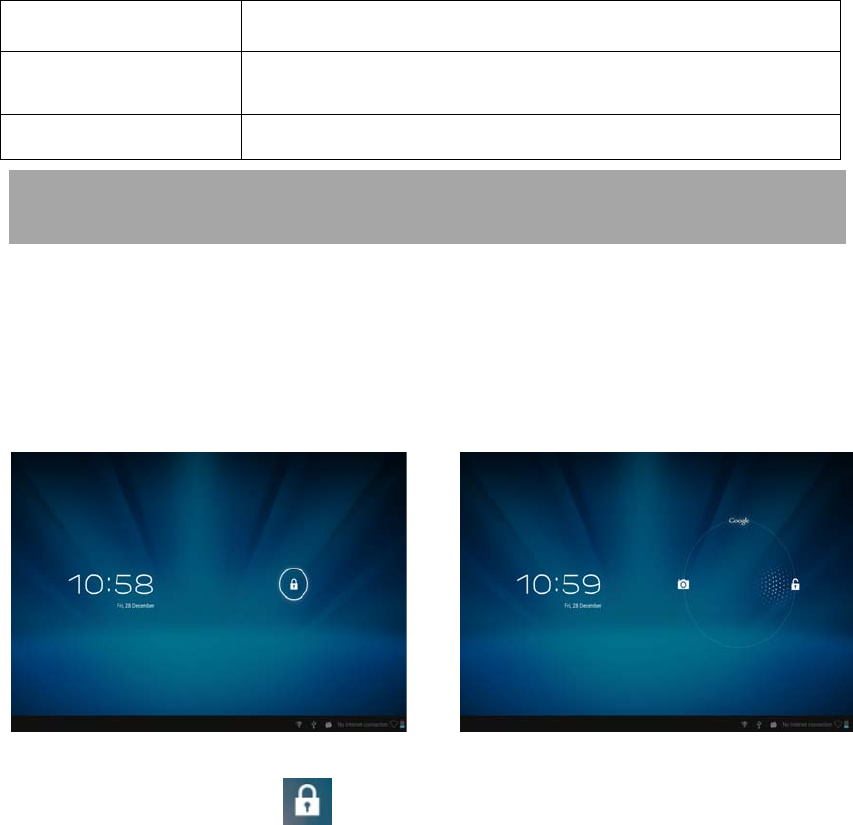

your tablet for a while. Tap and drag the lock out of the circle to unlock.
→
Tap and drag the lock out of the circle to unlock.
Drag the lock to right: you will go to the home screen.
Drag the lock to left: you will go to camera directly.
1.1.2 Turn off
To power off your tablet, press and hold the power button and tap
“Power off”.
1.2 Lock/unlock the screen (sleep mode)
To save battery, you should put your tablet in sleep mode by turning off
the LCD display. To do this, shortly press the power key. Press it again to
wake up the screen.
1.3 Connect to computer
You can connect your tablet to your computer with the supplied USB
cable so you can transfer media files.
５
If your computer is XP system, please install a Windows Media Player 11
for your computer before transfer media files as android 4.2 system
needs Windows Media Player 11 support.

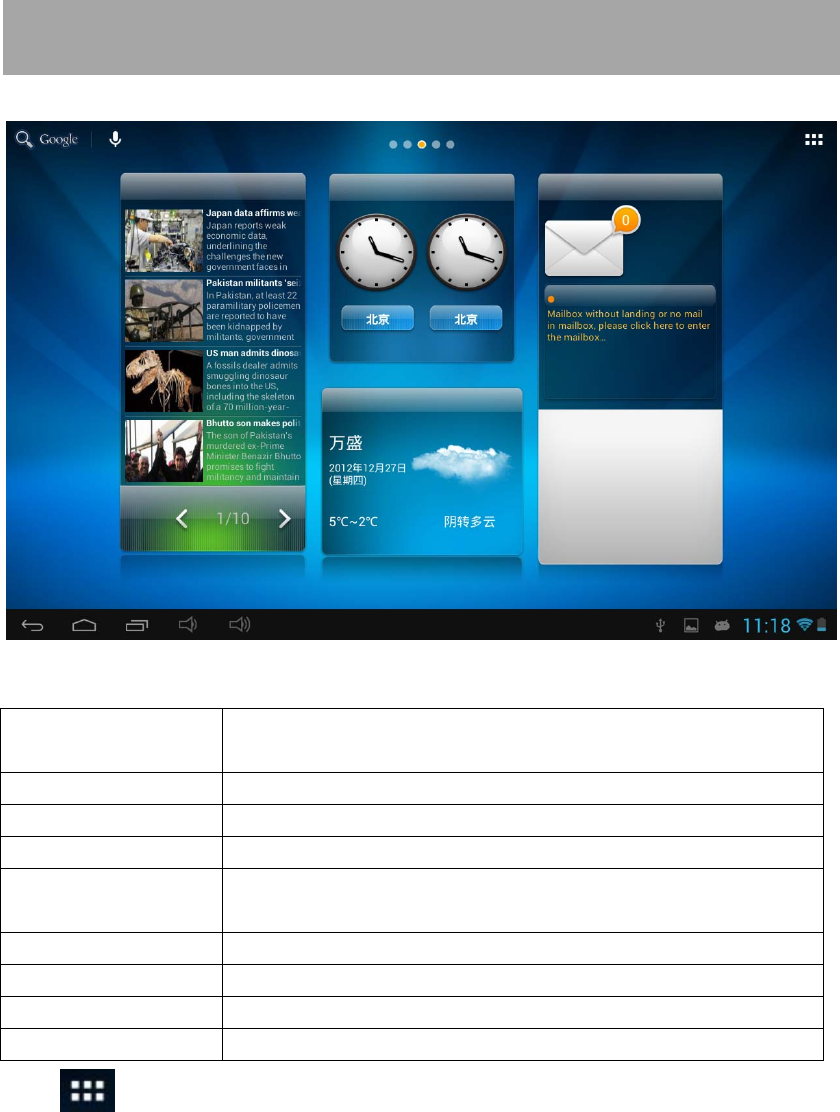

II. Your Home Screen
a. Google
search Tap to enter Google search page
b. Voice search Tap to open voice search
c. ESC key Tap to return to the previous screen/ page.
d. Home Tap to return to your home page
e. Recent
operations Tap to show your recent operations
f. Volume - Tap to lower the volume
g. Volume + Tap to upper the volume
h. WIFI Signal There will be WIFI signal when WIFI connected
i. Battery status Show battery status
Tap (All Apps launcher) on the upper right corner to enter into all
apps panel:
a b
c d e f
g
h i
６
2.1 Change wallpaper:
Tap the “Settings” icon on the all apps panel, you will see a pop-up
options; Enter into “Display” interface, you can choose wallpaper from
Gallery, live Wallpapers or Wallpapers.
2.2 Add/delete applications on home screen:
There are several apps in the home screen, you can also add more
frequently-used app icons in this home page and delete some less
frequently-used ones.

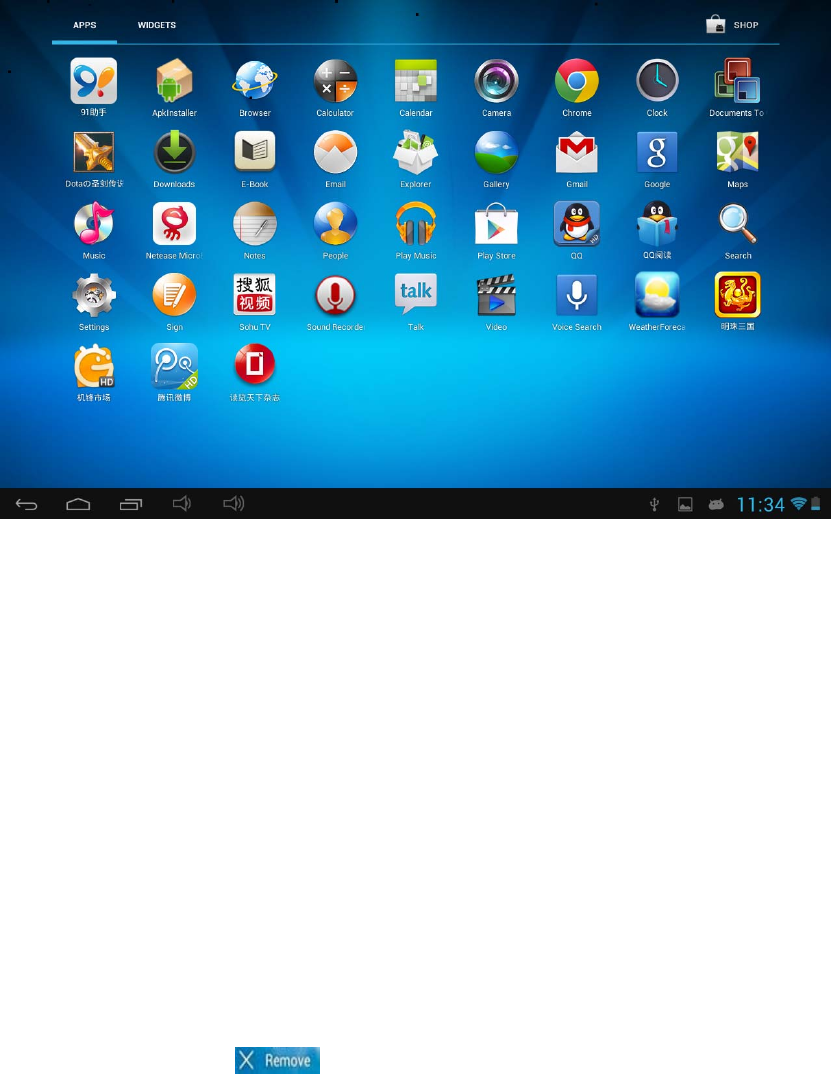

Tap the app launcher in the top right corner to go to all apps panel, tap
and move the app you want to the home screen.
To delete an app from home screen, tap and hold it, and them movie it
to the remove icon
2.3 Add widgets to home screen:
Tap all Apps launcher→Tap WIDGETS. There are Analog clock,
bookmarks, calendar, Email, and lots of other widgets. Drag the widget
you want to the home screen.
Tips: Besides your home screen, you can access to other four panels by
sliding left or right in your home screen. You can also customize these
panels.
７
III. Network Connection
3.1 Wi-Fi
Wi-Fi can only be used when it connects with home Wi-Fi Access Point
(AP) or a free unsecured Wi-Fi hotpot. Under “Wireless & networks”, tap
“Wi-Fi” to turn it on. After a moment, your Wi-Fi networks list should
populate. If you need to rescan for available networks, tap "scan"

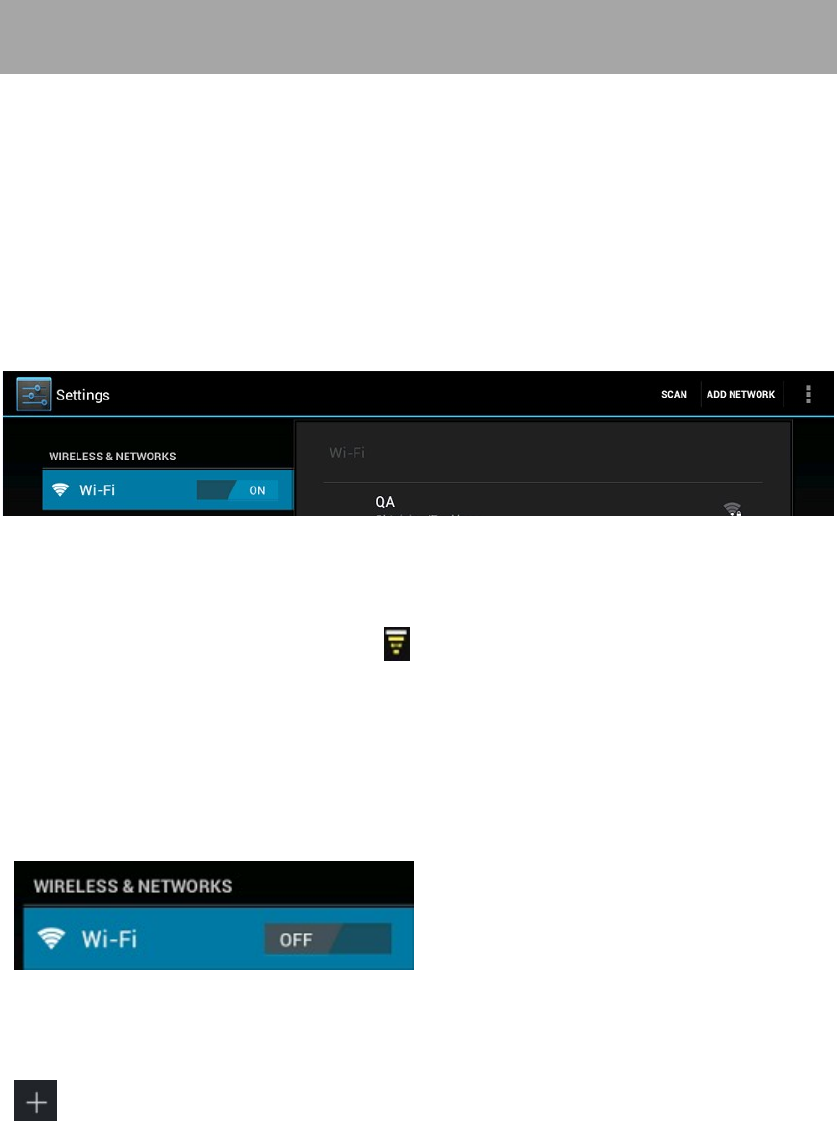

3.1.1 Turn on Wi-Fi
Within the App Panel, tap “Settings”” → “Wi-Fi” to turn on wifi.
Your tablet lists the networks it finds within range. Tap a network to
connect. If necessary, enter Network SSID, Security, and Wireless
password, and tap “Connect”. When your tablet is connected to the
network, the wireless indicator appears in the status bar. Waves
indicate connection strength.
3.1.2 Turn off Wi-Fi
Please turn off Wi-Fi if you’re not using it to save the battery. To turn off
Wi-Fi, Tap it again.
3.1.3 Add a Wi-Fi network
Users may also add a Wi-Fi network under “ settings”. In “settings”, tap
“” on the upper right corner. Enter the SSID (name) of the network. If
necessary, enter security or other network configuration details. Touch
Save.
８
IV. Internet Browsing

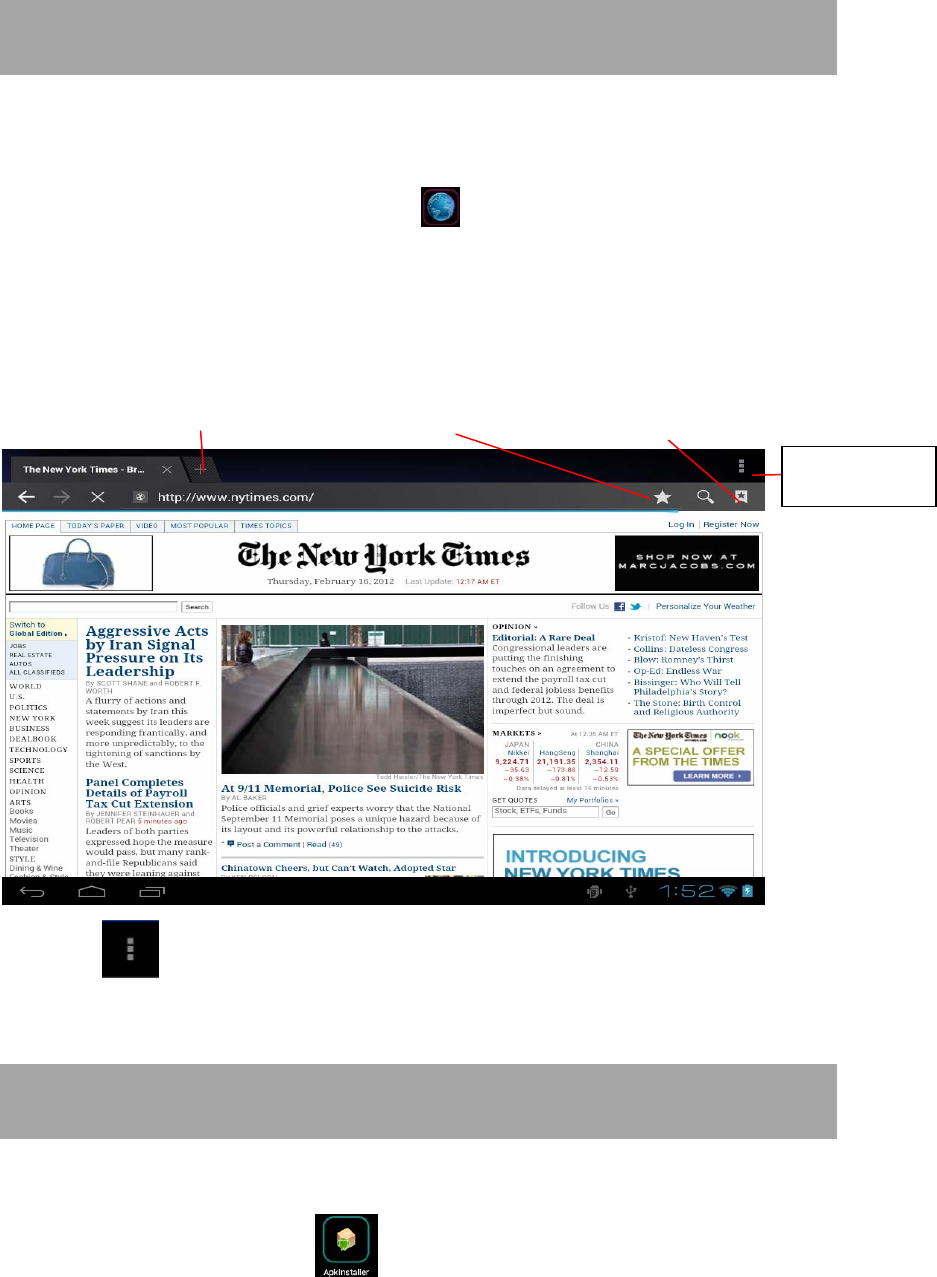

4.1 Internet Browsing
Before using your browser, make sure Wi-Fi or internet is connected.
In your app panel, Tap the browser icon to open your browser.
Tap the address bar, the Android keyboard will appear for your entry of
keywords or URL.
New tap bookmark this page Open bookmarks
Tap the icon in the top corner of the brower page to open the
submenu.
V. Install and Manage Apps
5.1 Install Apps
Go to the “Apk Installer” to install and manage your apps. To
install an application, follow below steps:
Submenu
９
1. Tap to open the ‘APKInstaller’ → ‘Install’ → then tap “Internal
Memory” or “TF Card”. Available APK files will appear at the right side.
Touch the required one to install it.
Note: Make sure the APK file is workable on android 4.1 and the suffix
is .apk. e.g. “angrybirds.apk”.
In some cases, there may be no icon on the Apps Panel after an .apk
file is installed. Possible reasons may be that this app is not compatible
with your OS or the downloaded .apk file is a broken one so you may
need to download a full version.
5.2 Manage Apps

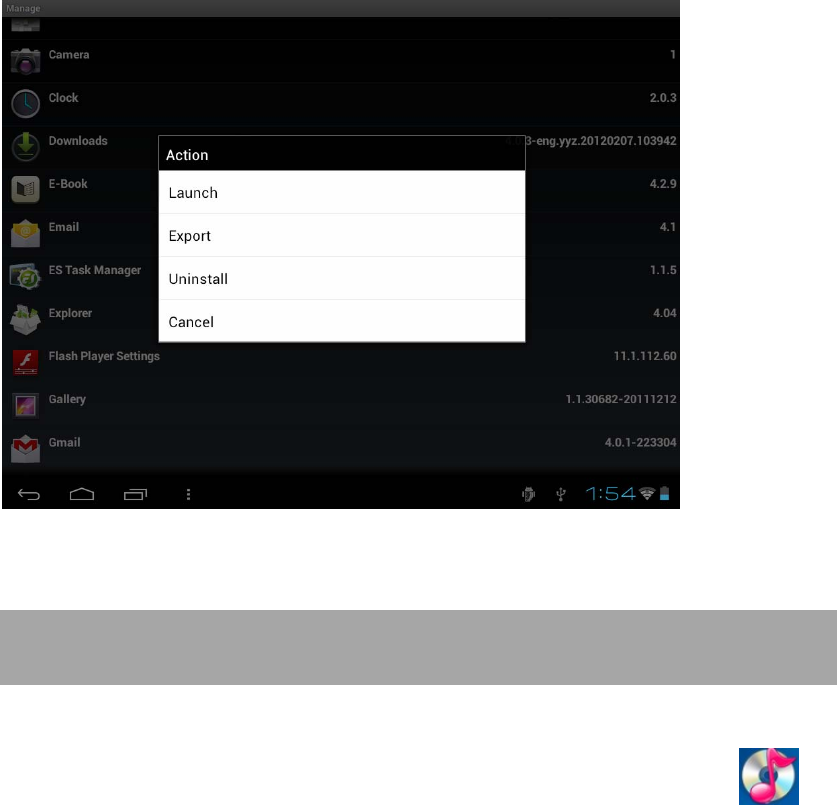

Tap to open the ‘APKInstaller’ → ‘Manage’. Tap the app and then you
can launch, export, and uninstall it.
You can also go to “AppS” under “Settings” to manage apps.
VI. Multi-media Functions
6.1 Music
After loading your music into your tablet, tap the music icon to
open the music player. You can select songs by Artist, Albums, songs or
Play lists. Tap to select. The media player allows you to shuffle, skip, or
pause your current selection and even displays the album artwork when
available.
１０
Tap in the bottom line to open a submenu in music playing page.
6.2 Video

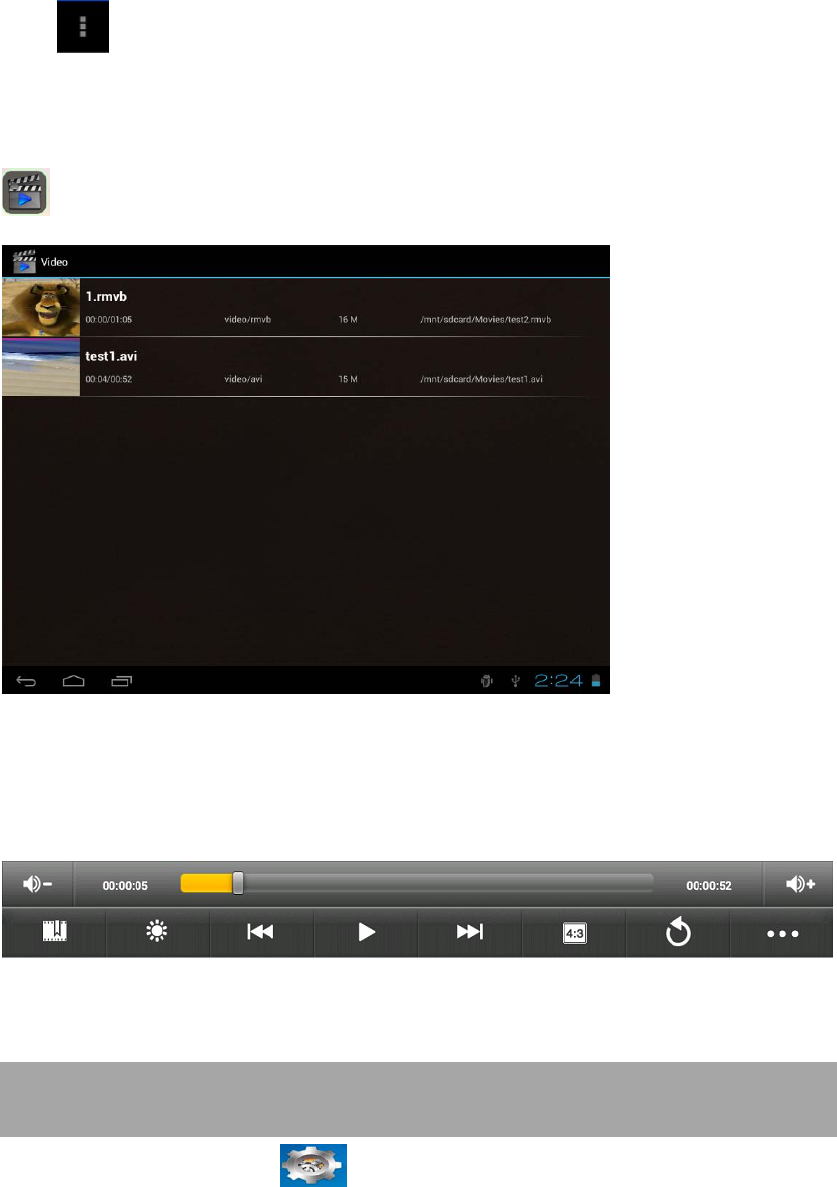

You can play videos saved in your tablet or TF card. To play, tap Video
icon to launch the video player:
Tap the video you would like to play. Tap the screen to show the video
tool bar. You can play back, fast forward, pause your video here. You
can also add bookmark for your video, adjust brightness, or set screen
ratio here. Here is the toolbar:
With the Wi-Fi on, you are also able to view an on-line video.
VII. Settings
Tap the “Settings” icon to go to settings. You can check and set
wireless&networks, sound, display, storage, Battery, Accounts &sync,
security, language, date&time, about tablet, etc.
１１
Wi-Fi: tap “Settings” → “Wireless & networks” to turn on wifi and scan. It
will show a list of Wi-Fi networks scanned in range. Choose a strong
Wi-Fi network to connect. (You may need to input the password).
Data usage:

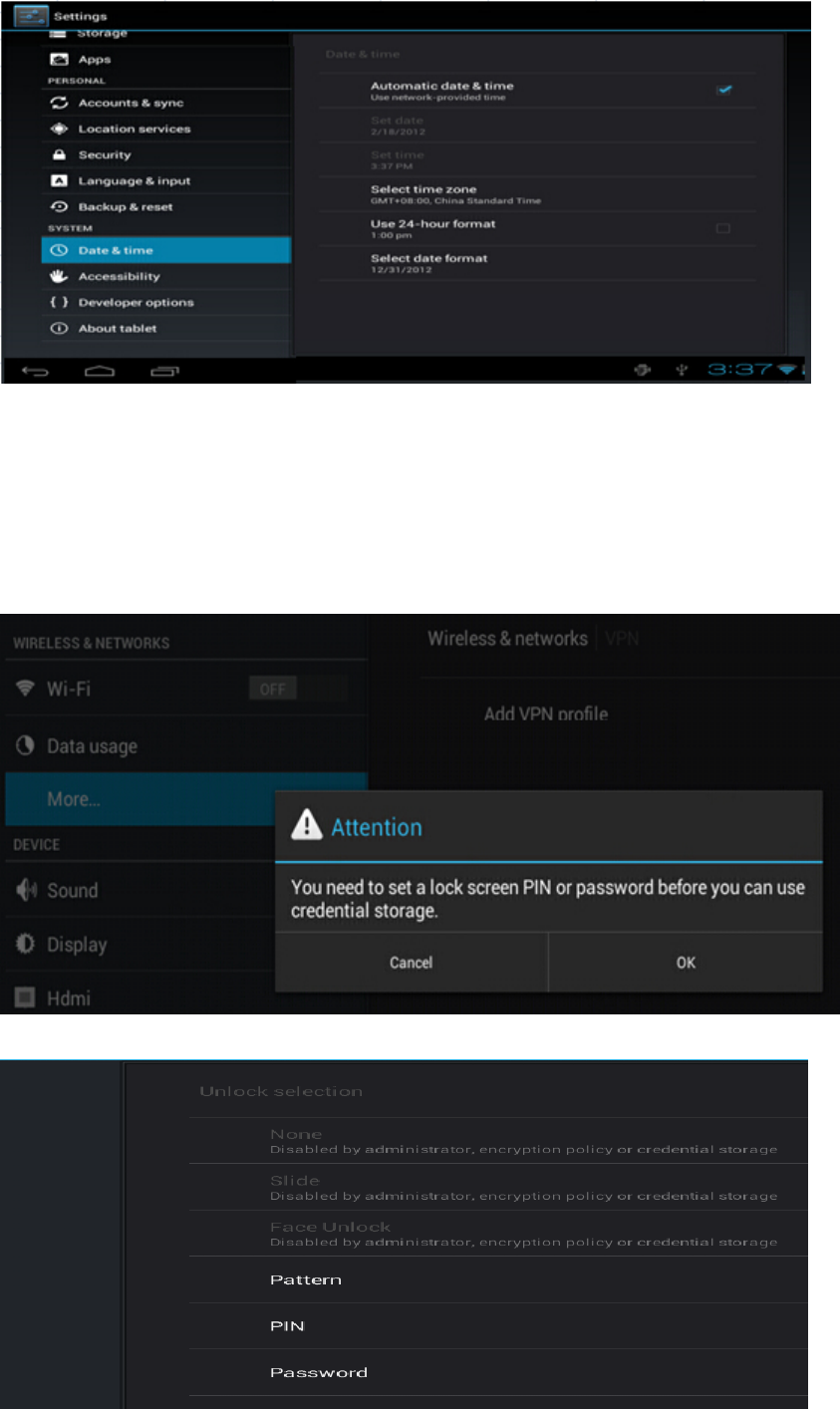

VPN: First, set a locked screen before adding VPN profile,
１２
You may choose what ever screen lock you like, pattern, PIN, password.
Bellowing I select Pattern as an example.

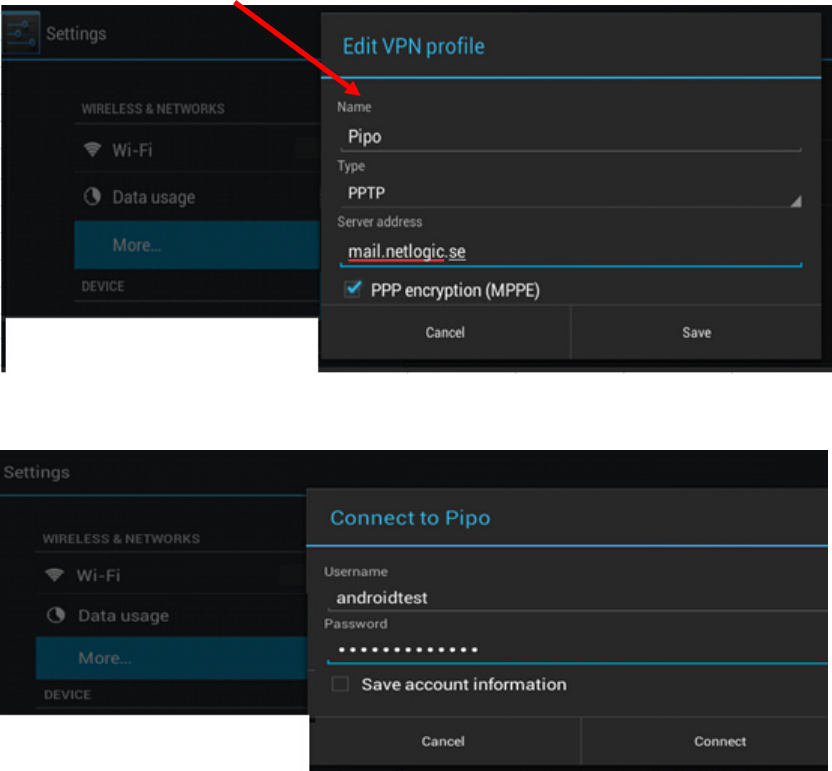

After setting the screen lock, you could add A new VPN. Create your
VPN name, input the server address, and then click “save”
[Input What ever name you want to show on the VPN]
And then input your VPN account and password

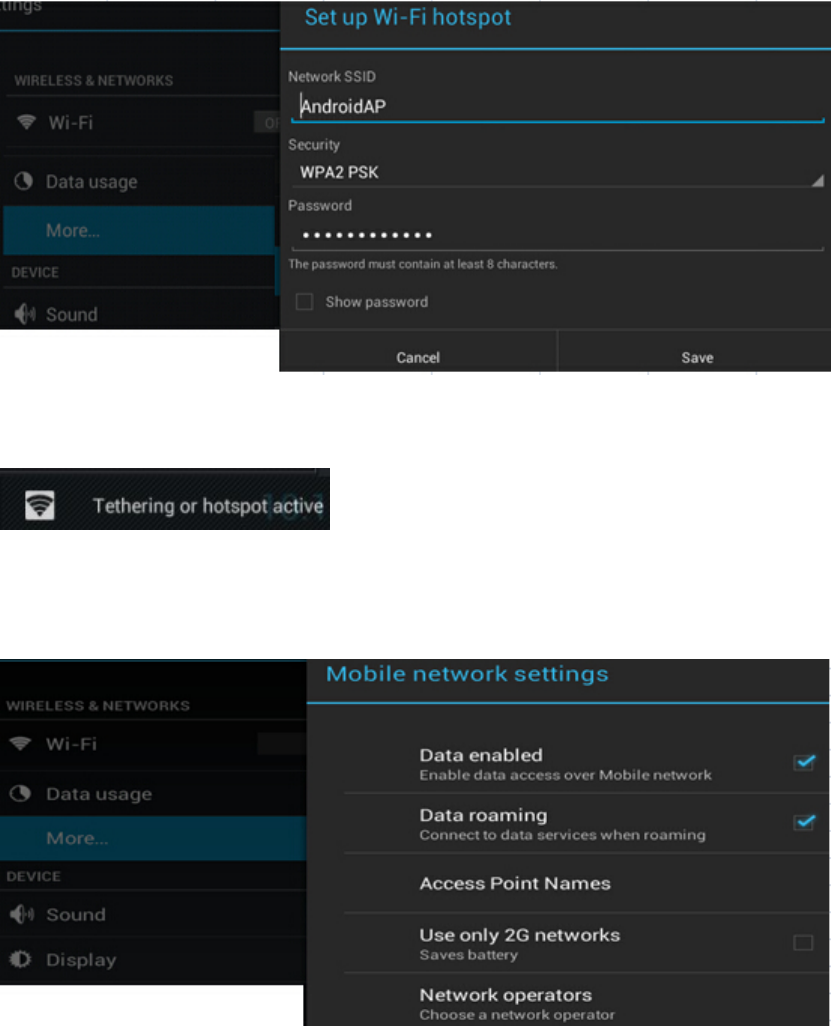

And then create hotspot. Set up network ID, select the security type.
１３
When hotspot is set up , there will be an icon appearing, like this, the
Wi-Fi signal is surrounded by a white square:
Mobile networks: Turn on “Mobile Networks”→ “Data enabled”
whether you use a 3G dongle or SIM card, it’s required to turn on
“Data enabled” for mobile data transmission .
Sound: turn off touch sound by tapping “sound”—“touch sounds”
Display: To set Brightness, Wallpaper, Sleep time-out, Font size here.
Screenshot: Tap “Screenshot”, ticket the option “show screenshot
button on the status bar”. There will be a screenshot button on the bar.
Storage: Check internal storage here. If you insert a Micro SD card, or
USB disk, you can check the total and available space for your Micro SD
card or USB disk. Please unmount it to safely remove it.
Language & input: to set language and keyboard input.
１４
Backup & reset: to go to submenu "back up my data" and "Factory
data reset". If you choose factory data reset, all data from your
tablet's internal storage will be erased. Choose this option carefully.
About Tablet: To check information about your tablet, such as Model
number, android version, etc.
IX .Firmware Upgrading Procedures
9.1 warnings before upgrading
1. Please read the below carefully when you try to upgrade your tablet.
2. Please make sure that the firmware matches your tablet.
3. Please backup your data before upgrading, the storage will be
formatted when upgrading, data will be lost and unrecoverable.
4. Please do not touch any buttons on the tablets while it is upgrading.
5. Make sure that your tablet is with enough power, you’d better charge
the tablet before upgrading, in case of upgrading failure due to low
battery.
6. Please proceed in accordant with the instructions strictly.
9.2 Preparations work before upgrading
Please download the “upgrade tool” from this PIPO website,
http://www.pipo.cn/En/index.php?m=About&a=gujian_show&id=70
Please download the corresponding firmware from PIPO website,
http://www.pipo.cn/En/index.php?m=About&a=gujian
9.3 How to upgrade

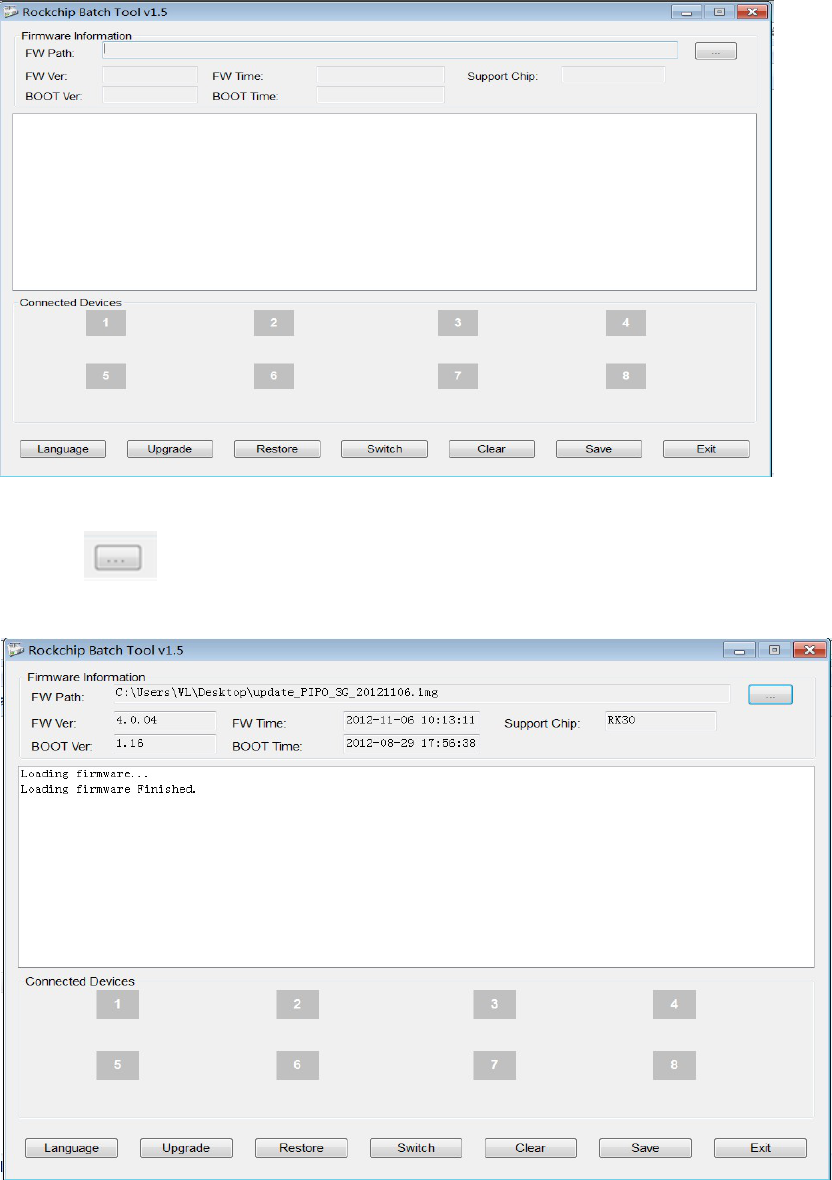

1. Decompress the upgrade tool, double click the “RK batch Tool” icon,
１５
as the bellowing
2. Click , choose the firmware downloaded. Then charge your
tablet with power adapter, and USB cable connects tablet and PC.
press the right keys for a few seconds, the tool will find your tablet, make
you tablet set into upgrading mode. If you don’t know which key to
press, refer to our online instructions or contact our service center.
１６

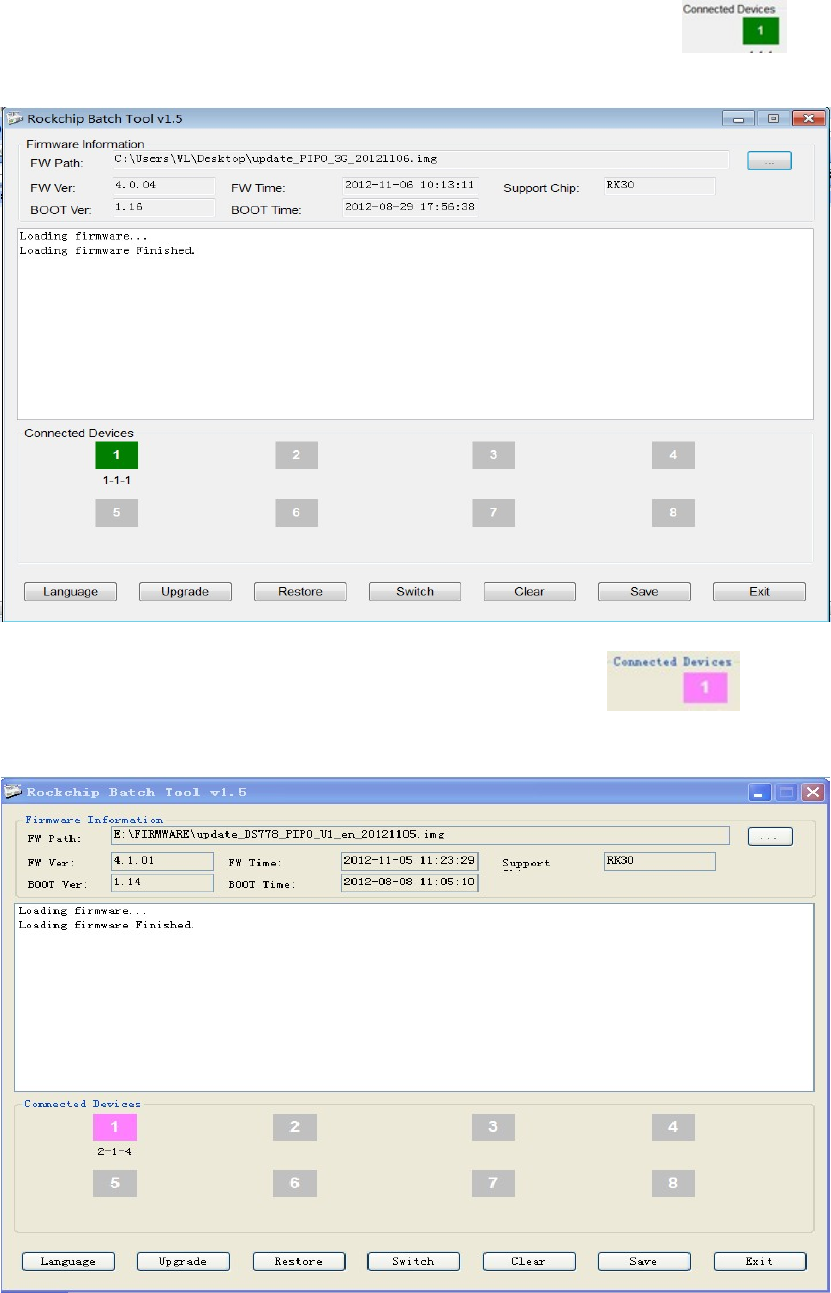

3. After the PC finding out the tablet, and the device icon
turns green, click “upgrade” for upgrading.
Note: If the device detected under the status of Pink , please
click “Switch”, the upgrading status will switch to Green (standby status)

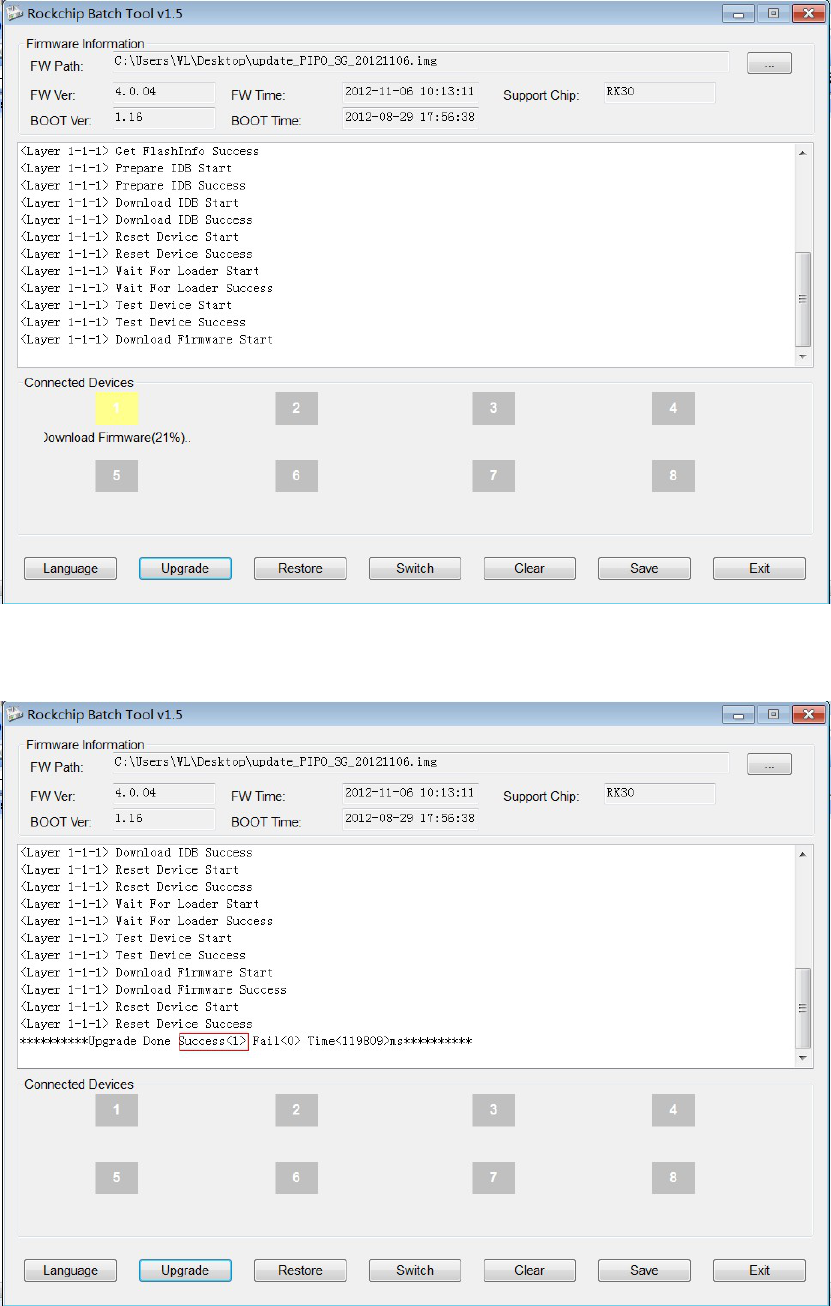

The tablet is upgrading the firmware
１７
The tablet will turn on automatically, now you could disconnect the
tablet to the PC.
9.4 Instructions of Installing Rock chip USB driver
１８
If you do the upgrading for the first time, please install the Rock chip USB
driver in accordant with the bellowing instructions.
If you are upgrading via your PC for the first time, it requires your PC to
install Rock chip USB driver, after your tablet entering into upgrading
mode, it will pop out a guide advising you that the PC finds new
hardware. Select manually install and then click “next”
Select the USB driver in accordant with your PC system, the driver is
included in the “RK batch tool”. Then the PC will install the USB driver
automatically. After finishing USB installing, go back to upgrading mode.
Note
If your PC is with Win7 or Vista system, it will not pop out the guide
leading you to install the driver, you get to install the driver in “My
Computer”.
1. Right click “My Computer”, select “Device Manager”
2. There will be an “Unknown Device” with an exclamation mark
appears
3. Right click the “Unknown Device”, select “renew driver software”
4. Load the USB driver included in the “RK batch tool” to install the USB
driver.
Note: Do not turn on “USB Debugging” in the setting when upgrading
firmware.
5. When you finish the driver installation, you can come back to
upgrading procedures.
Troubleshooting
1. Can not turn on the tablet
Check the tablet’s power level; please charge it before starting it. In
case your tablet still cannot be turned on, you may try to reset it
2. No sound from earphone
Check if volume is set to ‘0’. Or earphone may be broken, please
change for another one.
3. Big noise
Check if there is dust in the earphone or speaker. Check if the file is
broken.
4. Screen drift or unresponsive screen
１９
To pin the reset button to reset your tablet and power it on again.
5. Application not workable
Possible reasons may be that this app is not compatible with your OS or
the downloaded .apk file is broken so you may need to download a full
version.
6. How to delete a Google account?
If an account is added, the account is shown in “Accounts & sync” of
“Settings”, where you may also add another account. To delete an
undesired account, go to “Settings” → “Privacy settings” → “Factory
data reset”. Your tablet’s internal storage, downloaded apps, etc. will
also be deleted, except the info in your flash memory. Be careful before
you carry out this operation.
7.USB unmounted, SD card unmounted
Some times after inserting SD card or USB, it will show on the tablet that
“unmounted”, do the factory reset by “setting” – “backup & factory
reset”, and then turn off and turn on tablet once again. If fail, you have
to upgrade the firmware.
8.This product is a whole. Please do not remove the bracket.
