Outsite Networks ATB-2015 Tap Beacon User Manual Gas Pump Conversion Pilot
Outsite Networks, Inc. Tap Beacon Gas Pump Conversion Pilot
Installation Manual
Tap-Beacon Quick
Install Guide
Outsite Network’s Tap-Beacon devices are dual platform beacons that transmit signals to
enable mobile communication. Signals are transmitted via Bluetooth LE for Apple
smartphones and NFC for Android smartphones. Tap-Beacon protocols follow
predetermined specifications from both the Apple and Android operating systems.
INSTALLATION & MOUNTING
STEP 1 : Verify kit (brown box) has the correct
site number and Tap-Beacon count. You will
have one (1) Tap-Beacon per fueling station.
Each Tap-Beacon will be packed individually in a
small white box within the kit box.
KEY FEATURES
•Weather resistant ABS plastic 2 –part beacon enclosure
•Top and bottom pieces secured with four (4) screws
•AA batteries powered
•Preprogrammed
•Companion Apps available for iOS and Android
KIT CONTENT
•One (1) Tap-Beacon per fueling station
•One (1) Tap-Beacon per white packaging box
•2 AA Batteries pre-installed
•Tap-Beacons labeled by site and fueling station
* Custom Stickers for Tap-Beacon provided separately

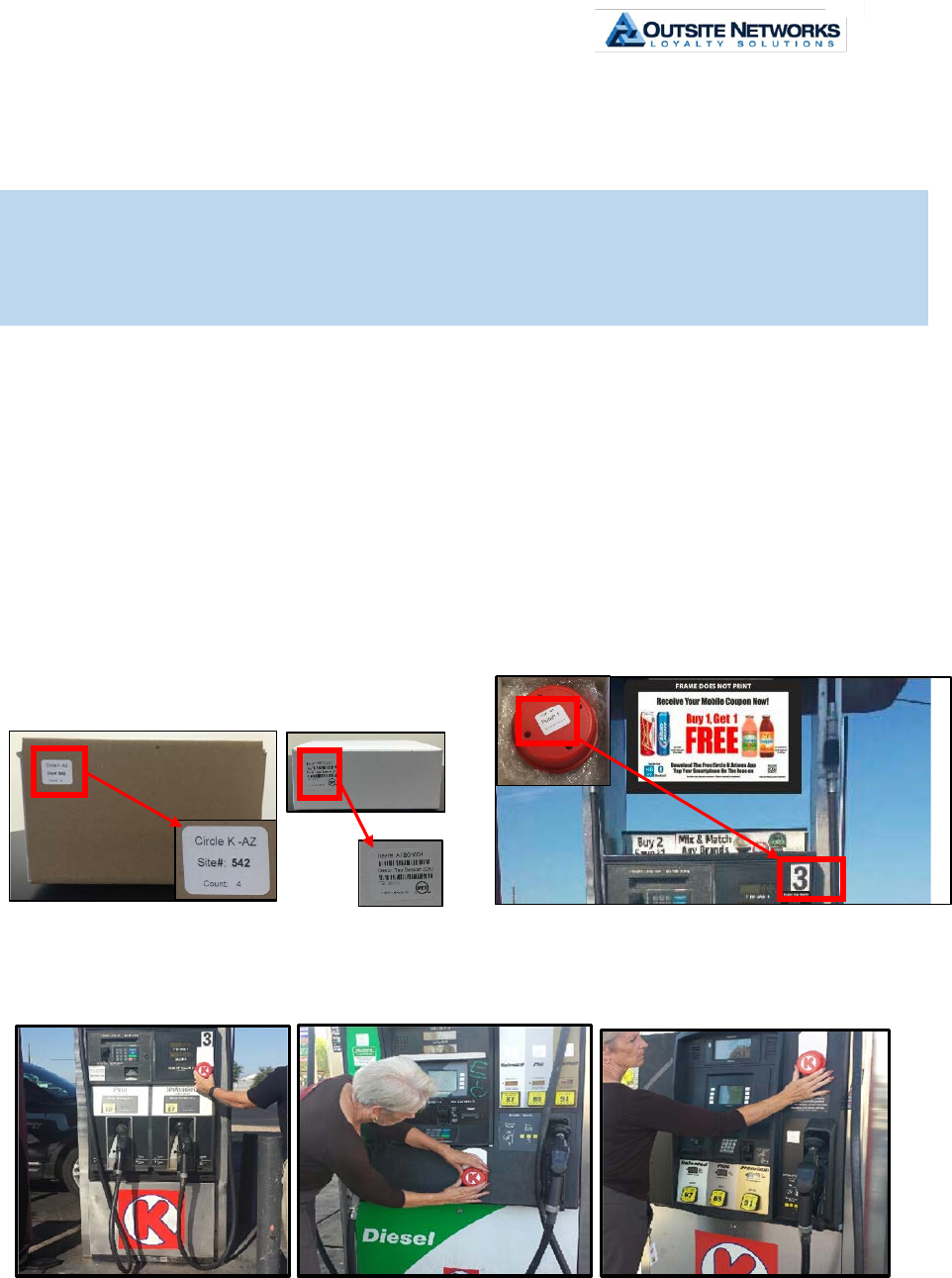

STEP 2 : Check fueling station number and
match with the Tap-Beacon sticker located on the
top and bottom of the enclosure.
STEP 3: Identify which pump type you have for installation placement. You will install the Tap-Beacon
in the location based on the pump type below. See illustrations below.
Pump Type #1 Pump Type #2 Pump Type #3
Outsite Networks, Inc. Tap-Beacon Installation Guide 1.0
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct interference at their expense. Modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment under FCC rules.
This device is compliant with UL60950/CSA 22.2 No. 60950-1 Second Edition. Listing# E113658.

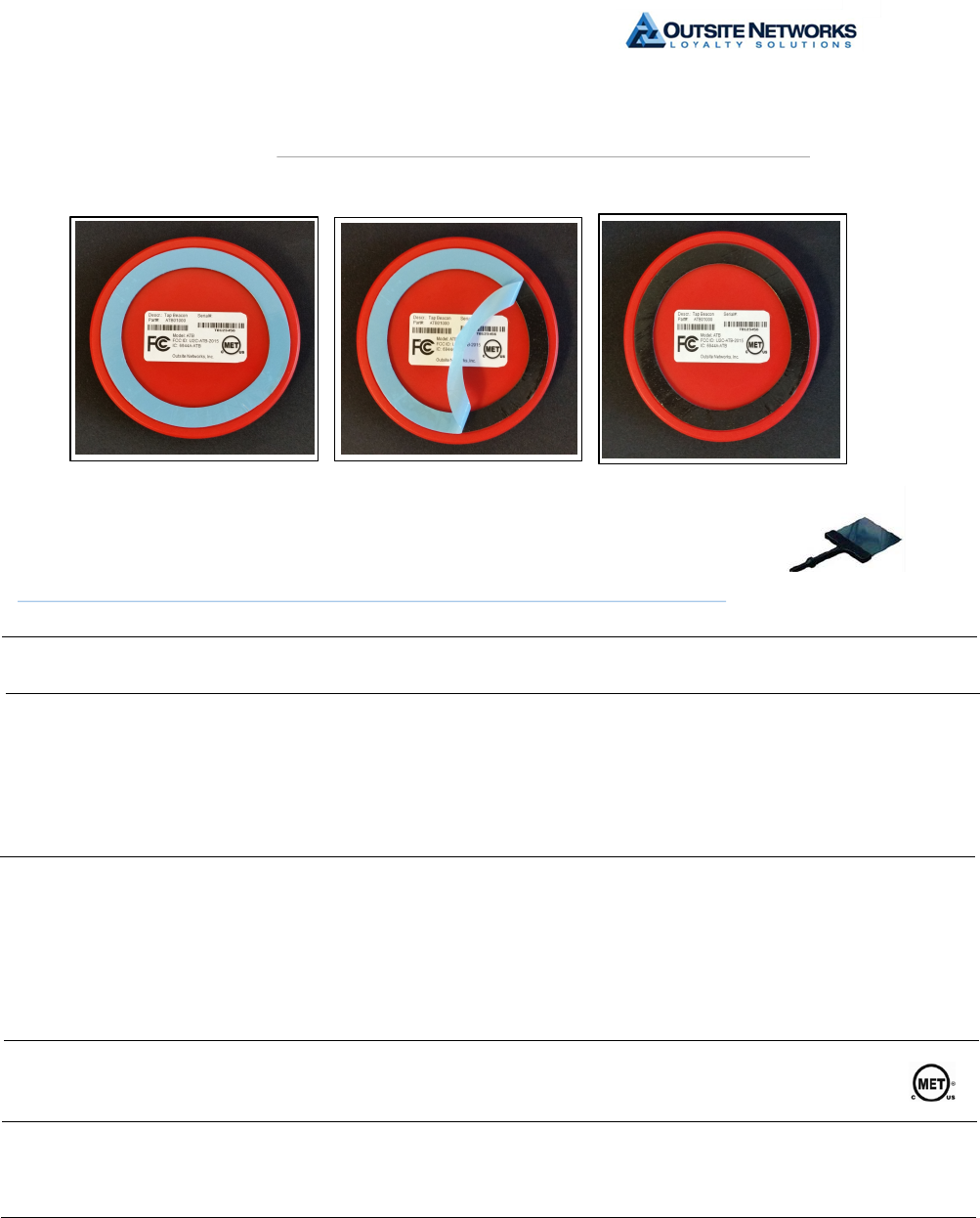

STEP 4 : Clean the surface where the Tap-Beacon will be mounted with rubbing alcohol. Remove
protected layer from adhesive on the back of the Tap-Beacon. The pump number is also located on
the back to prevent confusion. Ensure the mounting position is correct prior to positioning. Press
firmly against the surface. The adhesive is 3M™ VHB™ Tape which has a very strong bond.
THE TAP-BEACON CANNOT BE REPOSITIONED ONCE INSTALLED
CERTIFICATIONS & PRODUCT WARNINGS
Outsite Networks, Inc. Tap-Beacon Installation Guide 1.1
REMOVAL
A specialized tool is required for Tap-Beacon removal. Removal instructions can be found at:
http://multimedia.3m.com/mws/media/66962O/3mtm-vhbtm-tape-disassembly-tech-bulletin.pdf Part # #M 08978
Battery Warning: Only use batteries of correct type. Do not use rechargeable batteries or mix battery types. Do not
expose unit to excessive heat or fire. Dispose of spent or damaged batteries according to manufacturer
instructions and local laws.
Safety Certification:
Outsite Networks, Inc.
2551 Eltham Ave. Suite N
Norfolk, VA 23513
Office 800-371-1118
Installation: Installation of Tap-Beacon device should be in compliance with the UL-87 standard for power
operated dispensing devices for petroleum products.
FCC United States:
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe [B] répond à toutes les exigences de l'interférence canadienne causant des règlements
d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et
(2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu
désirée
Canada IC: 6944A-ATB
