User manual
Table of Content
Adding to Remove from Z-WaveTM Network ........................................................................................................ 1
Z- WaveTM Notification ...................................................................................................................................... 2
Z-WaveTM Message Report ................................................................................................................................. 2
* Motion Report: ......................................................................................................................................... 3
* Tamper Report: ......................................................................................................................................... 3
* Timing Report: ......................................................................................................................................... 3
Power Up Procedure ............................................................................................................................................ 3
* Battery Power Check ................................................................................................................................. 3
* PIR Warm Up ........................................................................................................................................... 3
* NWI ........................................................................................................................................................ 4
* Wake ....................................................................................................................................................... 4
Security Network ................................................................................................................................................ 4
Operation Mode .................................................................................................................................................. 4
Choosing a Suitable Location ................................................................................................................................ 4
Z-Wave Configuration Settings ............................................................................................................................. 5
Z-Wave Supported Command Class ....................................................................................................................... 5
Specifications ..................................................................................................................................................... 8
FCC Interference Statement .................................................................................................................................. 9
Warning ............................................................................................................................................................. 9
1

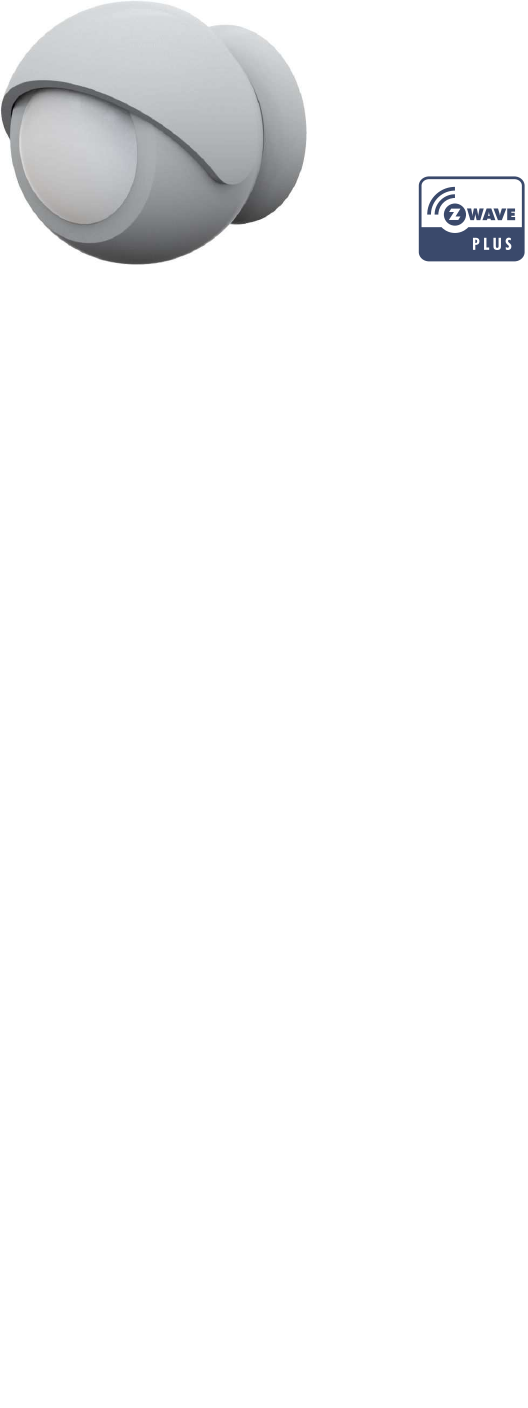

SI-102
Motion Sensor
The motion sensor SI-102 has PIR function, based on Z-Wave
TM
technology.
This device is a Security Enabled Z-Wave Plus Product. Z-Wave
TM
is a wireless communication protocol
designed for home automation, specifically to remotely control applications in residential and light commercial
environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics
devices and systems, such as lighting, home access control, entertainment systems and household appliances.
This product can be included and operated in any Z-Wave
TM
network with other Z-Wave
TM
certified devices
from other manufacturers and/or other applications. All non-battery operated nodes within the network will act
as repeaters regardless of vendor to increase reliability of the network.
The device adopts the Z-Wave
TM
500 series chip, when your Z-Wave
TM
network system is all made by
Z-Wave
TM
500 series devices. The network system will have the advantages as below.
Concurrent multi-channel support reduces external interference.
Better RF range, improve about 10 meters in indoor.
Support 100 Kbps transmit speed, speed up communication.
Adding to Remove from Z-Wave
T
M
Network
There are two keys in the device, one is tamper key, another is a button. Button can add, remove, reset or
association from Z-Wave
TM
network.
In the first time, add the device into the Z-Wave
TM
network. First, make sure the primary controller is in the add
mode. And then power on the device, just take out the insulation Mylar in the back side of the device. The
device will auto start the NWI (Network Wide Inclusion) mode. And it should be included in 5 seconds. You
will see the LED light ON one second.
Notice: Including a node ID allocated by Z-Wave
TM
Controller means “Add” or “Inclusion”. Excluding a node
ID allocated by Z-Wave
TM
Controller means “Remove” or “Exclusion”.
SI-102-FCC
2
Functi
on
Description
Add
1. Have Z-Wave
TM
Controller entered inclusion mode.
2. Pressing button once to enter the inclusion mode.
3. After add successful, the device will wake to receive the setting command from Z-Wave
TM
controller about 20 seconds.
Remove
1. Have Z-Wave
TM
Controller entered exclusion mode.
2. Pressing button once to enter the exclusion mode.
Node ID has been excluded.
Reset
Notice: Use this procedure only in the event that the primary controller is lost or
otherwise inoperable.
1. Pressing button for about 5 seconds.
2. IDs are excluded and all settings will reset to factory default.
Association
1. Have Z-Wave
TM
Controller entered association mode.
2. Pressing button one time to enter the association mode.
Note: The device supports 2 groups.
The group 1 is for receiving the report message, like
triggered event, temperature, illumination etc. The group 2 is for light control, the device will
send the “Basic Set” command to this group. And each group support 8 nodes maximum.
Failed or success in add/remove the node ID can be viewed from Z-Wave
TM
Controller.
Notice 1: Always RESET a Z-Wave
TM
device before trying to add it to a Z-Wave
TM
network
Notice 2: When the device into NWI mode, the sensor functionality will useless. The NWI mode will timeout
after 30 seconds. You can press the button one time to abort the NWI mode.
Z- Wave
TM
Notification
After the device adding to the network, it will wake-up once per day in default. When it wake-up it will
broadcast the “Wake Up Notification” message to the network, and wake-up 10 seconds for receive the setting
commands.
The wake-up interval minimum setting is 30 minutes, and maximum setting is 120 hours. And the interval step
is 30 minutes.
If the user wants to wake-up the device immediately, please remove the front cover, and press the button once.
The device will wake-up 10 seconds.
Z-Wave
TM
Message Report
When the PIR motion triggered, the device will report the trigger event and also report the battery status.
In default the device will using Notification Report to represent the trigger event, it can be changed to Sensor
Binary Report by setting the configuration NO. 7 Bit4 to 1.
3
* Motion Report:
When the PIR motion detected, the device will unsolicited to send the report to the nodes in the group 1.
Notification Report (V4)
Notification Type: Home Security (0x07)
Event: Motion Detection, Unknown Location (0x08)
Sensor Binary Report (V2)
Sensor Type: Motion (0x0C)
Sensor Value: 0xFF
* Tamper Report:
Both the 2 tamper keys are pressed over 5 seconds. The device will into the alarm state. In that state, if any one
of the tamper keys be released, the device will unsolicited to send the report to the nodes in the group 1.
Notification Report (V4)
Notification Type: Home Security (0x07)
Event: Tampering. Product covering removed (0x03)
Sensor Binary Report (V2)
Sensor Type: Tamper (0x08) Sensor Value: 0xFF
* Timing Report:
Beside the event triggered could report message, the device also support the timing unsolicited report of the
status.
• Battery level report: Every 6 hours report once in default. It could be changed by setting the configuration
NO. 10.
• Low battery report: When the battery level is too low, every 30 minutes will report once.
Notice: The configuration NO. 10 could be setting to zero to disable the auto report. And the configuration NO.
20 could change the tick interval, the default value is 30, if setting to 1, that means the minimum auto report
interval will be one minute. And please notice if setting this value to zero, that means disable all of the timing
report except the low battery detection.
Power Up Procedure
* Battery Power Check
When the device power up, the device will detect the power level of the battery immediately. If the power level
is too low, the LED will continue flash about 5 seconds. Please change another new battery.
* PIR Warm Up
When the device power on, the PIR need to warm up before the operation. The warm up time about 1 minute,
the LED will flash in every 2 seconds. After finish the procedure the LED will light ON three times.
4
* NWI
When the device power on, the device will check is it already adding to the network? If doesn't, it will auto start
the NWI mode. The LED will flash in every second and continue 30 seconds. Until timeout or the
device successful to inclusion by controller. The use can presses button once to abort the NWI mode.
* Wake
When the device power on, the device will wake about 20 seconds. In this duration, the controller can
communicate with the device. Normally the device is always sleeping to save the battery energy.
Security Network
The device supports the security function. When the device included with a security controller, the device will
auto switch to the security mode. In the security mode, the follow commands need using Security CC wrapped
to communicate, otherwise it will not response.
Note: A “Security Enabled Z-Wave Controller” must be used in order to fully utilize this function.
COMMAND_CLASS_BATTERY
COMMAND_CLASS_NOTIFICATION_V4
COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_CONFIGURATION
COMMAND_CLASS_SENSOR_BINARY_V2
COMMAND_CLASS_WAKE_UP_V2
Operation Mode
There are two modes “Test” and “Normal”. “Test Mode” is for the user test the sensor function when
installation.“Normal Mode” is for the normal operation.
Operation Mode can be switched by pressing tamper key three times. LED can indicate which mode it is.
Lighting on one second means entering test mode, flashing once means entering normal mode.
When the event triggered, normally the LED won't indicated, unless the battery is in the low level, the LED will
flash once. But in the “Test Mode” the LED also will light ON one second.
When the event triggered, the device will report the messages to the nodes in the group 1. The messages also
include the battery level. The user can switch the report by setting the configuration NO. 7 bit6 (battery).
When the event triggered, the device will emit the signal to turn ON the lighting equipment, those nodes are in
the group 2. And delay a while to turn OFF the lighting equipment. The delay time is setting by the
configuration NO. 9.
The PIR motion re-detected interval, in the “Test Mode” fixed to 6 seconds. In the “Normal Mode”, it
according to the setting of the configuration NO. 8.
Choosing a Suitable Location
• The recommended mounting height is 160cm
• Don't let the device facing the window or the sunlight.
• Don't let the device facing the source of heat. For instance the heater or the air-condition.
5
Z-Wave Configuration Settings
Notice:
*
All of the configuration, the data size is 1.
*
The configuration mark with star(*), means after the remove the setting still keep, don't reset to factory
default. Unless the user execute the “RESET” procedure.
*
The reserve bit or not supported bit is allowed any value, but no effect.
Z-Wave Supported Command Class
COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_BATTERY
COMMAND_CLASS_NOTIFICATION_V4 COMMAND_CLASS_ASSOCIATION_V2
COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2
COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_SENSOR_BINARY_V2
COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_ASSOCIATION_GRP_INFO
COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_DEVICE_RESET_LOCALLY
COMMAND_CLASS_MULTI_CMD COMMAND_CLASS_SECURITY
No.
Name
Def.
Valid
Description
2
Basic Set
Level
-1
All
Setting the BASIC command value to turn on the light. -1(0xFF)
means turn on the light. For dimmer equipment 1 to 100 means the
light strength.
0 means turn off the light.
Caution: The range is from 0x00~0xFF using hexadecimal
notation.
3 (*)
PIR
Sensitivity
80
0 ~ 99
PIR sensitivity setting.
0 means disable the PIR motion. 1 means the lowest
sensitivity, 99 means the highest sensitivity.
High sensitivity means can detected long distance, but if there is
more noise signal in the environment, it will re-trigger too
frequency.
6 (*)
Mult- Sensor
Function
Switch
5
All
Multisensor function switch. Using bit to control.
Caution: The range is from 0x00~0xFF using hexadecimal
notation.
0
Bit0: Reserve.
0
Bit1: Reserve.
1
Bit2: Reserve.
6
0
Bit3: When Bit2 is 0 (Enable), Are the device and the lighting in
the same room?
0: In the same room (Default), 1: In the different room.
0
Bit4: Disable delay 5 seconds to turn off the light, when
door/window closed. (1:Disable, 0:Enable)
0
Bit5: Disable auto turn off the light, after door/window opened
to turn on the light. (1:Disable, 0:Enable)
Notice: If bit2 is zero, this setting is useless. Notice: If the
0
Bit6: Reserve.
0
Bit7: Reserve.
No.
Name
Def.
Valid
Description
7 (*)
Customer
Function
4
All
Customer function switch, using bit control. Caution: The range is
from 0x00~0xFF using hexadecimal notation.
0
Bit0: Reserve.
0
Bit1: Enable sending motion OFF report. (0:Disable, 1:Enable)
Note: Depends on the Bit4,
0: Report Notification CC, Type: 0x07, Event:
0xFE
1: Sensor Binary Report, Type: 0x0C, Value: 0x00
1
Bit2: Enable PIR super sensitivity mode. (0:Disable, 1:Enable)
0
Bit3: Reserve.
0
Bit4: Notification Type,
0: Using Notification Report.
1: Using Sensor Binary Report.
0
Bit5: Disable Multi CC in auto report.
(1:Disable, 0:Enable)
0
Bit6: Disable to report battery state when the device triggered.
(1:Disable, 0:Enable)
0
Bit7: Reserve.
8
PIR Re-
Detect
Interval Time
3
1~127
In the normal mode, after the PIR motion detected, setting the
re-detect time. 8 seconds per tick, default tick is 3 (24 seconds).
Setting the suitable value to prevent received the trigger signal too
frequently. Also can save the battery energy.
Notice: If this value bigger than the configuration setting NO. 9.
There is a period after the light turned off and the PIR not start
detecting.
7
9
Turn Off
Light Time
4
0~127
After turn on the lighting, setting the delay time to turn off the
lighting when the PIR motion is not detected. 8 seconds per tick,
default tick is 4 (32 seconds).
0 means never send turn off light command.
10
Auto Report
Battery Time
12
0~127
The interval time for auto report the battery level.
0 means turn off auto report battery.
The default value is 12. The tick time can setting by the
configuration No.20.
20
Auto Report
Tick Interval
30
-128~127
The interval time for auto report each tick. Setting this
configuration will effect configuration No.10.
The unit is 1 minute.
Caution1: Setting to 0 means turn off all auto report function.
Caution2: The range is from 0x00~0xFF using hexadecimal
notation.
8
Specifications
Power by CR123A lithium battery.
Signal (Frequency):
868.40 MHz, 869.85 MHz(EU),
908.40 MHz, 916.00 MHz(US),
922~927 MHz(JP/TW),
921.40 MHz, 919.80 MHz(ANZ),
869.00 MHz(RU),
865.20 MHz(IN),
916.00 MHz(IL),
Range:
Minimum 40 meters indoor,
100 meters outdoor line of sight.
RF Maximum Power: +5dBm
Operating Temperature: -10oC ~ 40oC
For indoor use only.
Specifications subject to change without notice due to continuing
product improvement.
OvisLink Corp.,
http://www.airlive.com/
TEL: +886 2 2218 6888
FAX: +886 2 2918 6988
FCC ID: ODMSI102
9
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Warning
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact
your local government for information regarding the collection systems available. If electrical appliances are
disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food
chain, damaging your health and well-being.
When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance
for disposal at least for free of charge.
