Microwave Module Operation Manual
Model: WS-OPMW-WL X5
Company Name: OPTEX CO., LTD.
1. Scope
2. Note and Warning
3. Electrical Specification
4. Pin Assignment
5. FCC Statement & IC Statement
![](/img.php?id=2961363&img=bg2.png)
1. Scope
This module is designed for motion sensing applications.
It consists of oscillator, mixer, filter, detector and one set TX & RX Antenna. In addition, it has
frequency adjustment, maintenance structure and shield case.
2. Note and Warning
The product is wireless device. It can radiation and receive RF signal. These electric equipments are
very sensitive for RF signal in airplane, hospital, and place to life relate. The electric equipments
almost interference from RF signal if it does not shelter enough and flaw in design. In order to avoid
damaged to life and property, in compliance with standard of ever place and electric equipment to
use the product.
If the product is collided, operated improperly, and maintained by oneself. We are not
indemnification. Place responsibility by oneself.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
![](/img.php?id=2961363&img=bg3.png)
3. Electrical Specification
Operating Voltage 2.2±0.2 V DC
Operating Current 17mA typ. (CW )
Center Frequency 10.525GHz
Frequency Stability ±5 MHz max. (-25 to +60℃)
Output Power 14dBm (E.I.R.P.) max.
Second Harmonic Emission -30dBm (E.R.P.) max.
Third Harmonic Emission -30dBm (E.R.P.) max.
E-Plane 70 deg. nom.
Antenna beam-width (-3dB)
H-Plane 40 deg. nom.
Operating Temperature Range -25℃~+60℃
Storage Temperature Range -40℃~+85℃
![](/img.php?id=2961363&img=bg4.png)

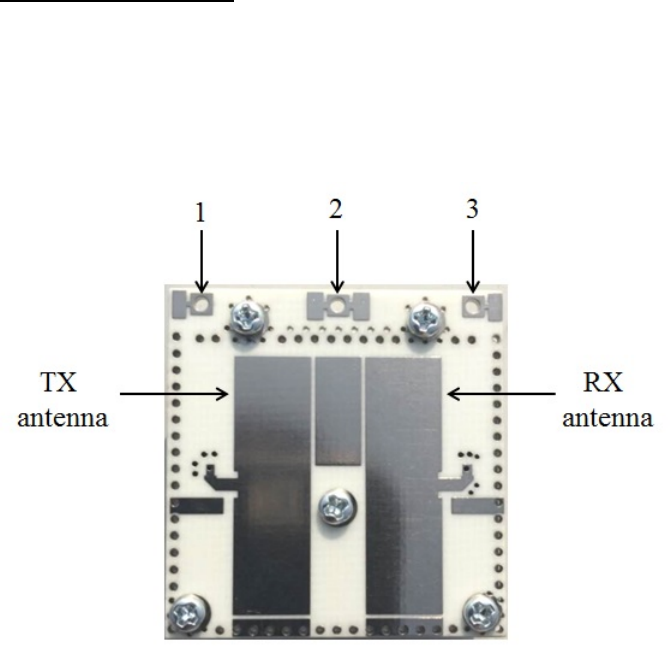

4. Pin Assignment
1. 2.2V
2. GND
3. IF out
![](/img.php?id=2961363&img=bg5.png)
5. FCC Statement & IC Statement
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
The end user has to be informed that the FCC radio-frequency exposure guidelines for an
uncontrolled environment can be satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the user's authority to operate
this equipment. The FCC part 15.19 statement below has to also be available in the manual: This
device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
DC9WSOPMW ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC
rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled
environment can be satisfied. The end user has to also be informed that any changes or modifications
not expressly approved by the manufacturer could void the user's authority to operate this equipment.
IC statement is required to be available in the user’s manual: This Class B digital apparatus complies
with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC:
4012A-WSOPMW ".
