Wireless HDMI Extender

Wireless IR Remote Extender

5.2G Dual-Band Series

User Manual

VEN1.1

HDMI EXTENDER

This product is applicable to the product model:

PAT-580 / PAT-583 / PAT-585 / PAT-587 / PAT-590 / PAT-593 / PAT-595 / PAT-597

Equipment working frequency band:

802.11n40: 5150MHz ~ 5250MHz

Software: N/A

Fireware: 2018-8-20

Notes on Safety Operations

Do not disassemble

Do not use products in the presence of flammable gases

Do not immerse in or contact with water, or wet by rain

Turn off immediately in the event of malfunction

Turn off the power immediately when a fault occurs

HDMI EXTENDER

This device is restricted to indoor use where operated in the USA using frequency in 5150MHz ~ 5250MHz

Labelling requirements:

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2)

this device must accept any interference received, including interference that

may cause undesired operation.

Information to user:

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

Information to the user:

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

HDMI EXTENDER

I. Product Description

Function & Features

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1

C The copyright of this manual belongs to the manufacturer.

Standard accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2

Esteemed Customers:

Thank you for purchasing our product!

Specifications ------------------------------------------------------------------------------------- 3

Please do read this guide book carefully and thoroughly for better II. Hardware and Installation Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - 4

use of this product. It works for home use. Every check of this product

(if it works normally) before uses it is necessary. If there any default or

damage of this product, please maintain or repair it in time.

This final explanation of the content written in this manual book belongs

to its manufacturer. Anyone or any party is not allowed to copy all or

partial content of this Manual Book. It is not authorized to anyone or

any party. No notifications would be given, if any change of this Manual

Book.

Transmitter panel description ----------------------------------------------------------------- 4

Receiver panel description --------------------------------------------------------------------- 4

Transmitter installation -------------------------------------------------------------------------- 5

Receiver installation ----------------------------------------------------------------------------- 6

III. Operation ---------------------------------------------------------------------------------------- 7

Power switch -------------------------------------------------------------------------------------- 7

5.2GHz channel selection ---------------------------------------------------------------------- 7

IV. Common Problems and Troubleshooting -----------------------------------------------11

V. Warranty Service --------------------------------------------------------------------------------- 13

HDMI EXTENDER

Thanks for buying our products along with the global users. The Wireless HDMI Extender is a kind of wireless

electronic product which can realize the audio video signal sharing in different rooms for family entertainment.

It consists of a transmitter and a receiver. Adopting smart 5.2GHz dual-band WIFI Wireless transmission

schemes and having advantages of long transmission distance, no splash, no snow, strong anti-interference

and high mobility, etc. By means of radio waves, it can transmit the signal from DVD, DVR, CCTV camera,

IPTV, Satellite receiver, Digital TV Set Top Box or any other AV devices at transmitter end to TV sets in

different room at receiver end.it can support the IR remote control at the receiver end to realize the function of

wireless control of devices from another place. So that you can enjoy freely wireless HD AV sharing data and

Hi-Fi audio and video effect.

Function & Features

n The product consists of transmitter and receiver and can wireless transmit HDMI high-definition signals to

receiver end.

n Support IR Remote controller to long range extend, can remote control signal source equipment at

the receiver.

n Pure hardware mode, plug then use, connect the computer without installing the driver. Support WEB

configuration interface, simple and easy to operate.

n Support DVD, DVR, IPTV, CCTV camera, Satellite receiver, Digital STB and audio and video output

device, and can use IR remote to control DVD, DVR, IPTV, Digital STB and other devices.

n Resolution is 1080P@60Hz and downward compatible with audio and video transmission, the wireless

receiving image is clear and stable, colorful and high sound quality without noise.

n Easy to install, small size, exquisite fashion, Machine dimensions:158x128x37mm.

n The wireless module are FCC and CE certificated. Wireless application is safe and reliable.

Standard accessories

Transmitter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 set

n The transmitter supports one HDMI signal input, and one HDMI signal output enables the signal terminal Receiver - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 set

to watch video simultaneously. Power Adaptor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 pcs

n HDMI resolution: 720P~1080P@50/60Hz, SVGA~WUXGA a variety of commonly used computer resolution.

n Adopt international 5.2G wireless dual-band transmission signal, faster transmission speed, stronger anti-

interference.

n Adopt external dual-gain antenna, ultra-long transmission distance, can up to 50-100 meters in open

space (the distance may be affected by the environment).

HDMI Cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 pcs

IR Extender Cable - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 pcs

User Manual - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 copy

I. Product Description

HDMI EXTENDER

1 2

HDMI EXTENDER

Specifications

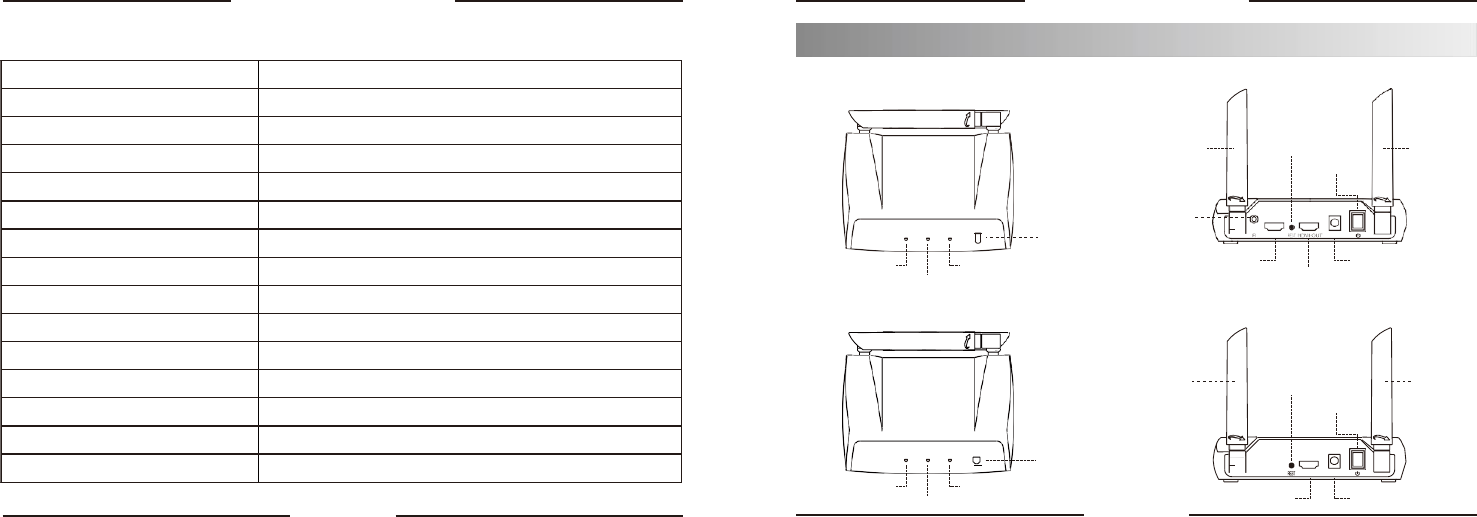

Transmitter panel description

5.2G

Antenna

Reset Button

Power Switch

5.2G

Antenna

Transmission

IR Signal

Transmitter

Power

IR Extension

Interface

HDMI Signal Input

HDMI-IN DC-IN

Power Input

Indicator

Video Indicator HDMI Signal Output

Receiver panel description

5.2G

Reset Button

Transmission

Antenna

IR Receiver

Power

Power Switch

HDMI-OUT DC-IN

Antenna

Indicator

Video Indicator HDMI Signal Output Power Input

3 4

II.Hardware and Installation Instructions

Input/Output Jack

HDMI1.4/HDCP1.4

Output Image Resolution

720/1080P@50/60Hz

HDMI Audio Format

1080P HQ

HDMI Max Transmission Rate

6.75Gbps

Wireless Transmission Standard

IEEE 802.11n40

Operating Frequency

5150MHz ~ 5250MHz

Max wireless transmission rate

5G 300Mbps

Wireless transmitter power (IPEX)

TX：22.67dBm,RX:22.27 dBm

Transmission Distance

50-100m(open space accessibility)

IR Frequency Range

38KHz

DC Input

AC 100V-240V 50/60Hz

DC Output

DC 5V/2A

Operating Temperature

-10 ~ +50°C

Operation Humidity

10-80%RH(Non-condensing)

Product Dimension

158x128x37mm

HDMI EXTENDER

Transmitter

STB/DVD

HDMI Signal Output

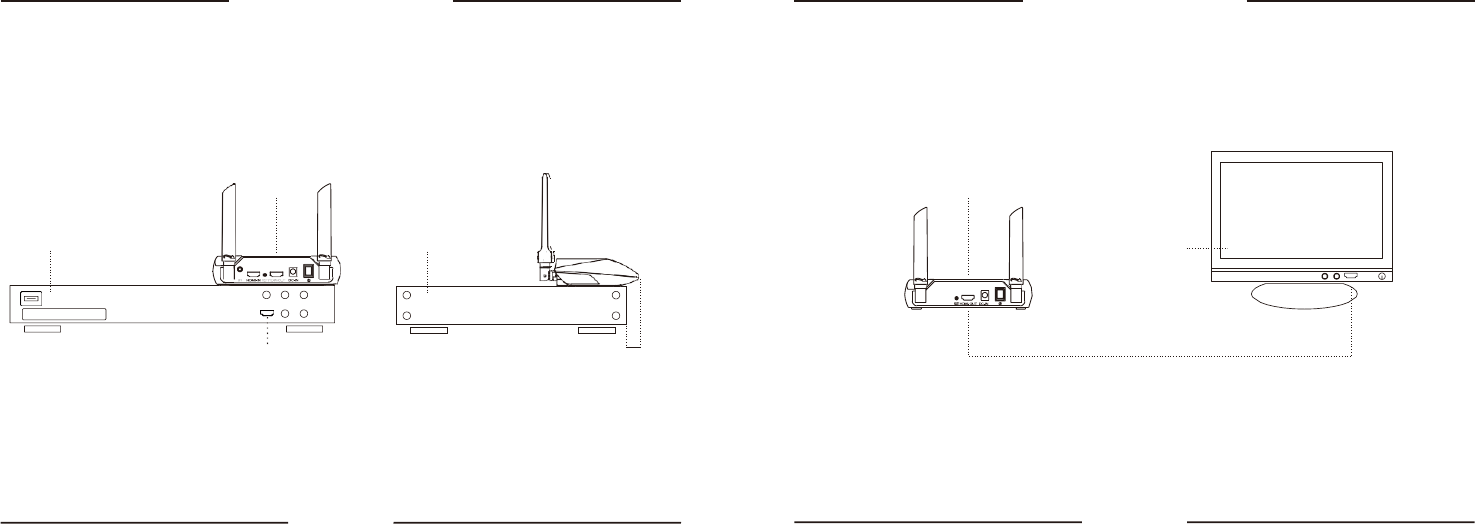

Transmitter installation

n Put the transmitter near to STB and other signal source device, connecting the STB HDMI output with the

transmitter HDMI input, then connecting the transmitter HDMI output with the television HDMI input.

n Put the transmitter above the STB or other device so that the IR transmitting window bulge out by 1 to 2 cm

and vertically aims at the receiving window of the IR signal of the IR signal of the STB or other device.

Receiver installation

n Put the receiver near to TV set which needs to be watched, connect the TV HDMI input with the receiver

HDMI output. Modulate TV channel to HDMI video channel to display the video.

Back View Side View Bulge out of STB

should be 1-2cm

Hints：

The receiving window of the IR signal of the STB or other device is generally marked with “IR”. Please

vertically aim at the IR signal transmitting window of the transmitter. And keep the transmitter away from other

devices and metal devices to avoid effecting wireless signal transmitter.

Hints：

After receiver connects the TV sets, you should change from TV to AV channels and keep the receiver away

from other devices and metal devices to avoid effecting wireless signal reception.

5 6

STB/DVD

Receiver

HDMI Signal

HDMI EXTENDER

Power switch

Pressing the power switch can switch on or off the power to the transmitter or receiver and enable it to

transmit the signal or close.

Hints：

To ensure that the product can be used normally, the product should be connected when power off in case the

product be damaged. Switch on when finish connection and never plug in or out at will. Please turn off the

product if long time not use it.

5.2GHz channel selection

In order to prevent mutual interference between devices on the same frequency, this product supports setting

the working frequency band, transmission channel, and device name SSID (customizable name SSID) of the

product through the device background WEB. In order to ensure that the content you are viewing is securely

transmitted on the device, please log in to the WEB setting interface through your mobile phone or laptop

before the first use, and change the name SSID and password. The specific steps are as follows:

A. Connect the power adapter to power the transmitter and receiver and turn on the switch.

B. Open the WIFI WLAN for configuring the phone/computer, search for the name SSID: HDMI Extender

WIFI network, the default password: 12345678.

Note: The factory default configuration is 5G WIFI signal, if the device cannot be found: HDMI Extender WIFI

network, please configure it with a smart phone firstly and change

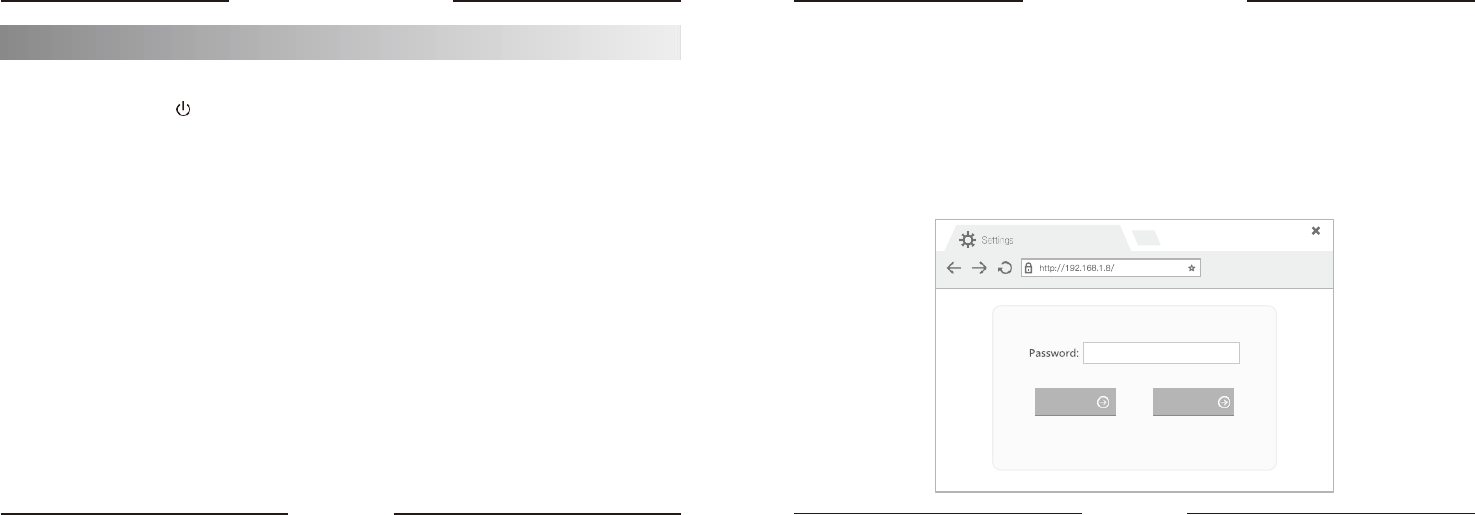

C. Open the browser, enter the IP address: 192.168.1.8 and then click the Enter button to display the

following interface.

7 8

III. Operation

Modify

HDMI EXTENDER

PAKITE-AV-Sender

D. Enter the default login password: admin, click [Login] to enter the configuration interface, if you need to

modify the login password, please click [Modify]. After modifying the relevant parameters, click [save] to save

and exit, and click [reset] to restore the factory settings.

5.2G

After changing the product name and password, or if the REST product needs to be powered off and

restarted, the WIFI network name of the product can be found.

E. If you accidentally forget the login password, you can also restore the factory settings through hardware

operation. The method of operation is as follows:

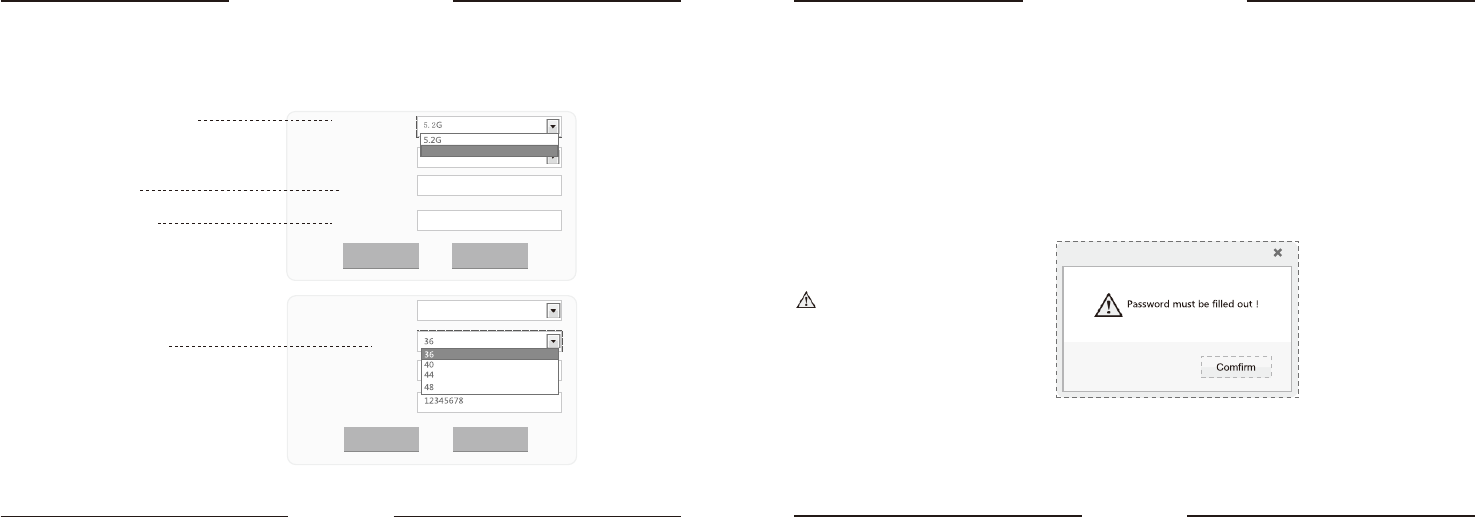

Select transmission frequency

Modify product name

Change login password

Wireless Band:

Channel:

Name(SSID):

PSK Password:

Under power-on status, press the REST button on the back of the transmitter and receiver to reset. After

pressing the reset button, the black screen on the TV screen indicates a successful factory reset.

Wireless Band:

Select frequency channel Channel:

Name(SSID):

NOTE

Both the transmitter and receiver can

be reconnected after a hardware

reset at the same time.

PSK Password:

9 10

save

reset

save

reset

HDMI Extender

12345678

5.2G

HDMI EXTENDER

Before powering on, you should carefully check whether the cable is normal and must ensure that all

interfaces are connected correctly.

1. There is no picture and audio

A. Check whether the receiver power supply is normal.

B. Confirm that the TV input channel is correct.

C. Check if the HDMI cable is damaged.

2. Showing Connecting

A. Check the transmitter power supply is normal.

B. Check whether the WEB settings are correct.

C. Press the product reset button or power off to restart the product.

D. Cause interference with the same frequency, adjust the transmission frequency or frequency channel,

avoid the interference frequency.

3. Receive display No signal

A. Check the signal source HDMI output signal is normal.

B. Confirm the output resolution of the signal source is within the support range.

C. Make sure the source is connected to the transmitter's HDMI input.

4. Transmission distance close

A. Inadequate transmission signal, adjust the angle of the antenna or shorten the distance of devices.

B. Adjust the placement and height of transmitter and receiver to enhance wireless signal transmission.

C. Brick walls, metal doors, and concrete walls cause wireless signal attenuation to affect the transmission

distance.

D. Interference that caused by the same frequency, adjust the transmission frequency or frequency channel,

avoid the interference frequency.

5. The image is interfered

A. Inadequate signal transmission, adjust the angle of the antenna or shorten the distance of devices.

B. Adjust the placement and height of transmitter and receiver to enhance wireless signal transmission.

C. Interference that caused by the same frequency, adjust the wireless frequency or frequency channel to

avoid the interference frequency.

6. Unable to log in the web settings interface

A. Verify the transmitter and receiver are powered on and connected successfully.

B. Check whether the IP address configured on the device is set to the static IP type.

C. Check whether the IP address configured on the device is set to 192.168.1.XXX.

D. Try to replace the browser with a different browser and log in to the Wed Settings screen. Adjust the

wireless frequency or frequency channel to avoid the interference frequency.

11 12

IV. Common problems and troubleshooting

HDMI EXTENDER

7. IR wireless return function is insensitive

A. Adjust the placement and height of the transmitter and receiver to enhance wireless signal transmission.

B. Transmitter have IR signal transmission function, such as the transmitter placed on the "top box" above,

check whether the transmitter bulging "set-top box" 1-2cm.

C. Transmitter have IR signal transmission function, such as using the external IR Extention cable. Try to

keep the transmitter away from the "set-top box" and avoid sending infrared signals at the same time to

cause remote control conflicts.

Warranty is only available to customers who buy this product through legal approach.

After-sales promise:

Every customer designated dealers to buy products in our company, if there is product quality problems under

the normal use within 3months from the day you buy the machine, user can bring the valid credentials or

sales invoice to the original dealer where you bought it to replace the same model of the products. If there

are product quality problems within 12months,you can request free warranty(not including common

accessories).

Additional fee will be charged in any of the following situations:

A. The warranty period is expired.

B. Failure of damage caused by connecting other device.

C. Failure or damage caused by repairing or transforming by yourself.

D. Failure or damage caused by not following the operation instructions of the product.

E. Failure or damage caused by collision, falling or other non-quality problems.

F. Damage caused by fire, lighting strike or other unexpected disasters.

For repairing products which are damaged by the above situations, users should bear the fee of replacement

of the damaged components as well as the shipping fee.

Solemn Statement:

The manufacturer assumes no liability for irreversible damages to other devices caused by these situations!

13 14

V. Warranty Service

Switch on only after the connection and never plug in or out at will.

The product is for home use instead of professional industrial use.

Please don’t take apart without proper professional knowledge.

PAKITE TECHNOLOGY HDWIFITX Wireless HDMI Extender User Manual

SHENZHEN PAKITE TECHNOLOGY CO.,LTD. Wireless HDMI Extender

User Manual

Navigation menu

Namespaces

Views

Navigation
