TeChnics

AV control stereo receiver

SA-GX770/SA-GX670

SA-GX470/SA-G9057

Operating Instructions

The photographs show SA-GX770.

'Before"€oi_neotlng, opetat ng or adjusting this product,

instructions completely.

193-P

Dear Customer

Thank you for purchasing this Technics product.

For optimum performance and safety, please read

these instructions carefully.

These operating instructions are applicable to models SA-

GX770, SA-GX670, SA-GX470 and SA-G9057.

These operating instructions, however, are intended primarily

for model SA-GX770.

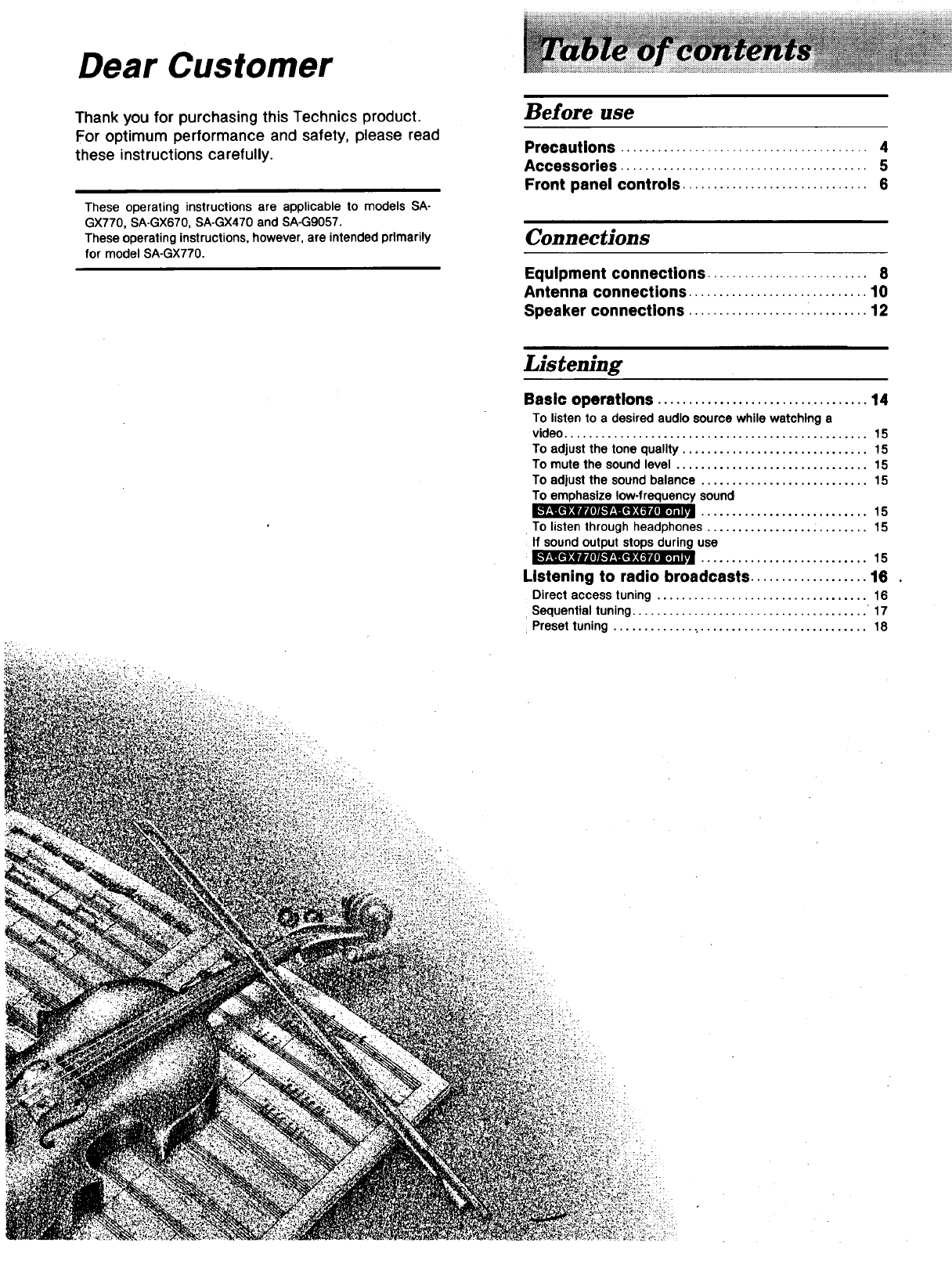

Before use

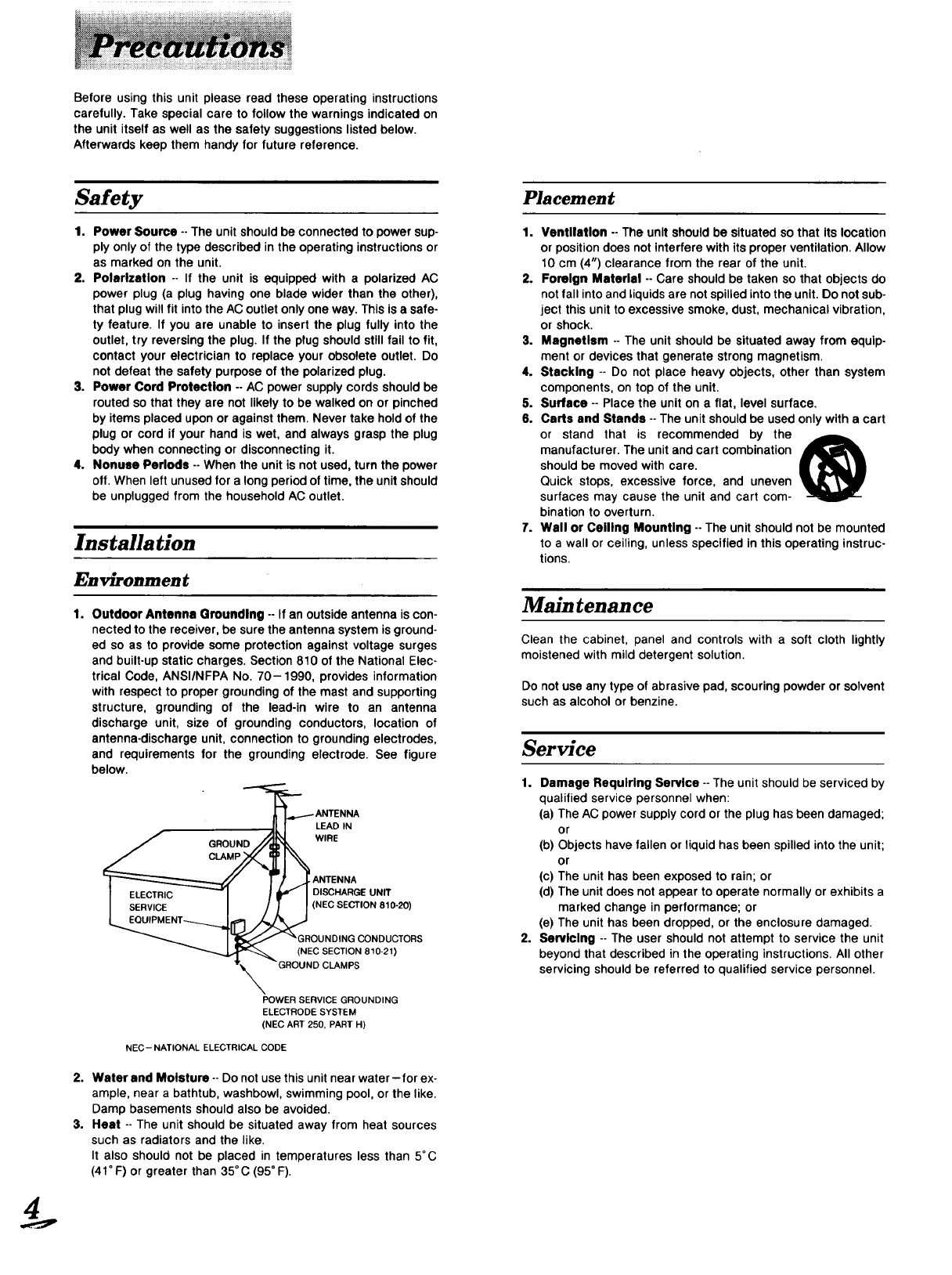

Precautions ........................................ 4

Accessories ........................................ 5

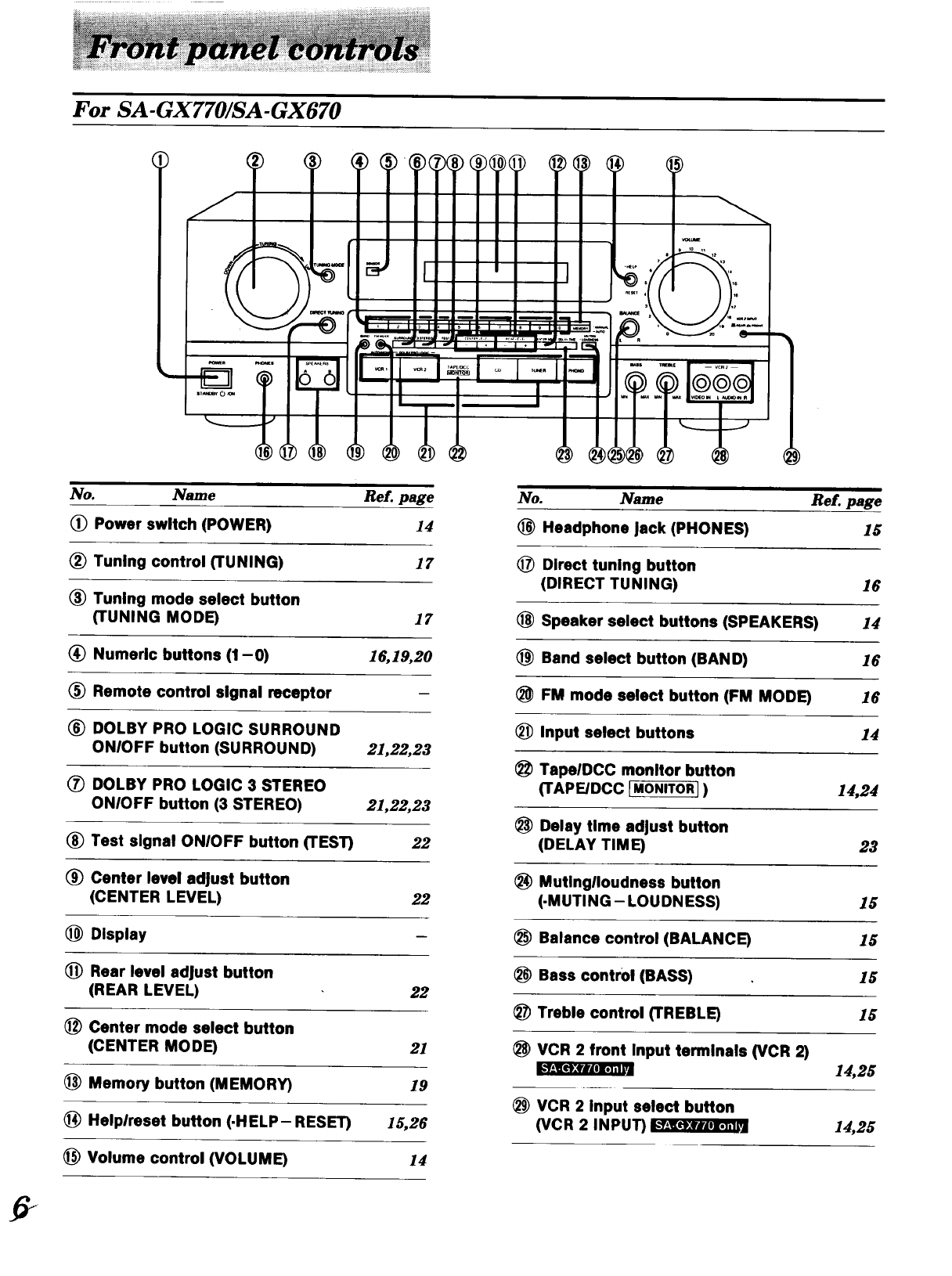

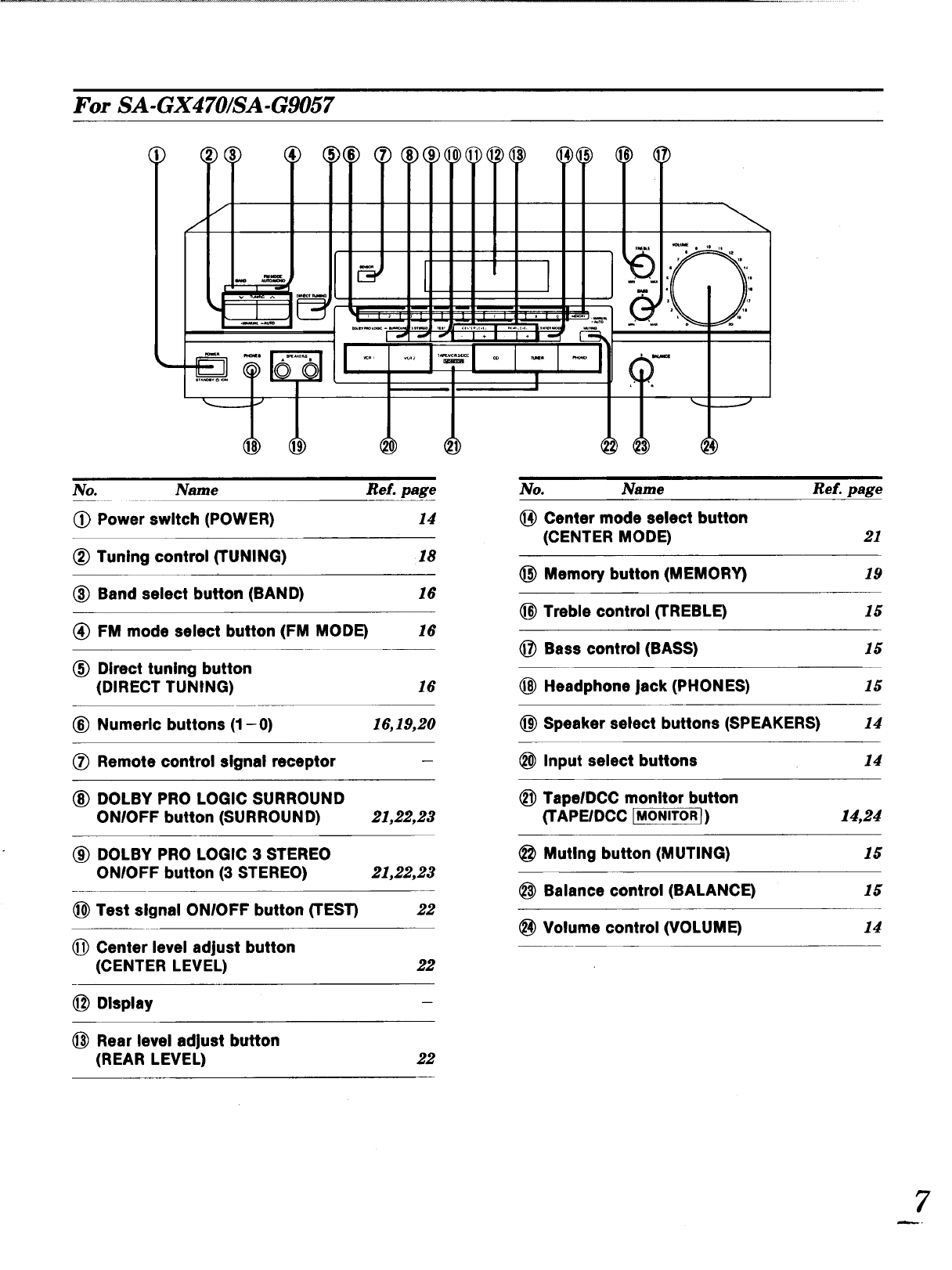

Front panel controls .............................. 6

Connections

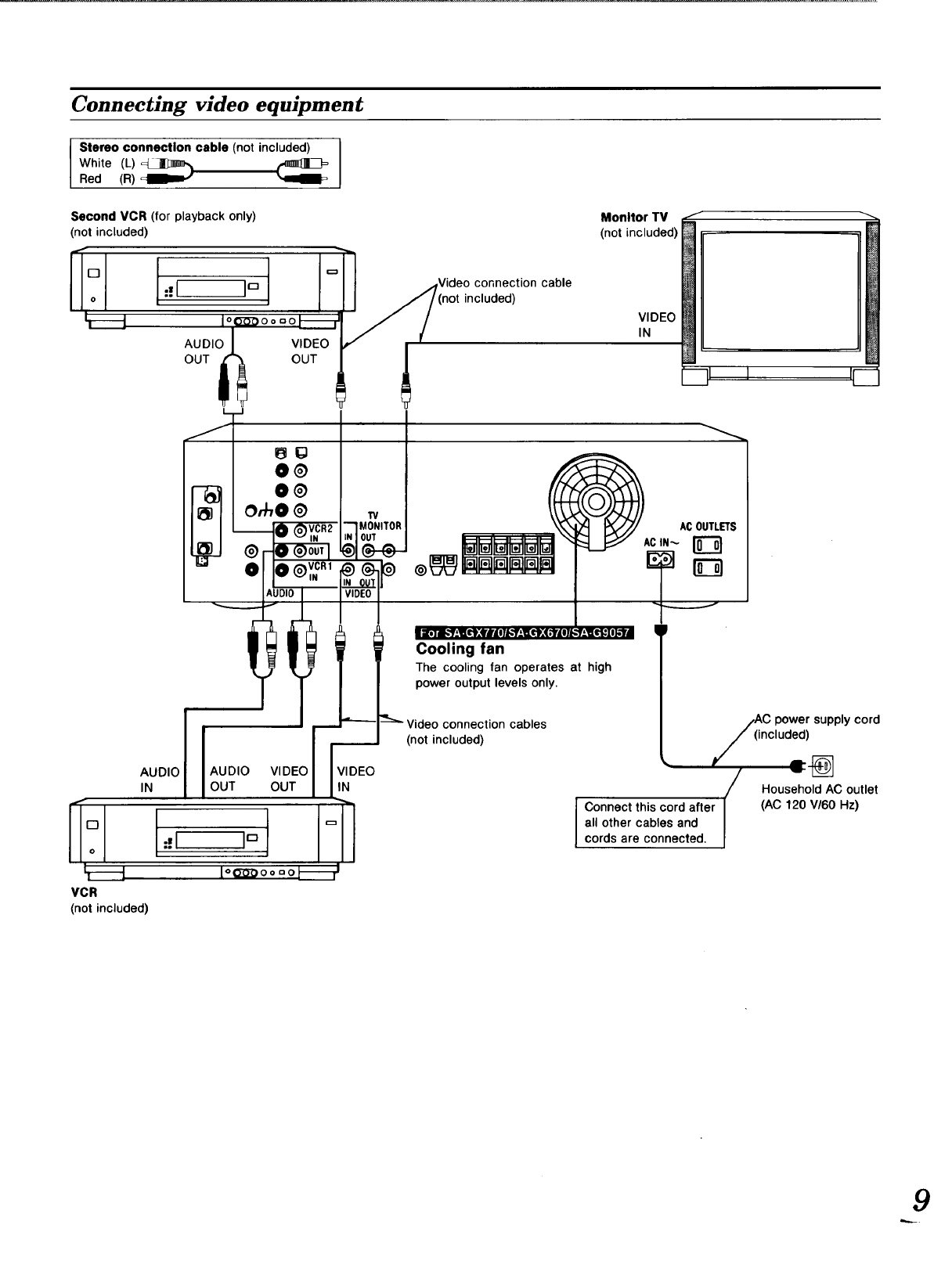

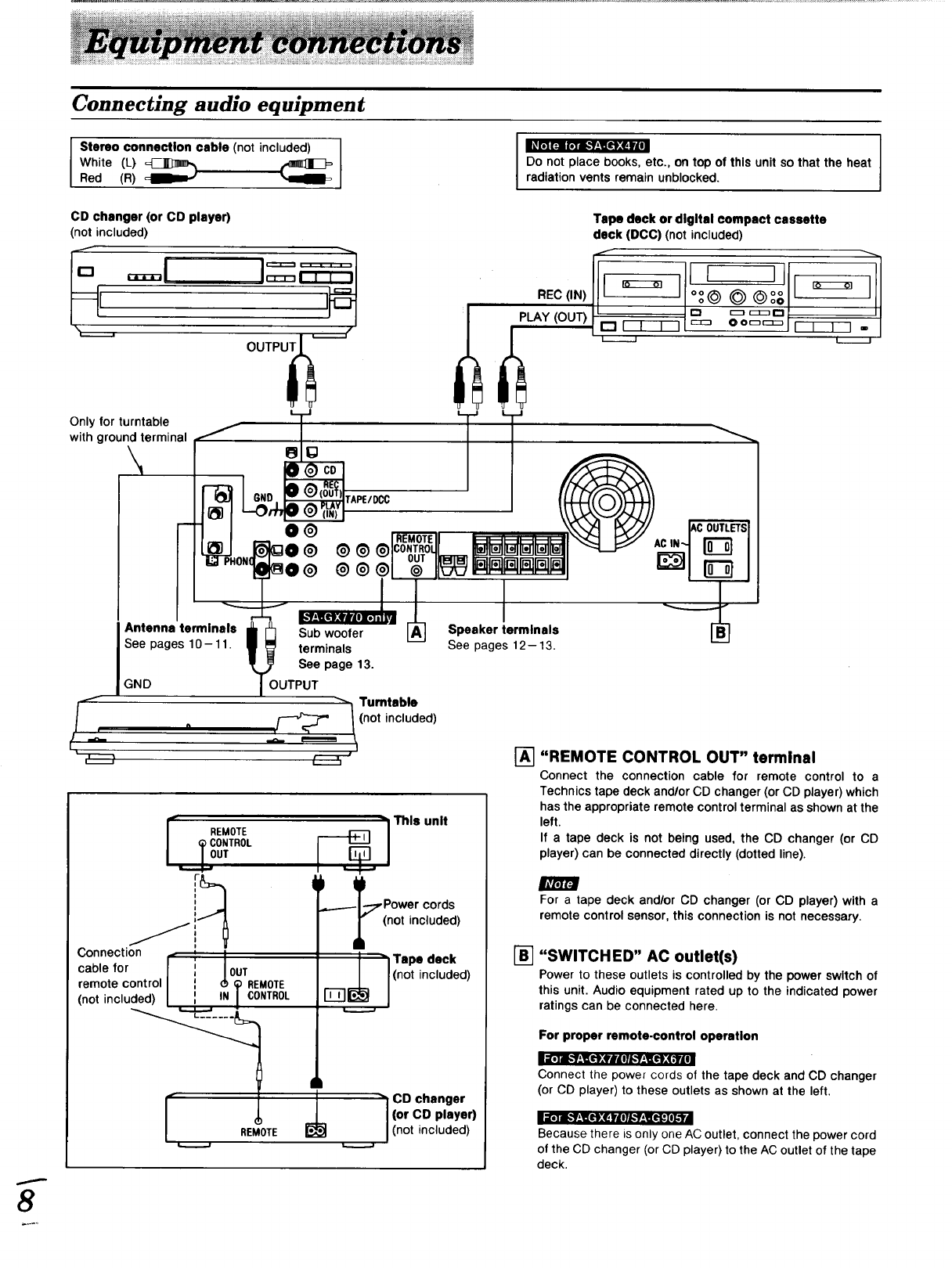

Equipment connections .......................... 8

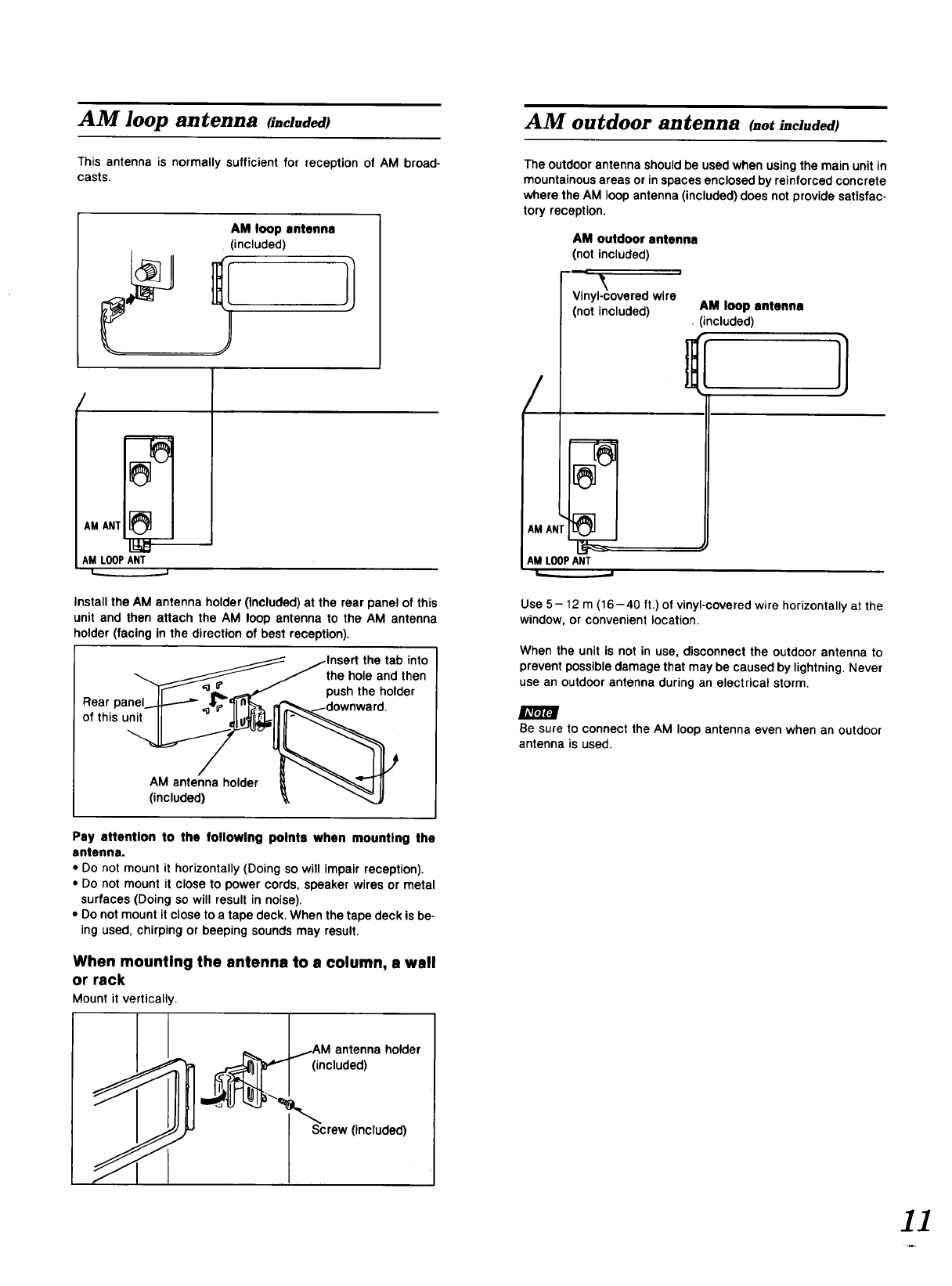

Antenna connections ............................. 10

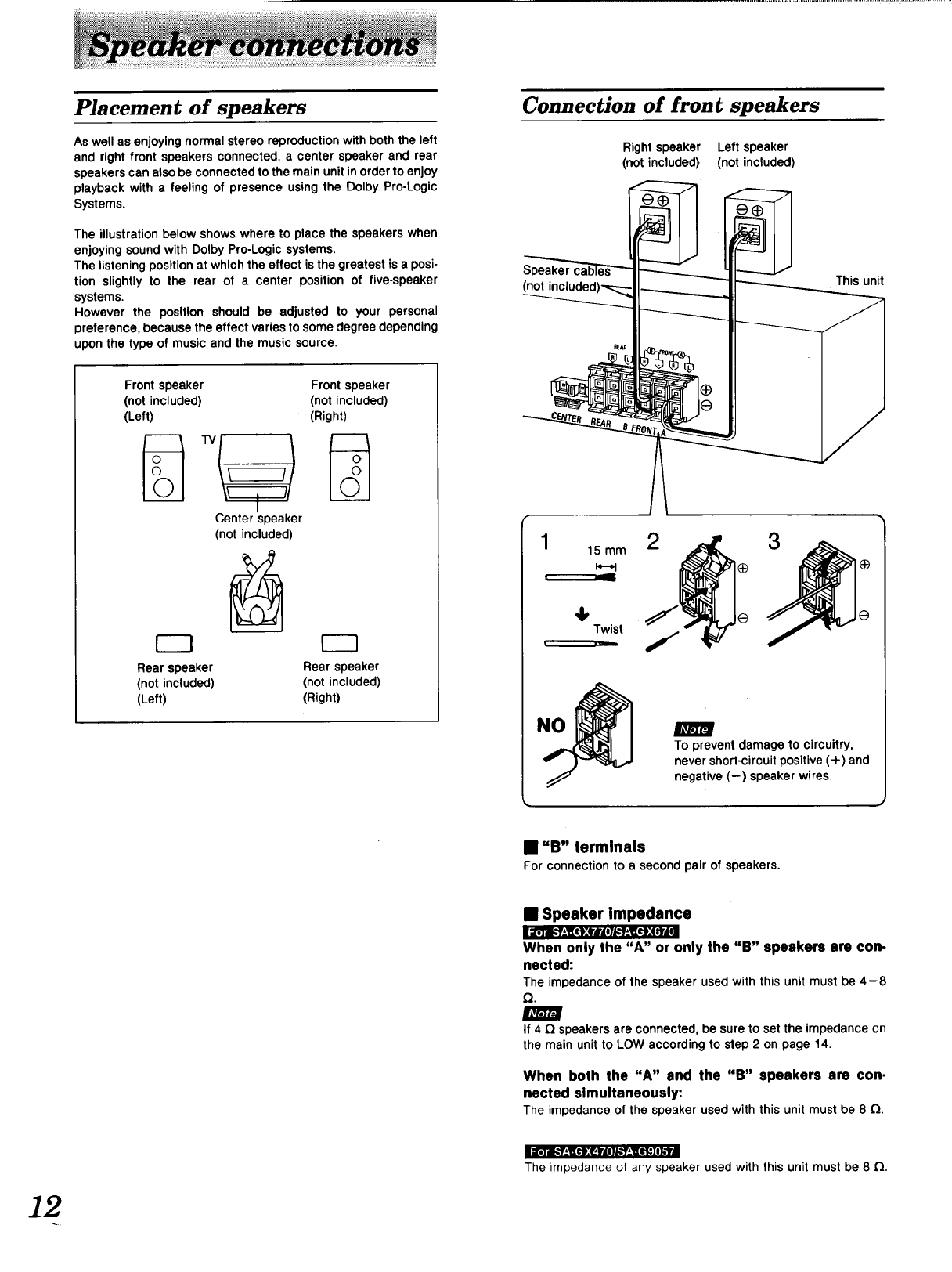

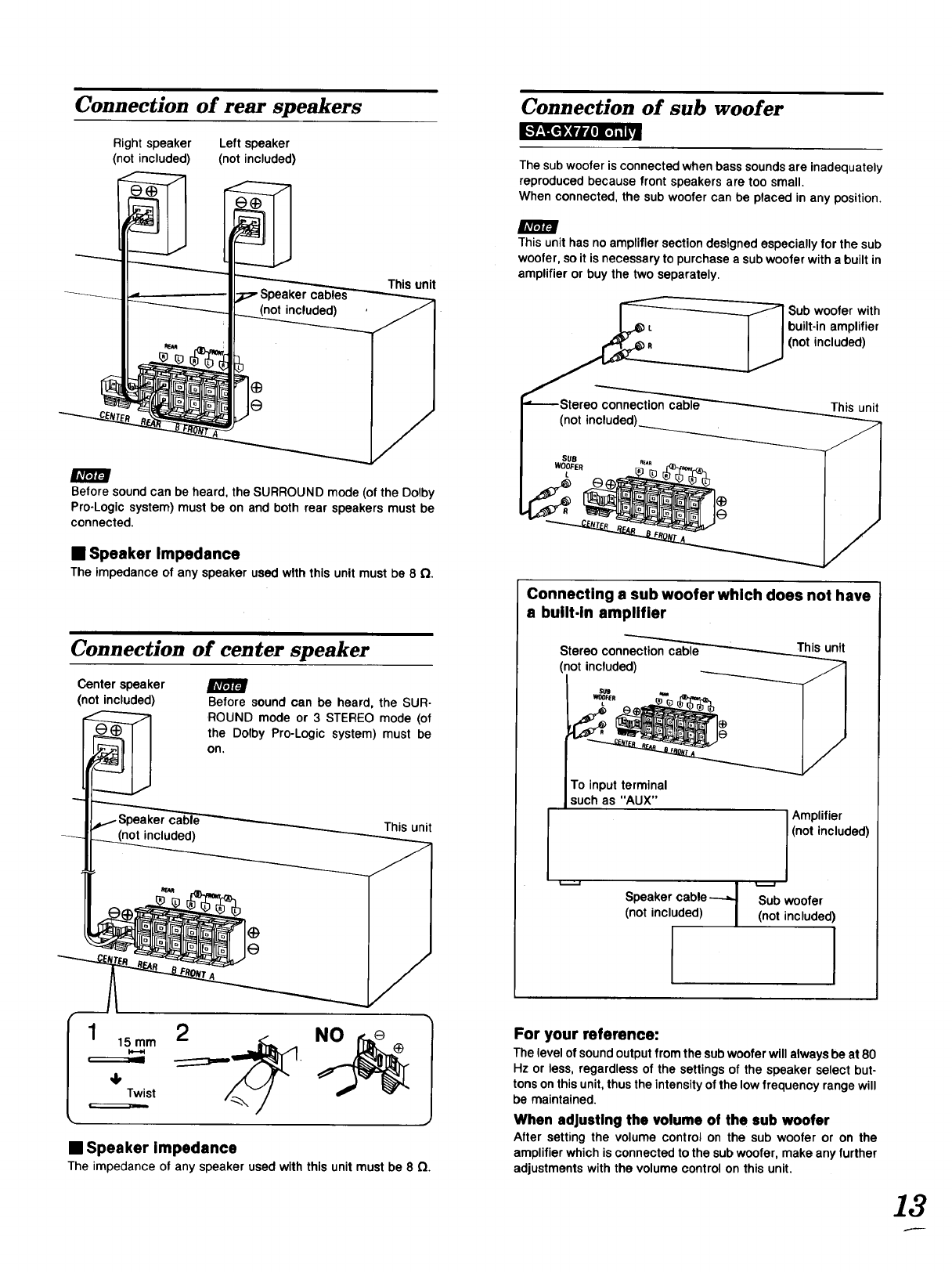

Speaker connections ............................. 12

Listening

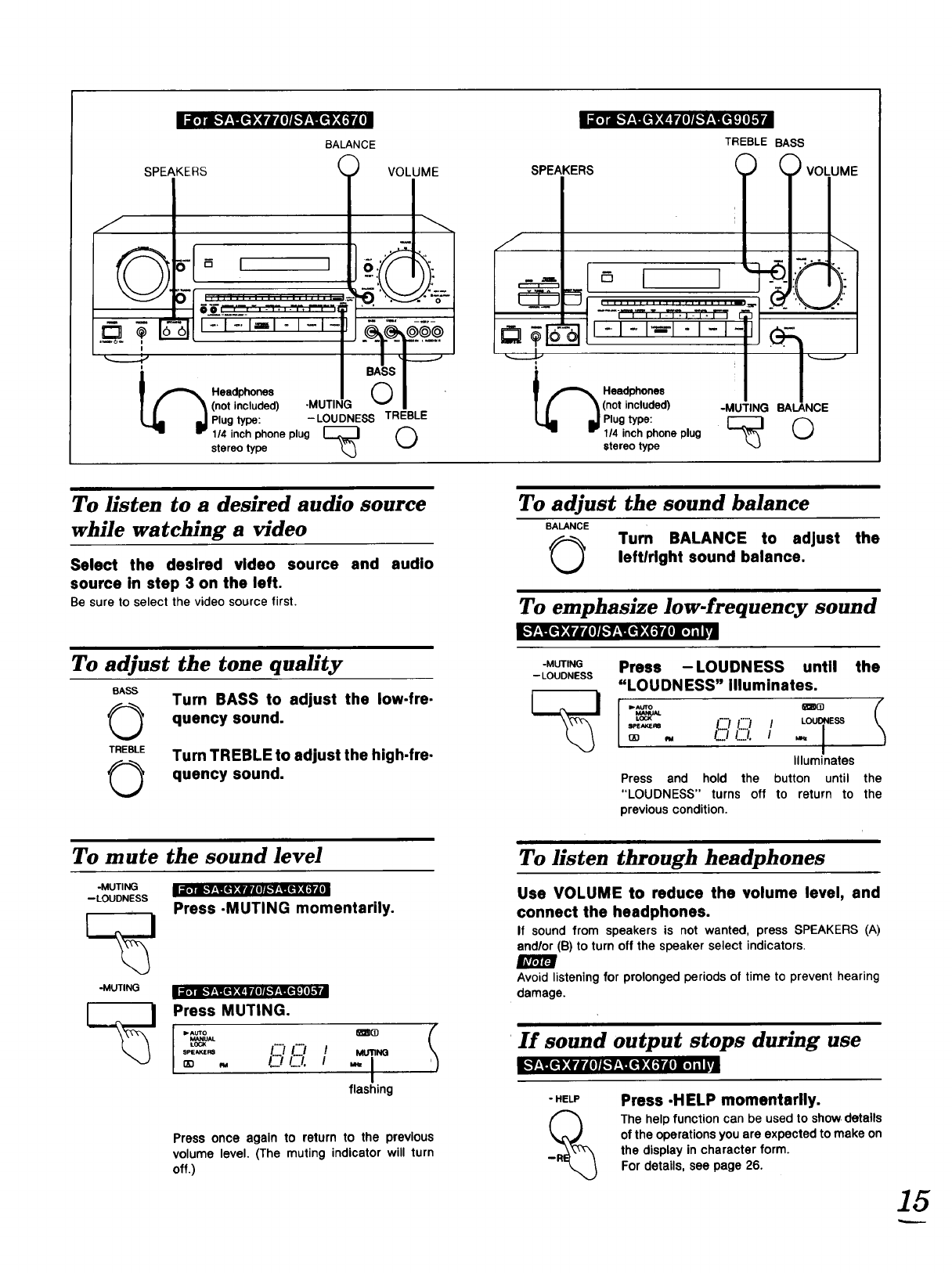

Basic operations .................................. 14

To listen to a desired audio source while watching a

video ................................................. 15

To adjust the tone quality .............................. 15

To mute the sound level ............................... 15

To adjust the sound balance ........................... 15

To emphasize low-frequency sound

m-_f;_et:fwJ07_-'f;wet:(wd0nr_ q ........................... 15

To liSteR through headphones ................. : ........ 15

tf sound output stops during use

Ik_;_ _et:fdr40]rk"f;_e]);(,'lrJ[0=rff__ ........................... 15

Listening to radio broadcasts ................... 16

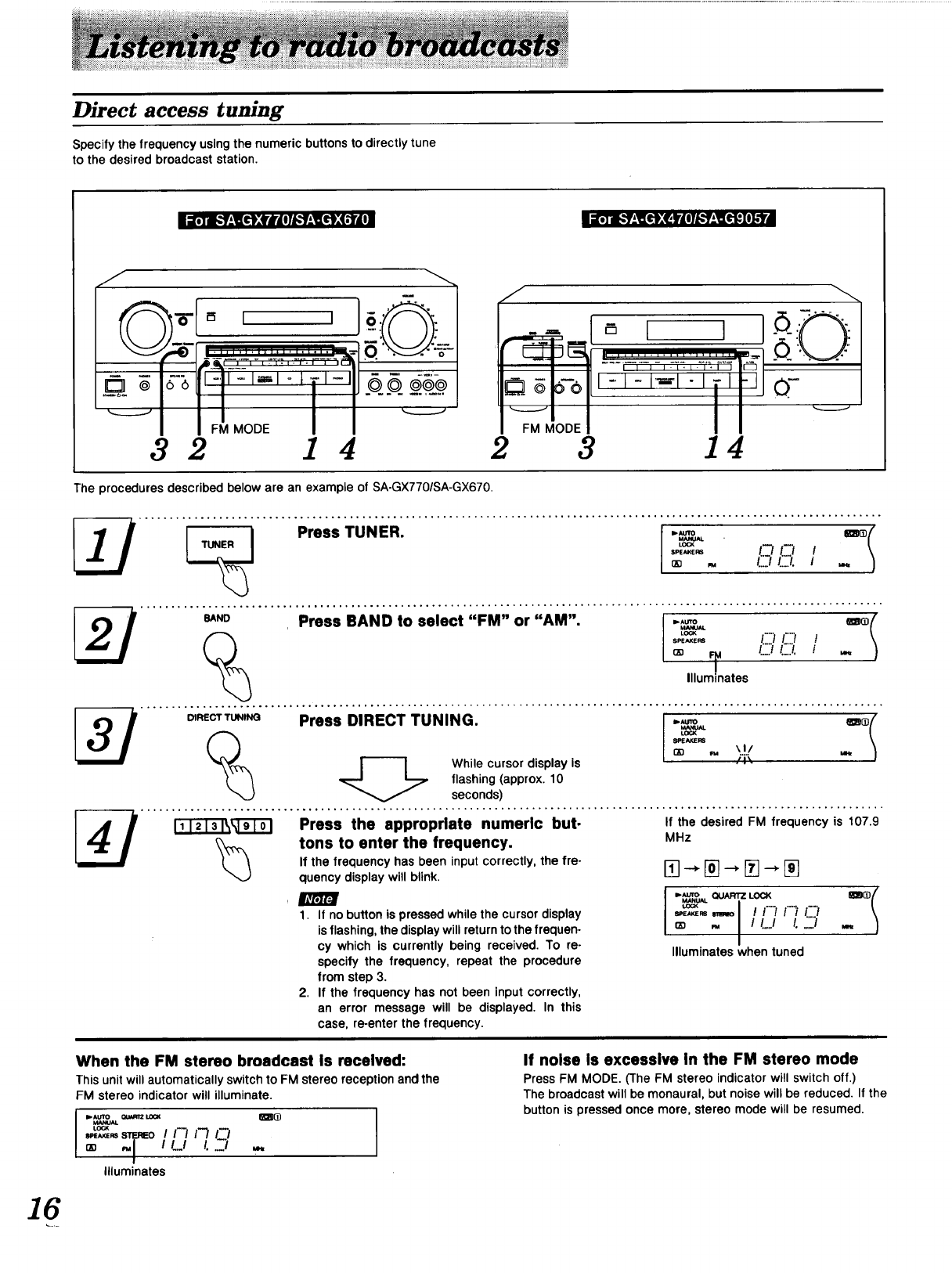

Direct access tuning .................................. !6

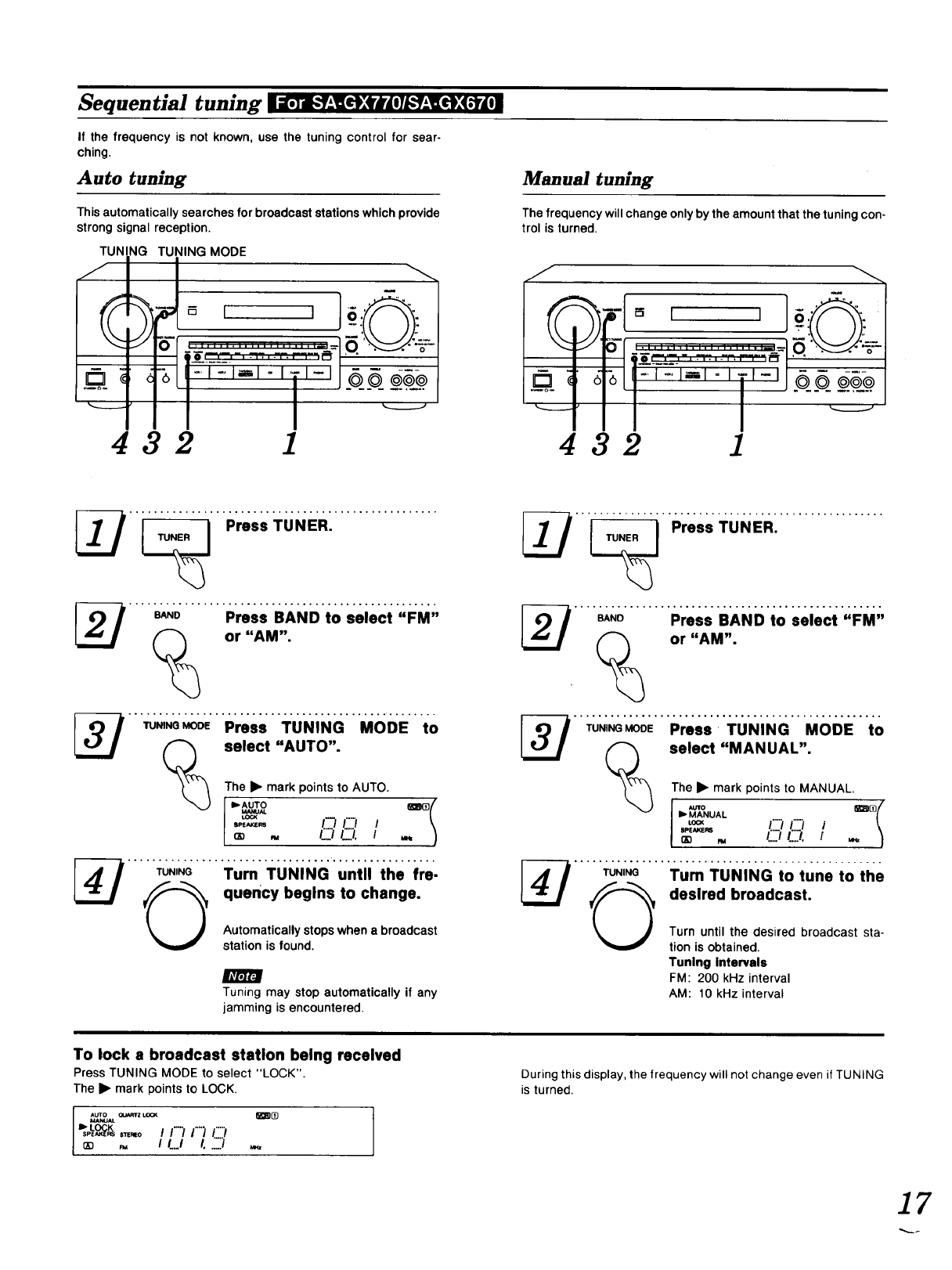

Sequential tuning ...................................... " 17

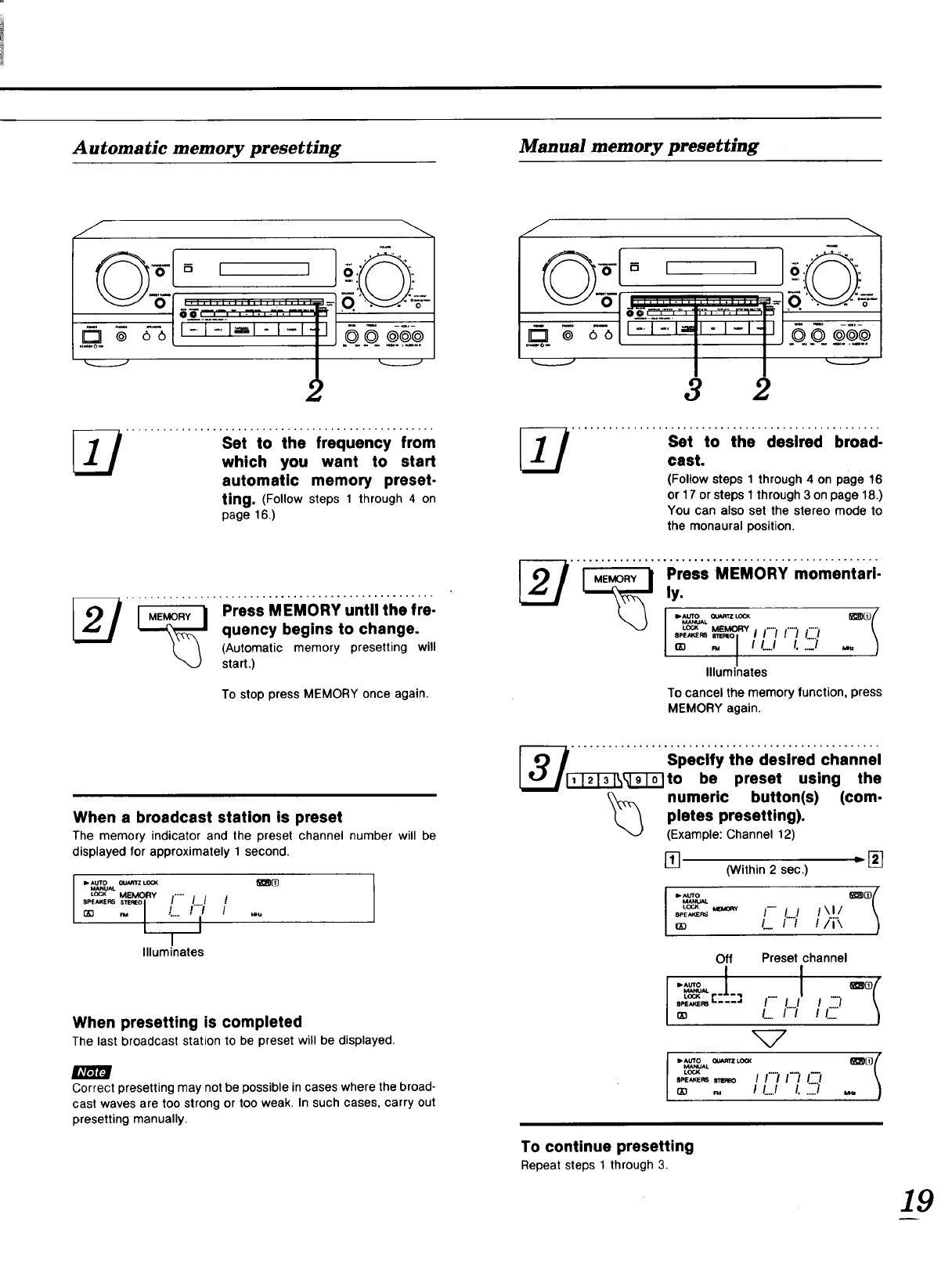

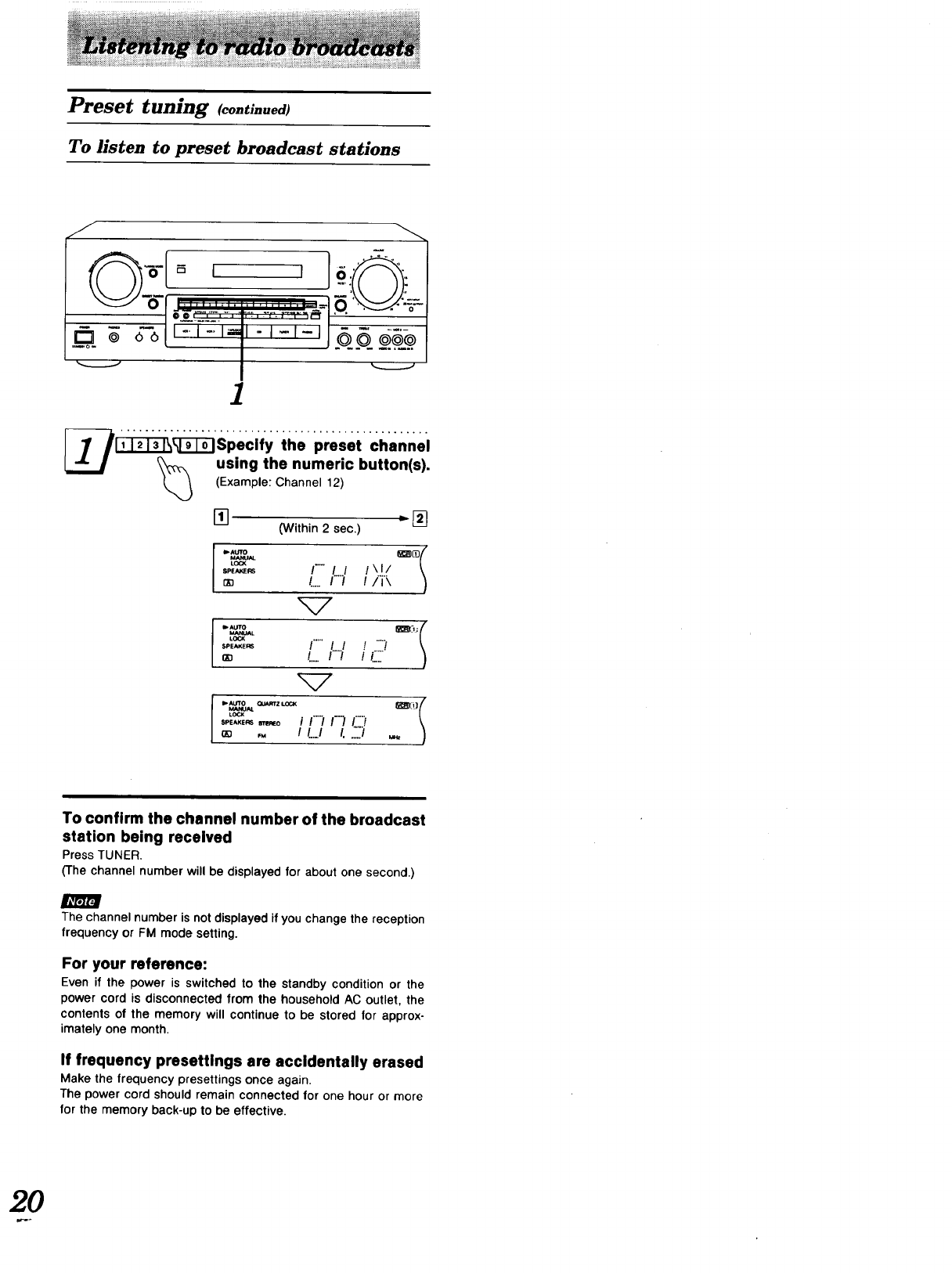

Preset tuning ......................................... 18

.:.-

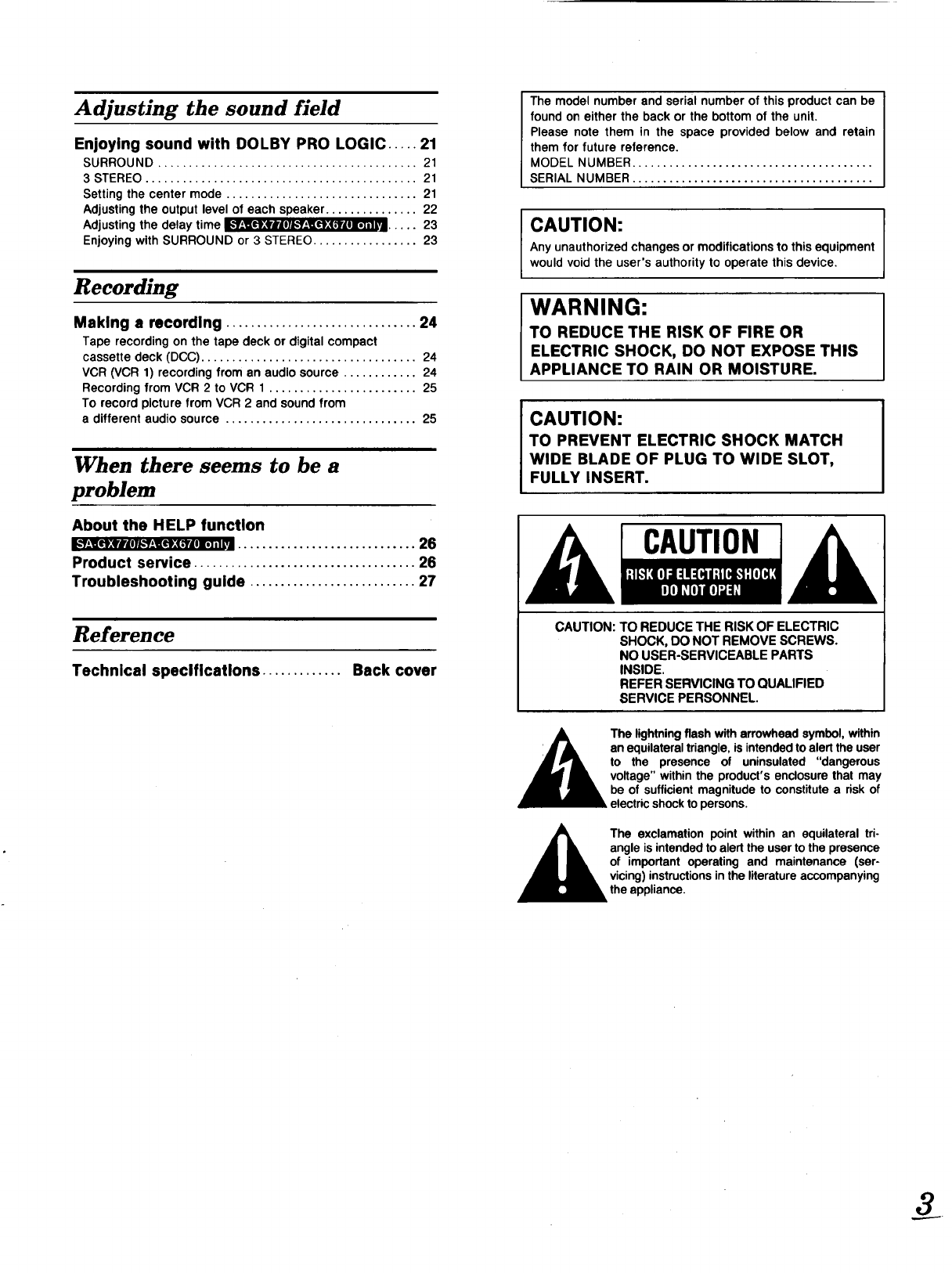

Adjusting the sound field

Enjoying sound with DOLBY PRO LOGIC ..... 21

SURROUND .......................................... 21

3 STEREO ............................................ 21

Setting the center mode ............................... 21

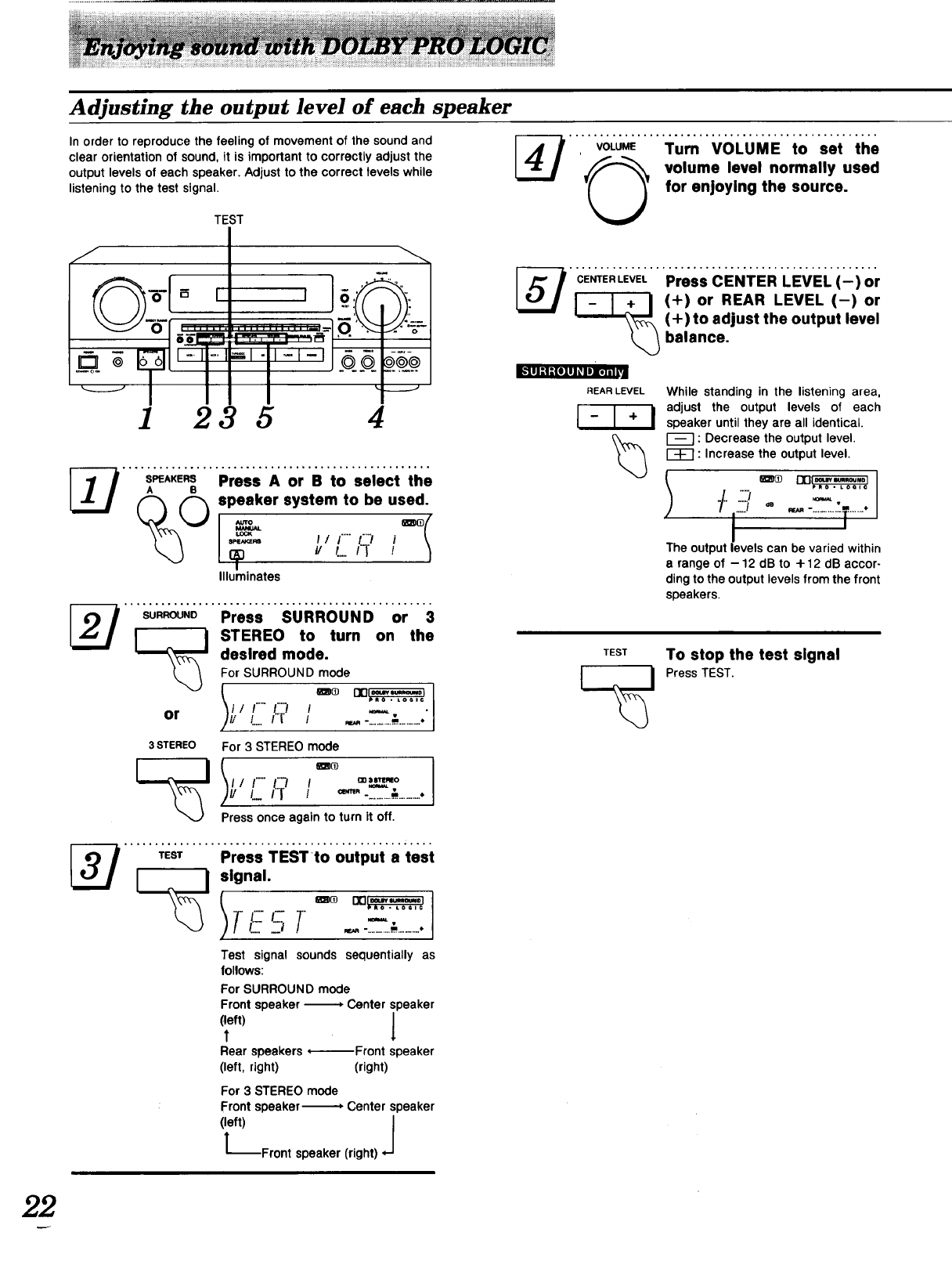

Adjusting the output level of each speaker ............... 22

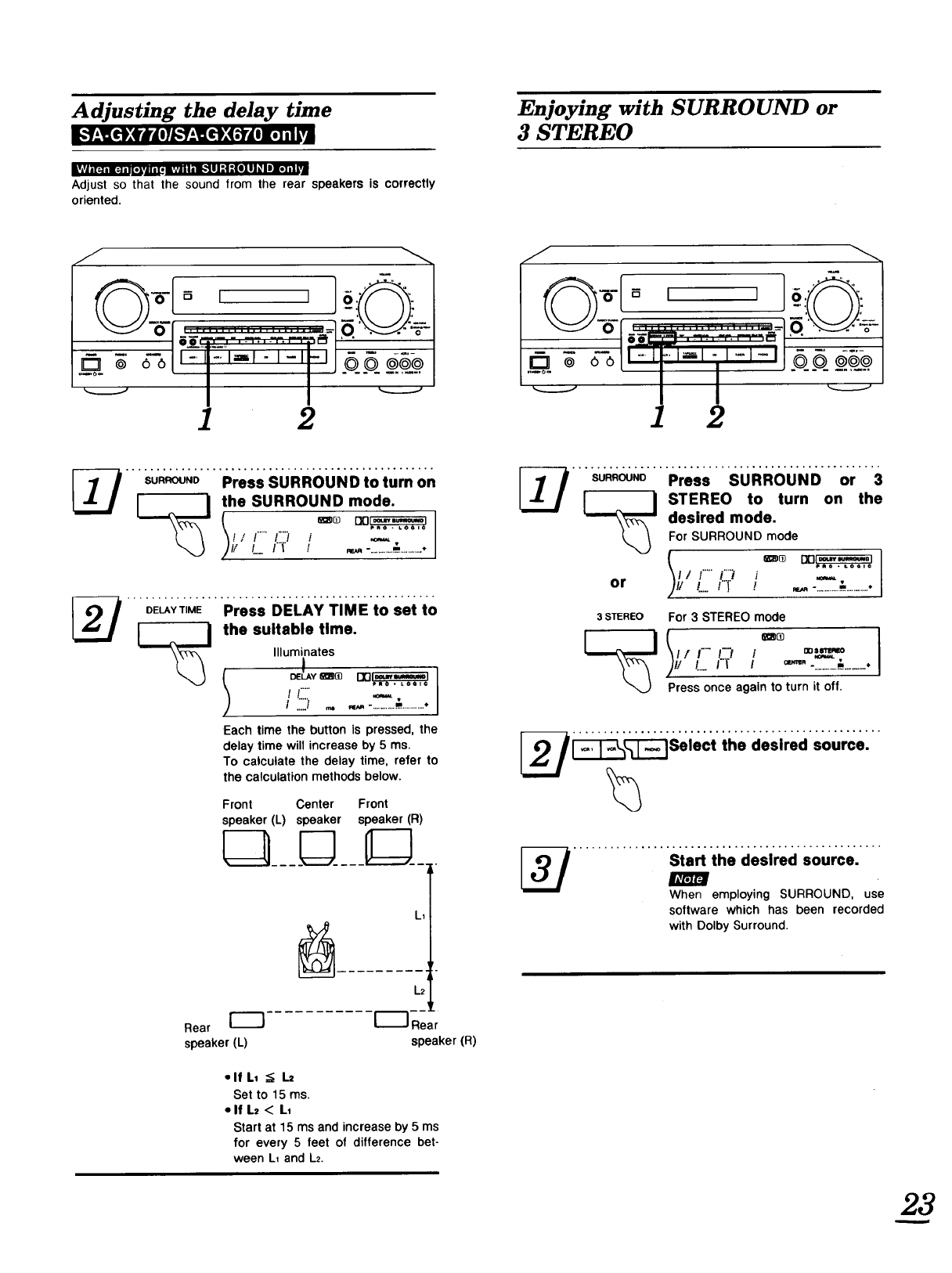

Adjusting the delay time Ik'lr__-'le#_q,TJ-z,]-,lql ..... 23

Enjoying with SURROUND or 3STEREO ................. 23

Recording

Making arecording ............................... 24

Tape recording on the tape deck or digital compact

cassette deck (DCC) ................................... 24

VCR (VCR 1) recording from an audio source ............ 24

Recording from VCR 2 to VCR 1 ........................ 25

To record picture from VCR 2 and sound from

a different audio source ............................... 25

When there seems to be a

problem

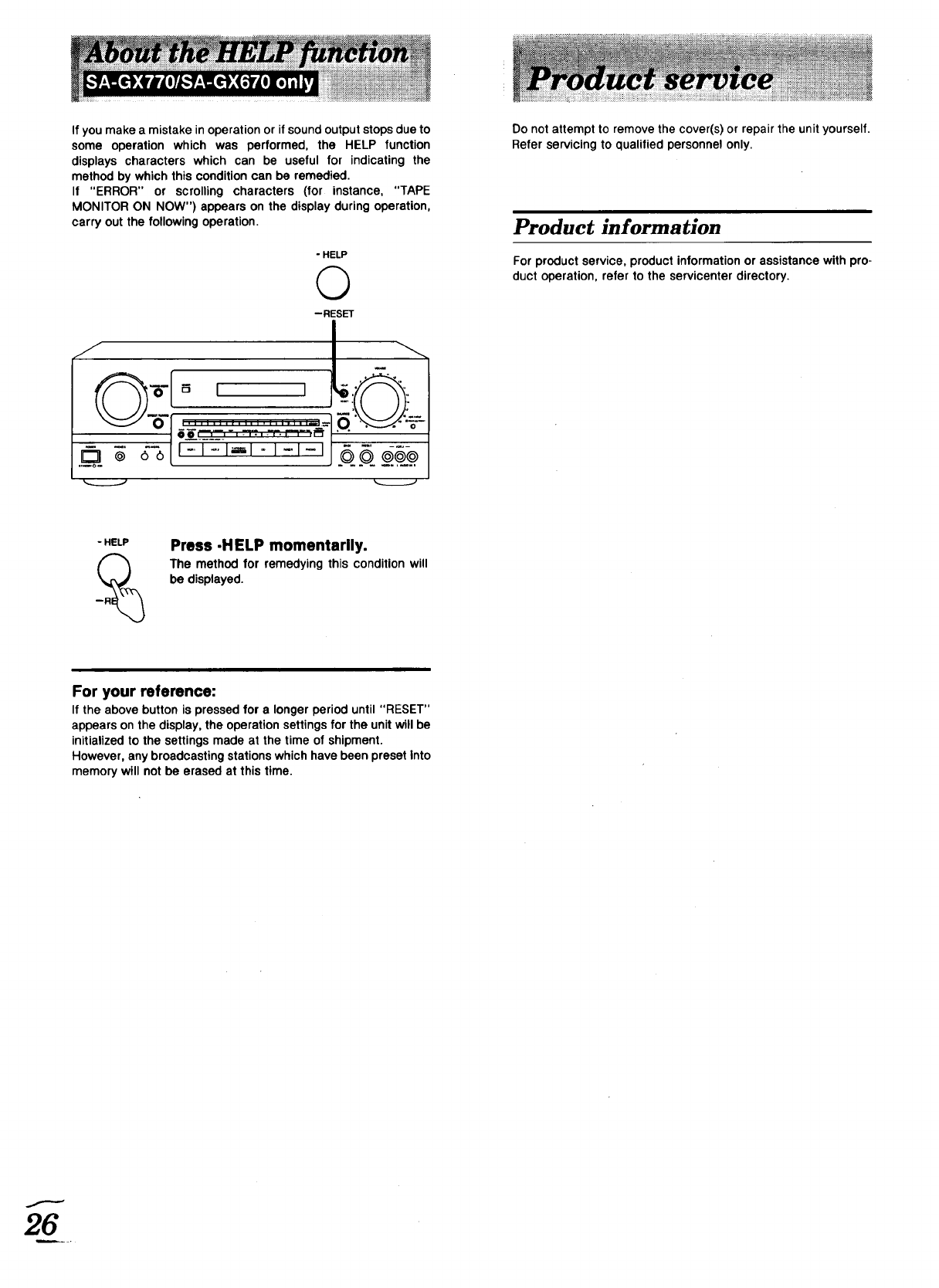

About the HELP function

_, .i_, .. 0., ............................. 26

Product service .................................... 26

Troubleshooting guide ........................... 27

Re£erence

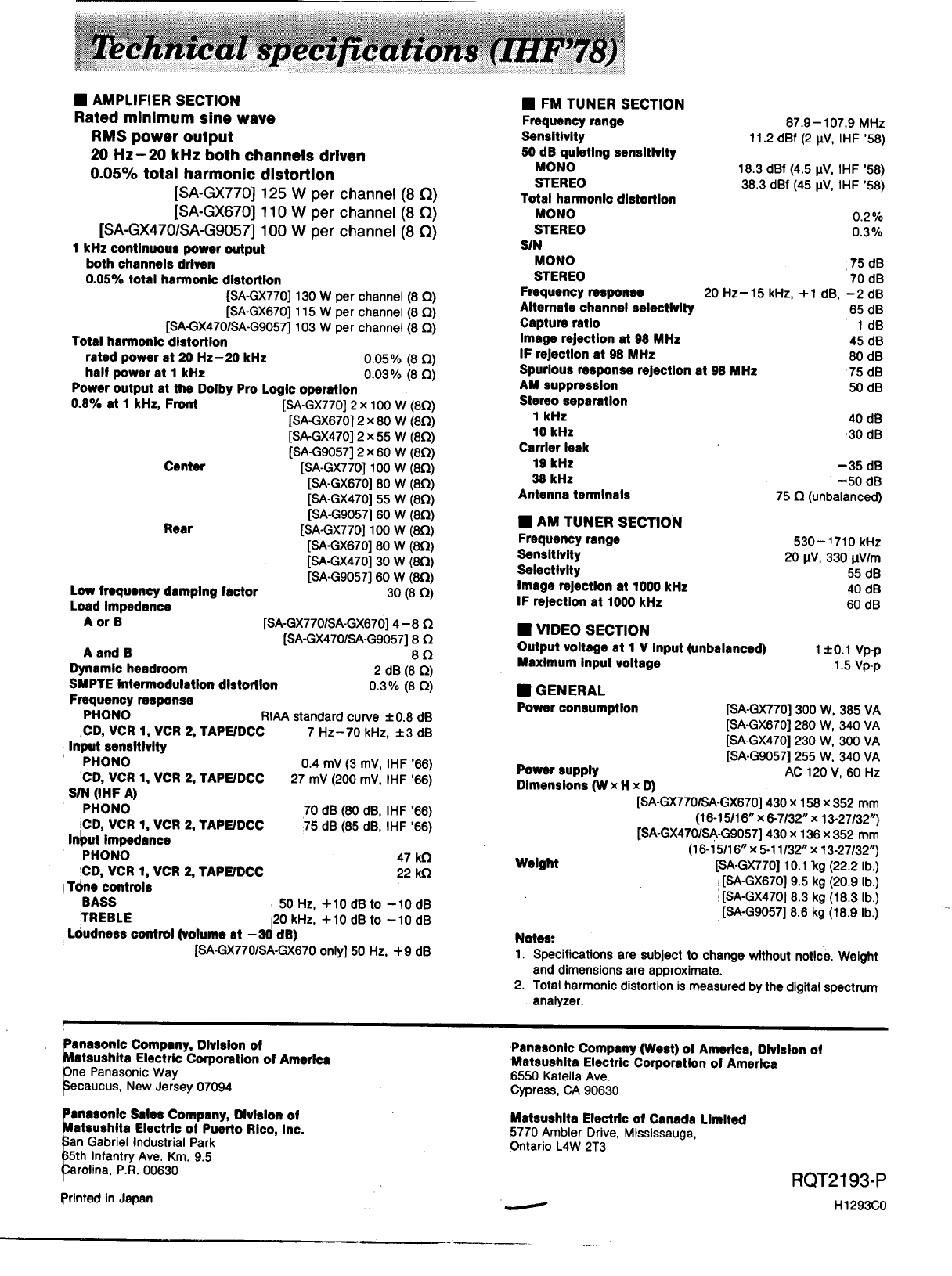

Technical specifications ............. Back cover

The model number and serial number of this product can be

found on either the back or the bottom of the unit.

Please note them in the space provided below and retain

them for future reference.

MODEL NUMBER .......................................

SERIAL NUMBER .......................................

CAUTION:

Any unauthorized changes or modifications to this equipment

would void the user's authority to operate this device.

WARNING:

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH

WIDE BLADE OF PLUG TO WIDE SLOT,

FULLY INSERT.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within

an equilateral triangle, is intended to alert the user

to the presence of uninsulated "dangerous

voltage" within the product's enclosure that may

be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral tri-

angle is intended to alert the user to the presence

of important operating and maintenance (ser-

vicing) instructions in the literature accompanying

the appliance.

Beforeusing this unit please read these operating instructions

carefully. Take special care to follow the warnings indicated on

the unit itself as well as the safety suggestions listed below.

Afterwards keep them handy for future reference.

Power Source -- The unit should be connected to power sup-

ply only of the type described in the operating instructions or

as marked on the unit.

2. Polarization -- If the unit is equipped with a polarized AC

power plug (a plug having one blade wider than the other),

that plug will fit into the AC outlet only one way. This is a safe-

ty feature. If you are unable to insert the plug fully into the

outlet, try reversing the plug. If the plug should still fail to fit,

contact your electrician to replace your obsolete outlet. Do

not defeat the safety purpose of the polarized plug.

3. Power Cord Protection -- AC power supply cords should be

routed so that they are not likely to be walked on or pinched

by items placed upon or against them. Never take hold of the

plug or cord if your hand is wet, and always grasp the plug

body when connecting or disconnecting it.

4. Nonuse Periods -- When the unit is not used, turn the power

off. When left unused for a long period of time, the unit should

be unplugged from the household AC outlet.

Installation

Environment

1. Outdoor Antenna Grounding -- If an outside antenna is con-

nected to the receiver, be sure the antenna system is ground-

ed so as to provide some protection against voltage surges

and built-up static charges. Section 810 of the National Elec-

trical Code, ANSIINFPA No. 70-1990, provides information

with respect to proper grounding of the mast and supporting

structure, grounding of the lead-in wire to an antenna

discharge unit, size of grounding conductors, location of

antenna-discharge unit, connection to grounding electrodes,

and requirements for the grounding electrode. See figure

below.

'__ANTENNA

_1 1 LEAD IN

fGROUN_ WIRE

]_'""-'__ I)' .,_LANTENNA

lELECTRIC _1 _ _ IDISCHARGE UNff

L_V_CEE NT_.._[I_ _ (NEC SECTION 810-20)

i.__f _GROUNDINGCONDUCTORS

(NEC SECTION 810-21)

T_ -GROUND CLAMPS

POWER SERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC- NATIONAL ELECTRICAL CODE

2. Water and Moisture-- Do not use this unit near water-for ex-

ample, near a bathtub, washbowl, swimming pool, or the like.

Damp basements should also be avoided.

3. Heat -- The unit should be situated away from heat sources

such as radiators and the like.

It also should not be placed in temperatures less than 5°C

(41° F) or greater than 35°C (95° F).

Placement

1. Ventilation -- The unit should be situated so that its location

or position does not interfere with its proper ventilation. Allow

10 crn (4") clearance from the rear of the unit.

2. Foreign Material -- Care should be taken so that objects do

not fall into and _iquids are not spilled into the unit. Do not sub-

ject this unit to excessive smoke, dust, mechanical vibration,

or shock.

3. Magnetism -- The unit should be situated away from equip-

ment or devices that generate strong magnetism.

4. Stacking -- Do not place heavy objects, other than system

components, on top of the unit.

5. Surface -- Place the unit on a flat, level surface.

6. Carts and Stands -- The unit should be used only with a cart

or stand that is recommended by the _,=

manufacturer. The unit and cart combination

should be moved with care.

Quick stops, excessive force, and uneven

surfaces may cause the unit and cart com-

bination to overturn.

7. Wall or Ceiling Mounting -- The unit should not be mounted

to a wall or ceiling, unless specified in this operating instruc-

tions.

Main tenan ce

Clean the cabinet, panel and controls with asoft cloth lightly

moistened with mild detergent solution.

Do not use any type of abrasive pad, scouring powder or solvent

such as alcohol or benzine.

Service

1.

2.

Damage Requiring Service -- The unit should be serviced by

qualified service personnel when:

(a) The AC power supply cord or the plug has been damaged;

or

(b) Objects have fallen or liquid has been spilled into the unit;

or

(c) The unit has been exposed to rain; or

(d) The unit does not appear to operate normally or exhibits a

marked change in performance; or

(e) The unit has been dropped, or the enclosure damaged.

Servicing -- The user should not attempt to service the unit

beyond that described in the operating instructions. All other

servicing should be referred to qualified service personnel.

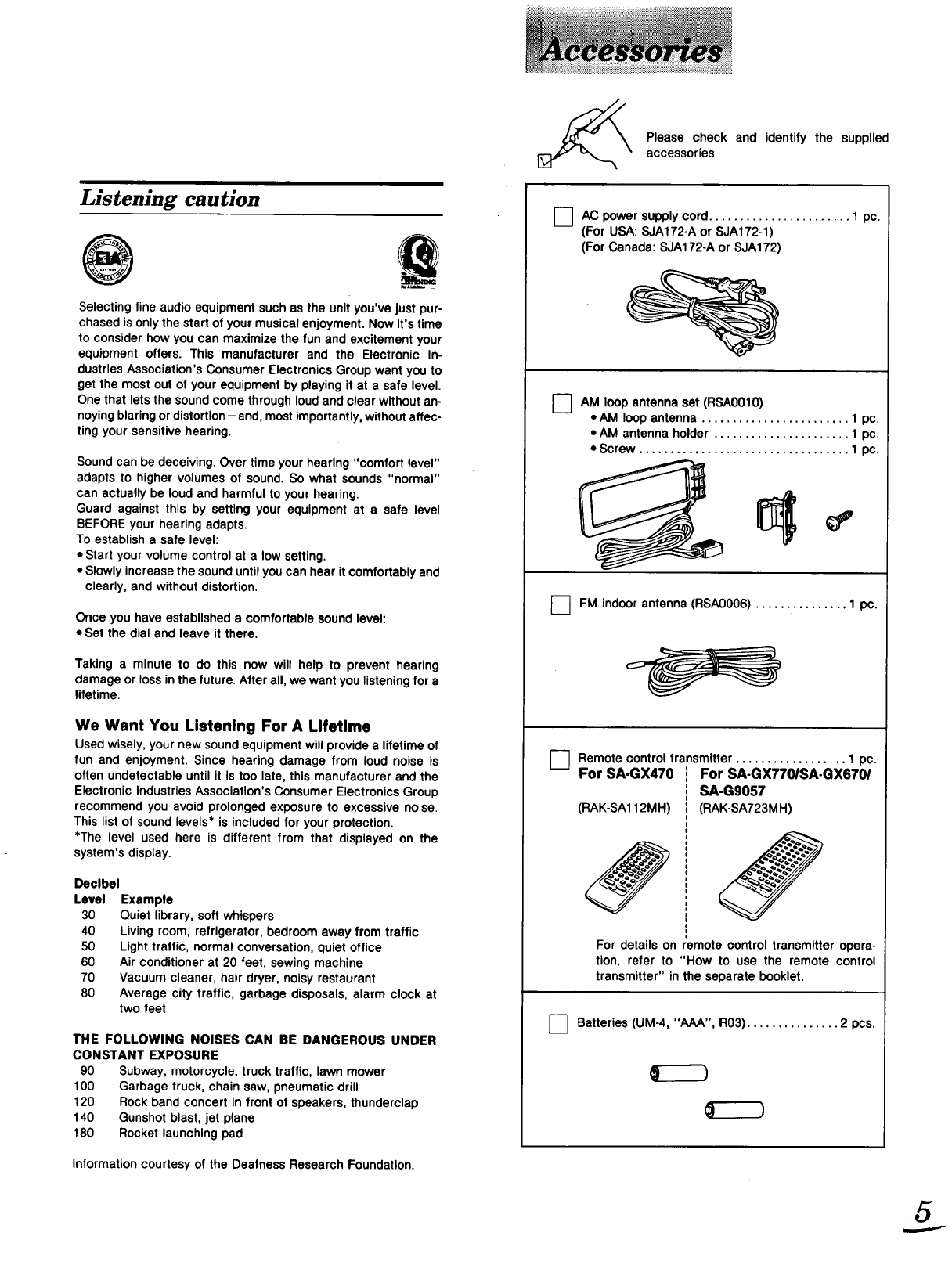

Pleasecheckandidentifythesupplied

accessories

Listening caution

@

Selecting fine audio equipment such as the unit you've just pur-

chased is only the start of your musical enjoyment. Now it's time

to consider how you can maximize the fun and excitement your

equipment offers. This manufacturer and the Electronic In-

dustries Association's Consumer Electronics Group want you to

get the most out of your equipment by playing it at a safe level.

One that lets the sound come through loud and clear without an-

noying blaring or distortion- and, most importantly, without affec-

ting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level"

adapts to higher volumes of sound. So what sounds "normal"

can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level

BEFORE your hearing adapts.

To establish a safe level:

•Start your volume control at a low setting.

•Slowly increase the sound until you can hear it comfortably and

clearly, and without distortion.

Once you have established a comfortable sound level:

•Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing

damage or loss in the future. After all, we want you listening for a

lifetime.

We Want You Listening For A Lifetime

Usecl wisely, your new sound equipment will provide a lifetime of

fun and enjoyment. Since hearing damage from loud noise is

often undetectable until it is too late, this manufacturer and the

Electronic Industries Association's Consumer Electronics Group

recommend you avoid prolonged exposure to excessive noise.

This list of sound levels* is included for your protection.

*The level used here is different from that displayed on the

system's display.

Decibel

Level

30

40

50

60

70

80

Example

Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic

Light traffic, normal conversation, quiet office

Air conditioner at 20 feet, sewing machine

Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at

two feet

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER

CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower

100 Garbage truck, chain saw, pneumatic drill

120 Rock band concert in front of speakers, thunderclap

140 Gunshot blast, jet plane

180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

DAC power ....................... pc.

supply cord 1

(For USA: SJA172-A or SJA172-1)

(For Canada: SJA172-A or SJA172)

I--] AM loop antenna set (RSA0010)

•AM loop antenna ........................ 1 pc.

•AM antenna holder ...................... 1 pc.

•Screw .................................. 1 pc.

_] FM indoor antenna (RSA0006) ............... 1 pc.

[] Remote control transmitter 1 pc.

For SA.GX470 For SA-GX7701SA-GX6701

SA-Gg057

(RAK-SA112MH) (RAK-SA723M H)

For details on remote control transmitter opera-

tion, refer to "How to use the remote control

transmitter" in the separate booklet,

DBatteries (UM-4, "AAA", R03) ............... 2pcs.

For SA-GX770/SA-GX670

No. Name Re[. page

(_) Power switch (POWER) 14

(_) Tuning control (TUNING) 17

(_ Tuning mode select button

(TUNING MODE) 17

(_) Numeric buttons (1-0) 16,19,20

Remote control signal receptor

(_ DOLBY PRO LOGIC SURROUND

ONIOFF button (SURROUND) 21,22,23

(_ DOLBY PRO LOGIC 3 STEREO

ONIOFF button (3 STEREO) 21,22,23

(_ Test signal ONIOFF button (TEST) 22

(_) Center level adjust button

(CENTER LEVEL) 22

(_ Display

(_ Rear level adjust button

(REAR LEVEL) 22

_) Center mode select button

(CENTER MODE) 21

Memory button (MEMORY) 19

(_ Helplreset button (-HELP-RESET) 15,26

Volume control (VOLUME) 14

i i

No. Name Re[. page

(_ Headphone Jack (PHONES) 15

(_ Direct tuning button

(DIRECT TUNING) 16

Speaker select buttons (SPEAKERS) 14

(_ Band select button (BAND) 16

FM mode select button (FM MODE) 16

Input select buttons 14

(_ TapelDCC monitor button

(TAPE/DCC IMONITOR] ) 14,24

Delay time adjust button

(DELAY TIME)

Mutlnglloudness button

(-MUTING- LOUDNESS)

Balance control (BALANCE)

Bass control (BASS)

Treble control (TREBLE)

VCR 2 front Input terminals (VCR 2)

@

23

®

15

(_ VCR 2 Input select button

(VCR 2 INPUT)

14,25

14,25

.

For SA-GX470/SA-G9057

zI

m_

III I

....I....

i,i

I ÷ I

Name Ref. page

(_ Power switch (POWER) 14

(_ Tuning control (TUNING) 18

(_ Band select button (BAND) 16

(_) FM mode select button (FM MODE) 16

(_ Direct tuning button

(DIRECT TUNING) 16

Numeric buttons (1-0) 16,19,20

(_ Remote control signal receptor

(_ DOLBY PRO LOGIC SURROUND

ONIOFF button (SURROUND) 21,22,23

DOLBY PRO LOGIC 3 STEREO

ONIOFF button (3 STEREO) 21,22,23

(_ Test signal ONIOFF button (TEST) 22

Center level adjust button

(CENTER LEVEL) 22

(_ Display

(_ Rear level adjust button

(REAR LEVEL) 22

No. No. Name Ref. page

(_ Center mode select button

(CENTER MODE) 21

(_ Memory button (MEMORY) 19

(_ Treble control (TREBLE) 15

(_ Bass control (BASS) 15

Headphone Jack (PHONES) 15

(_ Speaker select buttons (SPEAKERS) 14

Input select buttons 14

(_ TapelDCC monitor button

(TAPEIDCC [MONITOR I) 14,24

Muting button (MUTING) 1.9

Balance control (BALANCE) 15

Volume control (VOLUME) 14

7

!:r_l.'f,_let'.fdrMl_'__l[et'.(,'lri

Connecting audio equipment

Stereo connection cable (not included)

White (L) _

Red (R)

_r_llF.iir;_ [,=fl_l[_;=eIt4,

Do not place books, etc., on top of this unit so that the heat

radiation vents remain unblocked.

CD changer (or CD player)

(not included)

OUTPU_ '_-.--f

REC(IN)

PLAY (OUT)

Tape deck or digital compact cassette

deck (DCC) (not included)

iJo l o,

© ©°8

_r_r_ r-t

O Oor-r_

Only for turntable

with ground terminal

\

I Antenna terminals

See pages 10 -- 11.

GND

S °

/.x_

rREMOTE

(_ CONTROL

._.L OUT

,,

1

Connection __I

cable for / I OUT

remote control lI d_ _ REMOTE

(not included) / : IN /CONTROL

---_i This unit

t)

,_._..-- ;TPower cords

(not included)

r "1 Tape deck

I'i-i-I I_ J(not included)

"CD changer

(or CD player)

(not included)

[]

"REMOTE CONTROL OUT" terminal

Connect the connection cable for remote control to a

Technics tape deck and/or CD changer (or CD player) which

has the appropriate remote control terminal as shown at the

left.

If a tape deck is not being used, the CD changer (or CD

player) can be connected directly (dotted line).

For atape deck and/or CD changer (or CD player) with a

remote control sensor, this connection is not necessary.

"SWITCHED" AC outlet(s)

Power to these outlets is controlled by the power switch of

this unit. Audio equipment rated up to the indicated power

ratings can be connected here.

For proper remote-control operation

Connect the power cords of the tape deck and CD changer

(or CD player) to these outlets as shown at the left.

Because there is only one AC outlet, connect the power cord

of the CD changer (or CD player) to the AC outlet of the tape

deck.

8

Connecting video equipment

Stereo connection cable (not included) I

White (L)_ I

Red (R)

Second VCR (for playback only)

(not included)

AUDIO

OUT

VIDEO

OUT

connection cable

included)

Monitor TV

(not included)

VIDEO

IN

I_._1

VCR

(not included)

AUDIOIN I

t-:l

' AUDIO VIDEO

OUT OUT

l"V

--'1 MONITOR

iN I OUT

VIDEO

IN

Cooling fan

The cooling fan operates at high

power output levels only,

ACOUTLETS

!

connection cables

(not included)

/_i c power supply cord

ncluded)

Household AC outlet

Connect this cord after (AC 120 V/60 Hz)

all other cables and

cords are connected.

9

FM indoor antenna ¢i.cl.ded FM outdoor antenna .ot i.c .ded

This antenna is normally sufficient for reception of FM broad-

casts.

FM Indoor antenna

(included)

/"" _Adhesive tape

t

_.. 75_ I _1_'%)I

Attach to a wall (using a tape) facing in the direction of best recep-

tion. m

--How to connect an FM Indoor antenna--

(_ Pull off the plastic on the tip of

the antenna wire. _ --_

(_) Twist the wire and connect as _"

shown below.

wire

Twist

For best reception sound quality:

An FM outdoor antenna is recommended.

Disconnect the antenna if an FM outdoor antenna is installed.

The outdoor antenna should be used when using the main unit in

mountainous areas or in spaces enclosed by reinforced concrete

where the FM indoor antenna (included) does not provide

satisfactory reception.

FM outdoor antenna

(not included)

75-ohmscoaxial

(not included)

I.. ..J

An outdoor antenna should be installed by a qualified technician

only.

--How to connect a 7S-ohms coaxial cable--

Pemove a piece of the outer

vinyl insulator. _ _'j

20 mm (25132")

(_ Twist the shield braid to _L S_,eld braid

expose the core wire.

_j_:).__ _-Core wire

10 mm (3/8") _J rCore wire

(_) Connect the shield braid and the

core wire as shown at the right.

AM loop antenna (i.et.d d)

This antenna is normally sufficient for reception of AM broad-

casts.

AM loop antenna

(included)

AMANT

AMLOOPANT

L.. J

Install the AM antenna holder (included) at the rear panel of this

unit and then attach the AM loop antenna to the AM antenna

holder (facing in the direction of best reception).

Rear

of this unit

tab into

the hole and then

push the holder

AM antenna holder

(included)

Pay attention to the following points when mounting the

antenna.

•Do not mount it horizontally (Doing so will impair reception).

•Do not mount it close to power cords, speaker wires or metal

surfaces (Doing so will result in noise).

•Do not mount it close to a tape deck. When the tape deck is be-

ing used. chirping or beeping sounds may result,

When mounting the antenna to acolumn, awall

or rack

Mount it vertically.

_I_AM antenna holder

(included)

Screw (included)

AM outdoor antenna (.or included)

The outdoor antenna should be used when using the main unit in

mountainous areas or in spaces enclosed by reinforced concrete

where the AM loop antenna (included) does not provide satisfac-

tory reception.

AM outdoor antenna

(not included)

Vinyl-covered wire

(not included)

AN

AM LOOPANT

AM loop antenna

, (included)

Use 5-12 m (16-40 ft.) of vinyl-covered wire horizontally at the

window, or convenient location.

When the unit is not in use, disconnect the outdoor antenna to

prevent possible damage that may be caused by lightning. Never

use an outdoor antenna during an electrical storm,

Be sure to connect the AM loop antenna even when an outdoor

antenna is used,

11

Placement of speakers

Aswell as enjoyingnormalstereo reproductionwithboththe left

and rightfront speakersconnected, a center speaker and rear

speakerscan alsobe connectedto themain unit inorderto enjoy

playbackwith a feeling of presence usingthe Dolby Pro-Logic

Systems.

The illustration below shows where to place the speakers when

enjoying sound with Dolby Pro-Logic systems.

The listening position at which the effect isthe greatest is a posi-

tion slightly to the rear of a center position of five-speaker

systems.

However the position should be adjusted to your personal

preference, because the effect varies to some degree depending

upon the type of music and the music source.

Front speaker

(not included)

(Left)

I

Center speaker

(not included)

Front speaker

(not included)

(Right)

Rear speaker

(not included)

(Left)

Rear speaker

(not included)

(Right)

Connection of front speakers

Right speaker Left speaker

(not included) (not included)

(not Thisunit

1 15 mm 2

4, Twist

m

To prevent damage to circuitry,

never short-circuit positive (+) and

negative (-) speaker wires.

• "B" terminals

Forconnectionto a secondpairofspeakers.

•Speaksrimpedance

;l;'Jik'f.'.l[¢f_ _fllOtl,.'t'.ll_|,'ti_ __,

When only the "A" or only the "B" speakers are con-

nected:

The impedanceof the speaker used with this unit must be 4-8

Q.

m

If 4 _speakers are connected, be sure to set the impedance on

the main unit to LOW according to step 2 on page 14.

When both the "A" and the "B" speakers are con.

nected simultaneously:

The impedance of the speaker usedwith this unit must be 8 _.

The impedance ol any speaker used with this unit must be 8_.

]2

Connection of rear speakers Connection of sub woofer

Right speaker Left speaker

not included) (not included)

_/

Before sound can be heard, the SURROUND mode (of the Dolby

Pro-Logic system) must be on and both rear speakers must be

connected.

•Speaker Impedance

The impedance of any speaker used with this unit must be 8Q.

Connection of center speaker

Center speaker

not included) m

Before sound can be heard, the SUR-

ROUND mode or 3STEREO mode (of

the Dolby Pro-Logic system) must be

on.

This unit

Twist

NO l

•Speaker Impedance

The impedance of any speaker used with this unit must be 8 Q.

The sub woofer is connected when bass sounds are inadequately

reproduced because front speakers are too small.

When connected, the sub woofer can be placed in any position.

This unit has no amplifier section designed especially for the sub

woofer, so it is necessary to purchase a sub woofer with a built in

amplifier or buy the two separately.

(not included)_

Sub woofer with

built-in amplifier

(not included)

This unit

SUB

WOOFER

L

Connecting a sub woofer which does not have

abuilt-in amp.tier

Stereo connection cable This untt

not included)

To inputterminal

such as "AUX"

Speaker cable

(not included) /

Amplifier

(not ncluded)

Sub woofer

(not included)

For your reference:

The level of sound output from the sub woofer will always be at 80

Hz or less, regardless of the settings of the speaker select but-

tons on this unit, thus the intensity of the low frequency range will

be maintained,

When adjusting the volume of the sub woofer

After setting the volume control on the sub woofer or on the

amplifier which is connected to the sub woofer, make any further

adjustments with the volume control on this unit.

13

] 2 35VCR 2 INPUT

J

O

POWER

[] I I

i , i, i ,i, ; , i" i , i.;,io i.-J:_

IoI. ,l l oI,-J-I

VOLUMe

TAPEIDCC VOLUME VCR 2 front

input terminals

Before operation, set VOLUME to the "0" position.

_the speaker system(s) to be

_.J used.

_" "_ Aand B refer to the speaker terminals

at the rear of the unit.

I....o_ _-/

I

Illuminates

If the button is pressed once more, the

indicator will switch off and no sound

will be heard from the speakers.

__Press 'tO"seiect 'the des'ired

source.

_kk_ VCR 1: To watch video tapes (VCR 1)

/VCR 2: To watch video tapes (VCR 2)

If you use the VCR connected to

the VCR 2 front input terminals,

press VCR 2 INPUT to the

"FRONT" position.

TAPE/DCC: To listen to tape or

digital compact

cassette (DCC)

The tape monitor in-

dicator will appear.

(See below.)

CD: To listen to compact discs

TUNER: To listen to radio broad-

casts

PHONO: To listen to phono discs

a's]I!-'_',_1t__ _fllUll_'fA-l[lt__ Q.,(;lr411h] nlI

When using speakers with an impedance of 4 Q, press either

button A or button B for 4 seconds or more to set the im-

)edance on the main unit to LOW.

='EA'_"_ I--7 I"') I

Illuminates

(Press once again for 4 seconds or more to turn it off.)

Note that when this indicator is illuminated, speakers A and B

cannot both be used at the same time.

To change aspeaker:

e.g. To use B speaker press A and the [] indicator goes out,

press B to activate the B speaker.

................St..t"ed*;i;,d,,O",Ce.....

(Refer to the appropriate operating in-

structions for details.)

@volume level.

After listening Is finished

Be sure to reduce the volume level, and switch the power to the

standby condition by pressing POWER.

When tape monitor indicator illuminates or Is

flashing

This indicates that the tape monitor function of this unit is ON.

To listen to sources other than a tape or DCC, be sure to turn oft

the indicator by pressing TAPE/DCC _.

Illuminates or is flashing

/

_NJTO ITAPE M_ONIT_R J Ig_t[_

MANUAL

LOG<

® ., O C_. /.. I

Ile ] i_"l'_'1[el)[_ IF4oI_'_'__._DI;9ll,]_,__'._4h[Olk.'.#,__:(;Jri(i

SPEAKERS

BALANCE

VOLUME

J

TF'_(not=luOeO>-.O,,NG/

u, o,o;L =

TREBLE BASS

SPEAKERS O O VOLUME

__, - ....:....:......:...._, _.___.

__ Headphones

| f _(not included) -MUTING BALANCE

Lll mlP'"gtype: I_

1 r 1/4 inch phoneplug O

stereo type

To listen to a desired audio source

while watching avideo

Select the desired video source and audio

source in step 3 on the left.

Be sure to select the video source first.

To adjust the sound balance

BALANCE

OTurn BALANCE to adjust

left/right sound balance.

the

To emphasize low-frequency sound

<_"f,.N[e.)[4ra'Alo#/,.-f,___e')[(.'Jr4ei[,,]inl_

To adjust the tone quality

BASS

(3

TREBLE

(3

Turn BASS to adjust the low-fre.

quency sound.

Turn TREBLE to adjust the high-fre.

quency sound.

To mute the sound level

-MUTING

--LOUDNESS

-MUTING

;I;l"i-_,'_tlt_ ,fl| II1,,,"_,_.1[ _L_]|,1"1

Press-MUTING momentarily.

l,,,m=

:l;1"i,=f-_ett;_,:,_lrdoT/,."f;N[_e:l_Iml,'l__'

Press MUTING.

sPE_..s ....) I"'_ MU_nN_

® " ;__"_" " i

flashing

[,,."f_e,):4rE4oTl,,,."f_'_ _e,)[(.-'Jr4tIK. ]iii

Press once again to return to the previous

volume level. (The muting indicator will turn

off.)

-M_ING Press -LOUDNESS until the

-- LOUDNESS "LOUDNESS" Illuminates.

-', f

Illuminates

Press and hold the button until the

"LOUDNESS" turns off to return to the

previous condition.

i

To listen through headphones

Use VOLUME to reduce the volume level, and

connect the headphones.

If sound from speakers is not wanted, press SPEAKERS (A)

andlor (B) to turn off the speaker select indicators.

Avoid listening for prolonged periods of time to prevent hearing

damage.

If sound output stops during use

-HELP Press .HELP momentarily.

The help function can be used to show. details

of the operations you are expected to make on

the display in character form.

For details, see page 26.

15

Direct access tuning

Specify the frequency using the numeric buttons to directly tune

to the desired broadcast station.

I;1,]m_.'%_e):_V/ol/_ f_'_.e'DIol,_

=[,] R,._.,I[etNrB/oIb'IL,_O;(,'Ir4_

JC

,,Io.

3

I

i'b"[ _ I I

_O-I ,.,,,,r.,, ............

__1_-_-'-' '=" '"; _-"_

T_IIII-I=,I - tTI-I

FM MODE I

2 ] 4

i

_,°' °. JI_1 I J

- ]-- "-

FM MODE I

2 3 14

The procedures described below are an example of SA-GX770/SA-GX670.

, Pr... I°:/

_' ..........,;,;,;_........Pr;;,;;,"_.NDtO;;i.c;;"FM;;o;'AM;'.'................................................

,PAM._,,,_ _("

.,,_. /.-.._f..._ ./ \

Illuminates

_ _ _ _, flashing (approx. 10 " .....................

_seconds)

_ __[:_:] press the approprists numericbUtltonslfthe frequencytOenterhasthSbeenfrequency.inputcorrectly, the fre- MHzlfthe desired FM frequency is 107.9

quency display will blink. [] -'+ [] --* [] "-_ []

]r,,ra_

1. If no button is pressed while the cursor display

is flashing, the display will return to the frequen-

cy which is currently being received. To re-

specify the frequency, repeat the procedure

from step 3.

2. If the frequency has not been input correctly,

an error message will be displayed. In this

case, re-enter the frequency.

®./L.../ /..::;'

Illuminates when tuned

When the FM stereo broadcest Is received:

This unit will automatically switch to FM stereo reception and the

FM stereo indicator will illuminate.

_,.Au,o c=*m'z_ D_)

M_U_UAL

tOC,K

illuminates

If noise Is excessive in the FM stereo mode

Press FM MODE. (The FM stereo indicator will switch off.)

The broadcast will be monaural, but noise will be reduced. If the

button is pressed once more, stereo mode will be resumed.

16

Sequential tuning n_,]_-v,.1_:_m_o_'_,_I_:(.Ti[0m

If the frequency is not known, use the tuning control for sear-

ching.

Auto tuning Manual tuning

This automatically searches for broadcast stations which provide

strong signal reception.

TUNING

J

432 1

The frequency will change only by the amount that the tuning con-

trol is turned.

J

D

,,_o-

,....____...

432 1

pr,. .................

.....B.._".......P;''" ei._ii_to,.;ec;,;i=M,,

_or "AM".

",u.,;,_,,_;,Pr.,_;"i'Ui_ii,iQ'Moi)EtO

select "AUTO".

The I_ mark points to AUTO.

I_ LocKM/_u_'AUTO _1_ t

sP_,_.s f-/ I"'_ 1

_' .....Tu.,_,'_.....TumTUNiNauntiitheire.

quency begins to change.

sAtu:t?_a_sC::l:nStOpswhen a br°adc ast

Tuning may stop automatically if any

jamming is encountered.

....B,_N;_........PF;;,_.Bi,i'ii_io',*i*_t,;i:_i.,

or "AM".

_] ;u.;-;-;;E'/,i,;,_;:"i:UNiNii'"(iiiE""tO

select "MANUAL".

_ The I_ mark points to MANUAL.

LO0( _......... •

..... TUN,'_..... Tum TUNING to tune t0 the

_desired broadcast.

ToUr:i:ntblt:hn:desired br°adcast sta

Tuning Intervals

FM: 200 kHz interval

AM: 10 kHz interval

To lock a broadcast station being received

Press TUNING MODE to select "LOCK".

The I_ mark points to LOCK.

AUTO _LOCK _[lJ

MANUAL ]

During this display, the frequency will not change even if TUNING

is turned.

17

Sequential tuning

If the frequency is not known, use the tuning buttons for sear-

ching.

J

i=_o-6t--'.i=iT -_

2 3 1

P;,,,Tu,E,:.................

_] ......,;;,;,;......Pr,"SAN0to,eiect";FM;'

L_ or "AM".

v _,.;.Q;_ P,.;,,;,v oi_tOt.n;;tO;he

/ I |desiredbroadcast.

.... Tuning intervals

FM: 200 kHz interval

AM: 10 kHz interval

If either button is pressed and held

down until the frequency begins to

change, the broadcast stations can be

tuned automatically when a broadcast

station is found.

Tuning may stop automatically if any

jamming is encountered.

Preset tuning

By presetting the desired broadcast stations into the memory

channels of this unit, broadcast stations can be selected simply

by pressing numeric button(s). (Refer to page 20 for tuning.)

-Before presetting

How many broadcast stations can be preset?

A total of 30 FM and AM stations can be preset.

How Is presetting done?

The two following methods are available.

• Automatic memory presetting

Automatic memory presetting allows this unit to automatical-

ly search for broadcast stations and then preset them into

memory.

With this function, searching proceeds from the frequency

currently being displayed and continues through higher fre-

quencies, (up to 107.9 MHz for FM, up to 1710 kHz for AM)

and broadcast stations are preset in the order in which they

are located.

With this method, the channel ranges that can be preset into

the memory for different bands (FM or AM) are set as

follows.

Channel

r_.-..-_-_-_.-__: .... -- I,,i2ol211_.--_-_--_"_

For FM broadcast stations ........................ 1 -30

For AM broadcast stations ....................... 21-30

If the FM stations (channels 1-30) ere preset and then

the AM stations (channels 21-30) are preset:

Because this unit can accommodate a total of 30 preset

channels, the settings for FM channels 21 - 30 will be replac-

ed by the AM settings which were subsequently preset, and

the channel allotment will be as shown below.

Channel

> < AM_

I- FM

For FM broadcast stations........................I-20

For AM broadcast stations.......................21- 30

• Manual memory presetting

The desired broadcast stations can be preset into the

desired channels by the user.

This can also be used as a method for changing selected

broadcast stations that were preset in "Automatic memory

presetting".

Please remember this:

If anew broadcast station is preset into a channel, the set-

ting for the broadcast station which was previously entered

in that channel will be automatically erased.

18

Automatic memory presetting

J©oO

001 i i ........... L_I

.E_] @ _ _ I T-[l--]'l" I-I-_,l .Q.Q @.©_.@.

_' ................ Sei to tile frequencY from

which you want to start

automatic memory preset.

ting. (Follow steps 1 through 4on

page 16.)

[_ .....E,o.y,P;,5M'eeORYu"t"th'iie-

' _k-'_-_" quency begins to change.

[,, / (Automatic memory presetting will

",,,J start.)

To stop press MEMORY once again.

When a broadcast station is preset

The memory indicator and the preset channel number will be

displayed for approximately 1 second.

D-AUTO O_UU_'Z_

MANUkL

LOCK MEMORY -"'" .

SPe_EASS_OI I/......'

O0 ,. _!

Illuminates

!

When presetting is completed

The last broadcast station to be preset will be displayed.

Correct presetting may not be possible in cases where the broad-

cast waves are too strong or too weak. In such cases, carry out

presetting manually.

Manual memory presetting

J

I..........

a_'--'--_T'"_

i

,,,.

I _." "",,

32

'............... Set tO the desire_J ' broad.

cast.

(Follow steps 1 through 4 on page 16

or 17 or steps 1 through 3 on page 18.)

You can also set the stereo mode to

the monaural position.

_ i',,'_L_''i"Pr''_:MEMO"Ym0m'"t,rJ-

Illuminates

To cancel the memory function, press

MEMORY again.

_iF_ ............... specifythe desired channei

_[_I_]to be preset using the

numeric button(s) (com-

pletes presetting).

(Example: Channel 12)

[] (Within 2 sec.) m []

_AUTO _l

MANUAL

S_E_.E_ f/_..i !\I/

m_ I / / ii\

Off Preset channel

..__.... ,.....,.....,, .:::_

ao L... _t ....

I....... :/

MA_JAL

LOCK

To continue presetting

Repeat steps 1 through 3.

19

Preset tuning _ontl.uem

To listen to preset broadcast stations

f

:

/

I

,i,i ........ =.

';':, :'7'.r'W'_

I-I-I-I N w __,_

Q0©_©

__speclfy the presei channei

using the numeric button(s).

_,_ (Example: Channel 12)

[] (Within 2sec.) "[]

I _AUTO _[_/

MANUAL

LOCK

sPE_<em f"" ! i / \I/

m L.. F) l ii\

bAUTO I_lJ /

LOCK

sP_*_ I"" I /_ '"?

® _.....__ /C

_.Au'ro comrzLOC_ _[_1/

M_NU_

LOCK

To confirm the channel number of the broadcast

station being received

Press TUNFR.

(The channel number will be displayed for about one second.)

m

The channel number is not displayed if you change the reception

frequency or FM mode setting.

For your reference:

Even if the power is switched to the standby condition or the

power cord is disconnected from the household AC outlet, the

contents of the memory will continue to be stored for approx-

imately one month.

If frequency presettings are accidentally erased

Make the frequency presettings once again.

The power cord should remain connected for one hour or more

for the memory back-up to be effective.

20

Adjusting the output level oF each speaker

In order to reproduce the feeling of movement of the sound and

clear orientation of sound, it is important to correctly adjust the

output levels of each speaker. Adjust to the correct levels while

listening to the test signal.

TEST

, , vo,u_ ..... Turn'V'oLOME 'io "set the

volume level normally used

'(_ for enjoying the source.

"E _ Ii I _." ".

.E:]- -@ /_ I-I-I'l_-.li -I1-1-1 .Q._@Q........

1 235 4

(_ (,_ speaker system to be used.

Illuminates

SURROUNDPress SURROUND or 3

]_I STEREO to turn on the

desired mode.

_. / For SURROUND mode

--. _iil lIt i _•

ul )1//..... f"[ ! ._. -............._............•

3STEREO For 3 STEREO mode

II....... Imime

L"!=_ ='=-" •

Press once again to turn it off,

p.,,, CEN+E,LE VELi:iO .

I- I* I(+) or REARLEVEL(-) or

(+) to adjust the output level

L_ balance.

REAR LEVEL While standing in the listening area,

adjust the output levels of each

speaker until they are all identical.

: Decrease the output level.

[_ : Increase the output level.

/I'" -'T

•.Zi " _ -.........................

The output levels can be varied within

a range of -12 dB to +12 dB accor-

ding to the output levels from the front

speakers.

TEST To stop the test signal

Press TEST•

[__ signal.

_'_- ........ -'_ m_ l

LIT(_ I_. _.-.,. I

Test signal sounds sequentially as

follows:

For SURROUND mode

Front speaker _Center speaker

(left) J

t

Rear speakers --Front speaker

(left, right) (right)

For 3 STEREO mode

Front speaker-_--* Center speaker

(left) J

L--Front speaker (right)

22

Adjusting the delay time

[,..1'z_[_[_i4olb.-]r_,1[e-)[(w4i=,]nuL,

_ "it_l_' -va ea=ll-_l.gl:!=[gill _,Ihi.] iZL_I

Adjust SO that the sound from the rear speakers is correctly

oriented.

Enjoying with SURROUND or

3 STEREO

w

I ..... I==i I I IJ

12

J

u

D. _ _ I-l-I---l--l-u .5_5655_

1

_su._.o....P_..,,so,,_Ou.Dt0i.r"o"

I the SURROUND mode.

i _., _,/ __.....i .=_ Do_

_j j// _ n : _- ............_............

DELAYTIMEPress DELAY TIME to set to

[oI the suitable time.

_ I"umi°ates

_w*_ m •

I.._! _ _-. ............_.............

Each time the button is pressed, the

delay time will increase by 5 ms.

To calculate the delay time, refer to

the calculation methods below.

Front Center Front

speaker (L) speaker speaker (R)

Rear

speaker (L)

L1

L2

['_'}R;ar

speaker (R)

•If L1 < L=

Set to 15 ms.

•If L= < LI

Start at 15 ms and increase by 5 ms

for every 5 feet of difference bet-

ween L_ and L_.

[_ ,u.._ND....Pr;;" SbRnOONbor

STEREO to turn on the

__-" desired mode.

For SURROUND mode

or \_/ F __ J._

,)_/ _...../[ ._ ._.-............_.............

3STEREO For 3 STEREO mode

L___J ( '=_

)// /.._ It" I _-. .........._ ..........

Press once again to turn it off.

[_ ..............._i'he,i*sired,O,,c...

When employing SURROUND, use

software which has been recorded

with Dolby Surround.

23

Tape recording on the tape deck or

digital compact cassette deck (DCC)

Before recording, prepare the tape deck or DCC for recording

(recording level adjustment, etc.).

See the tape deck's or DCC's operating instructions for details.

VCR (VCR 1) recording £rom an

audio source

Before recording, prepare the VCR (VCR1) for recording (recor-

ding level adjustment, input selector setting, etc.).

See the VCR's operating instructions for details.

TAPE/DCC

[""1@66

r 1 6," °.

t..... latJit-I .0_.o.__9

I

1

__'_ I, I 8""" """

_!__ •.

1

r-__ ....

................s.,ie_,t.....ih.....;.,€,o_ideo

source to De recoraea.

_ __S.i.c't' t,e.udlo.OU.:€"tO

be recorded.

................6'Ogln";corainoi..............

Follow your tape deck's or DCC's

operating instructions. [_ ................Bi,;g'in,:OcO;.ainoo,,here"

Follow your VCR's operating instruc-

tlons.

................e.gl.....;"O.....,,€,oi,;kie0

source to be recorded. ................'.gl. ti,e..aioso.roetobe

recorded.

To check the sound recorded while recording is

being made

With a tape deck with 3 heads, it is possible to check the sound

recorded on the tape.

Press TAPEIDCC _on this unit and set the monitor button

on the tape deck to "TAPE".

Illuminates

II_AUrO O_TZLOO_ ITAPEI_:)INITQRj I_

MANUAL

LOOK

sP,,_,.e.s If"_ I"'_ I"!

Press TAPEIDCC _ once again to turn it off.

J

Recording from VCR 2 to VCR 1

Before recording, prepare the VCR (VCR 1) for recording (recor-

ding level adjustment, etc.).

See the VCR's operating instructions for details.

There are VCR 2 terminals at both the front and rear of this unit. It

is easier to carry out dubbing from a camcorder if it is connected

to the front terminals.

©o

_L..-.-.-._..: H.-_=

@ 66

1 2

Camcorder

(not included) AUDIO

OUT

[ Pre.vc,=:..................

I "-_ I _,_ .............._ ®(

\\',\ spv_z.s i / I I i ! \

®I/If"[ ,.....

IIREAR,I.FRONTthe VCR for playback.

L_ ................ Begin recording on the VCR

I and playback the tape on

the VCR 2.

Follow your VCR's operating instruc-

tions.

For your reference:

If a laser disc player is connected to the "VCR 2" terminals, recor-

ding from the laser disc player is possible by following the above

procedure.

To record picture from VCR 2 and

sound from adifferent audio source

Before recording, prepare the VCR (VCR 1) accordingly (recor-

ding level adjustment, input selector setting, etc.).

See the VCR's operating instructions for details.

__O_'

.D @ 66

Camcorder 1_

(notincluded)_AUDIO

OUT

[_ i..........i Pr.,;vci_21..................

IV?" If _ _(

\_'_ Is._,_.s I/ f"" I"_ ....}' \

L,J I® _ '-...,T ,.:::; )

_ I.E__ the VCR for playback.

__$eiect t"e audio S0urce to

_be recorded.

[_ ................ :egin recording on theVcR

Follow your VCR's operating instruc-

tions.

................ Begin theaudi; source i; be

recorded and playback the

tape on the VCR 2.

For your reference:

If a laser disc player is connected to the "VCR 2" terminals, recor-

ding a picture from the laser disc player is possible by following

the above procedure.

If you make a mistake in operation or if sound output stops due to

some operation which was performed, the HELP function

displays characters which can be useful for indicating the

method by which this condition can be remedied.

If "ERROR" or scrolling characters (for instance, "TAPE

MONITOR ON NOW") appears on the display during operation,

carry out the following operation.

- HELP

(3

--RESET

/

D

,,0o.

m .....

Do not attempt to remove the cover(s) or repair the unit yourself.

Refer servicing to qualified personnel only.

Product in£ormation

For product service, product information or assistance with pro-

duct operation, refer to the servicenter directory.

-HELP Press -HELP momentarily.

The method for remedying this condition will

be displayed.

For your reference:

If the above button is pressed for a longer period until "RESET"

appears on the display, the operation settings for the unit will be

initialized to the settings made at the time of shipment.

However, any broadcasting stations which have been preset into

memory will not be erased at this time.

26

Before requesting service for this unit, check the chart below for

a possible cause of the problem you are experiencing. Some sire--

pie checks or a minor adjustment on your part may eliminate the

problem and restore proper operation.

If you are in doubt about some of the check points, or if the

remedies indicated in the chart do not solve the problem, refer to

I Problem LProbable causels)

the directory of authorized service centers (enclosed with this

unit) to locate a convenient service center, or consult your

Technics dealer for instructions.

(In U.S.A. consult MSC Authorized Servicenters for detailed in-

structions.)

Suggested remedy J

While listening to FM broadcasts

An unusual hissing noise is

heard when listening to the

broadcast In stereo, but not

heard when listening

monaurally.

Noise Is excessive in both

stereo and monaural broad-

casts.

The FM stereo Indicator Or

the quartz lock indicator

flickers, without completely

illuminating.

Excessive distortion In the

sound of stereo broad-

casts.

A slight noise may be heard because the method

used for modulation of FM stereo broadcasts is

different than that used for monaural broadcasts.

Poor locationandlor directionof the antenna.

Transmittingstationis too far away.

Poor location andlor direction of the antenna.

Transmitting station is too far away.

Nearby building or mountain.

• Try reducing the treble sound by using the treble con-

trol.

• Try changing the location, height andlor direction of

the antenna.

•If an indoor antenna is being used, change to an

outdoor antenna.

• Try using an antenna with more elements.

•Try changingthe location, heightand/or directionof

the antenna.

•If an indoorantenna is beingused, change to an

outdoorantenna.

•Try usingan antenna withmore elements.

While listening to AM broadcasts

An unusual "beat" sound Is Unit is being used at the same time as the •Turn off the television set, or use this unit farther

heard, television set. away from it.

Interference from adjacent broadcast signal. •Try reducing the treble sound by using the treble con-

trol.

A low.pitched "hum" sound The AM loop antenna connection wires are too • Place the antenna connection wires and the power

is heard when the close to the power cord. cord farther apart.

broadcast Is tuned. The power supply frequency from the power cord •Install a special outdoor antenna.

is modulated and heard from the speakers.

A strange hissing noise Is Caused by the "discharge phenomenon" and the •Try placing this unit farther away from such equip-

produced continuously or "oscillation phenomenon" of electric appliances ment.

Intermittently. (such as fluorescent lights, TV, small series-type •Install noise-prevention equipment on this unit or on

motors, rectification equipment, etc.), the electric appliance.

Problems noted at all times

Power will not switch ON. The power cord plug is not completely inserted.

: ' i!i

Sound stops during a

performance, or no sound

is heard when the power is

switched ON.

(The word "OVERLOAD"

appears on the display.)

The DOLBY PRO LOGIC

(SURROUND or 3 STEREO)

indicator and speaker

select indicators (_, [])

are fleshing.

(The word "ERROR"

appears on the display.)

The tape monitor function is ON.

The muting function is ON.

Connections are incomplete or incorrect to the

speaker systems, etc.

The incorrect input selector has been pressed.

The protectioncircuitry hasfunctionedbecause

the positiveand negative speakerconnection

wires are "shorted", speaker,systemswith an

impedancelessthan the indicatedrated

Impedance of this unit are usedor undersevere

use,such as loudvolume,excessivepower andin

an excessivelyhot environment.

Whenthe DolbyPro Logic systemIs ON, bothA

and B speakersare turnd ON.

Whenboth A and B speakersare beingused

simultaneously,the Dolby Pro Logicsystemis

turnedON.

•Confirm that the power cord plug is connected

completely.

you wish to listen and press it one or two times. (The

display will scroll through the causes of the problem.)

Use this display as a guide to remedy the problem.

• Check to be sure that all connection wires are

Correctly connected.

•Check to be sure that the correct selector is

pressed.

•Switch off the power, and after determining and

correcting the cause, switch on the power once

again.

•Use a speaker system of the proper Impedance

rating.

•Turn off the Dolby Pro Logic system or one of the

speakers.

•Turn off one of the speakers.

2?

•AMPLIFIER SECTION

Rated minimum sine wave

RMS power output

20 Hz-20 kHz both channels driven

0.05% total harmonic distortion

[SA-GX770] 125 W per channel (8 Q)

[SA-GX670] 110 W per channel (8 Q)

[SA-GX470/SA-G9057] 100 W per channel (8 _)

1 kHz continuous power output

both channels driven

0.05% total harmonic distortion

[SA-GX770]130 W per channel (8 Q)

[SA-GX670]115 W per channel (8 Q)

[SA-GX470/SA-G9057]103 W per channel (8 Q)

Total harmonic distortion

rated power at 20 Hz-20 kHz 0.05% (8 _)

hall power at 1 kHz 0.03% (8 Q)

Power output at the Dolby Pro Logic operation

0.8% st 1 kHz, Front [SA-GX770] 2x100 W(8Q)

[SA-GX670]2 x 80 W (8Q)

[SA-GX470]2 x 55 W (8Q)

[SA-G9057]2 x 60 W (8Q)

Center [SA-GX770]100 W (8Q)

[SA-GX670]80 W (8Q)

[SA-GX470]55 W (8Q)

[SA-G9057]60 W (8Q)

Rear [SA-GX770]100 W (8Q)

[SA-GX670]80 W (8Q)

[SA-GX470]30 W (SQ)

[SA-G9057]60 W (8Q)

30 (8 _)

Low frequency damping factor

Load Impedance

Aor B [SA-GX770/SA-GX670] 4-8 Q

[SA-GX470/SA-G9057] 8 Q

A and B 8 Q

Dynamic headroom 2 dB (8 Q)

SMPTE Intermodulstlon distortion 0.3% (8 £Z)

Frequency response

PHONO RIAA standard curve +0.8 dB

CD, VCR 1, VCR 2, TAPE/DCC 7 Hz-70 kHz, +3 dB

Input sensitivity

PHONO 0.4 mV (3 mV, IHF '66)

CD, VCR 1, VCR 2, TAPE/DCC 27 mV (200 mV, IHF '66)

S/N (IHF A)

PHONO 70 dB (80 dB, IHF '66)

CD, VCR 1, VCR 2, TAPE/DCC 75 dB (85 dB, IHF '66)

In_)ut impedance

PHONO 47 ka

!CD, VCR 1, VCR 2, TAPFJDCC 22 kQ

iT One controls

BASS 50 Hz, +10 dB to -10 dB

TREBLE 120 kHz, +10 dB to -10 dB

Loudness control (volume at -30 dB)

[SA-GX770/SA-GX670 only] 50 Hz, +9 dB

anssonlc Company, Division of

atsushita Electric Corporation of Amedcs

One Panasonic Way

_ecaucus, New Jersey 07094

enseonlc Sales Company, Division of

atsushlta Electric of Puerto Rico, Inc.

an Gabriel Industrial Park

th Infantry Ave. Km. 9.5

arolina, P.R. 00630

printed In Japan

•FM TUNER SECTION

Frequency range

Sensitivity

50 dB quieting sensitivity

MONO

STEREO

Total harmonic distortion

MONO

STEREO

SIN

MONO

STEREO

Frequency response

Alternate channel selectivity

Capture ratio

Image rejection at 98 MHz

IF rejection at 98 MHz

Spurious response rejection at 98 MHz

AM suppression

Stereo separation

1 kHz

10 kHz

Carder leak

19 kHz

38 kHz

Antenna terminals

•AM TUNER SECTION

Frequency range

Sensitivity

Selectivity

Image rejection at 1000 kHz

IF rejection at 1000 kHz

•VIDEO SECTION

Output voltage at I V Input (unbalanced)

Maximum Input voltage

•GENERAL

Power consumption

Power supply

Dimensions (W x H x D)

Weight

87.9-107.9 MHz

11.2 dBf (2 pV, IHF '58)

18.3 dBf (4.5 pV, IHF '58)

38.3 dBf (45 IJV, IHF '58)

0.2%

0.3%

20 Hz- 15 kHz, + 1 dB,

75 dB

70 dB

-2 dB

65 dB

1dB

45 dB

80 dB

75 dB

50 dB

40 dB

30 dB

-35 dB

-50 dB

75 Q(unbalanced)

530-1710 kHz

20 IJV, 330 pVIm

55 dB

40 dB

60 dB

1-I-0.1 Vp-p

1.5 Vp-p

[SA-GX770] 300 W, 385 VA

[SA-GX670] 280 W, 340 VA

[SA-GX470] 230 W, 300 VA

[SA-G9057] 255 W, 340 VA

AC 120 V, 60 Hz

[SA-GX7701SA-GX670] 430 x158 x 352 mm

(16-15116" x 6-7/32" x 13-27132 u)

[SA-GX4701Sh,-G9057] 430 x 136 x 352 mm

(16-15/16" x 5-11132 _x 13-27/32")

[SA-GX770] 10.1 kg (22.2 lb.)

i[SA-GX670] 9.5 kg (20.9 lb.)

_[SA-GX470] 8.3 kg (18.3 lb.)

[SA-G9057] 8.6 kg (18.9 lb.)

RQT2193-P

H1293C0

Mstsuehlte Electdc of Canada Limited

5770 Ambler Drive, Mississauga,

Ontar o L4W 2T3

Psnasonlc Company (West) of Amedce, Division of

Matsushlta Electric Corporation of America

6550 Katella Ave.

Cypress, CA 90630

Notes:

1. Specifications are subject to change without notice). Weight

and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.
