Panasonic
SL-SW965V
DearCustomer
Thank you for purchasing
this product.
Before connecting,
operating or adjusting this
product, please read these
instructions completely.
Please keep this manual
for future reference.
DIGITALAUDIO
Panasonic Consumer ElectronicsCompany,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.eom
RQT7551-P
F0204TR0
Themodelnumberandserialnumberof this productcanbe foundoneither
thebackorthe bottomof the unit.
Pleasenotethem inthespaceprovidedbelowandkeepfor futurereference.
MODELNUMBER SL-SWg65v
SERIALNUMBER
Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")
Ave. 65 de Infanteria, Km. 0.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ea
2004 Matsushita Electric Industrial Co., Ltd.
Printed in Japan

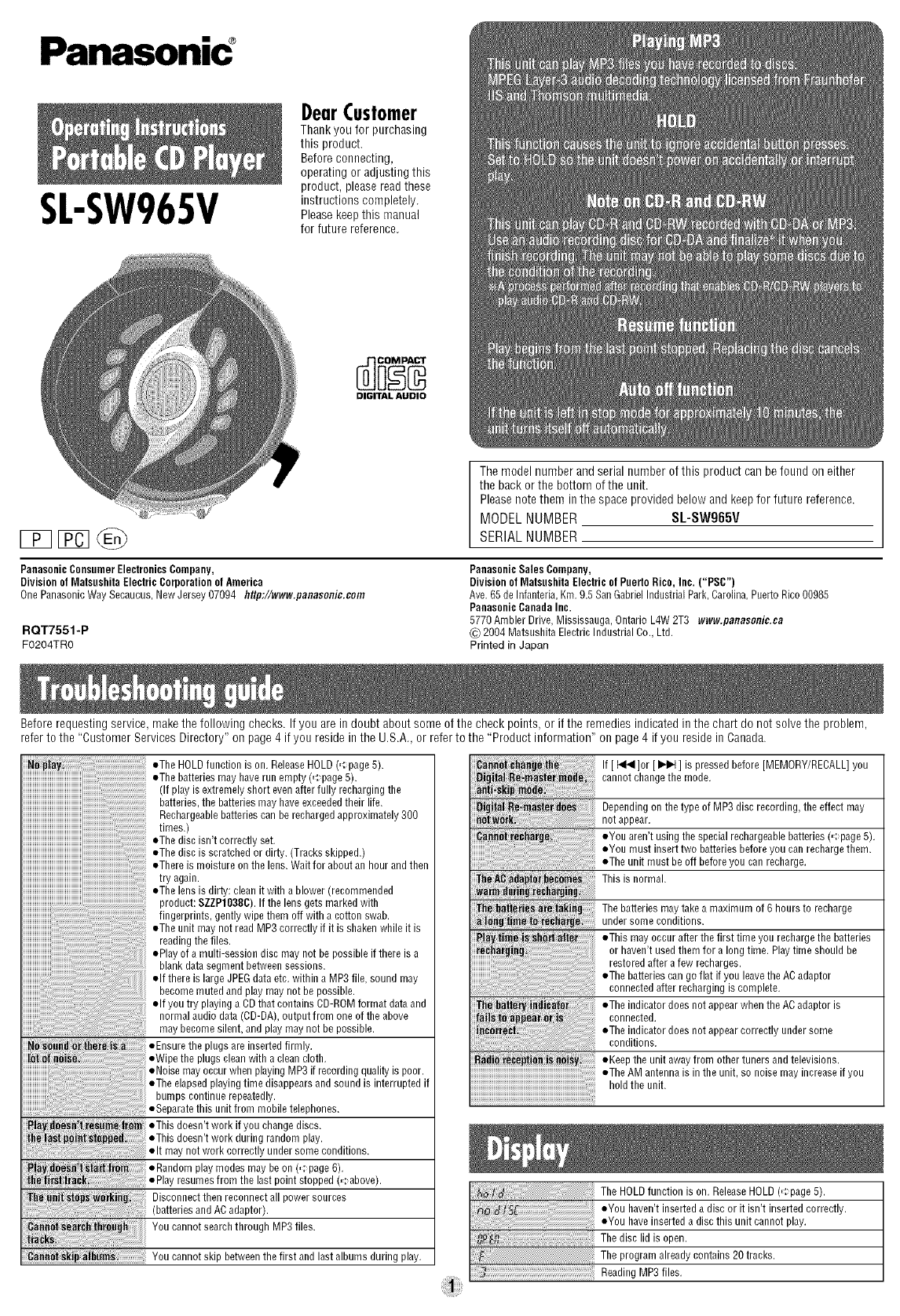

Before requesting service, makethe following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem,
refer to the "Customer Services Directory" on page 4 if you reside in the U.S.A. or refer to the "Product information" on page 4 if you reside in Canada.
The HOLD function is on. Release HOLD (..';page 5).
eThe batteries may have run empty (,:_page 5).
(If play is extremely short even after fully recharging the
batteries, the batteries may have exceeded their life.
Rechargeable batteries can be recharged approximately 300
times.)
eThe disc isn't correctly set.
eThe disc is scratched or dirty. (Tracks skipped.)
eThere is moisture on the lens. Wait for about an hour andthen
try again.
eThe lens is dirty: clean it with a blower (recommended
product: SZZP10380). If the lens gets marked with
fingerprints, gently wipe them off with a cotton swab.
eThe unit may not read MP3 correctly if it is shaken while it is
reading the files.
ePlay of a multi-session disc may not be possible if there is a
blank data segment between sessions.
elf there is large JPEG data etc. within a MP3 file, sound may
become muted and play may not be possible.
elf you try playing a CD that contains CD-ROM format data and
normal audio data (CD-DA), output from one of the above
nlay become silent, and play nlay not be possible.
eEnsure the plugs are inserted firmly.
eWipe the plugs clean with a clean cloth.
eNoise may occur when playing MP3 if recording quality is poor.
eThe eapsed p ay ng t me d sappears and sound s nterrupted f
bumps continue repeatedly.
oSeparate this unit from mobile telephones.
doesn't work if you change discs.
oThis doesn't work during random play.
olt may not work correctly under some conditions.

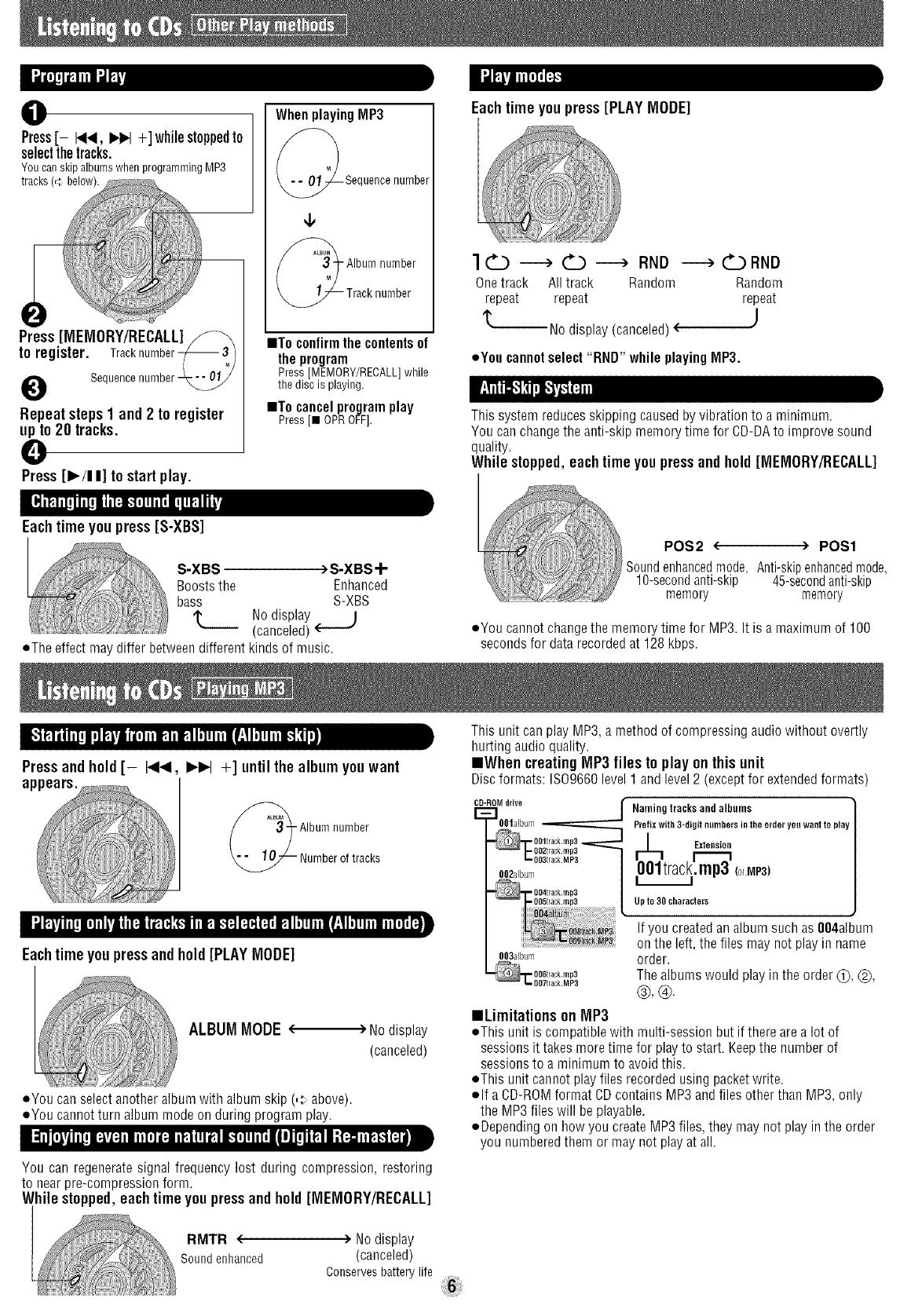

play modes may be on (,'.'page 6).
oPlay resumes from the last point stopped (,'.,above).
Disconnect then reconnect all power sources
(batteries and AC adaptor).
You cannot search through MP3 files.
You cannot skip between the first and last albums during play.
If [ t_ ]or [ I_ ] is pressed before [MEMORY/RECALL] you
cannot change the mode.
Depending on the type of MP3 disc recording, the effect may
not appear.

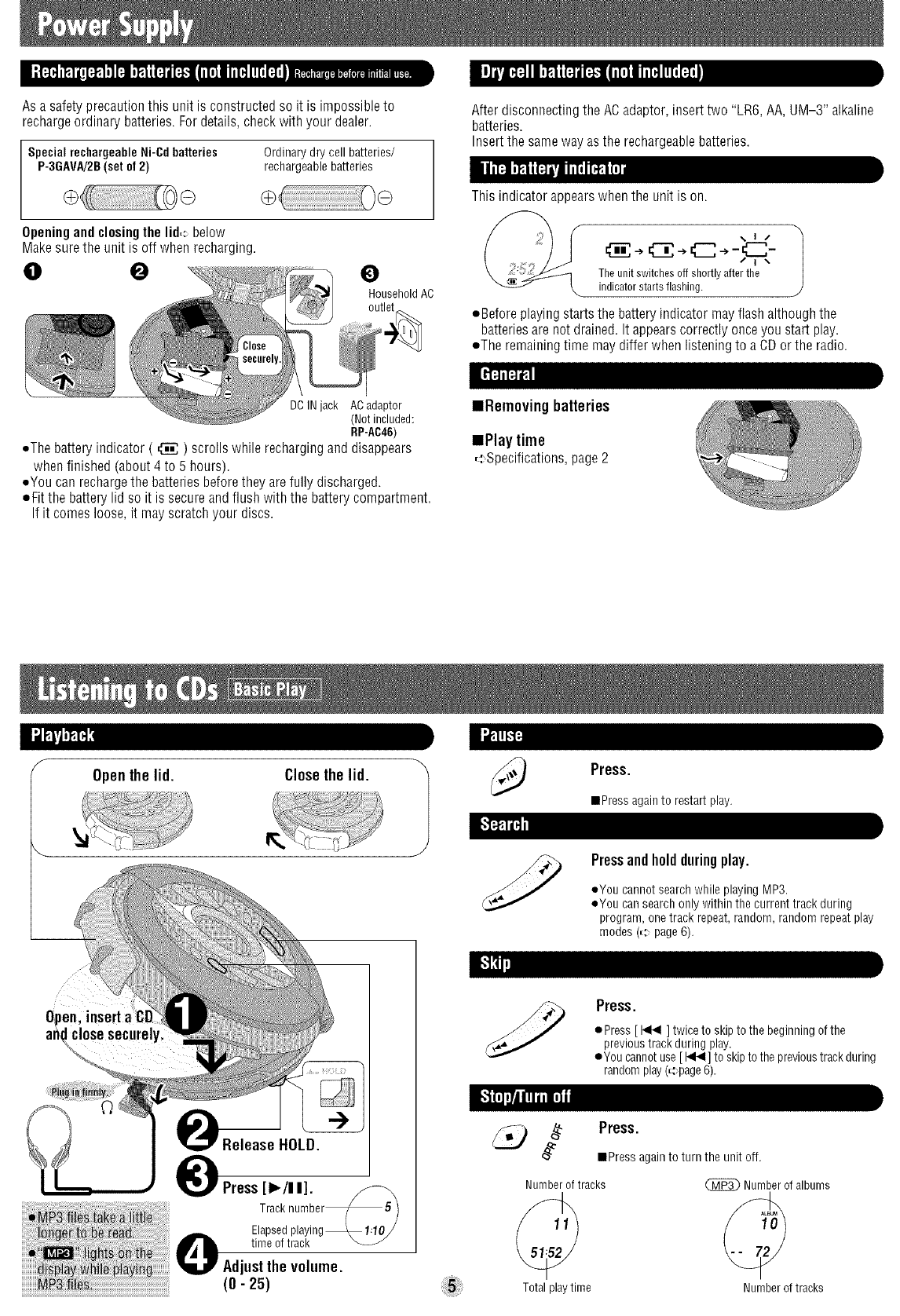

eYou aren't using the special rechargeable batteries (,'.page 5).
oYou must insert two batteries before you can recharge them.
oThe unit must be off before you can recharge.
This is normal.
The batteries may take a maximum of 6 hours to recharge
under some conditions.
eThis may occur after the first time you recharge the batteries
or haven't used them for a long time. Play time should be
restored after afew recharges.
oThe batteries can go flat if you leavethe ACadaptor
connected after recharging is complete.
eThe indicator does not appear when the AC adaptor is
connected.
eThe indicator does not appear correctly under some
conditions.
eKeep the unit away from other tuners and televisions.
eThe AM antenna is in the unit, so noise may increase if you
hold the unit.
The HOLDfunction is on. Release HOLD (,:;page 5).
oYou haven't inserted a disc or it isn't inserted correctly.
oYou have inserted a disc this unit cannot play.
The disc lid is open.
The program already contains 20 tracks.
Reading MP3 files.
Tuning/Skip/Search
Lock/
Lockrelease
Lens
Battery
compartment
Headphone jack
Plugtype:
3.5 mm (1/8
BUsingheadphones
Headphones
Sensitivity control/Play mode selection
Monaural/Stereo To DO IN jack
splay panel :'{"" '_ AC adaptor (RP-AC46)(notincluded)_Connectthe ACadaptor to
Memory/Recall/Digital Re-master/ i the household AC outlet first.
Anti-skip mode selection
Sound quality selection ', Car power adaptor
(SH-CDCg) (not included)
Volume control You can recharge the batteries with this
connection.
Noise may occur when using the car
power adaptor and listening to the radio.
To headphonejack (O)
(-_ Carstereo cassette adaptor
[ (SN-CDMIOA) (not included)
....... Set the unit's volume to 10-15.
Audio cable (not included)
Setthe unit's volume to 10-15.
To CDor AUX
terminals
Rubbercap
Hold switch
Household
AC outlet
Car audio
Somecannotbe
connected.
Audiosystem
Adjustthe volume on
the audiosystem.
Tuning mode selection',
Tuner on/Band selection
Play/Pause
Stop/Turn off
iRubber cap
Checkthe packingcartonfor these accessories.
el Pairofstereoheadphones:LOBADOOOO168
1 Band strap: RGQTOOO6-KI_,_ ->_1
Use numbersindicatedwhenOideringreplacementsoroptionalaccessories
fromYourPanasonicdealer.
InU.S.A.toorderaccessoriesrelerto"AccessoryPurchases"onpage4.
CDSECTION
IICD-DA
Sampling frequency: 44.1 kHz
No. of channels:
2 (left and right, stereo)
Headphoneoutput level:
RMS max. 6 roW+6 roW/
16 D(adjustable)
Frequencyresponse:
20 Hzto 20,000 Hz
(0 dB to -3.5 dB)
lIMP3
Supported bit-rates:
32 kbps to 320 kbps
(128 kbps is recommended)
Supported sampling frequency:
48 kHz/44.1 kHz/32 kHz
Maximum number of items
(total no. of albums and tracks): 999
Maximum album levels: 100
==Pickup
Light source: Semiconductor laser
Wavelength: 780 nm
RADIOSECTION
==Frequency
Radio frequency:
FM; 87.90-107.90 MHz
(0.2 MHz steps)
87.50-108.00 MHz
(0.1 MHz/O.05MHz steps)
AM;520-1710 kHz
(10 kHzsteps
522-1629 kHz
(9 kHz steps)
GENERAL
Power supply:
DC input (AC adaptor, not included):
DC4.5V
Operational temperature range:
0 °C-40 °C (32 °F-104 °F)
Rechargeabletemperature range:
5 °C-40 °C (41 °F-104 °F)
Play time:
Using on aflat stable surface at 25 °C
(77 °F), S-XBS is off, Hold is on, Anti-
skip is on POS1 (CD-DA),
recommended bit rate (MP3:128 kbps),
and Digital Re-master is off (MP3). Play
times are in hours and approximate.
iiiiiiiiiiiiiiiiiiiiiiii_i_!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_!_!_!_!_!_!_!_!_!_!_!ii
2 optional 75 33 75
alkalinebatteries
2 optional
rechargeable 34 16 30
batteries
Recharging time: About 4 to 5 hours
eThe play time may be less depending
on the operating conditions.
ePlay time will be considerably
reduced when playing CD-RW.
Dimensions (WxHxD):
142x29.7x142 mm
(5%¢ x 13/_6"x 5%¢)
Mass:
336 g (11.9 oz.)(with batteries)
290 g (10.2 oz.)(without batteries)
Note:
Specifications are subject to change
without notice.
Mass and dimensions areapproximate.
Readthese operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed
below. Keepthese operating instructions handy for future reference.
1) Readtheseinstructions. 12)
2) Keeptheseinstructions.
3) Heedallwarnings.
4) Followallinstructions. 13)
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
5) Donot usethis apparatusnearwater.
6) Cleanonlywithdry cloth.
7) Donot blockanyventilationopenings.Installin accordancewiththe
manufacturer'sinstructions.
14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has beendamagedin anyway,
such as power-supply cord or plug is damaged, liquid has
beenspilled or objects havefallen into the apparatus, the
apparatus hasbeenexposedto rain or moisture, does not
operate normally, or has been dropped.
8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeatthe safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding-type plug hastwo blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacementof the obsolete outlet.
10) Protectthe powercordfrom beingwalkedonor pinchedparticularly
at plugs,conveniencereceptacles,andthe pointwheretheyexit
from theapparatus.
11) Onlyuseattachments/accessoriesspecifiedby themanufacturer.
==WaterResistant(Splash Proof)
The main unit and headphonesare splash proof, however damagemay
result if water gets inside them.
=Do not use in water or splash with salt water or a lot of water.
=Wipe off water, dust or sand from the unit before opening and closing
the lid.
=Slide the lock to close the lid securely.
=Insert the rubber caps into the headphoneand DC IN jacks when not
using the unit.
iBatteries
=Do not peel off the covering onthe batteries and do not use if the
covering has been peeledoff.
=Align the poles + and - correctly when inserting the batteries.
=Do not mix different types of batteries or old and new batteries.
=Remove the batteries if you do not intend to usethe unit for a long time.
=Do not throw into a fire, short-circuit, disassemble, or subject to
excessive heat.
=Do not attempt to recharge dry cell batteries.
=When carrying batteries in a pocket or bag, ensure no metal objects
such as necklacesare placedtogether with them. Contact with metal
may cause short-circuiting which can causea fire.
mODs
=Do not use irregularly shaped CDs.
=Do not use non-specification discs.
=Do not use CDs printed with label printers available on the market.
=Do not use CDswith labels and stickers that are coming off or with
adhesiveexuding from under labels and stickers.
mListening
Do not play your headphones or earphones at a high volume. Hearing
experts advise against continuous extended play.
If you experience a ringing in your ears, reducevolume or discontinue
use.
Do not use while operating a motorized vehicle. It may createa traffic
hazard and is illegal in many areas.
You should use extreme caution or temporarily discontinue use in
potentially hazardoussituations.
Evenif your headphonesor earphones are the open-air type designed to
let you hear outside sounds, don't turn upthe volume so high that you
can't hearwhat's around you.
Sound can be deceiving. Overtime your hearing "comfort level" adaptsto
higher volumes of sound. So what sounds "normal" can actually be loud
and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFOREyour
hearing adapts.
To establish a safe level:
=Start your volume control at a low setting.
=Slowly increasethe sound until you can hearit comfortably and clearly,
and without distortion.
Onceyou haveestablished a comfortable sound level:
=Leave it there.
==Allergies
Discontinueuseif you experiencediscomfortwiththeearphonesorany
otherpartsthatdirectlycontactyour skin.Continuedusemaycause
rashesorotherallergicreactions.
WARNING:
TOREDUCETHERISKOFFIRE,ELECTRICSHOCKORPRODUCT
DAMAGE,DONOT EXPOSETHIS APPARATUSTO RAIN, MOISTURE,
DRIPPINGORSPLASHINGANDTHATNOOBJECTSFILLEDWITH
LIQUIDS, SUCHASVASES,SHALLBE PLACEDONTHE
APPARATUS.
CAUTION!
THISPRODUCTUTILIZESALASER.
USEOFCONTROLSORADJUSTMENTSORPERFORMANCEOF
PROCEDURESOTHERTHANTHOSESPECIFIEDHEREINMAY
RESULTIN HAZARDOUSRADIATIONEXPOSURE.
DONOTOPENCOVERSANDDONOTREPAIRYOURSELF.REFER
SERVICINGTOQUALIFIEDPERSONNEL.
CAUTION:
Use only car adaptor, Model: SH-CDC9
manufactured by Matsushita Electric Industrial Co., Ltd.
Marking sign is located on bottom of the unit. I
THE FOLLOWINGAPPLIESONLYIN THE U.S.A.
CAUTION:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCCRules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which CaRbe determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
eReorient or relocate the receiving antenna.
elncrease the separation between the equipment and receiver.
eConnect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
eConsult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the
user's authority to operate this device.
This device complies with Part 15 of the FCCRules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Product service
1. Damage requiringservice--The unit should be serviced by qualified service
personnel if:
(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids havegotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in
performance; or
(e) The unit has been dropped or the cabinet damaged.
2. Servicing--Do not attempt to servicethe unit beyondthat described in these
operating instructions. Referall other servicing to authorized servicing personnel.
3. Replacementparts--Whenparts needreplacingensurethe servicerusesparts
specifiedbythe manufactureror partsthat havethe samecharacteristicsas the original
parts.Unauthorizedsubstitutesmayresultin fire, electricshock,orother hazards.
4. Safetycheck--After repairs or service, ask the servicer to perform safety
checks to confirm that the unit is in proper working condition.
Product information
For product information or assistancewith product operation:
In the U.S.A.,referto "CustomerServicesDirectory" below.
For assistance inthe continental U.S.A.in obtaining repairs pleaseship the product to:
Panasonic Services Company- CustomerServicenter
Suite B 4900 George McVay Drive
McAIlen, TX 78503
In Puerto Rico contact the Panasonic Sales Company.
Tel. (787) 750-4300 Fax. (787) 768-2910
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and
provide a day time phone number whereyou CaRbe reached.
IF REPAIRIS NEEDEDDURINGTHEWARRANTYPERIODTHE PURCHASERWILL
BE REQUIREDTO FURNISHA SALESRECEIPT/PROOFOF PURCHASE
INDICATINGDATE OFPURCHASE,AMOUNT PAIDAND PLACEOF PURCHASE.
CUSTOMERWILL BECHARGEDFORTHEREPAIROF ANY UNIT RECEIVED
WITHOUTSUCH PROOF OFPURCHASE.
Also, the purchaser will be responsible for shipping the unit to the above address.
In Canada,contact the Panasonic CanadaInc. Customer CareCentre at 905-624-
5505, or visit the website (www.panasonic.ca), or an authorized Servicentre
closest to you.
User memo:
DATEOFPURCHASE
DEALERNAME
DEALERADDRESS
TELEPHONENUMBER
Paeasonic Consumer Electronics Company, Panasonic Sales Company, Division of Matsoshita Electric
Division of Matsushita Electric Corporationof America ONLY FOR U.S.A. of Puerto Rico, Inc.,
One Panasonic Way Secaucus, New Jersey 07094 Ave. 65 de Infanteria, Krn. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio Products Limited Warranty
Limited Warranty Coverage IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIREDTO FURNISH
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor") will, for the
length of the period indicated oil the chart below, which starts with the date of original purchase ("wan_nty
period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new
or a refurbished product. The decision to repair or replace will be made by the warrantor.
Product or Part Name Parts Labor
All Portable Audio P_oducts except item listed One (1) Year One (1) Yea_
below
Rechargeable batteries Ten (10) Days Not applicable
(in exchange for defective item)
During the "Labor" wananty period there will be no charge for labor. During the "Parts" warranty period, there
will be no cbarge for parts. You must maiHn your product during the warranty period. This Limited Warranty
excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This wan_nty only applies
to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the
original purchaser of a new product which was not sold "as is".
Mail-In Service
Fol assistance hi the continental U.S.A. ill obtaining l_pabs please ship tile ploduct to:
Panasonic Services Company
Dustomer Servicenter
Suite B
4900 George McVay Drive
McAlien, TX 78503
FoEassistance in Pue[to Rico call Panasonic Sales Colnpany (787)-750-4300 o[ fax (787)-768-2910.
When shipping the unit carefully pack and send it prepaid, adequately insured and pi_fei_bly in the original
carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.
ttt. .. D. ti
Obtain Produd Information and Operating Assistance; locate your nearest Dealer
or Servicenter; purchase Parts and Accessories; or make Customer Service and
Literature requests by visiting our Web Site at:
http://www.panasonic, corn/support
or, contact us via the web at:
http://www.panasonic, com/contactinfo
You may also contact us dired[y at:
1-800-211 -PANA (7262),
Monday-Friday 9 am-9 pro; Saturday-Sunday 10 am-7 pro, EST.
." ti" it
For hearing or speech bnpaired TTY users, TTY :1-877-833-8855
A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE AMOUNT PAID AND PLACE OF
PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH
PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This wananty ONLY COVERS failures due to defects in materials or wolkmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES['dOTCOVER damages which occurred in
shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from
accidents, misuse, abuse, neglect, mishandling, misappNcation, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage,
modgication, introduction of sand, humidUy or liquids, commercial use such as hotel, office, restaurant, or
other business or rental use of the product, or service by anyone other than a Facto[y Servicenter or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARENO EXPRESS WARRANTIES EXCEPTAS LISTED UNDER "LIMITED WARRANTY COVERAGE".
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIALDAMAGES RESULTING FROM THE
USE OFTHIS PRODUCT, ORARISING OUT OF ANY BREACHOF THIS WARRANTY. (As exalnpies, this excludes
damages for lost time, travel to and from the servicel loss of or damage to media or images, data o_ other
memory or recorded content. The items listed are not exclusive, but are for illusDation only.)
ALL EXPRESS AND IMPLIED WARRANTIES. INCLUDING THE WARRANTY OF MERCHANTABILITY. ARE
LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion ol li[nUation of incidentalor consequential damages, or lilnUations oll how
longan implied wananiy lasts, so the exclusions may not apply to you. This wauaiUy gives you specific legal
rights and you may also have other rights which va_?from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to
your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.
PARTSAND SERVICE, WHICH ARENOT COVEREDBY THIS LIMITED WARRANTY,ARE YOUR RESPONSIBILITY.
Purchase Parts, Accessories and ll_structiol_ Books unitize for all Panasonic Products by visiGng our
Web Site at: btro://www.oasc.oanasonic.com
or, send your re;tuest by I_-maU'to: nprparts@panasonic.com
1-800-332-5368 (Phonef 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 8 pro, EST.)You nlay also contact us directly at:
Panasonic Services Company
20421 84rh Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, aim Personal Checks)
For hearing or speecb impaired TTY users, TTY :1-866-605-1277 I
Matsusbita Uectric of Puerto Rico, Inc. Panasonic Sales Company/l-_tctory Servicenter:
Pbot?e (787)750-4300, kax (787)768-2910
Ave. 65 de Itffanterf, t, Kin. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985
F1003
As a safety precaution this unit is constructed so it is impossible to
recharge ordinary batteries. Fordetails checkwith your dealer.
SpecialrechargeableNi-Cdbatteries
P-3GAVA/2B(setof 2)
Ordinary dry cell batteries/
rechargeable batteries
After disconnecting the AC adaptor, insert two "LR6, AA, UM-3" alkaline
batteries.
Insert the same way as the rechargeablebatteries.
Openingand closingthe lid,: below
Make sure the unit is off when recharging.
0
HouseholdAC
outlet
This indicator appearswhen the unit is on.
%1/
C--,C.
The unit switches off shortly after the
indicator starts flashing.
Beforeplaying starts the battery indicator may flash although the
batteriesare not drained. It appearscorrectly onceyou start play.
eThe remaining time may differ when listening to a CD or the radio.
DCINlack ACadaptor
(Notincluded:
RP-AC46)
Thebattery indicator ( _ ) scrolls while recharging and disappears
when finished (about 4 to 5 hours).
oYou can rechargethe batteries before they are fully discharged.
oFit the battery lid so it is secure and flush with the battery compartment.
If it comes loose, it may scratch your discs.
==Removingbatteries
==Playtime
,_Specifications,page2
f
Openthe lid.
Close the lid. 1
Press.
nPressagainto restartplay.
Pressandholdduringplay.
oYou cannot search while playing MP3.
oYou can search only within the current track during
program, one track repeat, random, random repeat play
modes (,:_ page 6).
Press.
Press [ I_ ] twice to skip to the beginning of the
previoustrack during play.
oYou cannot use [1_4] to skipto the previoustrack during
random play(,:#page6).
Press.
nPress again to turn the unit off.
Numberof tracks
Totalplaytime
(_ Numberof albums
Numberoftracks
_ FJft41
0
Press[- I_, I_ +] whilestoppedto
selectthetracks.
YoucanskipalbumswhenprogrammingMP3
tracks(,; below).
Press [MEMORY/RECALL]f-_
to register. Tracknunrberi_z_ 3)
O Sequencenunrber_"_
Repeat steps1 and2 to register
up to 20 tracks.
0
Press [1_/! !] to start play.
When playing MP3
Sequencenunrber
¢
-Album number
- Track number
iTo confirmthe contentsof
the program
Press[MEMORY/RECALL]while
thediscisplaying.
iTo cancel program play
Press[I OPROFF].
Eachtime you press [S-XBS]
S-XBS ) S-XBS-I'-
Boosts the Enhanced
bass S-XBS
L No display
(canceled) _')
eThe effect may differ between different kinds of music.
Press and hold[- 1.4<1,I_ +] untilthe album youwant
appears.
Eachtime youpress [PLAYMODE]
10 ----) 0 _ RND ---->ORND
Onetrack Alltrack Random Random
repeat repeat repeat
'_ Nodisplay(canceled)(
eYou cannotselect "RND" while playing MP3.
Thissystemreducesskippingcausedbyvibrationto aminimum.
Youcanchangethe anti-skipmemorytimefor CD-DAto improvesound
quality.
While stopped,eachtime youpressandhold [MEMORY/RECALL]
POS2 ( )POS1
Soundenhancedmode,Anti-skipenhancedmode,
lO-secondanti-skip 45-secondanti-skip
memory memory
You cannot changethe memory time for MP3. It is a maximum of 100
seconds for data recorded at 128 kbps.
_ Album number
Numberof tracks
i '-i_--_-i, n,] ilif] h'T_iI'k'T'_:_ iii,:!,,_:]F4"_I_ g_'ll,]!1iin |:| i,1!ii ili il,], i_li
Eachtime youpress andhold[PLAYMODE]
ALBUM MODE ( ) Nodisplay
(canceled)
Youcanselectanotheralbumwithalbumskip(,_ above).
eYoucannotturn albummodeon duringprogramplay.
Iq__ I_1£_]iln[,] ddliP,II!I P,IIH,]!IiI,I! II_l_ _ I :l:g nP,I_t(_il
Youcan regeneratesignalfrequencylost duringcompression,restoring
to nearpre-compressionform.
Whilestopped,eachtime youpress andhold[MEMORY/RECALL]
RMTR ( ) No display
Soundenhanced (canceled)
Conservesbatterylife
This unit can play MP3,a method of compressing audio without overtly
hurting audio quality.
==WhencreatingMP3 files to play on this unit
Disc formats: IS09660 level 1 and level 2 (except for extended formats)
CO-RUM drive Naming tracks and albums ]
/
Prefixwith3-digitnumbersinthe orderyouwantto play
O01track.mp31o_MP3)
L__I
-OC2track.mp3
O02afbum
-O04track,mp3
-OCSlrack.lrip3 Up to 30 characters
If you created an album such as O04album
on the left, the files may not play in name
O03album order.
-oo6t_aok.,r,p3 The albums would play in the order (_, @,
3O7track.MP3 ®,®.
iLimitations on MP3
eThis unit is compatible with multi-session but if there are a lot of
sessions it takes more time for play to start. Keepthe number of
sessions to a minimum to avoid this.
eThis unit cannot play files recorded using packet write.
=,If a CD-ROMformat CD contains MP3 and files other than MP3, only
the MP3 files will be playable.
=,Dependingon how you create MP3 files, they may not play in the order
you numbered them or may not play at all.
Release HOLD.
Press to turn the tuner on andchange the band.
Eachtimeyoupressthebutton;
FM_ AM
,,When"M" is displayed,press[TUNINGMODE]to cancelit,
Press to select the station.
Pressandholdto scanthe stationsrapidly.
• "TUNED"appearswhentuned.
QAdjustthe volume.
Toturn off the radio
Press[" OPROFF].
]i_,ipmp]iFj P:ITIII _I
Storestationsto memory Listeningto a memorizedstation
Storethe frequenciesof upto 30 stations;20 FMand10AM. 1
1 2
Release HOLD
__ 3
Pressto turn the
tuner on and
changethe band.
Eachtimeyou press
the button;
FM_ AM
Press to display
©
Storestationsto memory. /_
(_Press[MEMORY/RECALL].
Doeachof thefollowingwithin10seconds.
@Press[- I,<,<, I_1_1+] toselectthefrequency.
Pressandholdto scanthe stationsrapidly.
_Press [MEMORY/RECALL].
Press[- I,<,<, I_1_1+] to selectthememorynumber.
• Pressandholdto changeincrementally. I _.--_-_
(_Press [MEMORY/RECALL]to confirmthesettin
Perform steps0 to Qon the left ofthe page.
Press [- I,<,<, I_1_1+] to select the memorizedstation.
,Press and hold to change incrementally.
-"TUNED" appearswhen tuned.
Adjustthe volume.
Erasinga memorizedstation
1Performsteps0 toQonthe leftofthepage.
2Press[- I<<, IH_l +] to selectthememorizedstationto be
erased.
3Press[MEMORY/RECALL].
Thefrequencynumberflashes.
Doeachofthe followingwithin 10seconds.
4Pressandhold[MEMORY/RECALL]until"-- - -" flashes.
5Press[MEMORY/RECALL]. _/
r;l,Tm
AM
Tryvariousdirectionsto obtain
optimumreception.
FM
Theheadphonecordis also
the FM antenna, so extend it instead of leaving it coiled.
Setto "CITY"if receptionispoororif thereis interferencefromanotherstation.
Eachtime youpressandhold[FM RECEPT,,,,CITY/NOR]
CITY () No display
(canceled)
Setto "MONO"whenthereis noiseduringFMreception.
Soundbecomesmonaural,butnoiseis reduced.
Eachtime youpress[FMMONO/ST]
MONO ( )Nodisplay
(stereo)
Theoperation isthe same as when playing CDs. (,: page 6)
Changethe frequency step according to the area.
Preparation: Press [RADIO/BAND]to switch on the power.
0
Pressand hold[RADIO/BAND]
untilthe step appears.
O
Within 10 seconds
Pressto select the step.
Eachtimeyou press[- I,_,_, I_1 +]
U0.2 () U0.1 ( ) E
FM0.2 MHz, FM 0.1 MHz, FM 0.05 MHz,
AM 10 kHz AM 10 kHz AM 9 kHz
(original setting)
t
0
Within10seconds
Press andhold [MEMORY/RECALL]untilthe frequencyappears
to confirm the step.
To returnto the previous frequency step
Repeatthe aboveprocedure.
eChangingthe steperasesthe stationsyoustoredin memory.
RQT7551

Navigation menu
