PanasoniC

42"/50" Operating Instructions

Class 1080p Plasma HDTV

(41.6/49.9 inches measured diagonally)

Model No. TH-42PZ80Q

TH-5OPZ80Q

(See page 6-17)

For assistance (U.S.A./Puerto Rico), please call:

1 =877=95=VIERA (958=4372)

or visit us at www.panasonic.com/contactinfo

Java

POWERED

I English ! Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only. TQB2AA0798

Turn your own living room into a movie theater!

Experience an amazing level of multimedia excitement

This device contains a digital television tuner, so it should receive digital over the air TV programming, with a suitable

antenna, after the end of full-power analog TV broadcasting in the United States (as required by law) on February 17,

2009. Some older television receivers, if they rely on a TV antenna, will need a TV Converter to receive over the air digital

programming, but should continue to work as before for other purposes (e.g., for watching low-power TV stations still

broadcasting in analog, watching pre-recorded movies, or playing video games). When a Converter is used with an older

television receiver, a signal splitter might be necessary to continue [o receive low-power analog broadcasts via an antenna

For more nformation, please see www.DTV gov. For information on the TV Converter program, and on government

coupons that may be used toward the purchase of one. see www.dtv2009.gov, or call the NTIA at 1-888-DTV-2009. Please

check with your cable or satellite service provider if you have questions about your cable or satellite set-top box

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other

limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

<[ru2way>

tru2wayTM is a trademark of Cable Television

Laboratories, Inc.

Vlf I.i kTM

VlERA LinkTM is a trademark of Panasonic

Corporation.

SDHC Logo is a trademark.

HDAVI Control TM

HDAVI ControP is a trademark of Panasonic

Corporation.

Java

POWERED

Java and all Java-based trademarks

and Iogos are trademarks or registered

trademarks of Sun Microsystems, Inc. in the

United States and other countries.

i ii_i iii _i _ _i ii i

Camcorder

_-vcR -

Amplifier DVD played

Home theater Blu-ray Disc player

system

DVD recorded

Disc recorder

Contents

Please read before using the unit

® Safety Precautions ....................................... 4

® Notes ............................................................ 5

Enjoy your TV!

Basic Features

® Watching TV ............................................... 18

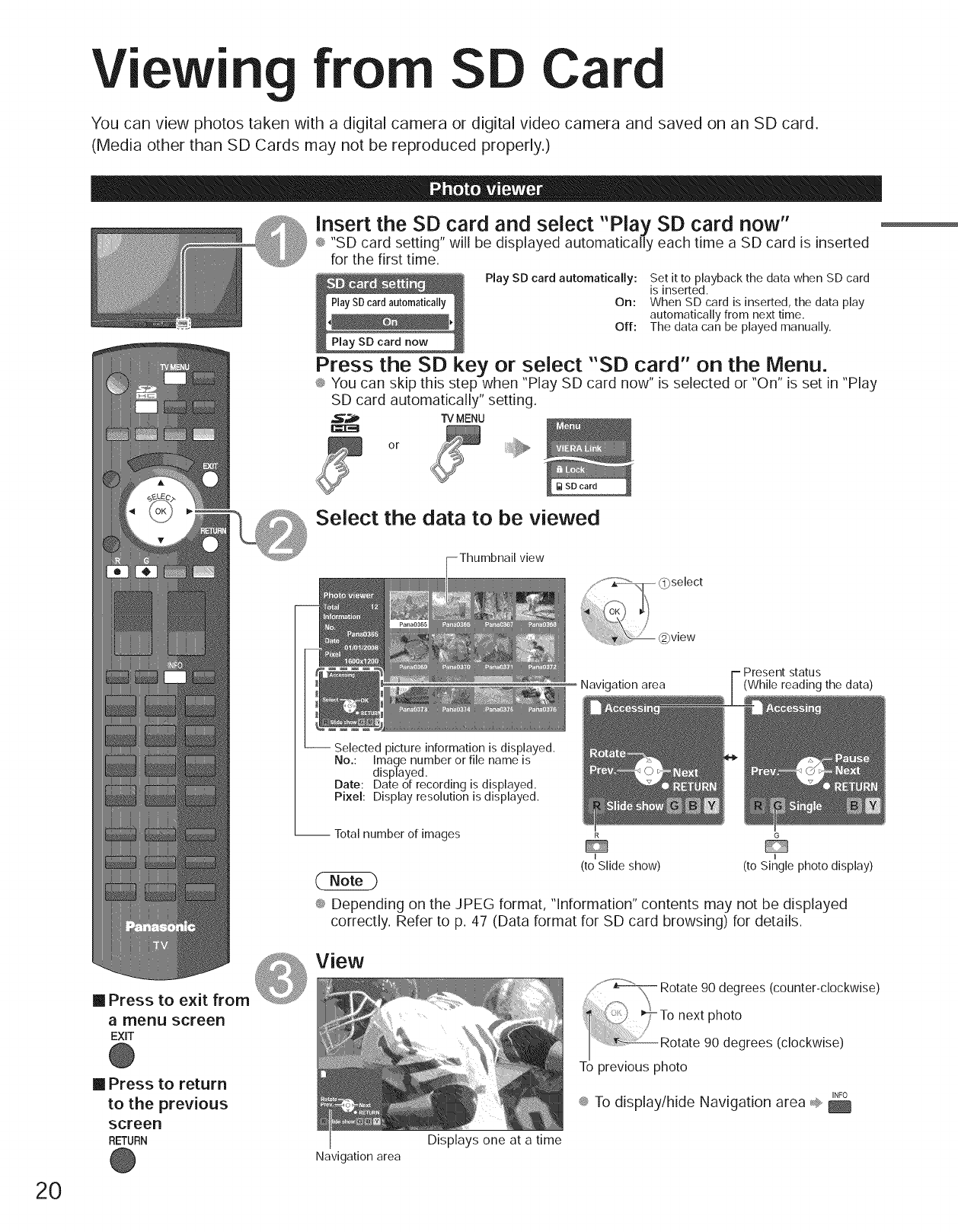

® Viewing from SD Card ............................... 20

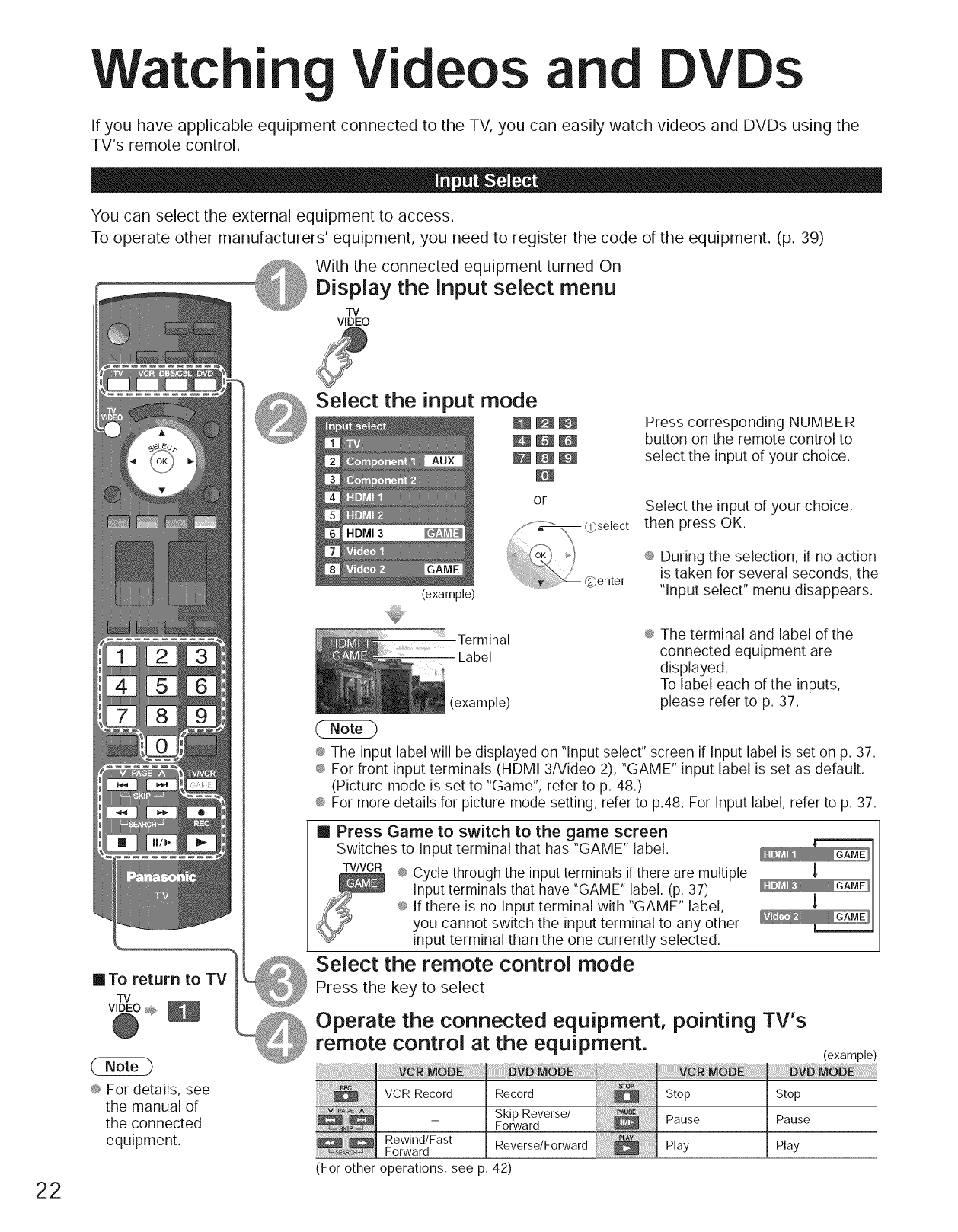

® Watching Videos and DVDs ....................... 22

Advanced Features

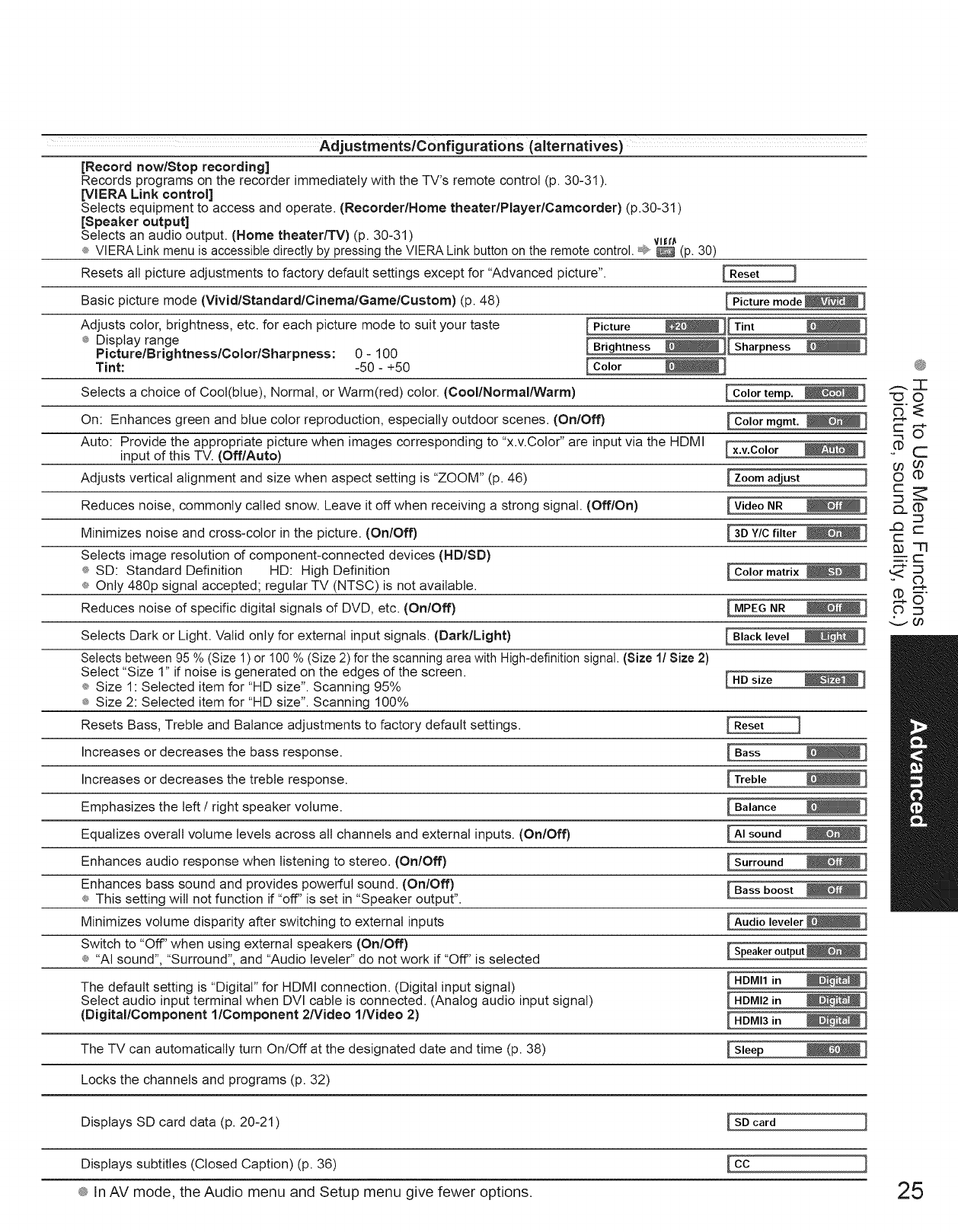

How to Use Menu Functions

(picture, sound quality, etc.) ....................... 24

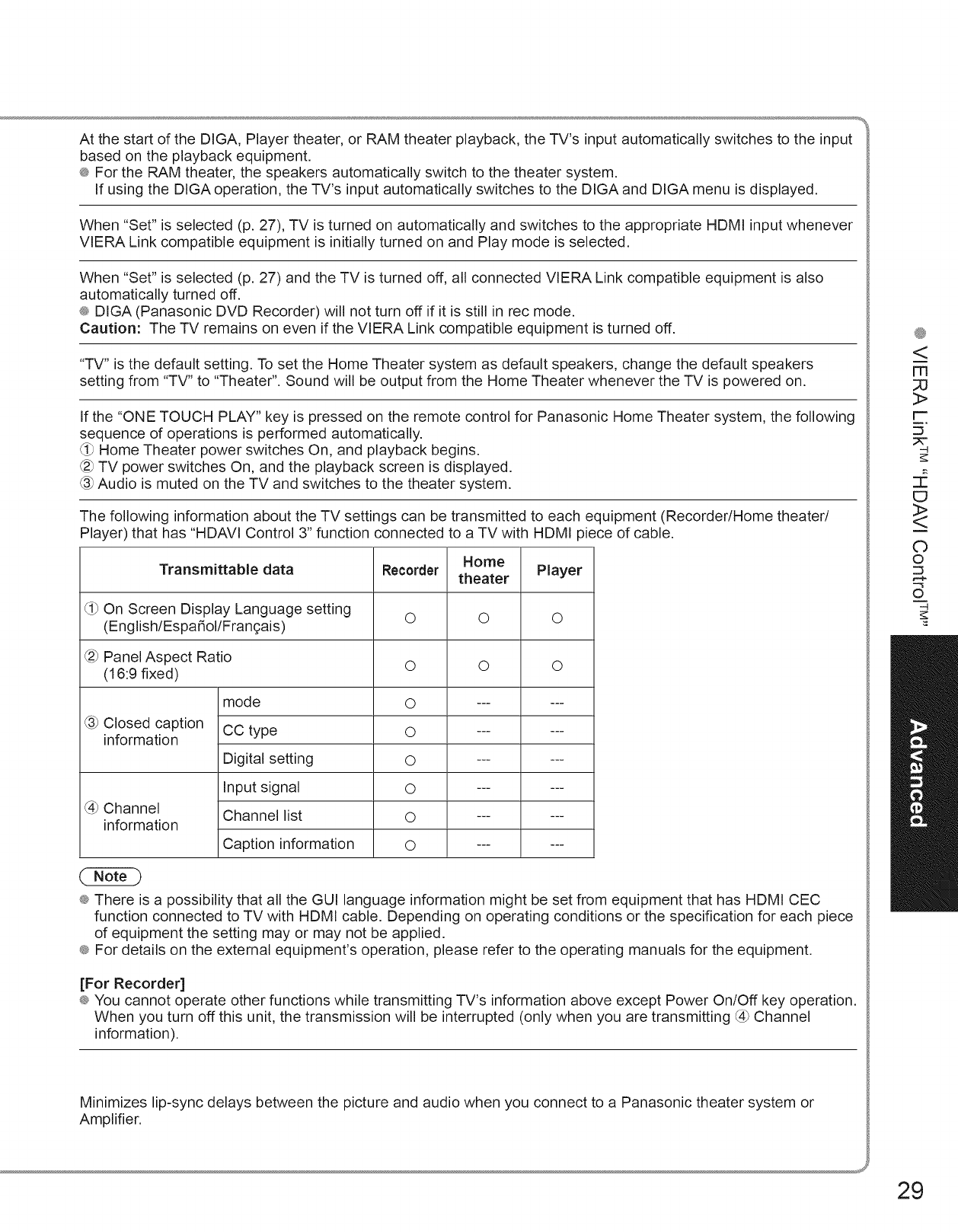

VlERA LinkTM "HDAVI Control TM''................ 28

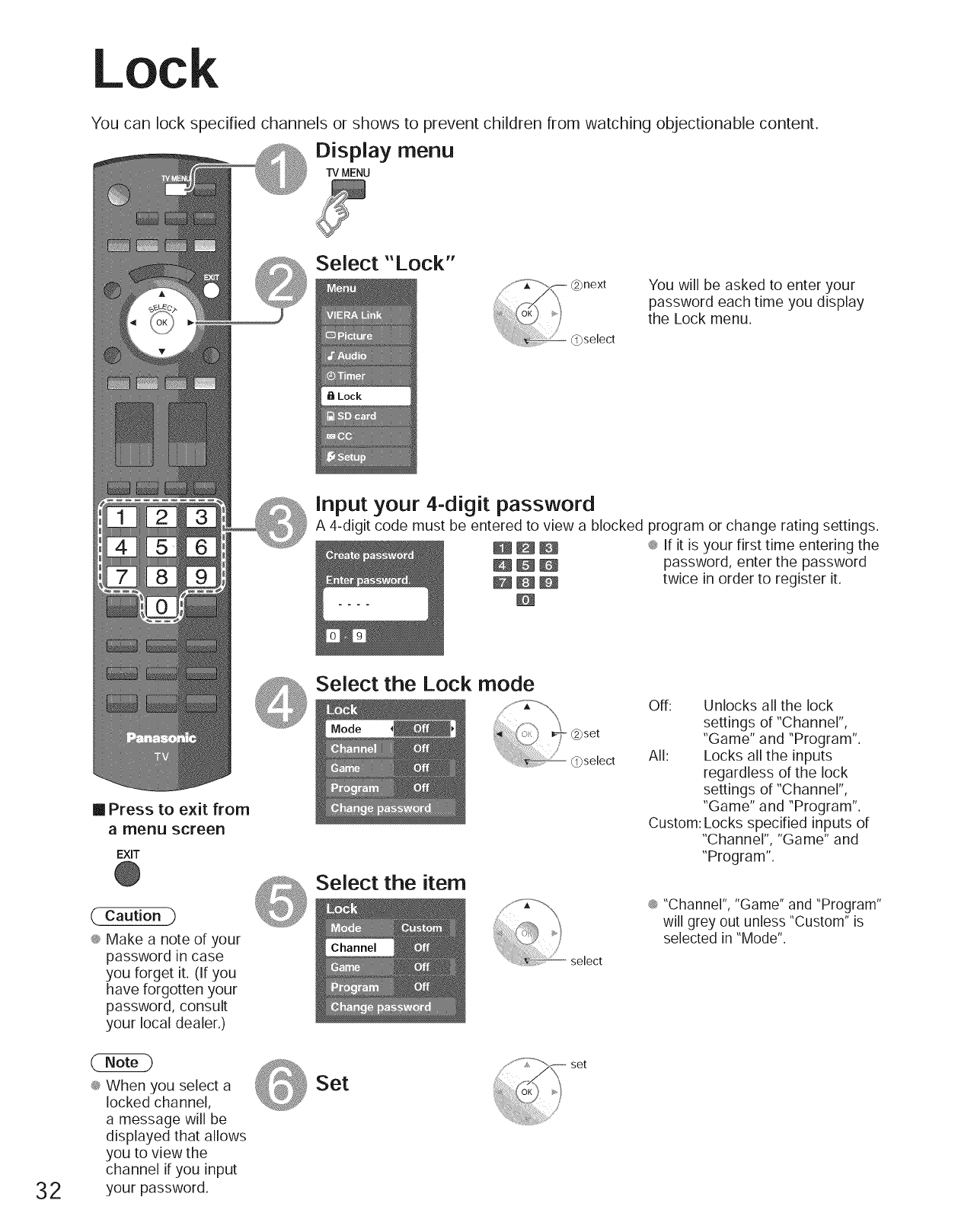

Lock ........................................................... 32

Editing and Setting Channels .................... 34

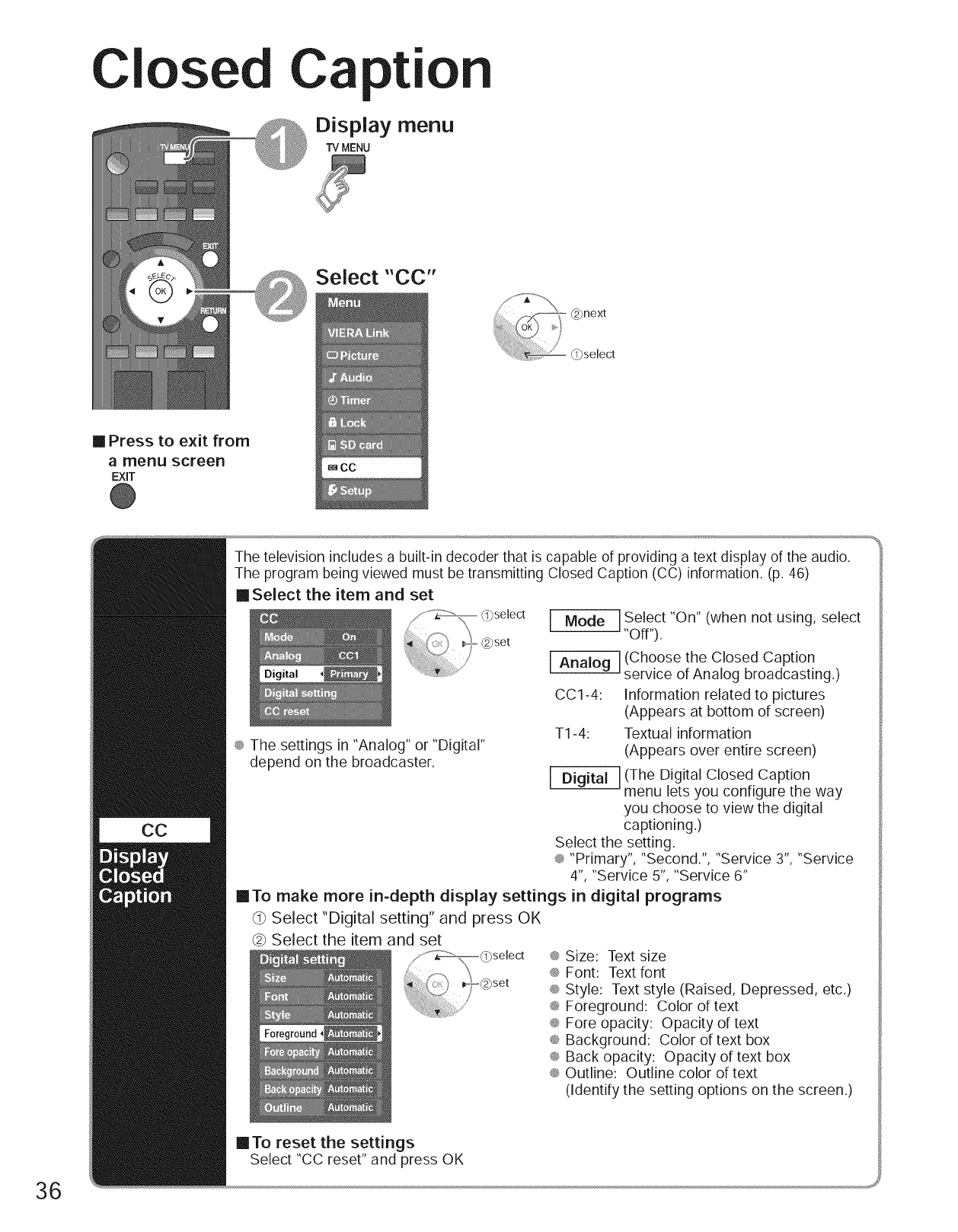

Closed Caption .......................................... 36

Input Labels/Monitor Out ........................... 37

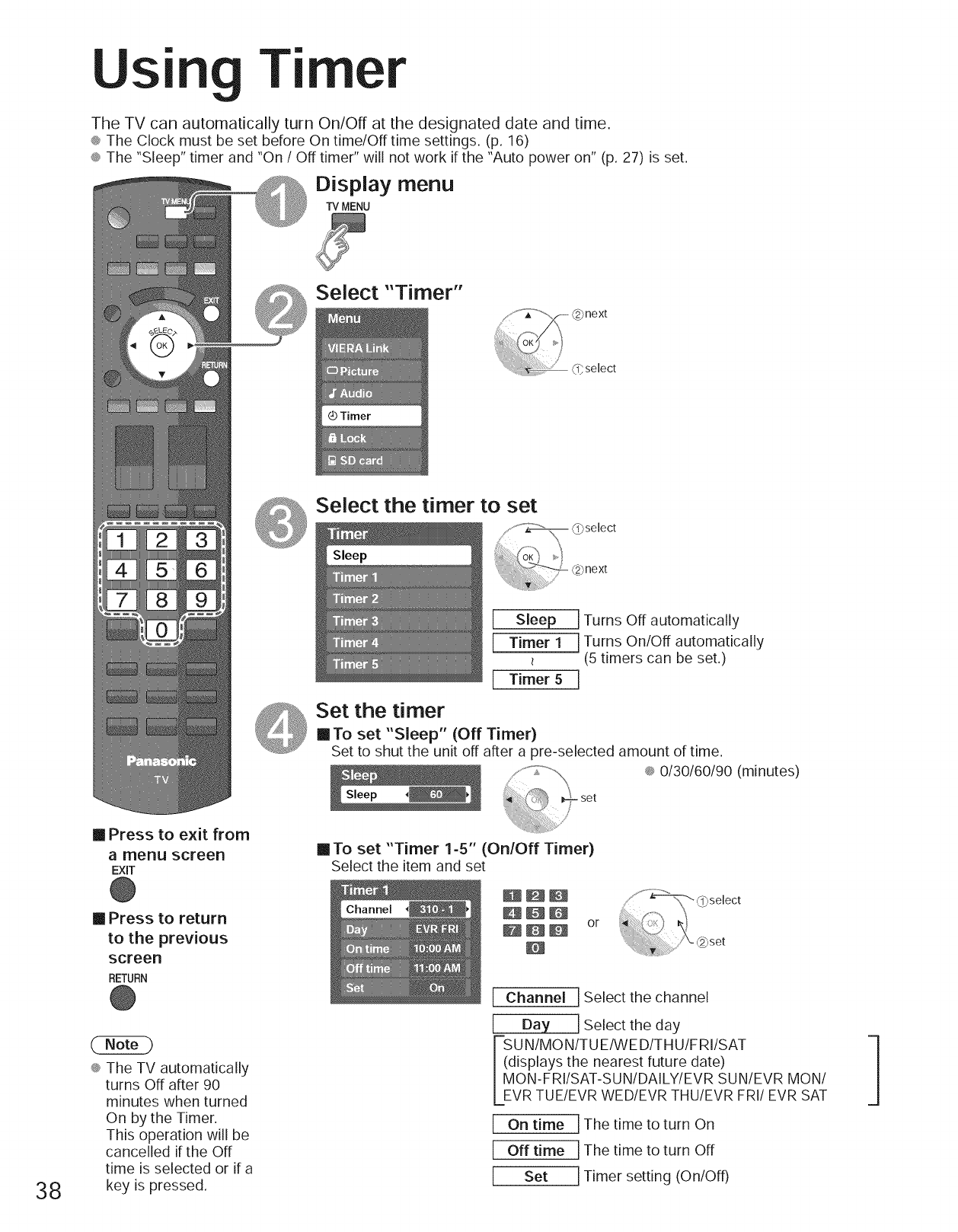

Using Timer ................................................ 38

Programming the Remote to Operate

Peripheral Equipment ................................ 39

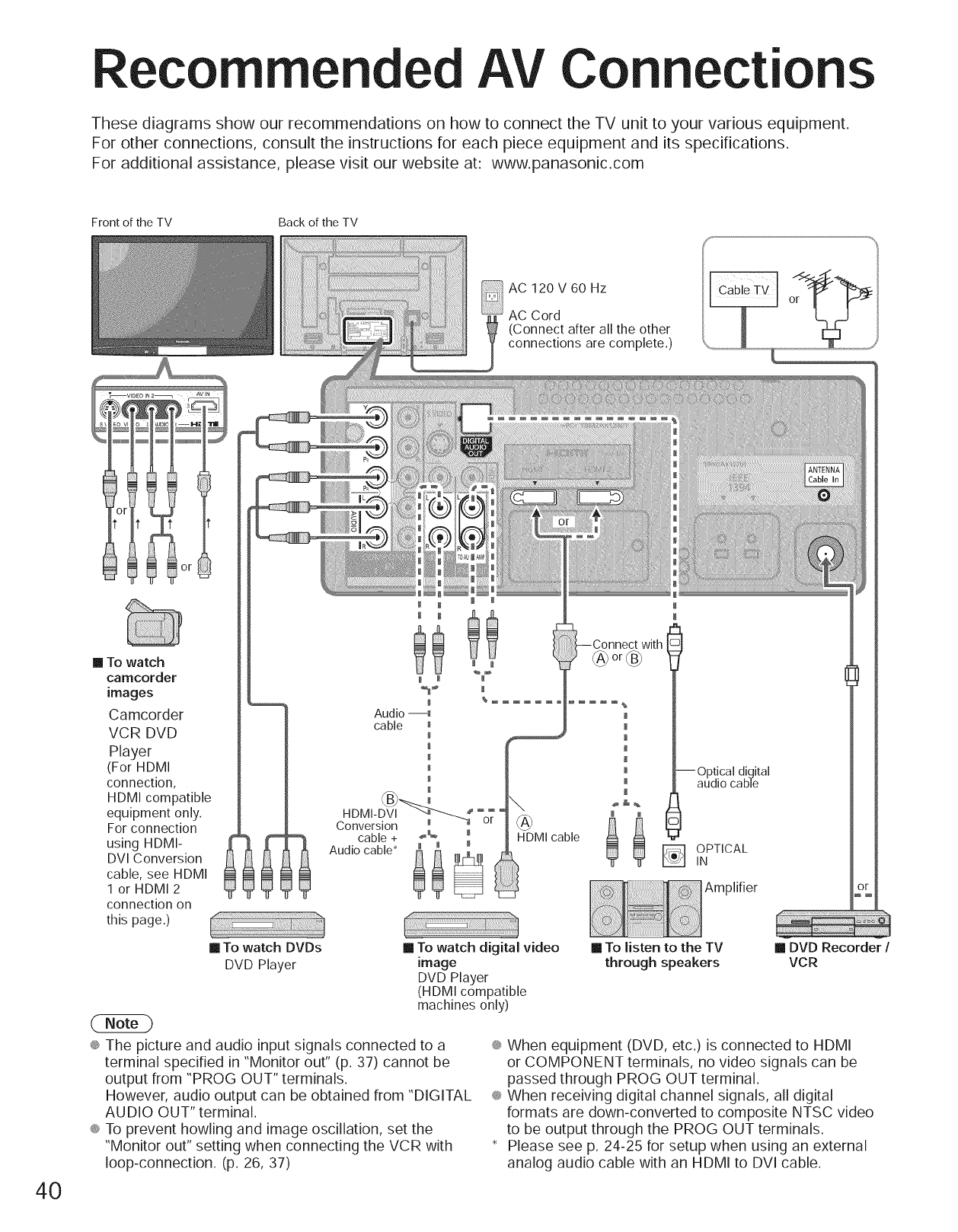

Recommended AV Connections ................ 40

¢,13rl-4 CableCARD TMis a trademark of

Cable Television Laboratories, Inc.

H_rrlli ,..

.l_,.D_l_moN MUL_IME_IAINT_R_AaE

HDMI, the HDMI logo and High-Definition Multimedia Interface are

trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories.

DOLBY and the double-D symbol are

trademarks of Dolby Laboratories.

EZ SyncTM

EZ Sync TMis a trademark of Panasonic Corporation.

FAQs, etc.

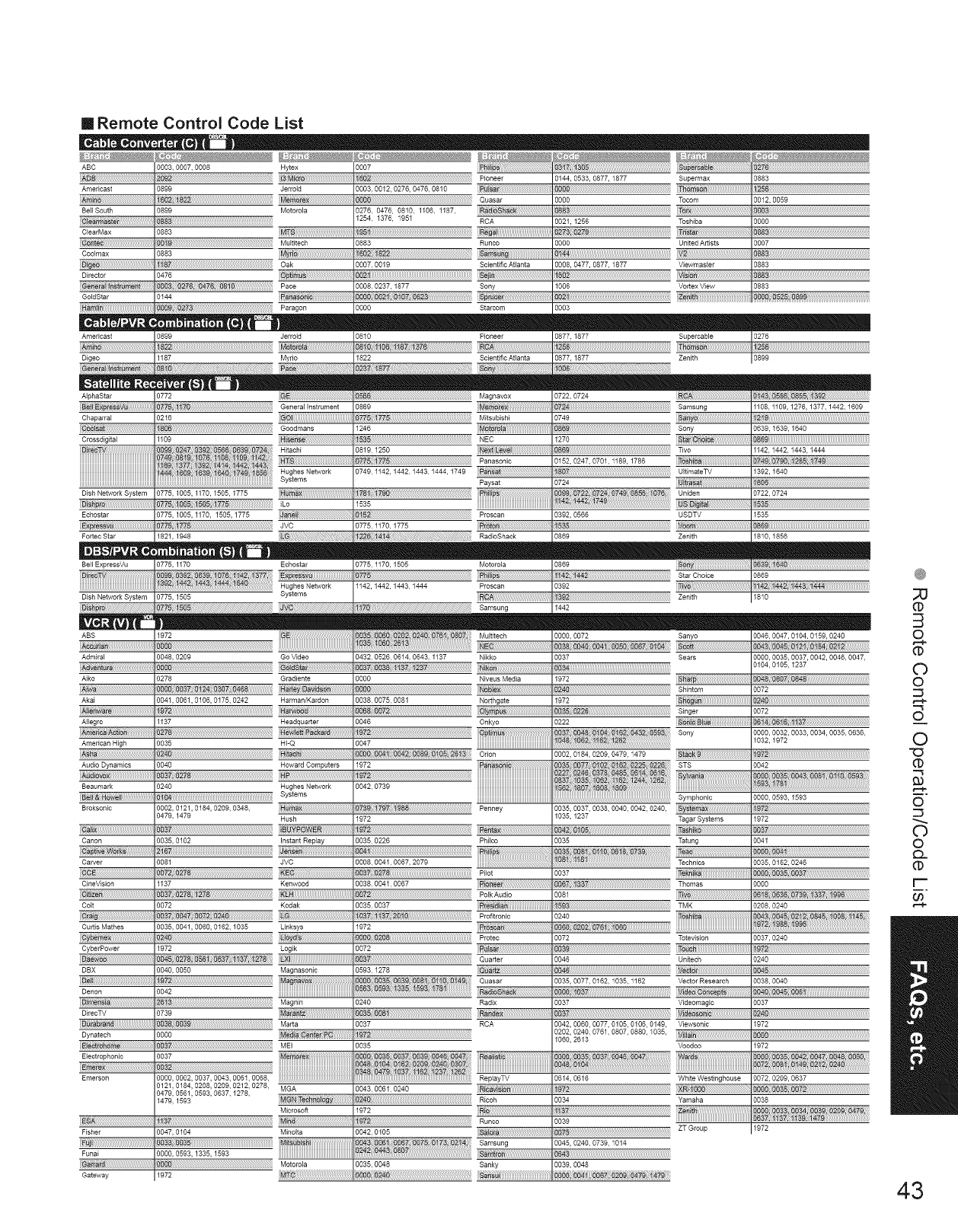

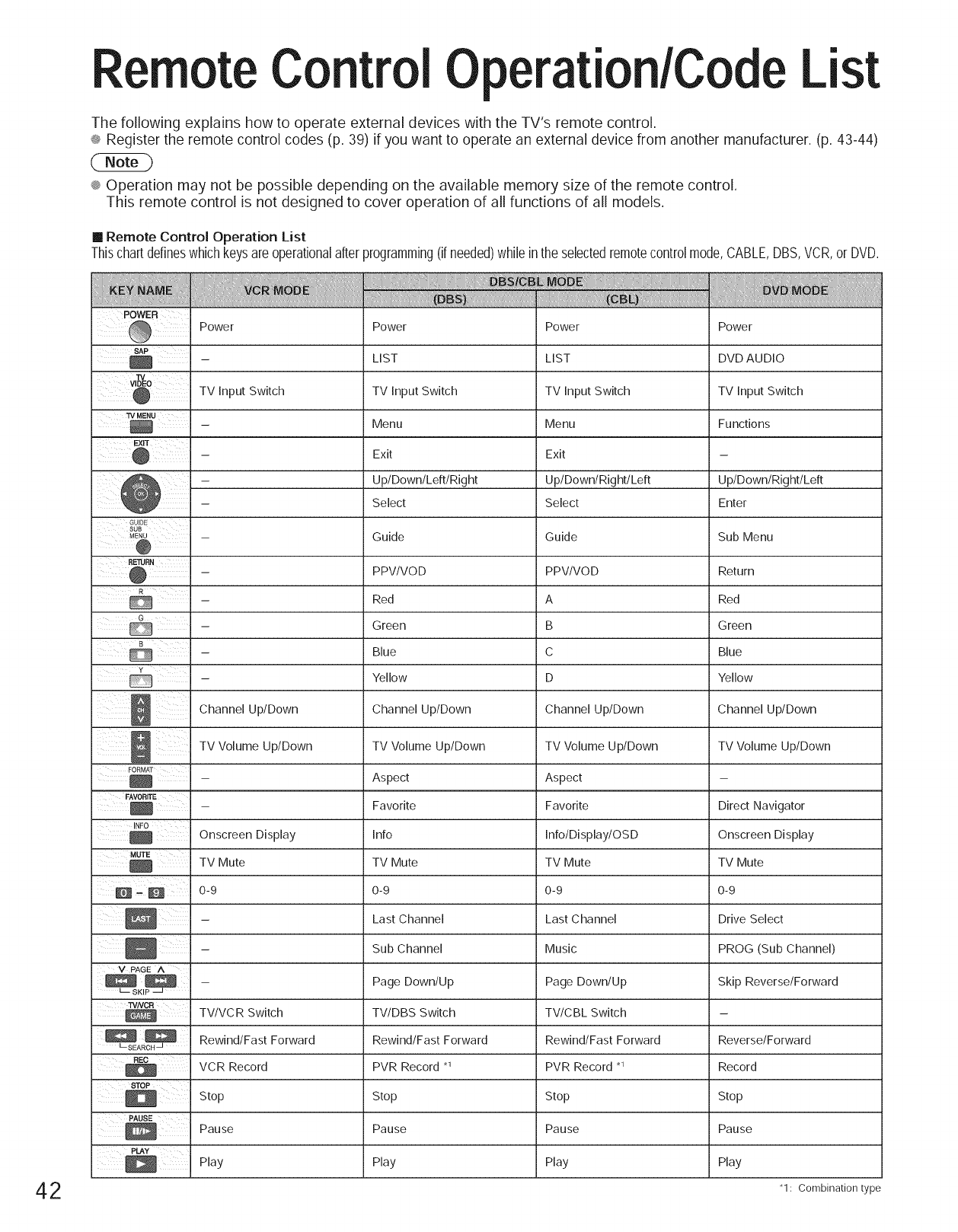

® Remote control operation/codelist ............. 42

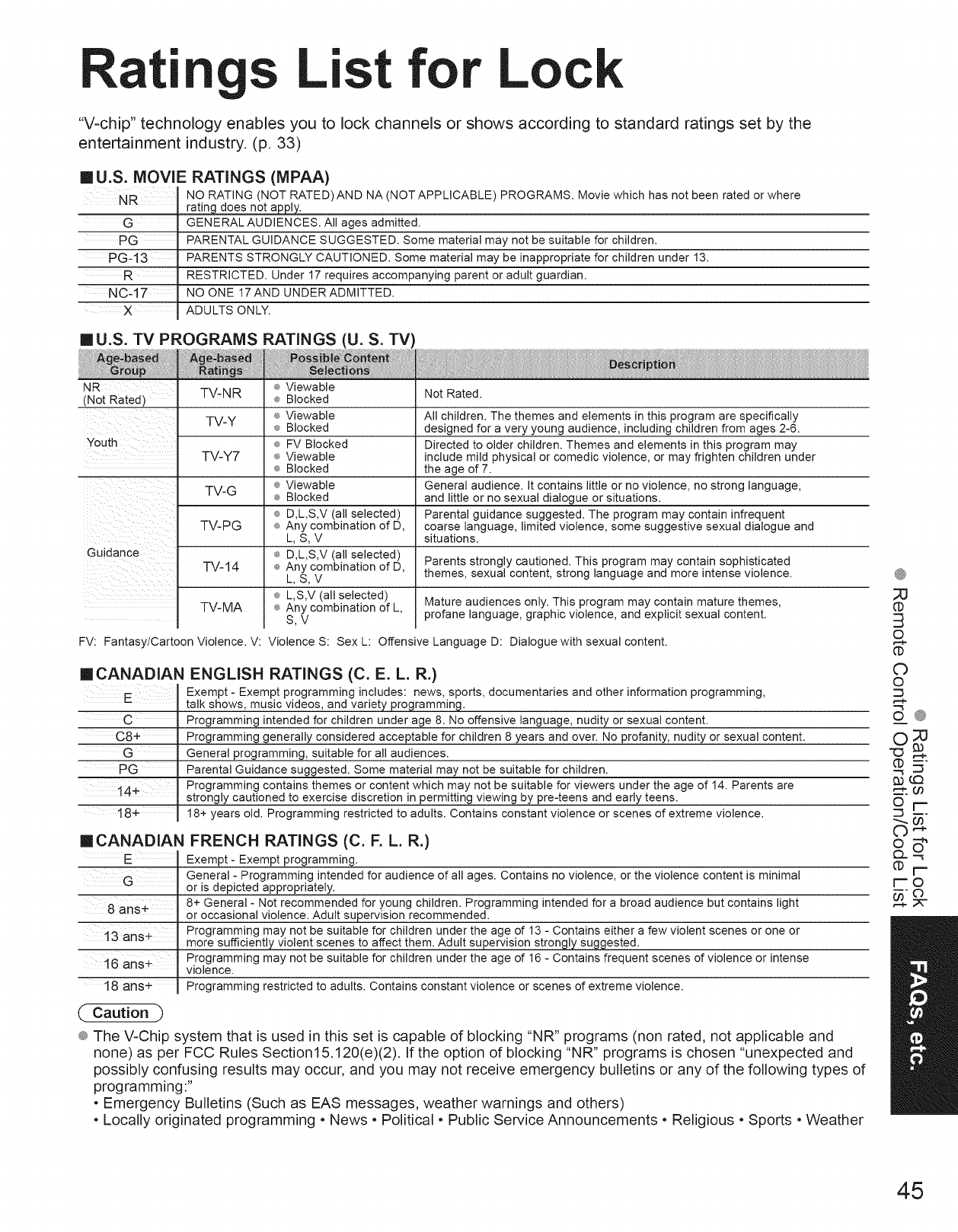

® Ratings List for Lock .................................. 45

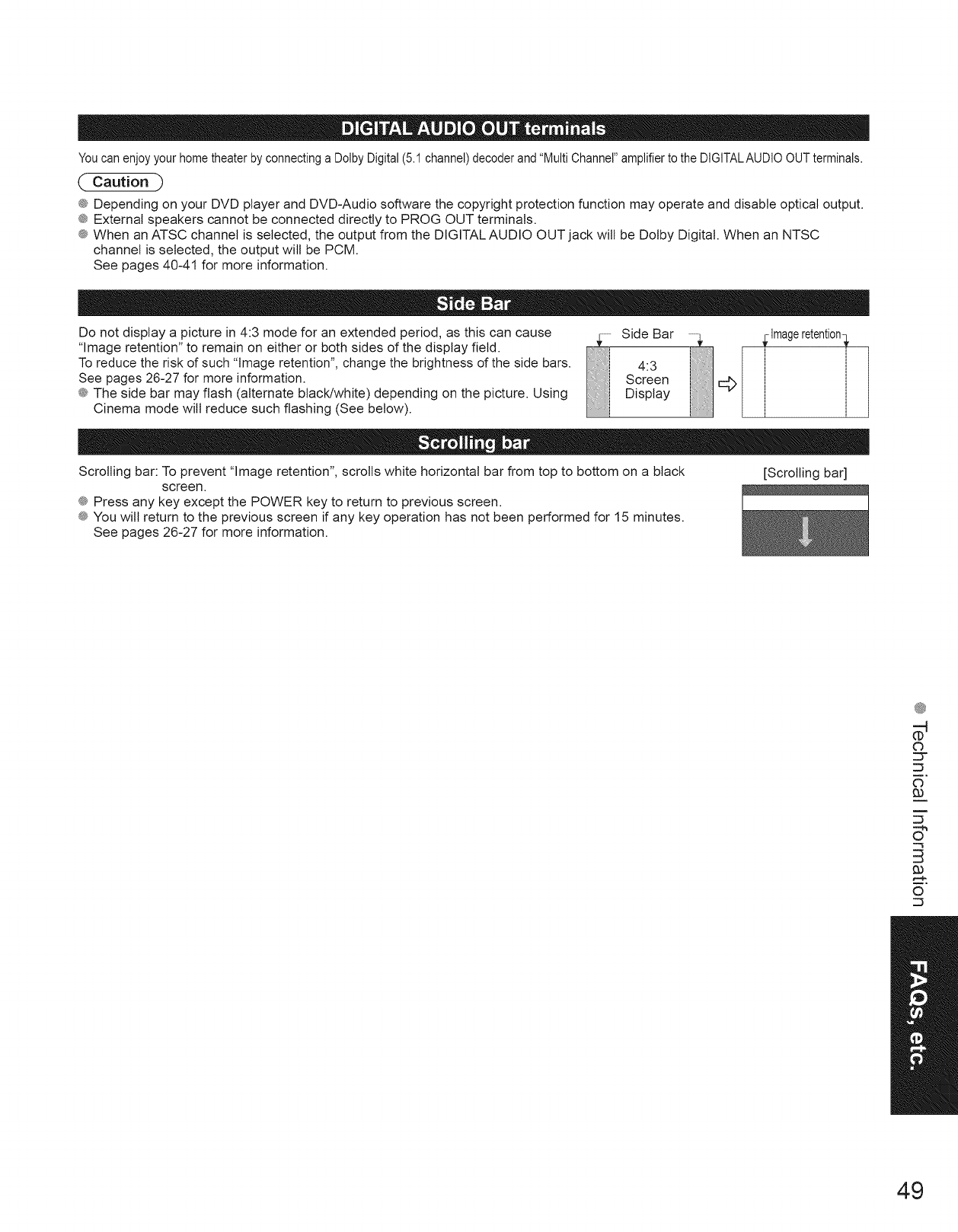

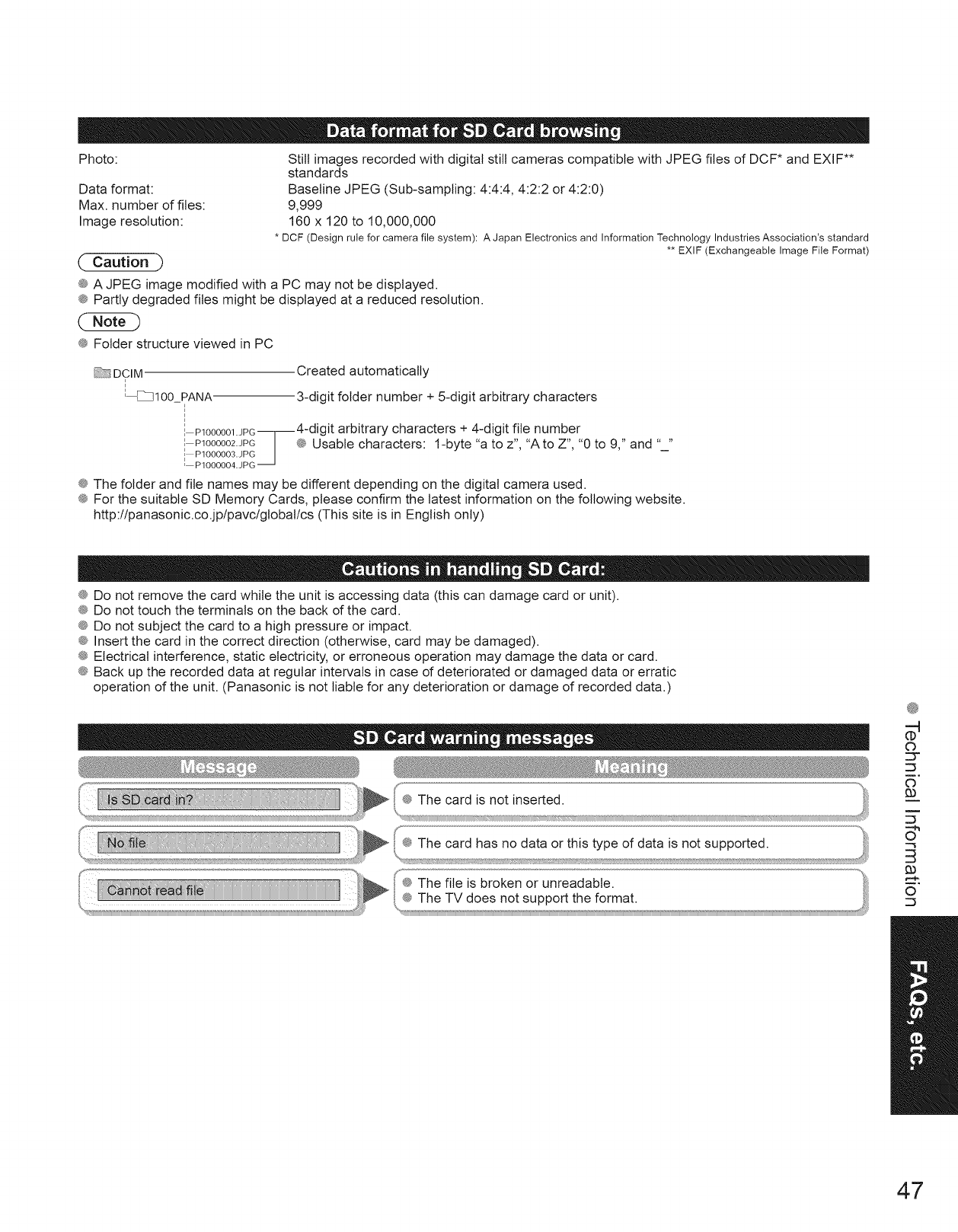

@ Technical Information ................................. 46

@ Care and Cleaning ..................................... 50

@ Specifications ............................................. 51

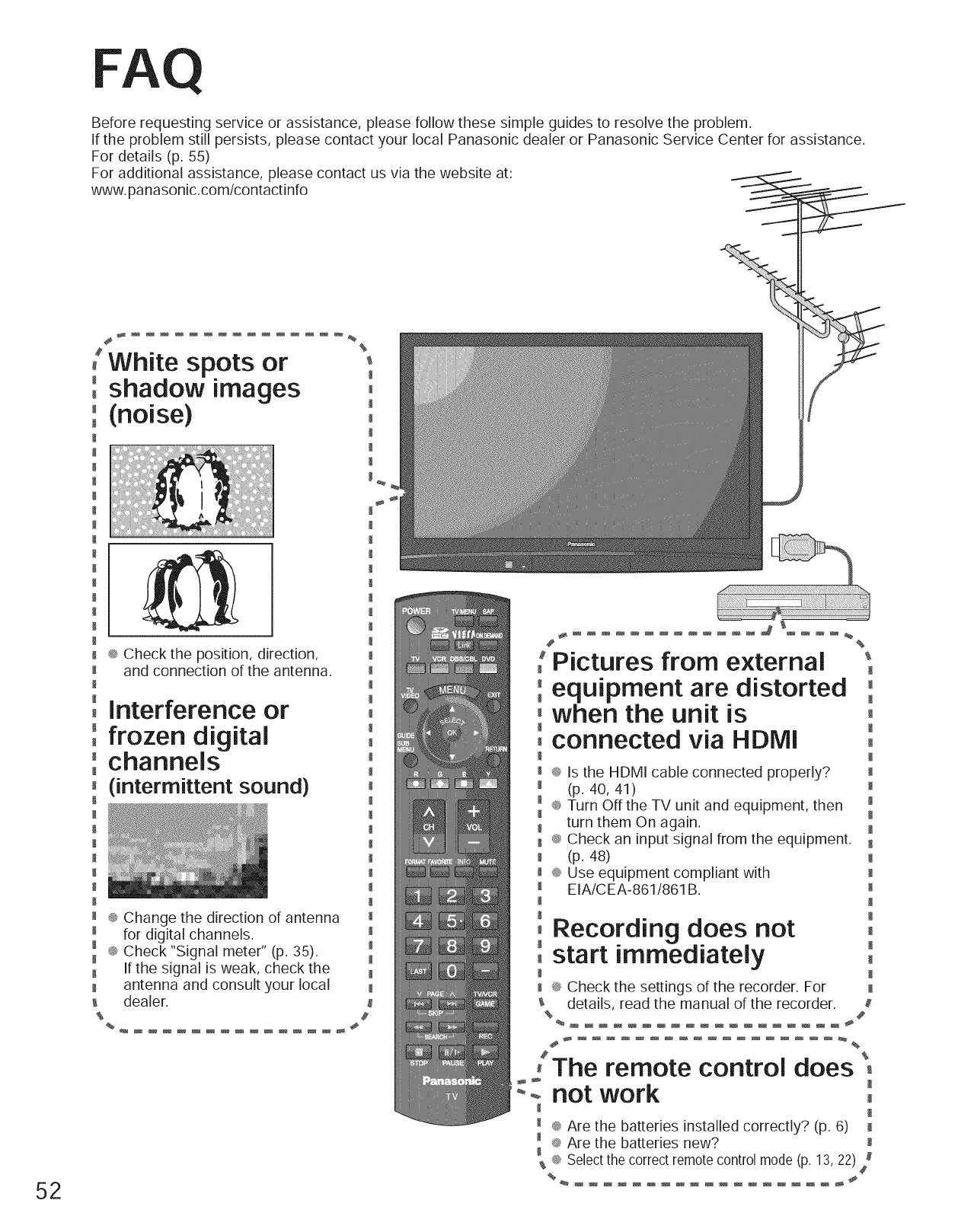

@ FAQ ............................................................ 52

@ Limited Warranty

(for U.S.A. and Puerto Rico only) .............. 54

@ Customer Services Directory

(for U.S.A. and Puerto Rico) ...................... 55

Sfety Preca S

CAUTION

WARNING: To reduce the risk of electric shock, do not remove cover or back.

No user-serviceable parts inside. Refer servicing to qualified service personnel

WARNING:

The lightning flash with

arrowhead within a triangle

is intended to tell the user

that parts inside the product

are a risk of electric shock

to persons.

The exclamation point

within a triangle is

intended to tell the user

that important operating

and servicing instructions

are in the papers with the

appliance.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Do not place liquid containers (flower vase, cups, cosmetics, etc.) above the set

(including on shelves above, etc.).

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the

third prong are provided for your safety. If the provided

plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11) Only use attachments /accessories specified by the

manufacturer.

12) Use only with the cart, stand, tripod,

bracket, or table specified by the

manufacturer, or sold with the

apparatus. When a cart is used,

use caution when moving the cart /

apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or when

unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing

is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

15) To prevent electric shock, ensure the grounding pin on the

AC cord power plug is securely connected.

This equipment has been tested and found to comply with the limits for an Other Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

,Reorient or relocate the receiving antenna.

o Increase the separation between the equipment and receiver.

,Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

oConsult the Panasonic Service Center or an experienced radio/TV technician for help.

FCC Caution:

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables

when connecting to peripheral devices. Any changes or modifications not expressly approved by Panasonic Corp. of

North America could void the user's authority to operate this device.

Responsible Party:

Contact Source:

email:

Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Panasonic Consumer Electronics Company

1-877-95-VIE RA (958-4372)

consumerproducts(_, panasonic.com

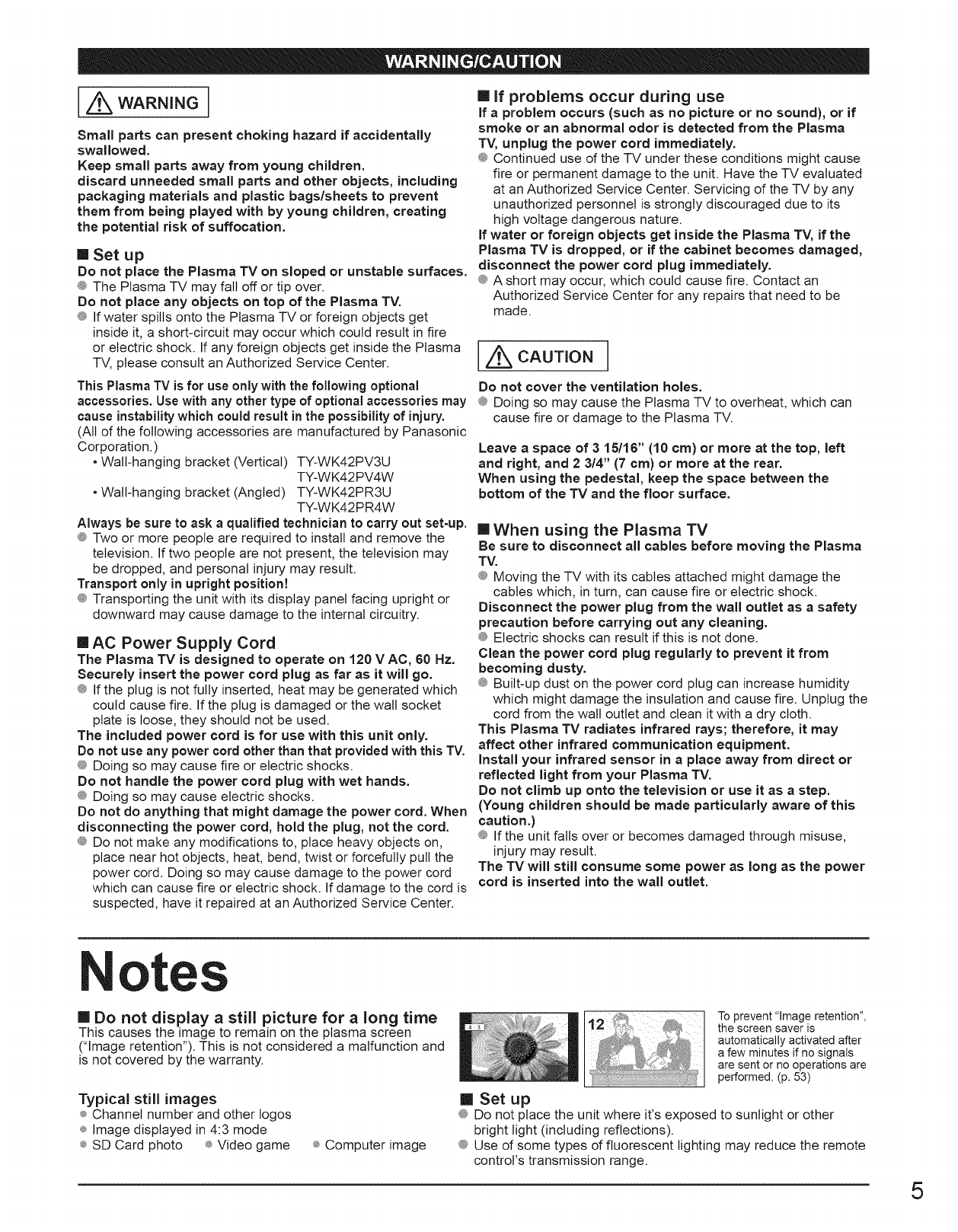

//_ WARNING

Small parts can present choking hazard if accidentally

swallowed.

Keep small parts away from young children.

discard unneeded small parts and other objects, including

packaging materials and plastic bags/sheets to prevent

them from being played with by young children, creating

the potential risk of suffocation.

[] if problems occur during use

if aproblem occurs (such as no picture or no sound), or if

smoke or an abnormal odor is detected from the Plasma

TV, unplug the power cord immediately.

® Continued use of the TV under these conditions might cause

fire or permanent damage to the unit. Have the TV evaluated

at an Authorized Service Center. Servicing of the TV by any

unauthorized personnel is strongly discouraged due to its

high voltage dangerous nature.

If water or foreign objects get inside the Plasma TV, if the

[] Set up Plasma TV is dropped, or if the cabinet becomes damaged,

Do not place the Plasma TV on sloped or unstable surfaces, disconnect the power cord plug immediately.

® The Plasma TV may fall off or tip over. ® A short may occur, which could cause fire. Contact an

Do not place any objects on top of the Plasma TV. Authorized Service Center for any repairs that need to be

® If water spills onto the Plasma TV or foreign objects get made.

inside it, a short-circuit may occur which could result in fire

° e'ect 'c=h°c ° 'ect 0et'° '0etheIZL 1

TV, please consult an Authorized Service Center. CAUTION

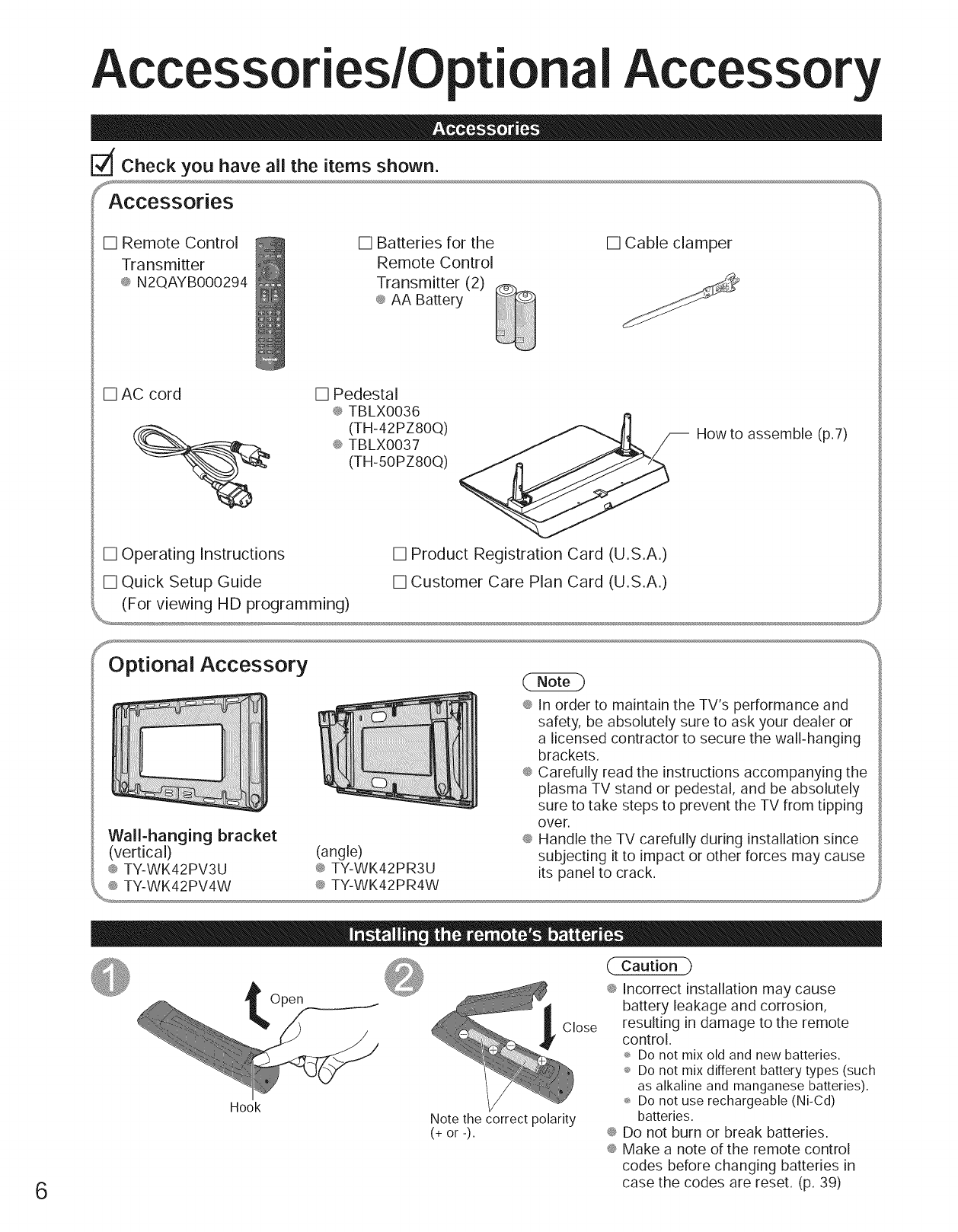

This Plasma TV is for use only with the following optional Do not cover the ventilation holes.

accessories. Use with any other type of optional accessories may ® Doing so may cause the Plasma TV to overheat, which can

cause instability which could result in the possibility' of injury.

(All of the following accessories are manufactured by Panasonic

Corporation.)

* Walt-hanging bracket (Vertical) TY-WK42PV3U

TY-WK42PV4W

* Walt-hanging bracket (Angled) TY-WK42PR3U

TY-WK42PR4W

Always be sure to ask aqualified technician to carry out set-up.

_' Two or more people are required to install and remove the

television. If two people are not present, the television may

be dropped, and personal injury may result.

Transport only in upright position!

® Transporting the unit with its display panel facing upright or

downward may cause damage to the internal circuitry.

[] AC Power Supply Cord

The Plasma TV is designed to operate on 120 VAC, 60 Hz.

Securely insert the power cord plug as far as it will go.

_t#If the plug is not fully inserted, heat may be generated which

could cause fire. If the plug is damaged or the wall socket

plate is loose, they should not be used.

The included power cord is for use with this unit only.

Do not use any power cord other than that provided with this TV.

® Doing so may cause fire or electric shocks.

Do not handle the power cord plug with wet hands.

® Doing so may cause electric shocks.

Do not do anything that might damage the power cord. When

disconnecting the power cord, hold the plug, not the cord.

® Do not make any modifications to, place heavy objects on,

place near hot objects, heat, bend, twist or forcefully pull the

power cord. Doing so may cause damage to the power cord

which can cause fire or electric shock. If damage to the cord is

suspected, have it repaired at an Authorized Service Center.

cause fire or damage to the Plasma TV.

Leave a space of 315/16" (10 cm) or more at the top, left

and right, and 2 3/4" (7 cm) or more at the rear.

When using the pedestal, keep the space between the

bottom of the TV and the floor surface.

[] When using the Plasma TV

Be sure to disconnect all cables before moving the Plasma

TV.

¢_ Moving the TV with its cables attached might damage the

cables which, in turn, can cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety

precaution before carrying out any cleaning.

¢ Electric shocks can result if this is not done.

Clean the power cord plug regularly to prevent it from

becoming dusty.

® Built-up dust on the power cord plug can increase humidity

which might damage the insulation and cause fire. Unplug the

cord from the wall outlet and clean it with a dry cloth.

This Plasma TV radiates infrared rays; therefore, it may

affect other infrared communication equipment.

Install your infrared sensor in aplace away from direct or

reflected light from your Plasma TV.

Do not climb up onto the television or use it as astep.

(Young children should be made particularly aware of this

caution.)

® If the unit falls over or becomes damaged through misuse,

injury may result.

The TV will still consume some power as long as the power

cord is inserted into the wall outlet.

otes

[] Do not display a still picture for a long time

This causes the image to remain on the plasma screen

("Image retention"). This is not considered a malfunction and

is not covered by the warranty.

Typical still images

_ Channel number and other togos

® Image displayed in 4:3 mode

_ SD Card photo _ Video game _ Computer image

Set up

To prevent "image retention",

the screen saver is

automatically activated after

a few minutes if no signals

are sent or no operations are

performed. (p. 53)

® Do not place the unit where it's exposed to sunlight or other

bright light (including reflections).

® Use of some types dfluorescent lighting may reduce the remote

control's transmission range.

Accessories/Optional Accessory

Check you have all the items shown.

[] Remote Control

Transmitter

® N2QAYBO00294

[] Batteries for the

Remote Control

Transmitter (2)

® AA Battery

[] Cable clamper

[] AC cord

[] Operating Instructions

[] Pedestal

® TBLXO036

(TH-42PZ80Q)

¢ TBLXO037

(TH-5OPZ8OQ)

_ How to assemble (p.7)

[] Product Registration Card (U.S.A.)

[] Quick Setup Guide [] Customer Care Plan Card (U.S.A.)

(For viewing HD programming)

Optional Accessory

Wall-hanging bracket

(vertical)

® TY-WK42PV3U

e TY-WK42PV4W

(angle)

e TY-WK42PR3U

e TY-WK42PR4W

@ In order to maintain the TV's performance and

safety, be absolutely sure to ask your dealer or

a licensed contractor to secure the wall-hanging

brackets.

@ Carefully read the instructions accompanying the

plasma TV stand or pedestal, and be absolutely

sure to take steps to prevent the TV from tipping

over.

e Handle the TV carefully during installation since

subjecting it to impact or other forces may cause

its panel to crack.

Open -

Hook

Note the correct polarity

(+ or-).

(Caution)

® Incorrect installation may cause

battery leakage and corrosion,

resulting in damage to the remote

control.

_, Do not mix old and new batteries.

_* Do not mix different battery types (such

as alkaline and manganese batteries).

_* Do not use rechargeable (Ni-Cd)

batteries.

® Do not burn or break batteries.

® Make a note of the remote control

codes before changing batteries in

case the codes are reset. (p. 39)

reAssembling the pedestal

® Fix securely with assembly screws _A_• (Total 4 screws)

_ Tighten screws firmly.

Pole

Front

Base

reSet-up

®Carry out work on a horizontal and level surface,

® Tighten screws firmly.

Bottom view

Rear side

Accessories

Assembly screws

(4 of each)

M5 x 18 (Silver)

M5 x 25 (Black)

POleS (2)

® © or @ is printed at the

bottom of the poles.

Base (1)

Hole for pedestal

installation

Pole

(1)

Pole ® Fix securely with assembly screws _B_.

(Total 4 screws)

Warning )

Do not disassemble or modify the pedestal.

® Otherwise the TV may fall over and become damaged, and personal injury may result.

( Caution )

Do not use any other TV and displays.

® Otherwise the TV may fall over and become damaged, and personal injury may result.

Do not use the pedestal if it becomes warped or physically damaged.

® If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic

Dealer immediately.

During set-up, make sure that all screws are securely tightened.

® If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be

strong enough to support the TV, and it might fall over and become damaged, and personal injury may result.

Accessories/OptioIAccessory(co°t °ood)

To attach

Insert it firmly until the

tabs on both sides click

into place.

To remove

Press both tabs and

pull the AC cord plug

away from the TV.

® Do not bundle the RF cable and AC cord

together (could cause distorted image).

® Fasten the cables with the Cable clamper as

necessary.

® When using the optional accessories, follow their

assembly manuals to fix cables.

To bundle

hooks

__e T°l°°sen

ep pushing

e knob

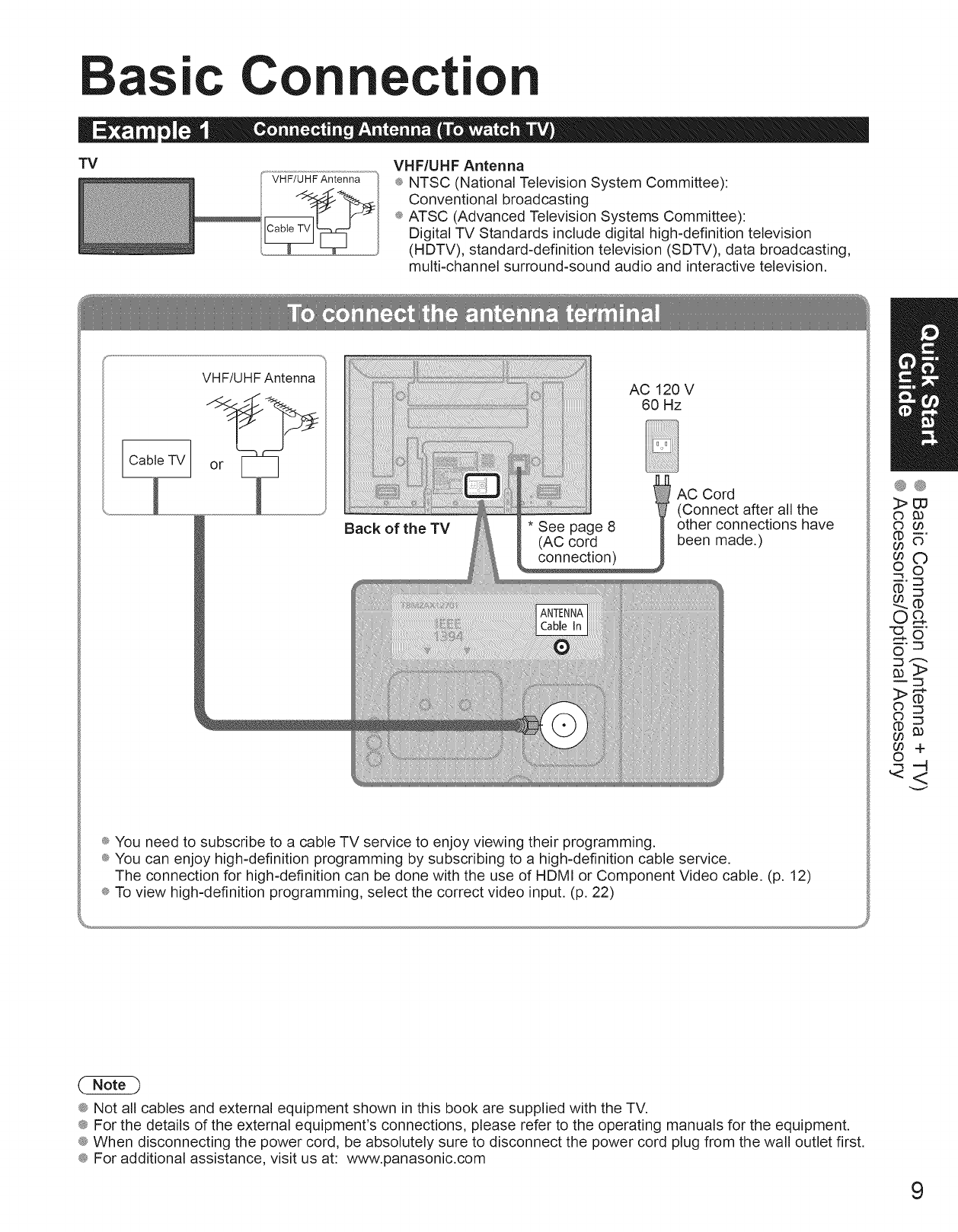

Reference of connection

Antenna terminal

Pin terminals

Firmly tighten by hand Match colors of plugs and terminals.

Insert firmly

HDiVll terminal

Insert firmly.

VHF/UHF Antenna VHF/UHF Antenna

_ NTSC (National Television System Committee):

Conventional broadcasting

_ ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television

(HDTV), standard-definition television (SDTV), data broadcasting,

multi-channel surround-sound audio and interactive television.

AC 120 V

60 Hz

TV or AC Cord

(Connect after all the

other connections have

been made.)

_ You need to subscribe to a cable TV service to enjoy viewing their programming.

_ You can enjoy high=definition programming by subscribing to a high-definition cable service.

The connection for high=definition can be done with the use of HDMI or Component Video cable. (p. 12)

® To view high-definition programming, select the correct video input. (p. 22)

®®

>Eu

O 00

N'_

N6"

_ m

_®Not all cables and external equipment shown in this book are supplied with the TV.

_, For the details of the external equipment's connections, please refer to the operating manuals for the equipment.

_ When disconnecting the power cord, be absolutely sure to disconnect the power cord plug from the wall outlet first.

¢ For additional assistance, visit us at: www.panasonic.com

sc C ecti

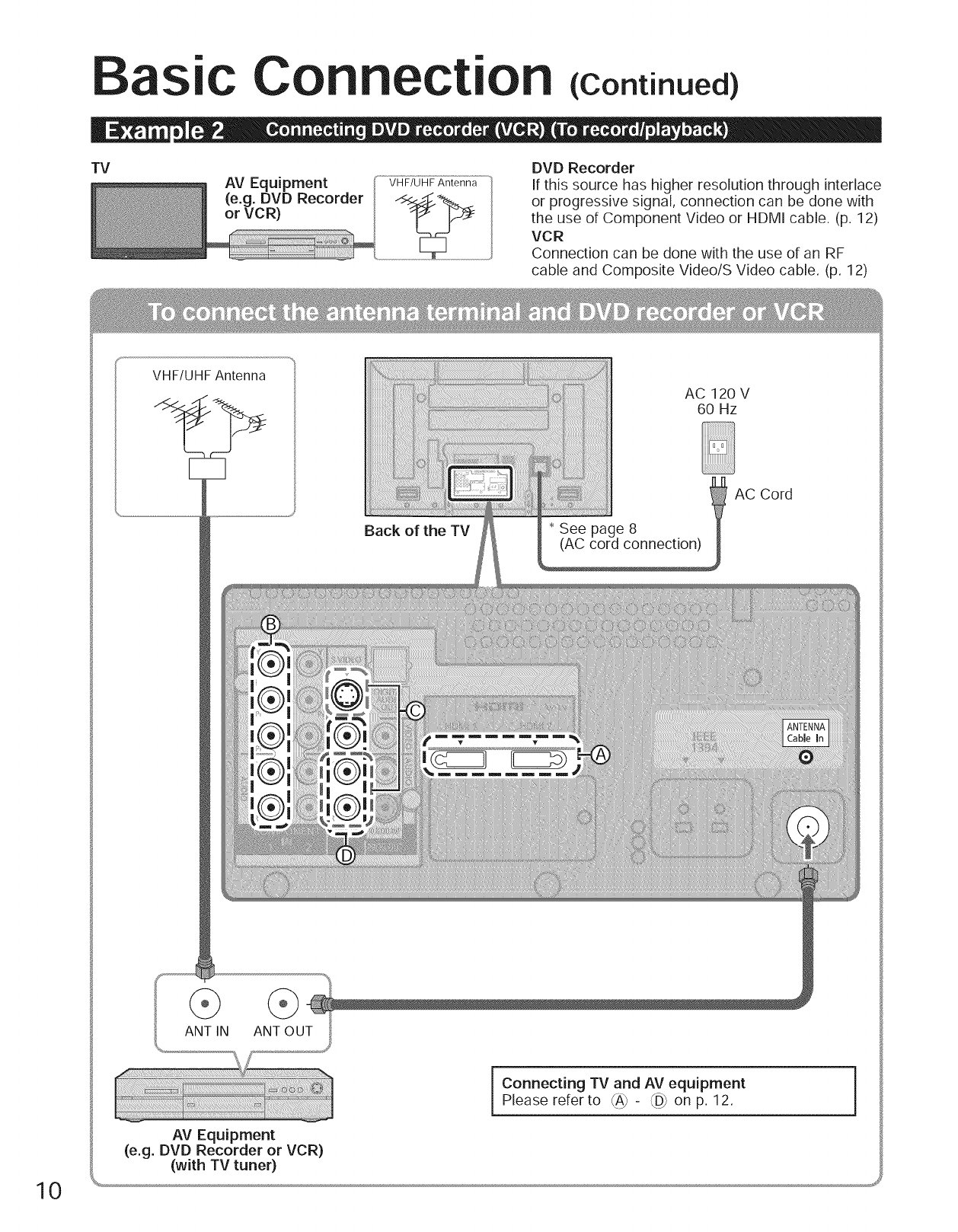

AV Equipment

(e.g. DVD Recorder

or VCR)

VHF/UHF Antenna

DVD Recorder

If this source has higher resolution through interlace

or progressive signal, connection can be done with

the use of Component Video or HDMI cable. (p. 12)

VCR

Connection can be done with the use of an RF

cable and Composite Video/S Video cable. (p. 12)

VHF/UHF Antenna

[]

Back of the TV See page 8

(AC cord connection)

AC 120 V

60 Hz

AC Cord

ANT IN ANT OUT

AV Equipment

(e.g. DVD Recorder or VCR)

(with TV tuner)

i Connecting TV and AV equipment

Please refer to _ - _U_on p. 12. i

"iV

Satellite

DVD Recorder Receiver

VCR

VHF/UHF Antenna

You can enjoy high-definition

programming by subscribing to

high-definition satellite service.

Connection can be done with the

use of HDMI or Component Video

cable. (p. 12)

VHF/UHF Antenna

Back of the "iV

AC 120 V

60 Hz

AC Cord

* See page 8

(AC cord connection)

ANT IN ANT IN ANT OUT

Connecting TV and AV equipment

Please refer to _A_- _ on p. 12.

Satellite Receiver DVD Recorder or VCR

(with TV tuner)

® For details of external equipment connections, please refer to the operating manuals for the equipment.

-H--H

+ +

(I)(I)

0 0

=_ --.i

=._ =._

c) c)

(I)

S'C C(Continued)

_A_TO use HDMI terminals

SAvEq°ipmoo,

' ' I I HDMI _:>

,,I AV OUT _"

_ L_ e Blu-ra Disc

_, _ _ ,g" Y

........................................................................................................................................o,_,,F .....................................................................player

® Connecting to HDMI terminals will enable you to enjoy high-definition digital images and high-quality

sound.

@ For "VIERA LinkTM connections", please refer to p. 41.

@]To use COMPONENT terminals

red

white

red

green

blue

red

COMPONENT

VIDEOOUT

AUDIO

OUT

AV Equipment

red

To use COMPOSITE terminals

S VIDEO

OUT

white AUDIO

OUT

red

yellow _ow

white COMPOSITE

OUT

red

red red

® The SVideo input will override the composite video signal when S Video cable is connected. Connect

either S Video or Video cable.

@Connecting to S VIDEO terminals will enable you to enjoy greater picture quality than using Composite

terminals.

@Some programs contain a copyright protection signal to prevent VCR recording.

® When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed

through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.

@ For the details of the external equipment's connections, please refer to the operating manuals of this equipment.

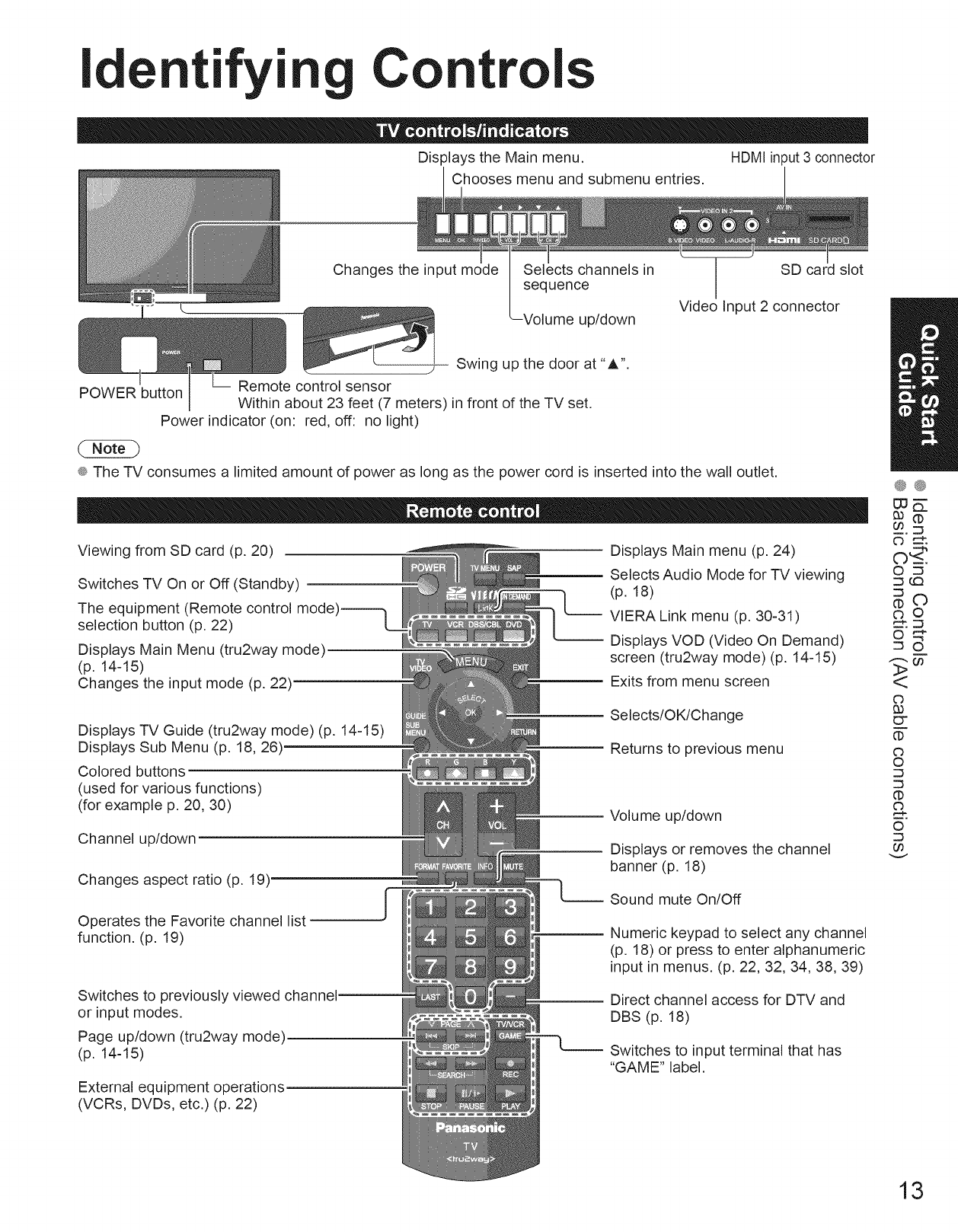

identify" C trois

Displays the Main menu. HDMI input 3 connector

Chooses menu and submenu entries.

up/down

SD card slot

Video Input 2 connector

Swing up the door at "A".

POWER button Remote control sensor

Within about 23 feet (7 meters) in front of the TV set.

Power indicator (on: red, off: no light)

_ The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet.

Viewing from SD card (p. 20)

Switches TV On or Off (Standby)

The equipment (Remote control

selection button (p. 22)

Displays Main Menu (tru2way mode)

(p. 14-15)

Changes the input mode (p. 22)

Displays TV Guide (tru2way mode) (p. 14-15)

Displays Sub Menu (p. 18, 26)

Colored buttons

(used for various functions)

(for example p. 20, 30)

Channel up/down

Changes aspect ratio (p. 19)

Operates the Favorite channel list

function. (p. 19)

Switches to previously viewed channel

or input modes.

Page up/down (tru2way mode)

(p. 14-15)

External equipment operations

(VCRs, DVDs, etc.) (p. 22)

Displays Main menu (p. 24)

Selects Audio Mode for TV viewing

(p. 18)

VlERA Link menu (p. 30-31)

Displays VOD (Video On Demand)

screen (tru2way mode) (p. 14-15)

Exits from menu screen

Selects/OK/Change

Returns to previous menu

Volume up/down

Displays or removes the channel

banner (p. 18)

Sound mute On/Off

Numeric keypad to select any channel

(p. 18) or press to enter alphanumeric

input in menus. (p. 22, 32, 34, 38, 39)

Direct channel access for DTV and

DBS (p. 18)

Switches to input terminal that has

"GAME" label.

@®

uu__

Ejoy tru2way TMTV

You can enjoy a variety of advanced interactive, two-way services like VOD (Video on Demand), EPG

(Electronic Program Guide), home banking, interactive games, as well as other e-Commerce applications

on your TV with just the TV remote control.

Follow steps @ and @ switch the TV to tru2way mode in order to use the service.

Steps @@ are not necessary if the setup has been completed with your cable company.

Insert a CableCARD TM

Consult your cable company for the CableCARD connection.

Switch the TV to tru2way mode by restarting

Follow the message on the screen.

® It is not possible to change the mode byjust turning the TV off and on.

® During initial setup and switch to tru2way mode, new application software must be

downloaded from the cable company. The download time will vary based on the speed

and size of the download.

® If you experience a front panel control or remote control function hang-up when using a

CableCARD, unplug the TV and plug it back in and try the controls again. If this condition

persists, please call Panasonic Customer Call Center for further instructions.

® Do not insert a PCMCIA card into the CableCARD slot.

This may damage the TV.

Returning to conventional TV mode from tru2way mode

You can also use the TV conventionally in non tru2way service areas.

_ Please consult your cable service company or local Panasonic dealer for this process.

® Steps _ _)are not necessary if the setup has been completed with your cable

company or local Panasonic dealer.

d; Remove the CableCARD

Follow the directions on the screen.

<2_Reboot to return to conventional TV mode

® Using the TV in conventional mode

You can enjoy various functions in conventional TV mode with these Operating

Instructions.

® Available services will vary depending on the cable service company.

® For more details about the service, please ask your cable service company.

mAvailable TV's remote control buttons

ONDEMAND

Display Main menu

Display VOD(Video On Demand) screen.

SUB

ME_ Display TV Guide

Page up/down

Available when the function of the keys is displayed on screen

®These Operating instructions are described primarily for the conventional TV. For the tru2way

mode, operations, menus and functions will vary depending on the cable service company.

® IEEE1394 terminals are only available when the tru2way application supports it.

-4

Frst Tm e Setu

"First time setup" is displayed only when the TV is turned on for the first time after the power cord is

inserted into a wall outlet and when "Auto power on" (p. 26-27) is set to "No".

Turn the TV On with the POWER button

POWER

II Press to exit from

a menu screen

EXIT

m Press to return

to the previous

screen

RETURN

® To change setting

(Language/Clock/

Auto program) later,

go to Menu screen

(p. 26)

(TV)

This setting will be skipped next time if you select "Home".

Select your language

@) Be sure to select "Home"

_ Please confirm your selection (Home) before pressing OK button.

[] If you select "Store" by mistake in _), confirmation screen will be displayed.

® Select "No" and return to previous screen _2).

® If you select "Yes", Screen enters store demonstration mode. Displays "Please

select your viewing environment" screen once again as shown below.

Reselect "Home".

• Unplug the TV and plug it again.

• Press and hold down the front POWER button.

_ Adjust the clock

RETURN

item

Year: Select the year

Month: Select the month

Day: Select the day

Hour: Adjust the hour

Minute: Adjust the minute

-- Go back to previous screen.

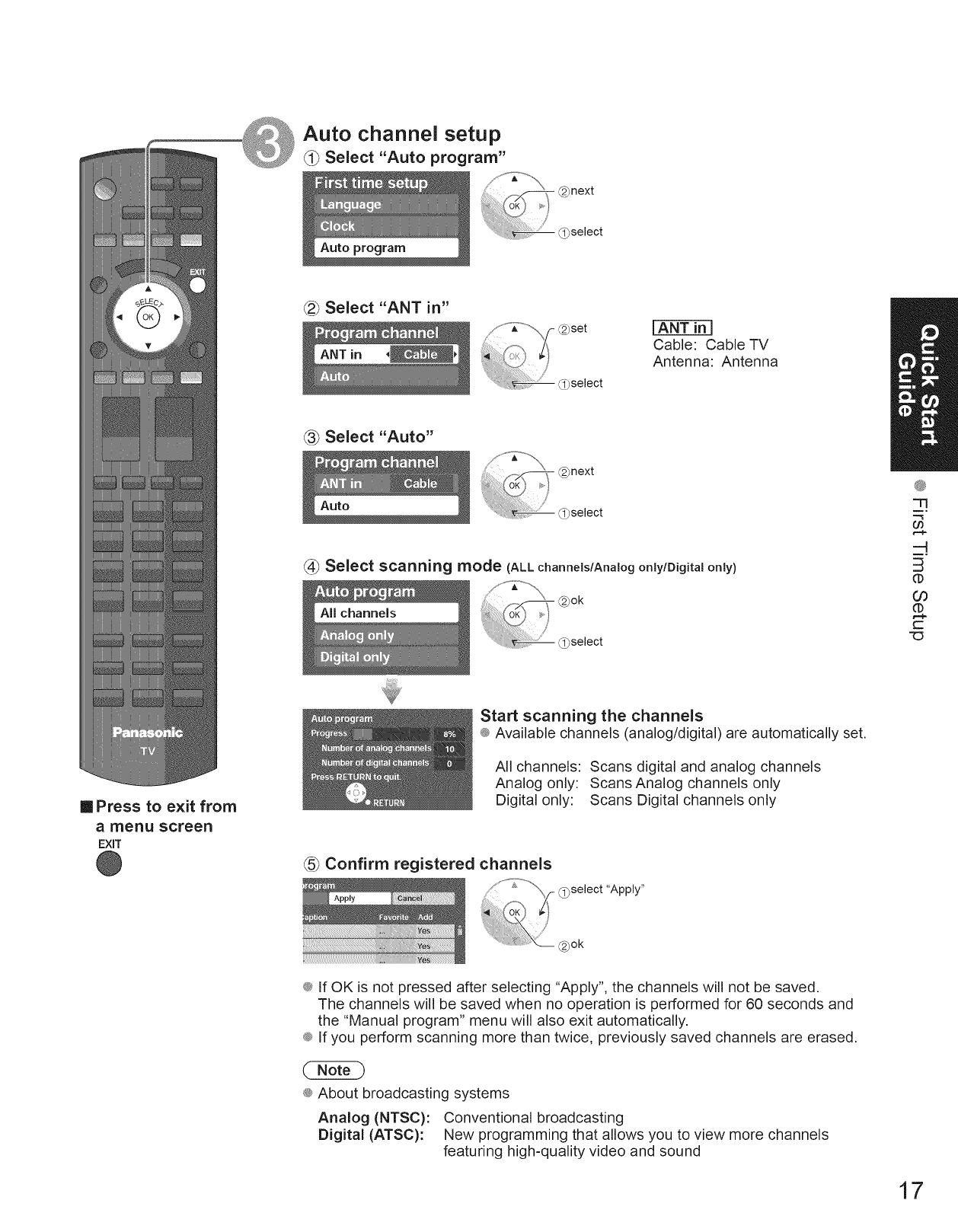

Auto channel setup

_ Select "Auto program"

_ Select "ANT in"

IANT in l

Cable: Cable TV

Antenna: Antenna

(_ Select "Auto"

@ Select scanning mode (ALLchannels/Analogonly/Digitalonly)

'_-®ok

_select

-13

(1)

-O

Press to exit from

a menu screen

EXIT

Start scanning the channels

_; Available channels (analog/digital) are automatically set.

All channels: Scans digital and analog channels

Analog only: Scans Analog channels only

Digital only: Scans Digital channels only

@ Confirm registered channels

"Apply"

® If OK is not pressed after selecting "Apply", the channels will not be saved.

The channels will be saved when no operation is performed for 60 seconds and

the "Manual program" menu will also exit automatically.

_, If you perform scanning more than twice, previously saved channels are erased.

_ About broadcasting systems

Analog (NTSC): Conventional broadcasting

Digital (ATSC): New programming that allows you to view more channels

featuring high-quality video and sound

Watchng TV

Connect the TV to a cable, satellite box, or antenna cable (p. 9-12)

Turn power on

POWER

or v_and select TV.

® If the mode is not TV, press +v

(p. 22)

(TV)

Select a channel number

(TV)

Dmm

DBB

or HQm

[] To directly input the digital

channel number

When tuning to a digital channel,

press the button to enter the

minor number in a compound

channel number.

example: CH15-1' _ B _ D

[] Other Useful Functions (Operate after @)

[] Select Audio Mode for watching TV

SAP

® Digital mode

Press SAP to select the next audio track (if available) when receiving a digital channel.

@Analog mode

Press SAP to select the desired audio mode.

• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)

[] Press SUB MENU to show sub menu screen. (p 26)

This menu consists of shortcuts to convenient functions.

GUIDE

SUB

[] Displays or removes the channel banner.

INFO Channel Clock

Station SAP Signal Picture

identifier indication resolution mode Sleep timer

remaining time

[] Press FORMAT to cycle through the aspect modes. (p. 46)

FORMAT I_ 4 _l

•480i, 480p: FULUJUSTI4:31ZOOM

•1080p, 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM

FAVORITE [] FAVORITE

Channel numbers registered in Favorite are displayed on the favorite tune

screen, Select the desired broadcast station by using the cursor or number

buttons, (see below)

® Reselect "Cable" or "Antenna" in "ANT in" of "Program channel" to switch the signal reception between cable TV

and antenna. (p. 17, 35)

® The channel number and volume level remain the same even after the TV is turned off.

•Set Favorite Feature

Display the SUB MENU.

GUIDE

SUB

•Press FAVORITE repeatedly to

change between pages (1/3, 2/3,

3/3, or exit).

Press A ®to highlight a position on

the list.

Then, press OK to save the

displayed channel in that position.

•You can also use the NUMBER

buttons (1-9 and 0) to select a

list number (1-9 and 0). By doing

so, the displayed channel will be

saved on that list number without

pressing OK.

mUse Favorite Feature

FAVORITE

Press FAVORITE.

•Press FAVORITE repeatedly to

change between pages (1/3, 2/3,

3/3, or exit).

select

®; _ ok

iii)}Ji 7_,_.J !

....iii77_7i;; .........

Press A ® or a Numbered key (1-9

and 0) to highlight a channel on the

list.

•Selecting a channel number from

the list with the number button will

display the channel directly.

®To delete a favorite channel

A saved channel can be removed from the list by holding

down OK while its position is highlighted.

® To change the page

Pressing 4 changes the page backward. Pressing t_ changes the page forward.

Press OK to display the highlighted

channel.

:3-

£Q

-4

Vi ng from S C rd

You can view photos taken with a digital camera or digital video camera and saved on an SD card.

(Media other than SD Cards may not be reproduced properly.)

Insert the SD card and select "Play SD card now"

® "SD card setting" will be displayed automatically each time a SD card is inserted

for the first time.

Play SD card now

Play SD card automatically:

On:

Off:

Set it to playback the data when SD card

is inserted,

When SD card is inserted, the data play

automatically from next time,

The data can be played manually,

Press the SD key or select "SD card" on the Menu.

_ You can skip this step when "Play SD card now" is selected or "On" is set in "Play

SD card automatically" setting.

_,,_ "IVMENU

i_ SD card

Select the data to be viewed

view

Q_select

(2)view

Navigation area

Present status

(While reading the data)

II Press to exit from

a menu screen

EXIT

II Press to return

to the previous

screen

RETURN

-- Selected picture information is disp.layed.

No.: Image number or file name is

displayed,

Date: Date of recording is displayed,

Pixel: Display resolution is displayed.

-- Total number of images

(to Slide show) (to Single photo display)

_®Depending on the JPEG format, "Information" contents may not be displayed

correctly. Refer to p. 47 (Data format for SD card browsing) for details.

View

Navigation area

To previous photo

INFO

®_To display/hide Navigation area _

Displays one at a time

® Insert the card

Label

Push until a

click is heard

® Remove the card

_, Press in lightly on SD

Card, then release.

® Compliant card type

(maximum capacity):

SDHC Card (16 GB),

SD Card (2 GB), miniSD

Card (1 GB) (requiring

miniSD Card adapter)

® For cautions and details

on SD Cards (p. 47)

IITo set up the slide show mode

In 0 or 0

Display"Photo menu"

11/MENU

Setect "Setup slide show"

Setect the item and adjust

You can set how many seconds each

image is displayed in Slide show

mode. (1-10/15/20/30/45/60/120 sec)

Turn the slide show Repeat function

On or Off.

® For large image sizes, the display time will be longer

than the number of seconds set.

® To stop in mid-cycle _,- Press R_UR,

IITo adjust picture

In _i}or 0

Display"Photo menu"

TVMENU

Setect "Picture"

Select the item

Picture menu (p. 24)

Adjust or select

@ok

select

Adjust

Select

(1)

Watchng Vid s and DV s

If you have applicable equipment connected to the TV, you can easily watch videos and DVDs using the

TV's remote control.

You can select the external equipment to access.

To operate other manufacturers' equipment, you need to register the code of the equipment. (p. 39)

With the connected equipment turned On

Display the Input select menu

"IV

VIDEO

(example)

Press corresponding NUMBER

button on the remote control to

select the input of your choice.

Select the input of your choice,

then press OK.

® During the selection, if no action

is taken for several seconds, the

"Input select" menu disappears.

........Terminal

Label

(example)

®The terminal and label of the

connected equipment are

displayed.

To label each of the inputs,

please refer to p. 37.

II To return to TV

VIDEO _® _

_ For details, see

the manual of

the connected

equipment.

{®The input label will be displayed on "Input select" screen if Input label is set on p. 37.

® For front input terminals (HDMI 3/Video 2), "GAME" input label is set as default.

(Picture mode is set to "Game", refer to p. 48.)

® For more details for picture mode setting, refer to p.48. For Input label, refer to p. 37.

II Press Game to switch to the game screen

Switches to Input terminal that has "GAME" label.

TVNCR ® Cycle through the input terminals if there are multiple

Input terminals that have "GAME" label. (p. 37)

_ If there is no Input terminal with "GAME" label,

you cannot switch the input terminal to any other

input terminal than the one currently selected.

Select the remote control mode

Press the key to select

Operate the connected equipment, pointing TV's

remote control at the equipment.

VCR Record Record

_ Skip Reverse/

Forward

Rewind/Fast Revers®Forward

Forward

(For other operations, see p. 42)

(example)

Stop Stop

Pause Pause

Play / Play

If you connect equipment that has "HDAVI Control" function to this TV with HDMI cable, you can

use more convenient functions. Please refer to p. 28-31. Before using these functions, you need

to set "VlERA Link" setting to "On" as shown below.

Display menu

rv MENU

Select "Setup"

Select "VIERA Link setting"

)select

Select "VIERA Link"

II Press to exit from

a menu screen

EXIT

II Press to return

to the previous

screen

RETURN

Select "On"

(default is On)

Now you can set each "VlERA Link" function according to your preference

(p. 28=29)

;_ If no HDMI equipment is connected or standard HDMI equipment (non- "VlERA

Link") is used, set it to "Off".

,® For the details on the external equipment's connections, please refer to the

operating manuals for the equipment.

::3"

£L

(1)

£L

to UFcti S

Various menus allow you to make settings for the picture, sound, and

other functions so that you can enjoy watching TV best suited for you.

Display menu

TVMENU

_ Displays the functions that can be set

(varies depending on the input signal)

Select the menu

Select the item

(example: Picture menu)

_ Adjust or select

m Press to exit from

a menu screen

EXIT

m Press to return

to the previous

screen

RETURN

@(example: Picture menu)

II Menu list

Menu Item '

Record now

Stop recording

VIERA Link control

Speaker output

Reset

Picture mode

Picture, Brightness,

Color, Tint, Sharpness

Color temp.

Color regret.

×.v.Color

Zoom adjust

Video NR

:_ 3D Y/C filter

_ Color matrix

_" MPEG NR

o Black level

HD size

Reset

Bass

Treble

Balance

AI sound

Surround

_" Bass boost

Audio leveler

_ Speaker output

o HDMI 1 in

HDMI 2 in

HDMI 3 in

Sleep, Timer 1-5

SD card

......... AdjustmentslConfigurations (alternatives)

[Record now/Stop recording]

Records programs on the recorder immediately with the TV's remote control (p. 30-31 ).

[VlERA Link control]

Selects equipment to access and operate. (RecordedHome theatedPlayedCamcorder) (p.30-31)

[Speaker output]

Selects an audio output. (Home theaterf'rv) (p. 30-31) _ v_r_

_ VIERA Link menu is accessible directly by pressing the VIERA Link button on the remote control. _ _ (p. 30)

Resets all picture adjustments to factory default settings except for "Advanced picture".

Basic picture mode (VividlStandardlCinemalGamelCustom) (p. 48)

Adjusts color, brightness, etc. for each picture mode to suit your taste

_ Display range

PicturelBrightnesslColodSharpness: 0 - 100

Tint: -50 - +50

Selects a choice of Cool(blue), Normal, or Warm(red) color. (Cool/Normal/Warm)

Brightness

On: Enhances green and blue color reproduction, especially outdoor scenes. (On/Off)

Auto: Provide the appropriate picture when images corresponding to "x.v.Color" are input via the HDMI

input of this TV. (Off/Auto)

Adjusts vertical alignment and size when aspect setting is "ZOOM" (p. 46)

Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)

Minimizes noise and cross-color in the picture. (On/Off)

Selects image resolution of component-connected devices (HD/SD)

_ SD: Standard Definition HD: High Definition

® Only 480p signal accepted; regular TV (NTSC) is not available.

Reduces noise of specific digital signals of DVD, etc. (On/Off)

Selects Dark or Light. Valid only for external input signals. (Dark/Light)

Selects between 95 % (Size 1) or 100 % (Size 2) for the scanning area with High-definition signal. (Size 1/Size 2)

Select "Size 1" if noise is generated on the edges of the screen.

® Size 1: Selected item for "HD size". Scanning 95%

_ Size 2: Selected item for "HD size". Scanning 100%

Resets Bass, Treble and Balance adjustments to factory default settings.

Increases or decreases the bass response.

Increases or decreases the treble response.

Emphasizes the left /right speaker volume.

Equalizes overall volume levels across all channels and external inputs, iOn/Off)

Enhances audio response when listening to stereo. (On/Off)

Enhances bass sound and provides powerful sound. (On/Off)

® This setting will not function if "off" is set in "Speaker output".

Minimizes volume disparity after switching to external inputs

Switch to "Off' when using external speakers (On/Off)

® "AI sound", "Surround", and "Audio leveler" do not work if "Off' is selected

The default setting is "Digital" for HDMI connection. (Digital input signal)

Select audio input terminal when DVI cable is connected. (Analog audio input signal)

(Digital/Component l/Component 2/Video l/Video 2)

The TV can automatically turn On/Off at the designated date and time (p. 38)

Reset ]

[Picture mode _]

_[ Tint _]

][Sharpness

[Co,ortemp.

[ Color mgmt. _ ]

[x.v.Color

[ Video NR _ ]

[ 3D Y/C filter _ ]

[ Color matrix _ ]

[MPEGNR

[B,ock,eve,

[ HI) size _]

Reset ]

[Bass

[Treb,e

[Ba,ance

[A,sound

[Surround

[Bassboost

[Audioleveler ]

[Speaker output _ ]

[HDMI1 in _ ]

[HDMI2 in _]

[HDMI3 in _]

[Sleep _]

Locks the channels and programs (p. 32)

,.-., -F

"_o

_"rl

D--'_C

¢5"

,L..,,ca

Displays SD card data (p. 20-21)

Displays subtitles (Closed Caption) (p. 36)

_®In AV mode, the Audio menu and Setup menu give fewer options.

SD card

[cc

]

to UFcti S

Various menus allow you to make settings for the picture, sound, and

other functions so that you can enjoy watching TV best suited for you.

Display menu

TVMENU

¢ Displays the functions that can be set

(varies depending on the input signal)

Select "Setup"

.................... (_next

/(_select

m Press to exit from

a menu screen

EXIT

m Press to return

to the previous

screen

RETURN

Select the item

Display Sub Menu

GUIDE

SUB

Select the item

mMenu list

Surf mode

Language

Clock

Program channel

Input labels

Monitor out

Pixel orbiter

Time

Side bar

Scrolling bar

VIERA Link

Power off link

Power on link

Default speakers

Auto power on

No signal shut-off

No action shut-off

mSub

PlaySDcard automatically

About

Reset

menu list

Surf mode

Set favorite

Caption select

Signal meter

(Continued)

Adjustments/Config urations (alternatives)

Sets the mode to select the channel with Channel up/down button

(AIIIFavoritelDigital Only/Analog only)

_ Favorite: Only channels registered as FAVORITE (p. 19)

Selects the screen menu language (p. 16)

Adjusts the clock (p. 16)

Sets channels (p. 34)

[Surf mode _]

Language ]

[ Clock ]

[ Program channel ]

Selects the terminal and label of the external equipment (p. 37)

[Component l/Component 2/HDMI I/HDMI 2/HDMI 3/Video l/Video 2]

To prevent howling and image oscillation, stops output of the pictures and audio specified in this menu.

(p. 37) (On/Off)

Prevents "Image retention" with Wobbling. (Automatic/Force)

_ Automatic: Shifts the display image automatically.

® Force: Shifts the display image every (1/2/3/4) minutes according to what was set in the "Time" menu.

Sets the time for "Pixel orbiter-Force" setting. (1121314)

Change the brightness of the side bar (OfflDarklMidlBright) (4:3 mode only)

f_ The recommended setting is "Bright" to prevent panel "Image retention". (p. 49)

Press "OK" to start "Scrolling" on the screen (p. 49)

Controls equipment connected to HDMI terminals (p. 28) (On/Off)

_ "Power off link", "Power on link", and "Default speakers" cannot be selected if "Off' is set.

Sets "Power off link" of HDMI connection equipment (p. 28) (Set/No)

Sets "Power on link" of HDMI connection equipment (p. 28) (Set/No)

Selects the default speakers (p. 28) (TV/Theater)

Turns TV On automatically when a connected device is turned On (No/Set)

_ The "Sleep" timer, "On /Off timer", and "First time setup" will not function if"Auto power on" is set.

(p. 38)

To conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION is performed

for more than 10 minutes. (Set/No)

Note

_ Not in use when setting "Auto power on", "On/Off Timer", "Lock", "SD Mode", or Digital channel.

_ "No signal shut-off was activated" will be displayed for about 10 seconds when the TV is turned on for

the first time after turning the power off by "No signal shut-off".

The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

To conserve energy, the TV automatically turns off when no operation of remote or front panel key

continues for more than 3 hours. (No/Set)

Note

_ Not in use when setting "Auto power on" or "On/Off Timer".

_ "No action shut-off was activated" will be displayed for about 10 seconds when the TV is turned on for

the first time after turning the power off by "No action shut off".

_ The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.

Set "On" to play back SD cards automatically. (On/Off)

Displays TV version, software license and cableCARD TM.

Performing Reset wilt clear all items set with Setup, such as channel settings. (p. 34)

[ Nosignal shut-off _ ]

[ Noaction shut-off _ ]

[About ]

[Reset ]

Adju_nts/Config urations (altern--ives)

Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital Only/Analog only)

Sets favorite channels. (p. 19)

Displays Closed Caption. (p. 36) (Off/On)

Changes the station identifier. (p. 35)

Checks the signal strength if interference or freezing occurs on a digital image. (p. 35)

VIERA Link TM "HDAVI Control TM''

Simultaneously control all Panasonic "HDAVI Control" equipped components using one

button on one remote.

VlERA Link TMis a new name for EZ Sync TM.

Enjoy additional HDMI Inter-Operability with Panasonic products which have "HDAVl Control".

This TV supports "HDAVl Control 3" function.

Connections to the equipment (DVD recorder DIGA, HD Camcorder, Player theatre, RAM

theater, Amplifier, etc.) with HDMI cables allow you to interface them automatically.

The equipment with "HDAVl Control" function enables the following operations:

® Automatic Input Switching (p. 29)

® Power on link (p. 29)

® Power off link (p. 29)

® Default speakers (p. 29)

® One-touch theater playback (p. 29)

® Speaker control (p. 31)

The equipment with "HDAVl Control 2" (or more) function enables the following operations:

® VlERA Link control only with the TV's remote control (for "HDAVl Control 2" or "HDAVl Control 3") (P. 31)

® Providing the setting information (for "HDAVl Control 3") (p. 29)

® Automatic lip-sync function (for "HDAVl Control 3") (p. 29)

® Direct TV Recording (for "HDAVl Control 3") (p. 31)

VlERA Link "HDAVl Control", based on the control functions provided by HDMI which is an

industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function

that we have developed and added. As such, its operation with other manufacturers' equipment

that supports HDMI CEC cannot be guaranteed.

Please referto the individual manualsfor other manufacturers'equipmentsupportingthe VlERA Link function.

mFor the first time /when adding new equipment, reconnecting equipment or changing

the setup after the connection, turn the equipment on and then switch the TV on.

Select the input mode to HDMI1, HDMI2 or HDMI3 (p. 22), and make sure that an image

is displayed correctly.

_HDMI cable

This function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.

It is recommended that you use Panasonic's HDMI cable. Recommended part number:

RP-CDHGIO (3.3 ft/1.0 m), RP-CDHG1 5 (4.9 ft/1.5 m), RP-CDHG20 (6.6 ft/2.0 m),

RP-CDHG30 (9.8 ft/3.0 m), RP-CDHG50 (16.4 ft/5.0 m)

For more details on the external equipment's connections, please refer to the operating

manuals for the equipment.

Follow direction @ - in "VIERA Link

setting" (p. 23)

Select settings

Press to exit from

a menu screen

EXIT

Press to return

to the previous

screen

RETURN

Set

change

At the start of the DIGA, Player theater, or RAM theater playback, the TV's input automatically switches to the input

based on the playback equipment.

® For the RAM theater, the speakers automatically switch to the theater system.

If using the DIGA operation, the TV's input automatically switches to the DIGA and DIGA menu is displayed.

When "Set" is selected (p. 27), TV is turned on automatically and switches to the appropriate HDMI input whenever

VlERA Link compatible equipment is initially turned on and Play mode is selected.

When "Set" is selected (p. 27) and the TV is turned off, all connected VIERA Link compatible equipment is also

automatically turned off.

_ DIGA (Panasonic DVD Recorder) will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VlERA Link compatible equipment is turned off.

"TV" is the default setting. To set the Home Theater system as default speakers, change the default speakers

setting from "TV" to "Theater". Sound will be output from the Home Theater whenever the TV is powered on.

If the "ONE TOUCH PLAY" key is pressed on the remote control for Panasonic Home Theater system, the following

sequence of operations is performed automatically.

Home Theater power switches On, and playback begins.

_ TV power switches On, and the playback screen is displayed.

_3_Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each equipment (Recorder/Home theater/

Player) that has "HDAVl Control 3" function connected to a TV with HDMI piece of cable.

Home

Transmittable data Recorder theater Player

O O O

_0 On Screen Display Language setting

(English/Espafiol/Fran£;ais)

(2) Panel Aspect Ratio

(16:9 fixed)

mode

(3) Closed caption CC type

information

Digital setting

Input signal

(4_Channel Channel list

information

Caption information

o o

_#There is a possibility that all the GUI language information might be set from equipment that has HDMI CEC

function connected to TV with HDMI cable. Depending on operating conditions or the specification for each piece

of equipment the setting may or may not be applied.

® For details on the external equipment's operation, please refer to the operating manuals for the equipment.

[For Recorder]

_ You cannot operate other functions while transmitting TV's information above except Power On/Off key operation.

When you turn off this unit, the transmission will be interrupted (only when you are transmitting @ Channel

information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

Amplifier.

IT]

F-

-4

VIERA Li kTM'' DAVI Control TM''

You can enjoy more convenient operation with the "HDAVI Control" function in the "VlERA Link"

menu.

For more detailson the"HDAVI Control"function,refertop.28

Display VIERA Link menu

Vi_f_

TVMENU

Select the item

(_Oselect

_2]set or next

Select

mPress to exit from

a menu screen

EXIT

mPress to return

to the previous

screen

RETURN

@Set

change

(Continued)

You can select Home theater or TV speakers for audio output.

Control theater speakers with the TV's remote control.

This function is available only when Panasonic Amplifier or Player theater is connected.

Select "Speaker output"

Select "Home theater" or "TV"

(:_seiect

@change

_Home theater: Adjustment for equipment

Volume up /down _®

MUTE

Mute _,

® The sound of the TV is muted.

® When the equipment is turned off, the TV speakers

take over.

® Selecting "Home theater" turns the equipment on

automatically if it is in standby mode.

IITV: The TV speakers are on.

In the VlERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your

TV's remote control to operate the equipment, pointing it at the TV.

Select "VIERA Link Control"

(_ Select the equipment you want to access.

(Recorder/Home theater/Player/Camcorder)

(_0select

®change

You can select available items

only.

mAvailable TV's remote control buttons

Move the cursor/Select

@ Set/Access

RETURN Return to the previous menu

Display the Functions menu on the

equipment

Available when the purpose of the keys is

displayed on screen

Operate the equipment with the TV's remote

control, pointing it at the TV.

® To operate the equipment, read the manual of the

equipment.

Records the current program on the recorder immediately.

_Select "Record now" _Select "Stop recording", when you want to

stop recording

_select _0select

_)set _>set

® For optimal recording, the settings of the recorder ® Recording will not stop automatically when the

might be required. For details, read the manual of the program is finished.

recorder.

IT]

:]>

r--

--t

-H

Lock

You can lock specified channels or shows to prevent children from watching objectionable content.

Display menu

TVMENU

Select "Lock"

(_next

(_select

You will be asked to enter your

password each time you display

the Lock menu.

Input your 4-digit password

A 4-digit code must be entered to view a blocked program or change rating settings.

D m m _ If it is your first time entering the

U m B password, enter the password

U H B twice in order to register it.

m Press to exit from

a menu screen

EXiT

(_ Caution _)

® Make a note of your

password in case

you forget it. (If you

have forgotten your

password, consult

your local dealer.)

When you select a

locked channel,

a message will be

displayed that allows

you to view the

channel if you input

your password.

Select the Lock mode

..... _select

Select the item

select

Set

set

Off: Unlocks all the lock

settings of "Channel",

"Game" and "Program".

All: Locks all the inputs

regardless of the lock

settings of "Channel",

"Game" and "Program".

Custom: Locks specified inputs of

"Channel", "Game" and

"Program".

® "Channel", "Game" and "Program"

will grey out unless "Custom" is

selected in "Mode".

_To select the channel or the rating of the program to be locked

Select up to 7 (1-7) channels to be blocked. These channels will be blocked regardless of the

program rating.

Select "Mode" and set to "Custom"

Select channel to lock.

®select @TOlock/unlock all channels:

Select "Mode" and set to "All" or "Off',

(_set All: Locks all channels

Off: Unlocks all channels

Locks Channel 3, Channel 4 and external

inputs.

Select "Game" in @ and set to "On".

On: Locks

Off: Unlocks

inTo set a rating level

"V-chip" technology enables restricted shows

to be locked according to TV ratings,

Select "Mode" and set to "On".

_set

®select

Select the rating category you wish

to follow

se,ect

MPAA: U.S movie ratings

U.S.TV: U.S TV program ratings

C.E.L.R.:Canadian English ratings

C.F.L.R.: Canadian French ratings

_3_Select the rating to be locked

_seiect

Example of "MPAA" (U.S movie ratings)

NR INo rating

G IGeneralAudience: All ages admitted

PG Parental Guidance Suggested

D__ _-_IParents Strongly Cautioned: inappropriate for

"_,"_ children under 13

R Restricted: Under 17 requires accompanying

IParent or adult guardian

NC-17 No one 17 and under admitted

X Adu ts on y

_ To get more information (p. 45)

II To disable recording of the locked

program

® Select "Monitor out" and set to "Off".

_2_set

®select

m To change the password

In O, select "Change password" and

press OK

_2_Input the new 4-digit password twice

r--

Q This television is designed to support the "Downloadable U.S. Region Rating System" when available. (Available

only in U.S.A.)

® The Off rating is independent of other ratings.

_ When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will

also be blocked.

E iting Setti Cha

The current channel settings can be changed according to your needs and reception

conditions.

Display menu

TV MENU

els

Select "Setup"

(2_next

(_select

Press to exit from

a menu screen

EXiT

Select the function

..... _ (_)next

iii; _i) select

Set

ImTo reset settings setup menu

the of

Select "Reset" in Setup menu (@) and press OK

@ Input your 4-digit password with number buttons

Select "YES" on the confirmation screen and press OK

Automaticallysearchesandaddsavailablechannelsto thememory.

_} Select "ANT in" (_ Select a scanning mode (p.17)

_4_SelectCableorAntenna(p.17)

(_ Select "Auto" @ok

\,_,o,_ select

Settings are made automatically

_ After the scanning is completed, select "Apply".

(see below (_).

® All previously saved channels are erased.

Use this procedure when changing the channel setup or

changing the channel display.

Also, use this to add or skip channels from the channel

list manually.

You can select a channel tuning mode (Digital only/

Analog only) in "Surf mode"(p. 26)

{1} Select "Edit"

Select the item to be edited

Favorite

Caption Add

C--J J

R G

_ _ Proceedto

Go back to previous page

_ Caption:

Changes the station identifier

Favorite:

Registers channel to Favorite

List

_ Add:

Adds or skips channels

Edit

® Caption

ICaption I I Caption detail I

Select the station identifier Rename(maximum7charactersavailable)

®Favorite

Set favorite I Select the number

_ Add RETURN

Press OK to select "Yes (add)" or "No (skip)" @

@ Move cursor to channel number

{5} Select "Apply"

"Apply"

To cancel the Edit

®select

_next

Check the signal strength if interference is found or freezing occurs on a digital image.

HDm or

nal intensity

® If the signal is weak, check the antenna.

If no problem is found, consult your local dealer.

_change

channel

_ok

_s Not available if "Cable" is selected in "ANT in"

(see above).

@Available only for digital antenna channels.

£Q

t=,=d=

£Q

:3-

®JIf "Lock" (p. 32) is activated and "Program channel" is selected, "Enter password." will be displayed. 35

Closed Capti

Display menu

TVMENU

II Press to exit from

a menu screen

EXIT

Select "CC"

":: "\'\ (_next

i (i)select

The television includes a built-in decoder that is capable of providing a text display of the audio.

The program being viewed must be transmitting Closed Caption (CC) information. (p. 46)

II Select the item and set

I Mode ISelect''On'' (when not using, select

"Off").

® The settings in "Analog" or "Digital"

depend on the broadcaster.

I Anal°g I

CC1-4:

(Choose the Closed Caption

service of Analog broadcasting.)

Information related to pictures

(Appears at bottom of screen)

T1-4: Textual information

(Appears over entire screen)

I(The Digital Closed Caption

menu lets you configure the way

you choose to view the digital

captioning.)

Select the setting.

_#"Primary", "Second.", "Service 3", "Service

4", "Service 5", "Service 6"

I Digital

IITo make more in-depth display settings in digital programs

G Select "Digital setting" and press OK

® Select the item and set ® Size: Text size

® Font: Text font

®_Style: Text style (Raised, Depressed, etc.)

® Foreground: Color of text

® Fore opacity: Opacity of text

® Background: Color of text box

_ Back opacity: Opacity of text box

® Outline: Outline color of text

(Identify the setting options on the screen.)

II To reset the settings

Select "CC reset" and press OK

36 '

Labe ito 0

Display menu and select "Setup"

TV MENU

_next

_Oseiect

Select "External devices"

Press to exit from

a menu screen

EXIT

Select "Input labels" or "Monitor out"

Devices connected to external input terminals can be labeled for easier identification during

input selection. (In selecting input mode from p. 22 _iQ

II Select the terminal and label of the external equipment

- Label Terminal

[example]

® Terminals: Comp. I-2/HDMI 1-3/Video 1-2

® Label: SKIP*IVCR/DVD/CABLE/DBS/PVR/GAMEIAUX/

RECEIVER/[BLANK]

* If "SKIP" is selected, the TV/VIDEO button press will skip its input.

_ Each selected labels will be displayed on "Input select" screen.

(p. 22)

To prevent howling and image oscillation, stops output of the pictures and audio specified in

this menu. (p. 27)

m Select the terminal and set "Off"

® Select "Off" to stop output of picture and

audio. (Video l/Video 2)

® Component l/Component 2/HDMI I/HDMI

2/HDMI 3 cannot output video signals

regardless of "Monitor out" setting.

When equipment (DVD, etc.)is connected

to HDMI or COMPONENT terminals, only

audio signals can be obtained. From the

output terminals, no video signals can be

passed.

i--4p

F-

©&

m©

Us! Timer

The TV can automatically turn On/Off at the designated date and time.

® The Clock must be set before On time/Off time settings. (p. 16)

¢_The "Sleep" timer and "On /Off timer" will not work if the "Auto power on" (p. 27) is set.

Display menu

TVMENU

Select "Timer"

>next

O_select

Select the timer to set

[Sleep ]Turns Off automatically

Timer 1 ] Turns On/Off automatically

i (5 timers can be set.)

Timer 5 ]

Set the timer

IITo set "Sleep" (Off Timer)

Set to shut the unit off after a pre-selected amount of time.

_ 0/30/60/90 (minutes)

m Press to exit from

a menu screen

EXiT

m Press to return

to the previous

screen

RETURN

® The TV automatically

turns Off after 90

minutes when turned

On by the Timer.

This operation will be

cancelled if the Off

time is selected or if a

key is pressed.

m To set "Timer 1-5" (On/Off Timer)

Select the item and set

mm l:se,ect

D B m or

_ _ [ /\ @set

Channel ] Select the channel

Day ] Select the day

-SUNIMONITUEIWEDITHUIFRIISAT

(displays the nearest future date)

MON-FRI/SAT-SUN/DAILY/EVR SUN/EVR MON/

EVR TUE/EVR WED/EVR THU/EVR FRI/EVR SAT

On time ] The time to turn On

Off time ] The time to turn Off

Set ] Timer setting (On/Off)

]

Prograrnrnin the mote

Peripheral Equipment

to Operate

You can operate other manufacturers' equipment using this TV's remote control.

Connect the external equipment to the TV and

Power Off the external equipment

VCR

DVD

POWER

DBS/CBL

Press both buttons simultaneously for

more than 3 seconds.

@Release the buttons when the equipment selection

buttons start flashing.

Select the equipment

with the equipment selection button

@The selected button remains lit (other buttons are not lit).

UBm

UBD

HDm

Input the equipment's 4-digit remote

control code (p.43-44)

POWER Operate the equipment with the remote

control (p. 42)

@The external equipment turns On.

Press to return to the TV

mode

II if the equipment does not operate with the

remote control

@When your equipment has a single code

_, Input the remote control code again

@When your equipment has multiple codes

_ Change the code with C_above and test again

Caution

@Registration will fail if the wrong code is input or it takes more than 30 seconds to register.

G:3

::3-

(1)

-O

"ZD

:3-

®_

C--

ooFIq

roE.

....i_

3¢

This procedure searches all codes and is called the "sequence method."

After step @ above, change the code and

test

POWER

Operate the equipment with the remote

control (p. 42)

@ Repeat until the code is found

@It may take many attempts before the correct

code is found

When the correct code is found

store

Reco nded AV Co necti S

These diagrams show our recommendations on how to connect the TV unit to your various equipment.

For other connections, consult the instructions [or each piece equipment and its specifications.

For additional assistance, please visit our website at: www.panasonic.com

Front of the TV Back of the TV

AC 120 V 60 Hz

AC Cord

(Connect after all the other

connections are complete.)

i)i!!ilii)i !L!"-,yiioo...c,w,h

[] To watch _ or_-B_

camcorder

images _ _........ ,_ )

Camcorder Audio-_ _ )

cable _ _ (

VCR DVD _ _ _ )

Player " _ )

(For HDMI ! _ _Optical digital

connection, _ _ _audio cable

HDMI compatible _B_-,___,__ \ _ _ _

equipment only. HDMI-DVI "_- _ _ _ ' "- _ _

For connection Conversion .o_ q or _ H M P_J

cable + _ _ HDMI cable _ _

using HDMI- Audio cable _ _ " _ _ _ _ _ OPTICAL

UVlConversion II _ _ l _ _ _ IN

cable, seeHDMI _ _ __/I @1 or HDMI 2 Amplifier

connection on

this page.)

[] To watch DVDs [] To watch digital video [] To listen to the TV

DVD Player image through speakers

DVD Player

(HDMI compatible

machines only)

® The picture and audio input signals connected to a

terminal specified in "Monitor out" (p. 37) cannot be

output from "PROG OUT" terminals.

However, audio output can be obtained from "DIGITAL

AUDIO OUT" terminal.

® To prevent howling and image oscillation, set the

"Monitor out" setting when connecting the VCR with

loop-connection. (p. 26, 37)

[] DVD Recorder /

VCR

® When equipment (DVD, etc.) is connected to HDMI

or COMPONENT terminals, no video signals can be

passed through PROG OUT terminal.

® When receiving digital channel signals, all digital

formats are down-converted to composite NTSC video

to be output through the PROG OUT terminals.

Please see p. 24-25 for setup when using an external

analog audio cable with an HDMI to DVl cable.

Follow the connection diagrams below for HDAVI control

of a single piece of AV equipment such as a DVD recorder

(DIGA), RAM theater, or Player theater system.

Refer to page 28-31 for Setup Menu settings and additional

control information.

_ Optional HDMI and/or optical cables are not included.

If connection (or setting) of equipment compatible with

HDAVI control is changed, switch the power of this unit Off

and On again while the power of all equipment is On (so that

the unit can correctly recognize the connected equipment)

and check that the DVD recorder (DIGA), RAM theater, and

Player theater playback operate.

_®HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3, set the input mode to HDMI 2/HDMI 3 (p. 22) initially before connecting to

HDMI 2/HDMI 3. After connection, confirm the HDMI control functions (p. 28-31).

Connecting this unit to the DVD recorder (DIGA), RAM

theater, or Player theater

® For DVD recorder (DIGA): Connect with HDMI cable

® For RAM theater and Player theater:

Connect with the HDMI and audio cables.

If audio cable is not connected, you cannot listen to the TV program

through the theater system.

mConnecting this unit to a DVD

recorder (DIGA) AV amp

When using an "VIERA Link" audio=

video amplifier and a compatible DVD

recorder (DIGA) use a daisy chain

connection as shown below,

Digital Audio out

Back of the TV

AUDIO _ _ _ HDMI HDMI

IN (AV OUT) (AV OUT)

!: or

RAMtheater /HDCamcorder

Player theater with withVIERALink

VIERALinkfunction function

HDMI

(AVOUT)

DVD recorder (DIGA)

with VIERA Link function AV amp with VIERA

Link function

HDMI cable

HDMI

(AV IN)

DVD recorder (DIGA)

with VIERA Link function

(1)

®_One AV amp and one DVD recorder (DIGA) can be operated with this unit.

_#Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

II Setting of this unit after connection

After making connections as shown above, set "VIERA Link" (under "VIERA Link setting") to "On" using the Setup

menu. (p. 23, 28-29).

®_Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

® When audio from other equipment connected to this unit via HDMI is output using "DIGITALAUDIO OUT" of this

unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

® About HDMI cable for connecting Panasonic HD camcorder, read the manual of the equipment. 41

Remote C ntrol Opera ion/CodeList

The following explains how to operate external devices with the TV's remote control•

® Register the remote control codes (p. 39) if you want to operate an external device from another manufacturer• (p. 43-44)

@Operation may not be possible depending on the available memory size of the remote control.

This remote control is not designed to cover operation of all functions of all models.

[] Remote Control Operation List

Thischartdefineswhichkeysareoperationalafterprogramming(ifneeded)whileinthe selectedremotecontrolmode,CABLE,DBS,VCR,or DVD.

Power Power Power Power

SAP

- LIST LIST DVD AUDIO

TV Input Switch TV Input Switch TV Input Switch TV Input Switch

TV MENU

, - Menu Menu Functions

• _ Exit Exit -

Up/Down/Left/Right Up/Down/RightlLeft Up/Down/Right/Left

Select Select Enter

MENU . __ Guide Guide Sub Menu

RETURN

• - PPV/VOD PPV/VOD Return

- Red A Red

- Green B Green

, - Blue C Blue

- Yellow D Yellow

Channel UplDown Channel UplDown Channel UplDown Channel UplDown

TV Volume UplDown TV Volume UplDown TV Volume UplDown TV Volume UplDown

FORMAT

_ - Aspect Aspect -

FAVORITE

-Favorite Favorite Direct Navigator

INF0

Onscreen Display Info Info/Display/OSD Onscreen Display

MUTE

TV Mute TV Mute TV Mute TV Mute

0-9 0-9 0-9 0-9

-LastChannel LastChannel DriveSelect

- Sub Channel Music PROG (Sub Channel)

V PAGE A PageDown/Up PageDown/Up SHpReverse/Forward

"rVNCR TV/VCR Switch TV/DBS Switch TV/CBL Switch -

_AR_--,, -,, Rewind/Fast Forward Rewind/Fast Forward Rewind/Fast Forward Reverse/Forward

VCR Record PVR Record _ PVR Record _ Record

STOP

Stop Stop Stop Stop

PAUSE

Pause Pause Pause Pause

PLAY

Play Play Play Play

2_1: Combination type

Remote Control Code List

ABC 0003, 0007, 0008 Hytex 0007 _i!i_;;;;

}_;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;_I!_ 6iiii iii_!!_i_1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1i1.[[_Pioneer

Americast 0899 Jerrold 0003, 0012, 0276, 0476, 0810

Quasar

Hell South 0899 Motorola

1254, 13761 1951 RCA

ClearMax 0883

0883 Runco

Coolmax 0883 :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

Oak 0007, 0019 Scientifc ASanta

Director 0476 _]

Pace 0008, 0237,1877 Sony

GoldStar

0144, 0533, 0877,1877 Superrnax 0883

Thomso_ 1256

0000 Tocom 0012, 0059

0021,1258 Toshiba 0000

0000 United Artists 0007

0144 0883 ..........................................................................................

0008, 0477, 0877,1877 Viewmaster 0883

1006 Vortex View 0883

0144 _ _ i ,_ _)_ # _ _ ,_02i ....................................................................

;_!_ _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii'____/_______;11111111111111111111111111111111111111111111111111111111111111111111111_Paragon

Americast 0899 Jerrold

ii _ii

Digeo 1187 Myno

081

AIphaStar 0772 Gl ......................................................

[

Chaparral 0216

CrossdigJtal 1109

0000 Starcom

0810 Pioneer

i_ i ii

1822 Scientific Atlanta

_ ....................................................................................Magnavox

,0775,1 Mitsubishi

1246

, NEC

ii_i_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_`_;_

Systems Paysat

Dish Network System 0775,1005,1170,1505,1775

iLo 1535

Echostar 0775,1005,1170, 1505,1775 _

JVC 0775.1170,1775

Fortec Star 1821,1948 RadioShack

I = = _ erie |, ol ....

Hell ExpressVu 0775, 1170 Echostar 0775.1170, 1505 Motorola

Phiji_

1142,1442,1443,1444 P.......

Dish Network System 0775.1505 Systems

Samsung

1972 Multitech

0048, 0209 Go Video 0432. 0526. 0814, 0843,1137 Nikko

_ ........................................................................................ :::::::::::::::::::::::::::::::::::::::::::::::::::::::

0278 Gradiente 0000 Niveus Media

_68 ........................................................................................

0038. 0075. 0081 Northgate

0046 Onkyo

0003

0877,1877 Supercable 0278

ii___!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_

0877,1877 Zenith 0899

0722, 0724

Samsung 1108,1109,1276,1377,1442,1609

Sony 0639,1839,1640

1270 086£

ABS

ii_ @_ _i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_

Admiral

ii_ _A_!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i

Aiko

_i_ _ i_

Akai 0041. 0061, 0106, 0175, 0242 Harman/Kardon

Allegro 1137 Headquarter

0724 ........................................................................................

Uniden

0392, 0566 USDTV 1535

0869 Zenith 1810,1856

0869

Star Choice 0869

_@ ........................................................................................Zenith 1810

1442

0000, 0072 Sanyo 0046. 0047, 0104, 0159, 0240

0037 Sears 0000, 0035, 0037, 0042, 0046, 0047,

0104, 0105,1237

1972 _ _

SMntorn 0072

1972 _ ...........................................................................................

0072

0222

;ii_i_i#_;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!ii_ii_i !;i_i[_!_!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii;_iii!i_@_i;i;ii_i_i;!_i_i!;!_i@_!iii_i_il;_i:!;iSony 0000,oo32,o033,o034,0035,0838,

1032.1872American High 0035 HPQ 0047

Orion 0002, 0184, 0209, 0479.1479

Audio Dynamics 0040 Howard Computers 1972 _i_ _ _ _ _C,2 _ _ _ _22H STS 0042

Beaumark 0240 Hughes Network 0042. 0739 _ _ ..................................................................................................................................................................................................................................................................

_e_i _ _Swefi Systems ...............................................................................................................................................................................

l Symphonic 0000. 0593,1593

Broksonic 0002, 0121, 0184, 0209, 0348, :::§:: :::: :§:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::Penney 0035, 0037, 0038, 0040. 0042. 0240,

0479,1479 Hush 1972 1035,1237 Tagar Systems 1972

_ ........................................................................................... Tas_ik_

Canon 0035, 0102 Instant Replay 0035. 0228 PhiIco 0035 Tatung 0041

Carver 0081 JVC 0008. 0041. 0067. 2079 Technics 0035. 0162. 0248

Pilot 0037 ....................................................................

CineVision 1137 Kenwood 0038. 0041. 0067

CHit 0072 Kodak 0035. 0037

Curtis Mathes 0035_ 0041, 0080, 0182,1038 Linksys 1972

CyberPower 1972 Logik 0072

DHX 0040, 0050 Magnasonic 0593.1278

D.... 0042 ,#_e_

.............................................................................................Magnin 0240

DirecTV 0739

Marta

Dynatech 0000

[[E!i_ _ _ __ _ _!ll_llillillillillillillillillillillillillillillillillillillillillillillillillillilli!

[[Pi_ . Thomas

Polk Audio 0081

P_'esiaian , TMK

0072 Totevision

0046 Unitech

Quasar 0035 0077 0162 1035.1162 Vector Research

Radix 0037 Videomagic

_ra_tz ,_ ................. [[_

0037 RCA

........................................................................................MEI 0035

0121 0184, 0208, 0209, 0212 0278 _ '0043[ 006ii 0240

0479, 0561, 0593, 0637,1278,

1479.1593

Microsoft 1972

0047, 0104 Minoka 0042. 0105

ii_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

oooo

0208.0240

0037,0240

0240

0038.0040

0037

Fisher

ii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil

Funai

Gateway 1972

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Motorola

0042, 0060 0077, 0105 0106 0149 Viewsonic 1972

0202, 0240, 0781, 0807. 0880.1035, ViJJ_i_ ....

1080, 2613 Voodoo 1972

0614, 0616 White Westinghouse 0072. 0209, 0637

0034 Yamaha 0038

0039

_ ......................................................................................... 1972

0039, 0048

(1)

-O

(1)

C)_

(1)

F-

RemoteControlOperation/CodeListoood)

m Remote Control Code List

Magnavox

ABS

CaNive Works

[Cybe

DeH

Gateway

Go Vi_

Hewlett Packald

Accurian

Aiwa

oooo

2167 Humax 0789, 1797, 1908

1972 iBUYPOWER 1972

........................................................ ReplayTV

1972 L[nksys 1972

Sonic Blue

1972 Miclosoft 1972

Stack 9

1972 Niveus Media 1972

0675, 1072, 1416 Ma[ata 0782, 1159

.......................................................................................... 0591

0641 Mclntosh 1278

0614,0816,1807,1808,1809 ii

0618, O739 ili 1008,1972,1988,1996

1837 ii ,

Viewson[c 1972

0614,0816 ii ,

1972

0614,0616

O636,1

1972

0199,0490,0573,0820,0899,1044,

1075,1470

_i_._:__ Fisher 0870 [[_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_{l_6g@_;@}_@iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii, ¸ [[_i_'_5__

A[co 0790 0522,1708, 2083 Sanyo 0670, 0695, 0873

Gateway 1073,1077,1158 f_li_ 1T_

Arnphion Media Works 0872,1245 Mitsubishi 0521,1521 Sharp 0630, 0675, 0752,1256

Go Video 0715, 0741, 0744, 0783, 0833, _i 11-_-

Apex Digital 0672, 0717, 0755, 0794, 0796, 0797, 0869,1044,1075,1099,1144,1158, NAD 0692, 0741 Sherwood 0683, 0770,1043,1077

1004,1020,1056,1061,1100 1304,1730 _#_ ...................................................................................... ....................................................................................................................................................

NEC 0785 Sigma Designs 0674

Aspire Digital 1168,1407 GoldStar 0741

0826 Sony 0533,0864,1033,1069,1070,1431,

Audiologic 0736 Greenhill 0717 N_Te_, _ 1432,1433,1516,1533,1536,1548,

................................................................... 1791,1824,1892,1903,1904,1934,

Norcent 0872,1003,1107,1285 1981, 2020, 2043

Axion 1072 Helios 2080

1224 Hkach[ 0573, 0664,1247 Sungab 1074

_i{_:_J' b_ Ot

0717 Humax 1500,1588 _:i!n ,_6_ Sylvania 0675,1268

Panason[c 0458, 0490, 0632, 0703,1010,1011, 0-6"_

BBK

Blaupunkt

Broksonic

Cinea

CineVision

Citizen

Coby

Curtis Mathes

0695,1419 Initial 0717,1472

OB; ............................................................................................Insignia .....

0881 h/tegra 0627

se9 ........................................................................................

0833, 0869, 0876 JBL 0702

0695,1

0778, 0852,1086,1107,1165,1177, JVC 0558 0623, 0867,1164,1275,

1351,1628 1550,1602

0831 {{ .1049,1

1087 Kawasaki 0790

1862,1462,1464,1490,1841,1762, TAG McLaren 0894

1907,1908,1909,1910,1925,1988,

1990, 2017, 2060, 2061, 2062

Technics 0490, 0703

Philips 0508, 0539, 0646, 0675,1267,1340, Techwood 0692

1354, 2056, 2084 Ter :_i_ I_T

_i_6#_ Theta Digital 0571

Polamid 1020,1061,1086,1245,1316,

1478, 2130 Toshiba 0503, 0695,1045,1154,1503,1588,

1808,1789,1854

Desay 1407 Lasonic

_i#_a vi i _

Disney 0675,1270 LG

Durabrand 1127 Loewe

Ebctrohome 2116

Accudan 0675,1416 Funai

Aspire Digital 1168 Go Video 0741,1158,1304,1780 Pioneer 0631

_:1_ i_ , _i _id

Citizen 2116 JVC 1164,1275 RCA 0522

CyberHome 1129,1502 LiteOn 1158,1416,1440 Sensory Science 1158

0798,1173 Vocopro 1027,1360

JJ_ 0522, 0571, 0717, 0790, 0822,1022, 6ox

0591, 0741, 0869 1182,1789 Xwave 1001

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::_g_ ......................................................................................................................................................................................

0511 RJTech 1360 Zenith 0503, 0591, 0741, 0869

_i _6_ _ Z_ 1_

8_ ................................................._ ............................................................................................................

===== :

0675,1334 Panason[c 0490,1010,1011, 2060, 2061, 2062 Sony 1083,1069 1070,1431,1432,

1433,1538

1588

LG 0741 Philips 2084 Samsun 9 0199

LG 0741 RCA 1769

Aiwa 0641

Sherwood 1077 Toshiba 1854

KLH 0790 Philips 1267 _ni _[_ _ .....................................................................................................................................................................................0-7_

_ i_ai sony 1824,1892,1903,1904,1934,1981, Yamaha 0497

Odtron 0651 RCA 0790 2020, 2048

|f® Loc

"V-chip" technology enables you to lock channels or shows according to standard ratings set by the

entertainment industry. (p. 33)

[] U.S. MOVIE RATINGS (MPAA)

PG-13

NC-17

NO RATING (NOT RATED)AND NA (NOTAPPLICABLE) PROGRAMS. Movie which has not been rated or where

does not apply.

GENERAL AUDIENCES. All ages admitted.

PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.

RESTRICTED. Under 17 requires accompanying parent or adult guardian.

NO ONE 17AND UNDERADMITTED.

ADULTS ONLY.

[] U.S. TV PROGRAMS RATINGS (U. S. TV

NR Not Rated.

(Not Rated)

All children. The themes and elements in this program are specifically

designed for a very young audience, including children from ages 2-6.

Youth Directed to older children. Themes and elements in this program may

include mild physical or comedic violence, or may frighten children under

the age of 7.

General audience. It contains little or no violence, no strong language,

and little or no sexual dialogue or situations.

Parental guidance suggested. The program may contain infrequent

coarse language, limited violence, some suggestive sexual dialogue and

situations.

Guidance Parents strongly cautioned. This program may contain sophisticated

themes, sexual content, strong language and more intense violence.

TV-NR

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

_ Viewable

® Blocked

® Viewable

Blocked

_ FV Blocked

Viewable

Blocked

_®Viewable

_ Blocked

® D,L,S,V (all selected)

® Any combination of D,

L,S,V

® D,L,S,V (all selected)

<_Any combination of D,

L,S,V

_®L,S,V (all selected)

_ Any combination of L,

S,V

Mature audiences only. This program may contain mature themes,

profane language, graphic violence, and explicit sexual content.

FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content.

[] CANADIAN

C8+

18+

ENGLISH RATINGS (C. E. L. R.)

Exempt - Exempt programming includes: news, sports, documentaries and other information programming,

talk shows, music videos, and variety programming.

Programming intended for children under age 8. No offensive language, nudity or sexual content.

Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.

General programming, suitable for all audiences.

Parental Guidance suggested. Some material may not be suitable for children.

Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are

strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.

18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence.

•CANADIAN FRENCH RATINGS (C. RL. R.)

Exempt - Exempt programming.

G General- Programming intended for audience of all ages. Contains no violence, or the violence content is minimal

or is depicted appropriately.

8+ General - Not recommended for young children. Programming intended for a broad audience but contains light

8 arls÷ or occasional violence. Adult supervision recommended.

Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or

!3 arts÷ more sufficiently violent scenes to affect them. Adult supervision strongly suggested.

16 ans÷ Programming may not be suitable for children under the age of 16- Contains frequent scenes of violence or intense

violence.

18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.

( Caution )

® The V-Chip system that is used in this set is capable of blocking "NR" programs (non rated, not applicable and

none) as per FCC Rules Section15.120(e)(2). If the option of blocking "NR" programs is chosen "unexpected and

possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of

programming:"

• Emergency Bulletins (Such as EAS messages, weather warnings and others)

• Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather

(1)

8®

O70

O r-

(D r-

r-O

T ch Im

¢ For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL JUST, ZOOM, or 4:3;

characters might be cut off).

_ The CC can be displayed on the TV if the receiver (such as a satellite receiver) has the CC set On using the

Component or HDMI connection to the TV.

® If the CC is set On both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC may

overlap on the TV.

® If a digital program is being output in analog format, the CC data will also be output in analog format.

®_If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output

monitor.

Press the FORMAT button to cycle through the aspect modes, This lets you choose the aspect depending on the

format of the received signal and your preference. (p. 19)

(e.g.: in case of 4:3 image)

® FULL

I 4 _1 _ 16 I

Enlarges the 4:3 image horizontally to the screen's side edges.

(Recommended for anamorphic picture)

® H-FILL

I*----- 4 -------_1 I-, 16 ,-I

Enlarges the 4:3 image horizontally to the screen's side edges.

The side edges of the imageare cut off.

_9ZOOM

I-,_-------4 I I-= 16 >1

@JUST

I-,----- 4 _1 -,--------16 I

Stretches tojustify the 4:3 image to the four corners of the

screen.

(Recommended for normal TV broadcast)

¢ 4:3

I_------ 4 -------_1

Standard

(Note that "Image retention" of the side bar may occur from

displaying it for a long time.)

® 4801 (4:3), 4801(16:9), 480p (4:3), 480p (16:9):

FULL, JUST, 4:3 or ZOOM

® 1080p /10801/720p:

FULL, H-FILL JUST, 4:3 or ZOOM

Enlarges the 4:3 image to the entire screen.

(Recommended for Letter Box)

® Zoom adjust

Vertical image position and size can be adjusted in "ZOOM".

L_ Select "Zoom adjust" on the "Picture" menu. (p. 24-25)

@ V-position: Vertical position adjustment (_ V-size: Vertical size adjustment

® To reset the aspect ratio _® ::_o_-J/";-"" (OK)

Photo:

Data format:

Max. number of files:

Image resolution:

Caution

@ A JPEG image modified with a PC may not be displayed.

@ Partly degraded files might be displayed at a reduced resolution.

@ Folder structure viewed in PC

Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF**

standards

Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)

9,999

160 x 120 to 10,000,000

* DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association's standard

** EXIF (Exchangeable Image File Format)

I_100_PANA"

Created automatically

3-digit folder number + 5-digit arbitrary characters

P1000001.Jpc--_4-digit arbitrary characters + 4-digit file number

il P1000003.JpGP1000002JPG]@ Usable characters: 1-byte "a to z", "A to Z", "0 to 9," and ...._

P1000004.JPG --

@ The folder and file names may be different depending on the digital camera used.

@ For the suitable SD Memory Cards, please confirm the latest information on the following website.

http://panasonic.co.jp/pavc/gtobal/cs (This site is in English only)

@ Do not remove the card while the unit is accessing data (this can damage card or unit).

@ Do not touch the terminals on the back of the card.

@ Do not subject the card to a high pressure or impact.

@ Insert the card in the correct direction (otherwise, card may be damaged).

@ Electrical interference, static electricity, or erroneous operation may damage the data or card.

@ Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic

operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.)

...... ?,_,_,_ f ......

.......... @ The card Is not inserted.

, _ @ The card has no data or this type of data is not supported.

.................................................................................................................................._}e , @ The file is broken or unreadable. I

@ The TV does not support the format.

:3-

£0

T c I(Continued)

HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 28)

® This function may not work normally depending on the equipment condition.

® The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.

® Image or sound may not be available for the first few seconds when the playback starts.

® Image or sound may not be available for the first few seconds when Input mode is switched.

® Volume function will be displayed when adjusting the volume of the equipment.

® If you connect the same kind of equipment at once (for example: one DIGAto HDMI 1 /another DIGAto HDMI 2), VIERA Link is

available for the terminal with the smaller number.

® If you connect equipment that has "HDAVI Control 2" (or more) function to the TV with HDMI cable, the sound from DIGITAL

AUDIO OUT terminal can be output as multi channel surround.

® "HDAVI Control 3" is the newest standard (current as of December, 2007) for the HDAVI Control compatible equipment.

This standard is compatible with the conventional HDAVI equipment.

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting

the TV unit and the devices.

HDMI-compatible equipment C1) with an HDMI or DVl output terminal, such as a DVD player, can be connected to the HDMI

connector using an HDMI compliant (fully wired) cable.

® HDMI is the world's first complete digital consumer AV interface complying with a non-compression standard.

® If the external equipment has only a DVl output, connect to the HDMI terminal via a DVl to HDMI adapter cable C2).

® When the DVl to HDMI adapter cable is used, connect the audio cable to the audio input terminal.

® Audio settings can be made on the "HDMI 1 in", "HDMI 2 in" or "HDMI 3 in" menu screen. (p. 24)

Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz

(q): The HDMI logo is displayed on an HDMI-compliant device.

(_2): Enquire at your local digital equipment retailer shop.

(Caution

@ Use with a PC is not assumed.

® All signals are reformatted before being displayed on the screen.

® If the connected device has an aspect adjustment function, set the aspect ratio to "16:9".

® These HDMI connectors are "type A".

® These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection.

® A device having no digital output terminal may be connected to the input terminal of either "COMPONENT", '% VIDEO", or

"VIDEO" to receive analog signals.

® The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i and 1080p.

Match the output setting of the digital device.

® For details of the applicable HDMI signals, see below.

Mark: Applicable input signal for Component (Y, PB, PR) and HDMI

....75Q (Z_Q)/_Op 45.00 59.94

.....!,_ _5 (!,0SO) t60i i i_iiiiiii} .........................................................

24p 26.97 23.98

1,125(1,080)/24p ! 27.00 ! 24.00 ! !

® Signals other than those shown above may not be displayed properly.

® The above signals are reformatted for optimal viewing on your display.

® Vivid:

® Standard:

® Cinema:

® Game:

® Custom (Photo):

® Picture mode will

Provides enhanced picture contrast and sharpness for viewing in a well-lit room.

Recommended for normal viewing conditions with subdued room lighting.

For watching movies in a darkened room. It provides a soft, film-like picture.

For playing video game. This mode will be set automatically if "GAME" is selected from Input label setting (p. 37)

Customizes each item according to your taste.

Photo is displayed in JPEG menu.

be automatically set to "Standard" if you change the Input label from "GAME" to other labels.

be automatically set to "Game" if you change from an Input label other than "GAME" to "GAME" label.

YoucanenjoyyourhometheaterbyconnectingaDolbyDigital(5.1channel)decoderand"MultiChannel"amplifiertotheDIGITALAUDIOOUTterminals.

( Caution )

® Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output.

® External speakers cannot be connected directly to PROG OUT terminals.

® When an ATSC channel is selected, the output from the DIGITALAUDIO OUT jack will be Dolby Digital. When an NTSC

channel is selected, the output will be PCM.

See pages 40-41 for more information.

Do not display a picture in 4:3 mode for an extended period, as this can cause

"Image retention" to remain on either or both sides of the display field.

To reduce the risk of such "Image retention", change the brightness of the side bars.

See pages 26-27 for more information.

® The side bar may flash (alternate black/white) depending on the picture. Using

Cinema mode wilt reduce such flashing (See below).

Side Bar

Screen E:_

Display

vFImageretention

Scrolling bar: To prevent "Image retention", scrolls white horizontal bar from top to bottom on a black

screen.

® Press any key except the POWER key to return to previous screen.

® You will return to the previous screen if any key operation has not been performed for 15 minutes.

See pages 26-27 for more information.

[Scrolling bar]

Cre a

First, unplug the Power cord plug from the wall outlet.

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint-

free cloth.

_ If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 1O0 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the

display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry.

_ Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

If the cabinet becomes dirty, wipe it with a soft, dry cloth.

® If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap solution and then wring the cloth dry.

Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth.

® Do not allow any mild liquid dish soap to come into direct contact with the surface of the Plasma TV.

If water droplets get inside the unit, operating problems may result.

® Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface

may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made

from rubber or PVC.

® Cleaning

Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to

which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth.

Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface

coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.)

_ Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term

contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.)

S ecifications

Maximum

Standby condition

Drive method

Aspect Ratio

Visible screen size

(W × H ×Diagonal)

(No. of pixels)

Audio Output

nc ud ngpedesta

TVSet only

......................................'";, ..........................

AC 120 V, 60 Hz

583 W

0.2 W (With CableCARD " 30.0 W)

AC type

16:9

42 " class (41.6 inches measured diagonally)

36.2 " x 20.4 " x 41.6 "

922 mm x 518 mm x 1,057 mm)

2,073,600 (1,920 (W) x 1,080 (H))

5,760 x 1,080 dots]

7OOW

0.2 W (W th CableCARD " 34.0 W)

50 " class (49.9 inches measured diagonally)

43.5 " x 24.4 " x 49.9 "

(1,106 mm x 622 mm x 1,269 mm)

20 W [ 10 W + 10W] ( 10 %THD )

VHF/UHF: 2-69, CATV: 1-135

Temperature:

VIDEO:

S-VIDEO:

AUDIO L-R:

PB, PR:

AUDIO L-R:

32 °F- 104 °F (0 °C-40 °C)

20 % - 80 % RH (non-condensinc])

RCAPINTypexl 1.0 V [p-p] (75 0)

Mini DIN 4-pin Y: 1.0 V [p-p] (75 O)

RCAPINTypex2 0.5V[rms]

1.0 V [p-p] (including synchronization)

+0.35 V [p-p]

RCAPINTypex2 0.5V[rms]

TYPE A Connector x 3

@This TV supports "HDAVI Control 3" function.

IEEE 1394 Standard, 4pin, S400 ,MPEG2-TS

SD CARD slot x 1, CabteCARD slot x 1

VIDEO: RCA PIN Type x 1 1.0 V [p-p] (75 O)

AUDIO L-R: RCA PIN Type x 2 0.5 V [rms]

PCM /Dolby Digital, Fiber Optic

3D Y/C FILTER CLOSED CAPTION

V-Chip CabteCARD slot

Photo viewer HDAVI Control 3

41.3"x 28.7"x 12.9"

(1,048 mm x 727 mm x 327 mm)

tru2way-ready TV

49.0 "x 33.3 "x 15.3 "

1,244 mm x844 mm x 387 mm)

41.3" x 26.8 " x 3.8 " 49.0" x 31.2 " x 3.8 "

(1,048 mm x 679 mm x 95 mm) 1,244 mm x 790 mm x 95 mm)

70.6 lb. (32 kg) 90.4 lb. (41 kg)

C: 0.286 V [p-p] (75 O)

66.1 lb. (30 ks) 86.0 lb. (39 ks)

[TH=42PZ80Q]

41.3 " (1,048 mm)

18.0 "

(456 mm)

3.8" (95 mm)

I I

12.9 "(327 ram)

[TH=50PZ80Q]

/_ 49.0 " (1,244 mm) 3.8 " (95 turn)

18.0 " I_1

(456 ram) 15.3 " (387 mm)

MOO

_zD

o_G)

O_=4:

---.6

@ Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

FAQ

Before requesting service or assistance, please follow these simple guides to resolve the problem.

If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance.

For details (p. 55)

For additional assistance, please contact us via the website at:

www. panasonic.com/contactinfo

0White spots or

0 shadow images

(noise)

® Check the position, direction,

and connection of the antenna.

Interference or

frozen digital

channels

(intermittent sound)

_>Change the direction of antenna

for digital channels.

® Check "Signal meter" (p. 35).

If the signal is weak, check the

antenna and consult your local

dealer.

Pictures from external

0°equipment are distorted

, when the unit is

0connected via HDMI

® Is the HDMI cable connected properly?

(p. 40, 41)

®,Turn Off the TV unit and equipment, then

turn them On again.

® Check an input signal from the equipment.

(p. 48)

_ Use equipment compliant with

EIA/CEA-861/861 B.

Recording does not

start immediately

® Check the settings of the recorder. For

details, read the manual of the recorder.

," The remote control does '

-_ not work 0

_, Are the batteries installed correctly? (p. 6) _

_ Are the batteries new? I

® Selectthe correct remotecontrolmode (p. 13, 22)

If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the

suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model

number and serial number (both found on the rear of the TV).

"Pr A-A any key to etu n

moves on the screen

Some spots remain

bright Or dark

Chaotic image, noisy

No image can be

displayed

Only spots are displayed

instead of images

Neither image nor

sound is produced

Black Box appears

No sound is produced

Sound is unusual

"17

,,<

:}>

Unknown sound heard

1- Sounds from TV

cabinet

2- Whirring sound

3- Tick/Click sound

4= Buzzing sound

_"1-Changes in the temperature and humidity of the room may cause

the TV's cabinet to expand or contract and produce metallic

sounds. This is not a sign of faulty operation or a malfunction.

2- The TV may have a cooling fan that makes a soft whir.

This is not a sign of faulty operation or a malfunction.

3- WhentheTV ispoweredon,an electricalcomponentintheTVactivates

producinga tick/clicksound.Thisis nota signof faultyoperationora malfunction.

4- Electrical circuits are active while the TV set is on.

Parts of the TV set

become hot.

Li ited nty

PANASONIC CONSUMER ELECTRONICS COMPANY,

DiViSiON OF

PANASONIC CORPORATION OF NORTH AMERICA

One Panasonic Way

Secaucus, New Jersey 07094

(forU.S.A.and Puerto Rico only)

Panasonic Color Television

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer

Electronics Company (referred to as "the warrantor") will, for the length of the period indicated on the chart below,

which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product

with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace

will be made by the warrantor.

PANASONIC Plasma Television Manual L0905190

Navigation menu

Versions of this User Manual:

Views

Navigation
