PANNIN TECHNOLOGIES REENFORCER Body Worn Camera Recorder User Manual
PANNIN TECHNOLOGIES, LLC Body Worn Camera Recorder
User Manual
1
Re-En
f
orcer
Body Camera
User Manual
2
Content
1. Functions.................................................................................................................................. 3
2. Operation Manual.........................................................................................................................4
2.1 Parts description.........................................................................................................................4
2.2 Power on and Off ..................................................................................................................... 5
2.2.1 Quick key for power on and record......................................................................5
2.3 Reset.............................................................................................................................................5
2.4 Recording.....................................................................................................................................5
2.5 Voice recording...........................................................................................................................5
2.6 Photo............................................................................................................................................5
2.7 IR light on/off..............................................................................................................................5
2.8 Mic on/off....................................................................................................................................5
2.9 LCD on/off................................................................................................................................... 6
2.11 Playback.....................................................................................................................................6
2.12 PTT function for Two Way Radio........................................................................................... 6
2.13 External camera........................................................................................................................ 6
2.14 Menu setting.............................................................................................................................7
2.14.1 Resolution....................................................................................................................7
2.14.2 Photo resolution.........................................................................................................7
2.14.3 Car mode..................................................................................................................... 7
2.14.4 Auto power off when idle......................................................................................... 7
2.14.5 Auto LCD off................................................................................................................7
2.14.6 Stoprecordingdelay..................................................8
2.14.7 GPS auto update date/time......................................................................................8
2.14.8 Time zone setting.......................................................................................................8
2.14.9 Volumne...................................................................................................................... 8
2.14.10 Defuat settings............................................................................................................ 9
2.14.11 Language ....................................................................................................................9
2.14.12PoliceID.... ........... .................................9
2.15 GPS functions..........................................................................................................................10
2.15.1 GPS on....................................................................................................................... 10
2.15.2 GPS playback............................................................................................................ 10
2.16 2G function (PDV02G)........................................................................................................... 10
3. Data managing software........................................................................................................... 11
3.1 Install data managing software..............................................................................................11
3.1.1 Personal software..................................................................................................11
3.1.2 Data safety manage software..............................................................................11
4. FAQ...............................................................................................................................................12
3
1. Functions
RE-ENFORCER is a multi functional police DVR designed based on the actual
needs of all polices. With the ability of recording, photo, voice recording, GPS
positioning, PTT, long distance GPS trace, long distance screenshot, etc,
RE-ENFORCER can digitally recording the whole process of law enforcement and
provide efficient videos for the case command, detection & evidence obtain.
RE-ENFORCER is small, light, easy taking, waterproof, dust proof, drop and ESD
withstanding and etc. IR lights helps to get clear picture at night. With the correct
password, the RE-ENFORCER DVR support play back without delete or modified
which ensure the justice and authority of the video files.
Remark: Please fully charge the battery when first time use. Please charge no less than 6
hours. When charging the LED lights red, it turns off when fully charged.
4
2. Operation Manual

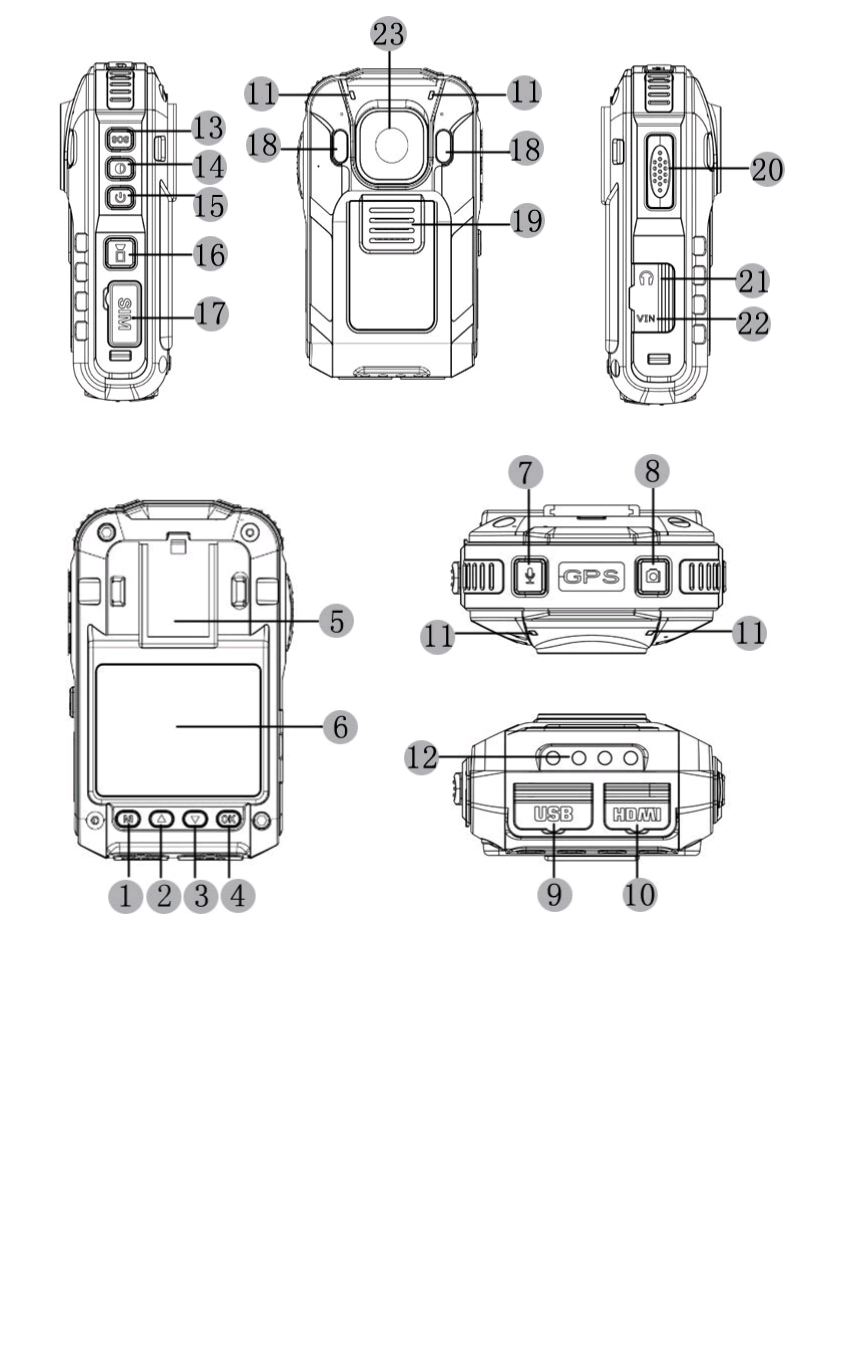

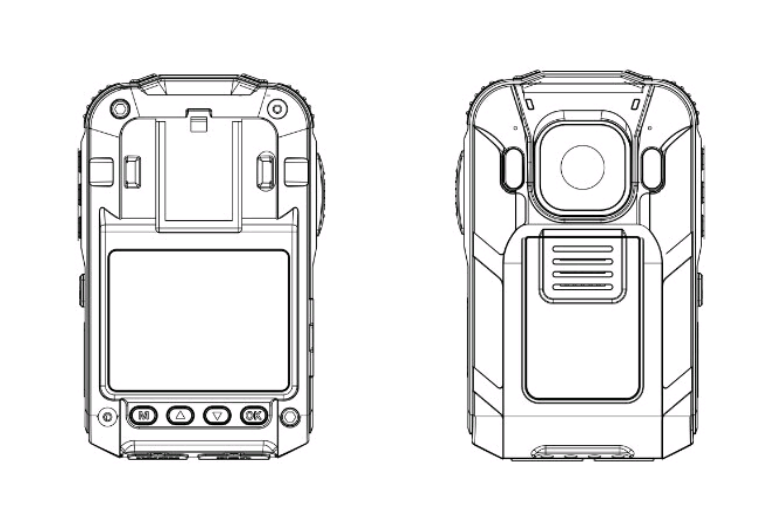

2.1 Parts description
1. MODE key 2. Up key 3. Down key
4. OK key 5. Clip slot 6. LCD
7. Voice Record key 8. Photo key 9.USB port
10. HDMI port 11. LED lights 12. Charging port
14.IR light on/off key 15. Power key
16. Quick key (power on & record) / record key 17. Rest & SIM card (only
PDV02G)
18. IR light 19. Speaker 20.PTT
5
2.1. Power on and Off
Power on: long press for 2 seconds, after sound, the RE-ENFORCER goes into preview
mode
Power off: long press for 2 seconds, it power of with sound
2.2.1 Quick key for power on and record
Long press recording key for 1.5seconds then release, the RE-ENFORCER will auto start
power on and into record mode and start recording.
2.3 Reset
When RE-ENFORCER can’t power on/off or work abnormally, can press rest to power off
or rest system.
2.4 Record
At preview mode, press record key, it started recording. The record icon turns to red
along with a sound. During recording, press record key, the recording icon turns
to green along with a sound. The data will be saved as a mov file.
2.5 Voice record
At preview mode, press voice record key, it turns to voice record mode. It started
recording after the reminding sound. During recording, press voice record key again, it will
stoprecordalongwitharemindingsound.The voice file will be saved as a WAV file.
2.6 Photo
At recording preview mode, press photo key, it will switch to photo mode and take a
photo. It will back recording preview mode as soon as a “kacha”sound (which means
photo has been taken) . Photo resolution can be set in Menu. The file will be saved as jpg
file.
2.7 IR light on/off
At preview or photo mode, presses IR light on/off key for 1.5 seconds, it will turn on/off
the IR light, and automatically switch the IR filter. If the IR light is on , the Icon is green
. When it is off, the icon is white .
2.8 MIC on/off
At recording mode, press down key to on/ff mic. The icon will be showed on LCD off
(/). When MIC is off, there will be no sound in the video.
6
2.9 LCD on/off
At recording mode, up key can on/off LCD。
2.11 Playback
At pre-recording mode, press Mode key into thumb-nail mode. Press OK to choose
and then play/pause playing the video/photo. During playback, pressing up/down key to
fast play/slow play the video.
2.12 PTT function for Two Way Radio
Connecting the RE-ENFORCER to Two Way radio, RE-ENFORCER can be used as the Mic
& speaker for Two way radio. Press PTT can talk.
2.13 External camera
( external camera suppoert1920x1080 30fps, 1280x720 30fps）
RE-ENFORCER Support 1 external camera (need buy separately). Plug the external
camera at AV in port. Then power on, the video from the external camera can be shown on
LCD.
When using external camera, the main camera is blocked.
If system detected external camera is pulled out, RE-ENFORCER will auto power off. It
need to re-power on to use its main camera.
2.14 Menu Setting
At preview mode, press Menu to into menu setting mode (up/down key to select)

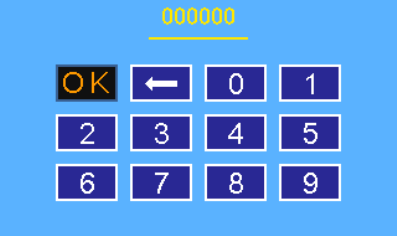

Remark: it need password to change menu setting (default: 000000)
7

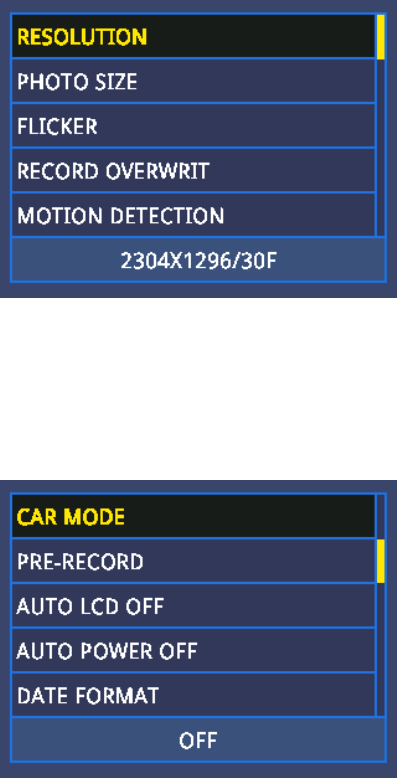

2.14.1 Resolution:
2304×1296 30fps, 1920×1080 30fps and 1280×720 30fps（Press OK to select）
2.14.2 Photo resolution
16M, 12M, 8M, 5M and 2M（Press OK to select）
2.14.3 Car mode
When car mode is “on”, it will start into recording when car charging is connected.
2.14.4 Auto power off when idle
When no operation is made at set period (idle, can choose off/3min/5min), the
RE-ENFORCER will auto power off to save energy.
2.14.5 Auto LCD off
When RE-ENFORCER stand by for set period ( off/30s/60s/3min, press OK to set), the
RE-ENFORCER will auto off the LCD to save energy。
8

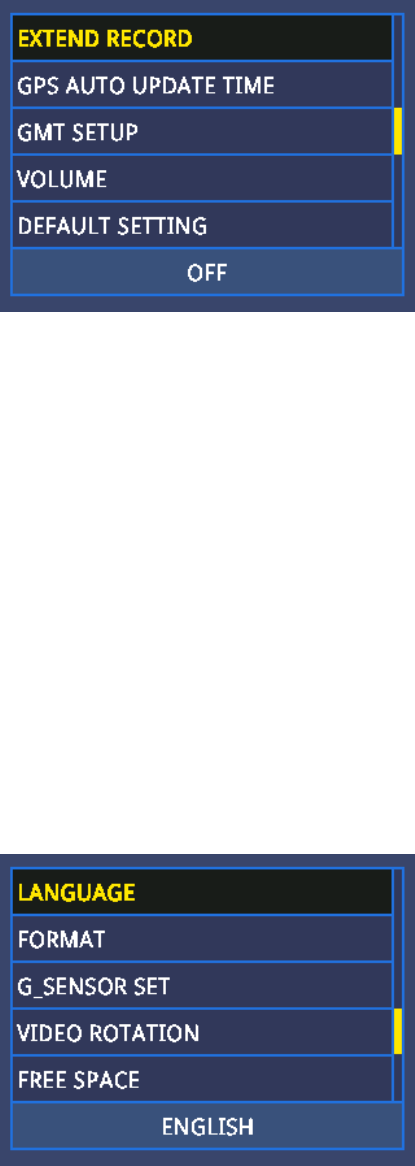

2.14.6 EXTEMD recording
Set the recording off delay time (off/3s, 5s, & 15s) for RE-ENFORCER. During
recording, press the REC key will stop recording when (recording off delay is off). If
recording off is 3 seconds, RE-ENFORCER will continue to record 3 s then stop recording)
2.14.7 GPS Auto update date and time
When its on , the RE-ENFORCER will auto synchronize the date and time of GPS.
2.14.8 GMT setting
Set local GMT
2.14.9 Volume
High, middle & low。
2.14.10 Default setting
Choose “yes” will back to default setting.
2.14.11 Language
Chinese, English, Russia, Japanese & Korean
Chinese and English are the standard ones.
9

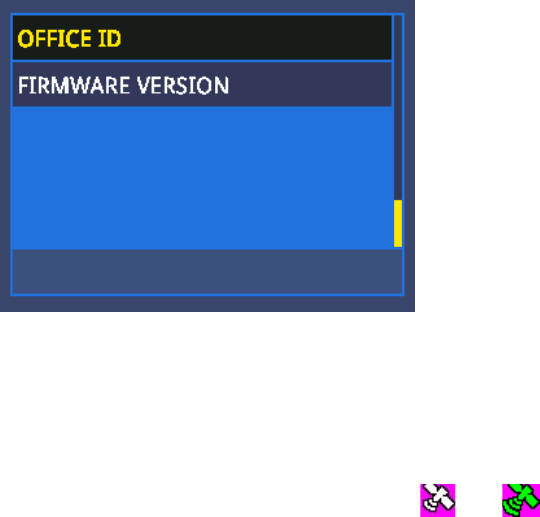

2.14.12 Police ID
Can set police ID thought Data managing software:
2.15 GPS function
2.15.1 GPS on
Default GPS on. It will auto searching satellite when RE-ENFORCER was powered on.
After got the GPS signal, the icon turns from to . When the icon is green, the
GPS coordinate info is recorded at “video file name .dat” file and saved on card. It take
about 3-5 min to catch GPS signal for cold start.
2.15.2 GPS Playback
With our special player, the moving trace on Google map can be seen while playing the
video file. Please see detail instruction at 3.1.1
10
3. Data managing software
3.1 Install data managing software
Install the software on the CD which is put inside of the package of the product. There
will be 2 software icons in the computer (Personal software and data safety manage
software)
3.1.1 Personal software
It only for video playback, can not edit the files (re-name, delete, copy, format, etc).
Remind: Initial password is “123456”。

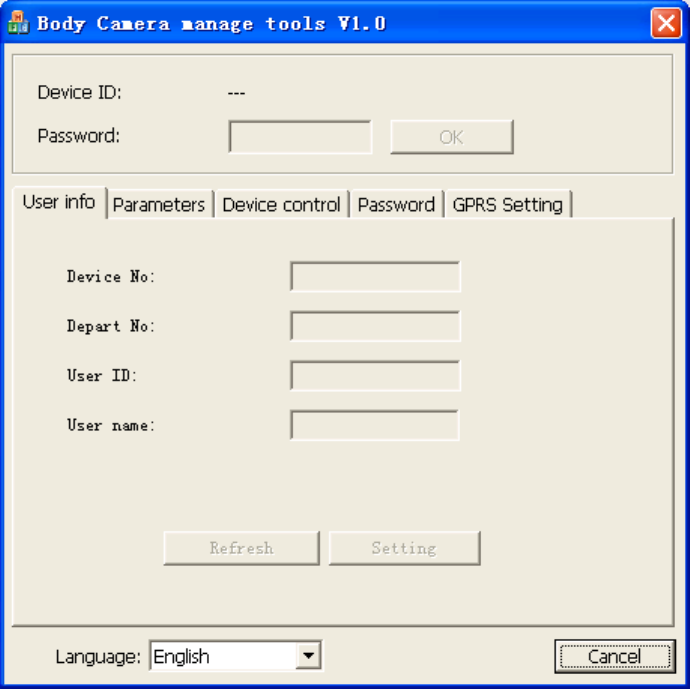

3.1.2 Data safety manage software
Data safety manages software:
1. Can view, copy, paste, delete, Shear and format the file.
2. Change the password for personal software and data safety manage software.
3. Set the equipment info: RE-ENFORCER Number, Using department, Using department
number, User name, User Number, recording resolution, photo resolution, file length, etc.
4. Auto synchronizes the date/time with PC.
5. Format the memory
6. Set the 2G parameter and SOS key function (set message or making call, for PDV02G)
11
Remind: initial password is “000000”, please change the password on time.
12
4FAQ
1. Cannot power on
Check if the status of the battery, charging it on time
2. Press power on, no re-action
Reset the RE-ENFORCER
3. Date/Time not correct
Check the local GMT setting is correct or not. Re-power on to re-connect GPS.
Synchronize the date/time of RE-ENFORCER with the PC
4. No connection between PC and RE-ENFORCER
Install the driver from CD. And then re-connect
5. Color loss
Check if the IR light was turned on.
6. GPScan’tgetGPSsignal
GPS can be effect by weather, position
7. Monitor System can’t positions the RE-ENFORCER.
Check if the SIM card is inserted and with the GPRS function opened and there is enough
money in the account SIM card account. It is also affected by the signal strength where the
RE-ENFORCER is using.
13
FCC Requirement
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy, and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
