ENGLISH
PRESENTATION OF THE
PARROT FLYPAD CHARGING THE BATTERY
1. Connect the micro USB cable to the Parrot
Flypad’s micro USB port.
2. Connect the USB port to a computer or a USB
power adapter.
> The charge LED turns red to indicate that
charging is in progress. Once charging is
complete, the LED turns green.
The charge time is approximately 2 hours. Once
charged, the Parrot Flypad has a battery life of
about 6 hours.

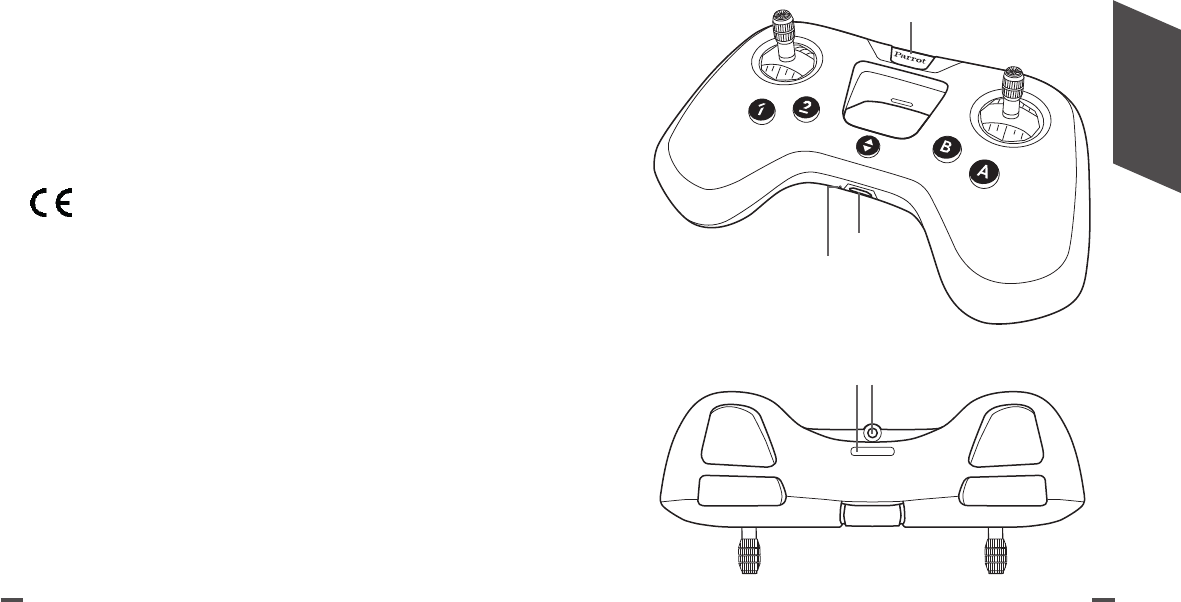

R2
R1
L2
L1
Smartphone
holder
attachment
TAKE OFF
On/Off button
Micro
USB port
Charge LED
TAKE OFF
76
ENGLISH
CONNECTING THE
PARROT FLYPAD TO
YOUR DRONE
1. Turn on your drone.
2. Press the Parrot Flypad’s ON/OFF button to
turn it on.
> The Parrot Flypad’s warning light flashes
green and then becomes a steady green
when the connection is established.
You are connected to the drone, and you can fly it.
ATTACHING THE
SMARTPHONE HOLDER
Before using the Parrot Flypad’s smartphone
holder, make sure your smartphone does not
exceed the following dimensions:
Width: 78 mm.
Thickness: 9.8 mm.

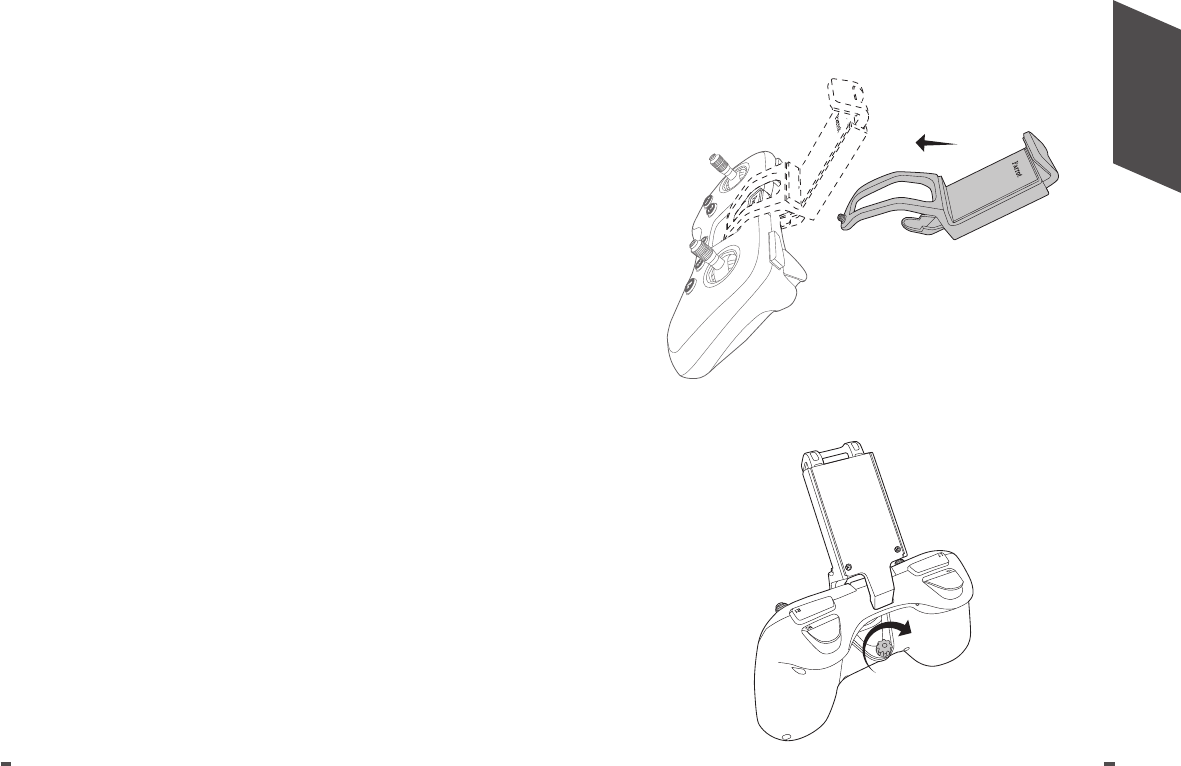

1. Secure the smartphone holder’s tab in the Parrot
Flypad’s slot.
2. Screw on the holder.
98
ENGLISH
CONNECT YOUR SMARTPHONE
TO THE PARROT FLYPAD AND THE
PARROT DRONE
1. Make sure your Parrot Flypad is switched off.
2. Turn on your Parrot drone.
3. Place the Parrot drone on a flat surface with the
propellers up.
4. Wait until the warning lights on the Parrot drone
turn green.

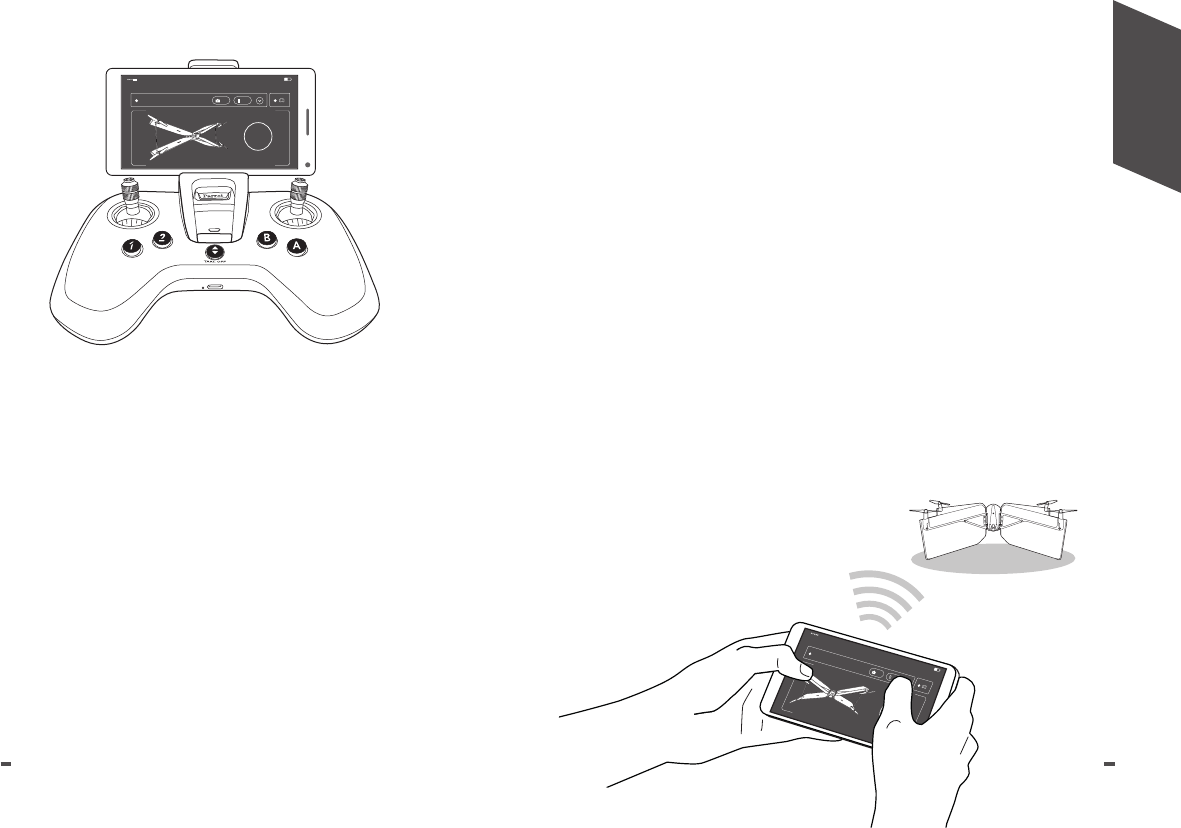

5. On your smartphone, turn on the Bluetooth®
function and open the FreeFlight Mini
application.
> The list of available Parrot drones appears.
6. Select your Parrot drone.
> The application connects to the Parrot drone.
3. Fit your smartphone in the holder.
PARROT 4:21 PM 22%
Builder nodesign
My flights
START
06 98%
CONFIGURING THE
PARROT FLYPAD’S
BUTTONS
DOWNLOAD THE FREEFLIGHT
MINI APPLICATION
Login to the App Store® or Google PlayTM and
download the free FreeFlight Mini application to
your smartphone or tablet.
PARROT
4:21 PM
22%
Builder nodesign
My flights
START
06
98%
1110
ENGLISH
2. In the application, press the function you want
to change to select it.
3. On your Parrot Flypad, press the button you
want to assign the function to.
> The button and the function are associated.
To return to the default settings, press Reset.
TURNING OFF THE
PARROT FLYPAD
To turn off the Parrot Flypad, press and hold down
the On/Off button.
7. Turn on your Parrot Flypad.
> The Parrot Flypad’s warning light flashes
green.
8. In the FreeFlight Mini application, press
9. Press to display the drop-down list.
10. Select your Parrot Flypad.
> The warning light on the Parrot Flypad turns
green: you are connected. You can configure
the buttons of the Parrot Flypad.
CONFIGURING THE BUTTONS
Before you start, make sure your smartphone is
connected to the Parrot Flypad and the Parrot
drone.

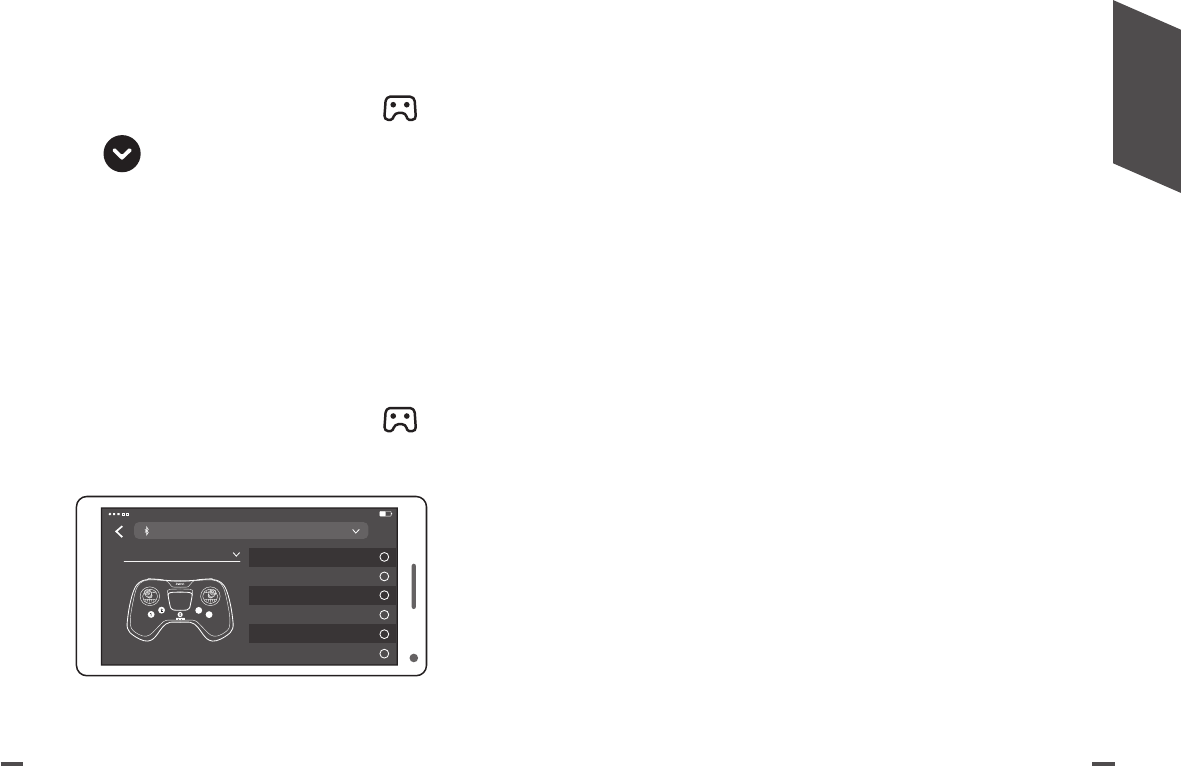

1. In the FreeFlight Mini application, press
> The list of functions associated with the
Parrot Flypad buttons appears.
B
A
Flip backward
Take picture
Air break
Landing
Fast settings
Flip
PARROT 4:21 PM 22%
MinicontrolerM
Fly Ace
?
1312
ENGLISH
WARNING LIGHT
INDICATIONS
Steady green light
The Parrot Flypad
is connected to the
Parrot drone or your
smartphone.
Flashing green light The Parrot Flypad is
waiting for a connection.
Flashing red light
The Parrot Flypad is
waiting for a connection,
but its battery is low.
> Charge the Parrot
Flypad’s battery.
Steady red light
The Parrot Flypad is
connected to your
smartphone or your
Parrot drone, but its
battery is low.
> Charge your Parrot
Flypad’s battery.
Steady red light and
the Parrot Flypad is
vibrating
The Parrot Flypad is
connected to your
smartphone or your
Parrot drone, but the
Parrot drone’s battery is
low.
> Charge your Parrot
drone’s battery.
GENERAL INFORMATION
PRECAUTIONS FOR USE AND MAINTENANCE
The Parrot Flypad is intended to fly the Parrot Mambo and the Parrot Swing and
is not suitable for children under 14 years of age.
Check the list of drones that are compatible with the Parrot Flypad in the Sup-
port section on www.parrot.com.
Only use accessories specified by Parrot Drones SAS.
If sand or dust gets into the Parrot Flypad, it may be irreparably damaged and
no longer function correctly.
Do not expose the Parrot Flypad to rain or sun for an extended period.
Do not use this device near liquids.
Risk of ingestion of small objects. The packaging is not part of the product and
must be discarded as a safety measure.
WARNING REGARDING PRIVACY AND RESPECT FOR IMAGES
OF PROPERTY
Recording and broadcasting an individual’s image without their permission may
constitute an invasion of privacy and you may be held liable. Ask permission
before filming people, especially if you intend to keep your recordings and/
or broadcast them. Do not broadcast degrading images which may affect an
individual’s reputation or dignity.
Recording and broadcasting the image of property without permission from
its owner and or any third party holding intellectual property rights on the pro-
perty may constitute a violation of the property’s image rights and you may be
held liable. Ask permission from its owner and/or any third party with ownership
rights.
WARRANTY
For the warranty conditions, please read the Terms and Conditions of sale of the
retailer where you purchased the Parrot Flypad.
HOW TO RECYCLE THIS PRODUCT
This symbol on the product or its documentation indicates that it must
not be disposed of with household waste. Uncontrolled waste disposal
may harm the environment or human health. Please separate your device
from other types of waste to recycle it responsibly. This will help to foster
the sustainable re-use of material resources. We invite you to contact your retai-
ler or inquire at your local town hall to find out where and how the Parrot Flypad
can be recycled.
CONFORMITY DECLARATION
PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, here-
by declares that it is solely responsible for the compliance of the pro-
duct described in this user guide with technical standards, EN 301489-
17, EN300328, EN71-1, EN71-2, EN71-3, EN62115, EN62321 (1-7),
according to the provisions of the R&TTE Directive 1999/5/EC and the Ge-
neral Product Safety Directive 2001/95/EC, the ROHS Directive 2011/65/EU.
http://www.parrot.com/uk/ce/?parrot-flypadhttp://www.parrot.com/ce/?par-
rot-flypad
15
FRANÇAIS
14
DECLARATION OF CONFORMITY IN CANADA
This device complies with the Industry Canada RSS applicable to license-exempt
radio apparatus. Operation is permitted subject to the following two condi-
tions: (1) the device must not produce interference, and (2) the user of the de-
vice must accept any radio interference encountered, even if the interference is
likely to compromise operations.
TRADEMARKS
Parrot Flypad, Parrot Swing as well as their respective logos are trademarks of
Parrot Drones SAS.
Parrot and the Parrot logos are trademarks of Parrot S.A.
App Store is a trademark of Apple Inc.
Google Play is a trademark of Google Inc.
The Bluetooth® name and logo are registered trademarks of Bluetooth SIG, Inc.
and any use of these trademarks by Parrot Drones SAS is done under licence.
All other trademarks mentioned in this guide are the property of their respec-
tive owners.
MANUFACTURER INFORMATION
The Parrot Flypad is manufactured by: PARROT DRONES SAS - 174 Quai de
Jemmapes - 75010 Paris (France) - Corporate and Trade Register Paris 808 408
074
www.parrot.com
