ENGLISH

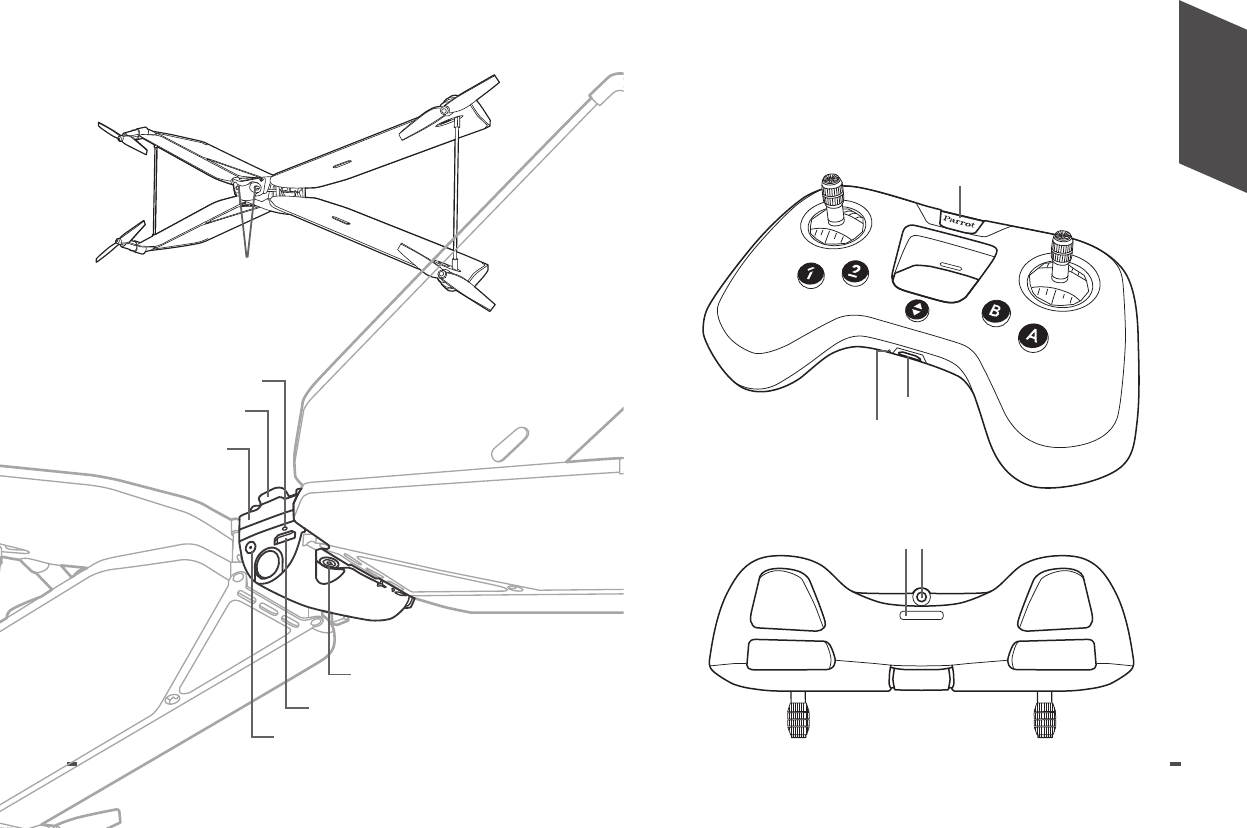

PRESENTATION OF
THE PARROT SWING
Battery
enclosure
Micro USB port
On/Off
button
Tab
Charge LED
Warning lights
Camera

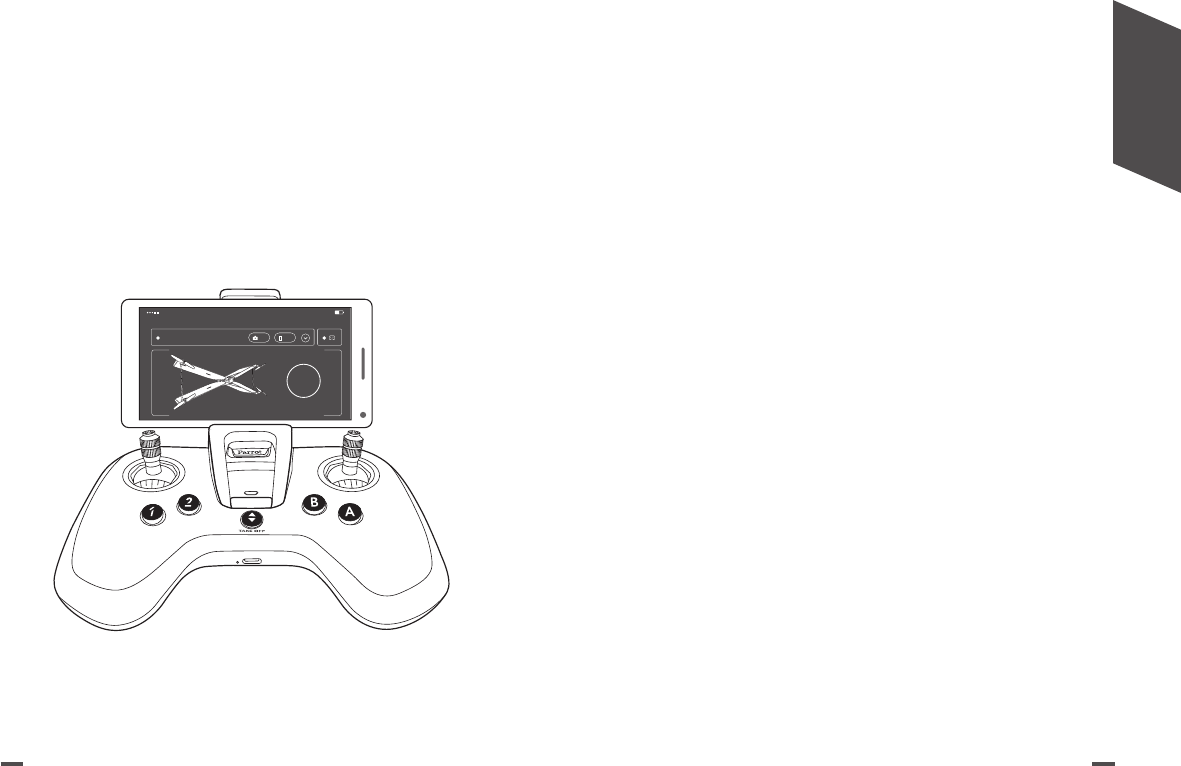

PRESENTATION
OF THE PARROT FLYPAD
R2
R1
L2
L1
Smartphone
holder
attachment
TAKE OFF
On/Off button
Micro
USB port
Charge LED
76
ENGLISH
1. Insert the battery in the slot provided for this
purpose.
The charge LED is steady red when charging.
The charge time is approximately 30 minutes with
a 2.1A charger. Once charging is complete, the
charge LED turns green.
To remove the battery, lift the tab and slide the
battery backwards.

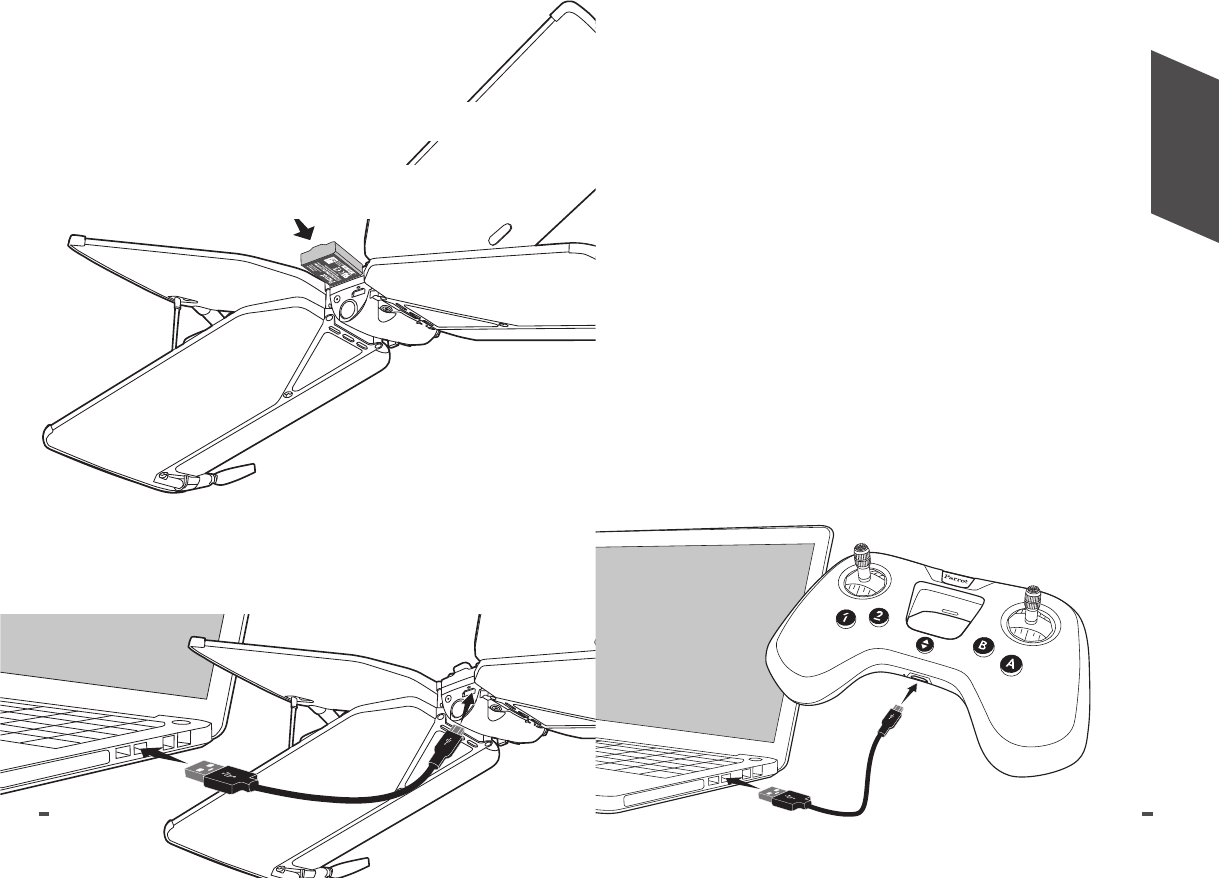

PARROT FLYPAD:
CHARGING THE BATTERY
1. Connect the micro USB cable to the Parrot
Flypad’s micro USB port.
2. Connect the USB port to a computer or a USB
power adapter.
> The charge LED turns red to indicate that
charging is in progress. Once charging is
complete, the LED turns green.
TAKE OFF
2. With the micro USB cable, connect the Parrot
Swing to a computer or a USB power adapter.
PARROT SWING:
CHARGING THE BATTERY
98
ENGLISH
The charge time is approximately 2 hours. Once
charged, the Parrot Flypad has a battery life of
about 6 hours.

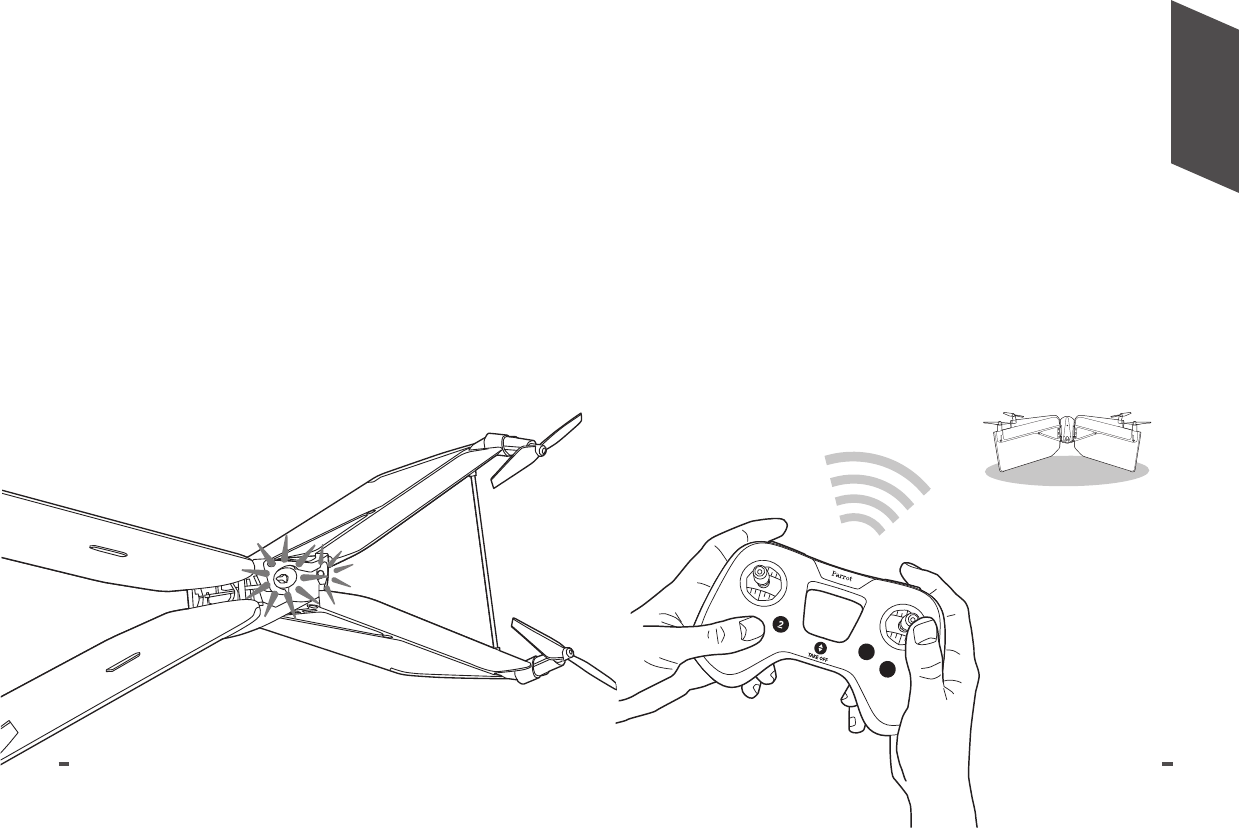

CONNECTING THE
PARROT FLYPAD TO THE
PARROT SWING
1. Insert the battery in the slot provided for this
purpose or press the On/Off button.
>The Parrot Swing turns on.
2. Place the Parrot Swing on a flat surface with the
propellers up.
3. Wait until the warning lights turn green.
4. Press the Parrot Flypad’s ON/OFF button to turn
it on.
> The Parrot Flypad’s warning light flashes green
and then becomes a steady green when the
connection is established.
B
A
1110
ENGLISH
TAKING OFF
1. Place the Parrot Swing on a flat surface with the
propellers up.
2. Press .
> The Parrot Swing takes off and stabilises at 1
meter above the ground waiting for a com-
mand.
LANDING
To land the Parrot Swing, press the button.
>The Parrot Swing lands.

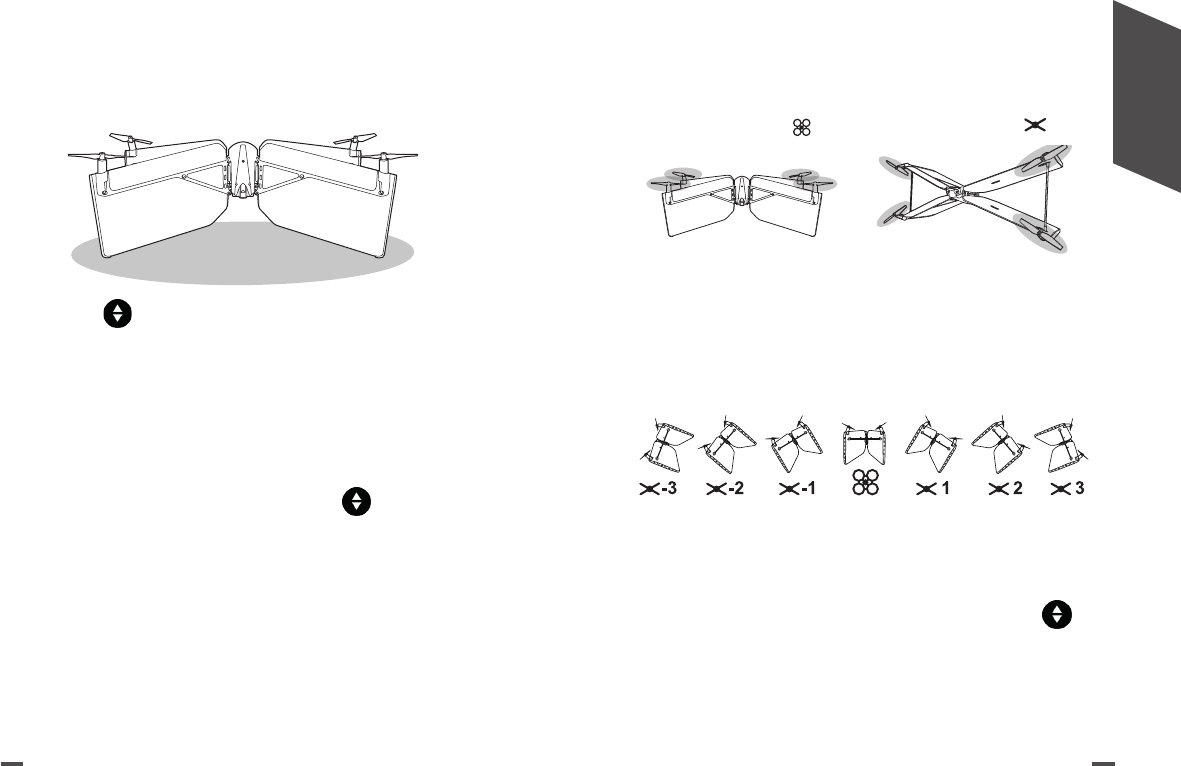

FLYING
You can fly the Parrot Swing in:
Quad mode: Plane mode:
Press R2 for the plane mode on the Parrot Swing’s
back, or L2 for the plane mode on the Parrot
Swing’s front.
While in plane mode, the Parrot Swing has several
gears:
The more parallel to the ground the wings of the
Parrot Swing are, the faster the Parrot Swing will
go.
For the quad mode, lower the gears or press .
1312
ENGLISH
R2
R1
L2

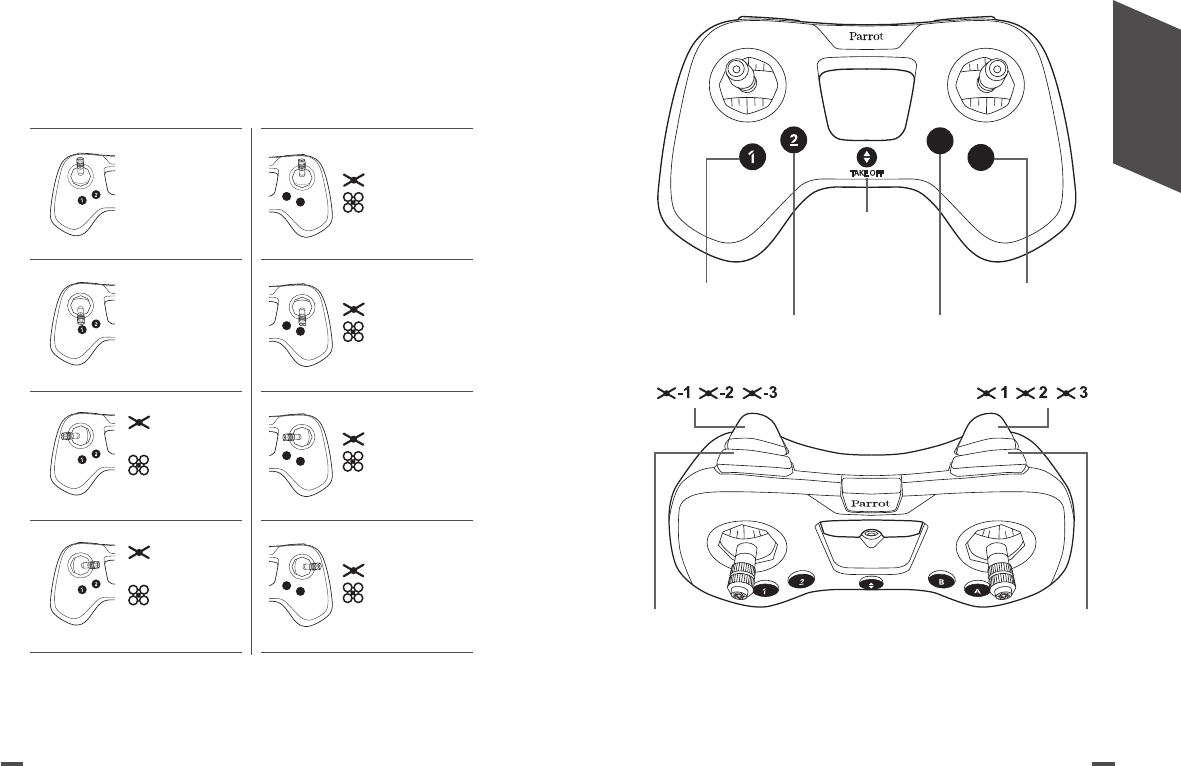

L1
Take a
U-turn
Change gears
Change gears
This configuration is the default configuration.
Change and customise the Parrot Flypad’s
commands (see Configuring the buttons).
B
A
Pre-programmed
pattern 1
Pre-programmed
pattern 2 Pre-programmed
pattern 3
Pre-programmed
pattern 4
Take off/Land -
Switch to Quad
Mode
B
A
Go up
B
A
Go down
B
A
Quarter
turn to the left
Rotate left
B
A
Quarter
turn to the right
Rotate
right
B
A
Accelerate
Go forward
B
A
Slow down
Go backward
B
A
Turn left
Move left
B
A
Turn right
Move right
LEFT CONTROL RIGHT CONTROL
1514
ENGLISH
WARNING LIGHT
INDICATIONS
PARROT SWING
Steady
orange light
The Parrot Swing is
starting up.
> Place the Parrot
Swing on a flat
surface with the
propellers up.
Steady
green light The Parrot Swing is
ready for use.
Flashing
red light
The Parrot Swing’s
battery is low.
> Charge the battery.
Steady
red light
The Parrot Swing has
detected a problem.
> Make sure Bluetooth®
is enabled on your
smartphone. If the
problem persists, visit
www.parrot.com.
PARROT FLYPAD
Steady
green light
The Parrot Flypad
is connected to the
Parrot Swing or your
smartphone.
Flashing
green light The Parrot Flypad is
waiting for a connection.
Flashing
red light
The Parrot Flypad is
waiting for a connection,
but its battery is low.
> Charge the Parrot
Flypad’s battery.
Steady
red light
The Parrot Flypad is
connected to your
smartphone or your
Parrot Swing, but its
battery is low.
> Charge your Parrot
Flypad’s battery.
Steady red light
and the Parrot
Flypad is vibrating
The Parrot Flypad is
connected to your
smartphone or your
Parrot Swing, but the
Parrot Swing’s battery
is low.
> Charge your Parrot
Swing’s battery.
1716
ENGLISH
FREEFLIGHT MINI
You can configure the settings of your Parrot Swing
and your Parrot Flypad.
To do this:
Login to the App Store® or Google PlayTM and
download the free FreeFlight Mini application.
PARROT 4:21 PM 22%
Builder nodesign
My flights
START
06 98%
GENERAL INFORMATION
PRECAUTIONS FOR USE AND MAINTENANCE
The Parrot Flypad is intended to fly the Parrot Swing and is not suitable for
children under 14 years of age.
Check the list of drones that are compatible with the Parrot Flypad in the Sup-
port section on www.parrot.com.
Only use accessories specified by Parrot Drones SAS.
If sand or dust gets into the Parrot Flypad, it may be irreparably damaged and
no longer function correctly.
Do not expose the Parrot Flypad to rain or sun for an extended period.
Do not use this device near liquids.
Risk of ingestion of small objects. The packaging is not part of the product and
must be discarded as a safety measure.
PARROT SWING
The Parrot Swing is not suitable for children under 14 years of age.
The Parrot Swing is a model aircraft designed for recreation and leisure. The pi-
lot must, at all times, maintain eye contact with the Parrot Swing and control its
trajectory. The Parrot Swing must be used according to the rules of civil aviation
in your country. The places where it is used must be suitable for its progres-
sion in order to continuously ensure the safety of people, animals and property.
Using the Parrot Swing in some public places (for example: train stations, airpo-
rts, etc.) or on public roads may not be allowed.
The Parrot Swing’s propellers in flight can cause damage to people, animals or
objects. Always stay a safe distance away from the
Parrot Swing. Do not touch the Parrot Swing in flight. Wait for the propellers to
fully stop before handling the Parrot Swing.
Only use accessories specified by Parrot Drones SAS.
If sand or dust gets into the Parrot Swing, it may be irreparably damaged and
no longer function properly.
Do not use the Parrot Swing in adverse weather conditions (rain, strong wind or
snow) or when visibility is poor (at night).
Keep the Parrot Swing away from high voltage power lines, buildings or any
other potentially hazardous areas.
Do not use this device near liquids. Do not place the Parrot Swing on water or
on a wet surface as this could cause irreparable damage.
Do not leave the Parrot Swing in the sun.
WARNING REGARDING PRIVACY AND RESPECT FOR IMAGES
OF PROPERTY
Recording and broadcasting an individual’s image without their permission may
constitute an invasion of privacy and you may be held liable. Ask permission
before filming people, especially if you intend to keep your recordings and/
or broadcast them. Do not broadcast degrading images which may affect an
individual’s reputation or dignity.
Recording and broadcasting the image of property without permission from
its owner and or any third party holding intellectual property rights on the pro-
1918
ENGLISH
perty may constitute a violation of the property’s image rights and you may be
held liable. Ask permission from its owner and/or any third party with ownership
rights.
HOW TO RECYCLE THIS PRODUCT
This symbol on the product or its documentation indicates that it must
not be disposed of with household waste. Uncontrolled waste disposal
may harm the environment or human health. Please separate your de-
vice from other types of waste to recycle it responsibly. This will help to
foster the sustainable re-use of material resources. We invite you to contact your
retailer or inquire at your local town hall to find out where and how the Parrot
Flypad can be recycled.
WARRANTY
For the warranty conditions, please read the Terms and Conditions of sale of the
retailer where you purchased the Parrot Flypad/Parrot Swing.
CONFORMITY DECLARATION (PARROT FLYPAD)
PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, here-
by declares that it is solely responsible for the compliance of the pro-
duct described in this user guide with technical standards, EN 301489-
17, EN300328, EN71-1, EN71-2, EN71-3, EN62115, EN62321 (1-7),
according to the provisions of the R&TTE Directive 1999/5/EC and the Ge-
neral Product Safety Directive 2001/95/EC, the ROHS Directive 2011/65/EU.
http://www.parrot.com/uk/ce/?parrot-flypad
CONFORMITY DECLARATION (PARROT SWING)
PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, here-
by declares that it is solely responsible for the compliance of the pro-
duct described in this user guide with technical standards, EN 301489-17,
EN300328, EN71-1, EN71-2, EN62115 according to the provisions of the
R&TTE 1999/5/CE and the General Product Safety Directive 2001/95/
EC. The statement of compliance is available at the following address:
http://www.parrot.com/uk/ce/?parrot-swing
DECLARATION OF CONFORMITY IN CANADA & FCC
This device complies with the Industry Canada RSS applicable to license-exempt
radio apparatus. Operation is permitted subject to the following two condi-
tions: (1) the device must not produce interference, and (2) the user of the de-
vice must accept any radio interference encountered, even if the interference is
likely to compromise operations.
TRADEMARKS
Parrot Flypad, Parrot Swing as well as their respective logos are trademarks of
Parrot Drones SAS.
Parrot and the Parrot logos are trademarks of Parrot S.A.
App Store is a trademark of Apple Inc.
Google Play is a trademark of Google Inc.
The Bluetooth® name and logo are registered trademarks of Bluetooth SIG, Inc.
and any use of these trademarks by Parrot Drones SAS is done under licence.
All other trademarks mentioned in this guide are the property of their respec-
tive owners.
MANUFACTURER INFORMATION
The Parrot Flypad/Parrot Swing is manufactured by: PARROT DRONES SAS -
174 Quai de Jemmapes - 75010 Paris (France) - Corporate and Trade Register
Paris 808 408 074
